Resource Recovery of Waste Nd–Fe–B Scrap: Effective Separation of Fe as High-Purity Hematite Nanoparticles

Abstract

Recycling rare-earth elements from Nd magnet scrap (Nd–Fe–B scrap) is a highly economical process; however, its efficiency is low due to large portions of Fe impurity. In this study, the effective separation of Fe impurity from scrap was performed through an integrated nitric acid dissolution and hydrothermal route with the addition of fructose. Results showed that more than 99% of the scrap was dissolved in nitric acid, and after three dilutions that the Nd, Pr, Dy and Fe concentrations in the diluted acid were 9.01, 2.11, 0.37 and 10.53 g/L, respectively. After the acid was hydrothermally treated in the absence of fructose, only 81.8% Fe was removed as irregular hematite aggregates, whilst more than 98% rare-earth elements were retained. By adding fructose at an M_fructose/M_nitrate ratio of 0.2, 99.94% Fe was precipitated as hematite nanoparticles, and the loss of rare-earth elements was <2%. In the treated acid, the residual Fe was 6.3 mg/L, whilst Nd, Pr and Dy were 8.84, 2.07 and 0.36 g/L, respectively. Such composition was conducive for further recycling of high-purity rare-earth products with low Fe impurity. The generated hematite nanoparticles contained 67.92% Fe with a rare-earth element content of <1%. This value meets the general standard for commercial hematite active pharmaceutical ingredients. In this manner, a green process was developed for separating Fe from Nd–Fe–B scrap without producing secondary waste.

1. Introduction

Nd magnet scrap (Nd–Fe–B scrap) is a common material in the collection of magnetic products in the permanent magnet industry [1]. This scrap is composed of approximately 30% rare-earth elements and 50–70% Fe impurity [2]. Given that such rare-earth elements are indispensable to improving the thermal and oxidation–corrosion resistances of advanced materials in advanced manufacturing and energy industries [3], recycling rare-earth elements from scrap is a highly economical and reliable process.

Numerous approaches for recycling rare-earth elements from scrap have been developed, including selective precipitation [4], solvent extraction [5,6,7,8,9] and cationic exchange [1]. Amongst these approaches, the first step in recycling rare-earth elements is dissolving scrap in strong acids, including sulphuric, nitric and hydrochloric acids [5,6,10]. After dissolution, rare-earth elements are recycled in two ways. The first method is precipitating ferric Fe by adjusting the rare-earth element-bearing acid to above pH 3 [4]. For example, Önal et al. [4] dissolved scrap in sulphuric acid and found that ferrous Fe in the acid was oxidised to ferric Fe by adding MnO₂ and then precipitated as Fe oxyhydroxide when the acid was adjusted to pH 3 using Ca(OH)₂. In this process, approximately 23% of the rare-earth elements were lost. Fe was hydrolysed into Fe oxyhydroxide, which has plenty of surface hydroxyl groups for rare-earth element coordination [11,12]. Thus, the coprecipitation of Fe and the rare-earth elements results in the loss of such elements. The other approach is extracting rare-earth elements from acid through an extraction solvent, such as sec-octylphenoxy acetic acid [7], NaD₂EHPA [8] and tributyl phosphate [9,13]. However, Fe also reacts with the extraction solvent, and it accumulates with the repeated use of the solvent. This condition increases the cost of rare-earth element extraction and complicates the purification process [14]. Therefore, Fe impurity is undesirable and should be effectively removed for the high-purity recycling of rare-earth elements.

Fe was hydrothermally hydrolysed to generate well-crystallised hematite at acid pH < 3 [5,15,16]. Wieczorek-Ciurowa et al. [15] found that anhydrous hematite appeared in the decomposition product of Fe(NO₃)₃·9H₂O, with Fe(OH)(NO₃)₂ and Fe(OH)₂NO₃ as intermediates, after heating at 105 °C for 4 days. The number of surface hydroxyl groups decreased with hematite generation compared with that of Fe oxyhydroxide [11] and, thus, residual cationic ions were highly concentrated in the acid [5,17,18,19]. Yang et al. dissolved sphalerite in strong sulphuric acid, and then hydrothermally treated the acid at 190 °C for 3 h [5]. They found that 95.3% Fe in Fe/Zn-bearing sulphuric acid was hydrolysed in the forms of hematite, goethite and jarosite, whilst Zn concentration remained nearly unchanged. During Fe hydrolysis, H⁺ was generated and gradually accumulated in the acid, in which Fe hydrolysis was in equilibrium. Thus, the Fe residual was at a high concentration of nearly 2.5 g/L [5], which should be further removed before rare-earth element recycling.

Given that a high amount of rare-earth element residual was found in hydrothermally treated acid, a one-step hydrothermal route with fructose as auxiliary reagent was developed for effectively separating Fe from the acid solution of scrap. By adding fructose, portions of H⁺ was consumed in the redox reaction between fructose and nitrite, which promoted the hydrolysis and precipitation of residual Fe³⁺. Unlike the 2.5 g/L Fe that was residual in the conventional method, less than 10 mg/L Fe was kept with the new hydrothermal route, while only less than 2% rare-earth elements were lost.

2. Materials and Methods

2.1. Scrap Dissolution

The scrap sample was collected from the cutting workplace of SanHe Ltd. (Jilin, China), dried at 105 °C for 3 h, ground and sifted with a sieve (1 mm mesh). The grey scrap was subjected to wet chemical analysis following the method of Sandroni and Smith [20]. The major elements of the sludge based on the dry weight was 45.5% Fe, 38.9% Nd, 9.1% Pr and 1.6% Dy, indicating that rare-earth elements and Fe predominated the scrap. The scrap was dissolved as follows: 5 g of scrap was dispersed in 100 mL 27% nitric acid, and then the acid was heated at 60 °C under constant stirring at 250 rpm. After 30 min, the acid bubbled to emit a yellowish smoke due to the redox reaction between the nitrate and Fe/rare-earth metals during the scrap’s dissolution. In the nitric acid solution, nitrate had a high redox potential $E_{N{O}_3^{-}/NO}$ of 2.23 V [3] to oxidize the mental in the scrap to generate Fe³⁺ and trivalent rare-earth elements [4]. Subsequently, a yellowish suspension was generated after 6 h and its volume was approximately 74 mL, indicating that approximately 26% of the solution evaporated. The suspension was centrifugal separation at 5500 rpm for 5 min, and then the residual solid was collected and dried at 102 °C for 4 h. The residual undissolved solid was approximately 0.08 g, suggesting that more than 99% of the scrap was dissolved. After centrifugation, the supernatant was collected and characterised via ion chromatography (IC, 881, Metrohm, Herisau, Switzerland). The results indicated that nitrate concentration was 266.1 g/L, demonstrating that approximately 25% nitrate was exhausted during the scrap’s dissolution. To prevent the vessel from exploding in the subsequent hydrometallurgical experiment, the supernatant was diluted three times and characterised via inductively coupled plasma atomic emission spectroscopy (ICP-OES, Profile, Leeman, Hudson, NH, USA). The major elements were determined to be 88.7 g/L NO₃⁻, 10.53 g/L Fe, 9.01 g/L Nd, 2.11 g/L Pr and 0.37 g/L Dy.

2.2. Precipitation of Fe Impurity

Fe impurity in the acid was separated via a one-step hydrothermal route. Firstly, 20 mL of diluted acid was poured into a 50 mL Teflon™ vessel, followed by the addition of fructose at an M_fructose/M_nitrate molar ratio (hereafter referred to as “molar ratio”) of 0.1. Secondly, the vessel was placed in a dry oven (DHG-9030A, Shanghai-Yiheng, China) and heated at 160 °C for 6 h. Thirdly, the deposit was collected and freeze-dried at −80 °C for 24 h. Control experiments were performed by varying the molar ratio from 0 to 0.1, 0.2 and 0.5. Optimal Fe removal occurred at a molar ratio of 0.2; thus, the time course of the removal rate of Fe was also investigated. Each experiment was repeated three times, and the standard deviation was calculated as the error bar.

2.3. Characterisation

To analyse the Fe precipitate, the obtained deposits were characterised via scanning electron microscopy (SEM, NanoSEM 450, FEI Co., Hillsboro, OR, USA) and X-ray diffractometry system (XRD, RAPID-S, Rigaku, Tokyo, Japan). Acidity before and after hydrothermal treatment was recorded using a pH meter (E-201-C, LeiCi, Shanghai, China) and organic matter in the acid solution was determined using a total organic carbon analyser (TOC, TOC-5000A, Shimadzu, Kyoto, Japan).

3. Results and Discussion

3.1. Fructose Dosage Optimisation

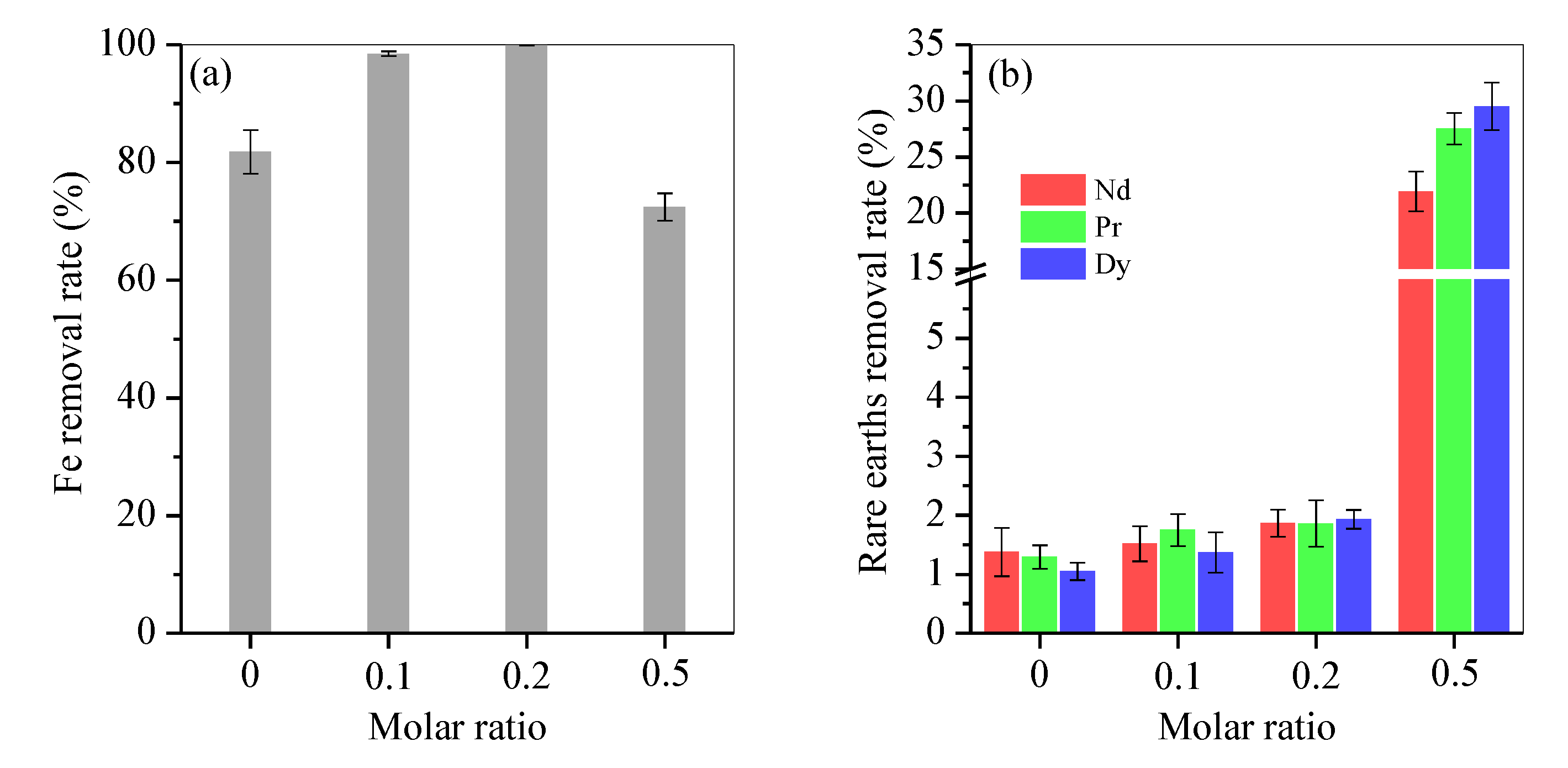

Fe impurity was efficiently separated from the rare-earth element-bearing acid, as shown in Figure 1. Without fructose, only 81.8% of the total Fe was removed, and the loss of Nd, Pr and Dy were 1.4%, 1.3% and 1.1%, respectively. With fructose, Fe removal reached 97% at a molar ratio of 0.1, nearly 100% at a molar ratio of 0.2 and only 72.5% at a molar ratio of 0.5 (Figure 1a). Accordingly, the loss of Nd, Pr and Dy increased slightly to 1.5%, 1.8% and 1.5% at a 0.1 molar ratio and 1.7%, 1.9% and 1.6% at a 0.2 molar ratio, but dramatically to 21.9%, 27.5% and 29.5% at the 0.5 molar ratio (Figure 1b), respectively. This outcome indicated that fructose was overdosed at a molar ratio of 0.5. Thus, the molar ratio of 0.2 was optimal. Under this condition, nearly 100% Fe was removed and only 6.3 mg/L Fe was retained, but rare-earth element loss was below 2%.

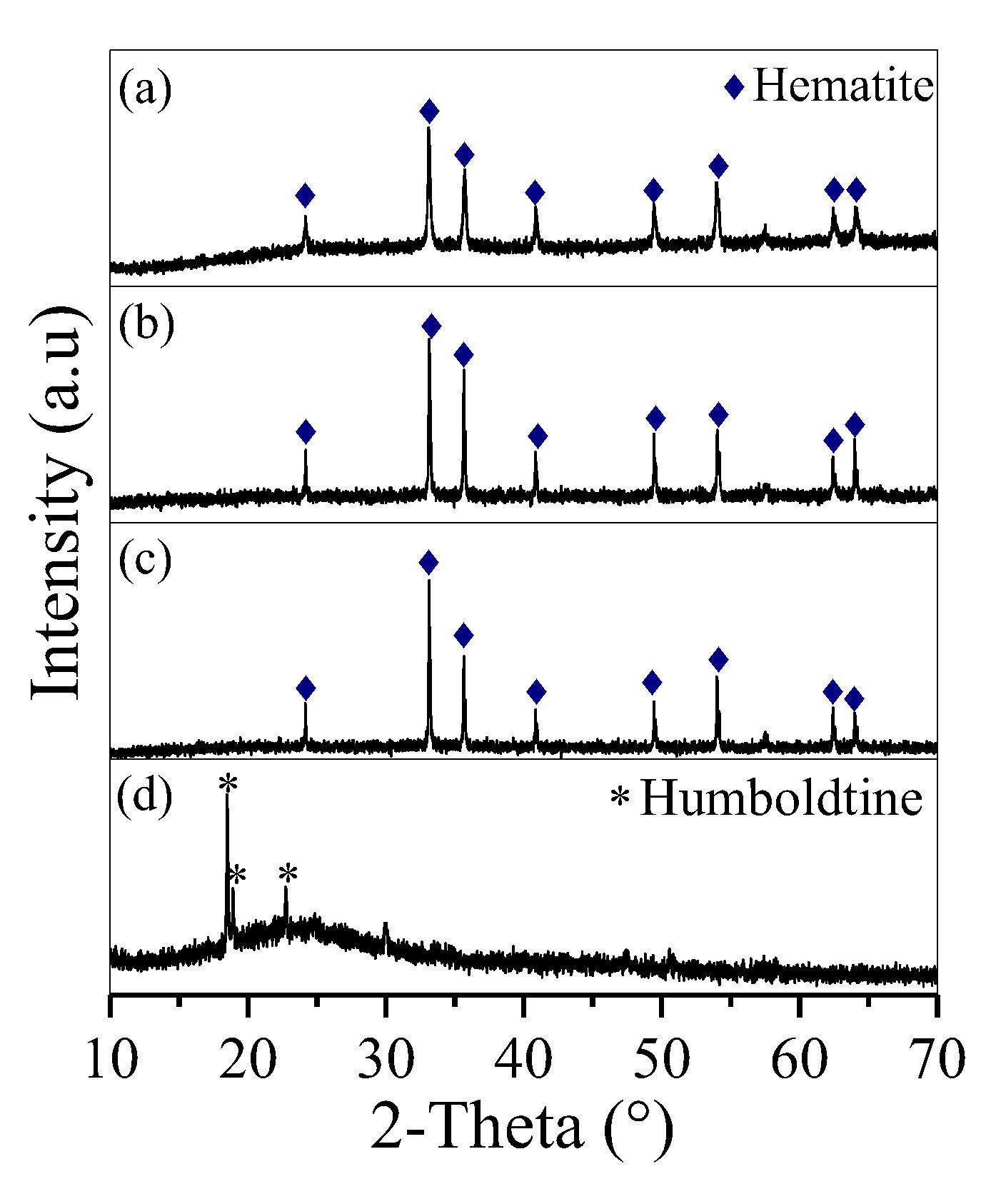

When fructose was absent, the removed Fe precipitated in the form of irregular hematite aggregates (Figure 2a and Figure 3a). Fructose was helpful in removing Fe. By adding fructose at a molar ratio of 0.1, Fe precipitated as hematite nanoparticles (Figure 2b and Figure 3b) with a diameter of 400 nm. The diameter of the hematite nanoparticles was further decreased to 100 nm with an increase in molar ratio to 0.2 (Figure 2c and Figure 3c). When the molar ratio was 0.5, the obtained deposit presented three sharp peaks at 2θ = 18.5°, 18.9° and 22.7° (Figure 2d), which belonged to humboldtine, and a broad peak at 2θ = 22.2°, which was affiliated with the C sphere from the polymerisation of overdosed fructose [21]. Accordingly, fine spherical particles with diameters of 2–5 μm were observed (Figure 3d). This condition demonstrated that overdosed fructose was involved in the formation of C spheres.

3.2. Composition of Residual Acid after Fe Removal

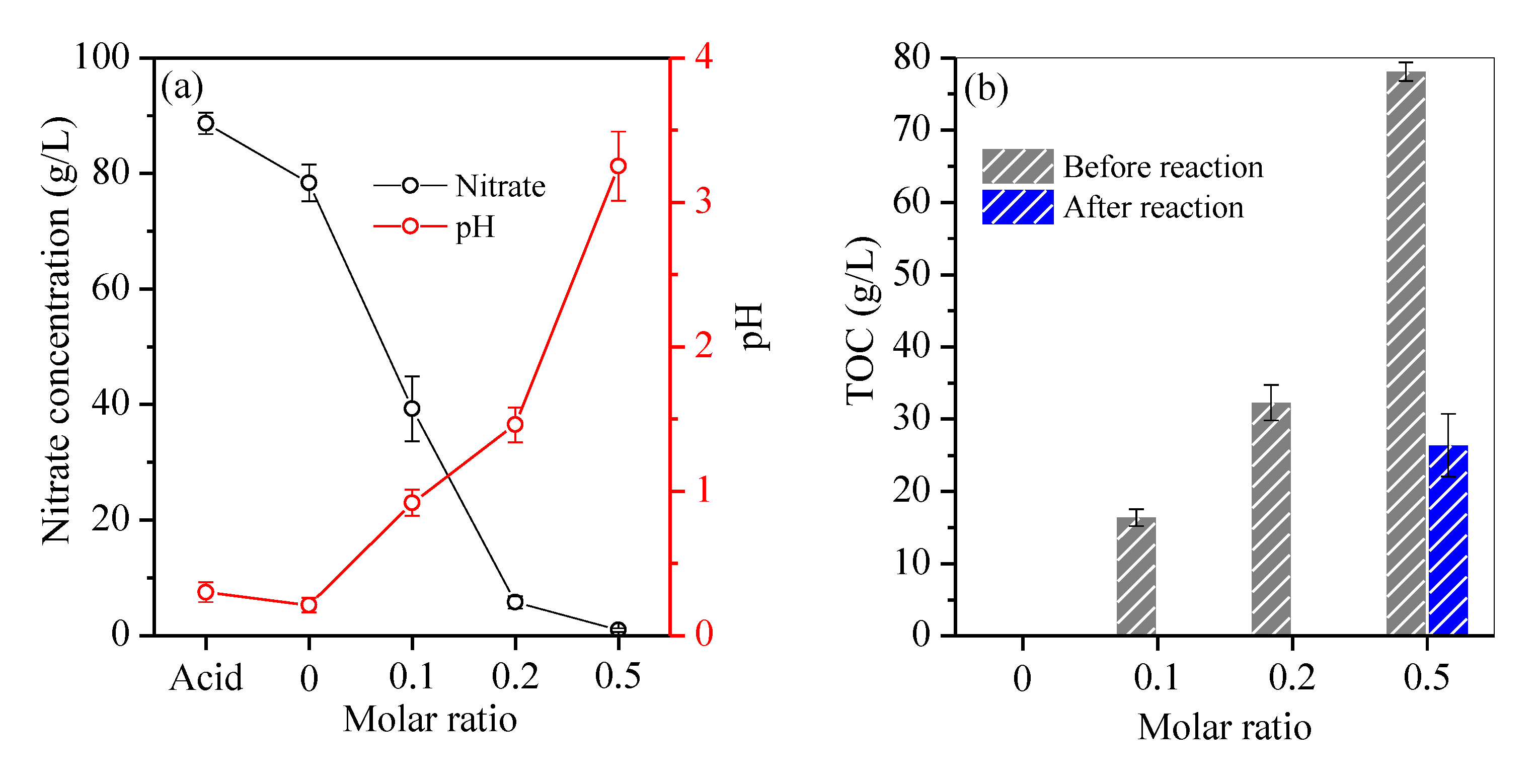

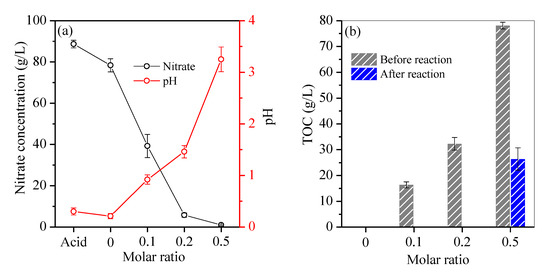

The residual acid solution was characterised as shown in Figure 4. Without fructose, a slight decrease in nitrate concentration from 86.3 g/L to 78.4 g/L (Figure 4a) was obeserved due to the thermal decomposition of nitrate to NO₂ and/or NO (Equations (1) and (2)) [15]. Moreover, the acid’s pH declined from 0.3 to 0.21 (Figure 4a) because H⁺ was generated during the hydrolysis of ferric Fe to Fe oxyhydroxide with hematite as the final product (Equation (3)). As the hydrolysis of ferric Fe continued, H⁺ accumulated in the residual acid, inhibiting the hydrolysis of ferric Fe (Equation (3)) and resulting in a high Fe residual (Figure 1a).

$$N{O}_3\to N{O}_2+O$$

(1)

$$N{O}_3\to NO+O_2$$

(2)

$$2\mathrm{Fe}{(N{O}_3)}_3+3H_{2}O=F{e}_2{O}_3+6N{O}_3^{-}+6H^{+}$$

(3)

With the addtion of fructose, a steady decrease in nitrate from 39.3 g/L to 5.8 g/L and 0.9 g/L was observed with an increase in molar ratio from 0.1 to 0.2 and 0.5 (Figure 4a), respectively. Nitrate is a strong oxidant that can react with fructose to produce ketogluconic, butanedioic and oxalic acids, and finally, CO₂ and H₂O (Equation (4)) [22]. Figure 4b shows that the TOC of the acid apparently increased from 16.4 g/L to 78.14 g/L with an increase in molar ratio from 0.1 to 0.5 before hydrothermal reaction. After hydrothermal reaction, the residual TOC was approximately 125 mg/L within the molar ratio range of 0.2, but it remained at 26.4 g/L at a molar ratio of 0.5 (Figure 4b) in accordance with the overdosed fructose. Moreover, the redox reduction between nitrate and fructose was accompanied by the consumption of H⁺ (Equation (4)). When the molar ratio varied from 0.1 to 0.2, the acid’s pH also increased from 0.92 to 1.46 (Figure 4a), which accelerated the hydrolysis of ferric Fe to hematite particles. When fructose was overdosed, nitrate was nearly completely consumed in the redox reaction (Equation (4)), and the acid’s pH sharply increased to 3.25 (Figure 4a). Thus, fructose was oxidised incompletely to accumulate the intermediate oxalic acid in the solution. Subsequently, trivalent Fe predominated in nitric acid and was reduced by fructose to form ferrous Fe. In parallel, trivalent rare-earth elements were also reduced by the overdosed fructose [23]. A portion of oxalic acid was complexed with ferrous Fe with the generation of humboldtine precipitates. Accordingly, complexation reaction between oxalic acid and rare-earth elements also occurred [24], resulting in the precipitation of these elements. During hydrothermal treatment, unoxidised fructose was polymerised into macromolecules, e.g., aromatic compounds and oligosaccharides [25], and further nucleated to C spheres via the aldol condensation and dehydration route [21]. Such macromolecules, which also have plenty of hydroxyl groups and exhibit a high affinity towards chelated ferrous Fe and rare-earth elements [26], remained in the treated acid. This condition inhibited the hydrolysation of Fe into Fe oxyhydroxide. Therefore, Fe was removed inefficiently at a molar ratio of 0.5.

$$5C_6{H}_{12}{O}_6+16N{O}_3^{-}+16H^{+}\to 30C{O}_2+8N_2+20H_2+18H_{2}O$$

(4)

3.3. Hydrothermal Time Optimisation at the Optimal Fructose Dosage

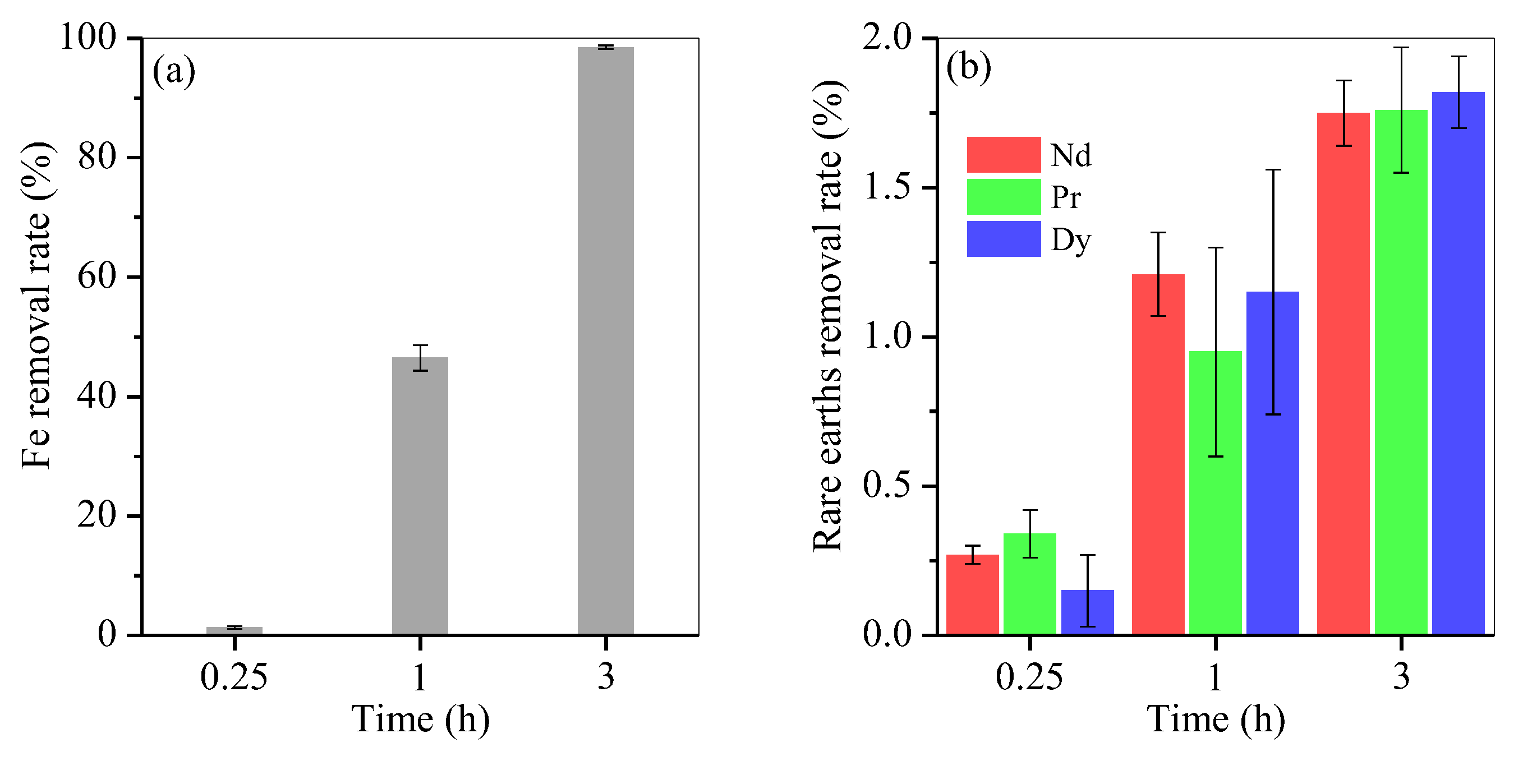

To optimise hydrothermal time, control experiments of Fe removal at the optimal molar ratio of 0.2 were performed. The result is presented in Figure 5. After hydrothermal treatment, Fe removal reached 1.35% for 0.25 h, 46.5% for 1 h, 98.5% for 3 h and nearly 100% for 6 h (Figure 5a and Figure 1a). The loss of Nd, Pr and Dy was 0.3%, 0.2% and 0.2% after 0.25 h, apparently up to 1.2%, 0.9% and 1.1% after 1 h, and steadily increased to 1.7%, 1.7% and 1.8% after 3 h (Figure 5b), respectively, and kept nearly unchanged with an extended time course from 3 h to 6 h (Figure 1b).

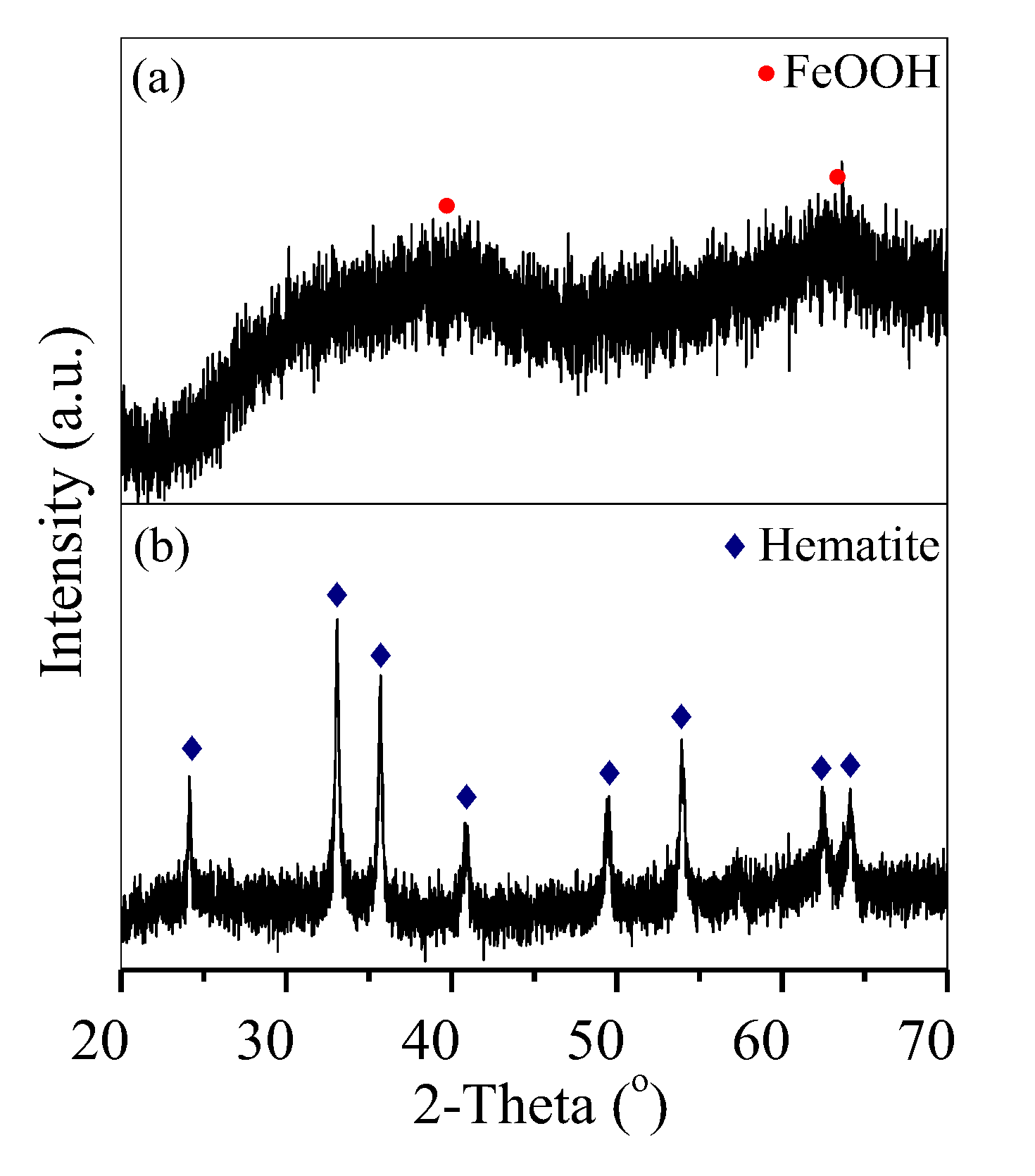

Fe-bearing deposits were also characterised via XRD analysis and SEM. The generated deposit was weakly crystallised FeOOH aggregates (Figure 6a and Figure 7a) at 1 h and was further converted into well-crystallised hematite nanoparticles with an average diameter of 100 nm after 3 h (Figure 6b and Figure 7b), similar to that generated at 6 h (Figure 2c and Figure 3c).

3.4. Hematite Precipitation Mechanism

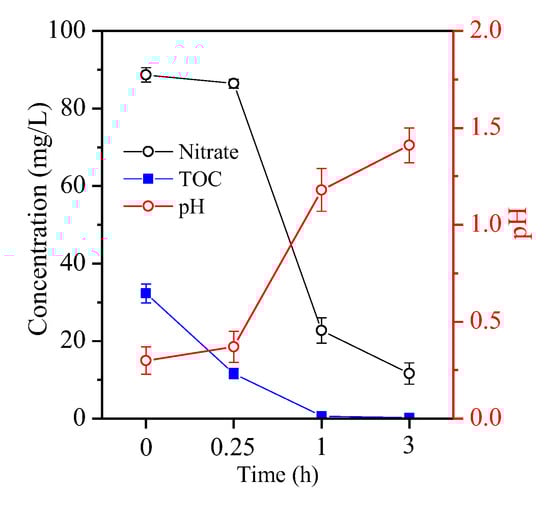

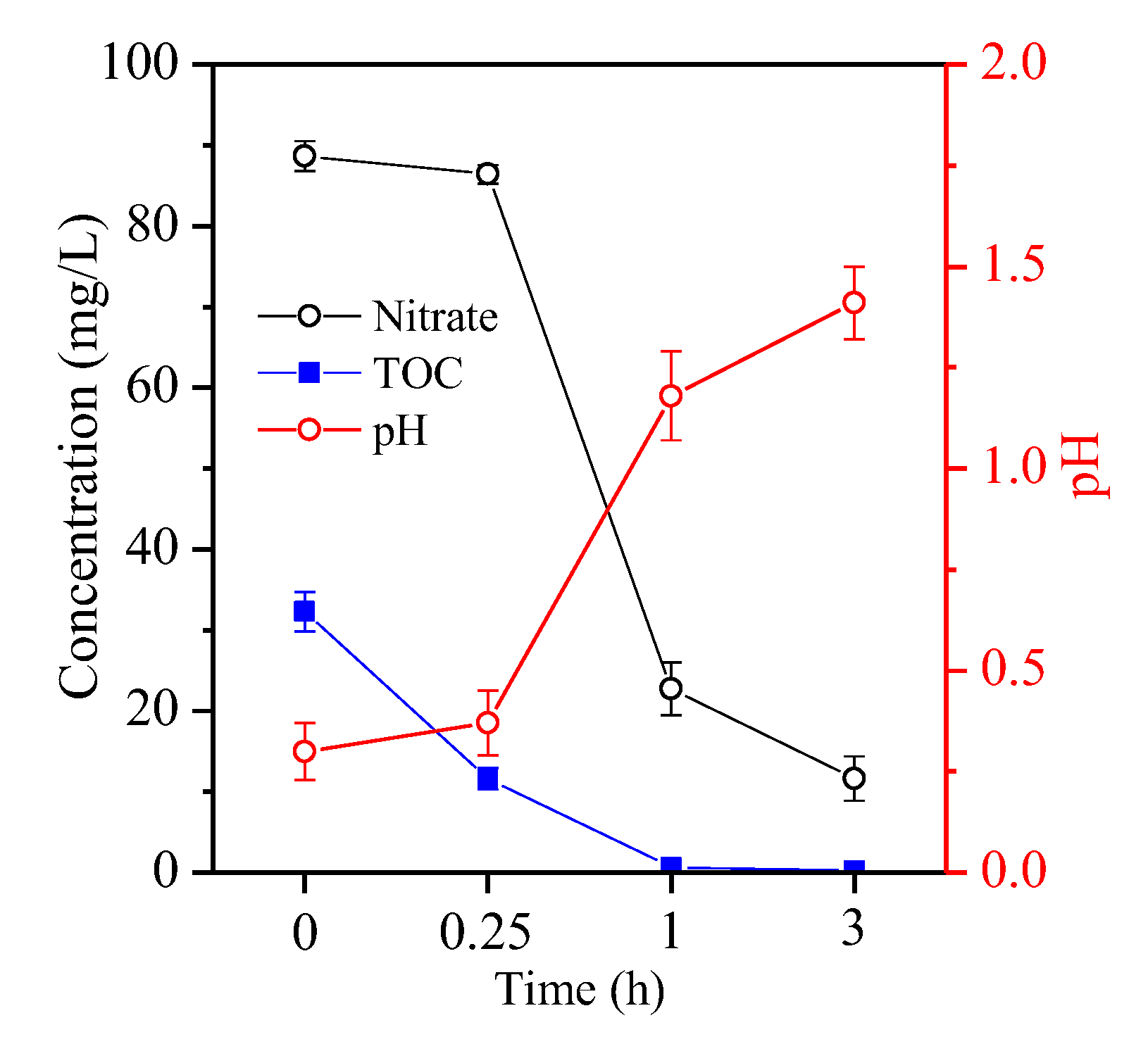

Fe removal was related to an increased acid pH in the oxidation of fructose by nitrate. Nitrate concentration was reduced from 86.4 g/L to 22.8 g/L and 11.6 g/L after treatment for 0.25, 1 and 3 h, respectively (Figure 8). TOC exhibited a similar decreasing trend to nitrate, and its concentration dropped to 0.67 g/L for 1 h and to 0.23 g/L for 3 h (Figure 8) due to the oxidisation of fructose by nitrate. As the redox reaction continued, acid pH increased steadily (Figure 8), promoting the hydrolysis of ferric Fe to form the initial product FeOOH.

The newly generated FeOOH was weakly crystallised and had numerous hydroxyl groups for rare-earth element coordination [19,27]. However, competition adsorption occurred between H⁺ and the rare-earth elements on the newly formed FeOOH surface in the presence of sufficient H⁺, releasing rare-earth elements into the acid. Therefore, the hydroxyl group was regenerated on the newly formed FeOOH surface. Subsequently, the conjunction between two adjacent hydroxyl groups on each FeOOH occurred with the release of one water molecule to generate an irreversible Fe–O–Fe bond [27,28]. As the conjunction reaction continued, rare-earth elements were released and maintained a high concentration in the acid. In parallel, the weakly crystallised FeOOH block collapsed and then polymerised to generate fine hematite nanoparticles. These hematite nanoparticles, which were generated at a hydrothermal time of 6 h, contained 67.92% Fe, 0.78% Nd, 0.34% Pr and 0.14% Dy. The composition meets the grade for the active pharmaceutical ingredients of commercial hematite powder [29], demonstrating that the precipitated hematite nanoparticles were highly purified.

4. Conclusions

Fe impurity in the acid solution of scrap was successfully separated via a one-step hydrothermal route with fructose as the auxiliary reagent. Through this method, fructose was oxidised by nitrate with the involvement of H⁺ in the acid, steadily increasing the acid’s pH and enhancing the hydrolysis of ferric Fe to hematite with FeOOH as the intermediate. Nearly 100% Fe was precipitated in the form of hematite nanoparticles with Fe content of 67.92% by adding fructose at a molar ratio of 0.2. The residual Fe in the leaching acid was less than 10 mg/L, and rare-earth element concentrations were 8.8, 2.1 and 0.4 g/L for Nd, Pr and Dy, respectively. Conversely, only 81.8% of the total Fe was removed as irregular hematite aggregates without fructose, and residual Fe was approximately 1.9 g/L.

This method exhibits two advantages in the recycling of rare-earth elements from scrap. Firstly, Fe is effectively separated from the leaching acid of scrap to generate high-purity hematite nanoparticles. Secondly, low residual Fe and high concentrations of rare-earth elements are produced in the residual acid. Therefore, highly purified rare-earth products can be economically recycled due to the low Fe content caused by repeatedly using an extraction reagent.
