Roller Compacted Concrete with Recycled Concrete Aggregate for Paving Bases
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Dosage and Mixing Process
2.3. Specimen Preparation
2.4. Experimental Tests
2.5. Statistical Analysis
3. Results and Discussion
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Balbo, J.T.; Dornelas, R.C. Custos de reciclagem de pavimentos de concreto e seu potencial econômico na realidade brasileira. Transportes 2015, 23, 75–84. (In Portuguese) [Google Scholar] [CrossRef]
- Confederação Nacional de Transportes (CNT). Pesquisa CNT de Rodovias. Available online: https://pesquisarodovias.cnt.org.br/relatorio-gerencial (accessed on 3 January 2020). (In Portuguese).
- Conteras, M.; Teixeira, S.R.; Lucas, M.C.; Lima, L.C.N.; Cardoso, D.S.L.; Silva, G.A.C.; Gregório, G.C.; Souza, A.E.; Santos, A. Recycling of construction and demolition waste for producing new construction material (Brazil case-study). Constr. Build. Mater. 2016, 123, 594–600. [Google Scholar] [CrossRef] [Green Version]
- Leite, F.C.; Motta, R.S.; Vasconcelos, K.L.; Bernucci, L. Laboratory evaluation of recycled construction and demolition waste for pavements. Constr. Build. Mater. 2011, 25, 2972–2979. [Google Scholar] [CrossRef]
- Pinto, T.P. Metodologia Para a Gestão Diferenciada de Resíduos Sólidos da Construção Urbana. Ph.D. Thesis, University of São Paulo, São Paulo, Brazil, 1999. (In Portuguese). [Google Scholar]
- Intituto Brasileiro de Geografia e Estatística (IBGE). Available online: https://www.ibge.gov.br/apps/populacao/projecao/ (accessed on 10 December 2019).
- Cardoso, R.; Silva, R.V.; Brito, J.; Dhir, R. Use of recycled aggregates from construction and demolition waste in geotechnical applications: A literature review. Waste Manag. 2016, 49, 131–145. [Google Scholar] [CrossRef] [PubMed]
- Lopez-Uceda, A.; Agrela, F.; Cabrera, M.; Ayuso, J.; López, M. Mechanical performance of roller compacted concrete with recycled concrete aggregates. Road Mater. Pavement Des. 2018, 19, 36–55. [Google Scholar] [CrossRef]
- Lopez-Uceda, A.; Ayuso, J.; Jiménez, J.R.; Galvín, A.P.; Rey, I.D. Feasibility study of roller compacted concrete with recycled aggregates as base layer for light-traffic roads. Road Mater. Pavement Des. 2018, 21, 1–13. [Google Scholar] [CrossRef]
- Angelakopoulos, H.; Papastergiou, P.; Pilakoutas, K. Fibrous roller-compacted concrete with recycled materials—Feasibility study. Mag. Concr. Res. 2015, 67, 801–811. [Google Scholar] [CrossRef] [Green Version]
- Courard, L.; Michel, F.; Delhez, P. Use of concrete road recycled aggregates for Roller Compacted Concrete. Constr. Build. Mater. 2010, 24, 390–395. [Google Scholar] [CrossRef]
- Chhorn, C.; Lee, S.W. Influencing compressive strength of roller-compacted concrete. Constr. Mater. 2018, 171, 3–10. [Google Scholar] [CrossRef]
- Chhorn, C.; Hong, S.J.; Lee, S.W. A study on performance of roller-compacted concrete for pavement. Constr. Build. Mater. 2017, 153, 535–543. [Google Scholar] [CrossRef]
- Harrington, D.; Abdo, F.; Adaska, W.; Hazaree, C.V.; Ceylan, H. Guide for Roller-Compacted Concrete Pavements; Iowa State University: Ames, IA, USA, 2010. [Google Scholar]
- Valencia, L.E.S. Comentarios sobre el Concreto Compactado con Rodillo (CCR). Ciencia E Ingeniería Neogranadina 1999, 8, 9–23. (In Spanish) [Google Scholar] [CrossRef]
- Modarres, A.; Hosseini, Z. Mechanical properties of roller compacted concrete containing rice husk ash with original and recycled asphalt pavement material. Mater. Des. 2014, 64, 227–236. [Google Scholar] [CrossRef]
- Rao, M.; Yang, H.; Lin, Y.; Li, J.; Shi, Y. Influence of maximum aggregates sizes on the performance of RCC. Constr. Build. Mater. 2016, 115, 42–47. [Google Scholar] [CrossRef]
- Mehta, P.K.; Monteiro, P.J.M. Concrete: Microstructure, Properties and Materials, 4th ed.; McGraw-Hill Education: New York, NY, USA, 2014. [Google Scholar]
- Balbo, J.T. Pavimentação Asfáltica: Materiais, Projeto e Restauração; Oficina de Textos: São Paulo, Brazil, 2007. (In Portuguese) [Google Scholar]
- Bernucci, L.B.; Motta, L.M.; Ceratti, J.A.P.; Soares, J.B. Pavimentação Asfáltica: Formação Básica Para Engenheiros; Petrobrás, Abeda: Rio de Janeiro, Brazil, 2008. (In Potuguese) [Google Scholar]
- Boussetta, I.; Khay, S.E.E.; Neji, J. Experimental testing and modelling of roller compacted concrete incorporing RAP waste as aggregates. Eur. J. Environ. Civ. Eng. 2018, 1–15. [Google Scholar] [CrossRef]
- National Transport Infrastructure Department (DNIT). Norma DNIT 056/2013-ES; DNIT: Rio de Janeiro, Brazil, 2013. (In Portuguese)
- National Transport Infrastructure Department (DNIT). Norma DNIT 059/2004-ES; DNIT: Rio de Janeiro, Brazil, 2004. (In Portuguese)
- São Paulo City Hall (PMSP). Instrução de Projeto IP-07/2004; PMSP: São Paulo, Brazil, 2004. (In Portuguese)
- Ricci, G.; Balbo, J.T. Resistência e elasticidade de concretos compactados com agregados reciclados de construção e de demolição para aplicações em pavimentação. Transportes 2009, 17, 27–38. (In Portuguese) [Google Scholar] [CrossRef] [Green Version]
- Sachet, T. Estudo de Propriedades Mecânicas de Concretos Compactados com Incorporação de Fresados para Bases de Pavimentos. Ph.D. Thesis, University of São Paulo, São Paulo, Brazil, August 2012. (In Portuguese). [Google Scholar]
- Borré, G. Estudo de Resistência Mecânica do Concreto Compactado com Rolo com Emprego de Material Fresado Asfáltico Para Base de Pavimentos. Master’s Thesis, University of Santa Maria, Santa Maria, Brazil, August 2017. (In Portuguese). [Google Scholar]
- National Highways Department (DNER). ME 035: Agregados—Determinação de Abrasão “Los Angeles”; DNER: Rio de Janeiro, Brazil, 1998. (In Portuguese) [Google Scholar]
- National Highways Department (DNER). ME 194: Agregados—Determinação de Massa Específica de Agregados Miúdos por Meio de Frasco Chapman; DNER: Rio de Janeiro, Brazil, 1998. (In Portuguese) [Google Scholar]
- National Highways Department (DNER). ME 195: Agregados—Determinação da Absorção e da Massa Específica de Agregado Graúdo; DNER: Rio de Janeiro, Brazil, 1997. (In Portuguese) [Google Scholar]
- Brazilian Association of Technical Standards (ABNT). NBR 15115: Recycled Aggregates of Construction and Demolition Wastes—Construction of Pavement Layers—Procedures; ABNT: Rio de Janeiro, Brazil, 2004. (In Portuguese) [Google Scholar]
- Brazilian Association of Technical Standards (ABNT). NBR 15116: Recycled Aggregate of Solid Waste Residue of Building Constructions—Requirements and Methodologies; ABNT: Rio de Janeiro, Brazil, 2004. (In Portuguese) [Google Scholar]
- Souza, D.J.; Medeiros, M.H.F.; Hoppe Filho, J. Evaluation of the SR Portland cement against sodium and magnesium sulfate attack: A physical and comparative analysis of mortars. IBRACON Struct. Mater. J. 2018, 11, 1053–1075. Available online: http://www.scielo.br/pdf/riem/v11n5/pt_1983-4195-riem-11-05-01053.pdf (accessed on 19 February 2020). (In Portuguese). [CrossRef]
- Thichês, G. Concreto Compactado a Rolo Para Aplicação em Pavimentação: Estudo do Comportamento à Fadiga e Proposição de uma Metodologia de Dimensionamento. Ph.D. Thesis, Technology Institute of Aeronautics, São José dos Campos, Brazil, 1993. (In Portuguese). [Google Scholar]
- Brazilian Association of Technical Standards (ABNT). NBR 7182: Soil—Compaction Test; ABNT: Rio de Janeiro, 2016. (In Portuguese) [Google Scholar]
- Brazilian Association of Technical Standards (ABNT). NBR 5739: Concrete—Compression Test of Cylindrical Specimens; ABNT: Rio de Janeiro, Brazil, 2018. (In Portuguese) [Google Scholar]
- Brazilian Association of Technical Standards (ABNT). NBR 7222: Concrete and Mortar—Determination of the Tension Strength by Diametrical Compression of Cylindrical Test Specimens; ABNT: Rio de Janeiro, Brazil, 2011. (In Portuguese) [Google Scholar]
- Brazilian Association of Technical Standards (ABNT). NBR 12142: Concrete—Determination of Tension Strength in Flexure of Prismatic Specimens; ABNT: Rio de Janeiro, Brazil, 2010. (In Portuguese) [Google Scholar]
- Brazilian Association of Technical Standards (ABNT). NBR 8522: Concrete—Determination of Static Modulus of Elasticity and Deformation by Compression; ABNT: Rio de Janeiro, Braizl, 2017. (In Portuguese) [Google Scholar]
- Brazilian Association of Technical Standards (ABNT). NBR 9778: Hardened Mortar and Concrete—Determination of Absorption, Voids and Specific Gravity; ABNT: Rio de Janeiro, Brazil, 2009. (In Portuguese) [Google Scholar]
- Montgomery, D.C.; Runger, G.C. Applied Statistics and Probably for Engineers, 6th ed.; Wiley: Hoboken, NJ, USA, 2013. [Google Scholar]
- Morettin, P.A.; Bussab, W.O. Estatística Básica, 6th ed.; Saraiva: São Paulo, Brazil, 2010. (In Portuguese) [Google Scholar]
- Fedrigo, W.; Rosa, F.D.; Núñez, W.P. Dosagem de Concreto Compactado com Rolo visando sua aplicação em bases e sub-bases de pavimentos. In Proceedings of the Congresso Brasileiro de Mecânica dos Solos e Engenharia Geotécnica, Goiânia, Brazil, 9–13 September 2014. (In Portuguese). [Google Scholar]
- Settari, C.; Debieb, F.; Kadri, E.H.; Boukendakdji, O. Assessing the effects of recycled asphalt pavement materials on the performance of roller compacted concrete. Constr. Build. Mater. 2015, 101, 617–621. [Google Scholar] [CrossRef]
- Della Vecchia, A.F. Influência da Adição de Fibras de Polipropileno na Resistência e na Retração de um Concreto Compactado a Rolo. Master’s Thesis, University of Passo Fundo, Passo Fundo, Brazil, 2013. (In Portuguese). [Google Scholar]
- Meddah, A.; Beddar, M.; Bali, A. Use of shredded rubber tire aggregates for roller compacted concrete pavement. J. Clean. Product. 2014, 72, 187–192. [Google Scholar] [CrossRef]
- Mardani-Aghabaglou, A.; Ramyar, K. Mechanical properties of high-volume fly ash roller compacted concrete designed by maximum density method. Constr. Build. Mater. 2013, 38, 356–364. [Google Scholar] [CrossRef]
- Chhron, C.; Hong, S.J.; Lee, S.W. Relationship between compressive and tensile strengths of roller-compacted concrete. J. Traffic Trans. Eng. 2018, 5, 215–223. [Google Scholar] [CrossRef]
- Hashemi, M.; Shafigh, P.; Karim, M.R.B.; Atis, C.D. The effect of coarse to fine aggregate ratio on the fresh and hardened properties of roller-compacted pavement. Constr. Build. Mater. 2018, 169, 553–566. [Google Scholar] [CrossRef]
- Shafigh, P.; Hashemi, M.; Nam, B.H.; Koting, S. Optimum moisture content in roller-compacted concrete pavement. Int. J. Pavement Eng. 2019, 1–11. [Google Scholar] [CrossRef]
Layer | fc (MPa) | fr (MPa) | Age (days) | Thickness (cm) | Cement Content (kg/m³) | Reference |
---|---|---|---|---|---|---|
Sub-base | ≥5.0 | - | 7 | - | 80–120 | National Transport Infrastructure Department (DNIT). [22] |
Base and Surface | fc,est ≥ fc | - | 28 | - | ≥200 | National Transport Infrastructure Department (DNIT). [23] |
Base | ≥15 | ≥1.5 | 28 | 10–20 | - | São Paulo City Hall [24] |
CaO | SiO2 | Al2O3 | Fe2O3 | MgO | SO3 | K2O | Specific Gravity | Blaine |
---|---|---|---|---|---|---|---|---|
55.40% | 20.10% | 4.80% | 3.50% | 5.60% | 2.80% | 1.00% | 5.03 g/cm³ | 3.11 g/cm³ |
Properties | RS | PS | NG13 | NG19 | RCA | Reference |
---|---|---|---|---|---|---|
SSD density (g/cm³) | 2.63 | 2.64 | 2.93 | 2.72 | 2.19 | National Highways Department (DNER) [29] National Highways Department (DNER) [30] |
Water absorption (%) | - | - | 0.27 | 0.20 | 7.63 | National Highways Department (DNER) [30] |
Los Angeles abrasion test (%) | - | - | 14.15 | 12.83 | 32.00 | National Highways Department (DNER) [28] |
Mixture | Cement (kg) | PS (kg) | RS (kg) | NG13 (kg) | NG19 (kg) | RCA (kg) | Water (kg) |
---|---|---|---|---|---|---|---|
RCC-0 | 200.00 | 306.00 | 612.00 | 816.00 | 306.00 | 0.00 | 210.78 |
RCC-5 | 200.00 | 302.00 | 606.00 | 758.00 | 252.00 | 101.00 | 212.14 |
RCC-15 | 200.00 | 296.00 | 594.00 | 644.00 | 148.00 | 296.00 | 211.48 |
RCC-30 | 200.00 | 288.00 | 576.00 | 480.00 | 0.00 | 576.00 | 209.67 |
Property of Mixtures | RCC-0 | RCC-5 | RCC-15 | RCC-30 |
---|---|---|---|---|
Maximum dry density (g/cm³) | 2.309 | 2.290 | 2.204 | 2.203 |
OMC (%) | 9.41 | 9.56 | 9.71 | 9.89 |

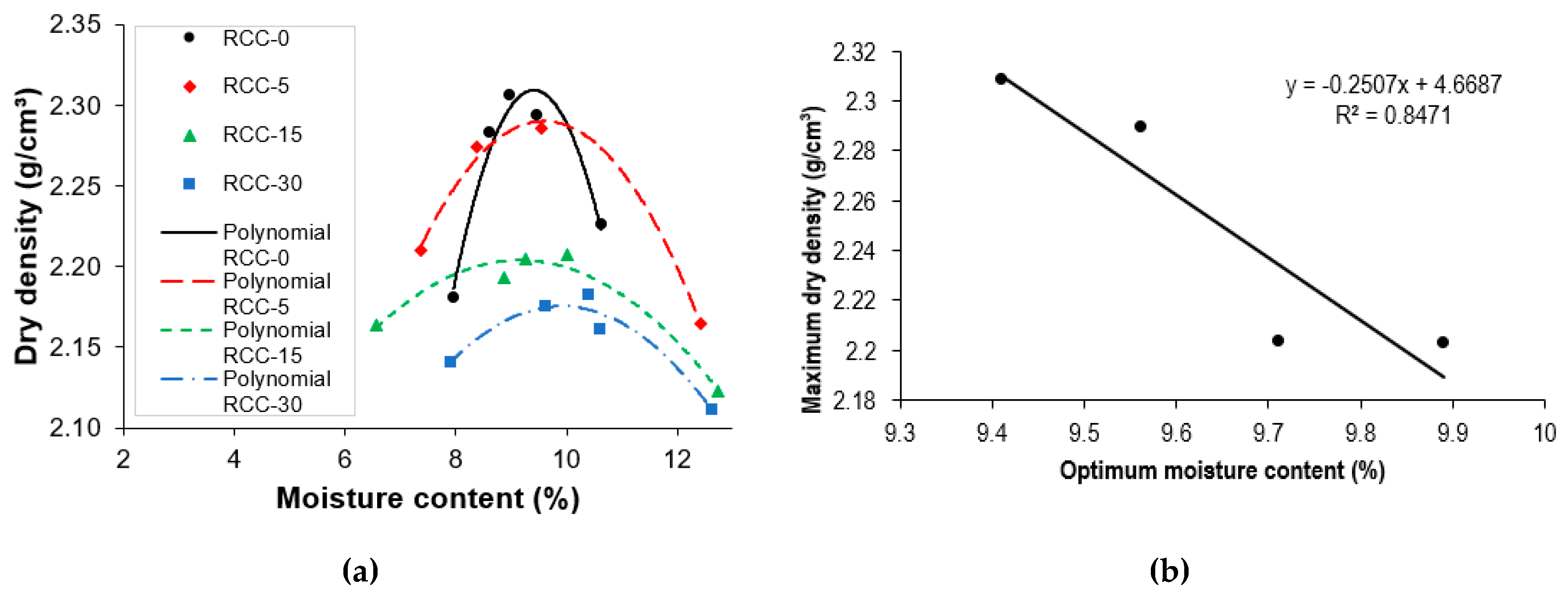

Correlation | Equation | No. of Points | Df | RSE | R² | Adj. R² |
---|---|---|---|---|---|---|
MDD and OMC | MDD = −0.2507 × OMC + 4.6687 | 4 | 2 | 0.0268 | 0.8471 | 0.7707 |
Mixture | Compressive Strength (MPa) | Splitting Strength (MPa) | Flexural Strength (MPa) | Modulus of Elasticity (GPa) | |||
---|---|---|---|---|---|---|---|
7 days | 28 days | 7 days | 28 days | 7 days | 28 days | 28 days | |
RCC-0 | 14.64 (0.15) | 16.72 (1.28) | 2.02 (0.17) | 1.92 (0.14) | 2.85 (0.02) | 3.82 (0.04) | 22.13 (0.74) |
RCC-5 | 15.63 (0.81) | 18.65 (0.31) | 1.68 (0.08) | 2.03 (0.15) | 3.17 (0.04) | 3.35 (0.06) | 21.82 (0.65) |
RCC-15 | 13.55 (0.44) | 17.97 (0.43) | 1.86 (0.15) | 1.96 (0.16) | 3.35 (0.02) | 3.78 (0.02) | 21.16 (0.77) |
RCC-30 | 13.01 (0.34) | 15.71 (0.41) | 1.65 (0.22) | 2.12 (0.11) | 2.92 (0.06) | 2.99 (0.06) | 19.26 (0.37) |
Property | Treatment | Df | Sum of Squares | Mean Square | F Value | p-Value | Significant Level |
---|---|---|---|---|---|---|---|
Modulus of elasticity | RCA | 3 | 14.892 | 4.964 | 4.104 | 0.0489 | 0.05 |
Residuals | 8 | 9.676 | 1.209 | ||||
Total | 11 | 24.568 | |||||
Compressive strength (7 days) | RCA | 3 | 12.242 | 4.081 | 5.545 | 0.0235 | 0.05 |
Residuals | 8 | 5.888 | 0.736 | ||||
Total | 11 | 18.13 | |||||
Compressive strength (28 days) | RCA | 3 | 15.44 | 5.146 | 3.301 | 0.0785 | Not significant |
Residuals | 8 | 12.47 | 1.559 | ||||
Total | 11 | 27.91 | |||||
Splitting tensile strength (7 days) | RCA | 3 | 0.2654 | 0.08845 | 1.109 | 0.401 | Not significant |
Residuals | 8 | 0.6379 | 0.07974 | ||||
Total | 11 | 0.9033 | |||||
Splitting tensile strength (28 days) | RCA | 3 | 0.0681 | 0.02269 | 0.391 | 0.763 | Not significant |
Residuals | 8 | 0.4640 | 0.0580 | ||||
Total | 11 | 0.5321 | |||||
Flexural strength (7 days) | RCA | 3 | 0.4808 | 0.16027 | 24.89 | 0.000 | 0.05 |
Residuals | 8 | 0.0368 | 0.00459 | ||||
Total | 11 | 0.5176 | |||||
Flexural strength (28 days) | RCA | 3 | 1.3727 | 0.4576 | 61.06 | 0.000 | 0.05 |
Residuals | 8 | 0.0599 | 0.0075 | ||||
Total | 11 | 1.4326 |
Mixture | Water Absorption (%) | Porosity (%) | Dry Density (g/cm³) |
---|---|---|---|
RCC-0 | 5.829 (0.865) | 13.532 (1.675) | 2.690 (0.014) |
RCC-5 | 5.209 (0.174) | 12.309 (0.430) | 2.695 (0.017) |
RCC-15 | 5.757 (0.305) | 13.268 (0.671) | 2.657 (0.014) |
RCC-30 | 6.660 (0.197) | 15.005 (0.419) | 2.651 (0.008) |
Correlation | Equation | N. of Points | Df | RSE | R² | Adj. R² |
---|---|---|---|---|---|---|
fsp and fc | fsp = −0.2526 × fc + 2.4435 | 4 | 2 | 0.0995 | 0.1418 | −0.2873 |
fr and fc | fr = 0.1185 × fc + 1.4387 | 4 | 2 | 0.4418 | 0.1559 | −0.2662 |
E and fc | E = 0.6509 × fc + 9.8564 | 4 | 2 | 1.1820 | 0.4375 | 0.1562 |
fr and fsp | fr = −4.4225 × fsp + 12.3632 | 4 | 2 | 0.0748 | 0.9758 | 0.9637 |
E and fsp | E = −12.3 × fsp + 45.781 | 4 | 2 | 0.8598 | 0.7024 | 0.5536 |
E and fr | E = 2.543 × fr + 12.229 | 4 | 2 | 0.9941 | 0.6022 | 0.4033 |
MDD and | MDD = 2.414 × − 4.201 | 4 | 2 | 0.0171 | 0.9380 | 0.9069 |
MDD and P | MDD = −0.0284 × P + 2.6354 | 4 | 2 | 0.0565 | 0.3200 | −0.0199 |
fc and P | fc = −1.166 × P + 32.368 | 4 | 2 | 0.4866 | 0.9077 | 0.8615 |
fc and | fc = 29.18 × − 60.73 | 4 | 2 | 1.386 | 0.2510 | −0.1235 |
