Impacts of Land-Use Change on Ecosystem Service Value of Mountain–Oasis–Desert Ecosystem: A Case Study of Kaidu–Kongque River Basin, Northwest China

Abstract

In this study, we used long time series Landsat data and ecosystem services coefficients for global and Chinese ecosystems during 1978–2018 to estimate the influences of land-use change on ecosystem services (ES) in Kaidu–Kongque River Basin (KKRB), where both socioeconomic progress and the arid, fragile natural environment have considerable affected land-use change. The results showed that (1) the total value of ES in the KKRB was about USD 8111.5, 7995.31, 8275.74, 8131.91, and 8016.38 million in 1978, 1988, 1998, 2008, and 2018, respectively. The net ecosystem service value (ESV) loss was about USD 116.19 million for 1978–1988, the net ESV profit was about USD 280.43 million for 1988–1998, and the net ESV loss was about USD 259.36 million for 1998–2018. (2) Water supply and waste treatment function were the top two ecological functions with high service value; their combined contribution rate was 59.3%, indicating that the regulating service function in this study area is higher than the provision services function. (3) The high to low ranking for each ecosystem function based on their contribution rate to overall ES value was water supply > waste treatment > climate regulation > biodiversity protection > recreation and culture > soil formation > gas regulation > food production > raw material. These results are significant for the continuation of the integrity and sustainability of the mountain–oasis–desert region ecosystem, where socioeconomic progress and the fragile characteristics of the natural ecosystem complement each other. The results of this study provide scientific evidence for governmental decision makers and local residents and offer a reference for environmental researchers in northwest China.

1. Introduction

Ecosystems are the life-supporting and life-sustaining systems of Earth’s natural environment, which includes humans and other organisms. Ecosystems directly or indirectly provide a wide range of multiple services, e.g., by supporting foods and goods, storing carbon, purifying the atmosphere, conserving biodiversity, and regulating climate [1,2,3]. As a main part of the biosphere, each ecosystem service (ES) has unique characteristics that cannot be replaced by other ESs. They play an important role in maintaining the environment, and are becoming increasingly essential for understanding the various benefits provided by ecosystems [4]. An ecosystem can be defined as the conditions and processes that contribute to human and other living organisms’ survival and welfare by providing material and nonmaterial benefits [5]. Each individual function of an ES is critical for maintaining survival on Earth and to the continued development of the ecosystem [6]. The integration of ecological and economic concepts has significantly contributed to the sustainable development of Earth’s environment [7]. In recent years, ecosystem service value (ESV) has become a main topic in environmental ecology and ecological economics research [8]. Due to irrational human activities and global climate change, ESs are experiencing considerable and continually increasing pressure [9]. As the main carrier for various terrestrial ecosystems, change of land use and land cover structure is expected to result in a variety of ecosystem types, areas, and their spatial distributions [10]. Human activities are the main factor affecting ES function via land-use/land-cover change (LULCC) [11]. LULCC is the main factor determining the evaluation of ES function, the land-use structure change, and the dynamic process of most landscapes throughout the world, especially in arid and semiarid regions [12]. LULCC can change ESs through agricultural development, animal husbandry, human living environments, urbanization, built up areas, and mining [13]. Changes to the mode of land use would directly affect the intensities and function of provided ecosystem services. To quantify this, we can account for the regional ecosystem services value, giving us a measure for the effects of changes to land use and land cover on the natural environment [14]. On a larger scale, such measurements always lead to a better recognition of the complex relationships between nature and society. Given this, valuation of ecosystem services has been widely adopted at different scales. Such monetization has provided vital insights into and guidance for land and environmental managers, policymakers, and stakeholders regarding optimal ecosystem service provision and land-use planning [15]. However, the Millennium Ecosystem Assessment (MEA) result showed that two-thirds of all ecosystem services have decreased during the last 50 years, and this decrease is likely to have a large negative influence on human welfare [16]. These negative impacts of LULCC on ESs vary, and mainly result in loss of balance between the provision of ecosystem services and demands of humans and other organisms [17].

Over the recent years, land use and land cover changes in China have shown an increasing trend of speed, depth, and breadth. Their resulting effects have only increased, highlighting the importance of global research into land use and land cover changes [18]. The demand for resources and environment from the increasing societal economic and population growth is beyond the supply capacity of natural ecosystem resources and environments. As such, continued human survival and development will eventually face severe challenges [19]. For instance, it is particularly true that mountain–oasis–desert ecosystem is a typical ecosystem in northwest China; these fragile ecosystems can be easily affected by land use and land cover changes [20].

As we mentioned above, economic valuation of ESs has been an important aspect of ecological economic research [21]. In the past several decades, numerous studies have been conducted to estimate various ESVs. Costanza et al. [22] estimated the global biospheric value of 17 ESs provided by 16 dominant global biomes; Zhang et al. [23] calculated the economic value of endangered species management; Kreuter et al. [24] estimated the change in the ESV for the San Antonio, Texas, area; Zhao et al. [25] assessed the ESV of the land-use change on Chongqing Island, China; and Mamattursun et al. [26] assessed variations in ESV in the Kirya Oasis in western China. These studies have shown that LULCC plays a vital role in environmental and ecological changes. These changes may have dire consequences for the natural environment by altering the ecosystem processes and services [27,28]. To highlight the effect of LULCC on ESV, many studies have estimated the various ESVs around the world, and the relationship between land-use changes and ESV has been explored in scientific papers. These studies have demonstrated that using land-use data is an efficient method for estimating ESV. Studies also indicated that economic progress conflicts with ES if it does not comply with natural ecological principles and laws. However, quantitative research on LULCC and ESV at the regional level for mountain–oasis–desert areas is limited, especially for the estimation of ESV in arid land with rivers and valleys. We selected the Kaidu–Kongque River Basin (KKRB) in northwest China as the study area because, since the late 1970s, the KKRB has been subjected to nearly 50 years of water and soil development and also experienced drastic climate change. From 1978 to 2018, the population increased by 1.6% and socioeconomic progress in this region was significant, and large-scale water management activities were implemented. These factors may have caused considerable LULCC in the area, resulting in dramatic changes in ES function. In this study, based on the land-use land cover (LULC) classification data derived from Landsat series data, such as multispectral scanner (MSS)/thematic mapper (TM)/enhanced thematic mapper (ETM)/operational land imager (OLI) images in 1978, 1988, 1998, 2008, and 2018, as well as the governmental socioeconomic statistics and field investigation data, we calculated the LULCC and its impact in the KKRB during 1978–2018. The main objectives of this research were to (1) estimate the long-term oasis LULCC; (2) calculate changes in ES on the regional scale by examining variation in ESs using value coefficients from 1978 to 2018 and socioeconomic progress on time series ESV; (3) determine how arid land, river, and valley land-use changes affect the value of the ESs in the KKRB; and (4) identify natural and social factors affecting the ESV in the KKRB. These quantitative analyses are urgently important for application in land-use planning of arid land river basins and for offering scientific guidance regarding the eco-environmental protection and sustainable development of arid land in the KKRB.

2. Materials and Methods

2.1. Study Site

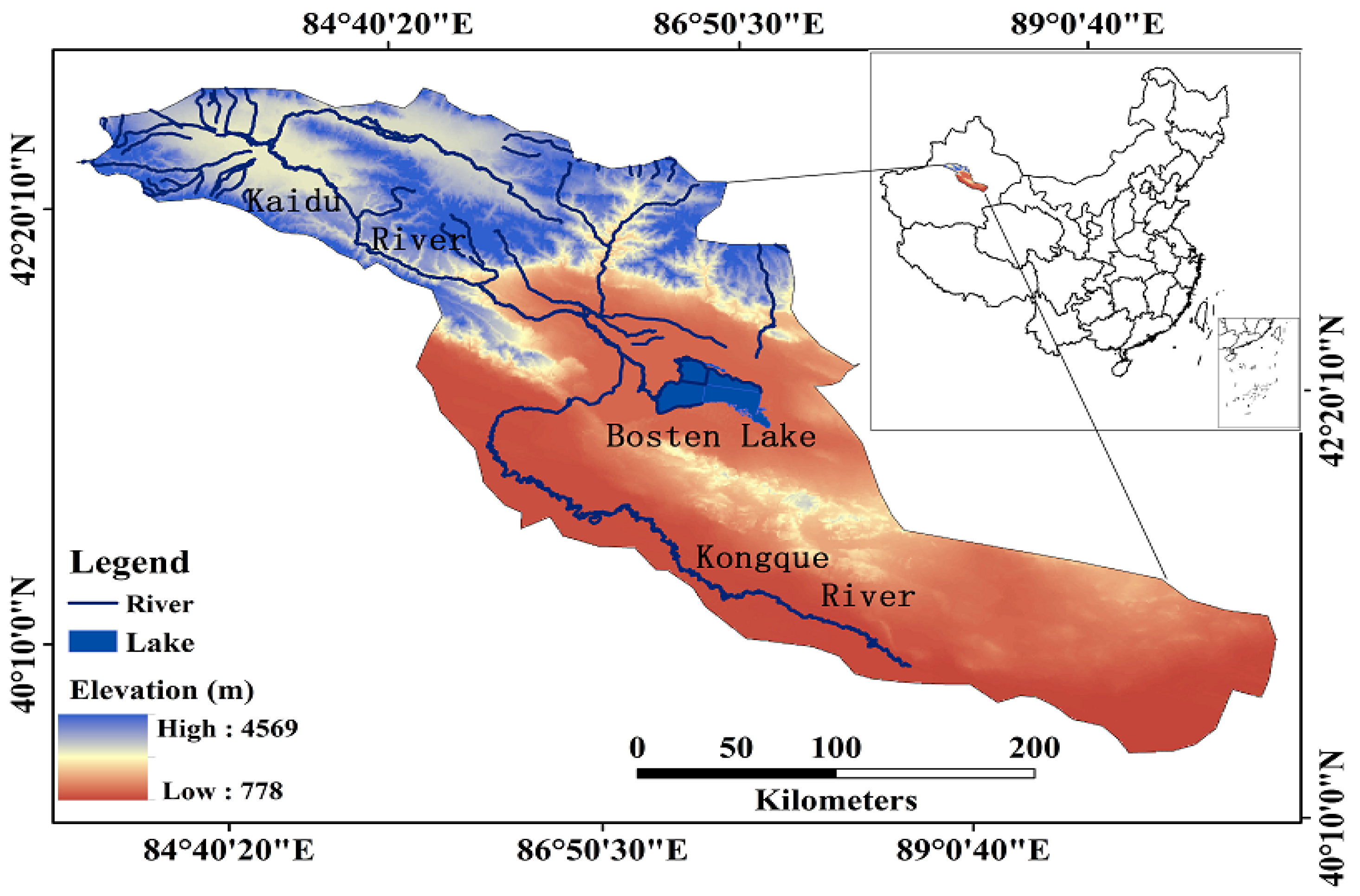

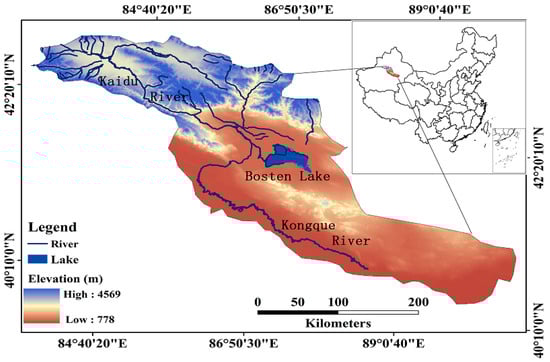

The KKRB, located 40°31′–43°54′ N and 82°7′–89°73′ E, has an area of 74,582 km², is situated on the southern slope of the Tianshan Mountains and the north part of the Taklimakan Desert. It contains Bosten Lake, Kaidu River, Kongque River, and five counties including Bohu, Hejing, Heshuo, Yanqi, and Yuli, as well as the city of Kuerle (Figure 1).

Bosten Lake is the largest inland freshwater lake in northwest China, with a surface area of approximately 1.3 × 10⁴ km². The lake’s total water volume is about 8.8 × 10⁹ m³, with a maximum depth of 16 m and average depth of 8 m. Bosten Lake is where the Kaidu River ends and the Kongque River begins [29]. Topographically, the KKRB is characterized by large mountain ranges in the northwest, oases in the lower–middle narrow plains, and vast desert in the southeast. The KKRB has a typical inner-continental climate, with an annual average temperature of 7.5 ℃ and annual average precipitation of 130.44 mm. The temperature and precipitation in mountain, oasis and desert area are different each other and maximum, minimum, average value of temperature and precipitation in the mountain, oasis and desert were shown in the

Table 1. The temperature and precipitation in the mountains, oases, and desert in the KKRB.

	Temperature			Precipitation
	Max	Min	Average	Max	Min	Average
Mountain	3.1	−0.4	1.3	319	160	238
Oasis	12.7	8.2	10.3	115	39	69
Desert	13.6	9.8	11.4	48	14	30

. During the period of 1978–2018, the average annual runoff of the Kaidu River was about 36.89 × 10⁸ m³.

2.2. Data Collection

To calculate the ESV in the KKRB from 1978 to 2018, we used land-use data, socioeconomic data, an equivalent ESV coefficient, and local development policies. The land-use data were acquired using multi-period and differential-resolution remote sensing data, including Landsat TM/ETM and OLI images in 1978, 1988, 1998, 2008, and 2018, which were freely obtained from the United States Geological Survey (USGS) website. The socioeconomic data and local development policy materials were obtained from Chinese statistical yearbooks and the related literature.

2.3. Land-Use Classification

Remote sensing data geometric corrections and masking were performed using ENVI 5.0 image software based on the 1:10,000 topographic maps. All databases were re-projected to the Universal Transfer Mercator (UTM) Zone 43N with World Geodetic System (WGS-1984) data [30].

After geometric correction and geo-referencing, the average location errors in the images were controlled to less than one pixel. We obtained the KKRB’s LULCC data from TM/ETM/OLI imagery. The band combination was bands 5, 4, and 3, and visual interpretation was based on image specifications such as shape, color, shading, size, structure, texture, and other spatial distributions of each type of land cover [31]. Considering the actual conditions, we used a classification system with eight land types that included crop land, forest land, grass land, water body, built-up land, wet land, saline land, and Gobi. The accuracy of the results was validated according to field observation data. A brief description of the classified land-use types is given in

Table 2. Land-use land covers definition in the KKRB.

LULC Type	Definition
Crop land	Irrigated lands used for multiple crop types
Forest land	Woodland, scrubland, savanna, other woodland
Grass land	Land covered with steppe and grazing lands
Water body	River, lake, reservoir, bottom land
Built-up land	Residential and commercial buildings, transportation facilities, highways, railways, family houses, etc.
Wet land	Mainly mangrove marsh, characterized by poor drainage, long-term moisture, surface growth, hygrophytes
Saline land	Land with salt on topsoil
Gobi	Uncultivated areas, including barren rocky or sandy land in sloping fields, bare land, etc.

.

2.4. Ecosystem Service Value (ESV) Assignment

To evaluate the ESV for each of the eight land-use categories, each category was compared with various biomes that were identified both worldwide and in China [32,33]. Because some of these services estimated by Costanza et al. in 1997 are not suitable for China, Xie et al., based on Costanza et al.’s indices, modified the value coefficient for the Chinese natural ecosystems. In the study, we determined ESV per unit area for each land-use type according to the equivalent coefficient value of ecosystems suggested by Xie et al. (

Table 3. Ecosystem service value (ESV) of unit area of different land-use categories (USD·ha⁻¹·year⁻¹).

ESV	Crop Land	Forest Land	Grass Land	Water Body	Built-Up Land	Wet Land	Saline Land	Gobi
Gas regulation	71.18	285.31	99.07	0.00	0.00	256.26	2.21	3.97
Climate regulation	126.71	268.79	103.03	65.49	0.00	2434.47	0.00	8.59
Water supply	85.43	270.12	100.38	2904.28	0.00	2206.68	37.50	4.62
Soil formation	207.85	265.50	147.94	1.43	0.00	243.44	0.16	11.24
Waste treatment	233.49	113.60	87.18	2591.07	0.00	2588.22	53.03	17.18
Biodiversity protection	101.07	297.85	123.50	354.50	0.00	355.91	3.09	26.41
Food production	142.37	21.79	28.40	14.24	0.00	42.71	11.50	1.32
Raw material	14.24	196.81	23.78	1.43	0.00	9.97	1.03	2.65
Recreation and culture	1.43	137.37	57.46	617.87	12.15	790.13	14.56	15.85
Total	983.75	1857.15	770.74	6550.29	12.15	8927.79	123.07	91.82

) [34].

2.5. Calculation of ESV

In this study, the ESV and value of ecosystem service function (ESF) each refer to the land-use type in the KKRB. They were calculated as follows:

$$ES{V}_k={\displaystyle \sum _f{A}_k\times V{C}_{kf}}$$

(1)

$$ES{V}_f={\displaystyle \sum _k{A}_k\times V{C}_{kf}}$$

(2)

$$ESV={\displaystyle \sum _k{\displaystyle \sum _f{A}_k\times V{C}_{kf}}}$$

(3)

where ESV_k, ESV_f, and ESV represent the ecosystem service value of land-use type k, the ecosystem service function value of service function type f, and the total ecosystem service value, respectively; A_k is the area (ha) for land-use type k; VC_kf is the value coefficient (USD·ha⁻¹·a⁻¹) for land-use type k; and f is the ESF type. The variation in ESV was estimated by calculating the estimated values for each land-use type in 1978, 1988, 1998, 2008, and 2018.

3. Results

3.1. Dynamics of Land-Use/Land-Cover Changes (LULCC)

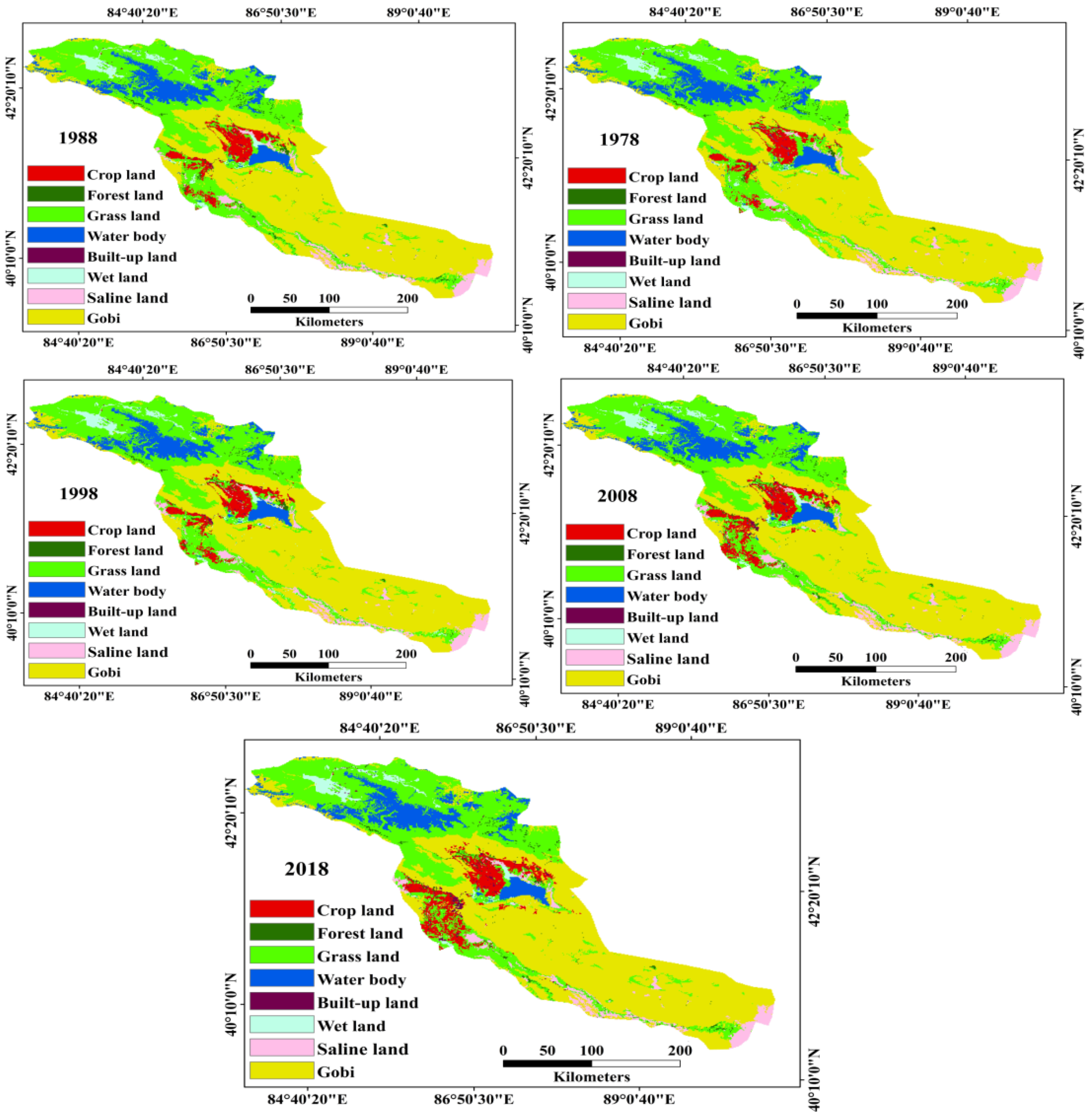

The classification result of the land-use changes in the KKRB during 1978–2018 are shown in

Table 4. Patterns of land-use change in the KKRB in 1978, 1988, 1998, 2008, and 2018.

LULC Type	1978		1988		1998		2008		2018
	Area (103 ha)	%	Area (103 ha)	%	Area (103 ha)	%	Area (103 ha)	%	Area (103 ha)	%
Crop land	248.7	3.33	276.8	3.71	286.5	3.84	348.6	4.67	410.3	5.50
Forest land	54.4	0.73	83.2	1.12	60.4	0.81	82.8	1.11	68.6	0.92
Grass land	2533.4	33.97	2481.2	33.27	2444.7	32.78	2401.3	32.20	2372.4	31.81
Water body	616.8	8.27	603.9	8.10	613.2	8.22	618.2	8.29	608.4	8.16
Built-up land	12	0.16	16.5	0.22	20.2	0.27	24.9	0.33	44.3	0.59
Wet land	158.2	2.12	149.9	2.01	181.2	2.43	153.9	2.06	147	1.97
Saline land	267.8	3.59	279.3	3.74	294.5	3.95	294.7	3.95	292.4	3.92
Gobi	3566.9	47.83	3567.4	47.83	3557.5	47.70	3533.8	47.38	3514.8	47.13

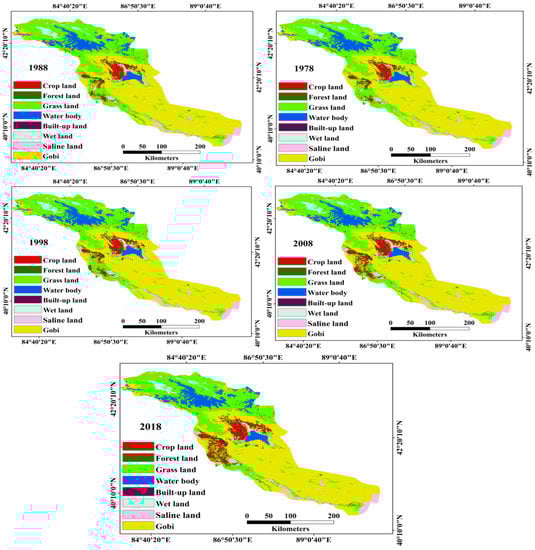

and Figure 2. The LULCC over the 41-year period indicates that Gobi remains the dominant land cover type in the KKRB; it decreased from 47.83% of the entire area in 1978 to 47.13% in 2018. The second largest cover is grass land, which decreased from 33.97% of the entire area in 1978 to 31.81% in 2018. Considering the LULCC classification result shown in Figure 2 and Figure 3, the most obvious change in the LULCC occurred in the interior and central parts of the study area, where oasis land cover was affected by intense human activity.

Crop land increased from 3.33% of total land in 1978 to 5.50% in 2018. Forest land increased from 0.73% total land in 1978 to 0.92% in 2018. Water body first decreased, then increased, and then decreased again, decreasing overall from 8.27% of total land in 1978 to 8.10% in 1988, then increasing to 8.29% in 2008, and then decreasing to 8.16% in 2018. Built-up land also showed an increasing trend from 0.16% of total land in 1978 to 0.59% in 2018. Wet land displayed a decreasing, increasing, and then decreasing trend, and decreased overall from 2.12% of total land in 1978 to 1.97% in 2018. Saline land first increased then decreased, increasing from 3.59% of total land in 1978 to 3.95% of total land in 2008 and then decreased to 3.92% in 2018, but the overall trend was increasing during the study period. In the KKRB, although the calculated sizes of wet land and water body were relatively small, these two land types play significant roles in ESs and have high service values. The total wet land and water body area was only about 10.3% of the total area, but provided most of the ESV in the study area. The large change in wet land, water body, and the simultaneous expansion in crop land resulted from rapid agricultural development, inadequate regulations for wet land protection, and unreasonable management and use of water resources.

3.2. Land-Use Conversion

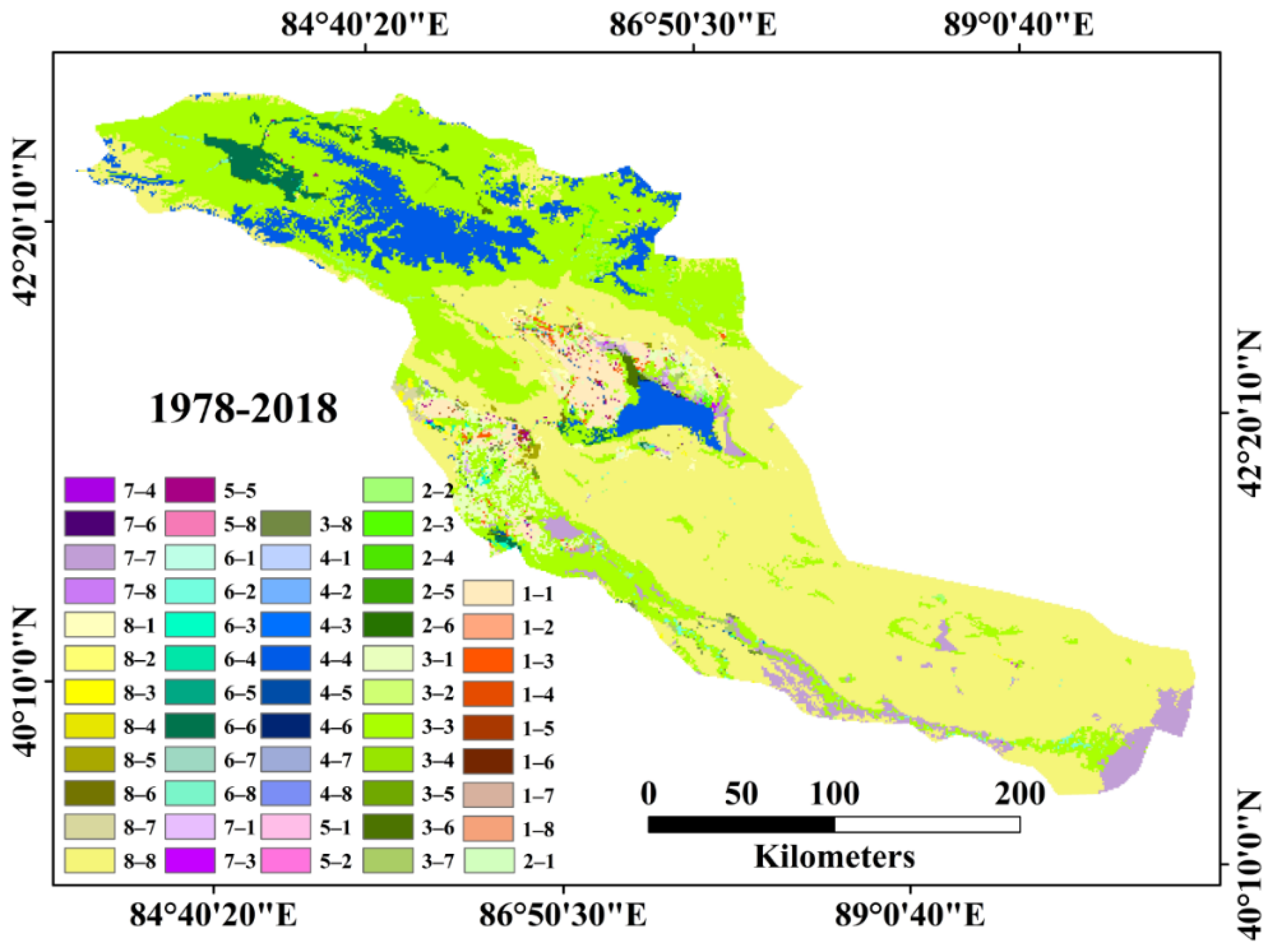

The land-use/land-cover classification maps show that land use in the KKRB considerably changed during the 41-year period (Figure 3). The grass land in the northwest mountain areas dramatically decreased after 1978, being converted to crop land. In the oases that are located in the middle and central parts of the KKRB, crop land has obviously increased around Bosten Lake since 1978. Table 4 displays the dynamics of all eight land-use/land-cover types in terms of total area and percentage. Crop land, forest land, built-up land, and saline land increased; grass land, water body, wet land, and Gobi decreased. The matrices in

Table 5. Transition matrix of land-use/land-cover change (LULCC) from 1978 to 2018 in the KKRB (10³ ha).

Year	LULC Type	Crop Land	Forest Land	Grass Land	Water Body	Built-Up Land	Wet Land	Saline Land	Gobi	Gain
1978–2018	Crop land	2145	22	1449	8	14	28	47	390	4103
	Forest land	46	377	79	3	1	169	0	11	686
	Grass land	179	142	23,079	31	0	96	37	160	23,724
	Water body	1	1	50	6019	0	6	1	6	6084
	Built-up land	64	1	98	60	104	22	0	94	443
	Wet land	2	1	212	20	0	1206	9	20	1470
	Saline land	11	0	177	3	0	16	2579	138	2924
	Gobi	39	0	190	24	1	39	5	34,850	35,148
	Lost	2487	544	25,334	6168	120	1582	2678	35,669

show the land use/cover changes during the two 41-year periods. The figures on the diagonal of a matrix (bold values) are the amounts of those land use/cover types that did not change (persistence) during that period, whereas the off-diagonals indicate the gains, losses, and trajectories of the conversions. For example, Table 5 reveals that out of the 2487 × 10³ ha of the crop land in year 1978, 2145 × 10³ ha were unchanged, while 46 × 10³ ha, 179 × 10³, 1 × 10³, 64 × 10³, 2 × 10³, 11 × 10³, and 39 × 10³ ha were lost to forestland, grassland, waterbody, built-up land, wet land, saline land, and Gobi, respectively. Out of the 4103 × 10³ ha of crop land in year 2018, 1958 × 10³ ha was gained from other types, including the forest land (22 × 10³ ha), grass land (1449 × 10³ ha), water body (8 × 10³ ha), built-up land (14 × 10³ ha), wet land (28 × 10³ ha), saline land (47 × 10³ ha), and Gobi (390 × 10³ ha). Similarly, out of the 686 × 10³ ha of forest land in year 2018, 377 × 10³ ha remained unchanged, while 309 × 10³ ha was gained from the other land use types. Out of the 25,334 × 10³ ha of grass land in year 1978, 23,079 × 10³ ha remained unchanged, while 2255 × 10³ ha was changed into the other land types. The areas of water body, built-up land, wet land, saline land, and Gobi are 6168 × 10³ ha, 120 × 10³ ha, 1582 × 10³ ha, 2678 × 10³ ha, 35,669 × 10³ ha in year 1978, respectively, accounting for 8.27%, 0.16%, 2.12%, 3.59%, and 47.83% of the total area, respectively. In 2018, these proportions changed to 8.16%, 0.59%, 1.97%, 3.92%, and 47.13%, respectively.

3.3. ESV Changes

We estimated the total ESV for the KKRB from 1978 to 2018 according to the ESV per unit area of different land-use types (Table 3) and total areas of different land-use types (Table 4). These results are displayed in

Table 6. ESV of the KKRB in 1978, 1988, 1998, 2008, and 2018 (10⁶ USD).

LULC Type	1978	1988	1998	2008	2018	1978–1988 (%)	1988–1998 (%)	1998–2008 (%)	2008–2018 (%)	1978–2018 (%)
Crop land	244.66	272.30	281.84	342.94	403.63	11.30	3.50	21.68	17.70	64.98
Forest land	101.03	154.51	112.17	153.77	127.40	52.94	−27.40	37.09	−17.15	26.10
Grass land	1952.58	1912.35	1884.22	1850.77	1828.49	−2.06	−1.47	−1.78	−1.20	−6.36
Water body	4040.22	3955.72	4016.64	4049.39	3985.20	−2.09	1.54	0.82	−1.59	−1.36
Built-up	0.15	0.20	0.25	0.30	0.54	37.50	22.42	23.27	77.91	269.17
Wet land	1412.38	1338.28	1617.72	1373.99	1312.39	−5.25	20.88	−15.07	−4.48	−7.08
Saline land	32.96	34.37	36.25	36.27	35.99	4.29	5.44	0.07	−0.78	9.19
Gobi	327.53	327.57	326.66	324.49	322.74	0.01	−0.28	−0.67	−0.54	−1.46
Total	8111.50	7995.31	8275.74	8131.91	8016.38	−1.43	3.51	−1.74	−1.42	−1.17

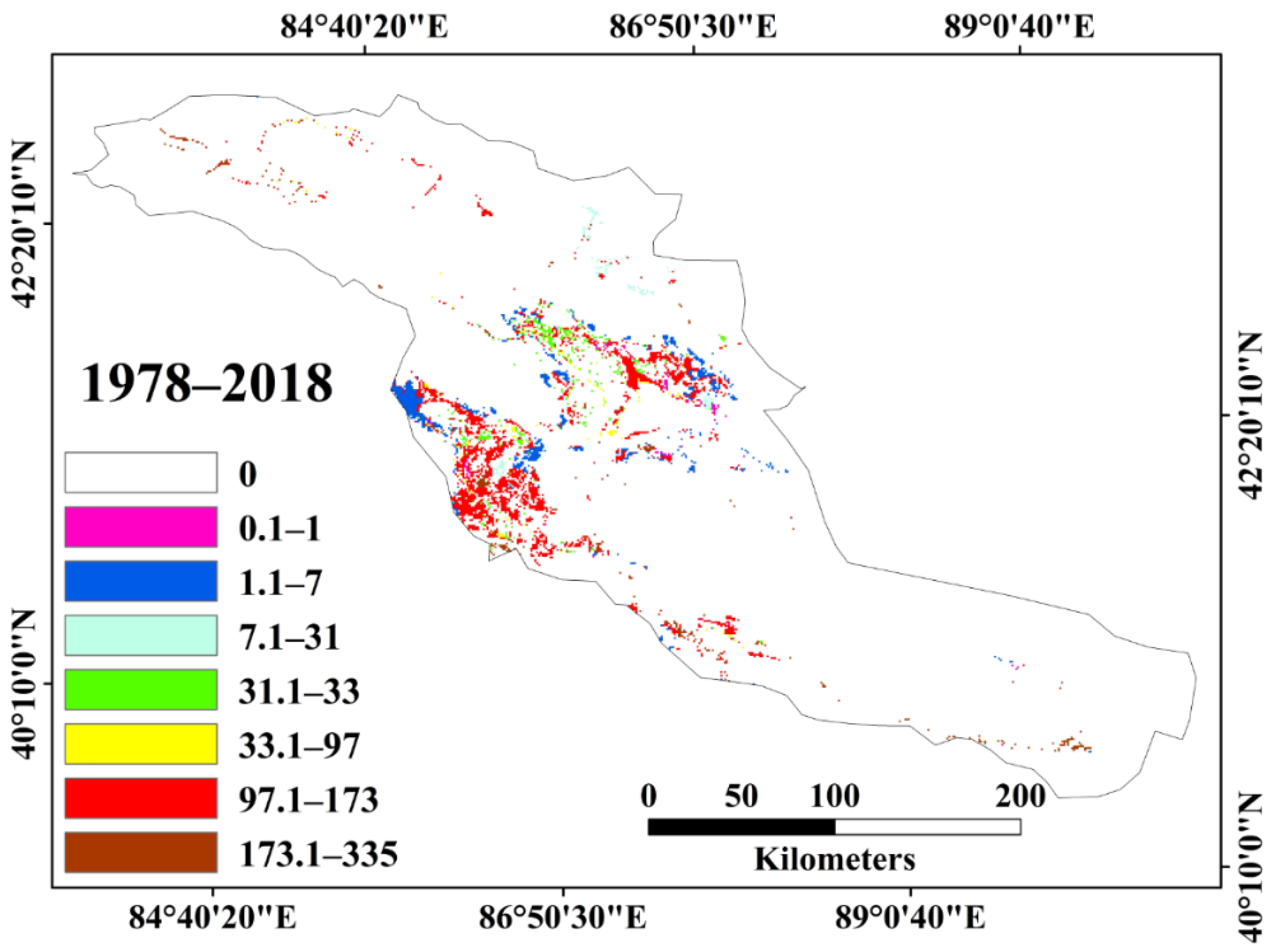

and Figure 4 and Figure 5. According to Table 6, the total ESV of the KKRB declined from about USD 8111.50 million in 1978 to USD 7995.31 million in 1988, then increased to USD 8275.74 million in 1998, and then decreased to USD 8016.38 million in 2018. This indicates a fluctuating and changing process: approximate cumulative loss of ecosystem value of USD 116.19 million in the first 10 years (1978–1988), cumulative profit of ecosystem value of USD 280.43 million in the second 10 years (1988–1998), and cumulative loss in ESV of USD 259.36 million in the last 20 years (1998–2018), with an overall decreasing trend in ESV.

The volatile change in ESV was mainly caused by the changing wet land and water body areas, which provide more service value in the KKRB. Overall, the changes in ESV that were mainly caused by the changing water body and wet land area were about USD −158.60 million (loss), 340.36 million (gain), −336.77 million (loss) during the periods 1978–1988, 1988–1998, and 1998–2018, respectively. The variations in the ESV of each land-use type corresponded to LULCC trends during 1978–2018. Although crop land, forest land, built-up land, and saline land were ESV increasing types, their contributions to total ESV were less than the contributions of grass land (high coefficient value and large area), water body (high coefficient value and large area), and wet land (highest coefficient value) to the total ESV. Due to the relatively large area and high coefficient value, the ESV provided by water bodies was the highest among the eight land-use types, providing about 49.47% of the total value. Due to the comparatively large area with high service value, the value of ES produced by grass land was also relatively high, providing about 23.27% of the total value. Due to the highest coefficient value, the value of ESs produced by wet lands was third amongst the eight land-use types, accounting for 17.39% of the total value. Together, grass land, water body, and wet land accounted for about 90.12% of the total ESV, implying that these land-use types play significant roles in the total ESV of the KKRB.

3.4. Impacts of Land-Use Variation on Ecosystem Functions (EFs)

To determine the effects of EFs within the KKRB in the 41-year period, the ESV provided by individual EFs were also calculated (

Table 7. Values of ecosystem service (ES) functions in 1978, 1988, 1998, 2008, and 2018 (10⁶ USD).

ES Function	1978		1988		1998		2008		2018		Tend
	ESVf	%	ESVf	%	ESVf	%	ESVf	%	ESVf	%
Water supply	2457.22	30.29	2406.81	30.10	2494.42	30.14	24,555.96	30.20	24,102.68	30.07	↓
Waste treatment	2368.20	29.20	2319.19	29.01	2421.43	29.26	23,765.91	29.23	23,431.65	29.23	↑
Climate regulation	763.31	9.41	748.18	9.36	816.25	9.86	7593.27	9.34	7427.48	9.27	↓
Recreation and culture	720.08	8.88	706.77	8.84	732.15	8.85	7140.21	8.78	6988.92	8.72	↓
Biodiversity protection	724.21	8.93	721.70	9.03	725.61	8.77	7246.28	8.91	7166.26	8.94	↑
Soil formation	520.44	6.42	524.17	6.56	522.26	6.31	5277.90	6.49	5306.62	6.62	↑
Gas regulation	339.51	4.19	342.46	4.28	341.04	4.12	3404.61	4.19	3360.90	4.19	↑
Food production	131.87	1.63	134.61	1.68	136.09	1.64	1430.63	1.76	1502.31	1.87	↑
Raw material	86.66	1.07	91.40	1.14	86.50	1.05	904.34	1.11	876.95	1.09	↑
Total	8111.50	100.00	7995.31	100.00	8275.74	100.00	8131.91	100.00	8016.38	100.00	–

). The contribution rates of individual EFs to the total ESV value in each year were ranked according to their calculated ESV_f in 1978, 1988, 1998, 2008, and 2018. The trend in the contribution rate of each ecosystem function to the total value of the ES is shown in Table 6 by an upward arrow for increasing contribution, a downward arrow for declining contribution, and a dash for no change.

In conclusion, the variations in the contribution of each ecosystem function to the total services value were obvious and the rank order remained almost the same. The entire ranking for each ecosystem function according to their contributions to the total ES value was as follows, from high to low: water supply > waste treatment > climate regulation > biodiversity protection > recreation and culture > soil formation > gas regulation > food production > raw material. The analysis of the ES function composition indicated that the water supply and waste treatment functions were the top two ecosystem functions with high service value; their combined contribution to the total was 59.3%. The food production and raw material functions were the two ecological functions with the lowest service value, together contributing only about 2.96%. In this study, the value of regulating service function of the KKRB ecosystem is far higher than that of provision service function; it indicated that the ES function of the KKRB is belonging to a provision function.

Among the nine top-ranked EFs, the contribution rates of soil formation, waste treatment, food production, biodiversity protection, and raw material functions increased during 1978–2018, while the contribution rates of gas regulation, climate regulation, water supply, and recreation and culture decreased. Due to the regulation service function of the KKRB, the total ecological service value of the study area decreased because the regulating function was hindered.

4. Discussion

Due to large-scale land reclamation and unreasonable water resource exploitation after 1978, the hydrological condition and natural environment of the KKRB have changed considerably, resulting in dramatic changes in the ESV of arid regions. Both human activities (continued population increase, rapid economic development, and socioeconomic-related policies) and natural factors (climate and hydrological changes) and their interactions have resulted in land-use changes and the exploitation of water resources.

4.1. Factors Driving LULCC

4.1.1. Effects of Regional Climate Change on LULCC

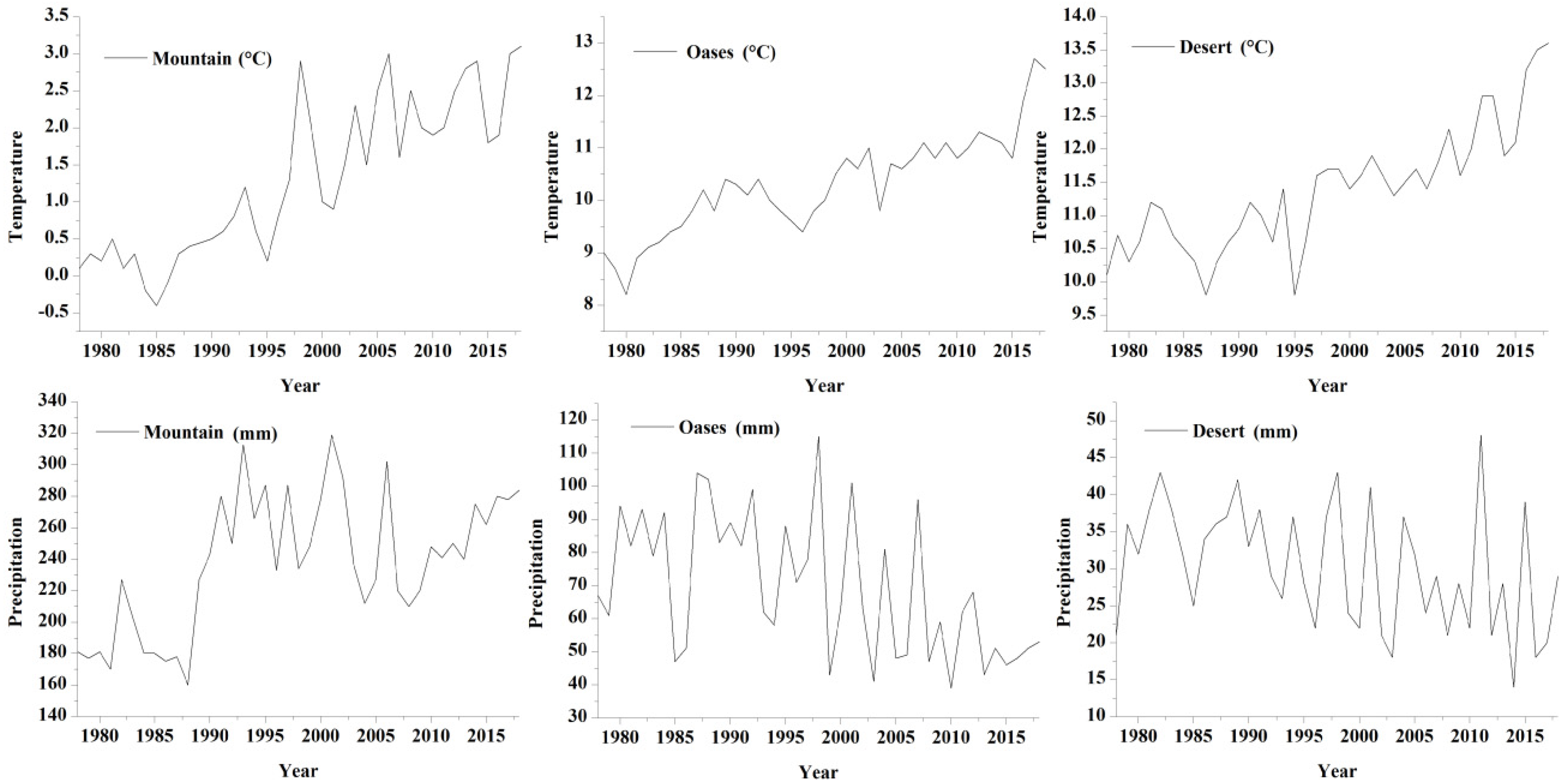

The LULCC in the KKRB in northwest China is largely affected by the total amount and spatial distribution of water resources. Natural factors, including temperature, precipitation, and topography, have also significantly influenced land use/land cover. The mountains in northwest part of the KKRB stop moisture air masses from bringing precipitation to the mountain areas. For northwest China, the mountain areas create precipitation runoff, and the plains located in central and southeast part are the dissipative zone. Under the background of global climate change, the runoff in the KKRB has been experiencing notable change, and runoff rate is a main factor affecting the LULCC. Figure 4 depicts the temporal change in climate in the KKRB for 1978–2018. The temperature of the mountain, oasis, and desert areas have increased, especially since 1998. From 1978–2018, although the precipitation showed a slightly rising trend for the mountainous areas, the precipitation declined in the oasis and desert areas. The precipitation change has had two effects on the study area. First, the declines in precipitation in the oases and desert areas have been significantly detrimental to both the human system and the natural ecosystem, aggravating the competition between the two systems for water. Second, the warming trend and increased precipitation in the mountainous areas have accelerated the speed of snow and glacier melting, resulting in an increase in downstream runoff. These phenomena can balance the decreased precipitation in the downstream areas to some extent. The abundant water in the upstream mountain areas has given humans more opportunity to control the use and allocation of water resources. The effects of temperature on LULCC are mainly expressed in the variation in meltwater runoff in the mountains.

4.1.2. Effects of Regional Hydrological Change on LULCC

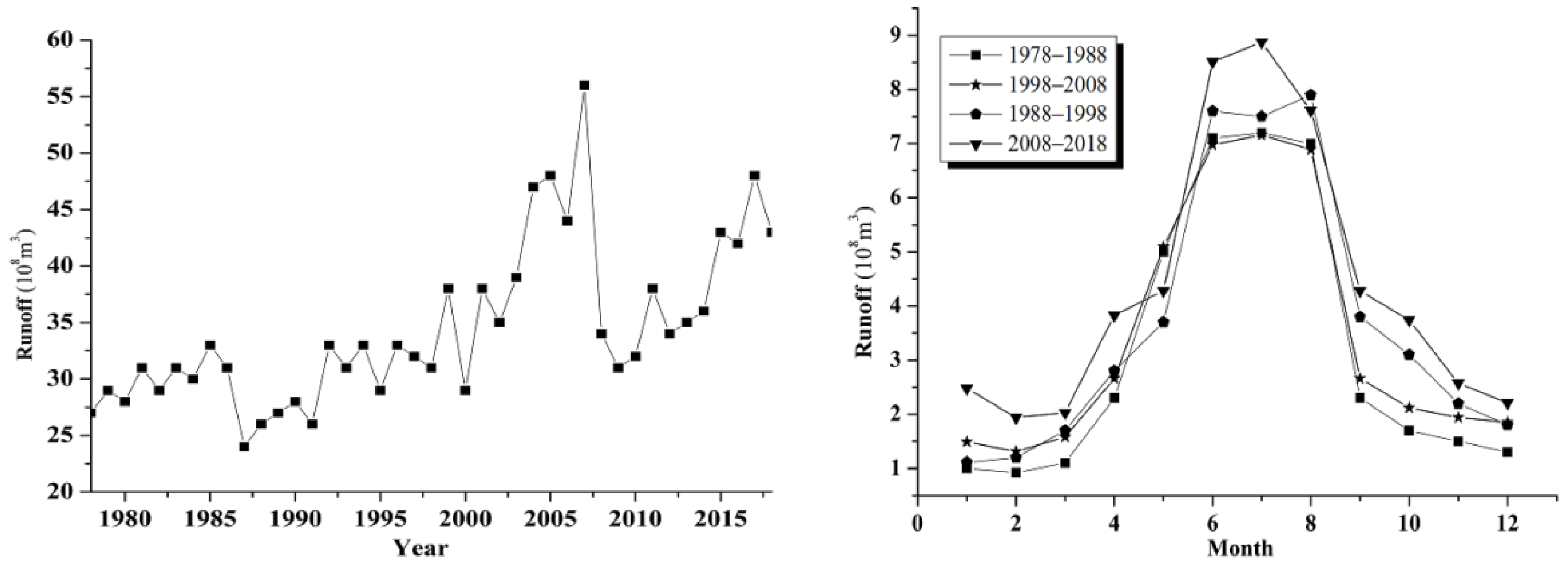

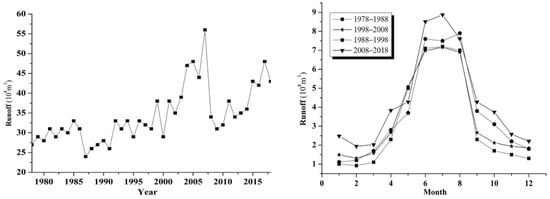

In northwest China, the amount of runoff relies strongly upon the glaciers. Glacier melting has an important impact on the total water resources in this region. Figure 5 shows that the runoff of the Kaidue and Kongque Rivers raised from 1978 to 2018. Figure 5 also compares the average monthly runoff of 1978–1988, 1988–1998, 1998–2008, and 2008–2018. The summer runoff in the final 10 years increased notably, whereas the other seasons’ runoff remained the same or only rose a little. The variation in runoff has two impacts on the LULCC: First, it directly affects the agricultural irrigation water demand and the ecosystem water demand; second, it directly affects the recharge of ground water—if the river has a large amount of water, then the groundwater level remains relatively high. This condition is helpful for desert vegetation growth. Apart from this, the spatial pattern of cropland changes between 1978 and 2018 could be explained by the spatial difference of water consumption and allocation along the Kaidu–Kongque River, which to large extent account for the expansion of crop land in the KKRB.

In the 41-year study period, the KKRB has been subject to various kinds of water resource management engineering, such as dams, wells, and reservoirs, as human activities have expanded rapidly in this area. Numerous new wells were dug to supply more irrigation water to the newly reclaimed land. Until 2015, 3441 wells were dug along the Kaidu and Kongque Rivers [29]. Given the salinity that occurred in the middle reaches of the river area, the secondary salinization caused land to deteriorate, resulting in the abandonment of large areas of crop land, which has become unused land. The rapid growth of crop land and urbanization probably led to the destruction of large-scale grass land and wet land area. In the meantime, the land reclamation for crop planting may break the original ecosystems around the new cropland and resulted in large scale land degradation.

4.1.3. Anthropogenic Driving Factors

Compared to natural driving factors, the effects of which usually take longer to become noticeable, anthropogenic activities may have significant and direct impacts on LULCC [29]. Population growth is an important force driving LULCC, and population dynamics can also be a response to environmental change. The improvement of people’s living standards and medical and health conditions have led to the gradual increase in life expectancy and a decrease in the mortality rate, resulting in a rapid growth in the population of the region.

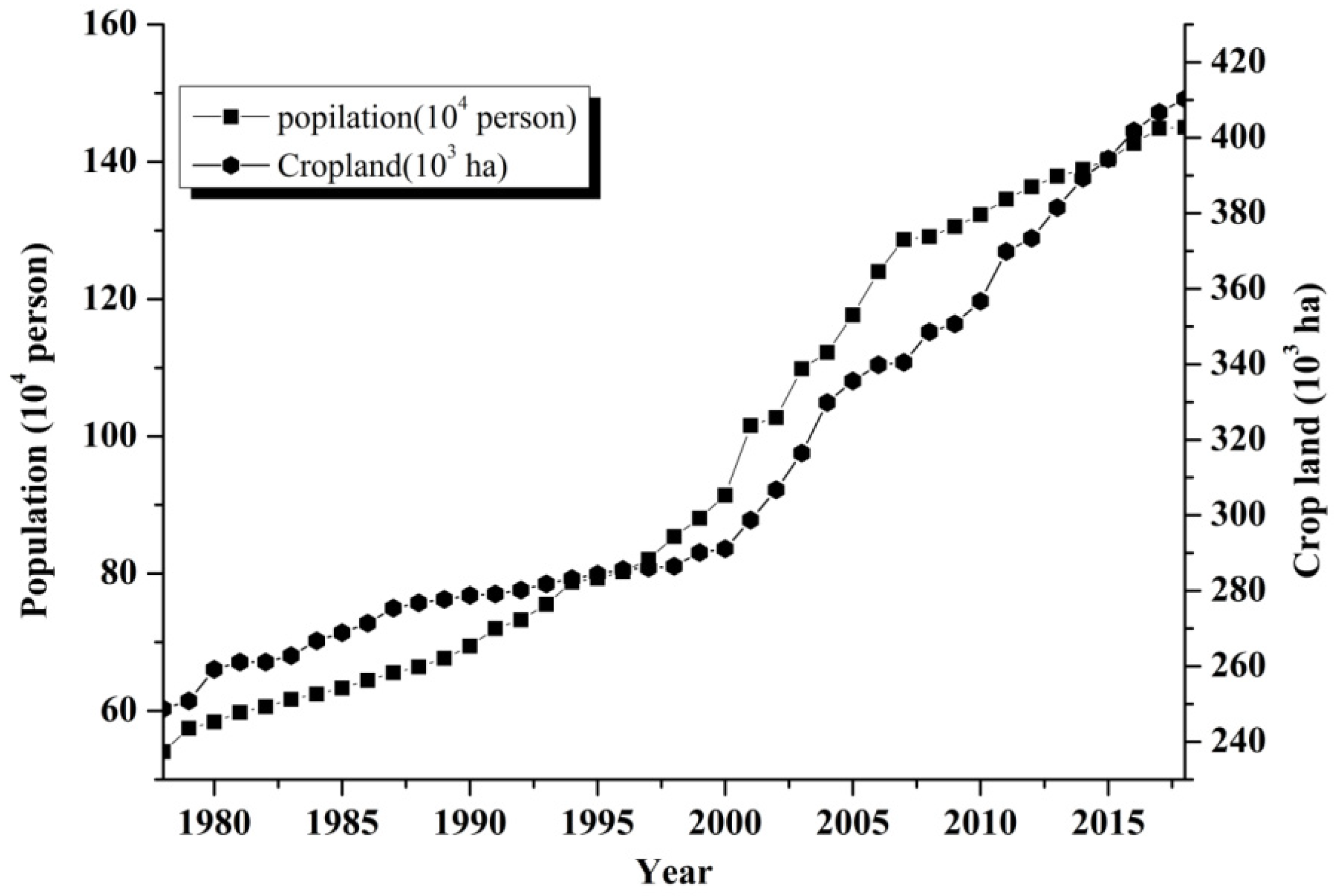

The population of the KKRB increased from 54,050 in 1978 to 145,010 in 2018. The population continues to increase, directly resulting in the intensive expansion of crop land and built-up land areas. The population growth is having two kinds of effects on LULCC. First, the continued increase in population necessitates more land to satisfy their settlement demands and basic needs, such as daily food and living space. Second, the populace’s desire for higher economic development requires added land for producing more agricultural commodities. Consequently, in the KKRB, large areas of crop land have been used to cultivate more economic crops, such as cotton, which helps to increase local farmers’ incomes. Figure 6 reveals the corresponding change in the population and crop land in the KKRB during 1978–2018. Figure 6 shows that crop land increased slowly after 1978, and then jumped during 1998–2018. With the continuous growth of population, large areas of Gobi, wet land, and natural grass land were reclaimed for cultivation, producing drastic changes in crop land area.

4.2. LULCC Effect on the ESV

The continued population growth and rapid economic development in the KKRB have resulted in the expansion of crop land and Built-up land, accelerating deforestation and the cultivation of grass land and wet lands. The expansion of crop land and built-up land areas changed the landscape structure, causing the degradation of ecosystem functions. During 1978 to 2018, the areas of the different land-use categories continually changed in the KKRB. Crop land, forest land, built-up land, and saline land areas increased, while grass land, water body, wet land, and Gobi decreased. To analyze the change in ESV, the change in ESV for regional land use for 1978 and 2018 is shown in Figure 7. The figure shows that the ESV in the central region of the study area continually decreased. The ESV of the city circle and the new built-up land area decreased remarkably, potentially due to the city planning and urbanization of the KKRB during 1978–2018. The ESV in the northern mountainous region relatively decreased and the ESV in the eastern desert area of the KKRB continued to increase, especially with regard to Gobi, which was converted to crop land, while the ESV of water bodies and wet land decreased significantly. Because the value coefficient of built-up land areas was almost zero, we think that the land-use change from grass land to crop land, and crop land to built-up land would be harmful to the ESV in the KKRB.

From the research results, we found that the total ESV in the KKRB decreased by 1.17% between 1978 and 2018, based on the changing sizes of the land-use categories. This decrease in total ESV was caused mainly by the 6.36% reduction in grass land, 1.36% reduction in water bodies, 7.1% reduction in wet land, and the 269.16% growth in built-up land areas. The large-scale expansion of built-up land area has negatively affected the ecological environment of study area during the entire study period. From these observations, we suggest that LULCC exerts a significant effect on ESV. Therefore, in the future, LULCC policy formulation and the protection of wet lands must be prioritized.

4.3. Limitations and Suggestions

4.3.1. Data Collection

The main limitation of this study is related to the land-use/land-cover classification map that was obtained by maximum likelihood classification matching. We obtained the LULCC maps of the KKRB for five time periods using remote sensing technology. Because of the limitations of remote sensing interpretation, such as data selection, data resolution, data classification, and classification accuracy, LULCC was estimated using land-use pattern changes, so the ESV could only be expressed as single points in time in the KKRB. Therefore, in future ESV estimation studies, to improve the land-use classification accuracy, high-resolution remote sensing data should be used. Apart from this, field investigation should be used to validate data; interviews with government policy makers, experts, and others should also be integrated to determine the accuracy of the LULCC image in this study.

4.3.2. ESV Estimation

The ESV coefficients sometimes under- or overestimated the contribution of its corresponding LULCC. The ESV calculation method applied in this study has been proven to be reliable in many other studies and provides scientific information for government policy makers and local residents. The results of this study can be applied to the sustainable development of the KKRB. However, the ecosystem service for the same LULC-type would change if the landscape structure is complicated, and the estimated ESV is affected by different factors such as market price (when we estimated the ESV variation between 1978 and 2018, we assumed that the market price was the same as in 2008), inflation rate, exchange rate among currencies, land-use/land-cover structure optimization, social and economic development patterns, and governmental policies; thus, accurately estimating the ESV is difficult. Apart from these, the accuracy of the modified value coefficients is unreliable due to ecosystem heterogeneity. These issues could significantly affect ESV estimation. Therefore, these limitations should be considered in follow-up studies.

5. Conclusions

According to the changes in ESV based on land-use classification data in the KKRB from 1978 to 2018, we drew the following conclusions:

(1)

During 1978–2018, each of the land use/cover types, had been experiencing dramatic change, and crop land, forest land, built-up land, and saline land increased, while the grass land, water body, wet land, and Gobi decreased. The large change in wet land, water body, and the simultaneous expansion in crop land resulted from rapid agricultural development, inadequate regulations for wet land protection, and unreasonable management and use of water resources.

(2)

The net decline in ecosystem service values in the study area decreased from approximately 8111.5 million USD in 1972 to 8016.38 million USD in 2018. This decline in ecosystem service values can be attributed to a corresponding decrease in the total area of grass land, water body, and wet land. From 1978 to 2018, water bodies produced about 49.47% of the total ESV, grass land produced about 23.27% of the total, while wet land produced about 17.39%. The total ESV of water body, grass land, and wet land contributed about 90.12% to the total value, implying that these land-use types play significant roles in the ESs in the study area.

(3)

The water supply and waste treatment functions were the top two ecological functions providing high service value, contributing 59.3%, while food production and raw material were the ecological functions providing the lowest service value. Therefore, the ESFs of the KKRB belonged to the regulating service function. The overall ranking for each ecosystem function according to their contribution rate to total ecosystem value was as follows, from high to low: water supply > waste treatment > climate regulation > biodiversity protection > recreation and culture > soil formation > gas regulation > food production > raw material.

In conclusion, our results indicate that there is a particular relationship between land use and the ecosystem service value, and the variation of the ecosystem service value is conducive to evaluating the ecological problems and devising reasonable land use plans. Considering the fragile characteristics of study area, we recommend that anthropogenic activities in KKRB should be undertaken with caution. If the environmentally negative human activities in the mountain–oasis–desert ecotone are changed into environmentally positive human activities, then this would be helpful for protecting and developing the KKRB ecosystem. This trend would be important not only for economic progress but also for the sustainable development of the region’s ecosystems. Apart from this the reliability of the estimated results depends on the accuracy of the value coefficients; therefore, future research should focus on extracting more accurate value coefficients.
