Phytoremediation Potential of Freshwater Macrophytes for Treating Dye-Containing Wastewater

by
Karunakaran Gowri Ahila
1,
Balasubramani Ravindran
2,*,
Vasanthy Muthunarayanan
3,
Dinh Duc Nguyen
2,4,*,
Xuan Cuong Nguyen
5,6,
Soon Woong Chang
2,
Van Khanh Nguyen
7,* and
Chandran Thamaraiselvi
1,*
1
Department of Biotechnology, Mother Teresa Women’s University, Kodaikanal, Tamil Nadu 624101, India
2
Department of Environmental Energy and Engineering, Kyonggi University Youngtong-Gu, Suwon 16227, Korea
3
Water and Solid Waste Processing Lab, Department of Environmental Biotechnology, Bharathidasan University, Tiruchirappalli, Tamil Nadu 620024, India
4
Faculty of Environmental and Food Engineering, Nguyen Tat Thanh University, 300A Nguyen Tat Thanh, District 4, Ho Chi Minh City 755414, Vietnam
5
Center for Advanced Chemistry, Institute of Research and Development, Duy Tan University, Da Nang 550000, Vietnam
6
Faculty of Environmental Chemical Engineering, Duy Tan University, Da Nang 550000, Vietnam
7
Department of Microbiology, Pusan National University, Busan 46241, Korea
*
Authors to whom correspondence should be addressed.
Sustainability 2021, 13(1), 329; https://doi.org/10.3390/su13010329
Submission received: 3 November 2020 / Revised: 18 December 2020 / Accepted: 25 December 2020 / Published: 31 December 2020
(This article belongs to the Special Issue Environmental Remediation)
Browse Figures
Versions Notes

Abstract

:
Phytoremediation is a promising green technology for the remediation of various industrial effluents. Notably, aquatic plants are widely applied to remove dyes and toxic metals from polluted environments. In the present study, the phytoremediation potency of aquatic macrophytes such as Pistia stratiotes L, Salvinia adnata Desv, and Hydrilla verticillata (L.f) Royle were assessed based on the removal capability of pollutants from dyeing effluent. Physicochemical characterizations were carried out for industrial wastewater collected from a cotton material dyeing unit located in the Karur District of Tamilnadu, India. The physicochemical characteristics of the dyeing effluent, such as color, odor, pH, total dissolved solids (TDS), alkalinity, acidity, chloride, sulfate, phosphate, nitrate, chemical oxygen demand (COD), fluoride, and toxic metal levels were determined. The core parameters such as total dissolved solid (TDS), chemical oxygen demand (COD), and chloride level were determined and found to be 6500 mg/L, 2400 mg/L, and 2050 mg/L, respectively, which exceeded the regulatory limit prescribed by the Central Pollution Control Board of India. The levels of toxic metals such as Hg, Ni, and Zn were under the acceptable concentration but Cr and Pb levels in the dyeing effluent were a little bit higher. The effluent was subjected to treatment with Pistia stratiotes L, Salvinia adnata Desv and Hydrilla verticillata (L.f) Royle separately. After the treatment, the toxic metal results were recorded as below detectable levels and the same results were obtained for all three aquatic plants samples used for treatment. Among the three plants, P. stratiotes L efficiently removed 86% of color, 66% of TDS, 77% of COD, and 61.33% of chloride. The variation in phytochemicals of the macrophytes was studied before and after treatment using GC–MS which revealed the reduction of ascorbic acid in the plant samples. The toxic effect of treated effluent was investigated by irrigating an ornamental plant, Impatiens balsamina L. The plant biomass P. stratiotes L obtained after the treatment process was subjected to manure production and its nutrient quality was proved, which can be applied as a soil conditioner. Among the aquatic plants, the results of P. stratiotes L indicated a higher remediation potential, which can be used as an ecologically benign method for treatment of industrial effluents and water bodies contaminated with dyeing effluents.

1. Introduction

Water is considered as an important natural resource required for the growth and survival of all living organisms in the biosphere. The blooming of various industries, the human population explosion, and changes in climatic conditions and anthropogenic activities have led to the pollution and deterioration of the environment [1,2,3]. Textile industries are contributing to the enhancement of the economy in developed and developing countries [4]. In addition to this, these industries have been implicated as a producer of environmental pollution by utilizing and releasing a huge quantity of wastewater into the soil and into water bodies [5,6]. The wastewater of textile and bleaching industries is characterized by higher levels of toxic dye stuffs, chemical oxygen demand, total suspended solids, chloride, and carbonates [7].
The remediation of dye-containing wastewater is carried out by various physical and chemical techniques including reverse osmosis, filtration, adsorption, coagulation, electrocoagulation, flocculation, and oxidation. [8]. Most of these techniques are expensive, ineffective in the removal of certain pollutants, produce secondary pollution, and cause high sludge production [9,10]. Recently, effective biological approaches have been adopted for industrial effluent treatment along with methods to overcome the demerits of usual techniques.
Phytoremediation is an emerging, ecologically benign, reliable, inexpensive, aesthetically valued, and green approach that applies plants for the treatment of diverse industrial effluents as well as contaminated soil [11]. Naturally, plants are involved in some specific enzymatic pathways to degrade complex compounds to non-toxic compounds which reduce the pollution effect of contaminated areas [12]. Plants uptake the pollutants present in the contaminated environment through the root system and facilitate detoxification or degradation and/or accumulate pollutants via various plant mechanisms such as phytoextraction, rhizofiltration, phytostabilization, phytotransformation, rhizodegradation, and the phytovolatilization process [1,13,14]. Aquatic plants are widely used for the remediation of dyeing effluent due to their rapid growth, higher yield of plant biomass, and potency in the accumulation of nutrients and/or pollutants and toxic tolerant capability [15,16]. Eichhornia crassipes [17], Salvinia molesta [10], Salvinia cucullata [18], Lemna minor [19], Pistia stratiotes [15], and Chara vulgaris [6] are the water plants widely used for the treatment of wastewater.
The present study aimed to investigate the phytoremediation of dye-containing wastewater collected from the cotton dyeing industry using aquatic plants including Pistia stratiotes L, Salvinia adnata Desv, and Hydrilla verticillata (L.f) Royle. The reusability of the treated effluent and manure production from the obtained biomass was also evaluated. Methanolic extracts of aquatic plants were obtained and analyzed for their phytochemical content before and after treatments using gas chromatography–mass spectrometry (GC–MS).

2. Materials and Methods

2.1. Wastewater Collection and Characterization

The dyeing effluent sample was collected from the effluent treatment system of an ordinary cotton material dyeing industry located in the Karur district of Tamilnadu, India. The physicochemical parameters such as color, odor, pH, total dissolved solids (TDS), alkalinity, acidity, chloride, sulfate, phosphate, nitrate, chemical oxygen demand (COD), and fluoride were determined according to the standard protocol of APHA (American Public Health Association) [20]. Toxic metals such as mercury, lead, zinc, nickel, and chromium were analyzed by atomic absorption spectroscopy (Perkin-Elmer model 3110, Waltham, MA, USA).

2.2. Collection and Authentication of Aquatic Plants

Pistia stratiotes L (family: Araceae; common name: water lettuce), Salvinia adnata Desv (family: Salviniaceae; common name: water fern), and Hydrilla verticillata (L.f) Royle (family: Hydrocharitaceae; common name: water thyme) (Figure 1) were collected from freshwater without the influence of dyeing effluent. The collected plants were authenticated by the botanical survey of India, Southern Regional Centre (TNAU campus, Lawley Road, Coimbatore, Tamilnadu, India) (Ref. No.: BSI/SRC/5/23/2017/Tech.2837).

2.3. Experimental Setup for Phytoremediation

For the phytoremediation process, the plants were washed thoroughly with tap water and distilled water to remove dirt. The acclimatization was done in laboratory conditions with tap water only for 20 days. The alkaline nature of the effluent leads to the death of macrophytes. Hence, the pH was neutralized to 7.2 using acetic acid (1%) for further treatment processing. After the neutralization of pH, the aquatic macrophytes such as P. stratiotes L, S. adnata Desv, and H. verticillata (L.f) Royle were grown for evaluation of pollutant removal potential. Approximately 250 g of each plant was introduced into glass tanks containing 5 L of dyeing wastewater, separately. The effluent without plant was maintained as a control. The reduction of core parameters such as TDS, COD, and chloride were analyzed for treated effluent [20]. The toxic metals such as Pb and Cr were analyzed by AAS (Atomic Absorption Spectroscopy) after digestion of plant materials by the acid method using nitric acid and hydrogen peroxide digestion. In order to stabilize the tissue and to stop the enzymatic reactions, the plant samples were washed in deionized water, dried at 80 °C for 24 h, and then powdered. Later they were digested with nitric acid followed by hydrogen peroxide in a repeated heating process [21]. The methanolic extracts of all three varieties of aquatic plants were prepared using Soxhlet apparatus and phytochemical constituents were analyzed by gas chromatography–mass spectroscopy (GC–MS System; Agilent Technologies, CA, USA). The phytoconstituents were identified using NIST and Wiley databases. The decolorization efficacy of aquatic plants was determined by a UV-visible spectrophotometer (Elico Serial No. 218) based on the intensity of color at the wavelength of 540 nm observed before and after the phytoremediation process. All experiments were carried out in triplicate.

2.4. Reusability of Phytoremediated Effluent

The reusability of treated effluent was assessed by growing an ornamental plant named Impatiens balsamina L (family: Balsaminaceae). The experiments were conducted in Kodaikanal during the months of July–September under uniform conditions of light intensity, photoperiod, and temperature. An equal amount of soil was placed in three containers. All containers were maintained in an open air environment. Two sets of experiments were conducted. The healthy seeds of the Impatiens balsamina L were procured from a local market. The seeds were surface sterilized with 0.1% HgCl2 and allowed to grow in three sets of containers. The first set was maintained as control which was irrigated with clean (tap) water every day. The second one was irrigated with P. stratiotes L-treated dyeing effluent regularly (DI, daily irrigation). The third set was alternatively flooded with tap water and P. stratiotes L-treated effluent (ADI, alternative day irrigation/first day irrigated with tap water second day irrigated with treated effluent, third day tap water, and likewise). The irrigation was done every morning at 8.30 am. The mean length of root, shoot, leaf, and number of flowers of 65-day-old plants were determined. An ANOVA calculation was done for the growth parameters of the control plant, ADI, and DI. The difference between the control plant and treated effluent irrigated plants was confirmed using an ANOVA test (IBM SPSS Version 20 package).

2.5. Manure Production Using Plant Biomass

The plant biomass obtained after the phytoremediation process was utilized for manure production. In total, four compost sets were carried out with different proportions of plant biomass with cow dung, agriculture waste, and filter papers used for filtration purposes. Pistia stratiotes L plant after phytoremediation was subjected to composting process with two different combinations including Set A (cow dung and P. stratiotes L biomass and agricultural waste in the ratio 1:2:1), Set B (cow dung, Pistia stratiotes L biomass and used filter papers 1:1:1), Set C (only cow dung), and Control (only Pistia stratiotes L biomass). These sets were allowed to undergo aerobic digestion and their moisture levels were maintained by a frequent sprinkling of water during the process. Furthermore, thorough mixing of the contents was done regularly. The physicochemical characteristics such as color, odor, pH, moisture content, organic carbon, nitrogen, phosphorous, potassium, iron, and copper content in decomposed matter of the compost sets were analyzed. The manure value of the processed compost was investigated using a standard procedure [22].

3. Results and Discussion

3.1. Wastewater Characterization

The physical and chemical characteristics of cotton dyeing wastewater are given in Table 1. The color of the effluent was dark reddish due to the application of reactive red dyes for the dyeing process. The odor of wastewater was unpleasant. The TDS were determined to be 6500 mg/L. The pH of the wastewater sample indicated quite high alkalinity (pH 10.5). The disposal of highly concentrated dye-containing wastewater characterized with an elevated level of dissolved solids into the aquatic ecosystem prevents the penetration of sunlight which affects the photosynthetic process of aquatic vegetation as well as impeding the re-oxygenation potential of receiving water bodies [23]. The visible dye contaminants in the water resources reduce its aesthetic value and cause harmful effects such as allergy, cancer, and teratogenic effects in humans [24]. The total hardness, alkalinity, and COD of the wastewater were much higher than the regulatory level. Notably, the COD value is the typical factor for evaluating the quality of a water sample. Common anions in waters such as chloride, fluoride, phosphate, sulfate, and nitrate existed in the wastewater at a relatively high concentration. Nitrate and phosphate at a high level in wastewater can damage ecosystems by causing eutrophication [25]. Five representative toxic metals including Hg, Ni, Zn, Pb, and Cr were slightly higher than the standard limit recommended by the Central Pollution Control Board of India (CPCB). The other metals were below the standard limit and below the detectable level. [26].

3.2. Phytoremediation Potency of Aquatic Plants

The phytoremediation potency of three aquatic macrophytes is illustrated in Figure 2 and Figure 3, and the removal efficiency is summarized in Table 2. In the initial test, the aquatic plants wilted immediately due to the alkaline nature of the dye effluent, which was also explained previously. Therefore, the effluent was neutralized using 1% acetic acid which might also act as an enhancer for efficient treatment. After 48 h of incubating with aquatic plants, a color reduction in the wastewater was observed. However, the plants started to decay after the extension of treatment up to 72 h due to the uptake of contaminants and color (data not shown).
The obtained results indicated that a removal efficiency higher than 50% was achieved for color, TDS, COD, and chloride after 48 h of treatment by the three plants. Among the three plants, Pistia stratiotes L showed the best performance for the removal of color, chloride, TDS, and COD, whereas H. verticillata (L.f) Royle exhibited the lowest removal efficiency (Figure 2). The TDS, COD and chloride level of Pistia stratiotes L-treated dyeing effluent were found to be 4290 mg/L, 1848 mg/L, and 1250.5 mg/L, respectively. The values of toxic metals, Pb, and Cr of treated effluent and plant samples used for treatment were found to be below the detectable level (Table 2). Among the four environmental factors investigated during the phytoremediation, color was removed more efficiently than other factors such as TDS, COD, and chloride. A color removal efficiency of 73–86% was achieved after 48 hr of treatment by the three plants (Figure 3). Chloride seemed to be removed less than other parameters. Only 56–61.33% of chloride was removed at the end of incubation of all plants. The pH of the effluent was neutralized before subjecting it to phytoremediation. After treatment, there was no significant change in pH observed. Similarly, the maximum decolorization potential of Eichhornia sp. in textile effluent was recorded by Anjana and Thanga [27]. P. stratiotes L was reported as an effective hyperaccumulator and could uptake the contaminants as well as nutrients through rhizofiltration mechanism and was utilized for growth, which resulted in a high biomass production [28]. In this study, the accumulation of dye stuffs was observed in the roots and leaves of P. stratiotes L and S. adnata Desv plants (Figure 4). Anuradha et al. [29] stated that plant peroxidase is involved in the deterioration of textile dye substances. Ugya et al. [30] have reported the TDS- and TSS-reducing efficiency of P. stratiotes form textile wastewater. Ng et al. [31] achieved 39% of COD and 95% of phosphate removal from palm oil mill effluent using Salvinia molesta. Likewise, Chandanshive et al. [10] reported the Rubine GFL dye decolourizing efficiency of Salvinia molesta D.C Mitch through the activation of oxidoreductase (azo-reductase, lacase, and catalase) and peroxidase enzymes. The phenolic compounds of plants were chiefly involved in the antioxidant activity during physiological stress that occurs in plants [32,33]. Xue and Yan [34] proved the arsenic-removal capability of H. verticillata (L.f) Royle through the phytoaccumulation and phytofiltration mechanism, by immobilizing arsenic in plant shoots. In the same pathway, P. stratiotes L might eliminate the pollutants from the dyeing effluent. Fonkou et al. [35] studied the efficiency of P. stratiotes L to remove suspended solids, sulfates, phosphates, and turbidity from the wastewater. Al-Baldawi et al. [36] reported the methyl orange dye removal efficiency of Salvinia molesta and its FTIR test also confirmed the phytotransformation of methyl orange.

3.3. GC–MS Analysis of Aquatic Plants before and after Phytoremediation

The methanolic extract of total aquatic plants before and after testing was measured using GC–MS analysis and the GC–MS patterns showed various peaks corresponding to many phytocompounds. The methanolic extract of P. stratiotes L showed nine peaks indicating the presence of phytochemicals including 14-methyl-8-hexadecen-1-ol, pentadecanol, 9-eicosyne, oxirane, cyclodecanol, pentadecanoic acid, hexadecanoic acid, L-ascorbic acid, 11, 14, 17-eicostrienoic acid and stigmasterol (Figure 5a and Supplementary Table S1). The existence of hexadecanoic acid in the methanolic extract of Pistia stratiotes L and the antioxidant activity of this compound was noted by Tyagi and Agarwal [37]. The GC–MS pattern of treated Pistia stratiotes L showed the occurrence of hexadecyne, pentadecanol, cyclodecanol, hexadeconoic acid, tetradecanoic acid, and oleic acid (Figure 5b and Supplementary Table S2). After phytoremediation, the absence of L-ascorbic acid was observed in the extract of Pistia stratiotes L. It could be concluded that the antioxidant compounds might bind with contaminants and reduce the pollutants from the effluent. The phytochemical compounds in Salvinia adnata Desv extract were found to be pentadecanol, oleyl alcohol, L-ascorbic acid, tridecanoic acid, oleic acid, erucic acid, 1-naphthalene anthracene, and phenanthrene. The phytocompounds were determined based on the library search of observed peaks (Figure 5c and Supplementary Table S3). In the extract of Salvinia adnata Desv after phytoremediation, nonanolic acid, undecanoic acod, cyclopentane, tridecene, 4-n-butylthinane, 2-isopropyl, tetradecanoic acid, and stigmasterol-5 were observed (Figure 5d and Supplementary Table S4).
The phytocompounds including 6-methyl-cyclodec-5-enol, 6-caranol, oxirane, oleyl alcohol, ascorbic acid, phytol-2-hexadecen, and 7-tetradecenal were found in the methanolic extract of Hydrilla verticillata (L.f) Royle (Figure 5e and Supplementary Table S5). In the extract of H.verticillata (L.f) Royle after phytoremediation, the disappearance of some peaks was observed. The detected phytocompounds in the extract of H. verticillata (L.f) Royle after phytoremediation include tetradecanoic acid, phytol, octadecatrienoic acid, oleic acid, and stigma sterol (Figure 5f and Supplementary Table S6). The decline in the level of some metabolites after treatment with plants might have contributed to improved tolerance in the plants. The alcoholic extracts of the three plants used for treatment showed the absence of ascorbic acid. Ascorbic acid can be deemed as a potential candidate for the removal of Pb and Zn from soil [38]. Ascorbic acid is a well-known antioxidant that might have been involved in the degradation of color molecules and substances found in dye effluent.

3.4. Reusability of Phytoremediated Effluent

The reusability of phytoremediated effluent was assessed by using it for irrigation purposes for the growth of the ornamental plant Impatiens balsamina L (balsam), because most of the partially treated dyeing industry effluents are directly utilized for agriculture purposes [39]. Because the maximum treatment efficiency was obtained by P.stratiotes L, its treated effluent was utilized for a reusability study. The shoot length, root length, the number of flowers, leaf length, fresh weight, and dry weight were determined. The plant irrigated with phytoremediated effluent showed fine growth and the total length of the plant was found to be 107 cm, leaf length was 10 cm, and root length was 8–10 cm. The number of flowers was found to be 15–20. The normal growth of Impatiens balsamina L proves the reduction of the toxic level of the dyeing effluent after the phytoremediation treatment (Table 3). Similarly, Shanmugam et al. [40] studied the effect of textile effluents phytoremediated with Bacopa monnieri plant on the seed germination, growth, shoot and root length of oilseeds and cereal plants. They also reported that the presence of antioxidative and oxidative enzymes in roots and leaves are involved in the degradation of dyes. The effect of treated textile effluent on the growth of plants such as P. mungo, V. mungo [41], wheat cultivar [42], peanut [43], and Sorghum vulgare [44] has also been investigated previously. The effect of treated dyeing effluent on the growth of the Impatiens balsamina L plant was statistically proved by ANOVA calculation and showed 0.05% significance; the null hypothesis was accepted, in that there was no significant difference between the control plant and the alternative day irrigated (ADI) balsam plant (Table 4). Thus, the present result concluded that a reduction in toxicity of fabric dyeing effluent using eco-friendly phytoremediation techniques is possible.

3.5. Reuse of Plant Biomass for Manure Production

Pistia stratiotes L plant after phytoremediation was subjected to composting process with two different combinations including Set A, Set B, Set C (only cow dung), and Control (only Pistia stratiotes L biomass). The compost nutrient quality of all sets is given in Table 5.
The pH of all composts is comparable, but the compost of only Pistia stratiotes L biomass is slightly lower than others. Nitrogen and potassium content in the compost of only Pistia stratiotes L biomass was much higher than other composts while its phosphorus content was much lower than others. The organic carbon content of the compost of only Pistia stratiotes L biomass was the highest whereas its moisture content was the lowest. Iron and copper were not detected in the compost of only Pistia stratiotes L biomass. The level of NPK (Nitrogen, phosphorus, potassium) indicated that the compost maturity of Set B was optimal.
The carbon to nitrogen ratio of the compost was also another factor used to confirm the maturity of the composting process. The C:N ratio of Set A (cow dung and P. stratiotes L biomass and agricultural waste in the ratio 1:2:1) was the highest (14.5:1), followed by that of the control (only Pistia stratiotes L biomass). The lowest C:N ratio was observed in the composting of Set C (only cow dung). Vasanthy et al. [17] prepared manure using treated aquatic plants and analyzed total nitrogen, organic carbon, and total phosphorous content in their samples. The compost maturity was confirmed based on the C:N ratio after the composting process. Decomposition of the plant material with cow dung to compost may occur through the activity of thermophilic microorganisms. During the decomposition process, the carbon content in the sample converted into CO2, and the nitrogen level was elevated when the protein-rich compounds cleaved the nitrogen-containing compounds to ammonia and other byproducts [45]. Shukla et al. [46] reported the preparation of compost using tannery effluent treated with aquatic plant Vallisneria spiralis L biomass.

4. Conclusions

The present study revealed the phytoremediation potential of Pistia stratiotes L, Salvinia adnata Desv, and Hydrilla verticillata (L.f) Royle. Among these three aquatic plants, P. stratiotes L effectively reduced contaminants from the dyeing effluent without any change of pH. The GC–MS analysis confirmed the changes in the phytochemical content, especially for ascorbic acid in the aquatic plants before and after the phytoremediation process. The reusability and detoxification of the treated effluent were confirmed based on the growth of I. balsamina L plant. The biomass obtained after treatment was used for compost production. The composting of cow dung and P. stratiotes L biomass and agricultural waste in the ratio 1:2:1 showed a higher content of nutrients than the other three composting sets. This study suggested the phytoremediation potential of P.stratiotes L which served as a sustainable approach for dyeing wastewater treatment. The plant biomass and liquid produced after the treatment process were recycled and used for composting and ornamental plant irrigation, which indicated a promising process for zero-waste discharge from dyeing industries. The utilization of P. stratiotes L for the treatment of dyeing industry wastewater may help to grow more plants and commercialize the plant products for these purposes, and this could be an efficient alternative method for wastewater treatment. The concept of reusing treated industrial effluent is one of the vital points in modern industry. The reuse of industrial effluent for irrigation and for industrial purposes provides major benefits in conserving water resources and preventing water scarcity issues.

Supplementary Materials

The following are available online at https://www.mdpi.com/2071-1050/13/1/329/s1, Table S1: GC–MS analysis of P. stratiotes L before treatment, Table S2: GC–MS analysis of P. stratiotes L after treatment, Table S3: GC–MS analysis of Salvinia adnata Desv before treatment, Table S4: GC–MS analysis of Salvinia adnata Desv after treatment, Table S5: GC–MS analysis of Hydrilla verticillata (L.f) Royle before treatment, Table S6: GC–MS analysis of Hydrilla verticillata (L.f) Royle after treatment.

Author Contributions

Conceptualization, K.G.A. and B.R.; methodology, B.R. and V.M.; validation, V.K.N., D.D.N. and S.W.C.; formal analysis, K.G.A.; investigation, X.C.N.; data curation, V.K.N.; writing—original draft preparation, K.G.A.; writing—review and editing, V.K.N., D.D.N., and C.T.; supervision, C.T. All authors have read and agreed to the published version of the manuscript.

Funding

The authors are grateful to DST-INSPIRE fellowship authorities, SERB, TNSCST-Tamil Nadu India and UGC, UGC-SAP, DST-PURSE, DST-FIST, MHRD-RUSA, India for providing fund to finish this research work.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data was obtained from third party and are available at URL that were specified in paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ali, S.; Abbas, Z.; Rizwan, M.; Zaheer, I.E.; Yavaş, İ.; Ünay, A.; Abdel-DAIM, M.M.; Bin-Jumah, M.; Hasanuzzaman, M.; Kalderis, D. Application of Floating Aquatic Plants in Phytoremediation of Heavy Metals Polluted Water: A Review. Sustainability 2020, 12, 1927. [Google Scholar] [CrossRef] [Green Version]
  2. Islam, M.A.; Ali, I.; Karim, S.M.A.; Hossain Firoz, M.S.; Chowdhury, A.N.; Morton, D.W.; Angove, M.J. Removal of dye from polluted water using novel nano manganese oxide-based materials. J. Water Process. Eng. 2019, 32, 100911. [Google Scholar] [CrossRef]
  3. Kumwimba, M.N.; Zhu, B.; Suanon, F.; Muyembe, D.K.; Dzakpasu, M. Long-term impact of primary domestic sewage on metal/loid accumulation in drainage ditch sediments, plants and water: Implications for phytoremediation and restoration. Sci. Total Environ. 2017, 581–582, 773–781. [Google Scholar] [CrossRef] [PubMed]
  4. Ahluwalia, S.S.; Goyal, D. Microbial and plant derived biomass for removal of heavy metals from wastewater. Bioresour. Technol. 2007, 98, 2243–2257. [Google Scholar] [CrossRef]
  5. Tehrani-Bagha, A.R.; Mahmoodi, N.M.; Menger, F.M. Degradation of a persistent organic dye from colored textile wastewater by ozonation. Desalination 2010, 260, 34–38. [Google Scholar] [CrossRef]
  6. Mahajan, P.; Kaushal, J.; Upmanyu, A.; Bhatti, J. Assessment of Phytoremediation Potential of Chara vulgaris to Treat Toxic Pollutants of Textile Effluent. J. Toxicol. 2019, 2019. [Google Scholar] [CrossRef]
  7. Zaharia, C.; Suteu, C.; Muresan, A. Options and solutions of textile effluent Decolourization using some specific physicochemical treatment steps. In Proceedings of the 6th International Conference on Environmental Engineering and Management ICEEM’ 06, Balaton Lake, Hungary, 1 September 2011; pp. 121–122. [Google Scholar]
  8. Kabra, A.N.; Khandare, R.V.; Govindwar, S.P. Development of a bioreactor for remediation of textile effluent and dye mixture: A plant-bacterial synergistic strategy. Water Res. 2013, 47, 1035–1048. [Google Scholar] [CrossRef]
  9. Tabinda, A.B.; Arif, R.A.; Yasar, A.; Baqir, M.; Rasheed, R.; Mahmood, A.; Iqbal, A. Treatment of textile effluents with Pistia stratiotes, Eichhornia crassipes and Oedogonium sp. Int. J. Phytoremediation 2019, 21, 939–943. [Google Scholar] [CrossRef]
  10. Chandanshive, V.V.; Rane, N.R.; Gholave, A.R.; Patil, S.M.; Jeon, B.H.; Govindwar, S.P. Efficient decolorization and detoxification of textile industry effluent by Salvinia molesta in lagoon treatment. Environ. Res. 2016, 150, 88–96. [Google Scholar] [CrossRef]
  11. Ekambaram, S.P.; Perumal, S.S.; Rajendran, D.; Samivel, D.; Khan, M.N. New approach of dye removal in textile effluent: A cost effective management for cleanup of toxic dyes in textile effluent by water hyacinth. In Toxicity and Biodegradation Testing; Bidoia, E., Montagnolli, R., Eds.; Humana Press: New York, NY, USA, 2018; pp. 241–267. [Google Scholar]
  12. Govindwar, S.P.; Kagalkar, A.N. Phytoremediation Technologies for the Removal of Textile Dyes: An Overview and Future Prospectus; Nova Science Publisher: New York, NY, USA, 2010. [Google Scholar]
  13. Ali, H.; Khan, E.; Sajad, M.A. Phytoremediation of heavy metals-Concepts and applications. Chemosphere 2013, 91, 869–881. [Google Scholar] [CrossRef]
  14. Muthusamy, S.; Govindaraj, D.; Rajendran, K. Phytoremediation of textile dye effluents. In Bioremediation: Applications for Environmental Protection and Managements; Varjani, S., Agarwal, A.K., Gnansounou, E., Gurunathan, B., Eds.; Springer: Singapore, 2018; pp. 359–373. [Google Scholar]
  15. Galal, T.M.; Eid, E.M.; Dakhil, M.A.; Hassan, L.M. Bioaccumulation and rhizofiltration potential of Pistia stratiotes L. for mitigating water pollution in the Egyptian wetlands. Int. J. Phytoremediation 2018, 20, 440–447. [Google Scholar] [CrossRef] [PubMed]
  16. Burges, A.; Alkorta, I.; Epelde, L.; Garbisu, C. From phytoremediation of soil contaminants to phytomanagement of ecosystem services in metal contaminated sites. Int. J. Phytoremediation 2018, 20, 384–397. [Google Scholar] [CrossRef] [PubMed]
  17. Muthunarayanan, V.; Santhiya, M.; Swabna, V.; Geetha, A. Phytodegradation of textile dyes by Water Hyacinth (Eichhornia Crassipes) from aqueous dye solutions. Int. J. Environ. Sci. 2011, 1, 1702–1717. [Google Scholar]
  18. Das, S.; Mazumdar, K. Phytoremediation potential of a novel fern, Salvinia cucullata, Roxb. Ex Bory, to pulp and paper mill effluent: Physiological and anatomical response. Chemosphere 2016, 163, 62–72. [Google Scholar] [CrossRef] [PubMed]
  19. Shirinpur-Valadi, A.; Hatamzadeh, A.; Sedaghathoor, S. Study of the accumulation of contaminants by Cyperus alternifolius, Lemna minor, Eichhornia crassipes, and Canna × generalis in some contaminated aquatic environments. Environ. Sci. Pollut. Res. 2019, 26, 21340–21350. [Google Scholar] [CrossRef] [PubMed]
  20. APHA Standard Methods for the Examination of Water and Wastewater 2012. Available online: https://www.standardmethods.org/ (accessed on 11 September 2018).
  21. Jones, J.B.; Case, V.W. Sampling, Handling and Analyzing Plant Tissue Samples-Soil Testing and Plant Analysis; SSSA, Inc.: Madison, WI, USA, 1990. [Google Scholar]
  22. AOAC Official Methods of Analysis, Association of Official Agricultural Chemists 2002. Available online: https://www.aoac.org/about-aoac-international/ (accessed on 28 September 2018).
  23. Zaharia, C.; Suteu, D.; Muresan, A.; Muresan, R.; Popescu, A. Textile wastewater treatment by homogeneous oxidation with hydrogen peroxide. Environ. Eng. Manag. J. 2009, 8, 1359–1369. [Google Scholar] [CrossRef]
  24. Victor, K.K.; Séka, Y.; Norbert, K.K.; Sanogo, T.A.; Celestin, A.B. Phytoremediation of wastewater toxicity using water hyacinth (Eichhornia crassipes) and water lettuce (Pistia stratiotes). Int. J. Phytoremediation 2016, 18, 949–955. [Google Scholar] [CrossRef]
  25. Ngatia, L.; Grace, J.M., III; Moriasi, D.; Taylor, R. Nitrogen and Phosphorus Eutrophication in Marine Ecosystems. In Monitoring of Marine Pollution; IntechOpen: London, UK, 2019. [Google Scholar]
  26. Sathiyaraj, G.; Chellappan Ravindran, K.; Hussain Malik, Z. Physico-chemical characteristics of textile effluent collected from Erode, Pallipalayam and Bhavani polluted regions, Tamilnadu, India. J. Ecobiotechnol. 2017, 9, 1–4. [Google Scholar] [CrossRef] [Green Version]
  27. Anjana, S.; Thanga, V.S.G. Phytoremediation of synthetic textile dyes. Asian J. Microbiol. Biotechnol. Environ. Sci. 2011, 13, 31–34. [Google Scholar]
  28. Thilakar, R.J.; Rathi, J.J.; Pillai, P.M. Phytoaccumulation of Chromium and Copper by Pistia stratiotes L. and Salvinia natans (L.) All. J. Nat. Prod. Plant Resour. 2012, 2, 725–730. [Google Scholar]
  29. Kagalkar, A.N.; Jagtap, U.B.; Jadhav, J.P.; Bapat, V.A.; Govindwar, S.P. Biotechnological strategies for phytoremediation of the sulfonated azo dye Direct Red 5B using Blumea malcolmii Hook. Bioresour. Technol. 2009, 100, 4104–4110. [Google Scholar] [CrossRef] [PubMed]
  30. Ugya, A.Y.; Hua, X.; Ma, J. Phytoremediation as a tool for the remediation of wastewater resulting from dyeing activities. Appl. Ecol. Environ. Res. 2019, 17, 3723–3735. [Google Scholar] [CrossRef]
  31. Ng, Y.S.; Chan, D.J.C. Wastewater phytoremediation by Salvinia molesta. J. Water Process. Eng. 2017, 15, 107–115. [Google Scholar] [CrossRef]
  32. Michalak, A. Phenolic compounds and their antioxidant activity in plants growing under heavy metal stress. Polish J. Environ. Stud. 2006, 15, 523–530. [Google Scholar]
  33. Chantiratikul, P.; Meechai, P.; Woranan, N. Antioxidant activities and phenolic contents of extracts from salvinia molesta and Eichornia crassipes. Res. J. Biol. Sci. 2009, 4, 1113–1117. [Google Scholar]
  34. Xue, P.Y.; Yan, C.Z. zhou Arsenic accumulation and translocation in the submerged macrophyte Hydrilla verticillata (L.f.) Royle. Chemosphere 2011, 85, 1176–1181. [Google Scholar] [CrossRef]
  35. Fonkou, T.; Agendia, P.; Kengne, I.; Akoa, A.; Nya, J. Potentials of water lettuce (Pistia stratiotes) in domestic sewage treatment with macrophytic lahoon systems in Cameroo. In Proceedings of the International Symposium on Environmental Pollution Control and Waste Management, Tunis, Tunisia, 7–10 January 2002; pp. 709–714. [Google Scholar]
  36. Al-Baldawi, I.A.; Abdullah, S.R.S.; Almansoory, A.F.; Hasan, H.A.; Anuar, N. Role of Salvinia molesta in biodecolorization of methyl orange dye from water. Sci. Rep. 2020, 10, 1–9. [Google Scholar] [CrossRef]
  37. Tyagi, T.; Agarwal, M. Gas Chromatography-Mass Spectrometry analysis of bioactive constituents in the ethanolic extract of Pistia stratiotes L. Int. J. Basic Appl. Med. Sci. 2017, 7, 195–206. [Google Scholar]
  38. Thinh, N.V.; Osanai, Y.; Adachi, T.; Vuong, B.T.S.; Kitano, I.; Chung, N.T.; Thai, P.K. Removal of lead and other toxic metals in heavily contaminated soil using biodegradable chelators: GLDA, citric acid andascorbic ascorbic acid. Chemosphere 2021, 263, 127912. [Google Scholar] [CrossRef]
  39. Khandare, R.V.; Govindwar, S.P. Phytoremediation of textile dyes and effluents: Current scenario and future prospects. Biotechnol. Adv. 2015, 33, 1697–1714. [Google Scholar] [CrossRef]
  40. Shanmugam, L.; Ahire, M.; Nikam, T. Bacopa monnieri (L.) Pennell, a potential plant species for degradation of textile azo dyes. Environ. Sci. Pollut. Res. 2020, 27, 9349–9363. [Google Scholar] [CrossRef] [PubMed]
  41. Chandanshive, V.V.; Kadam, S.K.; Khandare, R.V.; Kurade, M.B.; Jeon, B.H.; Jadhav, J.P.; Govindwar, S.P. In situ phytoremediation of dyes from textile wastewater using garden ornamental plants, effect on soil quality and plant growth. Chemosphere 2018, 210, 968–976. [Google Scholar] [CrossRef] [PubMed]
  42. Kaushik, P.; Garg, V.K.; Singh, B. Effect of textile effluents on growth performance of wheat cultivars. Bioresour. Technol. 2005, 96, 1189–1193. [Google Scholar] [CrossRef] [PubMed]
  43. Saravanamoorthy, M.D.; Kumari, B.D.R.; Kumari, R. Effect of textile waste water on morphophysiology and yield on two varieties of peanut (Arachis hypogaea L.). J. Agric. Technol. 2007, 3, 335–343. [Google Scholar]
  44. Hayyat, M.U.; Mahmood, R.; Hassan, S.; Rizwan, S. Effects of textile effluent on growth performance of Sorghum vulgare Pers CV SSG-5000. Biologia 2013, 59, 15–22. [Google Scholar]
  45. Li, G.; Zhang, F.; Sun, Y.; Wong, J.W.C.; Fang, M. Chemical evaluation of sewage sludge composting as a mature indicator for composting process. Water. Air. Soil Pollut. 2001, 132, 333–345. [Google Scholar] [CrossRef]
  46. Shukla, O.P.; Rai, U.N.; Dubey, S. Involvement and interaction of microbial communities in the transformation and stabilization of chromium during the composting of tannery effluent treated biomass of Vallisneria spiralis L. Bioresour. Technol. 2009, 100, 2198–2203. [Google Scholar] [CrossRef]
Sustainability 13 00329 g001 550
Figure 1. Aquatic macrophytes were used in this study.
Figure 1. Aquatic macrophytes were used in this study.
Sustainability 13 00329 g001
Sustainability 13 00329 g002 550

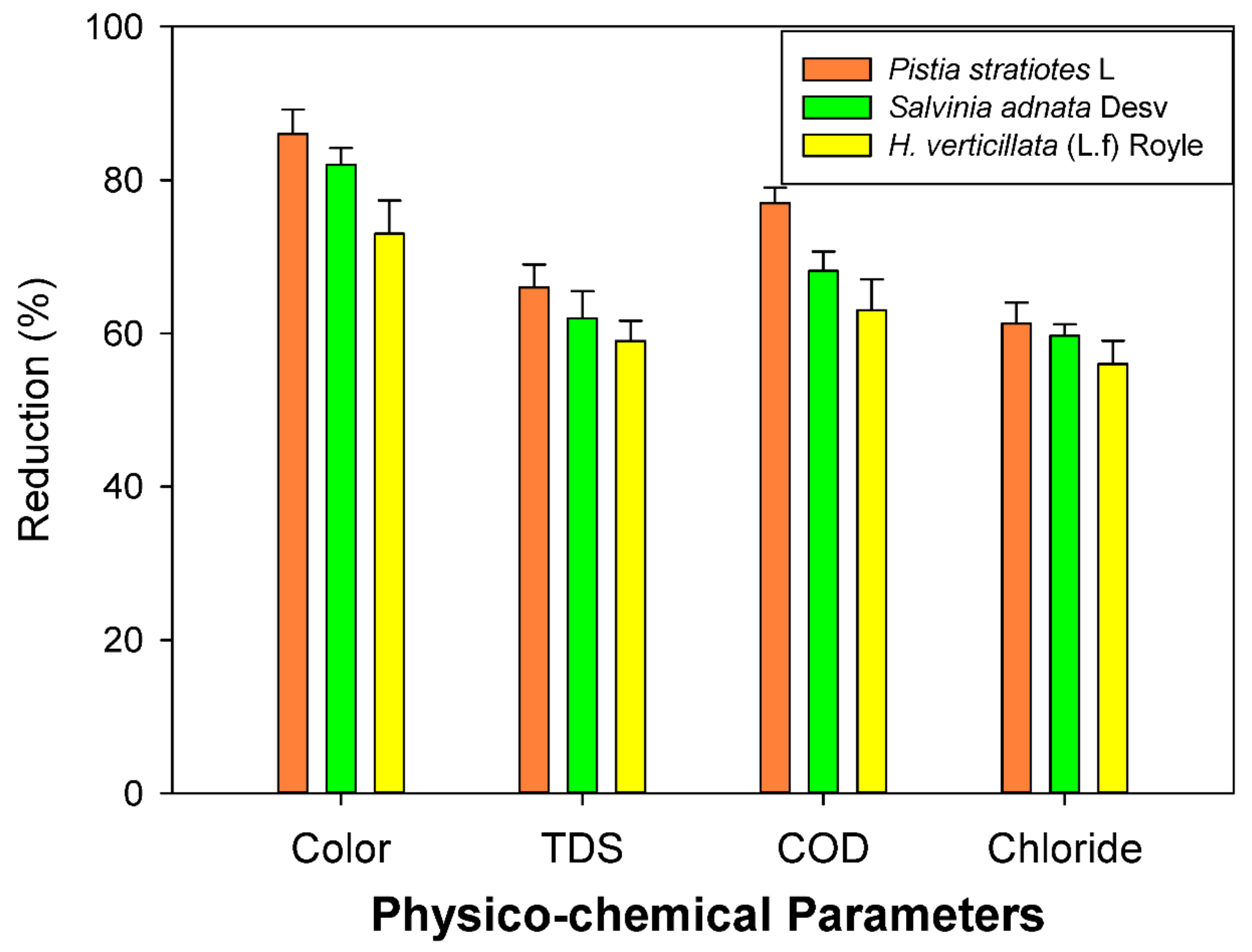

Figure 2. Removal percentage of pollutants from the effluent by aquatic macrophytes.
Figure 2. Removal percentage of pollutants from the effluent by aquatic macrophytes.
Sustainability 13 00329 g002
Sustainability 13 00329 g003 550

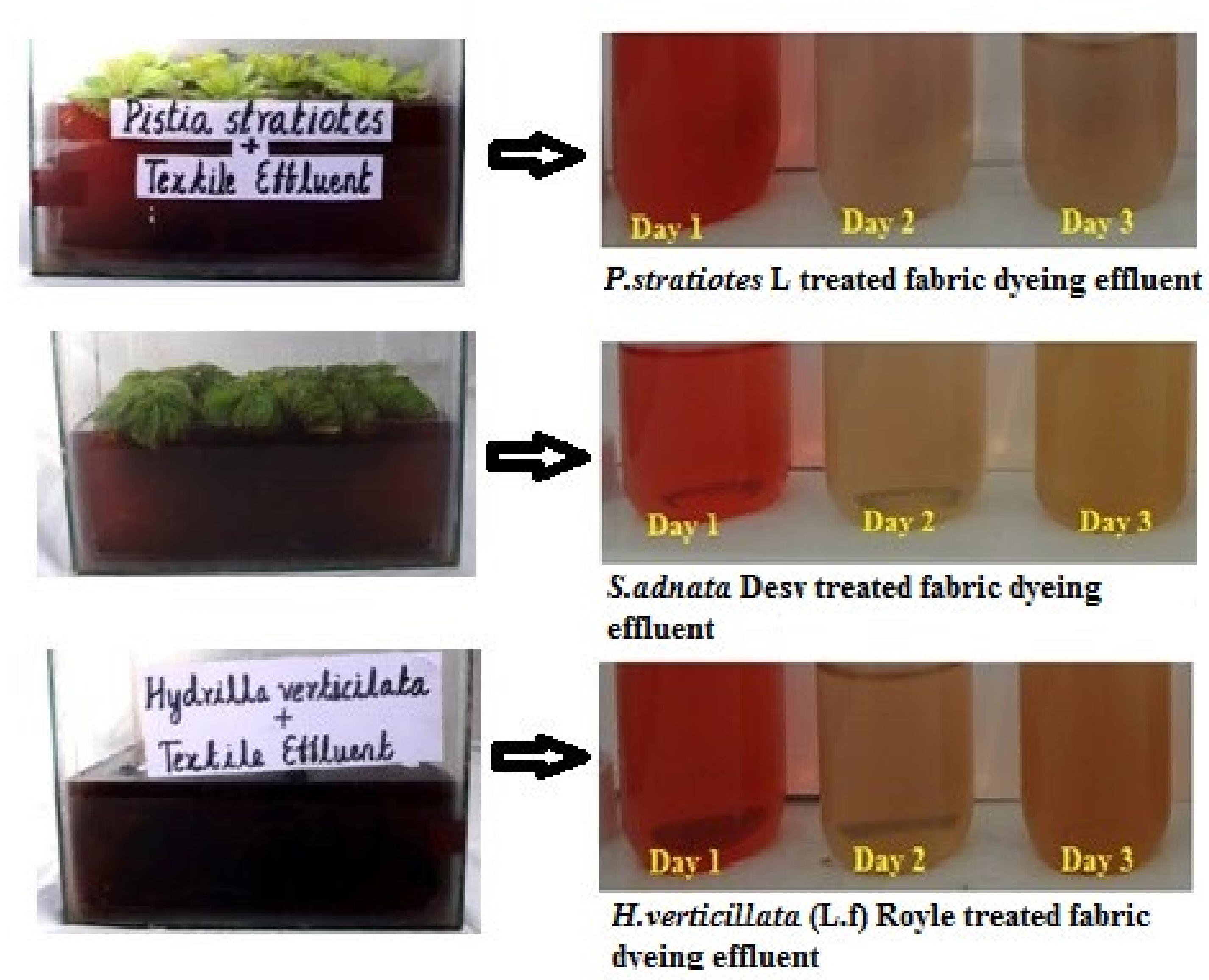

Figure 3. Decolorization of effluent by aquatic macrophytes.
Figure 3. Decolorization of effluent by aquatic macrophytes.
Sustainability 13 00329 g003
Sustainability 13 00329 g004 550
Figure 4. Accumulation of dyes in P. stratiotes L and S. adnata Desv.
Figure 4. Accumulation of dyes in P. stratiotes L and S. adnata Desv.
Sustainability 13 00329 g004
Sustainability 13 00329 g005 550

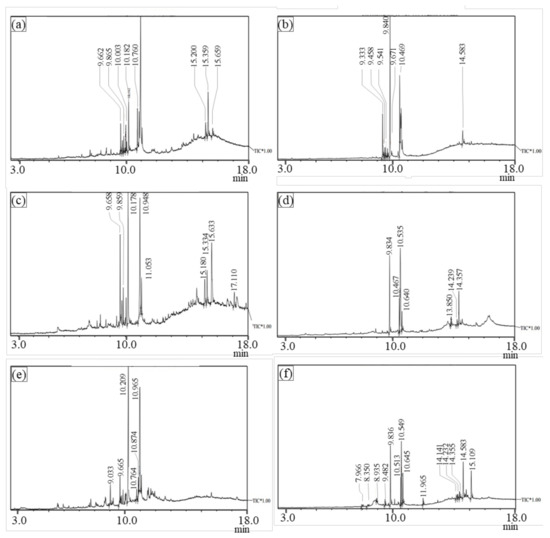

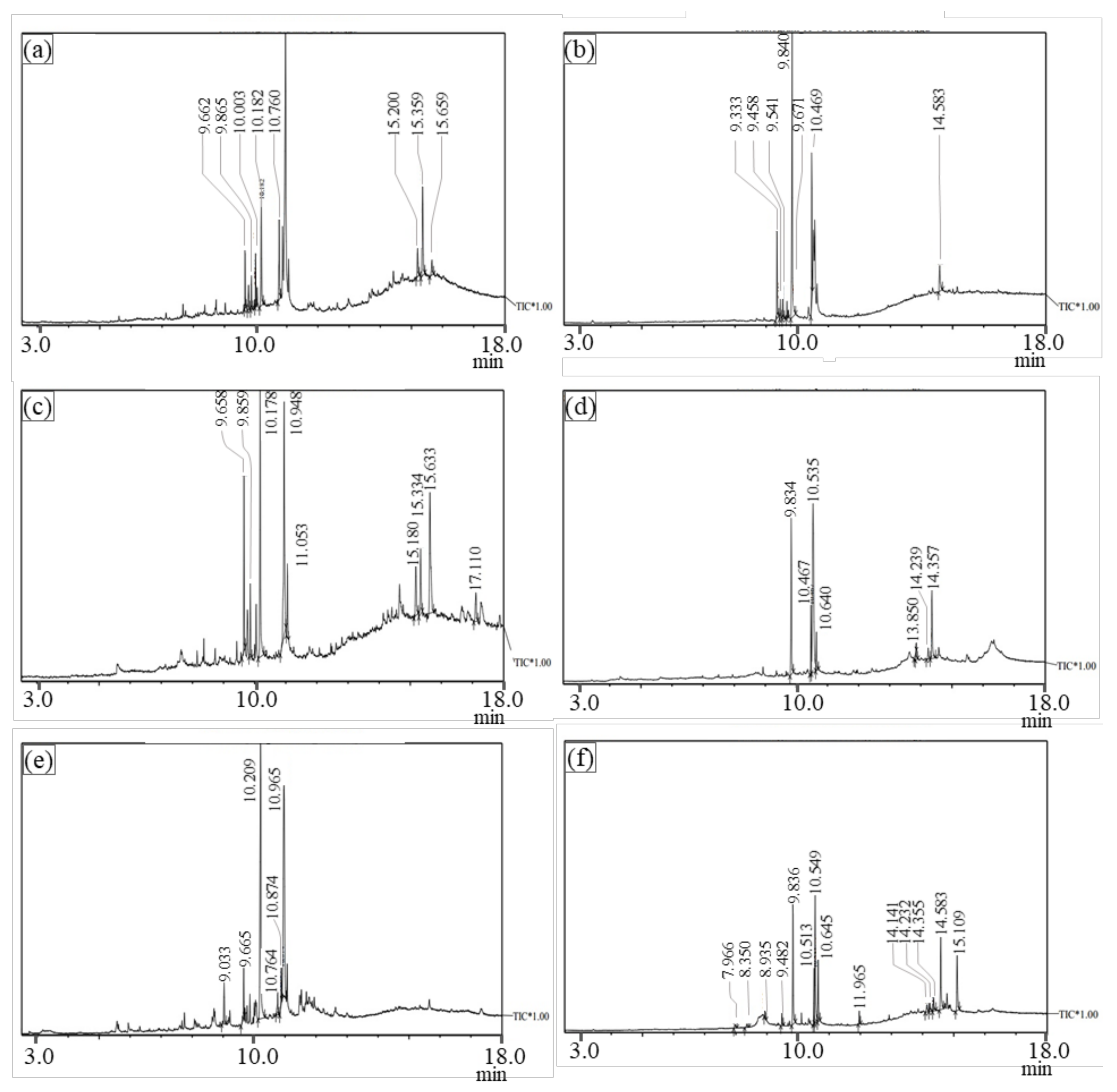

Figure 5. GC–MS chromatogram of Pistia stratiotes L (a,b), Salvinia adnata Desv (c,d) and Hydrilla verticillata (e,f) before and after phytoremediation.
Figure 5. GC–MS chromatogram of Pistia stratiotes L (a,b), Salvinia adnata Desv (c,d) and Hydrilla verticillata (e,f) before and after phytoremediation.
Sustainability 13 00329 g005
Table
Table 1. Physicochemical and heavy metal analysis of cotton dyeing effluent.
Table 1. Physicochemical and heavy metal analysis of cotton dyeing effluent.
ParametersResultsRegulatory Level *
ColorDark redColorless
OdorUnpleasantOdorless
pH10.55.5–9.0
TDS65002100
Total hardness280100
Alkalinity910200
Acidity230-
COD2400250–400
Chloride2050600–1000
Fluoride1.841.0
Phosphate6.4-
Sulphate7501000
Nitrate9045
Lead0.0140.01
MercuryBDL **0.001
NickelBDL **0.02
Zinc0.0345
Chromium0.0780.05
All the values are expressed as mg/L except color, odor, and pH. * Acceptable level was regulated by the Central Pollution Control Board of India (CPCB). ** BDL: below detectable level.
Table
Table 2. Effect of aquatic macrophytes on the removal of color, TDS (total dissolved solids), COD (chemical oxygen demand), and chloride from cotton dyeing effluent.
Table 2. Effect of aquatic macrophytes on the removal of color, TDS (total dissolved solids), COD (chemical oxygen demand), and chloride from cotton dyeing effluent.
Aquatic MacrophytesPollutants Reduction after Treatment (48 h) (mg/L)Heavy Metal in Treated Effluent and Used Plant Samples
Color *TDSCODChloridePbCr
Control
Pistia stratiotes L **		Colorless
86 ± 3.202		6500
4290		2400
1848		2050
1250.5		0.014
BDL		0.078
BDL
Salvinia adnata Desv **82 ± 2.22403016321209.5BDLBDL
H. verticillata (L.f) Royle **73 ± 4.36383515121148.5BDLBDL
* Color expressed in %. ** The Pb and Cr levels of used plant samples were BDL.
Table
Table 3. Effect of treated effluent on the growth parameters of Impatiens balsamina L plant.
Table 3. Effect of treated effluent on the growth parameters of Impatiens balsamina L plant.
Growth ParametersControlDaily IrrigationAlternative Day Irrigation
Height107 ± 0.33 a96 ± 0.5 a101 ± 0.5 a
Root length10 ± 0.44 b8 ± 0.44 b9 ± 0.15 b
Shoot length97± 0.30 c88 ± 0.51 c92 ± 0.47 c
Leaf length11 ± 0.15 d10 ± 0.18 d10 ± 0.28 d
Number of Flowers22 e13 e20 e
Superscript letters indicate the statistical significance.
Table
Table 4. Statistical analysis (ANOVA).
Table 4. Statistical analysis (ANOVA).
Source of VarianceSum of the SquaresDegrees of FreedomMean SquaresF-RatioCalculated p-ValueLevel of Significance
Control and Daily irrigationBetween groups102.41102.49.846150.03492p > 0.05
Significant
Within groups17,409.282176.15
Control and Alternative Day IrrigationBetween groups22.5122.58.181820.045912p > 0.05
Significant
Within groups17,842.482230.3
Table
Table 5. The manure value analysis of composts.
Table 5. The manure value analysis of composts.
Set ASet BSet CControl
ColorBrownish blackBrownish blackBrownBrown
OdorEarthyEarthyEarthy-
pH8.648.428.418.20
Nitrogen1.01%1.12%0.97%2.71%
Phosphorus0.23%0.23%0.23%0.03%
Potassium0.68%0.72%0.58%2.62%
Organic Carbon14.10%11.70%8.70%31.40%
Moisture content33.7%24.0%22.1%9.80%
Iron3121 ppm3335 ppm2230 ppm-
Copper23.5 ppm23.5 ppm21.0 ppm-
C/N14.5:110.4:18.6:111.6:1
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ahila, K.G.; Ravindran, B.; Muthunarayanan, V.; Nguyen, D.D.; Nguyen, X.C.; Chang, S.W.; Nguyen, V.K.; Thamaraiselvi, C. Phytoremediation Potential of Freshwater Macrophytes for Treating Dye-Containing Wastewater. Sustainability 2021, 13, 329. https://doi.org/10.3390/su13010329

AMA Style

Ahila KG, Ravindran B, Muthunarayanan V, Nguyen DD, Nguyen XC, Chang SW, Nguyen VK, Thamaraiselvi C. Phytoremediation Potential of Freshwater Macrophytes for Treating Dye-Containing Wastewater. Sustainability. 2021; 13(1):329. https://doi.org/10.3390/su13010329

Chicago/Turabian Style

Ahila, Karunakaran Gowri, Balasubramani Ravindran, Vasanthy Muthunarayanan, Dinh Duc Nguyen, Xuan Cuong Nguyen, Soon Woong Chang, Van Khanh Nguyen, and Chandran Thamaraiselvi. 2021. "Phytoremediation Potential of Freshwater Macrophytes for Treating Dye-Containing Wastewater" Sustainability 13, no. 1: 329. https://doi.org/10.3390/su13010329

APA Style

Ahila, K. G., Ravindran, B., Muthunarayanan, V., Nguyen, D. D., Nguyen, X. C., Chang, S. W., Nguyen, V. K., & Thamaraiselvi, C. (2021). Phytoremediation Potential of Freshwater Macrophytes for Treating Dye-Containing Wastewater. Sustainability, 13(1), 329. https://doi.org/10.3390/su13010329

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
