Synthesis of β-Ca₂P₂O₇ as an Adsorbent for the Removal of Heavy Metals from Water

Abstract

In the present work, beta-calcium pyrophosphate (β-Ca₂P₂O₇) was investigated as a potential adsorbent for the removal of heavy metal ions from water. Single-phase β-Ca₂P₂O₇ powders were synthesized by a simple, scalable and cost-effective wet precipitation method followed by annealing at 800 °C, which was employed for the conversion of as-precipitated brushite (CaHPO₄∙2H₂O) to β-Ca₂P₂O₇. Physicochemical properties of the sorbent were characterized by means of X-ray diffraction (XRD) analysis, Fourier transform infrared spectroscopy (FTIR), thermal analysis (TGA/DSC), scanning electron microscopy (SEM) and low temperature adsorption–desorption of nitrogen (BET method). The synthesized powders consisted of porous plate-like particles with micrometer dimensions. Specific surface area calculated by the BET method was found to be 7 m² g⁻¹. For the estimation of sorption properties, the aqueous model solutions containing different metal ions (Al³⁺, Cd²⁺, Co²⁺, Cu²⁺, Fe²⁺, Mn²⁺, Ni²⁺, Pb²⁺, Sn²⁺, Sr²⁺ and Zn²⁺) were used. The adsorption test revealed that β-Ca₂P₂O₇ demonstrates the highest adsorption capacity for Pb²⁺ and Sn²⁺ ions, while the lowest capacity was observed towards Sr²⁺, Ni²⁺ and Co²⁺ ions. The optimal pH value for the removal of Pb²⁺ ions was determined to be 2, which is also related to the low solubility of β-Ca₂P₂O₇ at this pH. The adsorption capacity towards Pb²⁺ ions was calculated as high as 120 mg g⁻¹.

1. Introduction

Nowadays, water purification is of essential importance due to the increased contamination, which brings a serious risk to public health and other forms of life on the earth. In order to reduce the contamination, a number of methods and techniques have been employed, including ion exchange, membrane separation, electrolysis, chemical precipitation and adsorption [1,2]. Among these methods, adsorption can be characterized as simple, efficient and low-cost approach. A great variety of sorbents can be employed for water purification, including organic, inorganic and hybrid materials [3]. The successful removal of heavy metals was performed by oxide materials [4], carbon-based materials such as graphene [5] or graphene oxide [6], materials of biological origin [7,8], various composites [9,10], hybrid organic–inorganic materials [11], etc. Nevertheless, the search for and development of new materials for the fast and efficient removal of pollutants from water remains the task of the highest priority.

Calcium phosphates (CPs) are the class of materials that have a huge potential in environmental applications such as water treatment. These materials can be used for the removal of both organic pollutants such as dyes and antibiotics and heavy metal ions [12,13,14,15]. The most frequently utilized CP for the application of the removal of heavy metals from water is calcium hydroxyapatite (HAp) [16]. This compound is known very well for its ability to incorporate easily different isovalent and aliovalent ions [17,18,19,20]. Its application for the removal of contaminants including heavy metals from different types of waters was demonstrated in numerous works [21,22,23,24,25,26]. Moreover, sorption capacity depends on a number of factors, including morphology, degree of crystallinity and surface area. For instance, Goto and Sasaki developed a synthesis method for the preparation of morphologically controlled HAp and investigated Sr²⁺ sorption capacity of needle- and sponge-shaped HAp powders [27]. It was demonstrated that the morphology and composition of HAp influence a sorption mechanism. In [28], the adsorption performance of HAp with different crystalline and porous structures in multicomponent solutions was investigated.

Moreover, ion-specific sorption is often demonstrated by tested materials [29]. In some particular cases such as technogenic disasters, when a great amount of one type of ion is released into the environment, the adsorbents with ion-specific sorption properties are very important. For example, it is also known that CPs are able to adopt Sr²⁺ ions, which is a very important property taking into account the radioisotope ⁹⁰Sr²⁺. This is one of the ions that was released into the environment after the accident at the Fukushima Daiichi nuclear power plant in 2011 [30,31].

Despite the fact that HAp and its sorption properties were extensively studied during the recent decade, the adsorption properties of nonapatitic CPs have not been deeply investigated so far. To the best of our knowledge, there are no reports on the adsorption properties of calcium polyphosphates, namely calcium pyrophosphate (Ca₂P₂O₇). The aim of this work is to develop a synthesis method for the preparation of β-Ca₂P₂O₇ and to estimate its adsorption properties towards different metal ions (Al³⁺, Cd²⁺, Co²⁺, Cu²⁺, Fe²⁺, Mn²⁺, Ni²⁺, Pb²⁺, Sn²⁺, Sr²⁺ and Zn²⁺).

2. Materials and Methods

2.1. Synthesis

β-Ca₂P₂O₇ powders were synthesized by a simple and cost-effective wet precipitation method using calcium nitrate tetrahydrate (Ca(NO₃)₂·4H₂O, Carl Roth, Karlsruhe, Germany, >99%) and diammonium hydrogen phosphate ((NH₄)₂HPO₄, Carl Roth, >98%) as starting materials. For the synthesis, the appropriate amounts of precursors were dissolved in separate beakers in deionized water to obtain 0.80 M solutions. Next, the solution containing phosphate ions was rapidly added to the calcium-containing solution under constant mixing on a magnetic stirrer. Instant formation of white precipitates was observed. The obtained precipitates were aged for 5 min while stirring at 10,000 rpm. Afterward, the precipitates were vacuum filtered, washed with 200 mL deionized water and dried in the oven at 50 °C overnight. The pH value of the solutions was not monitored or additionally adjusted. Dried powders were further annealed in the muffle furnace at different temperatures for 5 h with a heating rate of 5 °C/min.

2.2. Characterization of Synthesis Products

Thermal decomposition of the as-prepared precipitates was analyzed by thermogravimetric and differential scanning calorimetric (TG-DSC) analysis using Perkin Elmer STA 6000 Simultaneous Thermal Analyzer (Perkin Elmer, Waltham, MA, USA). Dried samples of about 10 mg were heated from 25 to 900 °C with a heating rate of 10 °C/min in dry flowing air (20 mL/min). Powder X-ray diffraction (XRD) analysis was performed using Ni-filtered Cu Kα radiation on a Rigaku MiniFlex II diffractometer working in Bragg–Brentano (θ/2θ) geometry. The data were collected within 2θ range from 10 to 600° at a step width of 0.02° and scanning rate of 5°/min. Fourier transform infrared (FTIR) spectra were taken in the range of 4000–400 cm⁻¹ with a Bruker ALPHA ATR spectrometer with 4 cm⁻¹ resolution. Morphology of the synthesized products was studied with a Hitachi SU-70 field-emission scanning electron microscope (FE-SEM). Quantitative determination of metals was performed using Perkin Elmer Optima 7000DV inductively coupled plasma optical emission spectrometer (ICP-OES). The N₂ adsorption and desorption isotherms of samples were obtained at −196 °C by using Brunauer–Emmett–Teller (BET) analyzer TriStar II 3020, Micromeritics. Prior to the gas sorption measurements, all the samples were outgassed in N₂ atmosphere at 100 °C for 2 h.

2.3. Adsorption Studies

Pb(NO₃)₂·3H₂O (Carl Roth, >99%), Cu(NO₃)₂·3H₂O (Carl Roth, >98%), Ni(NO₃)₂·6H₂O (Carl Roth, >99%), Cd(NO₃)₂·4H₂O (Sigma-Aldrich, Saint Louis, MO, USA, >98%), Zn(NO₃)₂·6H₂O (Carl Roth, >99%), Mn(NO₃)₂·4H₂O (Carl Roth, >98%), Co(NO₃)₂·6H₂O (Carl Roth, >98%), Al(NO₃)₃·9H₂O (Carl Roth, >98%), Sr(NO₃)₂ (Carl Roth, >99%), Ca(NO₃)₂·4H₂O (Carl Roth, >99%), FeSO₄·7H₂O (Carl Roth, >99%) and SnCl₂·2H₂O (Carl Roth, >98%) were used for the preparation of artificial solutions. Laboratory glassware was washed with strong HNO₃. For all experiments, Milli-Q water (resistance 18.2 MΩ cm⁻¹) was used. Concentration of metal ions in model solutions was 100 mg L⁻¹ for all metals. For the adsorption experiment, 100 mg of the sorbent were added to 10 mL of model solution and stirred with a PTFE-coated magnetic bar on a magnetic stirrer in a closed plastic vessel. After that, the sorbent was filtered using a 0.45 μm polypropylene syringe filter, and the concentration of metals in treated solutions was measured by ICP-OES. Based on the initial and final (after adsorption experiment) concentrations of metal ions, the removal efficiency was calculated.

3. Results and Discussion

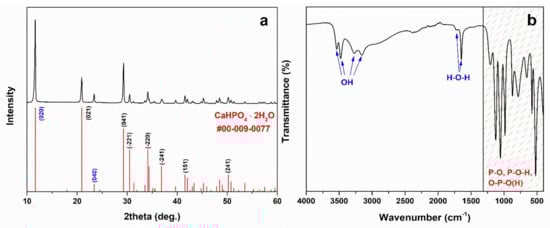

The phase crystallinity and purity of as-synthesized powders were characterized by means of XRD analysis. The XRD pattern of as-prepared precipitates is shown in Figure 1a. Evidently, the synthesized powders can be identified as brushite (CaHPO₄∙2H₂O). The positions of the obtained diffraction peaks match very well the standard XRD data of CaHPO₄∙2H₂O (ICDD #00-009-0077) with monoclinic crystal structure and Cc space group (#9). No reflections corresponding to side phases were obtained. On the other hand, the intensity of the experimental diffraction peaks differs from those in the standard XRD pattern. The reflections raised from 020 crystal planes exhibit higher intensity compared to other reflections, for which the intensity in the experimental pattern is suppressed when compared to the standard XRD data. The observed preferred orientation allows suggesting an anisotropic growth of the crystals, which resulted in the formation of oriented particles. The FTIR spectrum of as-prepared precipitates (Figure 1b) confirms the results obtained by XRD. The obtained absorption bands correspond to brushite, and the shape of the spectrum is in good agreement with that reported in the literature [32,33].

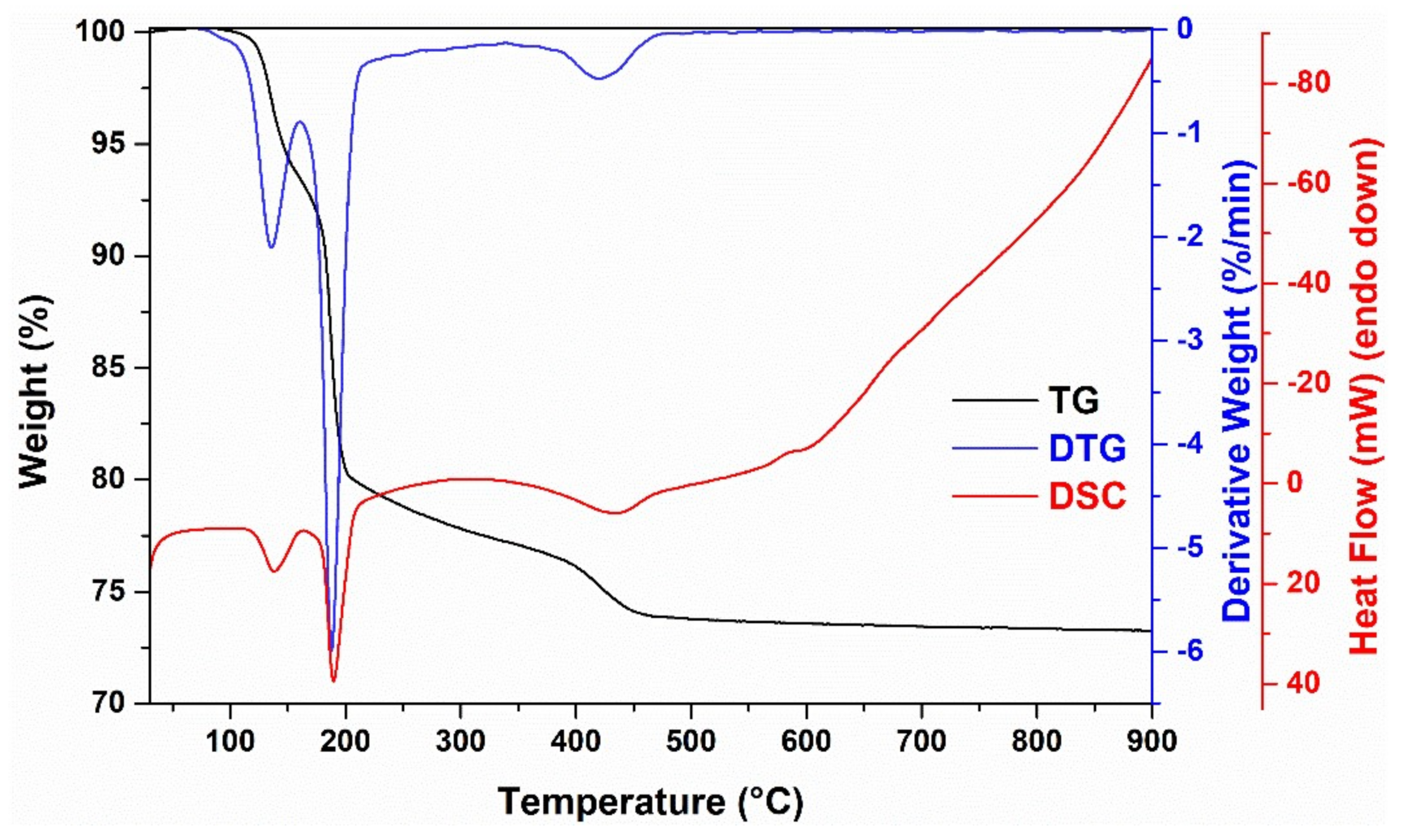

Thermal decomposition behavior of as-prepared brushite powders was investigated by simultaneous TG/DTG/DSC (thermogravimetry/differential thermogravimetry/differential scanning calorimetry) measurements in order to determine minimal annealing temperature required for the formation of β-Ca₂P₂O₇. TG/DTG/DSC curves of the as-prepared precipitates are presented in Figure 2. It is evident that thermal decomposition of the obtained specimen occurs in four main steps, which are clearly seen from both TG and DTG curves. The first two mass losses peak at around 140 and 190 °C; both these losses are accompanied by endothermic peaks in the DSC curve. The sum weight loss observed for both degradation stages was calculated to be around 20%. These decomposition steps are attributed to the degradation of brushite structure and the release of crystalline water, leading to the formation of monetite (CaHPO₄) [34]. Theoretically, such transformation should be reflected by 20.9% mass loss, which is in good agreement with our experimental data. The third and fourth weight losses are observed in the temperature range of 200–460 °C and centered at ca. 420 °C. This stage is attributed to the degradation of monetite and the formation of Ca₂P₂O₇ [34,35]. Moreover, the residual mass was determined to be constant at temperatures above 460 °C. Based on the results of thermal analysis, it was concluded that a minimal annealing temperature of 500 °C is required for the preparation of Ca₂P₂O₇.

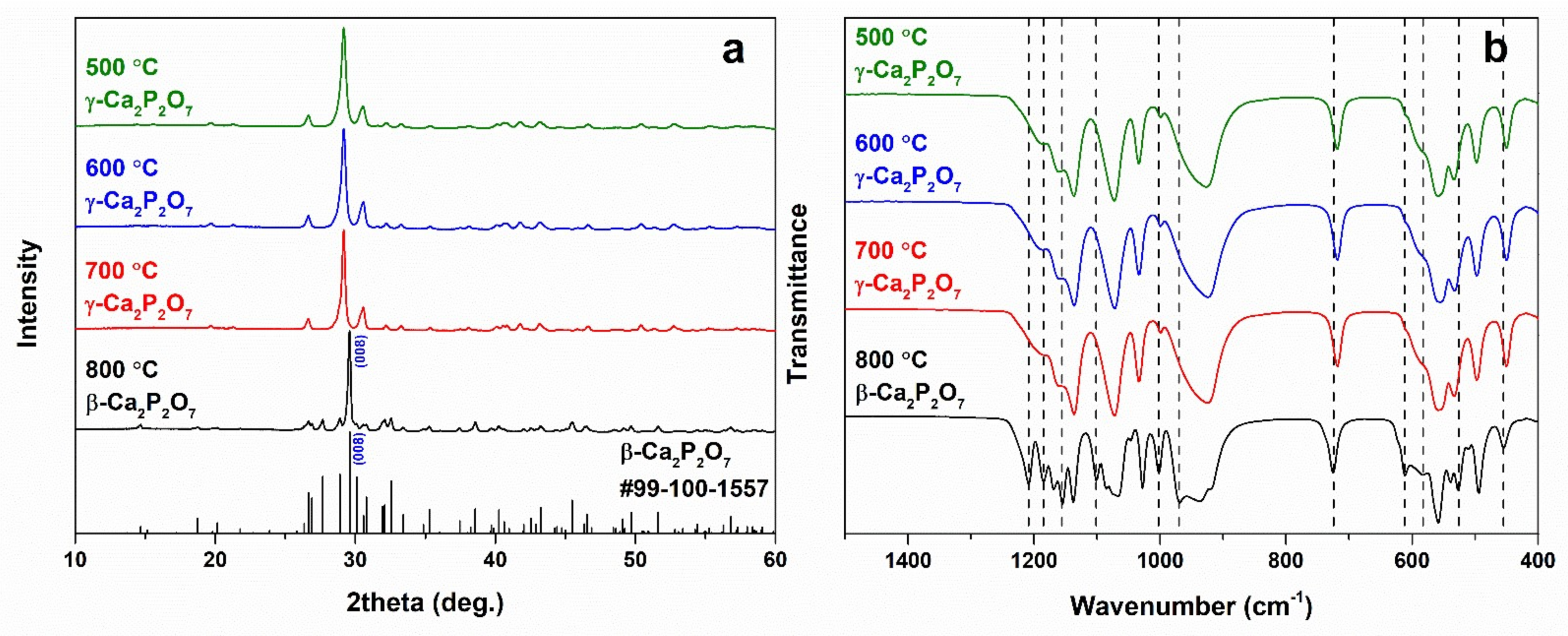

The XRD patterns of brushite powders annealed at different temperatures are given in Figure 3a. It is clearly seen that after annealing at 500 °C, the compound having γ-Ca₂P₂O₇ crystal structure was formed. Raising the annealing temperature up to 700 °C did not result in any phase transformation; however, after the thermal treatment at 800 °C, the β-Ca₂P₂O₇ polymorph was obtained. All diffraction peaks correspond to Ca₂P₂O₇ with tetragonal crystal structure and P4₁ space group (#76). It is also seen that the intensity of the diffraction peak corresponding to the 008 plane is significantly higher compared to that of standard XRD data (COD #99-100-1557), which suggests that the particles remain oriented after the thermal treatment. FTIR spectra of brushite powders annealed at different temperatures (see Figure 3b) are in good agreement with the results of XRD analysis data. The FTIR spectra of powders annealed in the temperature range from 500 to 700 °C are identical; however, the shape of the spectrum differs markedly for the sample annealed at 800 °C. The positions of the absorption bands match very well those indicated in the literature [36].

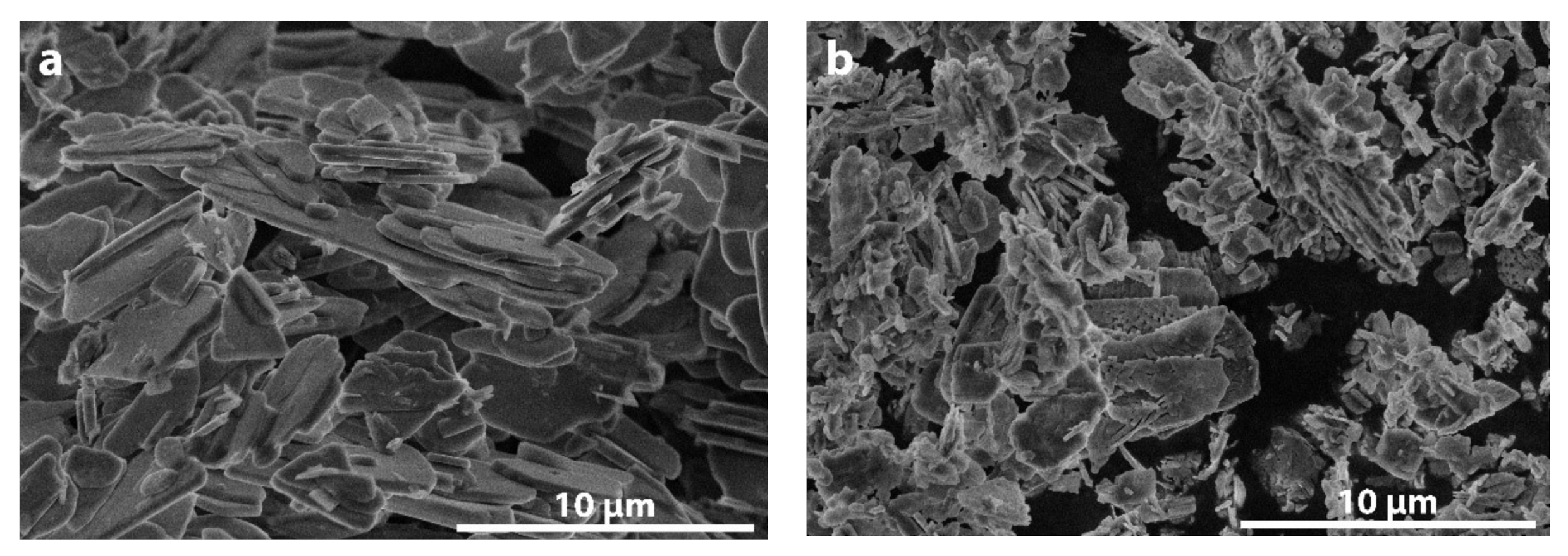

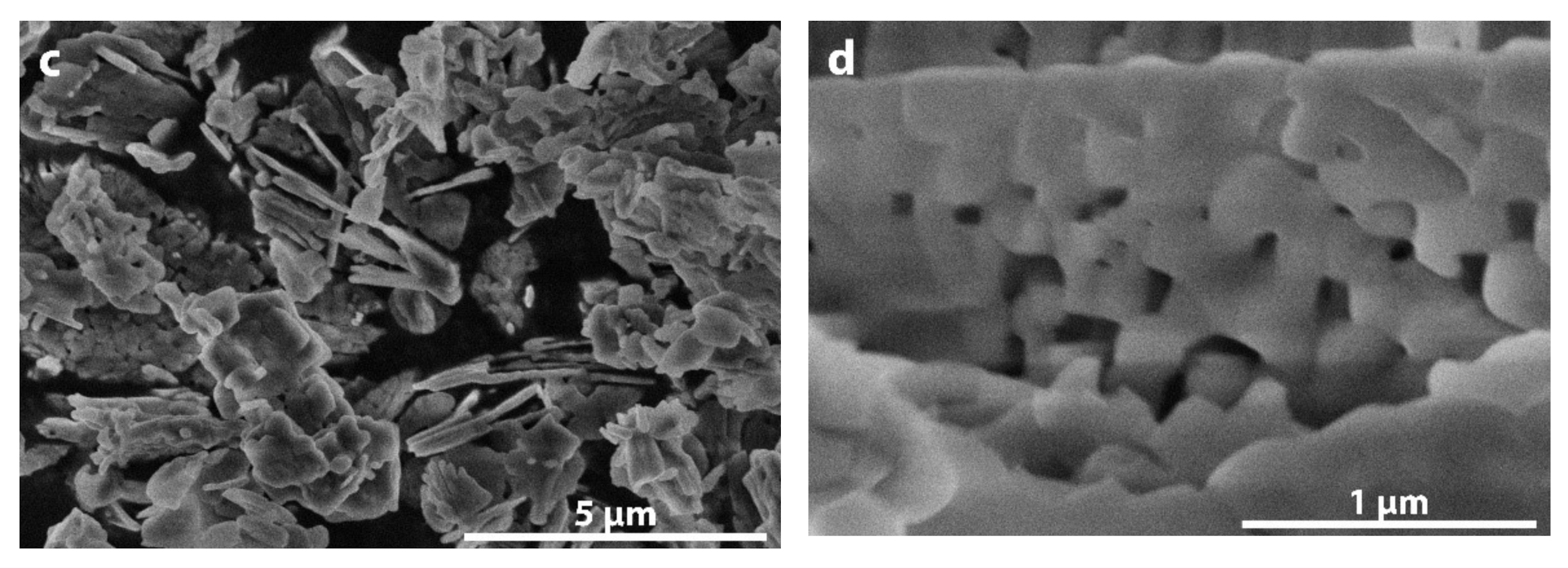

The morphology of as-prepared and annealed powders was examined using scanning electron microscopy (SEM). The SEM micrographs of as-precipitated and annealed powders are demonstrated in Figure 4. It is seen that as-prepared brushite powders (Figure 4a) consist of plate-like particles, which are stacked on each other. This observation is in agreement with the results of the XRD analysis, which revealed a preferred orientation of the sample (Figure 1a). The obtained particles possess micrometer dimensions by length with a thickness in the sub-micrometer scale. SEM images of powders annealed at 800 °C taken at different magnifications are shown in Figure 4b–d. Obviously, a thermally induced phase transition from brushite to β-Ca₂P₂O₇ took place without the destruction of the plate-like morphology of the powders, which is also seen in the annealed sample. On the other hand, the annealing procedure resulted in the formation of porosity, which could be a beneficial feature in terms of surface area and adsorption of foreign ions [37].

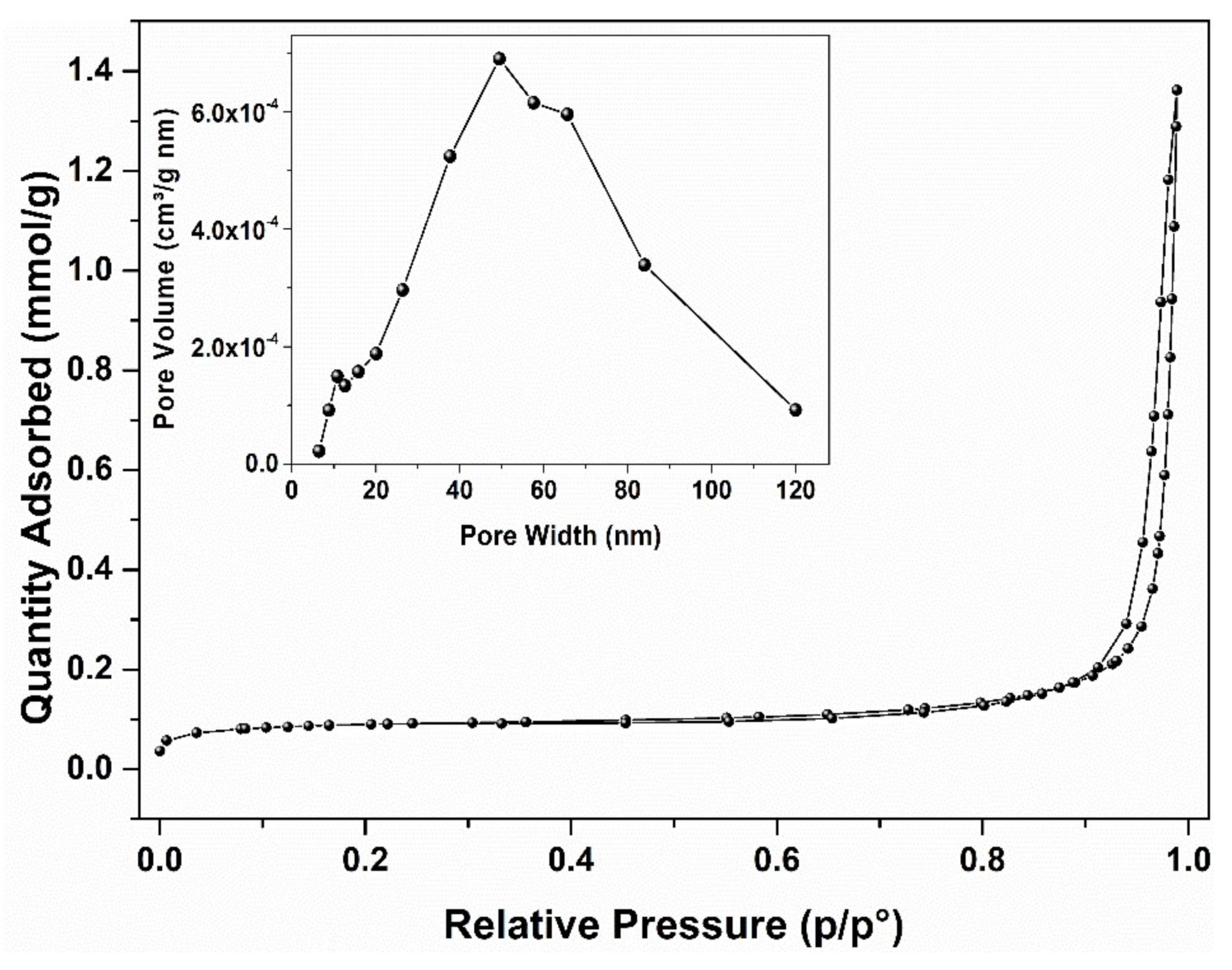

The N₂ adsorption–desorption isotherm for the β-Ca₂P₂O₇ annealed at 800 °C was measured in order to estimate the surface area and porosity of the material. The results of the textural analysis are presented in Figure 5 showing the N₂ adsorption–desorption isotherm and the corresponding pore size distribution curve. According to the IUPAC classification, the N₂ adsorption–desorption isotherm of the sample was type IV with a hysteresis loop type H3 [38]. Type IV adsorption–desorption isotherm suggests the presence of mesopores, while type H3 hysteresis loop is related with aggregates of plate-like particles with slit-shaped pores. These results are in good agreement with surface morphological observations seen in SEM micrographs (Figure 4). The pore size distribution curve (inset of Figure 5) shows that powders are characterized by a monomodal mesoporosity with well-developed mesopores centered at approximately 50 nm. The powders have a relatively wide distribution of pores ranging from 6.5 to 120 nm. The external surface area, which is corresponding to the mesopore surface area, was determined to be 4 m² g⁻¹, and the specific surface area calculated by the BET method was found to be 7 m² g⁻¹.

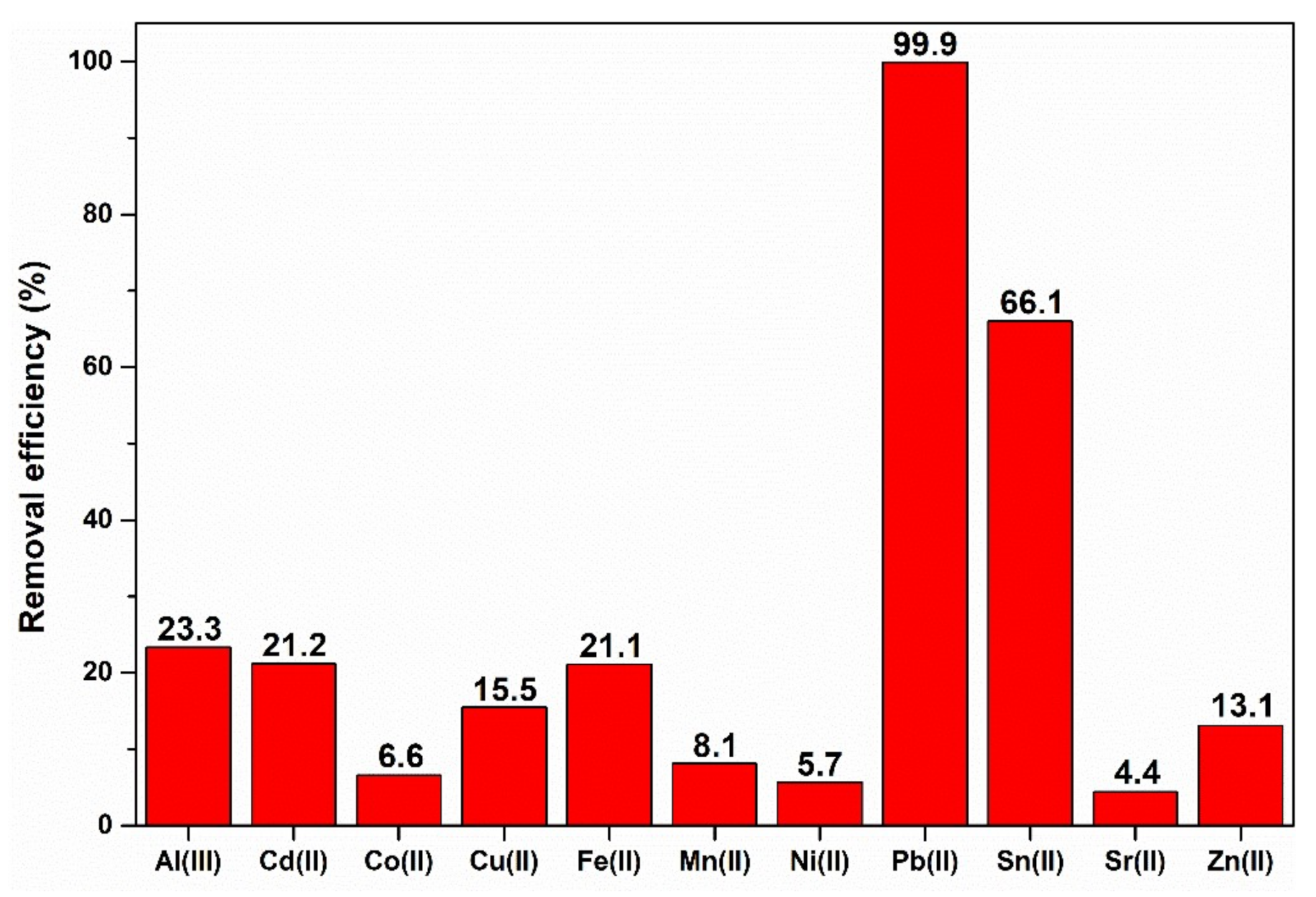

The initial assessment of the sorption properties of β-Ca₂P₂O₇ powders was performed with single-element model solutions. The removal efficiency calculated for different ions is demonstrated in Figure 6. The highest efficiencies were achieved for Pb²⁺ and Sn²⁺ ions and reached 99.9 and 66.1%, respectively. On the other hand, the lowest values were observed for Sr²⁺, Ni²⁺, Mn²⁺ and Co²⁺, which were determined to be below 10%. From the first look, such a selective absorption of Pb²⁺ and Sn²⁺ could be ascribed to the size effect, since these ions are relatively large; however, such explanation is unsuitable for Sr²⁺, which is also large. Other calcium phosphates such as HAp are known very well for the Sr²⁺ adsorption capacity [28]; nevertheless, β-Ca₂P₂O₇ did not demonstrate an efficient removal of Sr²⁺ ions. Taking into account the results presented in Figure 6, it was decided to perform further experiments with Pb²⁺ ions.

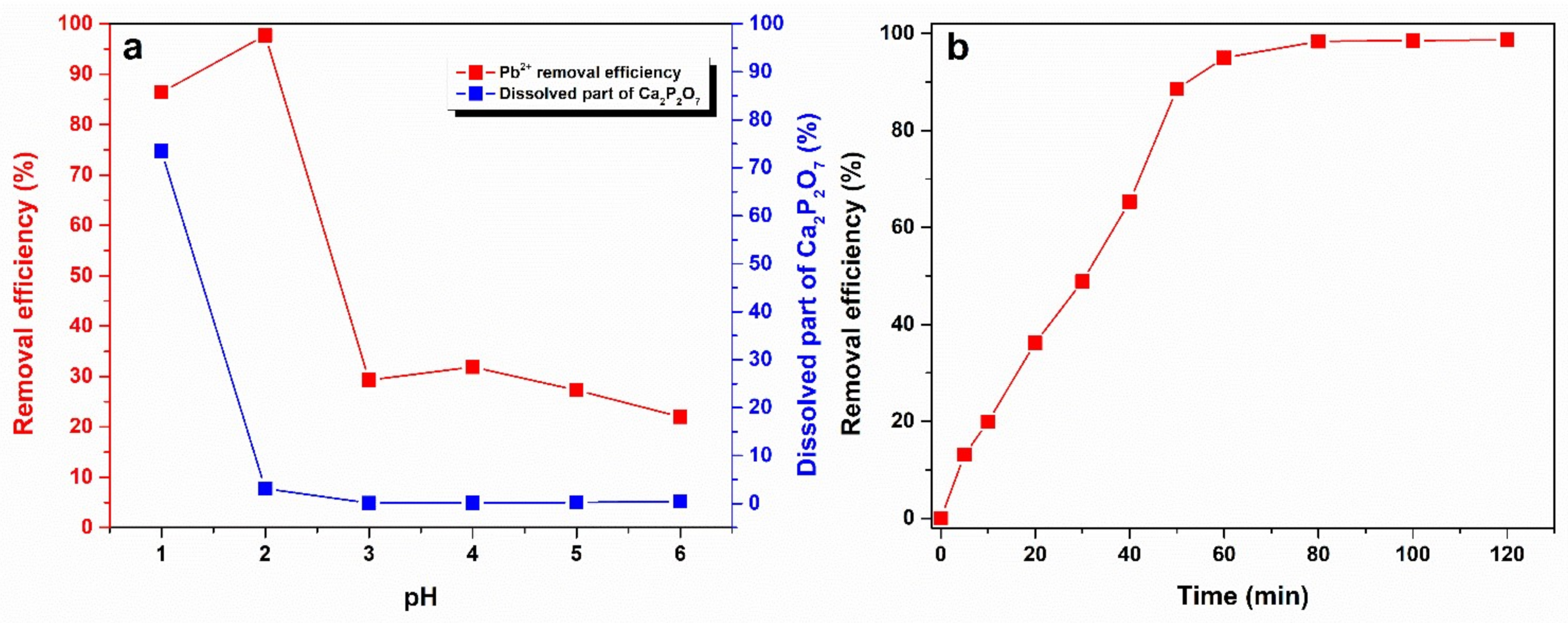

In the next step, the influence of medium pH on the efficiency of removal of Pb²⁺ ions was investigated. Taking into account the chemical properties of β-Ca₂P₂O₇, namely its solubility at low pH values, it was decided additionally to monitor the concentration of P ions in investigated solutions. The dependence of removal efficiency and concentration of dissolved P amount, recalculated to the dissolved part of β-Ca₂P₂O₇, on medium pH in the range from 1 to 6 are demonstrated in Figure 7a. The highest removal efficiency (97.7%) was achieved at pH 2; at the same time, the solubility of β-Ca₂P₂O₇ at this pH value is insignificant. At lower pH, the removal efficiency is rather comparable; however, a drastic increase in the solubility of the sorbent was observed. In the pH range from 3 to 6, the removal efficiency varies in the range from 32 to 22%. The concentration of P determined in the aqueous medium was negligible, indicating the low solubility of β-Ca₂P₂O₇ in this pH range. These results allow suggesting that the adsorption mechanism is at least partially related to the dissolution–precipitation process. The dependence of Pb²⁺ removal efficiency on contact time is depicted in Figure 7b. It is seen that removal efficiency increases nearly linearly in the range from 0 to 60 min when the equilibrium is achieved.

Based on the obtained results, the adsorption capacitance towards Pb²⁺ ions was calculated as high as 120 mg g⁻¹. This value is comparable with those of some sorbents studied for Pb²⁺ ion removal. For instance, acidified multiwalled carbon nanotubes demonstrated the adsorption capacity of 91 mg g⁻¹, whereas nonacidified multiwalled carbon nanotubes only demonstrated the adsorption capacity of 7.2 mg g⁻¹ [39]. Pinecone activated carbon showed the capacity of only 27.5 mg g⁻¹ [40]. Natural phosphate was characterized by an adsorption capacity of 115 mg g⁻¹ [41]. On the other hand, our obtained capacity value for β-Ca₂P₂O₇ is significantly lower than that demonstrated by nanohydroxyapatite, which was reported to have an adsorption capacity of 1000 mg g⁻¹ [42]. Nevertheless, it was demonstrated that β-Ca₂P₂O₇ is potentially suitable for the removal of some heavy metals from water. Further steps towards increasing removal efficiency could be directed towards the increase in surface area and porosity and the reduction in particle size to the nanoscale.

4. Conclusions

In the present work, single-phase β-Ca₂P₂O₇ was synthesized by a wet precipitation process followed by thermal treatment at 800 °C. The obtained material consisted of porous plate-like particles with micrometer dimensions. The external surface area, which corresponds to the mesoporous surface area, was determined to be 4 m² g⁻¹, and the specific surface area calculated by the BET method was determined to be 7 m² g⁻¹. The sorption properties of the obtained material were studied for different metal ions in model aqueous solutions. It was determined that β-Ca₂P₂O₇ demonstrates the highest adsorption capacity for Pb²⁺ and Sn²⁺ ions, while the lowest capacities were observed towards Sr²⁺, Ni²⁺ and Co²⁺ ions. The optimal pH value for the removal of Pb²⁺ ions was determined to be 2, which is related to the low solubility of β-Ca₂P₂O₇ at this pH. The adsorption capacity towards Pb²⁺ ions was calculated as high as 120 mg g⁻¹.
