Sustainability-Based Characteristics of Abrasives in Blasting Industry

by
Iskandar Zulkarnain
1,
Nor Adila Mohamad Kassim
2,
M. I. Syakir
2,*,
Azhar Abdul Rahman
1,
Mohamad Shaiful Md Yusuff
2,
Rosdin Mohd Yusop
3 and
Ng Oon Keat
4
1
School of Physics, Universiti Sains Malaysia, Gelugor 11800, Malaysia
2
School of Industrial Technology, Universiti Sains Malaysia, Gelugor 11800, Malaysia
3
Duta Klasik Sdn Bhd, Shah Alam 40460, Malaysia
4
EcoBlaz Sdn Bhd, Selangor 40400, Malaysia
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(15), 8130; https://doi.org/10.3390/su13158130
Submission received: 1 June 2021 / Revised: 4 July 2021 / Accepted: 7 July 2021 / Published: 21 July 2021
(This article belongs to the Special Issue Plant-Based Resources as a Green Alternative for a Sustainable Future)
Browse Figures
Versions Notes

Abstract

:
The abrasive blasting industry is identified as the most unsafe operation in terms of potential exposure to airborne crystalline silica. This is due to the free silica content in the common abrasives that are used for blasting activities. This paper will identify a sustainability-based or green blasting media to replace free silica content abrasives for blasting activities. The characteristics of sustainability-based abrasives are determined based on systematic review procedure. The combination keywords of “Abrasive blasting”, “Garnet’’, “Free Silica Media”, “Sustainable blasting”, “Eco-friendly blasting”, “Glass Bead blasting” and “Green blasting” were used to collect the existing studies on abrasive blasting operations. Six characteristics of green abrasives were identified: (1) zero content of free silica, (2) high efficiency and productivity, (3) low consumption media (4) low amount of waste generation and emission potentials (5) high recyclability and (6) environmentally friendly in line with sustainable development goals SDG3, SDG12, SDG13, SDG14 and SDG15. The application of green abrasives as substitution to free silica media is therefore important not only for safety and health reasons, but also for the environmental protection and sustainable business operations.

1. Introduction

Abrasive blasting has been consistently identified as one of the most unsafe operations in terms of potential exposure to airborne crystalline silica since the 1920s and was recognized as one of the earliest occupational diseases in the world [1]. The Centre for Disease Control and Prevention has recorded that, from 2001 to 2010, about 2 million workers in the US are potentially exposed to the respirable crystalline silica, which places the workers at risk of suffering silicosis [2], possibly in the form of chronic, accelerated or acute of the illness [3]. As abrasive blasting may cause high levels of noise and produce high amounts of dust, workers in this environment are thus exposed risk. Table 1 shows the permissible exposure limit set by OSHA, US, regarding the respirable of crystalline silica [4]. The recommend exposure limit (REL) for respirable crystalline silica is 0.05 mg/m3 as a time-weighted averages (TWA) concentration up to a 10-h workday [5]. Considering the safety precaution and effective operations of blasting activities, thus, the most efficient or productive abrasives selection is critical. Essentially, such characteristic will contribute to control and reduce the occupational health safety and environment related risks in blasting activities. This study aimed to identify potential characteristics of blasting media as an alternative to free silica content abrasives for blasting activities in line with the Sustainable Development Goals (SDGs) (Figure 1)
Figure 1 shows the role of SDGs as the key motivation towards a sustainable blasting industry. SDG 3 promotes a healthy life and wellbeing at all ages [6,7,8,9,10,11,12]. In the context of operators in the basting industry, the selection of media that contain less than 1% of silica is timely to reduce the risk of exposure to hazardous gases and free silica dust (OSHA, 2014). To keep the blasting activities efficient with less resource consumption is critical in SDG 12. Natural resources such as silica sand and garnet should be prioritized for more necessary uses. The selection of materials with higher rates of recyclability and/or biodegradable characteristics to be used as abrasives is important to avoid increase in waste generation. In fact, in addition to the selection of green abrasives with high recyclability in the blasting operations, the application of green abrasives will also contribute to the reduction of greenhouse gas (GHG) emissions (SDG 13). Here, the agricultural and glass-based media that release relatively less CO2 and non-heavy metals are the best means to achieve SDG 13. Moreover, safety and health concern, the environmental impact potentials, i.e., natural resource depletion, climate change and marine and terrestrial ecosystem deterioration, must be evaluated at the operations site in line with ethos of SDGs (Figure 1).

2. Overview of Blasting Processes

2.1. Blasting

Blasting is the process of treating a surface by propelling particles at high velocity toward it. It is a quick and easy way to remove foreign matter from metal, rubber or plastic [13]. This process is widely used due to its efficiency, cost-effectiveness and speed. Usually, people use blasting to remove the paint, rust, heat-treat scale, corrosion, flash-burn and any dirt from surfaces. It is generally performed in enclosed environments such as blasting chambers or cabinets, or at open sites such as on buildings, bridges, tanks, boat or mobile plants [14]. Common hazards produced from this process include dusts, hazardous chemicals and risks associated with the use of medias and equipment. Abrasive blasting is the most common surface preparation technique used to remove old paint and other surface materials such as rust, mill scale, dirt and salts. This method is usually conducted during vessel fabrication (e.g., on piping, steel plates and steel members used in structural assemblies, and other miscellaneous materials) and during maintenance and repair operations that include blasting and painting the hull and interior tanks and spaces of ships [15]. During abrasive blasting activities, there is a potential for workers to be struck by rebounding abrasive blast media (for example, sand, metal or slag) and be exposed to toxic dust from abrasive blast media and coatings such as silica, paint and grease being removed. Furthermore, workers can be at risk of potential falls due to pressure spikes in the hose line, leakage of equipment such as hoses and poor visibility. This is of particular concern as workers who carry out the blasting work at greater heights on scaffolding. Static electricity and high noise levels are also hazards that pose risks to operators during the abrasive blasting operations [15].

2.2. Type of Blasting

2.2.1. Wet Blasting

The wet blasting technique is suitable for both coarse and highly fine media with particular density. The wet condition will eliminate the dust during blasting activities so that salicaceous material can be used safely. Hazardous material such as asbestos, radioactive or other poisonous products from components can be removed safely. In fact, the process can be as fast as conventional dry sandblasting when using the equivalent size and type of media. Lowering media breakdown rates will prevent impregnation of foreign materials into the surface [16].

2.2.2. Wheel Blasting

Centrifugal force is employed to propel the abrasive media against the surface [17]. Wheel blasting is categorized as an airless blasting operation due to the absence of as propellant (gas or liquid). It is a high-power, high efficiency blasting machine with recyclable abrasive media such as steel or stainless-steel shot, cut wire, grit and similarly sized pellets.

2.2.3. Hydro-Blasting

Commonly known as water blasting. A highly pressured stream water is used to remove old paint, chemicals or build up without damaging the surface. This method is ideal for cleaning internal and external surfaces because it can send the stream of water into places that are difficult to reach when using other methods. It is also able to recapture and reuse the water, reducing waste and mitigating environmental impact [18].

2.2.4. Micro-Abrasive Blasting

Micro-abrasive blasting is a dry abrasive blasting process that uses small nozzles (typically 0.25 mm to 1.5 mm diameter) to deliver a fine stream of abrasive accurately to a small part of a small area on a larger part. It is also known as pencil blasting [19]. This abrasive media particle size usually ranges from 10 µm to 150 µm. It is operated under high pressure.

2.2.5. Dry Ice Blasting

The use of air and dry ice with the help of huge mass and air pressure for the cleaning process. This method will clean without destroying the properties of the surface materials. Dry ice blasting performs well for surface cleaning, which is attributed to the collision of the dry ice particles with the contaminants [20]. Lower temperature jet was required to produce a larger number of dry ice particles to enhance the efficiency of submicron-sized contaminants removal. Increase in jet pressure on the surface will increase its removal efficiency [21]. Dry ice blasting is a good alternative to other air abrasive methods such as sandblasting [22].

2.2.6. Bristle Blasting

Bristle blasting does not require a separate blast media as do other blasting methods. The use of a brush-like rotary tool made of dynamically tuned high-carbon steel wire bristle to treat the surface. The repeated contact with the sharp, rotating bristle tips results in localized impact, rebound and crater formation, which simultaneously cleans and coarsens the surface. The process derives its name from sharp, hardened bristle tips which, upon striking the corroded surface, immediately retract, thereby creating a micro-indentation that both removes corrosion and simultaneously exposes fresh subsurface material. The results demonstrate that surface cleanliness and texture achieved via bristle blasting tools is on a par with grit blasting processes [23].

2.3. The Abrasives

The characteristics of blasting media with percentage of free silica content (Table 2) can be discussed based on four categories, namely, minerals, agriculture, synthetic and metallic (Figure 2 and Table 3). From these categories, we will discuss the green characteristics based on the literature encompassing the safety, effectiveness and efficiency, recyclability, low emissions and environmentally friendly in line with Sustainable Development Goals (SDGs) as a basis on which to propose the sustainable blasting industry framework.

2.3.1. Mineral Abrasive

Mineral abrasives such as silica sand, garnet, flint and zircon are obtained from natural resources. They exhibit good cutting qualities and relatively economical. Nonetheless (except garnet), these blasting media are not recommended for the use in enclosed blasting system due to rapid breakdown that causes high toxicity [24,25]. Crystalline silica appears as one of the most studied elements in the history of occupational diseases and industrial hygiene [3] due to its abundance (rock-forming mineral) with variations of polymorphs in the environment. In fact, the silica is critical not only to assess the seriousness of fibrosis, but also important to examine the occupational risk of tuberculosis illness [4].
Free silica in the media can be one of the most effective blasting media in our time. It can do fast profiling of a product surface. As well, it can produce 3D signage as compared to flat signs and can be used to clean acrylic glass and glazing [26,27,28,29,30]. It is suitable for refurbishing buildings or creating works of art. The effectiveness for cleaning boat hulls, brick, stone and concrete work makes the free silica-based media the most preferable abrasives in the blasting industries [31]. The hardness of this media is relatively better and makes it known as a faster cutting media pace, thus demonstrate high performance in cleaning rate (Table 3).
However, the free-silica-based abrasives pose high risk in free silica dust and toxic gases emission during blasting activities leading to the risk of serious respiratory disease, such as silicosis and hardening of the lungs [32]. The silica dust produced is smaller than 5 microns, so it can be inhaled and become embedded in the lungs, causing respiratory problems, pulmonary silicosis and can cause death [16].
Breathing in very small particles of crystalline silica causes numerous diseases, including silicosis, an incurable lung disease that leads to impairment and death [29]. Respirable crystalline silica also causes lung cancer, chronic obstructive pulmonary disease (COPD) and kidney disease. Exposure to respirable crystalline silica is related to the development of autoimmune disorders and cardiovascular impairment [15]. These occupational diseases are life-altering and debilitating disorders that affect thousands of workers throughout the United States every year.
Furthermore, the dust clouds remain invisibly in the air for a long period of time, even after the sandblasting is completed, affecting the environment through air pollution. The air pollution will create a new occupational health risk to the operators [16]. In fact, the free silica media also can create a large quantity of dust, which increases the risks for people in the surrounding area. Wind will act as an agent to spread out the dust cloud and will pose high risks to surrounding people without any protection.

2.3.2. Agriculture Abrasives

The agriculture-based blasting media is one of zero-free silica type abrasives. It has its own characteristics for specific blasting applications. Walnut shells and corn cobs are good examples for mildly aggressive stripping without damaging the surface and, in fact, are biodegradable in nature [33,34,35,36,37,38,39,40,41,42,43,44,45]. Historically, walnut shells were used to clean the Felix de Weldon sculpture of Admiral [46]. The features of walnut shell abrasives offer the aggressiveness to remove hard paints and coatings without causing any discernible alteration of the metal’s surface [47]. While the cob is composed from four distinct parts, which are light chaff, coarse chaff in the form of tough, wood-like flakes, the pith and a woody ring [48]. Agriculture-based abrasives are practically safe and cost-effective for cleaning operations [45]. Its particles are non-abrasive to the metal, hence no effect in close dimensions of parts [49]. The deposited abrasives are biodegradable with time [50].

2.3.3. Synthetic Abrasives

Synthetic blasting media such as recycled and engineered abrasives contain less than 1% free silica content and do not emit heavy metal or harmful gases during blasting. The nature of glass appears to offer comparative advantage over materials containing free silica. This may translate to economic benefits realized by suppliers of recycled glass competing with alternative fillers, abrasive grits or other industrial minerals containing high crystalline silica. Recycled glass has been successfully substituted for silica sand and other blasting media in shipyards and in other construction projects and equipment cleaning [33]. For example, 100% recycled crushed glass can eliminate the health risks of airborne carcinogens due to its non-hazardous, non-toxic and inert characteristics [42]. Glass dust is classified by OSHA/NIOSH as only “nuisance” dust because it contains less than 0.1% free silica [43,44,45]. The use of abrasives with lower quartz content or large fractions of non-respirable particles content for blasting could reduce the potential hazard associated with silica [24]

2.3.4. Metallic Abrasives

High-strength steel grade metallics are most used in applications requiring high surface hardness for blasting operations. Their mechanical properties make them of great interest for a wide range of applications, particularly in the power industry to biomass transport [51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75]. Steel shot and steel grit are heavier and offers a deeper depth of compression but requires more energy to propel while leaving dissimilar metallic smears on the surface. Improperly cleaned steel surfaces will cause costly premature failure of the coating [76].

3. Systematic Review

3.1. Data Collection

The review includes following stages: article searching, documentation, structuring the literature review, prepare the literature review and creating a bibliography [68]. A total of 110 articles were analyzed from previous study on abrasive blasting operations. The combination keywords of “Abrasive blasting”, “Garnet’’, “Free Silica Media”, “Sustainable blasting”, “Eco-friendly blasting”, “Glass Bead blasting” and “Green blasting” were used to collect the existing studies on abrasive blasting operations. A literature review needs to rely on and analyze several different types of sources, including scholarly and professional journal articles, books, and web-based tools. In this study, Mendeley Desktop and Google search engine such as ResearchGate, Science Direct, iSEEK Education and Google Scholar, including grey literature, were used to find various database to gather information of current and past studies from different documents. Gray literature may be characterized as semi- or un-published material not provided by commercial publishers. It includes reports, working papers, conference proceedings, theses and pre-prints [67].

3.2. Document Selection

Seventy-four documents out of the total 110 articles on abrasive blasting were selected for the review in this study. The selection of journal and conference proceedings were limited to English language only because some of the journals of abrasive blasting were published in non-English languages such as Portuguese and Chinese. Some of these studies have published the effect of abrasive blasting on a specific country, such as Gujarat India [34], Iranian Mazandaran [35], Indonesia [36], Australia [37], Alberta, Canada, [38] and San Diego [26]. The search of documents was set between the year 2000 to February 2020.

3.3. Content Analysis

Content analysis is a commonly used analysis for the quantitative or qualitative categorization and synthesis of knowledge for any sort of communication [39]. In this study, three main aspects of abrasive blasting operations were analyzed.
  • The impact of abrasives on the environment. Here, the distribution of related publications about silica dust and toxic gases released from blasting operations were analyzed followed by the exposure level of the substances.
  • Health and safety impact caused by blasting activities. The analysis is based on free silica abrasives usage during the blasting operation. The safety component is analyzed based on the risk controls, personal hygiene practices, respiratory protection and worker training and hazard communication.
  • The degree of abrasives recyclability in performing blasting activities.

4. Sustainability-Based Abrasives

Major transformation is required to address the issues of health, safety and environment in the blasting industry. This review has identified six characteristics of sustainability-based (green) abrasives. The argument encompasses three main aspects of abrasive blasting operations: (1) the environmental impact based on reviewed documents about silica dust and toxic gases released from blasting operations, (2) The review of the health and safety risks of free silica abrasives application during the blasting operation; and (3) the degree of abrasives’ recyclability in performing blasting activities. The green abrasives selection characterized by safety, effective and efficiency, low emission, recyclability and environmentally friendly features is a “game changer” for the blasting industry.

4.1. Safety

The exposure to free crystalline silica is of OSH-SDG 3 critical concern in abrasive blasting operations [55]. The International Agency for Research on Cancer has classified crystalline silica as a carcinogenic pollutant which leads to possible silicosis illness. An operator who is exposed to high concentrations of very fine free silica dust particles may be at high risk of severe dyspnea, cough, mucoid sputum, fever, weight loss and cyanosis that leads to fatality in the long run [32]. Chronic exposure to airborne respirable silica dust may lead to emphysema, chronic bronchitis, mineral dust airway disease and reduced pulmonary function [1]. Mineral source media such as silica sand contains large amounts of free silica, which can be inhaled into the lungs and can contribute to severe respiratory illness. In addition to safety and health concerns, the mineral sources such as silica sand and garnet are non-renewable and should be conserved to achieve the sustainable management and efficient use of natural resources by 2030. Note, the zero free silica abrasives can be described as media contain less than 1% of free silica.

4.2. Efficient and Effective

The oversized abrasive media will allow too much penetration to the surface, which will be detrimental to the performance of the coating due to high peaks above the protective coating layer [73]. Excessive undersized particles and tiny dust fragments also can dramatically reduce production speed and may neither clean the surface properly nor produce adequate etch for coating [73]. Thus, the efficiency of abrasive media is important to ensure the cleaning rate of the blasting surface. For instance, surfaces abraded by silica sand and garnet exhibit a mixture of indents due to plastic deformation as well as scratches due to ploughing and cutting. Among the tested abrasives, garnet produced the largest amount of scratching [51] while for glass bead, it is a unique abrasive media developed to remove surface contaminants without affecting dimensional tolerance [53]. For agricultural media, which are lightweight (40+ 1b/ft3 (0.6 ka)) and soft (Mohs scale of 4.5–5), it is suitable for applications where the paint and other substances are to be removed without affecting the underlying surface [73]. This means that the efficiency of silica sand and garnet is not as good as glass beads and agricultural media in terms of surface damaging. If the wrong media is used for the process, then it may consume greater amounts of materials than required [64].

4.3. Low Consumption Media

Low consumption refers to the breakdown factor of the abrasive, which determines the number of reuses. It is a result of the media’s composition, hardness and fragility. As a comparison, silica sand exhibited higher wear rate followed by glass beads relative to garnet [55]. This suggests that the wear rate will lead to higher consumption of abrasives. Blasting with sand generally requires twice the amount of material, thus increasing the cost blasting operations. However, most synthetics abrasives media have some reuse advantages with low amount of waste generation and emission potentials [63].

4.4. Low Emission Potentials

The waste generation from the blasting activities are mostly hazardous due to high concentrations of metals such as lead, chromium, zinc and cadmium [53]. Environmental regulations require a Toxicity Characteristic Leaching Procedure (TCLP) test as part of risk assessment to simulate the fate and transport of pollutants in the ecosystem [55,56,57,76,77,78,79]. In addition to the risk of heavy metals pollution, the reduction of greenhouse gases (GHG) emissions (SDG 13) is also critical as the type of abrasives plays important role in determining the waste generation and emission potentials during blasting operations [65], i.e., the selection of agricultural and glass-based abrasives in blasting operation.

4.5. Recycleability

The use of abrasives with high recyclability features is critical not only for the cost-effective concerns but also to increase the circularity of the abrasives in the system so that less waste will be generated [61,77]. The high recyclability rate of abrasive media can be automatically collected, cleaned and returned for reuse and depends on the quality of the abrasive recycling system and the rate at which the abrasives breakdown, which is a function of abrasive type and hardness and the hardness of the cleaned surface [80]. If the recycling continues with smaller particle sizes, it will result in the decline of surface cleaning rates and shallower profiles [61]. Some natural abrasives, such a garnet and flint, can be recycled, but silica sand absolutely can never be reused. Silica sand has an extremely high percentage of breakdown due to its quartz composition [62]. The abrasives with high recyclability features are critical for the cost reduction while conserving the natural resources (SDG12).

4.6. Environmentally Friendly

The most efficient or productive abrasives exhibit lower consumption rates and are recyclable [78]. Essentially, such characteristic will contribute to (i) reduced energy costs, (ii) reduced life-cycle costs on equipment and (iii) improved economics for enhancing environmental quality in line with SDGs 14 and 15 [77]. Regulations and industrial awareness to improve the environmental performance while maintaining the profit have necessitated that stakeholders come up with successful recycling solutions, i.e., shot blasting as an oxide removal step prior to pickling [60].

5. Conclusions

The application of sustainability-based abrasives could be effective, if the industry can encourage market environments of green abrasives that inspire sustainability practices in the industry, as shown in Figure 3. This initiative, even at a small scale, will create a ripple effect in the industry to push green abrasives into the supply chains of the blasting industry. The impact of green abrasives in supply chains will be significant, if the blasting industry takes the SDGs as starting point to promote sustainability-based abrasives application to the industry.

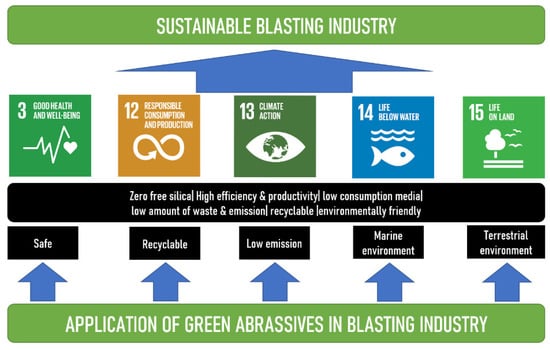

The related SDGs in Figure 3 are the key motivational factors to determine the characteristics of green abrasives that contribute to waste reduction and reuse technologies to pursue the goal of carbon emissions reduction and building up a recycling based sustainable blasting industry. Such an aim can be evaluated through life cycle perspective as a structured basis for evaluating the performance of environmental impacts and benefits of green abrasives application in blasting industry.
Considering the variations of scales in abrasives consumption for each blasting activities, hence, the environmental performance criteria of the processes can be used, i.e., low amount of waste and emission potential produced, efficiency and productivity, low consumption media, high recyclability and environmentally friendly abrasives. In addition, occupational, health and safety progress and well-being of the operators are well suited for gauging the ultimate success of the green abrasives’ performance in line with SDG 3, SDG 12, SDG 13, SDG 14 and SDG 15.

Author Contributions

I.Z.; data curation, review. N.A.M.K.; writing, methodology. M.I.S.; conceptualization, methodology. A.A.R.; validation, R.M.Y., N.O.K.; Funding, M.S.M.Y.; Project Admin. All authors have read and agreed to the published version of the manuscript.

Funding

This manuscript is part of research activities under the grant (304.PTEKIND.6501034.D119).

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

Not Applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Madl, A.K.; Carosino, C.; Pinkerton, K. 8.22—Particle Toxicities. Compr. Toxicol. 2010, 421–451. [Google Scholar] [CrossRef]
  2. Bang, K.M.; Mazurek, J.M.; Wood, J.M.; White, G.E.; Hendricks, S.A.; Weston, A.; Centers for Disease Control and Prevention (CDC). Silicosis mortality trends and new exposures to respirable crystalline silica—United States, 2001–2010. MMWR Morb. Mortal. Wkly. Rep. 2015, 64, 117. [Google Scholar]
  3. Madl, A.K.; Donovan, E.P.; Gaffney, S.H.; McKinley, M.A.; Moody, E.C.; Henshaw, J.L.; Paustenbach, D.J. State-of-the-Science Review of the Occupational Health Hazards of Crystalline Silica in Abrasive Blasting Operations and Related Requirements for Respiratory Protection. J. Toxicol. Environ. Health Part B 2008, 11, 548–608. [Google Scholar] [CrossRef] [PubMed]
  4. Hubbs, A.; Greskevitch, M.; Kuempel, E.; Suarez, F.; Toraason, M. Abrasive Blasting Agents: Designing Studies to Evaluate Relative Risk. J. Toxicol. Environ. Health Part A 2005, 68, 999–1016. [Google Scholar] [CrossRef] [PubMed]
  5. NIOSH. Health Effects of Occupational Exposure to Respirable Crystalline Silica. NIOSH Hazard Rev. 2002. Available online: https://static.compliancetrainingonline.com/docs/2002_129.pdf (accessed on 17 July 2021).
  6. McInnes, R.J. Sustainable Development Goals. In The Wetland Book: I: Structure and Function, Management, and Methods; Springer Science and Business Media LLC: Cham, Switzerland, 2018; pp. 631–636. [Google Scholar] [CrossRef]
  7. Kaelin, A.B.; Liang, S. New OSHA Program Targets Silica, Other Blast Cleaning Hazards. J. Prot. Coat. Linings 2008, 47. Available online: https://www.paintsquare.com/library/articles/New_OSHA_Program_Targets_Silica_Other_Blast_Cleaning_Hazards.pdf (accessed on 17 July 2021).
  8. Environment Protection Authority. Assessment of Abrasive Blasting. Australia. 2017. Available online: https://www.epa.sa.gov.au/files/47774_ea_abrasive.pdf (accessed on 22 April 2021).
  9. Willis, K. The Sustainable Development Goals. In The Routledge Handbook of Latin American Development; Routledge: London, UK, 2018; pp. 121–131. [Google Scholar] [CrossRef]
  10. UN. #Envision2030: 17 Goals to Transform the World for Persons with Disabilities|United Nations Enable. The UN. 2019. Available online: https://www.un.org/development/desa/disabilities/envision2030.html (accessed on 14 May 2021).
  11. Theron, G.B. Sustainable development goals. Obstet. Gynaecol. Forum 2016. [Google Scholar] [CrossRef]
  12. Desa, U.N. Transforming Our World: The 2030 Agenda for Sustainable Development. New Era Glob. Health 2018. [Google Scholar] [CrossRef]
  13. Corrosionpedia. January 2019. Blasting. Available online: https://www.corrosionpedia.com/definition/163/blasting (accessed on 6 November 2013).
  14. Safe Work Australia. ABRASIVE BLASTING Code of Practice. Australian Government Statutory Agency, Australia. 2009. Available online: https://safeworkaustralia.gov.au/system/files/documents/1702/abrasive_blasting2.pdf (accessed on 7 May 2021).
  15. US Department of Labour. Abrasive Blasting Hazards in Shipyard Employment. United States, Labour, US. 2020. Available online: https://www.osha.gov/dts/maritime/standards/guidance/shipyard_guidance.html (accessed on 1 December 2006).
  16. Flynn, M.R.; Susi, P. A Review of Engineering Control Technology for Exposures Generated During Abrasive Blasting Operations. J. Occup. Environ. Hyg. 2004, 1, 680–687. [Google Scholar] [CrossRef]
  17. Wang, Q.; Chen, Z.H.; Ding, Z.X.; Liu, Z.L. Performance study of abrasive wear and erosive wear of WC-12Co coatings sprayed by HVOF. In Proceedings of the 2008 2nd IEEE International Nanoelectronics Conference, Shanghai, China, 24–27 March 2008; pp. 340–344. [Google Scholar] [CrossRef]
  18. Huang, Z.; Li, G.; Tian, S.; Shen, Z.; Luo, H. Mechanism and numerical simulation of pressure stagnation during water jetting perforation. Pet. Sci. 2008, 5, 52–55. [Google Scholar] [CrossRef] [Green Version]
  19. Achtsnick, M.; Geelhoed, P.; Hoogstrate, A.; Karpuschewski, B. Modelling and evaluation of the micro abrasive blasting process. Wear 2005, 259, 84–94. [Google Scholar] [CrossRef]
  20. Hu, Z.; Marshall, C.; Bicker, R.; Taylor, P. Automatic surface roughing with 3D machine vision and cooperative robot control. Robot. Auton. Syst. 2007, 55, 552–560. [Google Scholar] [CrossRef]
  21. Liu, Y.-H.; Maruyama, H.; Matsusaka, S. Effect of Particle Impact on Surface Cleaning Using Dry Ice Jet. Aerosol Sci. Technol. 2011, 45, 1519–1527. [Google Scholar] [CrossRef] [Green Version]
  22. van der Molen, R.; Joosten, I.; Beentjes, T.; Megens, L. Dry ice blasting for the conservation cleaning of metals. Metal 2010. In Proceedings of the Interim Meeting of the ICOM-CC Metal Working Group, Charleston, SC, USA, 11–15 October 2010. [Google Scholar]
  23. Stango, R.J.; Khullar, P. Fundamentals of bristle blasting process for removing corrosive layer. In Proceedings of the NACE—International Corrosion Conference Series, Atlanta, Georgia, 22–26 March 2009; Available online: http://g-tool.jp/pdf/NACE2009-Stango.pdf (accessed on 17 July 2021).
  24. Mundt, K.A.; Birk, T.; Parsons, W.; Borsch-Galetke, E.; Siegmund, K.; Heavner, K.; Guldner, K. Respirable Crystalline Silica Exposure–Response Evaluation of Silicosis Morbidity and Lung Cancer Mortality in the German Porcelain Industry Cohort. J. Occup. Environ. Med. 2011, 53, 282–289. [Google Scholar] [CrossRef] [PubMed]
  25. Anon. Abrasive BlastingI; National Safety News; August 1982. Available online: https://www.cdc.gov/niosh/topics/blasting/default.html (accessed on 17 July 2021).
  26. Enviro-Management & Research, Inc. Abrasive Blasting Operations; Enviro-Management & Research, Inc.: Springfield, VA, USA, 1976. [Google Scholar]
  27. Hansel, D. Abrasive blasting systems. Met. Finish. 1999, 97, 29–55. [Google Scholar] [CrossRef]
  28. Rajansikka. Sandblasting Operation. 2016. Available online: https://shotblasting.org.in/sand-blasting-materials-used-pros-and-cons.php (accessed on 22 May 2021).
  29. Linch, K.D. Respirable Concrete Dust--Silicosis Hazard in the Construction Industry. Appl. Occup. Environ. Hyg. 2002, 17, 209–221. [Google Scholar] [CrossRef] [PubMed]
  30. Emco. ACRYLIC. In ACRYLIC. EMCO Industrial Plastics Inc. 2016. Available online: https://www.emcoplastics.com/acrylic-faqs/ (accessed on 9 May 2021).
  31. Kosmač, T.; Oblak, C.; Jevnikar, P.; Funduk, N.; Marion, L. The effect of surface grinding and sandblasting on flexural strength and reliability of Y-TZP zirconia ceramic. Dent. Mater. 1999, 15, 426–433. [Google Scholar] [CrossRef]
  32. Radnoff, D.L.; Kutz, M.K. Exposure to Crystalline Silica in Abrasive Blasting Operations Where Silica and Non-Silica Abrasives Are Used. Ann. Occup. Hyg. 2013, 58, 19–27. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. CWC. Using Glass as a Blasting Abrasive. Best Practices in Glass Recycling. 2002. Available online: http://www.glassagg.com/pdf/Blasting_Abrasive.pdf (accessed on 1 June 2021).
  34. Tiwari, R.R.; Sharma, Y.K. Respiratory Health of Female Stone Grinders with Free Silica Dust Exposure in Gujarat, India. Int. J. Occup. Environ. Health 2008, 14, 280–282. [Google Scholar] [CrossRef]
  35. Mohammadyan, M.; Rokni, M.; Yosefinejad, R. Occupational Exposure to Respirable Crystalline Silica in the Iranian Mazandaran Province Industry Workers. Arch. Ind. Hyg. Toxicol. 2013, 64, 139–143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Firdaussyah, A.T.; Suryo, T. Evaluation of Control Method Failures for Exposure to Sandblasting Silica Dust in a Steel Construction Company, Indonesia. KnE Life Sci. 2018, 4, 391–400. [Google Scholar] [CrossRef]
  37. Si, S.; Carey, R.N.; Reid, A.; Driscoll, T.; Glass, D.; Peters, S.; Benke, G.; Darcey, E.; Fritschi, L. The Australian Work Exposures Study: Prevalence of Occupational Exposure to Respirable Crystalline Silica. Ann. Occup. Hyg. 2016, 60, 631–637. [Google Scholar] [CrossRef]
  38. Lappi, V.G.; Radnoff, D.L.; Karpluk, P.F. Silica Exposure and Silicosis in Alberta, Canada. J. Occup. Environ. Med. 2014, 56, S35–S39. [Google Scholar] [CrossRef]
  39. Elo, S.; Kyngäs, H. The qualitative content analysis process. J. Adv. Nurs. 2008, 62, 107–115. [Google Scholar] [CrossRef]
  40. Hubbs, A.F.; Minhas, N.S.; Jones, W.; Greskevitch, M.; Battelli, L.A.; Porter, D.W.; Goldsmith, W.T.; Frazer, D.; Landsittel, D.P.; Ma, J.Y.C.; et al. Comparative Pulmonary Toxicity of 6 Abrasive Blasting Agents. Toxicol. Sci. 2001, 61, 135–143. [Google Scholar] [CrossRef] [Green Version]
  41. Andrews, R.N. The EPA at 40: An historical perspective. Duke Envtl. L. Pol’y F 2010, 21, 223. [Google Scholar]
  42. Mulhall, R.C.; Nedas, N.D. Impact blasting with glass beads. Met. Finish. 1999, 97, 101–106. [Google Scholar] [CrossRef]
  43. IARC Working Group on the Evaluation of Carcinogenic Risks to Humans and others. Silica dust, crystalline, in the form of quartz or cristobalite. In IARC Monographs on the Evaluation of Carcinogenic Risks to Humans; International Agency for Research on Cancer: Rockville, MD, USA, 2011. [Google Scholar]
  44. Beyer, L.; Beck, B.D. Glass Bead Inhalation and Induction of Silicosis. Toxicol. Sci. 2005. Available online: https://gradientcorp.com/scientific-papers.html?keyword=&keyword2=&year=&author=Beck-B&page=3 (accessed on 17 July 2021).
  45. MCfinishing. Blasting Technical Information. US. 2006. Available online: https://mcfinishing.com/ (accessed on 19 May 2021).
  46. Veloz, N.F. Practical Aspects of Using Walnut Shells for Cleaning Outdoor Sculpture. APT Bull. 1993, 25. [Google Scholar] [CrossRef]
  47. Veloz, N.F.; Ruff, A.W.; Chase, W.T. Successful use of soft abrasives (walnut shells) for cleaning outdoor bronze sculpture by air jets. In Old Cultures in New Worlds: Washington, District of Columbia, United States of America, 10–15 October 1987: Symposium Papers = Cultures Anciennes Dans les Mondes Nouveaux: Washington, District of Columbia, États-Unis d’Amérique, 10–15 Octobre 1987: Commu; US/ICOMOS: Washington, DC, USA, 1987. [Google Scholar]
  48. Lathrop, E.C. Corncob Enter Industry. 2007. Available online: https://naldc.nal.usda.gov/download/IND43893994/PDF (accessed on 2 June 2021).
  49. Alankaya, V.; Celebi, U.B. Investigation of alternative blasting process in terms of impact behaviour of blasting materials for green shipyards. Int. J. Glob. Warm. 2015, 7, 499. [Google Scholar] [CrossRef]
  50. Carlson, J.R.J.; Townsend, T.G. Management of Solid Waste from Abrasive Blasting. Pr. Period. Hazard. Toxic Radioact. Waste Manag. 1998, 2, 72–77. [Google Scholar] [CrossRef]
  51. Stachowiak, G. The effects of particle characteristics on three-body abrasive wear. Wear 2001, 249, 201–207. [Google Scholar] [CrossRef]
  52. Herrmann, H.; Bucksch, H. Silica sand. In Dictionary Geotechnical Engineering/Wörterbuch GeoTechnik; Springer: Cham, Switzerland, 2014. [Google Scholar] [CrossRef]
  53. Borucka-Lipska, J.; Techman, M.; Skibicki, S. Use of Contaminated Sand Blasting Grit for Production of Cement Mortars. IOP Conf. Ser. Mater. Sci. Eng. 2019. [Google Scholar] [CrossRef]
  54. Hamblin, M.; Stachowiak, G. A multi-scale measure of particle abrasivity. Wear 1995, 185, 225–233. [Google Scholar] [CrossRef]
  55. Kambham, K.; Sangameswaran, S.; Datar, S.; Kura, B. Copper slag: Optimization of productivity and consumption for cleaner production in dry abrasive blasting. J. Clean. Prod. 2007, 15, 465–473. [Google Scholar] [CrossRef]
  56. Swart, P.B. Blasting the Farm: Chemical High Explosives and the Rise of Industrial Agriculture, 1867–1930. History. 2019. Available online: https://scholarworks.umt.edu/etd/11385/ (accessed on 17 May 2021).
  57. Amato, J.A. Dust: A History of the Small and the Invisible; Univ of California Press: Berkeley, CA, USA, 2001. [Google Scholar]
  58. Meeker, J.D.; Cooper, M.R.; Lefkowitz, D.; Susi, P. Engineering Control Technologies to Reduce Occupational Silica Exposures in Masonry Cutting and Tuckpointing. Public Health Rep. 2009, 124, 101–111. [Google Scholar] [CrossRef] [Green Version]
  59. CDC. Preventing Silicosis and Deaths from Sandblasting. Columbia, US: DSDTT. 2014. Available online: https://www.cdc.gov/niosh/docs/92-102/pdfs/92-102sum.pdf?id=10.26616/NIOSHPUB92102 (accessed on 17 May 2021).
  60. Kahriman, A.; Ozer, U.; Aksoy, M.; Karadogan, A.; Tuncer, G. Environmental impacts of bench blasting at Hisarcik Boron open pit mine in Turkey. Environ. Earth Sci. 2006, 50, 1015–1023. [Google Scholar] [CrossRef]
  61. Systeco. Ecofriendly Sandblasting. Lübbenau. 2014. Available online: https://www.sys-teco.com/eco-friendly-sandblasting.html (accessed on 10 May 2021).
  62. Daniela. Recycling Options for Used Sandblasting Grit into Road Construction. Researches in Energy, Environment and Landscape Architecture. November 2011. Available online: https://www.researchgate.net/publication/309395303_Recycling_options_for_used_sandblasting_grit_into_road_construction (accessed on 1 May 2021).
  63. Drinkwater, D.; Napier-Munn, T.; Ballantyne, G. Energy reduction through ecoefficient comminution strategies. In 26th International Mineral Processing Congress, IMPC 2012: Innovative Processing for Sustainable Growth—Conference Proceedings; Technowrites: Pune, India, 2012. [Google Scholar]
  64. Bae, H.-J. Improving Blasting Productivity by Optimizing Operation Parameters. Researchgate. 2007. Available online: https://www.researchgate.net/publication/295749220_Improving_blasting_productivity_by_optimizing_operation_parameters (accessed on 20 April 2021).
  65. Kura, B.; Kambham, K.; Sangameswaran, S.; Potana, S. Atmospheric Particulate Emissions from Dry Abrasive Blasting Using Coal Slag. J. Air Waste Manag. Assoc. 2006, 56, 1205–1215. [Google Scholar] [CrossRef] [Green Version]
  66. Karadbhuje, S.W. Abrasive Blasting. VSRD International Journal of Mechanical, Civil, Automobile and Production, 3. 7 July 2013. Available online: www.vsrdjournals.com (accessed on 20 April 2021).
  67. Rothstein, H.R.; Hopewell, S. Grey Literature. In A-Z Common Reference Questions for Academic Librarians; Facet; Russell Sage Foundation: London, UK, 2019; pp. 162–164. [Google Scholar] [CrossRef]
  68. Rowley, J.; Slack, F. Conducting a literature review. Manag. Res. News 2004, 27, 31–39. [Google Scholar] [CrossRef]
  69. Qomariah, Q.; Sugiharti, S.; Riyanto, S. The utilization of sandblasting sand waste for mortar and normal concrete. IOP Conf. Ser. Mater. Sci. Eng. 2020, 732, 012036. [Google Scholar] [CrossRef]
  70. Muttashar, H.L.; Ariffin, M.A.M.; Hussin, M.W.; Bin Ishaq, S. Realisation of enhanced self-compacting geopolymer concrete using spent garnet as sand replacement. Mag. Concr. Res. 2018, 70, 558–569. [Google Scholar] [CrossRef]
  71. Guven, O.; Ozdemir, O.; Karaaʇaçlioʇlu, I.; Çelik, M. Contribution of roughness and shape factors on flotation of glass beads. In Proceedings of the IMPC 2014—27th International Mineral Processing Congress, Santiago, Chile, 20–24 October 2014. [Google Scholar]
  72. Bloomfield, J.J.; Greenburg, L. Sand and metallic abrasive blasting as an industrial health hazard. J. Ind. Hyg. 1933, 15, 184–204. [Google Scholar]
  73. Li, J.; Li, Y.; Huang, M.; Xiang, Y.; Liao, Y. Improvement of aluminum lithium alloy adhesion performance based on sandblasting techniques. Int. J. Adhes. Adhes. 2018, 84, 307–316. [Google Scholar] [CrossRef]
  74. Balakrishnan, B. Silicosis. Available online: https://www.researchgate.net/profile/Bathmapriya-Balakrishnan/publication/337797099_Silicosis_Medscape_Drugs_Diseases/links/5ded5bde92851c83646e0622/Silicosis-Medscape-Drugs-Diseases.pdf (accessed on 28 May 2021).
  75. Krolczyk, G.; Krolczyk, J.; Maruda, R.; Legutko, S.; Tomaszewski, M. Metrological changes in surface morphology of high-strength steels in manufacturing processes. Measurement 2016, 88, 176–185. [Google Scholar] [CrossRef]
  76. Hansel, D. Abrasive blasting systems. Met. Finish. 2000, 98, 23–37. [Google Scholar] [CrossRef]
  77. Myrsell, J. Effect of Shot Blasting on Processoxidised Stainless Steel–Morphology, Chemistry and Pickling Performance. 2014. Available online: http://kth.diva-portal.org/smash/record.jsf?pid=diva2%3A795762&dswid=-7440 (accessed on 2 March 2021).
  78. Chillara, N. Abrasive Blasting Process Optimization: Enhancing Productivity, and Reducing Consumption and Solid/Hazardous Wastes. Master’s Thesis, University of New Orleans, New Orleans, LA, USA, 2005. [Google Scholar]
  79. Sun, Y.; Xie, Z.; Li, J.; Xu, J.; Chen, Z.; Naidu, R. Assessment of toxicity of heavy metal contaminated soils by the toxicity characteristic leaching procedure. Environ. Geochem. Health 2006, 28, 73–78. [Google Scholar] [CrossRef] [PubMed]
  80. Adrian, M.I.; Butler, P.A. SHOT& GRIT. Available online: https://www.proquest.com/openview/8b8df197468dd3fb6488df313f2d0033/1?pq-origsite=gscholar&cbl=36623 (accessed on 25 May 2021).
Sustainability 13 08130 g001 550

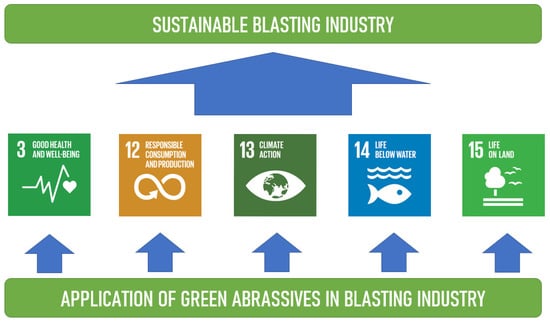

Figure 1. Related Sustainable Development Goals (SDGs) that become the key motivating factors to determine the characteristics of green abrasives that contribute to safety, environment and sustainability of the blasting industry.
Figure 1. Related Sustainable Development Goals (SDGs) that become the key motivating factors to determine the characteristics of green abrasives that contribute to safety, environment and sustainability of the blasting industry.
Sustainability 13 08130 g001
Sustainability 13 08130 g002 550

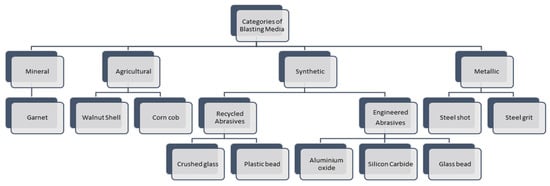

Figure 2. Four types of abrassives in blasting industry. (1) Mineral (2) Agricuture (3) Synthetic (4) Metallic.
Figure 2. Four types of abrassives in blasting industry. (1) Mineral (2) Agricuture (3) Synthetic (4) Metallic.
Sustainability 13 08130 g002
Sustainability 13 08130 g003 550
Figure 3. Framework of green abrasives described by six characteristics (1) zero content of free silica, (2) high efficiency and productivity, (3) low consumption media, (4) low amount of waste generation and emission potentials, (5) high recyclability and (6) environmentally friendly in line with sustainable development goals SDG3, SDG12, SDG13, SDG14 and SDG15 for sustainable blasting industry.
Figure 3. Framework of green abrasives described by six characteristics (1) zero content of free silica, (2) high efficiency and productivity, (3) low consumption media, (4) low amount of waste generation and emission potentials, (5) high recyclability and (6) environmentally friendly in line with sustainable development goals SDG3, SDG12, SDG13, SDG14 and SDG15 for sustainable blasting industry.
Sustainability 13 08130 g003
Table
Table 1. Permissible exposure limit by OSHA [4].
Table 1. Permissible exposure limit by OSHA [4].
InstitutionSubstancesPEL
OSHA
US		Respirable crystalline silica0.1 mg/m3
Respirable dusts containing quartz10 (mg/m3)/(%SiO2 + 2)
Total dusts containing quartz30 (mg/m3)/(%SiO2 + 2)
Dusts containing cristobalite and tridymite1/2 × (PEL formulas for quartz)
Particles not otherwise regulated (PNOR)5 mg/m3 respirable dust
15 mg/m3 total dust
Table
Table 2. Percentage of free silica content in blasting media.
Table 2. Percentage of free silica content in blasting media.
NoAbrasive Name% of Free SilicaRemarks
1Silicon Carbide70–100%No.1 Carcinogenic materials
2Garnet<0.1%Low dust and low heavy metals
3Copper slag, Nickel slag & Coal slag<0.1%Low silica but could contain heavy metals and high dust level
4Crushed glass<0.1%Medium dust—glass shards can cause blood noses
5Glass bead<0.1%Low dust & low heavy metals
6Steel grit & Steel shot0%Low dust & have low heavy metals
7Sponge, Corn cob, Walnut shell & Plastic grit0%Low dust & have low heavy metals
Source from Diane L. Radnoff, Michelle K. Kutz, (January 2014), pages 19–27, retrieved from https://doi.org/10.1093/annhyg/met065 (accessed on 11 May 2021).
Table
Table 3. Types of blasting media in blasting industry.
Table 3. Types of blasting media in blasting industry.
Categories of Blasting MediaMedia TypeDescription Best/UseGrit Size RangeHardnessSurface ProfileSpeedRecyclability
(Mohs)
SyntheticSilicon CarbideHard, aggressive cutting media, best used on hard surfacesVery coarse to extra fine9–9.5Very high etchVery fastHigh
SyntheticAluminum oxideExtremely sharp and long-lasting, best used for etching and profilingVery coarse to extra fine8–9High etchFastHigh
MineralGarnetIndustrial gemstone mineral best used for coating adhesion or where grit transfer is neededVery Coarse to Fine7–8High etchFastMedium
SyntheticCrushed glass gritAggressive grit, best used for surface profiling and removal of coatings and surface contaminationCoarse to extra fine5–6Medium- high etchFastNone, consumable
SyntheticGlass beadsLead-free, soda lime-type glass, containing no free silica best used to produce a smooth and bright finishCoarse to super fine5–6No etch, satin finishMedium-fastHigh
AgricultureCorn CobOrganic, soft media best used on soft surfaces such as wood for non-damaging cleaning and strippingExtra Coarse to Extra Fine4.5–5NoneSlowLow
AgricultureWalnut ShellOrganic, durable grit best used for mildly aggressive stripping without damageExtra Coarse to Extra Fine4.5–5Low etchMedium-slowLow
SyntheticPlastic BeadSoft media, best used for coatings and paint, ideal for automotive and aerospace applicationsVery coarse3–4No etch, strippingMediumHigh
MetalicSteel ShotCarbon steel best for polishing and smoothing surfacesMedium to ultra-fine40–51 HRCNo etchMediumVery high
MetalicSteel GritCarbon steel best for aggressive cleaning and fast strippingSuper coarse to medium40–65 HRCHigh etchMedium-fastVery high
Source from Quatman, C. Retrieved from https://kta-university/abrasive-media-evaluation/ (accessed on 11 May 2018).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zulkarnain, I.; Mohamad Kassim, N.A.; Syakir, M.I.; Abdul Rahman, A.; Md Yusuff, M.S.; Mohd Yusop, R.; Keat, N.O. Sustainability-Based Characteristics of Abrasives in Blasting Industry. Sustainability 2021, 13, 8130. https://doi.org/10.3390/su13158130

AMA Style

Zulkarnain I, Mohamad Kassim NA, Syakir MI, Abdul Rahman A, Md Yusuff MS, Mohd Yusop R, Keat NO. Sustainability-Based Characteristics of Abrasives in Blasting Industry. Sustainability. 2021; 13(15):8130. https://doi.org/10.3390/su13158130

Chicago/Turabian Style

Zulkarnain, Iskandar, Nor Adila Mohamad Kassim, M. I. Syakir, Azhar Abdul Rahman, Mohamad Shaiful Md Yusuff, Rosdin Mohd Yusop, and Ng Oon Keat. 2021. "Sustainability-Based Characteristics of Abrasives in Blasting Industry" Sustainability 13, no. 15: 8130. https://doi.org/10.3390/su13158130

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
