1. Introduction
The high demand for air transportation creates an enormous pressure on the infrastructure and the environment. Therefore, understanding the dimensions of the airline network becomes crucial for the long-term development towards sustainability [
1]. With the tremendous growth of the complex network theory and its application, the air transport system has gradually formed as a complex network with airports as vertices and direct flights as edges [
2]. As one of the most investigated networks, the intricate nature of the airline network has been widely analysed topologically at the macroscopic level. Although degree distribution, centrality correlation and small-world network structures are commonly used for the network property analysis, academics found that the abovementioned macroscopic indicators can hardly reflect the character of the individual nodes or modules in the airline network [
3,
4,
5]. Subsequently, this research aims to propose a dynamic approach to discover the airline network from the mesoscopic level with a special focus on motifs and cliques.
Motifs were first introduced by Milo et al. [
6]. A network motif is a small connected subgraph with a well-defined structure, which occurs significantly more frequently than it does in an ensemble of appropriately chosen random graphs. By appearing at higher frequencies, network motifs may have specific functions in information processing [
7]. Hence, they are commonly considered to be the basic building blocks of complex networks [
8]. In contrast, a subgraph which occurs less often than it does in a randomised network is defined as an anti-motif [
1,
9].
From the mesoscopic perspective, motifs focus on the microcosmic organisation structure and define network classes with topological interaction patterns [
6]. They represent the basic structures that control and modulate the behaviours of the complex network [
10]. Since different sets of motifs comprise distinct types of networks, the existing literature replaced network motifs with representative glyphs and introduced them to the air transport industry. For example, Dunne and Shneiderman proposed three types of motifs for simplification, visualisation and interpretation, namely, fan, D-connector and D-clique motifs [
11]. Similarly, Clarke and Clarke considered cliques (a collection of vertices for which all possible edges are included) and hub-and-spoke graphs (one vertex to which many other vertices are joined) as two important motifs in the aviation industry [
12].
Despite all the possible combinations of vertices, three- and four-node motifs are extensively discussed in the air transport system. For instance, Du et al. defined the network motif as the local relationship pattern between any three airports [
13]. Serving as a critical agent of social and economic connections between cities, the airline network is more sophisticated than a group of subgraphs with only three nodes. Bounova [
14], Agasse-Duval and Lawford [
9] further explored both three- and four-node undirected subgraphs for Southwest Airlines and provided contradictory results regarding the significance of motifs and hub-and-spoke graphs. Jin et al. identified the motifs and anti-motifs for 37 passenger airlines in China, illustrating the importance of adjusting the number of proper network motifs from the topological perspective [
1]. Nevertheless, those academics did not capture and interpret the networks as the coexistence of structural subgraphs. How smaller subgraphs compound larger structures needs attention. Although a systematic analysis of subgraphs can be helpful in discovering and revealing the critical structures, no key roles in the complex network have been captured from the motifs [
15]. How they influence the highly interconnected parts in the system is rarely discussed.
As one of the basic concepts in the mathematical area of graph theory, a clique represents a complete subgraph which requires every pair of distinct nodes to be connected with a unique edge in a simple undirected graph or a pair of unique edges in each direction [
9]. Particularly, the critical well-connected vertices can be identified by extracting the cliques in the network. Moreover, the coexistence of structural cliques can be analysed and interpreted using community detection methods.
In complex networks, the community is one form of mesoscale structures, which are usually densely connected internally but sparsely connected to the outside [
3,
16]. Although community detection plays a key role in complex network analysis, design and optimisation, the traditional algorithm reveals the underlying community structure by removing edges based on their betweenness [
17,
18]. Further, methods like this sort each vertex in one community and fail to detect the overlap in the communities. Rather than being clique-driven, those methods tend to be node-driven, targeting the low-order structures in the network [
19]. Moreover, by focusing on the topological matter, the complex network is usually constructed as unweighted and undirected. Additional information is naturally neglected, such as flight schedule, aircraft type and the operator [
13]. While flights are not equivalent, the dynamics of weights along the routes should be taken into account in proportion by either flight frequency or passenger number [
2]. Last but not least, the airline network can be refined as a multilayer network operated by different carriers [
20]. The existing studies of the airline industry mainly focus on the single layer operated by one selected airline, which leaves the structure of the integrated multilayer network unclear [
21].
To explore the configuration of the airline network and resolve the limitations mentioned above, this research paid attention to the mesoscopic level and proposed a bottom-up dynamic approach. First of all, this study introduced a motif detection technique and investigated how small and tight components build up to solidarity and connect large networks. Then, the cliques and crucial vertices were extracted from the motifs in order to capture the high-order connectivity patterns. Lastly, a weighted clique percolation method was adopted to examine the dynamic spatial distribution of cliques [
22]. To verify the effectiveness of the proposed method, this research chose the scheduled network of Air China for the case study to provide new insights and understanding of the air transportation system.
This paper is structured as follows:
Section 2 discusses the methodology and the dataset adopted in this research;
Section 3 identifies and examines the motifs, cliques and influential nodes in the community;
Section 4 discusses the findings and concludes this paper by emphasising the new insights.
3. The Network Structure of Air China
The aviation industry in China has been growing at an impressive rate, resulting in complex dynamics in the network. The hub-and-spoke configuration is proposed as one of the most efficient structures and is commonly used by most major airlines worldwide [
2]. The Chinese authorities have been trying to establish a US-style hub-and-spoke network to enhance the maturity in the passenger aviation sector [
28]. However, the short loops resembling “braids” in
Figure 1 reveal the opposite.

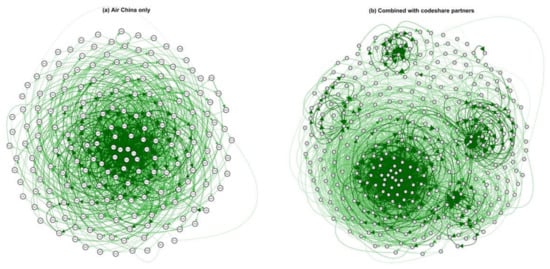

Figure 1 plots the networks of Air China and its codeshare partners. The edges in the graph are directed and weighted by daily frequencies. The darker colour and wider arrows demonstrate higher frequency and better connectivity. As the flag carrier, Air China primarily serves the domestic market via Beijing Super Hub and Chengdu Shuangliu International Hub. However, it is hard to identify the hub-and-spoke configuration from the complicated cluster since most of the cities are highly connected. Meanwhile, the spatial organisation of the codeshare network forms one sparse cluster in Canada and three relatively dense clusters in Australia, Germany and the United States. Although those countries are geographically far away from China, this shows the potential of hub airports abroad in concentrating flows. More specifically, the intercontinental flights comprise the trunk lines fed by domestic routes. In this sense, the hub-and-spoke structure seems to be more precise with codeshare agreements.
3.1. Motif
To maintain consistency with the previous study, this research captured the three-/four-node motifs for Air China and its partners.
Table 1 illustrates all the detected subgraphs in the networks, including motifs and anti-motifs. They are listed by the order of the absolute values of
-sores.
Two types of three-node motifs were identified in the network. The 3a motif represents two point-to-point flights connected by a hub airport. However, the -value and the negative -score indicate that the 3a motif is not significant. Consequently, it is defined as the anti-motif. The only significant three-node motif is the 3b motif, which demonstrates a complete graph called a clique. Although the frequency of the 3b motif in Air China’s network is relatively low (3.11%), the partnership more than doubles the result to 7.06%. That means the partnership increases the proportion of the 3b motif’s appearance time in the total time that all the three-node subgraphs appear in the network.
Six types of four-node motifs appear in Air China’s network, among which three are anti-motifs (4b, 4e and 4f). Particularly, the 4e motif fits the hub-and-spoke motif definition from Clarke and Clarke, where many other vertices are joined to one vertex [
12]. However, the hub-and-spoke glyph in this study was diagnosed as insignificant. Like the 3b motif, the 4a motif was captured as the clique in four-node subgraphs. From 4a, 4d to 4c, the number of edges decreases gradually. Social network analysis refers to the unbalances in 4d and 4c as conflicts, which could spread throughout the network [
29]. In aviation, those conflicts indicate a lack of direct flights between two airports, where the demand for air travel is not enough to justify the connection. The lower efficiency of the unbalanced motifs suggests the clique to be a sign of network maturity [
1]. Remarkably, the frequency,
-score and
show that the partnership further enhances the network with significant improvements in mature motifs (4a) and less mature ones (4d and 4c). It is also noticeable that the cliques represent complete point-to-point subgraphs in the airline network, which is the opposite of the hub-and-spoke ones.
The motif detection results are in good agreement with those of Jin et al. [
1], indicating that the significant basic glyphs of Air China’s network remained the same from 2015 to 2019. Shreds of evidence reflect that Air China maintained its multicentric and hierarchical structure for the time being. Meanwhile, the relatively lower frequencies of motifs in this research can be explained by airline network expansion. New destinations are usually less connected compared with mature markets. Moreover, this research includes regional and international destinations, which are located sparsely and remotely from Air China’s home market. Although Agasse-Duval and Lawford claimed that the number of subgraphs generally increases with the size of the network [
9], the topological structures are not the priority for airline operation and capacity allocation. Subsequently, the appearance frequency of a given motif drops with the growth of the network.
3.2. Clique
As discussed in
Section 3.1, a complete airline subgraph not only reveals the critical players, but also sheds light on the connectivity and maturity of the overall airline network. The clique detection process confirmed that several regions in the network are highly connected (see

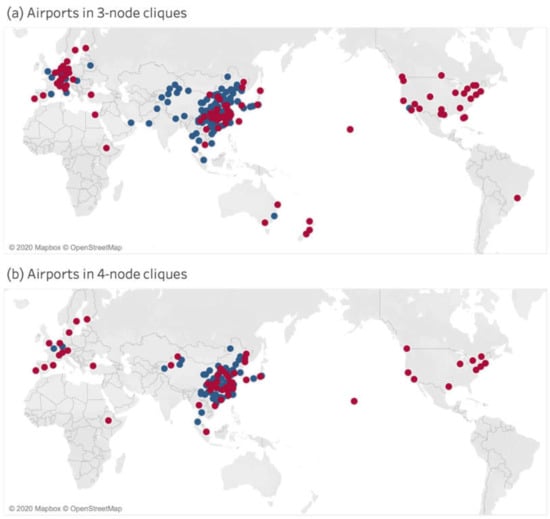

Figure 2). Indeed, 567 three-node cliques were found among 104 destinations in Air China’s network. In particular, 91 cliques were comprised of airports located outside mainland China, more than half of which are located in Asia, including Japan (21), Taiwan (15), Thailand (12) and Hong Kong (11). The partnerships add 1,814 three-node cliques, among which 1,366 are exclusively comprised of airports located in mainland China. Since foreign airlines are seldom authorised with the fifth freedom, those flights can only be operated by Chinese partners, namely Juneyao Airlines (HO), Shandong Airlines (SC) and Shenzhen Airlines (ZH).
The partnerships also introduced 448 three-node cliques with regional and international destinations. It is noticeable that 73 of them were completely comprised of international airports. The spatial distribution of the triangular subgraphs shows that Europe (33) and the United States (31) are the most popular regions (see
Figure 2a). With the help of Air Macau (NX) and Shenzhen Airlines (ZH), 110 domestic city pairs are fully connected to Macau and form cliques. Likewise, 29 cliques are identified, with Hong Kong as one of its vertices, by aggregating the networks operated by Cathay Pacific (CX), Dragonair (KA), Shandong Airlines (SC) and Shenzhen Airlines (ZH). Although Uni Airways (B7) and EVA Air (BR) operate 86 flights to/from Taiwan every week, they do not contribute to the existing cliques. It implies that their destinations have already been covered by Air China’s own network.
The network of Air China forms 361 four-node cliques, connecting 57 airports. More specifically, 46 out of the 361 cliques include regional and international routes, such as flights to Japan (16), Taiwan (10), Hong Kong (6), Thailand (5), Germany (4), South Korea (4) and France (1). Additionally, those 46 four-node cliques are comprised of three domestic airports and one regional/international airport. This is probably because of the limitation of airline capacity and traffic rights. As the flag carrier, Air China primarily serves the domestic market, which leaves a small amount of capacity to routes with the fifth freedom. Further, since the cabotage (seventh, eighth and ninth freedoms) rarely applies in the real world, Air China can hardly schedule flights between two points in one or two foreign countries. Hence, four-node cliques can only be formed with three domestic airports and one regional/international one.
The combined network expands the total number of four-node cliques to 3437, approximately five times the original number. Cliques involving regional/international airports increase dramatically to 684. Particularly, 589 of them are fully comprised of airports located in Asia. Macau is included in almost half the number of those all-Asian-airport cliques (262), outranking Japan (149), South Korea (61), Thailand (54), Hong Kong (52), Taiwan (10) and Singapore (1). This can be explained by the slot limitation at busy airports. Specifically, hub airports running at or close to their capacity are less likely to connect to regional airports in the developing area. Subsequently, airports like Hong Kong usually prefer allocating more slots to metropolitan cities such as Beijing and Shanghai to maintain their market shares with relatively high frequencies. On the contrary, less busy airports like Macau tend to cover more destinations with lower frequencies.
Geographically, the 11 cliques entirely comprised of international airports are located in North America and Europe, operated by Star Alliance members United Airlines (UA) and Lufthansa (LH). On the other hand, most cliques in those regions are comprised of three or two local airports and one or two airports in China. The forms of those cliques distinguish themselves from the abovementioned all-international-airport ones by establishing the interline cooperation between Air China and Star Alliance members.
3.3. Clique Percolation Community Detection
The clique percolation method proposes an algorithm to detect the interaction patterns of cliques. For weighted networks, the algorithm only considers the detected
-cliques further when their intensity exceeds a specified threshold
. A big threshold may rule out all the communities while a small one may include all the cliques, leading to the same community partition as for the unweighted model. In this sense, the threshold
becomes vital in high-order community detection. Initially, the maximum edge weight is tested as the upper limits for
as it was recommended by Farkas et al. [
22]. The last parameter to be set is the steps. Theoretically, smaller steps are preferred since small changes in steps could lead to rather different results. However, when steps are too small, the computation time increases considerably. Considering the upper limits for
, 0.1 was selected as the step, which should be appropriate to find a broad community size distribution. Subsequently, 112 and 119 were set for the network of Air China and the combined codeshare network in steps of 0.1.
Only one community was identified for the
-clique in Air China’s network. Hence, the
was used to optimise
for the respective
. The largest
for
and
was 0.999981 and 0.871684. The permutation test shows that only the confidence interval for
exceeded the upper bound (see
Table 2). In this sense, the
values for
can be considered more surprising than would already be expected by chance alone. The largest entropy denotes the most surprising community partition, which captures a low probability of knowing the community of a randomly selected vertex. Therefore, 4 is acceptable as the optimal
. In 4-node cliques, 57 airports are grouped as one community, while other airports are isolated. Although the airline network may seem to be complex and sophisticated, the topological structure of high-order cliques tends to be a small network which cannot be further divided into more communities.
For the combined codeshare network, at least three communities were found for three-node cliques. Subsequently, the optimal (27.2) was identified at the point of the maximal variance (). Eventually, three communities were identified among 58 airports. The 275 isolated nodes in the network included 135 nodes identified in three-cliques and 140 nodes outside the cliques. Initially, the clique percolation algorithm was designed to measure the overlapped vertices in the network. However, no shared node was found in three-clique communities, which implies no key airports interconnecting the coexistence of structural subgraphs on three continents.
When
, only two communities were found. Similarly,
and the permutation test were chosen as the primary indicators. Since the
value (1.0021173) exceeded the upper bound (0.007377024), 4 was acceptable as the optimal
.

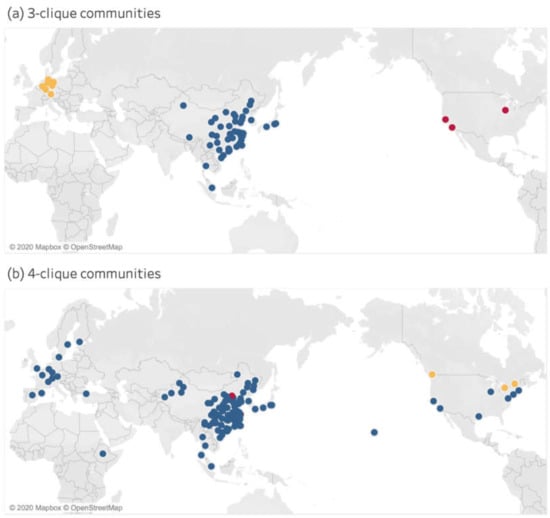

Figure 3b shows the spatial distribution of the communities. Generally, three airports in Canada are separated from the large community, while the Beijing Capital International Airport (PEK) and the Shanghai Pudong International Airport (PVG) are shared between the two four-clique communities as influential nodes. Topologically, a hub is to a node with a high degree [
30]. Although Air China’s physical hubs are in Beijing and Chengdu, the result illustrates the worldwide market power of Beijing and Shanghai as international hubs, which connect passengers to the entire network. In other words, the overlapped airports act as the boundary spanners between communities while others obtain connections within the group. Additionally, the community detection algorithm checked the adjacency of subgraphs by demonstrating whether two four-cliques share three of their vertices. Since all the vertices were adjacent to each other, the shared three nodes formed a complete subgraph (a three-clique). Therefore, the detected community was defined as the maximal group of four-cliques that can be reached through a series of adjacent four-cliques. Hence, the blue dots in
Figure 3b represent overall better connectivity between airports within the community. Three Canadian airports were left behind due to the lack of shared nodes.
Scholars used to detect low-order communities based on edge betweenness. They agreed that communities in the airline business cannot be explained exclusively by geographical considerations [
4,
31]. Nonetheless, the spatially isolated three three-clique communities are geographically separated from each other (see
Figure 3a). Likewise, the
-clique community further points out that the isolation does not necessarily mean separation by continents or countries (see
Figure 3b). Basically, the geographical location of the partners’ network results in the geographical separation of clique communities. Therefore, this result captures not only the concentration of airline capacity, but also the highly intensive subnetworks in the codeshare network, which may provide some new insights in community detection in the air transport industry.
4. Findings and Discussion, Contribution, Limitations and Future Work of the Study
4.1. Findings and Discussion
With continuous growth in demand for air travel, the airline network has become complex and widespread. This research investigates the airline network topologically and contributes to the sustainable development of air transport.
Hub oligarchy seems to be the most efficient organisation for transportation system [
4]. Thus, the hub-and-spoke subgraph used to be recognised as a mature modular structure in the airline network. Previous literature found the dynamics of the airline network toward a higher spatial concentration [
2]. For instance, Button [
32], Goetz and Sutton [
33] noticed that the topology of the airline network evolved from point-to-point to hub-and-spoke in Europe and America, respectively. Gradual centralisation has also been found in a prototypical low-cost carrier network [
14]. Nevertheless, clear evidence from motif detection illustrates that the hub-and-spoke structure is not topologically significant in Air China’s network. In contrast, the point-to-point structure represented by complete subgraphs sheds light on the connectivity and maturity of the overall network. The results are consistent with the work of Jin et al. [
1], confirming that Air China maintains its multicentric and hierarchical structure for the time being. The difference in airline network configurations is probably due to the centralisation of developed urban areas in China. This also raises the question of whether a hub-and-spoke network fits the strategic plan of all full-service carriers regardless of the geographical, economic or political issues.
The critical destinations in the airline network were extracted by clique detection, revealing the majority of Air China’s operation at the domestic level. Pieces of evidence demonstrated the partners’ contribution to Air China’s network either by offering higher frequencies on existing routes or exploring new destinations which had not yet been covered by Air China. Remarkably, the abovementioned contributions were also limited by traffic rights, geographical location and socioeconomic situation of the airports. For example, the domestic routes can only be operated by Air China’s Chinese partners. In this sense, a marketing carrier could benefit from an expanded network using codeshare agreements while complying with local regulations. Moreover, the slot limitation at busy airports leads to the result that less busy airports cover more destinations with lower frequencies and appear more often in cliques. At the continental level, Europe and the United States are the most popular regions considering the spatial distribution of the cliques. The cliques in those areas distinguish themselves by establishing the interline cooperation between Air China and Star Alliance members.
Furthermore, the vertices are not in general equivalence in the networks as they may seem to be in the mathematical formulation of graphs [
12]. Community interactions are consequential in capturing the opportunities and constraints and predicting the evolution of the network as a whole. To understand how an individual vertex is embedded in communities of a complex network, communities are identified using a weighted clique percolation method. The method captured not only the concentration of airline capacity, but also the highly intensive subnetworks in the codeshare network. Besides, the results provide new insights by identifying spatially isolated communities in the air transport industry, which has not been observed with traditional community detection techniques. Topologically, the structure of cliques in Air China’s network demonstrates a small and relatively simple graph. The combined codeshare network has improved the overall connectivity between airports within the community. The patterns of intercommunity and intracommunity connections were obtained by discovering the overlapped communities. Two shared influential nodes were found in the four-clique communities. Particularly, the Shanghai Pudong International Airport outranks Air China’s international hub in Chengdu Shuangliu and is one of the shared nodes interconnecting the coexistence of structural subgraphs. Multiple hub connections always come with additional cost–benefit considerations. The global market power of Shanghai proves that the network could grow out of a possible geopolitically core region and connect to the rest of the world [
34]. Although some academics claim that the criticality is rather stable over time [
35], change happens constantly in the aviation sector. Air China may encounter more hub shifting like this after the Beijing Daxing International Airport (PKX) and the Chengdu Tianfu International Airport (TFU) opened to the public in September 2019 and June 2021, respectively. Consequently, subsequent studies are necessary for the adaptation of Air China’s strategic management.
4.2. Contribution
Research on the airline network is of great importance in understanding and optimising its structure and sustainable development. To fill the gap in the existing literature, this research focused on the way that smaller subgraphs compound the larger structures, capturing and interpreting the airline network as the coexistence of structural subgraphs.
This paper first expanded the research scope to regional and international destinations. Then, it introduced mature techniques from complex network theories and presented a dynamic bottom-up roadmap to uncover the hidden cluster configuration in the airline industry. Indeed, this study confirms the results from the previous literature regarding Air China’s multicentric and hierarchical point-to-point network structure. It also raises the question of whether a hub-and-spoke network fits all full-service carriers. More importantly, this research examines the key roles in the airline network at the airport level. The results show that the combination of airports in the cliques may be affected by airline capacity, traffic rights and interline cooperation. Meanwhile, smaller airports appear more often in cliques than hub airports, which can be interpreted and justified with slot constraints at mega-airports.
Rather than being node-driven, the community detection method in this study is clique-driven, targeting the high-order structures and the overlap in the communities. Weights along the routes and layers of the network were taken into account to reflect the inequivalence in flights and the contributions of codeshare partners. Although the airline network may seem to be complex and sophisticated, the topological structure of high-order cliques tends to be a small network. The algorithm provides geographically separated communities, which have not been obtained with traditional techniques. However, the separation does not necessarily mean geographical isolation by countries or continents. Basically, the geographical location of the partners’ network results in the geographical separation of clique communities. In other words, the geographical separation reflects the partners’ contribution and market power in a certain area. Although most techniques prefer considering high-degree nodes as critical [
35], this paper considered the shared nodes in the overlapping area as influential. In this sense, two shared nodes in Air China’s codeshare network prove their global market power in connecting the domestic market to the rest of the world. It is also noticeable that one of the shared nodes is not the original hub airport of Air China. While the hub shifting phenomenon reveals the contradiction between physical and topological networks, it raises another question of whether this phenomenon is widespread in the air transport industry.
4.3. Limitations and Future Work of the Study
This research explores the spatial distribution of the community structure and simplifies the complex network in reality. However, only one airline and its 33 codeshare partners were examined in this study with a relatively small sample size. Further research is required with a regional or worldwide dataset to measure the robustness of this method and promote sustainable development in the air transport industry.
During the analysis, this paper also raised two questions, first of all, whether a hub-and-spoke network fits all full-service carriers; second, whether the topological hub shifting phenomenon is widespread in the air transport industry. Consequently, subsequent studies are necessary for the adaptation of airlines’ strategic management, especially in multiple-airport regions.
