Identification of Factors Influencing Development of Photovoltaic (PV) Implementation in Singapore

Abstract

Despite the steady growth of grid-connected installed capacity in Singapore in the last decade and intensive government effort towards “solarization”, implementation of photovoltaics (PV) and especially building-integrated photovoltaics (BIPV) into the built environment has not gathered as much momentum as would have been expected given the country’s ample solar energy resource potential, strong economic fundamentals and the robust real estate sector. Based on a conducted web-survey and qualitative interviews among local professionals, this paper examines the obstacles, potentials and drivers that could facilitate and accelerate BIPV and PV façade integration, as well as needs that could encourage wider PV use. In order to define a unified strategy, aligning the stakeholders’ views, the following disputable factors are pointed out and discussed: (1) incomplete understanding of BIPV and building-applied photovoltaics (BAPV) among stakeholders, (2) costs of BIPV systems, (3) low awareness of and confidence in “integrability” of PV modules, (4) incomplete knowledge about and insufficiently investigated PV performance and (5) potential of PV façade and roof integration. Since the costs are the key identified factor for BIPV implementation, life-cycle cost (LCC) assessments of PV façade and roof integrations have been performed, which supported the search for solutions to identified problems. The performed analysis and findings present the basis for the development of a long-term holistic strategy for PV implementation in Singapore that could help the highly-urbanized, tropical resource- and land-constrained island city-state reduce the dependency on fossil fuels and achieve the climate change targets, thus promoting a more sustainable built environment.

1. Introduction

Grid-connected installed capacity in Singapore has recorded a steady growth from 10.1 MWp in 2012 to 350 MWp in the first quarter of 2020 [1,2]. PV generation capacity accounts for only around 2% of the total installed generation capacity [1], while PV generated energy represents less than 1% of the total energy generation mix. Over 90% of PV in buildings are building-applied photovoltaics (BAPV): installations fastened with clipping elements onto roof metal sheets or assembled with metal ballasted structures onto concrete-base rooftops. The remaining PV systems are sloped-roof residential applications, scattered small ground-mounts and sporadic BIPV within which are few PV façade integrations. Floating PV systems on reservoirs have recently been launched specifically to target Singapore’s space constraints [3]. For example, recently appointed by the National Water Agency, Sembcorp Industries will construct a 60 megawatt-peak (MWp), Singapore’s largest floating solar PV system on Tengeh Reservoir which when completed in 2021, will be one of the world’s largest single floating solar PV systems [4,5]. However, despite the undeniable challenges primarily related to the high-density tropical environment [6,7,8], PV implementation in Singapore, in particular BIPV, could be more impressive, given the ample solar energy resource potential (average solar irradiance: 1580 kWh/m²/year [9]), strong real estate sector and economy fundamentals and the great effort of the government toward “solarization” [10].

With high solar irradiation, limited shading effects, ease of installation and maintenance as well as proven feasibility, rooftop BAPV systems have exceptionally high integration potential. However, dependency on fossil fuels (95% [1]) cannot be noticeably reduced with rooftop installations alone. Compared to rooftop BAPV systems, BIPV installations (façade and other BIPV solutions) have some drawbacks such as lower solar irradiation, modest and poorly researched cost-effectiveness, unknown performance and the lack of a separate set of building standards [8], in the first place, fire safety standards. However, in order to make Singapore less dependent on fossil fuels, BIPV installations, façade and other BIPV solutions need to play a substantive role within PV integration into the built environment.

Thanks to recent developments in PV technologies enabling stimulating architectural integration [11], multi-functional BIPV solutions could provide other multiple benefits apart from electricity generation [12], by improving the quality of life, thus making the city not only more environmentally sustainable, but also more livable and enjoyable.

Owing to its global recognition as one of the world’s most competitive countries and the great devotion of the government and citizens towards a sustainable future [13] on one side, and due to the space constraints (assessed possible net usable areas for PV deployment: 36.8 km² [14]) on the other side, Singapore could contribute more to fighting climate change by setting examples of excellent practice in the city’s PV transition than by the volume of CO₂ reduction.

A discrepancy between the expectations and real situation regarding the progress of PV integration has urged researchers and other stakeholders in the PV domain to explore how to facilitate and accelerate PV integrations, especially BIPV [12,13,14,15,16,17,18,19,20,21,22,23,24,25,26]. Even a decade ago, in their “Achieving solar energy in architecture—IEA SHC Task 41”, Wall et al. have found it surprising that solar energy systems are still not considered as mainstream technologies and are not more widely spread into the building practice [26]. Therefore, the IEA SHC Task 41 “Solar Energy and Architecture” was carried out during 2009–2012 with the aim to primarily address the issues related to architectural barriers such as: lack of awareness and knowledge among architects, lack of tools supporting the design process, and lack of products designed for building integration [26,27,28,29,30]. According to the study of Lu et al. [8], long-term payback period, high upfront cost and low energy conversion efficiency are the three most influential barriers to BIPV in Singapore, while on-site generation of clean energy, bundled with economic benefits, Green Mark certification (BCA Green Mark Scheme is an initiative to create a more sustainable built environment in Singapore by promoting sustainable design, construction and operating practices in buildings [31,32]) and avoidance of CO₂ emissions are the most influential drivers. Apart from cost-effectiveness and other technical factors, some social and psychological factors are also deemed to play a significant role [15,24,33,34]. A survey on PV integration designs conducted among Singapore’s professionals by Kosorić et al. [6] arrived at similar results. Several studies concluded that an interdisciplinary approach and active cooperation among stakeholders are needed to make a significant shift [8,11,15,35]. In order to facilitate the development of BIPV, Lu et al. suggested first a cost-benefit analysis of BIPV and effective communication channels among stakeholders, incentive policies, as well as a clear government vision followed by goals and guidelines for industry practitioners in BIPV adoption [8].

Based on a three-year comprehensive study, which included consideration of relevant environmental, economic and social sustainability factors, the research findings include: (1) identified factors affecting development of PV implementation in Singapore, given in this paper, and (2) a long-term holistic strategy for successful PV implementation into Singapore’s built environment, consisting of: (1) multilevel mechanism framework and (2) general design framework, presented in the subsequent article.

The main goal of this paper is to provide fundamentals of a long-term holistic strategy for PV implementation in Singapore. First, based on the conducted web-survey and qualitative interviews among local professionals, this paper systematically analyzes the obstacles, potentials and drivers, needs and gaps between stakeholders with different professional backgrounds. In order to create the basis for the development of a unified strategy, it addresses the most disputable factors that have been identified. Life-cycle cost (LCC) assessments of PV integrations have been performed on local real and hypothetical buildings, to support the search for solutions to identified problems.

This study covers both BIPV and BAPV. For the avoidance of doubt, the term BIPV refers to a system which replaces a conventional building element and which is a prerequisite for the integrity of a building (e.g., if BIPV is dismounted, it has to be replaced by an adequate building component able to satisfy the same technological requirements (e.g., water-tightness, mechanical resistance, etc.)) [36,37]. Not having to satisfy the stated condition, BAPV refers to a system add-on to the building envelope using a supporting structure, which is usually used in retrofits. When it is said rooftop PV integration or PV façade integration, without specifying that it is a BIPV or BAPV system, it refers to PV integration into the roof or façade, potentially including both BIPV and BAPV systems.

The paper is divided into four sections. After the Introduction in Section 1 and the Materials and Methods in Section 2, the Results and Discussion are presented in Section 3. The obstacles, drivers and needs related to PV building integration in Singapore’s web-survey are presented in Section 3.1, followed by major issues to be resolved in order to support PV building integration in Singapore in Section 3.2. Conclusions are presented in Section 4. Some survey and LCC results are given in the Appendix A.

2. Materials and Methods

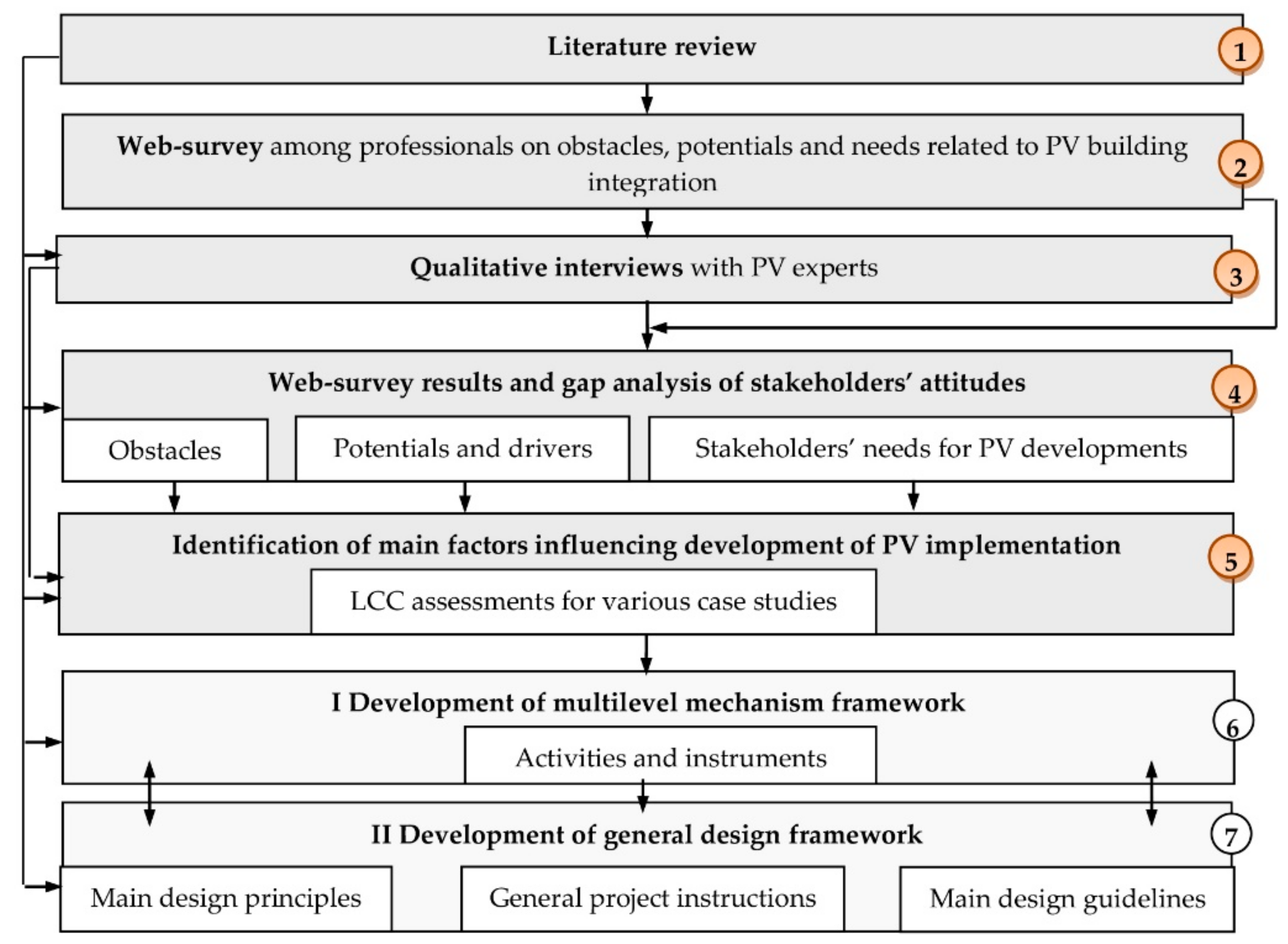

Figure 1 provides a schematic representation of the overall research methodology in the form of an activity flow consisting of seven main phases.

After the web-survey (explained in Section 2.1), we carried out qualitative interviews (phase 3 in Figure 1) with ten professionals who have extensive experience in PV and BIPV in Singapore. These interviews went into greater depth and detail and explored the unique experiences and opinions of interviewees on the relevant problems. They were of special help in interpreting web-survey results (phase 4 in Figure 1) which revealed a significant gap between PV experts, architects and other professionals in Singapore, as well as between professionals with and without experience in PV building integration, in perceiving the hindering factors and those that could facilitate BIPV implementation in Singapore. Based on web-survey results and gap analysis, this study identifies and clarifies the most disputable issues (phase 5 in Figure 1) related to widespread PV implementation. LCC assessments (explained in Section 2.2) of PV building integrations on local real and hypothetical buildings have been performed, which support the resolution of identified problems.

Based on a systematic analysis of identified disputable issues and literature review, the holistic strategy consisting of: (1) multilevel mechanism framework (phase 6 in Figure 1) and (2) general design framework (phase 7 in Figure 1) was defined and is the subject of subsequent publication.

2.1. Web-Survey

Drawing upon the literature review (phase 1 in Figure 1), a web-survey with local professionals (phase 2 in Figure 1) was employed as a research instrument to identify obstacles, potentials and drivers, as well as stakeholders’ needs related to PV building integration in Singapore. It was carried out in May 2018. An anonymous, multiple-choice questionnaire was created using the online (Google Forms) platform and the questionnaire took approximately 15 min to complete. The introductory section consisted of 5 questions about the respondents’ professional background, while the main part of the questionnaire had 15 questions divided into three sub-groups aiming to identify: (1) obstacles, (2) potentials and drivers and (3) needs related to PV building integration in Singapore that could encourage wider PV use. Mandatory questions were followed by an optional field, inviting professionals to issue comments.

Invitations to participate in the survey were sent to 1200 professionals who are based and working in Singapore, and a total of 101 valid completed responses were obtained. As shown in

Table 1. Demographic profiles of survey respondents (BIPV (building-integrated photovoltaics); BAPV (building-applied photovoltaics)).

	Frequency	Pct. (%)		Frequency	Pct. (%)
Profession			Industry sector
Architect	79	78.2	Design	45	44.6
Consultant	3	3.0	Construction	12	11.9
PV expert	7	6.9	Planning	2	2.0
Manager	2	2.0	Engineering	2	2.0
Engineer	4	4.0	Academic Research	6	5.9
Designer	1	1.0	Consulting	18	17.8
Other	5	5.0	Project management	13	12.9
			Other	3	3.0
Years of professional experience			Experience in PV building integration (BIPV + BAPV)
1–5	12	11.9	Yes	50	49.5
5–10	13	12.9	No	51	50.5
11–15	25	24.8	Experience in PV façade integration
15–20	8	7.9	Yes	24	23.8
>20	43	42.6	No	77	76.2

, the highest response rate was from architects (78.2%) and professionals with over 15 years of experience accounted for little more than a half of the sample (50.5%). Around one-half of all the respondents (49.5%) and a third (33.3%) of involved architects have experience in PV building integration (BIPV and BAPV), but only 23.8% of the respondents and 8.9% of architects have experience with façade BIPV.

2.2. LCC Assessment Method

Assuming that economic performance of PV integration could vary significantly not only between the roof and façade, but also depending on the type of PV integration (existing/new building; BIPV/BAPV), in this paper, the LCC analysis was performed for three case studies:

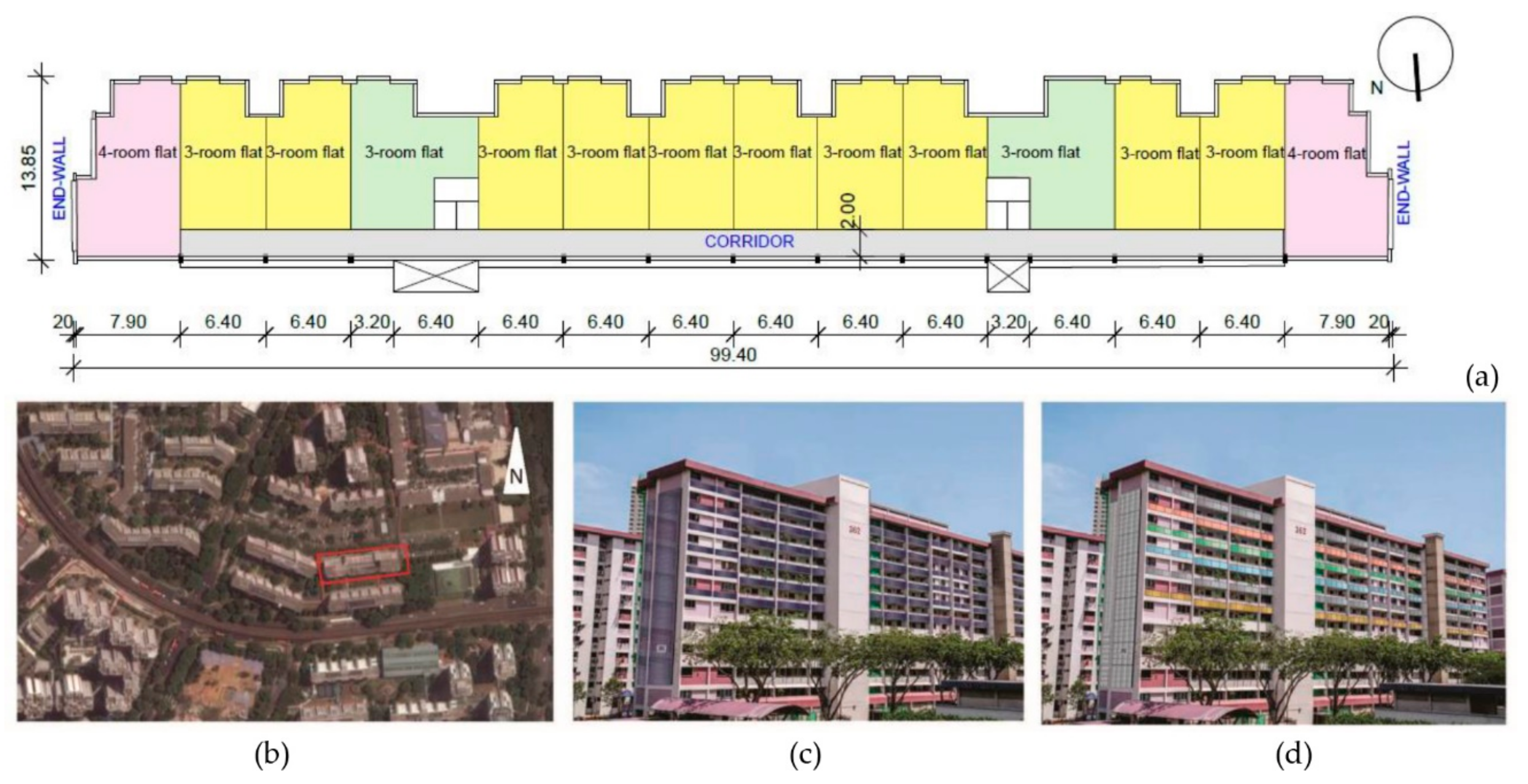

• BAPV façade system as an additional cladding on the existing building—Case study 1,
• BIPV façade system as a cladding on a new hypothetical building—Case study 2 and
• BIPV as a roof canopy—Case study 3.

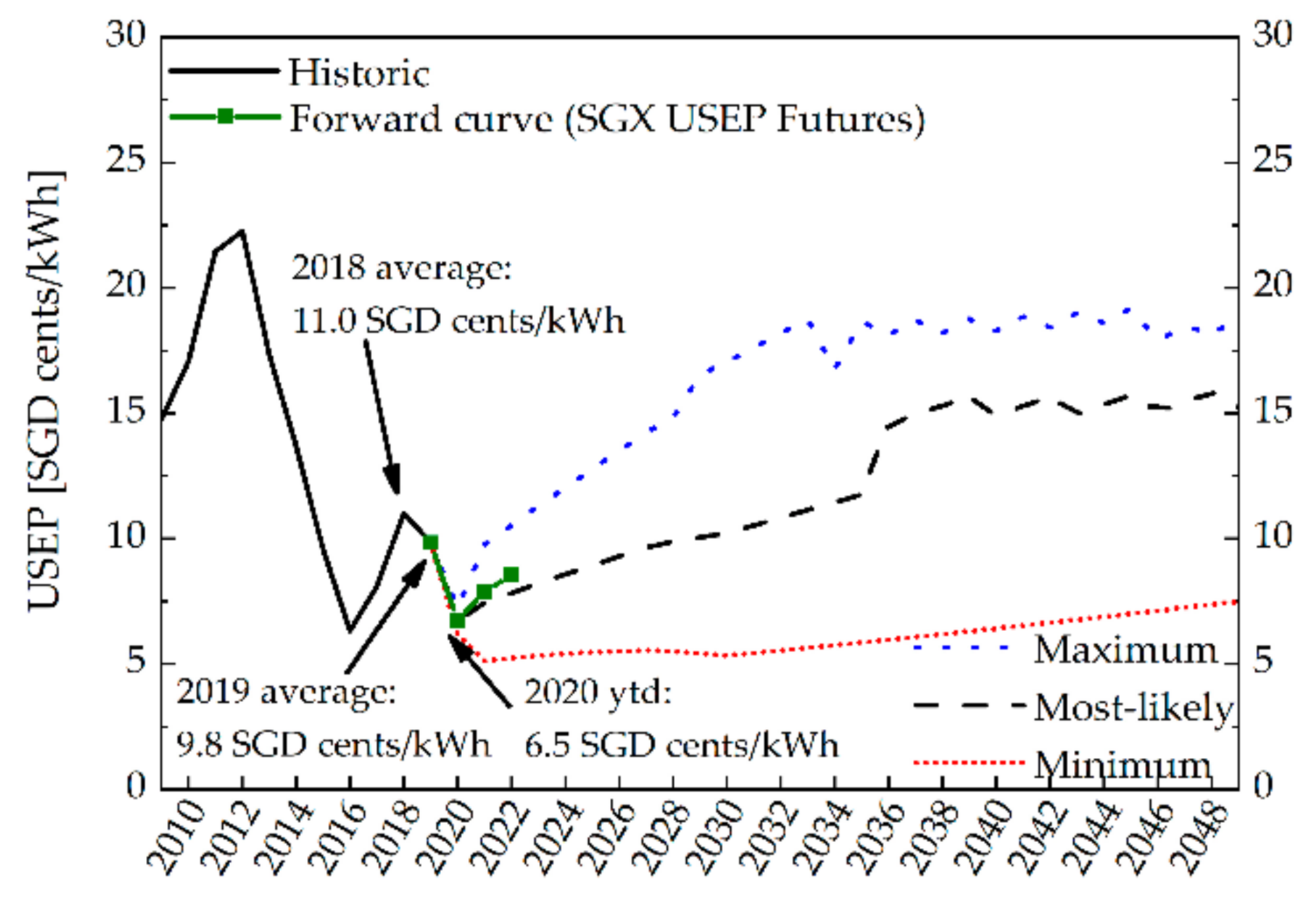

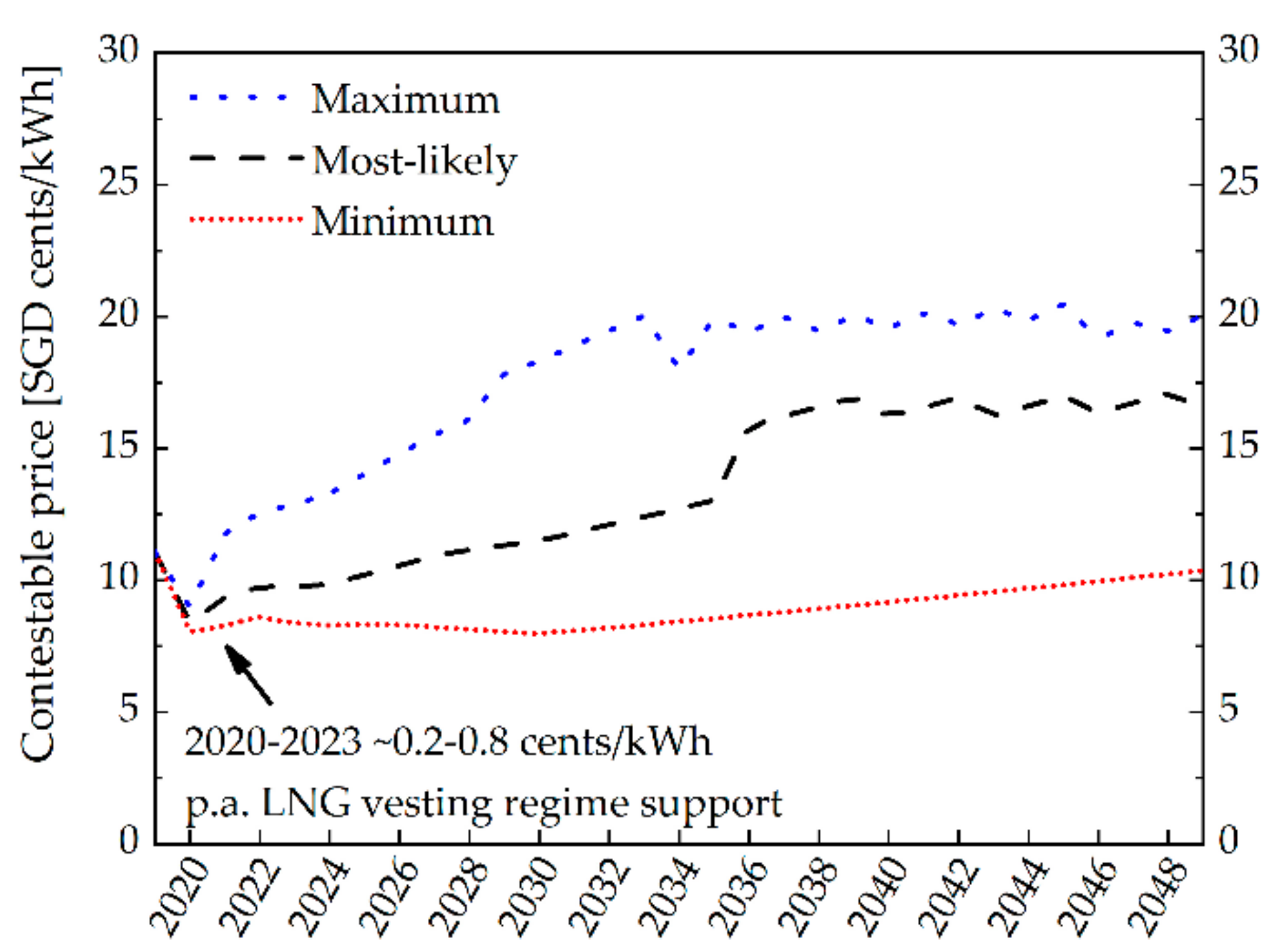

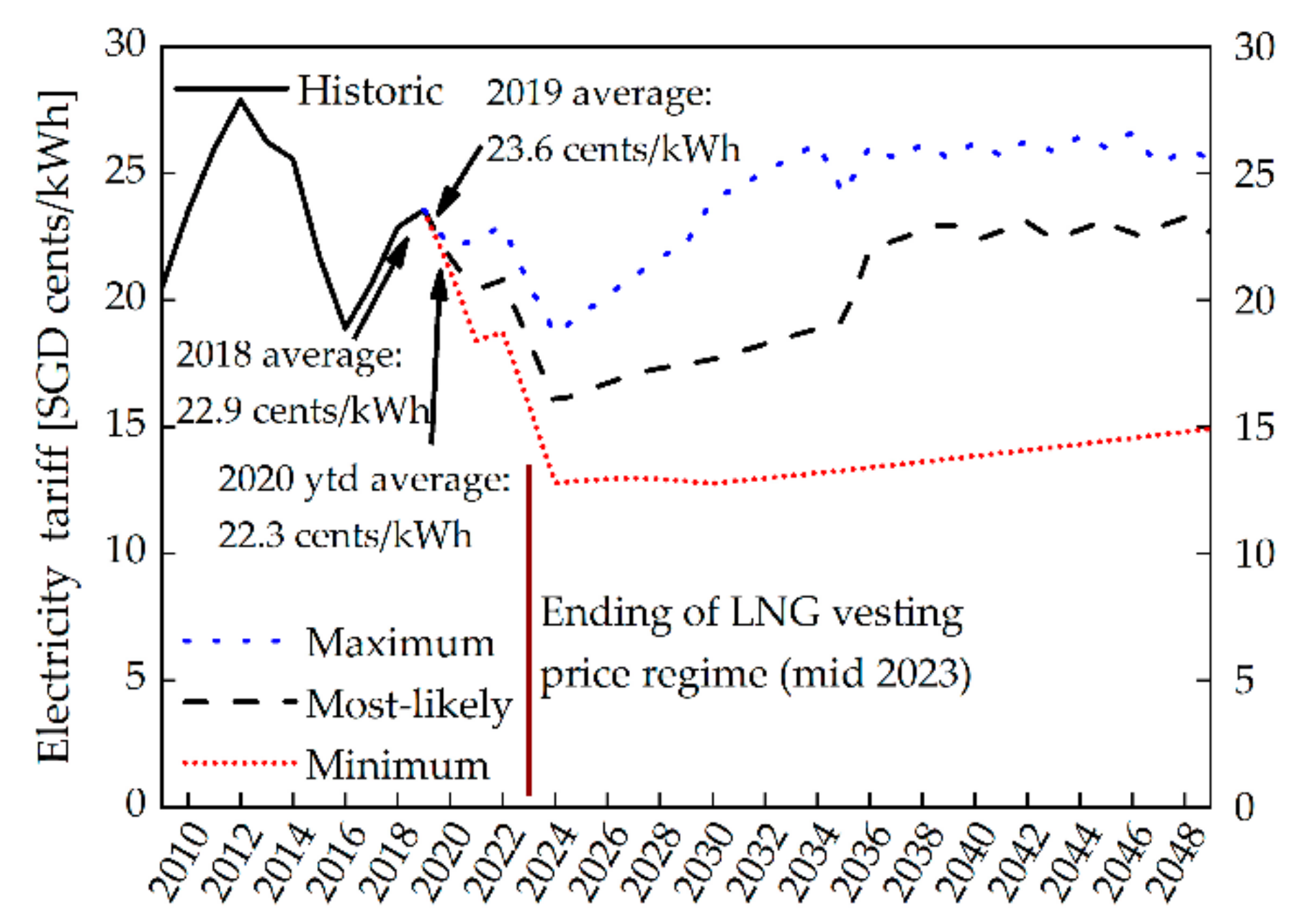

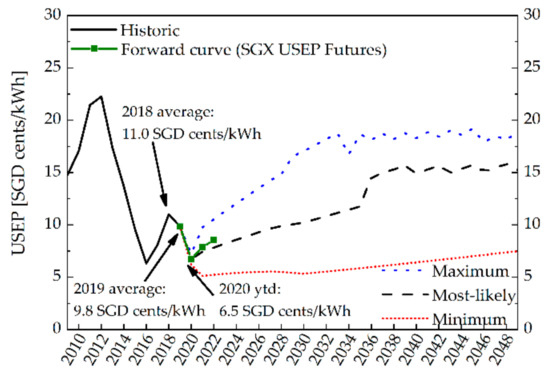

One of the key inputs into the analysis is naturally the underlying electricity price which provides us with a tangible benefit. We defined for this input three wholesale power price scenarios based on the methodology developed by the Solar Energy Research Institute of Singapore (SERIS) [38]. These price forecasts have been updated with the latest information on Singapore’s reserve margin and applying the 18 September 2020 oil price futures curve as a reference for the underlying fuel cost (spot price 43.2 US Dollars/barrel which forms the underlying basis for Singapore’s gas import cost). As the Singapore electricity market is liberalized and divides consumers into contestable and non-contestable categories by threshold of usage intensity [39,40,41], based on the wholesale power price scenarios (i.e., Uniform Singapore Energy Price (USEP)), two different customer profiles have been chosen: (a) a contestable client, who is assumed to buy power at the cost of USEP plus 0.01 SGD/kWh for the grid fee and (b) a non-contestable client, who pays the Singapore Power regulated tariff. The different scenarios including USEP scenarios, contestable price scenarios and non-contestable price scenarios are shown in Figure 2, Figure 3 and Figure 4 respectively.

Furthermore, three PV module types are used, two for the façade application, including: (a) Colored cladding panels from Kromatix with an area factor of 170 Wp/m², (b) AGC BIPV modules with an area factor of 156 Wp/m² and (c) 380 Wp PERC (Passivated Emitter Rear Cell) Double-Glass modules, for the roof canopy.

Besides the generation of green electricity, solar applications attached directly to the building surface can have a positive effect on energy savings thanks to the cooling effect and less air conditioning usage [42]. For our case study presented in Section 3.2.5, the household consumption of the analyzed building in 2015 is 531.7 MWh. Based on the energy consumption pattern of different household units in Singapore given in the study of Xu and Ang [43], and the structure of household units of the studied block (120 units of 3-room flats, 22 units of 4-room flats, 2 units of 5-room flats and 4 units of executive flats), it can be assumed that 209 MWh is consumed for air conditioning. Assuming that cooling is on average performed for reducing the room temperature by 6 °C compared to the outside temperature, cooling consumption of the building is roughly 34.8 MWh/1 °C of the temperature difference. Based on the discussions with PV experts, we include the impact of potential energy saving effect of PV façade in the economic analysis. Accordingly, we are analyzing and showing the economic outcome for the façade case studies (case studies 1 and 2) for the selected building with annual houshold electricity consumption of 531.7 MWh, with three different outcomes, i.e., energy saving scenarios:

(a)

no energy savings included (assumption that PV façade has no effect on reduction of effective outside temperature relevant for cooling, i.e., air-conditioning),

(b)

~34.8 MWh annual savings thanks to a 1 °C reduction of the indoor/outdoor temperature (assumption that PV façade reduces effective outside temperature relevant for cooling for 1 °C, i.e., air conditioning) and

(c)

~69.7 MWh annual savings thanks to a 2 °C reduction of the indoor/outdoor temperature (assumption that PV façade reduces effective outside temperature relevant for cooling for 2 °C, i.e., air conditioning).

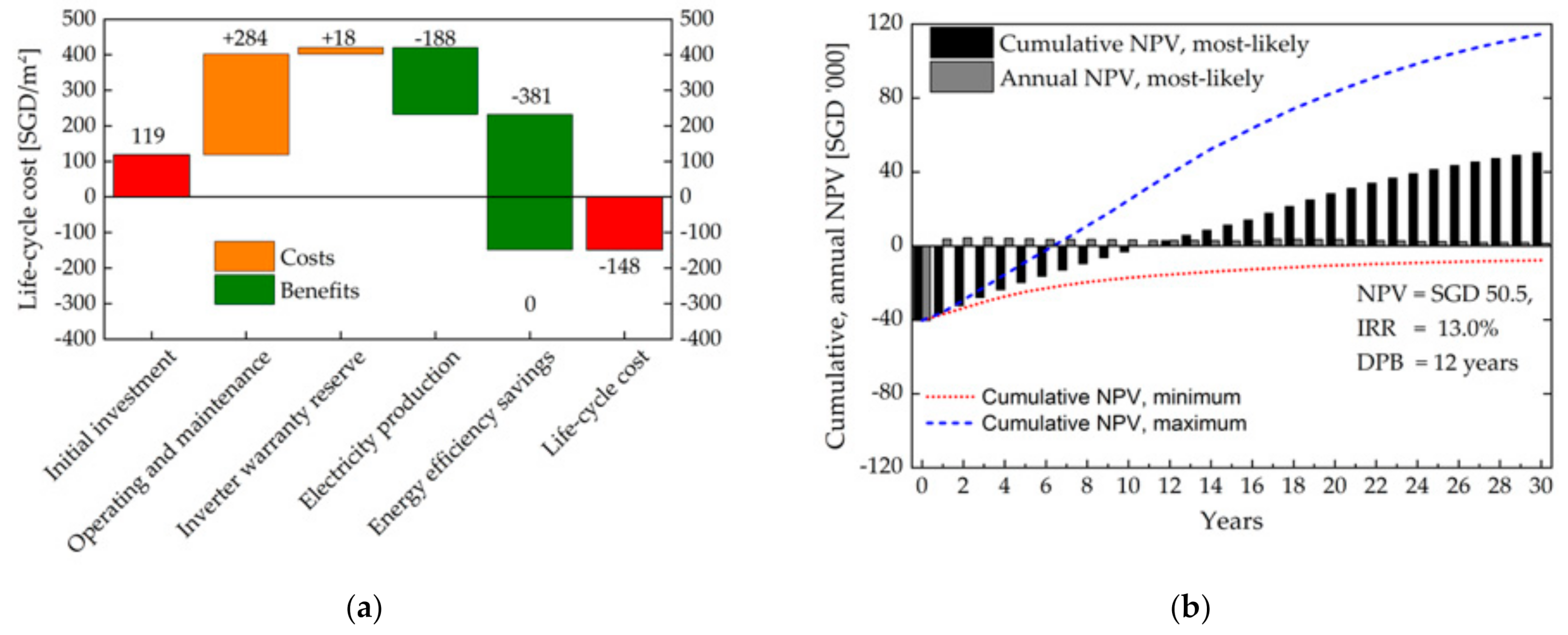

The influence of the three energy saving scenarios on the LCC results for the two façade case studies can be seen in

Table A1. Life-Cycle Cost (LCC) results for BAPV façade as additional cladding on an existing building with an east-north design, without refurbishment cost replacement (IRR-Internal Rate of Return, DPB-Discounted Payback, NPV-Net Present Value).

BAPV Façade as Additional Cladding on Existing Building (PV Total: 640 m2 = 470 m2 (North) + 170 m2 (East)); 5.2% Discount Rate, (System Lifetime: 30 Years, Annual Degradation Rate: 0.7%, Inflation Rate: 2%)
Energy Saving Scenarios			1) no additional energy savings				2) 1-degree energy savings				3) 2-degrees energy savings
Electricity Price Customer			Non-contestable		Contestable		Non-contestable		Contestable		Non-contestable		Contestable
Module type			AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix
Blended irradiance (kWh/m2)			735	735	735	735	735	735	735	735	735	735	735	735
Area factor (Wp/m2)			156	170	156	170	156	170	156	170	156	170	156	170
Installed capacity (kWp)			100	109	100	109	100	109	100	109	100	109	100	109
Cost per area (SGD/m2)			548	469	548	469	548	469	548	469	548	469	548	469
System installation cost (SGD)			350,555	299,922	350,555	299,922	350,555	299,922	350,555	299,922	350,555	299,922	350,555	299,922
Annual O&M (SGD)			9602	9602	9602	9602	9602	9602	9602	9602	9602	9602	9602	9602
Annual O&M (SGD/m2)			5	5	5	5	5	5	5	5	5	5	5	5
Inverter Replacement Reserve (SGD)			968	1079	968	1079	968	1079	968	1079	968	1079	968	1079
Performance ratio (%)			80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%
Specific yield (kWh/kWp)			588	588	588	588	588	588	588	588	588	588	588	588
1st year generation (kWh)			58,785	63,958	58,785	63,958	58,785	63,958	58,785	63,958	58,785	63,958	58,785	63,958
Electricity Grid Emission Factor (CO2g/kWh)			392	392	392	392	392	392	392	392	392	392	392	392
Savings of replaced material (SGD)			-	-	-	-	-	-	-	-	-	-	-	-
LCC result (SGD/m2)	Net Investment		548	469	548	469	548	469	548	469	548	469	548	469
	Operating and maintenance		284	284	284	284	284	284	284	284	284	284	284	284
	Inverter Replacement		16	18	16	18	16	18	16	18	16	18	16	18
	Electricity production-benefit (most-likely)		−250	−272	−155	−169	−250	−272	−155	−169	−250	−272	−155	−169
	Energy savings-benefit (most-likely)		-	-	-	-	−161	−161	−101	−101	−322	−322	−202	−202
	LCC/m2 (most-likely scenario)		598	498	692	601	437	338	591	500	276	177	490	399
	LCC/m2 (minimum scenario)		660	566	738	651	541	447	668	581	421	327	597	511
	LCC/m2 (maximum scenario)		551	448	640	545	361	257	506	410	170	66	371	276
Financial metrics (most-likely scenario):		NPV (SGD)	−382,582	−319,066	−443,023	−384,826	−279,569	−216,052	−378,327	−320,130	−176,555	−113,039	−313,632	−255,434
		DPB (years)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	1.2%	n/a	n/a
Financial metrics (minimum scenario):		NPV(SGD)	−422,585	−362,589	−472,500	−416,897	−346,034	−286,038	−427,447	−371,844	−269,483	−209,486	−382,394	−326,790
		DPB (years)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
Financial metrics (maximum scenario):		NPV (SGD)	−352,963	−286,840	−409,780	−348,657	−230,779	−164,656	−323,667	−262,544	−108,596	−42,473	−237,553	−176,430
		DPB (years)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	2.1%	3.8%	n/a	n/a
CO2 savings over the lifetime (tonnes)			621	675	621	675	1112	1167	1112	1167	1604	1658	1604	1658

,

Table A2. Life-Cycle Cost (LCC) results for BAPV façade as additional cladding on an existing building with an east-north design, with refurbishment cost replacement (IRR-Internal Rate of Return, DPB-Discounted Payback, NPV-Net Present Value).

BAPV Façade as Additional Cladding on Existing Building (PV Total: 640 m2 = 470 m2 (North) + 170 m2 (East)); 5.2% Discount Rate, (SYSTEM Lifetime: 30 Years, Annual Degradation Rate: 0.7%, Inflation Rate: 2%)
Energy Saving Scenarios			1) no additional energy savings				2) 1-degree energy savings				3) 2-degrees energy savings
Electricity Price Customer			Non-contestable		Contestable		Non-contestable		Contestable		Non-contestable		Contestable
Module type			AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix
Blended irradiance (kWh/m2)			735	735	735	735	735	735	735	735	735	735	735	735
Area factor (Wp/m2)			156	170	156	170	156	170	156	170	156	170	156	170
Installed capacity (kWp)			100	109	100	109	100	109	100	109	100	109	100	109
Cost per area (SGD/m2)			548	469	548	469	548	469	548	469	548	469	548	469
System installation cost (SGD)			350,555	299,922	350,555	299,922	350,555	299,922	350,555	299,922	350,555	299,922	350,555	299,922
Annual O&M (SGD)			9602	9602	9602	9602	9602	9602	9602	9602	9602	9602	9602	9602
Annual O&M (SGD/m2)			5	5	5	5	5	5	5	5	5	5	5	5
Inverter Replacement Reserve (SGD)			968	1079	968	1079	968	1079	968	1079	968	1079	968	1079
Performance ratio (%)			80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%
Specific yield (kWh/kWp)			588	588	588	588	588	588	588	588	588	588	588	588
1st year generation (kWh)			58,785	63,958	58,785	63,958	58,785	63,958	58,785	63,958	58,785	63,958	58,785	63,958
Electricity Grid Emission Factor (CO2g/kWh)			392	392	392	392	392	392	392	392	392	392	392	392
Replaced material (SGD/m2)			−350	−350	−350	−350	−350	−350	−350	−350	−350	−350	−350	−350
Savings of replaced material (SGD)			−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035
LCC result (SGD/m2)	Net Investment		198	119	198	119	198	119	198	119	198	119	198	119
	Operating and maintenance		284	284	284	284	284	284	284	284	284	284	284	284
	Inverter Replacement		16	18	16	18	16	18	16	18	16	18	16	18
	Electricity production−benefit (most−likely)		−250	−272	−155	−169	−250	−272	−155	−169	−250	−272	−155	-169
	Energy savings–benefit (most−likely)		-	-	-	-	−161	−161	−101	−101	−322	−322	−202	-202
	LCC/ m2 (most−likely scenario)		248	148	342	251	87	−12	241	150	−74	−173	140	49
	LCC/ m2 (minimum scenario)		310	216	388	301	191	97	318	231	71	−23	247	161
	LCC/ m2 (maximum scenario)		201	98	290	195	11	−93	156	60	−180	−284	21	-74
Financial metrics (most-likely scenario)		NPV (SGD)	−158,547	−95,031	−218,988	−160,791	−55,534	7983	−154,292	−96,095	47,480	110,996	−89,597	−31,399
		DPB (years)	n/a	n/a	n/a	n/a	n/a	22	n/a	n/a	17	6	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	n/a	6.4%	n/a	n/a	8.7%	18.2%	n/a	1.5%
Financial metrics (minimum scenario)		NPV (SGD)	−198,550	−138,554	−248,465	−192,862	−121,999	−62,003	−203,412	−147,809	−45,448	14,549	−158,359	−102,755
		DPB (years)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	12	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	8.6%	n/a	n/a
Financial metrics (maximum scenario)		NPV (SGD)	−128,928	−62,805	−185,745	−124,622	−6744	59,379	−99,632	−38,509	115,439	181,562	−13,518	47,605
		DPB (years)	n/a	n/a	n/a	n/a	n/a	11	n/a	n/a	11	5	n/a	14
		IRR (%)	n/a	n/a	n/a	n/a	4.6%	12.3%	n/a	n/a	12.6%	23.5%	4.3%	9.6%
CO2 savings over the lifetime (tonnes)			621	675	621	675	1112	1167	1112	1167	1604	1658	1604	1658

,

Table A3. Life-Cycle Cost (LCC) results for BAPV façade as additional cladding on an existing building with an east-west design, without refurbishment cost replacement (IRR-Internal Rate of Return, DPB-Discounted Payback, NPV-Net Present Value).

BAPV Façade as Additional Cladding on Existing Building (PV Total: 340 m2 = 170 m2 (West) + 170 m2 (East)); 5.2% Discount Rate (System Lifetime: 30 Years, Annual Degradation Rate: 0.7%, Inflation Rate: 2%)
Energy Saving Scenarios			1) no additional energy savings				2) 1-degree energy savings				3) 2-degrees energy savings
Electricity Price Customer			Non-contestable		Contestable		Non-contestable		Contestable		Non-contestable		Contestable
Module type			AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix
Blended irradiance (kWh/m2)			817	817	817	817	817	817	817	817	817	817	817	817
Area factor (Wp/m2)			156	170	156	170	156	170	156	170	156	170	156	170
Installed capacity (kWp)			53	58	53	58	53	58	53	58	53	58	53	58
Cost per area (SGD/m2)			548	469	548	469	548	469	548	469	548	469	548	469
System installation cost (SGD)			186,203	159,309	186,203	159,309	186,203	159,309	186,203	159,309	186,203	159,309	186,203	159,309
Annual O&M (SGD)			5100	5100	5100	5100	5100	5100	5100	5100	5100	5100	5100	5100
Annual O&M (SGD/m2)			15	15	15	15	15	15	15	15	15	15	15	15
Inverter Replacement Reserve (SGD)			514	573	514	573	514	573	514	573	514	573	514	573
Performance ratio (%)			80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%
Specific yield (kWh/kWp)			654	654	654	654	654	654	654	654	654	654	654	654
1st year generation (kWh)			34,738	37,795	34,738	37,795	34,738	37,795	34,738	37,795	34,738	37,795	34,738	37,795
Electricity Grid Emission Factor (CO2g/kWh)			392	392	392	392	392	392	392	392	392	392	392	392
Savings of replaced material (SGD)			-	-	-	-	-	-	-	-	-	-	-	-
LCC result (SGD/m2)	Net Investment		548	469	548	469	548	469	548	469	548	469	548	469
	Operating and maintenance		284	284	284	284	284	284	284	284	284	284	284	284
	Inverter Replacement		16	18	16	18	16	18	16	18	16	18	16	18
	Electricity production-benefit (most-likely)		−278	−302	−173	−188	−278	−302	−173	−188	−278	−302	−173	−188
	Energy savings-benefit (most-likely)		-	-	-	-	−303	−303	−190	−190	−606	−606	−381	−381
	LCC/ m2 (most-likely scenario)		570	468	675	582	267	165	484	392	−36	−138	294	202
	LCC/m2 (minimum scenario)		639	544	726	638	414	318	593	505	189	93	461	373
	LCC/m2 (maximum scenario)		518	412	617	519	159	53	364	266	−201	−307	110	13
Financial metrics (most-likely scenario)		NPV (SGD)	−193,657	−159,078	−229,374	−197,938	−90,643	−56,064	−164,678	−133,242	12,370	46,949	−99,982	−68,547
		DPB (years)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	26	19	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	n/a	1.5%	n/a	n/a	5.8%	7.7%	0.1%	1.3%
Financial metrics (minimum scenario)		NPV (SGD)	−217,296	−184,797	−246,793	−216,890	−140,745	−108,246	−201,740	−171,837	−64,194	−31,695	−156,686	−126,783
		DPB (years)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	1.1%	2.9%	n/a	n/a
Financial metrics (maximum scenario)		NPV(SGD)	−176,153	−140,034	−209,729	−176,565	−53,970	−17,851	−123,616	−90,451	68,213	104,332	−37,502	−4338
		DPB (years)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	17	14	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	2.3%	4.1%	n/a	n/a	8.2%	10.4%	3.5%	5.0%
CO2 savings over the lifetime (tonnes)			367	399	367	399	858	891	858	891	1350	1382	1350	1382

,

Table A4. Life-Cycle Cost (LCC) results for BAPV façade as additional cladding on an existing building with an east-west design, with refurbishment cost replacement (IRR-Internal Rate of Return, DPB-Discounted Payback, NPV-Net Present Value).

BAPV Façade System as Additional Cladding on Existing Building (PV Total: 340 m2 = 170 m2 (West) + 170 m2 (East)); 5.2% Discount Rate (System Lifetime: 30 Years, Annual Degradation Rate: 0.7%, Inflation Rate: 2%)
Energy Saving Scenarios			1) no additional energy savings				2) 1-degree energy savings				3) 2-degrees energy savings
Electricity Price Customer			Non-contestable		Contestable		Non-contestable		Contestable		Non-contestable		Contestable
Module type			AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix
Blended irradiance (kWh/m2)			817	817	817	817	817	817	817	817	817	817	817	817
Area factor (Wp/m2)			156	170	156	170	156	170	156	170	156	170	156	170
Installed capacity (kWp)			53	58	53	58	53	58	53	58	53	58	53	58
Cost per area (SGD/m2)			548	469	548	469	548	469	548	469	548	469	548	469
System installation cost (SGD)			186,203	159,309	186,203	159,309	186,203	159,309	186,203	159,309	186,203	159,309	186,203	159,309
Annual O&M (SGD)			5100	5100	5100	5100	5100	5100	5100	5100	5100	5100	5100	5100
Annual O&M (SGD/m2)			15	15	15	15	15	15	15	15	15	15	15	15
Inverter Replacement Reserve (SGD)			514	573	514	573	514	573	514	573	514	573	514	573
Performance ratio (%)			80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%
Specific yield (kWh/kWp)			654	654	654	654	654	654	654	654	654	654	654	654
1st year generation (kWh)			34,738	37,795	34,738	37,795	34,738	37,795	34,738	37,795	34,738	37,795	34,738	37,795
Electricity Grid Emission Factor (CO2g/kWh)			392	392	392	392	392	392	392	392	392	392	392	392
Replaced material (SGD/m2)			−350	−350	−350	−350	−350	−350	−350	−350	−350	−350	−350	−350
Savings of replaced material (SGD)			−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000
LCC result (SGD/m2)	Net Investment		198	119	198	119	198	119	198	119	198	119	198	119
	Operating and maintenance		284	284	284	284	284	284	284	284	284	284	284	284
	Inverter Replacement		16	18	16	18	16	18	16	18	16	18	16	18
	Electricity production-benefit (most-likely)		−278	−302	−173	−188	−278	−302	−173	−188	−278	−302	−173	−188
	Energy savings-benefit (most-likely)		-	-	-	-	−303	−303	−190	−190	−606	−606	−381	−381
	LCC/ m2 (most-likely scenario)		220	118	325	232	−83	−185	134	42	−386	−488	−56	−148
	LCC/m2 (minimum scenario)		289	194	376	288	64	−32	243	155	−161	−257	111	23
	LCC/m2 (maximum scenario)		168	62	267	169	−191	−297	14	−84	−551	−657	−240	−337
Financial metrics (most-likely scenario)		NPV (SGD)	−74,657	−40,078	−110,374	−78,938	28,357	62,936	−45,678	−14,242	131,370	165,949	19,018	50,453
		DPB (years)	n/a	n/a	n/a	n/a	16	6	n/a	n/a	6	3	21	12
		IRR (%)	n/a	n/a	n/a	n/a	9.1%	19.1%	n/a	2.1%	20.7%	38.4%	7.2%	13.0%
Financial metrics (minimum scenario)		NPV (SGD)	−98,296	−65,797	−127,793	−97,890	−21,745	10,754	−82,740	−52,837	54,806	87,305	−37,686	−7783
		DPB (years)	n/a	n/a	n/a	n/a	n/a	10	n/a	n/a	8	3	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	n/a	9.8%	n/a	n/a	14.5%	31.1%	n/a	2.7%
Financial metrics (maximum scenario)		NPV (SGD)	−57,153	−21,034	−90,729	−57,565	65,030	101,149	−4616	28,549	187,213	223,332	81,498	114,662
		DPB (years)	n/a	n/a	n/a	n/a	11	5	n/a	14	5	3	11	7
		IRR (%)	n/a	n/a	n/a	n/a	13.1%	24.4%	4.6%	10.2%	25.0%	44.1%	13.0%	21.0%
CO2 savings over the lifetime (tonnes)			367	399	367	399	858	891	858	891	1350	1382	1350	1382

,

Table A5. Life-Cycle Cost (LCC) results for BIPV façade as cladding system on a hypothetical new building with an east-north design (IRR-Internal Rate of Return, DPB-Discounted Payback, NPV-Net Present Value).

BIPV as Cladding System on New Building (PV Total: 640 m2 = 470 m2 (North) + 170 m2 (East)), 4.0% Discount Rate (System Lifetime: 30 Years, Annual Degradation Rate: 0.7%, Inflation Rate: 2%)
Energy Saving Scenarios			1) no additional energy savings				2) 1-degree energy savings				3) 2-degrees energy savings
Electricity Price Customer			Non-contestable		Contestable		Non-contestable		Contestable		Non-contestable		Contestable
Module type			AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix
Blended irradiance (kWh/m2)			735	735	735	735	735	735	735	735	735	735	735	735
Area factor (Wp/m2)			156	170	156	170	156	170	156	170	156	170	156	170
Installed capacity (kWp)			100	109	100	109	100	109	100	109	100	109	100	109
Cost per area (SGD/m2)			548	469	548	469	548	469	548	469	548	469	548	469
System installation cost (SGD)			350,555	299,922	350,555	299,922	350,555	299,922	350,555	299,922	350,555	299,922	350,555	299,922
Annual O&M (SGD)			9602	9602	9602	9602	9602	9602	9602	9602	9602	9602	9602	9602
Annual O&M (SGD/m2)			15	15	15	15	15	15	15	15	15	15	15	15
Inverter Replacement Reserve (SGD)			968	1079	968	1079	968	1079	968	1079	968	1079	968	1079
Performance ratio (%)			80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%
Specific yield (kWh/kWp)			588	588	588	588	588	588	588	588	588	588	588	588
1st year generation (kWh)			58,785	63,958	58,785	63,958	58,785	63,958	58,785	63,958	58,785	63,958	58,785	63,958
Electricity Grid Emission Factor (CO2g/kWh)			392	392	392	392	392	392	392	392	392	392	392	392
Replaced material (SGD/m2)			−350	−350	−350	−350	−350	−350	−350	−350	−350	−350	−350	−350
Savings of replaced material (SGD)			−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035	−224,035
LCC result (SGD/m2)	Net Investment		198	119	198	119	198	119	198	119	198	119	198	119
	Operating and maintenance		329	329	329	329	329	329	329	329	329	329	329	329
	Inverter Replacement		19	22	19	22	19	22	19	22	19	22	19	22
	Electricity production-benefit (most-likely)		−286	−311	−180	−196	−286	−311	−180	−196	−286	−311	−180	−196
	Energy savings-benefit (most-likely)		-	-	-	-	−185	−185	−118	−118	−371	−371	−236	−236
	LCC/m2 (most-likely scenario)		261	158	366	273	75	−27	248	155	−110	−212	130	37
	LCC/m2 (minimum scenario)		335	239	421	334	199	103	340	253	63	−33	259	172
	LCC/m2 (maximum scenario)		207	100	307	209	−13	−120	150	52	−233	−340	−6	−104
Financial metrics (most-likely scenario)		NPV (SGD)	−166,749	−101,423	−234,334	−174,957	−48,119	17,206	−158,806	−99,428	70,511	135,836	−83,278	−23,900
		DPB (years)	n/a	n/a	n/a	n/a	n/a	19	n/a	n/a	15	6	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	n/a	6.4%	n/a	n/a	8.7%	18.2%	n/a	1.5%
Financial metrics (minimum scenario)		NPV(SGD)	−214,305	−153,165	−269,741	−213,479	−127,298	−66,158	−217,920	−161,658	−40,292	20,848	−166,099	−109,837
		DPB (years)	n/a	n/a	n/a	n/a	n/a	10	n/a	n/a	n/a	10	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	n/a	9.8%	n/a	n/a	n/a	8.6%	n/a	n/a
Financial metrics (maximum scenario):		NPV (SGD)	−132,603	−64,273	−196,260	−133,532	8216	76,546	−96,100	−33,372	149,035	217,365	4059	66,787
		DPB(years)	n/a	n/a	n/a	n/a	25	10	n/a	n/a	10	5	28	13
		IRR (%)	n/a	n/a	n/a	n/a	4.6%	12.3%	n/a	n/a	12.6%	23.5%	4.3%	9.6%
CO2 savings over the lifetime (tonnes)			621	675	621	675	1112	1,167	1112	1167	1604	1658	1604	1658

and

Table A6. Life-Cycle Cost (LCC) results for BIPV façade as cladding system on a hypothetical new building with an east-west design (IRR-Internal Rate of Return, DPB-Discounted Payback, NPV-Net Present Value).

BIPV as Cladding System on New Building (PV Total: 340 m2 = 170 m2 (West) + 170 m2 (East)), 4.0% Discount Rate, (System Lifetime: 30 Years, Annual Degradation Rate: 0.7%, Inflation Rate: 2%)
Energy Saving Scenarios			1) no additional energy savings				2) 1-degree energy savings				3) 2-degrees energy savings
Electricity Price Customer			Non-contestable		Contestable		Non-contestable		Contestable		Non-contestable		Contestable
Module type			AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix	AGC	Kromatix
Blended irradiance (kWh/m2)			817	817	817	817	817	817	817	817	817	817	817	817
Area factor (Wp/m2)			156	170	156	170	156	170	156	170	156	170	156	170
Installed capacity (kWp)			53	58	53	58	53	58	53	58	53	58	53	58
Cost per area (SGD/m2)			548	469	548	469	548	469	548	469	548	469	548	469
System installation cost (SGD)			186,203	159,309	186,203	159,309	186,203	159,309	186,203	159,309	186,203	159,309	186,203	159,309
Annual O&M (SGD)			5100	5100	5100	5100	5100	5100	5100	5100	5100	5100	5100	5100
Annual O&M (SGD/m2)			15	15	15	15	15	15	15	15	15	15	15	15
Inverter Replacement Reserve (SGD)			514	573	514	573	514	573	514	573	514	573	514	573
Performance ratio (%)			80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%	80%
Specific yield (kWh/kWp)			654	654	654	654	654	654	654	654	654	654	654	654
1st year generation (kWh)			34,738	37,795	34,738	37,795	34,738	37,795	34,738	37,795	34,738	37,795	34,738	37,795
Electricity Grid Emission Factor (CO2g/kWh)			392	392	392	392	392	392	392	392	392	392	392	392
Replaced material (SGD/m2)			−350	−350	−350	−350	−350	−350	−350	−350	−350	−350	−350	−350
Savings of replaced material (SGD)			−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000	−119,000
LCC result (SGD/m2)	Net Investment		198	119	198	119	198	119	198	119	198	119	198	119
	Operating and maintenance		329	329	329	329	329	329	329	329	329	329	329	329
	Inverter Replacement		19	22	19	22	19	22	19	22	19	22	19	22
	Electricity production-benefit (most-likely)		−318	−346	−201	−218	−318	−346	−201	−218	−318	−346	−201	-218
	Energy savings-benefit (most−likely)		-	-	-	-	−349	−349	−222	−222	−698	−698	−444	−444
	LCC/m2 (most-likely scenario)		228	123	346	251	−121	−225	124	29	−469	−574	−98	−193
	LCC/ m2 (minimum scenario)		311	213	407	318	55	−43	255	166	−201	−298	103	13
	LCC/ m2 (maximum scenario)		169	59	280	179	−245	−355	−15	−115	−659	−769	−310	−410
Financial metrics (most-likely scenario)		NPV (SGD)	−77,632	−41,971	−117,572	−85,425	40,997	76,659	−42,043	−9897	159,627	195,288	33,485	65,632
		DPB (years)	n/a	n/a	n/a	n/a	14	6	n/a	n/a	6	3	19	11
		IRR (%)	n/a	n/a	n/a	n/a	9.1%	19.1%	n/a	2.1%	20.7%	38.4%	7.2%	13.0%
Financial metrics (minimum scenario)		NPV (SGD)	−105,735	−72,547	−138,495	−108,190	−18,729	14,459	−86,674	−56,368	68,278	101,466	−34,853	−4547
		DPB (years)	n/a	n/a	n/a	n/a	n/a	9	n/a	n/a	7	3	n/a	n/a
		IRR (%)	n/a	n/a	n/a	n/a	n/a	9.8%	n/a	n/a	14.5%	31.1%	n/a	2.7%
Financial metrics (maximum scenario)		NPV( SGD)	−57,455	−20,018	−95,072	−60,945	83,365	120,802	5088	39,214	224,184	261,621	105,247	139,374
		DPB (years)	n/a	n/a	n/a	n/a	10	5	26	13	5	3	11	7
		IRR (%)	n/a	n/a	n/a	n/a	13.1%	24.4%	4.6%	10.2%	25.0%	44.1%	13.0%	21.0%
CO2 savings over the lifetime (tonnes)			367	399	367	399	858	891	858	891	1350	1382	1350	1382

in Appendix A.

The discount rate is based on the weighted-average cost of capital calculation and varies between BIPV and BAPV applications. While both use an equity cost assumption of 8.2% (based on the 30-year Singapore government yield (1.26%, [44]) as a risk-free rate proxy, a market risk premium of 6.70% (used by Energy Market Authority (EMA) to calculate the vesting price for gas-fired power stations [45]) and a beta of 1), the debt cost differs due to the different nature of the investment. For BIPV, where the façade will be an integral part of the building, the 15-year housing lending rate (2.84% [46]) has been used (i.e., the façade cost will be financed as a part of the entire real estate investment), while for BAPV, a debt premium of 3.5% has been added to the 15-year government yield of 1.32% [47], resulting in 4.8%. Applying a 70% vs. 30% debt to equity split and using the 17% corporate tax rate, the resulting discount rates are 4.0% for BIPV and 5.2% for BAPV. Regarding the replacement material, a cost of SGD 350/m² has been used as an assumption for an “avoided” façade cladding cost (either for new buildings, or avoided refurbishment for existing buildings).

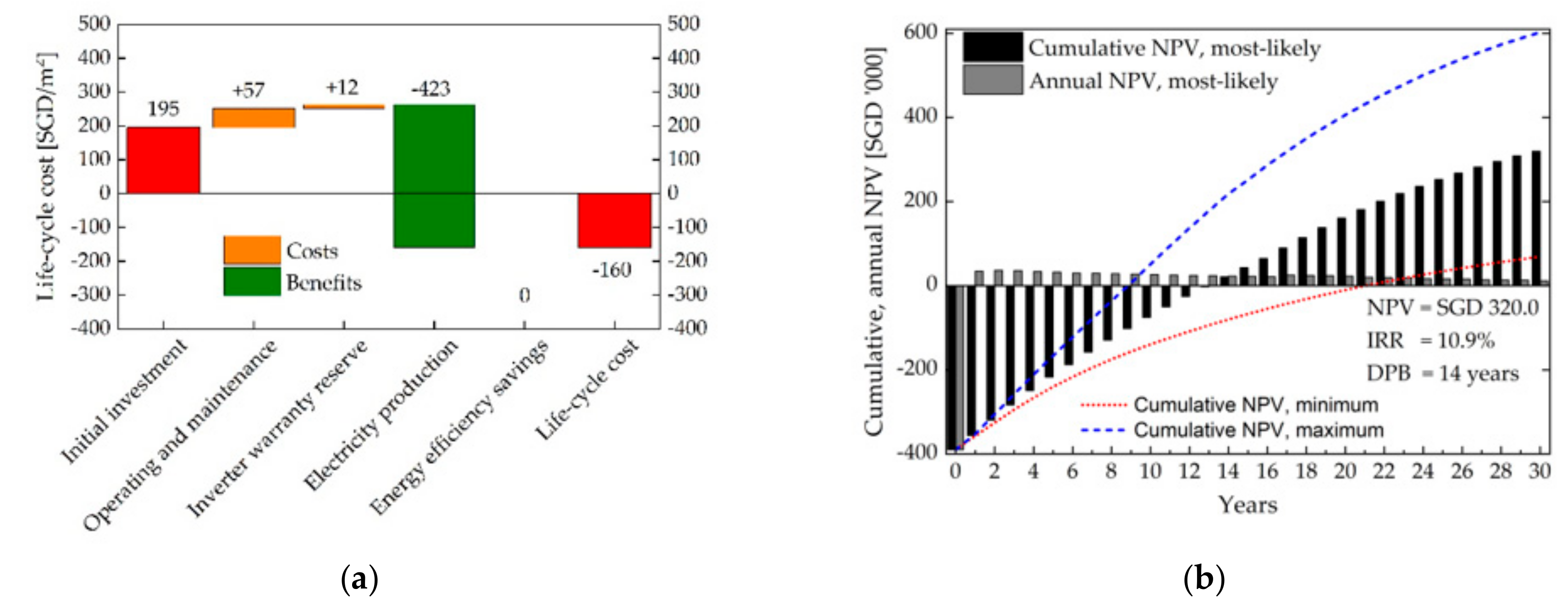

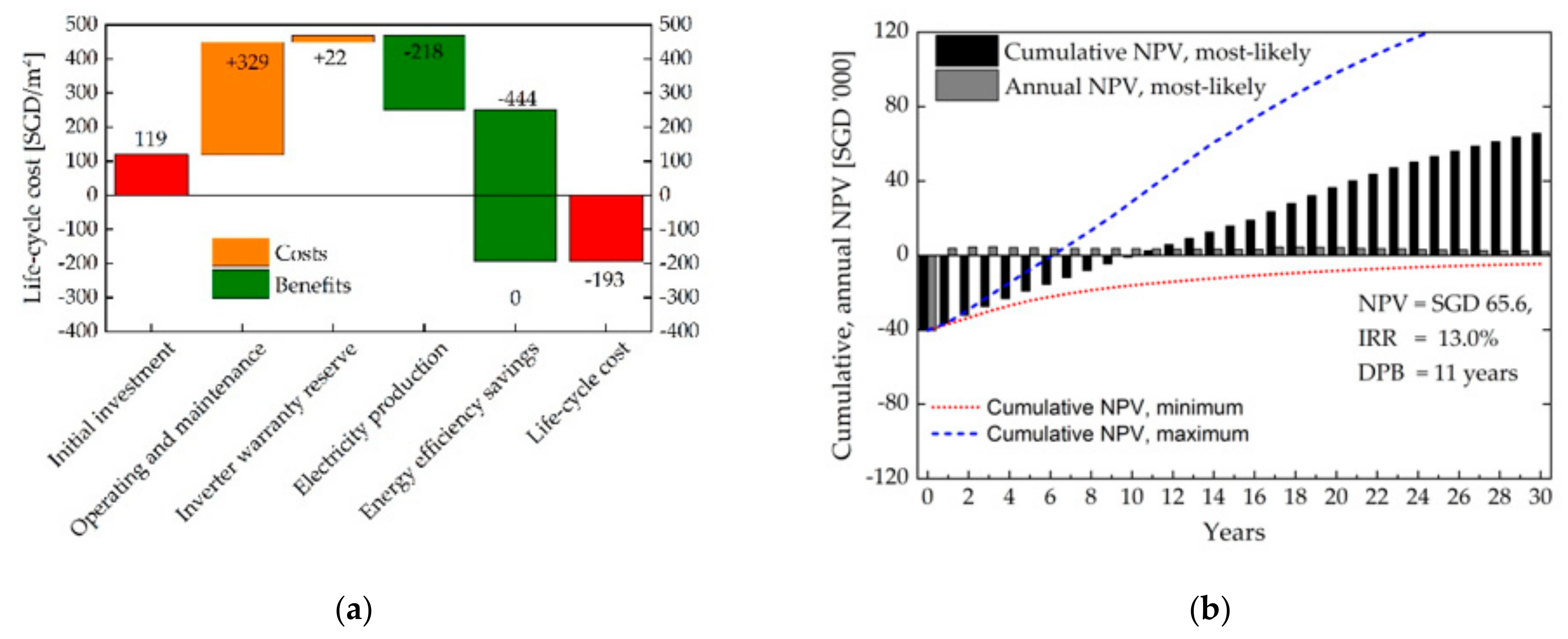

In Section 3.2.5, in figures presenting the LCC results for the three cases, we are showing economic results for one variation of the scenarios per case study, called the “base-case“. They are based on two different methods:

1. One showing the discounted life-cycle cost in SGD per square meter “LCC/m²”, as defined in [48], which can be compared to the traditional cost of façades and

2. The typical financial metrics (i.e., Net Present Value (NPV) in SGD, Internal Rate of Return (IRR) % and discounted payback period (DPB, years)) for a 30-year building life.

The rest of the performed calculations and the detailed cost assumptions based on industry experts’ inputs are shown in Table A1, Table A2, Table A3, Table A4, Table A5, Table A6 and

Table A7. Life-Cycle Cost (LCC) results for PV canopy on an existing or a new building (IRR-Internal Rate of Return, DPB-Discounted Payback, NPV-Net Present Value).

380 Wp PERC Double-Glass for Roof Canopy (PV Modules Horizontally Installed), 5.19% Discount Rate
Energy Saving Scenarios			None
Buildings/area to be covered			1 building, ~400 m2		5 buildings, ~2000 m2		10 buildings, ~4000 m2
Electricity Price Customer			Non-contestable	Contestable	Non-contestable	Contestable	Non-contestable	Contestable
Module type			PERC double-glass
Underlying assumptions:
Total area (m2)			400	400	2000	2000	4000	4000
Blended irradiance (kWh/m2)			1607	1607	1607	1607	1607	1607
Area factor (Wp/m2)			195	195	195	195	195	195
Installed capacity (kWp)			78	78	389	389	779	779
Cost per area (SGD/m2)			225	225	195	195	180	180
System installation cost (SGD)			90,000	90,000	390,000	390,000	720,000	720,000
Annual O&M (SGD)			4000	4000	6000	6000	12,000	12,000
Annual O&M (SGD/m2)			10	10	3	3	3	3
Inverter Replacement Reserve (SGD)			436	436	2180	2180	4360	4360
Performance ratio (%)			80%	80%	80%	80%	80%	80%
Specific yield (kWh/kWp)			1286	1286	1286	1286	1286	1286
1st year generation (kWh)			100,095	100,095	500,475	500,475	1,000,951	1,000,951
Annual degradation rate (%)			0.7%	0.7%	0.7%	0.7%	0.7%	0.7%
Inflation rate (%)			2.0%	2.0%	2.0%	2.0%	2.0%	2.0%
System lifetime (years)			30	30	30	30	30	30
Electricity Grid Emission Factor (CO2g/kWh)			392	392	392	392	392	392
Replaced material (SGD/m2)			-	-	-	-	-	-
Savings of replaced material (SGD)			-	-	-	-	-	-
LCC result (SGD/m2)	Net Investment		225	225	195	195	180	180
	Operating and maintenance		189	189	57	57	57	57
	Inverter Replacement		12	12	12	12	12	12
	Electricity production-benefit (most-likely)		−681	−423	−681	−423	−681	−423
	Energy savings-benefit(most-likely)		-	-	-	-	-	-
	LCC/m2 (most-likely scenario)		−255	2	−417	−160	−432	−175
	LCC/m2 (minimum scenario)		−85	128	−247	−35	−262	−50
	LCC/m2 (maximum scenario)		−381	−139	−543	−301	−558	−316
Financial metrics (most-likely scenario)		NPV (SGD)	101,967	−947	834,536	319,964	1,729,072	699,927
		DPB (years)	9	n/a	6	14	5	12
		IRR (%)	14.8%	n/a	21.9%	10.9%	23.9%	11.8%
Financial metrics (minimum scenario)		NPV (SGD)	33,854	−51,139	493,969	69,004	1,047,939	198,009
		DPB (years)	13	n/a	7	22	6	19
		IRR (%)	9.5%	n/a	17.5%	6.8%	19.4%	7.7%
Financial metrics (maximum scenario)		NPV(SGD)	152,402	55,656	1,086,709	602,982	2,233,418	1,265,964
		DPB(years)	7	14	5	9	4	9
		IRR (%)	18.3%	9.7%	25.3%	15.2%	27.5%	16.4%
CO2 savings over the lifetime (tonnes)			1057	1057	5286	5286	10,571	10,571

in the Appendix A.

3. Results and Discussion

The following section shows the results of the research, divided into two main parts: 3.1. Obstacles, drivers and needs related to PV building integration in Singapore—web-survey and 3.2. Major issues to be resolved in order to support PV building integration in Singapore.

3.1. Obstacles, Drivers and Needs Related to PV Building Integration in Singapore—Web-Survey

The survey results are discussed in the subsequent three sections. Individual responses are systematically analyzed considering stakeholders’ professional and PV expertise background, based on which the relevant identified gaps, i.e., overlaps are discussed.

3.1.1. Obstacles to Widespread Implementation of BIPV in Singapore

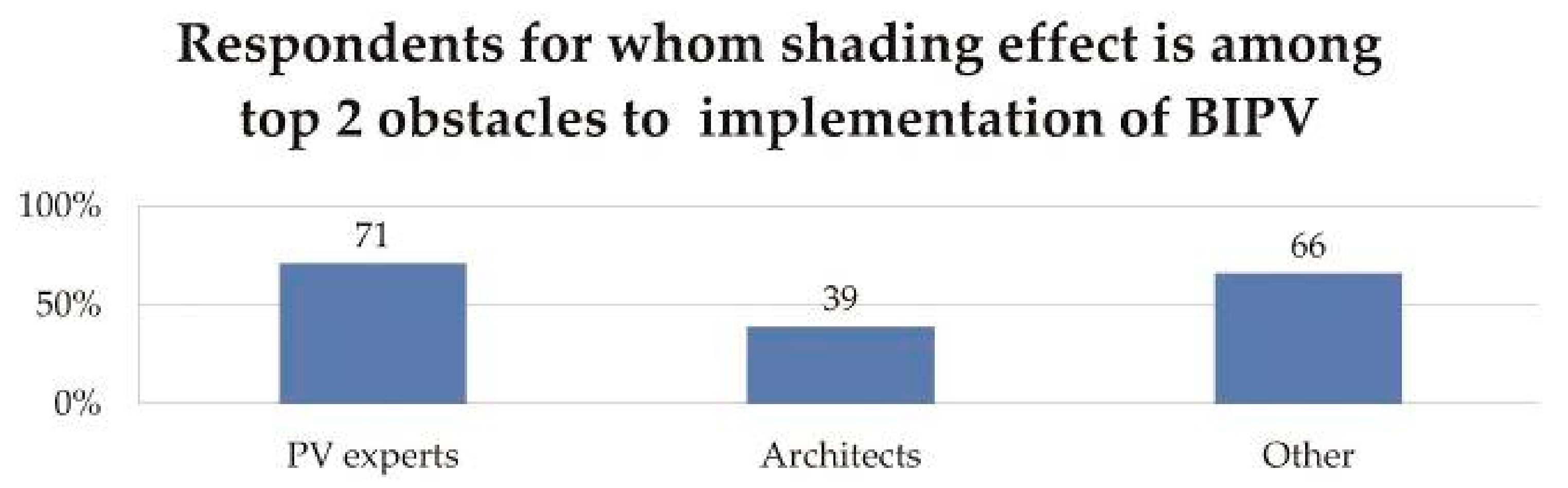

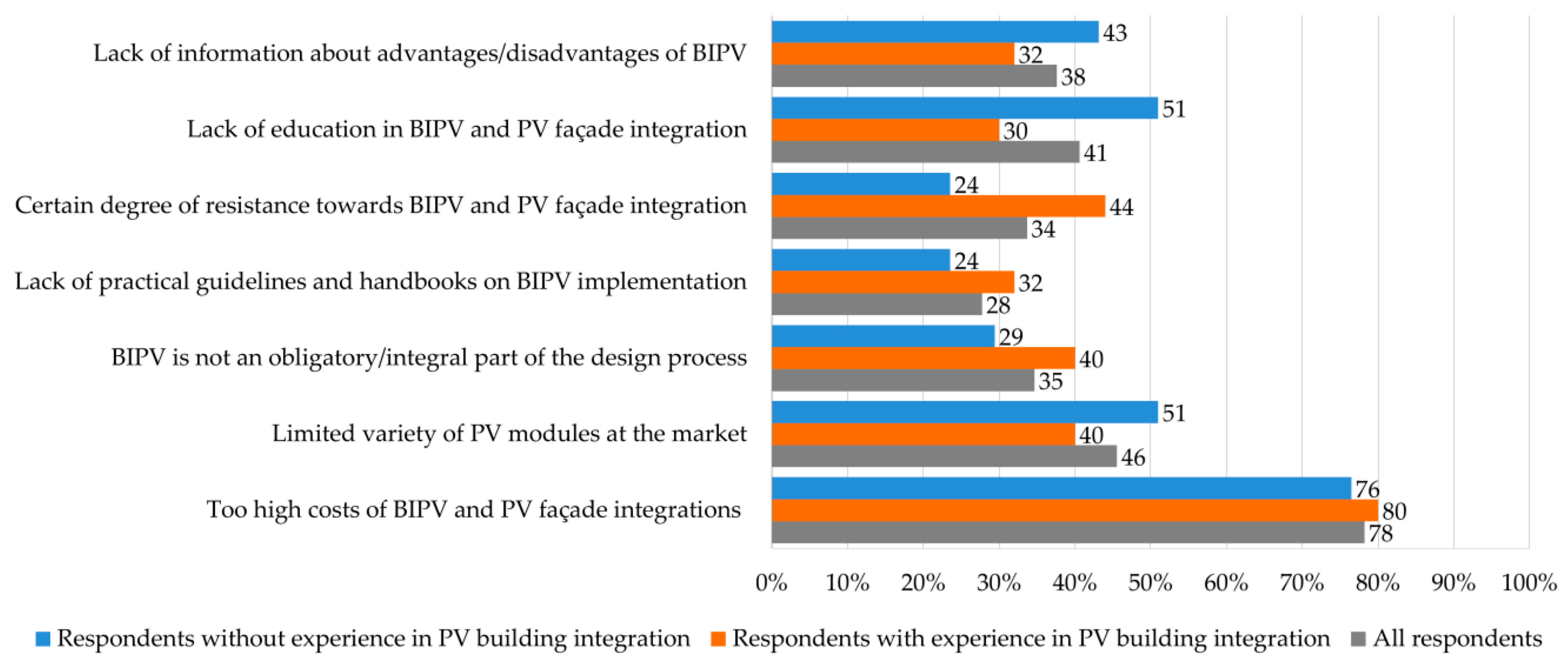

Apart from insufficient solar exposure in a high-density environment, the web-survey in Singapore confirms that high costs are the most critical general obstacle to widespread implementation of BIPV (see Figure 5), as hypothesized by the authors and identified in the studies at the international [20,21,49] and local level [8]. However, further analysis shows that respondents’ professional background significantly shapes their attitudes toward the cost parameter. As shown in Figure A1 in Appendix A, as much as 43% of PV experts did not include costs among the top three obstacles to widespread implementation of BIPV in Singapore, whereas only 20% of architects and 20% of other professions had done the same. The second most important among the seven ranked general obstacles is the limited variety of PV modules suitable for BIPV integration (size, color, etc.) and insufficient education of professionals in BIPV and PV façade integration. Professionals with experience in PV building integration deem that a certain degree of resistance from stakeholders towards BIPV is the second most critical obstacle that needs to be overcome, right after the cost issue.

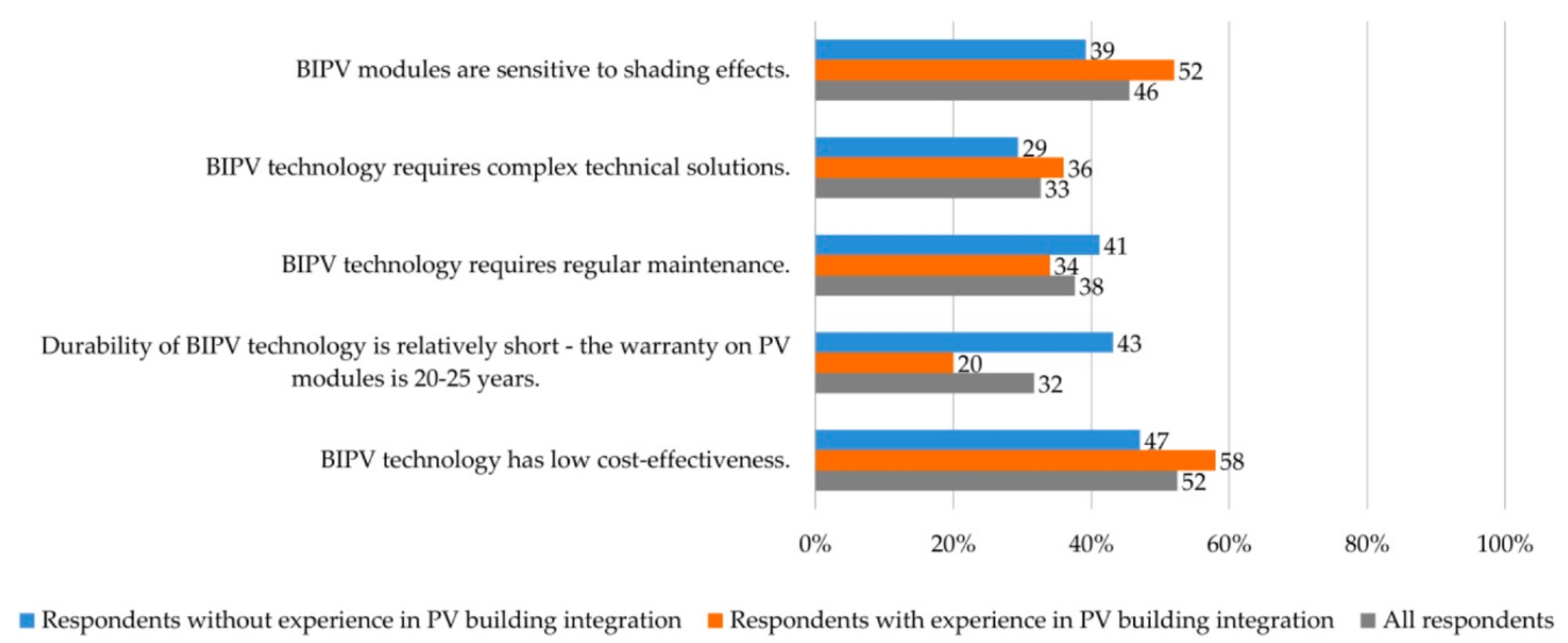

Among separately investigated technological obstacles, the low cost-effectiveness of BIPV technology is the most prominent, followed by sensitivity to shading and maintenance issues (see Figure 6). Responses to this question also reflect different understandings of BIPV technology among professionals with different backgrounds. As shown in Figure A2 in Appendix A, 71% of PV experts have selected PV modules’ sensitivity to shading effects among the top two technological obstacles, while only 39% of architects did the same. The results show that respondents with experience in PV building integration put much more attention to the shading sensitivity compared to professionals without such experience who at the same time attach greater weight to durability and maintenance of BIPV compared to professionals with experience in PV building integration.

The great discrepancy in answers between the respondents with and without experience in PV building integration concerned the obstacles related to the availability of PV products. The professionals without experience in PV building integration attribute dark colors of PV modules as an obstacle to BIPV development much more than the experienced group, which tends to attach higher importance to availability, delivery time and costs of custom-made PV products (see Figure 7).

Regarding obstacles related to the design process, all stakeholders share similar views regarding the three options offered. The lack of tools and software that support the BIPV design process in the early design stages (39%), as well as too late consideration of BIPV in the design process (44%), are seen as significantly more important obstacles than the fact that producers/suppliers are consulted too late in the design process (18%).

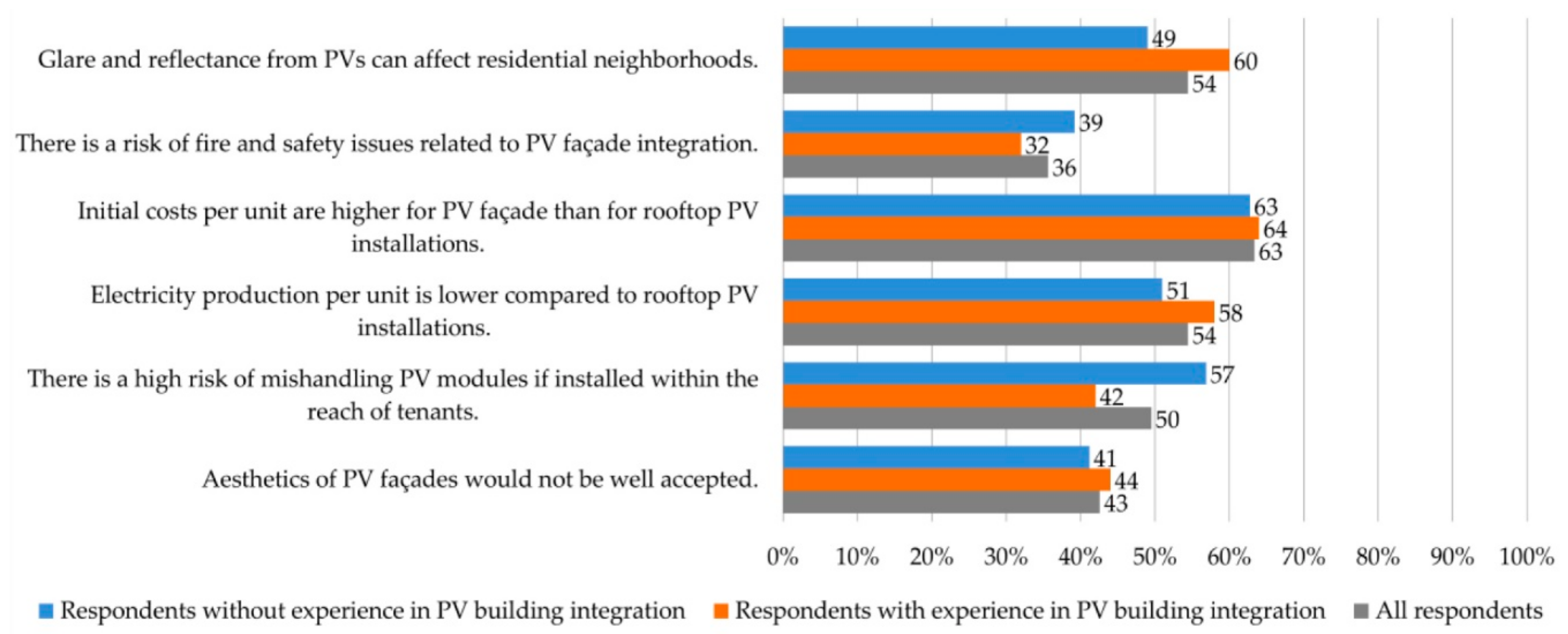

Besides high initial costs and lower electricity production compared to rooftop installation, glare and reflectance from PV as well as the risk of mishandling PV modules if installed within the reach of tenants are highly positioned on the list of concerns related to future PV façade integration into Housing & Development Board (HDB) buildings (public housing estates in which 85% of Singapore’s population live [50]), see Figure 8).

3.1.2. Potentials and Drivers to Facilitate Implementation of BIPV in Singapore

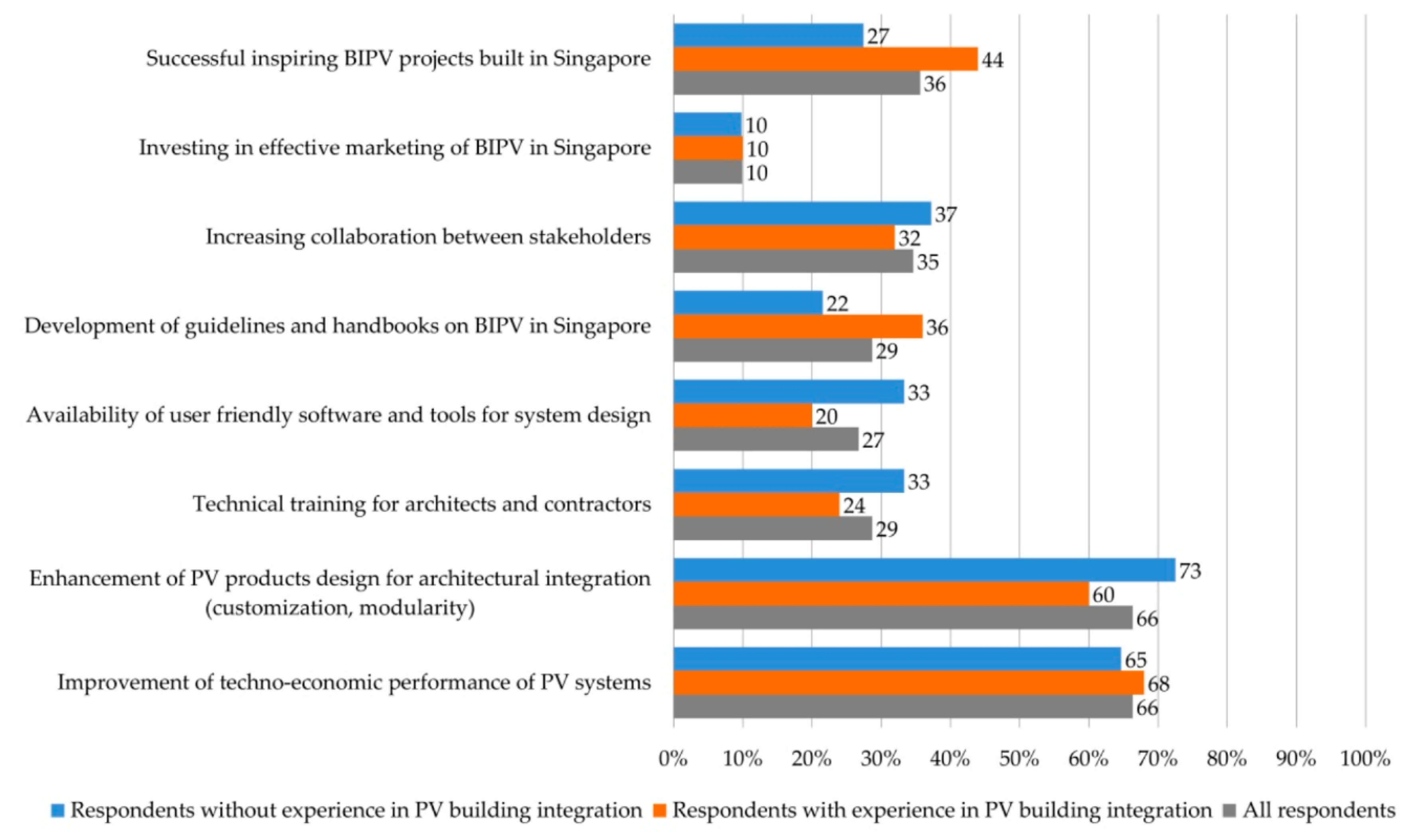

The improvement of techno-economic performance and enhancement of PV products’ “integrability”, i.e., ability for high-quality building envelope integration including customization, standardization and modularity, share the first place as the most important drivers that could facilitate BIPV implementation and PV façade integration (see Figure 9). This coincides with the results of the survey conducted by Lu et al., where few choices for BIPV products were ranked as the sixth among 18 barriers to BIPV in Singapore [8]. As shown in Figure 9, the successful inspiring BIPV projects built in Singapore and increasing collaboration between stakeholders are the second and third most important factors. The further analysis indicates a gap in opinions between PV experts, architects and other professionals with regard to the drivers. Possible solutions for bridging the identified gap could be: (a) considering BIPV technology in the early design stage, (b) increasing expertise of architects in PV building integration and (c) developing a handbook with guidelines on all steps in the PV building integration (including the actual and hypothetical examples of PV roof and façade integrations in Singapore).

When asked to rank the following three items: inspiring BIPV projects, lower PV system prices and new PV modules in different colors, the respondents ranked the costs as the first (55%), the inspiring BIPV projects as the second (26%) and new PV modules in different colors as the third (19%) critical item that could boost PV building integration in Singapore. The importance of inspiring BIPV projects, designed by famous architects and built in Singapore declines with the decreasing of respondents’ PV expertise (respondents with experience in PV building integration: 32%; respondents without experience in PV building integration: 20%), suggesting that the more experienced the respondent, the more value they attach to the exemplary role of high-quality BIPV projects, as well as to the guidelines as a means of achieving high-quality designs (see Figure 6). A further analysis leads to a somewhat unexpected outcome: architects do not consider extraordinary BIPV projects as the most important for BIPV development as, for example, PV experts do. They give much higher importance to costs and consider the inspiring projects similarly important as the development of new PV modules in different colors.

The results of the survey revealed that 66% of respondents believe that high-quality designs can only be achieved by the development of new PV modules of different color and texture, since PV products do not offer enough opportunities for quality designs. The same percentage of survey participants believes that enhanced “integrability” of PV products would be an important driver for BIPV development (see Figure 6). Further analysis shows that the respondents with experience in PV façade integration are more satisfied with the capabilities of the existing PV products compared to those without façade experience. The respondents without façade experience rather believe that new PV modules are needed for achieving quality BIPV projects.

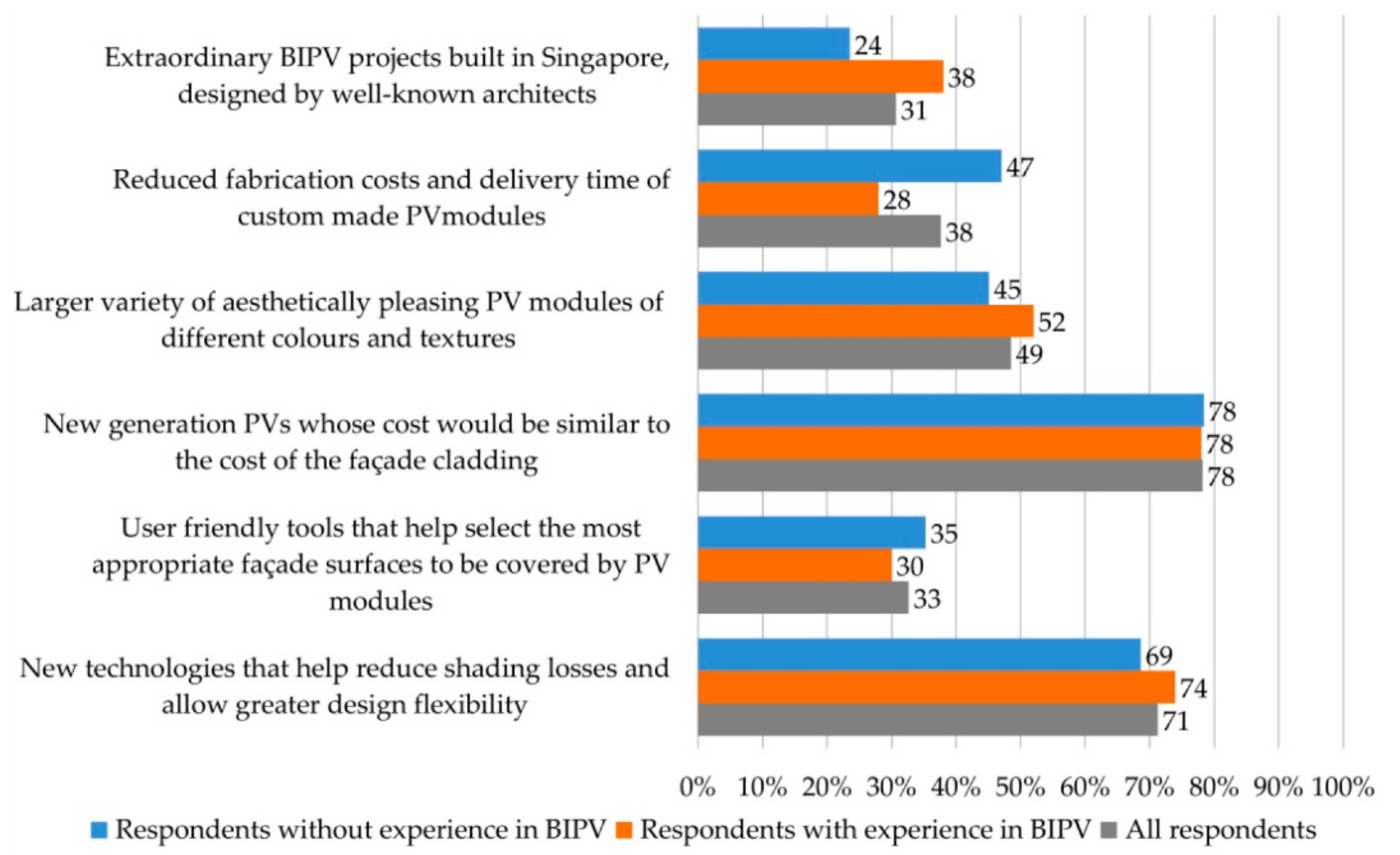

When asked to choose three items which could accelerate PV façade integration in Singapore, the respondents opted for the new generation PV whose cost would be similar to the façade cladding as the first-ranked item, new technology enabling reduced shading losses and allowing greater design flexibility as the second and a larger variety of aesthetically pleasing PV modules of different colors and textures on the market as the third most critical item (see Figure 10).

3.1.3. Needs Related to PV Building Integration in Singapore That Could Encourage Wider PV Use

In choosing between creativity and technical expertise, in the respondents’ view, creativity is almost four times less important for designing BIPV projects than the technical expertise of architects in the area of PV building integration. Bearing in mind that the majority of respondents are architects, this is a somewhat surprising result of the survey.

Asked about the importance (not important, slightly important, moderately important, important and very important) of the handbook with guidelines about all steps in PV building integration design process, including actual and hypothetical examples of PV roof and façade integrations, around three-quarters (74%) of all respondents have rated such handbook as very important and important.

Both architects and PV experts have an aligned and positive view of rooftop PV integrations, including both BIPV and BAPV implementations. When asked to rate the importance (not important, slightly important, moderately important, important and very important) of PV rooftop gardens, 75% of survey participants saw them as important or very important. When asked to choose between rooftop and façade integration for demonstrating green, ecological and future-oriented image in public, 67% of survey participants would choose rooftop integrations.

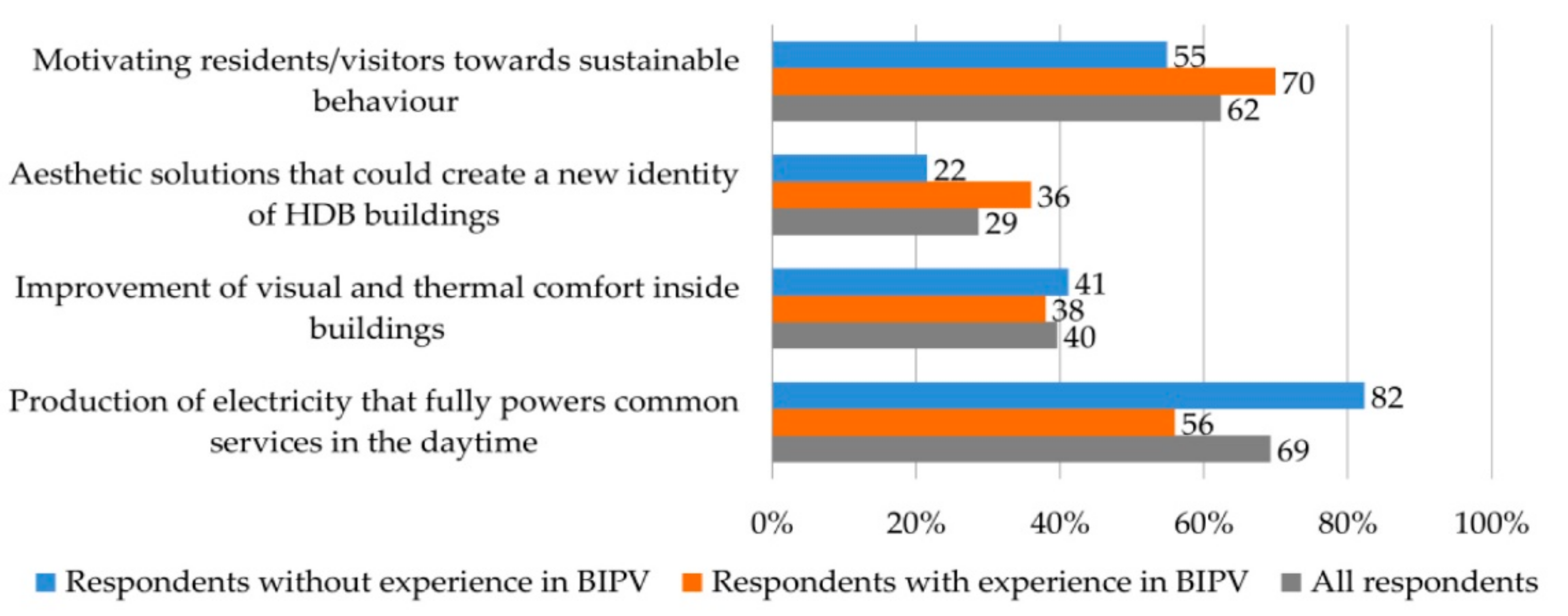

When asked to choose two items which, in their opinion, represent the most important benefits related to potential future PV façade integration into HDB buildings (see Figure 11), respondents opted for energy and socio-psychological issues.

The production of electricity that fully powers common services in the daytime was ranked as the most important, followed by motivating and empowering of residents and visitors towards sustainable behavior. Actually, the motivating and empowering of residents is the first ranked benefit by respondents with experience in BIPV. These results confirm the high importance of social and psychological aspects, apart from unequivocally important energy and economic aspects in the domain of PV façade integration.

3.2. Major Issues to Be Resolved in Order to Support PV Building Integration in Singapore

Different respondent groups differentiated by the degree of PV building integration expertise perceive differently obstacles to widespread BIPV implementation, potentials and drivers for boosting BIPV integration as well as various needs in the context of supporting wider PV use in Singapore. Since the number of professionals without PV façade integration experience is significantly larger—almost three quarters, this may result in an environment that is not conducive to further PV façade integration development. Recently, Chang et al. [51] have emphasized the importance of forming a shared vision of BIPV among relevant stakeholders for the development of comprehensive strategic plan of BIPV. Since Singapore is also a relatively small city-state to host several different PV growth strategies, a unified and focused strategy which will help align the views of relevant professionals is a necessary precondition for sustainable growth of BIPV and other PV integration projects in Singapore.

Based on the web-survey and face-to-face discussions with PV experts, the following disputable issues have been pointed out and discussed in the Section 3.2.1, Section 3.2.2, Section 3.2.3, Section 3.2.4, Section 3.2.5:

• Incomplete understanding of BIPV and BAPV among stakeholders,
• Costs of BIPV systems,
• Low awareness of and confidence in “integrability” of PV modules,
• Incomplete knowledge about and insufficiently investigated PV performance and
• Potential of PV façade and roof integration.

The research offers potential concrete solutions for the identified issues in the form of two frameworks given in the subsequent publication.

3.2.1. Incomplete Understanding of BIPV and BAPV among Stakeholders

BIPV and BAPV are not always seen as two different integration solutions among different stakeholders. Considering that the two systems differ significantly in terms of the functional and constructive role they play in a building, and usually also in aesthetics and economic viability, the lack of complete distinction and understanding of BIPV and BAPV may lead to inadequate decision-making in the PV integration design. Design teams should be aware that the design of BIPV is about finding a balance between functional-formal and techno-economic performance, where all the relevant criteria are usually considered as equally important, whereas in the case of BAPV systems, techno-economic criteria are usually dominant. In that context, it makes a great difference whether PV are intended for new or existing buildings, which requires knowledge about PV modules’ “integrability”, customization and modularity in order to make proper decisions in the design process.

3.2.2. Costs of BIPV Systems

Based on the conducted web-survey and intensive face-to-face discussions with PV experts it can be concluded that the role of building-integrated PV modules in the replacement of conventional building envelope materials may be neglected among different stakeholders. Despite the fact that PV are constantly approaching conventional building envelope materials in their characteristics due to the technological development and the fall in prices of PV modules, they are still perceived as unsightly elements of dark color and limited standard dimensions, which create additional cost. It is often forgotten how expensive conventional façades are, while PV are treated mostly as an additional expense [52]. For example, in their recent study in which they evaluated the economic feasibility of a BIPV system, Gholami and Røstvik concluded that the perception of BIPV technology as an unfeasible system on the building skins should change [53]. According to the authors, BIPV materials should be seen as a reasonable option for the building envelope no matter what direction or orientation, with at least one privilege compared to other alternatives, which is the dual functionality of the system that makes the envelope a source of income for the building. Section 3.2.5 presents the conducted LCC assessments for PV façade and roof integrations in Singapore, which supported the development of the strategy.

3.2.3. Low Awareness of and Confidence in “integrability” of PV Modules

The analysis of the web-survey results and discussions with PV experts indicate that there is a certain degree of resistance from professionals and investors towards BIPV and PV façade integration in Singapore (see Figure 2), most likely caused also by the identified low level of knowledge and awareness about the “integrability” of PV modules. Considering that architects’ perceptions of PV and BIPV, often influenced by aesthetically unappealing PV installations and sometimes shared by the construction sector, can slow down BIPV uptake despite potential investor enthusiasm, Ballif et al. indicate that from the very first design stage, a better awareness of the possibilities offered by PV modules needs to be shared among the stakeholders involved [11]. Intended to provide recommendations and arguments to assist design professionals in the communication of solar energy strategies, the Task 41 participants have developed a communication guideline. Including convincing arguments and facts, the guideline is developed as a tool to support architects in the communication process with clients, authorities and contractors [30].

3.2.4. Incomplete Knowledge about and Insufficiently Investigated PV Performance

In addition to the aesthetic issues related to PV integration, there are also technical problems, among which is the PV performance. On the one hand, the incomplete knowledge and low awareness about the performance of PV, and on the other, still insufficiently investigated PV performance, especially in the domain of BIPV, PV façade integrations and generally, the impact of integrated PV on energy consumption and comfort within buildings, stand in the way of rapid deployment of PV systems within Singapore’s built environment. This implies that data related to the performance of PV are not only under-researched, but also inadequately or insufficiently carefully documented and poorly represented within the building sector.

3.2.5. Potential of PV Façade and Roof Integration

Potential of PV Façade Integration

Both negative and positive effects play an important role in assessing the potential of PV façade integrations. The negative facts include lower solar irradiation on vertical façade surfaces compared to rooftops in the tropics, (cca. −48.5% (east) up to −64.3% (south) vs. horizontal surfaces [54]), shading effects from the surrounding, commonly required customization, more demanding installation and maintenance of PV modules. On the other hand, the benefits certainly imply much greater surface comparing to rooftops [3], visual dominance as well as the potential for contributing to thermal and visual comfort in buildings. In addition to all of that, finally, the assessment of the potential of PV façade integrations in Singapore is inevitably influenced by the consideration of the economic aspect.

The estimation of costs for PV façade integration is generally not easy. In addition to the specificity of façade integration, this is largely due to the lack of local references and the lack of experience in façade integration. The PV façade integration costs are greatly influenced by: (a) type of PV integration (existing/new building; BIPV/BAPV), (b) types of PV modules, (c) area of PV modules, (d) customization, (e) utilization of module level power electronics (MLPE), usually used in the case of partial shading, instead of conventional string inverter systems, (f) type of mounting system and technique and (7) maintenance costs.

LCC assessment for BAPV façade system as an additional cladding on the existing building—Case study 1.

The existing 12-storey residential building, built along an east-west orientation (Figure 12a,b [6]), with 120 apartments and the annual electricity consumption of 598.9 MWh (of which ~89% from household consumption, ~11% from public consumption) is used as a case study. The LCC assessment is performed for the two following designs:

(a)

east-north design, with PV modules as additional cladding on the eastern end-wall (170.1 m²) and northern corridors, i.e., common access balconies (470 m²), (total PV modules area: 640.1 m²) (Figure 12c,d) and

(b)

east-west design, with PV modules on the eastern end-wall (170 m²) and west end-wall (170 m²), (total PV modules area: 340 m²).

The results related to both east-north and east-west designs, shown in Table A1, Table A2, Table A3 and Table A4 in Appendix A, indicate that it is not easy to make the application of BAPV façade systems (e.g., as additional cladding) on existing buildings economically efficient in case no refurbishment cost replacement is assumed. However, in these cases where the BAPV application can replace a required façade refurbishment which is anyway due, then the investment is more economically viable in the instances where energy efficiency savings are included and, especially, for the analyzed east-west design, NPVs are becoming positive even under contestable price scenarios (see Figure 13 and Table A4 in Appendix A).

If the BAPV system illustrated in Figure 13 would not replace façade refurbishment cost, the NPV would be negative at SGD 68.5k (IRR at 1.3%) under the most-likely contestable price scenario (see Table A3 in Appendix A). The following changes need to occur so that at least the initial investment including financing cost are earned back, either: (1) the initial cost to be reduced by 43%, (2) the electricity price to remain stable at 16.7 SGD cents/kWh for the next 30 years or (3) the area efficiency of PV modules under vertical position needs to be more than doubled (i.e., +119%).

The energy production is definitely the largest problem to make an attached vertical solar installation economic viable, as even in the “best“, non-shaded location, the irradiance captured in a country close to the equator is ~45% of what can be harnessed if the installation is horizontally installed. Due to additional critical technical aspects regarding waterproofing and safety issues, the application of PV as an additional cladding system within the retrofitting process may not be a general highly recommended strategy. However, given that economics is not the only relevant aspect in decision making, all solutions of this type should not be automatically excluded from considerations. Especially in the case of façades with a high degree of integrability (e.g., shading-free, large areas with no windows, etc.), and with a great need for improvement of the aesthetic aspect of the façade with the utilization of green technology; or in the projects in which cost-effectiveness does not play the most important role. Moreover, the installation of tilted PV modules directly contributes to the techno-economic performance. In addition, the scaling benefit, in cases when multiple buildings are retrofitted together and a supportive financing structure is in place, has not been considered in the performed calculations.

LCC assessment for BIPV façade system as a cladding system on a new hypothetical building—Case study 2.

The economic results presented in Figure 14 and Table A5 (east-north design) and Table A6 (east-west design) in Appendix A, illustrate better economic performance for BIPV façade system for new buildings compared to BAPV replacing façade refurbishment in existing buildings, in most of the cases where additional energy efficiency benefits are included. The two cases only differ by the lower discount rate used for BIPV applications. Hence the same system configuration as shown in Figure 13 under BIPV application results in slightly better NPV and discounted payback time (Figure 14).

Based on the LCC results for BIPV façade system as a cladding system on a new building, including energy efficiency benefits, it can be concluded that new buildings and facilities should use BIPV façades as replacement for conventional façade materials. Where functional-aesthetic requirements allow, the application of PV modules with higher efficiency and the impact of scaling (in case multiple buildings are designed together potentially resulted in reduced costs) results in an even greater cost-effectiveness.

The performed LCC assessments for both case studies demonstrated potentials of PV façade systems. Performing further LCC analysis for different façade solutions, including both BIPV and BAPV on existing and new buildings, with PV modules of different levels of efficiency and transparency could help in increasing awareness and defining design guidelines for utilization of PV modules for different buildings and designs with different requirements in terms of functionality, aesthetic, visual and thermal point of view.

Potential of PV Roof Integration

Due to the possibility of optimal positioning of PV modules and lower shading problems, PV roof integration is expected to be already commercially viable. This can be illustrated by the standard BAPV rooftop systems in Singapore of 203.9 MWp successfully installed by the private sector on pure commercial terms and the 170.8 MWp systems installed on government buildings, supported by the SolarNova program, as of the 2nd quarter of 2020 [55]. However, not all buildings are suitable for these standard BAPV systems, especially if the size is too small to make them economically feasible for investors. Hence there is a potential for BIPV on rooftops where other utility installations are using space and/or other alternatives are installed (i.e., carport, rooftop gardens, etc.).

The results of a recently performed door-to-door survey among the residents of HDB buildings, in which residents were asked to indicate which location they find most suitable for a mini-garden, whereby they were able to choose among five options: (a) on the ground floor of the building, (b) in a community garden near the building, (c) on the rooftop of the building, (d) on their floor (the corridor/the window ledge) and (e) inside the apartment, show that the rooftop is the second-ranked option, immediately after their floor [34]. However, although such solutions are not currently feasible for the rooftops of the existing HDB housing blocks, primarily not designed for utilization by the residents or public, these results certainly encourage the use of PV garden canopies on other types of buildings, including new buildings. Seen as important or very important by 75% of survey respondents, PV garden canopies, properly designed to protect people and plants from the sun, could be a good answer both to energy- and gardening-related needs.

LCC assessment for the roof canopy—Case study 3.

As outlined above, the higher energy yield is contributing to increased economic returns of PV modules installed horizontally. The calculations are performed for the three cases, including installation on only one building (~400 m²), five (~2000 m²) and ten buildings (~4000 m²) combined. The results for all three scenarios are presented in Table A7 in Appendix A. Figure 15 illustrates the LCC and NPV for BIPV modules integrated into an existing canopy structure (the structural cost has not been included in the initial investment cost, assuming that five buildings can be done combined, i.e., ~2000 m² covered).

Both existing—if possible—and new buildings should have PV installations on the roof, cost-effective to the greatest possible extent, either as roof garden canopies, other canopies or as a PV surface installed on the roof as BIPV or BAPV, so the roof can accommodate as large as possible PV surface.

4. Conclusions

Despite the constant increase of installed PV and intensive government effort towards “solarizations”, implementation of PV and especially BIPV into the Singapore’s built environment has not gathered as much momentum as would have been expected given the country’s ample solar energy resource potential, strong economic fundamentals and the strong real estate sector.

At the outset of the study, a web-survey was conducted among local professionals in order to identify: (1) obstacles, (2) potentials and drivers that could facilitate and accelerate BIPV implementation and PV façade integration as well as (3) stakeholders’ needs related to PV building integration that could encourage wider PV use in Singapore. However, the analysis of web-survey results, supported with qualitative face-to-face interviews with PV experts conducted after the web-survey, revealed that there is a significant gap between stakeholders in understanding PV integration. The following disputable issues were recognized: (1) incomplete understanding of BIPV and BAPV among stakeholders, (2) costs of BIPV systems, (3) low awareness of and confidence in “integrability” of PV modules, (4) incomplete knowledge about and insufficiently investigated PV performance and (5) potentials of PV façade and roof integration.

Respondents identified costs as the most critical general obstacle to widespread implementation of BIPV in Singapore. However, we have performed LLC assessment for three different PV integration cases in Singapore. The results indicated that it is not easy to make the application of BAPV façade systems (e.g., as additional cladding) on existing buildings economically efficient in case no refurbishment cost replacement is assumed. However, in those cases where BAPV application can replace the required façade refurbishment which is anyway due, the investment is more economically viable in instances where energy efficiency savings are included and, especially, for the analyzed east-west design, NPVs are becoming positive even under contestable price scenarios. PV façade integration as BIPV cladding on new buildings showed a satisfactory economic performance. Besides BIPV façade implementation on new buildings, the study encourages performing LCC assessments and searching optimal solutions for various other PV façade integrations, including applications in the form of cladding, shading devices, productive façades implementing both PV and vertical farming systems [7], etc., on existing buildings, too. Benefits of installing PV modules as a cladding on façade walls or shading devices on corridors, balconies or windows on existing HDB buildings as well as their potentials in improving indoor comfort quality should be investigated urgently.

Rooftop BIPV canopy, on both existing and new buildings, shows good economic performance. Moreover, the examined LCC assessment for the scenarios with one, five and ten buildings indicated that increased returns are possible in cases where there are additional benefits from economies of scale (i.e., canopy installed on ten buildings combined instead of just on a single one). This study encourages exploration of various possibilities of BIPV canopy implementation into the built environment (e.g., rooftop canopies, shelters over open space, walkways, etc.).

The results indicate that costs are not the only and maybe even not the major obstacle and that the problem of PV integration in Singapore is much wider and more complex. In that context, the findings reveal that the proper information flow, i.e., exchange and interconnections between stakeholders, processes and activities both in the PV integration sector and between this sector and the construction industry are among the key missing components for the strong growth of BIPV and other PV projects. Considering relevant environmental, economic and social factors, all findings related to the both hindering and facilitating factors given in this paper present the fundaments based on which a practical solution for identified problems in the form of a holistic strategy is developed and presented in the subsequent publication. Consisting of two mutually interconnected frameworks: (1) multilevel mechanism framework and (2) general design framework, addressing the identified factors and jointly creating a fertile ground for long-term stimulating and boosting of BIPV and other PV integrations, the strategy should help Singapore reduce the dependency on gas power generation, and achieve the national climate change targets, thus generally promoting a more sustainable built environment.
