Next Article in Journal
Combined Treatment of Cr(VI)-Contaminated Soils by Reduction, Adsorption, and Solidification
Next Article in Special Issue
Proposal of New Construction Material: Polymer-Stabilized Gold Ore Tailings Composite
Previous Article in Journal
Managing Consumers and Employees through Digital Services
Previous Article in Special Issue
Improving Stress-Strain Behavior of Waste Aggregate Concrete Using Affordable Glass Fiber Reinforced Polymer (GFRP) Composites


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Sustainability
Volume 14
Issue 14
10.3390/su14148834
sustainability-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles thumb_up
...
Endorse textsms
...
Comment
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Review

A Comprehensive Review of the Effects of Different Simulated Environmental Conditions and Hybridization Processes on the Mechanical Behavior of Different FRP Bars

by
Mohammadamin Mirdarsoltany
1,*,
Farid Abed
2,
Reza Homayoonmehr
1 and
Seyed Vahid Alavi Nezhad Khalil Abad
3
1
Department of Civil Engineering, Amirkabir University of Technology, Tehran 15875-4413, Iran
2
Department of Civil Engineering, American University of Sharjah, Sharjah P.O. Box 26666, United Arab Emirates
3
Department of Civil Engineering, Birjand University of Technology, Birjand 97175-569, Iran
*
Author to whom correspondence should be addressed.
Sustainability 2022, 14(14), 8834; https://doi.org/10.3390/su14148834
Submission received: 2 June 2022 / Revised: 14 July 2022 / Accepted: 18 July 2022 / Published: 19 July 2022
(This article belongs to the Special Issue Advanced Composites and Sustainability)
Browse Figures
Review Reports Versions Notes

Abstract

:
When it comes to sustainability, steel rebar corrosion has always been a big issue, especially when they are exposed to harsh environmental conditions, such as marine and coastal environments. Moreover, the steel industry is to blame for being one of the largest producers of carbon in the world. To supplant this material, utilizing fiber-reinforced polymer (FRP) and hybrid FRP bars as a reinforcement in concrete elements is proposed because of their appropriate mechanical behavior, such as their durability, high tensile strength, high-temperature resistance, and lightweight-to-strength ratio. This method not only improves the long performance of reinforced concrete (RC) elements but also plays an important role in achieving sustainability, thus reducing the maintenance costs of concrete structures. On the other hand, FRP bars do not show ductility under tensile force. This negative aspect of FRP bars causes a sudden failure in RC structures, acting as a stumbling block to the widespread use of these bars in RC elements. This research, at first, discusses the effects of different environmental solutions, such as alkaline, seawater, acid, salt, and tap water on the tensile and bonding behavior of different fiber-reinforced polymer (FRP) bars, ranging from glass fiber-reinforced polymer (GFRP) bars, and basalt fiber-reinforced polymer (BFRP) bars, to carbon fiber-reinforced polymer (CFRP) bars, and aramid fiber-reinforced polymer (AFRP) bars. Furthermore, the influence of the hybridization process on the ductility, tensile, and elastic modulus of FRP bars is explored. The study showed that the hybridization process improves the tensile strength of FRP bars by up to 224% and decreases their elastic modulus by up to 73%. Finally, future directions on FRP and hybrid FRP bars are recommended.

1. Introduction

Population growth is causing an increased demand for the development of infrastructures and a tremendous consumption of materials. Two of the most important materials for infrastructures are concrete and steel [1]. The corrosion of steel bars is a major problem that causes a heavy cost for repairing or replacing concrete elements. Thus, it is not feasible to use steel bars as a reinforcement in seawater sea-sand concrete because of the corrosion [2,3,4,5,6,7,8] of these types of bars [9,10,11,12,13,14], as well as the aggressive environmental conditions that exist near to coastal areas [15,16,17,18,19,20,21,22,23,24]. Seawater and sea sand contain chloride ions. These ions speed up corrosion development and negatively affect the long performance of concrete structures [25,26,27,28,29]. The corrosion of steel bars causes the cracking, staining, and spalling of concrete cover [26,30]. It also reduces the cross-sections of bars, thus, shortening the service life of reinforced concrete (RC) structures [31,32,33]. Furthermore, in comparison with FRP bars, steel bars emit more CO2 into the environment [34]. This is contrary to the durability and sustainability of reinforced concrete structures, which are a popular topic nowadays, as such non-durable structures can cause vast economic and environmental problems, especially for infrastructures [5,35,36]. There are several methods to address the steel corrosion problem in reinforced concrete structures, such as using a hybrid system in which steel and composite bars are used simultaneously in the reinforced concrete section, enhancing the properties of concrete elements to decrease their permeability [37,38], and by employing carbon nanotubes to reduce rebar corrosion [39,40,41,42,43].
Another viable approach to dealing with the aforementioned issues is by using fiber-reinforced polymer (FRP) bars. This is due to their appropriate mechanical behavior, such as their tensile strength, durability, and anti-corrosion performance resistance [44,45,46,47,48,49,50,51,52,53,54,55]. Supplanting FRP bars with conventional steel bars can preserve the mechanical behavior of reinforced concrete elements [56]. There are several different FRP bars, some of the most applicable of which are glass fiber-reinforced polymer (GFRP), aramid-fiber reinforced polymer (AFRP), carbon fiber-reinforced polymer (CFRP), and basalt-fiber reinforced polymer (BFRP) [57,58] bars. However, the usage of FRP bars in reinforced concrete elements has some downsides as well. One of the major problems is the sudden failure of these types of bars under tensile force. This can give rise to the sudden collapse of concrete structures when they are subjected to dynamic loads [59]. To improve the ductility of FRP bars in tensile loads, scholars have introduced the hybridization process [47]. The concept of this innovative process is gradually failing by selecting different fibers that rupture under different ultimate strains. Only a limited number of investigations have been carried out on the effects of the different solutions on the mechanical properties of FRP bars and hybrid FRP bars [60]. The aim of this study was to summarize the current research on the mechanical behavior of FRP and hybrid FRP bars, their bonding and tensile strength in particular, under harsh environmental conditions.

2. Materials Properties for Fabricating FRP Bars

2.1. Composite Fibers

Many types of fibers are used to develop FRP bars, including glass, aramid, carbon, and basalt fibers. Composite fibers play an essential role in the mechanical properties of FRP bars. Each type of fiber has different properties. Table 1 reports the mechanical properties of different fibers [49].
According to other research [9,61], the use of E-glass, basalt, and carbon is more common for fabricating FRP bars. Table 1 shows that the use of carbon fibers leads to higher elastic modulus and tensile strength in fabricated composite bars, compared to E-glass and basalt fibers. However, in comparison with other fibers, carbon fibers are the most expensive ones. This can be a stumbling block to the widespread use of such fibers in manufacturing composite bars.

2.2. Resin

Thermosetting matrices are not only used to maintain fibers and conserve the surface of the fibers, but also to help prevent the propagation of cracks in FRP bars. Furthermore, different types of resins have different extents of ability in protecting the fibers against different environmental conditions [62]. Table 2 outlines the mechanical properties of some thermosetting matrices [49].
With regards to Table 2, in terms of elastic modulus, epoxy resins have a higher elastic modulus in comparison with other resins. Furthermore, considering tensile strength, vinyl ester resins have higher tensile strength compared to other resins.
In addition, the types of resin play a pivotal role in the long-term performance of fabricated FRP bars. Benmokrane et al. [63] investigated the effects of different resins, namely vinyl ester, polyester, and epoxy, on the durability of GFRP bars. They found that the use of vinyl ester and epoxy for fabricating FRP bars, unlike polyester, presented the lowest degradation level in terms of physical and mechanical behavior after exposure to an alkaline solution. In other research caried out by Benmokrane et al. [64,65], the effects of vinyl ester and epoxy resin were investigated regarding the durability of BFRP and GFRP bars. They observed that glass–vinyl ester FRP bars had the best long-term performance in the alkaline solution, in comparison with basalt–epoxy and basalt–vinyl-ester FRP bars.

3. Different Simulated Environments and Their Effects on the Mechanical Properties of FRP Bars

The degradation of FRP bars occurs when free hydroxyl ions (OH-) scatter through the matrices of FRP bars [66]. The interface between the fiber and matrix is a nonhomogeneous and thin region. This layer is also prone to deterioration. Chen et al. [66] classified this deterioration into three mechanisms, namely matrix osmotic cracking, interfacial debonding, and delamination. Moisture diffusion into FRP composites could be influenced by the material’s anisotropic and heterogeneous character. In addition, wicking through the fiber–matrix interface in the fiber direction could be the predominant mechanism of moisture ingress. Nonvisible dissociation between the fibers and matrix could lead to rapid losses of interfacial shear strength. Unfortunately, limited attention has been paid to the effect of the resin system type on the physical and mechanical properties or the durability characteristics of GFRP bars. Furthermore, the types of resin play a crucial role in the degradation of FRP bars. The more ester groups there are, the more likely FRP bars are to degrade. As polyester has more ester groups than vinyl ester, with polyester being more prone to hydrolysis [50,67,68], polyester-based FRP bars are less durable than epoxy- and vinyl ester-based FRP bars. Another significant factor involved in degrading FRP bars is the type of fiber, such as basalt, carbon, glass, and aramid fibers. Different environmental conditions have different effects on the level of degradation in the FRP bars. The combination of sodium hydroxide (NaOH), potassium hydroxide (KOH), and calcium hydroxide (Ca(OH)2), with pH values of 13.6 and 12.7, leads to simulating an alkaline solution with normal- and high-strength concrete environments, respectively [69,70]. To simulate seawater, sodium chloride (NaCl) is combined with (Na2SO4) [66,71].
The tensile strength and bonding behavior of FRP bars that experience harsh environmental conditions can be determined according to ASTM D7205 [72] and ASTM D7913 [73], respectively.

3.1. Behavior of FRP Bars under Tension

Much research has been conducted to investigate the tensile behavior of FRP bars, ranging from GFRP [50] and CFRP [66], to BFRP [74,75] and AFRP [76]. The FRP bars do not exhibit any plastic behavior under tensile loading and remain linearly elastic until their ultimate strain [77,78]. Since fibers play a significant role in tensile strength, it can be stated that bars with the same diameter, appearance, and processing may have different strengths, depending on their fiber to matrix ratio [79]. The effects of harsh environmental conditions on the tensile behavior of FRP bars have been investigated by different scholars. Rifai et al. [80] tested FRP bars in alkaline solutions and concrete environments, along with different durations and temperatures. They showed that the degradation level of FRP bars was more sensitive to the conditioned temperature than to the duration.
Table 3 summarizes the tensile behavior of GFRP, CFRP, and BFRP bars, based on the bars’ diameter, different environmental conditions, and time.

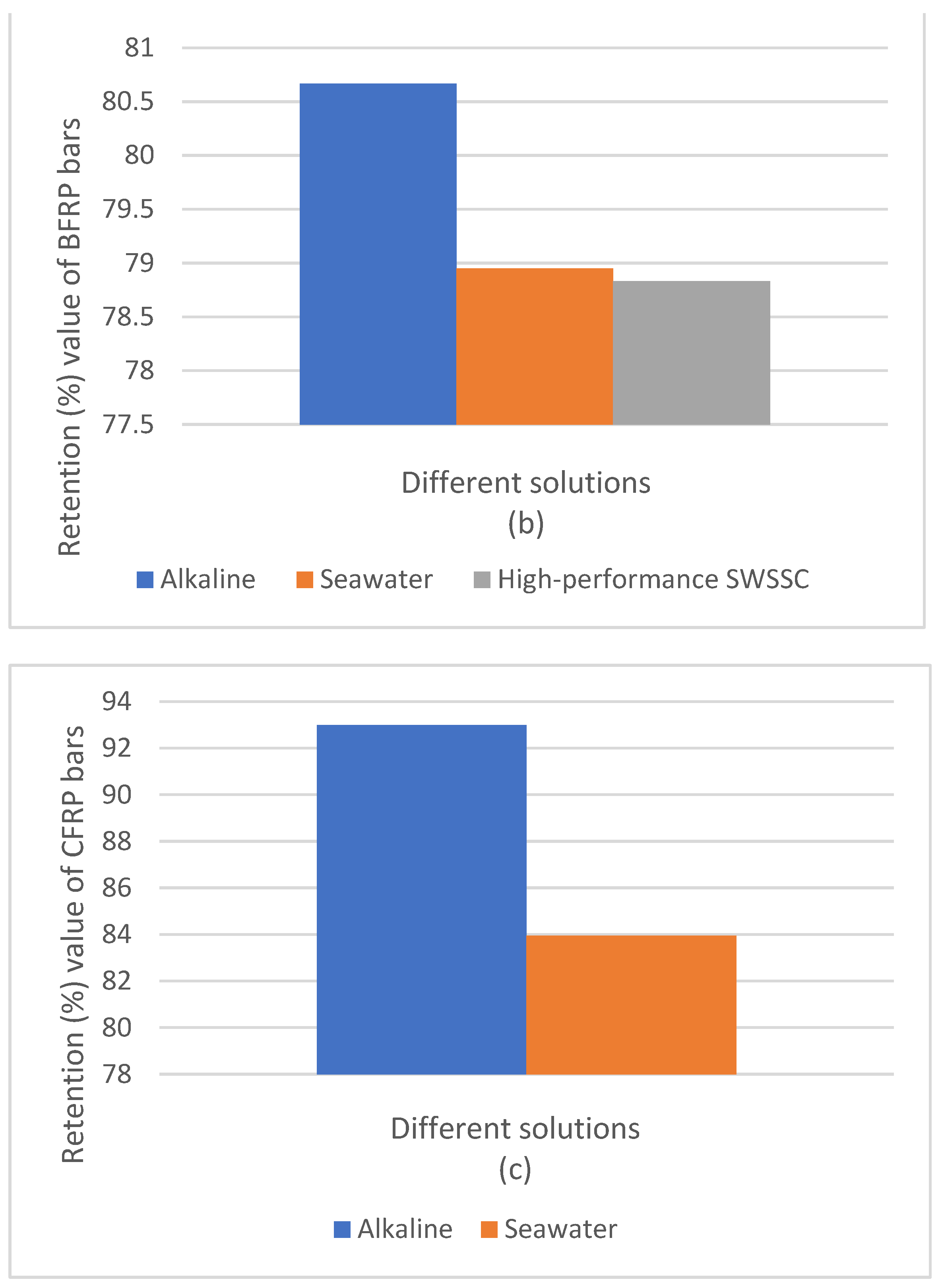

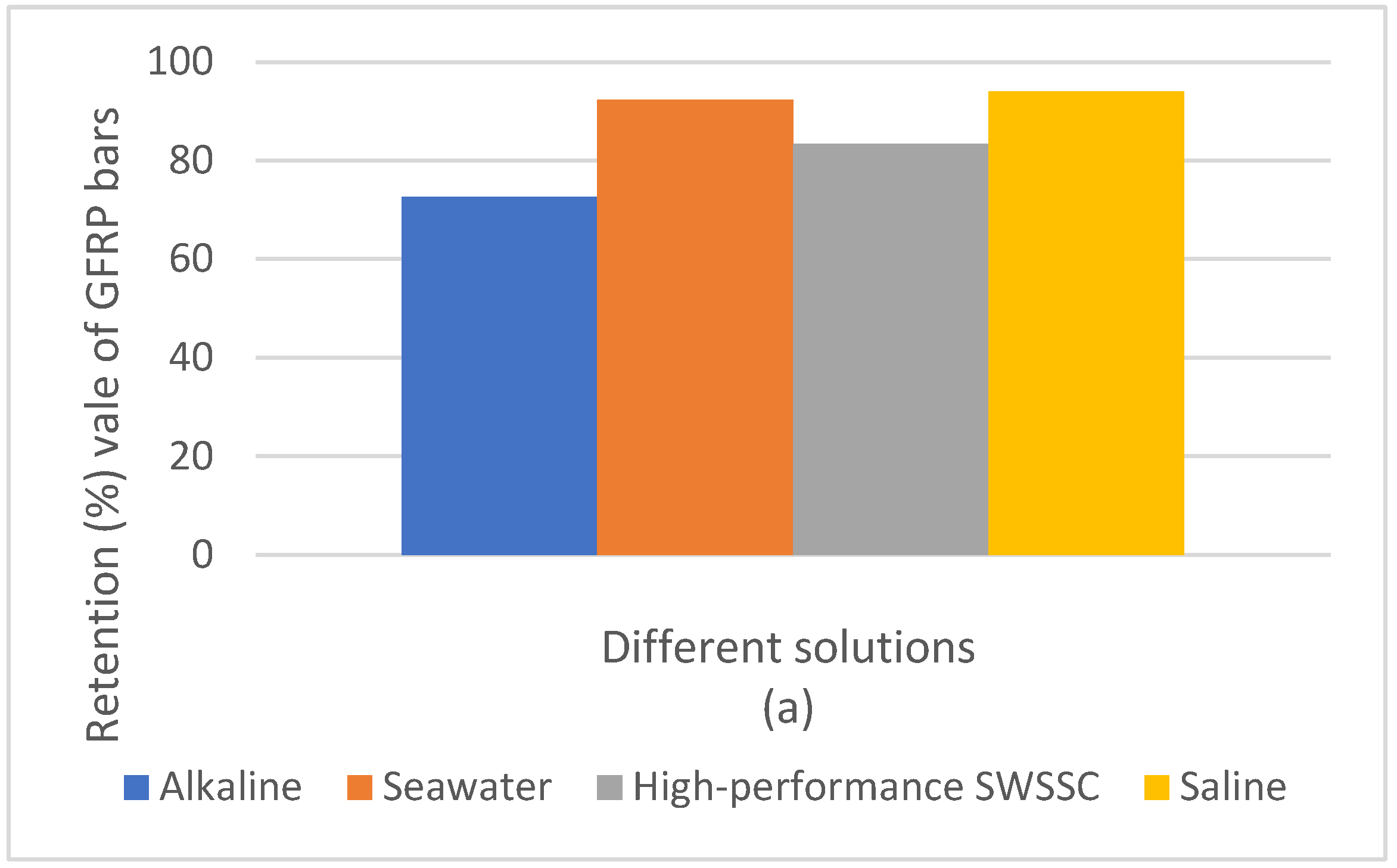

Figure 1 depicts the retention of different FRP bars in different environmental solutions. According to Table 3 and Figure 1, CFRP bars, regardless of the period, showed the highest resistance to the alkaline environment, compared to BFRP and GFRP bars, in terms of tensile strength. Contrary to saline and seawater solutions, GFRP bars, regardless of the duration, were more durable in comparison with other types of FRP bars.

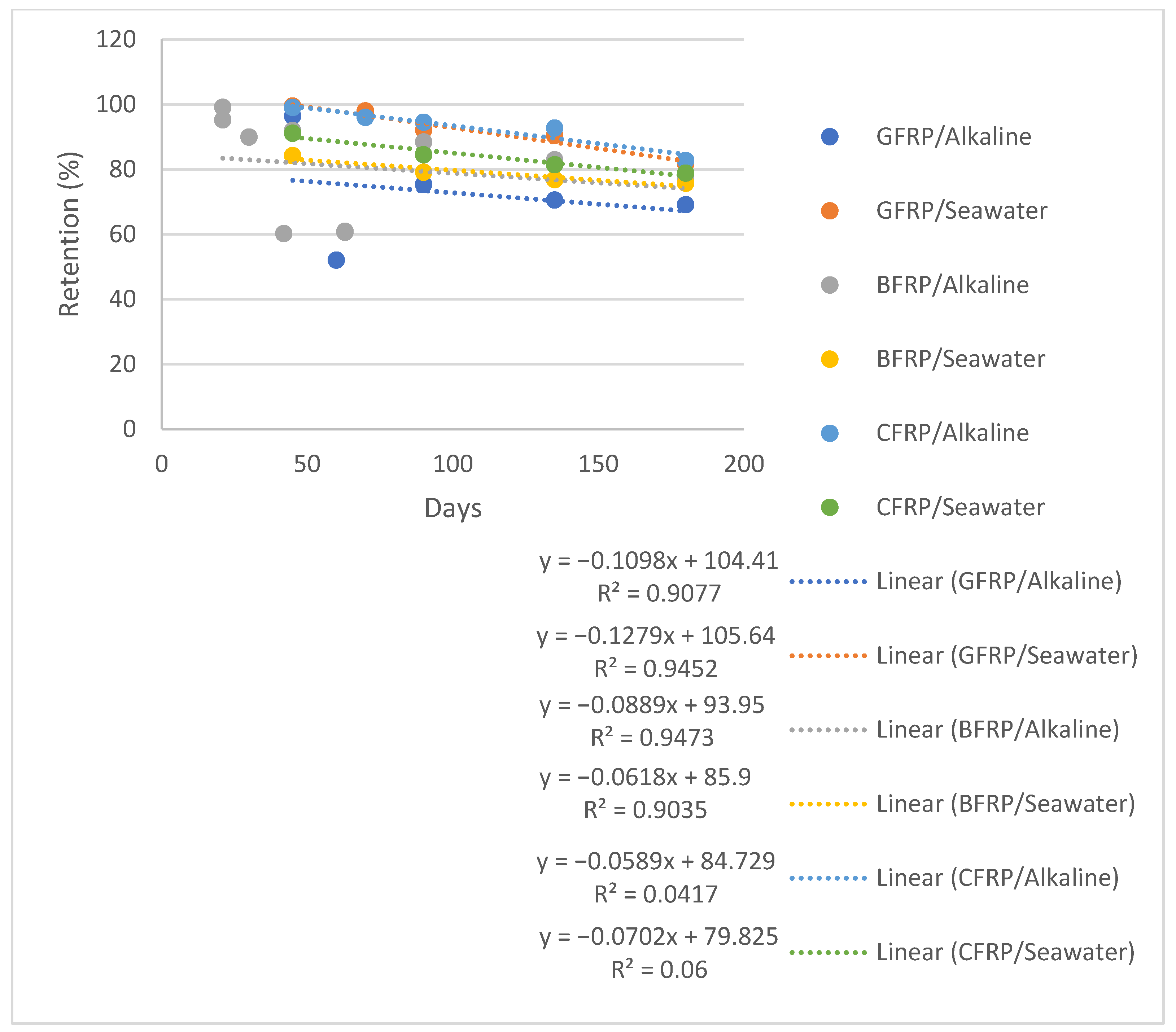

Figure 2 demonstrates the trendlines of the different FRP bars in different environmental solutions. According to Figure 2, all types of FRP bars, under different environmental conditions, experienced a downward trend. The trendlines of the BFRP bars’ retention in alkaline and seawater solutions showed the lowest slope during the period. Contrary to BFRP bars in alkaline and seawater solutions, GFRP bars in seawater solutions showed the biggest downward trend during the period.

3.2. Bonding of FRP Bars to the Concrete

The mechanical properties and the durability of FRP bars depends on the long-term bond properties of the FRP bar and the concrete interface [1]. Furthermore, some critical factors play a central role in the bond behavior, including the concrete strength, concrete cover, and the concrete confinement provided by stirrup [51,86,87,88,89].
El Refai et al. [45] conducted an experiment to evaluate the bond behavior of BFRP bars compared to GFRP bars. The experiment indicated that BFRP bars have 75% of the bond behavior of GFRP bars, on average. Sharaky et al. [90] tried to assess the factors that play an essential role in the bond behavior of near-surface-mounted FRP bars, experimentally. The results showed that the capacity and the mode of failure of the specimens were affected by the adhesive properties, the FRP bar’s size, and the bar surface treatment. El-Nemr et al. [71] investigated the bearing of the bond-dependent coefficient of GFRP and CFRP bars on standard- and high-strength concrete. It seems that the compressive strength of concrete would not directly or significantly affect the bonding between non-steel bars and concrete [91,92,93].
Apart from the bonding behavior of FRP bars under normal conditions, only a few investigations have been carried out to evaluate the effects of environmental conditions on the mechanical properties of FRP bars. El Refai et al. [94] investigated the bond strength of BFRP bars under five different environmental conditions, namely, tap water, seawater, elevated temperature, elevated temperature followed by tap water, and elevated temperature followed by seawater. The tests showed that elevated temperature, up to 80 °C, has infinitesimal effects on the bond strength of FRP bars, regardless of the fiber material. Abed et al. [95] evaluated the effects of sunlight followed by seawater and sunlight alone on the bond strength of FRP bars. Investigations indicated that these conditions had no effect on the bonding behavior of FRP bars and concrete.
Table 4 summarizes the results of the different environmental conditions on the bond strength of FRP bars. Furthermore, Figure 3 indicates the mean value of the bond strengths of different FRP bars, under different environmental conditions.
According to Table 4 and Figure 3, in terms of CFRP bars, the alkaline solution had a greater effect on the bond strength of these types of bars, in comparison with the seawater solution. In addition, the bond strength of BFRP bars in alkaline and seawater solutions was almost equal to approximately 20 MPa, which was lower than the bond strength of these types of bars in acid solutions. As for the GFRP bars, they were more resistant to the alkaline solutions, compared to the seawater and acid solutions. Figure 4 displays the scatter plot of the bond strengths of the different FRP bars in different environmental solutions and their trendlines.

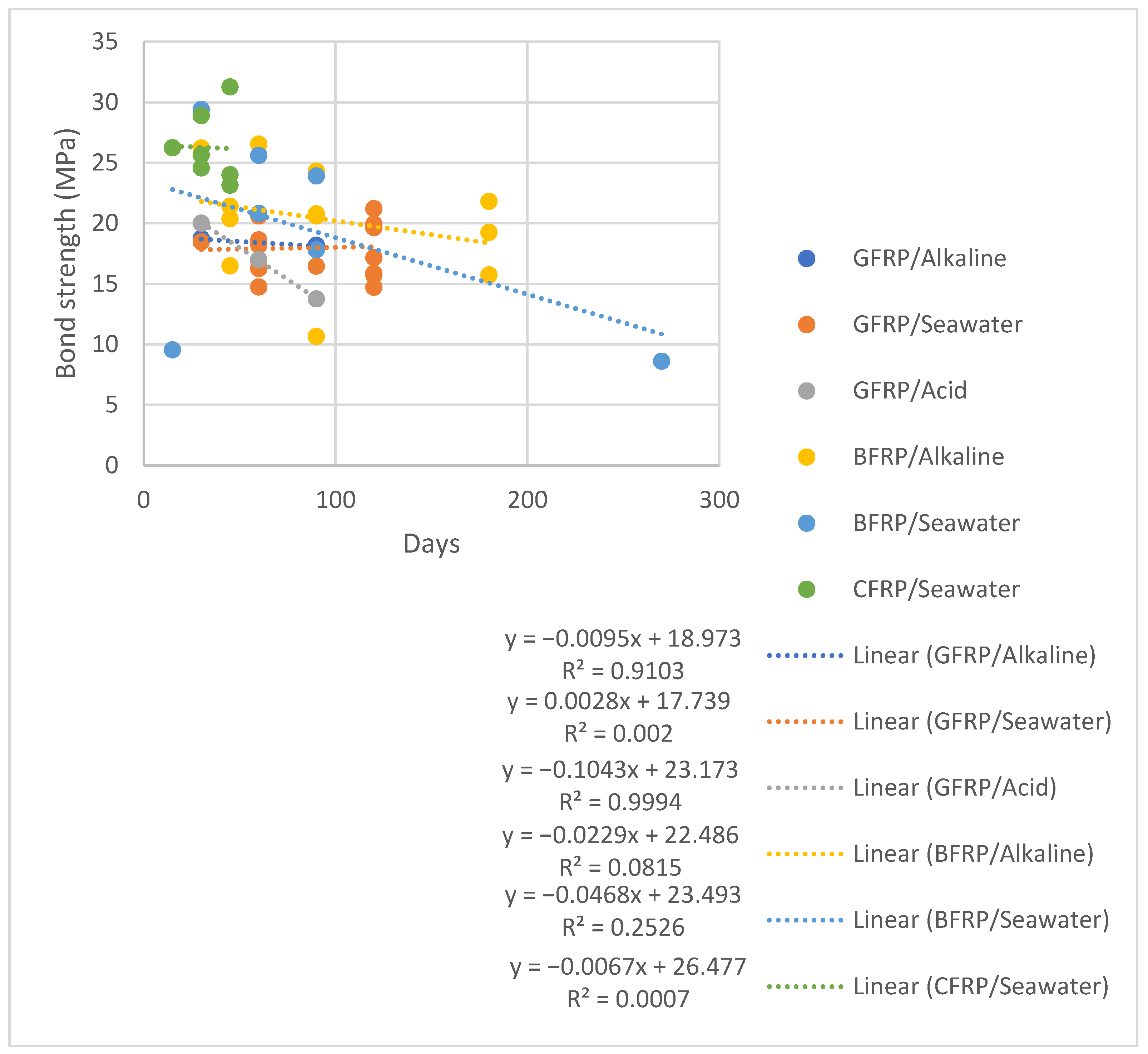

Based on Figure 4, all types of FRP bars, under different environmental conditions, experienced a downward trend. The trendlines of the GFRP bars in the seawater solutions showed the lowest slope during the period. Contrary to the GFRP bars in seawater solutions, the GFRP bars in acid solutions showed the most upward trend during the period.

4. Influence of Hybridization on Mechanical Properties of Composite Bars

The concept of the hybridization process refers to applying different materials in one cross-section of an FRP bar to exert a pseudo-ductile behavior on fabricated hybrid FRP bars. As the different materials used for fabricating hybrid FRP bars have a different ultimate tensile strain, this leads to the ductility of fabricated FRP bars under tensile stress [44,101]. Research has shown that the use of steel materials for the fabrication of hybrid composite bars can lead to better ductility, in comparison with fabricating hybrid composite bars by only using different composite materials in one section of each hybrid composite bar. This is due to the ductile behavior of steel fibers [102]. The application of such a ductile material for fabricating hybrid FRP bars affects the final behavior and ductility of the fabricated FRP bars.

4.1. Hybrid Effect on the Tensile Strength of FRP Bars

In tensile loading, FRP bars do not show plastic behavior. Composite yarns play an important role in the tensile strength of composite rebar. Wu et al. [103] found that composite yarns with different yarn-to-resin proportions have different strengths. Ma et al. [47] compared composite hybrid bars that were made of basalt fibers and steel bars that had seven glass fiber-reinforced plastic bars, to investigate their tensile strength [47]. They observed that the hybridized bars allowed a more balanced tensile behavior, which improved the ultimate tensile strength by 47%, in comparison with steel rebar. You et al. [104] tested three types of hybrid bars. E-glass fibers and carbon fibers were used to develop hybrid bars. The results indicated that the ultimate tensile strength increased by up to 5.4%. Cui and Tao [105] developed a new core-shell model of the hybrid composite bar. In this section, steel and glass fibers were randomly dispersed across the cross-section of the core, where Twaron and carbon fibers were placed within the shell. This specimen revealed a tensile strength of 628 MPa, which was 156% of that of steel bars. Seo et al. [102] developed three types of hybrid bars. The tensile performance of the recently developed hybrid bar was experimentally evaluated. The test indicated that the hybrid bar had 85% of the tensile strength of the GFRP bar. Won et al. [106] developed three types of hybrid bars, in which aramid fibers, glass fibers, and carbon fibers were utilized as yarn. Table 5 summarizes the effects of the hybridization process on the tensile behavior of FRP bars and shows the improvement of the tensile strength compared to the steel ST37 bar.
According to Table 5, the volume of the steel materials used for the fabrication of the hybrid composite bars had an adverse effect on the ultimate tensile strength of the fabricated hybrid composite bars. This was due to the lower tensile strength of the steel materials in comparison with the composite fibers.
Figure 5 demonstrates the effects of the hybridization process in improving the tensile strength, in comparison with steel bars. This was due to the use of high-tensile strength composite fibers, as opposed to steel material, for fabricating hybrid FRP bars. Considering this figure, the effectiveness of this process in increasing the tensile strength was the most evident when glass fiber and steel wire were combined. On the other hand, the combination of steel bars and basalt fibers resulted in the least improvements in terms of tensile strength.

4.2. Hybrid Effect on the Modulus of Elasticity of FRP Bars

One of the disadvantages of composite bars is their low modulus of elasticity. At high stresses, the low elasticity modulus in these bars (approximately 70GPa for GFRP, which is approximately 33% of steel) has shown high strains too, which causes early concrete failure in the compression block of the flexural members. This section explores the effects of the hybrid process on the modulus of elasticity in composite bars.
There are three methods to measure the elastic modulus of hybrid bars. The first method uses Equation (1) to measure this property for hybrid composite bars [101], as follows:
E h y b r i d = P 1 − P 2 ε 1 − ε 2 A R e b a r
where E h y b r i d is the elastic modulus of the hybrid bar (Pa), P 1 and P 2 represent the applied loads at 50% and 25% of the ultimate load, respectively (N); ε 1 and ε 2 . denote the strains at 50% and 25% of the ultimate load, respectively; and A h y b r i d   b a r is the cross-sectional area of the specimen (m2).
The second method for measuring the elastic modulus of hybrid bars, which have been fabricated from steel and composite fibers, is by calculating the first slope of the stress–strain curve of hybrid composite bars [103].
The third method is not only utilized to estimate the tensile elastic modulus of hybrid composite bars but also to estimate the stress–strain relationship of these types of bars, which is obtained from Equation (2) [113], as follows:
E H y b r i d = ∑ i E 11 , f i V f i + E m V m
where E11 is Young’s modulus of fibers along the longitudinal axis; Vfi is the volume fraction of fibers; Em is Young’s modulus of the matrix; and Vm is the volume fraction of the matrix.
Ma et al. [47] compared the mechanical behavior of the hybrid composite bars made from basalt fibers and steel with full GFRP bars. The results showed that the hybridization process enhanced the modulus of elasticity of the bars, in comparison with the glass fiber-reinforced plastic bars by up to 169%.
You et al. [104] tested three different cross-sections of hybrid composite bars with two full composite sections of glass or carbon fiber. Two types of saturated vinyl ester and polyester resins were made for each of the hybrid bars. The results revealed that, depending on the resin used for fabricating the hybrid FRP bars, the hybrid process increased the modulus of elasticity of the bars from 0.4% to 4.2%.
Cui et al. [105] conducted some research on hybrid bars, including steel. In these experiments, three types of fibers, namely Twaron, glass, and carbon fibers, including steel, were used to make the bars. The hybrid bars had 71% of the elasticity modulus of steel bars.
Seo et al. [101,102] conducted extensive research on comparing three types of hybrid bars with different cross-sections (a total of 140 samples) made from steel and glass fibers. The results indicated that the hybrid process could increase the modulus of elasticity of composite bars by up to 250%.
Won et al. [106] carried out extensive research on hybrid bars using carbon, aramid, and glass fibers and compared the results of the tensile test on these hybrid bars with those of the GFRP bars. The results showed an increase in the elastic modulus of all three types of composite bars, compared to GFRP bars, by up to 40%.
Hwang et al. [107] tested hybrid bars with 13 mm and 16 mm diameters, where 0.5, 1, and 2 mm steel wires were used. Note that the volume of steel wire in the sections of the hybrid bars was 10%, 30%, 50%, and 70%. One of the essential results of this paper was that increasing the steel volume in the cross-sections improved the overall elasticity modulus of the hybrid composite bars. Table 5 outlines the effects of the hybridization process on the elastic modulus of FRP bars.

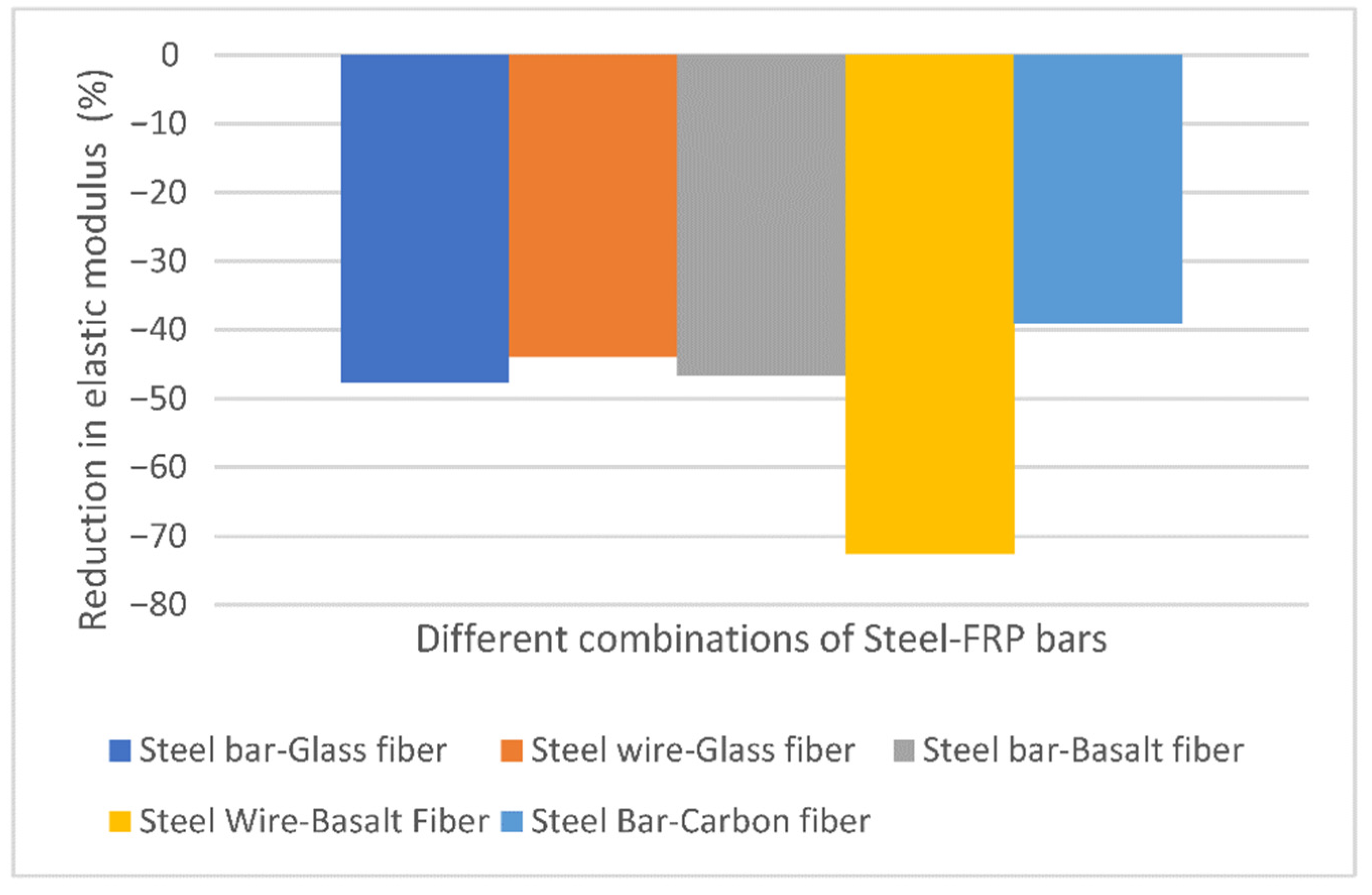

Figure 6 demonstrates the effects of the hybridization process on the reduction in the elastic modulus, compared to steel bars. Considering this figure, the reduction in the elastic modulus by this process is maximized when basalt fibers and steel wire are combined. This behavior can be attributed to the low elastic modulus of basalt fibers in comparison with other fibers. On the other hand, the combination of steel bars and carbon fibers experienced the least reduction in terms of the elastic modulus. This may be due to the high elastic modulus of carbon fibers compared to other fibers. Thus, the larger the volume of composite materials used for fabricating hybrid composite bars, the more reduction will occur in the ultimate elastic modulus of fabricated hybrid composite bars. This is due to the lower elastic modulus of composite fibers, in comparison with steel materials. Thus, the volume of the composite fibers has an adverse effect on the elastic modulus of hybrid FRP bars.

4.3. Effects of Environmental Conditions on Hybrid Bars

As mentioned in the previous sections, one of the significant disadvantages of steel bars is their corrosion vulnerability. Corrosion in steel bars reduces the bonding of the bars to the concrete, which lowers the mechanical performance of the concrete. To resolve this problem, composite bars are being discussed. However, one of the barriers to the usage of non-steel bars in construction is their sensitive and variable behavior against environmental conditions. Previous research has shown that composites, especially GFRPs, have the potential to be degraded regarding their mechanical properties under various environmental conditions. To apply these materials as structural members, it is necessary to conduct detailed studies on their behavior and alter their mechanical properties when exposed to different environmental conditions.
Cui et al. [105] conducted a study on the corrosion of hybrid bars in an alkaline environment and compared it with composite glass bars. As noted in the previous section, one of the significant disadvantages of composite glass bars is their low resistance to alkaline environments. The results of the hybrid rebar showed that these bars could retain 93.1% of their tensile strength after eight weeks in an alkaline environment, while GFRP bars could maintain only 73.62% of their tensile strength.
Won et al. [60] performed extensive research on the durability of hybrid bars using glass, aramid, and carbon fibers in physically and chemically aggressive environmental conditions. Thus, to obtain the parameter to evaluate the durability of these bars under aggressive environmental conditions, they used tensile and interfacial shear stress (ISS) tests. The results of this paper indicate that bars made of carbon fiber and aramid have higher resistance in aggressive environments than bars made of glass fibers.

5. Conclusions and Research Needs

Using FRP materials as an alternative to steel bars is becoming more widespread, especially in marine and coastal areas. This is due to their acceptable mechanical behavior, such as their tensile strength, durability, and sustainability. A comprehensive review of the effects of harsh environmental conditions and hybridization processes on the tensile, bond, and elastic modulus of FRP bars have been discussed in this paper. Related conclusions and further research are needed in this area and are proposed in the following sections.

5.1. Conclusions

  • In terms of tensile strength, CFRP bars are more resistant to alkaline solutions, in comparison to different FRP bars. Moreover, considering seawater and saline solutions, GFRP bars show more durability.
  • Alkaline solutions have a greater effect on the bond strength of CFRP bars than seawater solutions. In addition, the bond strength of BFRP bars in alkaline and seawater solutions was almost equal to approximately 20 MPa, which was less than their bond strength in acid solutions. As for GFRP bars, they were more resistant to alkaline solutions than to seawater and acid solutions.
  • When fabricating hybrid composite fibers, the type of fibers used highly affects the elastic modulus. For a high elastic modulus, carbon fibers are recommended; however, for a low elastic modulus, glass and basalt are preferred.
  • Using the hybridization process can improve the tensile strength of fabricated hybrid FRP bars by up to approximately 210%, in comparison with steel bars (ST37). On the other hand, this process has an adverse effect on the elastic modulus of fabricated hybrid FRP bars and can reduce this mechanical behavior by up to approximately 70%, compared with steel bars’ (ST37) elastic modulus.
  • When it comes to hybrid composite bars made up of steel, the volume of the steel material has a great influence on the final mechanical behavior. The more steel used, the greater the ductility of the hybrid composite bars, as observed under tensile tests. Using steel material for fabricating hybrid composite bars generally has a positive effect on the elastic modulus of these bars. This behavior stems from the high elastic modulus of steel materials in comparison with composite fibers.
  • Steel materials can have an adverse effect on the ultimate tensile strength of hybrid composite bars because composite fibers have a higher tensile strength than steel material.
  • Tensile tests in the literature indicate that hybridization can improve the ductility of composite bars. Such an increase in their ductility can be attributed to using different materials in one cross-sectional area of the hybrid composite bars. Furthermore, hybridization improves the elastic modulus of composite bars and when steel is used the elastic modulus is linearly proportional to the steel’s volume.
  • Hybrid composite bars that were fabricated by steel materials show great pseudo-ductile behavior, in comparison to hybrid composite bars composed of composite fibers only. However, the former group shows lower durability compared to the latter group because of the presence of steel in their cross-sectional area.
  • In the case of resin, epoxy and vinyl ester resins have a higher elastic modulus and tensile strength, respectively. Current data also denotes that vinyl ester and epoxy have better performance regarding their degradation level.

5.2. Research Needs

  • Only a limited number of studies have investigated the effects of different environmental conditions on the compressive behavior of different FRP bars.
  • The performance of FRP bars in cyclic loads, along with harsh environmental conditions remains obscure.
  • The effects of the bar size and diameter on the bond and tensile behavior of FRP bars subjected to different solutions remains unclear.
  • The influence of different fibers, such as aramid fibers, on the mechanical behavior of hybrid FRP bars remains unclear.
  • The effects of the steel bars and steel wire diameter on the elastic and the tensile strength of hybrid FRP bars have not been completely investigated.
  • The effects of environmental solutions on the durability of hybrid FRP bars are still obscure.
  • The mechanical behaviors of FRP bars are deeply influenced by the types of fibers, the manufacturing process, and the types of resin, etc. These agents cause uncertainties in the final mechanical behavior of FRP bars. More research should be conducted to produce FRP bars with the same mechanical behavior. Using probabilistic models and machine learning methods can accommodate these uncertainties and provide further insight into the behavior of FRP bars that are subjected to simulated environmental conditions [114,115].

Author Contributions

Conceptualization, M.M. and R.H.; methodology, M.M.; software, R.H.; validation, M.M., R.H. and F.A.; formal analysis, M.M.; investigation, R.H.; resources, F.A.; data curation, S.V.A.N.K.A.; writing—original draft preparation, M.M.; writing—review and editing, R.H.; visualization, M.M.; supervision, F.A.; project administration, M.M.; funding acquisition, R.H. All authors have read and agreed to the published version of the manuscript.

Funding

Research received no external funding.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ahmed, A.; Guo, S.; Zhang, Z.; Shi, C.; Zhu, D. A review on durability of fiber reinforced polymer (FRP) bars reinforced seawater sea sand concrete. Constr. Build. Mater. 2020, 256, 119484. [Google Scholar] [CrossRef]
  2. Tawfik, T.A.; Aly Metwally, K.; EL-Beshlawy, S.A.; Al Saffar, D.M.; Tayeh, B.A.; Soltan Hassan, H. Exploitation of the nanowaste ceramic incorporated with nano silica to improve concrete properties. J. King Saud Univ. Eng. Sci. 2020, 33, 581–588. [Google Scholar] [CrossRef]
  3. Zeyad, A.M.; Khan, A.H.; Tayeh, B.A. Durability and strength characteristics of high-strength concrete incorporated with volcanic pumice powder and polypropylene fibers. J. Mater. Res. Technol. 2020, 9, 806–813. [Google Scholar] [CrossRef]
  4. Agwa, I.S.; Omar, O.M.; Tayeh, B.A.; Abdelsalam, B.A. Effects of using rice straw and cotton stalk ashes on the properties of lightweight self-compacting concrete. Constr. Build. Mater. 2020, 235, 117541. [Google Scholar] [CrossRef]
  5. Alexander, M.; Beushausen, H. Durability, service life prediction, and modelling for reinforced concrete structures-review and critique. Cem. Concr. Res. 2019, 122, 17–29. [Google Scholar] [CrossRef]
  6. Almusallam, T.H.; Elsanadedy, H.M.; Al-Salloum, Y.A.; Alsayed, S.H. Experimental and numerical investigation for the flexural strengthening of RC beams using near-surface mounted steel or GFRP bars. Constr. Build. Mater. 2013, 40, 145–161. [Google Scholar] [CrossRef]
  7. Kassem, C.; Farghaly, A.S.; Benmokrane, B. Evaluation of flexural behavior and serviceability performance of concrete beams reinforced with FRP bars. J. Compos. Constr. 2011, 15, 682–695. [Google Scholar] [CrossRef]
  8. Kazemian, M.; Sedighi, S.; Ramezanianpour, A.A.; Bahman-Zadeh, F.; Ramezanianpour, A.M. Effects of cyclic carbonation and chloride ingress on durability properties of mortars containing Trass and Pumice natural pozzolans. Struct. Concr. 2021, 22, 2704–2719. [Google Scholar] [CrossRef]
  9. Yan, F.; Lin, Z.; Yang, M. Bond mechanism and bond strength of GFRP bars to concrete: A review. Compos. Part B Eng. 2016, 98, 56–69. [Google Scholar] [CrossRef]
  10. Cui, Z.; Alipour, A. Concrete cover cracking and service life prediction of reinforced concrete structures in corrosive environments. Constr. Build. Mater. 2018, 159, 652–671. [Google Scholar] [CrossRef]
  11. Wang, J.; Li, L.; Zhang, X.G.; Zhao, Y. A Prediction Model for Concrete Cracks due to Chloride-Induced Corrosion. Adv. Mater. Sci. Eng. 2020, 2020, 1049258. [Google Scholar] [CrossRef] [Green Version]
  12. Otieno, M.; Beushausen, H.; Alexander, M. Chloride-induced corrosion of steel in cracked concrete—Part I: Experimental studies under accelerated and natural marine environments. Cem. Concr. Res. 2016, 79, 373–385. [Google Scholar] [CrossRef]
  13. Otieno, M.; Beushausen, H.; Alexander, M. Chloride-induced corrosion of steel in cracked concrete—Part II: Corrosion rate prediction models. Cem. Concr. Res. 2016, 79, 386–394. [Google Scholar] [CrossRef]
  14. Boschmann Käthler, C.; Angst, U.M.; Ebell, G.; Elsener, B. Chloride-induced reinforcement corrosion in cracked concrete: The influence of time of wetness on corrosion propagation. Corros. Eng. Sci. Technol. 2020, 56, 1–10. [Google Scholar] [CrossRef]
  15. Andrade, C. Propagation of reinforcement corrosion: Principles, testing and modelling. Mater. Struct. Constr. 2019, 52, 2. [Google Scholar] [CrossRef] [Green Version]
  16. Andrade, C. Linear propagation models of deterioration processes of concrete. Corros. Eng. Sci. Technol. 2020, 55, 283–288. [Google Scholar] [CrossRef]
  17. Mirdarsoltany, M.; Rahai, A.; Hatami, F. Experimental Investigation on the Ductility of Concrete Deep Beams Reinforced with Basalt-Carbon and Basalt-Steel Wire Hybrid Composite Bars. Shock Vib. 2021, 2021, 6866993. [Google Scholar] [CrossRef]
  18. Bezuidenhout, S.R.; van Zijl, G.P.A.G. Corrosion propagation in cracked reinforced concrete, toward determining residual service life. Struct. Concr. 2019, 20, 2183–2193. [Google Scholar] [CrossRef]
  19. Otieno, M.B.; Beushausen, H.D.; Alexander, M.G. Modelling corrosion propagation in reinforced concrete structures—A critical review. Cem. Concr. Compos. 2011, 33, 240–245. [Google Scholar] [CrossRef]
  20. Zhu, W.; François, R.; Zhang, C.; Zhang, D. Propagation of corrosion-induced cracks of the RC beam exposed to marine environment under sustained load for a period of 26 years. Cem. Concr. Res. 2018, 103, 66–76. [Google Scholar] [CrossRef]
  21. Michel, A.; Otieno, M.; Stang, H.; Geiker, M.R. Propagation of steel corrosion in concrete: Experimental and numerical investigations. Cem. Concr. Compos. 2016, 70, 171–182. [Google Scholar] [CrossRef]
  22. Ahmadi, B.; Ramezanianpour, A.A.; Sobhani, J. Rebar corrosion in cracked RC prisms located in harsh marine environment. Mag. Concr. Res. 2014, 66, 1007–1019. [Google Scholar] [CrossRef]
  23. Zhang, X.; Wang, J.; Zhao, Y.; Tang, L.; Xing, F. Time-dependent probability assessment for chloride induced corrosion of RC structures using the third-moment method. Constr. Build. Mater. 2015, 76, 232–244. [Google Scholar] [CrossRef]
  24. Homayoonmehr, R.; Ramezanianpour, A.A.; Mirdarsoltany, M. Influence of metakaolin on fresh properties, mechanical properties and corrosion resistance of concrete and its sustainability issues: A review. J. Build. Eng. 2021, 44, 103011. [Google Scholar] [CrossRef]
  25. Moradi-Marani, F.; Shekarchi, M.; Dousti, A.; Mobasher, B. Investigation of corrosion damage and repair system in a concrete jetty structure. J. Perform. Constr. Facil. 2010, 24, 294–301. [Google Scholar] [CrossRef]
  26. Valipour, M.; Pargar, F.; Shekarchi, M.; Khani, S.; Moradian, M. In situ study of chloride ingress in concretes containing natural zeolite, metakaolin and silica fume exposed to various exposure conditions in a harsh marine environment. Constr. Build. Mater. 2013, 46, 63–70. [Google Scholar] [CrossRef]
  27. Montemor, M.F.; Simões, A.M.P.; Ferreira, M.G.S. Chloride-induced corrosion on reinforcing steel: From the fundamentals to the monitoring techniques. Cem. Concr. Compos. 2003, 25, 491–502. [Google Scholar] [CrossRef] [Green Version]
  28. Ye, H.; Fu, C.; Tian, Y.; Jin, N. Chloride-Induced Steel Corrosion in Concrete Under Service Loads; Springer: Singapore, 2020. [Google Scholar]
  29. Zhang, D.; Zeng, Y.; Fang, M.; Jin, W. Service life prediction of precast concrete structures exposed to chloride environment. Adv. Civ. Eng. 2019, 2019, 3216328. [Google Scholar] [CrossRef]
  30. Liang, M.T.; Huang, R.; Jheng, H.Y. Reconsideration for a study of the effect of chloride binding on service life predictions. J. Mar. Sci. Technol. 2011, 19, 531–540. [Google Scholar] [CrossRef]
  31. Safehian, M.; Ramezanianpour, A.A. Assessment of service life models for determination of chloride penetration into silica fume concrete in the severe marine environmental condition. Constr. Build. Mater. 2013, 48, 287–294. [Google Scholar] [CrossRef]
  32. Dousti, A.; Rashetnia, R.; Ahmadi, B.; Shekarchi, M. Influence of exposure temperature on chloride diffusion in concretes incorporating silica fume or natural zeolite. Constr. Build. Mater. 2013, 49, 393–399. [Google Scholar] [CrossRef]
  33. Khaghanpour, R.; Dousti, A.; Shekarchi, M. Prediction of Cover Thickness Based on Long-Term Chloride Penetration in a Marine Environment. J. Perform. Constr. Facil. 2017, 31, 04016070. [Google Scholar] [CrossRef]
  34. Stoiber, N.; Hammerl, M.; Kromoser, B. Cradle-to-gate life cycle assessment of CFRP reinforcement for concrete structures: Calculation basis and exemplary application. J. Clean. Prod. 2021, 280, 124300. [Google Scholar] [CrossRef]
  35. Badogiannis, E.; Aggeli, E.; Papadakis, V.G.; Tsivilis, S. Evaluation of chloride-penetration resistance of metakaolin concrete by means of a diffusion—Binding model and of the k-value concept. Cem. Concr. Compos. 2015, 63, 1–7. [Google Scholar] [CrossRef]
  36. Valipour, M.; Shekarchi, M.; Arezoumandi, M. Chlorine diffusion resistivity of sustainable green concrete in harsh marine environments. J. Clean. Prod. 2017, 142, 4092–4100. [Google Scholar] [CrossRef]
  37. Adesina, A.; de Azevedo, A.R.G.; Amin, M.; Hadzima-Nyarko, M.; Agwa, I.S.; Zeyad, A.M.; Tayeh, B.A. Fresh and mechanical properties overview of alkali-activated materials made with glass powder as precursor. Clean. Mater. 2022, 3, 100036. [Google Scholar] [CrossRef]
  38. Saif, M.S.; El-Hariri, M.O.R.; Sarie-Eldin, A.I.; Tayeh, B.A.; Farag, M.F. Impact of Ca+ content and curing condition on durability performance of metakaolin-based geopolymer mortars. Case Stud. Constr. Mater. 2022, 16, e00922. [Google Scholar] [CrossRef]
  39. Ramezani, M. Performance of composite connections strengthened with CFRP laminate. Mag. Civ. Eng. 2021, 106, 10614. [Google Scholar] [CrossRef]
  40. Ramezani, M.; Dehghani, A.; Sherif, M.M. Carbon nanotube reinforced cementitious composites: A comprehensive review. Constr. Build. Mater. 2022, 315, 125100. [Google Scholar] [CrossRef]
  41. Ramezani, M.; Kim, Y.H.; Sun, Z. Mechanical properties of carbon-nanotube-reinforced cementitious materials: Database and statistical analysis. Mag. Concr. Res. 2020, 72, 1047–1071. [Google Scholar] [CrossRef]
  42. Ramezani, M.; Kim, Y.H.; Sun, Z. Modeling the mechanical properties of cementitious materials containing CNTs. Cem. Concr. Compos. 2019, 104, 103347. [Google Scholar] [CrossRef]
  43. Kamboozia, N.; Mousavi Rad, S.; Saed, S.A. Laboratory Investigation of the Effect of Nano-ZnO on the Fracture and Rutting Resistance of Porous Asphalt Mixture under the Aging Condition and Freeze–Thaw Cycle. J. Mater. Civ. Eng. 2022, 34, 04022052. [Google Scholar] [CrossRef]
  44. Mirdarsoltany, M.; Rahai, A.; Hatami, F.; Homayoonmehr, R.; Abed, F. Investigating tensile behavior of sustainable basalt–carbon, basalt–steel, and basalt–steel-wire hybrid composite bars. Sustainability 2021, 13, 10735. [Google Scholar] [CrossRef]
  45. El Refai, A.; Ammar, M.A.; Masmoudi, R. Bond performance of basalt fiber-reinforced polymer bars to concrete. J. Compos. Constr. 2015, 19, 04014050. [Google Scholar] [CrossRef]
  46. Ceroni, F. Experimental performances of RC beams strengthened with FRP materials. Constr. Build. Mater. 2010, 24, 1547–1559. [Google Scholar] [CrossRef]
  47. Ma, G.; Huang, Y.; Aslani, F.; Kim, T. Tensile and bonding behaviours of hybridized BFRP–steel bars as concrete reinforcement. Constr. Build. Mater. 2019, 201, 62–71. [Google Scholar] [CrossRef]
  48. Won, J.P.; Park, C.G. Effect of environmental exposure on the mechanical and bonding properties of hybrid FRP reinforcing bars for concrete structures. J. Compos. Mater. 2006, 40, 1063–1076. [Google Scholar] [CrossRef]
  49. Nanni, A.; De Luca, A.; Jawaheri Zadeh, H. Reinforced Concrete with FRP Bars; CRC Press: London, UK, 2014. [Google Scholar] [CrossRef]
  50. Robert, M.; Benmokrane, B. Combined effects of saline solution and moist concrete on long-term durability of GFRP reinforcing bars. Constr. Build. Mater. 2013, 38, 274–284. [Google Scholar] [CrossRef]
  51. Achillides, Z.; Pilakoutas, K. Bond behavior of fiber reinforced polymer bars under direct pullout conditions. J. Compos. Constr. 2004, 8, 173–181. [Google Scholar] [CrossRef]
  52. Rafi, M.M.; Nadjai, A.; Ali, F.; Talamona, D. Aspects of behaviour of CFRP reinforced concrete beams in bending. Constr. Build. Mater. 2008, 22, 277–285. [Google Scholar] [CrossRef]
  53. Issa, M.S.; Metwally, I.M.; Elzeiny, S.M. Influence of fibers on flexural behavior and ductility of concrete beams reinforced with GFRP rebars. Eng. Struct. 2011, 33, 1754–1763. [Google Scholar] [CrossRef]
  54. Etman, E.E.S. Innovative hybrid reinforcement for flexural members. J. Compos. Constr. 2011, 15, 2–8. [Google Scholar] [CrossRef]
  55. Wu, Z.; Wang, X.; Wu, G. Basalt FRP composite as reinforcements in infrastructure. In Proceedings of the Seventeenth Annual International Conference Compossites Engineering, New Orleans, LA, USA, 26–31 July 2009; Volume 26, p. 4. [Google Scholar]
  56. Kara, I.F.; Ashour, A.F. Flexural performance of FRP reinforced concrete beams. Compos. Struct. 2012, 94, 1616–1625. [Google Scholar] [CrossRef] [Green Version]
  57. Li, S.; Guo, S.; Yao, Y.; Jin, Z.; Shi, C.; Zhu, D. The effects of aging in seawater and SWSSC and strain rate on the tensile performance of GFRP/BFRP composites: A critical review. Constr. Build. Mater. 2021, 282, 122534. [Google Scholar] [CrossRef]
  58. Morales, C.N.; Claure, G.; Emparanza, A.R.; Nanni, A. Durability of GFRP reinforcing bars in seawater concrete. Constr. Build. Mater. 2021, 270, 121492. [Google Scholar] [CrossRef]
  59. Mirdarsoltany, M.; Rahai, A.; Hatami, F. Tensile behavior of GFRP hybrid composite bars in RC structures. Solid State Technol. 2021, 64, 4955–4961. [Google Scholar]
  60. Won, J.-P.; Park, C.-G.; Lee, S.-J.; Hong, B.-T. Durability of hybrid frp reinforcing bars in concrete structures exposed to marine environments. Int. J. Struct. Eng. 2013, 4, 63–74. [Google Scholar] [CrossRef]
  61. Deitz, D.H.; Harik, I.E.; Gesund, H. Physical properties of glass fiber reinforced polymer rebars in compression. J. Compos. Constr. 2003, 7, 363–366. [Google Scholar] [CrossRef]
  62. Systems, S. SP Systems Guide to Composites. 2016. Available online: https://composites.ugent.be/home_made_composites/documentation/SP_Composites_Guide.pdf (accessed on 1 June 2022).
  63. Benmokrane, B.; Ali, A.H.; Mohamed, H.M.; ElSafty, A.; Manalo, A. Laboratory assessment and durability performance of vinyl-ester, polyester, and epoxy glass-FRP bars for concrete structures. Compos. Part B Eng. 2017, 114, 163–174. [Google Scholar] [CrossRef] [Green Version]
  64. Benmokrane, B.; Elgabbas, F.; Ahmed, E.A.; Cousin, P. Characterization and Comparative Durability Study of Glass/Vinylester, Basalt/Vinylester, and Basalt/Epoxy FRP Bars. J. Compos. Constr. 2015, 19, 04015008. [Google Scholar] [CrossRef]
  65. Benmokrane, B.; Mohamed, H.M.; Manalo, A.; Cousin, P. Evaluation of Physical and Durability Characteristics of New Headed Glass Fiber–Reinforced Polymer Bars for Concrete Structures. J. Compos. Constr. 2017, 21, 04016081. [Google Scholar] [CrossRef] [Green Version]
  66. Chen, Y.; Davalos, J.F.; Ray, I.; Kim, H.Y. Accelerated aging tests for evaluations of durability performance of FRP reinforcing bars for concrete structures. Compos. Struct. 2007, 78, 101–111. [Google Scholar] [CrossRef]
  67. Uomoto, T.; Mutsuyoshi, H.; Katsuki, F.; Misra, S. Use of Fiber Reinforced Polymer Composites as Reinforcing Material for Concrete. J. Mater. Civ. Eng. 2002, 14, 191–209. [Google Scholar] [CrossRef]
  68. Benmokrane, B.; Wang, P.; Ton-That, T.M.; Rahman, H.; Robert, J.-F. Durability of Glass Fiber-Reinforced Polymer Reinforcing Bars in Concrete Environment. J. Compos. Constr. 2002, 6, 143–153. [Google Scholar] [CrossRef]
  69. Gowripalan, N.; Mohamed, H.M. Chloride-ion induced corrosion of galvanized and ordinary steel reinforcement in high-performance concrete. Cem. Concr. Res. 1998, 28, 1119–1131. [Google Scholar] [CrossRef]
  70. Papadakis, V.G. Effect of supplementary cementing materials on concrete resistance against carbonation and chloride ingress. Cem. Concr. Res. 2000, 30, 291–299. [Google Scholar] [CrossRef]
  71. El-Nemr, A.; Ahmed, E.A.; Barris, C.; Benmokrane, B. Bond-dependent coefficient of glass- and carbon-FRP bars in normal- and high-strength concretes. Constr. Build. Mater. 2016, 113, 77–89. [Google Scholar] [CrossRef]
  72. ASTM D7205/D7205M-21; Standard Test Method for Tensile Properties of Fiber Reinforced Polymer Matrix Composite Bars. ASTM International: West Conshohocken, PA, USA, 2021.
  73. ASTM D7913/D7913M; Standard Test Method for Bond Strength of Fiber-Reinforced Polymer Matrix Composite Bars to Concrete by Pullout Testing. ASTM International (ASTM): West Conshohocken, PA, USA, 2020; Volume 14, pp. 1–9. [CrossRef]
  74. Wu, G.; Dong, Z.-Q.; Wang, X.; Zhu, Y.; Wu, Z.-S. Prediction of Long-Term Performance and Durability of BFRP Bars under the Combined Effect of Sustained Load and Corrosive Solutions. J. Compos. Constr. 2015, 19, 04014058. [Google Scholar] [CrossRef]
  75. Elgabbas, F.; Ahmed, E.A.; Benmokrane, B. Physical and mechanical characteristics of new basalt-FRP bars for reinforcing concrete structures. Constr. Build. Mater. 2015, 95, 623–635. [Google Scholar] [CrossRef]
  76. Chinaka, E.; Shokouhian, M.; Head, M.; Efe, S. An experimental investigation of bond strength of AFRP bars with self-consolidating concrete. Civ. Eng. Des. 2019, 1, 148–160. [Google Scholar] [CrossRef]
  77. Tello NA, H.; Abdelrahman, M.; El Tonsy, S.; Weheda, F.; Abed, F.H. Effect of Harsh Environmental Exposure on the Flexural Performance of BFRP-RC Beams. In 2020 Advances in Science and Engineering Technology International Conferences (ASET); IEEE: Piscataway, NJ, USA, 2020; pp. 1–5. [Google Scholar]
  78. Alkhraisha, H.; Mhanna, H.; Tello, N.; Abed, F. Serviceability and flexural behavior of concrete beams reinforced with basalt fiber-reinforced polymer (BFRP) bars exposed to harsh conditions. Polymers 2020, 12, 2110. [Google Scholar] [CrossRef] [PubMed]
  79. Okamoto, T.; Matsubara, S.; Tanigaki, M.; Hasuo, K. Practical application and performance of PPC beams reinforced with braided FRP bars. Spec. Publ 1993, 138, 875–894. [Google Scholar]
  80. Rifai MAl El-Hassan, H.; El-Maaddawy, T.; Abed, F. Durability of basalt FRP reinforcing bars in alkaline solution and moist concrete environments. Constr. Build. Mater. 2020, 243, 118258. [Google Scholar] [CrossRef]
  81. Wang, Z.; Zhao, X.L.; Xian, G.; Wu, G.; Singh Raman, R.K.; Al-Saadi, S.; Haque, A. Long-term durability of basalt- and glass-fibre reinforced polymer (BFRP/GFRP) bars in seawater and sea sand concrete environment. Constr. Build. Mater. 2017, 139, 467–489. [Google Scholar] [CrossRef]
  82. Ellis, D.S.; Tabatabai, H.; Nabizadeh, A. Residual tensile strength and bond properties of GFRP bars after exposure to elevated temperatures. Materials 2018, 11, 346. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Wang, Z.; Zhao, X.L.; Xian, G.; Wu, G.; Raman, R.K.S.; Al-Saadi, S. Effect of sustained load and seawater and sea sand concrete environment on durability of basalt- and glass-fibre reinforced polymer (B/GFRP) bars. Corros. Sci. 2018, 138, 200–218. [Google Scholar] [CrossRef]
  84. Lu, C.; Ni, M.; Chu, T.; He, L. Comparative Investigation on Tensile Performance of FRP Bars after Exposure to Water, Seawater, and Alkaline Solutions. J. Mater. Civ. Eng. 2020, 32, 04020170. [Google Scholar] [CrossRef]
  85. Wu, G.; Wang, X.; Wu, Z.; Dong, Z.; Xie, Q. Degradation of basalt FRP bars in alkaline environment. Sci. Eng. Compos. Mater. 2015, 22, 649–657. [Google Scholar] [CrossRef]
  86. Brown, V.L.; Bartholomew, C.L. FRP reinforcing bars in reinforced concrete members. ACI Mater. J. 1993, 90, 34–39. [Google Scholar] [CrossRef]
  87. Toutanji, H.; Deng, Y. Deflection and crack-width prediction of concrete beams reinforced with glass FRP rods. Constr. Build. Mater. 2003, 17, 69–74. [Google Scholar] [CrossRef]
  88. Murphy, M.; O’mahony, M.; Lycett, C.; Jamieson, I. Recycled polymers for use as bitumen modifiers. J. Mater. Civ. Eng. 2001, 13, 306–314. [Google Scholar] [CrossRef] [Green Version]
  89. Yan, F.; Lin, Z. New strategy for anchorage reliability assessment of GFRP bars to concrete using hybrid artificial neural network with genetic algorithm. Compos. Part B Eng. 2016, 92, 420–433. [Google Scholar] [CrossRef] [Green Version]
  90. Sharaky, I.A.; Torres, L.; Baena, M.; Miàs, C. An experimental study of different factors affecting the bond of NSM FRP bars in concrete. Compos. Struct. 2013, 99, 350–365. [Google Scholar] [CrossRef]
  91. Nanni, A.; Boothby, T.E.; Bakis, C.E. Test Methods for FRP-Concrete Systems Subjected to Mechanical Loads: State of the Art Review. J. Reinf. Plast. Compos. 1995, 14, 524–558. [Google Scholar] [CrossRef]
  92. Benmokrane, B.; Tighiouart, B. Bond strength and load distribution of composite GFRP reinforcing bars in concrete. Mater. J. 1996, 93, 254–259. [Google Scholar]
  93. Kachlakev, D.I.; Lundy, J.R. Bond strength study of hollow composite rebars with different micro structure. In Proceedings of the Second International Conference on Composites in Infrastructure National Science Foundation, Tucson, AZ, USA, 5–7 January 1998. [Google Scholar]
  94. El Refai, A.; Abed, F.; Altalmas, A. Bond Durability of Basalt Fiber–Reinforced Polymer Bars Embedded in Concrete under Direct Pullout Conditions. J. Compos. Constr. 2015, 19, 04014078. [Google Scholar] [CrossRef]
  95. Abed, F.; Elmesalami, N. Bond-Dependent Coefficient of GFRP Bars in Concrete Beams. In Proceedings of the 2019 Advances in Science and Engineering Technology International Conferences (ASET), Dubai, United Arab Emirates, 26 March–10 April 2019; pp. 1–5. [Google Scholar]
  96. Emparanza, A.R.; de Caso YBasalo, F.; Kampmann, R.; Usabiaga, I.A. Evaluation of the bond-to-concrete properties of GFRP rebars in marine environments. Infrastructures 2018, 3, 44. [Google Scholar] [CrossRef] [Green Version]
  97. Altalmas, A.; El Refai, A.; Abed, F. Bond degradation of basalt fiber-reinforced polymer (BFRP) bars exposed to accelerated aging conditions. Constr. Build. Mater. 2015, 81, 162–171. [Google Scholar] [CrossRef]
  98. Hassan, M.; Benmokrane, B.; ElSafty, A.; Fam, A. Bond durability of basalt-fiber-reinforced-polymer (BFRP) bars embedded in concrete in aggressive environments. Compos. Part B Eng. 2016, 106, 262–272. [Google Scholar] [CrossRef]
  99. Dong, Z.; Wu, G.; Xu, B.; Wang, X.; Taerwe, L. Bond durability of BFRP bars embedded in concrete under seawater conditions and the long-term bond strength prediction. Mater. Des. 2016, 92, 552–562. [Google Scholar] [CrossRef]
  100. Yang, Y.; Li, Z.; Zhang, T.; Wei, J.; Yu, Q. Bond-Slip Behavior of Basalt Fiber Reinforced Polymer Bar in Concrete Subjected to Simulated Marine Environment: Effects of BFRP Bar Size, Corrosion Age, and Concrete Strength. Int. J. Polym. Sci. 2017, 2017, 16–24. [Google Scholar] [CrossRef]
  101. Seo, D.-W.; Park, K.-T.; You, Y.-J.; Kim, H.-Y. Enhancement in Elastic Modulus of GFRP Bars by Material Hybridization. Engineering 2013, 5, 865–869. [Google Scholar] [CrossRef] [Green Version]
  102. Seo, D.W.; Park, K.T.; You, Y.J.; Lee, S.Y. Experimental Investigation for Tensile Performance of GFRP-Steel Hybridized Rebar. Adv. Mater. Sci. Eng. 2016, 2016, 9401427. [Google Scholar] [CrossRef] [Green Version]
  103. Sun, Z.Y.; Yang, Y.; Qin, W.H.; Ren, S.T.; Wu, G. Experimental study on flexural behavior of concrete beams reinforced by steel-fiber reinforced polymer composite bars. J. Reinf. Plast. Compos. 2012, 31, 1737–1745. [Google Scholar] [CrossRef]
  104. You, Y.J.; Park, Y.H.; Kim, H.Y.; Park, J.S. Hybrid effect on tensile properties of FRP rods with various material compositions. Compos. Struct. 2007, 80, 117–122. [Google Scholar] [CrossRef]
  105. Cui, Y.-H.; Tao, J. A new type of ductile composite reinforcing bar with high tensile elastic modulus for use in reinforced concrete structures. Can. J. Civ. Eng. 2009, 36, 672–675. [Google Scholar] [CrossRef]
  106. Won, J.P.; Park, C.G.; Jang, C.I. Tensile fracture and bond properties of ductile hybrid FRP reinforcing bars. Polym. Polym. Compos. 2007, 15, 9–16. [Google Scholar] [CrossRef]
  107. Hwang, J.-H.; Seo, D.-W.; Park, K.-T.; You, Y.-J. Experimental Study on the Mechanical Properties of FRP Bars by Hybridizing with Steel Wires. Engineering 2014, 06, 365–373. [Google Scholar] [CrossRef]
  108. Liang, Y.; Sun, C.; Ansari, F. Acoustic Emission Characterization of Damage in Hybrid Fiber-Reinforced Polymer Rods. J. Compos. Constr. 2004, 8, 70–78. [Google Scholar] [CrossRef]
  109. Correia, L.; Cunha, F.E.M.; Mota, C.; Fangueiro, R.; Nunes, J.P. Pseudo-Ductile Braided Composite Rods (BCRs) Produced by Braidtrusion. In Proceedings of the European Conference on Composite Materials (ECCM), Munich, Germany, 26–30 June 2016. [Google Scholar]
  110. Zhou, Y.; Gao, H.; Hu, Z.; Qiu, Y.; Guo, M.; Huang, X.; Hu, B. Ductile, durable, and reliable alternative to FRP bars for reinforcing seawater sea-sand recycled concrete beams: Steel/FRP composite bars. Constr. Build. Mater. 2021, 269, 121264. [Google Scholar] [CrossRef]
  111. Dong, Z.; Wu, G.; Xu, Y. Experimental study on the bond durability between steel-FRP composite bars (SFCBs) and sea sand concrete in ocean environment. Constr. Build. Mater. 2016, 115, 277–284. [Google Scholar] [CrossRef]
  112. Dong, Z.; Wu, G.; Zhao, X.L.; Zhu, H.; Lian, J. Bond durability of steel-FRP composite bars embedded in seawater sea-sand concrete under constant bending and shearing stress. Constr. Build. Mater. 2018, 192, 808–817. [Google Scholar] [CrossRef]
  113. Szmigiera, E.D.; Protchenko, K.; Urba ski, M.; Garbacz, A. Mechanical properties of hybrid FRP bars and nano-hybrid FRP bars. Arch. Civ. Eng. 2019, 65, 97–110. [Google Scholar] [CrossRef] [Green Version]
  114. Ramezani, M.; Kim, Y.H.; Sun, Z. Probabilistic model for flexural strength of carbon nanotube reinforced cement-based materials. Compos. Struct. 2020, 253, 112748. [Google Scholar] [CrossRef]
  115. Ramezani, M.; Kim, Y.H.; Sun, Z. Elastic modulus formulation of cementitious materials incorporating carbon nanotubes: Probabilistic approach. Constr. Build. Mater. 2021, 274, 122092. [Google Scholar] [CrossRef]
Sustainability 14 08834 g001a 550Sustainability 14 08834 g001b 550
Figure 1. Mean retention of different FRP bars in different environmental solutions, based on data in Table 3: (a) retention value of GFRP bars, (b) retention value of BFRP bars, and (c) retention value of CFRP bars.
Figure 1. Mean retention of different FRP bars in different environmental solutions, based on data in Table 3: (a) retention value of GFRP bars, (b) retention value of BFRP bars, and (c) retention value of CFRP bars.
Sustainability 14 08834 g001aSustainability 14 08834 g001b
Sustainability 14 08834 g002 550
Figure 2. Scatter plot of tensile strength retention of different FRP bars in different environmental solutions and their trendlines, based on data in Table 3.
Figure 2. Scatter plot of tensile strength retention of different FRP bars in different environmental solutions and their trendlines, based on data in Table 3.
Sustainability 14 08834 g002
Sustainability 14 08834 g003 550
Figure 3. Mean retention of different FRP bars in different environmental solutions, based on data in Table 4: (a) retention value of GFRP bars, (b) retention value of BFRP bars, and (c) retention value of CFRP bars.
Figure 3. Mean retention of different FRP bars in different environmental solutions, based on data in Table 4: (a) retention value of GFRP bars, (b) retention value of BFRP bars, and (c) retention value of CFRP bars.
Sustainability 14 08834 g003
Sustainability 14 08834 g004 550
Figure 4. Scatter plot of bond strength of different FRP bars in different environmental solutions and their trendlines, based on data in Table 4.
Figure 4. Scatter plot of bond strength of different FRP bars in different environmental solutions and their trendlines, based on data in Table 4.
Sustainability 14 08834 g004
Sustainability 14 08834 g005 550
Figure 5. Mean value of improvement in tensile strength by hybridization process, based on data in Table 5, compared with steel bars.
Figure 5. Mean value of improvement in tensile strength by hybridization process, based on data in Table 5, compared with steel bars.
Sustainability 14 08834 g005
Sustainability 14 08834 g006 550
Figure 6. Mean value of the reduction in elastic modulus by hybridization process, based on Table 5, compared with steel bars (ST37).
Figure 6. Mean value of the reduction in elastic modulus by hybridization process, based on Table 5, compared with steel bars (ST37).
Sustainability 14 08834 g006
Table
Table 1. Typical properties of fibers for FRP composites.
Table 1. Typical properties of fibers for FRP composites.
Fiber TypeDensity
(kg/m3)		Tensile Strength
(MPa)		Young Modulus
(GPA)		Ultimate Tensile Strain (%)Thermal Expansion Coefficient
(10−6/°C)		Poisson’s Coefficient
E-glass2500345072.42.450.22
S-glass2500458085.53.32.90.22
Alkali resistant glass22701800–350070–762.0–3.0--
ECR2620350080.54.660.22
Carbon (high modulus)19502500–4000350–6500.5−1.2–0.10.20
Carbon (high strength)175035002401.1−0.6–0.20.20
Aramid (Kevlar 29)14402760624.4−2.0 longitudinal
59 radial		0.35
Aramid (Kevlar 49)144036201242.2−2.0 longitudinal
59 radial		0.35
Aramid (Kevlar 149)144034501751.4−2.0 longitudinal
59 radial		0.35
Aramid (Technora H)13903000704.4−6.0 longitudinal
59 radial		0.35
Aramid (SVM)14303800–42001303.5--
Basalt (Albarrie)28004840893.18-
Table
Table 2. Typical properties of thermosetting matrices.
Table 2. Typical properties of thermosetting matrices.
PropertyMatrix
PolyesterEpoxyVinyl Ester
Density (kg/m3)1200–14001200–14001150–1350
Tensile strength (MPa)34.5–10455–13073–81
Longitudinal modulus (GPa)2.1–3.452.75–4.103.0–3.5
Poisson’s coefficient0.35–0.390.38–0.400.36–0.39
Thermal expansion coefficient (10−6/°C))55–10045–6550–75
Moisture content (%)0.15–0.600.08–0.150.14–0.30
Table
Table 3. Tensile behavior of FRP bars, based on different solutions, diameters, and time.
Table 3. Tensile behavior of FRP bars, based on different solutions, diameters, and time.
TypeBar Diameter (mm)SolutionDaysTensile Strength (MPa)Ref.Retention (%)
GFRP9.53Seawater70754[66]98
GFRP9.53Alkaline60482[66]52
GFRP6High-performance seawater sea sand concrete631036[81]97.9
GFRP6Normal seawater sea sand concrete42728[81]68.7
GFRP19--633.8[82]98
GFRP19--535.7[82]83
GFRP12.7Saline solution60781[50]99
GFRP12.7Saline solution365702[50]89
GFRP6High-performance seawater sea sand concrete/20%42988[83]93.7
GFRP6High-performance seawater sea sand concrete/20%63617[83]58.6
GFRP8Alkaline451359.8[84]96.4
GFRP8Alkaline901061.4[84]75.3
GFRP8Alkaline135994.7[84]70.5
GFRP8Alkaline180974.8[84]69.1
GFRP8Seawater451402.6[84]99.5
GFRP8Seawater901298.1[84]92.09
GFRP8Seawater1351275.2[84]90.4
GFRP8Seawater1801152.9[84]81.7
BFRP6High-performance seawater sea sand concrete211341[81]99.3
BFRP6Normal seawater sea sand concrete63352[81]26
BFRP6Alkaline211385[74]99.1
BFRP6Alkaline63852[74]60.9
BFRP6Deionized water421320[74]94.4
BFRP6Salt421320[74]94.4
BFRP6Acid421301[74]93.1
BFRP7Alkaline421012[75]60.2
BFRP8Alkaline301409[75]89.9
BFRP6Alkaline63802[85]60.58
BFRP12Alkaline211036[85]95.18
BFRP6High-performance seawater sea sand concrete/20%421276[83]94
BFRP6High-performance seawater sea sand concrete/40%63586[83]43.2
BFRP8Alkaline451194.7[84]91.9
BFRP8Alkaline901148.9[84]88.4
BFRP8Alkaline1351078.5[84]82.9
BFRP8Alkaline1801008.6[84]77.6
BFRP8Seawater451095.2[84]84.2
BFRP8Seawater901028.5[84]79.1
BFRP8Seawater135998.7[84]76.8
BFRP8Seawater180984.8[84]75.7
CFRP3Alkaline702476[66]96
CFRP8Alkaline452059[84]99.03
CFRP8Alkaline901966.6[84]94.5
CFRP8Alkaline1351928.8[84]92.7
CFRP8Alkaline1801720.5[84]82.7
CFRP8Seawater451894.9[84]91.1
CFRP8Seawater901758.7[84]84.5
CFRP8Seawater1351692.5[84]81.4
CFRP8Seawater1801638.3[84]78.8
Table
Table 4. Bonding behavior of FRP bars in different solutions.
Table 4. Bonding behavior of FRP bars in different solutions.
FRP TypeBar Diameter (mm) and Sizing ShapeSolutionTemperatureDaysMean Value of Bond Strength (MPa)Ref.
GFRP10, Sand coatingSeawater236014.73[96]
GFRP10, Sand coatingSeawater406018.44[96]
GFRP10, Sand coatingSeawater606016.29[96]
GFRP10, Sand coatingSeawater2312015.7[96]
GFRP10, Sand coatingSeawater4012014.7[96]
GFRP10, Sand coatingSeawater6012015.85[96]
GFRP10, Helical wrapSeawater236016.26[96]
GFRP10, Helical wrapSeawater406016.84[96]
GFRP10, Helical wrapSeawater606018.17[96]
GFRP10, Helical wrapSeawater2312019.9[96]
GFRP10, Helical wrapSeawater4012019.63[96]
GFRP10, Helical wrapSeawater6012017.15[96]
GFRP10, LugsSeawater236018.62[96]
GFRP10, LugsSeawater406020.71[96]
GFRP10, LugsSeawater606020.59[96]
GFRP10, LugsSeawater2312021.2[96]
GFRP10, LugsSeawater4012019.68[96]
GFRP10, LugsSeawater6012019.93[96]
GFRP12, RibbedSeawater603018.46[97]
GFRP12, RibbedSeawater606018.22[97]
GFRP12, RibbedSeawater609016.44[97]
GFRP12, RibbedAlkaline603018.74[97]
GFRP12, RibbedAlkaline606018.3[97]
GFRP12, RibbedAlkaline609018.17[97]
GFRP12, RibbedAcid603020[97]
GFRP12, RibbedAcid606017[97]
GFRP12, RibbedAcid609013.74[97]
BFRP12, Deformed surfaceAlkaline404516.48[98]
BFRP12, Deformed surfaceAlkaline504521.4[98]
BFRP12, Deformed surfaceAlkaline604520.37[98]
BFRP12, Deformed surfaceAlkaline409010.64[98]
BFRP12, Deformed surfaceAlkaline509020.59[98]
BFRP12, Deformed surfaceAlkaline609020.78[98]
BFRP12, Deformed surfaceAlkaline4018015.72[98]
BFRP12, Deformed surfaceAlkaline5018019.24[98]
BFRP12, Deformed surfaceAlkaline6018021.81[98]
BFRP12, Sand-coatedTap water806029.4[97]
BFRP12, Sand-coatedSeawater603029.4[97]
BFRP12, Sand-coatedSeawater606025.6[97]
BFRP12, Sand-coatedSeawater609023.9[97]
BFRP12, Sand-coatedAlkaline603026.2[97]
BFRP12, Sand-coatedAlkaline606026.53[97]
BFRP12, Sand-coatedAlkaline609024.3[97]
BFRP12, Sand-coatedAcid603023.22[97]
BFRP12, Sand-coatedAcid606022.92[97]
BFRP12, Sand-coatedAcid609022.74[97]
BFRP8, Sand-coatedSeawater40159.54[99]
BFRP8, TwinedArtificial seawater406020.8[100]
BFRP8, TwinedArtificial seawater409017.8[100]
BFRP13, RibbedArtificial seawater502708.6[99]
CFRP8, RibbedSeawater253024.56[99]
CFRP8, RibbedSeawater254524.01[99]
CFRP8, RibbedSeawater401526.24[99]
CFRP8, RibbedSeawater403028.9[99]
CFRP8, RibbedSeawater404531.25[99]
CFRP8, RibbedSeawater553025.64[99]
CFRP8, RibbedSeawater554523.13[99]
Table
Table 5. Effects of hybridization process on the tensile and elastic modulus of FRP bars.
Table 5. Effects of hybridization process on the tensile and elastic modulus of FRP bars.
MaterialsSteel to FRP RatioDiameterTensile Strength (MPa)Improvement in Tensile StrengthElastic Modulus (GPa)Reduction in Elastic ModulusRef.
CoreCrust
Steel rodGlass9.2131122.7203.4376.5−61.75[107]
Steel rodGlass29.2131269.7243.1694.9−52.55[107]
Steel rodGlass51131258.8240.22111.2−44.4[107]
Steel rodGlass76.213833.9125.38148.2−25.9[107]
Steel wireGlass9.8131150.3210.8962.6−68.7[107]
Steel wireGlass31.8131245.4236.5999.8−50.1[107]
Steel wireGlass57131323.2257.62126.9−36.55[107]
Steel wireGlass70.3131156.4212.54157.3−21.35[107]
Steel rebarGlass57.213669.580.95110.1−44.95[107]
Steel wireGlass10.9161232.7233.1658.5−70.75[107]
Steel wireGlass36.9161238.6234.7697.2−51.4[107]
Steel wireGlass60.2161283.1246.78143.3−28.35[107]
Steel wireGlass70.1161361.8268.05155.1−22.45[107]
Steel rebarGlass36.616779.5110.68100.4−49.8[107]
Steel rebarGFRP63.216596.561.22146.8−26.6[107]
Steel–GlassCarbon–Twaron-1062869.73142.11−28.945[105]
GlassCarbon-9.51191221.89--[108]
Steel rebarGlass9.513762.1105.9753.7−73.15[101]
Dispersed Steel wireGlass30.813688.286.0098.3−50.85[101]
Steel rebarGlass47.913715.493.35133.2−33.4[101]
Steel wireGlass25191217.9229.1690.8−54.6[102]
Steel wireGlass42.3191197.2223.57123.2−38.4[102]
Steel wireGlass66.319781.8111.30118.5−40.75[102]
Steel rebarGlass24.719899.6143.1488.8−55.6[102]
Steel rebarGlass45.919537.745.32120.7−39.65[102]
Steel rebarGlass67.919466.626.11148.2−25.9[102]
CarbonGlass-12.71281246.2280.4−59.8[104]
GlassCarbon-12.71083192.7078.9−60.55[104]
Dispersed CarbonGlass-12.71045182.4362.4−68.8[104]
SteelGlass33.34705.190.5781.1−59.45[109]
SteelGlass66.64699.5389.0699.4−50.3[109]
SteelBasalt66.64779.66110.72110.4−44.8[109]
SteelBasalt7612492.833.19129.17−35.415[47]
CarbonAramid--800116.2263−68.5[47]
CarbonGlass--55048.6543−78.5[47]
CarbonAramid–Glass--50335.9537−81.5[47]
Steel barBasalt56.210798.6115.8488−56[44]
Steel wireBasalt28.2101027177.5755−72.5[44]
CarbonBasalt-10869.7135.05106−47[44]
SteelGlass56.210798.6115.8496.41−51.795[59]
SteelCarbon-10950156.76129−35.5[110]
SteelCarbon-14825122.97132−34[110]
SteelGlass-1066278.9292−54[110]
SteelCarbon-1271693.51112−44[110]
SteelCarbon-1470690.81119−40.5[110]
SteelGlass-1262368.3877−61.5[110]
SteelCarbon-1670089.19118−41[110]
SteelBasalt-12.5480.929.9797.8−51.1[111]
SteelBasalt-1571894.05108.9−45.55[112]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mirdarsoltany, M.; Abed, F.; Homayoonmehr, R.; Alavi Nezhad Khalil Abad, S.V. A Comprehensive Review of the Effects of Different Simulated Environmental Conditions and Hybridization Processes on the Mechanical Behavior of Different FRP Bars. Sustainability 2022, 14, 8834. https://doi.org/10.3390/su14148834

AMA Style

Mirdarsoltany M, Abed F, Homayoonmehr R, Alavi Nezhad Khalil Abad SV. A Comprehensive Review of the Effects of Different Simulated Environmental Conditions and Hybridization Processes on the Mechanical Behavior of Different FRP Bars. Sustainability. 2022; 14(14):8834. https://doi.org/10.3390/su14148834

Chicago/Turabian Style

Mirdarsoltany, Mohammadamin, Farid Abed, Reza Homayoonmehr, and Seyed Vahid Alavi Nezhad Khalil Abad. 2022. "A Comprehensive Review of the Effects of Different Simulated Environmental Conditions and Hybridization Processes on the Mechanical Behavior of Different FRP Bars" Sustainability 14, no. 14: 8834. https://doi.org/10.3390/su14148834

APA Style

Mirdarsoltany, M., Abed, F., Homayoonmehr, R., & Alavi Nezhad Khalil Abad, S. V. (2022). A Comprehensive Review of the Effects of Different Simulated Environmental Conditions and Hybridization Processes on the Mechanical Behavior of Different FRP Bars. Sustainability, 14(14), 8834. https://doi.org/10.3390/su14148834

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
