Article

A Comparative Study of Forest Fire Mapping Using GIS-Based Data Mining Approaches in Western Iran

1
Department of Social Sciences, College of Basic Education, University of Halabja, Kurdistan Region, Halabja 46006, Iraq
2
Government Employee of Natural Resources and Watershed Organization of Iran, Tehran 1955756113, Iran
3
Environmental Sciences-Environment Assessment, Islamic Azad University of Hamedan, Hamedan 413565174, Iran
4
Department of Forestry, Faculty of Natural Resources, University of Guilan, Someh Sara 419961377, Iran
5
College of Natural Resources and Environment, South China Agricultural University, Guangzhou 510642, China
6
Key Laboratory of Sustainable Forest Ecosystem Management-Ministry of Education, College of Forestry, Northeast Forestry University, 26 Hexing Road, Harbin 150040, China
*
Author to whom correspondence should be addressed.
Sustainability 2022, 14(20), 13625; https://doi.org/10.3390/su142013625
Submission received: 29 September 2022 / Revised: 14 October 2022 / Accepted: 18 October 2022 / Published: 21 October 2022
(This article belongs to the Section Hazards and Sustainability)

Abstract

:
Mapping fire risk accurately is essential for the planning and protection of forests. This study aims to map fire risk (probability of ignition) in Marivan County of Kurdistan province, Iran, using the data mining approaches of the evidential belief function (EBF) and weight of evidence (WOE) models, with an emphasis placed on climatic variables. Firstly, 284 fire incidents in the region were randomly divided into two groups, including the training group (70%, 199 points) and the validation group (30%, 85 points). Given the previous studies and conditions of the region, the variables of slope percentage, slope direction, altitude, distance from rivers, distance from roads, distance from settlements, land use, slope curvature, rainfall, and maximum annual temperature were considered for zoning fire risk. Then, forest fire risk maps were prepared using the EBF and WOE models. The performance of each model was examined using the Relative Operating Characteristic (ROC) curve. The results showed that WOE and EBF are effective tools for mapping forest fire risks in the study area. However, the WOE model shows a slightly higher Area Under the Curve value (0.896) compared to that of the EBF model (0.886), indicating a slightly better performance. The results of this study can provide valuable information for preventing forest fires in the study area.

1. Introduction

Forest fire is inevitable and plays a vital role in vegetation sequencing and landscape transformation [1]. This type of fire is widely considered a serious risk exerting negative effects on the environment and society in many countries of the world [2]. In recent years, severe forest fires have occurred in some countries, such as the United States, Sweden, China, Indonesia, and Portugal, because of the effects of climatic events caused by climate change, including long periods of drought accompanied by dry and hot air [3]. It is forecast that forest fires will increase in the future due to continuing climate change [4]. In addition, human activities, e.g., the combustion of garbage, stubble burning, and discarded cigarettes play key roles in the ignition, combustion, and spread of forest fires [5,6].
Since forest fires follow a nonlinear and complex process under the effects of various factors, it is difficult to develop highly accurate models for predicting forest fire risks [7]. Various factors have been utilized to identify the potential of forest fire risks, among which one can refer to slope [8], distance from roads [9], aspect [10], altitude [11], rainfall [12], temperature [13], distance from rivers [14], land use [15], vegetation [16], distance from settlements, wind speed [17], curvature [18], and the topographic wetness index [19]. Given that forest fires are caused by many factors, it is necessary to consider various influencing factors as much as possible for high-precision fire risk mapping in specific regions.
Forest fire risk mapping is regarded as an effective and important tool for fire forecasting, which is essential to manage and protect forest areas [8,20]. Risk potential maps can provide planners and managers with useful information to better monitor areas with higher forest fire risk potential. In addition to considering influencing factors adequately, the adopted model is one of the most important factors in mapping fire risk. In general, models employed in zoning fire risks can be divided into (1) statistical and data-based models, (2) machine-based learning models, (3) multi-criteria decision-making models, and (4) integrated models [21]. In addition, many models have been developed to predict forest fire risks, among which one can refer to simple statistical methods, including Poisson regression [22], binary logistic regression [13], and linear regression [20]. In this regard, more complex models, for predicting forest fire risks, include Pareto distribution [23], favorability functions [24], and the numerical simulation-based approach [3], as well as complex mathematical models, such as ELMFIRE [25]. Moreover, some machine learning algorithms have been employed in recent years to predict forest fire risks, such as the evidential belief function (EBF) [13], support vector machine [14], random forest [26], and neural fuzzy algorithm [10].
Recently, Geographic Information System (GIS)-based models have been developed for forest fire probability modeling. In these methods, it is assumed that conditions that have led to wildfires’ occurrence in the past, are likely to continue causing fires in the future as well [27]. GIS-based models such as weight of evidence (WOE) were initially introduced to identify and explore mineral deposits [28] and for landslide susceptibility mapping [29]. Carrara et al. [30] consider conditional probability analysis a valuable risk zoning tool, especially if appropriate factors and a good understanding of risk factors exist. Later, this model was applied to forest fire risk mapping and showed good performance in case studies, such as in China [31] and Iran [32]. The main advantages of the EBF and WOE methods are that they calculate the weighted value of the factors based on a statistical formula and thus avoid the subjective choice of weighting factors. In addition, input maps with missing data (incomplete coverage) can be accommodated in the model and under sampled data do not significantly impact on the results [29,33]. Results of studies show that data-driven approaches are the most frequently applied methods, while ensemble approaches are more accurate [21].
Iran is one of the countries in the Middle East and North of Africa that face high forest fire risk, with an annual average number of 130 fires and an annual average burnt area of 5400 ha [34]. Therefore, mapping fire risk plays a crucial role in forest fire management in Iran because knowing the location with the highest risk is essential to minimize threats to resources, life, and property. To identify fire risk potential in forests more accurately, it is vital to compare the performance of different methods and techniques as well as consider influencing factors comprehensively for a specific study. Against this background, this study aims to identify the potential for forest fire risks using the data mining approaches of EBF and WOE by considering various factors with an emphasis put on climatic variables in Marivan County in the Kurdistan province of western Iran. The results of this study will be valuable for the planning and protection of forests in Iran.

2. Materials and Methods

2.1. Study Area

This study with an area of 231,721.5 hectares was conducted in Marivan County, located in the west of the Kurdistan province, Iran. This city is located between the eastern longitude of 45°58′50″ to 46°46′6″ and the northern latitude of 35°20′56″ to 35°49′10″, with the elevation ranging from ~1000 m to 3000 m. Figure 1 shows the location and topography of the study area.

2.2. Preparing Layers and Maps

The 284 fires having occurred in Marivan County were divided into two parts, including the training data (70%; 199 incidents) and the validation data (30%; 85 incidents). The fire information was provided by the Department of Natural Resources and Watershed Management of Marivan City. Then altitude, slope percentage, slope direction, distance from roads, distance from rivers, distance from settlements, land use, slope curvature, average annual rainfall, and average temperature, which have been identified as factors affecting the potential of forest fire risks, were used to produce the fire risk zoning map. The methodology used in this study is graphically represented in Figure 2.
To classify the criteria and layers, the expert opinion method was utilized [35]. The altitude map was prepared in ArcGIS 10.3 software based on the digital elevation model (DEM) obtained from the ALOS PALSAR satellite as well as the Alaska Satellite Facility website (https://vertex.daac.asf.alaska.edu/ accessed on 31 October 2021), and was divided into six classes. Furthermore, the maps of the slope percentage, the slope, and the slope curvature were prepared based on the DEM, and were classified into six, nine, and three classes, respectively. The land use layer was obtained from the Forests, Range and Watershed Management Organization, and was divided into different classes based on varied uses. The map of distance from roads, distance from settlements, and distance from rivers, was prepared using the digital topographic map of 1:50,000 and through applying the functions of Distance in the ArcGIS environment. The monthly 20-year data (2000–2020) at eleven rainfall and climatology stations inside and outside the study area were employed to prepare the annual rainfall and maximum annual temperature map, through employing the Inverse Distance Weighting (IDW) method, which was divided into five classes. Figure 3 shows the maps of the parameters effective in identifying fire risk potential of forests.

2.3. Weight of Evidence (WOE)

WOE is a model used to integrate spatial information, being known as one of the models of the Bayesian theory within the framework of linear logarithms [36]. The weight of each factor is calculated based on Equations (1) and (2).
W i + = N p i x 1 N p i x 1 + N p i x 2 N p i x 3 N p i x 3 + N p i x 4
W i = N p i x 2 N p i x 1 + N p i x 2 N p i x 4 N p i x 3 + N p i x 4
where:
W i + represents the positive weight indicating a positive relationship between the predictable variable and forest fire. W i indicates that their correlation is negative. In addition, the difference between W i + and W i is weight contrast, with magnitude showing the entire spatial association between the predictable variable and forest fire [37]; moreover, Equation (3) represents its computational equation.
N p i x 1 denotes the number of fire occurrence pixels in each class.
N p i x 2 represents (the total number of fire occurrence pixels in each map) − (the number of fire occurrence pixels in each class).
N p i x 3 shows (the number of pixels in each class) − (the number of fire occurrence pixels in each class).
N p i x 4 represents (the total number of pixels in each map) − (the total number of fire occurrence pixels in each map) − (the number of pixels in each class) + (the number of fire occurrence pixels in each class) [38].
C i = W i + W i
To obtain the final weight for each factor, positive and negative weights of various classes of each factor are added together. If a factor’s weight is positive, it will play a role in the fire occurrence; in contrast, if its weight is negative, it will have no role in the fire occurrence. In addition, some factors have a negligible effect on the fire occurrence, with their weight being 0 or close to 0. Upon entering the weights in the ArcGIS environment on thematic maps, the weighted thematic map was produced. In addition, by integrating all these maps, the fire occurrence potential was forecast.

2.4. Evidential Belief Function (EBF)

This model incorporates four basic functions of the degree of belief (Bel), degree of disbelief (Dis), degree of uncertainty (Unc), and degree of plausibility (Pls) within the range of 0 and 1. The data extracted from the function EBF estimates both the spatial correlation between effective factors and fire occurrence, and the spatial correlation between classes of each of the effective factors [39]. Equations for the four above mentioned functions are estimated by Equations (4)–(8) as follows
B e l = B e l 1 + B e l 2 + + B e l n 1 i = 2 n ( B e l i 1 D i s i D i s i 1 B e l i )
D i s = D i s 1 + D i s 2 + + D i s n 1 i = 2 n ( B e l i 1 D i s i D i s i 1 B e l i )
U n c = i = 2 n ( U n c i 1 U n c i + B e l i 1 U n c i + B e l i U n c i 1 + D i s i 1 U n c i + D i s i U n c i 1 ) 1 i = 2 n ( B e l i 1 D i s i D i s i 1 B e l i )
P l s = B e l + U n c
B e l + U n c + D i s = 1
In these equations, n denotes the number of factors. One of the features of the EBF model is that Bel, Dis, and Unc functions are within the range of 0 and 1. Thus, if Unc equals 1, Bel and Dis will equal 0, and in the case of the sum of Bel and Dis equaling 1, the degree of Unc will equal 0.
First, the functions of the models were formulated in Excel software. Then the weights calculated in this step were added to the variables in the ArcGIS environment. Finally, the weighted variables were summed together in the ArcGIS environment and a forest fire susceptibility map was prepared.
Classification was performed based on natural breaks methods. Finally, the prepared map was divided into five hazard classes, namely, very low, low, moderate, high, and very high risk.

2.5. Assessment of Models

The performance of the WOE and EBF models was examined using the Relative Operating Characteristic (ROC) curve. In the ROC curve, being a graph, the ratio of pixels for predicting the fire occurrence or nonoccurrence on the horizontal axis (true positive or I-specificity) is shown against their complementary values, i.e., the ratio of pixels predicted incorrectly (false positive or sensitivity) on the vertical axis. This curve was calculated and drawn in SPSS Statistics Version 16.0 (IBM, Chicago, IL, USA). The area under this curve is named the “Area Under Curve (AUC)”. In addition, the model with the largest AUC value shows a relatively better performance. An AUC value equaling 0.5 is considered the neutral model. Moreover, the closer this value is to 1, the more the models’ efficiency will increase [40]. In this part, in order to validate the models, data on 85 fire occurrences in the study area were considered the validation data.

3. Results

Table 1 shows the results of the relationship between each effective factor and fire occurrence points, using the WOE method and the EBF. According to the table, the western and southwestern directions in both models had the highest impact, yet the southeastern, northeastern, and northern directions had the least impact on the fire occurrence. Moreover, in both models, slopes of 0–10% and 10–20% had the highest impact, yet slopes higher than 50% had the lowest impact on fire occurrence. In addition, the highest number of fires, in both models, occurred in the altitude class of 1196–1500 m, yet the lowest number of fires in the two models of WOE and EBF occurred in the altitude classes of 1800–2100 and 2400–3153 m, respectively. Regarding distance from settlements, the fire probability decreased with an increase in the distance from settlements. The highest fire risk in the two models of WOE and EBF was observed at the distances of 1000–1500 and 1550–2000 m from rivers, respectively. In addition, the lowest fire risk in both models was observed at a distance of 0–500 m from rivers. Additionally, given the weighting results, there was a reverse relationship between distance from roads and fire occurrence potential; in other words, the shorter the distance from roads, the greater the fire probability would be. The investigation of the land use map demonstrated that fires occurred more often in the sparse forests. Given the results of both models, the incidence rate of fires increased with an increase in rainfall, with the highest fire risk having been observed in the rainfall class of 900–991 mm. Furthermore, the lowest rates of fires in the models of WOE and EBF were observed in the classes of 600–700 mm and 535–600 mm, respectively. Considering the results of both models, fire incidents increased with an increase in the maximum annual temperature, with the highest fire risk having been observed for the temperature class of 35–35.4 °C. Moreover, the lowest fire incidents in the models of WOE and EBF were observed in the classes of 33.2–33.5 °C and 33.5–34 °C, respectively. Furthermore, investigation of the slope curvature map demonstrated that the highest fire potential occurred in both models on the flat slope, with the lowest fire potential occurring in both models on the concave slope.
The fire potential maps using the WOE and EBF models are illustrated in Figure 4. The areas and percentage of floor areas of potential fire occurrence are listed in Table 2. As Table 2 shows, the results of the two models of WOE and EBF showed that about 76 and 62% of the study area were in the moderate to very high classes, respectively.
To validate the fire potential maps, the ROC curve was utilized. The area under the ROC curve is named AUC; if its value is less than 0.5, it will indicate the inaccuracy of the model, and if its value ranges from 0.5 to 1, it will indicate the accuracy of the model for predicting the presence or lack of any fire potentials. Table 3 shows AUC values for the evaluated models based on the validation data presented. In addition, Figure 5 presents the ROC curve of the evaluated models based on the validation data. Among the WOE and EBF models that were studied, the highest accuracy was related to the WOE model (0.896). Hence, in terms of identifying fire potentials, the WOE model delivered a better performance than the EBF model.

4. Discussion

Fire is one of the major causes of natural disturbances in forest ecosystems, greatly affecting forest resources, climate change, and ecological sequences [41] as well as a major factor in destroying forests, and threatening such vital ecosystems [42]. In this study, the two models of weight of evidence and evidential belief function were used to identify fire risk potentials. The selection of effective parameters causing fires is a crucial issue in modeling fire risk potential in forests. A comprehensive study was conducted by considering various parameters for mapping forest fire risk in this study, including altitude, slope percentage, slope direction, slope curvature, land use, distance from settlements, distance from roads, distance from rivers, average annual rainfall, and maximum annual temperature.
The highest fire potential in the present study was observed in the lowest altitude class, which could have been due to the higher concentration of human activities in lower altitude classes. This is consistent with the results of the previous study of Dong et al. [43]. In contrast, Zhang et al. [11] and Hong et al. [14] stated that fire risks were positively correlated to altitude, with this finding being inconsistent with the results of the present study.
Most fires occurred on slopes of less than 50% in the study region. The reason for this could be the higher human activity on less steep slopes. Slope direction significantly affects local conditions, including sun exposure, dominant wind direction, rainfall amount, and morphological structure, being in turn correlated with fire events [44]. Accordingly, slope direction was another factor effective in causing fire, with the highest fire occurrence being observed in the western and southwestern directions. In fact, the western and southern directions are drier because of them receiving more sunlight. In addition, it goes without saying that dry vegetation is more susceptible to fire. Consistent with the present study, Ashtiani et al. [45] reported that the highest incidents of fire occurred in the southern and southwestern directions. There is higher human activity in the neighborhood of residential areas, so more fires occur in such places [46]. In addition, fire events decreased with an increase in the distance from residential areas. Though humans are the major cause of fire, they play a dual role in the occurrence and spread of fire [12].
The layer of distance from waterways plays a dual role in the occurrence of fire as well. Human activity in the vicinity of drainage networks and rivers is higher and plays a leading role in the occurrence of fire and the increase in its incidence. On the other hand, it plays a reducing role in the occurrence of fire. This is because there is more moisture in the vicinity of rivers and lakes, with this moisture having an inhibiting and reducing role in the occurrence of fire. Based on the results of the present study, a decrease in the distance from rivers led to the incidence of fire decreasing.
The results of the models show that there is a reverse correlation between the distance from roads and fire potential; in other words, the shorter the distance from roads, the higher the fire probability will be. This is due to the higher human activity near roads. The results of this part are in line with the study by Mota et al. [47] in Matogroso, Brazil. Investigation of the land use map showed that fires occur more often in lands with sparse forest use. Accordingly, Bazyar et al. [48] stated that the highest fire incidence occurred in land uses of dense forests.
Hong et al. [14] examined fire risk potential using data mining approaches. They stated that climatic parameters were less important at a local scale, but they were more important at a regional scale. Meanwhile, the attributes of topography, vegetation, and human activity were more important at a local scale. From among the climatic factors affecting fire events, one can refer to temperature and precipitation. In the Zagros forests, the highest rainfall occurs in winter and spring and the lowest rainfall occurs in summer. In general, the lowest rainfall occurs from June to September [1]. Based on the results of both models, fire incidents increased with an increase in the rainfall and maximum annual temperature. An increase in the amount of rainfall increases vegetation density, thereby increasing the amount of fuel. On the other hand, increases in the temperature make the fuel dry out, resulting in an increased possibility of fire. These findings were in line with those of the study by Mhawej et al. [49]. Zhang et al. [11] reported that the fire risk was positively correlated to temperature in the grasslands of China, being consistent with the findings of the present study.
Investigation of the slope curvature map demonstrated that the highest fire potential occurred on flat slopes, and that the lowest fire potential was observed on concave slopes, in both models. Based on the study of Nami et al. [50], the highest fire incidence was observed on flat slopes, consistent with the results of the present study. Bazyar et al. [48] obtained similar results as well.
The results of the models employed in the present study were evaluated and validated using the system performance attribute curves. Based on the evaluation criterion utilized in this study, i.e., ROC, and in accordance with the validation data, the WOE model (0.896) delivered a better performance than the EBF model (0.886). In addition, the good performance of both models in identifying forest and rangeland fire risk potential demonstrated that the coding, processing, and modeling tasks were performed successfully in this study. Furthermore, the results of the two models showed that about 76% and 62% of the study area fell in the middle to very high classes, respectively. Nami et al. [50] investigated fire risk potential in the Hyrcanian region of Iran using the EBF model and concluded that the EBF model (0.841) delivered a good performance in terms of fire risk potential. In another study, Pourghasemi [13] examined fire risk potential in Iran using the EBF model and reported that this model delivered a good performance (0.819) in identifying fire risk potential.

5. Conclusions

In the present study, the two models of EBF and WOE were employed to map the fire risk potential of forests in Marivan County of Kurdistan province, Iran. The maps produced by these two models were divided into the five potential categories of very low, low, medium, high, and very high. The largest area of regions with very high potential was observed in the WOE model. Overall, the results of this study demonstrated that 62–76% of the study area had medium to very high fire risk potentials. Thus, some measures must be adopted to prevent and address the possible dangers of fire incidents in the forests of the study region. Such measures should incorporate an increase in the monitoring of areas with high and very high fire risk potentials, building fire barriers, and allocating more funding to the firefighting departments of forests. From among other solutions, one can refer to equipping villagers, stock raisers, and users of natural areas with firefighting equipment. Most of the fires were prompted by humans, which could be caused by releasing bottles of water or glass bottles in forests. The other factor effective in the occurrence of fires was the incorrect method of turning the fire on or off. Thus, one of the ways to prevent forest fire is to create a culture in terms of the importance and method of utilizing these national resources. In the end, one can conclude that producing an accurate and reasonable location fire risk map may assist managers and planners with identifying areas with high fire risk potential to manage crises in vulnerable areas.

Author Contributions

Conceptualization, O.A.M. and S.R.; methodology, S.V.; software, S.R.; validation, S.R., C.Y. and M.M.K.; formal analysis, O.A.M.; investigation, S.V.; resources, M.M.K.; data curation, S.R.; writing—original draft preparation, S.R.; writing—review and editing, C.Y. and T.H.; visualization, S.R.; supervision, O.A.M. and T.H.; project administration, O.A.M.; funding acquisition, T.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding This research was financially supported by the National Key Research and Development Program of China, Key Projects for Strategic International Innovative Cooperation in Science and Technology (2018YFE0207800), Youth Lift Project of China Association for Science and Technology (No. YESS20210370), and Heilongjiang Province Outstanding Youth Joint Guidance Project (No. LH2021C012).

Data Availability Statement

Data are available based on reasonable request towards the lead or corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, X.; Wotton, B.M.; Cantin, A.S.; Parisien, M.-A.; Anderson, K.; Moore, B.; Flannigan, M.D. cffdrs: An R package for the Canadian forest fire danger rating system. Ecol. Process. 2017, 6, 5. [Google Scholar] [CrossRef]
  2. Fox, D.; Laaroussi, Y.; Malkinson, L.; Maselli, F.; Andrieu, J.; Bottai, L.; Wittenberg, L. POSTFIRE: A model to map forest fire burn scar and estimate runoff and soil erosion risks. Remote Sens. Appl. Soc. Environ. 2016, 4, 83–91. [Google Scholar] [CrossRef]
  3. Thach, N.N.; Ngo, D.B.-T.; Xuan-Canh, P.; Hong-Thi, N.; Thi, B.H.; Nhat-Duc, H.; Dieu, T.B. Spatial pattern assessment of tropical forest fire danger at Thuan Chau area (Vietnam) using GIS-based advanced machine learning algorithms: A comparative study. Ecol. Inform. 2018, 46, 74–85. [Google Scholar] [CrossRef]
  4. Brown, K.J.; Hebda, N.J.; Conder, N.; Golinski, K.G.; Hawkes, B.; Schoups, G.; Hebda, R.J. Changing climate, vegetation, and fire disturbance in a sub-boreal pine-dominated forest, British Columbia, Canada. Can. J. For. Res. 2017, 47, 615–627. [Google Scholar] [CrossRef]
  5. Tanvir, M.; Mujtaba, I. Neural network based correlations for estimating temperature elevation for seawater in MSF desalination process. Desalination 2006, 195, 251–272. [Google Scholar] [CrossRef]
  6. Tariq, A.; Shu, H.; Siddiqui, S.; Munir, I.; Sharifi, A.; Li, Q.; Lu, L. Spatio-temporal analysis of forest fire events in the Margalla Hills, Islamabad, Pakistan using socio-economic and environmental variable data with machine learning methods. J. For. Res. 2022, 33, 183–194. [Google Scholar] [CrossRef]
  7. Pettinari, M.L.; Chuvieco, E. Fire behavior simulation from global fuel and climatic information. Forests 2017, 8, 179. [Google Scholar] [CrossRef] [Green Version]
  8. Eugenio, F.C.; dos Santos, A.R.; Fiedler, N.C.; Ribeiro, G.A.; da Silva, A.G.; dos Santos, Á.B.; Paneto, G.G.; Schettino, V.R. Applying GIS to develop a model for forest fire risk: A case study in Espírito Santo, Brazil. J. Environ. Manag. 2016, 173, 65–71. [Google Scholar] [CrossRef]
  9. Baqer Rasooli, S.; Bonyad, A.E. Evaluating the efficiency of the Dong model in determining fire vulnerability in Iran’s Zagros forests. J. For. Res. 2019, 30, 1447–1458. [Google Scholar] [CrossRef]
  10. Bui, D.T.; Bui, Q.-T.; Nguyen, Q.-P.; Pradhan, B.; Nampak, H.; Trinh, P.T. A hybrid artificial intelligence approach using GIS-based neural-fuzzy inference system and particle swarm optimization for forest fire susceptibility modeling at a tropical area. Agric. For. Meteorol. 2017, 233, 32–44. [Google Scholar]
  11. Zhang, G.; Wang, M.; Liu, K. Forest fire susceptibility modeling using a convolutional neural network for Yunnan province of China. Int. J. Disaster Risk Sci. 2019, 10, 386–403. [Google Scholar] [CrossRef]
  12. Rasooli, S.; Bonyad, A.; Pir Bavaghar, M. Forest fire vulnerability map using remote sensing data, GIS and AHP analysis (Case study: Zarivar Lake surrounding area). Casp. J. Environ. Sci. 2018, 16, 369–377. [Google Scholar]
  13. Pourghasemi, H.R. GIS-based forest fire susceptibility mapping in Iran: A comparison between evidential belief function and binary logistic regression models. Scand. J. For. Res. 2016, 31, 80–98. [Google Scholar] [CrossRef]
  14. Hong, H.; Tsangaratos, P.; Ilia, I.; Liu, J.; Zhu, A.-X.; Xu, C. Applying genetic algorithms to set the optimal combination of forest fire related variables and model forest fire susceptibility based on data mining models. The case of Dayu County, China. Sci. Total Environ. 2018, 630, 1044–1056. [Google Scholar] [CrossRef]
  15. Li, R.; Wang, N. Landslide susceptibility mapping for the Muchuan county (China): A comparison between bivariate statistical models (woe, ebf, and ioe) and their ensembles with logistic regression. Symmetry 2019, 11, 762. [Google Scholar] [CrossRef] [Green Version]
  16. Amalina, P.; Prasetyo, L.B.; Rushayati, S.B. Forest Fire Vulnerability Mapping in Way Kambas National Park. Procedia Environ. Sci. 2016, 33, 239–252. [Google Scholar] [CrossRef] [Green Version]
  17. Sachdeva, S.; Bhatia, T.; Verma, A. GIS-based evolutionary optimized Gradient Boosted Decision Trees for forest fire susceptibility mapping. Nat. Hazards 2018, 92, 1399–1418. [Google Scholar] [CrossRef]
  18. Sahana, M.; Ganaie, T.A. GIS-based landscape vulnerability assessment to forest fire susceptibility of Rudraprayag district, Uttarakhand, India. Environ. Earth Sci. 2017, 76, 676. [Google Scholar] [CrossRef]
  19. Ghorbanzadeh, O.; Blaschke, T.; Gholamnia, K.; Aryal, J. Forest fire susceptibility and risk mapping using social/infrastructural vulnerability and environmental variables. Fire 2019, 2, 50. [Google Scholar] [CrossRef] [Green Version]
  20. Oliveira, S.; Oehler, F.; San-Miguel-Ayanz, J.; Camia, A.; Pereira, J.M. Modeling spatial patterns of fire occurrence in Mediterranean Europe using Multiple Regression and Random Forest. For. Ecol. Manag. 2012, 275, 117–129. [Google Scholar] [CrossRef]
  21. Naderpour, M.; Rizeei, H.M.; Khakzad, N.; Pradhan, B. Forest fire induced Natech risk assessment: A survey of geospatial technologies. Reliab. Eng. Syst. Saf. 2019, 191, 106558. [Google Scholar] [CrossRef]
  22. Wotton, B.; Martell, D.; Logan, K. Climate change and people-caused forest fire occurrence in Ontario. Clim. Chang. 2003, 60, 275–295. [Google Scholar] [CrossRef]
  23. de Zea Bermudez, P.; Mendes, J.; Pereira, J.; Turkman, K.; Vasconcelos, M. Spatial and temporal extremes of wildfire sizes in Portugal (1984–2004). Int. J. Wildland Fire 2009, 18, 983–991. [Google Scholar] [CrossRef]
  24. Verde, J.; Zêzere, J. Assessment and validation of wildfire susceptibility and hazard in Portugal. Nat. Hazards Earth Syst. Sci. 2010, 10, 485–497. [Google Scholar] [CrossRef]
  25. Lautenberger, C. Wildland fire modeling with an Eulerian level set method and automated calibration. Fire Saf. J. 2013, 62, 289–298. [Google Scholar] [CrossRef]
  26. Pourtaghi, Z.S.; Pourghasemi, H.R.; Aretano, R.; Semeraro, T. Investigation of general indicators influencing on forest fire and its susceptibility modeling using different data mining techniques. Ecol. Indic. 2016, 64, 72–84. [Google Scholar] [CrossRef]
  27. Jaafari, A.; Gholami, D.M.; Zenner, E.K. A Bayesian modeling of wildfire probability in the Zagros Mountains, Iran. Ecol. Inform. 2017, 39, 32–44. [Google Scholar] [CrossRef]
  28. Bonham-Carter, G.F.; Bonham-Carter, G. Geographic Information Systems for Geoscientists: Modelling with GIS; Elsevier: Amsterdam, The Netherlands, 1994. [Google Scholar]
  29. Regmi, N.R.; Giardino, J.R.; Vitek, J.D. Modeling susceptibility to landslides using the weight of evidence approach: Western Colorado, USA. Geomorphology 2010, 115, 172–187. [Google Scholar] [CrossRef]
  30. Carrara, A.; Crosta, G.; Frattini, P. Geomorphological and historical data in assessing landslide hazard. Earth Surf. Process. Landf. J. Br. Geomorphol. Res. Group 2003, 28, 1125–1142. [Google Scholar] [CrossRef]
  31. Hong, H.; Naghibi, S.A.; Moradi Dashtpagerdi, M.; Pourghasemi, H.R.; Chen, W. A comparative assessment between linear and quadratic discriminant analyses (LDA-QDA) with frequency ratio and weights-of-evidence models for forest fire susceptibility mapping in China. Arab. J. Geosci. 2017, 10, 167. [Google Scholar] [CrossRef]
  32. Salavati, G.; Saniei, E.; Ghaderpour, E.; Hassan, Q.K. Wildfire Risk Forecasting Using Weights of Evidence and Statistical Index Models. Sustainability 2022, 14, 3881. [Google Scholar] [CrossRef]
  33. Sivrikaya, F.; Küçük, Ö. Modeling forest fire risk based on GIS-based analytical hierarchy process and statistical analysis in Mediterranean region. Ecol. Inform. 2022, 68, 101537. [Google Scholar] [CrossRef]
  34. Adab, H.; Kanniah, K.D.; Solaimani, K. Modeling forest fire risk in the northeast of Iran using remote sensing and GIS techniques. Nat. Hazards 2013, 65, 1723–1743. [Google Scholar] [CrossRef]
  35. Nuthammachot, N.; Stratoulias, D. A GIS-and AHP-based approach to map fire risk: A case study of Kuan Kreng peat swamp forest, Thailand. Geocarto Int. 2021, 36, 212–225. [Google Scholar] [CrossRef]
  36. Regmi, A.D.; Devkota, K.C.; Yoshida, K.; Pradhan, B.; Pourghasemi, H.R.; Kumamoto, T.; Akgun, A. Application of frequency ratio, statistical index, and weights-of-evidence models and their comparison in landslide susceptibility mapping in Central Nepal Himalaya. Arab. J. Geosci. 2014, 7, 725–742. [Google Scholar] [CrossRef]
  37. Song, K.-Y.; Oh, H.-J.; Choi, J.; Park, I.; Lee, C.; Lee, S. Prediction of landslides using ASTER imagery and data mining models. Adv. Space Res. 2012, 49, 978–993. [Google Scholar] [CrossRef]
  38. Yilmaz, C.; Topal, T.; Süzen, M.L. GIS-based landslide susceptibility mapping using bivariate statistical analysis in Devrek (Zonguldak-Turkey). Environ. Earth Sci. 2012, 65, 2161–2178. [Google Scholar] [CrossRef]
  39. Jebur, M.N.; Pradhan, B.; Tehrany, M.S. Manifestation of LiDAR-derived parameters in the spatial prediction of landslides using novel ensemble evidential belief functions and support vector machine models in GIS. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2014, 8, 674–690. [Google Scholar] [CrossRef]
  40. Pontius, R.G., Jr.; Schneider, L.C. Land-cover change model validation by an ROC method for the Ipswich watershed, Massachusetts, USA. Agric. Ecosyst. Environ. 2001, 85, 239–248. [Google Scholar] [CrossRef]
  41. Jin, X.-Y.; Jin, H.-J.; Iwahana, G.; Marchenko, S.S.; Luo, D.-L.; Li, X.-Y.; Liang, S.-H. Impacts of climate-induced permafrost degradation on vegetation: A review. Adv. Clim. Chang. Res. 2021, 12, 29–47. [Google Scholar] [CrossRef]
  42. Marozas, V.; Racinskas, J.; Bartkevicius, E. Dynamics of ground vegetation after surface fires in hemiboreal Pinus sylvestris forests. For. Ecol. Manag. 2007, 250, 47–55. [Google Scholar] [CrossRef]
  43. Dong, X.; Li-min, D.; Guo-fan, S.; Lei, T.; Hui, W. Forest fire risk zone mapping from satellite images and GIS for Baihe Forestry Bureau, Jilin, China. J. For. Res. 2005, 16, 169–174. [Google Scholar] [CrossRef]
  44. Chen, F.; Du, Y.; Niu, S.; Zhao, J. Modeling forest lightning fire occurrence in the Daxinganling Mountains of Northeastern China with MAXENT. Forests 2015, 6, 1422–1438. [Google Scholar] [CrossRef] [Green Version]
  45. Ashtiani, E.; Daryaei, M.; Samani, K.; Amlashi, M. Review of fire sensitive areas with emphasis on drought impact with the joint use of PDSI, AHP and GIS (case study: Forest Saravan, Guilan province). Iran. J. For. Range Prot. Res. 2013, 10, Pe95–Pe113. [Google Scholar]
  46. Giglio, L. MODIS Collection 5 Active Fire Product User’s Guide Version 2.4; Science Systems and Applications, Inc.: Lanham, MD, USA, 2010. [Google Scholar]
  47. Mota, P.H.S.; da Rocha, S.J.S.S.; de Castro, N.L.M.; Marcatti, G.E.; de Jesus França, L.C.; Schettini, B.L.S.; Villanova, P.H.; dos Santos, H.T.; dos Santos, A.R. Forest fire hazard zoning in Mato Grosso state, Brazil. Land Use Policy 2019, 88, 104206. [Google Scholar] [CrossRef]
  48. Bazyar, M.; Oladi, G.J.; Pourghasemi, H. Zoning and Investigation of Factors Affecting Forest Fire Using Evidential Belief Function Algorithm and Support Vector Machine in Boyer Ahmad City. Iran. J. For. Range Prot. Res. 2020, 17, 197–222. [Google Scholar]
  49. Mhawej, M.; Faour, G.; Abdallah, C.; Adjizian-Gerard, J. Towards an establishment of a wildfire risk system in a Mediterranean country. Ecol. Inform. 2016, 32, 167–184. [Google Scholar] [CrossRef]
  50. Nami, M.; Jaafari, A.; Fallah, M.; Nabiuni, S. Spatial prediction of wildfire probability in the Hyrcanian ecoregion using evidential belief function model and GIS. Int. J. Environ. Sci. Technol. 2018, 15, 373–384. [Google Scholar] [CrossRef]

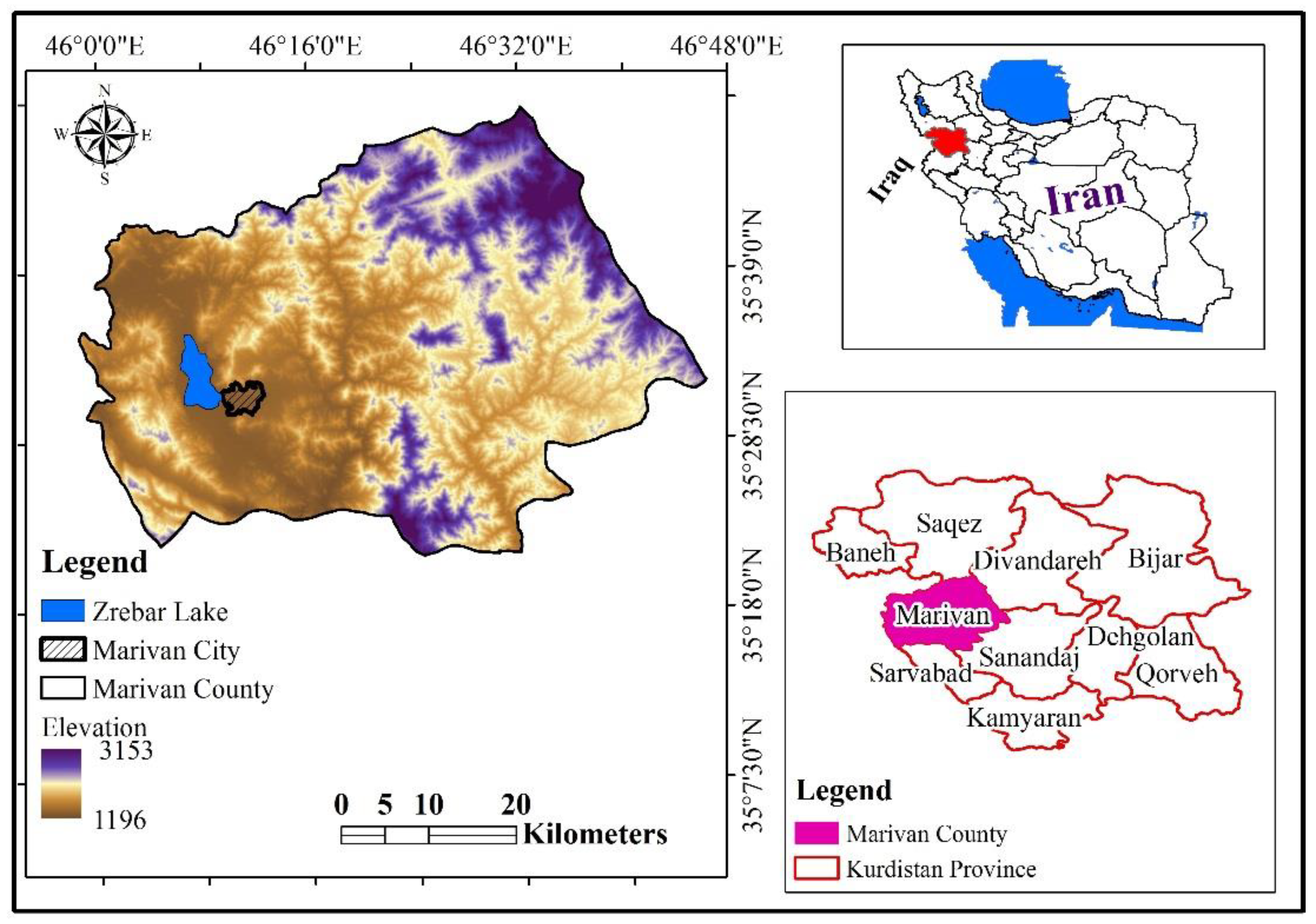

Figure 1. Study area layout.
Figure 1. Study area layout.
Sustainability 14 13625 g001

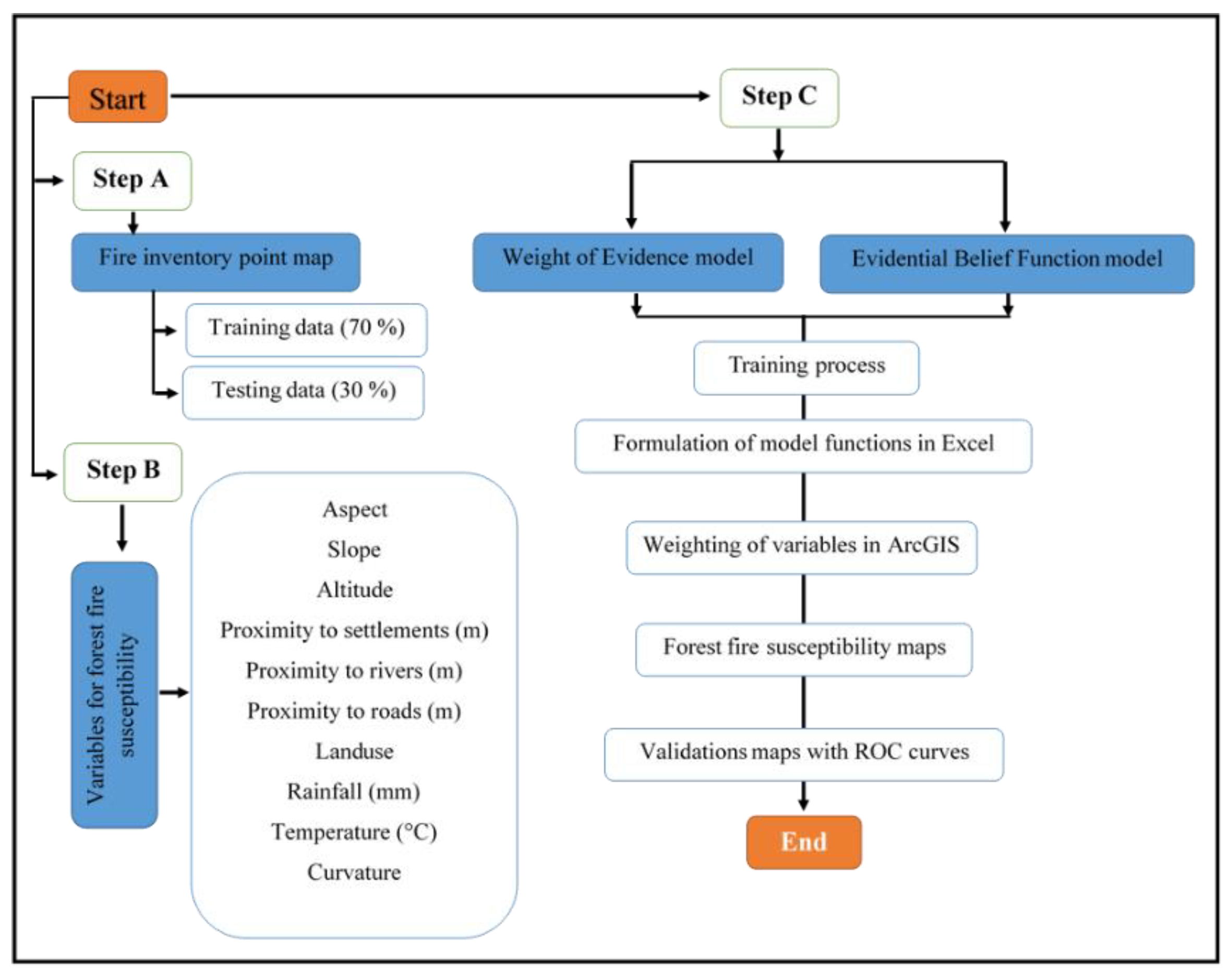

Figure 2. Flowchart of the developed methodology.
Figure 2. Flowchart of the developed methodology.
Sustainability 14 13625 g002

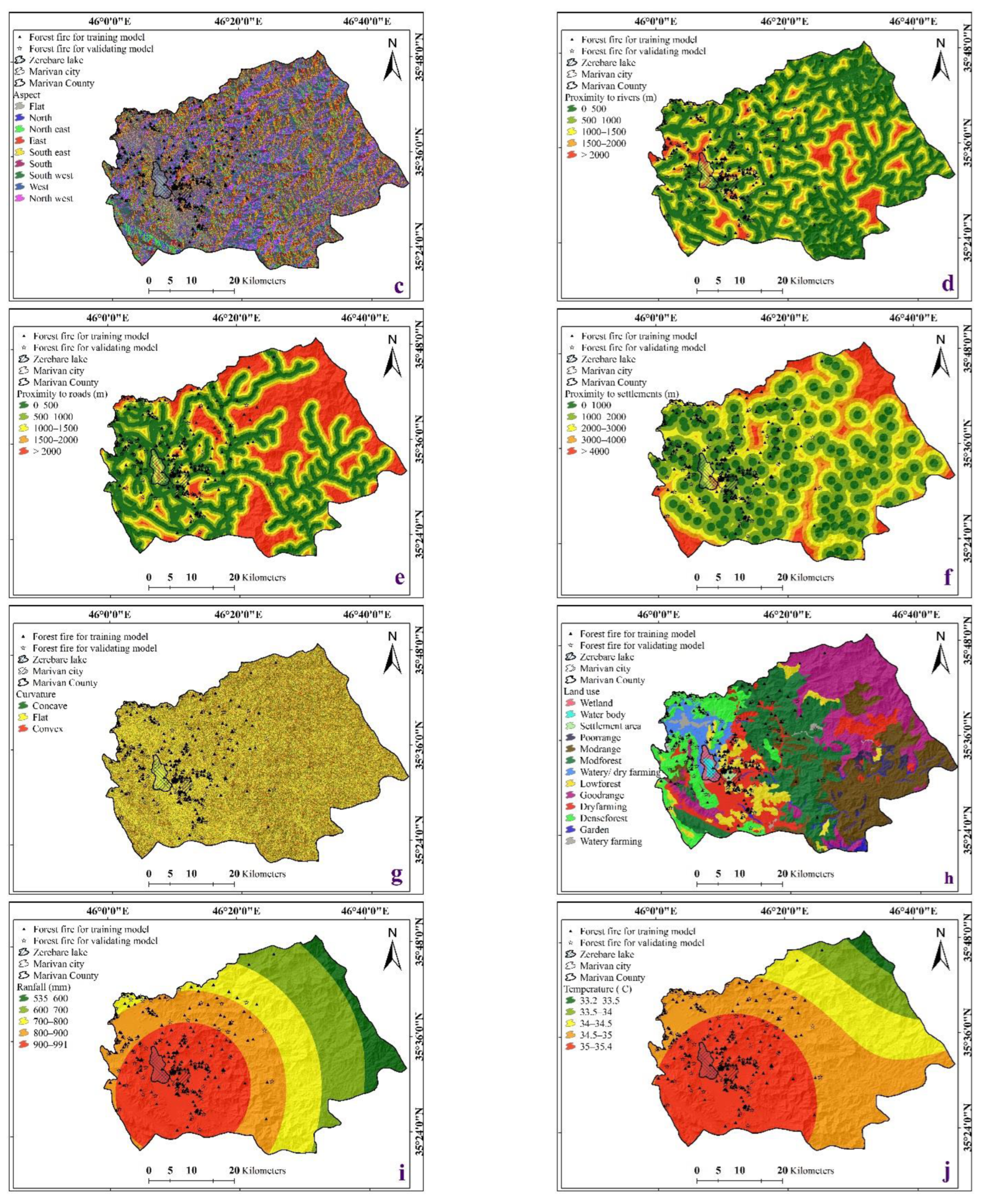

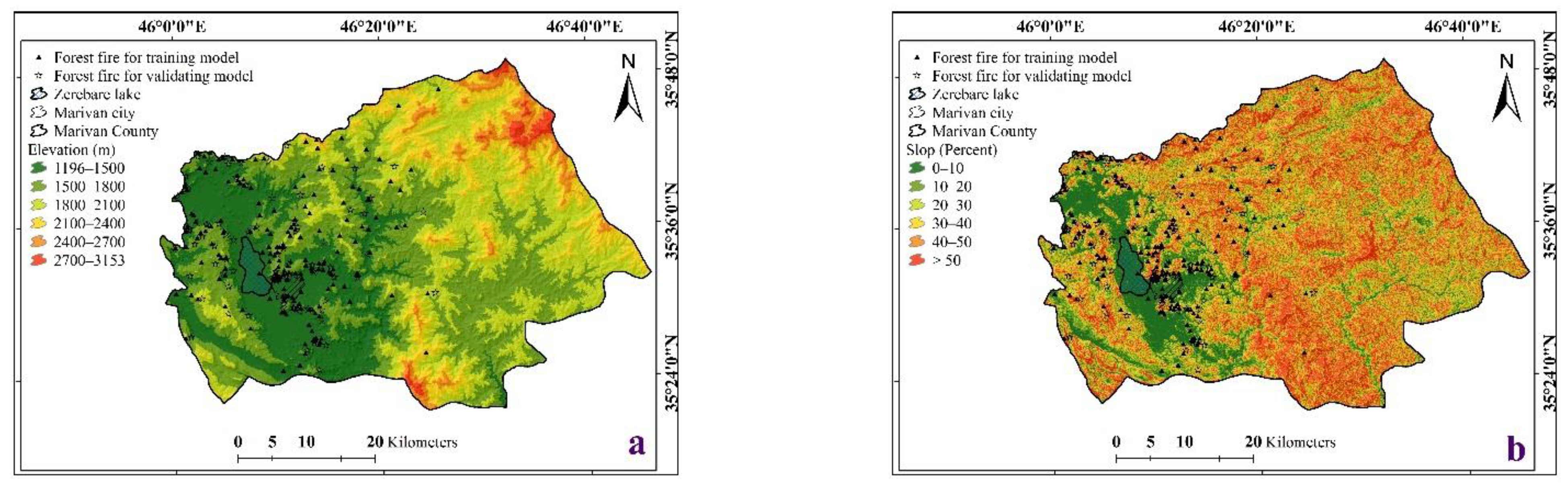

Figure 3. Forest fire ignition factors used in this study: (a) elevation map; (b) slope map; (c) aspect map; (d) proximity to rivers; (e) proximity to roads (m); (f) proximity to settlements (m); (g) curvature; (h) land use; (i); rainfall map, and (j) maximum temperature map.
Figure 3. Forest fire ignition factors used in this study: (a) elevation map; (b) slope map; (c) aspect map; (d) proximity to rivers; (e) proximity to roads (m); (f) proximity to settlements (m); (g) curvature; (h) land use; (i); rainfall map, and (j) maximum temperature map.
Sustainability 14 13625 g003aSustainability 14 13625 g003b

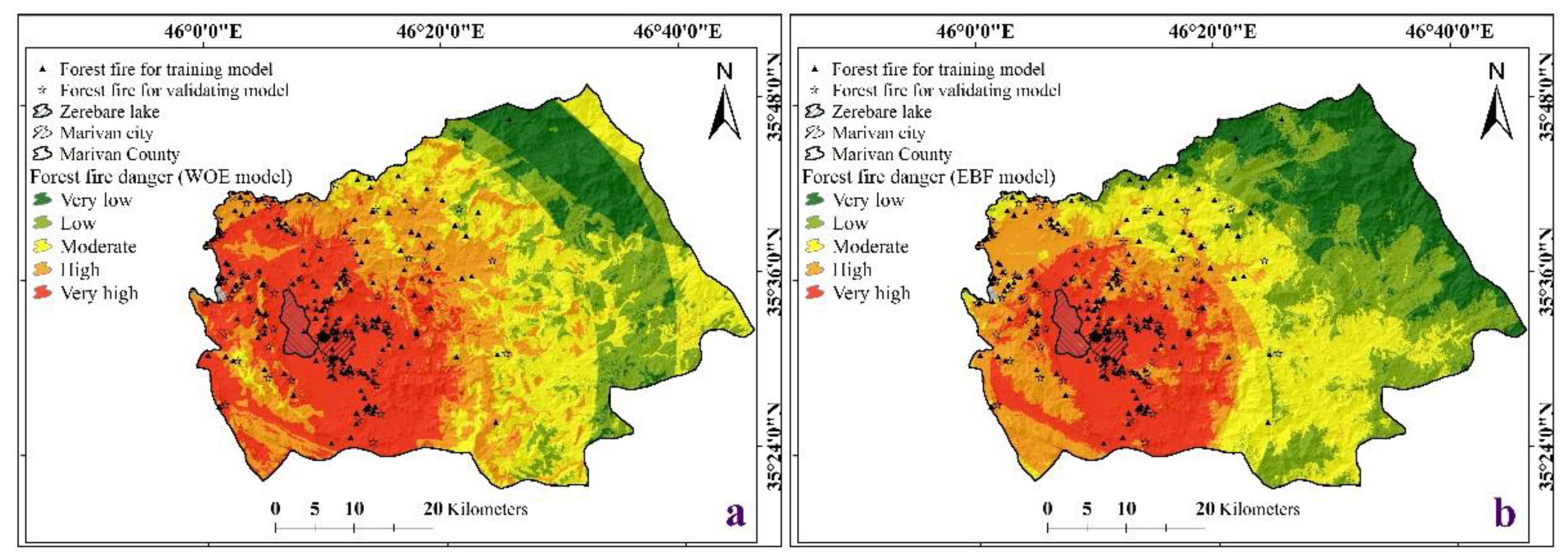

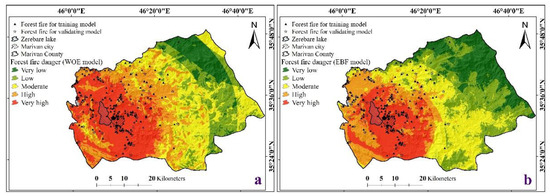

Figure 4. Fire potential map using the two models of (a) WOE and (b) EBF.
Figure 4. Fire potential map using the two models of (a) WOE and (b) EBF.
Sustainability 14 13625 g004

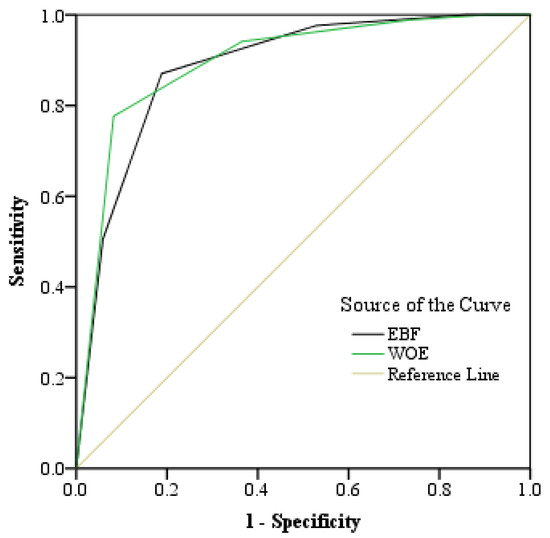

Figure 5. ROC curve of the models used based on validation data.
Figure 5. ROC curve of the models used based on validation data.
Sustainability 14 13625 g005
Table 1. Number of pixels, number of fire points, parameter class scores in the WOE and EBF.
Table 1. Number of pixels, number of fire points, parameter class scores in the WOE and EBF.
VariableClassNumber of Pixels in the DomainNumber of Fire PointsBelief Function ComponentsWOE
BilDisUncPls
AspectF151,65320.110.110.780.89−0.001
N1,593,046190.100.110.790.89−0.013
NE1,746,340180.090.110.800.89−0.296
E1,753,597240.110.110.780.890.021
SE1,924,512180.080.120.810.88−0.406
S2,071,541300.120.110.770.890.088
SW2,083,404330.130.110.760.890.194
W1,832,805300.140.110.760.890.229
NW1,656,081250.130.110.770.890.016
Slope0–101,718,356290.200.160.640.840.262
10–201,805,695300.200.160.640.840.246
20–302,357,440300.150.170.680.83−0.064
30–402,837,046400.170.160.670.840.060
40–502,712,025350.1500.851−0.049
>503,382,417350.1200.881−0.327
Altitude1196–15003,542,7811080.590.100.310.901.330
1500–18004,756,054730.300.160.550.840.205
1800–21003,848,867140.070.210.720.79−1.533
2100–24001,870,52040.040.190.770.81−0.115
2400–2700641,15600.000.0011−0.044
2700–3153170,77000.000.0011−0.012
Proximity to settlements (m)0–5003,068,853560.330.180.490.820.307
500–10005,699,514880.280.180.540.820.099
1000–15003,562,422420.210.210.580.79−0.038
1500–20001,451,488100.120.210.660.79−0.051
>20001,047,80630.050.000.951.00−0.058
Proximity to rivers (m)0–5006,486,671590.110.250.650.75−0.612
500–10004,299,851480.130.210.660.79−0.250
1000–15002,351,038540.270.170.560.830.681
1500–20001,045,874300.340.180.480.820.090
>2000646,64980.150.000.851.00−0.004
Proximity to roads (m)0–5004,445,101790.280.170.550.830.431
500–10003,200,966670.330.170.500.830.612
1000–15002,233,710230.160.210.630.79−0.305
1500–20001,531,765150.150.210.640.79−0.031
>20003,418,541150.070.000.931−0.184
Land useWet farming128,07700.000.080.920.92−0.009
Garden216,65700.000.080.920.92−0.015
Dense forest1,469,558400.080.070.850.930.825
Dry farming1,706,907330.060.070.870.930.422
Good range3,128,85460.010.090.900.91−2.154
Low forest1,033,863580.170.060.770.941.701
Wet and dry farming525,611150.090.070.840.930.795
Mod forest3,311,325340.030.080.890.92−0.335
Mod range2,836,79360.010.090.900.91−2.031
Poor range242,93000.000.080.920.92−0.017
Settlements 37,37660.490.070.430.932.508
Water body52,69310.060.080.870.920.346
Wetland114,35500.000.080.920.92−0.008
Rainfall (mm)535–600954,66100.000.220.780.78−0.067
600–7003,011,21020.010.250.730.75−3.223
700–8002,955,632190.130.230.640.77−0.858
800–9003,388,449470.280.200.520.800.043
900–9914,520,2041310.580.000.421.000.710
Temperature (°C)33.2–33.5221,91400.000.210.790.79−0.015
33.5–341,199,10410.020.220.760.78−2.858
34–34.52,495,00620.020.240.740.76−0.174
34.5–355,430,397580.280.230.490.77−0.111
35–35.45,483,7351380.670.000.331.000.721
CurvatureConcave3,317,490360.280.350.370.65−0.266
Flat8,225,2651160.360.320.330.680.115
Convex3,287,393470.360.330.310.670.082
Table 2. Area and area percentage of fire potential classes based on the two models of WOE and EBF.
Table 2. Area and area percentage of fire potential classes based on the two models of WOE and EBF.
ClassesWeight of EvidenceEvidential Belief Function
Area of Classes (ha)Area of Classes (%)Area of Classes (ha)Area of Classes (%)
Very low20,457.198.8536,318.7215.7
Low34,343.5714.8649,741.6321.5
Moderate58,206.425.1955,997.0624.2
High52,523.9122.7340,962.9817.7
Very high65,566.8928.3748,077.1420.9
Table 3. AUC values for the models predicting fire potentials.
Table 3. AUC values for the models predicting fire potentials.
RowPredicting ModelValidation Data
1WOE0.896
2EBF0.886
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mohammed, O.A.; Vafaei, S.; Kurdalivand, M.M.; Rasooli, S.; Yao, C.; Hu, T. A Comparative Study of Forest Fire Mapping Using GIS-Based Data Mining Approaches in Western Iran. Sustainability 2022, 14, 13625. https://doi.org/10.3390/su142013625

AMA Style

Mohammed OA, Vafaei S, Kurdalivand MM, Rasooli S, Yao C, Hu T. A Comparative Study of Forest Fire Mapping Using GIS-Based Data Mining Approaches in Western Iran. Sustainability. 2022; 14(20):13625. https://doi.org/10.3390/su142013625

Chicago/Turabian Style

Mohammed, Osama Ashraf, Sasan Vafaei, Mehdi Mirzaei Kurdalivand, Sabri Rasooli, Chaolong Yao, and Tongxin Hu. 2022. "A Comparative Study of Forest Fire Mapping Using GIS-Based Data Mining Approaches in Western Iran" Sustainability 14, no. 20: 13625. https://doi.org/10.3390/su142013625

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
