Experimental Study on Mechanical Properties and Stability Analysis of Structural Plane under Unloading Normal Stress

Abstract

Excavation in rock induces the unloading of stress in excavation-disturbed zones and can cause the structural plane to reach shear failure due to the unloading of normal stress. Unloading normal stress tests of a regular sawtooth structural plane were conducted in this study to investigate the influence of the unloading velocities (v) and asperity angles (θ) on mechanical properties and the stability of the structural plane. The average value of normal displacement (D_u1) and the shear displacement of unloading (D_su) gradually increases with an increase in θ and D_u1 accounts for 59.70%, 31.81%, and 18.60% of the height of a single asperity under different θ. However, D_u2, D_s, and the unloading capacity (Δσ_n) gradually decreased. Moreover, D_s account for 24.52%, 11.61%, and 7.4% of the length of a single asperity, respectively. With an increase in θ and v, three-dimensional (3D) morphology parameters and normal deformation energy (U_n) decreased gradually, indicating that the damage degree of the structural plane increases. The analysis of the evolution of the gap width of the structural plane at the initial point, unloading point, and instability point indicates that the greater the θ or the smaller the v, the lower would be the likelihood for the structural plane to be damaged. Concurrently, its instability is more sudden and the impact tendency is stronger.

1. Introduction

Excavation causes stress redistribution, which typically leads to the unloading of stress in the excavation-disturbed area and results in engineering disasters, such as rock bursts, thereby resulting in substantial casualties and economic losses [1,2,3]. Since the founding of New China more than 60 years ago and the continuous development of resources, shallow energy resources have been gradually exhausted. Thus, the demand for deep resources is increasing. However, as the depth increases, the frequency and scale of rock bursts gradually increase [4,5,6]. Therefore, it is particularly critical to study the instability and failure mechanism of structural planes under unloading conditions.

Numerous confining pressure relief tests have been conducted under the condition of a triaxial test and promising results have been obtained [7,8,9]. The results show that specimen failure is primarily influenced by the loading path and unloading velocity [10,11,12,13,14,15,16]. The rock samples exhibit completely different mechanical properties during loading and unloading [17]. During unloading instability and failure, the degree of damage is closely related to the unloading velocity [18]; the tensile cracks and degree of failure of rock samples increase with an increase in the unloading velocity [19]. Moreover, the failure strength of rock under unloading conditions is lower than that under loading conditions [20]. Granite is more prone to failure at a medium unloading velocity than at high or low unloading velocities [21,22]. With an increase in the unloading velocity, the degree of rock failure increases gradually, owing to an increase in the strain energy release capacity [23,24], and the volume expansion becomes more significant [25]. Under the condition of triaxial unloading, the failure mode of the specimen becomes more complex than that of the conventional triaxial test [26,27], and the failure strain at unloading is less than that at loading [28]. Under the condition of an unloading test, the initial confining pressure is also the main factor affecting the mechanical properties of rock. During loading, the rock samples exhibit clear brittle ductile transition characteristics as the confining pressure increases [29]. An increase in the confining pressure limits the radial deformation of rock samples [30]; therefore, more cracks are produced before failure [31,32]. Moreover, the brittle failure characteristics of rock samples become more apparent as the confining pressure increases [33,34,35]. The failure characteristics of rock samples can be determined by the energy evolution law during loading and unloading [36,37]. The evolution of energy is closely related to the fracture initiation, development, and final failure of rock samples and it controls the failure mode of rock samples [38,39]. Moreover, acoustic emission signal conclusion in the test process can be used for verification [40].

However, the triaxial unloading test cannot directly and effectively model the shear failure mechanism of rock that has suffered only from unloading normal stress [41]. Owing to geological processes, there are several structural planes in rock mass. Therefore, by considering the regular sawtooth structural plane as the object, this study adopted the unloading normal stress test under the action of compression and shear load to explore the influence mechanism of the unloading velocity and asperity angle on the deformation and strength of the structural plane and the law of energy evolution. The results provide a reference for the instability and failure of engineering fractured rock mass as well as disaster prevention.

2. Test Method

2.1. Specimen Preparation

The surface of a natural rock structure has irregular three-dimensional morphology and its measurement incurs the disadvantage of artificial subjectivity [42,43]. Moreover, the structural plane is damaged after a test and cannot be reused. Therefore, this method used regular sawtooth structural planes poured with cement mortar as the test objects. Most existing structural plane pouring molds can only be formed individually [44]; the mechanical properties of the structural plane are affected by the pouring batch, mixing uniformity and curing time. Only the mold of the upper structural plane is taken as an example, as shown in Figure 1. The mold primarily comprises a concave—convex base, long and short diaphragms, and clamping and fixing devices. A total of 10 structural planes with asperity angles of θ = 15°, 30°, and 45° can be formed simultaneously with corresponding single asperity heights of 0.67 mm, 1.44 mm, and 2.5 mm; the length of the bottom edge is 5 mm.

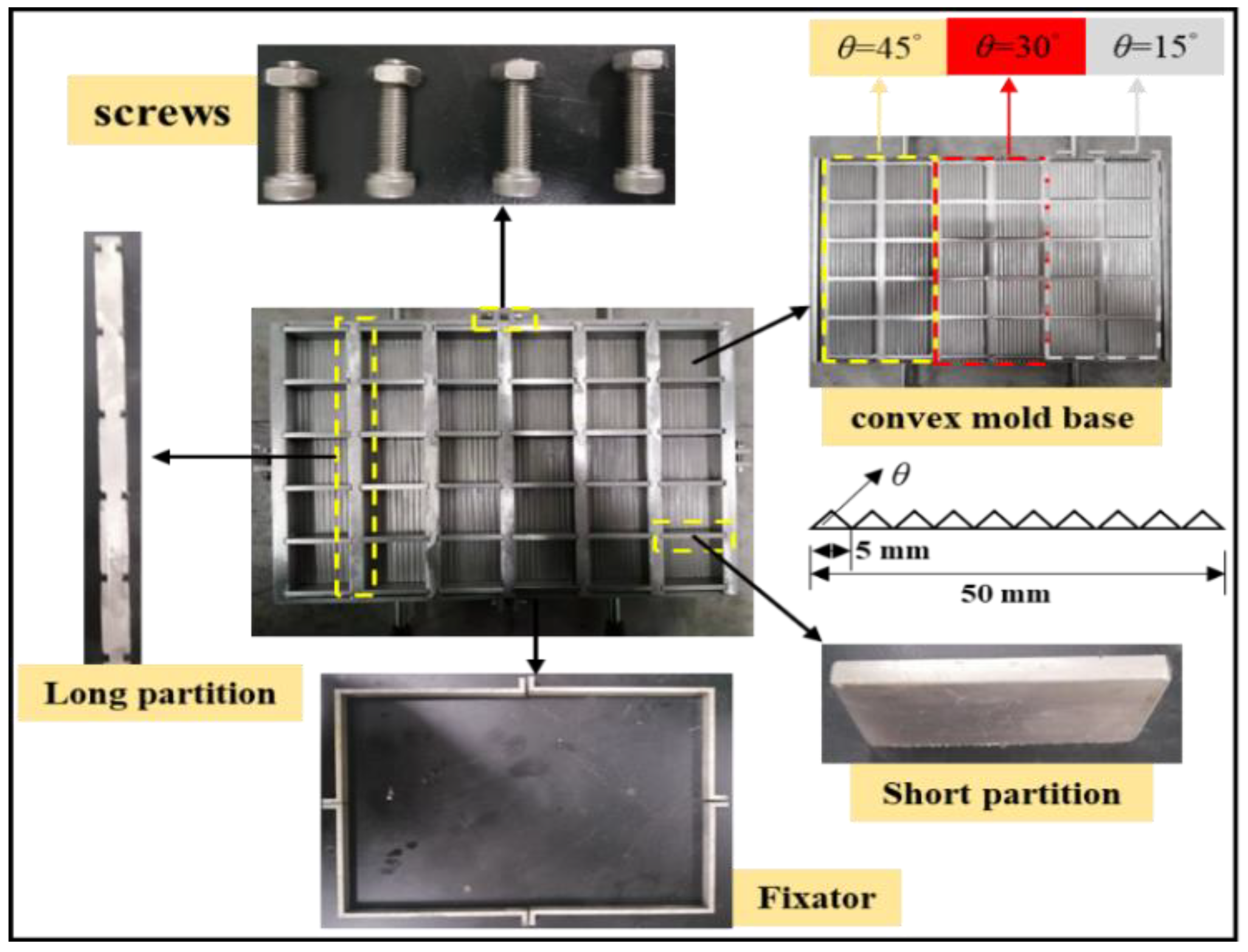

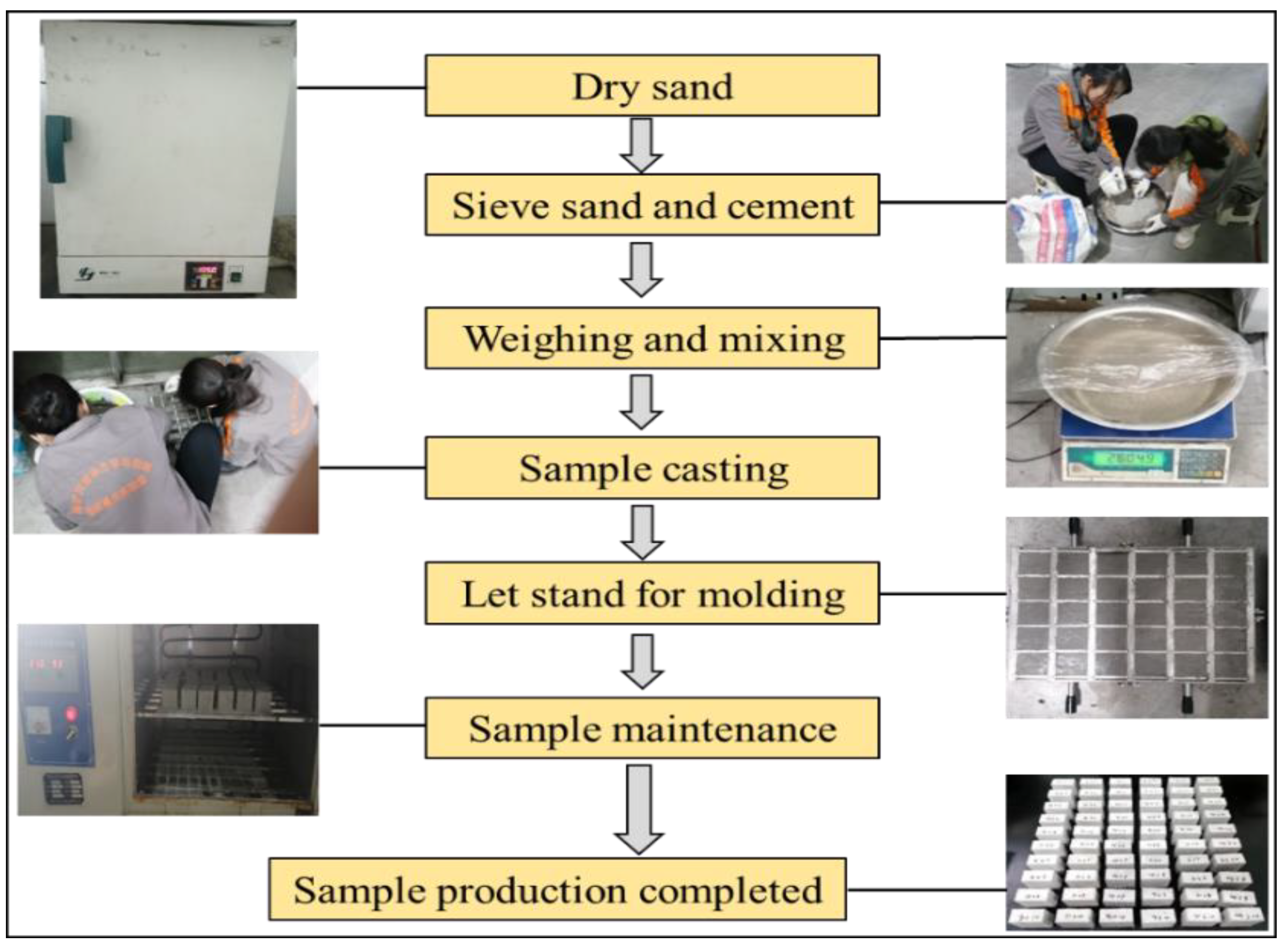

The steps to manufacture a regular sawtooth structural plane are as follows:

♦

The sand is dried in an oven at 105 °C for 24 h and then screened with a 120-mesh screen to ensure the uniformity of the sand particles. Cement with a strength of 32.5 R is also screened to ensure the uniformity of the material particles.

♦

Cement, sand, and water are evenly mixed according to the proportions of 3:2:1.5. Subsequently, tap water is added, and the materials are fully mixed. The mixture is then placed on a shaking table and the vibration drives out any bubbles.

♦

The evenly stirred materials are poured into the mold while being stirred with a vibrating rod to further discharge the bubbles.

♦

After pouring, the mixture is left to stand at a temperature of 20 °C for 3 d. The structural plane is demolded after complete solidification and cured for 28 d. The manufacturing process of the structural plane is shown in Figure 2. Additionally, mechanical parameters are shown in

Table 1. Mechanical parameters of cement mortar.

σn/MPa	μ	E/GPa	c/MPa	${\mathit{\phi }}_{\mathit{b}}$ /°
15	0.27	3.39	2.84	28

where σ_n is the uniaxial compressive strength; μ is Poisson’s ratio; E is elastic modulus, c is cohesion; and ${\phi }_b$ is the internal friction angle.

. According to Table 1, there are nine test conditions in total, in which each test condition is repeated three times, and 27 samples are required.

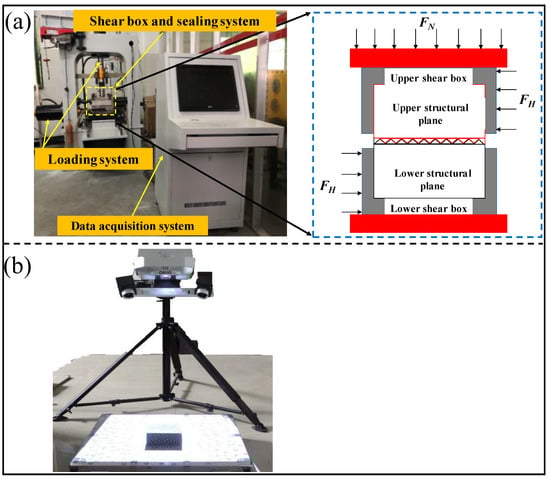

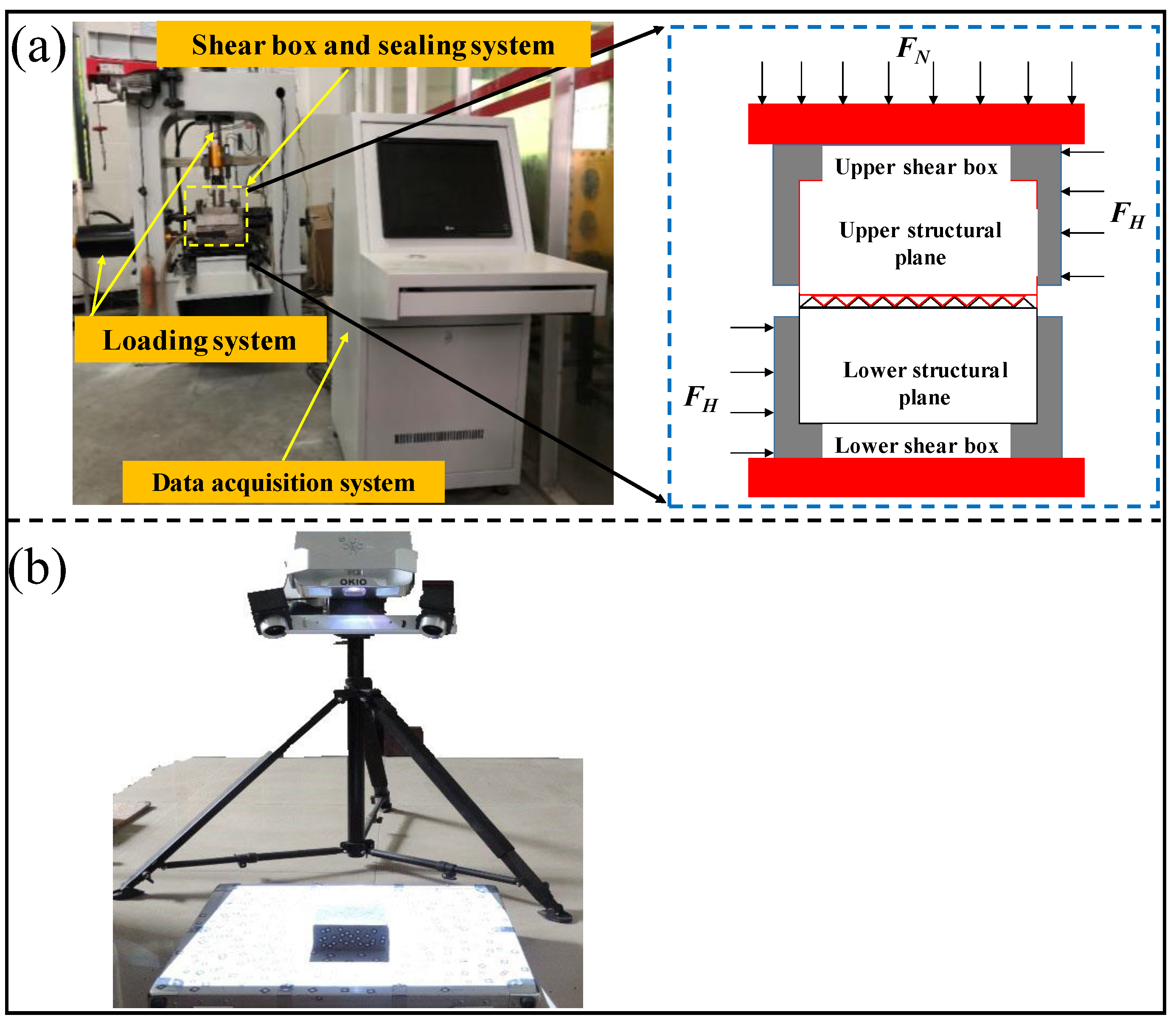

The test is conducted on the self-developed “coal rock shear–seepage coupling” test system [45]. The system is primarily composed of a servo control loading system, fluid source loading system, shear box and sealing system, and control and data acquisition system. It can be used to conduct coal and rock shear tests under different loading modes (constant normal stress, constant normal displacement, and constant normal stiffness). The maximum test force in both the axial and shear directions is 300 kN and the displacement rate control range is 0–100 mm/min, as shown in Figure 3a. Before and after shearing, an OKIO-B non-contact optical 3D scanner is used to scan the structural plane, as shown in Figure 3b.

2.2. Experimental Scheme

The steps followed for the unloading normal stress test are as follows:

First step: Normal stress at a set value of σ_n0 is applied. The force loading mode is adopted, and the rate of loading is 0.1 kN/s.

Second step: The value of σ_n0 is unchanged and the shear stress is then applied to a target value of τ₀. The force control mode is also adopted for loading and the rate of loading is 0.02 kN/s.

Third step: The value of τ₀ remains unchanged and the normal stress is unloaded until the structural plane experiences instability failure. The force control mode is adopted and the unloading velocities (v) are 0.05 kN/s, 0.1 kN/s, and 0.15 kN/s.

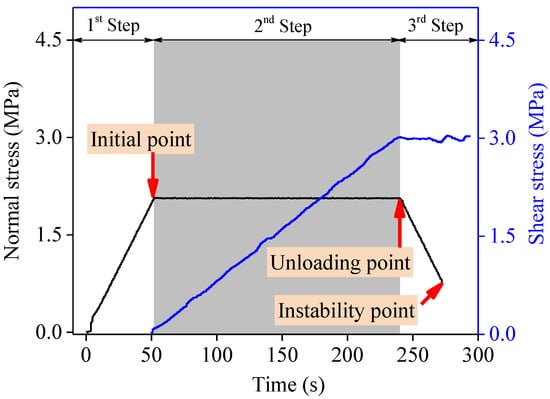

The following parameters are chosen as an example to illustrate the test steps, as shown in Figure 4 (σ_n0 = 2.25 MPa, θ = 15°, v = 0.1 kN/s and τ₀ = 5.384 MPa).

The general principle of setting test parameters is as follows: (1) It is important to ensure that the structural plane will not be damaged before τ₀ is applied; therefore, σ_n0 is less than the uniaxial compressive strength (σ_n) of the structural plane. (2) To determine the selection range of τ₀ under different σ_n0, it is necessary to conduct a direct shear test on the structural plane. The value of τ₀ is between 0 MPa and the peak shear strength under the corresponding normal stress. Within this range, the specimen would not experience macro shear failure before the unloading normal stress and it would be damaged when the unloading σ_n0 goes to zero. Using the uniaxial test on similar materials, σ_n = 15 MPa is obtained. According to the general principle, σ_n0 = 15%σ_n. Based on the peak shear strength obtained from the direct shear test under CNL conditions, τ₀ is set as 5.384 MPa. The test scheme is shown in

Table 2. Test scheme.

θ (°)	σn0 (MPa)	τ0 (MPa)	v (kN/s)
			0.05
15	2.25	5.384	0.10
			0.15
			0.05
30	2.25	5.384	0.10
			0.15
			0.05
45	2.25	5.384	0.10
			0.15

.

3. Test Results and Analysis

3.1. Deformation

3.1.1. Displacement Histories

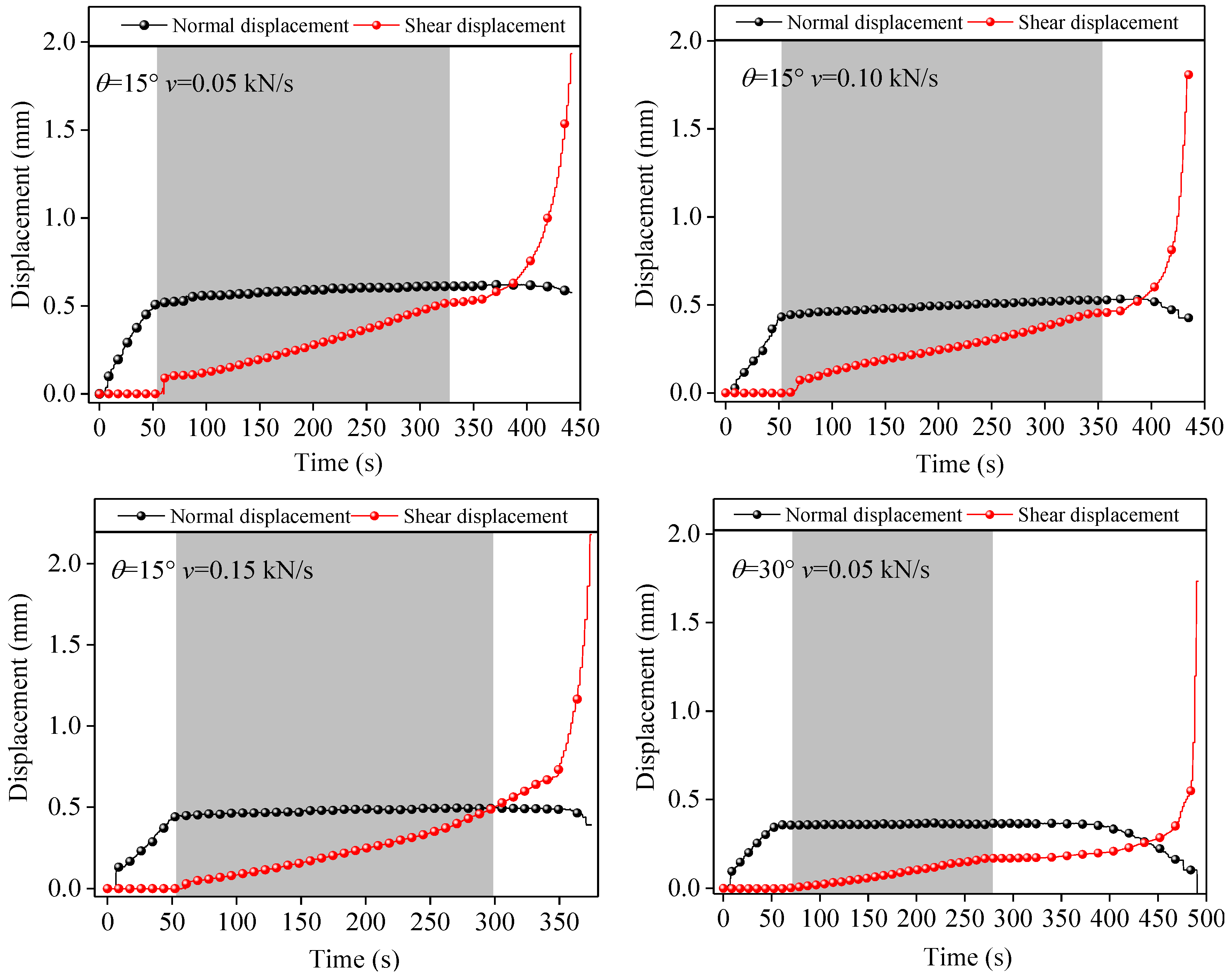

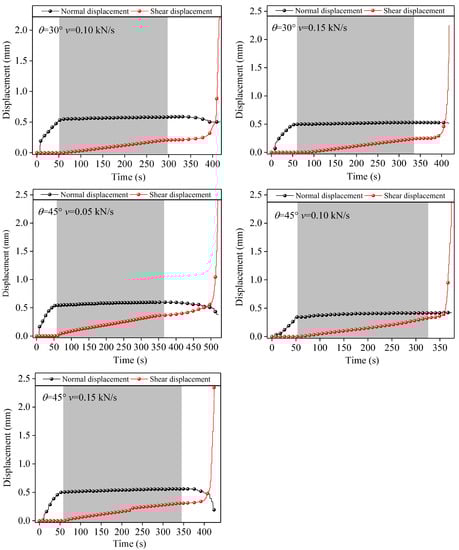

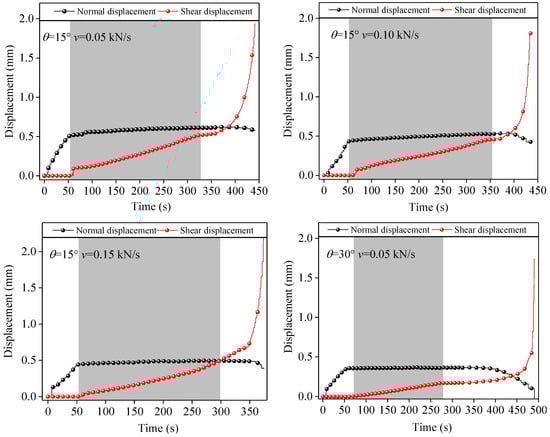

The displacement vs. time curves are shown in Figure 5.

In the first step, when the applied normal stress reaches σ_n0, the uniaxial test on the rock shows that the axial stress and axial displacement have a nonlinear relationship. Similarly, from the normal loading and unloading tests of the structural plane, it can also be observed that the normal stress and normal displacement are nonlinear in the loading stage. Therefore, the normal displacement increases nonlinearly and the rate of increase decreases gradually.

In the second step, the structural plane is subjected to both normal and shear stresses. Therefore, when applying the shear load, the shear displacement increases linearly with an increase rate of 0.001 mm/s. Meanwhile, the normal displacement increases slightly and the increase is between 0–0.098 mm. The direct shear test results of the structural plane indicate that the structural plane is compressed first. In other words, when the shear stress is applied to the structural plane to overcome the evident sliding of static friction, the crack between the upper and lower structural planes is gradually compressed.

In the third step, with a decrease in the normal stress, the normal displacement decreases nonlinearly and the reduction rate increases gradually. However, the shear displacement increases nonlinearly until the structural plane produces instability and slip and the rate increases gradually. This occurs because from the beginning of unloading to the instability of the structural plane, the normal elastic deformation energy is released owing to the reduction in normal stress. The structural plane rises along the asperities, resulting in shear expansion. The two stresses combine to gradually reduce the normal displacement of the structural plane. As the normal stress decreases, the static friction between the structural planes gradually decreases; thus, the structural plane moves forward and the corresponding shear displacement increases. When the normal stress is reduced to the critical point of instability, with a continuous reduction in the normal stress, there is clear shear slip on the structural plane. If the structural plane is slip damaged, the shear displacement increases rapidly in a very short time.

3.1.2. Characteristic Displacement

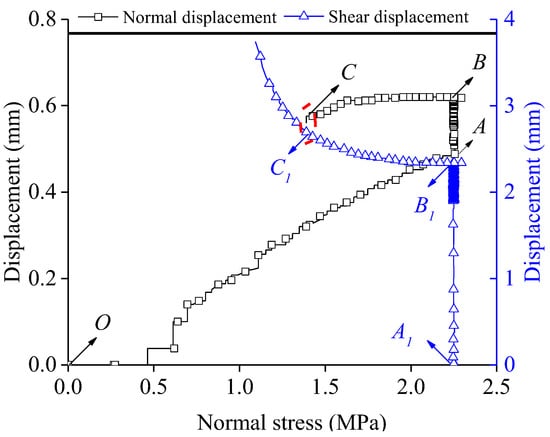

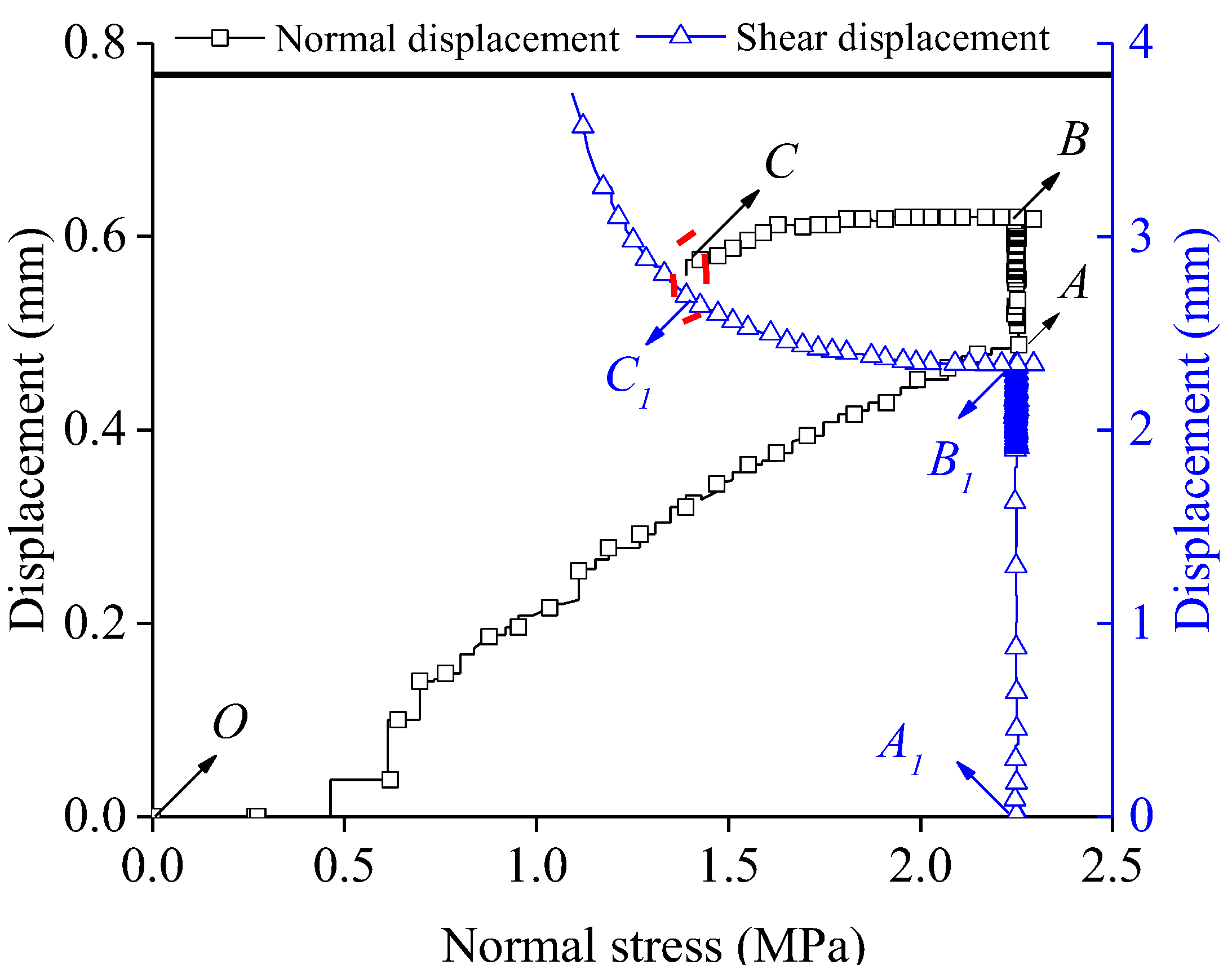

Using the values θ = 15° and v = 0.05 kN/s as an example, the displacement—normal stress curve is shown in Figure 6.

In Figure 6, O is the starting point of the experiment and the same numbered points (such as A and A₁) represent the normal displacement and shear displacement at the same time point. A is the normal loading completion point, B is the unloading normal stress point, and C is the normal displacement value corresponding to the normal unloading instability. The corresponding A₁, B₁, and C₁ are three stages corresponding to the shear displacement. The characteristic points are labeled on the curve and the characteristic displacement is defined according to the characteristic points. The displacement is defined under loading normal stress D_u1 (average value of normal displacement of OA). While applying shear stress to τ₀, the change in normal displacement is D_u2 (the average value of the displacement difference between points B and A). We define the variation in shear displacement (the average difference between the displacement of points B₁ and A₁), the shear displacement of unloading D_su (difference between displacements at points C₁ and B₁), and the normal displacement of unloading D_nu (displacement difference between points B and C). The normal stress at failure is σ_nf and the normal unloading capacity is Δσ_n; the relationship is shown in Equation (1) and the values of all defined characteristic points are shown in

Table 3. All defined characteristic points.

θ (°)	σn0 (MPa)	τ0 (MPa)	v (kN/s)	Du1 (mm)	Du2 (mm)	Dsu (mm)	Ds (mm)	Dnu1 (mm)	σnf (MPa)	Δσn (MPa)
15	2.25	5.384	0.05	0.488	0.132	0.363	2.339	0.044	1.093	1.157
			0.10	0.420	0.108	0.115	0.458	0.020	1.148	1.102
			0.15	0.432	0.064	0.009	0.881	0.048	2.050	0.200
30	2.25	5.384	0.05	0.344	0.024	0.035	0.173	0.022	0.652	1.598
			0.10	0.532	0.056	0.028	0.213	0.052	0.889	1.361
			0.15	0.488	0.044	0.018	1.356	0.018	1.618	0.632
45	2.25	5.384	0.05	0.530	0.066	0.251	0.357	0.096	0.440	1.810
			0.10	0.348	0.078	0.209	0.441	0.014	0.606	1.644
			0.15	0.498	0.066	0.038	0.312	0.050	0.777	1.473

.

$$\Delta {\sigma }_n={\sigma }_{n0}-{\sigma }_{nf}$$

(1)

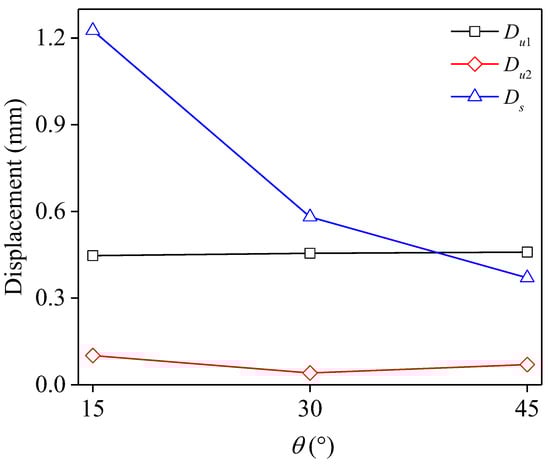

The evolution of characteristic displacements D_u1, D_u2, and D_s are shown in Figure 7.

As shown in Figure 7, with an increase in θ, D_u1 gradually increases, whereas D_u2 and D_s gradually decrease. The increase in D_u1 under each θ is less than the height of a single asperity on the structural plane; specifically, the value of D_u1 accounts for 59.70%, 31.81%, and 18.60% of the height of a single asperity under different θ. Therefore, with an increase in θ, the proportion of the increase in normal displacement gradually decreases. This shows that under the above-mentioned condition, the structural plane primarily undergoes elastic deformation. Therefore, the crack between the structural planes is compressed and the sawtooth tip is not damaged. In the second step, D_u2 is greater than 0 mm, which indicates that the structural plane is further compressed. Meanwhile D_u2 < D_u1 indicates that the normal compression in the first step accounts for most of the compression. The structural plane is not damaged when the shear stress is applied to τ₀; therefore, it is no sliding with large displacement. With an increase in the θ, D_s gradually decreases, which corresponds to the length of a single asperity on the structural plane, i.e., 24.52%, 11.61%, and 7.4% of the length of a single asperity. Therefore, an increase in D_s corresponds to less than 1/4 of the length of a single asperity. Thus, with an increase in the θ, the height of the corresponding single asperity increases, the “interlocking effect” of the upper and lower structural planes is stronger, and it is more difficult to overcome the sliding of the asperity frictions; thus, the shear deformation gradually decreases.

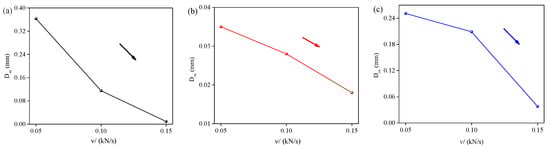

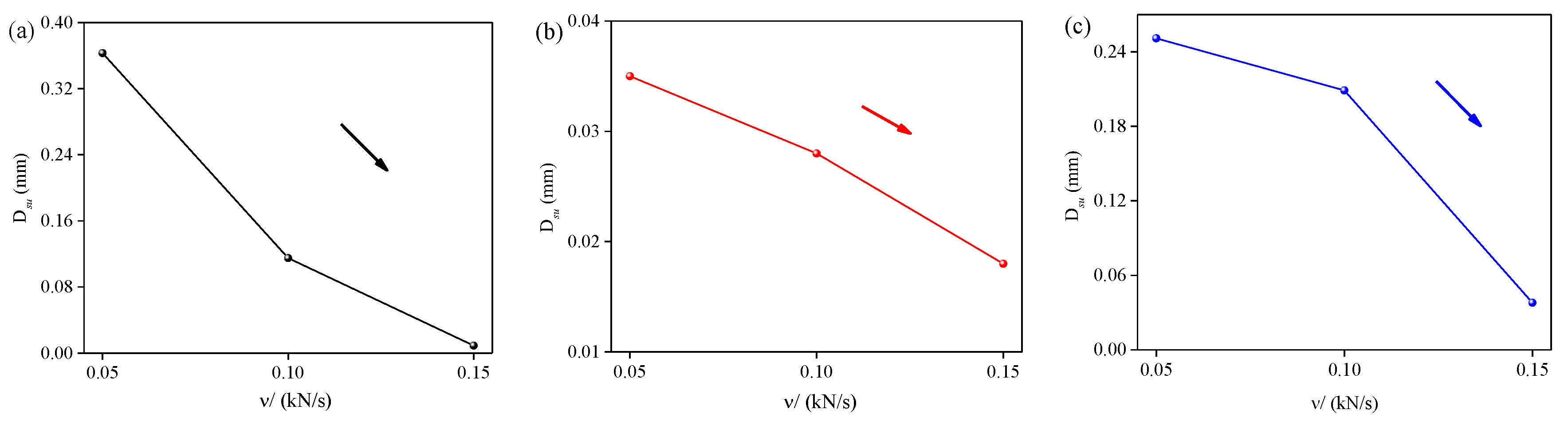

The evolution of D_su is shown in Figure 8. Evidently, with an increase in v, D_su gradually decreases. Therefore, the greater the value of v, the smaller would be the shear displacement before instability. Therefore, as v increases, the structural plane instability becomes more sudden, which is difficult to monitor. However, when v is small, the contingency of the structural plane instability is reduced; therefore, it has strong early warning and can be monitored.

3.2. Failure Normal Stress

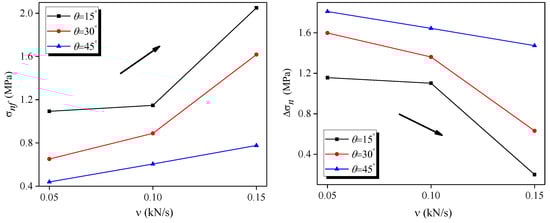

The evolutions of σ_nf and Δσ_n are shown in Figure 9. Evidently, with an increase in θ, σ_nf gradually decreases, which indicates that it is more difficult for the structural plane to become unstable and damaged in the process of unloading normal stress. With an increase in v, σ_nf gradually increases, which indicates that the structural plane is more prone to instability. Therefore, θ and v have the opposite effect on the instability of the structural plane. From Equation (1), it is evident that σ_nf and Δσ_n exhibit the opposite trend with changes in θ and v. Correspondingly, with an increase in θ, Δσ_n gradually increases, but with an increase in v, Δσ_n gradually decreases. It is also verified that θ and v have the opposite effect on the stability of the structural plane. The action mechanism of θ is primarily reflected in the “interlocking effect” of the upper and lower asperities on the structural plane. When θ is small, the heights of the asperities on the corresponding structural plane are 0.67 mm; thus, it does not fit well. Moreover, the corresponding internal friction angle is small; the structural plane easily overcomes friction and slip failure. However, when θ is large, the heights of the asperities increase, the “interlocking effect” between the asperities increases, the corresponding internal friction angle is larger, and the sliding failure of the structural plane is relatively difficult to achieve. Therefore, Δσ_n is an important safety factor that can be used to characterize the excavation stability; this is of great potential significance to the evaluation of the rock excavation.

3.3. Energy Evolution Analysis

3.3.1. Energy Calculation Method

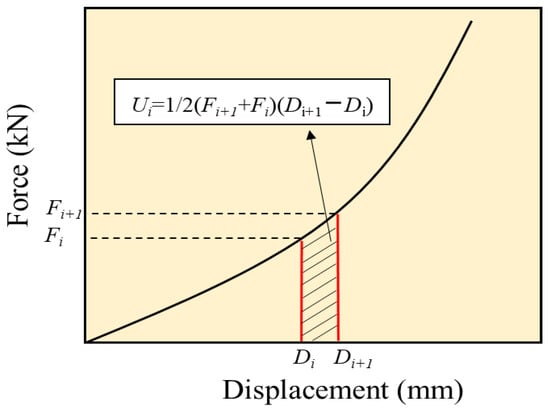

In the compression shear test of a structural plane, the total work performed by external force is the sum of the work performed by normal force and shear force. The calculation method of work performed by external force is shown in Figure 10. Consequently, the energy can be calculated using the following formula:

$$U=U_n+U_s$$

(2)

$$U_n={\displaystyle \underset{0}{\overset{D_n}{\int }}{F}_{n}d{D}_n}$$

(3)

$$U_n={\displaystyle \underset{0}{\overset{D_n}{\int }}{F}_{n}d{D}_n}$$

(4)

where, U_n and U_n are the total work done by the normal force and shear force, respectively.

3.3.2. Evolution of Energy

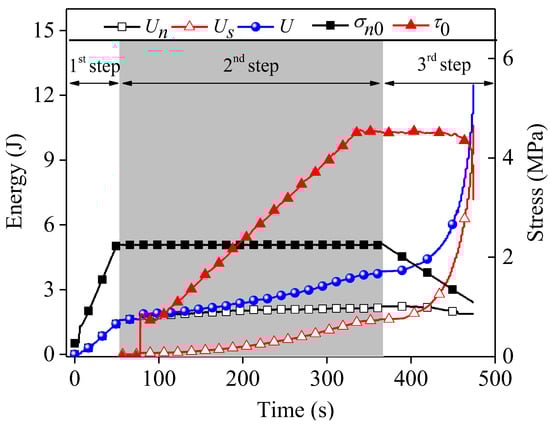

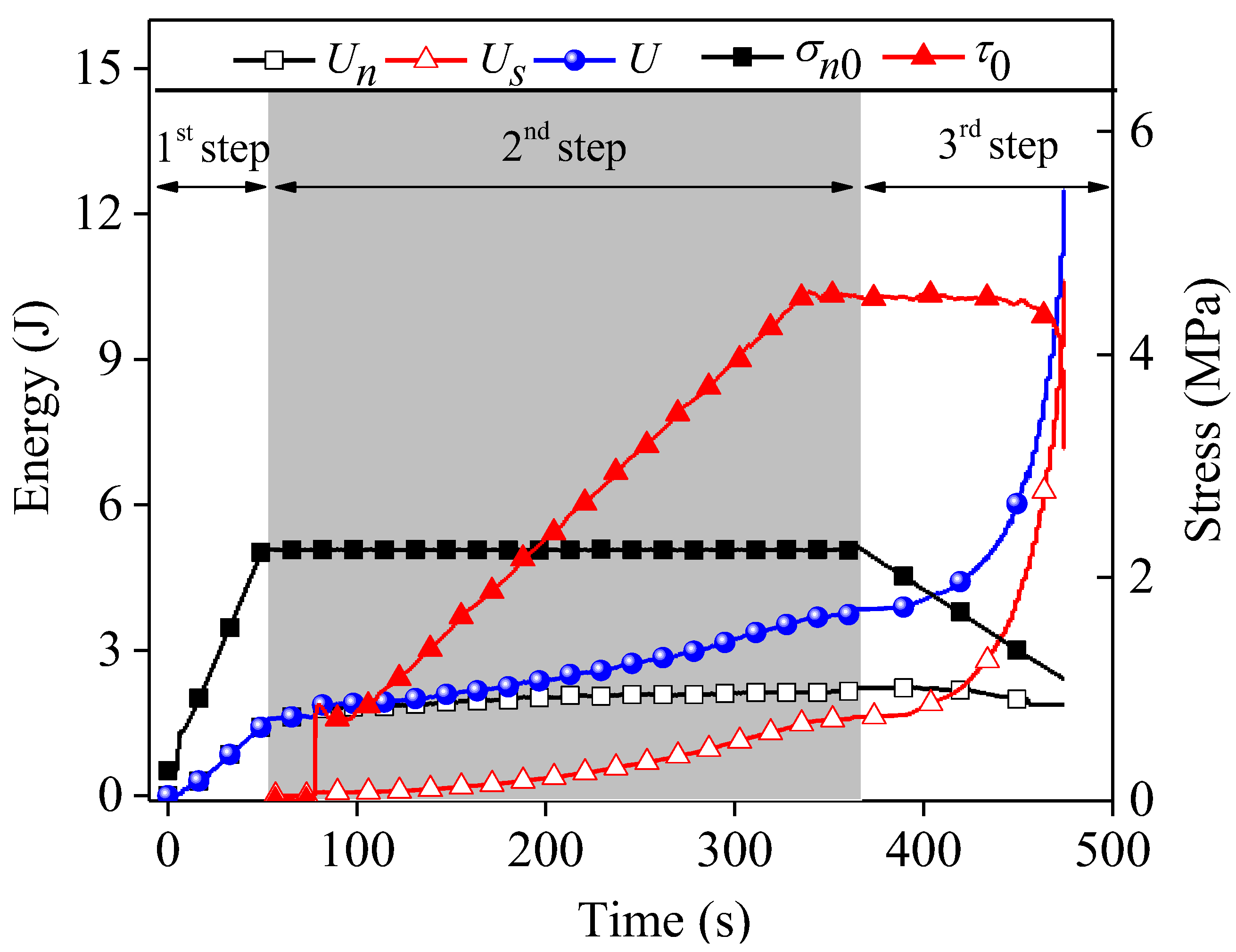

The energy evolution is shown in Figure 11. Evidently, in the first step, when the normal stress is applied, the structural plane is in the compression stage; the normal force performs positive work. The shear force is not applied; U_s = 0 J, and U in this stage equals U_n. The evolution curve of U essentially coincides with the curve of U_n. In the second step, the normal stress is unchanged when the shear force is applied. Because the shear deformation direction is consistent with the direction of the shear force, the shear force performs positive work, and U_s exhibits a non-linear increasing trend. The shear force is applied while keeping the normal force unchanged; therefore, the structural plane is further compressed, and the normal force performs positive work. Owing to the small degree of compression, the increase in U_n is small. U_s and U increase nonlinearly and the growth rate between them is similar. In the third step, the direction of the normal displacement is opposite to that of the normal force; therefore, the normal force performs negative work and U_n decreases sharply. Moreover, the decreasing speed is equal to the normal stress. At this stage, the reduction in the normal force transforms the structural plane “from stability to instability.” The shear displacement has an increasing trend. As the U_s further increases, the increase in speed of U_s in the third step is considerably higher than that in the second step and there is a clear inflection point between the two stages.

The values of U_n, U_s, and U at the instability point are shown in

Table 4. Values of U_n, U_s, and U.

θ (°)	σn0 (MPa)	τ0 (MPa)	v/(kN/s)	Un (J)	Us (J)	U (J)
15	2.25	5.384	0.05	1.876	3.613	5.489
			0.10	2.055	2.834	4.889
			0.15	2.605	2.490	5.095
30	2.25	5.384	0.05	0.535	4.098	1.633
			0.10	1.392	3.042	4.434
			0.15	1.497	2.966	4.463
45	2.25	5.384	0.05	1.565	4.576	6.141
			0.10	1.653	3.413	5.066
			0.15	1.727	3.217	4.944

.

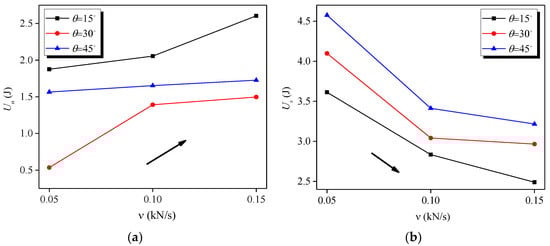

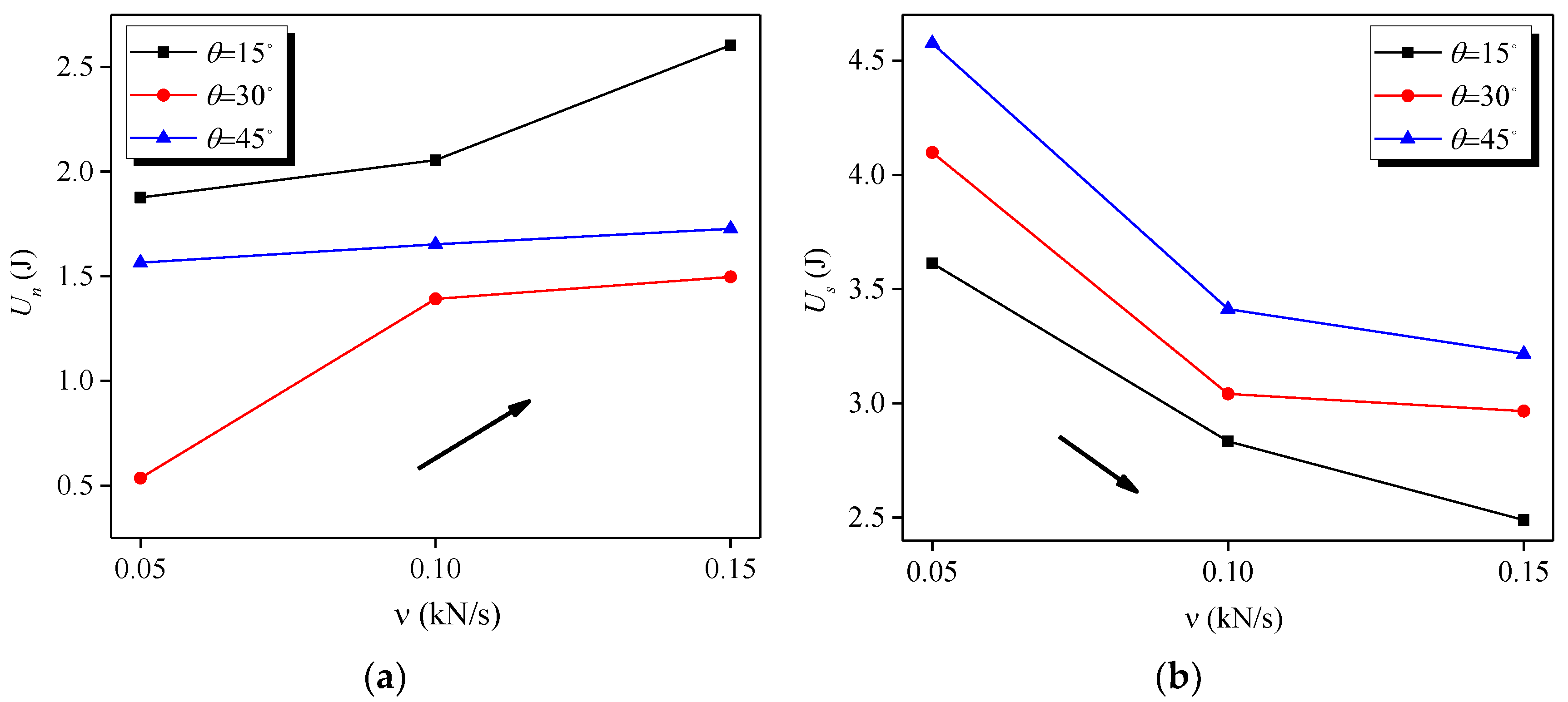

The evolutions of U_n and U_s are shown in Figure 12. As shown in Figure 12a, U_n increases gradually with an increase in v. Therefore, U_n released under the same θ decreases gradually; this also verifies that the structural plane is more prone to instability at a higher v. As observed in Figure 12b, at the unloading point, U_s gradually increases with an increase in θ. However, U_s gradually decreases with an increase in v. Therefore, we can conclude that with an increase in v, the shear displacement generated when the structural plane is unstable is small; thus, the “impact tendency” is stronger and there is no clear transition period. Before reaching the instability point, the structural plane exhibits no obvious sliding and when it reaches the instability point, it exhibits “instantaneous” sliding. With an increase in θ, U_s at the unloading point gradually increases. When the structural plane is unstable, it is accompanied by the release of deformation energy stored between the structural planes. Therefore, with an increase in θ, the structural plane instability occurs with a higher energy release.

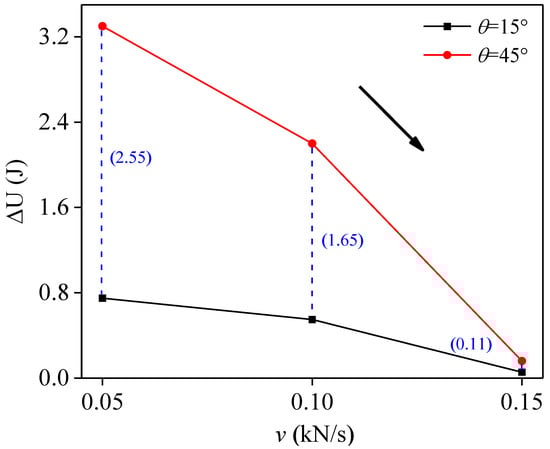

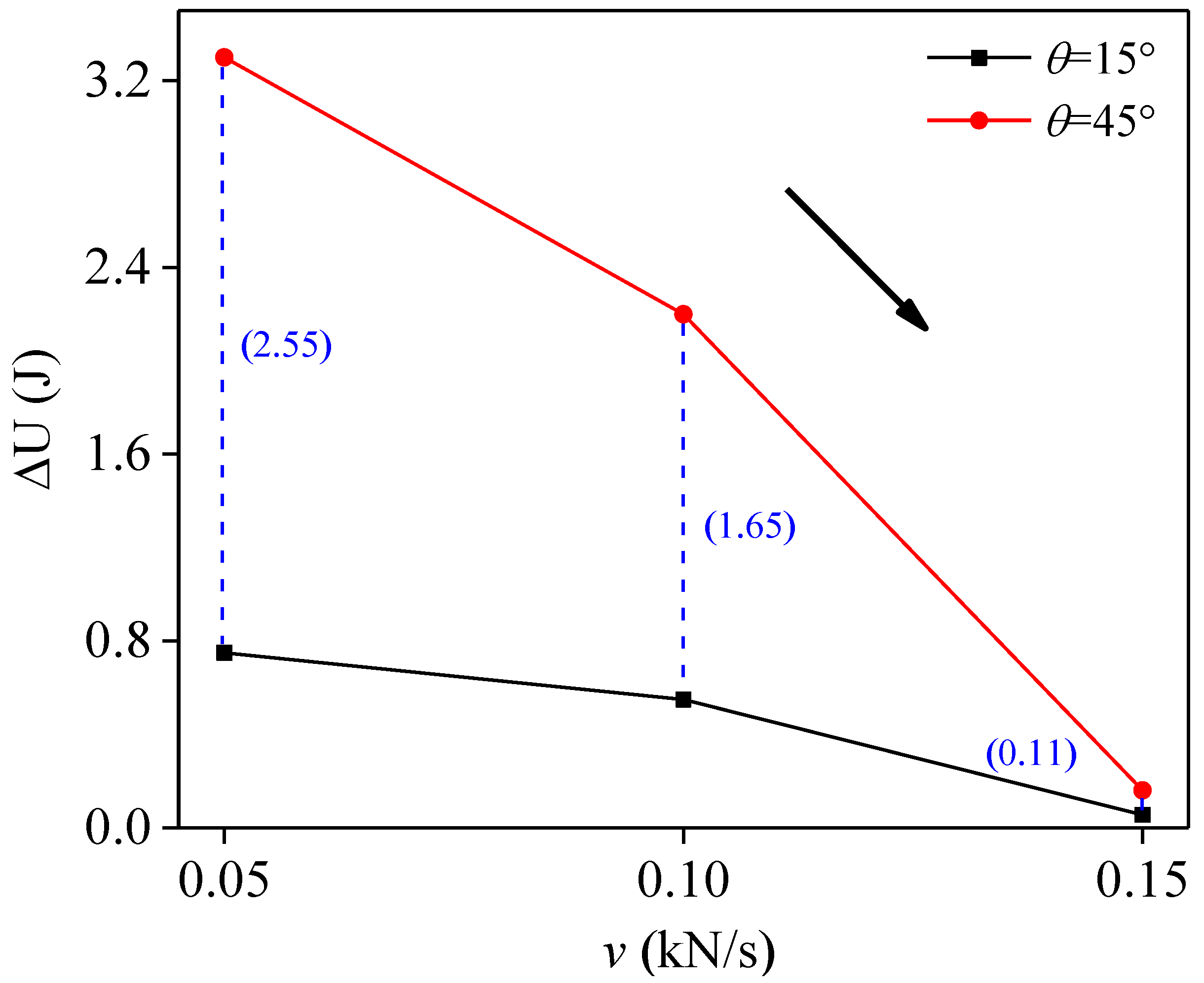

The total energy difference ΔU between the unloading and instability points is shown in Figure 13. Evidently, ΔU gradually decreases with an increase in v. When v = 0.15 kN/s, ΔU decreases almost to 0 J; this shows that when the unloading starts to cause instability, the total energy contained in the structural plane is almost completely released, and the instability and failure degree of the rock mass increase gradually. With an increase in θ, ΔU increases gradually, which indicates that the total energy loss decreases gradually in the unloading process. When θ is small, the structural plane is prone to instability. With an increase in θ, the total energy consumed in the process from unloading to instability is large; thus, instability in the structural plane becomes difficult. However, from the beginning of the unloading to the instability of the structural plane, the impact tendency during instability is lower, owing to the excessive total energy consumption. This indicates that θ is inversely proportional to the impact tendency of the instability.

3.4. Failure Pattern

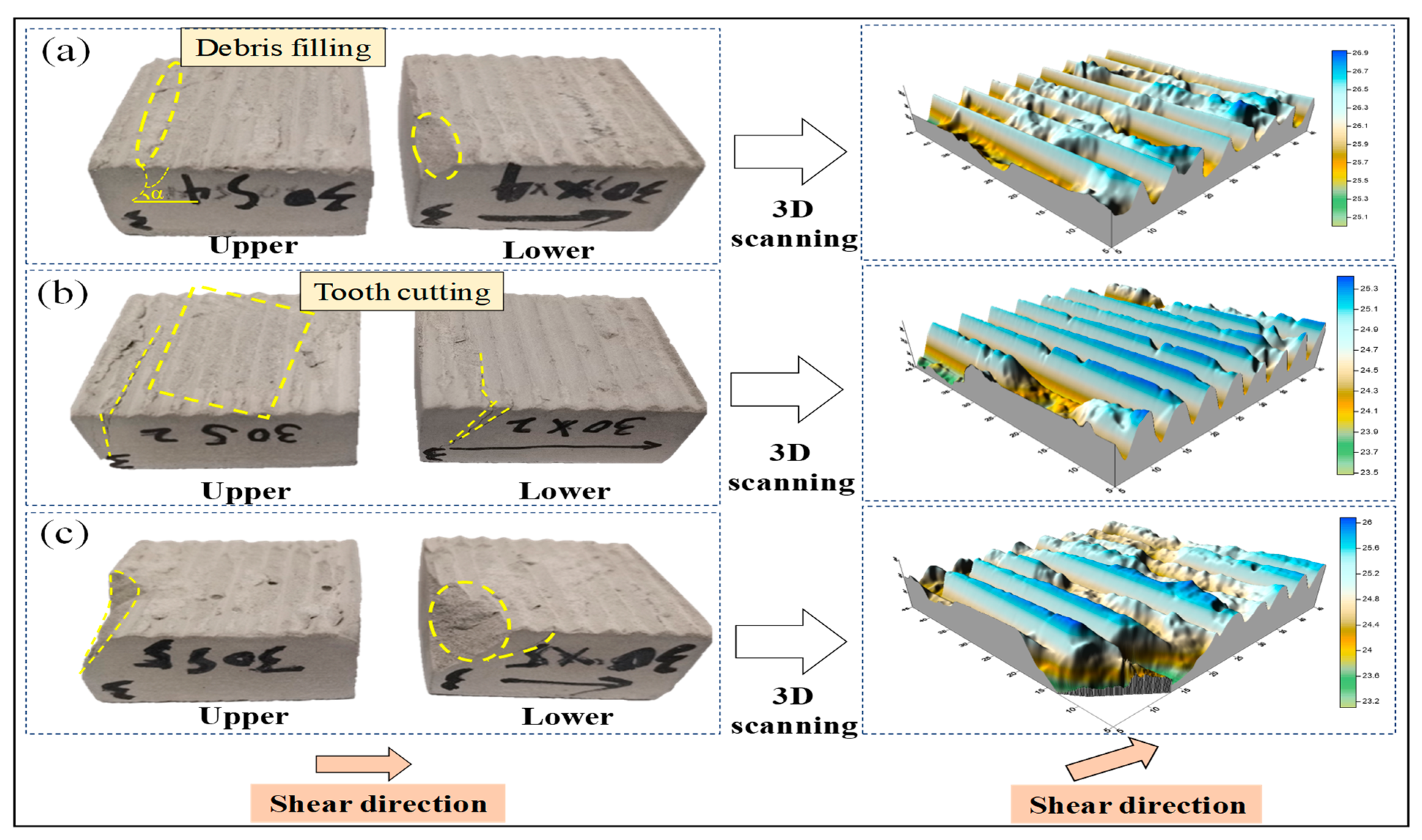

Owing to length limitations, θ = 30° is considered as an example to analyze the failure mode of the structural plane, as shown in Figure 14.

The extent of damage can be directly observed from the visual diagram and 3D scanning diagram of the structural plane. We can directly see the damage degree of the structural plane under different v. When v = 0.05 kN/s (Figure 14a), the wear degree of the upper and lower structural planes is low and only the half in front of the upper structure plane is filled with debris. Owing to stress concentration, some rock walls at the front of the lower structure plane are cut off in a small range. Tensile cracks are generated on the rock wall of the upper structural plane, the angle α between the upper structural plane and the horizontal plane is an acute angle, and the wear degree of the asperities are lower. When v = 0.10 kN/s (Figure 14b), the damage of the structural plane increases significantly and a tension crack is formed at the front end of the rock wall of the upper and lower structural planes. At this time, the crack is not limited to the rock wall and a through crack is also formed on the structural plane. The sawtooth cutting effect occurs in the middle of the upper structural plane. When v = 0.15 kN/s (Figure 14c), the structural plane is most damaged. This is primarily reflected in the front end of the upper and lower structural planes, which is completely cut off, and tension cracks are formed on the rock wall of the lower structural plane. Similarly, this can be seen from the 3D morphology scanning.

The type and mechanism of rock burst can be predicted by the damage degree of the structural plane. The tensile cracks form on the surface wall of the structural plane and form an acute angle with the shear direction, that is, toward the free surface. Because the structural plane in engineering rock mass is not limited by the shear box, when the structural plane produces instantaneous failure, a large number of rock masses within the range from the tensile fracture surface to the free surface are washed away, thus forming large-scale explosion pits. With the increase in v, the damage degree of the structural plane increases; therefore, the grade of rock burst also increases gradually. It can be concluded that v is an important factor affecting the rock burst degree. Therefore, comprehensively understanding the geology and geomorphology and formulating perfect and accurate construction schedule are of great significance to the stability of engineering rock mass, which can ensure the safety of personnel and property to the greatest extent.

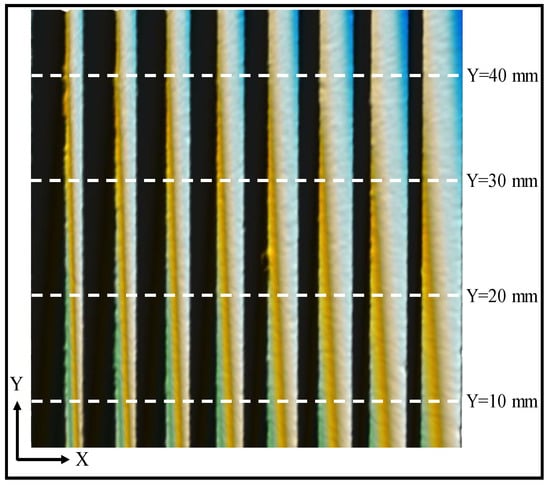

After 3D reconstruction, each structural plane is divided into five equal parts and four 2D profile lines are obtained, which is far in line with the three quantitative standards recommended by ISRM. The position of the profile line is at 10, 20, 30, and 40 mm in the Y direction and the sampling interval is 0.125 mm. The positive direction of X is the shear direction, as shown in Figure 15. According to the above definition, 2D section lines of the structural plane are obtained under different v, as shown in Figure 16.

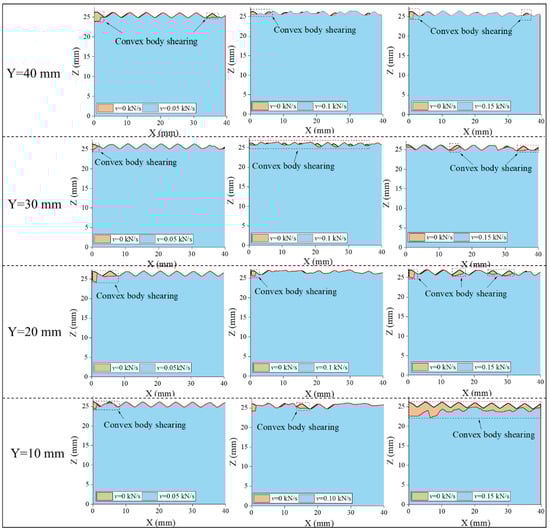

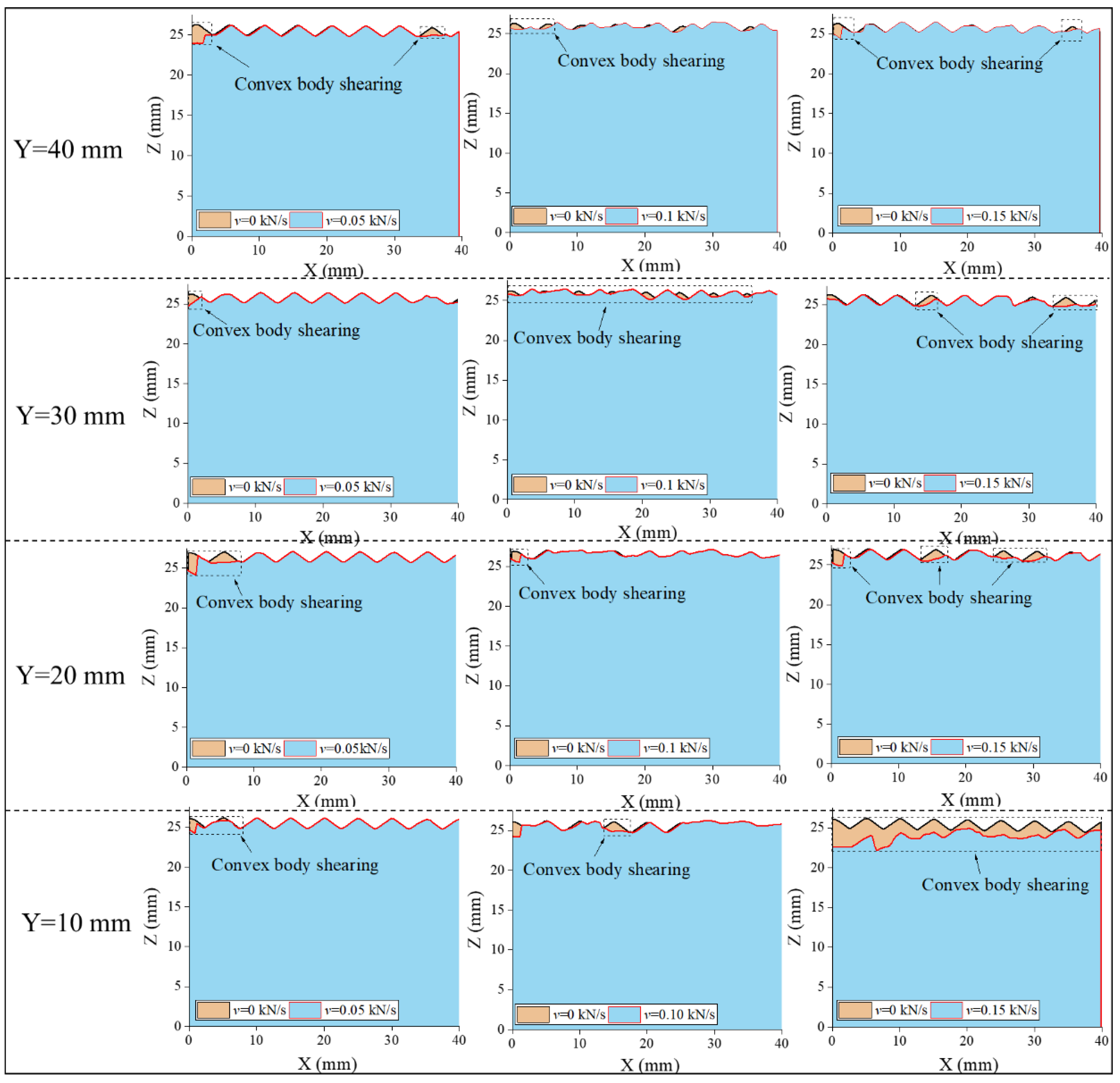

It can be seen from Figure 16 that the shape of the 2D section line of the structural plane changes after shearing. When v = 0.05 kN/s, there are still a large number of undamaged regular sawteeth on the structural plane at different Y positions. When v = 0.10 kN/s, most of the sawteeth on the structural plane are cut and they are filled between the structural planes, as can be seen from the increase in average height. When v = 0.15 kN/s, the sawtooth on the same structural plane is cut off, however, compared with v = 0.10 kN/s, there is no filler between the structural planes, indicating that the impact tendency of the structural plane is stronger. Therefore, with the increase in v, the damage degree of the structural plane increases and the “impact tendency” is stronger.

By analyzing the 2D section lines of the structural plane at different Y, the 2D morphological changes in the structural plane are obtained. Next, the damage degree of the structural plane is analyzed according to the evolution of the 3D morphological parameters. The 3D morphological parameters to be analyzed are defined as follows:

(1)

Average height z₃: the average height of each point on the structural plane;

(2)

Maximum height difference of surface S_h: vertical distance from the highest point to the lowest point of the structural plane;

(3)

Maximum peak height of surface S_p: the distance from the highest point of the structural plane to the datum plane;

(4)

Contour area ratio S_A: the ratio of the surface expanded area of the structural plane to the vertical projected area; the calculation equation is:

$$S_A=\frac{S_t}{S_n}$$

(5)

where S_t is the unfolded area of the surface and S_n is the area of the surface vertically projected to the bottom along the normal direction;

(5)

Volume V: the volume of the space enclosed by the structural plane and the bottom plane;

(6)

Surface area S_t: the expanded area of the surface of the structural plane.

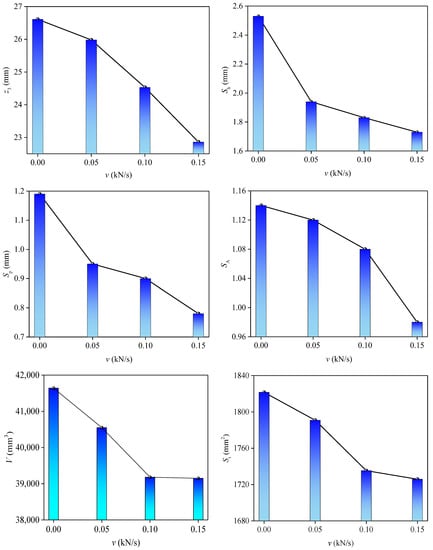

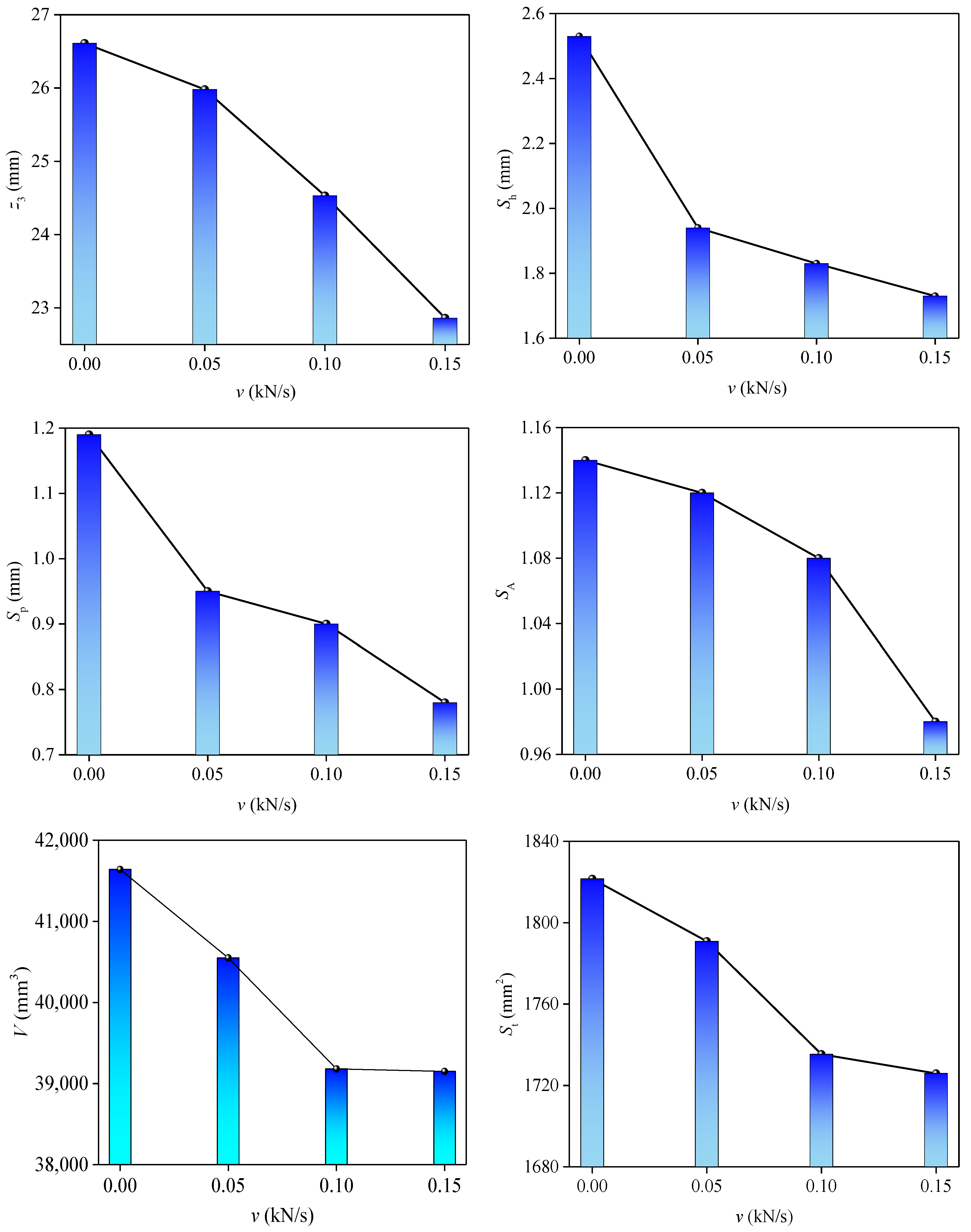

The evolution of the 3D morphology parameters of the structural plane is shown in Figure 17. In the figure, v = 0 kN/s represents the 3D morphology parameter value before shearing. It is evident from Figure 17 that the 3D morphological parameters after shearing are lower than those before shearing. Additionally, it decreases with the increase in v. It shows that the roughness of the structural plane decreases after shearing, therefore the damage degree gradually increases with the increase in v.

4. Discussion

4.1. Gap Width Calculation Method

According to the research results obtained by the research team [46,47], the gap width during shearing can be characterized using point cloud data and normal deformation. The gap width refers to the spatial distribution of the spacing between the upper and lower structural planes, which is numerically equal to the difference between the z-axis coordinates of each point i _(x,y) on the upper and lower structural planes:

$${\Delta }_i=z_{iu}-z_{id}$$

(6)

where, Δ_i is the gap width at point i, and z_iu and z_id are the heights of the upper and lower structural planes at point i (x, y), respectively.

The spatial position of each identification point on the upper and lower structural planes at different shear displacement is calculated through the point cloud data of the structural plane in Figure 14 and the shear displacement and normal displacement values of the structural plane at the starting point, unloading point, and instability point. Consequently, the distribution and evolution of the gap width of the structural plane in the shear process are analyzed. In the initial state (shear displacement u = 0 mm), the 3D optical scanning technology can accurately obtain the space coordinate points i_ou(x, y, z) and i_od(x, y, z) of the upper and lower structural planes. When u = 0 mm, z_iou and z_iod are z_iu and z_id, so z_iou and z_iod can be substituted into Equation (6) for direct calculation. For the gap width distribution with shear displacement, u ≠ 0 mm; its coordinates translate along the shear direction, therefore, it is necessary to calculate the coordinates of the upper and lower structural planes with any u through coordinate transformation. When the shear displacement is u, the gap width at each point on the structural plane can be deduced as follows:

$$\{\begin{array}{l}{\Delta }_i=z_{iou}-z_{iod},u=0 \mathrm{mm}\\ {\Delta }_i=z_{(i+u)ou}-z_{iod},u\ne 0 \mathrm{mm}\end{array}$$

(7)

where, z_iou is the height of the upper structural plane at point i in the initial state; z_iod is the height of the upper structural plane at point i in the initial state; z_(i+u)ou is the height of the upper structural plane at point (i + u) in the initial state; and δ_n is the normal displacement when the shear displacement is u.

4.2. Analysis of Impact Tendency of Structural Plane

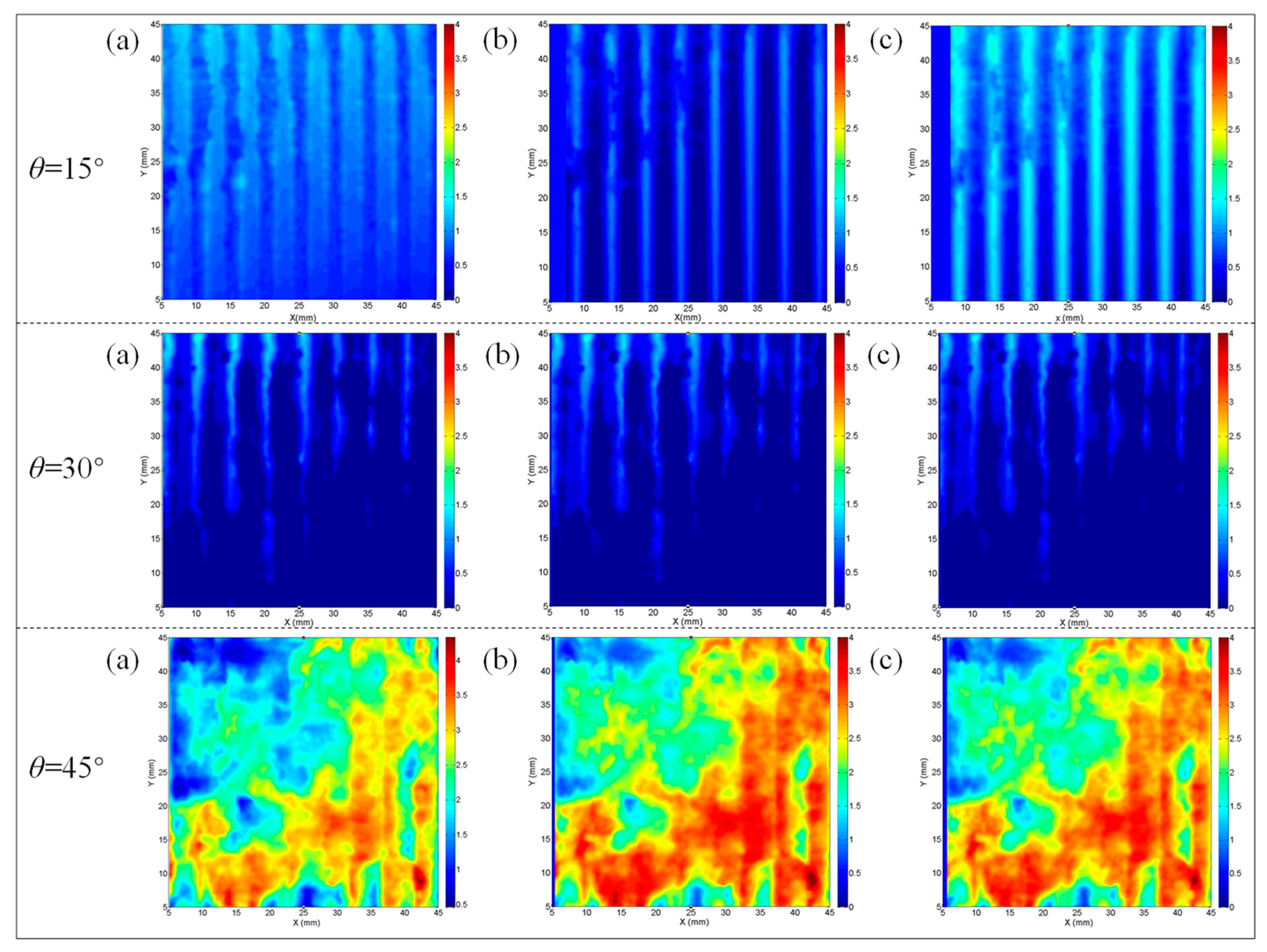

As a result of the aforementioned analysis, the evolution of gap width with different θ was obtained as shown in Figure 18.

In Figure 18a–c represent the gap width corresponding to the structural plane at the initial point, unloading point, and instability point, respectively. Apparently, with the increase in the θ, the gap width at the corresponding position increases gradually. At the same time, the change of the gap width gradually decreases, that is, the gap at the adjacent position basically does not change, indicating that the impact tendency of the structural plane instability is smaller.

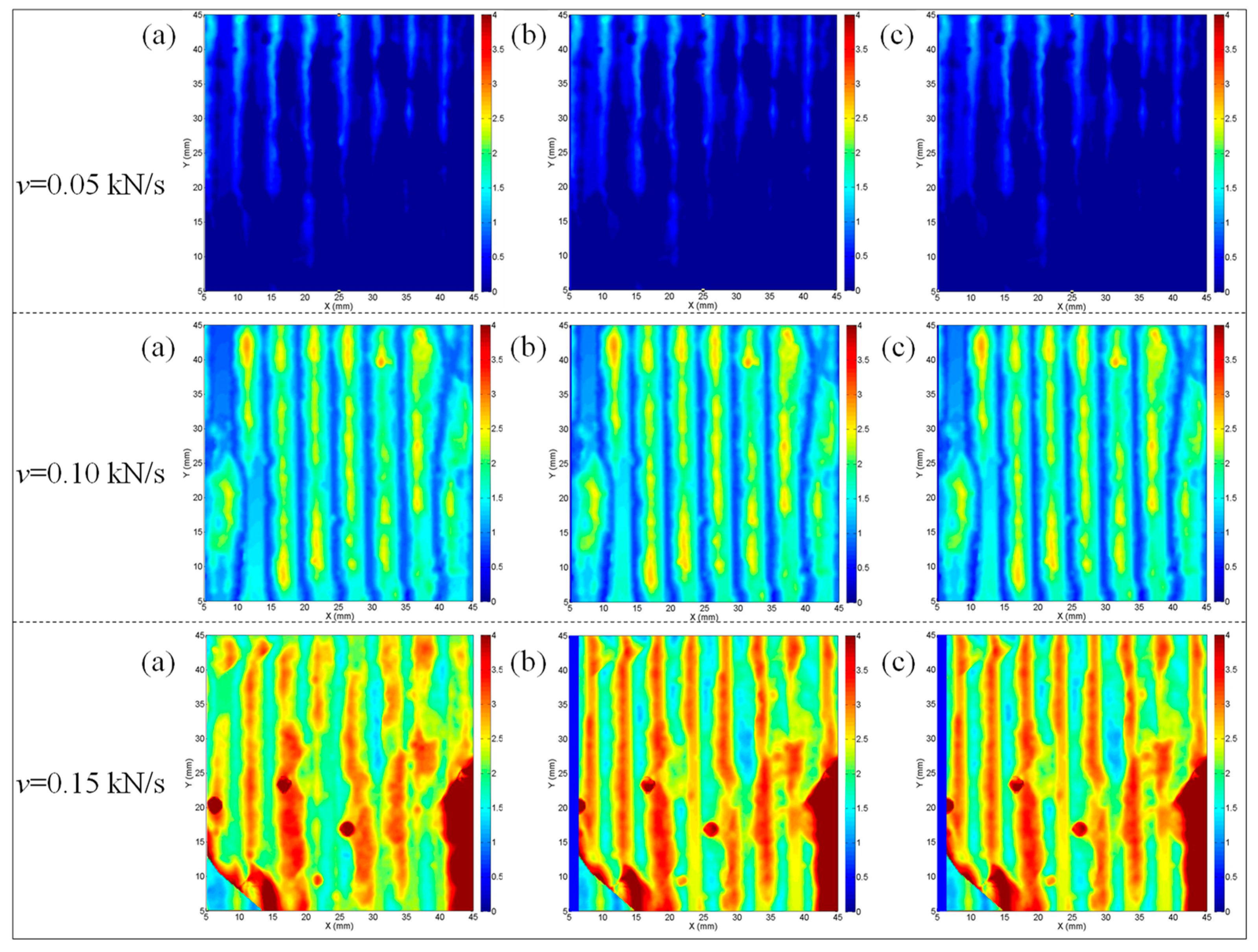

The evolution of the gap width under different v is shown in Figure 19. Similarly, under each v, (a–c) represent the gap width at the initial point, unloading point, and instability point, respectively. Evidently, with the increase in v, the damage degree in the structural plane increases and the change of adjacent positions decreases, so the impact tendency is stronger.

As the shear box is sealed, the structural plane cannot be taken out for 3D scanning in the three stages, so the 3D scanning map of each stage cannot be obtained in real time, which affects the accuracy of the gap width results. It is recommended that the shear box and the upper and lower structural planes be created with resin materials at the same time, so that the structural plane morphology can be scanned in real time and the 3D point cloud data obtained are more accurate, meaning the accuracy of the test results can be further improved. In future research, work should focus on the establishment of the structural plane visualization system.

5. Conclusions

This study analyzes the influence of θ and v on the evolution laws of characteristic displacement, failure strength, 3D morphology parameters, and energy of the structural plane through the unloading normal stress test. The main conclusions of the study are as follows:

(1)

In the first step, the normal displacement increases nonlinearly and the increase rate decreases gradually. In the second step, the shear displacement increases linearly and the increase rate is 0.001 mm/s. In the third step, the normal displacement decreases nonlinearly, the reduction rate increases gradually and the shear displacement increases nonlinearly until the instability of the structural plane occurs. With an increase in θ, the D_u1 gradually increases, however, D_u2 and D_s gradually decrease. The increase in D_u1 is less than the height of a single asperity on the structural plane. D_su and σ_nf decrease gradually with an increase in the v.

(2)

With an increase in v, the U_n increases gradually and U_n released under the same θ decreases gradually. At the unloading point, U_s increases gradually with an increase in θ. However, U_s decreases gradually with an increase in v. With an increase in θ, U_s at the unloading point increases gradually.

(3)

The tension crack that forms on the wall of the structural plane is at an acute angle with the shear direction. By analyzing the evolution of the 2D section line and 3D morphology parameters of the structural plane, it is obtained that the damage degree of the structural plane increases with the increase in v. Meanwhile, an analysis of the evolution of the gap width of the structural plane, with the decrease in the θ or the increase in v, demonstrates that the ability of instability failure of the structural plane increases while the impact tendency of the structural plane, however, decreases.
