Identification and Factor Analysis of Traffic Conflicts in the Merge Area of Freeway Work Zone

Abstract

The merge areas of freeway work zones include relatively significant safety hazards that have continuously led to urgent safety issues to be solved by the management departments. In order to make up for the cumbersome process of independent identification of rear-end collisions and lane change collisions on complex road sections, an appropriate identification method of traffic conflicts in the merge area of freeway work zone was explored, this study collected vehicle running tracking data from the merge areas of multiple work zones, using an unmanned aerial vehicle video technique. Based on an inter-frame difference method and the principle of a spatio-temporal context visual tracking algorithm, the vehicles were detected and tracked, and the coordinate data of the vehicles in continuous motion were parsed using MATLAB 2018b extension tools. Based on the behavior characteristics of vehicle conflict avoidance, a new identification method for evading severe traffic conflicts is proposed according to the initial velocity, acceleration, and accident rate of section traffic. Then, a statistical analysis was performed on the spatial distribution characteristics of the traffic conflicts in typical merge areas. The impacts of the road conditions in work zones, vehicle factors, and traffic flow factors on traffic conflicts were analyzed. A binomial logistic model was established to identify the main influencing factors. The results show that in the merge area of the freeway work zone, there are serious traffic conflicts between vehicles in the following two situations: (I) $v\in [7,13.5]$ m/s and $\mathrm{a}\in [-3.96,-0.65]$ m/s²; and (Ⅱ) $v\in [13.5,24.3]$ m/s, and $a\in [-3.96,-1.57]$ m/s². The probabilities of serious traffic conflicts in the first and last 25 m of the merge area are greater than those in the other sections. The smaller the space between the upstream work zone and the merge area, the greater the probability of serious traffic conflicts between vehicles. When the average vehicle speed is relatively high, the probability of serious conflicts is the highest, i.e., by a multiple of 5.95 from the baseline. Moreover, the probability of serious conflicts between vehicles is higher for larger vehicles, i.e., 4.765 times that for small vehicles. The research results can serve as a reference for freeway management departments to improve the safety levels of merge areas during road work. For example, the probability of serious conflicts can be effectively reduced by setting up reasonable speed limit signs in the work zone, increasing the spacing between the work zone and merge area, and appropriately diverting large vehicles.

1. Introduction

With continuously increasing vehicle ownership, the road capacities of some freeways can no longer meet the traffic demands of vehicles, and there comes an urgent need for reconstruction and widening. During the reconstruction and widening period, the construction personnel, construction machinery, and safety protection facilities constitute a dangerous traffic environment [1]. This environment severely interferes with the driving of vehicles, leading to more prominent traffic safety problems in work zones. Thus, traffic safety research in work zones is particularly important. In traditional traffic safety research, traffic accident data are widely used for safety evaluations and improvements of traffic facilities. In recent studies, in addition to the use of EDR (Event Data Recorder) technology, the use of EDR+ technology can make accidents much more assessable [2]. Based on video acquisition and GPS sensors to obtain road and vehicle information, the safety assessment of local rural roads can be carried out objectively and effectively by the scoring of the inspection forms [3]. However, the traffic accident data for freeways in China during periods of reconstruction and widening have not been recorded completely, or accumulated sufficiently. Such shortcomings have resulted in low data availability, making it necessary to find alternatives for traffic accident data. The traffic conflict technique (TCT)—as a non-accident statistical technique [4]—has been used increasingly in research on freeway safety evaluation due to its small observation area, high reliability, short period, large samples, and other advantages [5,6].

Traffic conflict identification methods serve as the basis for research on traffic conflicts. The commonly used traffic conflict identification indicators are generally divided into four categories: speed conflict indicators, time conflict indicators, distance conflict indicators, and other conflict indicators. Speed conflict indicators are mostly used to determine the severity of traffic conflicts. Zhu considered the initial velocity and mass of a vehicle, and determined serious conflicts from the perspective of energy conversion [7]. Bagdadi proposed an indicator for the severity of traffic conflicts based on a vehicle’s speed, acceleration, and mass [8]. The time conflict indicators (such as time to collision (TTC) and post-encroachment time (PET)) [9,10], distance conflict indicators (such as the proportion of stopping distance (PSD)) [11], and other conflict indicators (such as the deceleration rate to avoid crash (DRAC or DR)) [12], are used for specific types of traffic conflicts. For example, TTC, PSD, and DRAC are only applicable to rear-end conflicts, and PET is only applicable to lane-changing conflicts. To compensate for the drawback that the rear-end and lane-changing conflicts must be identified separately, some scholars have recently proposed new conflict indicators, such as the time difference to collision (TDTC) [13] and T₂ [14], which opens up the exploration of the comprehensive recognition method for various types of conflicts. However, such indicators only identify traffic conflicts in small fixed areas in terms of the proximity of time and distance, without considering the severity of traffic conflicts. Laureshyn et al. integrated two important dimensions, namely the proximity of accidents and severity of conflict consequences, and established a traffic conflict indicator denoted “Dealt-V”. When analyzing conflicts between left-turning vehicles and straight-moving vehicles, they found that this indicator performed well for serious traffic conflicts [15]. In a freeway merge area, vehicles shift gears and change lanes frequently, resulting in a large number of long-distance and mixed lane-changing and rear-end conflicts. When considering the severity of conflicts, existing traffic conflict identification methods must identify rear-end and lane-changing conflicts separately, which requires a relatively complex operation process. Therefore, this study focused on the special traffic scenario of a merge area and proposed an identification method for avoiding traffic conflicts based on the interval initial velocity and acceleration. The proposed method can identify rear-end and lane-changing conflicts simultaneously, while also considering the severity of conflicts. Moreover, it can be effectively used to study the spatial distribution characteristics of traffic conflicts.

Scholars both at home and abroad have conducted traffic conflict research in merge areas using previously studied traffic conflict indicators. Qi and Zhao analyzed the safety impact of using a signalized control strategy at work zone merge points [16]. They found that signalized control could effectively reduce lane-changing conflicts, but increased the probability of rear-end conflicts. Li applied a traffic conflict technique and defined hourly composite risk indexes (HCRIs) based on the traffic accident data. The relationships between the HCRIs and influencing factors were studied by establishing a multivariate regression model [5]. By considering the vehicle movement information and vehicle size, Ma built a traffic conflict identification model based on a PET algorithm in the merge area and verified the validity of the model [17]. Rong et al. generated traffic conflicts using VISSIM simulation models and studied the relationships between the simulated and observed conflicts through a Spearman rank correlation coefficient. Based on the results, they proposed a method for safety assessments in freeway merge areas [18]. Studies on traffic conflicts in work zones are helpful to improve the safety status of work zones, but the identification of rear-end collision and lane change conflict is complicated, and the effectiveness and accuracy of traffic conflict simulation also need to be studied. In addition, the road conditions and traffic conditions in the merge area of the freeway work zone are more complex than those in the normal merge area. At present, there is a lack of traffic conflict research for the special scene of the merge area in the work zone, which is not only because there is no unified traffic conflict indicator applicable to the merge areas but also because of the limitations in the data collection conditions and data processing techniques.

In terms of traffic conflict data acquisition, there are usually four methods, namely manual count, survey stations, automatic detectors, radar, and laser guns. However, these methods are not very suitable for high flow, fast speed, and a wide range of highway merging sections [19]. In contrast, data collection using unmanned aerial vehicle (UAV) videos can realize continuous multi-section data collection simultaneously and provide higher accuracy; therefore, these are beneficial for conducting more in-depth research [20]. In terms of video data processing, the traditional manual data processing method is subjective, has low data accuracy, and collects relatively few conflict data types. However, an automatic video processing technique can effectively compensate for the shortcomings of manual processing [21]. Dong adopted an adaptive Gaussian mixture background model and combined it with an inter-frame difference method [22]. By taking full advantage of the model’s adaptability to environmental changes, they detected vehicles entering a video shooting area. Zhang proposed a visual tracking algorithm based on the spatio-temporal context, which has proven to be very effective. Video technology is becoming increasingly mature [23]. Moreover, a large number of studies have provided technical support for obtaining accurate and valid results based on real-time vehicle running tracking data [24].

In this study, a UAV video technique was adopted to collect vehicle running tracking data in work zone merge areas of the JIQING freeway. Vehicles were detected and tracked based on the inter-frame difference method and the principle of the spatio-temporal context visual tracking algorithm. Based on the characteristic that the interval acceleration of vehicles will change after avoiding traffic conflicts, and then considering the initial interval velocity of vehicles to identify traffic conflicts in merge areas, this method can simplify and integrate the identification process of multi-type traffic conflicts because it ignores the conflict evolution process. According to the correlation between serious traffic conflicts and traffic accidents, serious traffic conflicts are identified. On this basis, the spatial distribution characteristics of the traffic conflicts were statistically analyzed, and a binomial logistic model was established and validated. The impacts of traffic flow factors, road factors, and vehicle factors in the work zone on the risk(s) of vehicle conflicts were explored.

The Section 1 of this paper introduces the research background and reviews domestic and foreign studies from three aspects: traffic conflict indicators, merge area traffic conflicts, and conflict data collection and processing. The Section 2 mainly describes the processes of data collection using UAV and video data processing. The Section 3 introduces the theory of avoidant traffic conflict identification, along with the conflict influencing factors and conflict risk logistical model. The Section 4 presents the research results and analyzes the reasons therefor, and the Section 5 provides discussion and conclusions.

2. Data

2.1. Unmanned Aerial Vehicle Data Collection

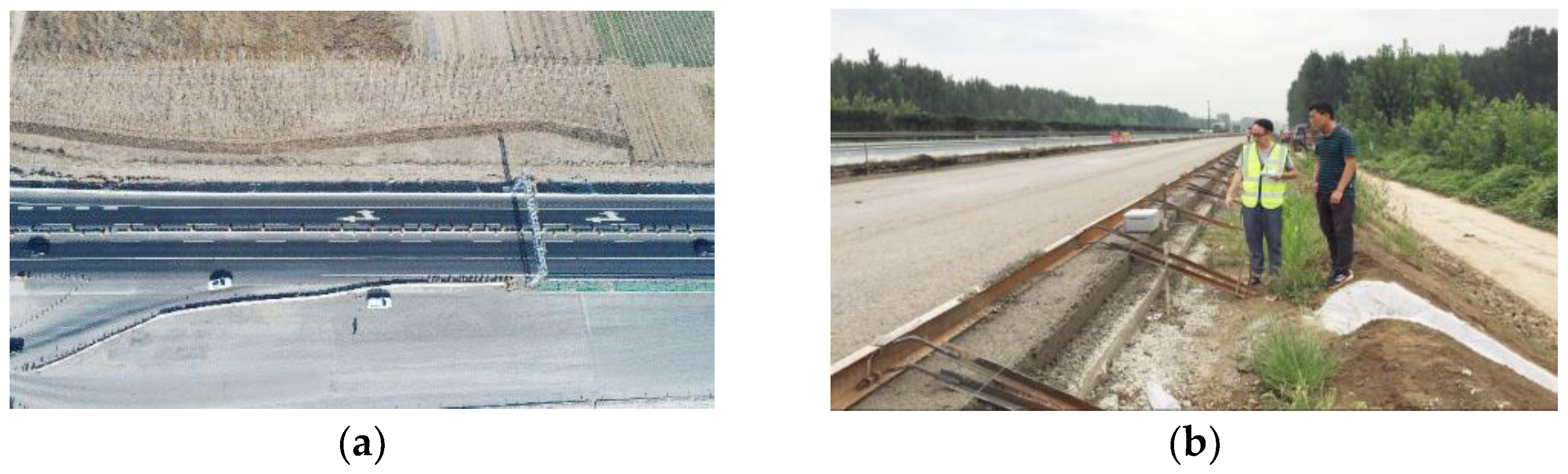

Our research team used a UAV to collect traffic conflict data on the JIQING freeway from 13 to 21 January 2018. In this experiment, the selected sites for merge area data collection were five merge areas located at K132 + 300, K258 + 260, and K176 + 500 (

Table 1. Data collection.

Collection Time	Including the morning peak from 8:00 to 9:00, the evening peak from 16:00 to 17:00, and the flat peaks from 10:00 to 11:00 and 15:00 to 16:00.
Collection Site	K176 + 500, K258 + 260 (including 2 merge areas), and K132 + 300 (including 2 merge areas).
Characteristics of merge area	Merge area (K176 + 500):100 m long and 14 m wide Merge areas (K258 + 260): two merge areas are both 120 m and 15 m wide. Merge areas (K132 + 300): two merge areas are both 150 m and 15 m wide.
Collected Data Amount	A total of six hours of data were collected; after data sorting, 56,825 frames with complete data were retained.

). The freeway design speed was 100 km/h, and the speed limit during construction was 80 km/h. The data collection scene for the merge area is shown in Figure 1.

The experimental device used in this experiment was DJI’s PHANTOM 4 PRO UAV, which can provide videos with 4K ultra-high definition and 30 frames per second (fps). This device can hover and shoot with a good high-altitude field of view. Compared with traditional cameras, there are no shooting angle or occlusion issues, and the shooting range is larger, providing evident advantages. This vehicle data collection method also provides rich data extraction at a relatively low cost, as well as other advantages [25]. This UAV has a maximum flight altitude of 500 m, maximum flight time of 30 min, and maximum video resolution of 4K/60P. It is also possible to use GPS positioning. In the experiment, the UAV shot videos from a static hovering state; the flying height was between 350 and 450 m. From calculations based on the angle of view of the UAV lens, the shooting range was approximately 600 to 700 m (length)/300 to 350 m (width). The accuracy of the captured video was 0.2 m, meeting the accuracy requirements. If the shooting height was lower, the accuracy was even better. Compared with traditional data collection methods, the UAV video shooting approach could collect the data of all vehicles in a certain area, which was convenient for identifying vehicle running tracks, and exhibited better continuity.

2.2. Video Data Processing

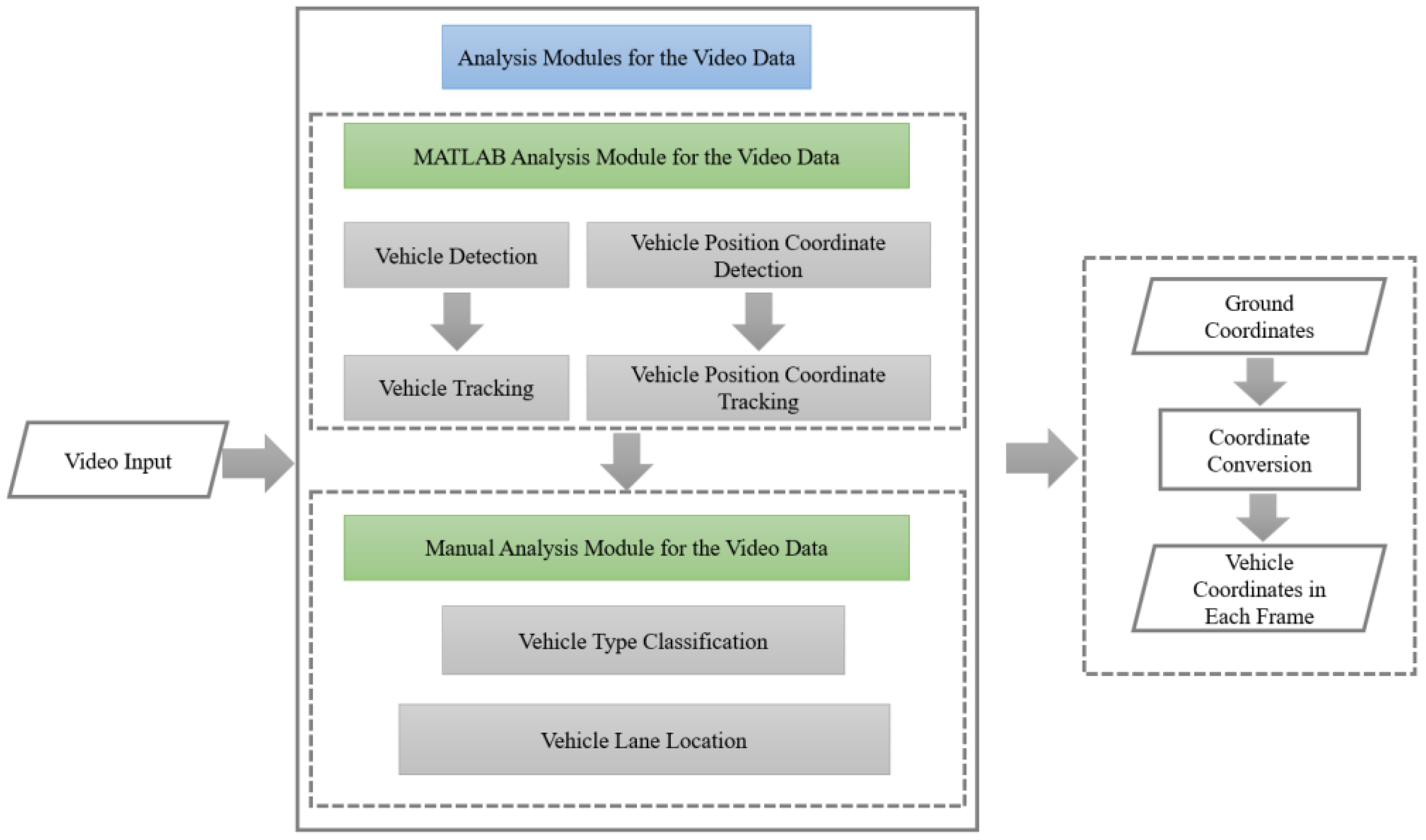

At present (both at home and abroad), approaches to video identification of traffic conflicts through vehicle running tracks mainly adopt an automatic video data analysis system based on OpenCV (i.e., “open source computer vision”, an existing open source tracking tool). This system contains a variety of computer vision algorithms and has been widely used in computer vision processing [21]. According to the inter-frame difference method and the principle of the spatio-temporal context visual tracking algorithm, this study detected vehicle information (including the vehicle’s X-coordinate, Y-coordinate, speed $v_x$ in the X direction, speed $v_y$ in the Y direction, and length) in each frame of a video using MATLAB extension tools. The video data processing flow is illustrated in Figure 2.

(1)

Vehicle detection

The vehicle detection mainly employed an adaptive hybrid Gaussian background model combined with the inter-frame difference method. The model’s adaptability to environmental changes was given full play, and vehicles entering the video shooting area were detected [22].

The height difference of a freeway road surface is negligible relative to the height of a UAV. When a UAV is collecting videos at a high altitude, it is disturbed by the airflow, which can cause the video images to shake, making the subsequent images gradually deviate from the initial image. Therefore, it is necessary to use the first image as a reference to register subsequent images. This way, the vehicle will be tracked in the same coordinate system, and a continuous running track of the vehicle will be identified. There are many methods for image registration. In this study, a method based on feature point matching was adopted. Although the speed was relatively slow, this technique is very mature and provided a good effect [26].

(2)

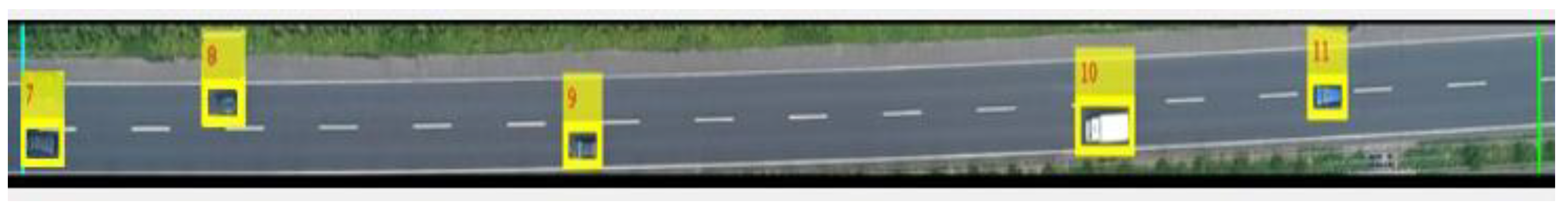

Vehicle tracking

After the image was registered, the polygon area and start and end sections of the road were selected, and each detected vehicle was labeled and tracked. Traditional vehicle tracking algorithms include the feature point-based tracking algorithm (vision point tracker) and histogram-based tracking algorithm (vision histogram-based tracker) [27]. However, when using the former algorithm, the number of vehicles will continue to decrease during the tracking process. In addition, the former algorithm is not appropriate to apply when the object is relatively small and has an excessive number of feature points, and the vehicle size may change. When using the latter algorithm, the tracking target can be excessively small; moreover, the vehicle size is not fixed and continues to grow. Given the traffic flow characteristics of the collected road sections, this study used a spatio-temporal context visual tracking algorithm [23]; this algorithm had a good tracking effect and could maintain the initial vehicle size. The tracking effect is shown in Figure 3, yellow boxes are vehicles that have been identified and tracked. The numbers in the figure denote the serial numbers of the identified vehicles.

3. Methods

3.1. Avoidant Conflict Identification

For vehicles traveling in the same lane, if the vehicle in front suddenly decelerates or the vehicle behind suddenly accelerates (such that the speed of the vehicle behind exceeds that of the vehicle in front), then a rear-end conflict will occur between the vehicles. During a lane-changing process, if the driving speed of a vehicle is not properly controlled, the vehicle may have a lane-changing conflict with one or more vehicles in the target lane. In the merging area, vehicles frequently decelerate and change lanes, resulting in a large number of rear-end and lane-changing conflicts between vehicles.

Before the occurrence of vehicle conflicts, the presence of conflicts between vehicles can be determined according to the temporal and spatial relationships between the vehicles. The conflicts identified by this approach are called predictive conflicts. Once conflicts occur between vehicles, the drivers employ conflict-avoidance behaviors. From such avoidance behaviors, the conflict states of vehicles can be identified; the identified conflicts are referred to as “avoidant conflicts”. Predictive conflicts can predict the future states of a vehicle; they are mostly used in vehicle safety warnings, to remind drivers to take conflict-avoidance behaviors. However, in predictive conflicts, rear-end and lane-changing conflicts have to be identified separately, and the identification indicators do not consider the severity of the conflicts. Avoidant conflicts are more focused on the consequences of vehicle conflicts and are not predictive. However, from the results of the conflict, the safety statuses of vehicles can be assessed more accurately. Common conflict indicators used both at home and abroad include TTC [9], PET [10], PSD [11], DRAC [12], TDTC [13], and T₂ [14]. These indicators identify traffic conflicts from the perspectives of time, distance, and acceleration, and they are all predictive conflict identification indicators. However, in the interflow merge area, the road conditions are more complicated than ordinary conditions, and vehicles exhibit long-distance lane-changing and following behaviors. It is rather challenging to use predictive conflict indicators to identify conflicts in such road sections. If the avoidant conflict identification method is adopted, the lane-changing and rear-end conflicts can be identified simultaneously, based on determining the conflicts from the avoidance behaviors of the vehicles. The identification process is simpler, and the severity of the conflict can also be considered.

The conflict-avoidance behaviors of vehicles include acceleration and deceleration, as well as lane changes. For different conflicts, the driver will behave differently. Hou determined that a speed difference has a strong correlation with traffic accidents. An excessive speed difference is an important cause of traffic accidents [28]. Guo argued that the traditional traffic safety assessment (based on the speed difference) was flawed, as it did not consider the speed change rate of each vehicle, and could overestimate the safety levels of road elements [29]. It is more scientific to use the speed change rate (i.e., acceleration) of a vehicle to assess the safety of the vehicle. This is because the longitudinal acceleration of a vehicle can describe its acceleration and deceleration behaviors, and the lateral acceleration can describe its steering behavior. Thus, it can be said that acceleration can better explain driving behaviors [30]. One engineering psychology concept states that when the acceleration of a vehicle exceeds a certain range, the driver will feel discomfort, leading to tension, fear, and other negative effects. In addition, when normal drivers encounter conflicts of different intensities, they will adopt different degrees of accelerating or braking behaviors.

The severity of traffic conflicts is also related to the speed of the vehicles. Assuming that a vehicle is driving at a uniform speed in a merge area, it is known from the kinematic equation (Equation (1)) that when $a$ and $L$ are determined, for a different $v_1$, the value of $v_2$ will also be different. In other words, even at the same acceleration, the severities of vehicle conflicts will vary with different initial velocities. Zhu considered the initial velocity and mass of a vehicle, and determined serious conflicts from the perspective of energy conversion [7]. Bagdadi proposed a measurement indicator for the severity of traffic conflicts based on a vehicle’s speed, acceleration, and mass [8]. These studies all show that the severity of the conflict is strongly related to the initial speed of the vehicle.

$$v_2^2-v_1^2=2aL$$

(1)

In the above equation, $a$ is the acceleration, $L$ is the length of the driving section, $v_1$ is the initial velocity, and $v_2$ is the final velocity.

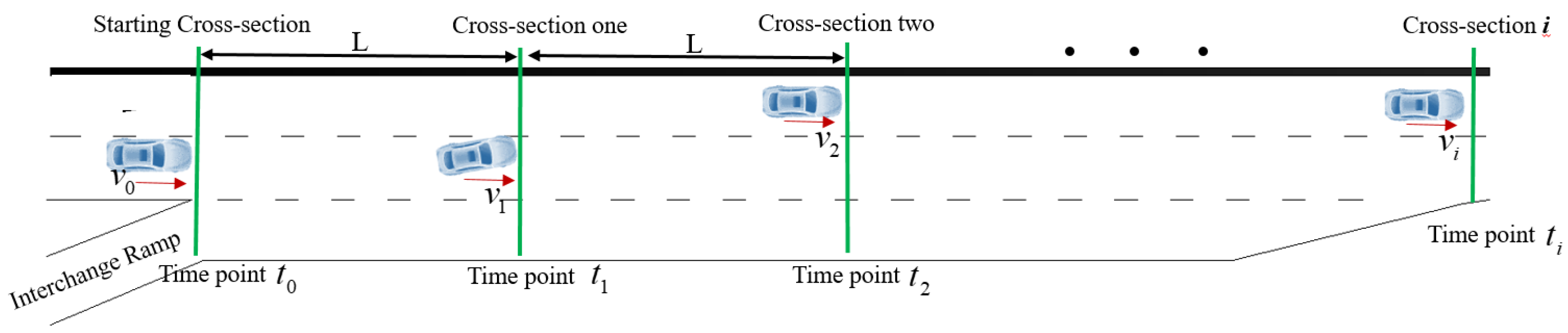

Therefore, both the initial velocity and acceleration should be considered when identifying avoidant conflicts. Owing to the large area of the merge section in this study, it was divided into several statistical intervals to consider the initial velocity and average acceleration (i.e., to avoid acceleration and deceleration existing in the same statistical interval), so as to enhance the persuasiveness of the conclusions. In this study, the interval length L was 25 m. This is because, under normal conditions, a driver’s braking reaction time is 0.3 to 1.0 s, and will gradually decrease as the vehicle speed increases [31,32]. In a case where the freeway speed limit is 80 km/h, the driving distance of the driver within the maximum reaction time is 22.2 m. Accordingly, for the convenience of statistics, the interval length (L) of 25 m was used in this study. As shown in Figure 4, with the nose of the merge junction as the starting cross-section, the merge area was divided into several cross-sections, at a spacing of 25 m. According to this approach, at a time point $t_i$, the speed of the vehicle is $v_i$ when it reaches cross-section i. In the process of driving from the starting cross-section to cross-section 1, the interval initial velocity is $v_0$, and the interval acceleration is the arithmetic mean of the acceleration. For the second interval, the initial velocity is $v_1$, and the calculation principle for the interval acceleration is the same. In a similar manner, the initial velocity and acceleration can be obtained for the vehicle in each interval. The initial speed of the vehicle in each interval is extracted by video recognition.

Subsequently, the K-means clustering method was used to classify the interval initial velocity and acceleration values into different combinations of initial velocities and accelerations. A certain combination was then designated as the threshold for a serious conflict, and the serious conflict rate for different merge areas was solved using Equation (2). Based on the traffic accident data, the traffic accident rates in different merge areas were determined using Equation (3). The Pearson correlation coefficient between the serious conflict rate and traffic accident rate in the merge area was analyzed. An initial velocity and acceleration combination with a relatively high correlation (Pearson coefficient greater than 0.8) was regarded as the serious conflict threshold (as serious conflicts are usually similar to traffic accidents).

$$A_{\mathrm{s}}=\frac{M}{Q·L}$$

(2)

Here, $A_{\mathrm{s}}$ is the accident rate collected from each interval (times/km·pcu), M is the number of traffic accidents per unit time (instances), L is the length of the data collection interval (km), and Q is the average hourly traffic volume of each interval (pcu).

$$R_{\mathrm{s}}=\frac{N}{Q·L}$$

(3)

In the above equation, $R_{\mathrm{s}}$ is the serious conflict rate of the interval (times/km·pcu), N is the number of serious conflicts that occurred per unit time (instances), and L and Q represent the same quantities as in Equation (2).

3.2. Impact Analysis of Severe Traffic Conflicts

3.2.1. Influencing Factors

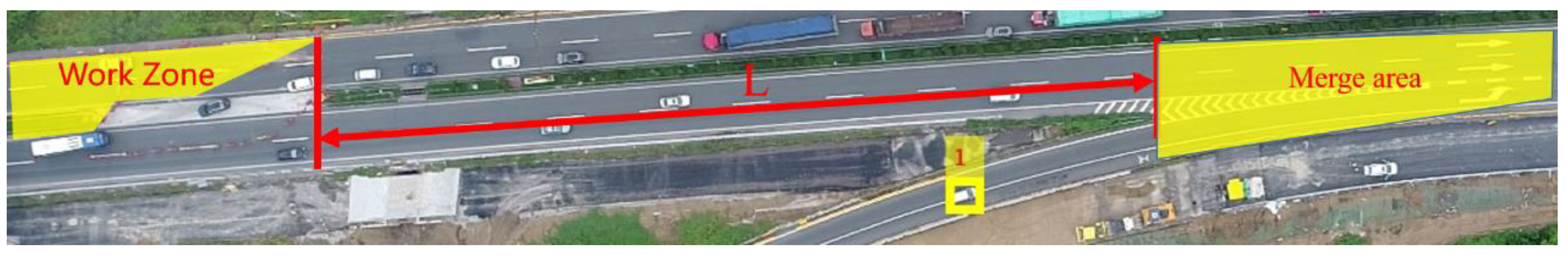

During the reconstruction and widening of a freeway, the driving of vehicles in the merge area is greatly disturbed. According to the severity of conflicts, vehicles in the merge area can be divided into two situations: y_i = 1 (there are serious conflicts) and y_i = 0 (there is no serious conflict), where i denotes the number of vehicles. The presence of serious conflicts in traffic flow is affected by many factors. In terms of road conditions, the presence of construction outside the confluence area, or the small distance between the upstream construction area and the confluence area, will result in lower speeds of freeway vehicles in the confluence area, increasing the probability of conflicts between freeway vehicles and acceleration lane vehicles. On the other hand, if the acceleration lane is compressed, ramp vehicles are forced to merge into the main line if they do not fully accelerate in the acceleration lane, which will also increase the probability of traffic conflicts occurring. In terms of traffic flow factors, the hourly traffic volume, average speed, average speed standard deviation of the freeway and the ramp, etc., will have corresponding impacts on the vehicle merging process. For each vehicle, the vehicle type, average vehicle speed, speed standard deviation, and most unfavorable acceleration (i.e., the maximum absolute value of the acceleration) will all affect driving safety. In terms of traffic facilities, there is no difference between facilities because they are arranged in accordance with standards and norms, making it difficult to analyze the causes. Therefore, this study selected the following influencing factors, as listed in Table 2.

Table 2. Influencing factors of traffic conflicts.

Category	Variable	Variable Explanation
Traffic flow factors	FMQ	Hourly traffic volume on the freeway, veh/h
	FRQ	Hourly traffic volume on the ramp, veh/h
	FMvstd	Average speed standard deviation of the freeway traffic, m/s
	FRvstd	Average speed standard deviation of the ramp traffic, m/s
	FMV	Average speed of the freeway traffic, m/s
	FRV	Average speed of the ramp traffic, m/s
Road factor	L	Distance between the upstream work zone and the merge area (Figure 5), m
	IFw	Whether there is construction on the outside of the merge area
	IFc	Whether the length of the acceleration lane in the merge area is compressed (whether it is shorter than before construction)
Individual vehicle factor	Ctype	Vehicle type
	V(i)	Average speed of the vehicle, m/s
	Vstd(i)	Standard deviation of the continuous driving speed of the vehicle, m/s
	amax(i)	The most unfavorable acceleration of the vehicle (acceleration corresponding to the maximum absolute value of the vehicle acceleration), m/s2
Target variable	yi	Whether there are serious conflicts when the vehicles are driving in the merge area

Table 2. Influencing factors of traffic conflicts.

Category	Variable	Variable Explanation
Traffic flow factors	FMQ	Hourly traffic volume on the freeway, veh/h
	FRQ	Hourly traffic volume on the ramp, veh/h
	FMvstd	Average speed standard deviation of the freeway traffic, m/s
	FRvstd	Average speed standard deviation of the ramp traffic, m/s
	FMV	Average speed of the freeway traffic, m/s
	FRV	Average speed of the ramp traffic, m/s
Road factor	L	Distance between the upstream work zone and the merge area (Figure 5), m
	IFw	Whether there is construction on the outside of the merge area
	IFc	Whether the length of the acceleration lane in the merge area is compressed (whether it is shorter than before construction)
Individual vehicle factor	Ctype	Vehicle type
	V(i)	Average speed of the vehicle, m/s
	Vstd(i)	Standard deviation of the continuous driving speed of the vehicle, m/s
	amax(i)	The most unfavorable acceleration of the vehicle (acceleration corresponding to the maximum absolute value of the vehicle acceleration), m/s2
Target variable	yi	Whether there are serious conflicts when the vehicles are driving in the merge area

3.2.2. Binomial Logistic Model

The binomial logistic model is a disaggregate model. Some scholars believe that it can provide improved performance relative to traditional models [33,34]. It is widely used for probability estimation and can be divided into three types: the binomial logistic model, the multinomial logistic model, and the ordinal logistic model.

In this study, based on the severity of the potential consequences of the conflict, vehicles in the merge area were divided into two situations: y_i = 1 (there is a potentially serious conflict) and y_i = 0 (there is no potential serious conflict), where i denotes the vehicle number. The probability that the vehicle was at a certain state was expressed as P(y_i). Judging from the dependent variable category, it was more appropriate to use the binomial logistic model. The model can effectively estimate the probability of the vehicle state, P(y_i), which can be expressed as follows:

$$\mathrm{P}\left(y_i\right)=\frac{e^{g\left(y_i\right)}}{1+e^{g\left(y_i\right)}}$$

(4)

In the above equation, g(y_i) is calculated as follows:

$$\mathrm{g}\left(y_i\right)=\mathrm{logit}\left[P\left(y_i\right)\right]=ln\frac{P\left(y_i\right)}{1-P\left(y_i\right)}=B_0+{\beta }_1{X}_1+{\beta }_2{X}_2+\cdots +{\beta }_m{X}_m$$

(5)

Here, $X_i$ is an influencing factor for the potential serious conflicts between the vehicles, B₀ is a constant term, and represents the natural logarithm of the ratio between the probability that an individual vehicle has a potentially serious conflict and the probability that the vehicle has no serious conflict when the influencing factor $X_i$ = 0. ${\beta }_i$ is a variable coefficient, and denotes the logarithmic value of the odds ratio of inducing potential serious and non-serious conflicts when $X_i$ changes.

4. Results and Analysis

In this study, the data of five merge areas (at K132 + 300, K176 + 500, and K258 + 260) of the JIQING freeway were selected for identifying serious conflicts and establishing a logistic regression model, so as to explore the factors influencing the conflict risk in work zone merge areas.

4.1. Identification Results of Severe Traffic Conflicts

The data of the five merge areas were analyzed statistically using the Statistical Package for the Social Sciences (SPSS21.0). The obtained classification results for the interval initial velocity and acceleration are listed in

Table 3. Classification results of initial velocity and acceleration.

Initial Velocity Classification	Initial Velocity (m/s)	Acceleration Classification	Acceleration (m/s2)
Interval 1	[7, 13.5)	Interval 1	[−3.96, −1.57)
Interval 2	[13.5, 17.6)	Interval 2	[−1.57, −0.65)
Interval 3	[17.60, 21.10)	Interval 3	[−0.65, 0.04)
Interval 4	[21.10, 24.30)	Interval 4	[0.04, 0.84)
Interval 5	[24.30, 30.30]	Interval 5	[0.84, 3.15]

. The initial velocity and acceleration for a certain interval were designated as the threshold for a serious conflict. The Pearson coefficients of the corresponding serious conflict and traffic accident rates were calculated, as shown in

Table 4. Serious conflict rate and traffic accident rate Pearson coefficient under each combination.

Initial Velocity (m/s)	Acceleration (m/s2)	Pearson Coefficient	Initial Velocity (m/s)	Acceleration (m/s2)	Pearson Coefficient
[7,13.5)	[−3.96, −1.57)	0.812 **	[13.5, 17.6)	[−3.96, −1.57)	0.823 **
[7,13.5)	[−1.57, −0.65)	0.877 **	[13.5, 17.6)	[−1.57, −0.65)	0.563
[7,13.5)	[−0.65, 0.04)	0.267	[13.5, 17.6)	[−0.65, 0.04)	0.532
[7,13.5)	[0.04, 0.84)	0.245	[13.5, 17.6)	[0.04, 0.84)	0.573
[7,13.5)	[0.84, 3.15]	0.214	[13.5, 17.6)	[0.84, 3.15]	0.861 **
[17.60,21.10)	[−3.96, −1.57)	0.806 **	[21.10, 24.30)	[−3.96, −1.57)	0.511
[17.60,21.10)	[−1.57, −0.65)	0.612	[21.10, 24.30)	[−1.57, −0.65)	0.643
[17.60,21.10)	[−0.65, 0.04)	0.422	[21.10, 24.30)	[−0.65, 0.04)	0.512
[17.60,21.10)	[0.04, 0.84)	0.476	[21.10, 24.30)	[0.04, 0.84)	0.332
[17.60,21.10)	[0.84, 3.15]	(0.221)	[21.10, 24.30)	[0.84, 3.15]	0.324
[24.30,30.30]	[−3.96, −1.57)	0.614	[24.30, 30.30]	[0.04, 0.84)	0.253
[24.30,30.30]	[−1.57, −0.65)	0.322	[24.30, 30.30]	[0.84, 3.15]	0.298
[24.30,30.30]	[−0.65, 0.04)	0.106

. There were six combinations with a Pearson coefficient greater than 0.8 (denoted by ** in Table 4), i.e., there were serious conflicts between the vehicles whose interval initial velocities and accelerations were within the ranges of these six combinations. In summary, the threshold ranges for the serious conflicts were obtained as follows: (Ⅰ) $v\in [7,13.5]$ m/s and $\mathrm{a}\in [-3.96,-0.65]$ m/s²; and (Ⅱ) $v\in [13.5,24.3]$ m/s, and $a\in [-3.96,-1.57]$ m/s². When the vehicle is running at low speed, if it slows down suddenly, there is serious traffic conflict between the vehicle and other vehicles. When the vehicle is running at high speed, the large deceleration also indicates that the vehicle has serious traffic conflict. The main reason for this situation is that in expressway work zones, vehicles will keep low speed and drivers have better speed conditions to avoid traffic conflicts. Only when there is a serious conflict with other vehicles, drivers will take emergency deceleration behavior. On the contrary, in the process of high-speed driving, strong deceleration behavior has potential safety hazards. Therefore, normal drivers will only take strong deceleration behavior when encountering serious traffic conflicts.

4.2. Distribution of Traffic Conflicts

(1)

Overall vehicle conflict distribution

When a vehicle has a serious conflict in a certain section of the merging area, it is considered a vehicle in serious conflict. The statistical results for the conflicts in all of the merging areas are shown in

Table 5. Overall vehicle conflict distribution (vehicles).

Number of Vehicles in Serious Conflict (Vehicles)	Number of Vehicles in Non-Serious Conflict (Vehicles)	Total Number of Vehicles (Vehicles)	Proportion of Vehicles in Serious Conflict (%)
816	1552	2368	34.46

.

(2)

Conflict distribution at different intervals

During the reconstruction and widening of the expressway, it is very common to compress the acceleration lane in the merge area due to the construction needs, and the traffic safety problem in this special merge area is very prominent. The spatial distribution analysis of the traffic conflicts was mainly focused on this scenario. Taking the K176 + 500 merge area as an example, the acceleration lane of the merge area was compressed during construction; it had a total length of 100 m after compression. The vertical section corresponding to the nose of the merge junction was used as the starting section, and the merge area was divided into 25 m intervals. The average hourly distributions of the traffic conflicts in the four intervals are shown in Figure 6. As shown, the percentages of serious conflicts in the first and last intervals of the merge area (Intervals 1 and 4) are relatively higher. Overall, the percentage of serious conflicts tends to initially decrease, and then increase. The percentage of serious conflicts in Interval 4 is the highest, at 34.61%, followed by Interval 1, at 32.45%. The percentages of serious conflicts in Intervals 2 and 3 are very close, at 21.3% and 22.63%, respectively.

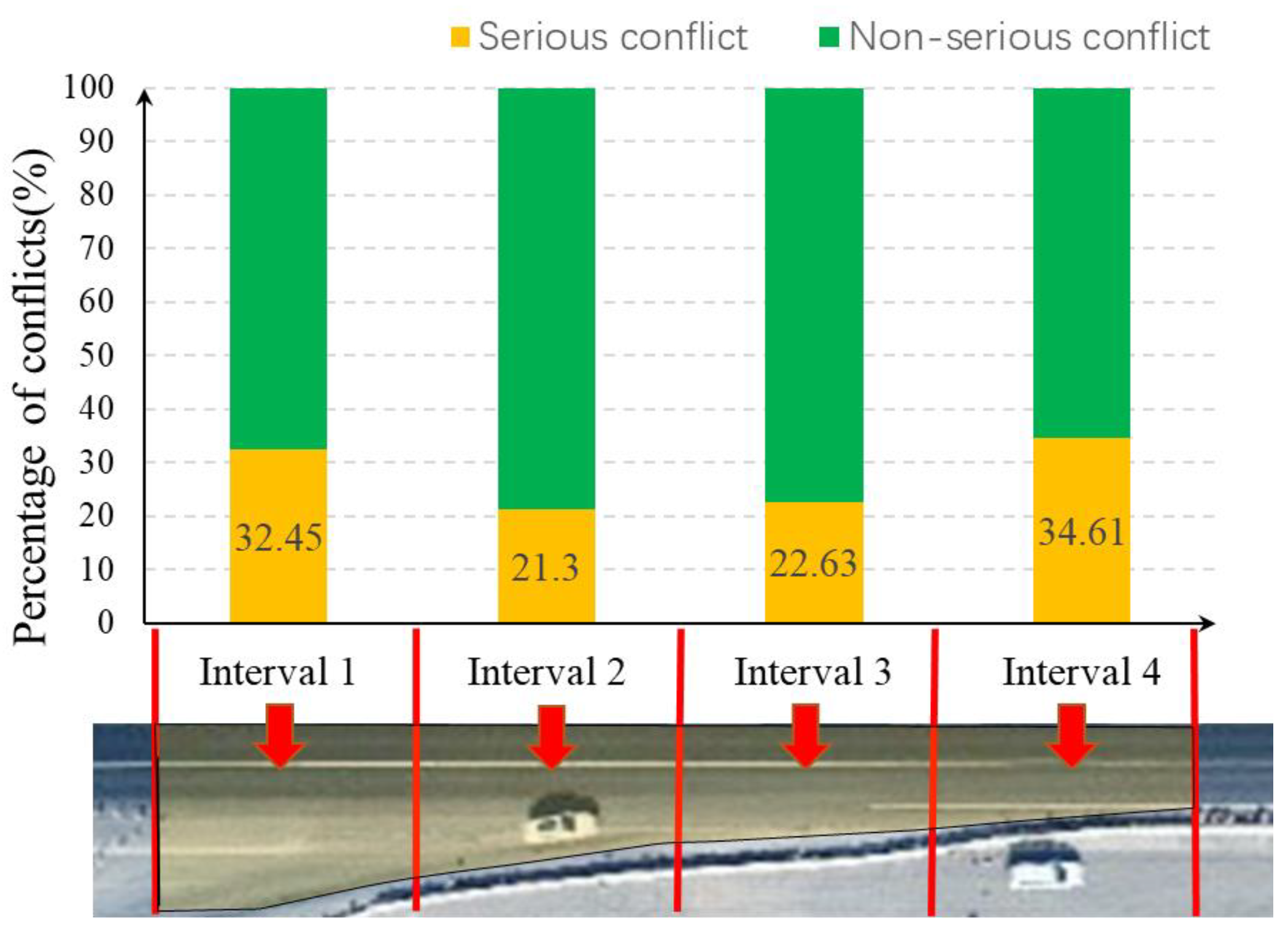

To further analyze the spatial distributions of the traffic conflicts in the merge areas, the running tracks of vehicles within two minutes in the merge areas of K176 + 500 were plotted (the negative direction of the Y-axis in the figure is the driving direction of the vehicle), as shown in Figure 7. The freeway consisted of two lanes, where the lane close to the median strip was defined as the inside lane, and the other lane was the outside lane. It was found that most vehicles changed to the inside lane in Interval 1, and the vehicles on the ramp mainly drove in the outside lane of the freeway when they merged into Interval 4. Moreover, if the vehicle ran at a constant speed, its running track would be a straight line. Most of the vehicle running tracks showed a reduced slope in Interval 4, indicating the deceleration behaviors of the vehicles. In summary, the vehicles showed evident conflict-avoidance behaviors in Intervals 1 and 4, indicating conflicts occurred frequently in Intervals 1 and 4; this is consistent with the conclusion illustrated in Figure 8.

The traffic conflicts in the merge areas are shown in Figure 6 and Figure 7. As the acceleration lane of the merging area was severely compressed, many vehicles had not fully accelerated in the merge area and were forced to merge into the freeway at the end of the merge area. In such cases, there were serious traffic conflicts between vehicles at the end of the merge area. Some vehicles entered the acceleration lane and merged into the freeway before they were fully accelerated, resulting in evident speed differences from the freeway vehicles just entering the merge area, thereby causing serious conflicts. These two situations led to a relatively large percentage of serious traffic conflicts at both the beginning and end of the merge area.

4.3. Logistic Model Results

4.3.1. Variable Correlation Analysis

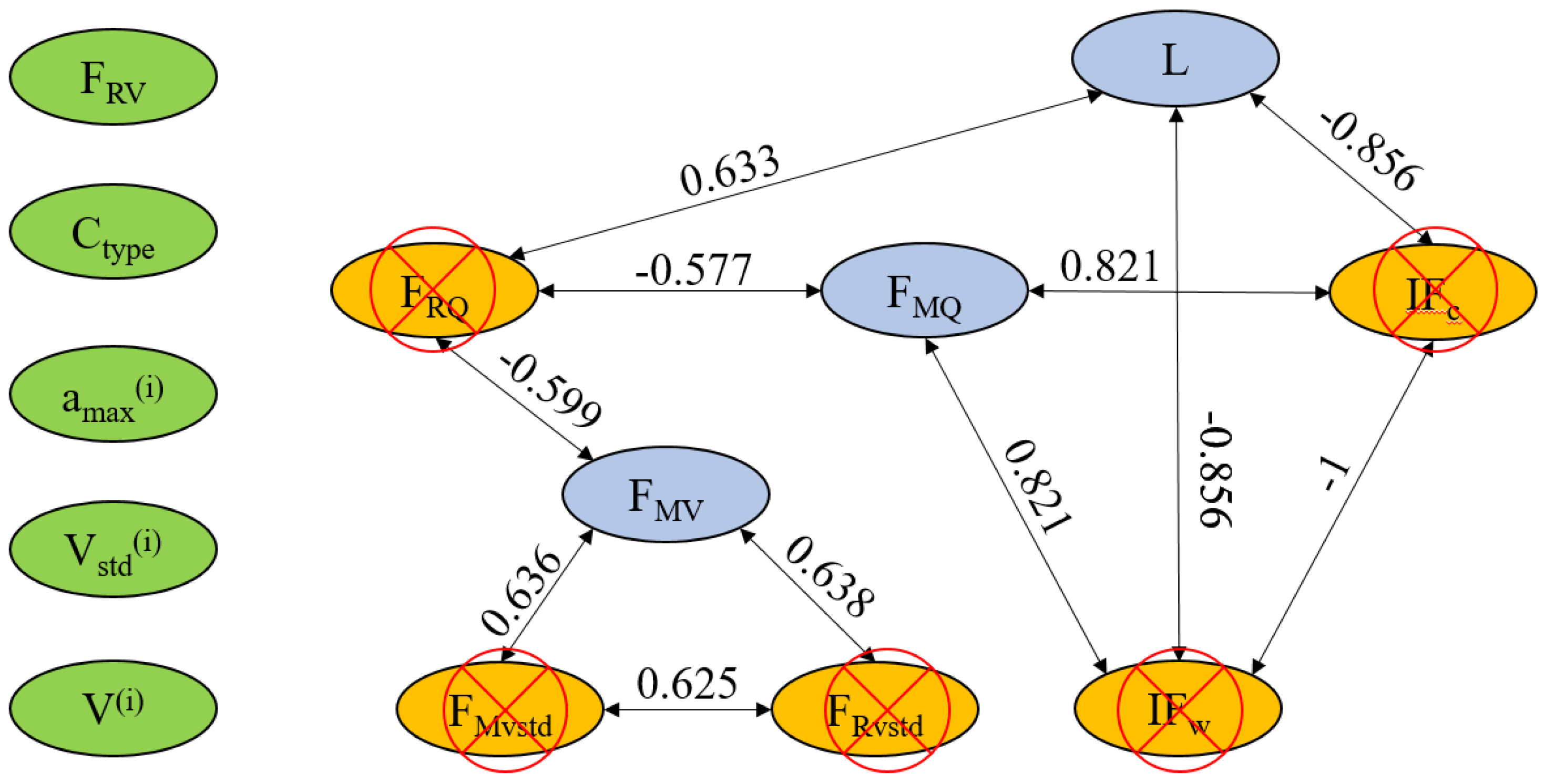

This study considered a total of 12 influencing factors. There could also be correlations between each influencing factor. Therefore, a correlation analysis between the independent variables was required before establishing the model, as highly correlated influencing factors could not be simultaneously used as independent variables in the model. In this way, the cumulative error caused by repeated independent variables could be reduced, ensuring the simplicity and portability of the model.

The statistical results for the factors with relatively high correlations are shown in

Table 6. Correlation of variables (high correlation).

Variable		FRQ	FMV	FMvstd	FRvstd	IFc	IFw	L
Hourly traffic on the freeway (FMQ)	Correlation	−0.577				0.821	−0.821
	significance (two-tailed)	0.000				0.000	0.000
Hourly traffic volume on the ramp (FRQ)	Correlation		−0.599					0.633
	significance (two-tailed)		0.000					0.000
Average speed of the freeway traffic(FMV)	Correlation			0.636	0.638
	significance (two-tailed)			0.000	0.000
Standard deviation of the average speed of the freeway traffic (FMvstd)	Correlation				0.625
	significance (two-tailed)				0.000
Whether the acceleration lane is compressed (IFc)	Correlation						−1.000	−0.856
	significance (two-tailed)						0.000	0.000
Whether the roadside is under construction (IFw)	Correlation							0.856
	significance (two-tailed)							0.000

. The best factor was selected among the factors showing relatively high correlations, to help improve the persuasiveness of the model results. The final parameter selection results for the model are shown in Figure 8 (the variables marked in yellow needed to be removed). The five removed variables were F_RQ (hourly traffic volume on the ramp), F_Mvstd (standard deviation of the average speed of the freeway traffic), F_Rvstd (standard deviation of the average speed of the ramp traffic), IF_c (whether the acceleration lane is compressed), and IF_w (whether the roadside is under construction). The eight variables of F_MQ (hourly traffic on the freeway), F_MV (average speed of the freeway traffic), F_RV (average speed of the ramp traffic), C_type (vehicle type), V⁽ⁱ⁾ (average speed of an individual vehicle), V_std⁽ⁱ⁾ (standard deviation of the average speed of an individual vehicle), a_max⁽ⁱ⁾ (the most unfavorable acceleration of an individual vehicle), and L (the distance between the upstream work zone and the merge area) were selected as the final independent variables for the model.

4.3.2. Variable Discretization

The binomial logistic model is a discrete probability model and requires all variables to be discrete. Variable discretization can eliminate the negative impacts of some extreme variable values on the model, making the model results more applicable. In this study, the K-mean clustering method was adopted to discretize continuous variables. The interflow merge areas selected in this study were 45, 120, 240, 300, and greater than 300 m from the upstream work zones, respectively. The variables could thus be discretized at different spacings, i.e., small, medium, and large distances. The values of all independent variables after discretization are shown in

Table 7. Values of independent variables after discretization.

Variable Type	Variable	Discrete Value	Discretization Discriminant
Individual vehicle variables	Vehicle type	0	Small or medium-sized vehicle
	Ctype	1	Large vehicle
	Average speed of an individual vehicle V(i) (m/s)	1	[6, 15.5)
		2	[15.5, 21.6)
		3	[21.6, 33]
	Standard deviation of the average speed of an individual vehicle Vstd(i) (m/s)	1	[0, 1.85)
		2	[1.85, 5)
		3	[5, 8]
	The most unfavorable acceleration of an individual vehicle amax(i) (m/s2)	1	[−4.5, −2.3)
		2	[−2.3, 0.2)
		3	[0.2, 3]
Traffic flow variables	Hourly traffic on the freeway FMQ (veh/h)	1	[820, 900)
		2	[900, 1000)
		3	[1000, 1120]
	Average speed of the freeway traffic FMV (m/s)	1	[12, 14)
		2	[14, 17)
		3	[17, 21]
	Average speed of the ramp traffic FRV (m/s)	1	[8, 10)
		2	[10, 14)
		3	[14, 18]
Road condition variables	Distance between the upstream work zone and the merge area L	1	Small
		2	Medium
		3	Large
Dependent variables	Whether there is a risk of serious conflict yi	0	Non-serious conflict
		1	Serious conflict

.

4.3.3. Model Result Analysis

SPSS 21.0 was used to fit the binomial logistic model. As the selected variables contained multinomial variables, they had to be set as dummy variables when establishing the binomial logistic model. The parameters V⁽ⁱ⁾ = 1, F_MQ = 1, a_max⁽ⁱ⁾ = 1, L = 1, and C_type = 0 were, respectively, used as the reference group, and the model fitting results are listed in

Table 8. Model fitting results (excluding excluded variables).

Variable	β	S.E.	Wald	Degree of Freedom	Significance	Odds Ratio (OR)
V(i) = 1			8.504	2	0.000
V(i) = 2	−0.814	0.868	0.880	1	0.048	0.443
V(i) = 3	1.783	0.729	5.990	1	0.000	5.954
FMQ = 1			7.210	2	0.000
FMQ = 2	0.542	0.278	3.812	1	0.000	1.720
FMQ = 3	−0.221	0.113	3.854	1	0.000	0.801
amax(i) = 1			15.607	2	0.000
amax(i) = 2	−3.323	0.841	15.607	1	0.000	0.036
amax(i) = 3	−20.509	798.820	0.000	1	0.998	0.000
Ctype	1.561	0.734	4.531	1	0.033	4.765
L = 1			4.000	2	0.000
L = 2	−0.029	0.022	1.803	1	0.000	0.971
L = 3	−0.587	0.360	2.656	1	0.000	0.556
Constant	−3.909	0.600	42.449	1	0.000	0.020

.

It can be seen that the model fitting process eliminated three variables, namely V_std⁽ⁱ⁾ (standard deviation of the speed of an individual vehicle), F_MV (average speed of the freeway traffic), and F_RV (average speed of the ramp traffic). The variables remaining in Table 6 all have significant impacts on the risk of conflict. Among them, β is the regression coefficient, OR is the odds ratio, the variable with OR > 1 is a risk variable, and the variable with OR < 1 is a protective variable.

When V⁽ⁱ⁾ = 2, OR = 0.443, and when V⁽ⁱ⁾ = 3, OR = 5.954, indicating that when the other conditions remained unchanged, the occurrence probability of a serious conflict at V⁽ⁱ⁾ = 2 is 0.443 times that at V⁽ⁱ⁾ = 1, and the probability of a serious conflict at V⁽ⁱ⁾ = 3 is 5.954 times that at V⁽ⁱ⁾ = 1. These results also show that as the average speed continues to increase, the probability of serious conflicts first decreases, and then increases. The causes were determined as follows. First, there is no minimum speed for vehicles in a freeway work zone. When a conservative driver is driving at a low speed, if there is a vehicle behind or a vehicle from the ramp overtaking the slow vehicle, it will have a relatively high probability of experiencing a serious conflict. If the vehicle increases its speed appropriately, the occurrence of this phenomenon can be reduced, i.e., the probability of serious conflicts can be reduced. In contrast, when the speed of a vehicle in the work zone is excessively high, the probability of serious conflicts will increase significantly (as per common sense).

The conditions of F_MQ = 2 and F_MQ = 3, respectively, correspond to OR values of 1.72 and 0.801, and β values of 0.542 and −0.221. As the traffic volume of the freeway increases, the probability of serious conflict initially increases and then decreases. This is because, under a condition of free flow, as the traffic volume increases, the probability of serious conflicts between vehicles will significantly increase. When the traffic volume increases to a certain level, the traffic flow will slow down, and thus the probability of serious conflicts will decrease.

For the most unfavorable accelerations of the vehicle at a_max⁽ⁱ⁾ = 2 and a_max⁽ⁱ⁾ = 3, the corresponding β values are −3.323 and −20.509, respectively. However, the significance at a_max⁽ⁱ⁾ = 3 is 0.998 (>0.05), i.e., its effect on the dependent variable is not significant; whereas at a_max⁽ⁱ⁾ = 2, the significance is 0 (<0.05) and the corresponding OR value is 0.036, indicating that a_max⁽ⁱ⁾ is a protective variable. In addition, when a_max⁽ⁱ⁾ = 1 or 2 (acceleration is less than zero, the vehicle is decelerating), the smaller the deceleration, the smaller the probability of serious conflict.

Similarly, the vehicle type C_type has a corresponding OR value of 4.765, indicating that this variable is a risk variable, i.e., the probability of serious conflicts between large vehicles is 4.765 times that between small and medium vehicles. The distance L between the upstream work zone and merge area has corresponding OR values of 0.971 and 0.556, respectively. As the distance between the work zone and the merge area increases, the probability of serious conflicts continues to decrease and can be reduced to 55.6% of the probability of serious conflicts corresponding to the minimum distance. In a mixed traffic flow, owing to differences in vehicle performance between large and small vehicles, there are significant speed differences. Also, the deceleration process of a large vehicle is slower than that of a small vehicle, resulting in a greater probability of serious conflicts. The closer the work zone is to the merge area, the larger the interference will be to the driver. Therefore, the distance between the work zone and the merge area should be controlled. If necessary, a detour route can be constructed to avoid the work zone, thereby reducing interference from construction work.

A comprehensive comparison of the OR values shows that in the work zone when the average vehicle speed is high, the probability of serious conflicts is the greatest, i.e., 5.95 times the original probability. Large vehicles have the second-largest probability of conflicts, which is 4.765 times that of small and medium vehicles. This requires a freeway management department to set up reasonable speed limit signs in the work zone and appropriately divert large vehicles, such that the speed of traffic and passages of large vehicles through the work zone can be reduced. Using this approach, it is possible to reduce the probability of serious traffic conflicts and ensure vehicle safety during construction.

4.3.4. Model Validation

The model was tested from two perspectives. The omnibus test of model coefficients hypothesizes that it is meaningless to include the variables in the model. In the omnibus test results for the model coefficients given in

Table 9. Omnibus test of model coefficients.

	Chi-Square	Degree of Freedom	Significance
Step (T)	4.634	1	0.031
Block	1101.623	11	0.000
Model	1101.623	11	0.000

, the significance of the model is 0 (less than 0.05), and the null hypothesis is rejected. This indicates that including the variables in the model has statistical significance.

The Hosmer and Lemeshow test hypothesizes that the model fits well. In the Hosmer and Lemeshow test results given in

Table 10. Hosmer and Lemeshow tests.

Step (T)	Chi-Square	Degree of Freedom	Significance
6	0.223	6	1.000

, the significance is 1 (greater than 0.05), and the null hypothesis is accepted. This indicates that the model has a good overall fit.

5. Conclusions and Discussion

In this study, a UAV technique was used to collect vehicle-running tracking data in work zone merge areas. Based on the inter-frame difference method and the principle of a spatio-temporal context visual tracking algorithm, vehicles were detected and tracked, and the states of vehicles were parsed using MATLAB extension tools and the Python language. Based on the traffic conflict results, avoidant conflicts were identified by considering the conflict-avoidance behaviors of vehicles. According to the vehicles’ interval initial velocities, interval accelerations, and the collected traffic accident rate, the correlations between the serious conflict rate and traffic accident rate were analyzed, the threshold for a serious conflict was resolved, and the spatial distribution characteristics of traffic conflicts were statistically analyzed. A binomial logistic model was established to study the impacts of traffic flow factors, road factors, and vehicle factors in the work zone on the risk of vehicle conflicts. The impact levels of different factors on the risk of conflicts were analyzed through a comparison of OR values. The main conclusions are as follows:

(1)

Based on video data of vehicles collected using a UAV, the running tracking information of the vehicles was parsed, conflict states of vehicles in merge areas were studied, and spatial distribution characteristics of traffic conflicts in merge areas were analyzed. This is an effective approach to achieving the goals of traffic conflict research.

(2)

From the perspective of the conflict-avoidance driving behaviors of vehicles, the correlations between the serious conflict rate and traffic accident rate were analyzed using the Pearson coefficient method, based on the interval initial velocity and acceleration of the vehicles. The analysis shows that vehicles in the freeway merge areas will have serious traffic conflicts in the following two situations: (Ⅰ) $v\in [7,13.5]$ m/s and $\mathrm{a}\in [-3.96,-0.65]$ m/s²; and (Ⅱ) $v\in [13.5,24.3]$ m/s, and $a\in [-3.96,-1.57]$ m/s².

(3)

From the spatial distribution characteristics of the traffic conflicts and running tracks of vehicles in the merge areas, the percentages of serious traffic conflicts in the first 25 m and last 25 m of the merge area are 32.45% and 34.61%, respectively, i.e., higher than in the other sections. Moreover, the running tracks of vehicles will change significantly in these two intervals.

(4)

A binomial logistic model was established by considering the road conditions in the work zone. It was found that the smaller the distance between the upstream work zone and the merge area, the greater the probability of serious traffic conflicts. As the average vehicle speed increases, the probability of serious traffic conflicts initially decreases, and then increases; however, as the hourly traffic volume on the freeway increases, it first increases and then decreases. From the comparison of the OR value of each factor, it is found that when the average vehicle speed is high, the probability of serious conflict is the greatest, at 5.95 times that of the original probability. Large vehicles have the second-largest probability of experiencing serious conflicts, at 4.765 times that of small vehicles.

Using the results of this study, it is possible to identify whether there is a traffic conflict in the merging area from the perspective of post-evaluation based on the driving trajectory and status of vehicles. This provides a new method for identifying traffic conflicts in the merging area and provides a new approach for traffic conflict research in complex scenarios such as merging areas. At the same time, the spatial distribution characteristics of traffic conflicts in the confluence section of the construction area were also revealed, and the influencing factors of traffic conflicts in the confluence section of the construction area were analyzed, especially in the current stage of the rise of highway reconstruction and widening. This provides a theoretical basis for the reasonable setting of the location of the construction area, reasonable speed limit, appropriate diversion of large vehicles, and other measures to ensure traffic safety in the confluence section during construction.

Of course, there remain many issues to be explored further. This study considered the impacts of road conditions, individual vehicle factors, and traffic flow factors in work zones on the traffic conflicts during the reconstruction and widening period, but did not consider the impacts of factors such as drivers and road facilities. In addition, the effectiveness of the avoidant conflict identification method still requires further research. In future studies, additional avoidant conflict identification methods can be proposed for different scenarios, thereby forming a more complete system for avoidant conflict identification.
