Article

Theoretical Prediction of the Number of Bénard Cells in Low-Porosity Cylindrical/Rectangular Enclosures Saturated by a Fast Chemically Reacting Fluid

by
Kanakapura M. Lakshmi
1,*,
Laura M. Pérez
2,
Pradeep G. Siddheshwar
3 and
David Laroze
4
1
Department of Mathematics, School of Physical Sciences, Central University of Karnataka, Kalaburagi 585367, India
2
Departamento de Física, FACI, Universidad de Tarapacá, Casilla 7D, Arica 1000000, Chile
3
Centre for Mathematical Needs, Department of Mathematics, CHRIST (Deemed to be University), Hosur Road, Bengaluru 560029, India
4
Instituto de Alta Investigación, Universidad de Tarapacá, Casilla 7D, Arica 1000000, Chile
*
Author to whom correspondence should be addressed.
Sustainability 2023, 15(15), 11999; https://doi.org/10.3390/su151511999
Submission received: 15 June 2023 / Revised: 25 July 2023 / Accepted: 1 August 2023 / Published: 4 August 2023
(This article belongs to the Special Issue Thermally Driven Renewable Energy Technologies)

Abstract

:
Many applications including chemical engineering and meteorology require the study of a chemically driven convection in cylindrical, as well as rectangular enclosures. The present paper reports a unified analysis of a chemically driven convection in densely packed porous cylindrical/rectangular enclosures saturated by a chemically reactive binary fluid mixture. Employing the degeneracy technique and the single-term Galerkin method involving Bessel functions in a linear stability analysis, an analytical expression for the critical Rayleigh number, R a c , was obtained. An analytical expression for the number of cells that manifest in a given enclosure, at the onset of convection, was derived from R a c . The connection between the stabilizing and destabilizing effects of various parameters and the size or the number of Bénard cells that manifest are described in detail. The results depicted that the chemical parameters related to the heat of reaction destabilize and the parameter depending inversely on the rate of the chemical reaction stabilizes the system. In the latter case, a greater number of smaller cells were formed in the system compared to the former case. Hence, we concluded that the chemically reactive fluid advances the onset of convection compared to the chemically non-reactive fluid. The results of a similar problem in rectangular enclosures of infinite horizontal extent and chemically non-reactive liquid-saturated porous medium were recovered as limiting cases. Thus, the present model presents a unified analysis of six individual problems.

1. Introduction

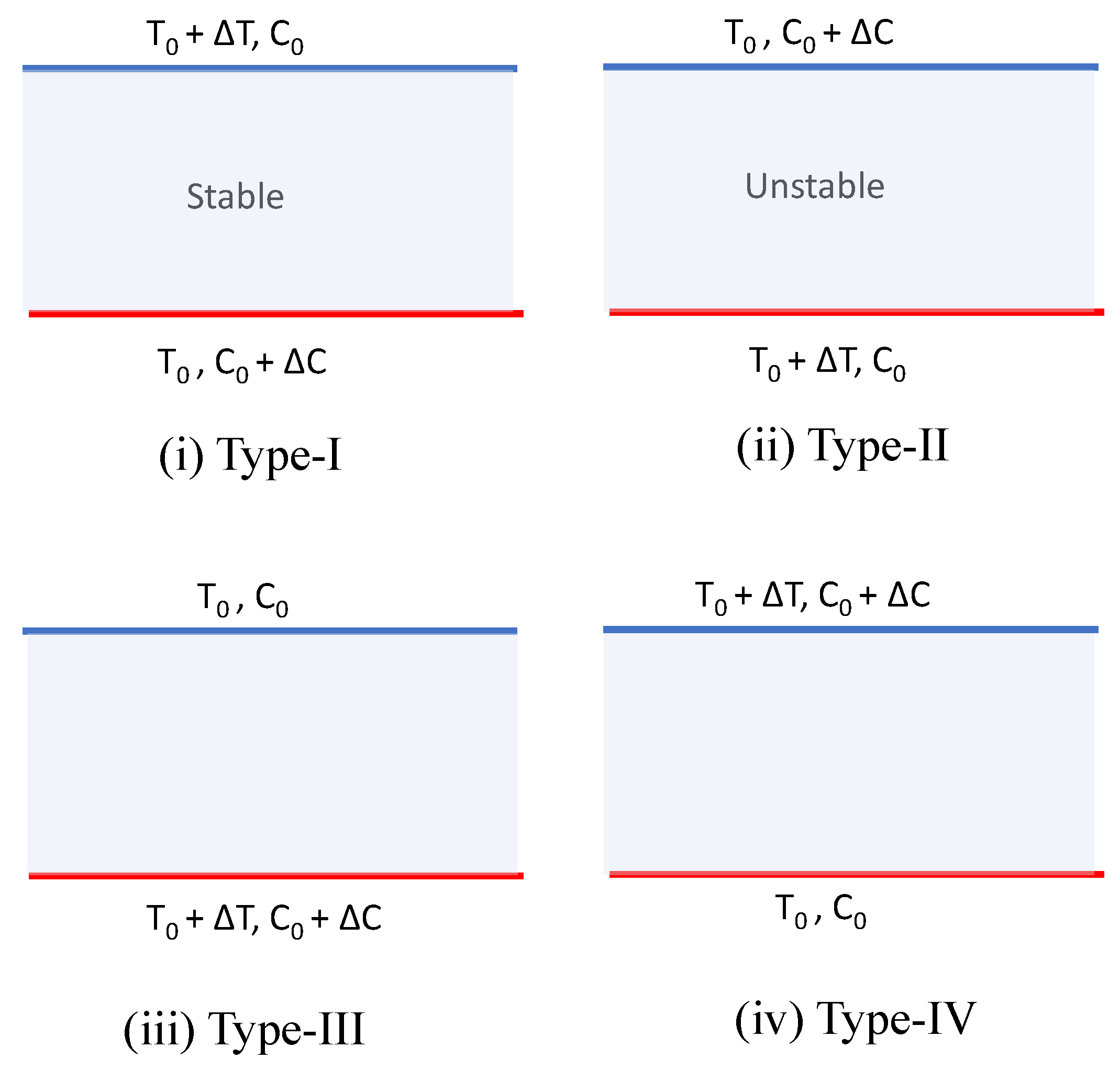

In nature, generally stability/instability is seen in a two-component system (temperature and concentration), in four different ways, as shown in Figure 1. To analyze the stability of any system, it is necessary to check the type of configuration in a two-component system. In a Type-I system, both components are in a stable configuration, whereas in a Type-II system, both components are destabilizing. Hence, the study of the stability of Type-I and Type-II systems is not required. However, in Type-III or Type-IV system configurations, one of the components is stabilizing and the other one is destabilizing. In these cases, stability can be achieved at certain conditions. In Type-III instability, temperature shows the destabilizing effect, whereas the solute concentration shows the stabilizing effect. This type of instability is termed the diffusive or Bénard instability (both in reactive and non-reactive fluids). In Type-IV instability, temperature is stabilizing the system, wherein the solute concentration is destabilizing the system. This type of instability in non-reactive, and chemically reactive fluid systems are, respectively, called the finger and the chemical instabilities. In the Bénard type of instability, the first bifurcation point is stationary in nature. However, in a finger or chemical type of instability, the first bifurcation point may be oscillatory or stationary. In the present analysis, we intended to predict the effect of the chemical parameters and the aspect ratio on the formation of Bénard cells, at the onset of convection. Hence, the main attention was focused on the Bénard type of instability.
After the discussion on the types of instabilities, now we shall proceed with the introduction to chemically driven convection ( C D C ) and its applications. The problem of double-diffusive convection ( D D C ) in a chemically active fluid-saturated porous medium is a well-explored phenomenon due to its wide range of applications in many fields including chemical engineering, meteorology, condensed matter physics, etc. Chemical engineering involves the designing of equipment, systems, etc. However, most of the chemical equipment includes curvature shapes such as cylinders. In the present study, we made an attempt to investigate a chemically driven convection in cylindrical enclosures analytically. The chemical reaction can be either exothermic or endothermic or polymerization reactions. In all these processes, some amount of thermal energy either releases or absorbs, which allows the system to generate an adverse density gradient. Hence, the contribution of the chemical reaction to the stability of the system is more significant compared to the contribution by the thermal effect. This type of convection is called the chemically driven convection. The process of the chemical reaction can either occur (i) throughout the volume of the enclosure(homogeneous kinetics) or (ii) exclusively at the surfaces of the enclosures (heterogeneous kinetics). In the former case, the fundamental equations need to be modified to include the transformation process. In the latter case, the boundary conditions need to be modified to include the changes. Furthermore, in modeling the chemical reaction problem, it is important to consider the rate of the chemical reaction, viz. whether the chemical reaction is fast, moderate, or slow, by which the effects of the diffusion terms can be predicted. In a fast chemical reaction problem, the solute diffusion term can be omitted because it occurs at a larger time scale compared to the relaxation time of the chemical reaction. The authors of [1,2] presented a model coupling the chemical reaction parameters with the hydrodynamic equations to analyze how convection occurs in a system due to a chemical reaction.
Moving on to the literature survey, in the first part of this section, we shall discuss the works on C D C in rectangular enclosures ( R E s). Later, the literature survey is carried out for C D C in cylindrical enclosures ( C E s). Many authors have investigated chemically driven convection in a rectangular porous enclosure [3,4] or in an infinite horizontal porous medium saturated by a chemically active binary fluid [5,6,7,8,9]. Gatica et al. [3] analytically performed a stability analysis of a natural convection in a rectangular porous cavity with non-isothermal and first-order isothermal chemical reactions. The results of the classical D B C were obtained as a particular case. They also predicted the stable mode of convection for a given aspect ratio. Hernocourt et al. [4] classified various possible instabilities, viz. Rayleigh–Bénard, Rayleigh–Taylor, and double-diffusive mechanisms depending on the parameter space in a rectangular porous cavity saturated by an exothermic autocatalytic reacting fluid. Nandakumar and Weintscheke [5] presented a bifurcation study of a chemically reactive fluid-saturated porous medium in a tilted rectangular box. They employed the perturbation method to study the bifurcation structure in a buoyancy-driven convection (weak convection). Later, they developed a numerical method to study the complex bifurcation structure of the chemically driven convection. Steinberg and Brand investigated the convective instability of a binary mixture with a fast chemically active fluid in an infinite horizontal porous medium. Two types of instabilities (Types III and IV) were considered, and in both instabilities, they observed that the first bifurcation could be stationary or oscillatory depending on the sign and magnitude of the heat of reaction. Mckay [6] determined the onset of convection in a reactive fluid layer overlying the porous medium saturated by the same reactive fluid using the collocation method. The effect of various parameters, viz. the Frank–Kamenetskii (F-K) number, the fluid/porous medium depth ratio, and the boundary conditions, on the onset was determined. Linear and nonlinear stability analyses were carried out by Malashetty and Biradar [7] in a double-diffusive chemically reactive binary mixture saturated in an anisotropic porous medium. They showed that the anisotropic porous parameters have a significant influence on the stability of the system. Jotkar et al. [8] showed that the convective instability in a porous medium arises due to a second-order chemical reaction. They performed linear stability analysis to find the onset of chemically driven convection. Later, they performed a nonlinear simulation and showed that the chemical reaction gives rise to large dissociation fluxes. Later, Jotkar et al. [9] numerically analyzed the differential diffusive convective dissolution dynamics (DDDCD) in a chemically driven convection.
In cylindrical porous enclosures, not many authors have studied chemically driven convection [10,11,12]. Farr et al. [10] investigated the chemically driven convection in a cylindrical enclosure in terms of Bessel functions, the solution of which were extracted through the numerical method. Pop et al. [11] analyzed the natural convection of a boundary layer flow in a cylindrical porous body saturated by a chemically active fluid, which undergoes an exothermic chemical reaction. Roy et al. [12] numerically investigated the flow characteristics of a free convection driven by an exothermic chemical reaction in an annular region confined between two wavy wall cylinders using the finite difference method. Many authors have investigated the chemically driven convection in a fluid- [13,14,15,16,17] and in a single-fluid-saturated porous medium [18,19,20,21,22,23].
To the best of the authors knowledge, there is no analytical work reported in the literature studying the chemically driven convection in cylindrical porous enclosures saturated by a chemically active binary mixture. In the literature, all the works concerning an infinite horizontal extent (in both chemically reactive or non-reactive fluids) neglect the vertical boundary effects. Furthermore, no work has reported the value of the aspect ratio at which the vertical boundary effect becomes negligible. Furthermore, the effect of the chemical reaction on the formation of the Bénard cells at the onset of convection has not been studied. In the present paper, we analyzed all the above-mentioned unconsidered aspects in a homogeneous type of fast chemically reactive binary fluid embedded in densely packed cylindrical/rectangular porous enclosures with the Bénard type of instability. We also present a unified model that combines the problems of natural convection in C E s and R E s of infinite horizontal extent saturated by a chemically reactive/non-reactive binary fluid mixture.

2. Mathematical Formulation

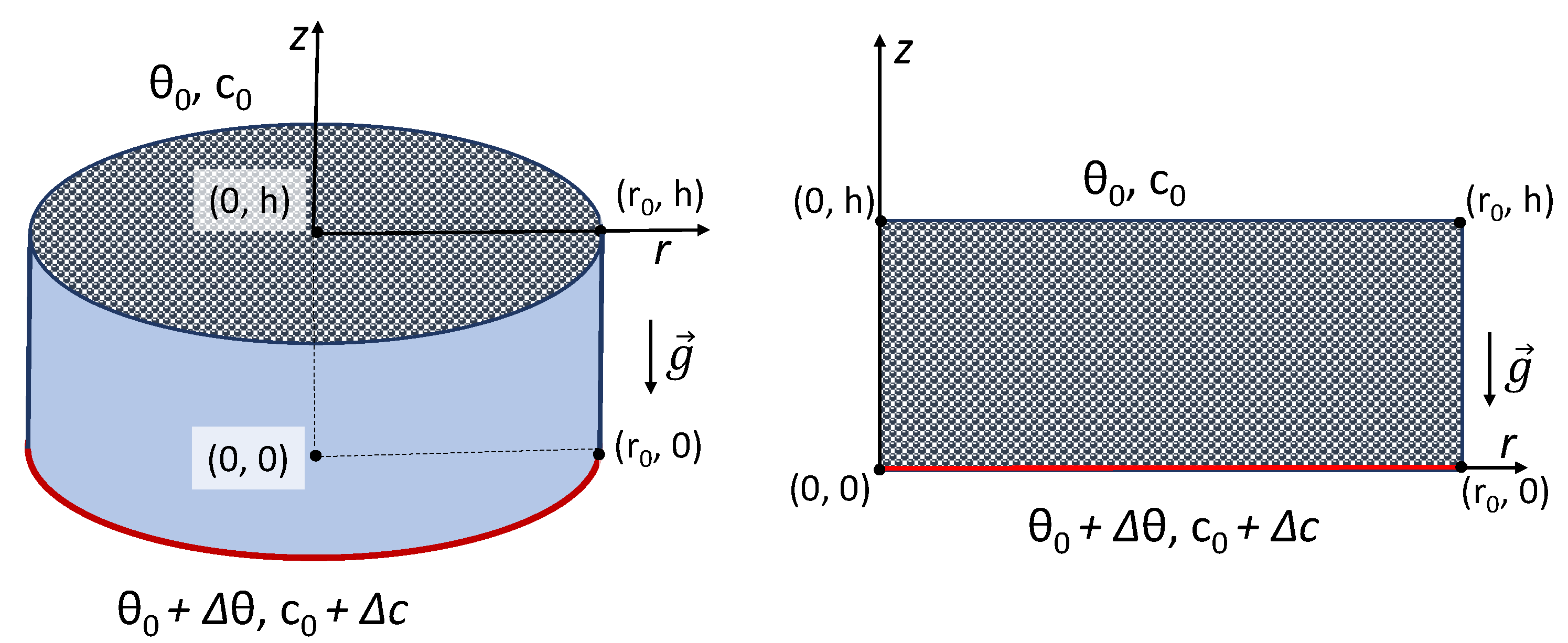

We considered for the investigation a low-porosity cylindrical/rectangular enclosure of depth h and radius/breadth r o saturated by a chemically reactive fluid. The radial/horizontal and vertical directions were, respectively, assumed to be r and z, as shown in Figure 2. In the cylindrical enclosure, due to the centro-symmetric flow pattern, we assumed an axisymmetric condition, which makes the analysis two-dimensional. The vertical temperature and concentration gradients were applied in the presence of a gravitational field, g = g e z ^ . As mentioned in the Introduction Section, our main focus was on the Bénard type of instability. Hence, we assumed a warm, high-concentration fluid and a cold, low-concentration fluid at the lower and upper boundaries, respectively. To keep the study simple, the porous medium was assumed to be isotropic, homogeneous, and made up of spherically shaped porous materials. Furthermore, we made the local thermal equilibrium assumption between the fluid and the solid phases.
Under the Boussinesq approximation and the assumption of small-scale convective motion, the fundamental hydrodynamic equations [1,24] for the two-dimensional velocity, v = ( u , w ) , temperature, θ , and solute concentration, c, in the binary liquid are given by
u r + δ u r + w z = 0 ,
ρ 0 ϵ v t = ˜ P μ K v + ρ 0 1 α ( θ θ 0 ) β ( c c 0 ) g ,
M θ t = χ ˜ 2 θ + c c e q τ θ ( v · ˜ ) θ ,
c t = c c e q τ ( v · ˜ ) c ,
where ˜ = e r ^ r + e z ^ z is the gradient operator, ˜ 2 = ˜ r 2 + 2 z 2 is the Laplacian operator, and ˜ r 2 = 2 r 2 + δ r r is the horizontal Laplacian operator. The parameter δ is an artificial curvature parameter, which is deliberately introduced in the continuity equation and in the Laplacian operator. It takes two discrete values, 1 and 0, representing the conservation equations in cylindrical and Cartesian coordinates, respectively. The quantities ρ 0 , ϵ , t , P , μ , K , M = ρ 0 c p ρ 0 l c p l , χ , α , β , and c e q are the effective density, porosity, time, pressure, dynamic coefficient of viscosity, permeability, ratio of the product of the density and specific heat at constant pressure, effective thermal diffusivity, thermal expansion coefficient, solutal analog of α , and equilibrium value of the solute concentration. The subscript l represents the liquid, and the quantities without subscripts represent the effective quantities. The quantity τ is the relaxation time, and τ θ is the scaled form of the relaxation time; the two quantities are related by:
τ θ = c p θ λ 1 θ P , c 1 τ ,
where c p is the specific heat at constant pressure, λ 1 = τ ϕ τ θ is the chemical parameter, and ϕ is the chemical potential.
In the analysis, we assumed a fast chemical reaction, and hence, the relaxation time, τ , is very much less compared to the diffusion time, h 2 D s , where D s is the solute diffusion rate. Thus, the assumption of a fast chemical reaction results in the following condition:
τ h 2 D s .
In Newtonian liquids, D s 10 10 10 9 m 2 / s . This condition also justifies the neglecting of the terms concerning cross-diffusion effects (Soret and Dufour) in Equations (3) and (4).
From the right-hand side of Equations (3) and (4), it is clear that the reaction rate is proportional to the local deviation of the solute concentration from its equilibrium value. This equilibrium value is dependent on the temperature. For small temperature perturbations and neglecting all pressure variations, the term c e q can be expanded around the constant values ( c 0 , θ 0 ) as
c e q = c 0 + ϕ ( θ θ 0 ) .
This expression also yields
Δ c 0 = ϕ Δ θ 0 ,
where Δ represents the difference in quantities. For sufficiently low densities, the chemical potential ϕ is given by
ϕ = H k B θ 2 < H k B θ 0 2 ,
where H = D 3 k B α β is the heat of reaction [25], D = Δ Energy is the energy release during the chemical reaction, and k B is the Boltzmann constant. Now, substituting H in Equation (9) yields
ϕ = D 3 k B 2 θ 2 α β .
The sign of ϕ is dependent on the type of reaction under consideration. The parameter ϕ is negative for reactions that produce the lighter component (exothermic) and also for reactions that produce the denser component (endothermic). Even for polymerization reactions with ˜ c 0 > 0 , ϕ is negative. However, for a dissociating reaction, the sign of ϕ is positive.
Now, we eliminate the pressure term in Equation (3) by operating the curl twice and simplifying it. The z-component of the resulting equation is given by
ρ 0 ϵ t ( ˜ 2 w ) = μ K ˜ 2 w + ρ 0 g [ α ˜ r 2 θ + β ˜ r 2 c ] .
Initially, at the quiescent basic state, the fluid is motionless due to the fact that the chemical reaction effect is compensated by the stable solute concentration effect. In this motionless state, vertical gradients are only in the form of diffusion. Hence, the basic state assumes the values v = 0 , θ = θ b ( z ) , and c = c b ( z ) , where the subscript b represents the basic state. In the basic state, Equation (3) and the second-order derivative of Equation (4) with respect to z yield
d 2 θ b d z 2 = 0 , d 2 c b d z 2 = 0 .
Mutually independent temperature and concentration boundary conditions that can be defined at the boundaries are:
θ = θ 0 + Δ θ , c = c 0 + Δ c at z = 0 , θ = θ 0 , c = c 0 at z = 1 , ,
where Δ θ and Δ c are the difference in the temperature and concentration, respectively, prescribed at the walls. Using the boundary condition (13) in Equation (12), we obtain the following solution in the basic state:
θ b = θ 0 + Δ θ 1 z h , c b = c 0 + Δ c 1 z h .
Next, we superimpose small perturbations as follows:
v = v = ( u , w ) , θ = θ b + θ , c = c b + c .
Substituting Equation (15) in Equations (1), (11), (3), and (4) and using the basic state solution (14), we obtain
˜ · v = 0 ,
ρ 0 ϵ t ( ˜ 2 w ) = μ K ˜ 2 w + ρ 0 g [ α ˜ r 2 θ + β ˜ r 2 c ] ,
M θ t = χ ˜ 2 θ + c ϕ θ τ θ + w Δ θ h ( v · ˜ ) θ ,
c t = c ϕ θ τ + w Δ c h ( v · ˜ ) c .
Further on, we neglect primes for simplicity. The dimensional quantities are now converted into their non-dimensional form by applying the following scaling of variables:
W = w h χ , Θ = θ Δ θ , C = c ϕ Δ θ , ( R , Z ) = r h , z h , T = t χ h 2 .
Using Equation (20) in Equations (16)–(19), we obtain:
· v = 0 ,
1 V a T ( 2 W ) = 2 W + R a ( R 2 Θ + Φ R 2 C ) ,
M Θ T = 2 Θ + λ 1 λ 2 ( C Θ ) + W ( V · ) Θ ,
C T = λ 2 ( C Θ ) + W ( V · ) C ,
where 2 = R 2 + 2 Z 2 and R 2 = 2 R 2 + δ R R are the dimensionless form of the Laplacian and horizontal Laplacian operators, respectively. The non-dimensional parameters V a , R a , Φ , and λ 2 are the Vadasz number, the Darcy–Rayleigh number, the scaled form of the chemical potential, and the ratio of thermal diffusion time to the relaxation time, respectively, and are defined as:
V a = 1 P r σ 2 , σ 2 = h 2 K R a = ρ 0 α g Δ θ h 3 μ χ 1 σ 2 ,   Φ = β α ϕ , λ 2 = h 2 τ χ .
The parameter Φ in Equation (22) represents the contribution of the chemical reaction to the density distribution.
The non-dimensional form of the governing Equations (21)–(24) is solved subject to the following boundary condition:
W = Θ = C = 0 on Z = 0 , 1 and 0 < R < R o , U = Θ R = C R = 0 on R = 0 , R o and 0 < Z < 1 ,
where R o = r o h is the aspect ratio. In the case of the cylindrical R B C , there is no motion in a slender cylindrical region around the axis of the cylindrical enclosure, R = 0 , and it is termed a pseudo-boundary.
Equation (26) signifies the use of solvent-impermeable, isothermal, and iso-solute conditions at the horizontal boundaries. In other words, the temperature and the solute concentration are fed to the system through horizontal boundaries, whereas the solvent is confined in an enclosure. The vertical boundaries are solvent-impermeable, adiabatic, solute-impermeable conditions.
To determine the critical Rayleigh number at which convection occurs, we perform linear stability analysis in the next section.

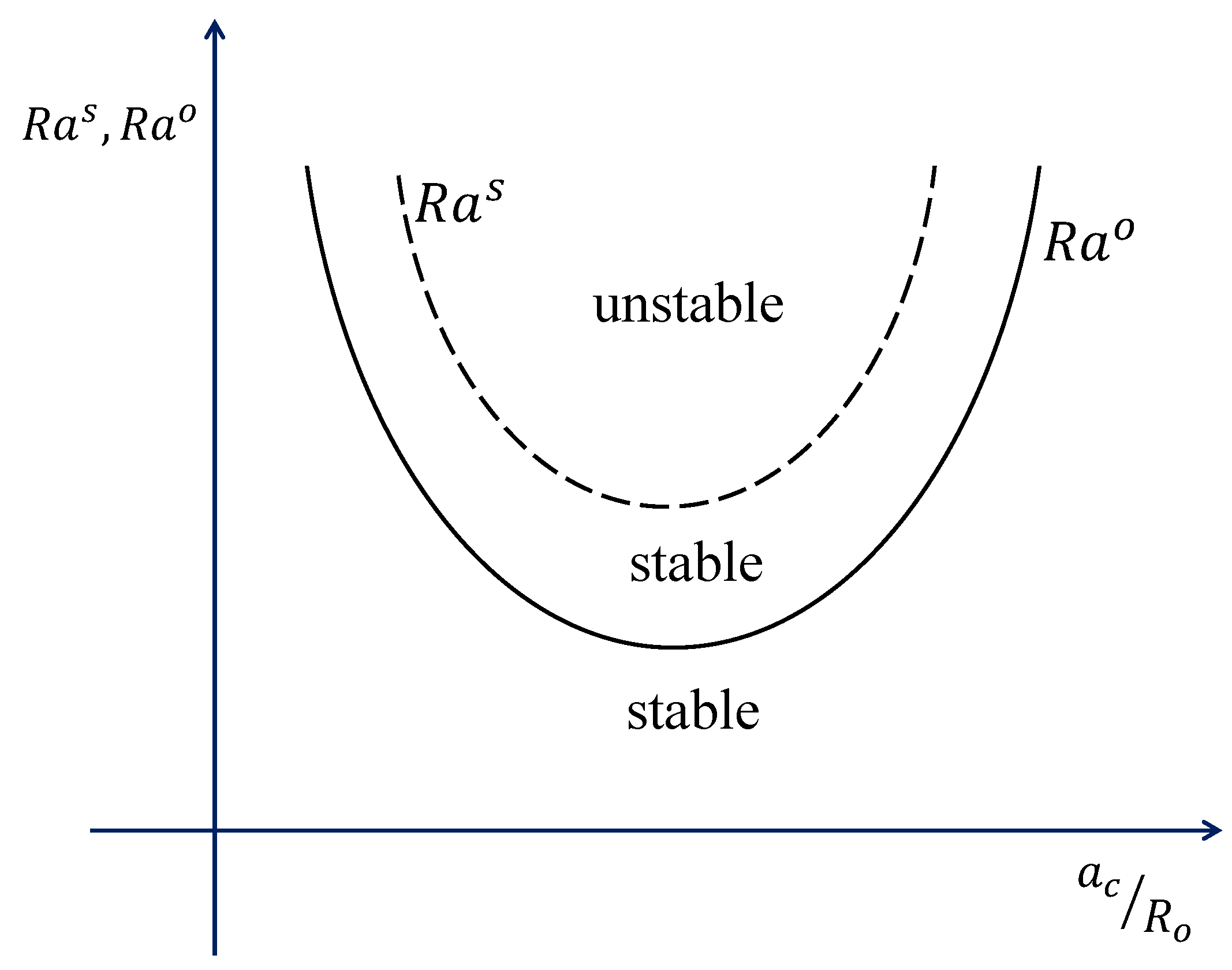

The principle of the exchange of stabilities is schematically shown below in Figure 3.
The proof of the validity of the principle is extremely tedious. For the sake of being sure about the validity, we shall for the present only refer to earlier works that preferred stationary convection over oscillatory ([1,14]). A separate work on the subject of the principle of the exchange of stabilities in the chemically reactive fluid problem in a Bénard-type situation shall be taken in the future.

3. Linear Stability Analysis under the Assumption of the Principle of Exchange of Stabilities

The linearized forms of Equations (21)–(24) are given by:
2 W + R a [ R 2 Θ + Φ R 2 C ] = 0 ,
2 Θ + λ 1 λ 2 ( C Θ ) + W = 0 ,
λ 2 ( C Θ ) + W = 0 .
The variable separable eigenfunctions corresponding to the periodically appearing roll planform (velocity), isothermal, and iso-solute conditions, are of the form sin [ π Z ] . Hence, we may take
Ω ( R , Z ) = Ω * ( R ) sin [ π Z ] ,
where Ω ( R , Z ) = [ W ( R , Z ) , Θ ( R , Z ) , C ( R , Z ) ] T and Ω * ( R ) = [ W * ( R ) , Θ * ( R ) , C * ( R ) ] T . The solution (30) satisfies the Z-boundary conditions of Equation (26). In what follows, we write Equations (27)–(29) in terms of R 2 , and hence, we write R 2 π 2 for 2 in these equations. Decoupling these transformed equations, we can write
R 4 Ω * + R a Q 1 2 π 2 1 + R a Q 2 R 2 Ω * + π 4 1 + R a Q 2 Ω * = 0 ,
where
Q 1 = ( 1 + λ 1 ) ( 1 + Φ ) + Φ λ 2 π 2 , Q 2 = Φ λ 2 .
To solve Equation (31), we need four boundary conditions with respect to R on each of W * , Θ * , and C * . Hence, we convert the U boundary conditions present in Equation (26) into W boundary conditions using Equation (21). This procedure gives us:
W R = 0 on R = 0 , R o and 0 < Z < 1 .
At this point, we are short of two boundary conditions with respect to R on Ω * . The additional boundary conditions required are obtained using Equations (21)–(24) and the boundary conditions in Equation (26). The additional boundary conditions on Ω * can be obtained in the form:
Ω * R = R ( R 2 Ω * ) = 0 on R = 0 , R o and 0 < Z < 1 .
Having settled matters pertaining to the boundary conditions, we now factorize Equation (31) as follows:
( R 2 + m 2 ) ( R 2 + n 2 ) Ω * = 0 ,
where m 2 and n 2 are to be determined. Upon multiplying together the two factors in Equation (35), we obtain
R 4 Ω * + ( m 2 + n 2 ) R 2 Ω * + m 2 n 2 Ω * = 0 .
Upon comparing Equations (31) and (36), we obtain the equations for m 2 and n 2 in the form:
( m 2 ) 2 R a Q 1 2 π 2 1 + R a Q 2 m 2 + π 4 ( 1 + R a Q 2 ) = 0 .
n 2 = π 4 m 2 ( 1 + R a Q 2 ) .
Equation (37) may be used to solve for m , but it involves the eigenvalue R a . In view of this, we rearrange Equation (37) to obtain the expression for R a in the form:
R a = ( m 2 + π 2 ) 2 m 2 λ 2 ( 1 + λ 1 ) ( 1 + Φ ) λ 2 + Φ ( m 2 + π 2 ) .
The obtaining of m required for evaluating R a shall be achieved by using the constraint condition Ω * R = 0 at R = R o .
To that end, we shift back our attention to the solution of Ω * in Equation (35) and, hence, choose one factor in Equation (35), which is the Helmholtz equation:
( R 2 + m 2 ) Ω * = 0 .
The solution of Equation (40) is:
Ω * = A R 1 δ 2 J δ 1 2 [ m R ] ,
where A = [ A 0 , B 0 , C 0 ] T and J δ 1 2 [ m R ] is the Bessel function of the first kind and of order δ 1 2 . The solution in Equation (41) is used in Equation (30) to obtain the complete solution of Ω = [ W , Θ , C ] T in the form:
Ω = A R 1 δ 2 J δ 1 2 [ m R ] sin [ π Z ] .
From the solution (42), it is clear that the parameter m represents the wave number. Equation (42) satisfies the boundary condition in Equation (34), provided:
J 1 + δ 2 [ m R o ] = 0 .
From the above, it becomes evident that the critical m , viz. m c , is not just the result of the minimization of R a with respect to m . It also involves the constraint condition (43). Thus, we have in hand a constrained minimization problem involving Equations (39) and (43). To simplify the constrained minimization problem further, we make the substitution a = m R o in Equations (39) and (43). With this substitution, Equations (39) and (43) now take the form:
R a = ( a 2 R o 2 + π 2 ) 2 a 2 R o 2 λ 2 ( 1 + λ 1 ) ( 1 + Φ ) λ 2 + Φ ( a 2 R o 2 + π 2 ) ,
J 1 + δ 2 [ a ] = 0 .
There are infinitely many solutions for a that satisfy the condition (45). Among these values of a , a particular value that minimizes R a is the required critical value of a , namely a c .
After having evolved the procedure for obtaining the critical values of a , and thereby m c and R a c , in the case of the unified problem, we next discuss the results obtained in the study.

4. Results and Discussion

The two-dimensional Darcy–Bénard convection of a fast chemically reacting fluid occupying cylindrical/rectangular enclosures ( C E s/ R E s) was analyzed analytically using the degeneracy technique. A single-term Galerkin solution was employed for solving the problem in cylindrical/rectangular coordinate systems. The eigenfunction in the problem of a rectangular enclosure involves trigonometric functions only, while that in a cylindrical enclosure involves a product of the Bessel and trigonometric functions. The intention of the present study was to determine the onset of convection and predict the number of Bénard cells that manifest in the two enclosures at the onset of convection. In view of this, we first obtained an expression for the critical Rayleigh number, R a c , which determines the onset of convection. Later, using the expression of R a c , we developed an explicit expression for the number of cells as a function of various system parameters.
Generally, a chemical reaction is studied as Bénard instability or chemical instability. In Bénard instability (Type-III), a higher temperature and a higher concentration are present near the lower boundary. In this case, instability arises in two different ways: High-energy components near the bottom plate allow the system to have more chemical reaction near the lower boundary. This produces a lighter component near the bottom of the enclosure, which sets up an adverse density gradient in the system. Furthermore, the chemical reaction releases some amount of thermal energy near the bottom plate, which accelerates the instability in the system. In chemical instability (Type-IV), a higher temperature and a higher solute concentration are present at the top wall. This allows the system to have high-energy, lighter components at the top. Even though this configuration is a stable configuration, a higher concentration of more-energetic lighter components diffuses towards the region of its lower concentration (bottom plate). This raises the temperature near the lower boundary, which accelerates the chemical reaction locally. This process produces more-energetic lighter components near the lower boundary, and it starts moving upwards, causing buoyancy-driven convection. With this phenomenon, when the concentration of the lighter components near the upper boundary reduces, the diffusion process slows down, and the system leads to oscillatory convection.
The main concern of the present study was to predict the number of Bénard cells, and this manifests in Type-III instability. Hence, we chose a fast chemically reacting, fluid-saturated, densely packed porous medium with the Bénard type of instability. This allows the system to have only stationary convection.
Before moving on to the discussion of the results, we first estimated the permissible range of values of the parameters appearing in the study. Gitterman and Steinberg [26] provided typical values for the parameters governing the fast chemically reacting Rayleigh–Bénard convection problem. They chose the values:
λ 1 = 17 , λ 2 = 0.1 ( for h = 0.01 m ) and Φ = 5.5 .
The negative value of Φ represents the Type-IV instability which makes R a < 0 due to a negative temperature gradient value in R a . In our analysis, we mainly focused on the Type-III instability. In this case, we need to choose a positive value for the parameter Φ . The parameters’ values mentioned in Equation (46) are for the case of a non-porous medium. In the work of Steinberg and Brand [1], the parameters’ values given for a chemically active fluid mixture in a densely packed porous medium were as follows:
λ 1 = 100 , λ 2 = 0.1 ( for h = 0.01 m ) and Φ = 33 .
With these values, the system exhibits both an oscillatory and a stationary nature of convection. However, in the present analysis, our interest was to study the stationary convection, and hence, we modified the parameters’ values using Equations (46) and (47).
The parameter λ 1 = τ τ θ ϕ can be rewritten as λ 1 = D 3 k B ϕ [25]. In the presence of a porous medium, some amount of thermal energy gets absorbed by the porous material. Hence, the value of λ 1 gets reduced in its presence compared to the case of a non-porous medium. We hence chose λ 1 17 in the calculation of the present investigation.
Recalling the definition of λ 2 , λ 2 = h 2 τ χ and using the condition τ h 2 D s , we can write λ 2 > > D s χ . In the presence of a porous medium, the diffusion rate, D s p m , reduces further. Hence, we have λ 2 > > D s χ > D s p m χ . As mentioned in Section 2, the parameter D s takes values in the range of D s 10 10 10 9 m 2 / s for Newtonian liquids. Hence, D s p m < 10 10 10 9 m 2 / s for Newtonian liquids. The thermal diffusivity, χ , of a Newtonian-liquid-saturated porous medium [27] is found to be of the order of 10 7 . With these values of D s p m and χ , λ 2 is constrained by the condition: λ 2 0.01 .
The value of the other parameter Φ is dependent on the type of instability under consideration. For Type-III and Type-IV instabilities, Φ takes positive and negative values, respectively. From Equation (10), Φ is given by
Φ = D 3 k B 2 1 T 2 .
Since Φ is dependent on D, a similar argument as the case of λ 1 can be made to find the value of Φ in the presence of a porous medium. Hence, in our computations, we chose Φ 33 .
Having arrived at permissible ranges of the parameters’ values, in the next subsection, we first determine the critical Rayleigh number and then proceed to find an expression for the number of cells in C E ( δ = 1 ) .

4.1. Expression for the Critical Thermal Rayleigh Number, R a c , with δ = 1

From Equations (44) and (45), it is clear that the problem involves a constrained minimization problem. There are infinite positive roots satisfying Equation (45). Let us arrange them as a 1 < a 2 < a 3 < . The first four positive roots of Equation (45) are tabulated in the first four columns of Table 1. For various sets of parameter values, different a n ’s, n = 1 , 2 , 3 , , yield the critical Rayleigh number, R a c . The dependency of a n on different parameters is recorded in Table 1. The particular a n that yields R a c is represented in bold, and we call it a c . At larger values of the aspect ratio, the wave number is given by a c R o . Although, from the constraint (45), a n seems independent of the parameters, the critical value, a c , varies with the parameters’ values due to the dependence of R a c on them. Hence, the purpose of Table 1 is to show that the wave number is dependent on the chemical parameters.
In Table 1, the discrete roots, a n ( n 1 ) , of Equations (45) obtained from the numerical methods are recorded. To represent the roots of Equation (45) analytically, we arrived at a general solution for it. We tabulated the first 100 numerical solutions, a 1 , a 2 , , a 100 , of J 1 [ a ] = 0 and made some observations. Surprisingly, we found that | a n + 1 a n | 3.141 ( π ) for n 2 and for n = 1 , | a 2 a 1 | 3.183 . Hence, we adopted a 2 + ( n 2 ) π as the line of best fit for a . Hence, we may write
a n = a 2 + ( n 2 ) π , n = 1 , 2 , 3 , .
The successive integral values of n in Equation (49), respectively, yield successive numerical roots of Equation (45) with a maximum percentage error of 0.01103. Now, by the inspection method, we found that, for different parameters’ values, a different n yields R a c and is called the critical n, n c . Using Equation (49), a c may be written as a c = a 2 + ( n c 2 ) π . Now, using a c in Equation (44), the expression R a c is obtained in the form:
R a c = [ ( a 2 + ( n c 2 ) π ) 2 / R o 2 + π 2 ] 2 ( a 2 + ( n c 2 ) π ) 2 / R o 2 λ 2 ( 1 + λ 1 ) ( 1 + Φ ) λ 2 + Φ [ ( a 2 + ( n c 2 ) π ) 2 / R o 2 + π 2 ] .
Having obtained an expression for R a c , in the next section, we were interested in finding the physical significance of the parameter, n. Intuition tells us that n may represent the number of cells.

4.2. Expression for the Number of Cells in C E

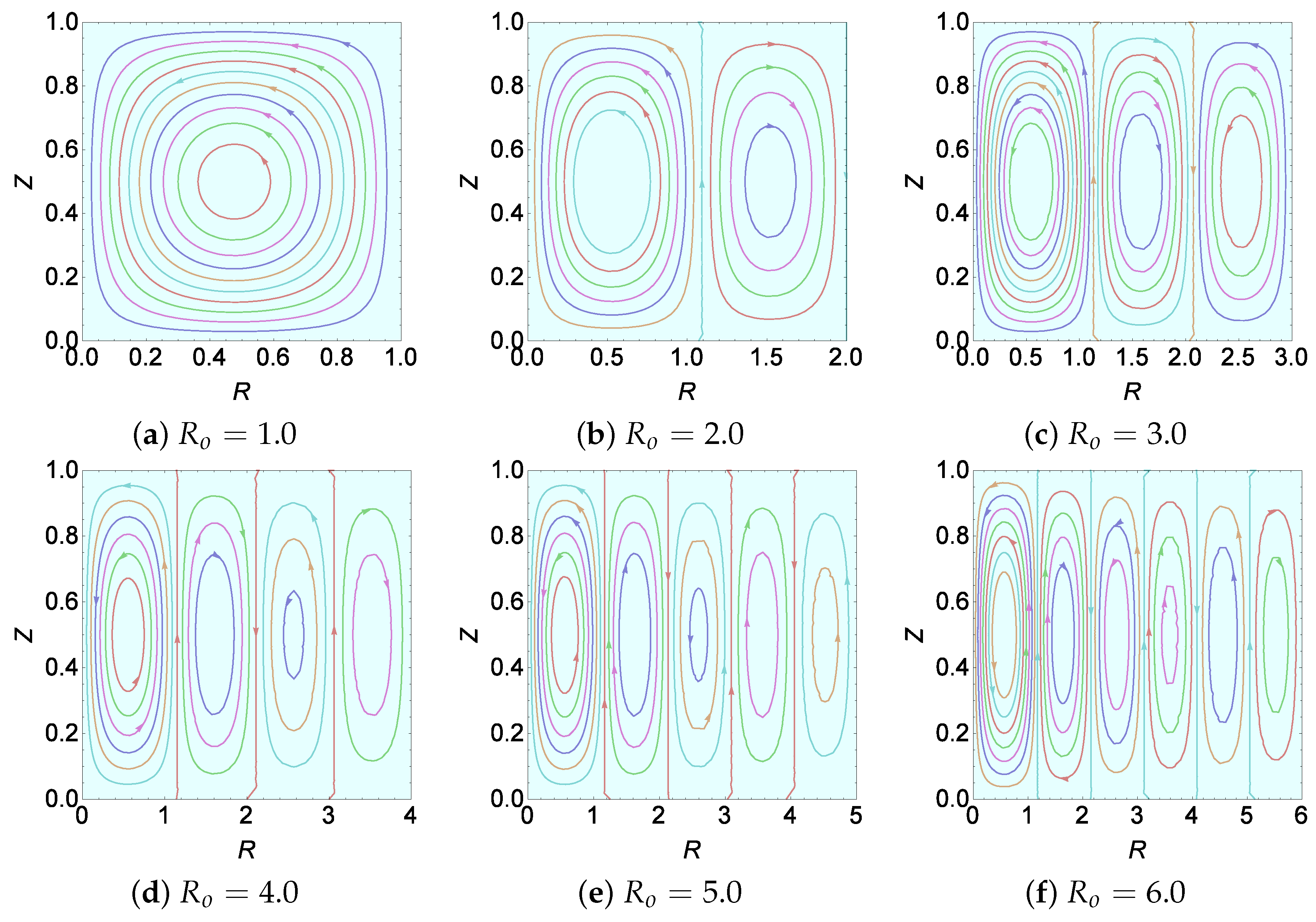

To analyze the number of cells that manifest in the given enclosure, we made use of the expression of the stream function, Ψ :
W = 1 R Ψ R .
Using Equation (42) in Equation (51), we obtain
Ψ = A 0 R J 1 a c R o R sin [ π Z ] .
The integral constant in Equation (52) becomes zero as the boundary of the enclosure is also a streamline. In Figure 4, we plot the streamlines for different values of R o (by fixing all other parameters’ values). The value of R o was chosen in such a way that each value of R o falls in the range of different marginal stability curves of the upper-most graph of Figure 5c. Now, by observing Figure 5c (upper-most graph) and Figure 4 together, we arrive at the information that the value n c represents the number of Bénard cells that manifest in the system for a given R o .
Thus, we note that the intersection point between any two successive marginal stability curves in Figure 5 represents the point of increase of the number of cells. Now, we used this information in obtaining an explicit expression for the number of cells. This intersection point between any two marginal stability curves in Figure 5 can be obtained from the condition:
R a c ( λ 1 , λ 2 , Φ , R o , n ) = R a c ( λ 1 , λ 2 , Φ , R o , n + 1 ) .
Using Equation (50) in Equation (53) and simplifying for n c , we obtain a fifth-degree polynomial of n c . The ceil value of the real and positive root (only one in fact) of the polynomial equation yields the value of the number of cells for the considered set of parameters’ values and is given by
n c = R o 2 R o 2 l 2 + π 2 Φ l π 4 Φ 2 + R o 2 π 2 Φ ( l π 2 Φ ) + 1 4 + 3 π 2 a 2 2 π ,
where l = λ 2 ( 1 + λ 1 ) ( 1 + Φ ) and the operator [ ] on the right-hand side of Equation (54) represents the ceil function, which returns the maximum positive integer of the corresponding function.
After having obtained the expression for the number of cells, we shall discuss in the next section the effect of various parameters on R a c and n c .

4.3. Effect of the Chemical Parameters, λ 1 , λ 2 , and Φ , and the Aspect Ratio, R o , on R a c and n c

In the last two columns of Table 1, we record the influence of the chemical parameters and the aspect ratio on R a c and n c . We observed from the tabulated values that the parameters λ 1 and Φ showed a destabilizing effect in the system. The reason behind this observation is that, from the definitions of λ 1 and Φ , it is clear that an increase in the values of λ 1 and Φ increases the energy release during the chemical reaction, D, in the system. This forces the onset of convection to happen earlier.
The parameter λ 2 shows a stabilizing effect in the system. For any considered chemically reactive fluid, increasing the value of λ 2 increases the thermal diffusion rate and decreases the chemical reaction rate. The thermal diffusion rate of any fluid-saturated porous medium depends inversely on the thermal conductivity of the porous material. Thus, an increase in the value of λ 2 implies the consideration of a low thermally conducting porous medium and a slower rate of chemical reaction, hence the delay in the onset of convection.
The effect of increasing R o is to increase the horizontal dimension of the enclosure. This allows more space in the system for the manifestation of more cells. The fact that n c increases with the increase in R o is shown in the fourth row of Table 1.

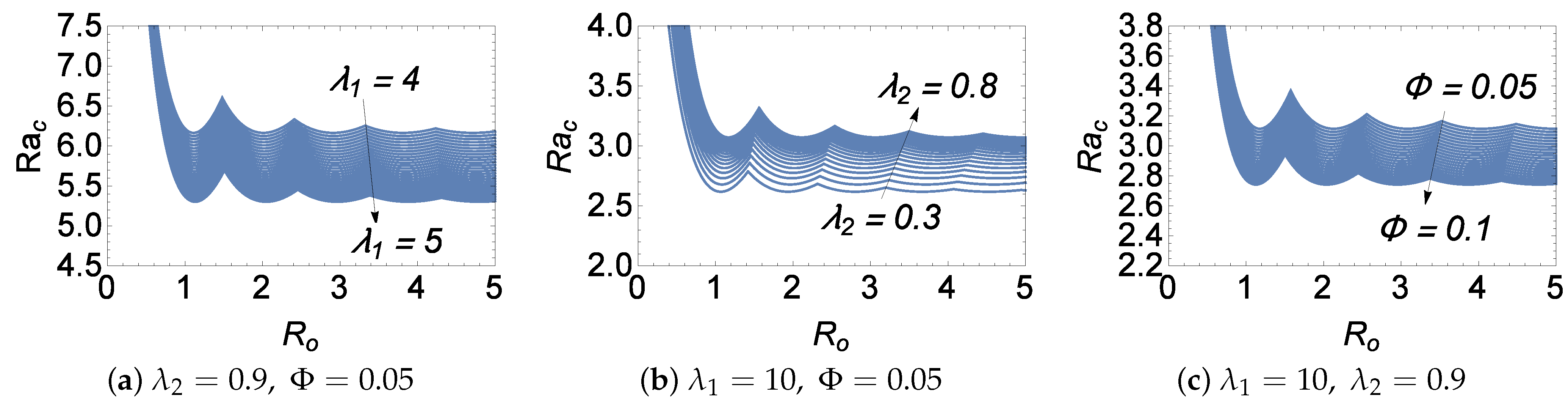

Figure 5 is the plot of R a c versus R o for different chemical parameters’ values, and it reiterates the earlier discussion concerning the effects of λ 1 , λ 2 , and Φ on the stability of the system. It is observed from the figure that the increase in the values of λ 1 and Φ decreases the value of R a c , confirming its destabilizing nature, and the opposite effect is observed for the parameter λ 2 . The locus of intersection points represents the increasing and decreasing effects of λ 1 , λ 2 , and ϕ on the number of cells depending on whether the loci lean to the left or the right, respectively.
We now discuss the limiting cases of the present model in the next subsection.

4.4. Limiting Cases

4.4.1. Results on Rectangular Enclosures ( δ = 0 )

The Rayleigh number expression (44) remains the same in the case of R E . The constraint function (45) in R E reduces to
sin [ a R E ] = 0 .
The solution of Equation (55) is a R E = n R E π , n = 1 , 2 , 3 , . With this value of a R E and from the definition of the critical Rayleigh number, we obtain
R a c R E = [ ( n c R E π ) 2 / R o 2 + π 2 ] 2 ( n c R E π ) 2 / R o 2 λ 2 ( 1 + λ 1 ) ( 1 + Φ ) λ 2 + Φ [ ( n c R E π ) 2 / R o 2 + π 2 ] ,
where n c R E is the value of n R E at which R a R E attains its minimum value. Following a procedure similar to that considered earlier for C E , we obtain an expression for the number of cells as
n c R E = R o 2 R o 2 l 2 + π 2 Φ l π 4 Φ 2 + R o 2 π 2 Φ ( l π 2 Φ ) + 1 4 1 2 .
We note at this juncture that, from the results, the effects of various parameters, viz. λ 1 , Φ , and λ 2 , on R a c and n c follow C E . Thus, to avoid duplication, we skipped the corresponding plots here of the R E s.

4.4.2. Results of D B C in a Non-Reactive Fluid-Saturated Porous Medium

Mathematically, the chemical reaction in the system is governed by the non-dimensional parameters λ 1 , λ 2 , and Φ .
By choosing the values: λ 1 = 0 , λ 2 = 1 , and Φ = 0 , in Equations (21)–(24), the solute concentration equation gets decoupled. The resultant set of equations now represents the problem of D B C s in a non-reactive fluid-saturated porous medium and are given by:
· v = 0 ,
1 V a T ( 2 W ) = 2 W + R a R 2 Θ ,
M Θ T = 2 Θ + W ( V · ) Θ ,
Now, upon simplifying Equations (58)–(60) and following the standard procedure, the expressions of R a c and n c yield:
R a c = [ ( ( a 2 2 π ) δ + n c π ) 2 / R o 2 + π 2 ] 2 ( a 2 2 π ) δ + n c π ) 2 / R o 2 ,
n c = 1 2 + 1 + 4 R o 2 2 + δ 2 a 2 π .
Equations (61) and (62) are unified equations representing the C E / R E .

4.4.3. Results of Classical D B C ( R o )

As we considered very shallow enclosures ( R o 1 ), the concept of the wave number can be applied in both the C E and R E . The expression of the critical wave number is given by

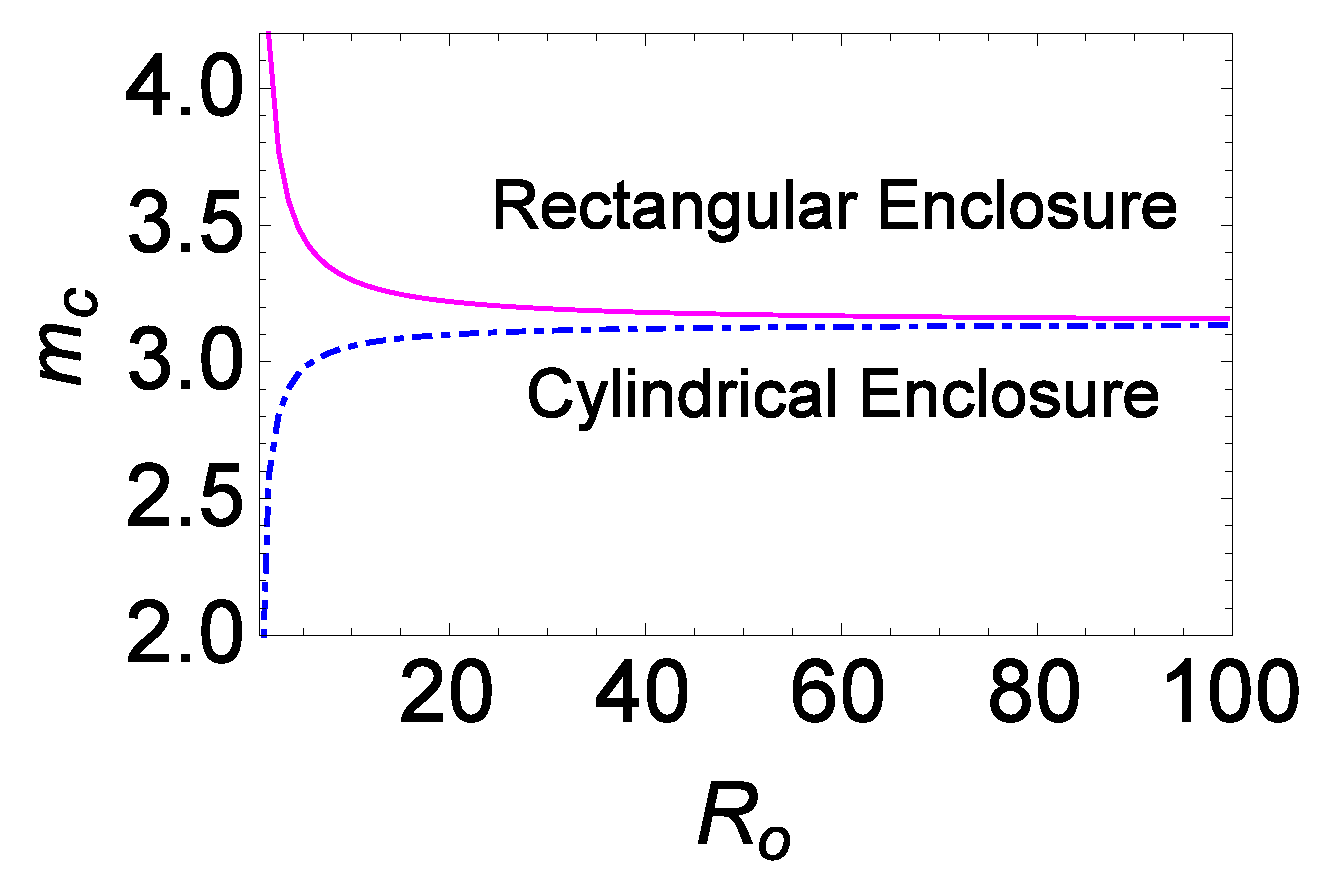

m c = ( a 2 2 π ) δ + n c π R o .
We discussed in Section 4.1 that the wave number is intrinsically dependent on the chemical parameters, aspect ratio, and type of enclosures under consideration (nature of vertical boundaries). For fixed chemical parameters’ values, the wave number is dependent only on the aspect ratio and the type of enclosure. Upon increasing R o , the value of m c in both the C E and R E starts converging to a particular value, m c , after which the wave number becomes independent of both the aspect ratio and the type of enclosure. The value of R o at which the boundary effects become negligible is taken as R o . This nature of m c and R o is recorded in Table 2 for different sets of parameters’ values, and it is also represented graphically in Figure 6 for one set of chemical parameter values. Similar plots were observed for all other combinations of chemical parameters. Hence, the corresponding plots were omitted here.
In Table 2, it is observed that the value of R o decreases with the increase in the values of λ 1 and λ 2 (first and second rows of Table 2). The opposite effect is observed for the variation of the parameter Φ . This pattern of the variation of R o follows the pattern of the number of cells formed in the system (see the last column of Table 1).
In this case, also the effects of various chemical parameters on R a c and n c remained the same as in the case of the C E . Hence, the corresponding plots were omitted here.
Having discussed the results and the limiting cases, in the next section, we shall validate the present model results by comparing it with the existing works.

4.5. Validation of the Present Model

The results of the present model were validated by comparing them with those of Steinberg and Brand [1] for the problem of chemically driven convection in a densely packed porous layer of infinite horizontal extent. At large values of R o , their results can be recovered from those of the present model.
From Equation (25), the expression for the thermal gradient, Δ T h , is given by
Δ T h = R a μ χ ρ 0 α g h 4 h 2 K .
The expression for the critical temperature gradient shall be written as
Δ T c h = R a c μ χ ρ 0 α g h 4 h 2 K .
The values of the critical thermal gradient for two sets of parameter values are explicitly available in Steinberg and Brand [1] and are tabulated in Table 3 along with the values obtained from the present model (Equation (65)). It is clear from the tabulated values that the present model’s results are in good agreement with those of Steinberg and Brand [1].
In Table 3, the permeability, K , is found from the semiempirical Blake–Kozeny formula [28]:
K = ϵ 3 150 ( 1 ϵ ) 2 d s 2 ,
where d s is the diameter of the spherical porous material.
At this point, we made the observation that we shall endeavor to consider a similar problem that involves nanofluids, especially hybrid ones, as considered by Yaseen et al. [29,30].
After the validation of the results of the present model, in the next section, we draw some major conclusions of the study.

5. Conclusions

The paper presented an analytical investigation of chemically driven convection in cylindrical porous enclosures. Using the degeneracy technique and the single-term Galerkin method, we performed linear stability analysis. Expressions for the critical Rayleigh number and, more importantly, the number of cells as functions of the chemical parameters and the aspect ratio were derived. It was found that the increase in the value of the chemical parameters connected with the heat of reaction resulted in the formation of wider cells, confirming their destabilizing nature. On the other hand, the chemical parameter inversely dependent on the rate of reaction allowed the system to form smaller cells, showing its stabilizing effect in the system. Thus, we can conclude that the chemical reaction destabilizes the system by advancing the onset of convection. The values of the aspect ratio, at which the vertical boundary effects became negligible, were found for the various combinations of the parameters’ values. In this case, the results of an infinite horizontal extent were recovered. Furthermore, the results of various problems, viz. finite- and infinite-aspect-ratio rectangular enclosures and non-reactive fluid-saturated porous medium in C E s and R E s, were obtained as limiting cases of the present model. Hence, the present study is important since it was a unified analysis of six individual problems. The results of the present model in the limiting cases were validated by comparing them with earlier results, and good agreement was found.

Author Contributions

All authors contributed equally to analyzing the data, reaching conclusions, and writing the paper. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge financial support from ANID through Convocatoria Nacional Subvención a Instalación en la Academia Convocatoria Año 2021: SA77210040.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors are thankful to the Universidad de Tarapacá for supporting their research.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

Latin Symbols
csolute concentration (kg) χ effective thermal diffusivity (m 2 /s)
c p specific heat δ curvature parameter
at constant pressure (J/(kg K))
Denergy release during Δ difference in quantities
the chemical reaction (J)
D s solute diffusion rate (m 2 /s) ϵ porosity 0 < ϵ 1
d s diameter of the spherical K permeability (m 2 )
porous materials (m)
gacceleration due to gravity (m/s 2 ) λ 1 , λ 2 chemical parameters
Hheat of reaction (kJ/mol) μ dynamic coefficient of
hdepth of the enclosure (m) viscosity ((kg/(m s))
kthermal conductivity (W/(m K)) Φ scaled form of chemical potential
k B Boltzmann constant (J/K) ϕ chemical potential (J/Kg)
Mratio of specific heats ρ 0 density (kg/m 3 )
Pdynamic pressure (Pa) σ 2 porous parameter
R , Z dimensionless form of τ relaxation time (s)
horizontal and vertical axes
( r , z ) horizontal and vertical axes (m) τ θ scaled form of relaxation time (s)
r o radius/breadth of the enclosure (m) Θ nondimensional temperature
R a thermal Darcy–Rayleigh number θ temperature (K)
R o aspect ratiosubscripts
Tdimensionless form of timebbasic state
ttime (s)ccritical
( U , W ) nondimensional velocities e q equilibrium value
( u , w ) velocities (m/s) p m porous medium (solid)
V nondimensional velocity vectorssolute
v velocity vector (m/s)0reference value
V a Vadasz numbersuperscripts
zvertical coordinate (m) C E cylindrical enclosure
Greek symbols R E rectangular enclosure
α thermal expansion coefficient (1/K)sstationary
β solute expansion coefficient (1/Kg)ooscillatory
abbreviations
C E cylindrical enclosure
C D C chemically driven convection
R E rectangular enclosure

References

  1. Steinberg, V.; Brand, H. Convective instabilities of binary mixtures with fast chemical reaction in a porous medium. J. Chem. Phys. 1983, 78, 2655–2660. [Google Scholar] [CrossRef]
  2. Diewald, M.; Brand, H.R. Chemically driven convection. A simple model. Chem. Phys. Lett. 1993, 216, 566–570. [Google Scholar] [CrossRef]
  3. Gatica, J.E.; Viljoen, H.J.; Hlavacek, V. Interaction between chemical reaction and natural convection in porous media. Chem. Eng. Sci. 1989, 44, 1853–1870. [Google Scholar] [CrossRef]
  4. DHernoncourt, J.; Zebib, A.; De Wit, A. On the classification of buoyancy-driven chemo-hydrodynamic instabilities of chemical fronts. Chaos 2007, 17, 013109-1–013109-9. [Google Scholar] [CrossRef] [Green Version]
  5. Nandakumar, K.; Weinitschke, H.J. A bifurcation study of chemically driven convection in a porous medium. Chem. Eng. Sci. 1992, 47, 4107–4120. [Google Scholar] [CrossRef]
  6. McKay, G. Onset of bouyancy-driven convection in superposed reacting fluid and porous layers. J. Eng. Math. 1998, 33, 31–47. [Google Scholar] [CrossRef]
  7. Malashetty, M.S.; Biradar, B.S. The onset of double diffusive reaction-convection in an anisotropic porous layer. Phys. Fluids 2011, 23, 064102-1–064102-12. [Google Scholar] [CrossRef]
  8. Jotkar, M.; Rongy, L.; De Wit, A. Chemically-driven convective dissolution. PCCP 2019, 21, 19054–19064. [Google Scholar] [CrossRef] [Green Version]
  9. Jotkar, M.; De Wit, A.; Rongy, L. Control of chemically driven convective dissolution by differential diffusion effects. Phys. Rev. Fluids 2021, 6, 053504-1–053504-15. [Google Scholar] [CrossRef]
  10. Farr, W.W.; Gabitto, J.F.; Luss, D.; Balakotaiah, V. Reaction-driven convection in a porous medium. AIChE J. 1991, 37, 963–985. [Google Scholar] [CrossRef]
  11. Pop, I.; Merkin, J.H.; Ingham, D.B. Chemically driven convection in porous media. In Transport Phenomena in Porous Media II; Elsevier: Amsterdam, The Netherlands, 2002; pp. 341–364. [Google Scholar]
  12. Roy, N.C. Natural convection in the annulus bounded by two wavy wall cylinders having a chemically reacting fluid. Int. J. Heat Mass Transf. 2019, 138, 1082–1095. [Google Scholar] [CrossRef]
  13. Bratsun, D.A. On Rayleigh-Bénard mechanism of alignment of salt fingers in reactive immiscible two-layer systems. Microgravity Sci. Technol. 2014, 26, 293–303. [Google Scholar] [CrossRef]
  14. Kanchana, C.; Laroze, D.; Siddheshwar, P.G. Study of Rayleigh–Bénard convection in a chemically reactive fluid using a generalized Lorenz model and the cubic–quintic Ginzburg–Landau equation. Phys. Fluids 2022, 34, 023607-1–023607-19. [Google Scholar] [CrossRef]
  15. Kanchana, C.; Laroze, D.; Siddheshwar, P.G. Study of primary and secondary instabilities arising due to a chemical reaction in a two-component Rayleigh–Bénard system. Appl. Math. Model. 2022, 111, 534–553. [Google Scholar]
  16. Umavathi, J.C.; Sheremet, M.A. Chemical reaction influence on nanofluid flow in a porous layer: Stability analysis. Int. Commun. Heat Mass Transf. 2022, 138, 106353. [Google Scholar] [CrossRef]
  17. Gaikwad, S.N.; Surwase, D.M. Chemically Driven Convective Instabilities in Binary Nanofluids with Thermodiffusions. J. Nanofluids 2023, 12, 1119–1128. [Google Scholar] [CrossRef]
  18. Patil, P.M.; Kulkarni, P.S. Effects of chemical reaction on free convective flow of a polar fluid through a porous medium in the presence of internal heat generation. Int. J. Ther. Sci. 2008, 47, 1043–1054. [Google Scholar] [CrossRef]
  19. Mahapatra, N.; Dash, G.C.; Panda, S.; Acharya, M. Effects of chemical reaction on free convection flow through a porous medium bounded by a vertical surface. J. Eng. Phys. Thermophys. 2010, 83, 130–140. [Google Scholar] [CrossRef]
  20. Andres, J.T.H.; Cardoso, S.S.S. Onset of convection in a porous medium in the presence of chemical reaction. Phys. Rev. E 2011, 83, 046312-1–046312-6. [Google Scholar] [CrossRef]
  21. Ward, T.J.; Cliffe, K.A.; Jensen, O.E.; Power, H. Dissolution-driven porous-medium convection in the presence of chemical reaction. J. Fluid Mech. 2014, 747, 316–349. [Google Scholar] [CrossRef] [Green Version]
  22. Roy, N.C.; Gorla, R.S.R. Natural convection of a chemically reacting fluid in a concentric annulus filled with non-Darcy porous medium. Int. J. Heat Mass Transf. 2018, 127, 513–525. [Google Scholar] [CrossRef]
  23. Badday, A.J.; Harfash, A.J. Chemical reaction effect on convection in bidispersive porous medium. Transp. Porous Media 2021, 137, 381–397. [Google Scholar] [CrossRef]
  24. Siddheshwar, P.G.; Lakshmi, K.M. Darcy-Bénard convection of Newtonian liquids and Newtonian nanoliquids in cylindrical enclosures and cylindrical annuli. Phys. Fluids 2019, 31, 084102-1–084102-19. [Google Scholar] [CrossRef]
  25. Bdzil, J.B.; Frisch, H.L. Chemically driven convection. J. Chem. Phys. 1980, 72, 1875–1886. [Google Scholar] [CrossRef]
  26. Gitterman, M.; Steinberg, V. Onset of convective instabilities in binary liquid mixtures with fast chemical reactions. Phys. Fluids 1983, 26, 393–396. [Google Scholar] [CrossRef]
  27. Lakshmi, K.M.; Laroze, D.; Siddheshwar, P.G. A study of the natural convection of water-AA 7075 nanoliquids in low-porosity cylindrical annuli using a local thermal non-equilibrium model. Phys. Fluids 2021, 33, 032018-1–032018-15. [Google Scholar] [CrossRef]
  28. Dullien, F.A.L. Porous Media: Fluid Transport and Pore Structure; Academic Press: Cambridge, MA, USA, 2012. [Google Scholar]
  29. Yaseen, M.; Rawat, S.K.; Shah, N.A.; Kumar, M.; Eldin, S.M. Ternary hybrid nanofluid flow containing gyrotactic microorganisms over three different geometries with Cattaneo–Christov model. Mathematics 2023, 11, 1237. [Google Scholar] [CrossRef]
  30. Yaseen, M.; Garia, R.; Rawat, S.K.; Kumar, M. Hybrid nanofluid flow over a vertical flat plate with Marangoni convection in the presence of quadratic thermal radiation and exponential heat source. Int. J. Ambient Energy 2023, 44, 527–541. [Google Scholar] [CrossRef]
Figure 1. Four possible configurations of stability/instabilities in a two-component system.
Figure 1. Four possible configurations of stability/instabilities in a two-component system.
Sustainability 15 11999 g001
Figure 2. Physical configuration of cylindrical and rectangular enclosures.
Figure 2. Physical configuration of cylindrical and rectangular enclosures.
Sustainability 15 11999 g002
Figure 3. Schematic representation of the validity of the principle of the exchange of stabilities.
Figure 3. Schematic representation of the validity of the principle of the exchange of stabilities.
Sustainability 15 11999 g003
Figure 4. Plot of streamlines, Ψ , for different values of R o with λ 1 = 10 , λ 2 = 0.9 , and Φ = 0.05 .
Figure 4. Plot of streamlines, Ψ , for different values of R o with λ 1 = 10 , λ 2 = 0.9 , and Φ = 0.05 .
Sustainability 15 11999 g004
Figure 5. Plot of the critical Rayleigh number, R a c , versus the aspect ratio, R o .
Figure 5. Plot of the critical Rayleigh number, R a c , versus the aspect ratio, R o .
Sustainability 15 11999 g005
Figure 6. Plot of the wave number, m c , as a function of R o with λ 1 = 0 , λ 2 = 1 , and Φ = 0 in the C E and R E .
Figure 6. Plot of the wave number, m c , as a function of R o with λ 1 = 0 , λ 2 = 1 , and Φ = 0 in the C E and R E .
Sustainability 15 11999 g006
Table 1. Variation of a c and n c with chemical parameters.
Table 1. Variation of a c and n c with chemical parameters.
λ 1 λ 2 Φ R o a 1 a 2 a 3 a 4 Ra c n c
10 3.831717.0155910.173513.32373.17911
50.90.051.03.831717.0155910.173513.32375.35691
0.1 3.831717.0155910.173513.323715.98512
0.7 3.831717.0155910.173513.32373.08601
100.090.051.03.831717.0155910.173513.32371.59852
0.05 3.831717.0155910.173513.32370.99403
0.05 3.831717.0155910.173513.32373.17911
100.90.11.03.831717.0155910.173513.32372.76881
0.8 3.831717.0155910.173513.32370.98082
1.03.831717.0155910.173513.32373.17911
100.90.052.03.831717.0155910.173513.32373.12632
3.03.831717.0155910.173513.32373.11763
Table 2. The value of R o , the wave number, m c , and R a c for different sets of parameter values.
Table 2. The value of R o , the wave number, m c , and R a c for different sets of parameter values.
λ 1 λ 2 Φ R o ( m c ) CE ( m c ) RE Ra c
0.11305.2735.26815.7164
50.90.05903.4283.4205.303
10 803.3073.2983.1153
0.9803.3073.2983.1152
100.090.051205.2685.2621.5716
0.05 13011.21811.2130.9938
0.05803.3073.2983.1152
100.090.11603.4403.4362.742
0.82105.0595.0560.9574
0.01.00.0903.14893.141539.4786
Table 3. Thermal gradient values obtained from Equation (64); the values in the brackets are those of Steinberg and Brand [1] (which are included for comparison with our results).
Table 3. Thermal gradient values obtained from Equation (64); the values in the brackets are those of Steinberg and Brand [1] (which are included for comparison with our results).
Parameters’ Values Δ T c h ( K / m ) Relative Error
λ 1 = 100 ,
λ 2 = 0.1 , Φ = 33 ,
K h 2 = 1.2 × 10 5 ,
d s h = 0.1 , R o = 10 .
0.2574 K/m
(0.25 K/m)
0.0287
λ 1 = 100 ,
λ 2 = 0.1 , Φ = 33 ,
K h 2 = 1.2 × 10 7 ,
d s h = 0.01 , R o = 10 .
25.74 K/m
(25 K/m)
0.0287
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lakshmi, K.M.; Pérez, L.M.; Siddheshwar, P.G.; Laroze, D. Theoretical Prediction of the Number of Bénard Cells in Low-Porosity Cylindrical/Rectangular Enclosures Saturated by a Fast Chemically Reacting Fluid. Sustainability 2023, 15, 11999. https://doi.org/10.3390/su151511999

AMA Style

Lakshmi KM, Pérez LM, Siddheshwar PG, Laroze D. Theoretical Prediction of the Number of Bénard Cells in Low-Porosity Cylindrical/Rectangular Enclosures Saturated by a Fast Chemically Reacting Fluid. Sustainability. 2023; 15(15):11999. https://doi.org/10.3390/su151511999

Chicago/Turabian Style

Lakshmi, Kanakapura M., Laura M. Pérez, Pradeep G. Siddheshwar, and David Laroze. 2023. "Theoretical Prediction of the Number of Bénard Cells in Low-Porosity Cylindrical/Rectangular Enclosures Saturated by a Fast Chemically Reacting Fluid" Sustainability 15, no. 15: 11999. https://doi.org/10.3390/su151511999

APA Style

Lakshmi, K. M., Pérez, L. M., Siddheshwar, P. G., & Laroze, D. (2023). Theoretical Prediction of the Number of Bénard Cells in Low-Porosity Cylindrical/Rectangular Enclosures Saturated by a Fast Chemically Reacting Fluid. Sustainability, 15(15), 11999. https://doi.org/10.3390/su151511999

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
