Radar Interferometry for Urban Infrastructure Stability Monitoring: From Techniques to Applications

Abstract

Urban infrastructure is an important part of supporting the daily operation of a city. The stability of infrastructure is subject to various deformations related to disasters, engineering activities, and loadings. Regular monitoring of such deformations is critical to identify potential risks to infrastructure and take timely remedial actions. Among the advanced geodetic technologies available, radar interferometry has been widely used for infrastructure stability monitoring due to its extensive coverage, high spatial resolution, and accurate deformation measurements. Specifically, spaceborne InSAR and ground-based radar interferometry have become increasingly utilized in this field. This paper presents a comprehensive review of both technologies for monitoring urban infrastructures. The review begins by introducing the principles and their technical development. Then, a bibliometric analysis and the major advancements and applications of urban infrastructure monitoring are introduced. Finally, the paper identifies several challenges associated with those two radar interferometry technologies for monitoring urban infrastructure. These challenges include the inconsistent in the distribution of selected measurements from different methods, obstacles arising from rapid urbanization and geometric distortion, specialized monitoring techniques for distinct urban features, long-term deformation monitoring, and accurate interpretation of deformation. It is important to carry out further research to tackle these challenges effectively.

1. Introduction

Urban infrastructures, including buildings, transit systems, power lines, and water systems are a vital part of a city that supports the daily operation of the city. These infrastructures can become vulnerable due to issues such as construction flaws [1], wear and tear [2], disturbance from nearby construction projects, and various geohazards such as earthquakes, landslides, floods, and ground subsidence [3]. These issues may lead to various forms of structural deformations and incidents such as building collapses [4], sinkholes [5], and dam failures [6]. It is essential to regularly monitor the stability conditions of urban infrastructures to identify any potential risks and take timely remedial actions.

Monitoring the deformation of urban infrastructures is a key part of structural stability monitoring [7]. Various technologies have been developed for monitoring deformations of infrastructures, including in situ sensor-based technologies such as displacement transducers, accelerometers, and fibber sensors; and geodetic technologies such as robotic total stations and global navigation satellite systems (GNSS) [8]. However, due to the high cost involved and operational constraints, these technologies can only collect data from small portions of an infrastructure or a very limited number of sample points. The advances in remote sensing technology over recent decades, particularly in radar interferometry, have substantially improved the capability of the technology in detecting deformations of ground and infrastructures [9,10,11,12]. Radar interferometry technology, especially the spaceborne InSAR (interferometric synthetic aperture radar), has been extensively employed to detect deformations with unprecedented high spatial resolution and measurement accuracy [13,14,15]. With the advent of the new generation of high spatial resolution and of shorter revisit time spaceborne SAR sensors, the technology has gained even more attention in recent years for infrastructure monitoring at both regional and individual infrastructure levels [16,17,18,19]. Furthermore, ground-based radar interferometry (GBRI) has also proven to be very useful for studying infrastructure deformations and has been applied to investigate a range of urban structures such as urban slopes [20,21] and individual structures [22]. Along with the advances in both the sensors and techniques, radar interferometry poses to offer more and wider applications in infrastructure stability monitoring albeit still with some stiff technical challenges [23,24].

This paper aims to provide a comprehensive review of the applications of radar interferometry technology in urban infrastructure stability monitoring, with a focus on spaceborne InSAR and GBRI. Section 2 briefly introduces the principal of radar interferometry and their developments. Section 3 presents a bibliometric analysis. Section 4 analyses the recent advances and applications. The limitations of the technology in such applications and opportunities for future research are discussed in Section 5. Finally, Section 6 provides some conclusions from this study.

2. Radar Interferometry

2.1. Principle

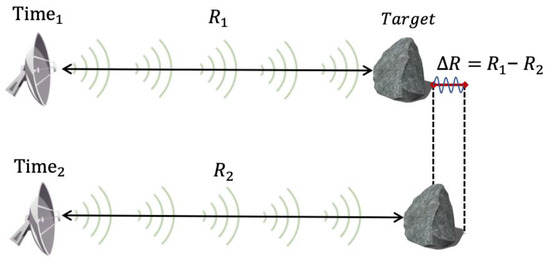

Radar is an active remote sensing technology, as shown in Figure 1, that transmits radio pulses along the line-of-sight (LOS) to detect and measure the range of targets through analyzing the reflected signal [25].

The synthetic aperture radar (SAR) is an imaging technique using a moving platform with a radar antenna to capture high-resolution radar images. SAR images, $S$, are recorded as complex values that can be expressed as Equation (1), represented by amplitude and phase components. For further details, refer to the literature [26,27,28].

$$S=A exp\left(-j\phi \right)$$

(1)

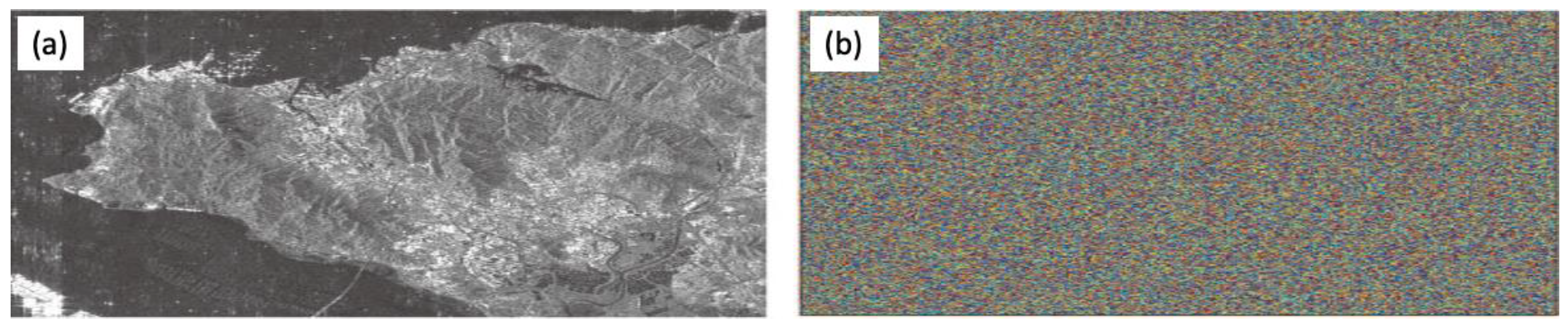

where $A$ and $\phi$ are the amplitude and phase, respectively, corresponding to one pixel. Figure 2 illustrates a spaceborne SAR image. The amplitude in Figure 2a indicates radar signal strength of the ground features and the phase in Figure 2b records the distance between the antenna and ground target. The phase information is particularly valuable for radar interferometry-based deformation monitoring techniques.

Radar interferometry detects deformation by analyzing the range difference between two (or more) acquisitions to the same target, known as differential distance (∆R), as shown in Figure 1. Generally, the differential phase can be achieved by complex conjugation of two SAR images (e.g., $S_1$ and $S_2$) to generate an interferogram (IFG) as shown in Equation (2) as follows:

$$\mathrm{IFG}=S_1{S}_2^{\ast }=A_1{A}_{2}exp\left(-j\left({\phi }_1-{\phi }_2\right)\right)=A_{1,2}exp\left(-j∆{\phi }_{1,2}\right)$$

(2)

where $\ast$ indicates the complex conjugate operation. Ideally, by calculating the phase difference, $∆{\phi }_{1,2}$, the deformation of the ground surface can be obtained by phase unwrapping of $∆{\phi }_{1,2}$. However, in practical applications, it is not easy to achieve accurate deformation measurement in this way because the phase difference may be subject to various disturbances during the transmissions, such as atmospheric turbulence, surface reflection, signal multiple reflections, etc.

2.2. Development of Radar Interferometry Techniques

2.2.1. Spaceborne InSAR

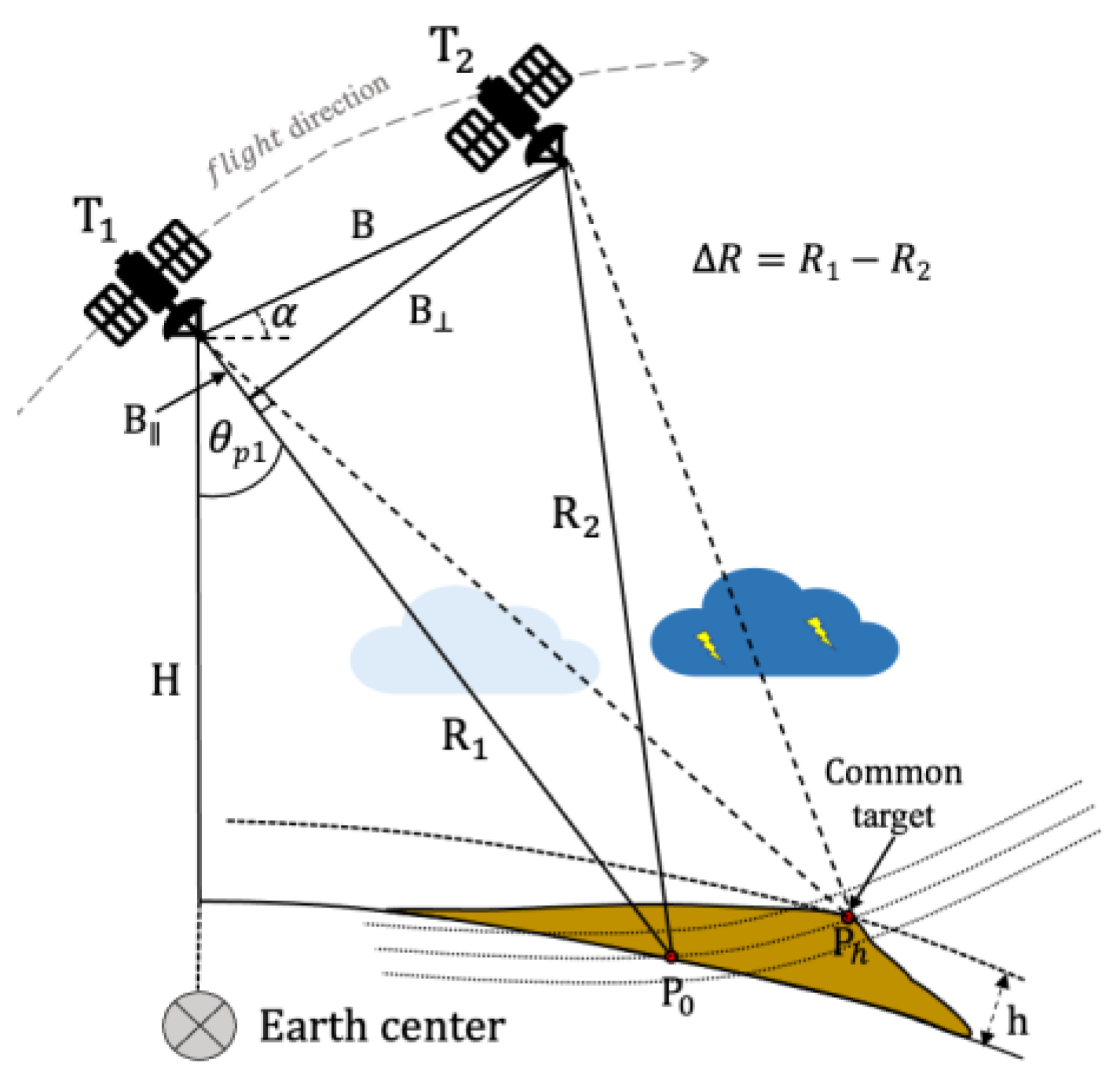

As introduced in Section 2.1, radar interferometry measures distance changes between the ground target and the satellite. However, acquiring SAR images using a spaceborne SAR sensor at different times leads to varying positions of the satellite, as illustrated in Figure 3 [29,30,31]. This complicates precise deformation retrieval [32,33]. After the complex conjugate operation to achieve the phase difference, the interferometric phase mainly has five phase components [31].

$$∆{\varphi }_{1,2}=w\left\{{\phi }_1-{\phi }_2\right\}=w\left\{∆{\phi }_{1,2}^{flat}+∆{\phi }_{1,2}^{topo}+∆{\phi }_{1,2}^{defo}+∆{\phi }_{1,2}^{APS}+∆{\phi }_{1,2}^{noise}\right\}$$

(3)

where $w\{·\}$ stands for the phase wrapping operation, which wraps the interferometric phase into (−π, π]; $∆{\phi }_{1,2}^{flat}$ stands for the flat reference phase; $∆{\phi }_{1,2}^{topo}$ is the topographic phase; $∆{\phi }_{1,2}^{defo}$ is the ground deformation phase reflecting the displacement of the target between the two SAR acquisitions; $∆{\phi }_{1,2}^{APS}$ is the atmospheric phase screen (APS) related to the atmospheric delays; and $∆{\phi }_{1,2}^{noise}$ stands for the noise phase.

To retrieve the ground deformation, the unwanted signal in Equation (3) should be compensated as much as possible. The first two items can be compensated with satellite orbital information and a digital elevation model (DEM) [34]. Imperfections in orbital data and DEM may result in phase errors, as shown in Equation (4) [31,35].

$$∆{\phi }_{1,2}=w\left\{∆{\phi }_{1,2}^{orb}+\frac{4\pi }{\lambda }\frac{B_{\perp }^{1,2}}{Rsin\left(\theta \right)}∆z^{error}+\frac{4\pi }{\lambda }∆{\mathrm{d}}_{defo}+∆{\phi }_{1,2}^{APS}+∆{\phi }_{1,2}^{noise}\right\}$$

(4)

where $R$, $\theta$, and $\lambda$ are the distance between the satellite and the ground target, incidence angle, and radar wavelength; $B_{\perp }$ is perpendicular baseline of the interferogram; and $∆{\phi }_{1,2}^{orb}$ and $∆z^{error}$ are the orbital error and DEM errors, respectively. In urban areas, the height of infrastructure is unrecorded in the used DEM products and often interpreted as the phase component related to the DEM error in an interferogram.

In Equation (4), the ground deformation can be retrieved through phase unwrapping when the deformation signal is the dominant interferometric phase, such as the deformation related to earthquakes [36,37]. For small-scale/subtle ground deformation, the deformation retrieval may be impaired by orbital error [38], DEM error [39], APS effect [40,41], and decorrelation noise [42]. Therefore, time series analysis of stacking IFGs, called multi-temporal InSAR (MT-InSAR), has been developed to minimize these effects since about the year 2000 [43]. In particular, two pioneering MT-InSAR frameworks have been proposed, namely Persistent Scatterers InSAR (PS-InSAR) [44,45] and Small Baseline Subset (SBAS) [46], which are the most popular techniques used to detect the temporal evolution of ground deformation.

The PS-InSAR framework employs a time series of SAR data to identify PS points with high phase stability for ground deformation detection. This framework does not take into account the impact of decorrelation caused by the length of the spatiotemporal baselines between SAR images [45]. On the other hand, the SBAS framework considers the decorrelation noise related to the baselines and suppresses the noise using points with higher phase quality from a subset of the IFGs with small spatiotemporal baselines [46]. The combination of PS-InSAR and SBAS have also been developed [47,48]. All these approaches aim to address the main challenges, such as the decorrelation noise, atmospheric delay effect, and the phase ambiguity issue.

One effective approach to minimize the decorrelation noise effect in the MT-InSAR framework is to focus solely on analyzing the pixels with high phase quality. This can be achieved through the application of various criteria, such as the amplitude dispersion index [45], spectral diversity [49], offset deviation [50], phase stability [51], coherence map [46], posterior coherence [48], and the integrated index [47]. It is important to highlight that the use of each criterion may lead to the identification of different ground targets, even when employing the same SAR dataset. The limitations associated with this issue are thoroughly discussed in Section 5.

To address the phase ambiguity issue, PS-InSAR first estimates the unwrapped double differential phase of point pairs, termed as arc, in the temporal domain, and then retrieves the unwrapped phase in the spatial domain in which the double differential phase is normally constructed by a spatial network by linking the selected point pairs, including the Delaunay network [45], the hierarchal network [52], and the constrained network [53]. A temporal deformation model is assumed to detrend the phase ramp on an arc of the network [54,55]. Multiple parameter estimators have been employed for retrieving the signal of interest, including periodogram analysis [45,55], integer least squares [54], and least squares with a phase ambiguity detector [56]. On the contrary, in the SBAS framework, the interferometric phase is first unwrapped in the spatial domain and then the unwrapped phase is integrated in the temporal domain. This strategy employs various spatial unwrapping methods, such as the path-tracking-based approach [36,57] that integrates the phase gradient field along optimized paths to obtain the unwrapped phase. Another type of method is the global optimization-based approach [37,58], which minimizes the global difference between the unwrapped phase and the wrapped phase.

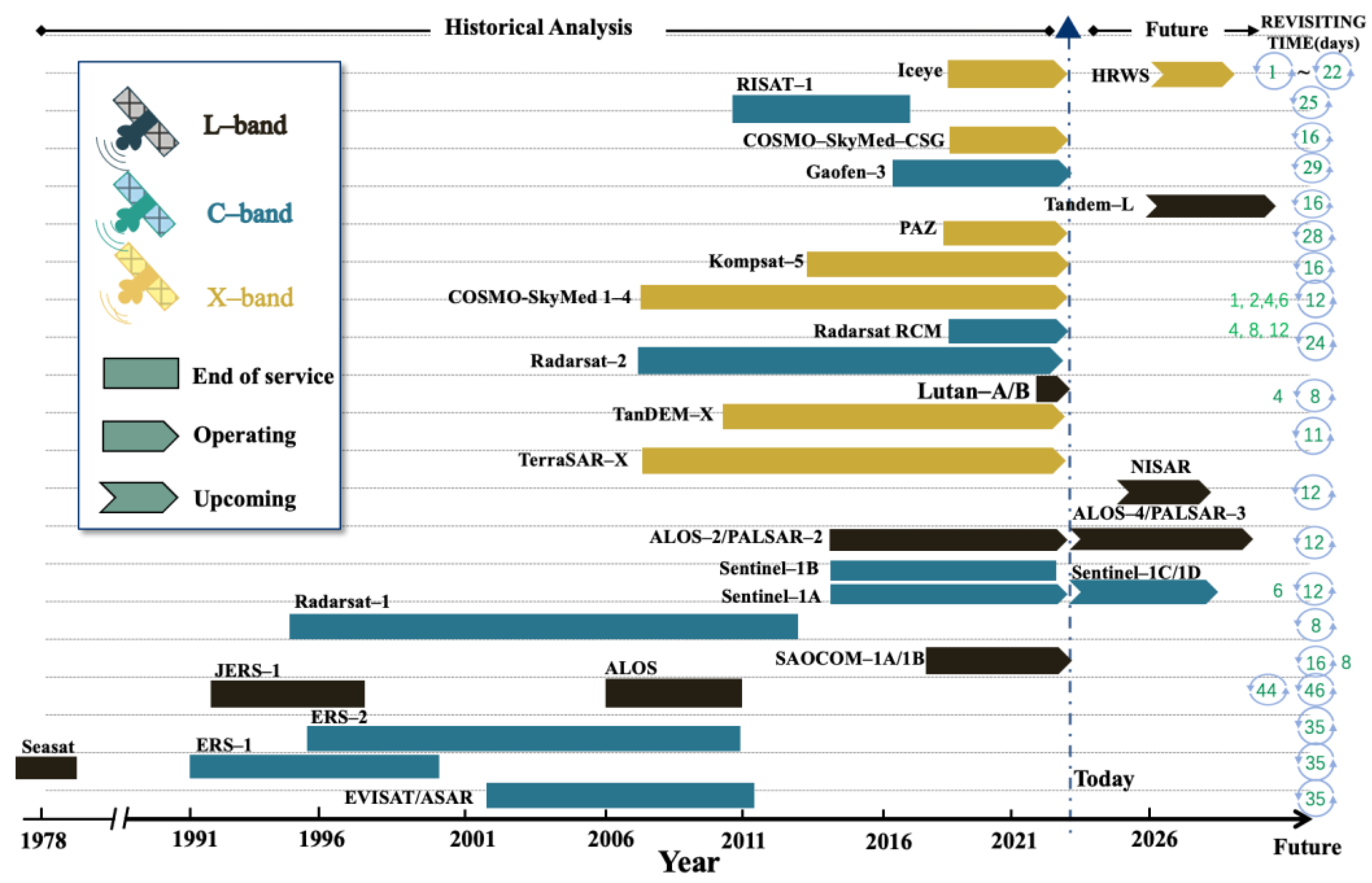

In addition to addressing these challenges, many new MT-InSAR methods or approaches also focus on precise parameter estimation or postprocessing [59,60]. For example, to enhance the quality of MT-InSAR results, much effort have been invested into modelling and mitigating, e.g., satellite orbital errors [61,62,63,64], atmospheric delays [65,66,67,68,69], ionospheric effects [70,71,72,73], DEM errors [59,74,75], co-registration errors [76,77,78,79], unwrapping errors [80,81,82], and errors in geocoding the measurements [83,84]. Several variations of MT-InSAR have been developed and implemented in software packages to address these problems and issues, including IPTA [49], STUN-PS [54], StaMPS [85], EMCF-SBAS [55], SqueeSAR [48], CPT [86], PSP [87], TCP-InSAR [56,88], CAESAR [89], CSI [90], LiCSAR [91], and D-TomoSAR [92].

Table 1. Examples of MT-InSAR methods/packages and their characteristics.

	MT-InSAR	Baseline Configuration	Observation Phase	Target Selection	Solver	Parameters
Methods	PS-InSAR [45]	Single-Master	Wrapped	ADI	Periodogram	$∆h$$,∆v$
	SBAS [46]	Multi-Master	Unwrapped	Coherence	Least squares	$h$$,$
	CPT [86]	Single/Multiple-Master	Wrapped	Signal-to-clutter ratio	Conjugate gradient method	$∆h$$,∆v$
	SqueeSAR [48]	Single-Master	Wrapped	Homogeneity test	Periodogram	$∆h$$,∆v$
	CEASAR [89]	Single/Multiple-Master	Wrapped	ADI/Homogeneity test	PCA/Periodogram	$∆h$$,∆v$
	TCP-InSAR [56,88]	Multi-Master	Wrapped	Offset deviation	Least squares	$∆h$$,∆v$
	D-TomoSAR [92]	Single-Master	Wrapped	ADI	Compressed sensing	$∆h$$,∆v$
Packages	STUN-PS [54]	Single-Master	Wrapped	ADI	Integer least squares	$∆h$$,∆v$
	StaMPS [85]	Single/Multiple-Master	Wrapped	Phase stability	3D phase unwrapping	-
	IPTA [49]	Single/Multiple-Master	Wrapped	ADI	Periodogram	$∆h$$,∆v$
	QPS-InSAR [93]	Target-dependent interferogram subset	Wrapped	Quasi-PS	Periodogram	$∆h$$,∆v$
	EMCF-SBAS [55]	Multi-Master	Wrapped	Coherence	Minimum cost flow	$∆h$$,∆v$
	PSP-IFISAR [87]	Single/Multiple-Master	Wrapped	ADI	Minimum cost flow	$∆h$$,∆v$
	CSI [90]	Single/Multiple-Master	Wrapped	Homogeneity test	Periodogram	$∆h$$,∆v$
	LiCSAR [91]	Single/Multiple-Master	Unwrapped	Coherence	-	-

ADI: amplitude dispersion index; PCA: principal component analysis.

presents a brief overview of some of these MT-InSAR approaches and packages, while Figure 4 summarizes the SAR satellites that have provided SAR images.

2.2.2. GBRI Technique

GBRI works on a similar principle as spaceborne InSAR technology but utilizes a radar system located on the ground. As ground radar is superior in its portability, it can be flexibly configured in different locations according to specific needs, as shown in Figure 5. When the system is placed in a fixed position, it generally enables the acquisition of radar images with a zero baseline, and the first two phase terms in Equation (3), $∆{\phi }_{1,2}^{flat}$ and $∆{\phi }_{1,2}^{topo}$, will not exist. The interferometric phase therefore can be written as depicted in [94,95] as the following equation:

$$∆{\varphi }_{1,2}=w\left\{{\phi }_1-{\phi }_2\right\}=w\left\{∆{\phi }_{1,2}^{defo}+∆{\phi }_{1,2}^{APS}+∆{\phi }_{1,2}^{noise}\right\}$$

(5)

In Equation (5), deriving deformation from GBRI observations is still not a straightforward task. The accuracy of a GBRI remains susceptible to the decorrelation noise, the atmospheric delay, and the ambiguous nature of the interferometric phase. Numerous investigations have been conducted to alleviate the effects of decorrelation and APS on ground-based radar observations [96]. In particular, to mitigate the decorrelation effect, artificial corner reflectors and stable point analysis approaches are often employed [97,98]. To address the APS effect, various numerical models have been developed, such as the polynomial model [99,100]. In addition, techniques borrowed from spaceborne InSAR techniques, such as PS-InSAR, have also been implemented in GBRI applications to counteract the APS effect and decorrelation noise [101,102,103,104].

Although utilizing a fixed station for a ground-based radar can effectively mitigate the baseline errors, resetting up the instrument in the case of using a tripod may still result in baseline errors [105,106]. To address this issue, various studies have been conducted to model the errors in a solution [107,108]. It has demonstrated that the precision of a GBRI system can reach up to a sub-millimeter level when artificial targets are measured [109,110,111,112]. Due to the high precision and adjustable observational geometry of a GBRI system, it has been widely used in urban infrastructure stability monitoring, including both large-scale and individual-target monitoring [24].

Radar bands ranging from C-band to Ku-band have been used to enhance the sensitivity of ground-based radars to high-frequency deformation such as the vibration of bridges. Radar types have been updated from the Stepped Frequency Continuous Waveform (SFCW) to the Frequency Modulated Continuous Wave (FMCW) to minimize the duration of data collection [24,95]. Figure 6 gives some types of existing ground-based radar systems with diverse features [94,95]. Figure 6a shows the GPRI-II system equipped with a slotted waveguide antenna. This antenna enables the generation of radar datasets using both a real aperture imaging mode in the LOS direction and the SAR imaging mode through the rotation of the antenna in the azimuth direction. Figure 6b shows a synthetic aperture system with a horn-shaped antenna, whereas the real aperture antenna produces a relatively wider cone-shaped beam as shown in Figure 6e. A dish antenna is used in the radar system in Figure 6c that can produce a narrow pencil-shaped beam. Figure 6d shows the radar system that can improve the horizontal coverage (i.e., full ${360}^{°}$) of the measurements with a new design.

Table 2. Summary of the commonly used GBRI systems.

Name	Lisa	RiskSAR	GPRI-II	IBIS-L/M	Melissa	SSR	FastGBSAR
Developer	JRC	Technical University of Catalonia	GAMMA remote sensing	IDS spa Tohoku University	JRC (EC)	GROUNDPROBE	MetaSensing (NL)
Radar type	VNA	FMCW	FMCW	SFCW	MIMO	Mechanical Scanning	FMCW
Antenna type	-	Pyramidal horn	Slotted waveguide	-	Horn/Vivaldi	Linear/Disc	-
Wavelength and polarization	C (VV, HH) Ku (VH, HV)	X (VV, HH)	Ku (VV, HH, VH, HV)	Ku (VV)	Ku (VV)	Ku (VV)	Ku (NA)
Measurement range	3 km	10 km	0.05–10 km	0.2–4 km	4 km	5.6 km	4 km
Range resolution	0.5 m	1.25 m	0.75 m	0.5/0.75 m	-	0.75 m	0.5/0.75 m
Azimuth resolution	3 m	4 m	6.8 m	4.4 m	-	9 m	4.5 m
Maximum sampling frequency	-	50 MHz	4000 Hz	-	25 MHz	-	4000 Hz
Radar image product	2D	2D	1D and 2D	2D	2D	2D and 3D	2D
Displacement accuracy	0.02~4 mm	1.6 mm	0.02~4 mm	0.03~4 mm	-	0.03~3.5 mm	0.1 mm

VNA: vector network analyzer; MIMO: multiple-input multiple-output.

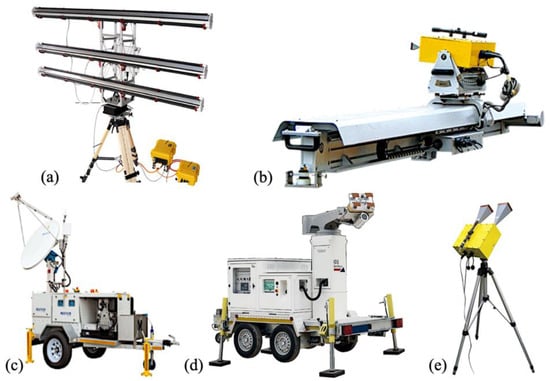

provides a concise overview of the commonly used GBRI systems and their distinctive features. Detailed technical specifications can be accessed in [94,95].

2.3. Characteristics

This section will introduce the unique characteristics of radar interferometry.

2.3.1. LOS Observation

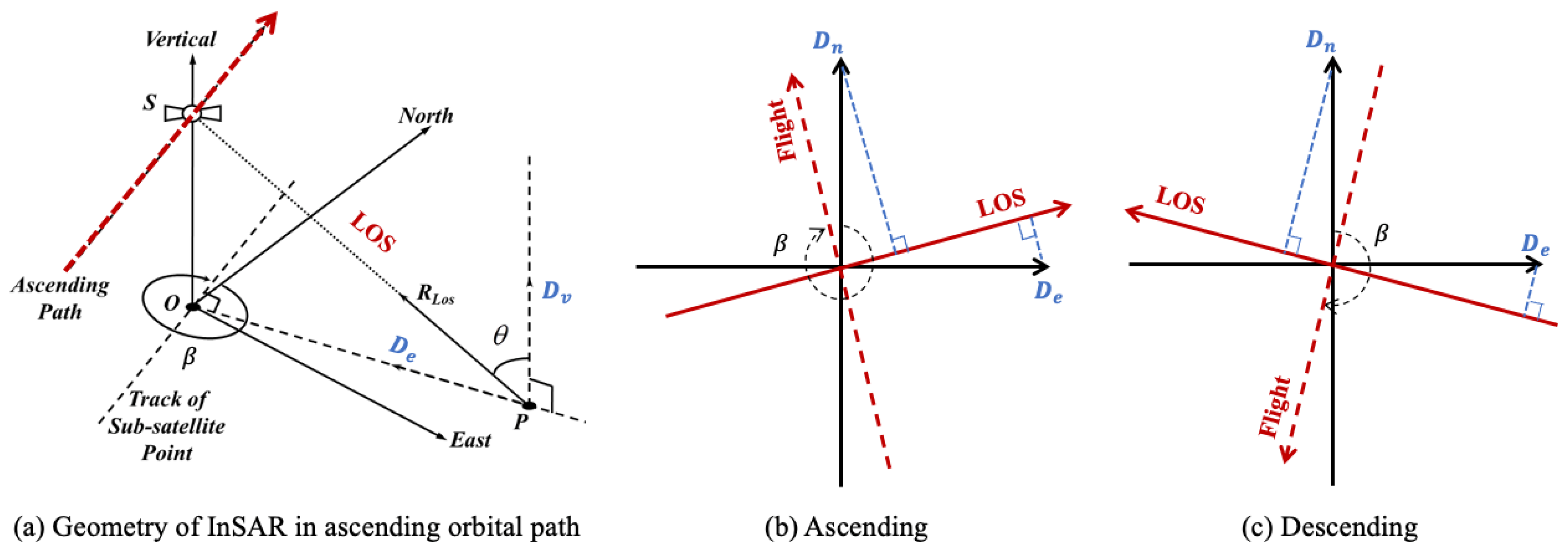

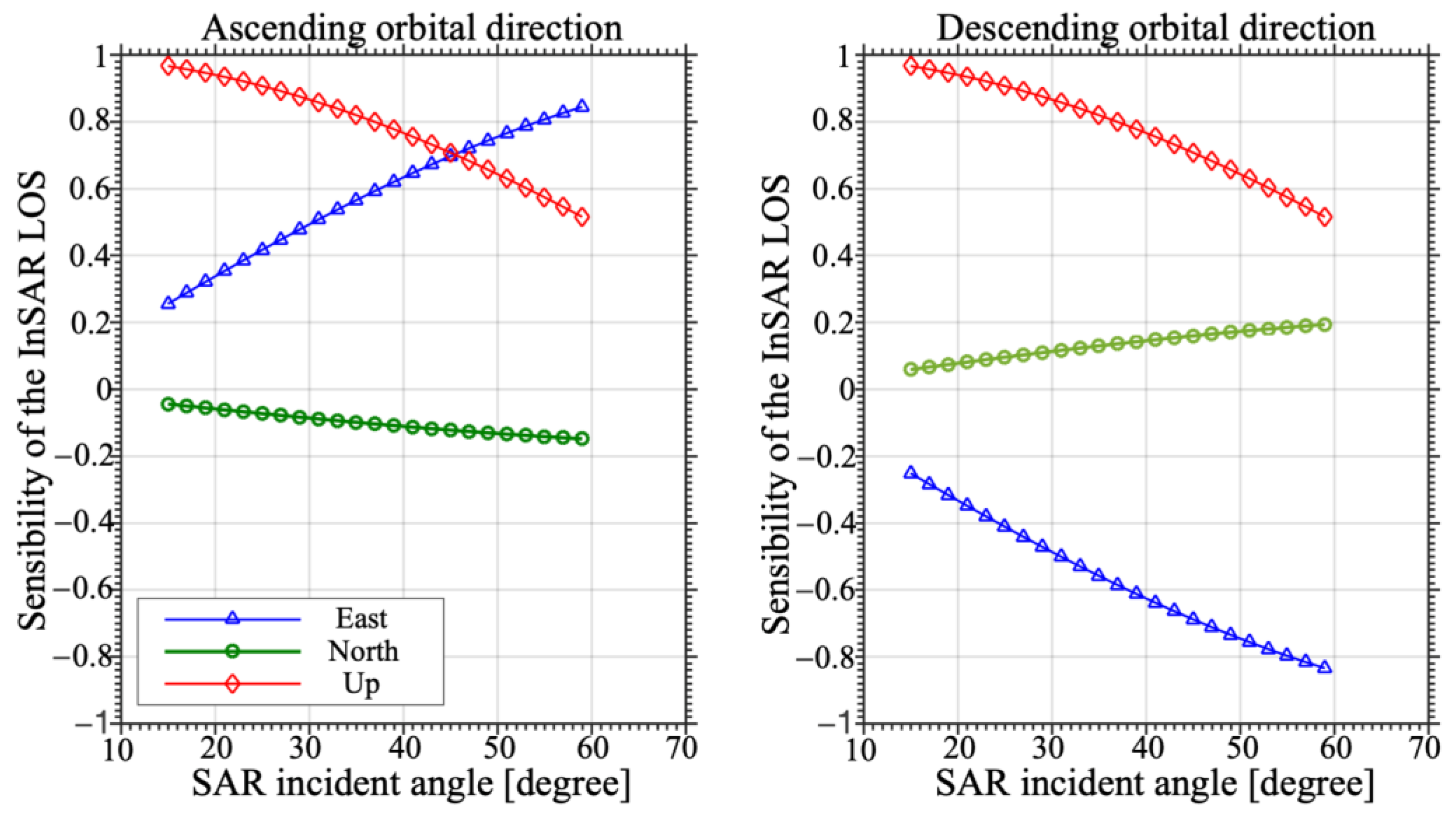

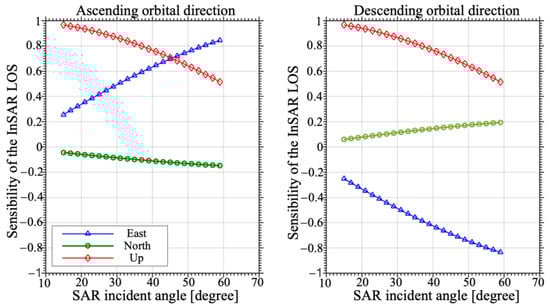

The radar antenna is usually mounted on a platform and measures deformation along the LOS direction. This generates an incident angle between the LOS direction and the normal line of the ground surface, determining the observation geometry of the radar. For convenience, we will introduce it to a spaceborne InSAR. Figure 7a illustrates the geometry of the spaceborne SAR system for observing deformation. The detectable deformation along the LOS relies on both the direction of the actual deformation and the radar observational geometry. The incident angle ($\theta$) and heading angle ($\beta$) determine the portion of the deformation projected onto the LOS direction, which can be expressed as [113] the following equation.

$$D_{los}=D_n\sin \theta \sin \beta -D_e\sin \theta \cos \beta +D_u\cos \theta$$

(6)

where $D_u$, $D_n$, and $D_e$ are the elements of the deformation vector along the up–down, north–south, and east–west directions, respectively. The near-polar orbits of the current SAR satellites lead to either the ascending ($\beta \approx -{12}^{°}$) or descending ($\beta \approx {191}^{°}$) of orbital geometry. The top view of the geometry is illustrated in Figure 7b,c. According to Equation (6), Figure 8 demonstrates the sensitivity of the LOS deformation for these two geometries to the incident angles. The contributions of the deformation in the eastern direction to the radar LOS direction are opposite in the ascending and descending orbits. This problem will be discussed in Section 5.

2.3.2. Geometrical Distortions

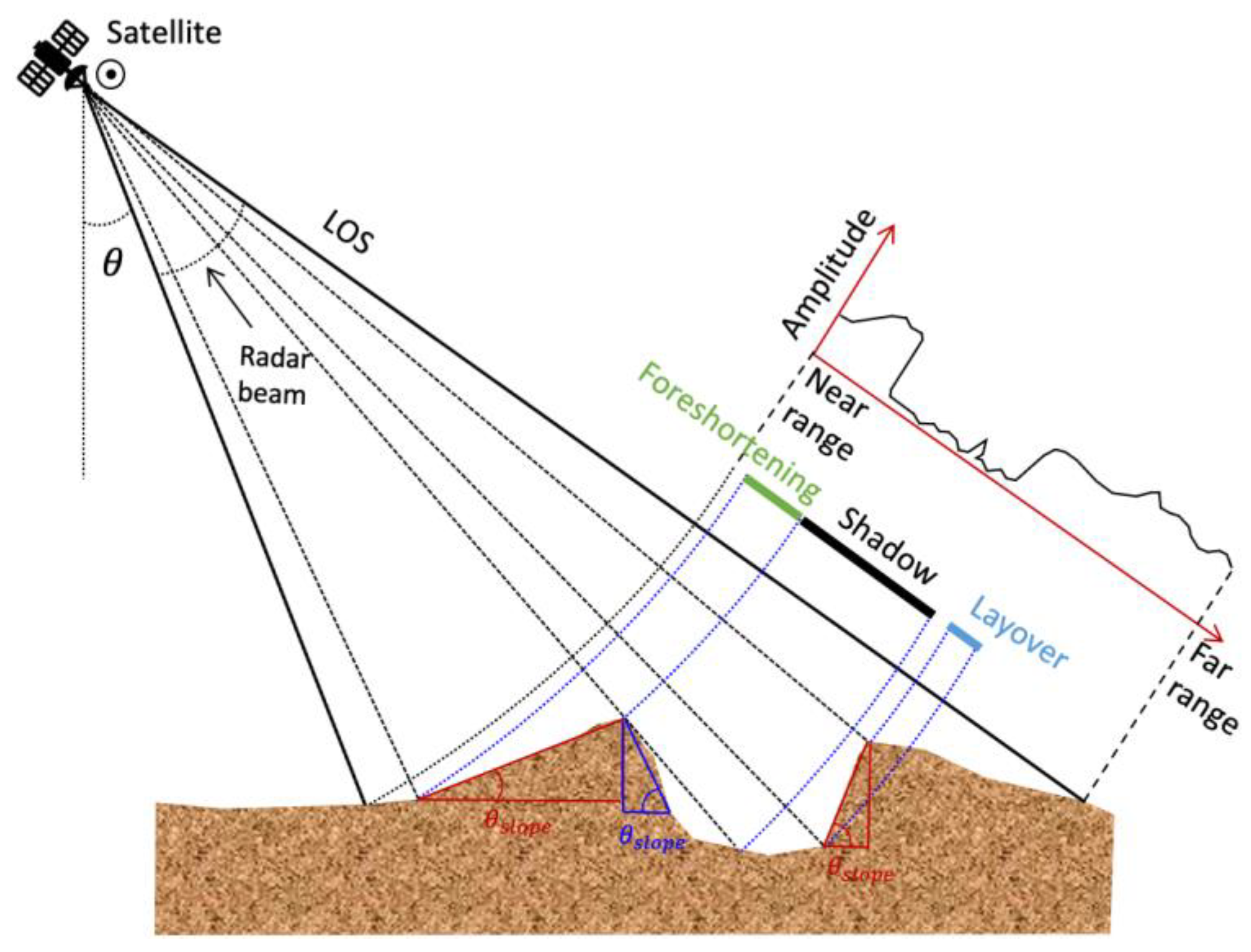

Geometrical distortion is another unique characteristic of spaceborne InSAR that can cause errors in the measured deformation due to the LOS observational geometry [31]. Figure 9 illustrates geometric distortions in SAR images due to the radar’s ranging nature and the interplay between terrain slope and angle of incidence. Distortions include foreshortening, layover, and shadows. The perspective foreshortening happens when the local inclination angle facing the SAR sensor and the terrain slope angle is smaller than the local incidence angle, resulting in a shorter slope length in an SAR image than in flat terrain [115]. When the local terrain slope angle equals the local incidence angle, the slope is recorded as one pixel in the SAR image. If the local terrain slope angle surpasses the local incidence angle, cascading effects can occur, causing inverted images at the top and bottom of a slope. The radar sensor cannot receive signals from a steep slope beyond the local incident angle, resulting in a shadow effect that makes the slope appear darker in the SAR image. It is worth noting that geometrical distortion is more severe in urban areas due to the variation in the heights of the infrastructures, which will be discussed further in Section 5.

2.3.3. Reference Datum

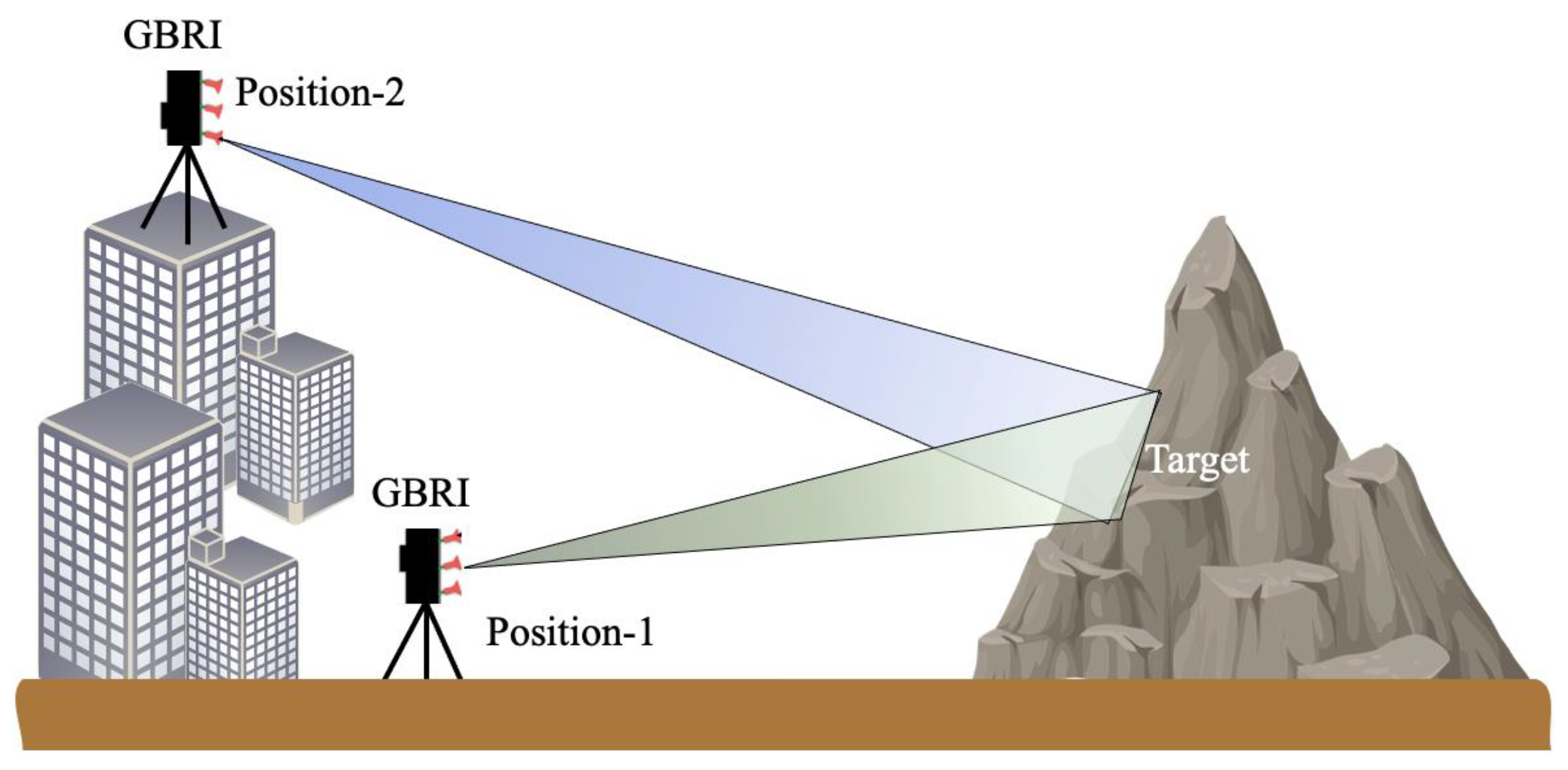

Radar interferometry relies on the interferometric phase to determine the deformation between at least two radar images, which provides only the relative deformation values. To obtain accurate deformation results, a reference datum must be established in both the spatial and temporal domains [31]. To establish a spatial reference point, a stable physical feature on the ground is usually selected, and the interferogram will subtract the phase value of this reference point, making the deformation of all the other pixels refer to this point. Similarly, in the temporal domain, a specific radar acquisition is chosen as the reference for all the other radar images. Typically, the first acquisition of the radar image is selected as the temporal reference datum. Furthermore, when multiple radar datasets covering different observation periods are used, establishing a long-term time reference frame is crucial.

3. Bibliometric Analysis

Radar interferometric techniques, including those based on both spaceborne InSAR and GBRI systems, have been extensively studied in the scientific literature. These techniques have a wide range of applications, including monitoring the stability conditions of urban infrastructures and detecting urban ground deformation [116,117,118,119,120,121,122,123,124,125,126,127,128]. To gain more insight into the current status of the use of radar interferometric techniques in urban infrastructure stability monitoring, we conducted a bibliometric analysis based on the data of Web of Science with relevant keywords and identified approximately 4785 journal papers published between 1990 and 2022, as shown in Figure 10a. The data in Figure 10a indicate that the use of radar interferometric techniques in urban infrastructure monitoring has been of significant interest for approximately three decades. The applications are summarized in Figure 10b.

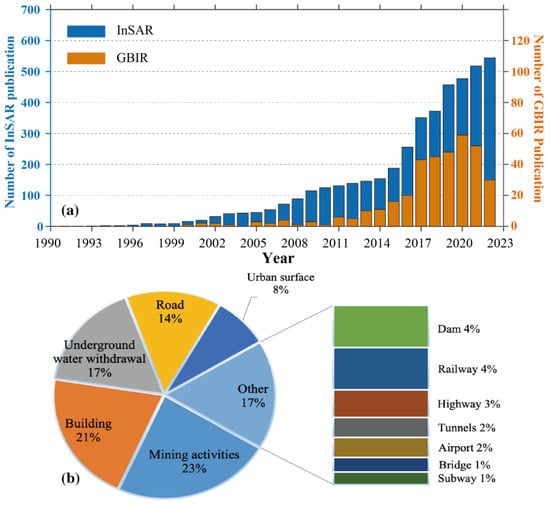

As shown in Figure 10a, spaceborne InSAR techniques have been more commonly used for urban infrastructure monitoring. The development process of the techniques can be divided into four main stages. Gabriel was credited as the first to use InSAR to measure ground deformation related to soil swelling using SAR images from Seasat [129]. Since then, numerous applications showed the ability of the techniques to measure ground deformation at a centimeter level [130,131]. A small number of studies conducted between 1990 and 1999 qualitatively analyzed the effects of ground deformation on urban infrastructures [132,133,134,135,136]. Since 2000, the interferogram stacking technique, also known as multi-temporal InSAR, has been developed as a way to measure subtle ground deformation over time through the analysis of a series of SAR datasets [13,43,44,45,46]. This technique marks the second stage of the techniques and allows for the evaluation of time series of deformation. Time series InSAR processing was used to detect ground deformation in various applications and assess the potential risks of urban infrastructures caused by the deformation (Figure 10b) due to groundwater withdrawal [137], soil consolidation [132], tunnel construction [138], land reclamation and underground construction [139], and slope instability [140].

In recent decades, the rapid development and widespread availability of SAR data have significantly contributed to the advancements in radar interferometric techniques for monitoring the stability conditions of urban infrastructures. As shown in Figure 4, the increased availability of SAR data from various satellites, such as TerreSAR-X and COSMO-SkyMed, with high spatial resolution up to about one meter [141,142], has propelled the InSAR technique into its third stage of development. This stage has enabled researchers to investigate the deformation and stability of urban infrastructures of various sizes, including a wide range of buildings [143], and constructions such as bridges [144], railways [145,146], road networks [147], and dams [11,148]. The significant increase in the number of publications related to the monitoring of the stability conditions of urban infrastructures since 2007 is illustrated in Figure 10a. The launch of the Sentinel-1A/B (S1A/B) constellation in 2014/2016 marked the beginning of the fourth stage of InSAR technique development. This stage has witnessed significant advancements in the monitoring of urban infrastructures using InSAR, thanks to the cost-effectiveness and near real-time capabilities offered by the Sentinel-1 satellites. With short revisit time intervals of six days (despite the failure of the S1B, which will soon be replaced by S1C) and free accessibility [149], the Sentinel-1 constellation has revolutionized the field of urban infrastructure monitoring. The use of InSAR for monitoring urban infrastructures has grown beyond local and regional coverages, enabling researchers to monitor urban infrastructures on a national scale [150,151]. The literature in Figure 10a clearly reflects the accelerated pace of research in the field of monitoring urban infrastructures since 2015.

Ground-based radar interferometry known as GBRI has emerged as a valuable and increasingly utilized technique for monitoring urban infrastructure deformation in recent decades [152]. The pioneering introduction of the outdoor portable SAR system called LISA (Linear SAR) in 1997 marked the inception of possibilities for studying concrete girder deformation [22]. As illustrated in Figure 10a, initially, few GBRI applications have been conducted for urban infrastructure monitoring, primarily finding use in various geohazard-related applications such as monitoring landslides [21], glaciers [153], and open-pit mining [154]. For further details, refer to [24,155]. However, over the recent decade, the use of GBSAR-based techniques has significantly grown, mainly due to their unique characteristics, notably portability and high spatial, and temporal sampling capabilities [156].

In the context of urban infrastructure monitoring, GBRI has demonstrated remarkable performance in monitoring the stability of civil infrastructures such as man-made slopes [157] and dams [158]. Its high spatial and temporal sampling capability further enhances its effectiveness in monitoring the stability of the infrastructures, including high-rise buildings and bridges [159,160,161]. Recent studies have carried out the application using the GBSAR in monitoring high-frequency structural vibrations [162] and assessing the stability of underground tunnels and pipelines during construction activities [163]. Additionally, GBSAR has been used as a supplement to existing deformation monitoring techniques, strengthening its application for urban infrastructure monitoring [164]. To ensure precise interpretation of GBSAR results, accurate geocoding techniques have been employed, utilizing external DEM products [165] and terrestrial laser scanners [166]. Furthermore, the integration of GBSAR with other advanced technologies, such as GPS measurements [167] and artificial intelligence [168], has extended its capabilities during the deformation monitoring.

4. Recent Advances and Applications

This section will introduce the major advances and applications of the spaceborne InSAR- and GBRI-based techniques over the recent decade for monitoring stability conditions of urban infrastructures.

4.1. Monitoring of Multi-Dimensional Deformation of Infrastructure

The main objective of radar interferometry technology, when used for urban infrastructure monitoring, is to detect actual deformation of the infrastructures and identify potential risks from anomalous deformation. In ground subsidence monitoring related to, e.g., groundwater withdrawal and soil consolidation, the focus has been to convert the LOS deformation measurements to the vertical direction (see Section 3) [169]. In the recent decade, many studies have shown that it is not enough to accurately capture the motion of infrastructure in the LOS direction in practical applications. Urban infrastructure may experience both vertical and horizontal deformation, which cannot be reflected in a single LOS direction (see Section 2.3.1). Figure 11 gives an example of the deformation of a subway station under construction in Hong Kong, which has been verified to suffer both vertical and horizontal deformations [170]. Two SAR datasets, one from the ascending orbit direction and one from the descending orbit direction, were utilized to detect the LOS deformations (Figure 11a,b). The deforming locations were identified on the opposite sides of the street by different datasets due to the different sensitivities of the deformation to the LOS direction, as shown in Figure 11.

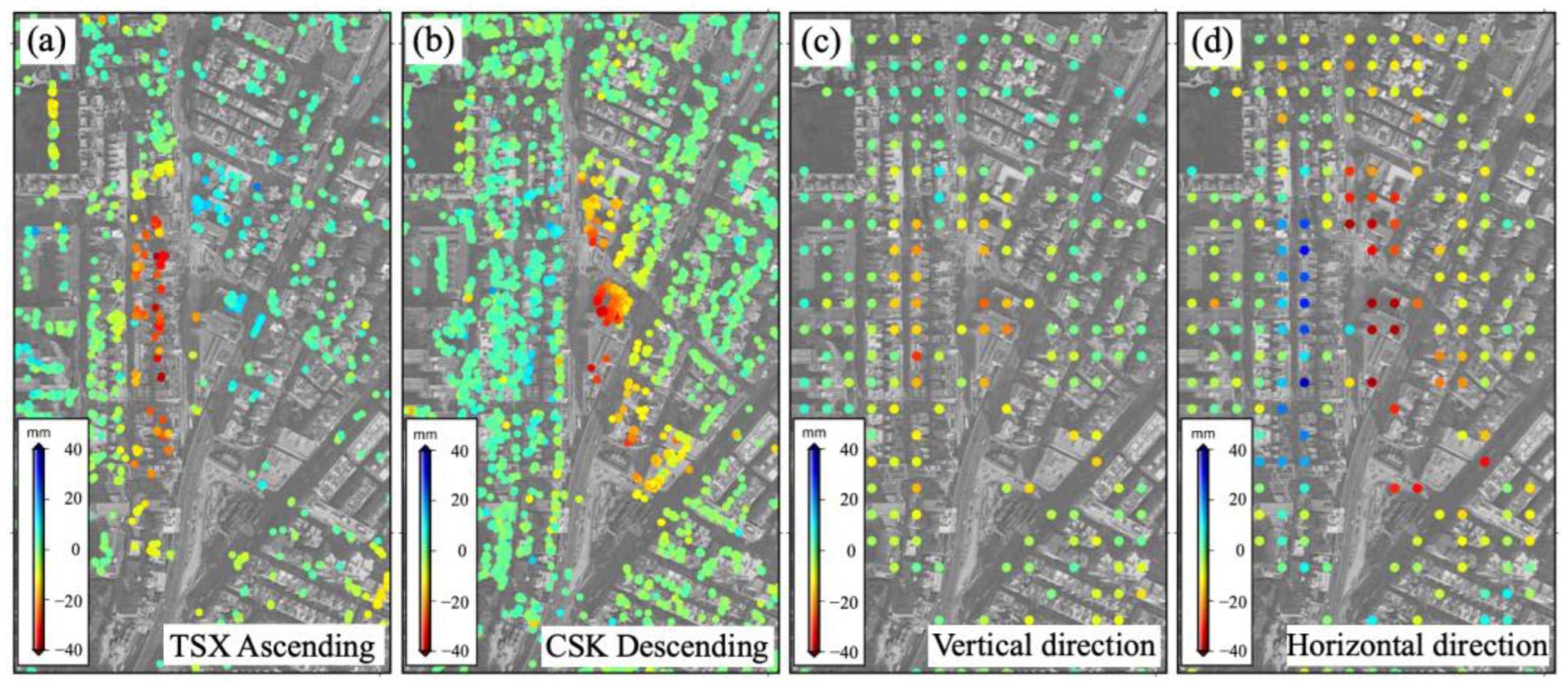

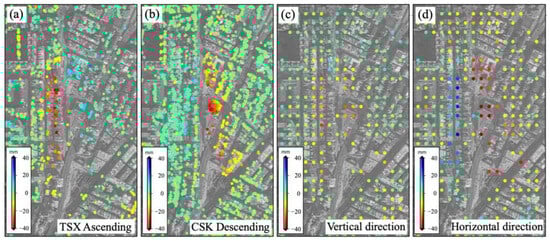

To obtain a more accurate representation of true deformation, joint analysis of SAR images from different orbital geometries has been carried out in recent decades by applying formulations of Equation (6) to decompose the LOS deformation estimates into two dimensions, i.e., the horizontal (east and west) and vertical directions (up and down) [114,171]. Figure 11c,d show the deformation rate by spaceborne InSAR over the subway station after decomposing the LOS deformation into the vertical and horizontal directions, indicating that this station suffered deformation in both directions. A GBRI system benefits from its portability and flexibility to adjust to an optimal observation geometry. The LOS observations are generally less affected by geometric issues during an application. For example, positioning a GBRI with the LOS parallel to the direction of the displacement provides the most favorable configuration. However, when the LOS is inevitably set at an angle in the direction of the displacement, the LOS deformation does not reflect the true deformation. To solve this problem, joint analysis of data from multiple ground-based radar systems have been conducted in many applications to achieve more realistic 2D [172] and 3D [173,174,175] deformations of urban infrastructures.

4.2. Detection of Anomalous Deformation of Infrastructures

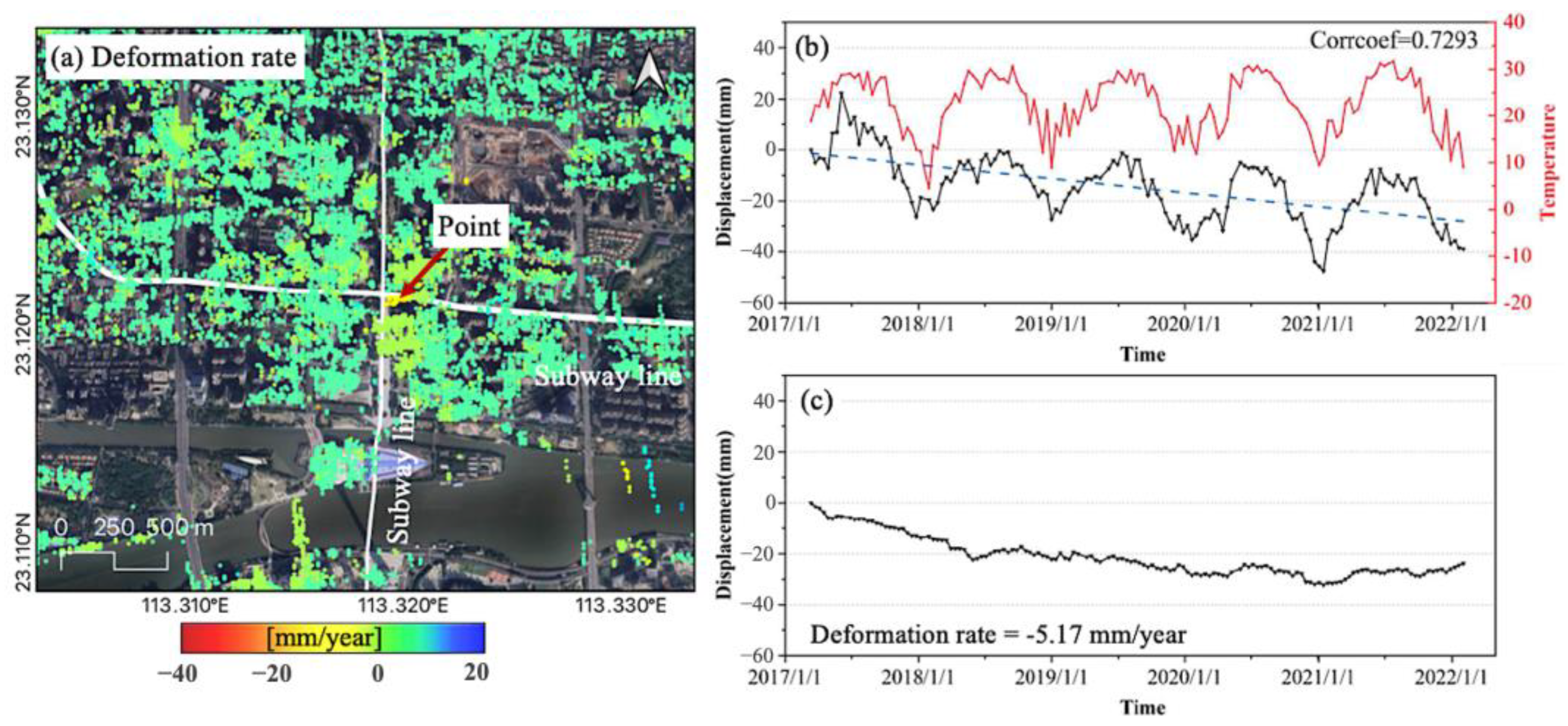

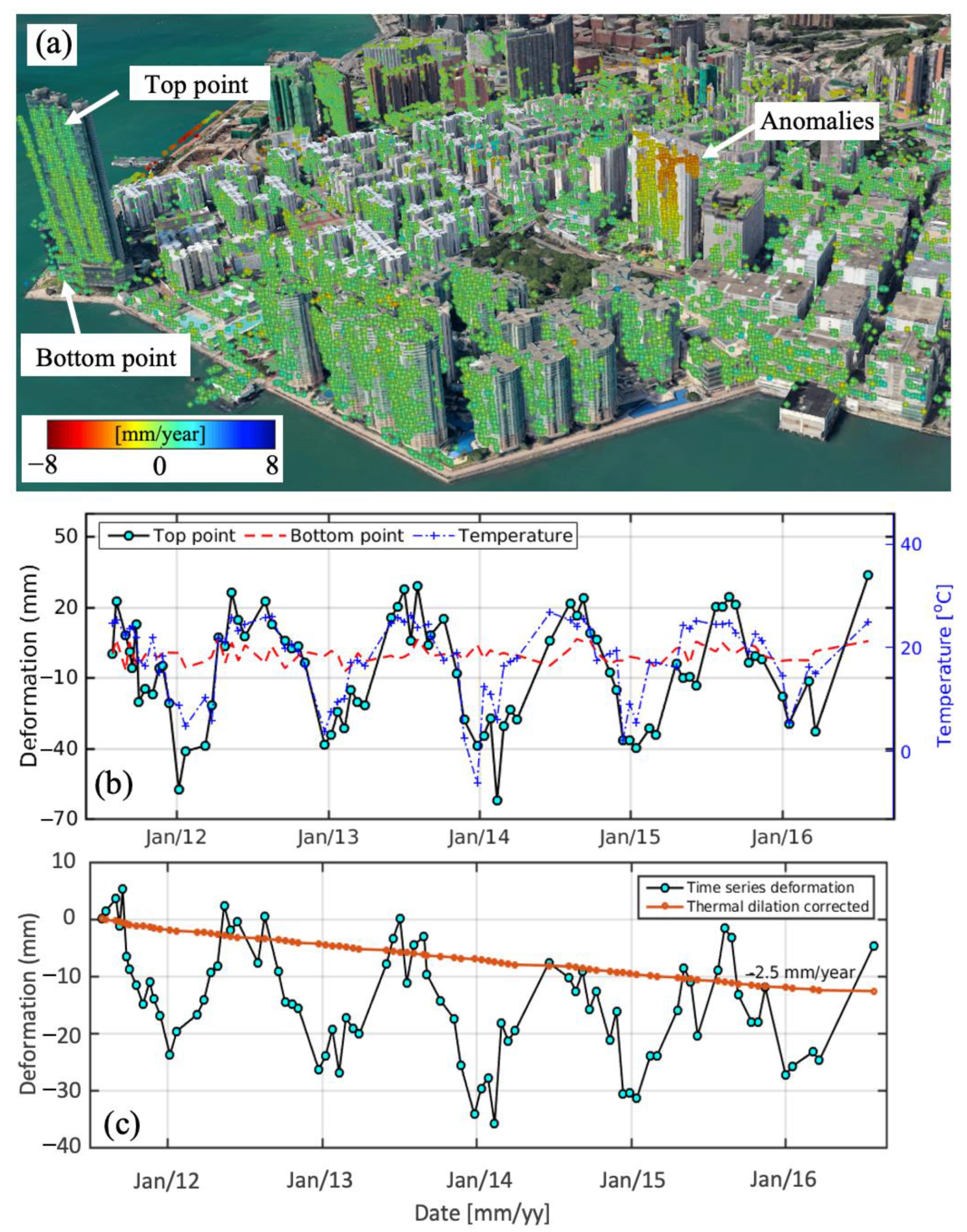

When evaluating the stability conditions of urban infrastructures, engineers may be more interested in the anomalous deformation that poses a risk to structural safety. Radar interferometry techniques can detect any deformation that causes distance change along the LOS direction (see Section 2.1), including the normal behaviors of an infrastructure such as structural vibrations, thermal dilation [176,177], concrete shrinkage [178], and various errors. It is important to separate the errors from the deformation, and (often) also the anomalous structural deformation from the normal structural deformation. Advanced methods and models have been developed for this purpose. For example, APS compensation [179] and reference point correction [12] have been developed to mitigate the errors. Some studies have combined the finite element model [180], engineering knowledge [10], and radar deformation results for a joint analysis to detect the anomalous deformation [181]. Figure 12 illustrates the deformation rate (Figure 12a) and deformation time series (Figure 12b) observed over a subway line construction area in Shenzhen, China. To isolate the effects of thermal dilation on the infrastructure, the deformation attributed to this factor has been removed. Figure 12c highlights the specific period of anomalous deformation that occurred during the underground construction activities.

4.3. Accurate 3D Geolocation of Radar Measurements

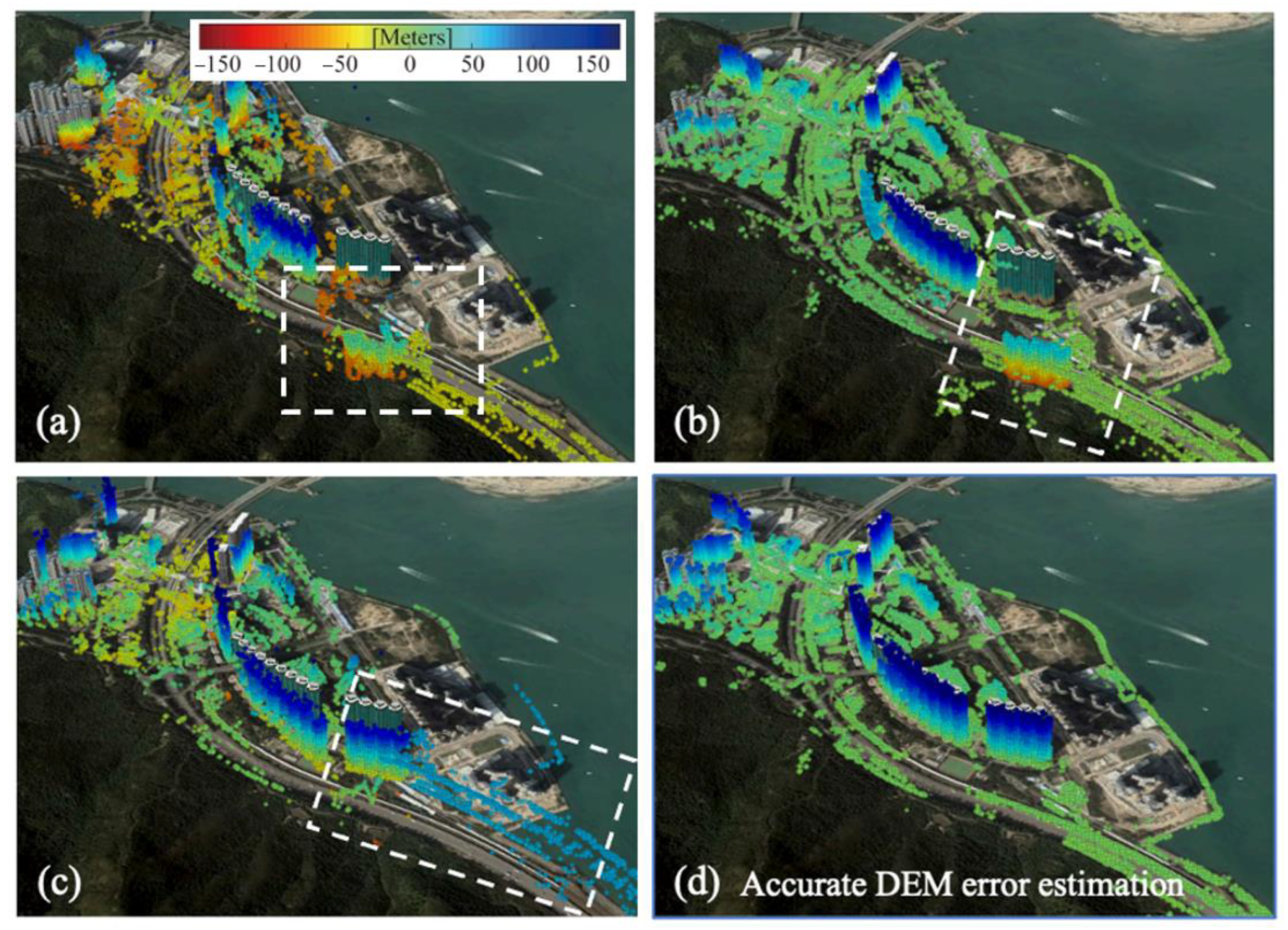

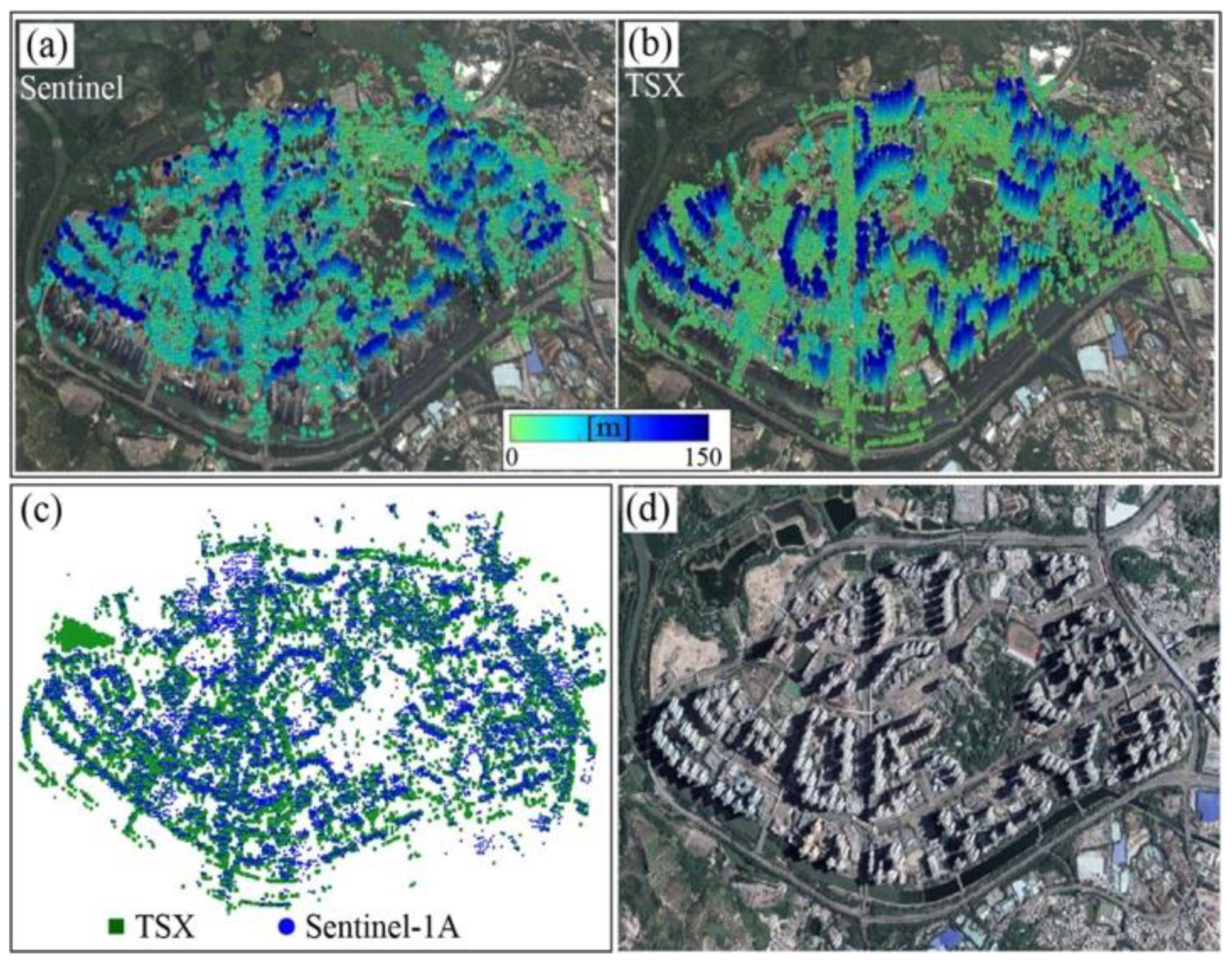

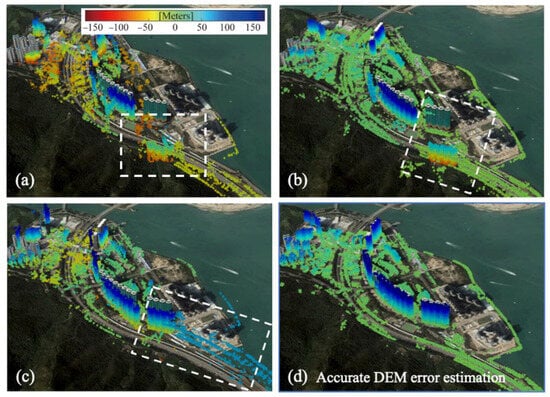

Accurate geolocation of radar measurements in a three-dimensional (3D) reference frame is crucial in engineering, especially in the maintenance operations where precise identification of deformation locations is necessary. However, in radar interferometry, the interferometric phase not only records the deformation but also includes the DEM errors (Equation (4)). Such errors can have an impact on the accuracy of both the deformation measurements and the 3D geographic coordinates, particularly in urban infrastructure monitoring, where the infrastructures can introduce significant DEM errors. Therefore, the accuracy of the height estimation is crucial in radar interferometry to ensure precise 3D measurement positioning and accurate deformation interpretation in urban infrastructure monitoring [182]. Figure 13a–d shows how the variation in building height estimation can result in different levels of positioning accuracy when matched with the 3D model of Google Earth. To address these issues, several studies have developed advanced methods to enhance the accuracy of DEM error estimation and geolocation refinement [74,83,183]. By estimating the precise DEM error for calculating the geographic coordinates, even if two different SAR datasets are used, the geographical distribution of radar measurements from two datasets can still be consistent, as displayed in Figure 14. Furthermore, the Tomographic SAR (TomoSAR) technique has been utilized to retrieve point clouds for 4D urban models, whereas the 3D stands for the urban model, and 1D for the deformation [184,185,186,187]. In GBRI, terrestrial laser scanners and DEM generated through GBRI have been used to enhance the accuracy of geolocation [97,188,189,190].

4.4. Utilization of Multi-Platform Radar Interferometric Datasets

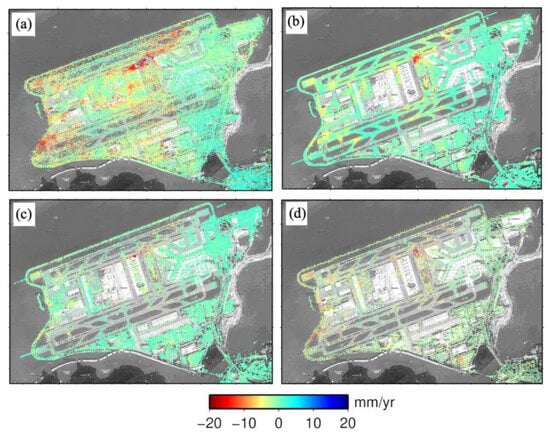

Over the recent decade, several studies have combined multiple datasets of SAR images to analyze long-term (e.g., decades) ground deformation in urban areas [191,192,193]. These studies have also carried out the thematic classification of urban hazards [194,195]. By employing multi-platform spaceborne SAR datasets, they have showcased the potential of long-term monitoring for mapping ground deformation and hazards in urban areas. For example, Figure 15 illustrates the ground deformation associated with the land reclamation, which was observed at Hong Kong International Airport (HKIA) through the employment of Envisat ASAR, CSK, and Sentinel-1A SAR datasets. The points density varies according to the spatial resolution of the SAR datasets employed. Following the resampling of deformation data, Figure 15d presents the cumulative ground deformation observed over decades [170]. It can be seen that the application of different SAR datasets to monitor ground deformation has different characteristics. A more detailed comparison discussion on the impact of SAR datasets with different spatial resolutions and wavelengths on deformation extraction can be found in [196,197,198]. Furthermore, studies have also been conducted to join the analysis of spaceborne InSAR and GBRI datasets to fully explore infrastructural damage [199].

4.5. General Survey of Urban Surface Deformation

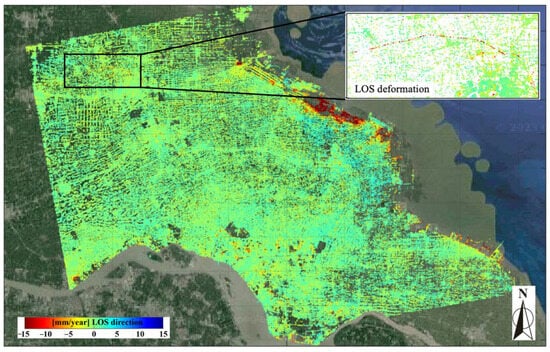

The radar interferometry technique has proven to be valuable for conducting general surveys of urban surface deformation. Its ability to cover large ground areas allows for comprehensive monitoring and analysis of ground movements. An example of such a survey took place in Nantong, China, where a Sentinel-1A dataset from 2015 to 2020 was utilized. This analysis unveiled significant deformations in the city, primarily attributed to groundwater withdrawal and the construction of a high-speed rail (refer to Figure 16). Additionally, this technology is useful for tracking ground deformation during urban construction projects. Figure 17 provides an illustration of the deformations caused by underground tunnel construction using high-resolution data from CSK satellites. In recent times, spaceborne InSAR has advanced to cover even larger scales. A famous example is the European Ground Motion Service (EGMS), which can provide a general survey of the ground deformation across national borders with millimeter accuracy [200].

4.6. Fine Surveillance of Infrastructure Stability

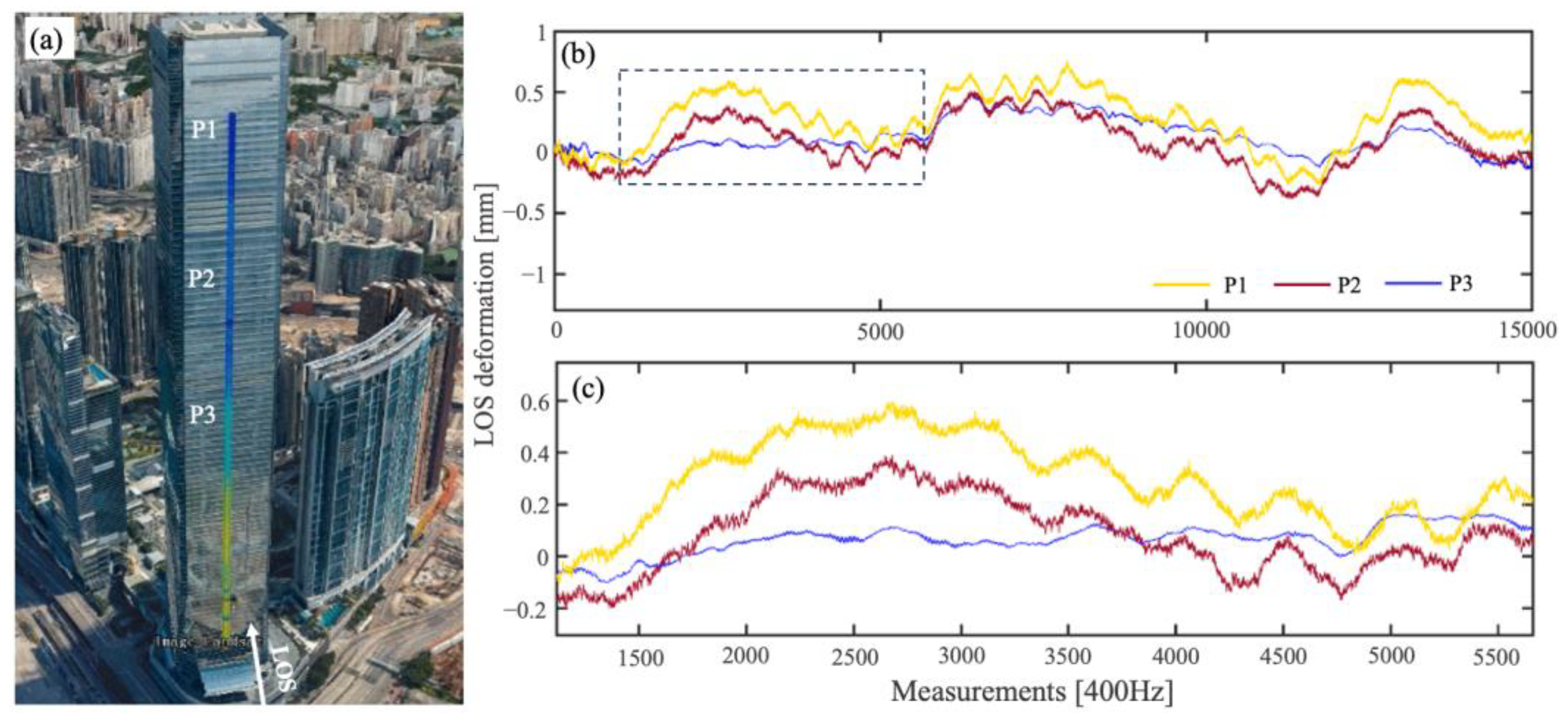

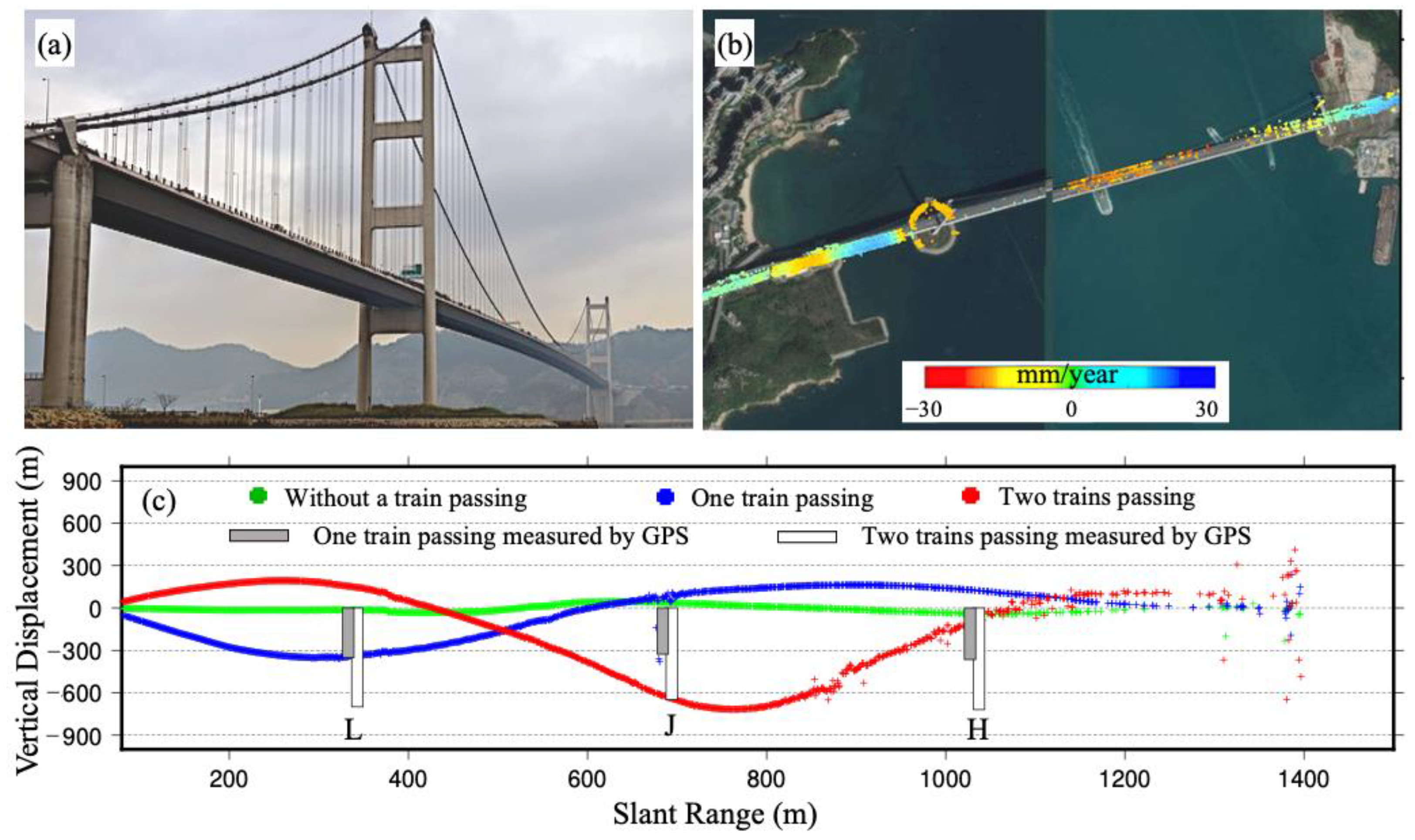

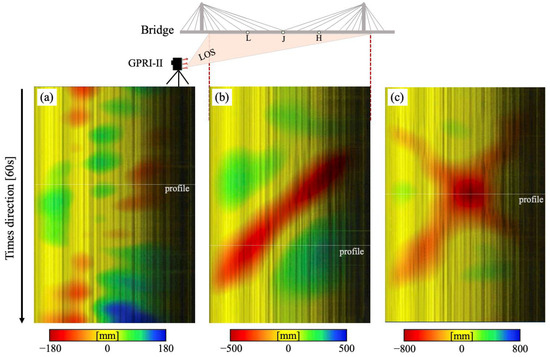

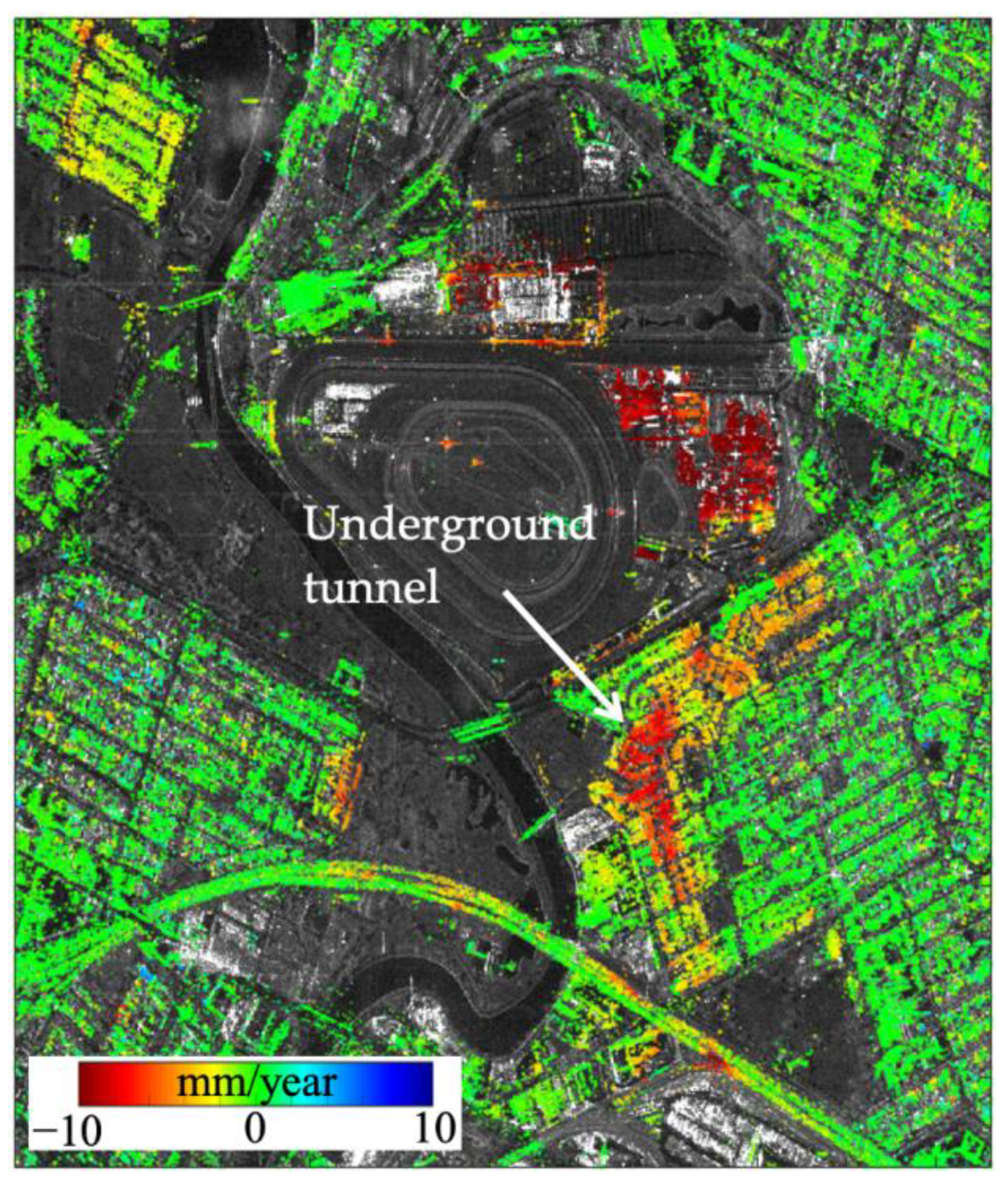

Radar interferometry has become increasingly effective in monitoring the deformation of buildings and structures with fine resolutions. A number of studies have resulted in fine results showing the stability of infrastructures, including building cavity migration [201], deformation of dam structures [202,203], and stability of bridges [204]. Figure 18 demonstrates an example the use of InSAR and CSK data to detect fine building deformation signals overlaid on a Google Earth map. Figure 18b,c indicate thermal expansion and deformation anomalies of the buildings, respectively. It shows the ability of the spaceborne InSAR to precisely detect cumulative deformation, such as the thermal dilation that is greater at the top of a building than at the bottom [88]. Although the capability of spaceborne InSAR can be affected by geometric distortion, particularly in urban environments (see Section 2.3.2), the GBRI has been used as a complementary technique for individual structure deformation monitoring, allowing the capture of fine details and high-frequency deformations [167]. Figure 19 presents an application with the GPRI-II system for monitoring the high-frequency deformation of bridges using the real aperture imaging mode [159]. Figure 19a shows the natural vibration of the bridge, while Figure 19b,c depict the deformation caused by the crossing of one and two subway trains, respectively.

5. Challenges and Future Work

In this discussion, we will explore the challenges that may impede the effective use of spaceborne InSAR and GBRI for monitoring the stability of urban infrastructures. We will also outline some potential research questions that require further investigation.

5.1. Challenges

5.1.1. Inconsistent Spatial Distributions of Selected Measurements

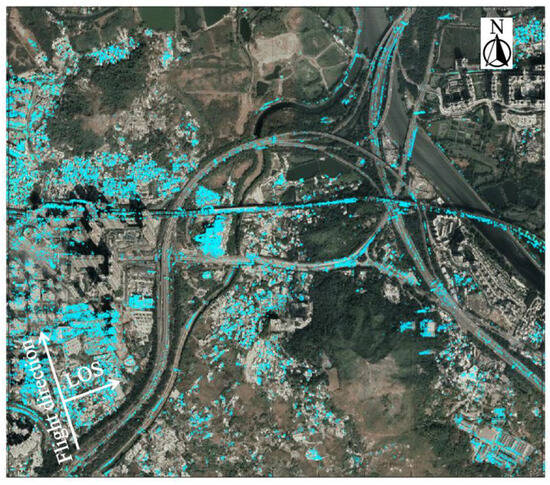

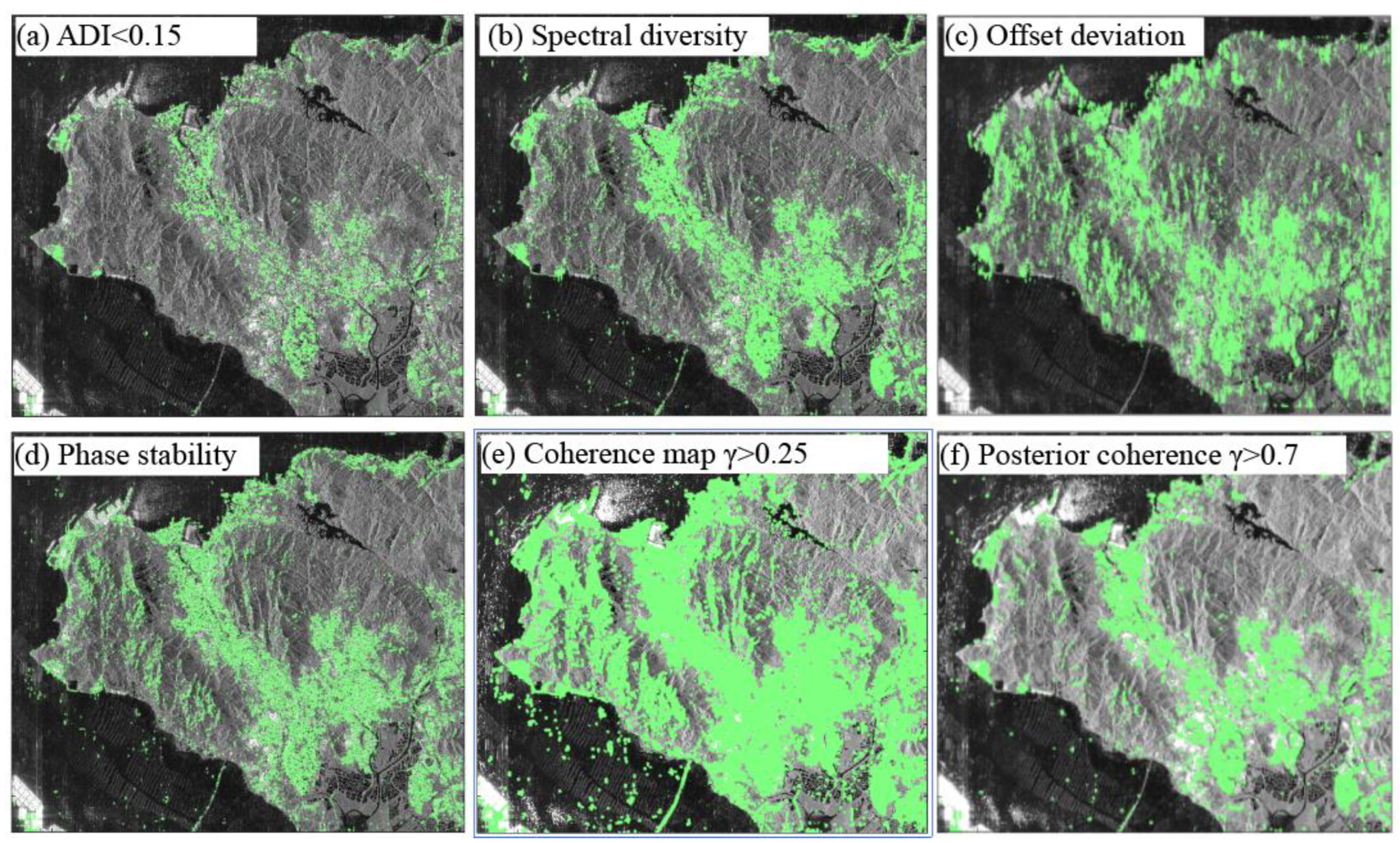

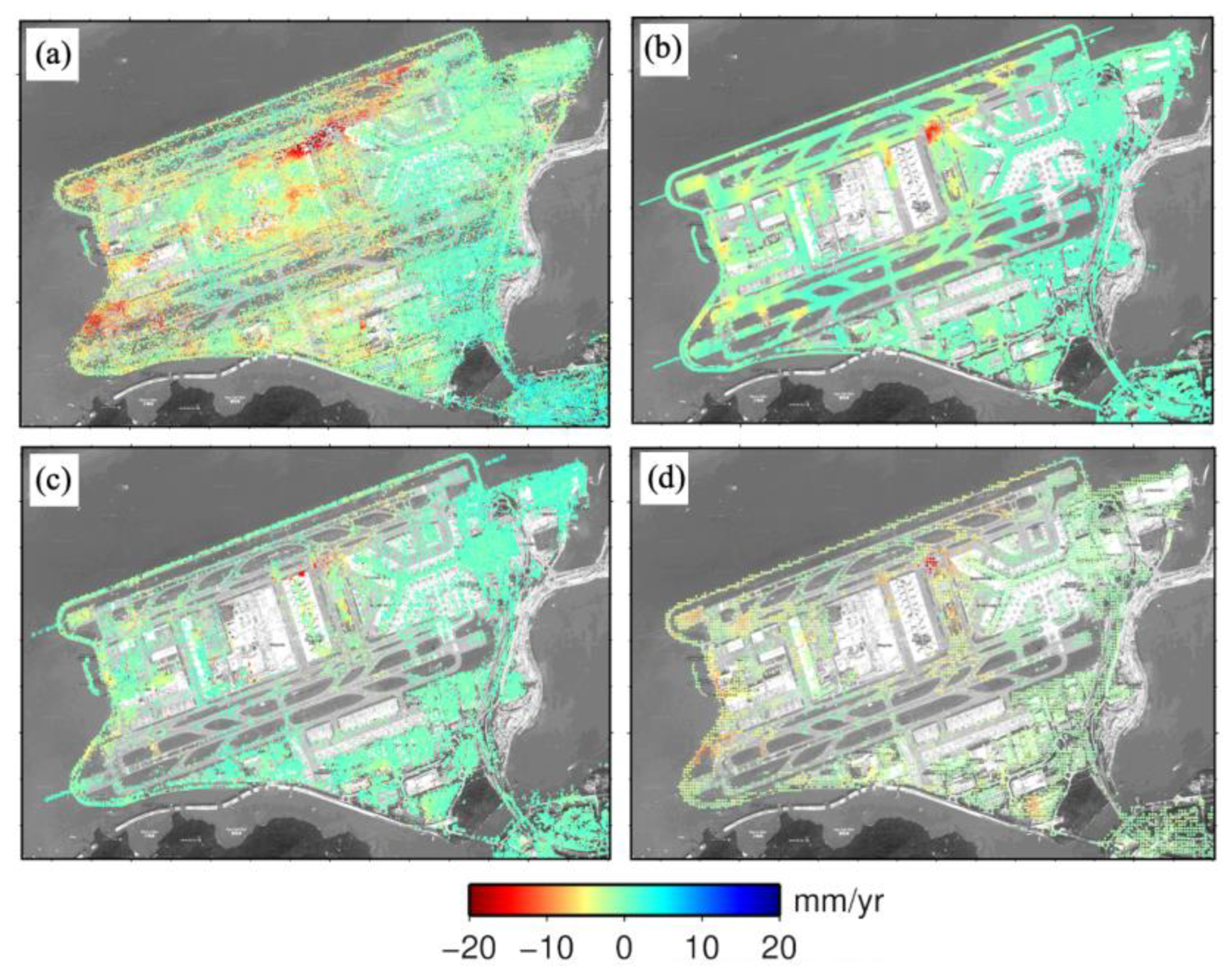

As introduced in Section 2.2, selecting observable points with high phase quality in time series radar interferometric data processing is crucial to minimize decorrelation noise when determining deformation. Despite several proposed criteria for identifying such points, finding the most appropriate selection method remains a significant challenge, often relying on the operator’s experience [205]. The impact of different selection criteria in spaceborne InSAR is evident in Figure 20, where varying results are observed. Furthermore, a steady stream of research proposing innovative point selection methods has demonstrated the existence of this phenomenon [206,207,208]. These research outcomes can be taken as an emphasis on the need for standardized and robust criteria to ensure consistent and reliable measurements in radar interferometric analysis.

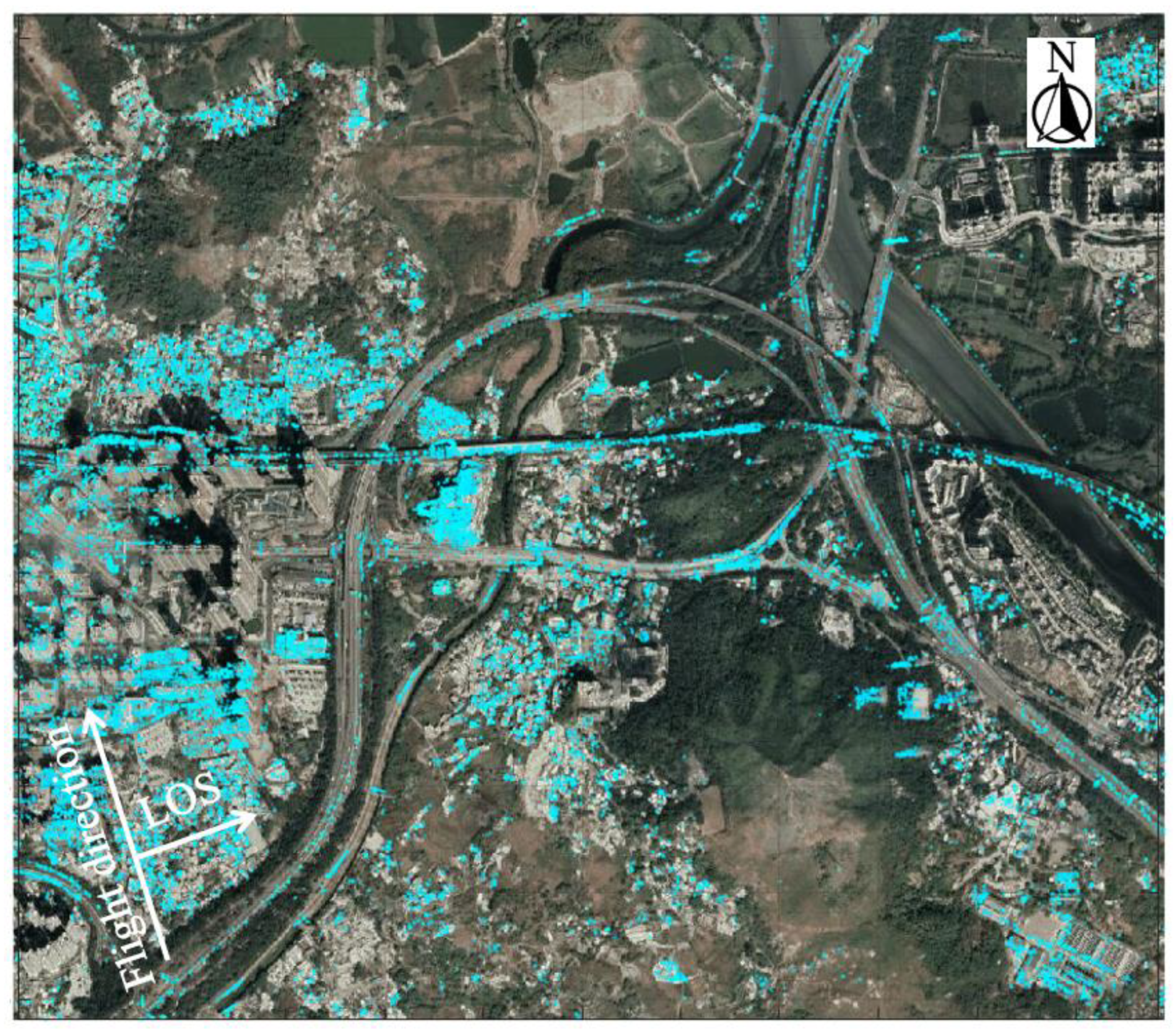

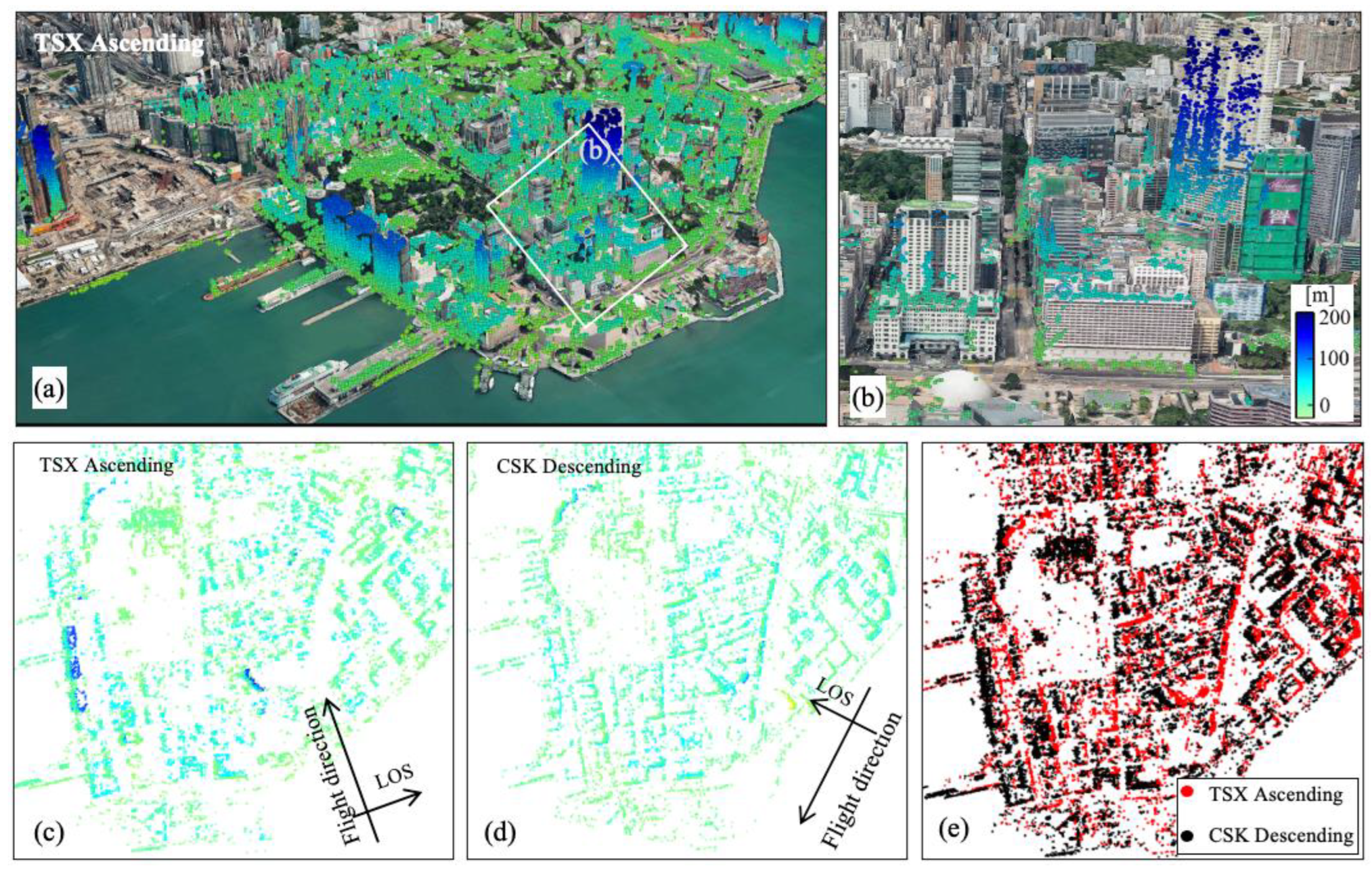

In addition, the geometry of radar observation can also affect the observable points, particularly in urban areas where the infrastructures can have very different heights and orientations, affecting the distributions of the observable points. As a result, obtaining enough measurable points to monitor the deformation of specific infrastructures at the desired locations will be problematic. This is especially true when monitoring the highway distributed along the LOS direction, as shown in Figure 21; the targets of interest may not have enough measurable points, leading to an incomplete deformation map. On the other hand, the shadowing effect (see Section 2.3.2), which is more severe in dense urban areas such as Hong Kong, is another factor that affects the completeness of the distribution of radar measurements. Despite the ability to easily change the observation station, similar challenges can also arise when using a GBRI system. Therefore, careful consideration must be given to these challenges and limitations when using radar interferometry for measuring deformation, particularly in the context of monitoring infrastructures with linear features.

5.1.2. Difficulties in Phase Unwrapping

Phase unwrapping is one of the key steps in radar interferometric data processing, and its accuracy determines the accuracy of the final deformation results. As mentioned in Section 2.2, phase unwrapping is used to transform the wrapped phase into a continuous phase map. However, the complex urban surface features can generate a discontinuous phase, which reduces the accuracy of phase unwrapping [82]. Although studies have proposed some methods for advanced phase unwrapping and for unwrapping error correction [81,82,209,210], further work is still needed to improve the stability and accuracy of phase unwrapping in urban areas.

5.1.3. Areas of Rapid Urbanization

Urbanization can give rise to swift surface changes in urban regions, leading to rapid decorrelation and significant deformation gradients. Although GBRI proves effective for real-time deformation monitoring, achieving sufficient radar observations in certain urban areas remains a challenge. This is particularly evident in reclaimed areas where deformation and ground surface exhibit high variability. An illustration of this issue is provided in Figure 22, showcasing the deformation measurement results in a rapidly decorrelating land reclamation area in Macau, where both GBRI and spaceborne InSAR were utilized. Despite the use of GBRI, numerous regions appear blank and unobservable (refer to Figure 22a), which leads to the generation of incomplete deformation maps. To address these challenges, researchers have made effort on the aspects such as the distribution scatterer exploration [48,211,212,213], multi-satellite InSAR approach [214], and integration of radar interferometry with optical remote sensing [215] to retrieve the deformation over the rapid decorrelation areas in urban.

5.1.4. Geometric Distortions Caused by Urban Canyons

Geometry distortions, as introduced in Section 2.3.2, pose a significant challenge to radar interferometry in monitoring the stability conditions of urban infrastructures. This is particularly true in cities such as Hong Kong where dense tall buildings can easily create shadows in the radar images. Figure 23 gives an example of spaceborne InSAR measurements from a TSX ascending dataset covering a part of the Kowloon Peninsula in Hong Kong, as superimposed on a Google Earth map. Figure 23b shows a zoomed-in image where several ground areas and lower buildings are unobservable due to the obstructions of some tall buildings. As explained in Section 2.3.1, it is possible to obtain more information in such areas by combining ascending and descending SAR images. Thus, Figure 23c–e provide top-view maps of InSAR measurements for this region obtained from both ascending (TSX data) and descending orbits (CSK data). It is worth noting that some measurements of both sides of the buildings were obtained, but the roads between the buildings still remain unobservable. Therefore, it is crucial to have a clear understanding of the targets being observed during the process of urban infrastructure stability monitoring. Focusing only on tall buildings could lead to misleading information, especially if the targets are the roads crossing the denser building regions.

5.1.5. Appropriate Technology Selection for Structural Deformation Monitoring

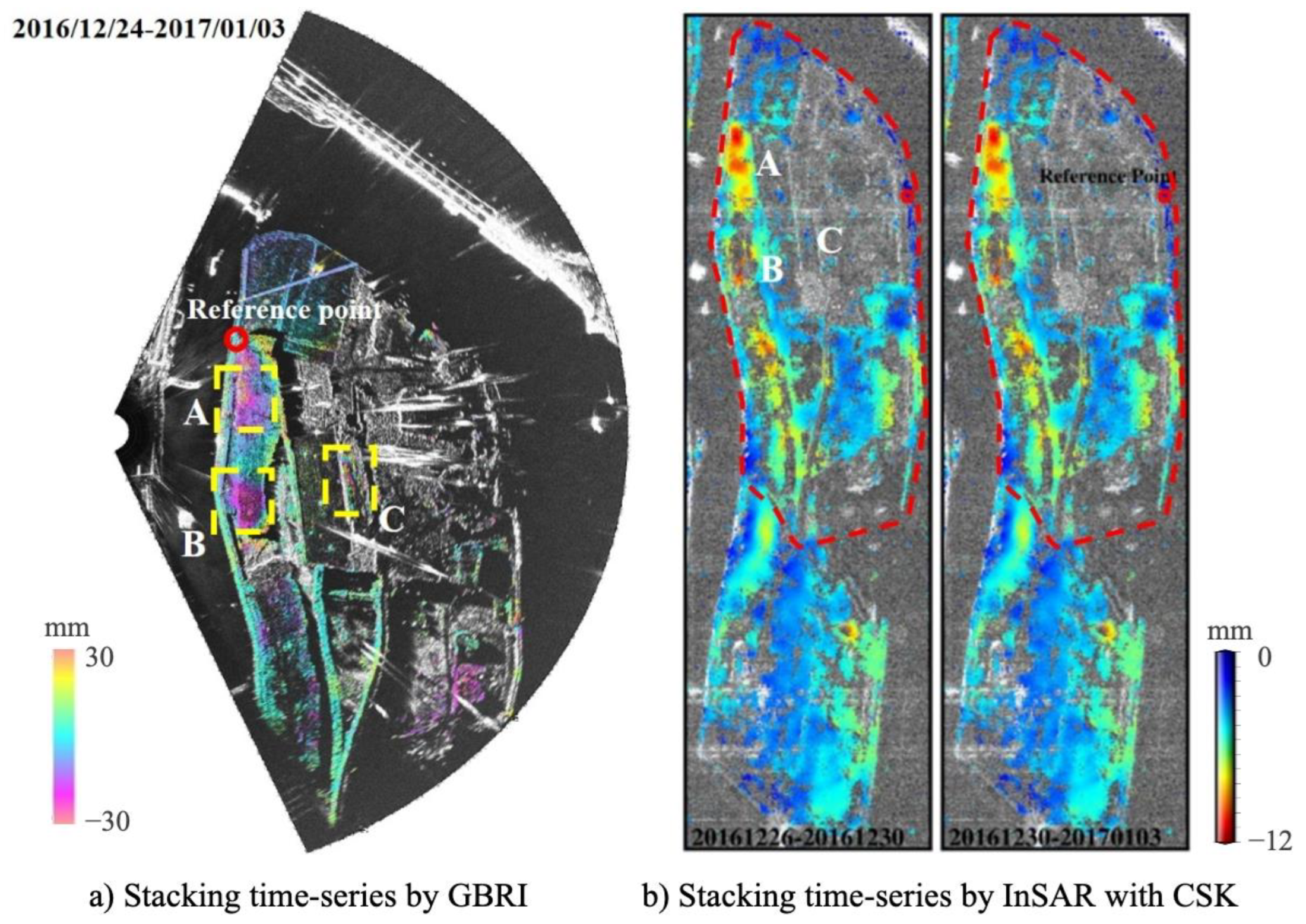

Spaceborne InSAR and GBRI are valuable tools for monitoring various infrastructures. While spaceborne InSAR is effective for stable targets and offers wide coverage for large-scale structures, its long revisiting time limits its ability to capture rapid and dynamic movements. On the other hand, GBRI, specifically using the RAR mode, provides near real-time monitoring and detects dynamic behaviors with higher temporal resolution compared to spaceborne InSAR, which is generally used to monitor stable targets such as bridge piers and towers. It is particularly useful for monitoring structures with highly frequent motion, such as bridges under traffic loads or moving trains [162,216]. In the provided example of the Tsing Ma Bridge in Hong Kong (Figure 24), Figure 24b shows the deformation rate map obtained using spaceborne InSAR with a TSX dataset. It indicates a line-of-sight deformation rate of −30 mm/year in the central section of the bridge. However, interpreting this measurement directly may lead to a misunderstanding of the stability status of the bridge. In contrast, Figure 24c demonstrates the dynamic movements of the bridge captured with GBRI-II and GPS systems. It reveals displacements of over 40 cm and 70 cm in the vertical direction when one or two trains passed through the bridge, respectively. Figure 25 depicts the LOS deformation dynamics of tall buildings in Hong Kong, detected with the GPRI-II system using the RAR mode. The time series of deformation clearly demonstrates that GBRI offers distinct advantages in capturing highly dynamic deformations of infrastructures, enabling easy acquisition of structural vibration deformations at various frequencies. Consequently, it becomes paramount to thoroughly assess the strengths and weaknesses of each technology while conducting infrastructure security monitoring in order to monitor the corresponding characteristic deformations accurately.

5.2. Future Work

According to the previous discussion, the radar interferometric techniques of both spaceborne InSAR and GBRI can be further enhanced by utilizing the following aspects to monitor urban infrastructures more effectively:

• Optimized strategy for radar measurements selection: To enhance the distribution of radar measurements and mitigate the reliance on specific thresholds (see Section 5.1.1), it is advisable to connect the final deformation product requirements with detectable measurement points. For example, monitoring ground deformation caused by activities such as groundwater pumping or engineering construction requires different monitoring accuracy requirements. Therefore, the distribution of usable or detectable measurements points in terms of radar observation quality will change accordingly. In addition, the combined use of multiple radar systems, spaceborne or ground-based, presents an opportunity to improve the integrity of radar measurements in dense urban built-up areas. The integration helps overcome geometric distortions and ensures more complete coverage of the target area.
• Deformation in a rapid urbanization area: The rapid processes of urbanization and urban renewal bring about substantial changes to ground features, resulting in fast decorrelation effects in radar interferometry techniques. It is difficult to maintain the radar interferometry coherence over time, and obtaining ground deformation over a long time in such areas presents significant challenges. It is crucial to develop techniques that can effectively capture ground deformations during the rapid decorrelation periods, as this would provide valuable information. Initial research has been carried out on the exploration of the temporary PS points in [217].
• Development of advanced models and methods: Developing advanced methods is crucial to accurately detect deformation characteristics in urban areas. Tailored techniques such as advanced phase unwrapping can improve measurement quality while compensating for atmospheric effects enhances deformation accuracy. Additionally, different infrastructures in urban areas have varying deformation characteristics. By combining engineering models, we can differentiate between normal deformation and anomalous deformation, leading to improved detection accuracy. Furthermore, integrating engineering models to interpret measurement results, such as establishing the normal range of deformation for a structure, is crucial.
• Efficient data processing strategies: Efficient data processing is crucial for long-term urban infrastructure monitoring. To achieve this, more efficient processing methods for both spaceborne and ground-based systems should be investigated and adopted, e.g., sequential estimators [211,218]. These methods should facilitate timely updates of interferometric measurements as new data become available. This is especially vital when dealing with extensive study areas with large SAR datasets. In addition, precise repositioning of the GBRI system is also essential for long-term deformation monitoring as discussed in Section 2 [105,106,219]. If the instrument pillar cannot be built to maintain a stable observation position, it is very important to develop repositioning error correction methods to ensure accuracy.
• Improved interpretation of deformation products: Radar interferometry provides valuable information about infrastructure deformation, but the interpretation of results can be nonintuitive, hindering its proper utilization, especially among non-experts. Enhancing the interpretation and data mining of deformation results with multidisciplinary knowledge can improve understanding. The development of artificial intelligence (AI) techniques for the automatic interpretation of deformation data can make them more accessible to a wider audience and facilitate effective utilization; similar research has been carried out in geohazard monitoring [220,221].

6. Conclusions

Urban infrastructures play a critical role in supporting the lives of urban dwellers. Regular monitoring of the deformation and dynamic behaviors of urban infrastructures is necessary to identify potential risks such as structural failures. Radar interferometry, as a powerful geodetic technique, has been widely used in monitoring the stability conditions of urban infrastructures due to its wide coverage, high spatial resolution, and accurate deformation measurements. In this paper, we have provided a comprehensive review of radar interferometric techniques (including both spaceborne InSAR and GBRI techniques) and their recent advancements with a special emphasis on the applications in urban infrastructure deformation monitoring. The following are the main contributions from this review:

(1)

Both spaceborne InSAR and GBRI have been widely used for the urban infrastructure deformation monitoring. The applications have been increasing over the recent decades, in particular over the recent 10 years.

(2)

Recent advances and applications of both spaceborne InSAR and GBRI techniques in urban infrastructure deformation monitoring were discussed. These include multi-dimensional deformation monitoring, multi-platform SAR datasets, anomalous deformation detection, accurate 3D geolocation of measurements, general survey of urban surface deformation, and surveillance of infrastructure stability.

(3)

Several challenges in monitoring urban infrastructure deformation using radar interferometry were identified. These include the inconsistence in the distribution of selected measurements from different methods, difficulties in phase unwrapping in urban areas, rapid decorrelation, geometric distortions, and technology selection in monitoring highly dynamic infrastructures. The potential future research directions in both spaceborne InSAR and GBRI for infrastructure deformation monitoring were also discussed, including an optimization strategy for radar measurements selection, long-term deformation monitoring, monitoring deformation in areas of rapid urbanization and geometric distortions, efficient data processing strategies, and better interpretation of deformation measurement results.
