Sustainable Development for Oil and Gas Infrastructure from Risk, Reliability, and Resilience Perspectives

Abstract

The oil and gas (O&G) sector is a critical energy infrastructure to a Nation’s welfare. As developed as the O&G industry may seem, its aging infrastructure gradually shows numerous challenges to keep up with the growing energy demand, increasing operation costs, and environmental concerns. A robust O&G infrastructure that is risk-free, reliable, and resilient towards expected or unexpected threats can offer an uninterrupted supply of O&G to downstream stakeholders, competitive prices to customers, and better environmental footprints. With the shift towards renewable energy, the notion of sustainable development should be firmly embedded in O&G infrastructure and operations to facilitate the smooth transition towards future renewable energy generation. This paper offers a comprehensive and innovative approach to achieving sustainable development for O&G infrastructure by examining it from a holistic risk, reliability, and resilience (3Rs) perspective. The role of each individual concept and their collective influence on sustainable development in the O&G industry will be thoroughly discussed. Moreover, this paper will highlight the significant impact of the holistic 3Rs approach on sustainable development and propose future research directions. Given the complexity of O&G infrastructure, it is crucial to incorporate sustainable development practices into every dimension of the O&G infrastructure, iteratively and continuously, to achieve the ultimate goal of long-term sustainability. This paper makes a significant contribution to the field by providing valuable insights and recommendations for achieving sustainable development in the O&G industry.

1. Introduction

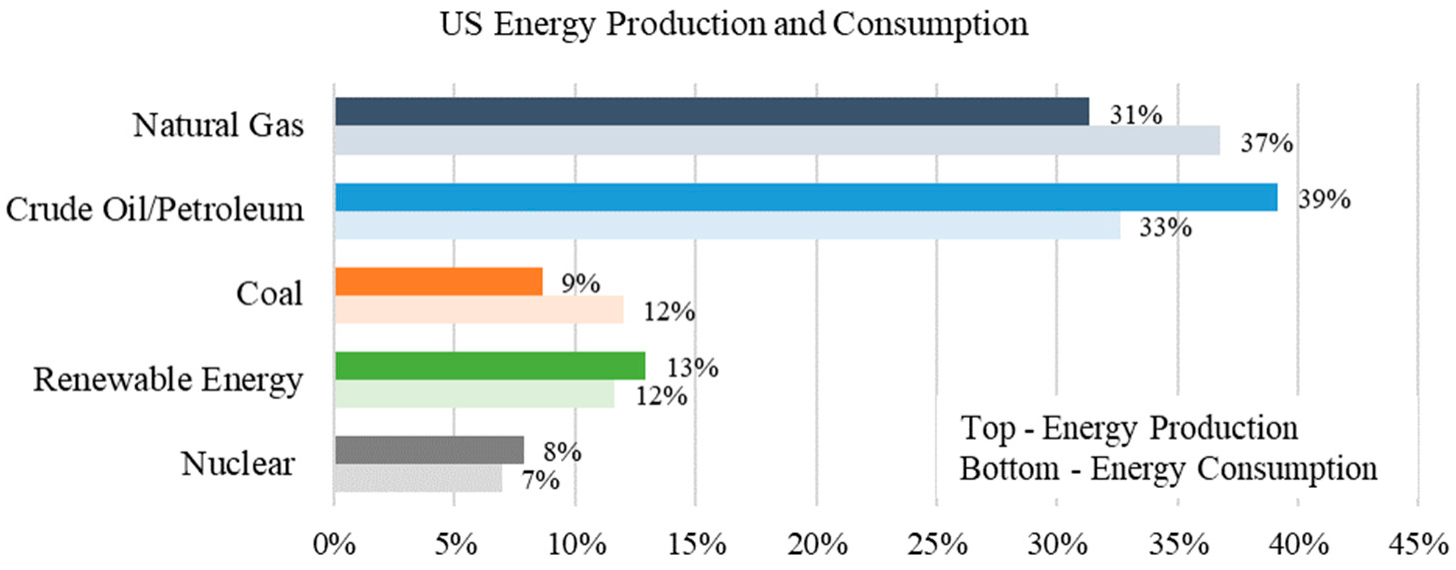

Oil and gas (O&G) sectors play a significant role in fulfilling a country’s energy requirements and contribute towards the Nation’s economy and development. O&G infrastructure includes gathering, processing, storing, and delivering O&G from various sources to the end users. Today, O&G infrastructure has become one of the most critical, expansive, and complex energy networks in the United States (U.S.) since the early development of the U.S. commercial oil pipeline began in the mid-1900s [1]. Crude oil and raw natural gas are the top two forms of energy produced and consumed in the U.S., followed by renewable energy as the third energy source. According to the statistics presented in Figure 1 from the United States Energy Information Administration (U.S. EIA) monthly energy review of January 2023, O&G combined makes up 70% of total energy production (31% natural gas and 39% petroleum) and 70% of total energy consumption (37% natural gas and 33% petroleum) [2]. While O&G infrastructure seems to be a highly integrated energy network, they are not fail-safe as many of these infrastructures show significant aging signs and are operated at maximum or near-maximum capacity [3].

Dorian et al. (2006) identified four significant challenges that the global energy sector, including the O&G industries, must address [4]. These challenges include resource scarcity, energy security, environmental degradation, and meeting the growing energy demand. O&G is a fossil fuel and a non-renewable energy source with limited natural resources that cannot be replenished quickly. As the world’s population grows, so does the demand for energy. According to a study by Shafiee and Topal (2009), global O&G reserves will be entirely depleted by 2050 [5]. Resource scarcity and increasing global demand present significant challenges for the O&G infrastructure to provide an adequate, reliable, and affordable energy supply. Today, the majority of energy consumers depend on O&G products [4], such as crude oil (primarily used to produce gasoline and diesel for transportation or manufacturing sectors) or natural gas (widely used for heating purposes) [6]. However, burning fossil fuels, including O&G, releases carbon dioxide (CO₂) and other greenhouse gas emissions into the environment, leading to environmental degradation and one of the leading causes of global warming that may trigger climate disasters [7,8]. Additionally, in the current era of political unrest and economic volatility, there is an escalating concern over O&G energy security. Their supply may become even more constrained and costly in the future [4].

The Intergovernmental Panel on Climate Change (IPCC) Sixth Assessment Reports (AR6) is a comprehensive scientific report that provides an up-to-date understanding of the scientific, technical, and socioeconomic aspects of climate change [9]. It is the latest in a series of IPCC assessments that aim to inform policymakers, stakeholders, and the general public about the risks associated with climate change and the possible mitigation and adaptation options [10]. The main takeaway from the IPCC Sixth Assessment Report is that climate change is happening at an unprecedented rate and is primarily caused by human activity, particularly the burning of fossil fuels. The report presents strong evidence that the Earth’s climate is already changing, with impacts such as more frequent and severe heatwaves, droughts, and flooding. It also warns of the potential for catastrophic impacts in the coming decades, including more frequent and extreme heatwaves, more intense hurricanes, rising sea levels, and widespread food and water shortages. The report emphasizes the need for immediate and drastic action to curb greenhouse gas emissions and outlines a range of potential strategies for mitigating and adapting to the impacts of climate change [11].

In recent years, efforts to expand renewable energy infrastructure, such as wind and solar power, have been made as alternative energy sources to overcome concerns over the depletion of O&G and other non-renewable energy sources [12]. In 2022, renewable energy from various sources accounted for 12% of the total energy consumption in the U.S., making it the third largest energy source after O&G (Figure 1) [2]. However, in the larger scope of the O&G industries, problems associated with conjuncture may arise, where various social, economic, and political factors intersect, significantly impacting the direction and development of the O&G sector. For instance, the presence of paraffin deposits in oil can destroy the entire infrastructure of an oil field [13]. Another example is the decarbonization challenges of O&G companies as they transition toward alternative energy sources in countries within the European Union [14]. Additionally, there are resource challenges with biodiesel fuel, another sustainable energy source. The production of biodiesel using raw food materials poses a significant risk of food and fuel competition, which is not sustainable [15]. Although it may seem far-fetched in the future for renewable energy to replace O&G as the primary energy source [4], O&G needs to remain sustainable until then to ensure a smooth transition. Thus, sustainable development must be securely incorporated into all O&G infrastructures, operations, practices, and strategies [9,10]. In this paper, sustainable development of a system refers to the capacity established in a system to maintain or improve the state and the availability of desired system conditions over an extended period [16].

As O&G infrastructures continue to evolve in complexity, there is no one-size-fits-all solution to achieving sustainable development as a long-term goal [17]. This paper proposes a holistic view of risk, reliability, and resilience (3Rs) as a possible pathway to sustainable development. Although the 3Rs concept has been explored extensively in their separate areas of study, their application to sustainable development in O&G applications has not been fully highlighted. The fundamental risk is related to the probability of unexpected events occurring, which can lead to undesirable consequences [18,19]. Reliability refers to the ability of a system to function without failures during its intended operational period [20,21], while resilience is associated with the ability to resist and recover from unexpected disruptive events [22,23]. By applying the 3Rs concept, risks can be identified, and mitigation plans can be formulated ahead of time to minimize delivery disruptions and recover from any disturbances swiftly in the event of inevitable disruptive events such as natural disasters [18,24]. This approach can also reduce operational downtime, resulting in a safer, more economical, and longer-lasting O&G infrastructure and operations [25,26].

In conjunction, risk, resilience, and reliability are key concepts in the O&G industry for managing and mitigating hazards and disruptions that may arise from various sources. Outside the O&G sector, the 3Rs approach toward sustainability has been applied in other sectors. Ardebili [15] provides a state-of-the-art review of the 3Rs application in dam safety engineering, focusing more on a risk-based probabilistic framework. Sweetapple et al. [27] propose the Safe & SuRe framework to show how threats to a water system can affect society, the economy, and the environment. Akiyama et al. [28] employed the 3Rs approach to study independent and interacting hazards and their effects on bridges and networks. The 3Rs concept has also been utilized in examining the impact of the COVID-19 crisis on the security of deliveries and the preparedness and responses of firms in the supply chain application [27]. In the O&G industry, the 3Rs concept can be applied towards sustainable development at all stages of the supply chain, from exploration and production to transportation and distribution.

Amid the current transitional period in the energy landscape, the O&G industry faces the pressing need to optimize its performance, reduce operational costs, and shift towards more environmentally sustainable practices to stay competitive [28]. This paper makes a novel contribution by proposing a holistic approach to achieving sustainable development in the O&G industry through the application of the 3Rs concepts at all levels of social, economic, and environmental aspects of O&G infrastructure. This innovative perspective underscores the need for a fundamental shift in the industry’s approach to sustainable development and has important implications for policymakers and practitioners. The overview of O&G infrastructure and its challenges to sustainable development will be introduced in Section 2. The individual roles of the 3Rs concept in the O&G application will be detailed in Section 3. In Section 4, a discussion on the holistic 3Rs’ influence on sustainable development and the direction of future research will be provided. Finally, the conclusion of this paper will be summarized in Section 5.

2. O&G Infrastructure and Challenges

Since the mid-1900s, the infrastructure for transporting crude oil, natural gas, and their products onshore and offshore has grown considerably [1]. This section provides an overview of O&G infrastructure and focuses on exploring the challenges that O&G infrastructure poses to sustainable development.

2.1. Overview of O&G Infrastructure

O&G infrastructure is very expansive, and its operations are highly complex. Most O&G infrastructure can be generally separated into three main levels: upstream, midstream, and downstream [17,29]. A three-level color-coded petroleum pipeline system modified from the Pipeline and Hazardous Materials Safety Administration (PHMSA) [30] is shown in Figure 2. In this Figure 2, the upstream section is colored red, the midstream components are shaded in orange, and the green is for the downstream elements.

The O&G upstream level focuses on exploration and production (E&P) operations. Exploration efforts include geographical surveys in search of potential oil and gas fields, while production (such as drilling and operating oil wells) is carried out to extract crude oil or raw natural gas to the surface [31,32]. The midstream level includes long-distance transportation and storage facilities from upstream suppliers to downstream distributors or customers [29]. The O&G transportation can be carried out with various means, such as pipelines, rail freight, trucks, oil tankers, or inland barges [33]. Storage facilities vary based on the product stored. Crude oil and refined oil are usually stored in above ground tanks or temporarily stored in tanker ships when land storage is at capacity [34]. Underground storage, such as depleted reservoirs, is more suitable for natural gas [35]. Lastly, the downstream level involves the refineries or processing facilities and short-distance distribution to end users [36]. The refiners are in charge of turning crude oil and raw natural gas into refined oil, purified natural gas, and many other products for everyday use. The downstream operation often involves midstream elements in terms of transportation and storage components from refineries to end-users.

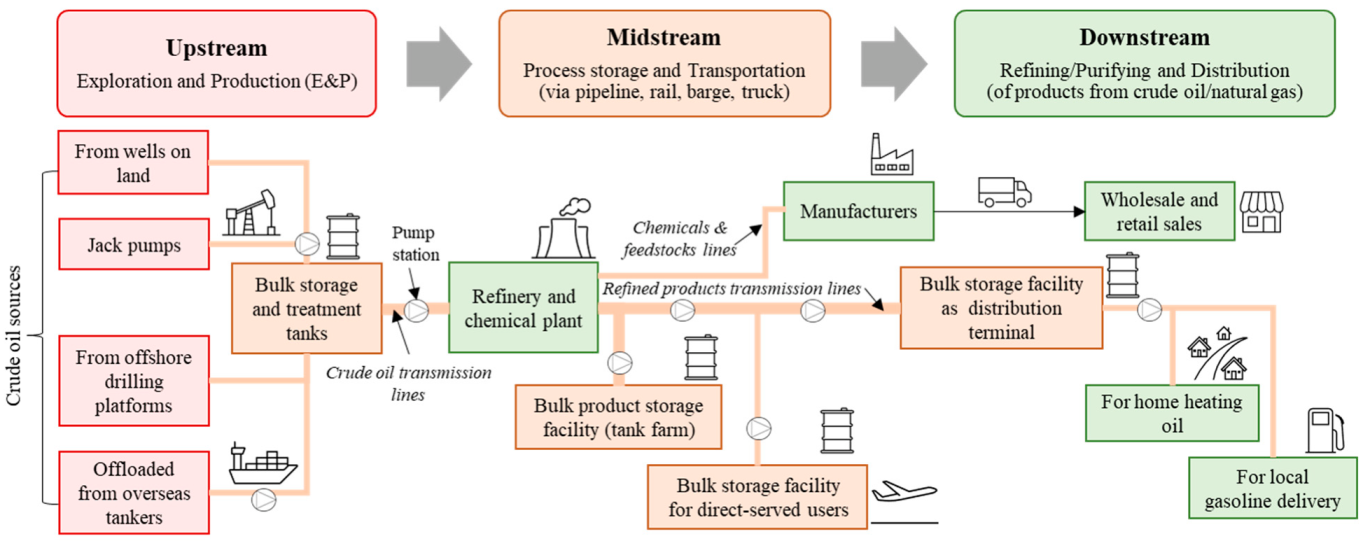

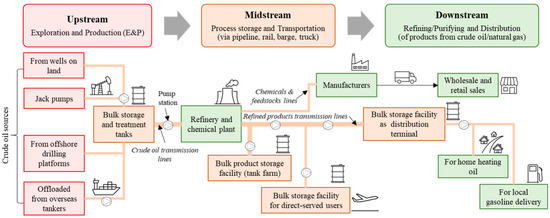

Many of the components shown in Figure 2, such as oil wells, storage systems, pipeline systems, or refiners, have tangible attributes and may be regarded as physical elements. In addition to the physical system aspects, the O&G infrastructure and its operations involve the cyber domain, have human interactions, and can be influenced by other external factors [37,38,39]. More details on O&G infrastructure and operations can be found in the following references [34,40,41,42].

2.2. Sustainability and Sustainable Development

In the late 1980s, the United Nations (U.N.) World Commission on Environment and Development was chaired by Gro Harlem Brundtland (former Norwegian Prime Minister), and was focusing on the importance of sustainable economic development without draining natural resources or harming the environment [43]. In their report “Our Common Future,” published in 1987 [44,45,46], Chapter one, Section II. New Approaches to Environment and Development, Point 49 mentions that ‘sustainable development’ seeks to “meet the needs and aspirations of the present without compromising the ability to meet those of the future.” [47]. This has become one of the best-known foundations of sustainable development.

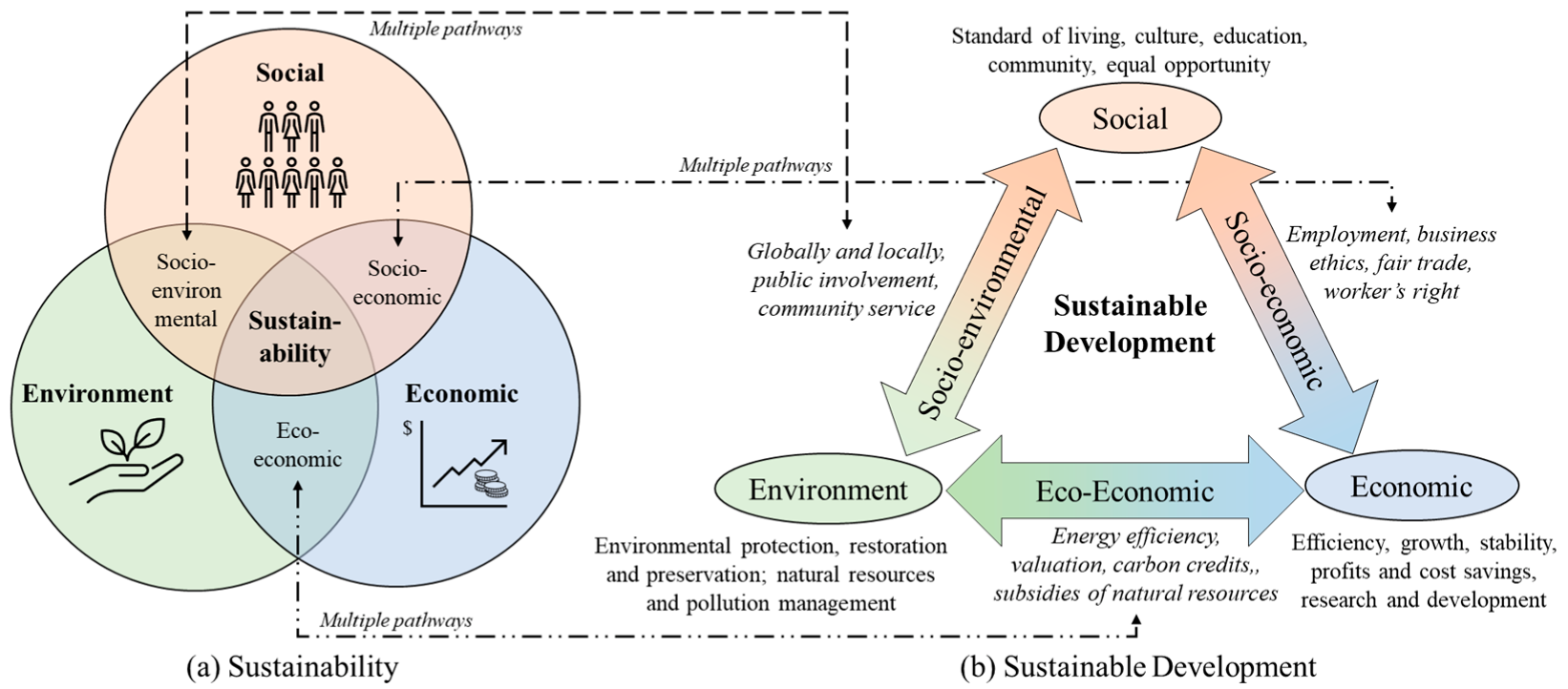

The concept of sustainability or sustainable development has become more prevalent in today’s practice [26], with the primary objective of ensuring the Earth is inhabitable for future generations. The term ‘sustainable development’ is often interchangeably used with the broader concept of ‘sustainability.’ Ruggerio (2021) has presented a comprehensive review of theoretical definitions and the differences between the two concepts [48]. In other instances, sustainability is often regarded as a long-term goal, while sustainable development refers to the many pathways to becoming sustainable [47,48]. Sustainability is commonly known to have three interconnected dimensions (pillars/elements/facets) encompassing social, economic, and environmental factors (goals/objectives), graphically shown in Figure 3a as the intersections of the three elements combined [49]. Thus, to realize the sustainability goal, sustainable development focuses on the development (improvement process/practice) of each pillar (social, economic, and environmental) while considering the relationship or impact on the other factors, as shown in Figure 3b.

Sustainable development seems contradictory to the property of non-renewable energy, inherently due to its limited natural resources. There are still many debates about defining, quantifying, realizing, and measuring sustainable development or sustainability in energy applications or the O&G industry. However, these topics will not be elaborated on further. Instead, this paper will focus more on answering the questions presented in Ruggerio (2021) [48] or Naredo (2004) [51], such as ‘What should be sustainable and for how long?’ and ‘How is the goal of sustainability accomplished (in O&G industry)?’. In the O&G industry, the answer is straightforward, whereas the implementation is not. The limited O&G natural resources must be sustained for as long as possible or at least until the next generation of renewable energy takes over. The goal of sustainability can be accomplished by incorporating various sustainable development practices into all aspects of O&G infrastructure and operations. However, this is not an easy task, as many challenges are present in the O&G industry.

2.3. Multidimensional Challenges

The O&G industry faces significant challenges when it comes to balancing conflicting objectives in the pursuit of long-term sustainability. Meeting the increasing demand for oil and gas with limited natural resources is a primary challenge, alongside the need to increase production while reducing operating costs and adhering to environmental policies to minimize contamination and pollution. Despite increasing attention focused on the transition of O&G industries to sustainable development, the complexity of O&G infrastructure and operations make achieving sustainable development challenging. Numerous theories, concepts, and methods are proposed with this transition, but practical implementation has proven difficult and remains unresolved due to social and market mechanisms of sustainable development [52].

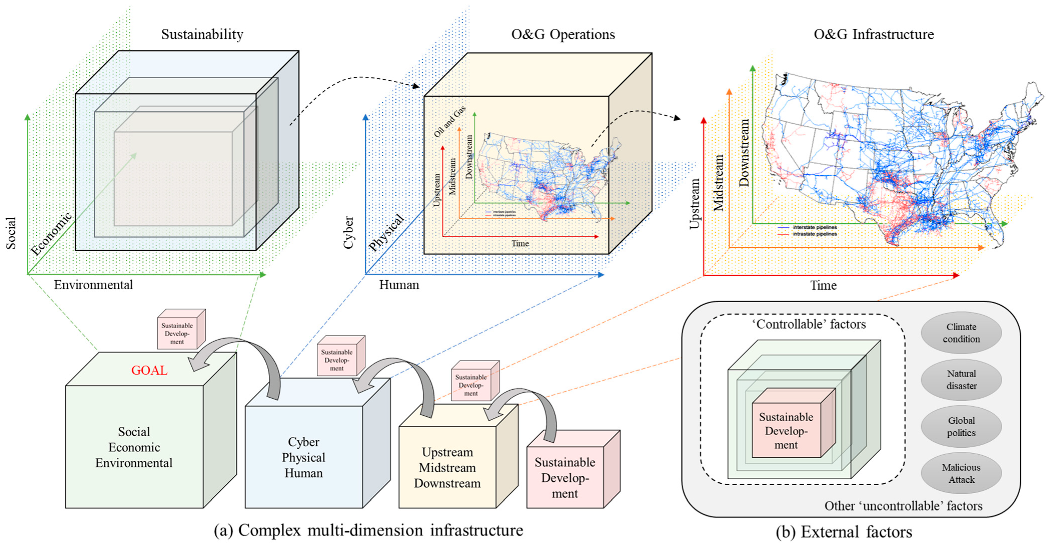

Considering only three dimensions: sustainability, O&G operations, and O&G infrastructure, this multi-dimension characteristic of the O&G industry can be represented in Figure 4a. For each dimension, there are multiple elements and sub-dimensions. As the long-term goal, the sustainability dimension has social, economic, and environmental pillars (Figure 3a) [49]. The day-to-day operations of the O&G industry depend on physical infrastructure, cyberinfrastructure (computing, internet-of-things), and humans (operators, policymakers) [37,38]. The O&G infrastructure has three major levels (upstream, midstream, and downstream) [29]. In a more detailed view, each O&G infrastructure level may involve numerous exploration and refinery sites or millions of miles of pipeline and customers. The O&G sector supplied about 27.6 trillion cubic feet (Tcf) of natural gas and billions of tons per mile of liquid petroleum to approximately 77.7 million consumers via 2.6 million miles of the primary pipeline delivery system in 2021 [1]. Thus, sustainable development practices should be incorporated into every dimension iteratively, wherever appropriate, toward the holistic sustainability goal, as shown in Figure 4a.

The three dimensions presented in Figure 4a are not the only dimensions influencing the O&G industry in achieving sustainability. Other external factors, such as natural disasters, global political situations, or random malicious attacks, may also affect the O&G industry’s roadmap to sustainability (Figure 4b) [34,53,54]. Although these external factors may not always be controllable, the O&G stakeholders should focus on sustainable development for the controllable factors [12], such as infrastructure protections, technology advancement, environmental rehabilitations, or policy improvement.

To address the challenges of the current transitional period in the energy landscape, this paper presents a comprehensive and innovative approach to achieving sustainable development in the O&G industry. This holistic approach involves applying the 3Rs’ concepts across all social, economic, and environmental aspects of O&G infrastructure to optimize performance, reduce operational costs, and adopt environmentally sustainable practices for improved competitiveness. This novel perspective underscores the need for a transformative change in the industry’s approach to sustainable development and has important implications for policymakers and practitioners. This paper will explore the individual roles of risk, reliability, and resilience, and their collective influence on sustainable development in the subsequent section.

3. Overview of Risk, Reliability, and Resilience

In the context of O&G operation and infrastructure, risk, reliability, and resilience (3Rs) are essential concepts. While pipelines are a secure and efficient means of transporting O&G, they are vulnerable to various natural and human-induced hazards [55]. Preventative measures can be taken to reduce the severity and likelihood of such hazards through risk, reliability, and resilience approaches. This section will introduce the key concepts of risk, reliability, and resilience and their significance in O&G application.

3.1. Risk Analysis, Assessment, and Management Framework

The pipeline transportation system is essential to the O&G industry, allowing for the safe and efficient movement of crude oil, natural gas, and refined petroleum products over long distances. However, as with any infrastructure, the pipelines that make up this system are subject to wear and tear over time, leading to various risks and hazards. One of the major concerns in recent years has been the aging of these pipelines, which has highlighted corrosion as a significant threat. Corrosion can lead to leaks and bursts in the pipeline, which can cause harm to other stakeholders and the environment. Mitigating this risk requires careful consideration and an integrated risk framework considering the risks threatening the pipeline network. An integrated risk framework typically involves risk analysis, assessment, and management, as shown in Figure 5a.

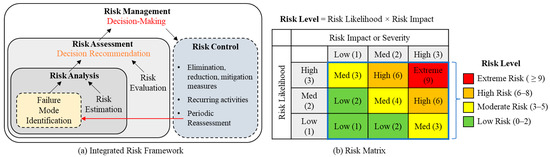

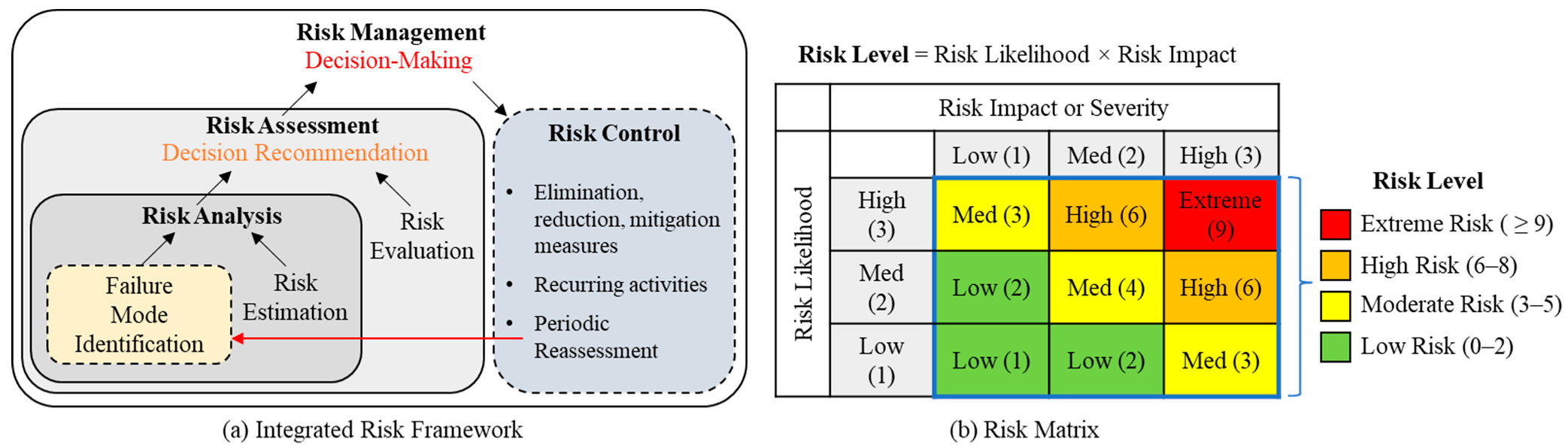

The framework generally starts with identifying the hazard (failure or threat), estimating and evaluating the impact, and mitigating the adverse effects by taking appropriate corrective measures [18,19]. Depending on the type and severity of threats or hazards, the decision-makers can take various risk control approaches to eliminate, reduce, mitigate, transfer, or resolve the risks [53]. However, it should be noted that there is always the possibility that a system may fail not due to risk propagation, but from poor decision-making outcomes.

A risk framework in the O&G pipeline network identifies probable system failure causes, such as corrosion, cracks or leaks, digging, excavation, or operational errors [22,56]. In cases where a threat is identified, detected, or has occurred, appropriate corrective measures should be taken to control the risk and to ensure the pipeline is in working condition without any critical impact on downstream stakeholders [55]. For pipeline networks, the primary objective of risk management is to decrease the failures or limit their severity in case of occurrence [19]. Risk assessment is a subset of risk management and is preceded by analyzing the risk to measure its severity. In probabilistic terms, the risk level of a particular hazard can be quantified by taking the product of the risk likelihood and the risk impact. This information on risk likelihood, impact, and level is often presented in a consolidated table or matrix format known as a risk matrix, as shown in Figure 5b. A risk matrix is often color-coded based on the risk level to qualitatively represent the criticality of a hazard or threat.

Methods for risk assessment in most O&G applications can be broadly categorized into three groups: qualitative methods (or index modeling), quantitative methods (or probabilistic methods), and hybrid methods. The risk matrix in Figure 5b is often considered a qualitative method, although it may present a quantitative risk level. This number of risk levels is also known as the risk index. Additionally, in many qualitative risk methods [56], the weights or scores for different variables are determined based on the experts’ judgment; however, their precision is sometimes questionable. While the quantitative analysis method is often favored for its practicality and ability to perform in-depth data analysis, its accuracy can be compromised when applied to smaller data sets. Due to the large amount of operational data that can be obtained from sensors, many data-driven analyses, for example, machine learning algorithms or artificial intelligence approaches [57,58,59], are adopted for condition monitoring and anomaly detection purposes [24]. In hybrid risk assessment, the benefits of both qualitative and quantitative analysis are combined in a single model allowing for precision analysis and expert opinion to be incorporated into decision-making. Many hybrid risk assessment methods involve (1) traditional methods such as Failure Modes and Effects Analysis (FMEA), Failure Modes and Criticality Analysis (FMECA) [60,61], Event Trees and Fault Trees Analysis (FTA) [62,63], and Hazard and Operability Analysis (HAZOP) [64,65], and (2) probabilistic methods such as Bayesian networks [66,67,68]. A Bayesian network is a probabilistic directed graph that may not always be exclusively used for risk assessment [69,70,71], unlike FMEA/FMECA or FTA which are more often associated with the risk framework. Note that these methods identified are not exhaustive. There are various other methods that many researchers have proposed as risk frameworks in the O&G industry [58,67].

There are many types of possible risks in O&G applications: operational risks, human factor risks, environmental risks, technology risks, schedule risks, and others. In addition to a risk framework or matrix, other aspects of O&G infrastructure and operations need to be analyzed to gain a more profound knowledge of how risk can occur, its impact, and how it can be controlled, mitigated, or resolved. For example, the O&G pipeline’s integrity and operational availability are constantly threatened by corrosion [66,72], which must be assessed periodically and controlled effectively. In order to accomplish this, the details of pipeline systems down to the material properties must be thoroughly understood in terms of the prevalent corrosion mechanisms for each pipeline [24,56]. Corrosion risk is dynamically altered as process parameters change conditions during pipeline operation [73]. Due to varying risks, various information needs to be analyzed, including inlet and outlet pressure, velocity during flow, outlet and inlet temperature, and many other controllable and uncontrollable parameters [74]. The dynamic corrosion risk of pipelines is to be assessed periodically with the combination of field data collection and simulation software; for example, internal crack problems and estimation of stress intensity factor for corrosion can be simulated with the finite element method [75,76]. Considering the changing nature of risk in the operation of a pipeline, dynamic risk analysis methods are essential when time is taken into consideration.

To ensure that the O&G industry always delivers its intended value to the downstream stakeholders, it is best that stakeholders from all levels can understand how O&G infrastructure and operation may fail to perform as required. However, this may not always be possible, given the complexity of the O&G infrastructure and operation. Thus, risk analysis, assessment, and management should be incorporated into sustainable development practices to identify, analyze, and prioritize risks and to ensure that the likelihood of unintended events occurring, and their impact is minimized, monitored, and controlled. This effort, in turn, will promote sustainability in the long run.

3.2. Reliability Analysis

O&G pipeline reliability may be defined as delivering oil or gas products safely using a detailed medium in the required quality and quantity and within a definite time. If the operational reliability of the pipeline network is not monitored, there will always be a potential threat to users and to the environment. Operational reliability can be evaluated by determining the mean time between failures (MTBF) and identifying its cause in a system operation [77]. Reliability is one of the crucial attributes of any complex system. The concept of reliability can be defined as the ability of units or systems to perform a specific function within a specific time and circumstance [78].

According to reliability theory [79], the reliability of a system or component over time, R(t), can be expressed as the probability of the system, P(t), performing its intended function until time T. The reliability index, R, holds a maximum value of 1, meaning the system is 100% reliable. The reliability of a system changes over time R(t) and can be quantified based on its probability of failure (when the system fails before time T), denoted as P(T ≤ t), as shown in Equation (1).

R(t) = P(T > t) = 1 − P(T ≤ t)

(1)

Many past studies have been conducted to assess the reliability of O&G infrastructure systems. Ahmad et al. [80] described the reliability analysis of a pipeline system as a three-step process: (i) division of a pipeline into segments and construction of its corresponding reliability block diagram (RBD)s, (ii) reliability assessment of the individual segments, and (iii) evaluation of the reliability of the overall pipeline system based on the RBD and the individual segment reliability. A single or one-direction supply pipeline can be modeled as a series RBD [81]. However, the pipeline systems can also be a combination of series and parallel RBDs with either reserved components or subsystems [82]. Figure 6a shows that part of the pipeline system can be deconstructed into either a series, a parallel, or a combination of series and parallel structures. It should be noted that the complexity of the analysis increases with the number of components considered as part of the system.

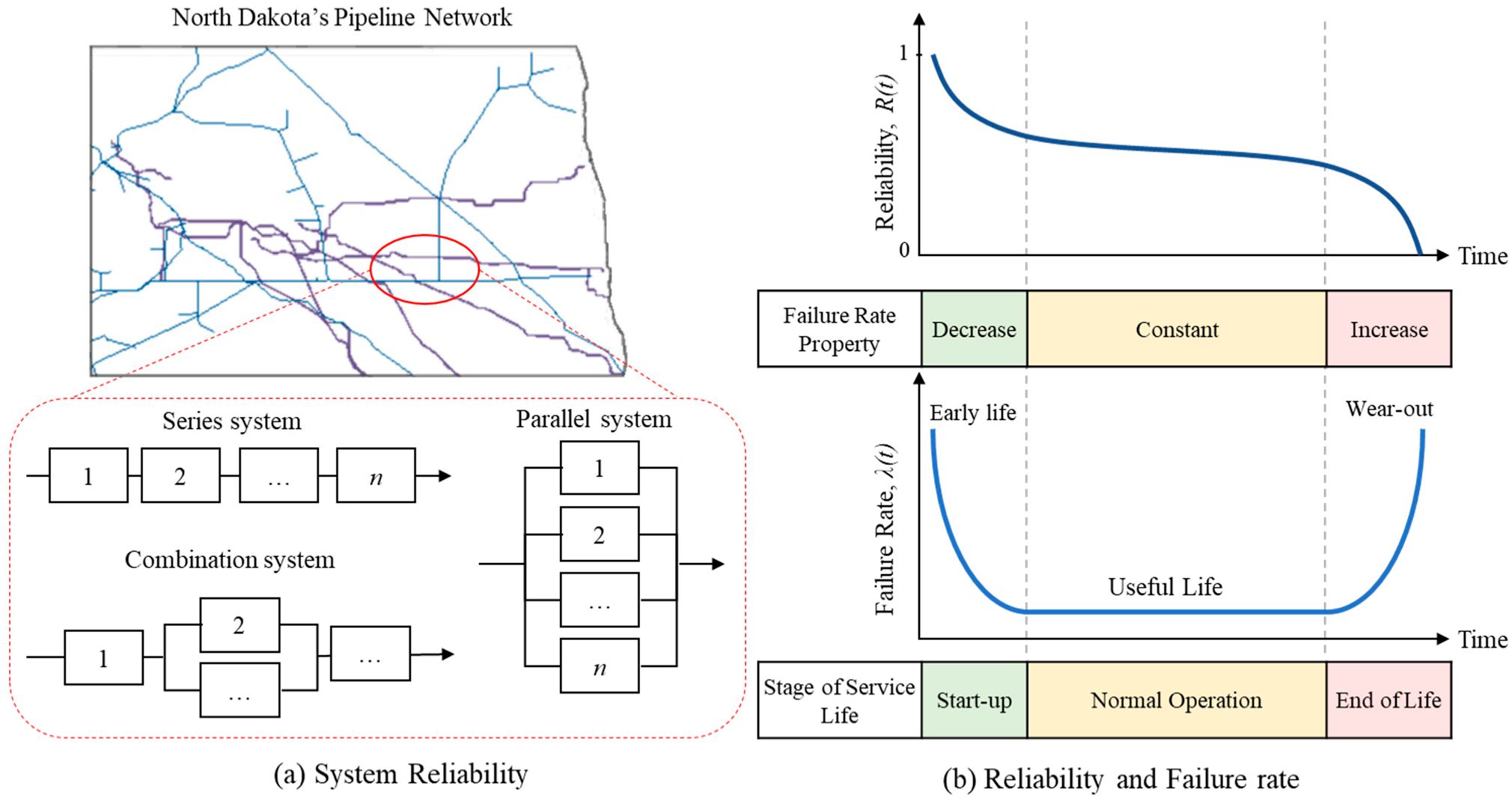

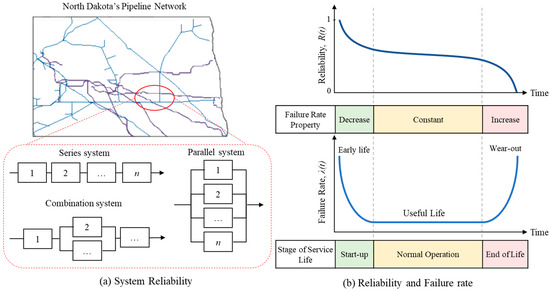

Each component typically has a failure rate function, λ(t), in the shape of a bathtub curve or following a Weibull distribution, as shown in the lower right subfigure of Figure 6b. The failure rate of a component is typically observed to have three stages of service life: start-up or commissioning, normal operations, and end-of-life [83,84]. In the first phase, there is a decreased failure rate probability as the component introduced in the system is often regarded as new and possesses a high-reliability index. However, there is also a risk of early failure due to many uncertainties when the system is introduced with a new component. After a period of adjustment, in the second stage, during the normal operating condition or useful life period, the failure rate of a component is constant over time until the wear-out stage. Although the component of a system is expected to be functioning until the end of its intended life, random failures can occur in the second stage that may reduce the system’s reliability. Due to constantly being used or operated, a component may experience normal wear and tear conditions, which eventually increases the failure rate. This third stage is also known as the end-of-life or wear-out phase, and the reliability of a component is significantly reduced until it fails.

Based on a component’s failure rate function, λ(t), reliability, R(t), can be quantified from the exponential distribution model, as shown in Equation (2).

$$R\left(t\right)=e^{-{{\displaystyle \int }}_o^t\lambda \left(t\right)}$$

(2a)

Assuming that λ(t) is considered constant during the normal operation stage, the reliability function can be simplified as follows.

$$R\left(t\right)=e^{-\lambda t}$$

(2b)

Suppose a pipeline system is modeled as a serially connected system. If all system components are functioning at this time t, this system can be called reliable at t. If the event A_i(t) represents the reliable functioning of the ith component of a serially connected system with N components at time t, then the overall reliability of the system can be expressed in Equation (3a). This equation can be further modified using the assumption of mutual independence of individual reliability events of a series system. Thus, the overall system reliability with a series connection can be quantified with Equation (3b).

$$R_{series}\left(t\right)=P \left(A_1\left(t\right)\cap A_2\left(t\right)\cap A_3\left(t\right)···\cap A_N \left(t\right)\right)$$

(3a)

$$R_{series}\left(t\right)={\displaystyle \prod }_{i=1}^N{R}_i\left(t\right)$$

(3b)

Moreover, the overall series system reliability is generally less than or equal to the reliability of the sub-component with the minimum reliability index. Thus, R_series(t) ≤ min(R_i(t)). Due to the redundancy property, the reliability of parallel and combination systems is usually higher than the sub-component with the minimum reliability index. The overall system reliability with a parallel connection can be quantified with Equation (3c). For the combination system structure, the reliability of the system can be quantified based on the combination of Equations (3b) and (3c).

$$R_{parallel}\left(t\right)=1-{\displaystyle \prod }_{i=1}^N(1-R_i\left(t\right))$$

(3c)

Preserving the O&G infrastructures or ensuring smooth day-to-day operating conditions is one means to realize sustainable development [85]. Reliability is often regarded as a road toward sustainable development [86]. Therefore, it is vital to improve the reliability of the aging O&G infrastructure. The reliability of a system can be enhanced with proper corrective or preventive maintenance activities [25]. Reliability is closely related to the concepts of maintainability and availability [87], however this is beyond the scope of this work, which focuses on the 3Rs.

3.3. Resilience Assessment

The O&G infrastructure is part of a Nation’s critical energy infrastructure sector, where its incapacitation would devastate national security, economy, public health, safety, and other quality of life factors [88]. No matter how well or advanced the O&G pipeline system is designed, internal failures or failures induced by external factors are bound to occur with time [39]. The O&G infrastructure and operations are also susceptible to natural disasters. Although the occurrence of natural disasters may be predicted with the advancement in weather-prediction technology, the characteristics of its uncertain and widespread impacts are often inevitable [54]. In the case of an unavoidable adverse threat, the O&G infrastructure needs to be resilient [39,89].

The Presidential Policy Directive 21 (PPD-21): Critical Infrastructure Security and Resilience document [90] defines resilience as “the ability to prepare for and adapt to changing conditions and withstand and recover rapidly from disruptions. Resilience includes the ability to withstand and recover from deliberate attacks, accidents, or naturally occurring threats or incidents”. The performance of a resilient system is often presented in a resilience curve, P_T (t), as shown in Figure 7a.

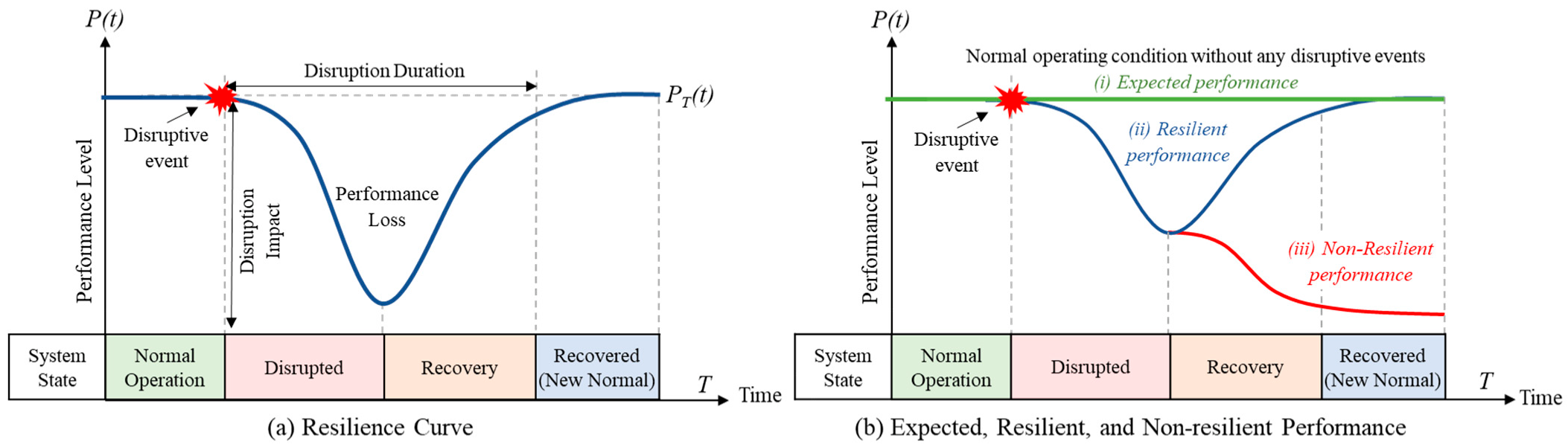

There are many variations to a resilience curve depending on the actual system’s response to disruptive events [90,91]. Generally, in the first state of a resilience curve, the normal operation state, a system is expected to function as usual until the occurrence of a disruptive event. The second state, the disruptive state, is when the system starts to exhibit a performance loss from the negative impact of the disruptive event. The third state is the recovery state, where the system should be able to recover a portion or all of the performance loss to a newly recovered state in state four. This state is often referred to as the “new normal” state, as shown in Figure 7 [26]. The term “new normal” is used to describe a state following a recovery event. It may or may not be the same as the system’s original or normal operation state, depending on the system’s ability to recover from the disruptive event and return to its previous state [91].

One characteristic that sets a resilient system apart from others is that it can be recovered, as opposed to a non-resilient system, as shown in Figure 7b. Additionally, a resilient system should be able to resist the change posed by disruptive events, absorb the adverse impact, and return to its original state [91,92]. Resilience in the context of the O&G sector refers to the ability of the industry to adapt and recover from disruption events or other stressors. Disruptions and stressors in the O&G industry can include natural disasters, technological failures, supply chain disruptions, and fluctuations in demand and pricing [89]. Resilience is important for the industry to maintain the continuity of operations, minimize financial losses, and reduce negative impacts on the environment and society.

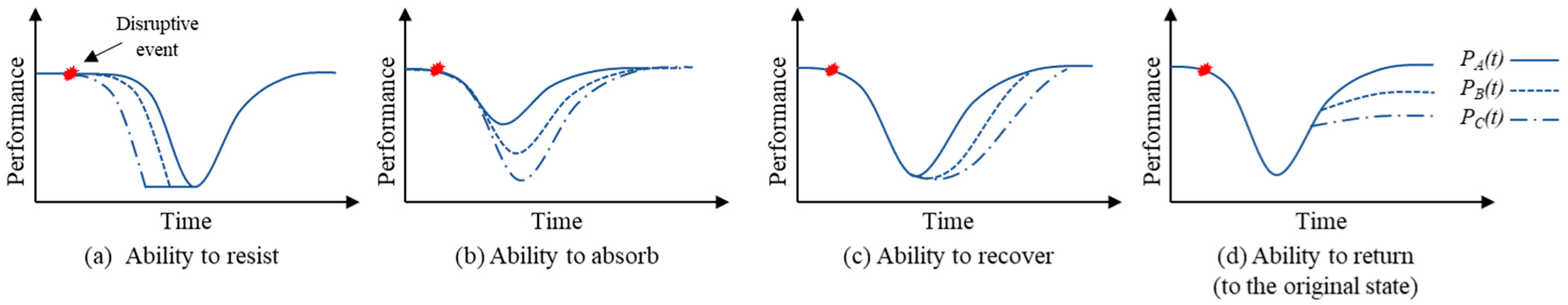

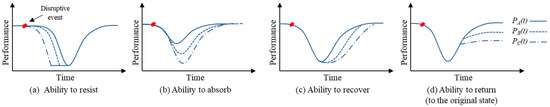

Figure 8 shows three different system performances, P_A(t), P_B(t), and P_C(t). In all subfigures in Figure 8, the resiliency of P_A(t) > P_B(t) > P_C(t). Although it can be said that all three systems are resilient, they exhibit different resilient characteristics in each stage of the resilience curve. In practice, resilience in the O&G sector can involve various measures in each stage of the resilience curve, such as redundant infrastructure, backup systems, contingency plans, and response strategies.

For example, O&G companies may invest in redundant pipelines and storage facilities to ensure backup systems in case of a disruption in the supply chain. This strategy can exhibit better resistance to disruption and minimize the impact on operations. The characteristic of resisting the change is shown in Figure 8a, where the system tried to operate normally as long as possible after the disruptive event occurred and before the performance deterioration took effect. In this case, P_A(t) can be viewed as a more resilient system compared to P_B(t) and P_C(t) since the performance drop occurs last among the three. The characteristic to absorb the impact is shown in Figure 8b, denoted by the smallest decrease in system performance loss. Since P_A(t) has the smallest drop, it can be deemed that P_A(t) is more resilient than P_B(t) and P_C(t).

The O&G industries should have sophisticated contingency plans for emergencies and natural disasters to respond and recover effectively from the disruption as soon as possible. A more resilient system possesses faster recoverability. Figure 8c shows that P_A(t) indicates the earliest and fastest recovery period. Thus, P_A(t) is considered the most resilient among the three system performances.

Lastly, a resilient system should be able to return, as much as possible, to its original state. Resilience in the O&G sector can involve broader societal, economic, and environmental considerations by recognizing that the O&G industry’s impacts extend beyond its immediate operations. In Figure 8d, P_B(t) and P_C(t) are recovered to lower than their original state. In this scenario, it can be said P_B(t) and P_C(t) are less resilient than P_A(t), as P_A(t) is recovered to, or similar to, its original state. This ability to return to its original condition can be improved by involving a range of measures. For example, engaging with local communities, implementing sustainable practices, or promoting a culture of continuous learning and improvement within the O&G sector can help ensure that lessons are learned from past experiences and applied to future activities to enhance the ability to return to its original state.

In many cases, recovery actions and time depend highly on the availability of external resources, typically in the format of monetary funds or human resources [26]. Thus, insufficient resources may prolong or jeopardize the recovery state. Some systems inherently possess a more extended recovery period. For example, environmental rehabilitation will require a more extended period than replacing a failed component during an operation. It should be noted that there are also cases in a system that can be recovered to better than its original state [93].

Depending on the resilience assessment framework, the resilience index (RI) can be quantified based on its ability to recover [18]. Mathematically, RI can be measured as its recovery function, which is the area under the system performance of the second and third stages in the resilience curve presented in Figure 7a, as shown in the equation below.

$$RI\left(\%\right)={{\displaystyle \int }}_{Tre1}^{Tre2}\frac{P\left(t\right)}{T_{re2}}dt$$

(4)

where, t_re1 is the occurrence time of the disruptive events, and t_re2 is the completion time of the recovery action. P(t) is the system performance level at time t.

Another perspective of quantifying system resilience is to compare the expected performance with the resilient system performance. The resilience index (RI) can be measured as the performance loss ratio, as shown in Equation (5). With this approach, RI would have a maximum value of 1 if the resilience performance, P(t), is the same as the expected performance, EP(t). It is possible to have the RI value be more than 1 if the system is being recovered better than the expected performance.

$$RI=\frac{{{\displaystyle \int }}_o^{T}P\left(t\right)dt}{{{\displaystyle \int }}_o^{T}EP\left(t\right)dt}$$

(5)

In other cases, resilience also can be quantified from a system’s reliability perspective [20,94], where it is expected to operate normally without failure (reliability, R) plus the ability to recover (recoverability, REC) when a failure occurs with probability γ, as shown in Equation (5). The recoverability can be quantified further based on correct diagnosis, prognosis, and success mitigation actions [20,94].

$$RI\left(R,REC\right)=Reliability+\gamma ·Recoverability$$

(6)

There are still many debates on measuring and verifying resilience, what characteristics should be included in system resilience, or what protocol should be taken for complex system resilience. Equations (4)–(6) are examples of three different approaches. Other resilience quantification and recovery approaches can be referred to in these references [91,95,96,97]. Since O&G sustainable development encompasses many social, economic, and environmental pillars, resilience in each aspect may be distinctively defined. Environmental resilience would be characterized and analyzed differently than social or economic resilience [23,91,98,99]. This section mainly summarizes resilience from an infrastructure resilience point of view.

4. O&G Sustainable Development and the 3Rs

To achieve sustainable development in the O&G industry, it is crucial to consider the concepts of risk, reliability, resilience, and sustainability in tandem as they complement each other. This paper introduces a new approach to achieving sustainable development in the O&G industry through the application of the 3Rs concept at all levels of social, economic, and environmental aspects of O&G infrastructure. This section highlights the 3Rs’ holistic role in serving as a pathway toward sustainable development in O&G infrastructure and operations.

4.1. Conceptual Relationship and the Holistic 3Rs

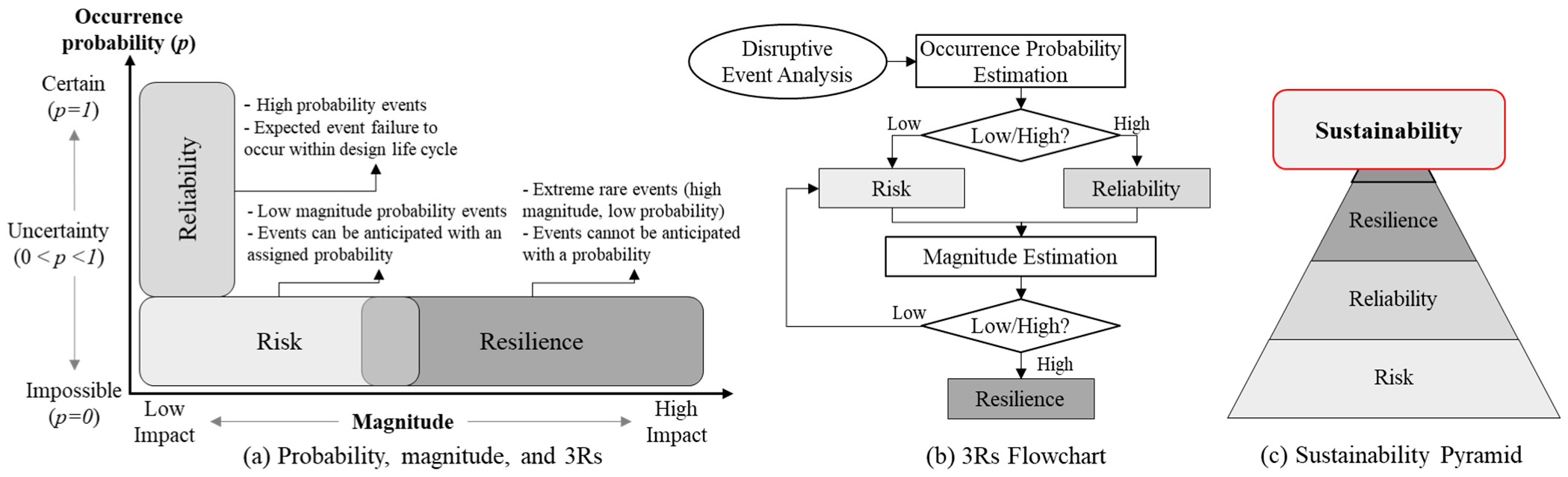

Based on the probability of occurrence (p) and the magnitude of impact, Figure 9a shows where the concepts of risk, reliability, and resilience stand; from Sweetapple et al. [100]. Risk is generally known as the probability of occurrence of an unexpected event or outcome [101]. In risk, the possible outcome events can be anticipated quantitatively with an assigned probability. However, the actual outcome is unknown until the event occurs. Thus, a risk control plan can be formulated beforehand to account for all the possible outcomes. Since there is a pre-mitigation plan in place, typically the negative magnitude of an outcome can be reduced to a low-magnitude probability event if the outcome occurs. Reliability concerns the probability of a failure event expected to occur within the design life cycle. Thus, the occurrence probability is higher compared to the risk. To increase reliability, maintenance or redundancy is often approached [20,83]. Resilience is more commonly associated with extreme, rare, and uncertain events where its occurrence and impact cannot be quantified with an assigned probability [100]. For resilience, failure is often expected and cannot be mitigated, although the occurrence probability of this outcome is often low.

The flowchart of the rules of thumb for when the risk, reliability, and resilience concept is more appropriate based on the disruptive events’ probability of occurrence and magnitude is shown in Figure 9b to complement the 3Rs conceptual relationship and navigate issues in Figure 9a. The probability of a disruptive event can be estimated from the analysis. If the probability is low, a risk management plan can be formulated to mitigate or reduce the risk. However, the reliability concept should be employed if the probability is high. In addition, the magnitude of the event should be estimated. For low-magnitude events, the risk concept can be used to develop a risk management plan, while high-magnitude events will require a resilience concept to sustain the system and formulate a fast recovery strategy to return it to normal operating conditions.

These risk, reliability, resilience, and sustainability concepts complement each other, and their conceptual relationship is summarized by Sweetapple et al. [100]. The relationship between reliability and resilience has been discussed previously in Section 3.3. For risk and reliability, it has been suggested that higher reliability may contribute to risk reduction as the failure is expected to occur less frequently. Risk and resilience have an overlapping uncertainty concept, but they complete each other, where the risk concept accounts for events that can be controlled, and resilience accounts for events in which the negative impact cannot be contained.

To summarize, (i) the risk concept is most applicable for low-probability and low-magnitude events, (ii) the reliability concept is most suitable for high-probability and low-magnitude events, and (iii) the resilience concept is most appropriate for any high-magnitude events. Thus, the risk, reliability, and resilience concepts can aid as the foundation for sustainability, as shown in the conceptual sustainability pyramid in Figure 9c. In order to realize sustainability, all spectrums of event probability and magnitude should be accounted for in sustainable development practices.

4.2. Sustainable Development and the 3Rs

Although it has been emphasized that there is no one-size fits all solution to the multidimensional challenges discussed in Section 2.3, the 3Rs concept can be integrated iteratively into each of the three pillars of sustainability, as shown in Figure 10a. Thus, practitioners can contribute to sustainable development fundamentally from any aspect of social, economic, or environmental sustainability pillars. This integrated approach results in the sustainable development 3Rs matrix consisting of a fundamental matrix and a coupling matrix, as shown in Figure 10b. The term “fundamental” refers to the underlying principles or basic concepts that govern the behavior or properties of a system, while “coupling” refers to the interaction between two or more systems or subsystems.

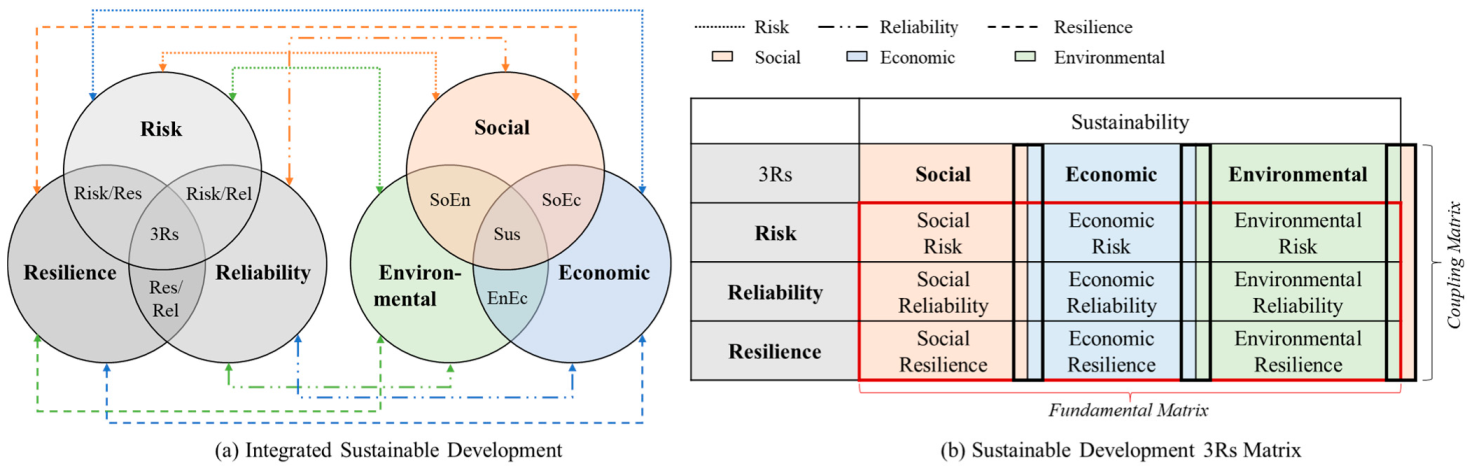

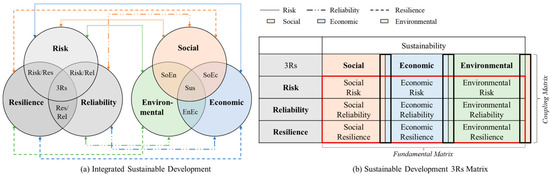

To reduce the complexity of the multi-faceted sustainable development, the fundamental matrix for sustainable development suggested a targeted 3Rs effort to the social, economic, and environmental pillars of sustainability. This fundamental matrix looks at the direct and immediate impacts of a particular activity or process on the environment, economy, and society. For example, social risk will emphasize reducing risks generated by the O&G sectors, such as human rights violations or poor labor conditions, health, and safety. Social reliability focuses on the ability of O&G to consistently provide a reliable energy supply to the community while minimizing the negative impacts on society. Social resilience aims to build a resilient community to withstand and recover from the negative social impact caused by the O&G operations or failures. These fundamental effects can often be measured and quantified, and they may include factors such as emissions, water usage, land use changes, operational costs, and other indices for measuring social welfare.

Since the social, economic, and environmental influences often cannot be entirely distinguished from one another, the fundamental matrix for sustainable development in Figure 10b can be further expanded to include the coupling effect from the individual sustainability pillar. This will result in a coupling matrix between the sustainability pillars and the 3Rs, which consist of: (1) social-economic risk, socio-environmental risk, and eco-economic risk, within the risk framework, (2) social-economic reliability, socio-environmental reliability, and eco-economic reliability, within the reliability approach, and (3) social-economic resilience, socio-environmental resilience, and eco-economic resilience, within the resilience concept. The coupling matrix considers the indirect or long-term impacts of an activity or processes toward achieving sustainability. It should be noted as more coupling matrices are considered, the complexity of sustainable development increases.

In general, the coupling effect refers to the degree to which two or more things are connected or interrelated. In this context of sustainable development, the coupling effect refers to how changes in one part of the sustainability pillar can affect other parts of the pillar. The coupling effect can be positive, where a change in one part of the sustainability pillar leads to beneficial changes in the other pillars. The coupling matrix can also pose a negative effect, where a change in one part of the sustainability pillar leads to detrimental changes in other pillars. The coupling effect can be important to consider in the sustainable development of O&G applications, where it is often highly interconnected, and changes in one area can have significant consequences in other areas.

Although the coupling effects may not be immediately apparent, they can be significant and wide-ranging. For example, the extraction and use of fossil fuels may have a fundamental effect in terms of carbon emissions and local environmental impacts, but it also has a coupling effect by contributing to climate change, which in turn can have far-reaching and often unpredictable impacts on ecosystems, economies, and societies around the world. The coupling effect is significant in sustainable development because it highlights the interconnectedness of environmental, social, and economic pillars and emphasizes the need for a more holistic and integrated approach to sustainable development that considers both the direct and indirect impacts of human activities.

By considering the 3Rs fundamental and coupling matrices of sustainable development in the O&G application, stakeholders and policymakers can understand the impacts of O&G activities and work to achieve sustainability by minimizing negative impacts and maximizing positive ones. In the O&G sector, the role of risk toward sustainable development is to manage the potential risks that arise in O&G practices, achieve a balance between social, economic, and environmental considerations in the decision-making process, and understand the long-term impacts of those decisions on society, economy, and the environment as a whole. Reliable components, systems, and infrastructure are essential to O&G’s sustainable development in guaranteeing a continuous supply of O&G without disrupting society, economy, or environment, now and in the future. Reliability in the O&G industry’s sustainable development ensures that O&G will function well without requiring costly maintenance, excessive repairs, and unnecessary downtime due to replacements. For O&G’s sustainable development, resilience is necessary to ensure that society, the economy, and the environment can adapt to the world’s changing conditions, such as increasing O&G demand, climate change, or natural disasters.

In the U.S., the 3Rs (risk, resilience, and reliability) play a crucial role in current and future energy policy, especially in the oil and gas industry. The U.S. government has established regulations and guidelines to ensure that the industry operates safely and efficiently while addressing environmental and social concerns. The U.S. Department of Transportation’s Pipeline and Hazardous Materials Safety Administration (PHMSA) regulates pipelines transporting hazardous materials [30], while the U.S. Environmental Protection Agency (EPA) has established regulations to reduce air pollution, including emissions from oil and gas operations [8]. The U.S. government also encourages developing and using renewable energy sources to diversify the energy mix and reduce reliance on fossil fuels [102].

However, more needs to be done beyond these concepts to promote sustainable development in the energy industry. It may include investing in clean energy technologies, reducing greenhouse gas emissions, promoting energy efficiency and conservation, and working with local communities to ensure that energy development is aligned with their needs and priorities. Additionally, more holistic 3Rs approaches to energy policy and planning are necessary, which take into account a range of social, economic, and environmental factors and promote long-term sustainability. In short, the 3Rs are critical in shaping energy policy in the U.S., ensuring that the energy sector operates safely, sustainably, and in the best interest of the public; however, there is still work to be done to achieve long-term sustainability.

4.3. Future Research Directions

The problems within the O&G sector are not novel since O&G infrastructure has been developed for many decades. There have been many efforts from the O&G community to advance sustainable development in the O&G industry by investing in renewable energy development, transitioning to a low-carbon economy, implementing energy efficiency measures, improving the safety and well-being of the operators, and many more. However, sustainable development in the O&G industry will always have room for advancement as new risks continuously emerge and new technologies or policies are constantly being developed. Potential research directions for sustainable development in the O&G industry include all ranges from fundamental research to applications. Some examples are, but are not limited to, as follows:

-

Fundamental research and development. Researching ways to use technology to improve and optimize O&G operations while minimizing human resources and negative environmental impact. Some examples include developing low-carbon technology to reduce the carbon footprint of O&G operations, innovating practical measures to integrate and store renewable energy, and utilizing advanced automation methods (such as artificial intelligence, machine learning, and the internet of things) to optimize day-to-day operations.

-

Policy and administrative guidelines. Exploring policies that benefit society, the economy, and the environment, as a whole, without sacrificing one or another sustainability pillar. Some examples include social health and safety insurance policies, effective carbon pricing, recycling incentives, and other environmental protection and rehabilitation movements.

-

Application, observation, and measures. Putting into effect sustainable development practices in the social, economic, and environmental aspects of the O&G sector and finding a way to holistically monitor and measure the effectiveness of sustainable development practices. The outcome can eventually be used to enhance the research and development efforts and update the policy or other administrative guidelines. This will further ensure sustainable development is continuously implemented in the O&G sector in this uncertain world’s condition.

Achieving sustainability in the O&G industry with the 3Rs approach requires a comprehensive approach, as discussed in Section 4.2. It is essential to establish a proactive risk management plan that is comprehensive in addressing all possible risks and hazards. This includes both natural and human-induced risks, such as those caused by climate change, cyber threats, or supply chain disruptions. This plan should be updated regularly to address new risks that may emerge over time. Additionally, the O&G sector can focus on improving the resilience and reliability of its infrastructure and operations to withstand potential disruptions and recover quickly from any adverse events. By prioritizing risk management and infrastructure resilience, companies can better prepare themselves for potential disruptions and recover more quickly from adverse events.

The O&G industry must involve all stakeholders, including local communities, policymakers, regulators, and investors, in sustainable development decision-making. Collaboration and transparency can help build trust and ensure that sustainable development goals align with all parties’ needs and expectations. Finally, regular monitoring and evaluation of sustainability practices and sustainable development plans are essential to identify areas for improvement and make necessary adjustments to achieve sustainability in the long term.

The continuation of this work will entail a deliberate focus on the creation and refinement of a comprehensive integration framework that is both structured and well-defined, with a view to measuring sustainability more accurately and effectively using the 3Rs approach. The framework will also include a robust and reliable measurement assessment process to help capture and analyze critical data points, providing a more complete picture of sustainability efforts in the O&G industry.

5. Conclusions

Sustainable development in the O&G industry requires a balance between economic growth, energy security, and social and environmental concerns. This paper has proposed a novel approach to achieving sustainable development by introducing the holistic 3Rs concept and its influence on the industry. By integrating the 3Rs approach with the three pillars of sustainability, this paper has identified a fundamental and coupling matrix that can help reduce the complexity of sustainable development in practice. The contributions of this paper extend beyond the O&G industry and can be applied to other critical infrastructures to build a better future for future generations. This paper also suggests future research directions that require collaborative efforts from technology researchers, policymakers, and practitioners. The perspectives presented in this paper offer a fresh and valuable contribution to the field of sustainable development.
