Multi-Criteria Earthquake Risk Sensitivity Mapping at the Local Level for Sustainable Risk-Sensitive Land Use Planning (RSLUP)

Abstract

Risk-Sensitive Land-Use Planning (RSLUP) is a critical process for integrating disaster-risk management (DRM) considerations into land-use planning, for which first it is necessary to understand the existing risk sensitivity. This study aims to develop a GIS-based multi-criteria zoning approach to mapping earthquake-risk sensitivity of land use at local level. The methodology comprises two main steps. Firstly, the spatial earthquake-risk sensitivity of land use is evaluated based on some risk themes related to development, land use, and emergency facilities. Secondly, earthquake-risk sensitivity is mapped by overlaying the spatial risk-theme maps, using weights determined through the Analytical Hierarchical Process (AHP). Overall, four earthquake-risk-sensitive zones were identified in the study area, ranging from high-risk-sensitive zones to low-risk-sensitive zones. This research contributes to the theory and practice of DRM by proposing a multi-criteria risk-sensitivity assessment and mapping methodology. The findings demonstrate that the risk-sensitivity map provides policymakers with a guide to identify “where” and “why” RSLUP interventions are necessary. This will serve as a decision-support system to formulate the “what” and “how” of the RSLUP at the local level, reflecting the risk sensitivity accordingly and thereby ensuring sustainability.

1. Introduction

Catastrophic earthquakes can affect large areas, with long-lasting economic, social, and political effects [1]. Such an effect is exaggerated in urban centers due to unplanned urbanization and development in high-risk zones [2]. This can be combated through proper risk-management measures, which have been proven effective from historical earthquakes in different countries [3,4,5]. Among different approaches to achieving resilience against earthquakes, Risk-Sensitive Land-Use Planning (RSLUP) is significant, and is the process of mainstreaming disaster-risk reduction and management parameters in land-use planning [6]. It is an effective approach to ensure sustainable hazard mitigation and thereby to ensure resilience by reducing disaster losses (human life and physical, environmental, and institutional assets) [7,8,9]. According to Saunders and Becker [10], to achieve long-term sustainability and greater resilience, visionary land-use-planning solutions are necessary. Such planning is much more effective at the local level because it ensures micro-level risk management [11].

According to Villacis [12], for appropriate disaster-risk management, appropriate urban and regional planning strategies and their effective implementation is a must. However, the sustainability of planning appropriate strategies requires identifying and understanding the existing risk as well as the underlying reasons for such risks, along with their magnitude [10,13]. Hence, to ensure the successful application of RSLUP, it is necessary to understand the risk sensitivity of the existing land use through prior assessment [14,15,16]. Based on the findings from the assessment, a risk-sensitivity zoning map can be produced, from which the existing spatial risk sensitivity of the land use of an area can be observed promptly [17,18,19]. Based on the findings from the risk-sensitivity assessment of the land use and the risk-sensitivity zoning map, RSLUP can be carried out. This would ensure the appropriate adoption of strategies in the land-use planning, reflecting the existing risk sensitivity accordingly. Thus, the plan would be more effective and sustainable [10,13], contributing to the resilience of the built environment in the long run by addressing the existing risk sensitivity.

Although a large and growing body of literature has investigated RSLUP, the research to date has tended to focus on RSLUP approaches [8,20,21], the effectiveness of integrating risk sensitivity into urban master plans to limit future development in disaster-prone areas [22,23], the integration of earthquake hazards into land-use plans and policy statements at the national level [7,24], the integration of earthquake-risk sensitivity in land-use planning at the city level [17,25,26], and the implementation of RSLUP through policy initiatives by local, federal, and state governments [16,27].

Realizing the importance, several studies have focused on RSLUP at the local level. Sharma, Donovan, Krishnamurthy and Creed [21] explored the scope of public participation in RSLUP at the local level in Nepal. Barua, et al. [28] proposed a methodology to integrate earthquake-risk sensitivity into land-use planning for a local-level area in Bangladesh. Motamed, et al. [29] presented a model to find an optimal spatial land-use allocation pattern for a defined urban environment to assist the urban planners with a hazard-informed land-use allocation in planning new urban settlements or in improving existing urban areas in Iran. Bendimerad and von Einsiedel [11] intended to reduce earthquake risk of a highly vulnerable urban area in the Philippines by means of urban redevelopment through RSLUP. Fat-Helbary, et al. [30] studied earthquake-risk sensitivity of a proposed city area in Egypt and anticipated some land-use-planning strategies to integrate risk sensitivity into the proposed plan. Several local-level projects were undertaken in Istanbul for RSLUP, e.g., the Zeytinburnu urban-transformation project for redevelopment and the Marmara Earthquake Emergency Reconstruction (MEER) project [24]. However, none of them emphasized the importance or application of assessment and mapping of existing land use at the local level to facilitate effective and sustainable local-level RSLUP. Aggregating different aspects to obtain an overall picture of the risk sensitivity was also not considered.

In this background, this research aims to introduce a GIS-based multi-criteria zoning approach for the assessment and mapping of spatial earthquake-risk sensitivity of the land use of a local-level area to fill one of the gaps in RSLUP, particularly at the local level. Thus, the objectives of this research are twofold: firstly, to assess spatial earthquake-risk sensitivity of a land use at the local level, and secondly, to prepare a multi-criteria risk-sensitivity zoning map for the area combining the assessed risk. Here, a local level area in Dhaka, Bangladesh, was considered as the case-study area.

2. Literature Review

2.1. Risk Themes for Earthquake-Risk-Sensitivity Assessment of the Land-Use Plan

Risk themes are distinctly manageable clusters of probabilities and vulnerabilities, which are required to be considered for RSLUP [31]. Therefore, relevant risk themes should be considered a basis for earthquake-risk-sensitivity assessment of the land-use plan. The World Bank and Earthquakes and Megacities Initiative (EMI) [18] (p. 42) proposed some risk themes and their corresponding risk factors in the Risk-Sensitive Land-Use Planning Guidebook for Dhaka city under the Bangladesh Urban Earthquake Resilience Project. The risk themes are related to:

• Governance: planning process and plan formulation, legal environment and institutional arrangements, implementation process (development-permit process, building-code enforcement, zoning enforcement, etc.), risks in administrative incapacities (deficiencies in terms of infrastructure/hardware, experts, training programs, etc., of the municipalities and governorate), risks of alienation of citizens (avoidance of participation efforts and involvement);
• Development: risks in macro form and growth tendencies in the metropolitan area (hazard assessment and analyses of alternatives in settlement configuration), urban-fabric risks, as related to the location and nature of physical development (building height/proximity, plots, density, roads, carparks, etc.);
• Built environment: risks in the building stock, risks in lifelines;
• Land use: incompatible land-use risks of neighboring units (in buildings and adjacent land uses), risks of hazardous uses (liquefied petroleum-gas and petrol stations, chemicals, explosives, etc.), special risk areas/special buildings (areas subject to landslide/flooding/tsunami, etc., as well as historic buildings and their environs);
• Emergency facilities: risks in emergency facilities (locational, organizational, structural attributes of hospitals, schools, etc.), open-space-deficiency risks (open-space requirements of emergency access and storage and/or temporary shelters);
• Economic factor: risks of productivity loss (industrial plants, businesses, etc.);
• External factor: external vulnerabilities and risks (climatic extremes, accidents, public unrest, terrorism, etc.).

Although the World Bank and EMI [18] provided a guideline for RSLUP, it does not propose a methodology for the assessment of earthquake-risk sensitivity of land-use plans based on these risk themes.

2.2. Ground Shaking

An earthquake with one magnitude at one epicenter produces a range of levels of ground shaking at sites throughout the region depending on the distance from the epicenter. It is represented in terms of Peak Ground Acceleration (PGA), which is the peak horizontal acceleration as a percentage of acceleration due to the force of gravity, or “g”. After the assessment of ground shaking due to an earthquake in an area, it is represented by a “ShakeMap”, which is a representation of ground-shaking distribution in an area produced by an earthquake [32]. There are several modeling tools available for the assessment of ground shaking, such as HAZUS (HAZards United States), GIS-based RADIUS (Risk-Assessment tools for DIagnosis of Urban areas against Seismic disasters), SELENA (SEismic Loss EstimatioN using a logic-tree approach), ShakeMap, and KHM (Karmania Hazard Model).

Table 1. Comparison among earthquake ground-shaking-assessment tools.

Tools	Developer	Country of Origin (Application)	Base	Parameters	Accuracy	Environment	Possibility of Use in Developing Countries	Reference
HAZUS	National Institute of Building Science (NIBS), 1997	USA	GIS	Epicenter location, magnitude of the earthquake, fault-plane attributes (dimensions, depth to the top of the fault, orientation, and dip), and distance of the epicenter from the study area	High	Complex–Interactive	Yes	[33]
GIS-based RADIUS	GeoHazards International (GHI), 1996	Developing countries	Excel-GIS		Medium–high	Simple–Static	Yes	[34]
SELENA	International Centre for Geohazards (ICG), 2004	Norway	MATLAB		Medium	Moderate–Static	No	[35]
ShakeMap	U.S. Geological Survey (USGS), 2004	USA	GIS- Web		High	Complex–Static	No	[36]
KMH	Kerman Disaster Management Center (KDMC), 2008	Iran	GIS		Medium	Moderate–Interactive	No	[37]

Source: Adapted from [38,39].

shows a comparison of them. Although the parameters are same for all the methods, differences in the detailing of the analysis leads to variation in the accuracy of the outputs.

2.3. Ground Response or Soil Amplification

Ground shaking is the primary cause of earthquake damage to manmade structures. However, some places in the same area may experience stronger seismic shaking than others during such events. The main reason behind such phenomena is the complexities and variation in the rock and soil conditions. During an earthquake, the propagation of seismic waves through the soil columns alters the amplitude, frequency, and duration of ground shaking differently depending on the rock and soil conditions (in some places it is reduced, whereas in some places it is intensified). Such influence of the underlying rock and soil conditions on the local amplification of earthquake shaking is called the site effect. The analysis to determine the site effect is called the assessment of ground response or soil amplification [40]. There are several methods for evaluating the effect of local soil conditions on ground response during earthquakes. Some of the commonly used tools for analysis of ground response or soil amplification are SHAKE, DEEPSOIL, and PLAXIS.

Table 2. Comparison of ground-response or soil-amplification tools.

Tools	System Utilized	Applicability	References
SHAKE	One-dimensional system that implements an equivalent linear analysis based on continuous layer discretization in the frequency domain	Widely used due to its simplicity, flexibility, and low computational requirements	[32,41]
DEEPSOIL	One-dimensional system that can perform linear, equivalent linear, and non-linear approaches of analysis that uses the strain-dependent shear modulus and damping ratio in the time domain	In cases of high seismic intensities at the rock base and/or high strain levels in the soil layers, an equivalent soil stiffness and damping for each layer cannot represent the behavior of the soil column over the entire duration of a seismic event. In such cases, ground-motion propagation through deep soil deposits can be simulated using this tool.	[42]
PLAXIS	PLAXIS 2D is a two-dimensional and PLAXIS 3D is a three-dimensional finite-element program that uses a non-linear approach of analysis in the time domain.	It is used for the simulation of the anisotropic behavior of soils or rock to deal with various aspects of complex geotechnical structures.	[43,44]

shows a comparison of them.

2.4. Soil-Liquefaction Susceptibility

Soil liquefaction is when saturated sand and silt behave like a liquid during an earthquake, and it occurs mostly in regions of manmade landfill. Factors that influence liquefaction include the geologic history of the deposit, groundwater depth, grain-size distribution, soil density, and ground slope. During an earthquake, excess pore-water pressure develops due to ground shaking, which causes the soil to lose strength and stiffness. If the pore-water pressure builds up to the point where it is equal to the overburden pressure, the sand loses its strength completely and it develops a liquefied state. This can cause buildings to sink or tilt, lightweight structures to float upwards, and foundations to displace laterally. The physical characteristics of the soil determine liquefaction susceptibility, and there are four methods for evaluating the liquefaction potential of sandy soil due to earthquake motion [45,46,47].

Table 3. Comparison among soil-liquefaction susceptibility-assessment methods.

Evaluation Method	Data Requirement	Complexity	Usefulness for Mapping Liquefaction Susceptibility	Related Literature
Topographical- and geological-feature analysis	Topographical and geological data	Simple	Useful for wide areas	[48,49]
Penetration test	Direct use of geotechnical data: N-value and grain-size-distribution data, and estimates of peak-surface acceleration through a penetration test	Simple	Useful for wide areas	[50,51]
Laboratory cyclic-shear testing of undisturbed sample	Geotechnical data: laboratory cyclic-shear testing of undisturbed samples in light of dynamic-response analyses	Complex: too tedious and costly	Rigorous examination at a single site	[52,53]
In-situ blasting or laboratory shake-table testing	Geotechnical data: in-situ cyclic or blasting tests, or laboratory shaketable tests	Complex: too tedious and costly	Rigorous examination at a single site	[54,55]

shows a comparison of them. All of these methods produce reliable outcomes and are widely used. However, the choice of method depends on the complexity and usefulness, considering the scale.

2.5. Fuzzy Overlay

“Fuzzy overlay” is a raster-overlaying method that follows fuzzy logic. It is applicable in such cases where it may become necessary to overlay raster data with different scales and units and have inaccuracies in the attributes and geometry of spatial data. It specifically addresses situations in which the boundaries between classes are not clear [56]. The concept is rooted in set theory and pertains to the likelihood of a phenomenon being a member of a set or class, rather than probabilities [56,57]. Considering its applicability, several researchers utilized the fuzzy-overlay tool for raster-overlay analysis. It was used for hazard assessment for earthquakes [58,59], fire [60], drought [61], landslides [62,63], land subsidence [64], and floods [65]. Some researchers have utilized fuzzy overlay for suitability analysis in the fields of port development and evaluation [66], sustainable urban development [67], and agriculture [68,69].

The fuzzy-overlay method involves two steps: (i) fuzzification and (ii) fuzzy overlay. Fuzzification is necessary to reclassify or transform the raster datasets to be overlaid on a 0 (no membership) to 1 (full membership) scale, identifying the possibility of belonging to a specified set [56,57]. In ArcGIS 10.3.1, it can be done using the Fuzzy Membership tool. To aid this transformation process, there are several membership functions in the Fuzzy Membership tool, i.e., fuzzy Gaussian, fuzzy large, fuzzy mean and standard-deviation-based large, fuzzy linear, fuzzy near, fuzzy small, and fuzzy mean and standard-deviation-based small [70]. The fuzzy-large approach is used when larger input values are more likely to be a member of the set. The midpoint is used to identify the crossover point, with values greater than the midpoint having a higher possibility of being a member of the set. This approach is consistent with soil-amplification and soil-liquefaction susceptibility. After fuzzification of the raster data, several techniques are available for fuzzy overlaying, including fuzzy and, fuzzy or, fuzzy product, fuzzy sum, and fuzzy gamma. Fuzzy or returns the maximum value of the sets the cell location belongs to, which is useful in seismic-hazard assessment to identify the highest membership values for any of the input criteria. If an area is susceptible to either criterion, it is considered vulnerable. [71]

3. Methodology

3.1. Selection of the Study Area and Study-Area Profile

Bangladesh has a high probability of earthquake occurrence due to its geographical location and historical trend of seismicity. The country is located in the northeastern part of the Indian sub-continent at the junction of three moving plates (i.e., the Indian plate, the Eurasian plate, and the Burmese micro-plate), which results in the generation of active faults [72]. According to Akhter [72] (p. 402), “…The Indian plate is moving ~6 cm/yr in a north-east direction and subducting under the Eurasian (@45 mm/yr) and the Burmese (@35 mm/yr) plates in the north and east, respectively. This continuous motion is taken up by active faults…” Thus, the movement of the plates in and near Bangladesh are generating active faults. The five main active faults lying in and near Bangladesh are the Madhupur fault (MF), Dauki Fault (DF), Plate Boundary Fault-1 (PBF-1), Plate Boundary Fault-2 (PBF-2), and Plate Boundary Fault-3 (PBF-3) [73]. The map showing the regional tectonic setup of Bangladesh with respect to the plate configuration can be found in Akhter [72] (p. 402), and the map showing the earthquake-fault zones in and near Bangladesh can be found in CDMP [73] (p. 5-1).

Among other cities in the country, Dhaka, the capital city of Bangladesh, is at high risk for exposure to potential earthquakes, where the vulnerability is high due to unplanned land use without disaster-risk consideration and violation of building codes and by-laws [18,74]. Small tremors are felt in and around the country every year from time to time. However, in the past few hundred years, several catastrophic earthquakes have happened in Bangladesh, and Dhaka city was greatly affected. The most significant among them were the Cachar Earthquake of 1869 (from the PBF-3 fault at Modified Mercalli Intensity MMI VI in Dhaka city), the Bengal Earthquake of 1885 (from the Madhupur Fault at MMI VII+ in Dhaka city),the Great Indian Earthquake of 1897 (from the Dauki Fault at MMI VIII+ in Dhaka city), the Sri-Mangal Earthquake of 1918 (from the PBF-2 Fault at MMI VI+ in Dhaka city), and the Dhubri Earthquake of 1930 (from the Dhubri Fault at MMI V+ in Dhaka city) [75,76]. A powerful earthquake needs at least 100–150 years to originate for a particular region, and thus is overdue for Bangladesh, as it last experienced a large earthquake in 1897 [77]. Hence, the occurrences of historical earthquakes and long-term silences of a potential earthquake happening (seismic gap) across the region indicates that the active faults are gaining energy [72,78,79]. Consequently, the possibility of a strong earthquake occurring and affecting Dhaka city is increasing over the time period. Therefore, different national and international studies have identified Dhaka as being highly vulnerable to earthquakes [79,80].

Considering the earthquake vulnerability of Dhaka city, several studies have been carried out focusing on earthquake-risk assessment and management [81,82,83]. Barua, Islam and Ansary [28] focused on the integration of earthquake-risk sensitivity in land-use planning. Several initiatives have been undertaken by the Government of the Republic of Bangladesh (GoB) to integrate risk sensitivity into the land-use-planning process [19,84,85]. Nevertheless, none of the research focused on the assessment and mapping of earthquake-risk sensitivity of the land use at the local level before the RSLUP.

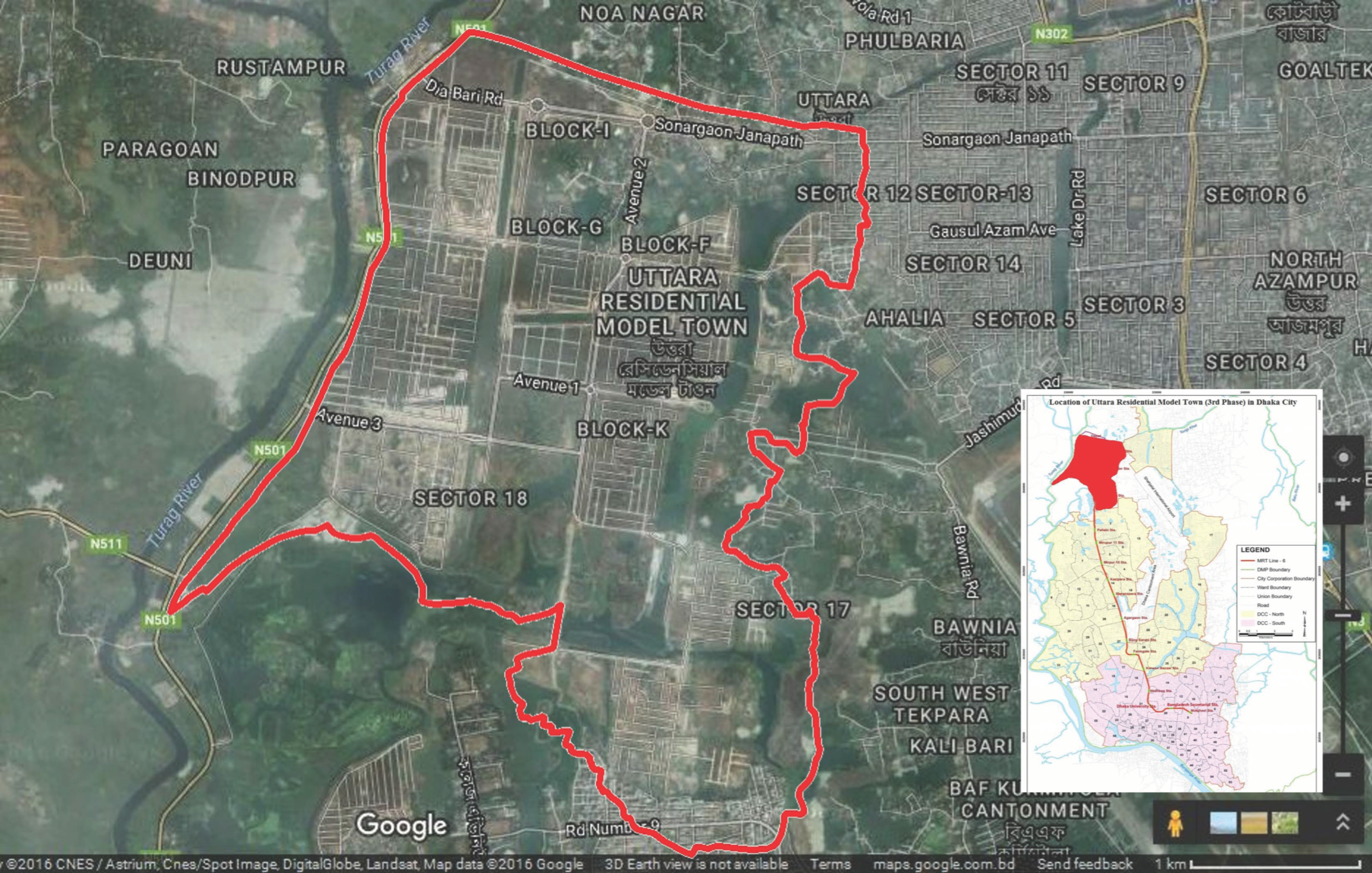

Uttara Residential Model Town (URMT) (3rd phase), Dhaka, Bangladesh, was selected as the study area in this research. It is one of the township projects initiated by the Capital Development Authority (RAJUK) [86]. It is located in the northern part of the Dhaka Metropolitan area, which has been identified as a highly earthquake-prone area [87]. Figure 1 shows a satellite image of the study area (URMT 3rd phase), along with its location in Dhaka city in the inset.

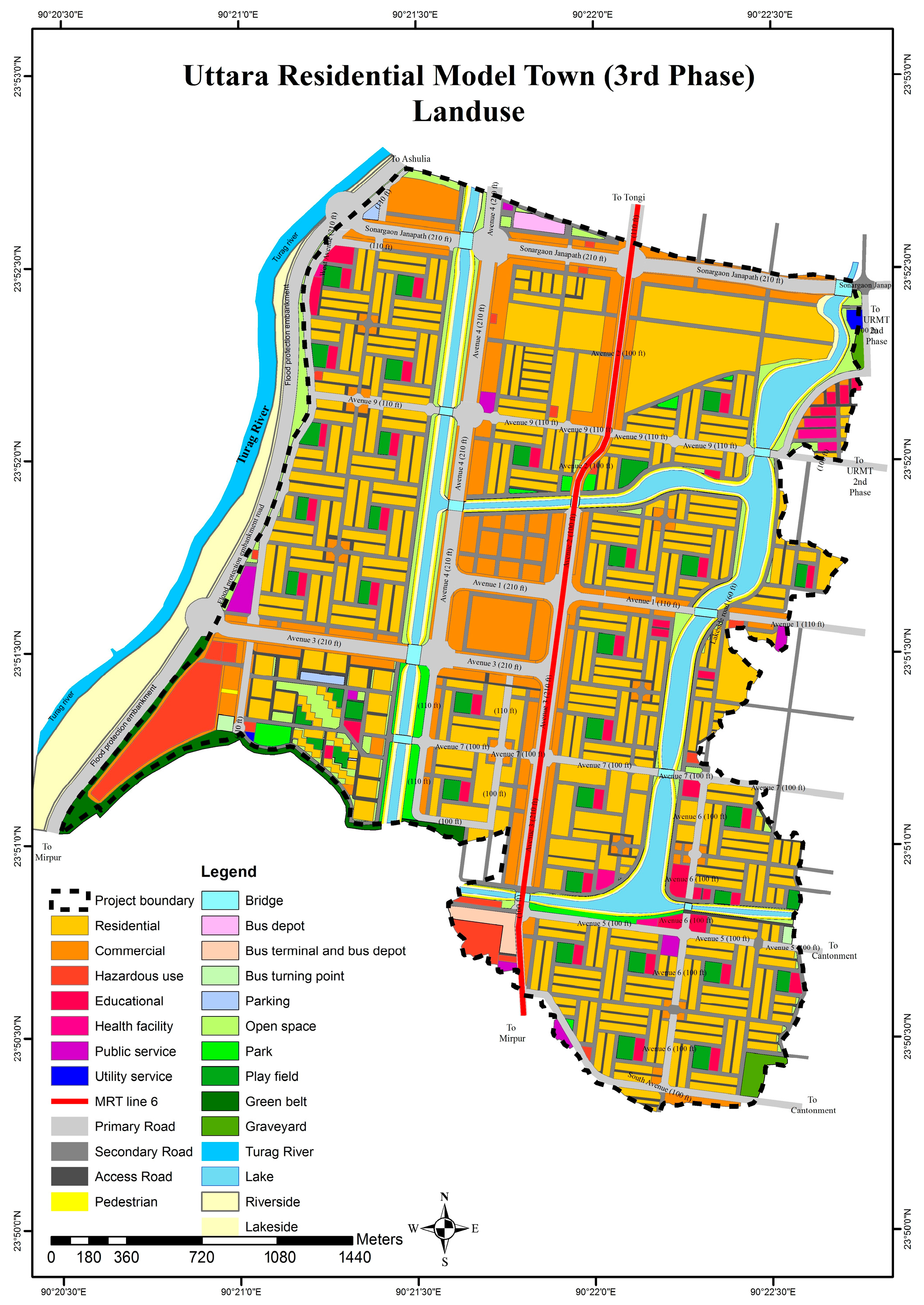

The study area includes around 9.11 km² of land. The proposed density of the study area is 300 persons per acre and the projected total population to be accommodated within its area is around 0.65 million people [88]. The area is divided into four sectors (i.e., 15–18) and a central plaza (commercial zone). The four sectors are further divided into 40 neighborhoods. The land use in the study area was planned considering the grid pattern. Here, different uses were allocated by RAJUK based on the Private Housing Land Development Rule, 2004 [89], considering the projected population to ensure minimum land for urban community facilities and improve the living quality [88]. Among different uses, the most significant uses of the total area are road network (33.73%), residential (33.39%), and commercial (11.81%). The rest of the uses include hazardous uses, critical facilities (educational, health, and public service), utility services, water bodies, and open space. Figure 2 shows the land-use map of the study area.

At the time of conducting this research (2016 to 2018), the study area was under a development process. About 92% of the site-development work was completed. About 70% of the road-construction work was completed. Electric poles were partially installed. Water-supply and gas-line installation works were yet to be started. The remaining works were in progress.

3.2. Data Collection and Processing

The necessary data required for this research were collected from secondary sources and key informant interviews from 2016 to 2018. A land-use map of the study area was collected from RAJUK [86,90]. Borehole-test data at 10 different points of the study area were collected from the Department of Civil Engineering, Bangladesh University of Engineering and Technology (BUET). The GIS shapefiles of the geomorphology and suitability of the structures considering the geomorphic unit of the Dhaka Metropolitan Area were collected from the Geological Survey of Bangladesh (GSB) [91]. From these collected resources, data from the study area were extracted for this research. All the spatial analysis and mapping in this research were done in the Arc GIS 10.3.1 platform. Therefore, to ensure consistency of scale, all of the collected maps and spatial data of the study area were converted into GIS shapefiles considering the Bangladesh Transverse Mercator (BTM) projection system.

3.3. Selection of Risk Themes for Assessment of Earthquake-Risk Sensitivity of the Land Use

Among the risk themes mentioned in Section 2.1, some themes were selected as the criteria for earthquake-risk-sensitivity assessment of the land use of the study area in this research considering the context of this research and the scale and development status of the study area. These are related to development, land use, and emergency facilities, including macro-form risks (seismic hazard), risks in transportation, risks in hazardous uses, special risk areas (geomorphic suitability and distance from a water body), open-space-scarcity risk, and risks in critical facilities (distance from potential temporary shelters and distance from health facilities).

3.4. Seismic-Hazard Assessment of the Study Area

Among the risk themes, macro-form risks include understanding and evaluating the earthquake hazard in an area to ensure increased resiliency through the successful adoption of appropriate measures in land-use planning [12,39,92]. It helps to identify and avoid potential problems associated with development in hazard-prone areas [14,93]. In this research, for the assessment of earthquake hazard in the study area, first, the scenario earthquake was selected based on the study of the GoB on earthquake scenarios for Dhaka city under the Comprehensive Disaster Management Program (CDMP) [73]. The detailed discussion and findings from the scenario selection are discussed in Section 4.1. Based on the selected scenario earthquake, the earthquake hazard in the study area was assessed through assessment of ground shaking, ground response or soil amplification, and soil-liquefaction susceptibility. After that, the seismic-hazard map of the study area was prepared. The assessment steps and methods are discussed in the following sections:

3.4.1. Assessment of Ground Shaking

Among the different methods discussed in Section 2.2 (Table 1), GIS-based RADIUS is more convenient to use for its simple methodology and because it does not require detailed technical knowledge of earthquake engineering to ensure a medium–high level of accuracy [39]. Though it is not sufficient in terms of detailing, it is good enough for decision-making, considering the financial and temporal aspects [94]. Some studies in Bangladesh also utilized the RADIUS tool [95,96]. Therefore, to prepare the ground-shaking map of the study area in terms of PGA, the GIS-based RADIUS tool was used in this research. For this purpose, first, the study area was divided into square grids with a dimension of 0.25 km by 0.25 km using the Fishnet tool in ArcGIS 10.3.1 considering the dimension of the study area. After that, the grids were inputted into the RADIUS tool. Then, the parameters from the selected scenario earthquake were inputted, e.g., epicenter location, magnitude of the earthquake, fault-plane attributes (dimensions, depth to the top of the fault, orientation, and dip), and distance of the epicenter from the study area. After running the tool using the inputted data, a ShakeMap of the study area was produced. After that, the grid-wise values of ground shaking were inputted in ArcGIS 10.3.1. Thus, the spatial distribution of ground shaking in the study area was computed for the scenario earthquakes.

3.4.2. Assessment of Ground Response or Soil Amplification

Among the different methods discussed in Section 2.3 (Table 2), DEEPSOIL can simulate ground-motion propagation through deep soil deposits in cases of high seismic intensities at the rock base. Therefore, in this research, DEEPSOIL software was used to analyze the ground response and soil amplification of the study area by integrating it with GIS. To study the soil amplification, first, the borehole-test data (soil composition) and corresponding ground-shaking results (obtained from Section 3.4.1) were inputted into DEEPSOIL. After running the software, soil-amplification factors for each of the points were generated. Then, these data points of the soil-amplification factors were inputted into ArcGIS 10.3.1. Then, using the Kriging interpolation tool in ArcGIS 10.3.1, the data points were converted into two-dimensional plane data, which is the ground-response or soil-amplification map of the study area. Kriging interpolation is one of the most suitable methods for geological and geotechnical predictions in space, and is known as the optimal-interpolation method and is less arbitrary than others [97,98]. In this way, a soil-amplification map of the study area was prepared for this research.

3.4.3. Assessment of Soil-Liquefaction Susceptibility

Of different methods discussed in Section 2.4 (Table 3), the penetration-test method was utilized in this research due to its simplicity and usefulness for mapping liquefaction susceptibility in large areas [50,51]. Based on the evaluation of the borehole-test data, including groundwater level, soil composition and subsoil investigation (Standard Penetration Test SPT-N value), and corresponding ground-shaking results (obtained from Section 3.4.1), the soil-liquefaction susceptibility at each of the points was generated. Then, these data points were inputted into ArcGIS 10.3.1. Using the Kriging interpolation tool in ArcGIS 10.3.1, the data points were converted into two-dimensional plane data, producing the soil-liquefaction-susceptibility map of the study area.

3.4.4. Mapping the Seismic Hazard of the Study Area

In this research, the soil-amplification- and soil-liquefaction-susceptibility maps of the study area were developed based on the ground-shaking attributes developed in GIS-based RADIUS. Overlaying these maps, the seismic-hazard map was prepared for the study area in ArcGIS 10.3.1. Here, liquefaction susceptibility and soil amplification are different phenomena and are represented in different units. Moreover, it is very difficult to classify these phenomena into distinct classes, e.g., high, moderate, and low. Considering the consistency of assumptions with the characteristics of the soil-amplification and soil-liquefaction susceptibility, the fuzzy-overlay technique was applied here (discussed in Section 2.5). Reclassification of the raster maps was done through fuzzification by applying the fuzzy-large function of the Fuzzy Membership tool in ArcGIS 10.3.1. After that, the fuzzy-or function of the fuzzy-overlay tool was applied to overlay the reclassified raster maps of soil-amplification and soil-liquefaction susceptibility. Thus, the seismic-hazard map of the study area was prepared.

3.5. Preparation of Individual Risk-Theme-Based Risk-Sensitivity Maps

To translate the risk themes into the spatial aspect, the risk themes were further defined and classified into risk-sensitivity scales (1 to 5, where 1 represents low risk sensitivity and 5 represents high risk sensitivity) based on the review of different works of literature [85,93,99,100,101].

Table 4. Risk themes, corresponding attributes, and risk-sensitivity scales for the preparation of individual risk-theme-based risk-sensitivity maps.

Risk Themes	Risk Attributes	Explanation	Risk Sensitivity (From Low to High)
			1 (Low)	2	3	4	5 (High)
Macro-form risks	Seismic-hazard mapping	The more prone the area is to earthquakes, the higher the risk sensitivity and the higher the possibility of being affected by an earthquake.	Very low	Low	Moderate	High	Very high
Risks in transportation: interconnectedness in the area as a means of escape and access to rescue and relief	Distance from primary roads	The farther the area is from primary roads, the higher the risk sensitivity and the greater the time needed to reach out for rescue and relief.	<100 m	100–500 m	500–1000 m	1000–1500 m	>1500 m
Risks in hazardous uses (LPG and petrol stations, chemicals, explosives, power plants, etc.)	Distance from hazardous use	The nearer the area is to hazardous use, the higher the risk sensitivity and the higher the possibility of being affected by secondary disasters	>200 m	150–200 m	100–150 m	50–100 m	<50 m
Special risk areas	Geomorphic suitability	The weaker the soil condition, the higher the risk sensitivity and the higher the possibility of being affected by amplification and liquefaction.	Very suitable	Suitable	Moderate suitable	Weak	Very weak
	Distance from a water body	The nearer the area is to a water body, the higher the risk sensitivity and the higher the possibility of being affected by liquefaction.	>200 m	150–200 m	100–150 m	50–100 m	<50 m
Open-space-scarcity risk (open spaces are the priority to be used as evacuation space during and after an earthquake)	Distance from open space (walking distance)	The farther the area is from open spaces, the higher the risk sensitivity and the greater the time needed to reach out for evacuation.	<400 m (<5 min)	400–800 m (5 to 10 min)	800–1200 m (10 to 15 min)	1200–1600 m (15 to 20 min)	>1600 m (>20 min)
Risks in critical facilities	Distance from potential temporary shelters (walking distance): educational and public services	The farther the area is from potential temporary shelters, the higher the risk sensitivity and the greater the time needed to reach out for temporary shelter.	<400 m (<5 min)	400–800 m (5 to 10 min)	800–1200 m (10 to 15 min)	1200–1600 m (15 to 20 min)	>1600 m (>20 min)
	Distance from health facilities (walking distance)	The farther the area is from health facilities, the higher the risk sensitivity and the greater the time needed to reach out to health facilities.	<400 m (<5 min)	400–800 m (5 to 10 min)	800–1200 m (10 to 15 min)	1200–1600 m (15 to 20 min)	>1600 m (>20 min)

Source: Prepared by authors based on review of [85,93,99,100,101].

shows the risk themes, their corresponding attributes, and the risk-sensitivity scales for the preparation of individual risk-theme-based risk-sensitivity maps of the study area. Risk-sensitivity maps were created for the land use of the study area using ArcGIS 10.3.1 based on the conditions and scales defined in Table 4. The prepared seismic-hazard map was reclassified into five classes for macro-form risk, whereas the Create Buffer tool was utilized for distance-based risk themes and corresponding attributes such as risks in urban texture, hazardous uses, special risk areas, open-space-scarcity risk, and risks in critical facilities. Shapefiles of land use such as primary road, hazardous use, water body, open space, educational and public facility, and health facility were used for this purpose. The soil-suitability data of GSB was reclassified into five classes for special risk areas (geomorphic suitability) using the Raster Reclassification tool according to the GSB classification shown in Table 4 [91].

3.6. Mapping Earthquake-Risk Sensitivity of Land-Use Plan

The prepared risk-theme-based risk-sensitivity maps needed to be aggregated to obtain a cumulative multi-criteria risk-sensitivity zoning map of the study area. For this purpose, first, the comparative weights of the risk themes were determined through the Analytical Hierarchical Process (AHP) [102]. In this regard, key informant interviews were carried out. First, a list of experts was developed considering the relevance of their expertise to this research, which was further verified by each interviewee. Thus, seven experts were interviewed to carry out the pairwise comparison of the attributes. The affiliations of the seven experts interviewed were:

• Director (Relief), Department of Disaster Management (DDM), the Government of the People’s Republic of Bangladesh (GoB);
• Professor, Department of Urban and Regional Planning, BUET, Bangladesh;
• Professor, Department of Civil Engineering, and Director, BUET-Japan Institute of Disaster Prevention and Urban Safety (BUET-JIDPUS), BUET, Bangladesh;
• Urban Planning Officer, Asian Disaster Preparedness Center (ADPC), Bangladesh;
• Executive Engineer (Civil), Capital Development Authority (RAJUK), Bangladesh;
• Project Director, Urban Resilience Project, Capital Development Authority (RAJUK), Bangladesh;
• Shelter specialist, Early Recovery Facility (ERF), United Nations Development Programme (UNDP), Bangladesh.

The face-to-face interviews were carried out from March 2018 to June 2018 by scheduling individual interview dates and places based on the expert’s permission and convenience. While interviewing the experts, the confidentiality of the interview was explained to them and their permission was duly requested. After that, the experts were informed about the purpose of this research and the procedure of the interview. Following that, the interviews were carried out. Here, responses with a Consistency Index (CI) less than or equal to 10% was considered a valid response.

Based on the comparative weights of different risk themes derived through the AHP method, the corresponding risk-theme-based risk-sensitivity maps were overlaid using the Weighted Overlay tool in ArcGIS 10.3.1. Finally, this overlaid map showed the spatial multi-criteria earthquake-risk-sensitivity zoning map of the land use of the study area.

4. Results and Discussion

4.1. Macro-Form Risk

Earthquake scenarios were selected based on a seismic-hazard-assessment study in Dhaka city carried out by OYO International Corporation (OIC) [73].

Table 5. Earthquake scenarios for Dhaka city.

Case	Coordinate of Epicenter		Mw	Depth to Top of Fault (km)	Dip Angle	Fault Type	Description
	Latitude	Longitude
1	24.3	90.1	7.5	10	45°	Reverse	Madhupur Fault
2	23.8	91.1	8.0	3	20°	Reverse	Plate Boundary Fault-2
3	23.8	90.4	6.0	8	90°	Reverse	Mw6.0 beneath city
4	23.8	90.5	8.5	3	20°	Reverse	Plate Boundary Fault-2

Source: CDMP [73].

shows the earthquake scenarios for Dhaka city. Among them, the first case was selected as the scenario earthquake for seismic-hazard assessment in the study area considering that the scenario would produce the highest-level ground motion in the city. Figure 3a shows the ground-shaking map of the study area for the selected scenario earthquake. From the map, it was visible that the northeastern portion of the study area is more prone to earthquake shaking.

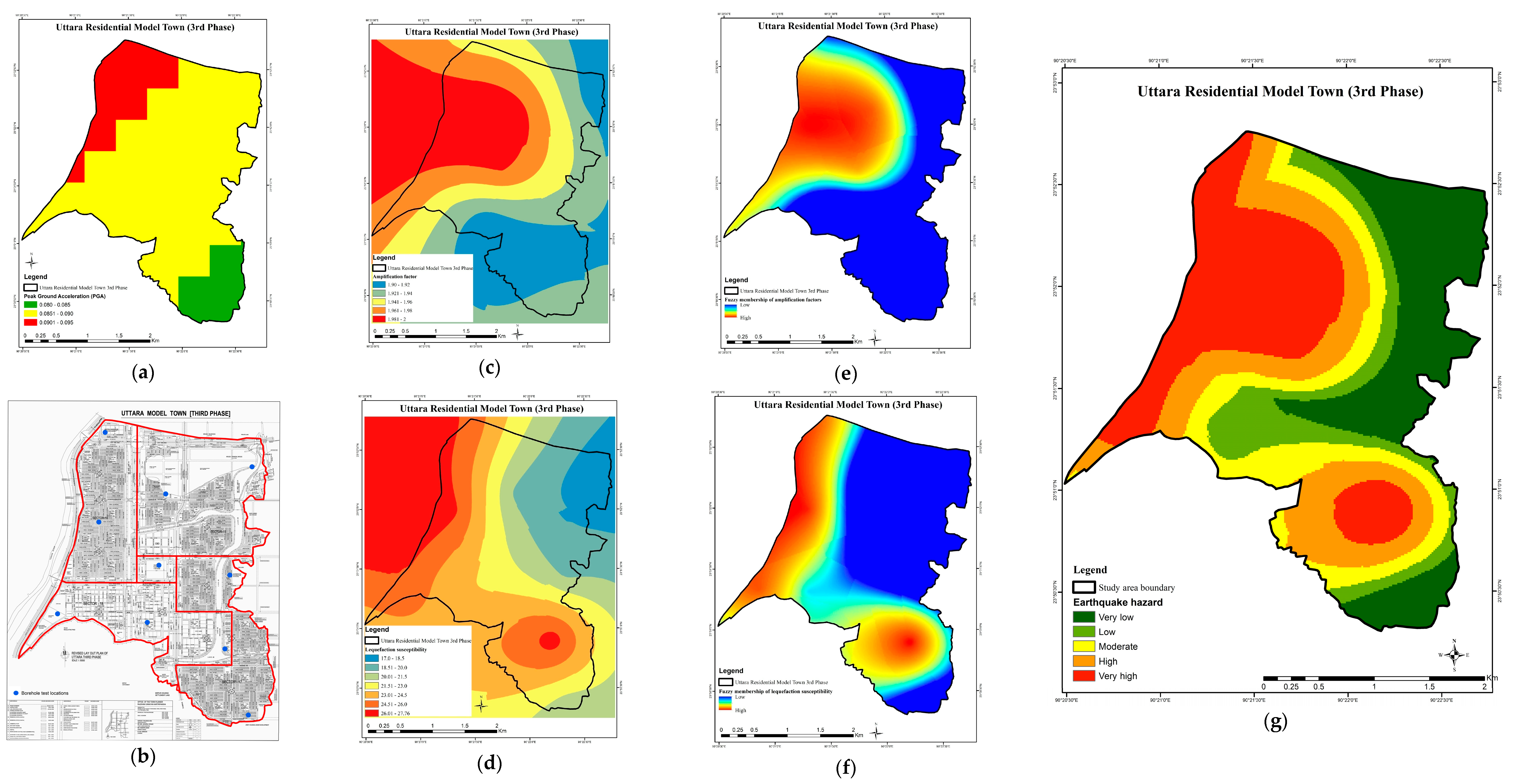

Based on the ground-shaking map (Figure 3a) and borehole-test data (Figure 3b), the soil-amplification factor (Figure 3c) and soil-liquefaction susceptibility (Figure 3d) in the study area were analyzed. To analyze the earthquake hazard in the study area, the maps were converted into the same base through fuzzy membership. Figure 3e,f show the fuzzy membership of the amplification factor and soil-liquefaction susceptibility in the study area, respectively. Figure 3g shows the seismic-hazard map of the study area that was developed by overlaying the fuzzy-membership maps of the amplification factor and soil-liquefaction susceptibility. Here a low earthquake hazard represents low-risk sensitivity and a high earthquake hazard represents high risk sensitivity from a macro-form risk perspective. Based on Figure 3, it was observed that the western portion of the study area is most prone to seismic hazard and therefore most sensitive to earthquake risk from a macro-form risk perspective.

4.2. Risks in Transportation

Risks in transportation were assessed based on the road network in the study area as means of escape and access to rescue and relief. According to the land-use plan of the study area, the roads are arranged in a grid pattern. The road width varies from 20 ft to 210 ft. From the analysis of the road network and its width, it can be said that the proposed road network ensures interconnectedness within the study area, which is suitable for emergency movement, rescue, and relief activities after an earthquake [103]. Along with roads for vehicular movement, there are interconnected lakes and walkways along them, which can also be utilized as an alternative to road transport.

The primary road network also reflects the connectedness of the study area with other parts of the city. This is crucial for receiving support from surrounding areas for response, rescue, and relief. Thus, areas nearer to the primary roads are less risk sensitive, and vice versa, from the perspective of risks in transportation. Figure 4b shows the risk sensitivity of the study area to the distance from primary roads, representing risks in transportation. From the Figure 4b, it was observed that a major portion of the study area is covered within 500 m of the primary roads, signifying lower risk sensitivity from the perspective of risks in transportation.

4.3. Risks in Hazardous Uses

Risk in hazardous land uses in the study area was assessed based on proximity to hazardous uses. In the study area, hazardous land use comprises 2.25% of the total area. There are altogether nine proposed gas stations and petrol pumps, collectively six power substations, a Metro Rail Transit (MRT) depot, provision for a waste-management and recycling area in 0.13 square km of land, and a water-treatment plant with an area of 0.03 km². The areas nearer to hazardous uses are highly sensitive to risks in hazardous uses due to the higher possibility of being affected by secondary hazards (e.g., fire, explosion, pollution, etc.). Figure 4c shows the risk sensitivity of the study area to the distance from hazardous uses.

4.4. Special Risk Areas

4.4.1. Geomorphic Suitability

The geomorphology of Dhaka city, including its geomorphologic composition and suitability for construction, were analyzed based on a geomorphologic composition by GSB [91]. From the geomorphological composition of the study area, it was observed that a major portion of the study area (about 67.1%) consists of the floodplain, marshy land and depression, and Madhupur terrace (low). Therefore, about 71.21% of the study area comprises very weak foundation conditions, for which a specialized foundation design is required; 17.58% is in a weak foundation condition, for which a pile foundation is required; and 11.21% is suitable for all kinds of infrastructure. Thus, grounded on the suitability for construction analyzed based on a geomorphologic composition by GSB, the weaker the soil condition, the higher the risk sensitivity due to the higher possibility of being affected by amplification and liquefaction. Figure 4d shows the risk sensitivity of the study area to the geomorphic suitability. Figure 4d shows that most of the area is highly risk sensitive, with very low geomorphic suitability for land development and built-environment construction.

4.4.2. Distance from a Water Body

From the analysis of water bodies in the land-use plan of the study area, it was observed that there are interconnected lakes proposed to be preserved by RAJUK comprising about 7.67% of the total study area. Here, the nearer the area is to a water body, the higher the risk sensitivity due to the higher possibility of being affected by liquefaction. Figure 4e shows the risk sensitivity of the study area to the distance from a water body, and the area close to the riverbanks are risk sensitive to development and construction.

4.5. Open-Space-Scarcity Risk

During and after an earthquake, the priority for evacuation spaces should be given to open areas. The land-use plan designates 7.69% of the study area as open spaces, including parks, playfields, graveyards, green belts, and other open areas. Playfields are evenly distributed near educational facilities, whereas parks are mainly located along lakes. The green belt is located on the southeastern side of Sector 18 to separate waste- and water-treatment plants from neighborhoods and the water-retention area. Open spaces are well connected by road networks and walkways, making them suitable for emergency response after an earthquake. The greater the distance from open spaces, the more sensitive the risk becomes because it takes more time to reach them for evacuation. In Figure 4f, the risk sensitivity of the study area to the distance from open spaces is shown. The figure indicates that the area is within 800 m of primary roads, indicating a lower risk sensitivity regarding proximity to open spaces.

4.6. Risks in Critical Facilities

4.6.1. Potential Temporary Shelters

Educational and religious facilities are suitable to be used for temporary shelter. The educational facilities proposed in the study area comprise 2.47% of the total area and include schools, educational institutions, and special institutions. There are three additional religious facilities. All of these facilities in the study area can be utilized as temporary shelter. The farther the area is from the potential temporary shelters, the higher the risk sensitivity due to the greater time needed to reach out for shelter after an earthquake. Figure 4g shows the risk sensitivity of the study area to the distance from potential temporary shelters.

4.6.2. Health Facilities

Health facilities are crucial to providing immediate treatment to injured people after an earthquake. The health facilities proposed in the study area include one hospital block and three health clubs, with a total area of 0.03 km². Nevertheless, the health facilities are located in three corners of the study area, which may not be accessible by all residents of the study area after an earthquake. The farther the area is from the health facilities, the higher the risk sensitivity due to the greater time needed to reach out for treatment after an earthquake. Figure 4h shows the risk sensitivity of the study area to the distance from health facilities. Based on Figure 4h, it was observed that the southwestern part of the study area is most risk sensitive from the perspective of risks in health facilities.

4.7. Spatial Earthquake-Risk Sensitivity of Land Use

Table 6. Comparative weight and rank of the risk attributes through the AHP.

Risk Themes	Risk Attributes	Weight	Rank
Macro-form risks	Earthquake hazard	13.38%	4
Risks in transportation	Distance from primary roads	5.37%	8
Risks in hazardous uses	Distance from hazardous use	14.71%	2
Special risk areas	Geomorphic suitability	22.31%	1
	Distance from the water body	10.42%	6
Open-space-scarcity risk	Distance from open space	13.01%	5
Risks in critical facilities	Distance from potential temporary shelters	7.39%	7
	Distance from health facilities	13.40%	3

shows the findings from the AHP, including the comparative weight and rank of the risk themes. From the analysis, it was observed that the highest preference was given to geomorphic suitability, distance from hazardous use, and distance from the health facility. The experts thought that the damage due to the earthquake would be greater if the soil condition is not considered during building construction. Moreover, hazardous uses will increase the risk of secondary hazards (fire, explosion, environmental pollution, etc.). Again, having few health facilities will cause the death of injured people due to a lack of emergency-treatment facilities.

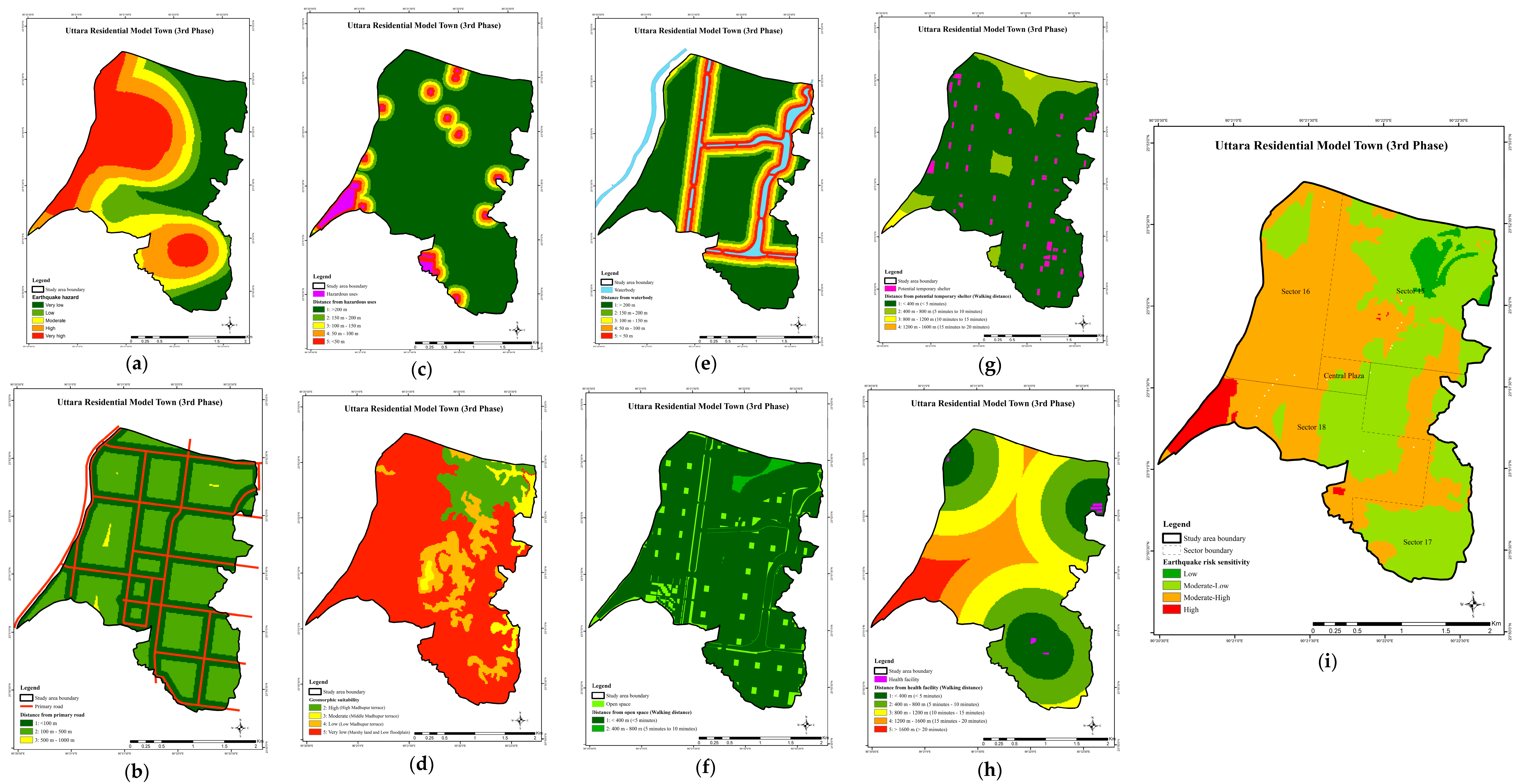

Figure 4i shows the multi-criteria earthquake-risk-sensitivity zoning map of the study area at the local level, depicting the spatial earthquake-risk sensitivity of the land-use plan. It was prepared by overlaying the risk-theme-based risk-sensitivity maps (Figure 4a–h) using the weights determined in Table 6 through the AHP method (as discussed in Section 3.6).

Overall, four earthquake-risk-sensitive zones were identified, ranging from high risk-sensitive zones (red zone) to low risk-sensitive zones (dark-green zone).

• The low earthquake-risk-sensitive zone is the relatively safest area. The area is in the northeastern part of the study area in sector 15. This zone is relatively less risk sensitive with respect to all individual risk themes (Figure 4).
• The moderate–low earthquake-risk-sensitive zone is a relatively safer area. The area is located mostly in the eastern part of the study area. Some parts of this zone are highly at risk from the perspective of geomorphic suitability. Otherwise, this zone is relatively less risk sensitive with respect to all other individual risk themes (Figure 4).
• The moderate–high earthquake-risk-sensitive zone is at lower risk than the red zone. The area is located mostly in the western part of the study area. This zone is highly at risk from the perspective of the seismic hazard, geomorphic suitability, distance from a water body, and distance from a health facility (Figure 4).
• The high earthquake-risk-sensitive zone is the highest-risk zone. The area is located in southwestern part of the study area in sector 18. This zone is at high risk due to the seismic hazard, distance from hazardous uses, geomorphic suitability, and distance from a health facility (Figure 4). All of these risk themes contribute to the high earthquake-risk sensitivity of this zone.

4.8. Discussion

From the above findings and analysis, it can be observed that the methodology proposed in this research led to the identification of different earthquake-risk-sensitive zones in a local-level area by aggregating different risks. This enables an understanding of where and why RSLUP interventions are necessary for the local-level area. Although few previous studies have focused on RSLUP at the local level, the approach proposed in this research to assess and map risk sensitivity to facilitate RSLUP is more effective than the previous approaches. Specifically, in the study by Barua, Islam and Ansary [28], research was conducted in the same study area and a methodology was proposed to integrate earthquake RSLUP. The authors assessed the earthquake risk of the study area with respect to risk themes and suggested earthquake RSLUP strategies based on their findings. Although the proposed RSLUP strategies were detailed and appropriately addressed the risk-theme-based analysis, they were the same for the entire study area. However, our study identified that earthquake-risk sensitivity varies across different parts of the study area. In another study, Fat-Helbary, El Faragawy and Motaal [30] proposed RSLUP strategies for a local area in Egypt based only on seismic-hazard assessment, which is applicable in raw-land situations. Other studies have proposed RSLUP strategies without analyzing and mapping the existing risk sensitivity of the land use [11,29].

Thus, the findings from applying the methodology proposed in this research will further facilitate the what and how of the RSLUP strategies as a decision-support system, reflecting the risk sensitivity accordingly and effectively and thereby fostering its sustainability [10,13]. Some examples of RSLUP strategies reflecting earthquake-risk-sensitivity zoning of the study area are:

• The low risk-sensitive zone is suitable for promoting growth. However, care should be taken to conserve the low-risk sensitivity of this zone, e.g., open-space, temporary-shelter, and health-facility conservation and maintenance.
• In the moderate–low earthquake-risk-sensitive zone, growth should be promoted by ensuring consideration of the soil condition and foundation requirements for construction. Conservation of the emergency facilities should be ensured.
• The moderate–high earthquake-risk-sensitive zone should be considered a moderate-alert zone. In this zone, development should be controlled with building-height restrictions. Here, construction should be carried out by considering soil conditions and foundation requirements. For risk transfer, mandatory building insurance can be promoted. Additional health facilities should be allocated to enhance coverage, along with conservation of the existing emergency facilities.
• The high earthquake-risk-sensitive zone should be considered a high-alert zone. Development control, construction safety, risk transfer, allocation of additional health facilities, and conservation of the emergency facilities should be more strictly applied. Additionally, the location of the hazardous uses in this zone can be reconsidered. Alternatively, more emphasis should be given on the safety of the hazardous uses, e.g., safe construction, safety measures, and buffer zone.

5. Conclusions

In conclusion, it can be said that the multi-criteria assessment and mapping of the risk sensitivity of the land use at the local level is of utmost importance. This will further pave the way for developing effective and sustainable RSLUP strategies reflecting the risk sensitivity accordingly and thereby increase the disaster resiliency of the area. This research brings out a methodology to assess the spatial earthquake-risk sensitivity of the land use at the local level and to prepare a multi-criteria risk-sensitivity zoning map. From the spatial earthquake-risk-sensitivity assessment of the land-use plan of the study area, positive features can be observed in the case of risks in urban texture and open-space-scarcity risk. The proposed grid-patterned road network and width ensure interconnectedness within the study area for emergency movement facilitating means of escape and access to rescue and relief after an earthquake. The open spaces are evenly located and well connected, which are effective and sufficient to serve the area in the time of emergency after an earthquake. However, major earthquake risks in the study area lie in macro-form risks, risks in hazardous uses, special risk areas, and risks in critical facilities. The study area is highly earthquake-hazard prone. The geomorphic condition increases the risk sensitivity of land use in the study area. There is no health facility in the southwestern side of the study area. From the multi-criteria risk-sensitivity zoning map of the study area, overall, four earthquake-risk-sensitive zones were identified, ranging from high risk-sensitive zones to low risk-sensitive zones. Sector 18 is more risk sensitive, but sector 16 is also highly earthquake-hazard prone. Thus, risk factors related to land use resulted in the increased risk sensitivity of sector 18 in the study area.

This research contributes to the theory of disaster-risk reduction and management by bringing out the importance of assessing and mapping the multi-criteria risk sensitivity of the land use of a local-level area and a methodology to do so. This research will contribute to practices by enabling the application of the methodology as a decision-support system for RSLUP. Thus, this method can be mainstreamed and institutionalized in planning policies and practices. It will enable policymakers to understand where and why RSLUP interventions are necessary for land use at the local level. The findings regarding applying this methodology will further guide the what and how of the RSLUP measures. This will further foster the sustainability of the RSLUP by reflecting the risk sensitivity accordingly and effectively. Consequently, this will lead to the development of a resilient and sustainable built environment.

The local-level analysis brings out a detailed and actual scenario of risk sensitivity more accurately, which will foster RSLUP strategies with more relevance and effectiveness. While doing so, the development status of an area should be considered because flexibility of the corrective RSLUP measures will depend on it. As such, drastic changes in land use may not be possible to accommodate in developed areas, areas under development may have some flexibility, and areas in the planning stage may have the most flexibility. This research can be replicated in other areas of Bangladesh, as well as in other countries, with necessary modifications considering local perspectives, development status, and hazard scenarios.

This research has some limitations, and there is scope for further research in these areas:

(a)

In this research, the study area considered was in the development phase. Due to the development status, some relevant development and built-environment-related risk themes could not be considered. Thus, the consideration of risk themes varies with the development status of the study area. Therefore, further research should be carried out for risk-sensitivity assessment and mapping of areas at other levels of development. While doing so, relevant risk themes and attributes should be considered based on the development status of the areas.

(b)

In this research, a risk-sensitivity assessment and mapping method is proposed for earthquakes. However, the context changes with the hazards. Moreover, an area may be at risk of numerous hazards (simultaneously or not). Therefore, in future research, a risk-sensitivity assessment and mapping method considering multiple hazards should be developed to enable the development of multi-hazard RSLUP.

(c)

Even though this research encourages local-level risk-sensitivity assessment, mapping, and RSLUP, a holistic approach also needs to be introduced and adopted by accumulating the local level findings and initiatives at the city, regional, and national levels to ensure cohesion among them. While doing so, additional appropriate risk themes should be considered (e.g., governance, economic factors, external factors, etc.).

(d)

Further research should be carried out to propose a methodology for RSLUP based on the application of the proposed methodology in this research (risk sensitivity and zoning map). While doing so, the scale and development status of the study area should be considered to define the scope for integrating RSLUP. This will lead to more realistic and thereby sustainable RSLUP.
