A Survey on Anomalies and Faults That May Impact the Reliability of Renewable-Based Power Systems
Abstract
:1. Introduction
2. Materials and Methods
- In the first phase, anomalies and faults of the components were categorized through a search activity on digital collections such as Scopus, ScienceDirect, Web of Science, and IEEE Xplore, using concatenated keywords related to the component typology (such as “PV” or “Photovoltaic” or “Wind” or “Wind turbine” or “Electrolyzer” or “Electrolysis” or “Fuel Cell” or “FC” or “Battery” or “Battery system” or “BESS” or “Conversion” or “Power conversion” or “Converter” or “AC/DC” or “DC/DC” or “Monitoring systems” or “Communication” or “Communication systems”) and the investigated issue (such as “Failure” or “Anomalies” or “Rupture” or “Degradation” or “Performance decay” or “Reliability” or “Stress test”). The analysis of the identified papers and their related bibliographies was used to extend the investigation to other relevant papers.
- In the second phase, empirical datasets or mathematical models for the identified issues of each technology were searched. Through a detailed analysis of the papers highlighted in the previous phase, useful mathematical models or the existence of dedicated datasets were identified. Datasets were also found using platforms such as Google Dataset Search, IEEE DataPort, Kaggle, and Mendeley Data by using as combined keywords the technology and the investigated issue.
2.1. Caveats

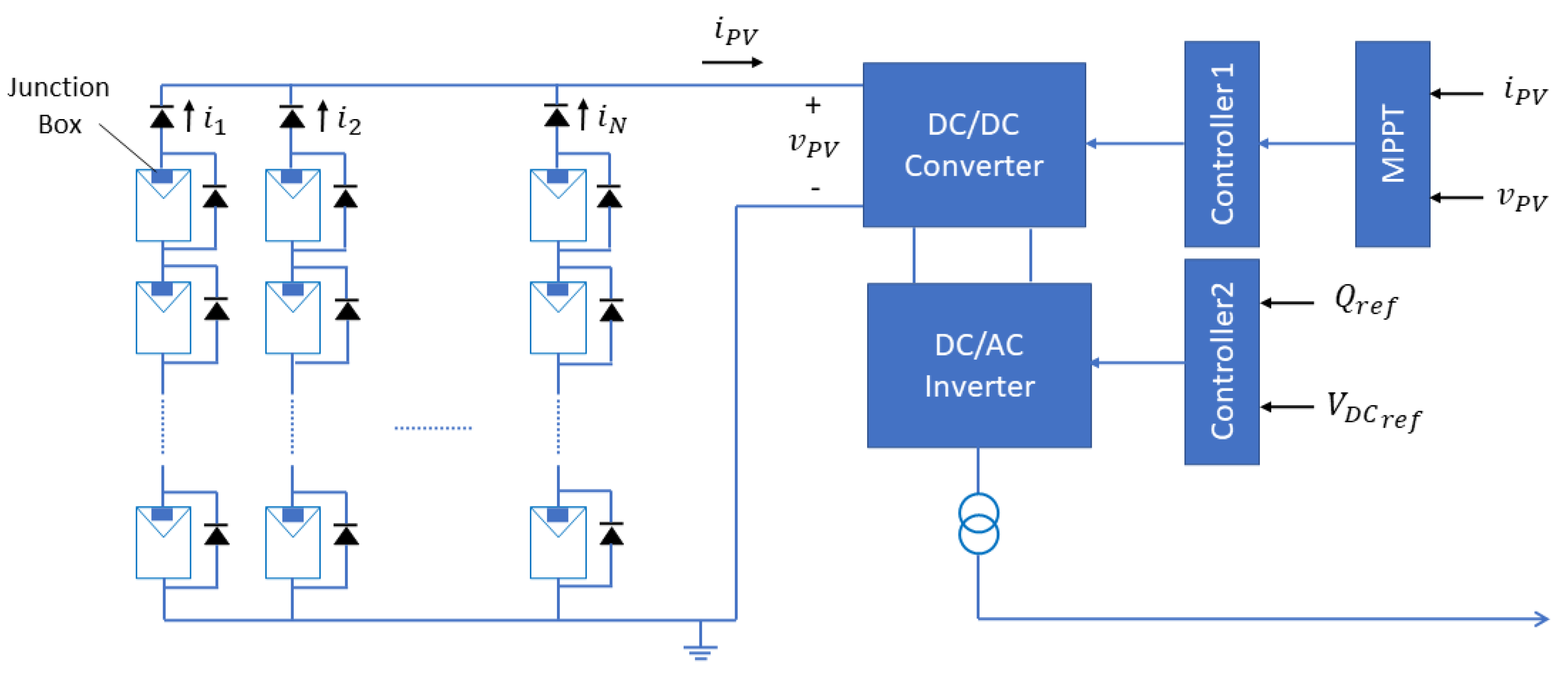

2.2. Anomalies and Faults in PV Systems
Research Highlights

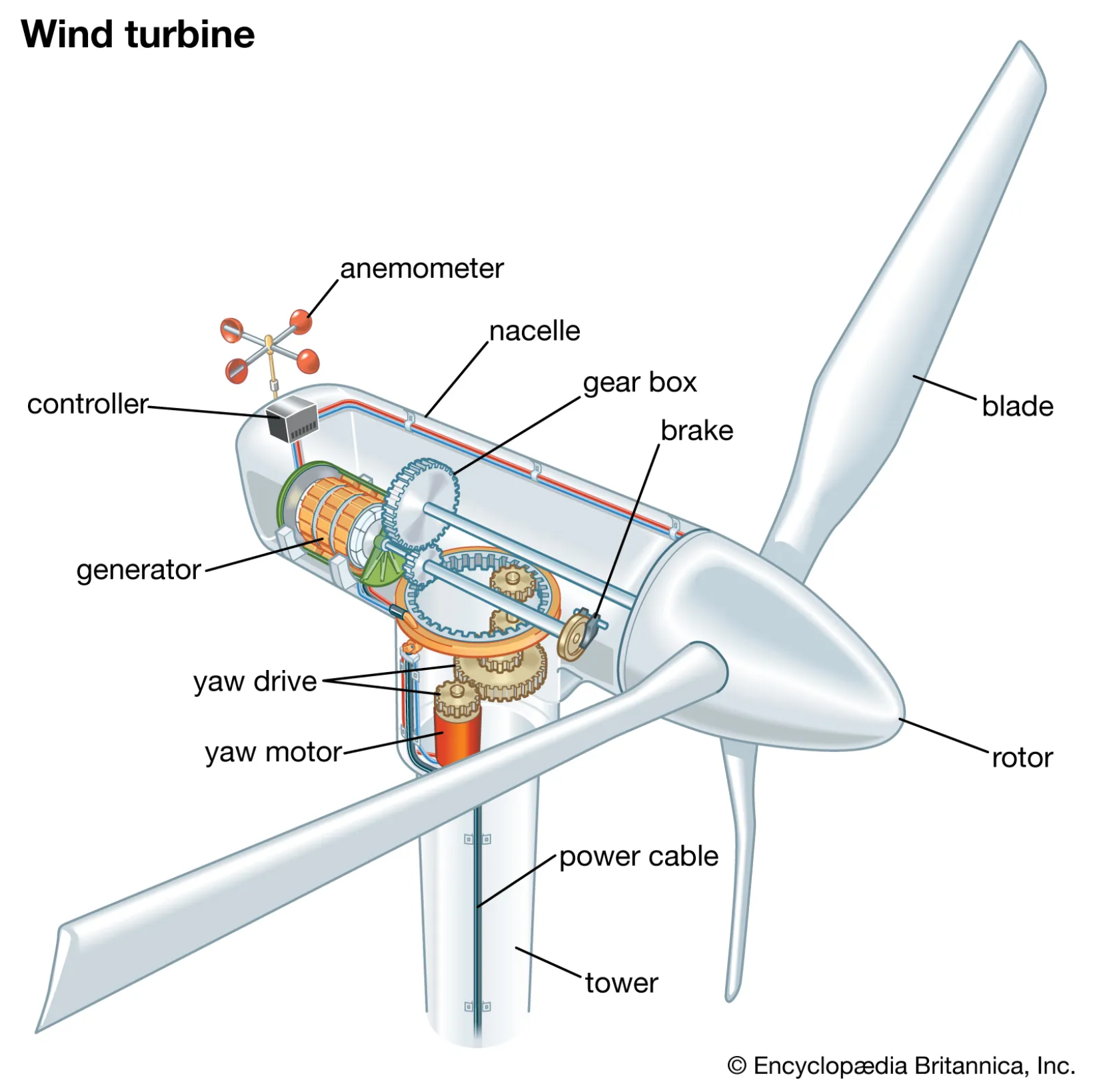

2.3. Anomalies and Faults in Wind Turbines
Research Highlights

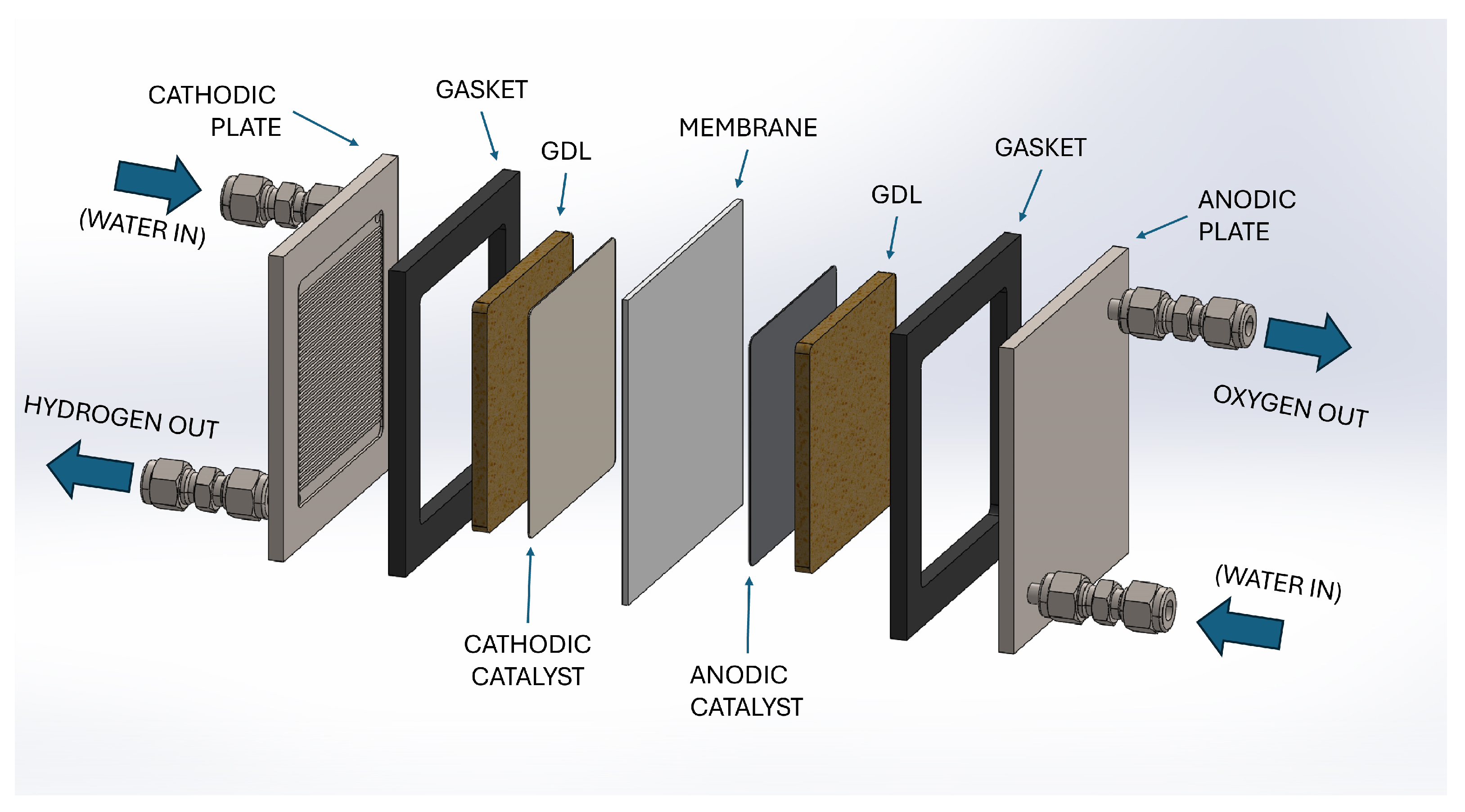

2.4. Anomalies and Faults in Electrolyzers
Research Highlights

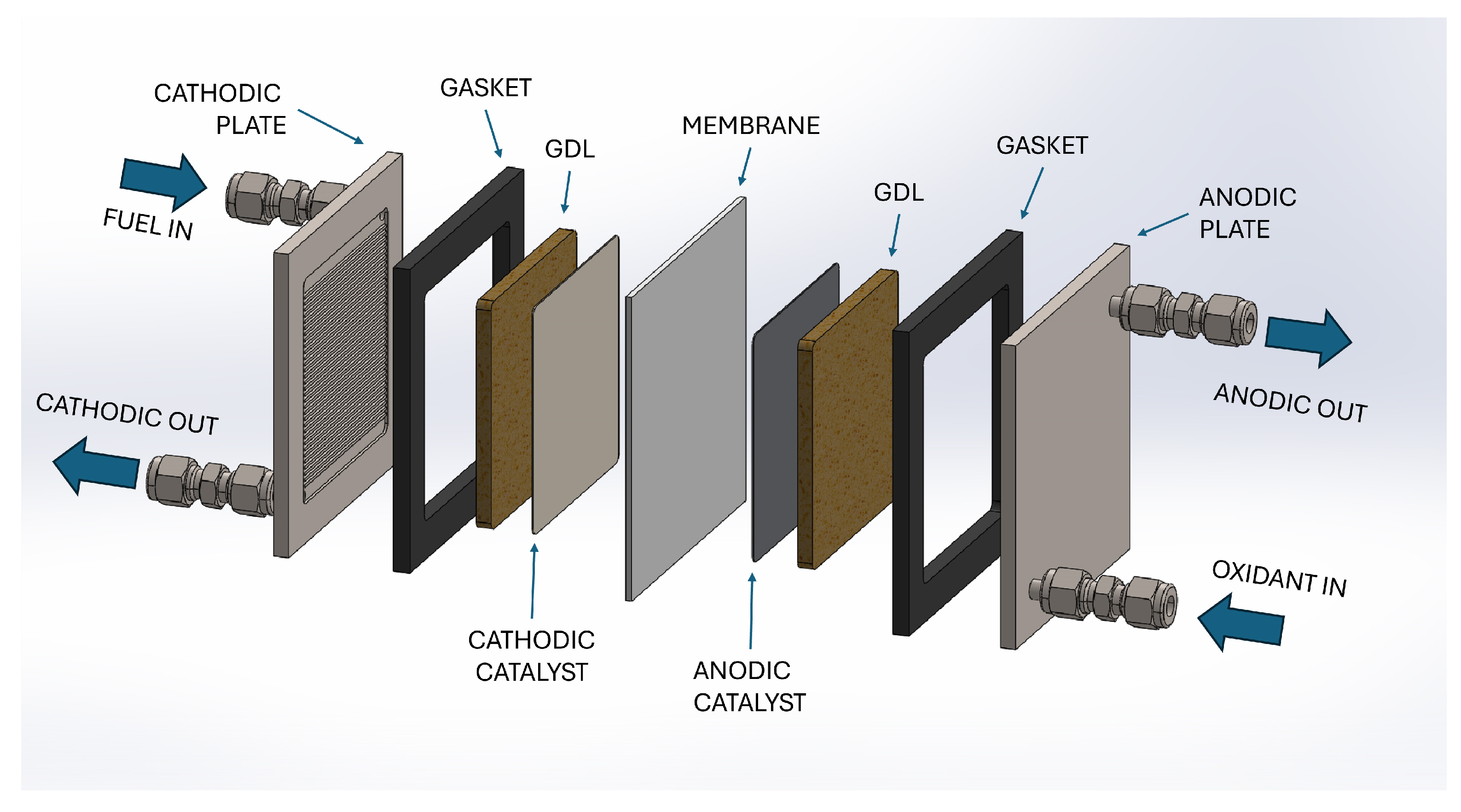

2.5. Anomalies and Faults in Fuel Cells
Research Highlights

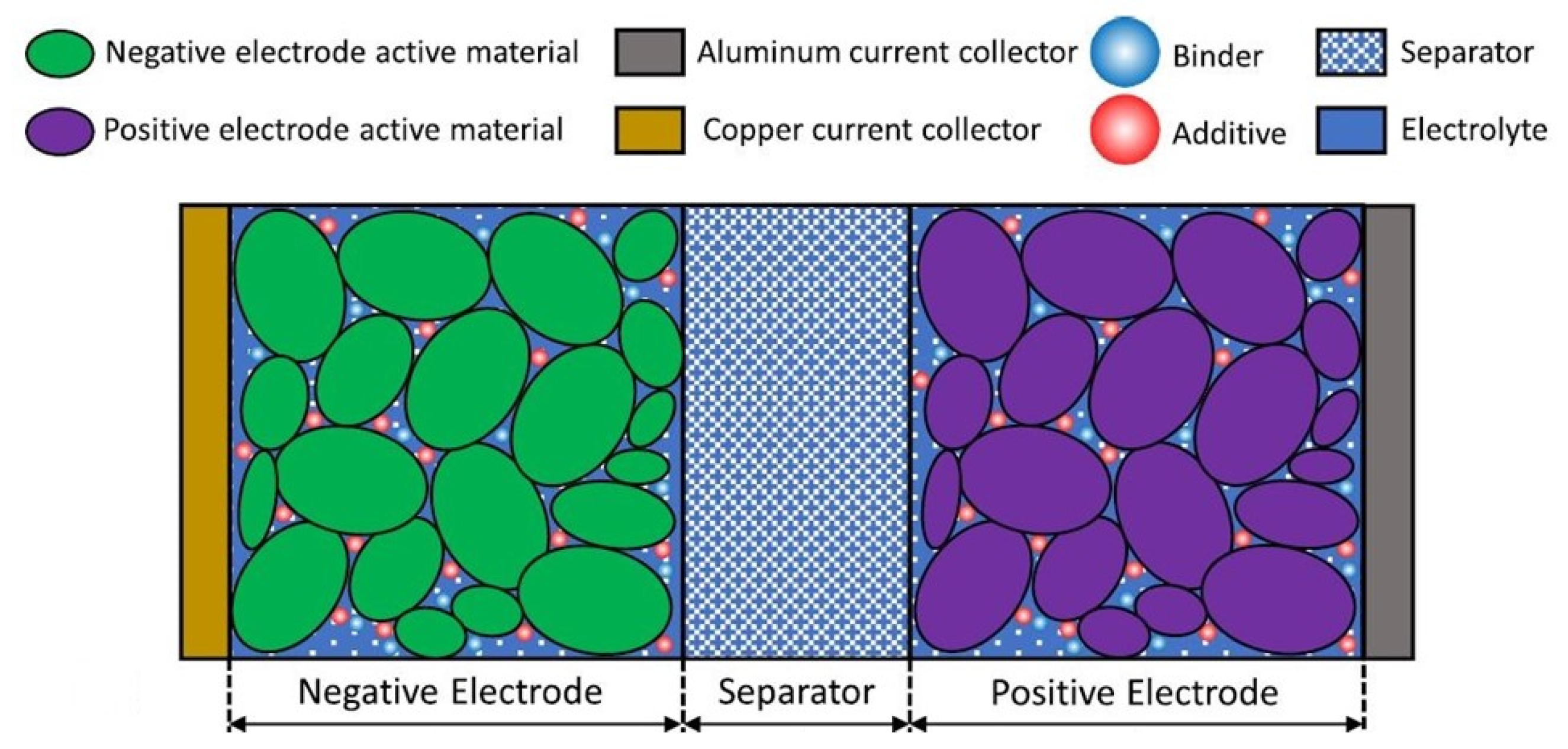

2.6. Anomalies and Faults in Battery Systems
Research Highlights
Target Component | Description | Cause | References |
---|---|---|---|
Cell | Loss of active material | Battery degradation | [127] |
Electrolyte consumption | [128] | ||
Increase in internal resistance | [129] | ||
Lithium deposition | [130] | ||
Gas generation | [123] | ||
SEI thickening | [124] | ||
Current collector corrosion | [131] | ||
Internal short circuits | [132] | ||
Thermal runaway | [133] | ||
Capacity diving | [123] | ||
Liquid leakage | [123] | ||
System | Overcharge | Battery management system anomaly/fault | [134] |
Overdischarge | [135] | ||
Reduced battery life | [136] | ||
Thermal runaway | [133] | ||
Reduced battery performance | Sensory system | [136] | |
Equalization errors | [123] | ||
Reduced battery life | [136] | ||
Thermal runaway accidents | [133] | ||
Increase internal resistance | Cables and connections | [129] | |
Thermal runaway safety accidents | [133] |
Dataset Name | Source | Description | References | Related Papers |
---|---|---|---|---|
NASA Data Repository | Lab testing | Data sets suitable to develop algorithms useful as prognostic tools | [138] | |
IEEE Data Port | Simulations | Data set obtained by simulating a lithium polymer cell model ePLB C020, with an effective capacity of 15 Ah, related an electric car | [139] | |
Stanford Fast Charging Datasets | Lab testing | Dataset obtained through tests performed on commercial lithium-ion batteries under fast charging conditions. In particular, the cells, of the lithium-iron-phosphate (LFP)/graphite type, produced by A123 Systems (APR18650M1A), were tested on a 48-channel Arbin LBT device. The cells considered are characterized by a nominal capacity of 1.1 Ah and a nominal voltage of 3.3 V | [140] | [141] |
Lifecycle Prediction Dataset | Lab testing | Data set obtained by testing commercial lithium-ion batteries under fast charging conditions. The lithium-ion phosphate (LFP)/graphite cells, manufactured by A123 Systems (APR18650M1A), were tested using the 48-channel Arbin LBT device in a forced convection temperature chamber set to 30 °C. The cells have a nominal capacity of 1.1 Ah and a nominal voltage of 3.3 V | [142] | [143] |
University of Wisconsin Madison | Lab testing | Operational dataset for the Panasonic 18650PF lithium-ion battery | [144] | [145] |
BEEPt | Lab testing | Set of tools designed to support Battery Evaluation and Early Prediction of life cycle corresponding to the research of the d3batt program and the Toyota Research Institute | [146] | [147] |
Universal Battery Database | Lab testing | Open source Li-ion data management and modelling software | [148] | |
Alawa-toolbox | Lab testing and simulations | Dataset from University of Hawaii, which provides a large number of curves with different degradation modes, LLI and LAM | [149] | [150] |

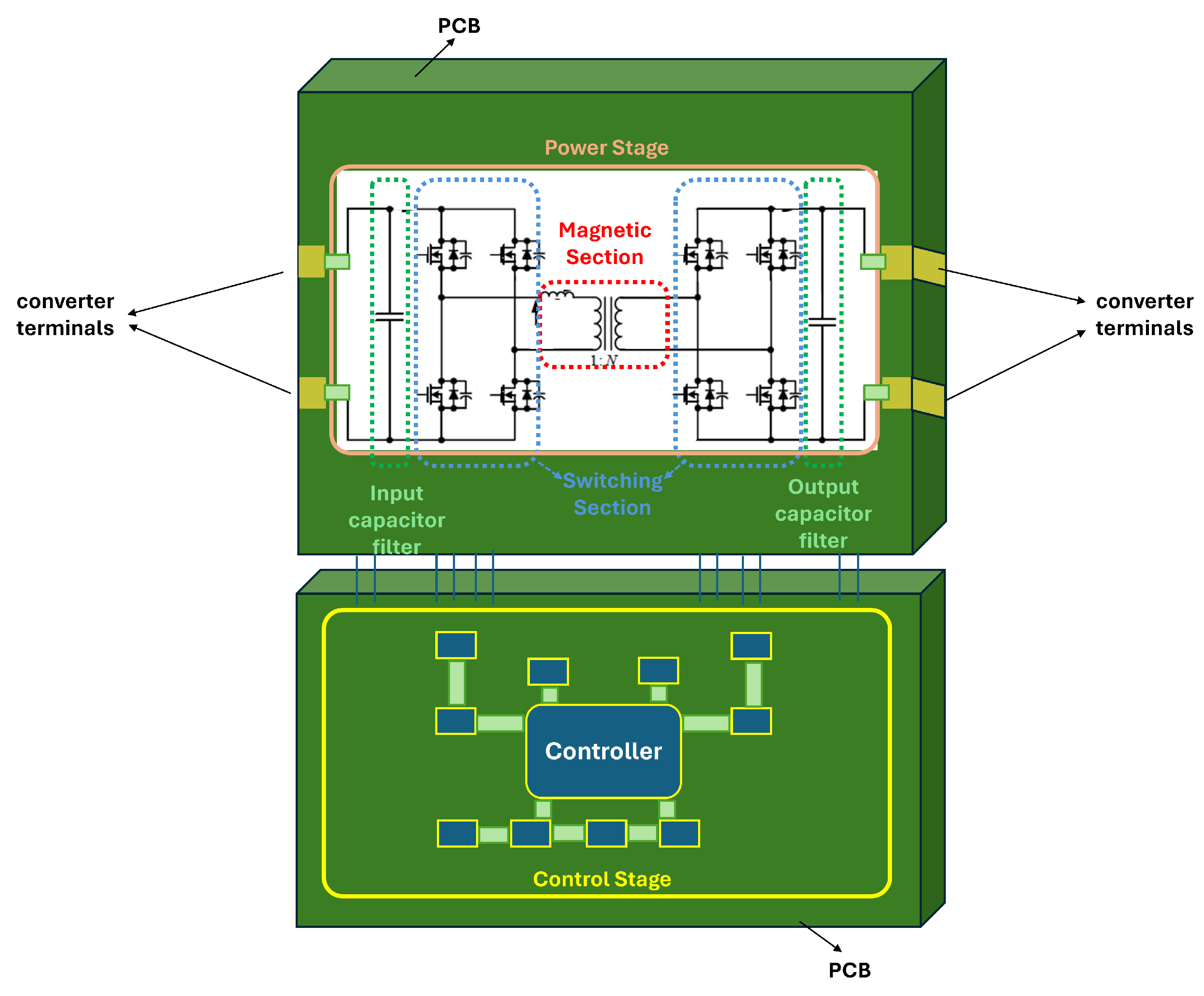

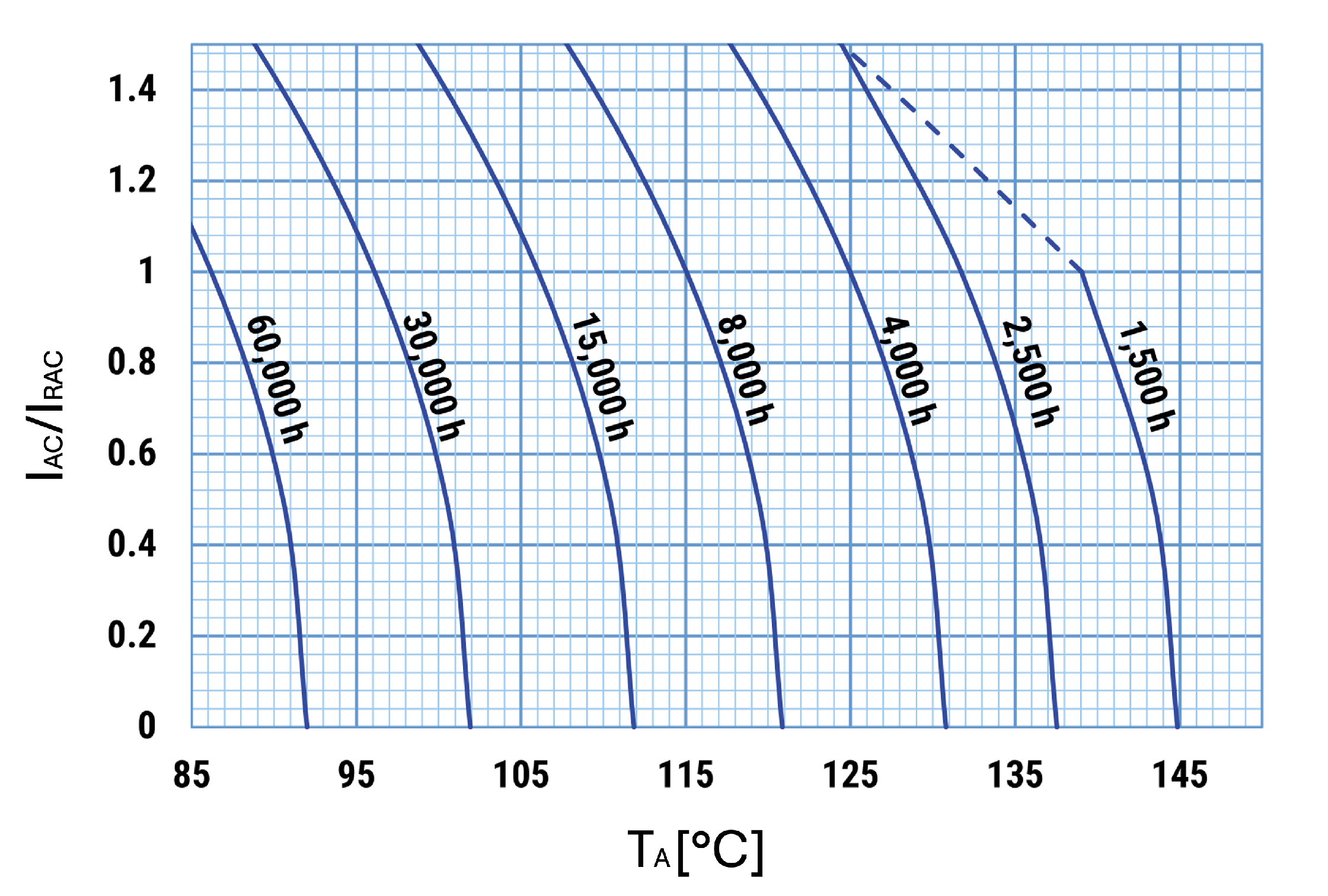

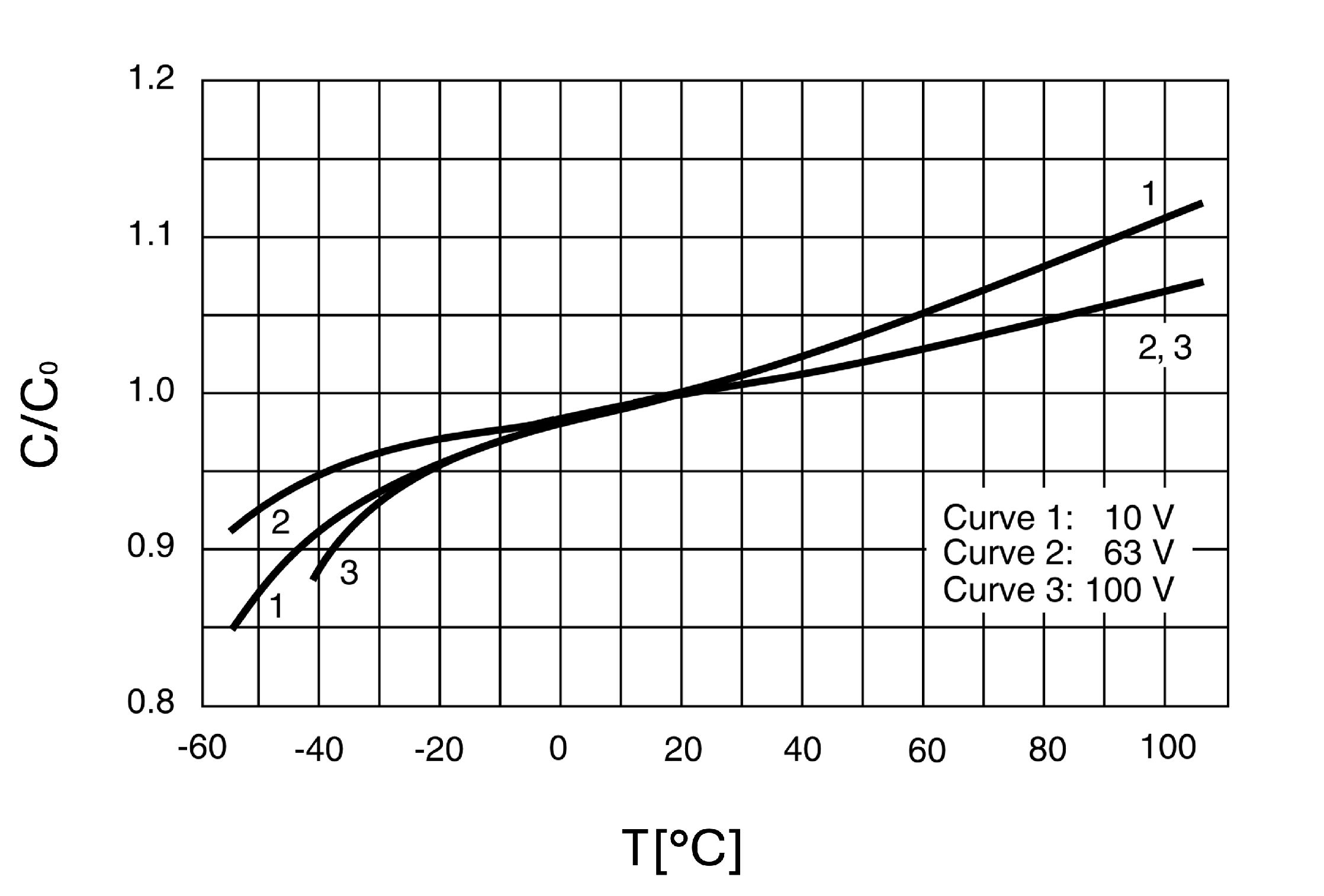

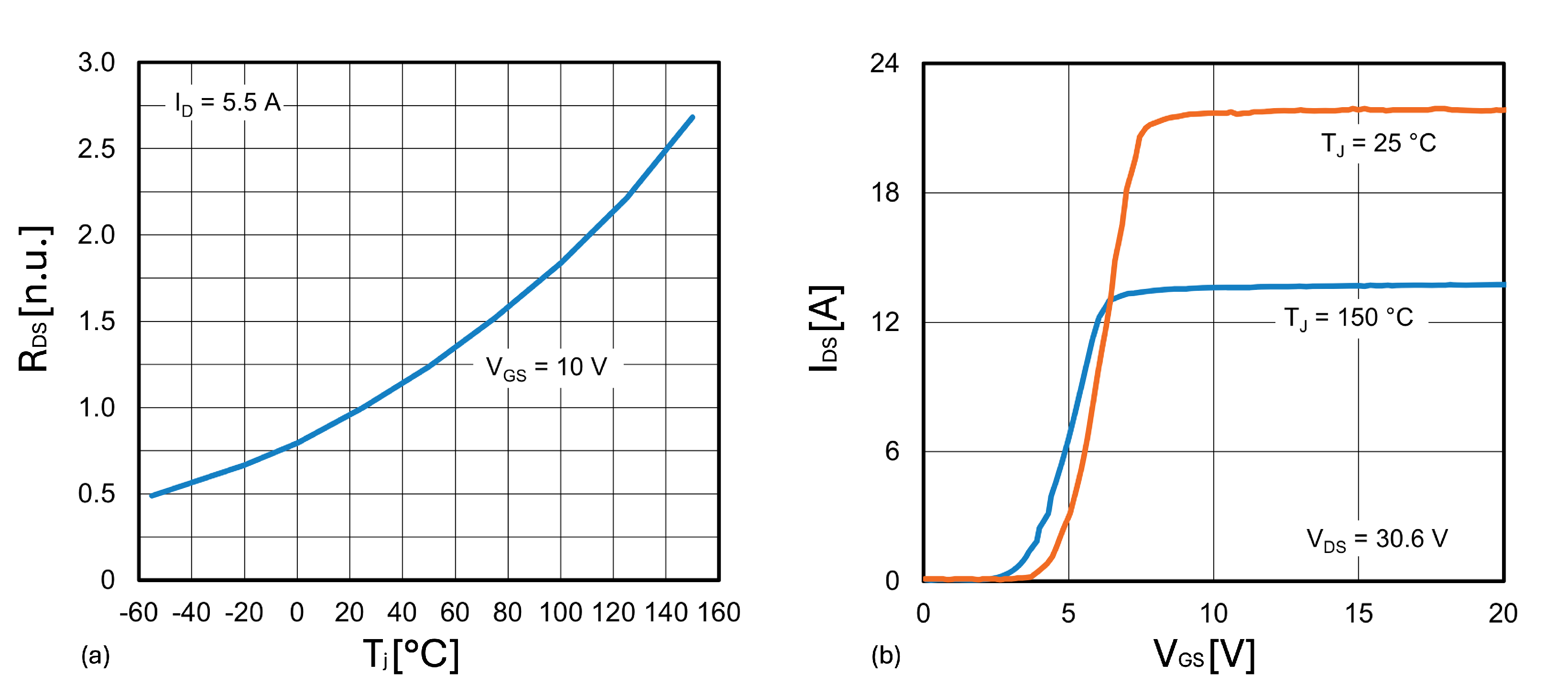

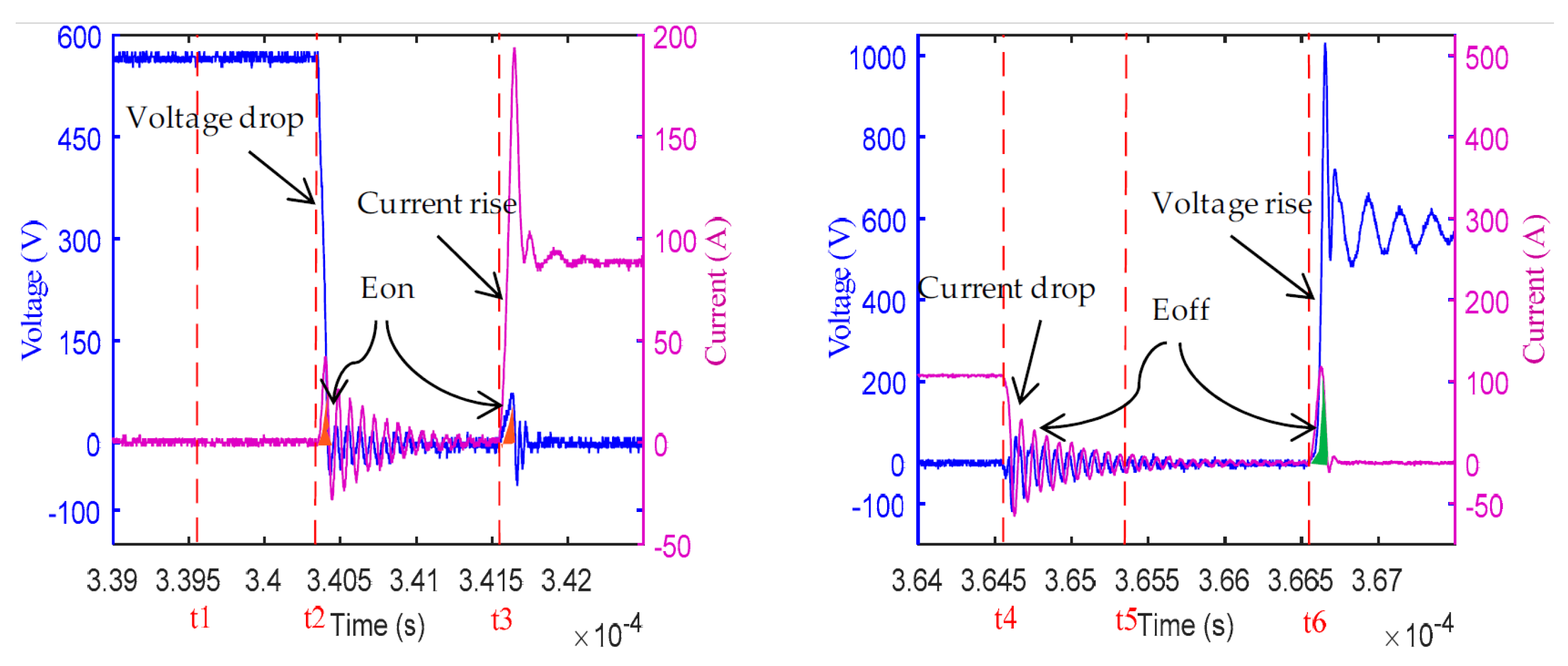

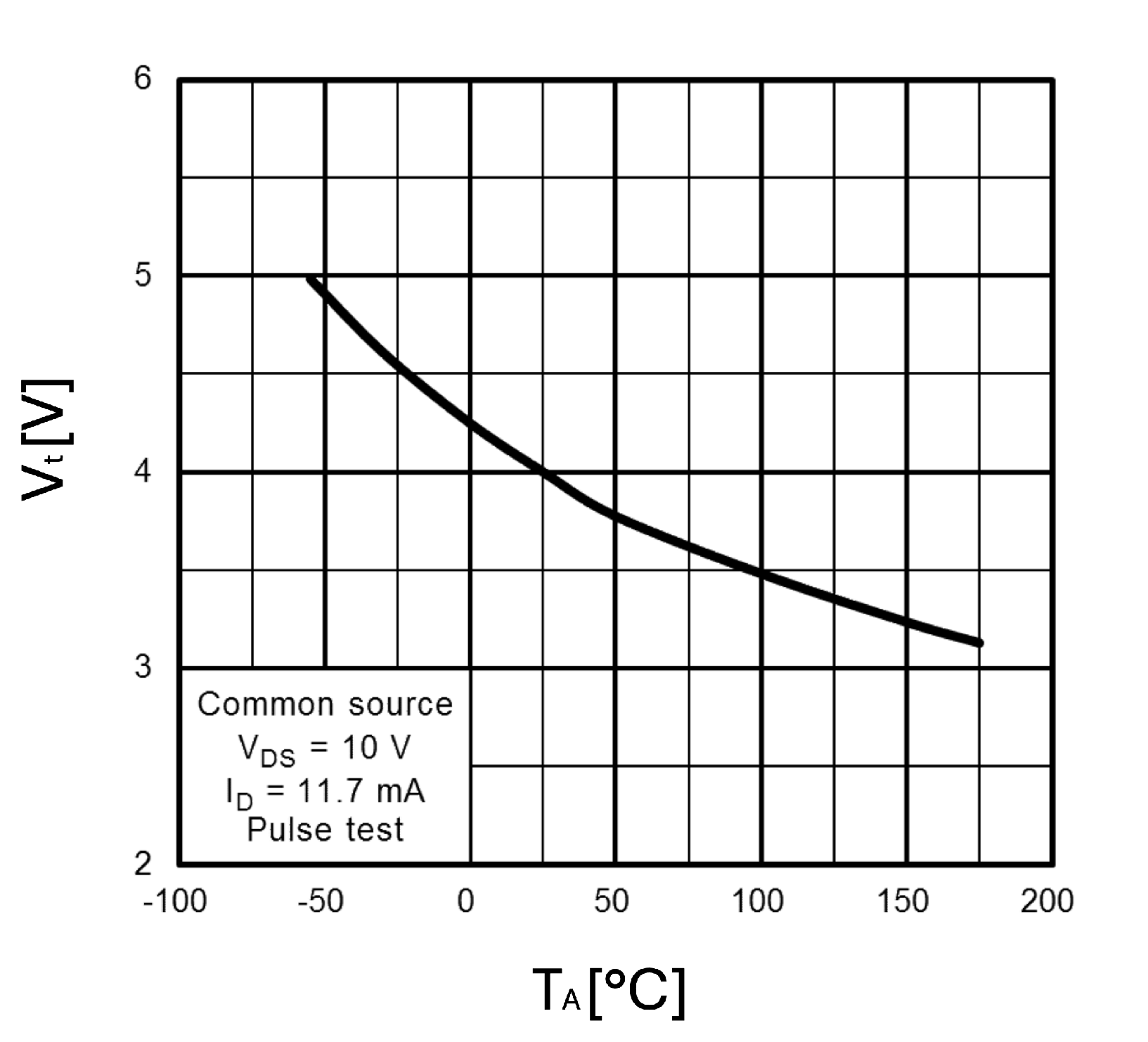

2.7. Anomalies and Faults in DC/x Conversion Systems
Research Highlights
2.8. Anomalies and Faults in Monitoring Systems
Research Highlights

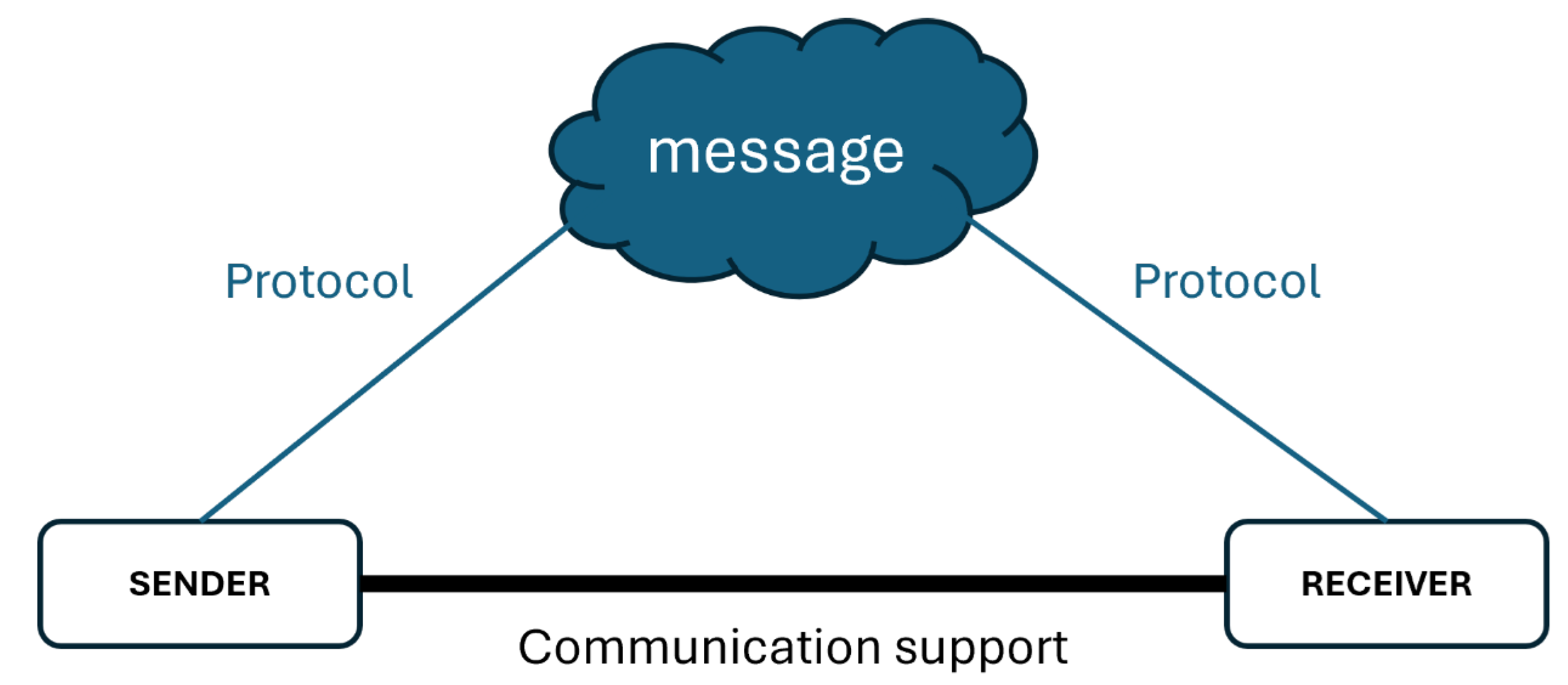

2.9. Anomalies and Faults in Communication Systems
Research Highlights
3. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
Abbreviations
AI | Artificial Intelligence |
BS | Battery System |
EIS | Electrochemical Impedance Spectrometry |
FC | Fuel Cell |
GDL | Gas Distribution Layer |
HAWT | Horizontal-Axis Wind Turbine |
IGBT | Insulated-Gate Bipolar Transistor |
LAM | Loss of Active Material |
Li-ion | Lithium-ion |
LLI | Loss of Lithyum Inventory |
ML | Machine Learning |
MOSFET | Metal–Oxide–Semiconductor Field-Effect Transistor |
MPPT | Maximum Power Point Tracking |
PEM | Polymeric Electrolyte Membrane |
PV | Photo Voltaic |
PWM | Pulse-Width Modulation/Modulated |
SEI | Solid Electrolyte Interphase |
STC | Standard Test Condition |
VAWT | Vertical-Axis Wind Turbine |
WT | Wind Turbine |
