Multi-Faceted Analysis of Airborne Noise Impact in the Port of Split (III)
Abstract
:1. Introduction
2. Literature Review
3. Materials and Methods
3.1. Research Settings
- The A-weighted sound pressure level measurement (LAeq) of the initial state of port noise in the absence of cargo-handling operations (and other port-related sources);
- The A-weighted sound pressure level measurement (LAeq) of total residual noise, including the cargo-handling operations (and other port-related sources);
- The maximum sound level with A-frequency weighting and fast time weighting during the measurement period (LAFmax), considering the noise emitted from diverse conditions of working processes realized in port (selected scenario) during night periods (Lnight);
- The A-weighted sound pressure level measurement (LAeq) during night (Lnight) of an open working process (selected scenario) considering two specific conditions:
- The setting of an acoustic cover or enclosure implementation to the existing cargo-handling equipment;
- Repositioning the conveyor system for handling bulk cargo inside the warehouse while conducting loading procedures.

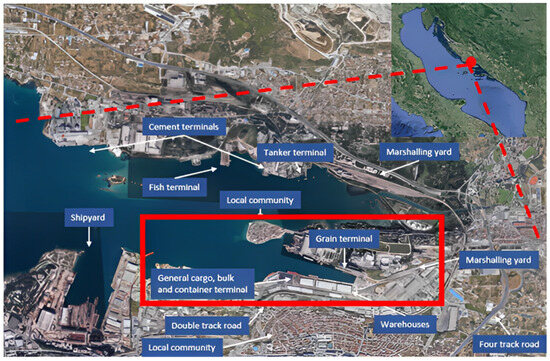

3.2. Definition of the Noise Measurement Area
3.3. Individual Features of the Working Process in the Port of Split
3.4. Situational Analysis of Noise Measurement in the Examined Area
4. Research Results
4.1. Noise Measurement at the Receivers’ Position
4.2. The Effects of Mitigation Actions on the Noise Levels in the Port
5. Discussion
5.1. Interpretation of the Research Results
5.2. Comparison of the Research Results with the Datasets Generated from the Previous Research
5.3. Recommendations for Improving Noise Management and Application of Noise Mitigation Measures in the Port Area
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Appendix A
Ship Type | Meteorological Conditions | ||||||
---|---|---|---|---|---|---|---|
Temperature | Wind Direction | Wind Speed | |||||
D | E | N | D | E | N | ||
Scenario 1 | 32 °C | 29 °C | 25 °C | SW | 6 km/h | 4 km/h | 4 km/h |
Scenario 2 | 34 °C | 30 °C | 23 °C | SE | 5 km/h | 8 km/h | 2 km/h |
Scenario 3 | 33 °C | 28 °C | 26 °C | SW | 8 km/h | 5 km/h | 5 km/h |
Scenario 4 | 35 °C | 32 °C | 27 °C | NW | 10 km/h | 4 km/h | 3 km/h |
Scenario 5 | 33 °C | 29 °C | 23 °C | NW | 5 km/h | 5 km/h | 5 km/h |
Scenario 6 | 34 °C | 30 °C | 26 °C | SW | 3 km/h | 8 km/h | 4 km/h |
Scenario 7 | 32 °C | 27 °C | 24 °C | SE | 7 km/h | 10 km/h | 8 km/h |
References
- Notteboom, T.; Pallis, A.; Rodrigue, J.-P. Port Economics, Management and Policy, 1st ed.; Routledge: London, UK, 2022; ISBN 9780429318184. [Google Scholar]
- Schenone, C.; Pittaluga, I.; Borelli, D.; Kamali, W.; El Moghrabi, Y. The Impact of Environmental Noise Generated from Ports: Outcome of MESP Project. Noise Mapp. 2016, 3, 26–36. [Google Scholar] [CrossRef]
- European Sea Ports Organization (ESPO). Environmental Report 2020. Available online: https://www.espo.be/media/Environmental%20Report-WEB-FINAL.pdf (accessed on 20 January 2022).
- Lim, S.; Pettit, S.; Abouarghoub, W.; Beresford, A. Port Sustainability and Performance: A Systematic Literature Review. Transp. Res. D Transp. Environ. 2019, 72, 47–64. [Google Scholar] [CrossRef]
- Themann, C.L.; Masterson, E.A. Occupational Noise Exposure: A Review of Its Effects, Epidemiology, and Impact with Recommendations for Reducing Its Burden. J. Acoust. Soc. Am. 2019, 146, 3879–3905. [Google Scholar] [CrossRef] [PubMed]
- Pienkowski, M. Loud Music and Leisure Noise Is a Common Cause of Chronic Hearing Loss, Tinnitus and Hyperacusis. Int. J. Environ. Res. Public Health 2021, 18, 4236. [Google Scholar] [CrossRef]
- Basner, M.; Babisch, W.; Davis, A.; Brink, M.; Clark, C.; Janssen, S.; Stansfeld, S. Auditory and Non-Auditory Effects of Noise on Health. Lancet 2014, 383, 1325–1332. [Google Scholar] [CrossRef] [PubMed]
- Waye, K.P.; Van Kempen, E. Non-Auditory Effects of Noise: An Overview of the State of the Science of the 2017–2020 Period. In Proceedings of the 13th ICBEN Congress on Noise as a Public Health Problem, Stockholm, Sweden, 14–17 June 2021; Karolinska Institutet: Solna, Sweden, 2021. [Google Scholar]
- Guski, R.; Schreckenberg, D.; Schuemer, R. WHO Environmental Noise Guidelines for the European Region: A Systematic Review on Environmental Noise and Annoyance. Int. J. Environ. Res. Public Health 2017, 14, 1539. [Google Scholar] [CrossRef] [PubMed]
- Kuehnel, N.; Moeckel, R. Impact of Simulation-Based Traffic Noise on Rent Prices. Transp. Res. D Transp. Environ. 2020, 78, 102191. [Google Scholar] [CrossRef]
- Schiavoni, S.; D’Alessandro, F.; Borelli, D.; Fredianelli, L.; Gaggero, T.; Schenone, C.; Baldinelli, G. Airborne Sound Power Levels and Spectra of Noise Sources in Port Areas. Int. J. Environ. Res. Public Health 2022, 19, 10996. [Google Scholar] [CrossRef]
- Borelli, D.; Gaggero, T.; Pallavidino, E.; Schenone, C.; Waffo Kamdem, E.L.; Yousseu Njiotang, C.A. Possible Solutions for Port Noise Monitoring. In Proceedings of the 26th International Congress on Sound and Vibration, Montréal, QC, Canada, 7–11 July 2019; Available online: https://iiav.org/icsv26/ (accessed on 9 May 2022).
- Paschalidou, A.K.; Kassomenos, P.; Chonianaki, F. Strategic Noise Maps and Action Plans for the Reduction of Population Exposure in a Mediterranean Port City. Sci. Total Environ. 2019, 654, 144–153. [Google Scholar] [CrossRef]
- Murphy, E.; King, E.A. An Assessment of Residential Exposure to Environmental Noise at a Shipping Port. Environ. Int. 2014, 63, 207–215. [Google Scholar] [CrossRef]
- Alsina-Pagès, R.M.; Socoró, J.C.; Barqué, S. Survey of Environmental Noise in the Port of Barcelona. In Proceedings of the Euronoise—European Conference on Noise Control, Crete, Greece, 27–31 May 2018; Available online: https://www.euronoise2018.eu/docs/papers/478_Euronoise2018.pdf (accessed on 9 May 2024).
- Alsina-Pagès, R.M.; Socoró, J.C.; Bergadà, P. The Impact of Man-Made Noise on the Passenger Transport Stations of Port of Barcelona. In Proceedings of the INTER-NOISE and NOISE-CON Congress and Conference, Madrid, Spain, 16–19 June 2019; Institute of Noise Control Engineering: Reston, VA, USA, 2019; Volume 259, pp. 6912–6922. Available online: https://merit.url.edu/en/publications/the-impact-of-man-made-noise-on-the-passenger-transport-stations--4 (accessed on 9 May 2024).
- Bolognese, M.; Fidecaro, F.; Palazzuoli, D.; Licitra, G. Port Noise and Complaints in the North Tyrrhenian Sea and Framework for Remediation. Environments 2020, 7, 17. [Google Scholar] [CrossRef]
- Jelić Mrčelić, G.; Vukić, L.; Jambrošić, K. Multi-Faceted Analysis of Airborne Noise Impact in the Port of Split (II). J. Mar. Sci. Eng. 2023, 11, 1189. [Google Scholar] [CrossRef]
- Virto, L.R.; Dumez, H.; Romero, C.; Bailly, D. How Can Ports Act to Reduce Underwater Noise from Shipping? Identifying Effective Management Frameworks. Mar. Pollut. Bull. 2022, 174, 113136. [Google Scholar] [CrossRef] [PubMed]
- Faculty of Maritime Studies. Project List. Available online: https://www.pfst.unist.hr/en/research/projects/project-list (accessed on 26 April 2023).
- Vukić, L.; Peronja, I.; Mandić, N. Significance and Current Regulations of External Airborne Noise from Ships. In Proceedings of the 28th International Conference on Urban and Maritime Transport and the Environment Urban and Maritime Transport, Online, 23 November 2022; Volume 212, pp. 139–148. [Google Scholar]
- Vukić, L.; Peronja, I.; Glavinović, R. Multi-Faceted Analysis of Airborne Noise Impact in the Port of Split (I). J. Mar. Sci. Eng. 2022, 10, 1564. [Google Scholar] [CrossRef]
- Fredianelli, L.; Bolognese, M.; Fidecaro, F.; Licitra, G. Classification of Noise Sources for Port Area Noise Mapping. Environments 2021, 8, 12. [Google Scholar] [CrossRef]
- Di Bella, A.; Remigi, F. Evaluation and Control of Cruise Ships Noise in Urban Areas. In Proceedings of the 20th International Congress on Sound and Vibration 2013, Bangkok, Thailand, 7–11 July 2013. [Google Scholar]
- European Union. Directive 2002/49/EC of the European Parliament and the Council of 25 June 2002 Relating to the Assessment and Management of Environmental Noise. Off. J. Eur. Communities 2002, 189, 12–25. [Google Scholar]
- Peris, E. Environmental Noise in Europe—2020; EEA Report No 22/2019; EEA: Copenhagen, Denmark, 2020; Available online: https://www.eea.europa.eu/publications/environmental-noise-in-europe/at_download/file (accessed on 1 February 2022).
- Baldinelli, G.; Marsico, G. State of the Art of Best Practices for Port Noise Management Deliverable Number A1 Dissemination Level Internal-External LIFE Programme. Available online: http://anchorlife.eu/wp-content/uploads/2021/01/deliverable_A1_State_of_the_art.pdf (accessed on 26 April 2023).
- Dragan, D.; Mulej, M. Deterioration of the Life Quality of the Koper’s Inhabitants as a Result of the Port’s Ships’ Activities: The SEM Modeling Study of Social Irresponsibility. In Proceedings of the 13th IRDO International Scientific Conference Social Responsibility and Current Challenges 2018: Social Responsibility and Sustainable Development in Science, Education and Business, Maribor, Slovenia, 27 September 2018; Available online: https://www.researchgate.net/publication/327931765_Deterioration_of_the_life_quality_of_the_Koper%27s_inhabitants_as_a_result_of_the_Port%27s_ships%27_activities_The_SEM_Modeling_Study_Of_Social_Irresponsibility (accessed on 10 January 2023).
- Biot, M.; Borelli, D.; Gaggero, T.; Lembo, E.; Mocerino, L.; Rognoni, G.; Schenone, C.; Rizzuto, E.; Viscardi, M. Quantification of Airborne Noise Emitted by Ships Based on Class Notation. Ocean. Eng. 2024, 296, 117085. [Google Scholar] [CrossRef]
- Fausti, P.; Santoni, A.; Martello, N.Z.; Guerra, M.C.; Di Bella, A. Evaluation of Airborne Noise due to Navigation and Manoeuvring of Large Vessels. In Proceedings of the 24th International Congress on Sound and Vibration, ICSV 2017, London, UK, 23–27 July 2017; International Institute of Acoustics and Vibration: Auburn, AL, USA, 2017; pp. 1–6. Available online: https://sfera.unife.it/handle/11392/2423065 (accessed on 22 July 2024).
- Di Bella, A.; Fausti, P.; Francesca, R.; Tombolato, A. Measurement Methods For The Assessment of Noise Impact of Large Vessels. In Proceedings of the 23rd International Congress on Sound & Vibration, Athens, Greece, 10–14 July 2016; pp. 1–7. Available online: https://sfera.unife.it/handle/11392/2373005 (accessed on 22 July 2024).
- Coppola, T.; Mocerino, L.; Rizzuto, E.; Viscardi, M.; Siano, D. Airborne Noise Prediction of a Ro/Ro Pax Ferry in the Port of Naples. In Technology and Science for the Ships of the Future—Proceedings of NAV 2018: 19th International Conference on Ship and Maritime Research, Trieste, Italy, 20–22 June 2018; IOS Press: Amsterdam, The Netherlands, 2018; pp. 157–165. [Google Scholar] [CrossRef]
- Bolognese, M.; Carpita, S.; Fredianelli, L.; Licitra, G. Definition of Key Performance Indicators for Noise Monitoring Networks. Environments 2023, 10, 61. [Google Scholar] [CrossRef]
- Baclet, S.; Venkataraman, S.; Rumpler, R.; Billsjö, R.; Horvath, J.; Österlund, P.E. From Strategic Noise Maps to Receiver-Centric Noise Exposure Sensitivity Mapping. Transp. Res. D Transp. Environ. 2022, 102, 103114. [Google Scholar] [CrossRef]
- Čurović, L.; Jeram, S.; Murovec, J.; Novaković, T.; Rupnik, K.; Prezelj, J. Impact of COVID-19 on Environmental Noise Emitted from the Port. Sci. Total Environ. 2021, 756, 144147. [Google Scholar] [CrossRef]
- IEC. International Standard: Electroacoustics–Sound Level Meters–Specifications; IEC: Geneva, Switzerland, 2013; Available online: https://cdn.standards.iteh.ai/samples/17900/df52d949fc904f329404e965b6268258/IEC-61672-1-2013.pdf (accessed on 26 April 2024).
- ISO—International Organization for Standardization. ISO 1996-1:2016 Preview Acoustics—Description, Measurement and Assessment of Environmental Noise—Part 1: Basic Quantities and Assessment Procedures; ISO: Geneva, Switzerland, 2017. [Google Scholar]
- ISO—International Organization for Standardization. ISO 1996-2:2017 Preview Acoustics—Description, Measurement and Assessment of Environmental Noise—Part 2: Determination of Sound Pressure Levels; ISO: Geneva, Switzerland, 2017. [Google Scholar]
- Ministry of Health. Ordinance on Maximum Permitted Noise Levels with Regard to the Type of Noise Source, Time and Place of Origin. Available online: https://narodne-novine.nn.hr/clanci/sluzbeni/2021_12_143_2454.html (accessed on 26 April 2023).
- Goh, R.Z.; Phillips, I.B.; Firestone, C. The Perception of Silence. Proc. Natl. Acad. Sci. USA 2023, 120, e2301463120. [Google Scholar] [CrossRef] [PubMed]
Zone | The Highest Permissible Rated Noise Levels LR,Aeq [dB (A)] | |||
---|---|---|---|---|
Lday | Levening | Lnight | Lden | |
Zone of mixed, predominantly residential use | 55 | 55 | 45 | 57 |
Industrial zone and zone of port areas | The noise level originating from noise sources within this zone and at the border with the nearest zone (e.g., residential or mixed zone), where the highest emission noise levels are expected; the noise must not exceed the permitted noise levels at the zone border. |
Berth | Ship Type | Cargo Handled (Most Dominant) | Working Process |
---|---|---|---|
Berth 1 | Oil/Chemical tanker | bitumen | closed * |
Berth 2 | Bulk carrier, General cargo vessel, MPV | scrap metal, yacht/catamaran | open ** |
Berth 3 | Bulk carrier, General cargo vessel, MPV | petroleum coke, calcium, coal | open ** |
Berth 4 | Bulk carrier | bulk slag, salt | open ** |
Berth 5 | Bulk carrier, General cargo vessel, MPV | iron (wire, bars), copper concentrate | open ** |
Berth 6 | General cargo vessel | grain, corn, other coarse grain | open ** |
Ship Type | Cargo Type | Cargo Operation | Dwt * [t] | Loa * [m] | Beam [m] | Duration of Stay | Working Process |
---|---|---|---|---|---|---|---|
Oil/chemical tanker | Bitumen | Unloading | 6180 | 110 | 18 | 5 days | Closed |
Bulk carrier | Bulk slag | Unloading | 55,446 | 188 | 32 | 6 days | Open |
Bulk carrier | Calcium | Loading | 39,090 | 180 | 30 | 3 days | Open |
General cargo | Copper concentrate | Loading | 27,263 | 180 | 27 | 2 days | Open |
Bulk carrier | Bulk slag | Unloading | 55,847 | 190 | 32 | 7 days | Open |
General cargo/MPV | Yacht | Unloading | 4432 | 112 | 17 | 1 day | Closed |
Bulk carrier | Scrap metal | Loading | 44,314 | 183 | 32 | 6 days | Open |
Scenario | Cargo Handled | Berth Number | Distance from the MICROPHONE (in m) | No. of Cranes in Operation | Dominant Noise Sources on Berth | Working Hours (Cargo-Handling Ops) | Other Port-Related Noise Sources | ||
---|---|---|---|---|---|---|---|---|---|
S * | NW ** | S * | NW ** | ||||||
Scenario 1 | Bitumen | Berth 1 | 305 | 300 | N/A | AE and VO | AE and VO | 9:00–19:00 | Bitumen tank trucks |
Scenario 2 | Bulk slag | Berth 3/4 | 340 | 560 | Two cranes | Crane | Crane | 00:00–24:00 | HGV *** |
Scenario 3 | Calcium | Berth 4/5 | 360 | 740 | One crane + conveyor | Crane | Crane | 00:00–24:00 | Background noise |
Scenario 4 | Copper concentrate | Berth 4/5 | 360 | 740 | One crane | Crane | Crane | 00:00–24:00 | Background noise |
Scenario 5 | Bulk slag | Berth 3/4 | 300 | 560 | Two cranes | Crane | Crane | 00:00–24:00 | HGV *** |
Scenario 6 | Yacht | Berth 2 | 360 | 400 | N/A | AE and VO | AE and VO | 9:00–19:00 | HGV *** |
Scenario 7 | Scrap metal | Berth 2 | 360 | 400 | One crane | Crane + cargo | Crane + cargo | 7:00–23:00 | Background noise |
Day (Lday) [dB (A)] | Evening (Levening) [dB (A)] | Night (Lnight) [dB (A)] | |||
---|---|---|---|---|---|
S * | NW * | S * | NW * | S * | NW * |
44.2 | 45.3 | 42.7 | 42.2 | 41.3 | 40.4 |
Cargo Handled | South from the Cargo Terminal (Brda District) | Northwest from the Cargo Terminal (Vranjic Peninsula) | ||||
---|---|---|---|---|---|---|
Day | Evening | Night | Day | Evening | Night | |
Bitumen | Heavy * | Medium * | Low * | Medium | Low | Low |
Bulk slag | Medium | Heavy | Medium | Low | Medium | Medium |
Calcium | Medium | Low | Low | Low | Medium | Low |
Copper concentrate | Heavy | Medium | Medium | Heavy | Medium | Low |
Bulk slag | Low | Low | Medium | Medium | Low | Low |
Yacht | Medium | Medium | Low | Medium | Low | Low |
Scrap metal | Heavy | Low | Low | Low | Low | Low |
Ship Type | Cargo Handled | Residual NoISE [dBA] | |||||
---|---|---|---|---|---|---|---|
Day (Lday) | Evening (Levening) | Night (Lnight) | |||||
S * | NW * | S * | NW * | S * | NW * | ||
Oil/chemical tanker | Bitumen | 56.7 | 56.8 | 52.7 | 53.4 | / | / |
Bulk carrier | Bulk slag | 53.5 | 51.3 | 50.1 | 48.7 | 49.1 | 48.0 |
Bulk carrier | Calcium | 52.6 | 50.1 | 50.9 | 50.2 | 47.3 | 43.9 |
General cargo | Copper concentrate | 50.8 | 52.1 | 49.6 | 47.5 | 46.6 | 44.5 |
Bulk carrier | Bulk slag | 49.1 | 52.1 | 48.2 | 47.3 | 47.5 | 46.5 |
General cargo/MPV | Yacht | 46.5 | 45.8 | 46.0 | 44.1 | / | / |
Bulk carrier | Scrap metal | 54.1 | 54.7 | 50.7 | 49.3 | / | / |
Cargo Handled | Crane—Stand BY | Crane IN Operation—Slewing | Crane—Horizontal Load Movements | Operations—Two Cranes | Operations—Conveyors | AE and VO | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
S * | NW * | S * | NW * | S * | NW * | S * | NW * | S * | NW * | S * | NW * | |
LAFmax [dBA] | 47.4 | 45.8 | 49.5 | 47.2 | 52.5 | 49.4 | 53.5 | 50.4 | 48.3 | 47.6 | 53.6 | 54.5 |
Scenario 3 | Mobile Quay Cranes–Enclosure Implementation | Conveyor Belt System–Respositioned in a Warehouse | ||
---|---|---|---|---|
S * | NW * | S * | NW * | |
LAeq [dBA] | 46.6 | 43.5 | 43.7 | 42.3 |
Sound Pressure Level (LAeq) * | Day (Lday) | Evening (Levening) | Night (Lnight) |
---|---|---|---|
Baseline conditions–measurements | 44.8 dB | 42.5 dB | 40.9 dB |
Residual noise–measurements | 51.9 dB | 49.2 dB | 46.7 dB |
Residents’ perception–assessment | 74 dB | 62 dB | 58 dB |
