Review

A Review on Liquid Hydrogen Storage: Current Status, Challenges and Future Directions

by
Ahmad Naquash
,
Neha Agarwal
* and
Moonyong Lee
*
School of Chemical Engineering, Yeungnam University, Gyeongsan-si 38541, Gyeongsangbuk-do, Republic of Korea
*
Authors to whom correspondence should be addressed.
Sustainability 2024, 16(18), 8270; https://doi.org/10.3390/su16188270
Submission received: 27 August 2024 / Revised: 19 September 2024 / Accepted: 20 September 2024 / Published: 23 September 2024
(This article belongs to the Special Issue Energy Storage and Sustainable Power Supply)
Browse Figures
Versions Notes

Abstract

:
The growing interest in hydrogen (H2) has motivated process engineers and industrialists to investigate the potential of liquid hydrogen (LH2) storage. LH2 is an essential component in the H2 supply chain. Many researchers have studied LH2 storage from the perspective of tank structure, boil-off losses, insulation schemes, and storage conditions. A few review studies have also been published considering LH2 storage; however, most are simply collections of previous articles. None of these review articles have critically evaluated the research articles. In this review study, recent reports, conceptual studies, and patents have been included and critically discussed. Further, challenges and recommendations have been listed based on the literature review. Our results suggest that the multi-layer insulation scheme and integrated refrigeration system can effectively reduce boil-off losses. However, boil-off losses from storage tanks during transportation are the least discussed and must be addressed. The cost of an LH2 storage tank is high, but it can be reduced with advancements in materials and the utilization of latest technologies. The present challenges and future directions for LH2 storage include minimizing and utilizing boil-off losses, improving insulation schemes, and ensuring cost-effective large-scale LH2 storage. This review study can be fundamental for process engineers and new academic researchers to design energy-efficient and cost-effective LH2 storage systems.

1. Introduction

Hydrogen (H2) has recently become of fundamental importance in the energy and economics sector because of its clean energy characteristics [1]. Compared to conventional fuels, H2 is a clean energy fuel as it produces only water when burned. H2 is a versatile fuel that can be used in different sectors of life. The increasing importance of H2 paves the way for intercontinental or long-distance transportation. H2 can be transported in different forms, including as a gas or liquid, or with ammonia and liquid organic hydrogen carriers [2]. Among these options, the most cost-effective way to transport high-purity H2 over long distances is in liquid form [3]. In liquid H2 (LH2) transportation, storage is one of the most important considerations. Storing LH2 is very challenging and critical. LH2 exists at −253 °C (1 atm) with a 99% para composition. This is a very low temperature and requires tremendous amount of energy [4]. Similarly, 99% para (1% ortho) at −253 °C is the composition of LH2 at the equilibrium stage [5]. This equilibrium is temperature-dependent and tends to change when the temperature has changed. However, this change is exothermic, which imparts additional heat load on refrigeration [6]. These two challenges make LH2 storage very challenging and critical.
Researchers are working on improving LH2 storage, studying storage conditions, tank structure, insulation material, and boil-off losses to address its associated challenges associated. For instance, Kang et al. [7] worked on the optimization of the insulation thickness of an LH2 storage tank. Their results show that using a vapor cooling shield (VCS) results in the reduction of layers in the multi-layer insulation (MLI) system. They concluded that the total insulation thickness is reduced by 51.4% with MLI and VCS systems [7]. Jiang et al. [8] conducted an interesting study on the effects of gravity on LH2 storage. They simulated the tank conditions using the computational fluid dynamics (CFD) method. They concluded that the increase in gravitational acceleration leads to an increase in temperature which increases gaseous H2 percentage [8]. Liu et al. [9,10] also studied the thermal performance of LH2 tanks under different gravity levels. Their conclusion suggests that the gravity level is directly proportional to the heat convection. In addition, Liu et al. also studied the thermal performance of insulation in aerospace applications [11] and the thermal stratification of rotating LH2 tanks [12]. Moreover, Xu et al. investigated the design of an LH2 tank for aerospace applications using ANSYS software. Their proposed insulated support structure can reduce heat leakage by 85% [13]. Researchers have also worked on new materials and nanotechnology for H2 storage [14,15,16,17,18]. It has been noted from the literature reviews of research papers that researchers have mainly focused on improving LH2 storage tank insulation schemes.
Similarly, several review studies have also been published in the last few years investigating the work of researchers. For instance, Yartys and Lototsky [19] have published a review on H2 storage methods. They compared LH2 storage with compressed H2 storage and concluded that LH2 storage contains more storage volume because of its higher energy contents. Zuttel [20] has also reviewed H2 storage methods. He presented a brief overview of LH2 storage conditions and characteristics. Eberle et al. [21] also reviewed H2 storage methods. They also presented a brief overview of LH2 storage conditions and insulation characteristics. Moreover, Durbin and Malardier-Jugroot [22] reviewed H2 storage in automobiles. They determined that the main challenge in LH2 automobile storage is controlling boil-off losses. Sharma and Ghoshal [23] reviewed the H2 supply chain, including LH2 storage and transportation. They also summarized challenges associated with H2 and its utilization. Qiu et al. [24] reviewed storage materials for LH2 storage. Stainless steel is widely employed for cryogenic storage tanks [24]. Abdalla et al. [25] briefly explained LH2 storage and transportation and its associated challenges. Furthermore, Andersson and Gronkvist [26] investigated the potential of large-scale storage for H2. They determined that large LH2 storage is an energy-intensive process (6.0 kWh/kg H2) compared to other storage options. Zhang et al. also reviewed H2 liquefaction processes and LH2 storage. They discussed materials used in LH2 storage, insulation types, and its associated challenges. Yatsenko et al. reviewed insulation types and materials for LH2 storage [27]. Aziz [28] recently published a paper reviewing H2 liquefaction, storage, transportation, and safety. He analyzed LH2 storage in detail, considering boil-off losses through sloshing during transportation. Similarly, a few review papers have recently been published presenting a brief overview of LH2 storage methods [29,30,31].
It has been determined from the literature reviews of review papers that most authors have mainly focused their investigations on LH2 storage conditions, insulation schemes, and boil-off losses. The investigation of LH2 characteristics, the latest research on LH2 storage tanks, and techno-economic analysis are still lacking. This review paper fulfills this knowledge gap by providing a detailed literature review (including reports, patents, and conceptual studies) of LH2 storage and analyzing LH2 storage from a techno-economic perspective. Further, this study shortlists challenges and future directions for process engineers and academic researchers. This review is first-of-its-kind, focusing solely on LH2 storage and prospects.

2. Liquid Hydrogen Characteristics

Pure H2 can be stored in gaseous or liquid form [32]. At ambient conditions, H2 exists in gaseous form and the lower heating value (LHV) on a volume basis at these conditions is quite low i.e., 0.01 MJ/L because of the very low density of H2 (0.084 kg/m3) [33]. The pressure of H2 gas is increased up to 690 or 700 bar to increase its density or LHV [33]. At 700 bar, the LHV of compressed gaseous H2 (CGH2) is 4.8 MJ/L with a density of 40.2 kg/m3 [33]. In the case of LH2 (−253 °C and 1 bar), the LHV and density is 8.5 MJ/L and 70.9 kg/m3, respectively [33]. The LHV and density of LH2 are almost double that of CGH2. This shows that LH2 storage is more beneficial in terms of storing more volume compared to CGH2.
The comparison of the basic properties of CGH2 and LH2 is presented in Table 1. These properties are extracted from Aspen Hysys [34] using the Modified Benedict Webb Rubin (MBWR) equation of state as a thermodynamic package [4]. MBWR is a well-known property package and has been widely used for H2 process simulations [4].
Table 1 displays the difference in properties of CGH2 and LH2 in storage. The density of LH2 is higher than CGH2 whereas the enthalpy and entropy are lower, mainly because of the very low temperature of LH2. Further, the lower specific volume of LH2 (i.e., 0.028 m3/kgmole) indicates that there is more space to store H2; whereas in the case of CGH2, the higher specific volume (0.052 m3/kgmole) means there is less storage space. This confirms the importance of storing pure H2 in liquid form as opposed to gas.

2.1. Ortho-to-Para Conversion

The H2 molecule exists in two different isomers, i.e., ortho H2 (o-H2) and para H2 (p-H2). The difference between these isomers is the direction of its nuclei spin, resulting in different properties, as shown in Figure 1.
At 25 °C, molecular H2 consists of 75% o-H2 and 25% p-H2, both with opposite nuclei directions [36]. These isomers of H2 have different rotational energies, with o-H2 at the higher energy level. The equilibrium between the two states is temperature-dependent and shifts toward 100% p-H2 as the temperature decreases to −253 °C. This shifting of equilibrium is called ortho-to-para conversion (OPC). The enthalpy of OPC is approximately 527 kJ/kg, and the heat of vaporization of p-H2 is approximately 447 kJ/kg (see Figure 2) [37]. This exothermic enthalpy of conversion is an additional duty that enhances the total reversible work by approximately 15% [38]. This OPC is of vital importance from the perspective of long-term LH2 storage.
The OPC in the absence of a catalyst is a second-order reaction [39]. This mode of conversion can also be termed as self-conversion. The rate of conversion is written as (Equation (1)):
d x o r t h o d t = − K 2 x o r t h o 2
where x o r t h o is the mole fraction of o-H2, K 2 is the second-order reaction rate constant, and t is the time. If the catalyst is introduced in the OPC, the reaction will approach the first-order reaction for the gaseous phase. The rate of conversion in this case will be (Equation (2)):
d x o r t h o d t = − K 1 x o r t h o
where K 1 is the first-order reaction rate constant. Similarly, the reaction will approach zero-order reaction rate when the catalyst is added in the liquid phase (Equation (3)):
d x o r t h o d t = − K 0
where K 0 is the zero-order reaction rate constant. The second-order reaction rate constant ( K 2 ) is equal to 0.0114 h−1 [39]. In this case, the time (t) required to convert 75% o-H2 can be calculated as (Equation (4)):
t = 1 0.0114 1 x o − H 2 − 1 0.75
For example, it takes approx. 2 months to convert 75% o-H2 to 5% o-H2 which is a very slow process [39]. Therefore, the OPC is done catalytically to support long-distance transportation or the long-term storage of LH2. (This can also be seen in Figure 3.)

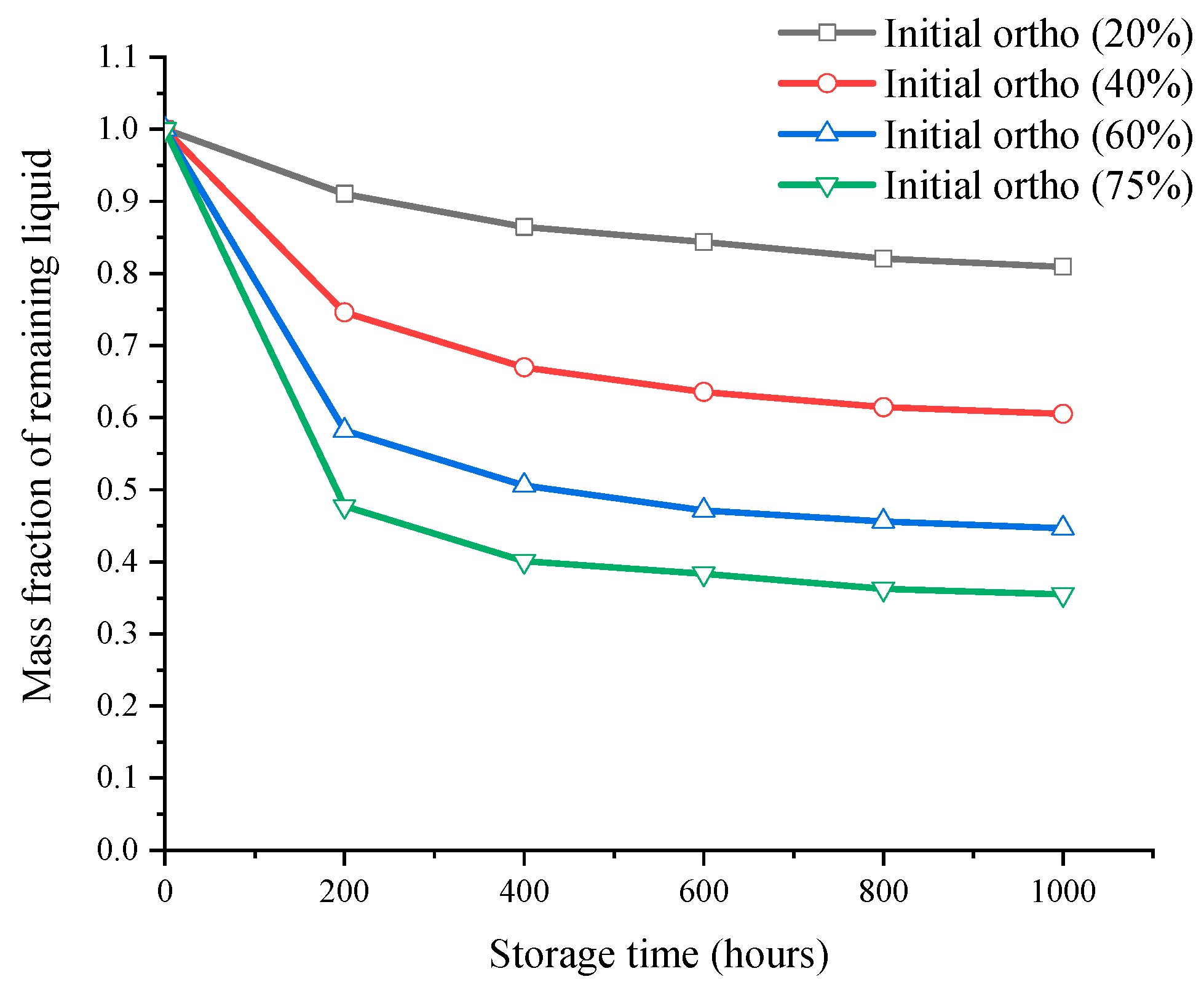

Figure 3 shows the amount of liquid remaining in the storage tank after a certain time with and without OPC. At 80% p-H2 (20% o-H2), the amount of liquid remaining is higher than when compared to the lower percentages of p-H2. Figure 3 demonstrates the necessity of OPC in LH2 storage [39].

2.2. Boil-Off Losses

Boil-off is the continuous but slow evaporation of liquified gas. Typically, boil-off occurs in the storage tank after exchanging heat with the environment. This boil-off results in a pressure increase inside the storage tank and a loss of liquified gas. In the case of LH2, the boil-off losses are very critical and important, mainly because of the very low temperature (−253 °C) and high energy requirement for LH2 production [40]. The energy consumption for LH2 production is estimated to be 11% of its energy content (i.e., lower heating value (120 MJ/kg)) [5]. At this very low temperature, a small amount of heat exchange will lead to boil-off losses. For typical gases (e.g., carbon dioxide and natural gas), boil-off mainly occurs due to heat leaks, sloshing, and flashing, whereas in the case of LH2, OPC also plays an important role in these boil-off losses.
Heat leaks typically occur due to temperature difference between the liquified gas and its surroundings. This can be minimized by insulating the storage tank or remodeling the storage tank (such as integrated with an refrigeration system) [41]. In addition, the selection of storage tank material plays an important role. The details of storage tank materials are provided in the forthcoming sections. Moreover, sloshing in a liquid storage tank also plays an important role in increasing boil-offs due to the increase in temperature and pressure inside the tank. Typically, sloshing occurs in the moving tank due to the movement of the liquid. The sloshing can be reduced by introducing baffles inside the storage tank, which dissipates the kinetic energy of the fluid. Furthermore, the transfer of LH2 from a high-pressure storage tank (2.4–2.7 bar) to a low-pressure storage tank (1.2 bar) results in vaporization and boil-offs [42]. Storing and transporting LH2 at low pressure can avoid the phenomenon of flashing. Another important factor in boil-offs in LH2 is OPC. As described earlier, OPC is a temperature-dependent equilibrium conversion, and any temperature change will disturb the equilibrium, which will change the LH2 composition and also release the conversion heat. Therefore, the temperature of LH2 should be kept low (~−253 °C) to avoid composition change and boil-off losses.

3. Liquid Hydrogen Storage

Storage of LH2 is a complex and challenging process mainly because of the very low temperature requirements (−253 °C) and OPC. LH2 storage has versatile applications [43]. The LH2 storage can be divided into two categories based on its application: stationary storage and mobile storage. Stationary storage includes large-sized storage tanks, especially present at the site of liquefaction plants or space shuttle programs. Mobile storage of LH2 includes small-sized storage tanks, usually used to transport LH2 via trucks or tankers [44]. The applications of LH2 storage vary based on needs, but the important aspect is the storage of high density H2 [45]. Several studies have been published to investigate LH2 storage from different perspectives, such as OPC in storage conditions, insulation materials, BOG, and the mobilization of LH2 [24,46,47]. Section 3.1 presents a brief discussion of storage tank insulation and materials, whereas Section 3.2 discusses published reports, conceptual studies, and patents related to LH2 storage.

3.1. Storage Tank Insulation and Materials

LH2 storage tanks are critically designed to minimize boil-off losses and maximize the liquified gas in the tank [46,48]. The most common design is double-walled with a vacuum in between these walls. This design reduces heat transfer from the outside and thus minimizes boil-off losses. For example, Kawasaki Heavy Industries, Ltd. (Tokyo, Japan) recently completed the Kobe LH2 Terminal (Hy touch Kobe), the world’s first liquefied hydrogen receiving terminal. The Kobe LH2 Terminal consists of a 2500 m3 spherical liquefied hydrogen storage tank with a capacity of 2250 m3 [49]. The tank features a double-shell vacuum-insulation structure, comprising inner and outer shells with a vacuum-sealed layer in between to prevent heat transfer from the outside. Additionally, the tank adopts a spherical design, which is the optimal shape for reducing heat transfer. In some designs, the space between walls is filled with materials (such as aluminum and silica) to minimize any heat transfer through radiations. In addition, the selection of material for storage tank walls is very important, especially in terms of heat capacity and thermal conductivity. Many different materials have been investigated in terms of their ability to withstand the LH2’s extremely low boiling point. For instance, stainless steel is a commonly employed material for low-temperature LH2 storage [27]. However, hydrogen embrittlement is a common issue associated with the use of stainless steel. Stainless steel of different grades has also been tested to evaluate its resistance against embrittlement [24]. Similarly, aluminum can be used for LH2 storage tanks due to its low sensitivity to embrittlement and high specific strength [24]. In addition, titanium and composite materials can also be employed as materials for storage tanks [24,28].
Similarly, insulation plays an equally important role in LH2 storage tank design. There are different types of insulations based on their thermal conductivity (k value) and heat resistance performance. The Table 2 below shows types the pros and cons of different insulation materials used for LH2 storage tanks. Typically, perlite vacuum insulation is used for LH2 storage tanks.
The above table shows that MLI is excellent in reducing boil-off losses (up to 0.01–0.05%/day [50]). MLI is composed of several layers of low-emissivity material with free-volume spaces. MLI is considered the most efficient insulation scheme in cryogenic systems, exhibiting minimal boil-off losses [51]. It consists of multi-layers of reflective materials such as aluminum foil or low conductivity material like fiberglass under high vacuum.
The insulation process can be divided into two types based on thermal protection: passive thermal protection and active thermal protection [44]. Passive thermal protection employs materials such as spray-on foam insulation, fiber-reinforced plastic, aerogel, and glass bubbles in combination with MLI to reduce heat losses. These materials exhibit low thermal conductivity and good thermal resistance. Further, these materials can be stacked by wrapping materials on the surface of the storage tank and/or can be used in powder form as a filling in the insulation area. Table 3 shows the thermal conductivity and density of common materials [44].
Moreover, active thermal protection is the technology utilizing cryogenic chillers to re-condense the evaporated vapors and utilize them to reduce heat transfer and avoid boil-off. This technology provides superior performance and can be used alongside passive thermal protection to provide a better insulation performance. NASA is working on developing and utilizing active and passive thermal protection to minimize boil-offs. For active insulation, an internal refrigeration and storage (IRAS) system can be introduced utilizing helium as a refrigerant and for passive insulation. Glass bubbles have also been assessed as a potential insulation material, exhibiting a better performance than perlite powder [44].

3.2. Literature Review

In this section, a literature review is categorized based on reports, conceptual studies, and patents.

3.2.1. Bibliometric Analysis

The bibliometric analysis of H2 storage was conducted through a Scopus document search [52]. Bibliometric analysis is an efficient tool to analyze research trends in a specific research field. These research trends depict the importance of certain research areas. In this case, the target was to analyze research trends in LH2 storage solutions. To do that, a comprehensive bibliometric analysis was conducted. In the document search, the following keywords were selected: hydrogen storage, hydrogen storage capacities, hydrogen storage materials, hydrogen storage system, liquid hydrogen storage, liquid hydrogen tank. The irrelevant keywords were excluded from the search. This document search resulted in 2594 documents, mainly comprised of articles (1731), conference papers (506), reviews (258), and book chapters (84). These results are shown in Figure 4.
These results show that the authors mainly used “Hydrogen storage” as a keyword. Nevertheless, this keyword included all kinds of hydrogen storage such as GH2 storage, storage materials, and capacities. To further narrow down the search, the keyword, “Liquid hydrogen storage” was selected. This search showed 159 documents in total, comprising 97 articles (61%), 46 conference papers (29%), 9 reviews (6%), and 7 book chapters (4%). This analysis was further expanded to evaluate the trend of year-wise research in this subject area (see Figure 5).

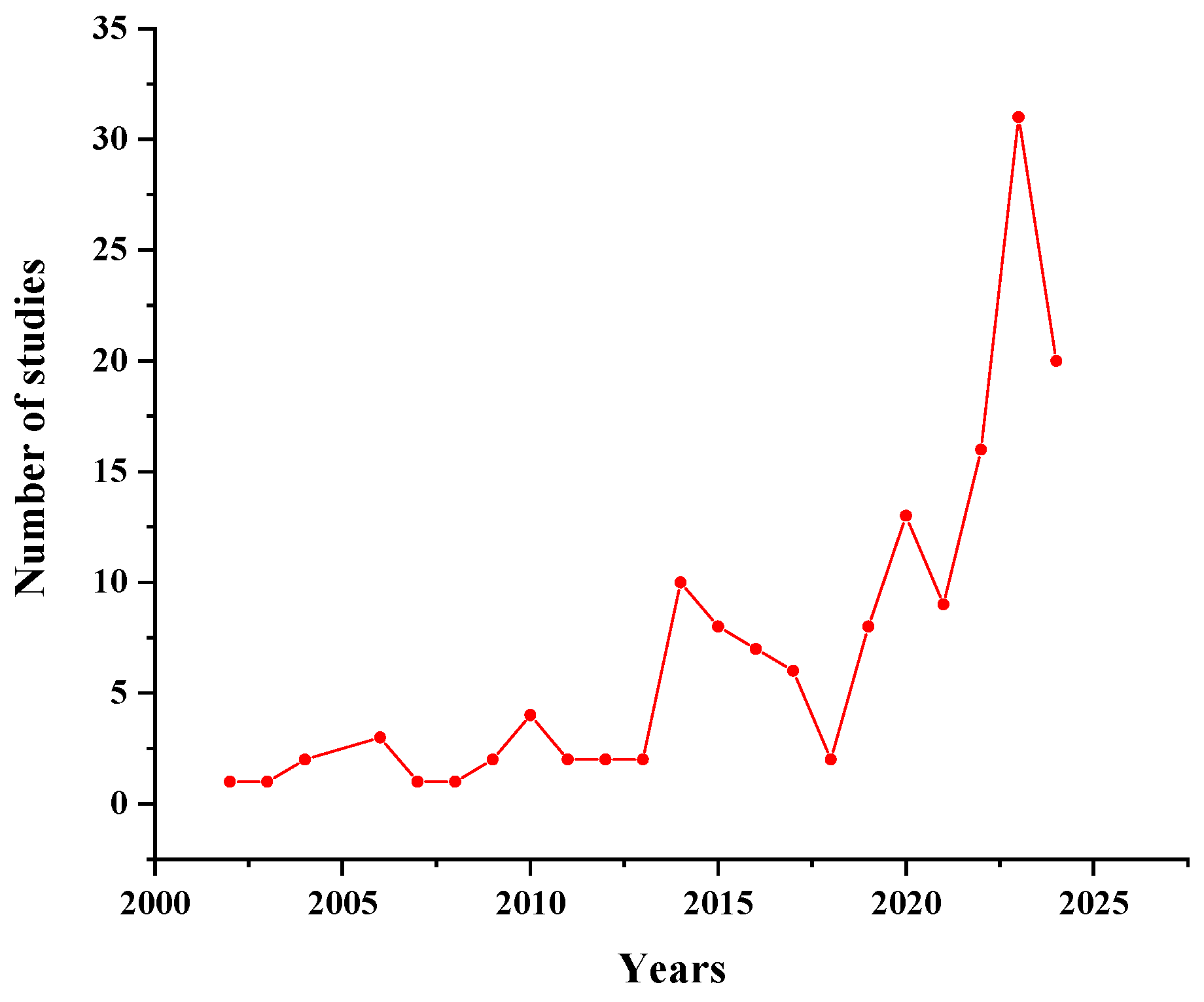

The trend shows that a major boom in the research of LH2 storage has been seen post-2014. This trend is increasing which shows the increasing interest of researchers in developing efficient LH2 storage. Furthermore, this research has mainly been conducted in the research areas of energy and engineering, as can be seen in Figure 6.
Figure 5 and Figure 6 demonstrate research trends and the focus of researchers in LH2 storage research. It can be seen that in recent years, the key focus of researchers has been to improve the energy efficiency of storage by improving the design and tank materials. The main target of researchers is to develop energy-efficient LH2 storage systems. The other research areas include research for space applications, material development, and environmentally friendly applications.
In conclusion, the bibliometric analysis provides an important outlook of importance and current research trends in the field of LH2 storage.

3.2.2. Reports

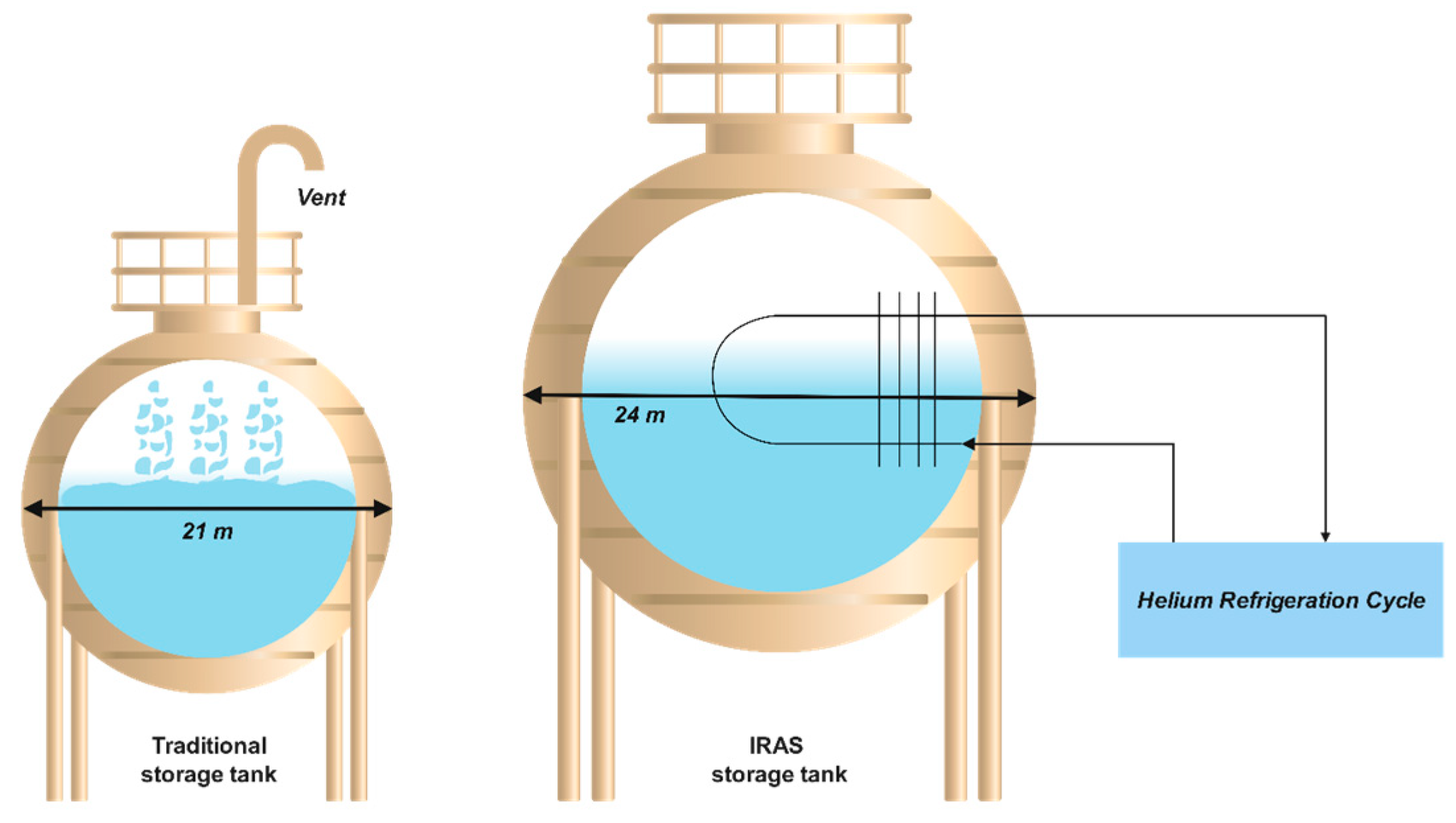

NASA is the major player in LH2 storage. The world’s largest LH2 storage tank belongs to NASA, with a storage capacity of 4732 m3, increasing the total storage capacity to 7950 m3 [53]. The new storage tank is more advanced and efficient regarding the low boil-off rate. The maximum boil-off rate is <1.0% [54], which is much less than that of the old storage tank (>1.0% [50]). The old LH2 storage tank is vacuum jacketed with perlite as insulation. In the new storage tank, a more advanced control system is applied, i.e., a glass bubbles insulation system for passive thermal control and IRAS for active thermal control. The glass bubbles have been proven to be more efficient than perlite, with an associated 44% reduction in boil-off rate [55]. The IRAS system employs a refrigeration system that constantly applies cold energy of helium to stored LH2 in order to minimize the boil-off rate. Figure 7 shows a comparison of an ordinary and an IRAS system storage tank.
In addition, Kawasaki has developed LH2 storage tanks for JAXA (a Japanese space exploration company) with a storage capacity of 540 m3 and 2250 m3 [56]. Kawasaki has also designed another vacuum-sealed LH2 tank with a storage capacity of 10,000 m3 with a boil-off rate of 0.1% [57]. Similarly, Linde has also developed both small and large-scale storage tanks with a capacity of up to 300 m3 [58]. In addition, NASA also worked on developing efficient insulation systems for LH2 storage tanks [59,60]. The NASA team conducted tests and modeling to study the performance of MLI under different temperature conditions [61]. Similarly, Johnson at NASA [60] worked on optimizing layer densities for MLI systems. He calculated a critical layer density and validated it against test data from a H2 testbed.

3.2.3. Conceptual Studies

Several conceptual studies have been published investigating the potential of LH2 storage conditions, tank structure, tank, and insulation materials [62,63,64,65].
For instance, Qiu et al. [24] thoroughly reviewed cryogenic materials for LH2 storage and transportation. They concluded that stainless steel is the most common material for storage tanks; however, there are certain issues with stainless steel such as H2 embrittlement [24]. Alloys and composite materials can also be used for tank material. Park et al. studied the mechanical behavior of stainless steel at low temperatures and concluded that the materials are dependent on temperature and strain rate [66]. Similarly, Shultz studied the mechanical, thermal, and electrical properties of composite materials for cryogenic applications [67]. Horiuchi and Ooi [68] also studied the cryogenic properties of composite materials. They investigated carbon fiber-reinforced plastics, aluminum oxide fiber-reinforced plastics, and silicon carbide fiber-reinforced plastics [68]. Further, alloys have also been investigated by researchers and their applications in H2 storage [69,70].
Zheng et al. [71] studied insulation schemes for LH2 storage tanks. They introduced a self-evaporation vapor-cooled shield insulation scheme and compared its performance with other insulation schemes. Similarly, Jiang et al. [72] studied the multi-layer and vapor-cooled shield insulation schemes for LH2 storage tanks. Kang et al. [73] studied LH2 storage tank conditions and insulation schemes for locomotives. They also performed a dynamic study to analyze the effects of structure and insulation systems on boil-off losses. Furthermore, Xu et al. [13] studied the thermal and structural performance of LH2 storage tanks for aerospace applications. They suggested improvements in the support structure of the tank by introducing a point-contact storage support structure, which can reduce heat leakage by 85%. Krenn [74] investigated the abnormal performance of a LH2 storage tank after an increase in boil-off rate. His investigation concluded that this high boil-off was due to a void in perlite filling in the tank, which was later filled [74]. Choi et al. [75] analyzed LH2 tanks in heavy duty trucks based on ISO 13985 standard [76]. The purpose of their study was to analyze the safety of LH2 storage on trucks with respect to structural and thermal performance [75]. Similarly, Ustolin et al. [77] conducted a critical review considering the safety of H2 in the H2 lifecycle. Their review includes the behavior of material such as embrittlement, thermal contraction, and thermal stresses under low-temperature conditions. Fesmire studied the insulation system for nonvacuum cryogenic applications [78]. He proposed a layered composite insulation system, which is suitable for complex systems and can insulate LH2 storage tanks [78]. Wang et al. [79] worked on optimizing the variable density of the MLI system and conducted experimental validation. They demonstrated an improvement of 45% and 54% in the performance of variable density MLI [79]. Yanxing et al. [80] provided a detailed thermodynamic analysis of pure H2 storage. They analyzed the storage density/power consumption for CGH2 storage, cryo-compressed H2 storage, and LH2 storage. According to their analyses, cryo-compressed H2 storage is more advantageous the LH2 storage from a storage density/power consumption perspective [80].

3.2.4. Patents

There are also a few patents published in the field of LH2 storage tanks. Brooks et al. [81,82] patented technologies for cryogenic LH2 storage tanks for aerospace applications. They proposed a cryogenic tank to minimize boil-off losses at high-altitude applications. Similarly, Immel et al. [83] patented a technology that includes a storage tank for LH2. The invention includes a tank that utilizes a common access vacuum tube for different fluid lines in order to minimize obstruction for insulation layers. In another patent, Immel et al. [84] invented a method to suspend the inner tank within the outer tank in order to improve the performance of the cryogenic storage tank. Similarly, Pechtold invented cryogenic storage tank technology to minimize losses during the refilling of LH2 [85]. There are also several other patents published with similar perspectives [86,87,88,89,90].
It has been determined from the literature review (including reports, conceptual studies, and patents) that most studies have focused on analyzing insulation schemes to improve the performance of LH2 storage tanks.

3.3. Techno-Economic Analysis

In this section, the storage of LH2 is evaluated from a technical and economic perspective. The main technical aspect of LH2 storage is the behavior of H2 with respect to temperature and pressure. Therefore, the Pressure–Volume (PV) and Temperature–Volume (TV) diagrams are drawn to analyze the behavior of H2 at different pressures and temperatures. The PV diagram of H2 at different temperatures is shown in Figure 8.

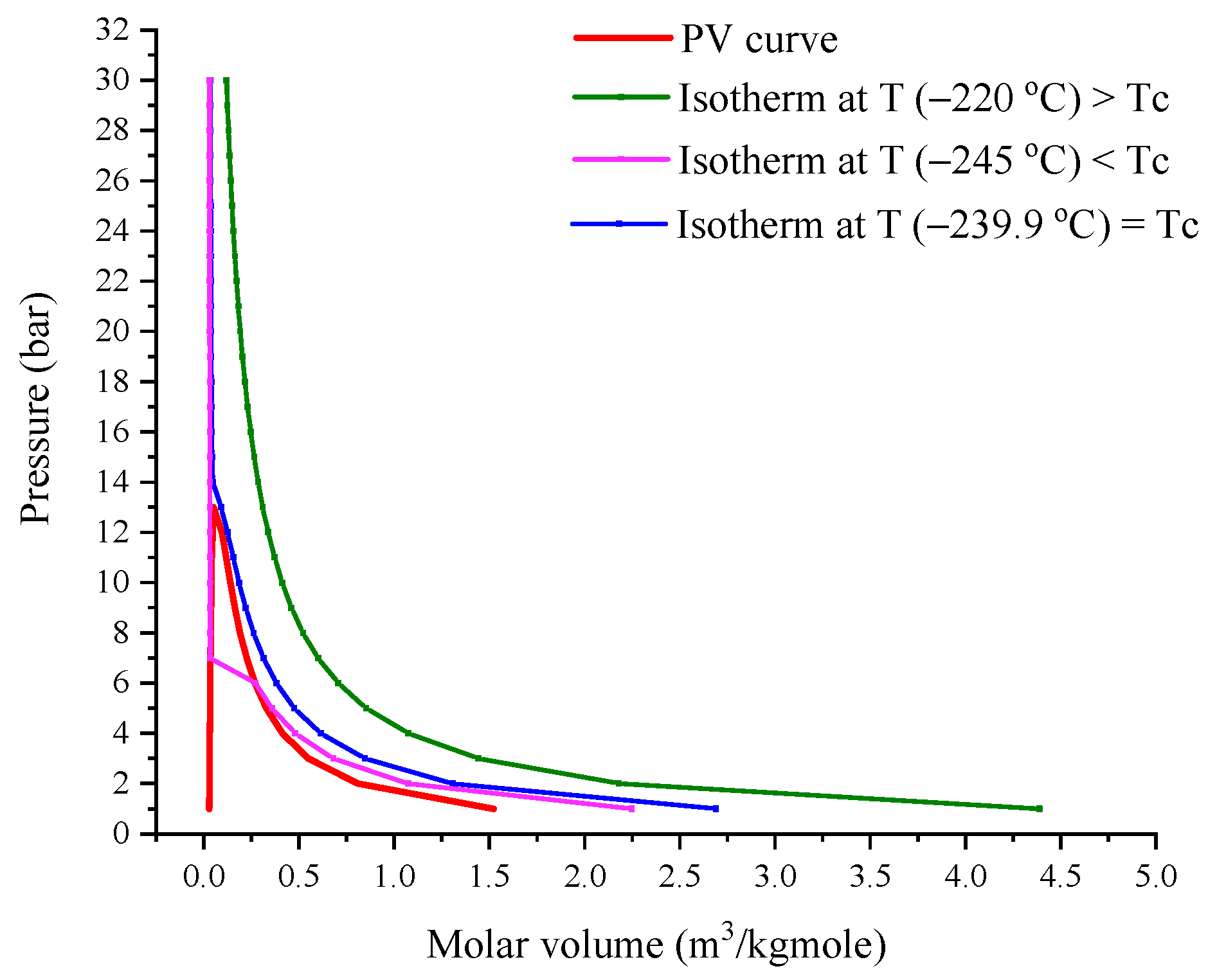

Figure 8 shows the behavior of H2 at a temperature above the critical temperature (Tc) i.e., −220 °C, below Tc (−245 °C), and equal to Tc (−239.9 °C). H2 above Tc shows no change in phase no matter how much the pressure is increased. However, H2 at Tc shows a change in phase at approx. 6 bar and will remain liquid until the critical pressure (Pc) is reached. A further increase in pressure will lead to a super-critical phase. Similarly, an increase in pressure of H2 gas at Tc (the blue line) shows a similar behavior to the dew point curve. This shows that the H2 at Tc will not liquefy no matter how much pressure is increased.
Moreover, the TV diagrams are also drawn for H2. These TV diagrams show the change in volume of H2 when the temperature is reduced from atmospheric conditions (25 °C) to storage conditions (−253 °C). It must be noted that the TV diagram is drawn using data extracted from Aspen Hysys, whereas the MBWR EOS is used to calculate the H2 properties [6]. Figure 9 shows a TV diagram of H2 and isobars at different pressures.

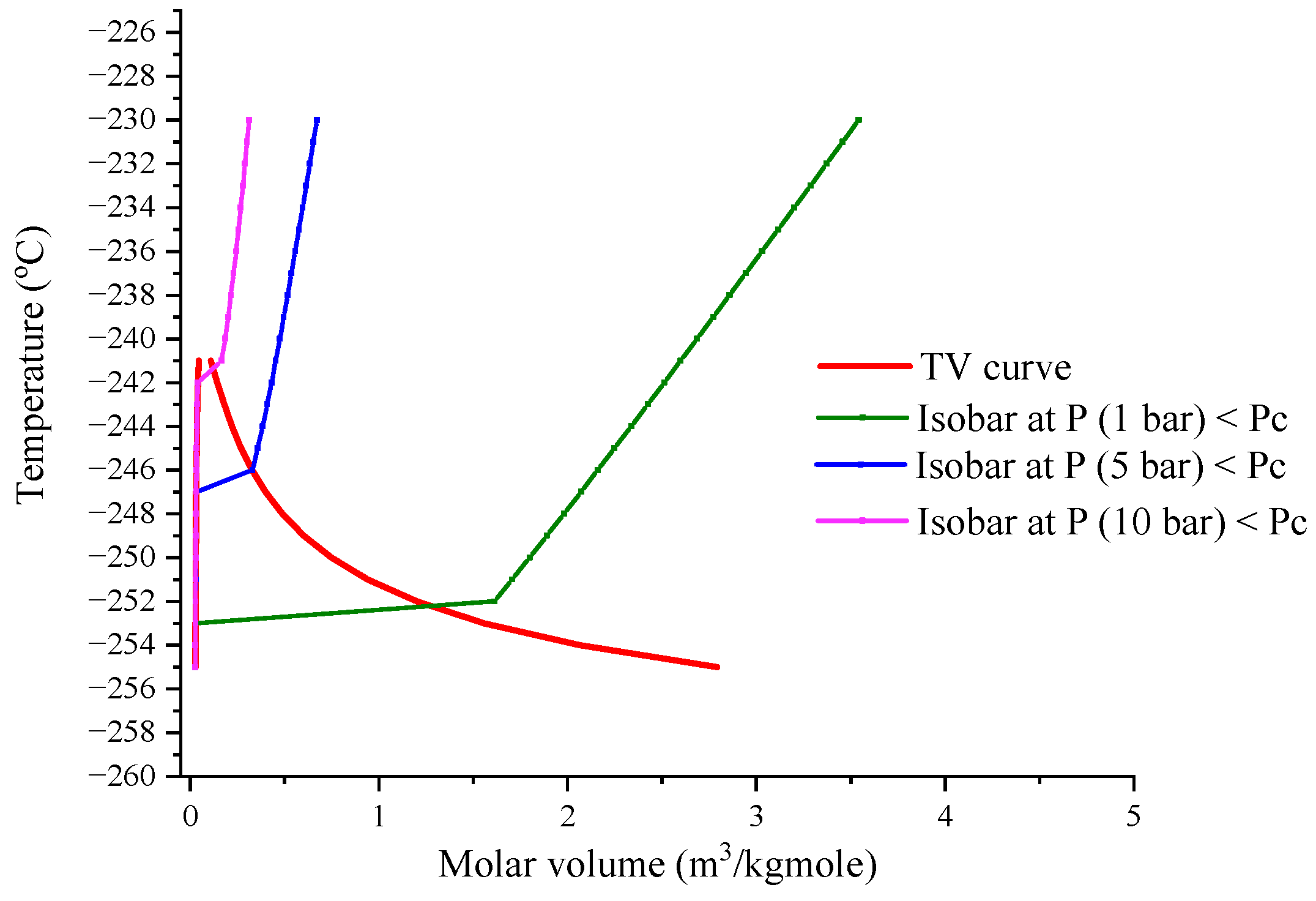

Figure 9 shows the trend of isobaric curves at different pressures (1 bar, 5 bar, and 10 bar). The considered pressure values are below the critical pressure of H2 (12.8 bar). The isobar at 5 and 10 bar shows a very sharp slope, which means that the volume of H2 is low even at higher temperatures. At atmospheric pressure, the volume of H2 gas is large at higher temperatures. When the temperature is reduced, the volume of GH2 is reduced to the point that GH2 is completely liquefied. To understand the change in volume at different temperatures, Figure 10 is drawn at pressures 1 bar and 10 bar.
Figure 10 shows that the volume of H2 at 25 °C and 1 bar is 24.8 m3/kgmole. When the temperature is reduced, the volume is reduced linearly till the dew point is reached. At this point, the volume of H2 is approx. 1.5 m3/kgmole. The heat is further removed from the H2 to attain complete liquefaction (till bubble point). The volume of H2 is reduced to 0.028 m3/kgmole when temperature is reduced from 25 to −253 °C. The total change in volume is 24.77 m3/kgmole. This shows that the volume of H2 is reduced 870 times upon liquefaction. This volume reduction is significant compared to conventional fuel (i.e., LNG).
Another important parameter in LH2 storage is the cost of the storage tank. There are many factors that influence LH2 storage tank costs, such as technological advancements, initial investment costs, operating costs, material costs, and maintenance costs. LH2 storage tanks require high heat resistive material that can withstand extremely low temperatures (<−252 °C). These specialized materials have high material and investment costs. High-strength materials and advanced designs like double-walled tanks can also increase the cost. In addition, tank insulation is critical in cryogenic storage. Vacuum or multi-layer insulation significantly adds to the cost. At NASA, Fesmire et al. [91] studied the costs of insulation materials. They compared the costs of perlite powder, glass bubbles, and aerogel beads. Glass bubbles showed the best performance in terms of low thermal conductivity and low boil-off rates. The initial cost of glass bubbles ($ 1.12/ft3) is higher than perlite ($ 2.13/ft3); however, the boil-off costs of glass bubbles are significantly lower (approx. 80%) than the cost of perlite [91]. Further, operating costs play a major role in the overall lifetime costs. Maintenance, replacement, and refurbishment costs increase operating costs.
NREL reported some costs of LH2 storage tanks at different capacities [92]. These costs are shown in Table 4.
The values in Table 4 show that larger tanks can be more cost-effective than smaller ones. However, these costings are old, and a lot of technological advancements have been carried out since then. Furthermore, the costs vs. capacity analysis has been carried out using Aspen Hysys and Aspen Process Economic Analyzer (APEA) [34]. In Aspen Hysys, a spherical LH2 (at −253 °C and 1.3 bar) storage tank is simulated, and costs are calculated in APEA. SS304 was selected as a tank material in the analysis. Figure 11 shows the costs of these large-sized tanks at different storage volumes.

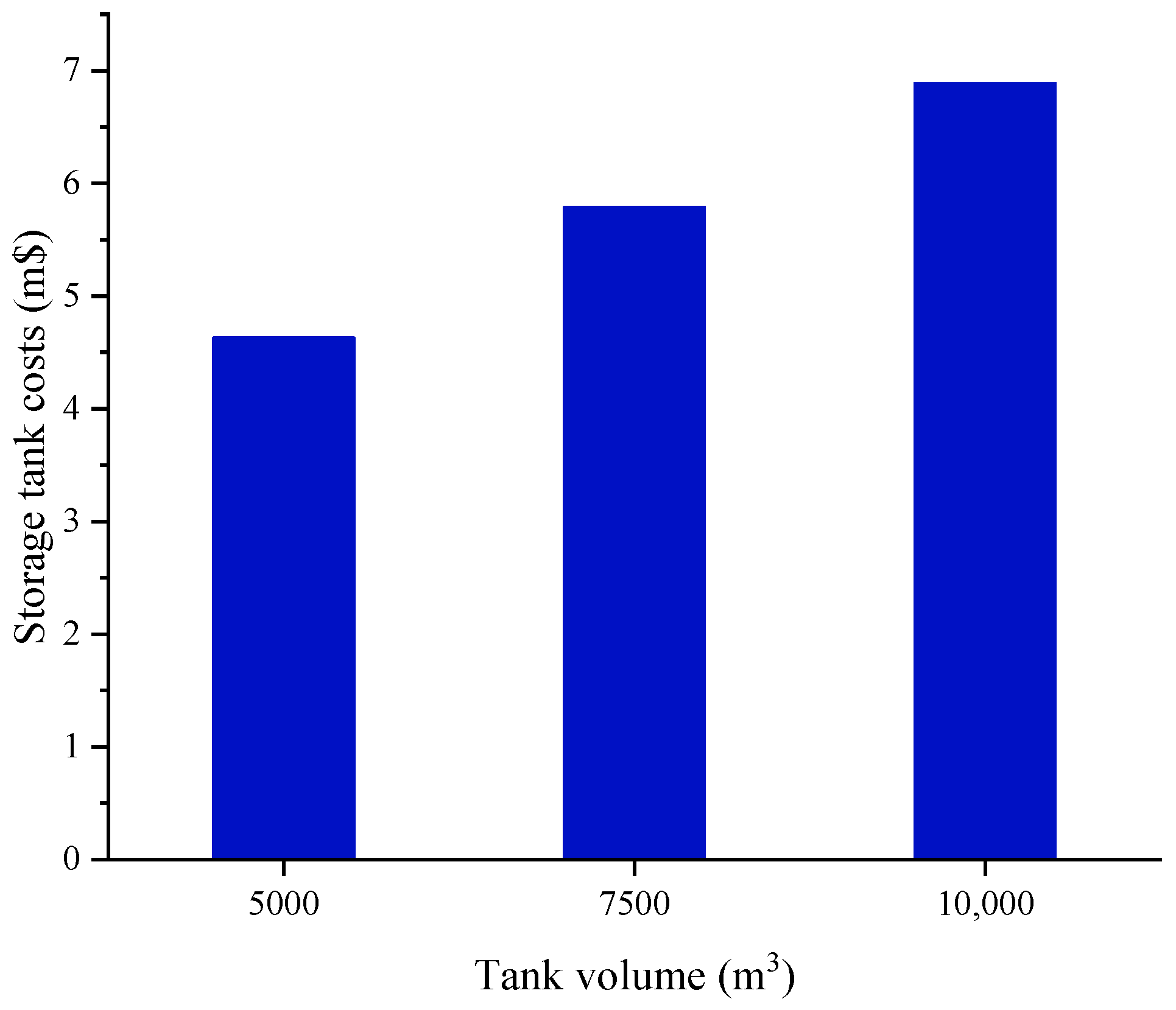

It can be seen from Figure 11 that as the capacity increases (5000 m3 to 10,000 m3), the costs of the storage tank increases from 4.6 m$ to 6.8 m$. This increase in cost is mainly because as the tank volume increases, the size of the tank increases, which leads to higher equipment costs. These costs do not include the cost of insulation and auxiliary equipment.

4. Challenges and Future Directions

LH2 storage is a critical and challenging issue. The major challenges in LH2 storage are summarized below:
  • Insulation plays a key role in keeping LH2 at −253 °C. Commercial LH2 tanks employ perlite insulation with a vacuum to limit the boil-off rate by 1.0% per day. However, this boil-off rate is quite high and needs to be reduced.
  • OPC heat of conversion (527 kJ/kg) is higher than heat of vaporization (447 kJ/kg), which leads to a larger heat load and a high boil-off rate. To control and reduce boil-off, a large amount of energy is required. Minimization of this energy is critical for cost-effective LH2 storage.
  • Storage at −253 °C requires highly sophisticated equipment and design. In addition, a large amount of energy is required to keep LH2 at −253 °C. The design, equipment, refrigeration, energy, and other necessities of the LH2 storage tank are cost-intensive. Reducing this cost will be essential for effective long-term LH2 storage.
  • During the transportation of LH2, the boil-off rate increases due to sloshing and splashing. To minimize this, the design of the storage tank should be suitable enough to control the pressure built inside the storage tank.
  • To improve the energy efficiency of LH2 storage, the design and structure of the storage tank can be improved. The application of an internal integrated refrigeration system (IIRS) by NASA is an attempt in this regard. However, it is very challenging to devise an improvement owing to insulation requirements and low-temperature storage.
  • The challenges associated with LH2 storage including tank geometry, tank material, H2 embrittlement, permeation, and process safety must be addressed.
The importance of LH2 storage cannot be denied; however, there are several challenges and limitations for energy-efficient and cost-effective storage. To meet these challenges, future directions and policy implications are listed below:
  • Academia and industry are both pillars for the improvement and commercialization of any process. The cooperation of academic and industry research needs to be further strengthened. This can be done by establishing joint research programs to utilize the research expertise of academic researchers and to apply the expertise of industries in commercializing the technology.
  • The detailed techno-economic assessment of storage tanks must be considered to compare alternatives with respect to cost and efficiency.
  • The energy-efficient LH2 storage can be a game changer. Therefore, government policies and resources should be diverted towards research and applications of LH2 storage.
  • Further, research on minimizing and utilizing boil-off losses has to be focused on, and alternatives must be considered. In addition, the research on minimizing the boil-off losses in automobile applications requires further consideration. Similarly, more work needs to be done regarding the insulation of the LH2 storage tank. The studies can focus on insulation materials, insulation types, and their integration with internal refrigeration systems.
  • It is necessary to develop a lightweight, compact, strong storage tank.

5. Conclusions

Storage of LH2 has become an essential part of the H2 supply chain. This review provides a comprehensive overview of LH2 storage methods by considering reports, conceptual studies, and patents of LH2 storage. This review further analyzes LH2 properties, LH2 behavior at different temperatures and pressures, and the economics of LH2 storage. The conclusions of this study are listed below:
  • Owing to its very low liquefaction temperature and ortho-para conversion, the storage of LH2 is critical and challenging.
  • Reducing the boil-off rate is an essential and critical part of LH2 storage.
  • Improvements in tank insulation can reduce boil-off losses.
  • Multi-layer insulation with an internal refrigeration system can reduce boil-offs and improve LH2 storage.
  • Utilization of boil-offs can help with the design of efficient storage systems.
  • The boil-offs can be used to exchange cold energy and produce power using a small-scale fuel scale.
  • Reducing boil-offs during LH2 transportation must be urgently addressed.
  • The energy-efficient and cost-effective design of the storage tank is an essential part of the H2 supply chain.
  • The economics of LH2 storage can be improved by developing heat-resistive material that can withstand very low temperatures.

Author Contributions

Conceptualization, A.N.; methodology, A.N.; formal analysis, A.N.; investigation, A.N.; writing—original draft preparation, A.N.; writing—review and editing, N.A.; visualization, N.A.; Conceptualization and supervision, M.L.; funding acquisition, M.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF), grant funded by the Korea government (MSIT) (2021R1A2C1092152).

Data Availability Statement

Data is unavailable due to privacy or ethical restrictions.

Conflicts of Interest

The authors declare no conflicts of interest.
