Methodology and Database for the Quantification of the Technical Recyclability of Electrical and Electronical Equipment Demonstrated on a Smartphone Case Study

by
Matthias Hämmer
* and
Karsten Wambach
Bifa Umweltinstitut GmbH, Am Mittleren Moos 46, 86167 Augsburg, Germany
*
Author to whom correspondence should be addressed.
Sustainability 2024, 16(19), 8726; https://doi.org/10.3390/su16198726
Submission received: 28 August 2024 / Revised: 1 October 2024 / Accepted: 4 October 2024 / Published: 9 October 2024
(This article belongs to the Special Issue Future Development of Product Labelling in Ecodesign Regulation for Sustainable Products and the EU Legal Framework for Energy Labelling)
Browse Figures
Versions Notes

Abstract

:
Assessing a given product’s design and its recyclability using mass flow analysis based on the material separation and recovery rates of individual recycling processes under realistic conditions can support design decisions promoting better recyclability. EN 45555 defines the calculation of the technical recyclability of electrical and electronic equipment (EEE). However, the lack of specific recycling rates for material or processes often leads to either too small or too high recyclability values. Herein, an extensive database of such recycling rates is presented. Moreover, the quality of recycling is considered. The typical classification into “recycled” and “lost” is expanded into four categories, namely “circular”, “recycled”, “alternate material recovery” and “lost”. The recycling rate database includes yields for all four categories and covers 30 materials for 14 recycling processes relevant in waste EEE (WEEE) treatment. These data enable a detailed calculation of the recyclability of various EEE for multiple recycling scenarios covering the entire WEEE recycling chain. Fraunhofer IZM performed an internal critical review of the data. The recycling rates database can act as a solid foundation for comparing the recyclability of various electronics in different scenarios and recyclability indices. For example, the recyclability of typical smartphones is investigated comparing different dismantling and recycling scenarios highlighting the potential of both database and methodology.

1. Introduction

According to the most recent “Global E-waste Monitor” [1], 2022 saw the highest ever recorded amount of e-waste generated globally rising to 62 billion kg. Moreover, the rate of e-waste generation is outpacing the growth of formal collection and recycling, i.e., sound environmental e-waste management, by a factor 5. These findings highlight the need for action by all stakeholders, i.e., governments, manufacturers, producers and recyclers. On the one hand, the capacities of e-waste collection and recycling have to be increased. Original equipment manufacturers (OEMs) are launching directly managed collection programs to increase the collection of their own equipment. Such programs include ink-jet cartridge collection and recycling, which are offered by most major manufacturers [2,3], as well as electronic trade-in programs [4,5,6] and e-bike battery recycling [7] just to name a few. However, the collection of e-waste must be further improved since only 22.3% of the e-waste generated globally was formally collected and recycled in 2022 [1]. On the other hand, the extraction of metals and other materials from collected WEEE, often referred to as urban mining, remains challenging [8,9]. Material recovery can be improved by investing in new and improved recycling infrastructure while considering material recovery during the product design process. In the European Union (EU), the aspects of ecodesign, design for recycling, and design for circularity are addressed by the ecodesign directive [10] and other related legislation [11]. However, for design for recycling, there is a lack of information about status quo and how to design better products for recycling. To quantify the recyclability of a given EEE, calculations can be made according to EN 45555 “General methods for assessing the recyclability and recoverability of energy related products” [12]. However, these calculations are hampered by the lack of material specific data for the relevant material recovery processes. EN 45555 allows the use of the so-called simplified method when data are missing. Then, unknown material recoverability factors are estimated to be either 1 or 0. Depending on the assumptions made during the simplified method, this yields recyclability values that are either much too small or much too high. Going from such potential recyclability to a more realistic assessment is difficult due to a lack of data [13]. The recycling rates calculated according to EN 45555 can be considered technical recyclability [14]. Ideally, it should be based on large-scale batch tests [13]. Furthermore, calculations according to EN 45555 do not discriminate by the quality of recycling; thus, misleading recyclability factors can be claimed or reported by this method.
Both the challenges of calculating the technical recyclability according to EN 45555, i.e., the lack of recycling rate data, and the lack of consideration of recycling quality, are addressed in this contribution. Firstly, an extensive database of material recovery rates for 30 materials within 14 existing recovery processes based on the relevant literature, expert information, and scientifically sound, well-defined, assumptions has been created. The respective processes represent the best available technologies (BATs) in Europe which meet four minimum requirements: the recovery of a specific material from WEEE input (the facility may also receive non-WEEE input), the technology readiness level (TRL) ≥ 8, >30 employees and a turnover of EUR >10 million. This is in line with EN 45555 [12]. Please note that the BATs selection is based on the current state of the recycling industry, and not the theoretical maximum recycling rate of materials. We expect that, with increased funding and significant research and development efforts, new BATs will become available which will increase material recovery for target materials and improve overall product recyclability. Furthermore, the BAT criteria were intentionally selected to screen technologies for economic viability and process scalability, as these are important factors ensuring that the recycling scenario is based on recovery processes that have a path to wide adoption. The material recovery of a product also depends on the composition of the waste flow within which the product is collected [13]. Electric devices from the WEEE directive’s [15] categories 2 and 6 are the focus of this work, e.g., laptops, tablets, smartphones, et cetera, and consequently, mixed waste flows containing such devices are considered.
Secondly, the four categories “circular”, “recycled”, “alternate material recovery” and “lost” are introduced, discriminating by the quality of the recycling. The “circular” category refers to recovered materials which can be used for the substitution of corresponding virgin material in the original product. Recovered material which can substitute the corresponding virgin material but with a lower quality level fits into the “recycled” category. The “alternate material recovery” refers to a material that is recovered as a product that is not identical to the corresponding virgin material. Materials are considered “lost” if they are used for energy recovery or are landfilled.
Based on these data and this methodology, the recyclability of smartphones is assessed for different end-of-life treatment scenarios in a case study showcasing the potential of both the data and methodology presented herein.

2. Methods

2.1. Calculations of Recyclability

In general and in accordance with EN 45555 [12], the recycling rate R including the different qualities discussed above is calculated as follows:
R = ∑ k = 1 n m k · R k m t o t
wherein the following definitions hold:
  • n—number of materials;
  • m k —mass of material k;
  • R k —recyclability factor of material k;
  • m t o t —total mass of device.
In the case of multiple steps, the recyclability factor is the product of the yields or transfer coefficients of all steps. In a simplified example, 85% of copper ends up in the Cu scrap subfraction after mechanical treatment. This is followed by the recycling process copper smelting with a yield of 95% for copper. Thus, the recyclability factor for all copper in the fraction undergoing these two recycling processes is 80.75%. On the more complex level represented by the mass flow model used herein, some copper also ends up in the other subfractions after shredding and sorting. Moreover, other fractions also contain copper. For these, other recyclability factors are calculated. Considering all these aspects for all fractions and all materials yields the final recycling rates at the device level.

2.2. Yields of Recycling Processes

Next to the choice of relevant and adequate recycling processes (discussed below), the most essential parts of the calculations are the recycling yields or recyclability factors per material ( R k ). These were gathered from scientific literature, expert information and scientifically based and well-defined assumptions. Firstly, the respective recycling processes were selected—in line with EN 45555—representing the best available technology in Europe. These met four minimum requirements: the recycling of a specific material from WEEE input (the facility may also receive non-WEEE input), the technology readiness level (TRL) ≥ 8, >30 employees and a turnover of EUR >10 million. For these recycling processes, material-specific recycling yields were taken from the literature. In the cases in which more than one value was found and the described processes did not differ significantly, the lowest reported value was taken for the model—following a worst-case scenario approach. In the absence of exact numerical values, estimations had to be made for the recycling processes, facilitating second recycling steps. For processes without subsequent recycling steps, the yield was set to zero where no values were available—despite literature references substantiating that it is non-zero—following the worst-case approach.

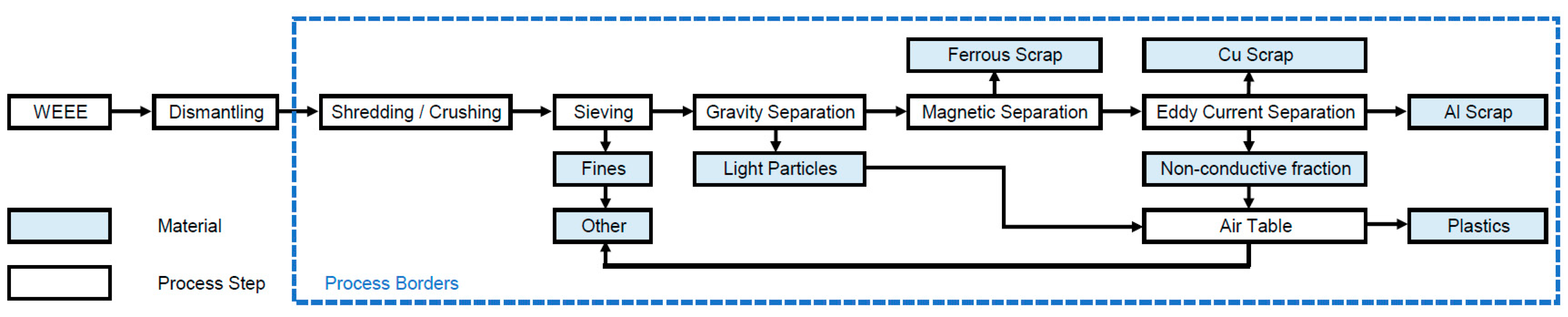

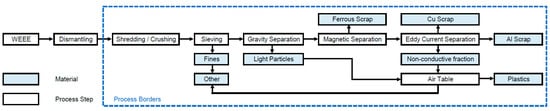

During mechanical treatment, the input materials are sorted with certain yields into five subfractions. Here, the data used in the model go beyond the reports in the literature, both in terms of the number of materials and the information on all five subfractions. This also includes yields for materials into other subfractions than intended, e.g., polymers ending up in the ferrous scrap. For the compilation of the used data, the following methodology was used.
Firstly, the losses to dust during shredding were taken from the literature as a starting point [16,17,18,19,20,21,22]. Secondly, the yields for the target materials were taken from the literature [17,18,19,21,23,24], i.e., the materials to the intended subfraction, i.e., copper to “Cu scrap”. The remaining share of the respective material, i.e., what was not in the intended subfraction and not lost, ended up in the other subfractions. The distribution across the four remaining subfractions was estimated on the basis of the four criteria listed below in descending order of priority:
  • Literature data: Here, the data are incomplete. For example, mass balances excluding the ferrous fraction are reported or only single materials were quantified. However, literature data were used whenever available.
  • Density-based assumptions (for gravity separation) using Table S1.
  • Assumptions of electrostatic separation efficiency via the ratio of electric conductivity to density per material according to Table S2.
  • Other estimates or calculated differences.

2.3. Nomenclature and Levels of WEEE Treatment

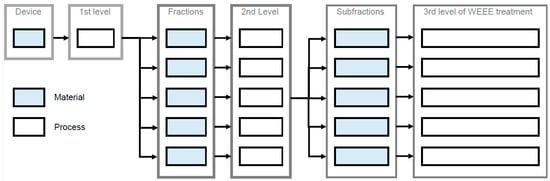

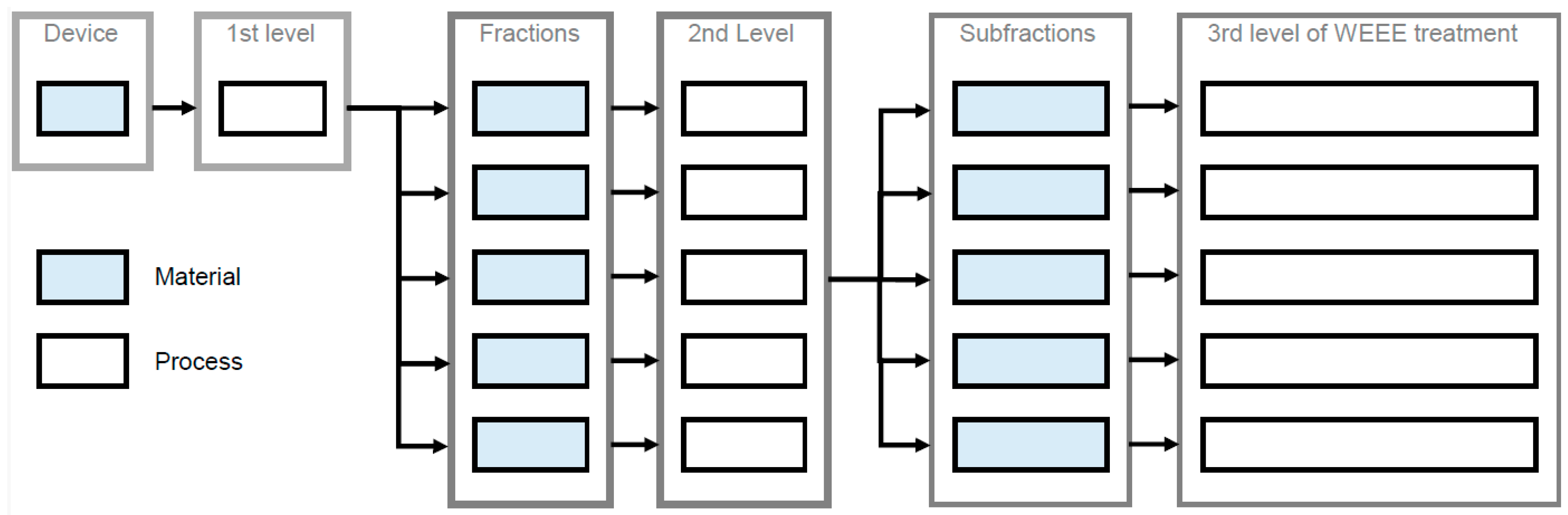

Figure 1 shows the nomenclature used in the following to represent the three levels of WEEE treatment [25]. On the first level, the device is separated in multiple fractions by dismantling. On the second level, mechanical treatment separates each fraction into multiple subfractions. On the third level, material recovery occurs. The second level of WEEE treatment can be bypassed in the case of high-quality dismantling on the first level. For example, PCBs that are separated manually can be directly forwarded to copper smelting without any mechanical treatment. Graphically, material recovery is placed on the second level in these cases—for the sake of clarity (Figure 1). Finally, the fractions’ or subfractions’ materials are turned into secondary raw materials via various recycling processes.

2.4. Material Recovery Qualities

The quality and application of the recycled materials can vary strongly. Consequently, the recycling rate is separated into multiple qualities. Four categories are “circular”, “recycled”, “alternate material recovery” and “lost”. The “circular” quality describes the rate of recovered material which can be used for the substitution of the corresponding virgin material of equal quality in the same product. The materials Ag, Au, Co, Cu, Li, Mn, Sn, W, and Zn are considered “circular”. The “recycled” quality describes the rate of recovered material which can substitute virgin material with a lower quality level. For example, aluminum recycled from the WEEE waste stream cannot be used in the form of the same alloy due to a lack of sorting, but it can substitute other virgin aluminum. The “alternate material recovery” quality describes the rate at which a material can replace virgin materials that are not identical to the recovered materials. The material is not directly recovered as the same material but it is eventually used in a new product. An example is aluminum in steel smelting. It is oxidized to Al2O3 and ends up in the slag, which is utilized in road construction. “Downcycling”, e.g., recovering high-quality glass from electronics in the form of foam glass or low-quality polymer regranulates which end up in park benches or pipes, is also included in the “alternate material recycling” (AMR) rate. Materials are considered “lost” if they are used for energy recovery or landfilled.

2.5. Dismantling Scenarios

Three dismantling options are investigated herein: Worst case dismantling, minimum dismantling and full dismantling. Note that the first is non-compliant with the WEEE directive. It represents the situation prior to the adaption of the directive with the mere removal of the battery of laptops or phones due to safety reasons. The second option represents the minimum required by the WEEE directive [15], i.e., the removal and separate treatment of batteries, PCBs > 10 cm2 and LCDs > 100 cm2. Full dismantling describes the manual disassembly of the whole device to the deepest practical possible level. For example, this is represented by Apple’s recycler guides [26]. In the case study below, the outputs of full dismantling are battery, casing, screen, PCB and mixed electronics for a generic smartphone.

2.6. Description of Recycling Processes

In the following, the recycling processes relevant for WEEE treatment covered by this contribution are described. The respective recycling rate database is found in the supporting information (Tables S3–S16).

2.6.1. Mechanical Treatment

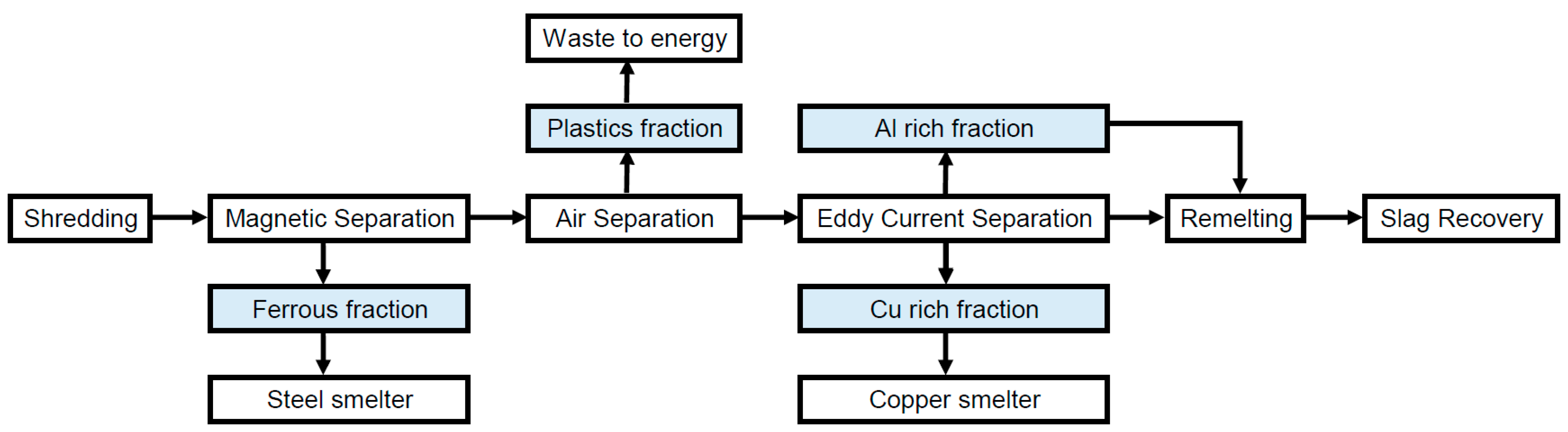

During mechanical treatment, also called shredding and sorting, size reduction to particle sizes below 20 mm [27] by shredders or crushers is followed by sorting. Sorting technologies are sieving, hydrocyclones, air classification, flotation, jigging, electrostatic sorting, magnetic separation and eddy current separation [28]. The flow chart for the mechanical treatment is shown in Figure 2. Separation can be expected to result in 5 subfractions [23,28,29,30,31]: Al scrap, Cu scrap, ferrous scrap, plastics and other (including fines and glass). Naturally, materials can end up in the “wrong” subfractions due to imperfect sorting. This aspect is included in the calculations.

2.6.2. Aluminum Smelter

Aluminum scrap is remelted in aluminum production using scrap instead of raw ore [32]. Secondary aluminum production requires sorting steps prior to that [33,34]. The aluminum output fraction emerging from mechanical treatment or the manual dismantling of WEEE is pretreated prior to smelting. Magnetic and air separation as well as eddy current separation are state of the art [35,36]. Consequently, any ferrous metals and plastics are separated and other metals like Cu, Zn, Au, Ag and others will not end up in the aluminum melt. For the ferrous metal stream, subsequent treatment via the recycling process “steel smelter” and for the Cu-rich stream, subsequent treatment via the recycling process “copper smelter” are assumed in the model. No material recycling is performed for the plastics stream. Figure 3 shows the steps included in the recycling process “aluminum smelter”. Aluminum production generates salt slag. Slag recovery is widely performed due to legal requirements and ecological reasons [35]. The remains are mainly Al2O3 which is used as raw material for cement clinker, ceramics and other applications. All materials that cannot be used as alloy elements in aluminum alloys are expected to end up in the slag. A salt slag recovery rate of 100% is assumed for the calculations [34,37].

2.6.3. Copper Smelter with Precious Metal Refining

In the calculations, copper smelting is expected to be followed by precious metal refining for all treated materials. This recycling process is modeled based on the ones performed by Aurubis and Umicore. This includes shredding, smelting, copper leaching, electrowinning and precious metals refining [38,39]. A slag recovery rate of 100% is assumed in the model. Organic materials act as both a reducing agent and fuel in this process [40]. The former is considered an alternate material recovery while the latter represents pure energy recovery and is therefore considered lost. The ratio between these two is set to 50:50 [24].

2.6.4. Steel Smelter

Ferrous scrap, i.e., iron scrap and steel scrap, also from WEEE input, is usually recycled in steel smelting in electric arc furnaces (EAFs) [32]. In contrast to aluminum scrap during the recycling process “aluminum smelter”, ferrous scrap is not commonly subject to further mechanical treatment during the recycling process “steel smelter”. Thus, it can be assumed that every material inserted into the recycling process “steel smelter” enters the smelting process. Steel alloy elements (Al, Co, Cu, Mn, Ni, Si, Ta, Ti, W) are rarely recycled in steel smelting due to a lack of sorting [41,42]. The metals Al, Ga, Li, Mg, Mn, Nd, Ta, Ti and Zn act as reducing agents in steel smelting and end up in slag in their oxidized forms (Al2O3, et cetera) [24]. A slag recovery rate of 91% is assumed herein [43]. Contamination plastics in steel shredding fractions from e-waste treatment may at least in parts act as reducing agents [44]. However, these are considered lost in line with the worst-case approach due to the lack of exact data of the use of plastics as reducing agents.

2.6.5. Battery Recycling

Three main recycling processes operating at the industrial scale (>1000 t/a) can be differentiated for lithium-ion-battery recycling [45,46,47,48]. These are represented by three distinct companies, Umicore, Accurec and SungEel, selected as examples. The respective process steps and the recycled materials are listed in Table 1 and Table 2. Naturally, these processes are only applicable for the input fraction “battery”. Similarly to the pyrometallurgical process “copper smelter with precious metal refining”, a slag recovery rate of 100% is assumed for the pyrometallurgical process steps in battery recycling. So-called direct recycling represents a fourth option for lithium-ion battery recycling [49,50]. It is an emerging technology, which has not been performed on an industrial scale to date and can therefore not be considered the best available technology.

Umicore-Type Battery Recycling

The Umicore process includes smelting, leaching and precipitation. Iron and copper are recovered as Fe(OH)2 or Fe(OH)3 and CuS or Cu2S, respectively. This is followed by solvent extraction. Then, CoCl2 and Ni(OH)2 are recovered via precipitation from the Co-rich and the Ni-rich stream, respectively [51].

Accurec-Type Battery Recycling

The Accurec process starts with pyrolysis and mechanical separation, after which the steel, Al and Cu fractions are separated. The remainder is treated pyrometallurgically for Ni and Co recycling (including hydrometallurgical final steps) while Li is recycled via hydrometallurgical methods from the produced slag [52]. The final treatments of Al, Fe and Cu in the processes “aluminum smelter”, “copper smelter with precious metal refining” and “steel smelter” are assumed while the yield from the Umicore process for batteries above is used for the final pyro- and hydrometallurgical treatments for both Co and Ni.

SungEel-Type Battery Recycling

The SungEel process includes mechanical pretreatment and hydrometallurgical processing. After grinding into water, the material is separated mechanically into ferrous or non-ferrous metals and active mass. The former two are forwarded to steel and copper smelting facilities, respectively. The latter undergoes an in-house hydrometallurgical process recovering cobalt, nickel, manganese and lithium, mainly as sulfates [53].

2.6.6. Mechanical Polymer Recycling

The recycling process “mechanical polymer recycling” unites multiple recycling processes for specific polymers. The polymers ABS, PC, PC + ABS, TPU and PET can be recycled mechanically in the form of regranulates. However, only the first three are recycled from WEEE to date [20,54]. The sensor-based sorting of the “plastics” waste stream into the respective polymers is included with its respective size limitations [55]. In general, 50% of regranulates are of inferior quality and therefore downcycled [56]. More specific data are only available for pure ABS [20].

2.6.7. Glass Recycling

Clean glass fractions can be used as glass cullet in glass production. Commonly, recycled glass from WEEE is used as foam glass or in other low-value applications [57]. Therefore, all glass recycling from WEEE can be considered downcycling.

2.6.8. Waste to Energy

This recycling process represents the incineration of waste for the generation of electricity and/or heat. Thus, energy is recovered. However, a material recycling rate of 0% (and 0% alternate material recovery) is implemented for this recycling process.

2.6.9. Additional Recycling Processes

Additional recycling processes are described in the supporting information on pages S4 to S6.

3. Results and Discussion

3.1. Recycling Rates Database

Available data for recyclability calculations are scarce. It is in the nature of the recycling industry that, on the one hand, data are very often kept confidential and, on the other hand, the recycling efficiency on the level of single devices and materials does not add relevant data for the optimization of the overall input to output ratio. Even in a few cases of systematic research into the topic [17,18,20,21,22,23,24,27,58,59,60], the results are often limited to a few “important” metals or other specific materials of interest. Consequently, the data are very limited and its public availability is even more restricted. Thus, the recycling rate database presented here is based on an extensive literature study as well as various, well-defined assumptions (Methods: 2. Yields of recycling processes). The database is found in the supporting information (Tables S3–S16). To the best of our knowledge, no similar database has been published so far. The database exceeds any previously published data collection, in terms of both the number of recycling processes and the number of considered materials.
Fraunhofer IZM Dept. Environmental & Reliability Engineering performed an internal critical review and verification of these data and the methodology used, including a promotion of improving data availability and data representativeness. The recycling rate database offers plausible, realistic and appropriate recycling rates to calculate the recyclability of electric devices, especially from the WEEE directive’s categories 2 and 6.
The mass flow-based approach including typical process losses is considered a sufficiently precise approximation for calculating recycling rates. However, it is acknowledged that simulation-based approaches would lead to even more accurate calculations. The use of published separation and recycling rates for the material flow approach enhances the transparency of the methodology justifying such an approach.

3.2. Case Study: Smartphone

In order to showcase the potential of both the data and methodology presented herein, the recyclability of typical smartphones is calculated as a case study. For a hypothetical generic smartphone, the bill of materials (BOM) was taken from the literature with the battery from [61] and the rest of the smartphone from [62]. This smartphone comprises a casing made of PC/ABS. Additionally, a second smartphone with a casing made of aluminum identical in weight is considered. The respective BOMs are found in Tables S17 and S18. Using these, four different exemplary end of life (EoL) treatment scenarios were investigated and the respective recyclability values were calculated. The four scenarios’ flow charts are shown in Figure 4. Figure 5 depicts the overall recyclability at the device level in the four categories for these scenarios and both generic smartphones. The data for Figure 5 (Tables S19 and S20) and material-specific recyclability values can be found in the supporting information (Figures S1–S8 and Tables S21–S28).

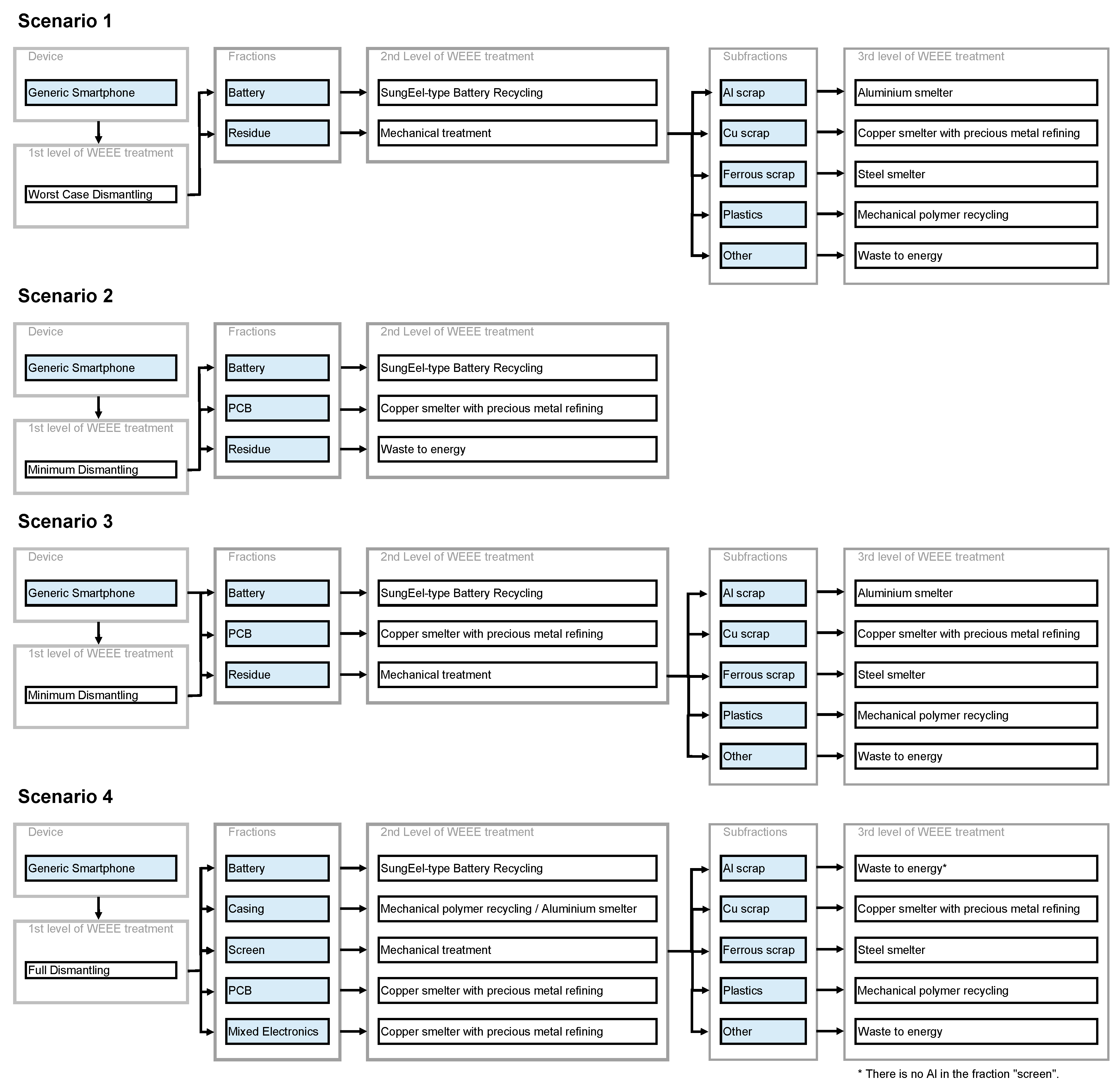

Scenario S1 represents the situation prior to the adaption of the WEEE directive including formal state-of-the-art treatment and the mere depollution of the battery due to safety issues, while scenarios S2 and S3 stand for the minimum requirements from the WEEE directive. In S2, the residue is not treated further, while the technically possible maximum is used in S3. The former is more likely for low-value electronics or highly heterogeneous waste streams, and can be considered the worst-case scenario when processing in the EU. Scenario S4 represents the best-case with full dismantling and the best available treatment technologies for each fraction.

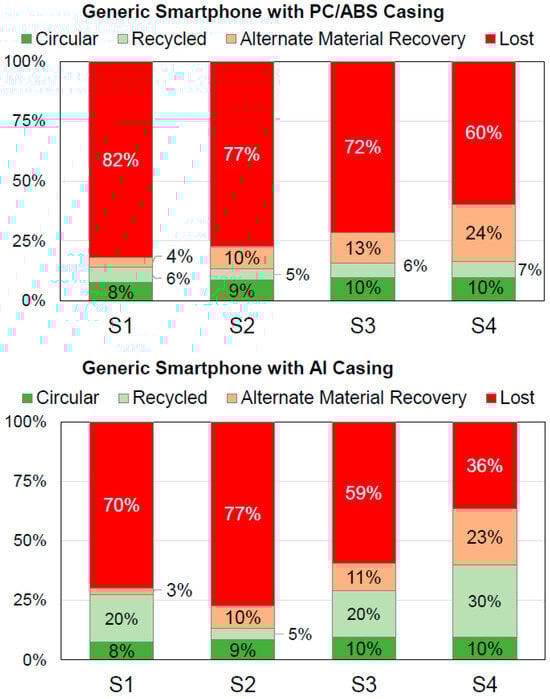

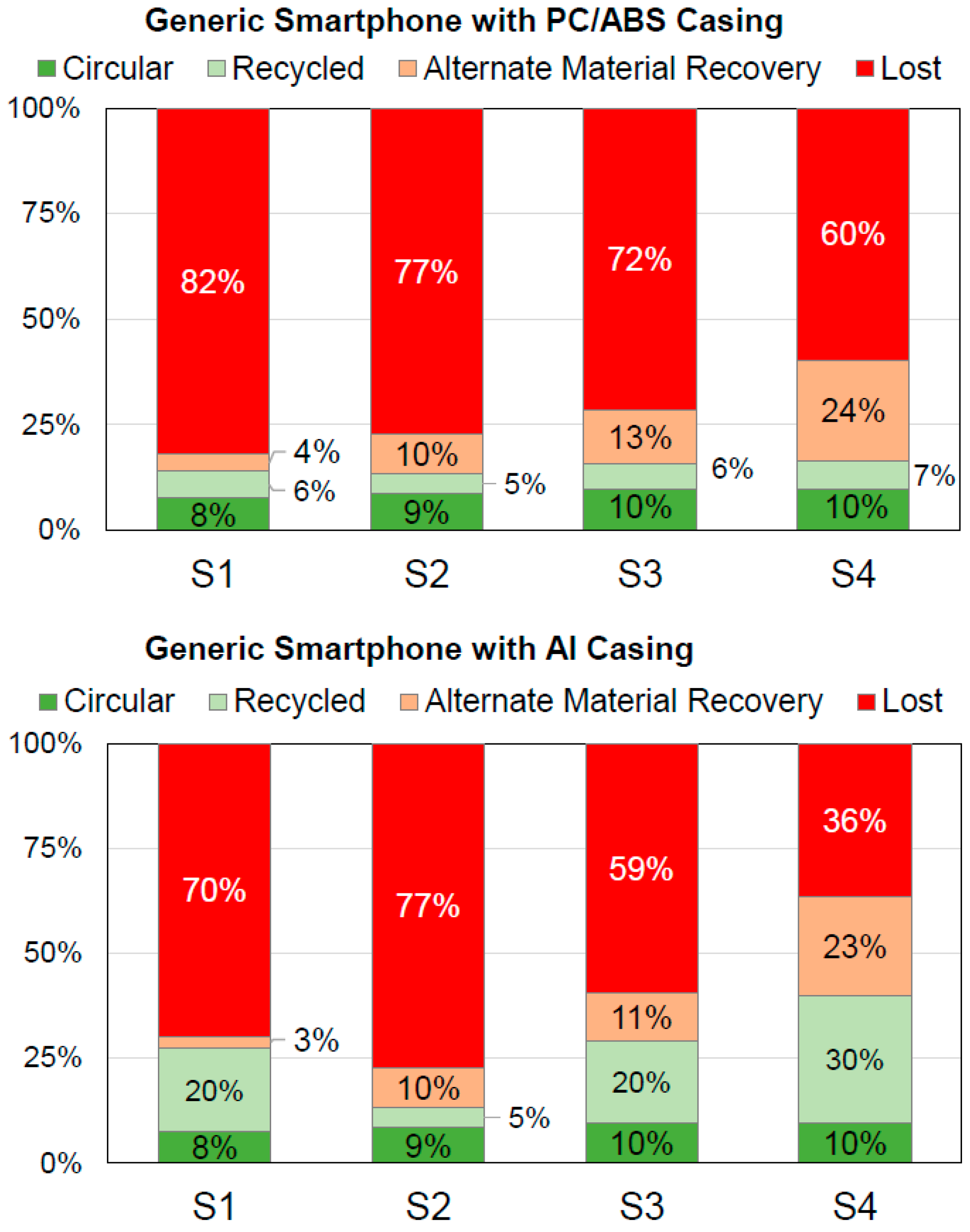

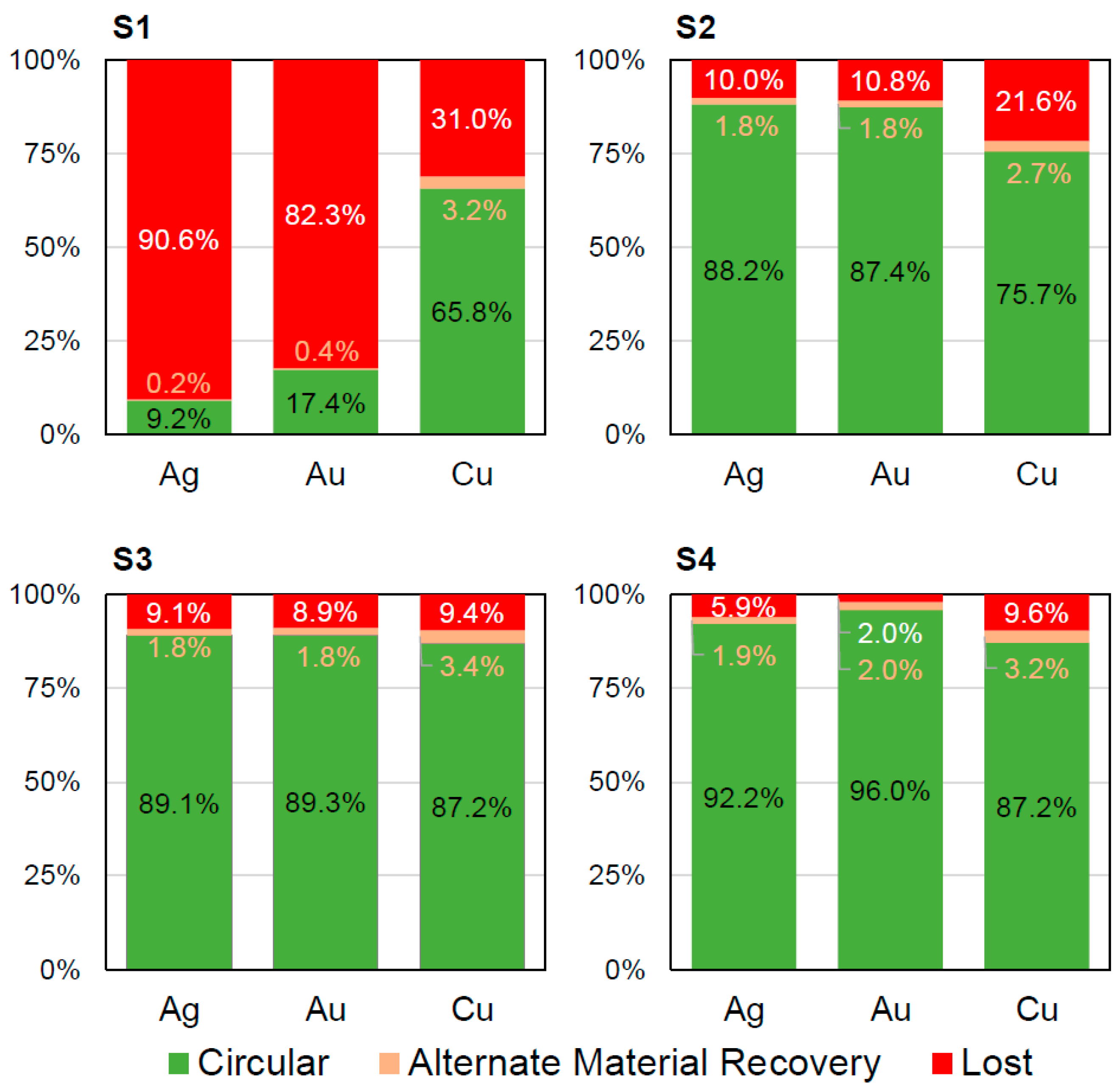

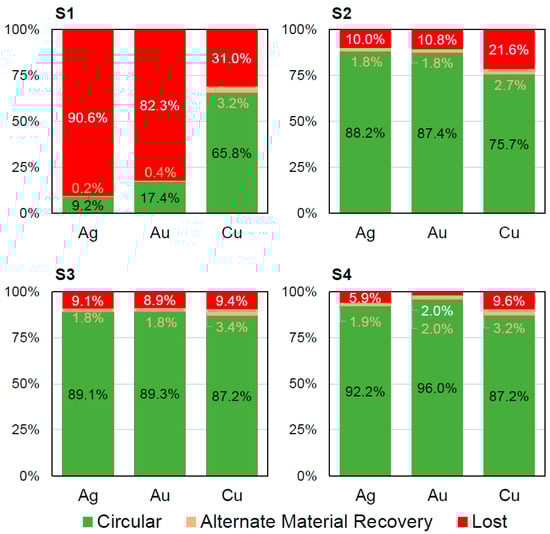

Regarding the results (Figure 5), multiple aspects are of interest. In the first and shortened assessments, the material flows in the categories “circular” and “recycled” are considered the total recyclability. In general, the smartphone with Al casing shows higher recyclability due to the higher efficiency of aluminum recycling compared to mechanical polymer recycling. Therefore, the use of aluminum as a casing material can be considered a design for recycling approach. However, formal and state-of-the-art WEEE treatment (scenarios S1, S3 and S4) is required. Otherwise, the “real” recyclability is not improved. The best effect is observed for scenario S4 due to the separation of the whole Al casing during dismantling. The total recyclability is increased from 16.3% for the smartphone with PC/ABS casing to 40.0% for the smartphone with Al casing. At this point, it is worth noticing that the recyclability assessment herein is based on the mass-balance of materials, only. It is not possible to draw any direct correlation between higher recyclability and lower environmental impact due to, e.g., differing energy demands for processing and transportation for different recycling scenarios. Consequently, the question of whether the use of an aluminum smartphone casing can be considered not only as a design for recycling, but also an ecodesign approach, would need further information based on assessments of the environmental impact of the respective recycling scenario, e.g., from a life cycle assessment (LCA). This beyond the scope of this case study.
In general, and for both devices, the expected trend of higher recyclability with increased dismantling efforts could be demonstrated (Figure 5). However, formal state-of-the-art mechanical WEEE treatment also has huge potential in terms of increasing the recyclability. This is shown by scenario S1 having higher recyclability rates than S2 for the smartphone with Al casing (total recyclability 27.5% vs. 13.3%). Furthermore, the comparison of S3 with S1 shows the effect of WEEE directive’s requirements of minimum dismantling on recyclability. It is increased from 13.9% to 15.8% for the smartphone with PC/ABS casing and from 27.5% to 29.3% for the smartphone with Al casing. Additionally, the share of the material flow to the “alternate material recovery” increases by 8.6% for both smartphones. This confirms the legitimacy of the directive’s dismantling requirements. A more ambiguous situation is found by comparing S3 and S4. Both scenarios differ in the depth of dismantling followed by equal state-of-the-art downstream processing. More time- and labor-intense full dismantling in S4 leads to minor improvements in the total recyclability of the smartphone with PC/ABS casing (15.8% vs. 16.3%). The components dominating the recyclability are already separated by the dismantling according to the WEEE directive’s minimum requirements. The results for the smartphone with Al casing differ strongly. Here, the recyclability rate is much higher for S4 than S3 (40.0% vs. 29.3%) due to the aluminum casing being treated separately after dismantling in the former and since the casing accounts for almost 30% of total weight of this smartphone.
Overall, the material flow in the “circular” category is below 10% for all cases at the device level (Figure 5). It is only slightly increased from 8.6% for scenario S2 with minimal dismantling and no formal mechanical WEEE treatment to 9.7% for both scenarios S3 and S4 including formal mechanical treatment. The additional full dismantling in scenario S4 has no effect on the material flow in the “circular” category when compared to scenario S3. This highlights the huge room for improvements in the design for circularity and improved formal recycling infrastructure. Increasing the material flow in the “circular” category is essential on the way towards a circular economy for smartphones and, thus, should be in the interest of all stakeholders. At the material level (Figures S1–S8), strongly varying values are found for different materials. Figure 6 shows that metals like silver, gold and copper have materials flows of over 80% in the “circular” category in the case of formal state-of-the-art mechanical WEEE treatment (scenarios S2–S4). The lack of the separate treatment of the PCB in scenario S1 decreases the recyclability of silver and gold dramatically. In contrast, over 90% of the polymer’s material flows (namely PC, PC/ABS, PET and PMMA) are in the “lost” category in all four scenarios (Figures S1–S8). This highlights that the database and methodology presented herein can act as a powerful tool in design for recycling and for optimizing the technical recyclability of dedicated materials.
Yet, technical recyclability does not account for collection rates and the fact that, based on size, scale, hazardous properties and economic feasibility, recyclers may not have the incentive to dismantle and send materials to all available facilities. A discussion on the challenges of the real recyclability to meet the technical recyclability could follow building on the results from the methodology, database and case study presented herein. However, this is beyond the scope of this work.

4. Conclusions

In this contribution, both a methodology and a corresponding database are presented to improve the calculation of the recyclability of EEE beyond EN 45555. The methodology is based on the existing recyclability calculation from EN 45555, but introduces four recycling categories, namely “circular”, “recycled”, “alternate material recovery” and “lost”, which are created to emphasize the quality of the recovered material. The extensive database, developed to cover the 30 most common materials used in electronics and 14 different recycling processes representing the best-available technologies (BATs), supports this methodology by providing the required data needed for calculation. The calculated technical recyclability or material recoverability values can aid product designers in their material selection and design decisions as one factor to consider in the more holistic product ecodesign spectrum.
The material choice and design of the electronic equipment has a strong influence on the final outcome and can alter the importance of the recycling pathway chosen. This indicates that there is no single best sequence of treatment steps for WEEE, but ideally it needs to be recreated for every product separately. Thus, when calculating and comparing the recyclability of EEE, e.g., for a recyclability index, the respective sequence of treatment processes has to be disclosed, since their choice will make a significant impact on the final material recyclability outcome. Consequently, investments in novel recovery technologies leading to new BATs will have a significant impact of the material recovery capabilities of the recycling industry. These aspects become obvious herein during the case study on two generic smartphones. The material selection, depth of dismantling and best available mechanical treatment of WEEE showed the largest influence on the technical recyclability in the case study. The minimum dismantling requirements defined by the WEEE directive cover the majority of components relevant for the overall recyclability of a smartphone, with more in-depth dismantling having only minor effects on recyclability—except in the case of the smartphone with aluminum casing where the recyclability of the casing is strongly increased by in-depth dismantling. These results from the case study showcase the potential of both the database and the methodology and their relevance in terms of design for recycling of electric and electronical devices.
