Thermodynamic Models of Solid Oxide Fuel Cells (SOFCs): A Review

Abstract

In the delicate context of climate change and global warming, new technologies are being investigated in order to reduce pollution. The SOFC stands out as one of the most promising fuel cell technologies for directly converting chemical energy into electrical energy, with the added benefit of potential integration into co-generation systems due to its high-temperature waste heat. They also offer multi-fuel flexibility, being able to operate on hydrogen, carbon monoxide, methane, and more. Additionally, they could contribute to carbon sequestration efforts and, when paired with a GT, achieve the highest efficiency in electricity generation for power plants. However, their development is still challenged by issues related to high-temperature materials, the design of cost-effective materials and manufacturing processes, and the optimization of efficient plant designs. To better understand SOFC operation, numerous mathematical models have been developed to solve transport equations coupled with electrochemical processes for three primary configurations: tubular, planar, and monolithic. These models capture reaction kinetics, including internal reforming chemistry. Recent advancements in modeling have significantly improved the design and performance of SOFCs, leading to a sharp rise in research contributions. This paper aims to provide a comprehensive review of the current state of SOFC modeling, highlighting key challenges that remain unresolved for further investigation by researchers.

1. Introduction

The global demand for electricity and thermal energy is steadily rising. Currently, this demand is primarily met through the use of fossil fuels, particularly oil, coal, and natural gas. However, fossil fuels are losing their appeal as an energy source due to the pressing issues of global warming and climate change, as well as the urgent need for countries to secure their own energy sources to achieve energy independence [1,2]. In light of these concerns, recent years have seen researchers focus on finding viable alternatives to fossil fuels. Green hydrogen and biogas, as renewable fuels, are considered highly efficient alternatives [3,4,5,6]. Hydrogen, in particular, has proven to be a highly profitable energy carrier, capable of producing both thermal energy and electricity without generating CO₂, and offering high efficiency due to LHV, which is about three times higher than that of hydrocarbon fuels (by mass) [7]. Biogas, on the other hand, is a gaseous biofuel composed mainly of CH₄ and CO₂ (typically 50–70% CH₄ and 30–50% CO₂), produced from bio-waste under anaerobic conditions. It also contains steam and some undesirable contaminants like H₂S, NH₃, siloxanes, and VOCs, whose amounts depend on the physicochemical properties of the bio-waste feedstock and the type of anaerobic digestion plant [8]. Both hydrogen and biogas can be used to generate electricity and thermal energy via GTs or ICE [9]. However, these methods result in lower efficiencies and higher emissions compared to using fuel cells, which can also accept gases with lower calorific values and more variable compositions, such as biogas, whose LHV depends on the bio-waste feedstock and anaerobic digestion process [10,11]. Among the various fuel cells, SOFCs represent one of the most advanced cogeneration technologies. SOFCs are high-temperature electrochemical systems that directly convert the chemical energy of the fuel into electrical energy and heat. They can operate with energy carriers like hydrogen and renewable sources such as biogas [8,12,13]. SOFCs can achieve electrical efficiencies of up to 60% and produce very low emissions, making their exhaust gases especially clean—an important factor in urban areas [14]. Additionally, integrating biogas with SOFCs presents a promising solution for the electrification of rural areas, enabling energy independence for rural communities while simultaneously addressing bio-waste issues. Recent research in the field of SOFCs has increasingly focused on system integration and control, following technological advancements, particularly in stack assembly and cell manufacturing of various cell types [15,16,17]. In the existing literature, four traditional SOFC-based systems have been extensively studied, covering various aspects such as modeling, optimization, technical and economic performance analysis, development of control strategies, and fault diagnosis:

• Natural gas (methane) or hydrogen-fueled SOFC systems—These systems are known for their simple structure and minimal emissions. Researchers like [18,19] conducted thorough static and dynamic analyses, focusing on power-switching control schemes to optimize SOFC power output during load tracking.
• External SR-SOFC—These systems offer fuel flexibility and relatively simple designs. Papurello et al. [20] demonstrated the need for an external reformer under steady operating conditions. Complete models of SR-SOFC systems were developed to study temperature distribution and design control strategies based on current [21,22,23]. Fault diagnosis and economic analyses for SR-SOFC cogeneration or tri-generation systems were also conducted [24,25,26,27].
• SOFC/GT Hybrid systems—These hybrid systems achieve high electrical efficiency. Comprehensive modeling and analysis of SOFC-GT systems have been performed [28,29,30,31,32,33], alongside control strategies to meet daily load demands [33,34]. Researchers explored optimization techniques and control strategies for SOFC-GT systems [35,36,37].
• SOFC/SOEC Combined systems (SOFC-SOEC)—These systems feature CO₂ capture and energy storage capabilities. Stack models that describe SOEC thermodynamics and electrochemical behavior have been developed and validated [38,39]. There is growing interest in SOFC-SOEC systems due to their ability to switch between power generation and fuel production [40,41,42,43].

SOFC performance is strongly influenced by the inlet fuel [44]. Although natural gas and hydrogen are the primary fuels studied, there are a few studies investigating SOFC performance using hydrogen–methane mixtures (hythane), biogas, and biohydrogen (which is an interim product in biogas production, consisting mainly of a 50/50 vol% mixture of H₂ and CO₂). Among these, biogas stands out as the most extensively researched biomass-derived fuel for SOFCs, showing improvements in both efficiency and durability compared to pure CH₄ or natural gas [12,45,46,47,48,49,50,51,52,53,54]. This is largely due to the CO₂ content in biogas, which, like steam, aids CH₄ conversion through catalytic CO₂ reforming at the anode (1) and helps prevent carbon deposition by promoting the highly endothermic Boudouard reaction (2) [55,56,57]. Moreover, similar to steam reforming, CO₂ reforming of CH₄ is highly endothermic, thus contributing to stack cooling [58,59].

• CH₄ + CO₂ ⇔ 2H₂ + 2CO
• CO₂ + C ⇔ 2CO
  Research on biohydrogen utilization in SOFCs is still limited [60,61,62,63,64,65,66], but it has demonstrated that electrochemical power generation and fuel conversion are closely linked to the reverse water-gas shift reaction (3), which is mildly endothermic and facilitates moderate stack cooling. During power generation, the steam produced by electrochemical H₂ oxidation reacts with CO, preventing CO emissions in the anode output gases [61].
• H₂ + CO₂ ⇔ H₂O + CO

Studies on the use of hythane (CH₄/H₂) and biohythane (CH₄/CO₂/H₂) mixtures in SOFCs are relatively scarce [67,68,69,70,71,72,73]. It has been observed that power generation in these mixtures primarily occurs through electrochemical H₂ oxidation. Increasing the CH₄ content reduces the electrical performance and durability of the cell, as carbon deposition becomes a concern [68,69,70,71,72,73,74,75]. However, using biohythane has shown higher SOFC efficiencies compared to other CH₄-based fuels like natural gas and biogas, largely due to the presence of CO₂ and H₂ [73]. CO₂ supports internal dry reforming of hydrocarbons, reduces the steam demand for SOFC fuel processing, and eliminates the need for expensive gas upgrading technologies for biomethane grid injection. Additionally, H₂ enhances SOFC electrical performance when operating on carbon-based fuels; adding 10 vol% H₂ can increase SOFC electrical efficiency by up to 21%, depending on the operating voltage [72]. Cinti et al. [70] investigated the performance of an SOFC system at 750 °C using a fuel mixture of hydrogen and methane. The study found that the highest electrical efficiency occurred with pure CH₄, reaching about 50%, while the total efficiency was 75%. Mixing hydrogen with methane reduced electrical efficiency but improved overall system efficiency due to lower internal temperature gradients in the reforming SOFC stack. Cheng et al. [76] evaluated the performance of SOFC systems using hydrogen and methane. Their results indicated that while electrical efficiency decreased with higher power output, efficiency was higher at lower power levels for pure methane, and at higher power levels for pure hydrogen. The present review paper aims to investigate the most recent and significant literature in order to highlight the development and achievement of SOFC models. Indeed, chemical process engineers generally face two fundamental types of tasks: designing new processes and simulating existing ones. These tasks can vary significantly in complexity. For simple problems, manual calculations can be used, which offer the advantage of a deeper understanding of the problem. However, when dealing with complex problems, where it is often necessary to solve thousands of equations, manual calculations become impractical. This is where the crucial importance of process simulators comes into play, making them an indispensable tool for tackling such challenges. Process simulators not only save time but also provide a fast and reliable representation of the real process. This allows for accurate estimates of results and facilitates plant optimization. Thanks to these tools, it is possible to efficiently analyze and modify processes, reducing costs associated with new processes and improving the quality of design and operations. In summary, process simulators are powerful tools for managing complexity and enhancing performance in engineering, contributing to more informed decision making and optimizing industrial operations. The most common simulator for chemical engineering purposes is Aspen Plus, which was developed at the Massachusetts Institute of Technology (MIT) as part of a project by the United States Department of Energy to simulate coal conversion processes. Today, it has become a powerful tool for engineers to model chemical processes, energy generation, and other types of processes. This type of system is known as a sequential modular simulator. Additionally, Aspen Plus offers functionality based on an equation-oriented approach in some of its models, which allows for practical use of design specifications in process modeling and solving problems with strict specifications. The novelty of this article compared to existing reviews in the scientific literature on SOFC modeling lies in its focus on filling significant research gaps. While most reviews traditionally focus on modeling SOFCs fueled by a single pure fuel or specific fuel mixtures, this paper emphasizes the impact of switching between different fuels, such as hydrogen, natural gas/methane, methane-hydrogen blends, biogas, and biohydrogen. It highlights how these variations critically influence system performance, a factor that has received limited attention in previous studies. Moreover, this article addresses the need for a highly flexible SOFC model that can integrate various stack technologies—both anode-supported and electrolyte-supported—and operate with any mixture of natural gas, hydrogen, and CO₂. This flexibility includes a broad temperature range (from low-temperature stacks operating at 650 °C to high-temperature stacks running at 800 °C) to ensure full interchangeability within the same system. The approach promotes market standardization of the stack-to-system interface, which is expected to enhance compatibility and reduce barriers for SOFC manufacturers and system integrators.

2. SOFC Models

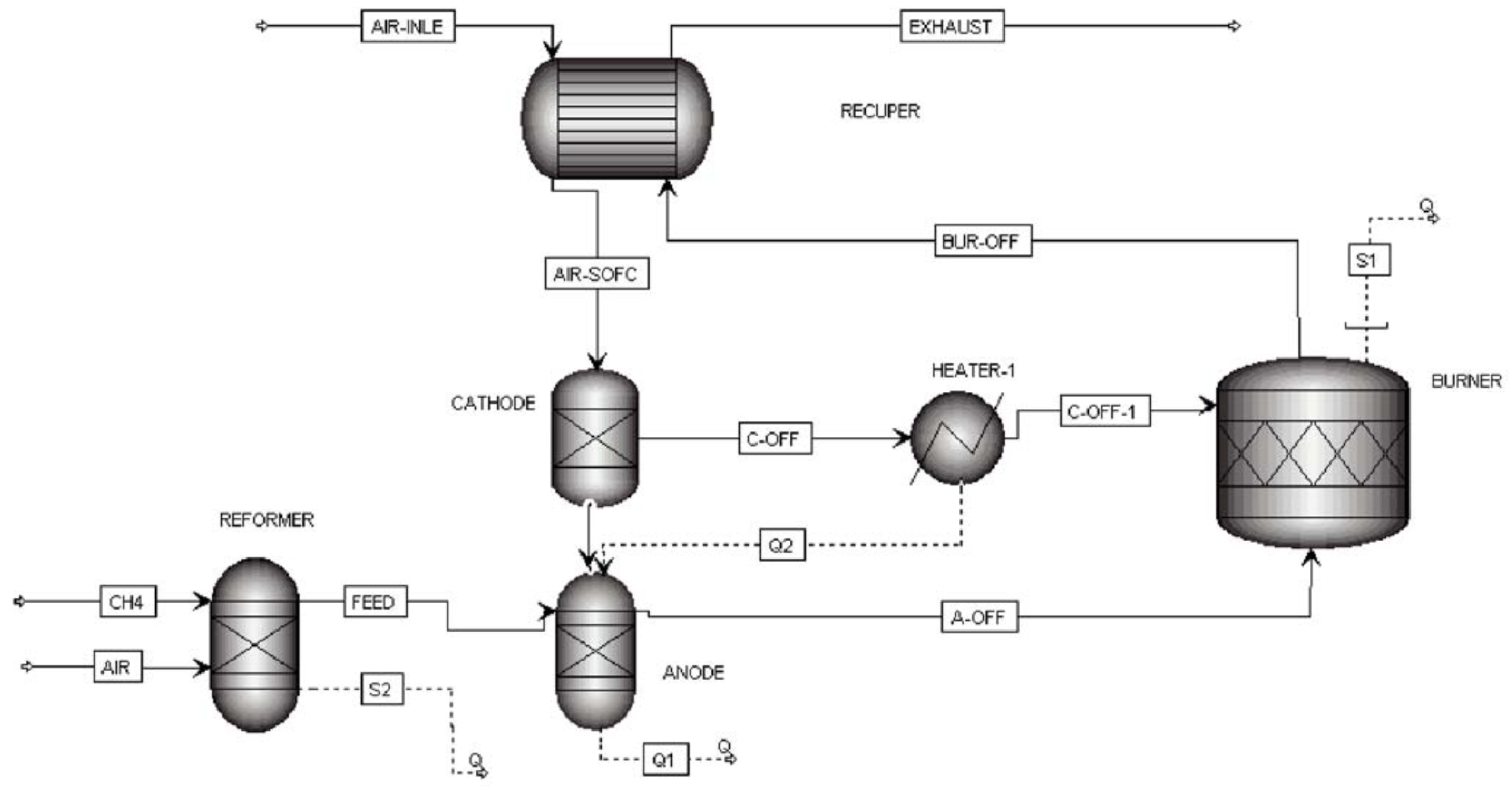

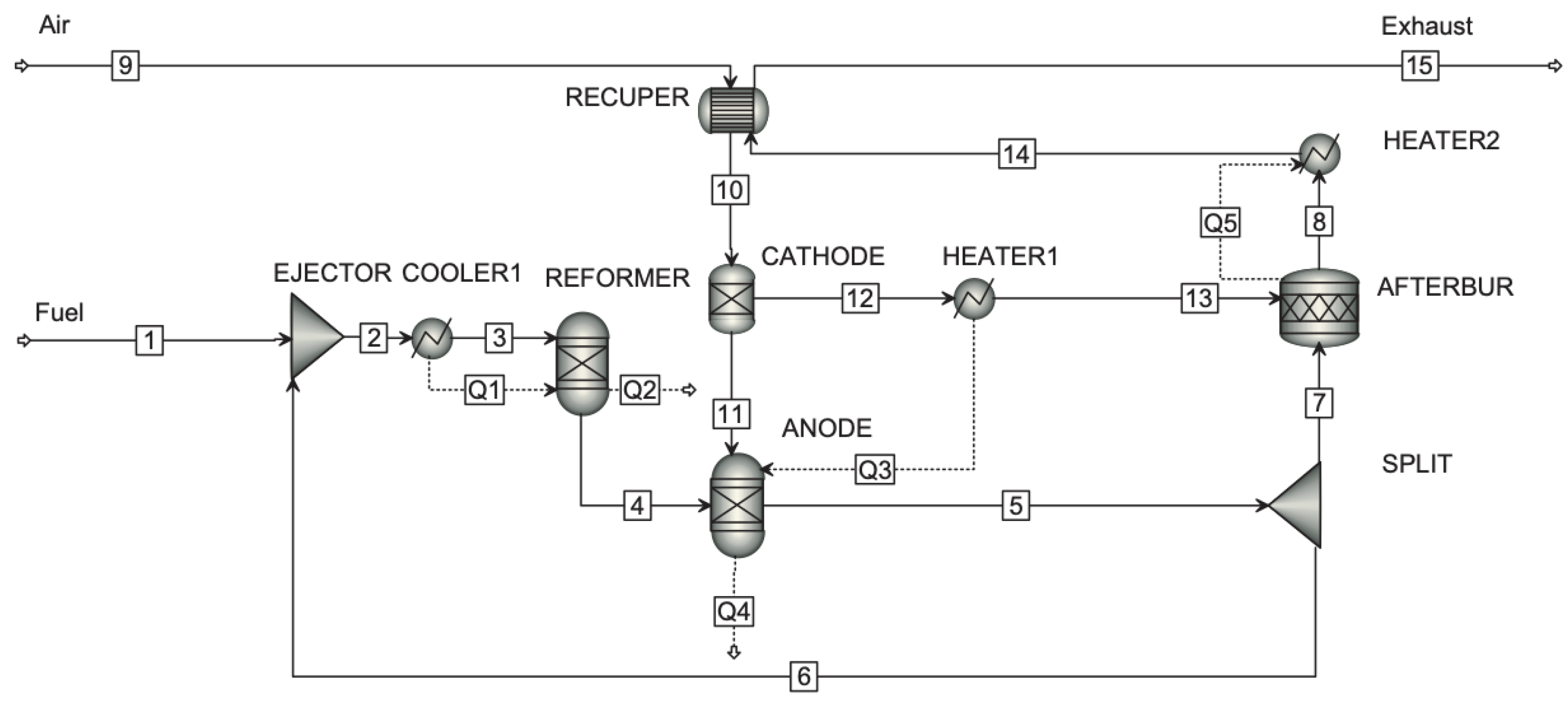

Pianko-Oprych and Palus (2017) [77] developed a thermodynamic simulation model using Aspen Plus for an SOFC-based power generation system, as shown in Figure 1. The work was carried out in two main phases. In the first phase, a steady-state model was created that integrates electrochemical and diffusion phenomena. Subsequently, a parametric study was conducted to evaluate how the O/C ratio affects various aspects of the system, such as the reformer and fuel cell temperature, fuel utilization, and overall cell performance. In the second phase, a dynamic analysis was developed to explore the system’s response to variations in the O/C ratio and fuel utilization.

The SOFC block was simulated in Aspen Plus using the following modules, as shown in

Table 1. Aspen Plus modules used by Pianko-Oprych and Palus (2017) [77].

Aspen Plus Module	Name
REFORMER	RGibbs
ANODE	RGibbs
BURNER	RStoic
CATHODE	Separator
HEATER-1	Heater
RECUPER	HeatX

.

The main results are shown in

Table 2. SOFC results—Pianko-Oprych and Palus (2017) [77].

Block	T [°C]	P [bar]
REFORMER	664.85	1.035
ANODE	845.12	1.035
CATHODE	635.00	1.035
HEATER-1	845.12	1.035
BURNER	913.28	1.035

and

Table 3. SOFC results 2—Pianko-Oprych and Palus (2017) [77].

Stream	T [°C]	P [bar]	F [kmol h−1]	H2 [mol mol−1]	CH4 [mol mol−1]	H2O [mol mol−1]	CO [mol mol−1]	CO2 [mol mol−1]	O2 [mol mol−1]	N2 [mol mol−1]
CH4	20	1.035	0.001	-	1	-	-	-	-	-
AIR	20	1.035	0.003	-	-	-	-	-	0.21	0.79
AIR-INLE	20	1.035	0.039	-	-	-	-	-	0.21	0.79
FEED	665	1.035	0.006	0.308	0.026	0.037	0.140	0.032	0	0.456
AIR-SOFC	635	1.035	0.039	-	-	-	-	-	0.21	0.79
C-OFF	635	1.035	0.038	-	-	-	-	-	0.18	0.82
A-OFF	845	1.035	0.006	0.051	$2.6\times {10}^{-8}$	0.326	0.027	0.162	0	0.433
C-OFF-1	845	1.035	0.038	-	-	-	-	-	0.18	0.82
BUR-OFF	913	1.035	0.044	0	$3.8\times {10}^{-9}$	0.054	0	0.027	0.149	0.768
EXHAUST	412	1.035	0.044	0	$3.8\times {10}^{-9}$	0.054	0	0.027	0.149	0.768

, and the power generated by the SOFC is 121 W. Although the model allows for a detailed description of the thermodynamics and electrochemical behavior of SOFCs, it exhibits some significant shortcomings.

In particular, deviations emerged at lower current density points, indicating that the model may not be entirely accurate under these conditions.

Moreover, the integration of existing Aspen Plus/Aspen Dynamics functions with user-defined subroutines added complexity, potentially limiting the model’s ease of use and versatility. These factors raise concerns about the model’s reliability in real-world application scenarios and its ability to accurately predict SOFC system performance under all operating conditions.

As observed from the simulation, increasing the current density leads to a decrease in voltage but an increase in power. However, the voltage decreases significantly due to voltage losses, which are normal in such systems. Fuel utilization is a crucial parameter that influences the cell voltage. When fuel utilization decreases, the voltage decreases as well, and vice versa. Nevertheless, rapid changes may lead to temperature spikes that could damage the cell.

The air-CPOx ratio ($\lambda$) was also evaluated, which has a less significant effect on cell voltage compared to fuel utilization. However, there is a balance between efficiency and the risk of carbon formation, limiting the possibility of reducing the air-CPOx ratio too much.

The pros of this model are:

• Integrates electrochemical and diffusion phenomena for a comprehensive view of SOFC operation;
• Provides valuable insights into the impact of the oxygen-to-carbon (O/C) ratio on fuel utilization and performance.

The cons of this model are:

• Deviations in model accuracy at lower current densities suggest limited reliability under all conditions;
• Complexity in integrating Aspen Plus/Aspen Dynamics with user-defined subroutines reduces ease of use.

Hauck et al. (2017) [78] developed and evaluated a thermodynamic simulation model in Aspen Plus for a reversible SOFC. This model includes a module for electrolysis and a fuel cell module, the latter based on the existing non-reversible SOFC model by Tjaden et al. (2014) [79], shown in Figure 2. The electrolysis module simulates both water electrolysis and catalytic reactions of the inlet gases.

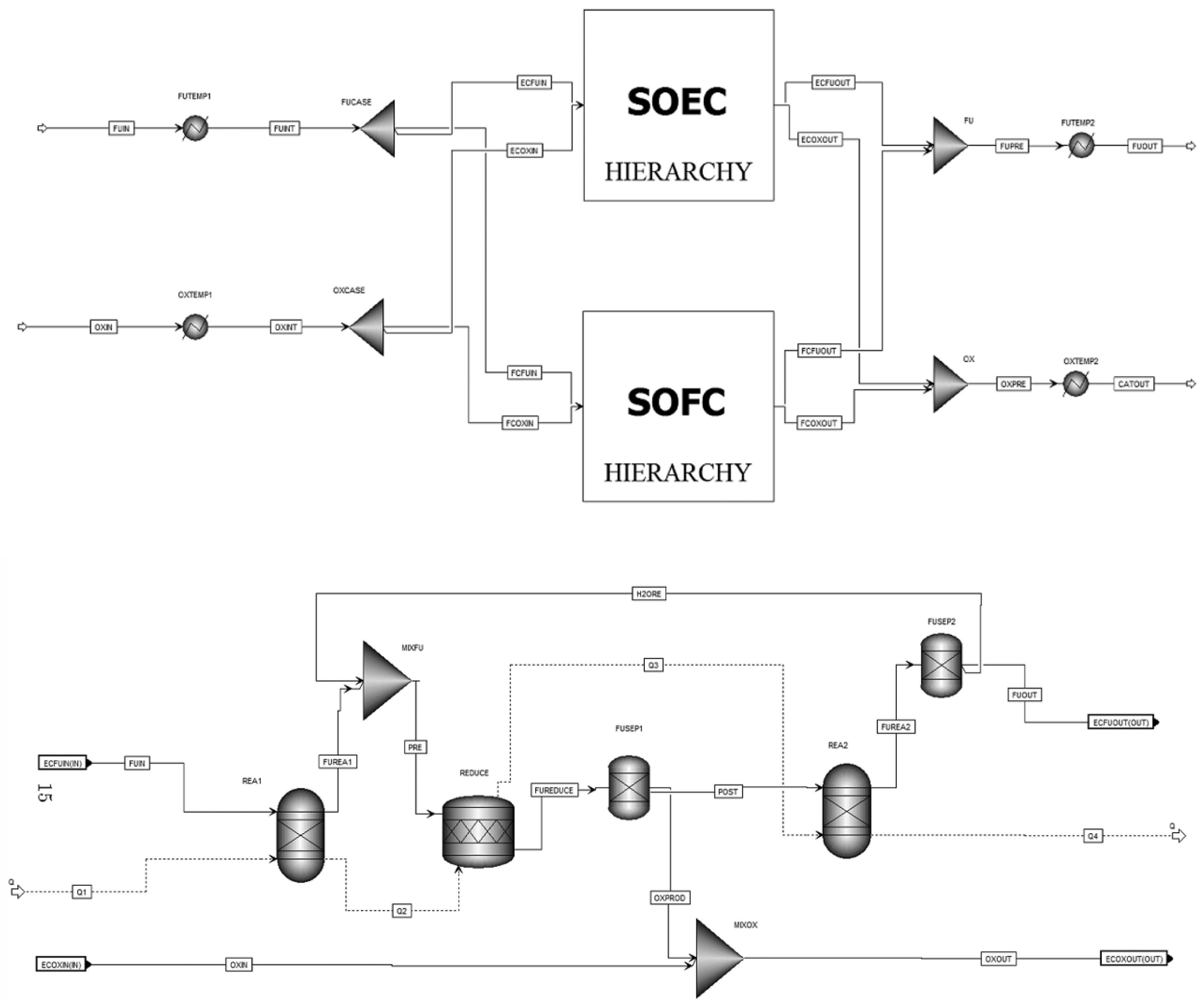

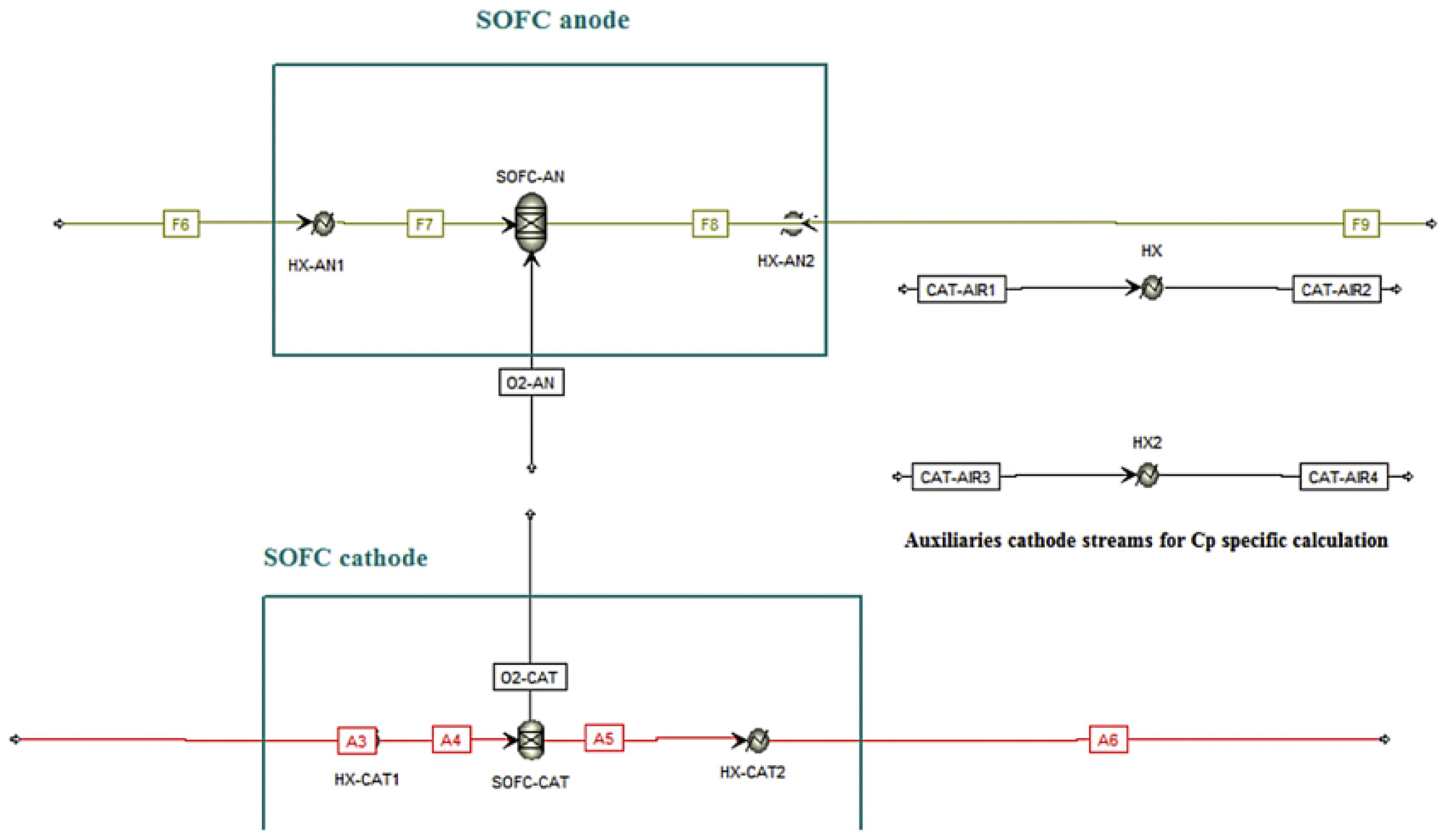

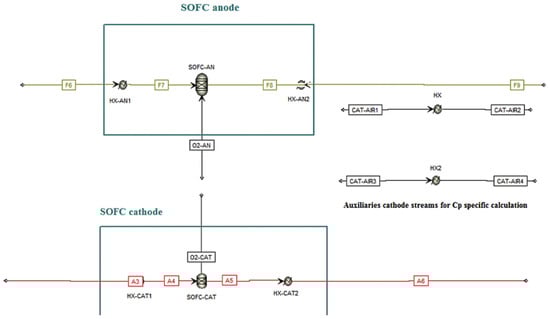

The reversible SOFC in question was simulated in Aspen Plus, as shown in Figure 3.

The SOFC block was simulated in Aspen Plus using the following modules, as shown in

Table 4. Aspen Plus modules used by Hauck et al. (2017) [78].

Aspen Plus Module	Name
REA1–REA2	RGibbs
REDUCE	RStoic
FUSEP1–FUSEP2	Separator

:

In the present study, although the model provides a detailed description of reaction kinetics and has been validated with empirical data, it presents some shortcomings.

Specifically, modeling as REquil, although supported by the results, may not accurately represent the real dynamic behavior of the RSOFC, limiting the accuracy of predictions under variable operating conditions.

Moreover, the simulation neglected CO₂ electrolysis, assuming that the reverse WGS reaction is predominant, a simplification that may not apply to all operating conditions.

Another critical point concerns the influence of hydrogen and steam concentration in the inlet stream. While it was observed that increasing hydrogen improves the fuel cell mode at the expense of electrolysis, this complex interaction may require further analysis to avoid undesirable conditions in real-world operations.

Additionally, while increasing the operating temperature showed benefits for most conditions, the model may not adequately account for the impact of these high temperatures on long-term degradation phenomena in the cells, a critical aspect for durability and operational costs.

Finally, operating under pressure, although advantageous for the fuel cell mode, presents uncertainties regarding the ability of kinetic improvements to offset the negative effects of the higher Nernst potential in electrolysis.

The pros of this model are:

• Includes a reversible SOFC model, capable of simulating both fuel cell and electrolysis modes, broadening application potential;
• Validated with empirical data, enhancing confidence in the model.

The cons of this model are:

• Assumes predominance of the reverse WGS reaction, limiting model applicability for scenarios where CO₂ electrolysis is significant;
• Does not fully account for cell degradation at high temperatures, impacting long-term prediction accuracy.

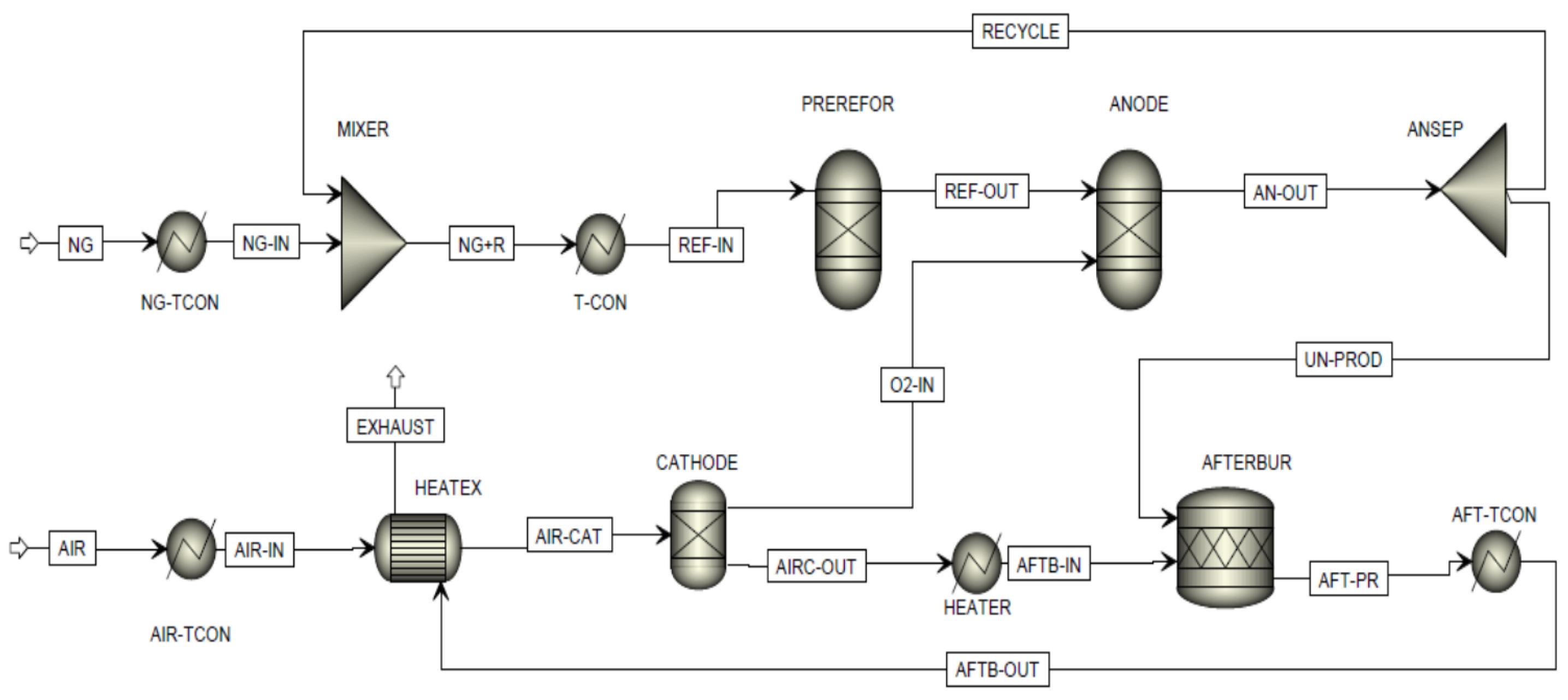

The study by Russo et al. (2023) [80] proposes the installation of a 12 MW SOFC onboard a large cruise ship, powered by LNG. The SOFC system would not only generate electrical power but also contribute to the ship’s thermal requirements through a heat recovery system. To optimize the onboard layout and predict the performance of the integrated system, a zero-dimensional model was developed using Aspen Plus. The layout is shown in Figure 4. Various operational parameters, such as the fuel utilization factor, preheated air temperature, anode recycling flow, and exhaust gas temperature, were varied to evaluate the overall plant efficiency. The model was validated with data from literature and commercial SOFC modules, and the plant’s performance was analyzed within an efficiency range of 40–60%.

The SOFC block was simulated in Aspen Plus using the following modules, as shown in

Table 5. Aspen Plus modules used by Russo et al. (2023) [80].

Aspen Plus Module	Name
PREREFOR	RGibbs
ANODE	RGibbs
AFTERBUR	RStoic
CATHODE	Separator
NG-TCON–T-CON–AFT-TCON–AIR-TCON	Heater
HEATEX	HeatX

.

The installation of a 12 MW SOFC on an LNG-powered cruise ship has been evaluated to reduce emissions, particularly during docking in ports. However, the implementation has highlighted several critical issues. The integration of the system onboard proved to be complex, and the model developed in Aspen Plus exhibited efficiency limitations.

Moreover, the SOFC plant, organized in 300 kW modules, requires significantly more space than an internal combustion engine of equivalent power, creating feasibility issues. High costs and concerns about durability have also raised doubts about the practicality of this solution for a cruise ship.

The pros of this model are:

• Focused on large-scale applications, such as a 12 MW SOFC for cruise ships, with consideration of thermal management;
• Achieves emission reductions, particularly valuable for docked vessels.

The cons of this model are:

• High space requirements make it challenging to integrate on ships compared to conventional internal combustion engines;
• High costs and durability concerns limit practical feasibility for marine applications.

The study by Hentati et al. (2024) [81] explores the use of a SOFC combined with a GT simulated in Aspen Plus to recover flared gas and produce electricity, thereby reducing atmospheric emissions and preventing energy loss. A numerical model of the system was developed, showing that the SR scenario at the anode of the SOFC is the most efficient, ensuring a higher concentration of hydrogen in the reforming gas. By integrating the SOFC with GT technology, the system achieved a maximum power density of approximately 3 kW/m² and a total power output of 1.238 MW. The layout simulated in Aspen Plus is shown in Figure 5.

The SOFC block was simulated in Aspen Plus using the following modules, as shown in

Table 6. Aspen Plus modules used by Hentati et al. (2024) [82].

Aspen Plus Module	Name
PREREFOR	RGibbs
ANODE	RGibbs
BURNER	RStoic
CATHODE	Separator
HEATER	Heater
RECUPER	HeatX

.

In this study, a numerical model was developed to valorize flared gas using Aspen Plus and Matlab. A GT was integrated with the SOFC system, achieving a maximum power output of 1238.049 kW for a stack area of 191.2 m². Although the model identifies a promising approach for utilizing flared gas in SOFCs, several significant shortcomings emerge. For instance, while SR was identified as the optimal scenario for maximizing power, the complexity of the process and the need for accurate steam management may limit the practical effectiveness of this approach, especially under variable operating conditions.

Moreover, integrating a GT has proven to enhance the performance of the hybrid system, but the model does not adequately consider the challenges associated with industrial scalability, such as heat management and long-term reliability of the system.

The economic analysis highlighted a relatively low electricity production cost (0.08 USD/kWh), but this estimate may not fully reflect maintenance and management costs of complex systems like SOFCs coupled with a GT. Additionally, the environmental analysis, while showing a reduced CO₂ impact, does not address other possible pollutant emissions or the degradation of the cell over time.

Finally, the sensitivity analysis suggests that variations in fuel flow have a significant impact on production costs, but the model does not sufficiently explore how these variations might affect operational stability or failure risks.

The pros of this model are:

• Integrates SOFC with GT for high efficiency, reaching up to 1.238 MW power output;
• Demonstrates a low production cost (0.08 $/kWh), suggesting economic feasibility.

The cons of this model are:

• Limited focus on industrial scalability issues like heat management, which are critical for GT integration;
• Maintenance and operational complexities could offset cost savings over time.

In the study by Veluswamy et al. (2019) [73], biogas and bio-hythane were investigated as renewable energy sources for SOFCs. Bio-hythane, with a composition of 58% CH₄, 35% CO₂, and 7% H₂, proved to be more efficient and produced lower CO₂ emissions compared to traditional biogas. The study was conducted on a 120 kW SOFC stack and showed that bio-hythane produces less CO and offers better performance in hybrid SOFC systems. Simulations recommend using bio-hythane with a steam-to-carbon ratio (STCR) of 2.0 and a current of 200 mA/cm².

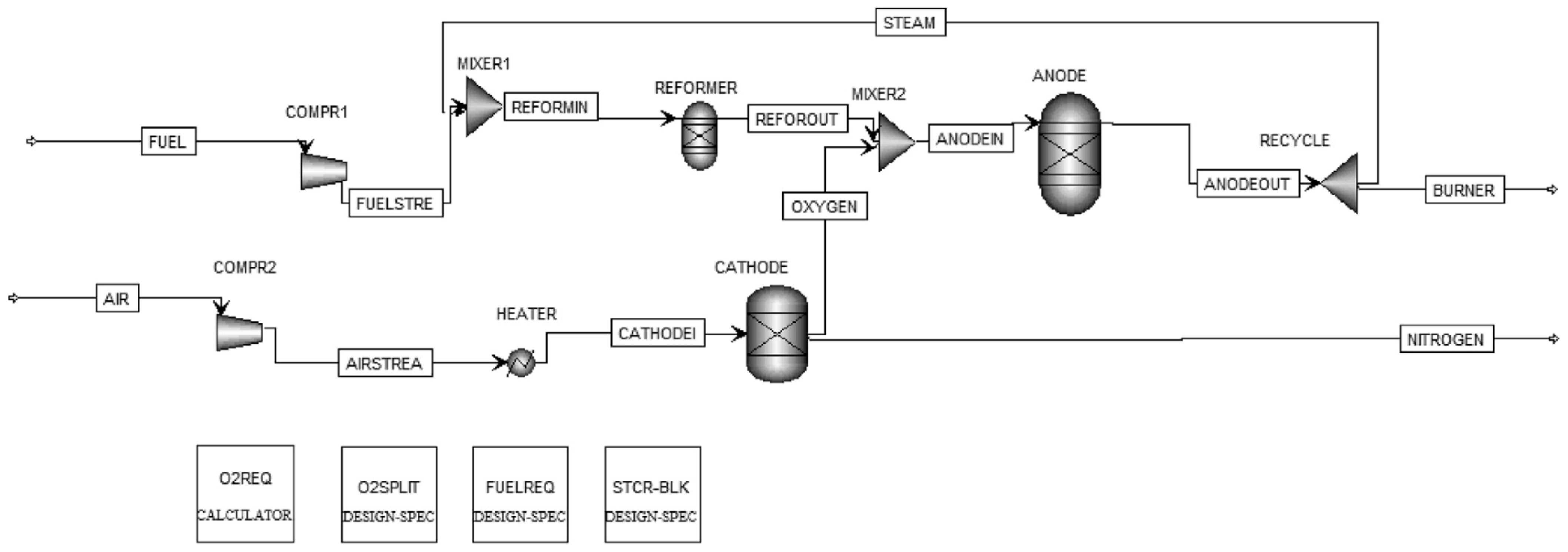

The layout simulated in Aspen Plus is shown in Figure 6.

The SOFC block was simulated in Aspen Plus using the following modules, as shown in

Table 7. Aspen Plus modules used by Veluswamy et al. (2019) [73].

Aspen Plus Module	Name
PREREFOR	RGibbs
ANODE	RGibbs
BURNER	RStoic
CATHODE	Separator
HEATER	Heater
COMPR1–COMPR2	Compressor

.

Bio-hythane derived from two-stage anaerobic digestion has been proposed as a better option compared to traditional biogas for SOFC systems. However, there are several critical areas that require further attention. Although bio-hythane produces less biogenic CO₂ at the anode and less CO in the reformer, the reduction is only 6%, which may not be sufficient to justify the transition to this technology on a large scale, especially considering the additional complexities of two-stage digestion compared to single-stage digestion.

Moreover, the negative effect of H₂ in the fuel on the carbon stoichiometric coefficient could pose a significant challenge to the overall efficiency of the SOFC system, as it may lead to more complicated fuel balancing management and increased operational instability. The limited impact on WGS reactions also raises doubts about the effectiveness of this fuel blend in enhancing overall energy conversion.

Finally, while bio-hythane is considered a potentially sustainable renewable energy resource in the long term, the model does not adequately address the challenges related to the production, storage, and distribution of this fuel, which could limit its practical applicability on a large scale.

The pros of this model are:

• Explores renewable fuels (biogas and bio-hythane), showing bio-hythane’s advantages in lower CO emissions and enhanced efficiency;
• Achieves higher performance using bio-hythane as fuel in hybrid SOFC systems.

The cons of this model are:

• Limited reduction in CO₂ emissions (only 6%) may not justify the switch to bio-hythane;
• The complex two-stage anaerobic digestion required for bio-hythane poses scalability challenges.

The study by Saebea et al. (2021) [82] proposes an energy generation system that integrates a steam reformer with a SOFC powered by various fuels, including ethanol, glycerol, and biogas. The thermodynamic simulations performed with Aspen Plus show that the SOFC system powered by glycerol offers the best performance in terms of cell and system efficiency, as well as optimal fuel utilization. Moreover, the integrated system produces low CO emissions and generates more useful heat for the surrounding environment.

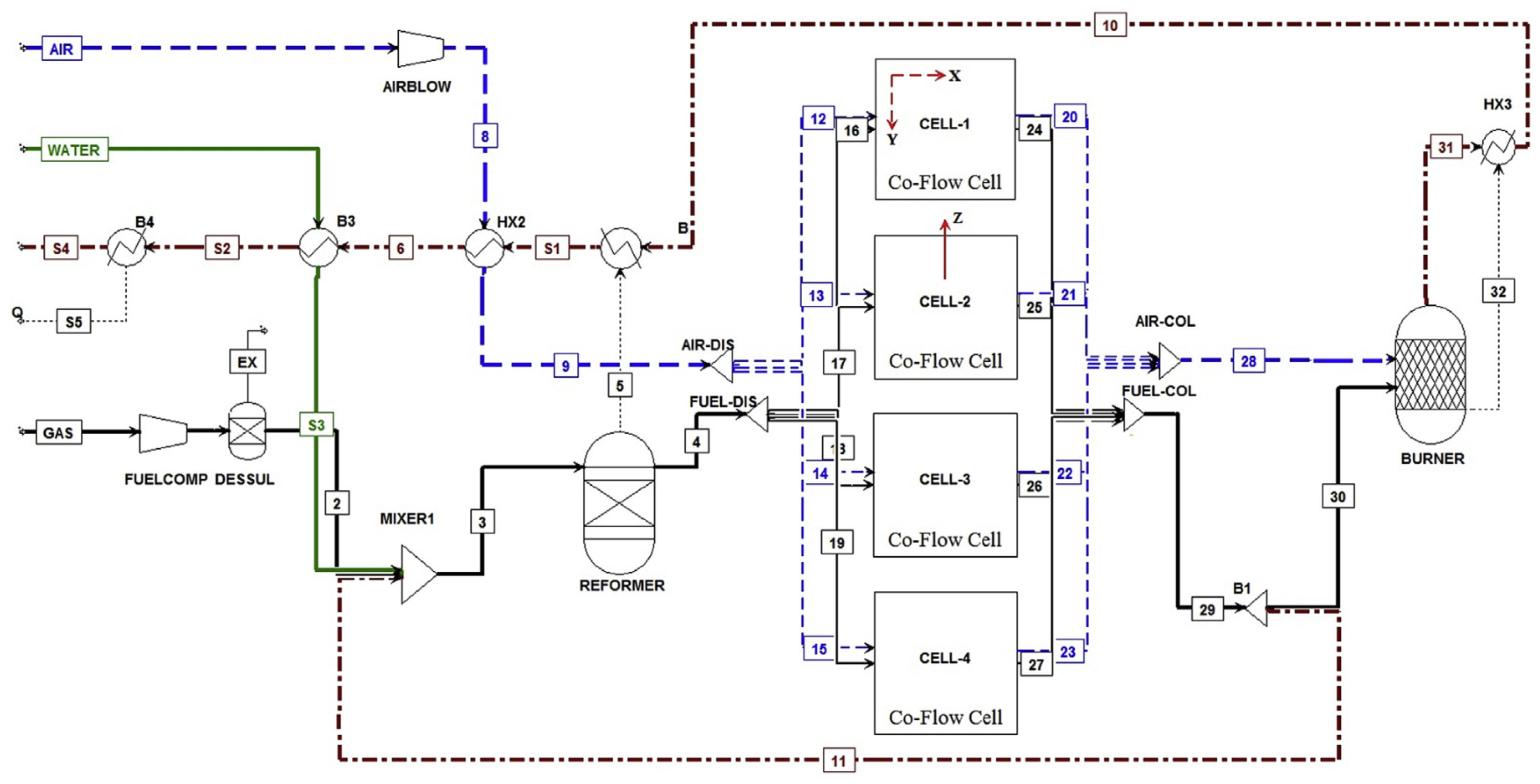

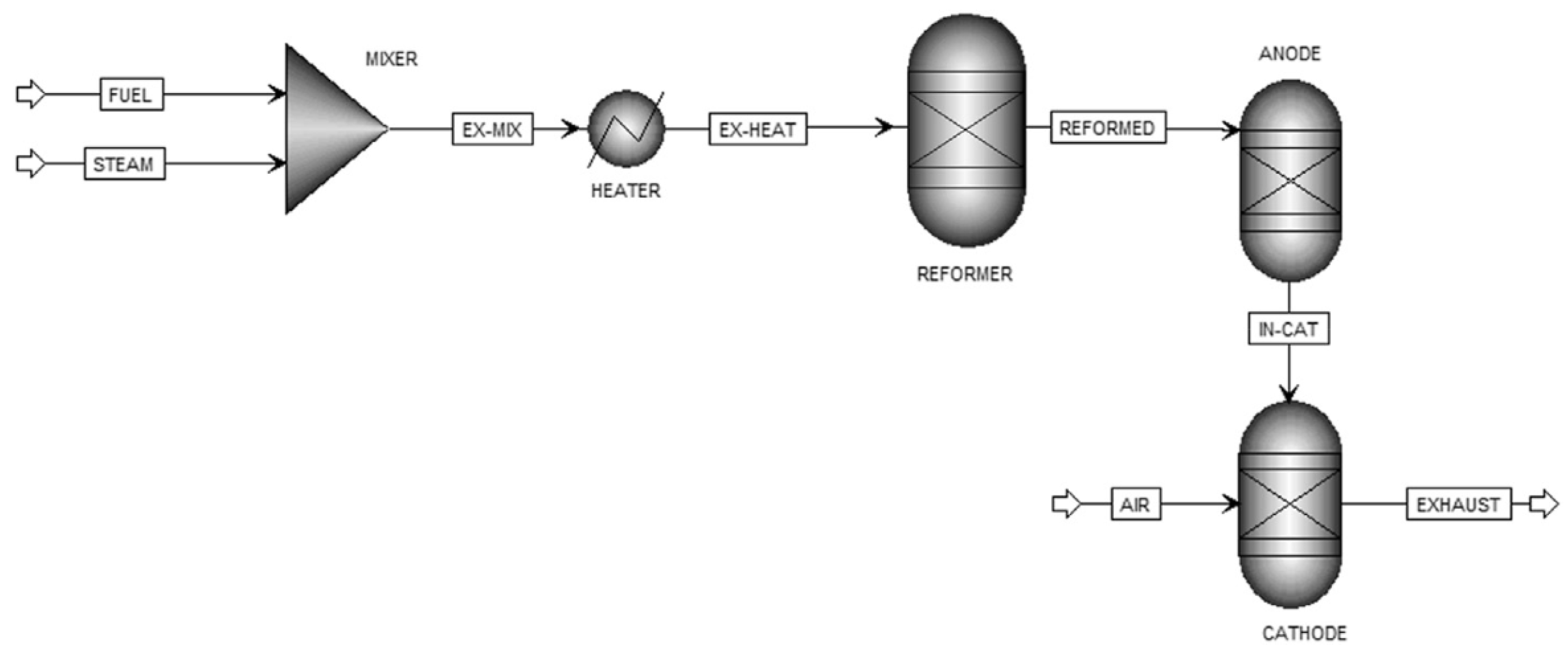

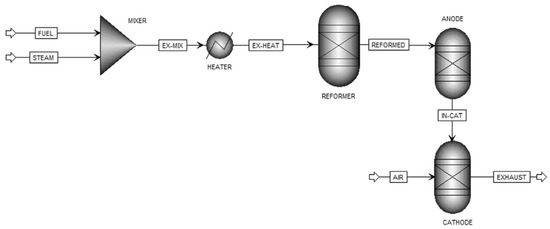

The layout simulated in Aspen Plus is shown in Figure 7.

The SOFC block was simulated in Aspen Plus using the following modules, as shown in

Table 8. Aspen Plus modules used by Saebea et al. (2021) [82].

Aspen Plus Module	Name
REFORMER	RGibbs
ANODE	RGibbs
CATHODE	RGibbs
HEATER	Heater

.

The analysis has shown that the current density affects the composition of the exhaust gases and the energy consumption of the SOFC-H⁺ system. However, the results highlight some weaknesses. Although a moderate current density value (1 A/cm²) was selected to balance the system’s performance and the composition of the exhaust gases, the increase in CO concentration in the exhaust gases at higher current densities could pose an environmental issue that was not sufficiently explored in the study.

Furthermore, while the use of glycerol as a fuel has demonstrated superior efficiency and a capacity to generate more heat compared to other fuels, the research does not delve into the potential challenges associated with the sustainable production and treatment of glycerol as a fuel on a large scale. This could limit the practical applicability of glycerol in the SOFC context.

Finally, the study does not examine in detail the long-term impact of using glycerol on the durability of the SOFCs, nor the possible issues related to fouling or catalyst poisoning, which could compromise the reliability and efficiency of the system over time.

The pros of this model are:

• Identifies glycerol as an optimal fuel for high SOFC efficiency and low emissions;
• Generates useful heat for environmental applications, enhancing cogeneration potential.

The cons of this model are:

• Increased CO emissions at higher current densities, posing environmental issues.
• Insufficient analysis of long-term durability challenges associated with glycerol as fuel.

The article by Sadhukhan et al. (2010) [83] explores the design of micro-CHP systems based on SOFC, integrated with syngas derived from biomass, for use in residential buildings. Using models developed with Aspen Plus, the study demonstrates that effective thermal integration between the SOFC’s inlet and outlet gases can significantly improve the system’s overall efficiency. The micro-CHP SOFC system, when integrated into homes with a community-scale gasification plant, can achieve an overall energy efficiency of 85%, compared to 42% without such integration. Furthermore, the article suggests that optimal SOFC operation should focus on maximizing electrical efficiency, but to meet the high residential heat demands in the UK, integration with other heat-based renewable technologies is necessary.

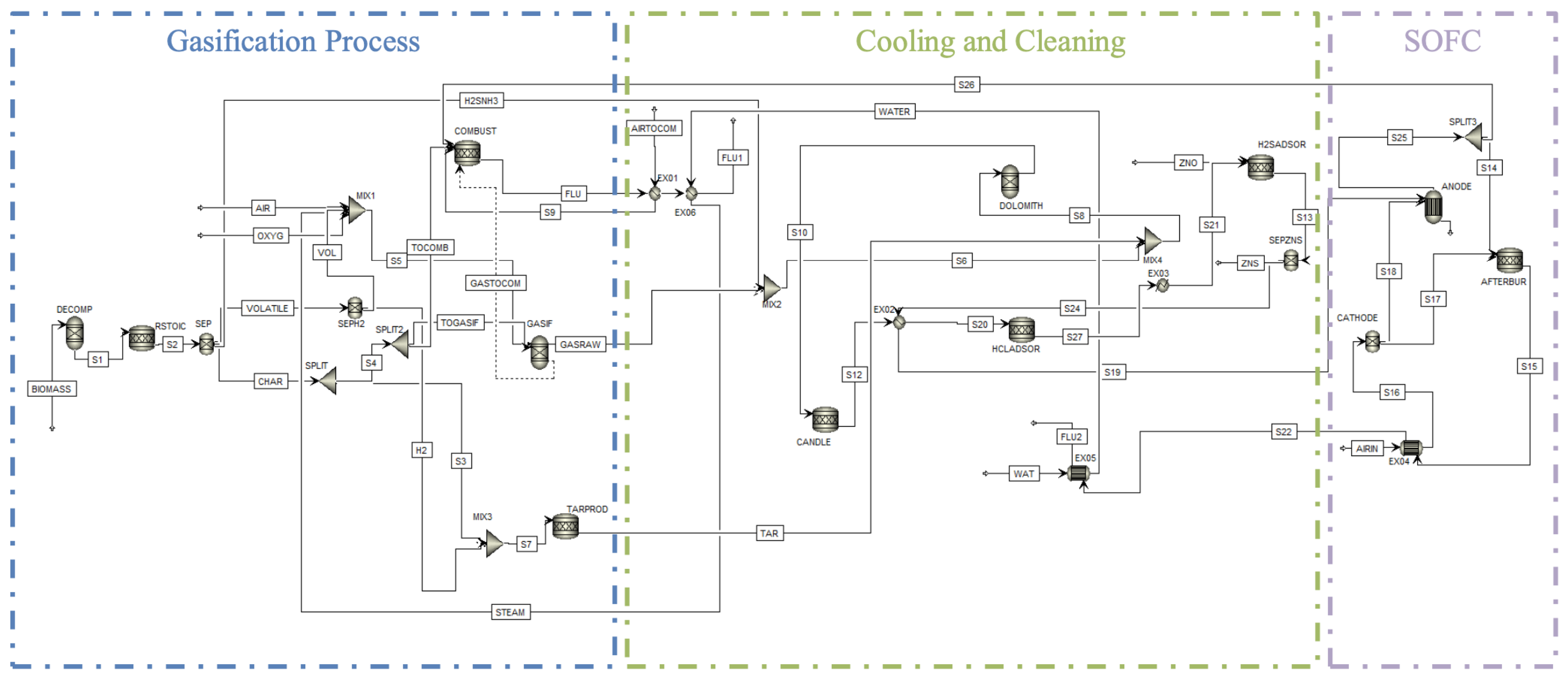

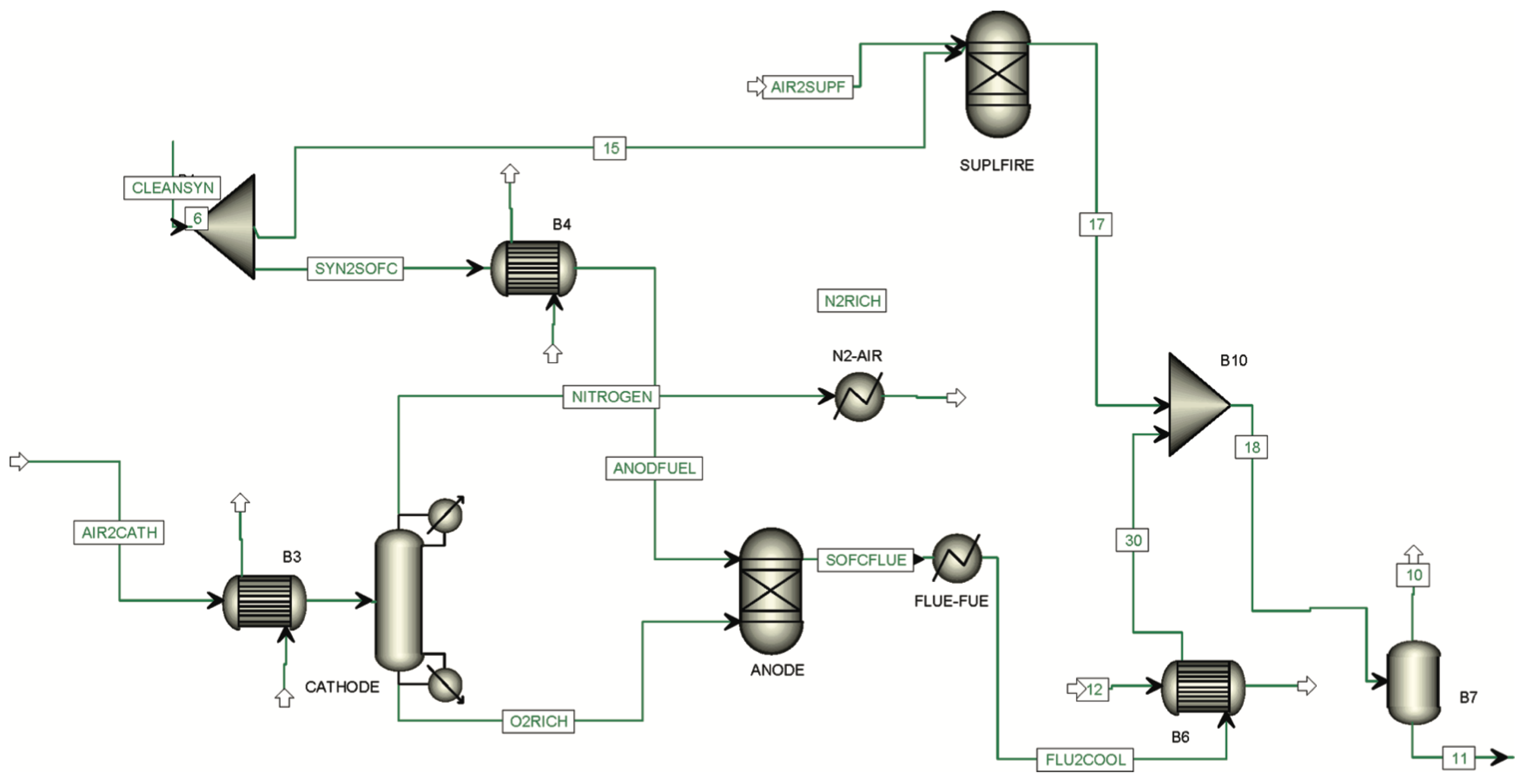

The simulated scheme in Aspen Plus is shown in Figure 8.

The block concerning the SOFC was simulated in Aspen Plus with the following modules, as shown in

Table 9. Aspen Plus modules used by Sadhukhan et al. (2010) [83].

Aspen Plus Module	Name
ANODE–SULPLFIRE	RGibbs
ANODE	REquil
B7	Separator
FLUE-FUE–N2-AIR	Heater
B3–B4–B6	HeatX
CATHODE	Distillation Column

.

The presented analysis highlights the potential of micro-CHP systems based on SOFCs integrated with syngas derived from straw, but several critical issues clearly emerge. Despite the high energy efficiency achievable by SOFCs compared to conventional GTs, the study does not adequately address the problems of intermittent electricity supply associated with heat-driven CHP technologies, especially during the summer months when heat demand is low. This could limit the reliability and continuity of the energy system.

Moreover, integration with other renewable technologies such as syngas boilers and GSHP and ASHP heat pumps seems to be a proposed solution to balance energy demand, but the study does not explore the technical and operational complexities of such integrations in depth.

Lastly, the proposal to use syngas derived from straw as the primary fuel raises questions about the long-term availability and sustainability of this resource, as well as the potential emissions and environmental impacts associated with its large-scale production and use. Despite the final recommendations to maximize electrical efficiency through full energy integration, the lack of a detailed analysis of operational challenges and environmental issues limits the study’s conclusion, suggesting that further research is needed to validate the real feasibility and sustainability of the project.

The pros of this model are:

• Examines SOFC-based micro-CHP systems using biomass-derived syngas, suitable for residential applications;
• Demonstrates high system efficiency (up to 85%) with effective thermal integration.

The cons of this model are:

• Seasonal fluctuations in heat demand reduce reliability, especially in summer;
• Limited exploration of technical challenges in integrating with other renewable technologies.

The study by Doherty et al. (2009) [84], on the other hand, analyzes the performance of a tubular SOFC, using biomass-derived syngas in a CHP system. The SOFC, modeled through Aspen Plus and validated with literature data, shows that its operation with biomass syngas results in a drop in performance compared to the use of natural gas, mainly due to the lower quality of the syngas. However, the analysis identifies optimal operating conditions that maximize electrical efficiency, indicating that SOFCs powered by biomass syngas are technically feasible and can achieve high efficiencies, making them ideal for CHP applications.

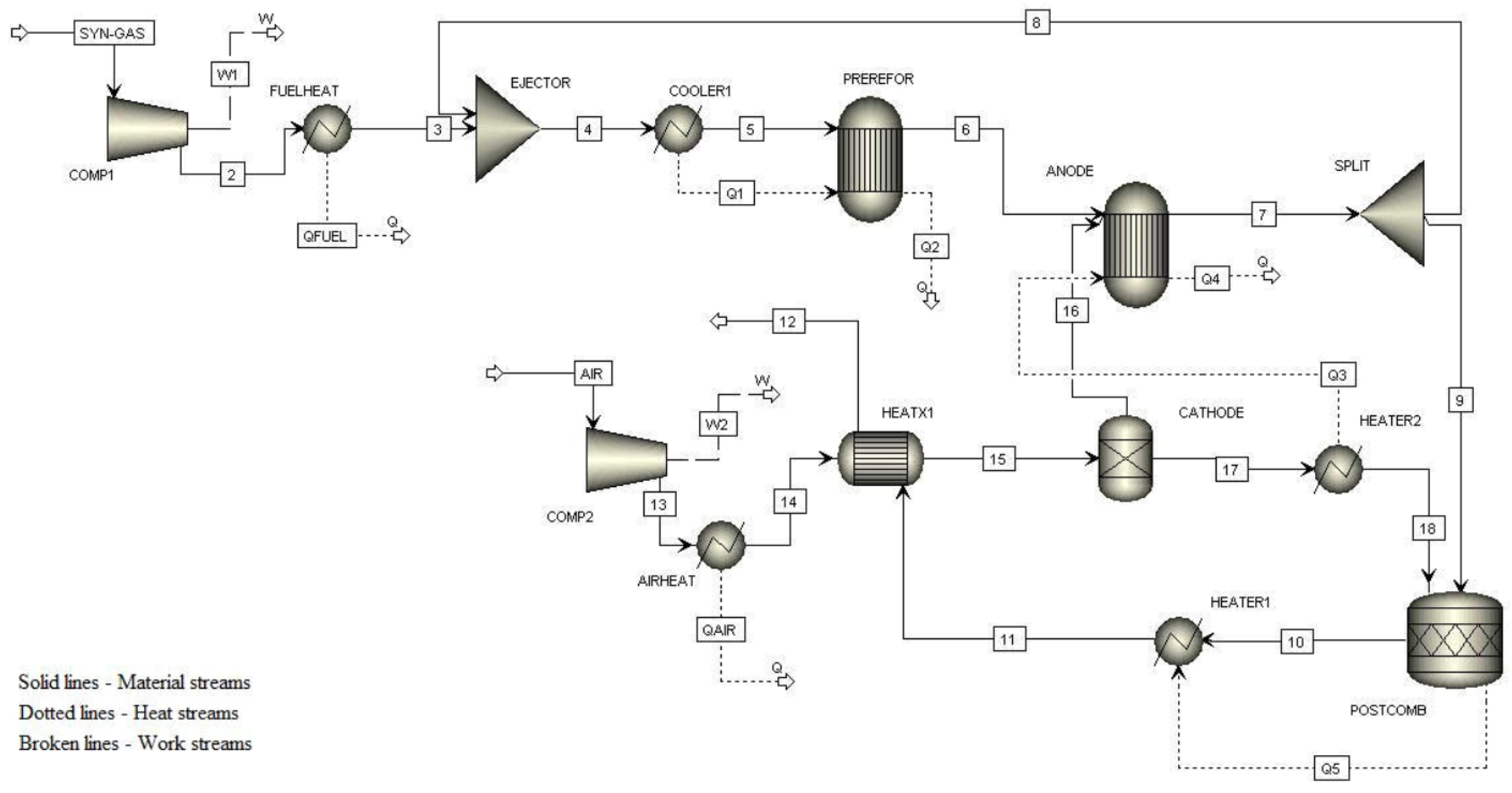

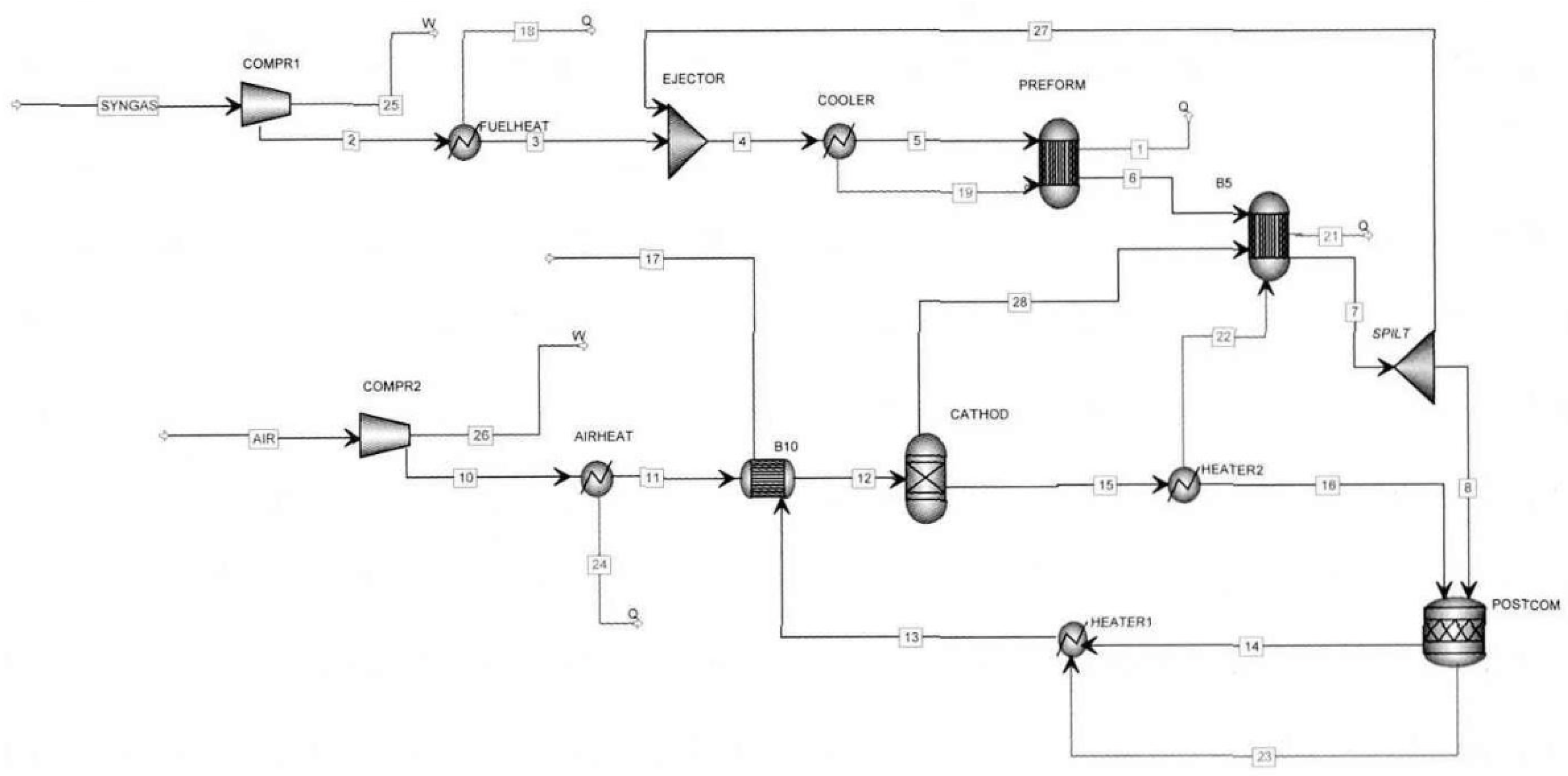

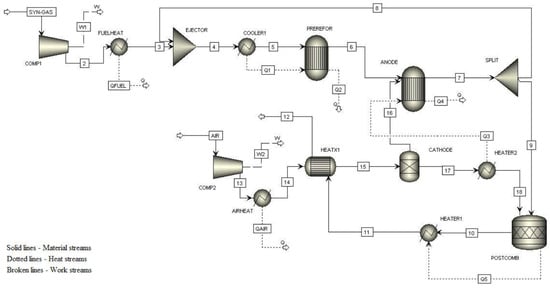

The simulated scheme in Aspen Plus is shown in Figure 9.

The block concerning the SOFC was simulated in Aspen Plus with the following modules, as shown in

Table 10. Aspen Plus modules used by Doherty et al. (2009) [84].

Aspen Plus Module	Name
PREREFOR	REquil
ANODE	REquil
POSTCOMB	RStoic
CATHODE	Separator
HEATER1–HEATER2–COOLER1–FUELHEAT–AIRHEAT	Heater
HEATX1	HeatX
COMP1–COMP2	Compressor

.

The model was validated by comparing the results with available data for natural gas and underwent sensitivity analyses to examine the impact of parameters such as current density, STCR, and Uf. It emerged that the use of biomass syngas, compared to natural gas, leads to a reduction in efficiency. This decrease is due to the lower quality of the gas and the increased fuel and air flow rates required. The cell voltage, gross and net efficiency, and DC power are all lower with biomass syngas, although the efficiency remains higher than that of traditional biomass systems.

Another critical issue is the trade-off between operating parameters. Current density negatively affects both efficiency and system power, requiring a balance between these parameters to optimize performance. Furthermore, maintaining a low STCR is essential to prevent carbon formation, but this may compromise the system’s long-term stability and efficiency. Similarly, while a high fuel utilization factor improves efficiency; if too high, it causes significant concentration losses, reducing overall efficiency.

The pros of this model are:

• Validates model with biomass-derived syngas, identifying optimal parameters for maximizing electrical efficiency;
• Demonstrates technical feasibility of biomass SOFCs, ideal for CHP applications.

The cons of this model are:

• Lower efficiency compared to natural gas due to lower-quality syngas;
• Trade-offs between current density, fuel utilization, and stability limit overall performance.

The study by Zhang et al. (2005) [85] simulates a tubular SOFC plant using unit operation models in Aspen Plus. Since commercial simulators do not have a built-in SOFC stack model, the authors propose an alternative approach by developing an SOFC model directly within Aspen Plus using existing functions. The model was validated, and sensitivity analyses were conducted on various operating parameters.

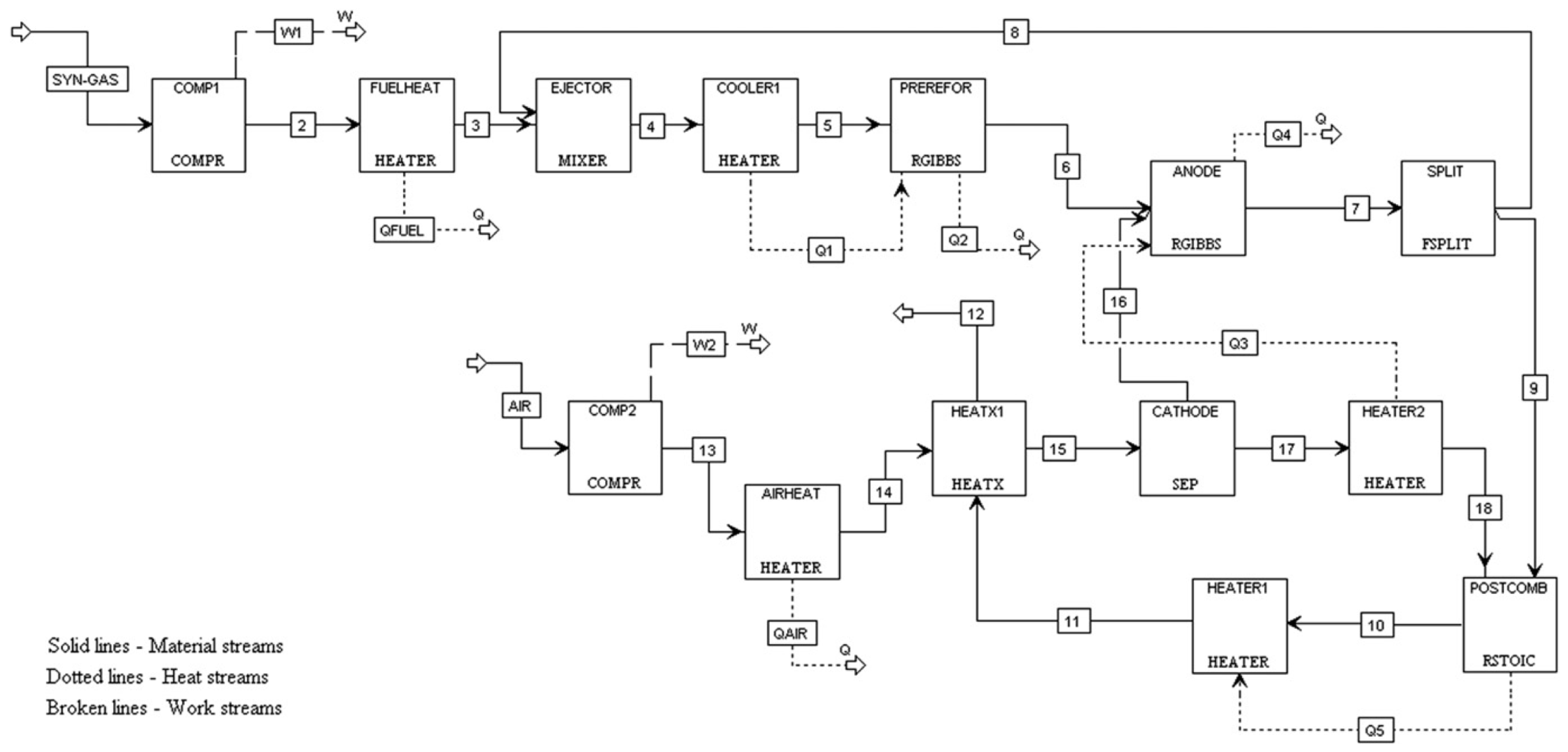

The simulated scheme in Aspen Plus is shown in Figure 10.

The block concerning the SOFC was simulated in Aspen Plus with the following modules, as shown in

Table 11. Aspen Plus modules used by Zhang et al. (2005) [85].

Aspen Plus Module	Name
REFORMER	RGibbs
ANODE	RGibbs
AFTERBURN	RStoic
CATHODE	Separator
HEATER1–HEATER2–COOLER1	Heater
RECUPER	HeatX
COMP1–COMP2	Compressor

.

The model was developed based on literature descriptions of the Siemens-Westinghouse tubular SOFC technology. It was calibrated with published performance data. Sensitivity analyses showed that the electrical efficiency of the cell reaches a maximum value of 52% when the Uf is 0.85. Furthermore, an increase in Uf leads to a rise in the concentration of CO₂ in the anode outlet flow.

A critical issue in this research is the method and correlations used to calculate the cell voltage, which are the main limiting factors of the flexibility and accuracy of the developed model. The model could be improved by developing a model based on fundamental phenomena rather than semi-empirical relationships.

The pros of this model are:

• Calibrated using Siemens-Westinghouse SOFC data, achieving good efficiency with natural gas (52%);
• Conducts sensitivity analyses on operational parameters, providing insights for optimization.

The cons of this model are:

• Relies on semi-empirical correlations, limiting flexibility and accuracy;
• Improvements in model accuracy require more fundamental (rather than empirical) approaches.

The study by Ameri and Mohammadi (2013) [86] simulates a hybrid system of SOFC and atmospheric GT using Aspen Plus software. Additionally, a parametric analysis was performed to evaluate the effects of variations in operating conditions on system performance.

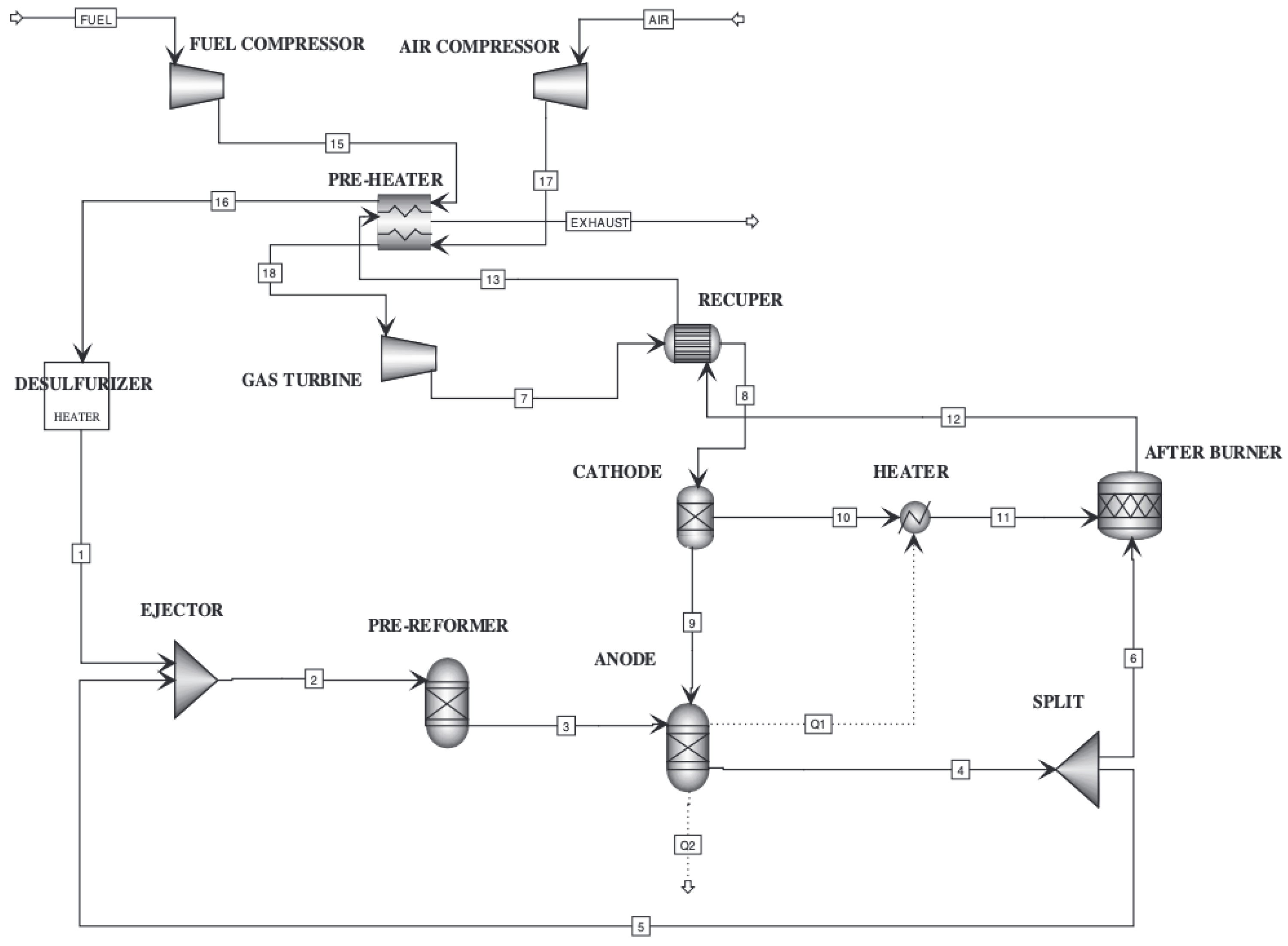

The schematic simulated in Aspen Plus is shown in Figure 11.

The SOFC block was simulated in Aspen Plus using the following modules, which are reported in

Table 12. Aspen Plus modules used by Ameri and Mohammadi (2013) [86].

Aspen Plus Module	Name
PRE-REFORMER	RGibbs
ANODE	RGibbs
AFTER BURNER	RStoic
CATHODE	Separator
HEATER–DESULFURIZER	Heater
RECUPER	HeatX
PRE-HEATER	MHeatX
FUEL COMPRESSOR–AIR COMPRESSOR	Compressor
GAS TUBRINE	Turbine

.

The model developed for a hybrid SOFC/GT system, based on Siemens-Westinghouse’s tubular SOFC with internal reforming technology, highlighted several significant challenges.

The simulation showed that increasing the Uf from 0.6 to 0.95 results in a significant reduction in fuel cell voltage, due to an increase in polarization losses and greater fuel depletion. Although the system efficiency reaches its peak with a Uf of 0.85, exceeding this value leads to a drastic decrease in voltage and overall efficiency, resulting in increased fuel consumption. Therefore, a Uf higher than 0.85 proves to be counterproductive for system efficiency.

One of the critical issues identified is the management of current density. Increasing the current density from 1600 to 2400 A/m², while maintaining a Uf of 0.85, causes a decrease in system efficiency and voltage due to increased ohmic and concentration losses. This means that although increasing the current density can enhance the output power, it comes at the cost of efficiency. This trade-off can be problematic in contexts where energy efficiency is a priority.

The main challenge lies in managing the balance between efficiency and generated power. While operating at low current density allows maximizing efficiency, it limits the total power produced. This trade-off represents a significant challenge in designing SOFC/GT systems, as the increased losses from higher operating parameters can reduce the benefits of the cycle’s theoretical high efficiency.

Finally, despite the cycle being able to achieve a very high electrical generation efficiency (68.2%), superior to that of combined cycle plants (50%), the operational management of the system must be carefully calibrated. The issues highlighted by the simulation show the importance of carefully balancing operating parameters to avoid sacrificing efficiency in favor of power or vice versa.

The pros of this model are:

• Focuses on SOFC-GT hybrid systems, achieving high electrical efficiency (up to 68.2%);
• Highlights the importance of managing current density and Uf for optimization.

The cons of this model are:

• High current density reduces efficiency due to ohmic and concentration losses, impacting system design flexibility;
• Complexity in balancing power and efficiency requires fine-tuned parameter management.

Doherty, Reynolds, and Kennedy (2010) [87] simulated a biomass gasification and SOFC power system using Aspen Plus. The main goal of the research was to develop a model to predict the system’s performance under different operating conditions. The model, which uses Gibbs free energy minimization to calculate voltage and losses, was validated with natural gas data and considers various operating parameters such as the Uf, j, and STCR. The model allows for heat and mass balances and provides a detailed analysis of the system’s performance.

The schematic simulated in Aspen Plus is shown in Figure 12.

The SOFC block was simulated in Aspen Plus using the following modules, which are reported in

Table 13. Aspen Plus modules used by Doherty, Reynolds and Kennedy (2010) [87].

Aspen Plus Module	Name
PREREFORMER	RGibbs
ANODE	RGibbs
POSTCOMB	RStoic
CATHODE	Separator
FUELHEATER–COOLER1–AIRHEAT–HEATER1–HEATER2	Heater
HEATX1	HeatX
COMP1–COMP2	Compressor

.

The model developed for the 100 kW AC CHP tubular SPGI SOFC system using Aspen Plus revealed several significant challenges in predicting the performance of the biomass-SOFC system.

Firstly, increasing the Uf improves efficiency but leads to a reduction in cell voltage. This means that, to achieve higher efficiency, the system must operate at a high Uf, which can compromise the voltage and thus the overall performance of the system.

Another challenge concerns the current density: as it increases, both the voltage and efficiency decrease, even though the output power increases. Managing this trade-off between power and efficiency is crucial for optimizing the system’s performance.

Additionally, the STCR must be kept sufficiently low to avoid carbon formation issues but not so low as to compromise the system’s overall performance.

Finally, the comparison between operation with biomass syngas and natural gas highlighted that using syngas results in a significant reduction in voltage and efficiency, due to the lower quality of syngas and the increased fuel and air flows required.

The pros of this model are:

• Models a biomass gasification and SOFC system, showing technical feasibility with high efficiencies;
• Useful for CHP applications where biomass syngas is available.

The cons of this model are:

• Lower voltage and efficiency with biomass syngas compared to natural gas;
• Requires careful control of STCR to prevent carbon formation, affecting stability.

Amiri et al. (2016) [88] developed a planar SOFC system model in Aspen Plus with a 3D module for the stack. Two cases were examined: the effect of non-uniform flow distribution in the stack collector on internal variables, and the interaction between the stack and the BoP, with particular focus on depleted fuel recycling.

The results showed that recycling the anode gas can manage gradients in the stack and improve fuel efficiency and water management.

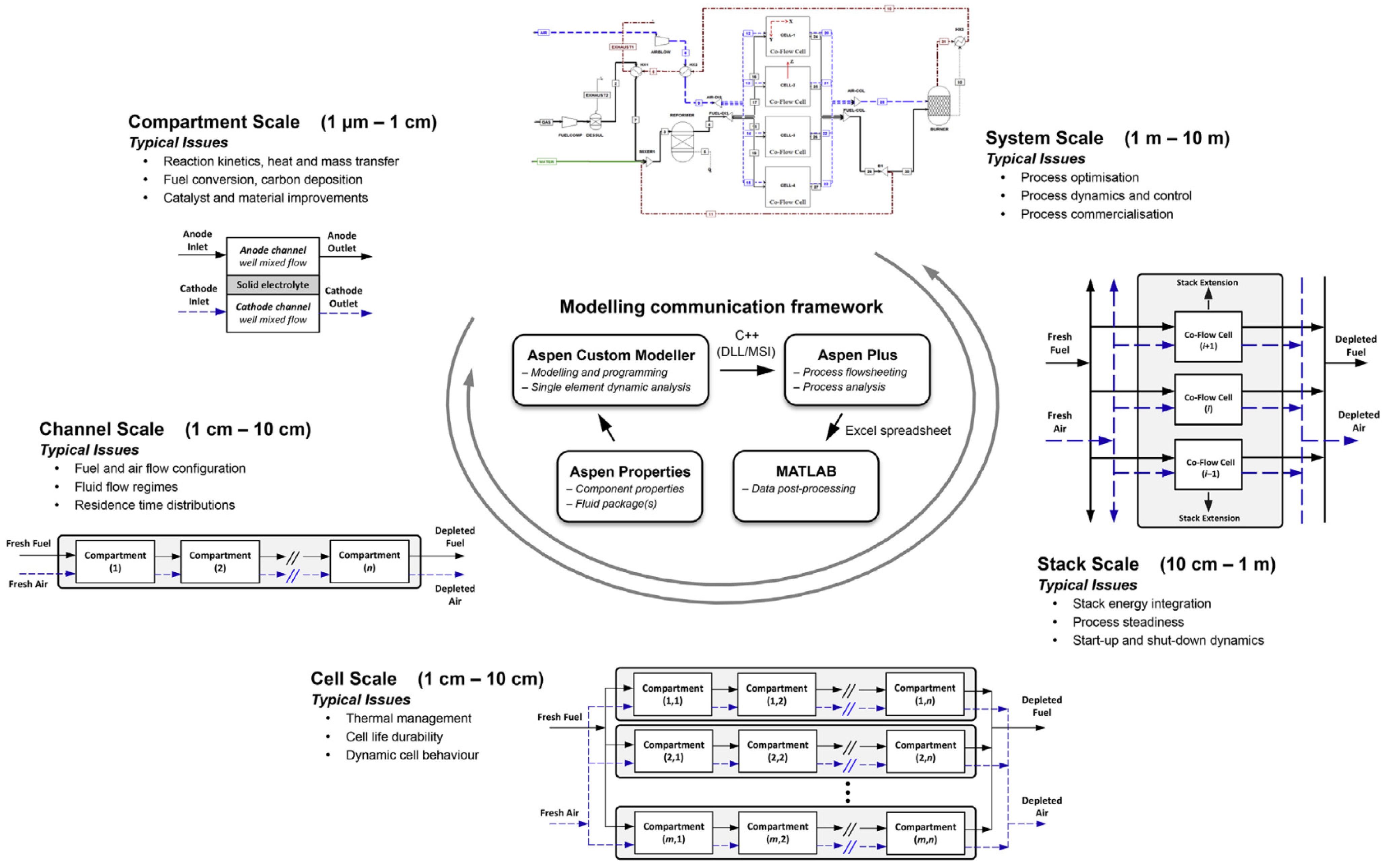

In this research, a modeling framework for an SOFC system was presented before the flowsheet, as shown in Figure 13, dividing the system into different scales of analysis. These scales help to understand and address specific problems that arise at various levels of the system, from microscopic to macroscopic.

The blocks in Figure 13 were analyzed as follows:

• Compartment scale (1 μm–1 cm): This scale focuses on analyses at a very small level, often at the level of a single compartment within the fuel cell. This compartment could be a single channel or a portion of material within the cell. Typical issues include: reaction kinetics, fuel conversion, and carbon deposition, and improvements in materials and catalysts;
• Channel scale (1 cm–10 cm): This scale analyzes the channels within the cell, where fuel and air flow. It is an intermediate scale that connects the microscopic analysis of compartments with the more macroscopic analysis of entire cells. Typical issues include: configuration of fuel and air flows, flow regimes, and residence time distribution;
• Cell scale (1 cm–10 cm): This scale deals with the entire fuel cell. Here, the dynamic and thermal behavior of the entire cell is examined. Typical issues include: thermal management, cell durability, and dynamic behavior of the cell;
• Stack scale (10 cm–1 m): This scale analyzes the stack, which is the combination of multiple fuel cells connected in series or parallel to produce large-scale power. Typical issues include: energy integration of the stack, process stability, and start-up and shutdown dynamics;
• System scale (1 m–10 m): This is the largest scale, where the entire SOFC system is considered, including auxiliary components known as BoP. Typical issues include: process optimization, process dynamics and control, and commercialization of the process.

We now move on to the central part, namely the modeling communication framework. This framework integrates the various software tools used to simulate and analyze the SOFC system at all scales:

• Aspen Custom Modeler: Used for detailed modeling and programming of individual elements;
• Aspen Properties: Provides component properties and fluid packages needed for the simulations;
• Aspen Plus: Employed for process flow simulations and system-level process analysis;
• MATLAB: Used for data processing after the simulation, through the use of Excel spreadsheets.

The schematic simulated in Aspen Plus is shown in Figure 14.

The SOFC block was simulated in Aspen Plus using the following modules, which are reported in

Table 14. Aspen Plus modules used by Amiri et al. (2016) [59].

Aspen Plus Module	Name
REFORMER	RGibbs
BURNER	RGibbs
DESSUL	Separator
B3–B4–B–HX2–HX3	Heater
FUELCOMP–AIRBLOW	Compressor

.

The effectiveness of the model has been demonstrated in previous studies at the compartment and cell levels. This work extends the methodology to higher scales, such as the stack and the system, allowing for the examination of the influence of the BoP on stack performance. The results indicate that it is possible to improve the uniformity of internal temperature and current density profiles by adjusting BoP parameters, such as the AGR fraction. The adopted approach also facilitates the simulation of different fuel-air flow schemes in the cell and stack. However, challenges arise, such as the complexity in managing BoP parameters and the significant computational demand of the multi-scale model. Furthermore, the work requires further developments to be applicable in real operational contexts, suggesting that the model still needs optimizations and additional validations.

The pros of this model are:

• Introduces a multi-scale SOFC system model that enhances understanding of internal temperature and current density profiles, contributing to better system performance and stability;
• Demonstrates the benefits of anode gas recycling for improved fuel efficiency and water management within the stack, which can positively impact long-term system durability.

The cons of this model are:

• High computational demands due to the complexity of the multi-scale model, making it challenging for large-scale or real-time applications;
• Requires further optimization and validation for practical, real-world use, particularly in managing BoP parameters effectively across scales.

The study by Doherty et al. (2015) [89] analyzes the integration of SOFCs in BG-SOFC CHP. Using Aspen Plus to simulate different scenarios, the results show that thermal integration, such as using SOFC exhaust gases as an oxidant in the gasifier, is advantageous. Additionally, it is recommended to lower the syngas preheating temperature before it enters the SOFC anodes. The system with anode recycling proves to be better than those with cathode recycling or electric heater integration. The simulations indicate that BG-SOFC CHP systems are technically feasible and can achieve high efficiencies, confirming their potential to improve energy efficiency and reduce emissions.

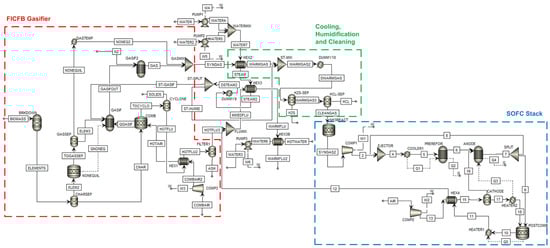

The schematic simulated in Aspen Plus is shown in Figure 15.

The SOFC block was simulated in Aspen Plus using the following modules, which are reported in

Table 15. Aspen Plus modules used by Doherty et al. (2015) [89].

Aspen Plus Module	Name
PREREFOR	REquil
ANODE	REquil
NH3REACT–POSTCOMB	RStoic
CATHODE	Separator
HEATER1–HEATER2–COOLER1	Heater
HEX41	HeatX
COMP1–COMP2	Compressor

.

The research work utilized Aspen Plus to model different configurations of BG-SOFC systems, demonstrating technical feasibility and the influence of operational parameters. However, several challenges arise in the context of SOFCs integrated with biomass gasification:

• Cathode air recirculation: The results indicate that cathode air recirculation and the use of an electric heater for syngas preheating do not offer significant advantages over the baseline system with anode recirculation. This suggests that research into alternatives for syngas preheating may not yield significant performance improvements;
• Syngas cleaning temperature: Although high-temperature syngas cleaning is advantageous for reducing plant complexity, the system does not specifically address the associated costs and technical challenges related to this research;
• Biomass moisture: High biomass moisture negatively affects the plant’s efficiency. However, the study does not thoroughly explore practical solutions for reducing biomass moisture or improving the management of fuels with high moisture content;
• Thermal integration: Thermal integration between the gasifier and the SOFC is considered interesting, but the work does not delve into the complexities of such integration and how these may impact the efficiency and practicality of the system in the long run.

In summary, while BG-SOFC systems can offer high efficiencies, it is essential to address the associated issues and costs more thoroughly, as well as to explore solutions for improving biomass management and syngas cleaning.

The pros of this model are:

• Demonstrates technical feasibility of BG-SOFC CHP systems with high efficiencies, confirming their potential to improve energy efficiency and reduce emissions;
• Effective thermal integration by using SOFC exhaust gases as an oxidant in the gasifier, enhancing overall system efficiency.

The cons of this model are:

• High biomass moisture content negatively impacts plant efficiency, with limited exploration of practical solutions to manage moisture levels;
• Cathode air recirculation and electric heater integration for syngas preheating show limited benefits, indicating a need for alternative syngas preheating strategies.

The study by Rudra and Kim (2010) [90] examines the SOFC as a promising technology for high-efficiency electricity generation. Using sulfur-free syngas as fuel in an IGFC system, the SOFC directly converts chemical energy into electrical energy and can be integrated into cogeneration applications due to its high operating temperature. The authors developed a simulation model of the SOFC using Aspen Plus, taking into account various types of fuels and the different losses in the system.

The results show a trade-off between efficiency and power based on the properties of the syngas and highlight a decline in performance when the SOFC operates with coal compared to syngas.

The schematic simulated in Aspen Plus is shown in Figure 16.

The SOFC block was simulated in Aspen Plus using the following modules, which are reported in

Table 16. Aspen Plus modules used by Rudra and Kim (2010) [90].

Aspen Plus Module	Name
PREFORM	REquil
B5(ANODE)	REquil
POSTCOM	RStoic
CATHODE	SRGibbs
FUELHEAT–AIRHEAT–COOLER–HEATER1–HEATER2	Heater
B10	HeatX
COMPR1–COMP2	Compressor

.

In the present study, several significant challenges emerged. Although the simulation model developed for the SOFC using Aspen Plus is effective in predicting the system’s performance under various operating conditions, some issues have been identified.

Firstly, the accuracy of the model depends on the quality of the data and assumptions used. Furthermore, while simulation method ’A’ demonstrated better results for the operation of the HRSG, it is not guaranteed to be applicable under all operating conditions. There may be alternative methods that provide superior results in other situations.

The sensitivity analysis conducted highlighted the importance of using appropriate parameters for evaluating losses and chemical reactions, but the adopted assumptions may not cover the entire real variability of the parameters. Additionally, the models used may not fully reflect the complexity of real processes, such as internal heat exchange and hydrocarbon reforming reactions, necessitating a more detailed and realistic assessment of these aspects.

Finally, the research objectives in the field of coal gasification and fuel cells are ambitious, and achieving them may require further technological developments and advancements in research.

The pros of this model are:

• Demonstrates technical feasibility of SOFCs using sulfur-free syngas with high efficiencies for electricity generation;
• Suitable for cogeneration applications due to high operating temperature, enhancing overall energy utilization.

The cons of this model are:

• Lower performance when SOFCs operate with coal compared to syngas, highlighting a dependency on fuel type;
• Model limitations in capturing complex internal heat exchanges and hydrocarbon reforming reactions, possibly affecting simulation reliability.

The work of Marcantonio et al. (2020) [91] focuses on the design and simulation of a biomass-SOFC system using Aspen Plus. This steady-state model allows for predicting the performance of a SOFC system powered by syngas produced through biomass gasification. The developed model does not use external subroutines but only standard Aspen Plus blocks, making it simpler and more reliable. The results show that the simulation of the syngas composition and the behavior of the system align with available literature data. The sensitivity analysis highlights a trade-off between voltage, electrical efficiency, and power as a function of current density, and suggests maintaining a low steam-biomass ratio. The electrical efficiency of the system, at 57%, is high, making syngas-powered SOFCs a very promising option for energy production.

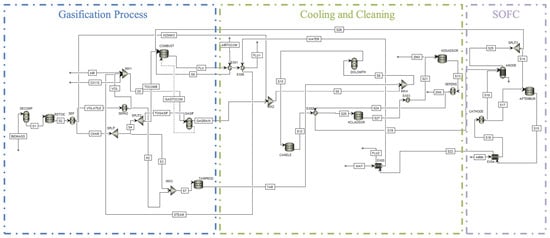

The schematic simulated in Aspen Plus is reported in Figure 17.

The block regarding the SOFC was simulated in Aspen Plus with the following modules, which are reported in

Table 17. Aspen Plus modules used by Marcantonio et al. (2020) [91].

Aspen Plus Module	Name
AFTERBUR	RStoic
ANODE	REquil
CATHODE	Separator
EX04	HeatX

:

The analysis showed that a low S/B ratio is preferable to improve electrical efficiency and reduce CO₂ formation in the exhaust gas. It was highlighted that the current density affects the voltage, power, and electrical efficiency of the SOFC, with optimal current density values between 1800 and 2000 A/m² producing a voltage of 1.1 V, a power output of 850 W/m², and an electrical efficiency of 57%. Furthermore, an increase in the concentration of CO and incoming air to the SOFC can enhance the power output of the SOFC.

The pros of this model are:

• Achieves high electrical efficiency (57%) using syngas from biomass gasification;
• Optimizes performance at current densities between 1800–2000 A/m², showing high power density.

The cons of this model are:

• Low S/B ratio requirement may limit applicability in settings with varying fuel composition;
• Sensitivity to CO concentration and air composition may require additional fuel conditioning.

For completeness, even though the flowsheets are not provided, an analysis of several SOFCs fueled by ammonia is included. Ni et al. (2008) [92] developed a 1D model for a planar SOFC supported by the anode, comparing the performance of H-SOFC and O-SOFC cells fueled by ammonia. In their study, they assumed that ammonia decomposed completely in the anode, although they acknowledged that this assumption might not reflect real operating conditions, as decomposition depends on various kinetic factors. This approach simplified the model and facilitated performance predictions, but it may have limitations for practical applications because it does not account for the actual kinetic variables of ammonia decomposition. However, the model showed that the performance of H-SOFCs is about 12% lower than that of O-SOFCs, mainly due to the lower ionic conductivity of the protonic electrolyte compared to that of the oxide ion-conducting electrolyte.

Ni (2011) [93] subsequently extended their work with a 2D model that includes energy transport and flow equations within O-SOFCs, demonstrating how the temperature distribution in the cell is influenced by the fuel inlet temperature and the endothermic reaction of ammonia decomposition. Although the inclusion of these parameters improved the model’s accuracy, it brought with it the challenge of managing high thermal gradients, which could potentially be harmful to the cell’s stability in the long term.

Kalinci and Dincer (2018) [94] further modeled the effect of operating parameters, such as temperature and pressure, on ammonia decomposition and SOFC performance. At high temperatures, they observed an increase in concentration and activation polarizations, while noting an overall improvement in performance due to reduced ohmic polarization. The model has the advantage of offering a detailed understanding of cell performance at various temperatures, but it may be limited if applied to operating conditions different from those specifically modeled in this case.

Huo and Zhou (2011) [95], on the other hand, developed a 2D model for tubular SOFCs, using an expression for ammonia decomposition proposed in previous studies. They found that an increase in temperature improves cell performance, as it enhances the rate of ammonia decomposition. This configuration highlighted how decomposition influences the thermal performance of the cell, but the model may be less accurate for other cell configurations or different anode geometries.

3. Conclusions

The present review paper pointed out that while SOFC systems have been extensively discussed in literature, most studies focus on a single pure fuel or mixtures of pure fuels, without analyzing the impact of switching between hydrogen, natural gas/methane, methane-hydrogen blends, biogas, and biohydrogen. These fuel variations significantly affect system performance, as highlighted in existing research. Furthermore, there is a lack of studies evaluating different SOFC technologies (anode-supported and electrolyte-supported) when fueled by these diverse sources. The present review paper aims to point out these gaps and the need to model a highly flexible SOFC system capable of integrating various stack technologies and operating with any fuel mixture of natural gas, hydrogen, and CO₂. This must include pure natural gas, pure hydrogen, and combinations of methane, hydrogen, and CO₂. The SOFC stack technologies considered need to cover a broad range: from low-temperature, anode-supported stacks operating at 650 °C to high-temperature, electrolyte-supported stacks running at 800 °C. This approach enables full stack interchangeability within the same system, promoting a barrier-free market for stack and system manufacturers by standardizing the stack-to-system interface. Indeed, researchers need to focus on the modeling a SOFC system that integrates renewable energy and the use of hydrogen and biofuels within natural gas infrastructure. This will result in reduced emissions, improved energy efficiency, and enhanced fuel flexibility. This adaptability is crucial in the evolving energy landscape, as it facilitates greater renewable fuel injection into gas networks, reduces reliance on natural gas in the power sector, cuts emissions, boosts efficiency, improves reliability, and lowers the cost of clean, high-efficiency energy generation systems. This comparative analysis highlights how each model serves specific use cases and the balance between achieving high efficiency, fuel flexibility, and ease of integration with other technologies. The primary trade-offs involve model complexity, long-term reliability, and the adaptability of the system under varying fuel and operating conditions. Here a brief summary:

• Best for renewable integration: Veluswamy et al. [73] and Saebea et al. [50] models emphasize renewable fuels, with bio-hythane and glycerol, respectively.
• Highest efficiency: Ameri and Mohammadi [56] and Hentati et al. [81] show high efficiencies when SOFC is integrated with gas turbines.
• Large-scale and industrial applications: Russo et al. [80] provide a model for large-scale maritime applications but it faces integration challenges.
• Residential and micro-CHP applications: Sadhukhan et al. [85] and Doherty, Reynolds, and Kennedy [57] are suitable for residential and community-scale CHP, though they face seasonal challenges.
• Modeling challenges and durability: Many models, such as those by Hauck et al. [46] and Saebea et al. [50], do not fully address long-term durability issues, which remain a significant research need.
