Assessment of Ecosystem Services and Exploration of Trade-Offs and Synergistic Relationships in Arid Areas: A Case Study of the Kriya River Basin in Xinjiang, China

Abstract

This research focuses on the Kriya River Basin and analyzes the spatiotemporal variability of ecosystem services (ESs) and their trade-offs and synergies, which are vital for regional ecosystem conservation and socio-economic sustainability. Utilizing land use data from 1990 to 2020 and predictive models for 2030 (PLUS for land use and InVEST for ESs), the study assesses four key ESs: water yield (WY), soil conservation (SC), habitat quality (HQ), and carbon storage (CS). The findings indicate that land use changes from 1990 to 2020 have significantly impacted these services. WY showed a negative trend because of a reduction in precipitation, while increased grasslands enhanced SC, HQ, and CS. Projections for 2030 suggest increases in WY and SC, with increases of 10.27 × 10⁸ m³ in WY and 0.216 × 10⁸ t in SC, but slight decreases in HQ and CS due to urban land expansion. Therefore, land types that provide important ESs should be protected in future planning, and the expansion of construction land should be controlled in order to realize the goal of ecological conservation. Our study also reveals that while WY and CS share a subtle trade-off, they both synergize with SC and HQ. Strong synergies exist between SC and HQ as well as between SC and CS, indicating lesser concerns for trade-offs in future planning. This research provides valuable data support and scientific insight for sustainable development and ecological governance policies in the watershed.

1. Introduction

Ecosystem services (ESs) provide the services and products that people need from the natural environment [1,2]. In addition to providing food, materials, and resources for basic human activities [3,4], ecosystems regulate climate, purify the air, and protect biodiversity, services closely linked to human well-being [5,6,7]. In 2005, the United Nations published the Millennium Ecosystem Assessment, which found that humans are a major component of ESs and that humans interact with and affect other components of ecosystems [8,9]. Human activities can change ecosystems directly or indirectly [10,11], thereby further affecting human well-being [12]. There is an urgent need to strengthen ecosystem research and management at a time when human–ecosystem conflicts are on the rise [13,14]. Currently, ESs have become a hot topic in many disciplines and interdisciplinary subjects, such as biogeography, ecology, and environmental science [15,16]. In addition, ESs can contribute to achieving the 2030 United Nations Sustainable Development Goals (SDGs) in a timely manner [17,18].

The four main categories of ESs are provisioning (provision of food, water, etc.), regulating (flood control, soil conservation, etc.), supporting (such as nutrient cycling that sustains the environment for life on Earth), and cultural (spiritual, recreational, and cultural benefits) [19]. Different services have varying degrees of trade-offs and mutually reinforcing synergies [20,21,22]. For example, Bruno et al. analyzed the correlation between ESs in Costa Rica and identified spatial synergies between current policies and the protection of ecosystem services [23]; Kirchner et al. assessed trade-off synergies between agroecosystem services in Austria, contributing to an improved agricultural environment for rural development [24]; Shen et al. studied the trade-offs and synergistic relationships among multiple ESs in the Beijing–Tianjin–Hebei region, showing that understanding the complex relationships within ecosystems can help to ensure the effectiveness and equity of natural resource management [25]. Therefore, research on the trade-offs and synergies of ESs guarantees the sustainable and efficient development of regional ecosystems [26,27].

ES changes are largely influenced by land use changes (LUCs) [28,29]. Many researchers have conducted systematic assessments of ESs at different regional scales around the globe from the perspective of land use types [30,31]. Since the last century, many LUC models have been proposed. Aside from its high simulation accuracy, Patch-generating Land Use Simulation (PLUS) is also fast in processing data, which can effectively simulate the complex evolution of multiple land types [32]. Many researchers have achieved more research results by coupling PLUS and InVEST (Integrated Valuation of Ecosystem Services and Trade-offs) modeling. For example, a study by Li et al. evaluated the change in habitat quality (HQ) in Tianjin in 2030 based on the PLUS model and the InVEST model, which showed that HQ was highly correlated with LUCs and that the rapid expansion of land for construction was the main reason for the decline in HQ from year to year [33]. In a study by Wang et al., the PLUS and InVEST models were combined and the spatial aggregation of land use and ecosystems was examined under different scenarios in Yunnan Province, and each driving factor was analyzed and ranked [34]. In summary, the PLUS model and InVEST model have promising applications in modeling the complex evolution of land use types and ecosystem service assessments [35,36]. The present study is based on PLUS and InVEST modeling for current and future LUCs and ES assessment in the Kriya River Basin (KRB), which will play a positive role in ecosystem conservation and ecologically sustainable development of the basin.

Watersheds are the lifeline that safeguards the socio-economy, natural ecology, and livelihoods of the people in oases [37]. Especially with the shift of focus on national economic construction (from the eastern coastal region to the arid western region), the arid zone has become an important resource takeover area in China in the 21st century [38,39]. The Kriya River Basin originates from the northern foothills of the Kunlun Mountains and flows from south to north through Yutian County into the hinterland of the Taklamakan Desert [40]. After flowing through the Taklamakan Desert, the Kriya River forms an oasis–desert ecosystem, which has nurtured the Kriya people and their culture [41]. In recent years, with the growing population, human development, and utilization of soil and water resources, the original fragile natural ecology of this area has changed greatly [42]. The main ecological problems that need to be solved are soil salinization, land desertification, and discontinuous river flow [43,44,45].

Over the past 30 years, with population growth and socio-economic development, the demand for agricultural land has increased, resulting in extensive reclamation of unutilized land and water bodies around rivers, leading to the degradation of grasslands. Therefore, we need to rationalize the use of land resources with a view to increasing the value of ecological services. The research objectives of this paper are (1) to analyze the LUCs in the Kriya River Basin in the last 30 years and to predict the land use pattern in 2030 using the PLUS model; (2) to quantitatively assess four important ESs in the Kriya River Basin over three decades and project trends in 2030 using the InVEST model; and (3) depending on the outcomes of the ES evaluation, to examine and assess the intricate trade-offs and synergistic interactions among services. The study’s findings should provide a scientific foundation for formulation of the Kriya River Basin‘s ES development planning, the delineation of ecological red lines, and the realization of SDGs.

2. Materials and Methods

2.1. Study Area

The Kriya River Basin (KRB, China, 35°14′ N–39°30′ N, 81°09′ E–82°14′ E, Figure 1) is situated at the southern edge of the Taklamakan Desert, at the northern foothills of the Kunlun Mountain Range, occupying a total land area of about 4 × 10⁴ km² [46]. The KRB’s topography is characterized by highlands in the south and lowlands in the north, with pronounced vertical zonal contrasts throughout the entire landscape [47]. The region belongs to the typical warm temperate, continental, and arid desert climates, and is distinguished by a notable temperature variation between day and night, scanty precipitation, and strong evaporation [48]. The long-term effect of the continental climate and the geomorphological pattern of a mountain basin has led to the development of oasis–desert ecosystem, and its natural ecology is relatively fragile. In recent years, with climate change, land use change, urban expansion, and economic development, the interplay of natural and human factors has led to major changes in the ecological environment [49,50].

2.2. Data Sources

2.2.1. Meteorological Data

The meteorological data were taken from the Data Center for Resource and Environmental Science (https://www.resdc.cn/, accessed on 10 April 2023). The spatial resolution was 1 km. The potential evapotranspiration data were obtained from the National Tibetan Plateau Science Data Center (https://data.tpdc.ac.cn, accessed on 10 April 2023). The spatial resolution was 0.0083333° (approximately 1 km).

2.2.2. Soil, Elevation, and Land Use Data

The maximum rooting depth of the soil was derived from the China Depth to Bedrock map, with a spatial resolution of 100 m. The dataset was based on borehole logging data from China (approximately 6382 sites) (globalchange.bnu.edu.cn/research/cdtb.jsp, accessed on 9 April 2023).

The World Soil Database, created by the Food and Agriculture Organization of the United Nations (FAO) and the International Institute for Applied Systems Analysis (HWSD, Harmonized World Soil Database, https://www.fao.org/, accessed on 28 February 2023), was used to calculate plant available water capacity (PAWC).

A geospatial data cloud (https://www.gscloud.cn/, accessed on 9 April 2022) was used to obtain digital elevation model (DEM) data. Land use change (LUC) data were obtained from the annual dataset of land use and cover from 1985 to 2020, which was built by the team led by Professor Huang Xin from Wuhan University based on Landsat images on Google Earth Engine (CLCD https://doi.org/10.5194/essd-2021-7) [51].

2.2.3. Social Economic Data

Population density and gross domestic product (GDP) data were taken from the Data Center for Resource and Environmental Science (https://www.resdc.cn/, accessed on 14 March 2023). Water system and road vector data were taken from the National Catalog Service for Geographic Information (https://www.webmap.cn/, accessed on 14 March 2023). Refer to Table S1 of the Supplementary Material for detailed data sources.

2.3. Methods

2.3.1. Land Use Future Forecasting Based on the PLUS Model

The PLUS model is a new and modified CA (Cellular Automat) model constructed by the High-Performance Spatial Computational Intelligence Laboratory of China University of Geosciences (Wuhan) based on the FLUS model. It enables simulation of future LUCs based on existing land use types coupled with a Land Expansion Analysis Strategy (LEAS) and a CA model based on multitype stochastic patch seeding (CARS) [32]. Some previous models have many shortcomings, such as the inability to simulate multiple land use categories and multiple patches, the lack of spatial and temporal dynamics, or difficulty in dealing with fine patches. The PLUS model combines the advantages of other models while overcoming their shortcomings and improves the simulation ability of the outputs. It accurately models the spatial distribution by predicting land changes under future factor constraints. Based on the historical land use data of the KRB for the years 2000 and 2010, climate and environmental data such as soil type, average yearly temperature, average yearly precipitation, DEM, slope, and distance to water, as well as socioeconomic metrics such as population density, GDP, and distance to primary, secondary, and tertiary roads, simulations of land use in 2020 were generated, which were then compared and evaluated with actual land use data in 2020. Using the Kappa coefficient and overall accuracy as evaluation indices, we found that the outputs of the model were sufficiently precise, which suggested that the same approach could be used for predicting land use types in 2030.

The Kappa consistency test is a statistical method used to evaluate the consistency of classification results of two or more observers’ consistency. The Kappa coefficient is given by:

$$\mathrm{Kappa}=\frac{\mathrm{PA}-\mathrm{PE}}{1-\mathrm{PE}}$$

(1)

where PA is the probability of observational agreement and PE is the probability of expected agreement. Kappa coefficient values range from −1 to 1.

The model accuracy was evaluated using overall accuracy (OA), which was calculated as follows:

$$\mathrm{OA}=\frac{\mathrm{T}}{\mathrm{A}}$$

(2)

where T is the number of correctly categorized positive sample pixels, and A is the number of all pixels. The Kappa coefficient for this study was 0.853 and the OA was 0.962, indicating high precision and high reliability.

2.3.2. Ecosystem Service Assessment Based on the InVEST Model

• Water Yield (WY) Model

The calculation of the WY model is based on the principle of water balancing [52]. The amount of WY flowing through each grid cell is determined based on precipitation minus actual evapotranspiration [53]. The WY is given by:

$${ \mathrm{Y}}_{\mathrm{x}}=\left(1-\frac{{\mathrm{AET}}_{\mathrm{x}}}{{\mathrm{P}}_{\mathrm{x}}}\right)\times {\mathrm{P}}_{\mathrm{x}}$$

(3)

where Y_x is the yearly WY (mm) for raster x, P_x is the yearly precipitation (mm) for pixels x, and AET_x is the actual evapotranspiration (mm) for pixels x. Refer to Table S2 in the Supplementary Materials for the biophysical tables required for the water yield service module.

2.

Soil Conservation (SC) Model

The sediment delivery ratio calculates soil retention as the difference between soil erosion reduction and sediment retention [54], as follows:

$${ \mathrm{SDR}}_{\mathrm{x}}={\mathrm{RKLS}}_{\mathrm{x}}-{\mathrm{USLE}}_{\mathrm{x}}+{\mathrm{SEDR}}_{\mathrm{x}}$$

(4)

$${ \mathrm{RKLS}}_{\mathrm{x}}={\mathrm{R}}_{\mathrm{x}}\times {\mathrm{K}}_{\mathrm{x}}\times {\mathrm{LS}}_{\mathrm{x}}$$

(5)

$${ \mathrm{USLE}}_{\mathrm{x}}={\mathrm{R}}_{\mathrm{x}}\times {\mathrm{K}}_{\mathrm{x}}\times {\mathrm{LS}}_{\mathrm{x}}\times {\mathrm{C}}_{\mathrm{x}}\times {\mathrm{P}}_{\mathrm{x}}$$

(6)

$${\mathrm{R}}_{\mathrm{x}}=0.0534\times {\mathrm{P}}^{1.6548}$$

(7)

$${\mathrm{K}}_{\mathrm{x}}=\left(-0.01383+0.51575\times {\mathrm{K}}_{\mathrm{E}\mathrm{P}\mathrm{I}\mathrm{C}}\right)\times 0.1317$$

(8)

$$\begin{gathered} { \mathrm{K}}_{\mathrm{EPIC}}=\left\{0.2+0.3\exp \left[-0.0256\mathrm{SAND}\left(1-\frac{\mathrm{SILT}}{100}\right)\right]\right\}\times { \left(\frac{\mathrm{SILT}}{\mathrm{CLAY}+\mathrm{SILT}}\right)}^{0.3} \\ \times \left\{1-\frac{0.25\mathrm{C}}{\mathrm{C}+\exp (3.72-2.95\mathrm{C})}\right\}\times \left\{1-\frac{0.7\mathrm{SN}}{\mathrm{SN}+\exp (22.9\mathrm{SN}-5.51)}\right\} \end{gathered}$$

(9)

where SDR_x, USLE_x, and SEDR_x are the SC, potential erosion, and sediment retention for grid x, respectively; R_x, K_x, LS_x, C_x, and P_x are the rainfall erosivity factor, soil erodibility factor, slope length, gradient factor, and vegetation cover factor, respectively; USLE_y is the actual erosion of upslope grid y; P is the annual precipitation; K_EPIC is the soil erodibility factor calculated by the EPIC model; SAND is the sand content (%); SILT is the silt content (%); CLAY is the clay content (%); and C is the organic carbon content of the soil (%), where SN = 1 − (SAND/100). K_x are imperial units, multiplied by 0.1317 to convert to the International System of Units. Refer to Table S3 in the Supplementary Materials for the table of biophysical coefficients required for the Soil Conservation Module.

3.

Carbon Storage (CS) Model

The CS module sums the carbon densities of above-ground, below-ground, soil, and dead organic carbon of different land classes based on the classification of land use/cover to derive the carbon stock in the study area [55,56] as follows:

$${ \mathrm{C}}_{\mathrm{total}}={\mathrm{C}}_{\mathrm{above}}+{\mathrm{C}}_{\mathrm{below}}+{\mathrm{C}}_{\mathrm{soil}}+{\mathrm{C}}_{\mathrm{dead}}$$

(10)

where C_total, C_above, C_below, C_soil, and C_dead are total, above-ground, below-ground, soil, and dead organic carbon stocks, respectively. Refer to Table S6 in the Supplementary Materials for carbon density data required for carbon storage modules.

4.

Habitat Quality (HQ) Model

The HQ module evaluates the habitat quality of the study area by analyzing the extent to which threatening factors, such as anthropogenic or natural hazards, impact land use/vegetation patches at the regional landscape level [57,58]. The principle of calculation is as follows:

$${ \mathrm{Q}}_{\mathrm{xj}}={\mathrm{H}}_{\mathrm{j}}\left[1-\frac{{\mathrm{D}}_{\mathrm{xj}}^{\mathrm{z}}}{\left({\mathrm{D}}_{\mathrm{xj}}^{\mathrm{z}}+{\mathrm{k}}^{\mathrm{z}}\right)}\right]$$

(11)

where Q_xj and D_xj are the HQ and habitat degradation index by grid x, respectively; H_j is the habitat suitability index; z is a normalized constant, which is dimensionless and has a default value of 2.5; and k is a half-saturation parameter that takes the value of 0.05.

$${\mathrm{D}}_{\mathrm{xj}}=\sum _{\mathrm{r}=1}^{\mathrm{R}}\sum _{\mathrm{y}=1}^{{\mathrm{Y}}_{\mathrm{r}}}\left(\frac{{\mathrm{W}}_{\mathrm{r}}}{{\sum }_{\mathrm{r}=1}^{\mathrm{R}}{\mathrm{W}}_{\mathrm{r}}}\right){\mathrm{r}}_{\mathrm{j}}{\mathrm{i}}_{\mathrm{rxy}}{\mathsf{\beta }}_{\mathrm{x}}{\mathrm{S}}_{\mathrm{jr}}$$

(12)

where R is the number of stressors; r is the stressor; y is the number of rasters for stressor r; Y_r is the number of rasters occupied by the stressor; W_r is the stressor weight, with a range of 0–1; i_rxy is the effect (exponential or linear) of stressor r on each raster of the habitat; β_x is the level of habitat resistance to perturbations; and S_jr is the relative sensitivity of different habitats to each stressor. For data on threat factors required for the Habitat Quality Module and the table of habitat sensitivity parameters, refer to Tables S4 and S5 in the Supplementary Materials.

2.3.3. Ecosystem Service Trade-Offs/Synergy Analysis

5.

Overall Benefits of ESs

Overall benefits reflect the whole range of benefits of several services and are dimensionless. There are connections between ESs, which often require a comprehensive analysis of multiple ESs to calculate their combined benefits [59]. Due to the different units of measurement for each ecosystem service, it is necessary to standardize the functions of different ecosystem services so that the value ranges from 0 to 1 [60]. The standardization formula is as follows:

$${\mathrm{ES}}_{\mathrm{bzi}}=\frac{{\mathrm{ES}}_{\mathrm{i}}-{\mathrm{ES}}_{\min }}{{\mathrm{ES}}_{\max }-{\mathrm{ES}}_{\min }}$$

(13)

where ES_bzi is the benefit after standardization of the ecosystem service; ES_i is the functional value of the ecosystem service i; ES_min is the minimum value of ecosystem service i; and ES_max is the maximum value of ecosystem service i. The following is the overall benefit (OB) formula:

$$\mathrm{OB}=\frac{1}{\mathrm{n}}\sum _{\mathrm{i}=1}^{\mathrm{n}}{\mathrm{ES}}_{\mathrm{bz}}$$

(14)

6.

ES Trade-offs and Synergies

This study was based on the evaluation results of four types of ESs, including WY, SC, CS, and HQ, using Spearman’s rank correlation coefficient (ρ) to identify the role relationships between services, in other words, whether there are synergies and trade-offs between two of the four ESs [61].

$$\mathsf{\rho }=\frac{\sum _{\mathrm{i}=1}^{\mathrm{n}}\left({\mathrm{x}}_{\mathrm{i}}-\overline{\mathrm{x}}\right)\left({\mathrm{y}}_{\mathrm{i}}-\overline{\mathrm{y}}\right)}{\sqrt{\sum _{\mathrm{i}=1}^{\mathrm{n}}{\left({\mathrm{x}}_{\mathrm{i}}-\overline{\mathrm{x}}\right)}^2{\left({\mathrm{y}}_{\mathrm{i}}-\overline{\mathrm{y}}\right)}^2}}$$

(15)

when ρ is 0, it indicates that there is no correlation between the two services. When ρ > 0, it is a positive correlation, showing that the two services have a synergistic relationship; in contrast, if ρ < 0, it is a negative correlation, indicating a trade-off relationship between the two services.

The software packages used in this paper included ArcGIS 10.8, InVEST 3.12.0, Origin 2021, PLUSv1.4, and IBM SPSS Statistics for Windows, version 27.0.

3. Results

3.1. LUC Historical Patterns and Future Developments

3.1.1. Analysis of Changes in Historical Patterns of Land Use in the Basin

Figure 2 shows the spatial distribution of land use in the KRB from 1990 to 2020, as well as simulated projections for 2030. The land use type of the basin was dominated by unused land and grassland, accounting for more than 90% of the area, of which unutilized land accounted for more than 85%. The Land Use Changes (LUCs) in the upstream, midstream, and downstream of the Kriya River Basin had significant spatial and temporal variations. Moreover, the upstream region, being the flow-producing area, contained watersheds and large grassland areas. Cropland and construction land were mainly distributed in the oasis area in the central part of the basin, while a smaller proportion of forestland was mainly distributed in the downstream area, and other land use types were sporadically distributed in the basin. Chord plots were used to represent the transfer matrix expressing land use changes in different periods (Figure 3). Chord plots provide a graphical representation that demonstrates the relationship between multiple land types. The width of the connecting lines represents the degree of relationship between the two types of data conversion, and the arrows represent the direction of land use transfer. In the period 1990–2000 (Figure 3a), cropland was transferred to grassland (246,410.13 hm²), grassland was mainly transferred to cropland and unused land (10,264.95 hm² and 42,538.86 hm², respectively), and water was mainly transferred to unused land (409.68 hm²), with most of the unused land shifting to grassland (141,212.5 hm²). In the period 2000–2010 (Figure 3b), the transfer of cropland to grassland was 2406.96 hm², grassland to cropland was 5819 hm², and grassland to unused land was 40,586.56 hm². The transfer of water to unused land (343.44 hm²) was lower than that of the previous period and the transfer of unused land to grassland was 43,884.9 hm². In 2010–2020 (Figure 3c), the transfer from cropland to grassland was 3837.78 hm², from grassland to cropland was 5530.5 hm² and to unused land was 47,597.58 hm², from water to unused land was 570.78 hm², and from unused land to grassland was 44,162 hm². Total LUC from 1990 to 2020 (Figure 3d) was 20.46 × 10⁴ hm², of which the unused land transfer area was the largest, decreasing by 10.23 × 10⁴ hm² over 30 years and mainly shifting to grassland and cropland. This was followed by grassland, which increased by 8.28 × 10⁴ hm², and was mainly converted from unused land. The rest of the land transfers were not obvious, but all showed an expansion trend. The period 2020–2030 was characterized mainly by grassland in circulation, and grassland mainly shifted to cropland and unused land. Overall, for the period 1990–2030 (Figure 3f), the largest amount of unused land was shifting, followed by grassland. Unused land mainly shifted to grassland, and grassland mainly shifted to cropland with unused land.

3.1.2. Simulated Prediction of Land Use Distribution Based on the PLUS Model

Based on the land use data in 2000 and 2010, the land use in 2020 was simulated using the PLUS model, and the results of the simulation were compared to the actual land use in 2020. The overall simulation accuracy was 0.962, and the Kappa coefficient was 0.853. Additionally, the high degree of spatial consistency of the simulation results demonstrated the PLUS model’s suitability for this study and its potential for predicting the distribution of land use in the future. According to the results of the prediction (Figure 2 and Figure 3), under the natural development scenario, the main land use type in the KRB in 2030 would remain unused land, and compared to 2020, all of the land use categories, except grassland, would show an increasing trend. The total extent of LUC would be 0.87 × 10⁴ hm², and the amount of change would decrease in the order: grassland > unused land > cropland > water > construction land > forestland. The amount of grassland transferred would be 0.43 × 10⁴ hm², mainly converted to cropland, unused land, and water. Cropland and unused land would continue to show an increasing trend, and a large amount of unused land would not be rationally utilized. The water area was projected to grow steadily, showing a positive trend, while the forestland area would slightly increase. According to the prediction results of the natural development scenario, if the land use categories maintained the trend in the future, the expansion of cropland and construction land would be accelerated, while ecological land, such as grassland and forestland, would be gradually reduced. Without reasonable human intervention, the study area’s future ecological safety would be threatened.

3.2. Spatial Distribution of Ecosystem Services

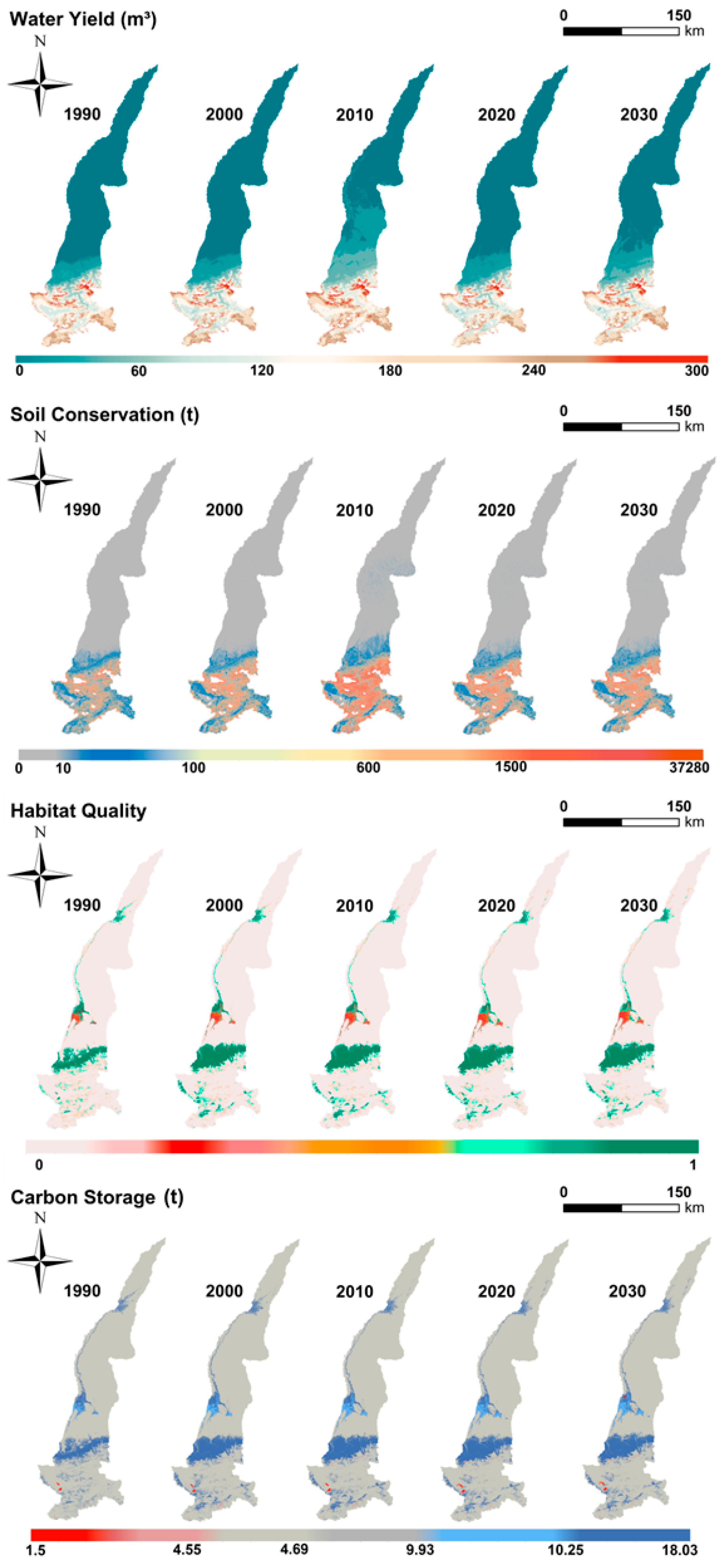

Figure 4 shows the spatial distribution of the four key ESs in the Kriya River Basin. From 1990 to 2020, the average annual water yield (WY) of the basin was concentrated in the upper reaches, exhibiting significant spatial diversity. The WY spatial pattern was characterized by a gradual decrease from the south to the north of the KRB. Higher WY was observed in the high-elevation areas of the mountainous regions, most of which yield more than 90 m³ of water per hectare. In the pre-mountain alluvial plain area, WY typically ranged between 10 and 60 m³ per hectare. The desert area in the midstream and downstream of the basin had the lowest water production, below 10 m³ per hectare, which was due to the larger distribution of precipitation in the watershed across the mountains. The spatial distribution pattern of WY in 2030 was projected to remain generally consistent with that of the past 30 years.

In terms of soil conservation (SC), high values were primarily observed in the southern areas with steeper slopes, while the northern areas with flat topography showed low SC values. This was because soil erosion occurs mainly in saline areas without vegetation cover, and the southern pre-mountain alluvial plains host a large amount of grassland, which is more effective in SC. The SC spatial distribution for 1990–2030 was consistent, with average SC decreasing from the southern region to the northern region.

The spatial pattern of habitat quality (HQ) in the Kriya River Basin was generally consistent with the LUC distribution. Areas with high HQ values corresponded spatially to grassland distribution areas, mainly owing to the abundance of annual precipitation, low evaporation, and low impact of human activities, with large amounts of original forestland and grassland. Areas of low HQ were distributed in construction land and cropland, spreading from the center to the surrounding area. The areas of low HQ covered 80% of the total area of the study area, which was related to the presence of a large area of the Gobi Desert in the upstream of the region and many deserts in the midstream and downstream.

The spatial distribution pattern of carbon storage (CS) in the Kriya River Basin exhibited only minor changes from 1990 to 2030. The high CS areas were mainly located in the pre-mountain alluvial plains and on both banks of the Kriya River, which have dense plant cover and a high carbon sequestration capability; the low-value CS regions were mainly located in lakes, construction land, and desert areas.

3.3. Characterization of Spatial and Temporal Changes in Ecosystem Services

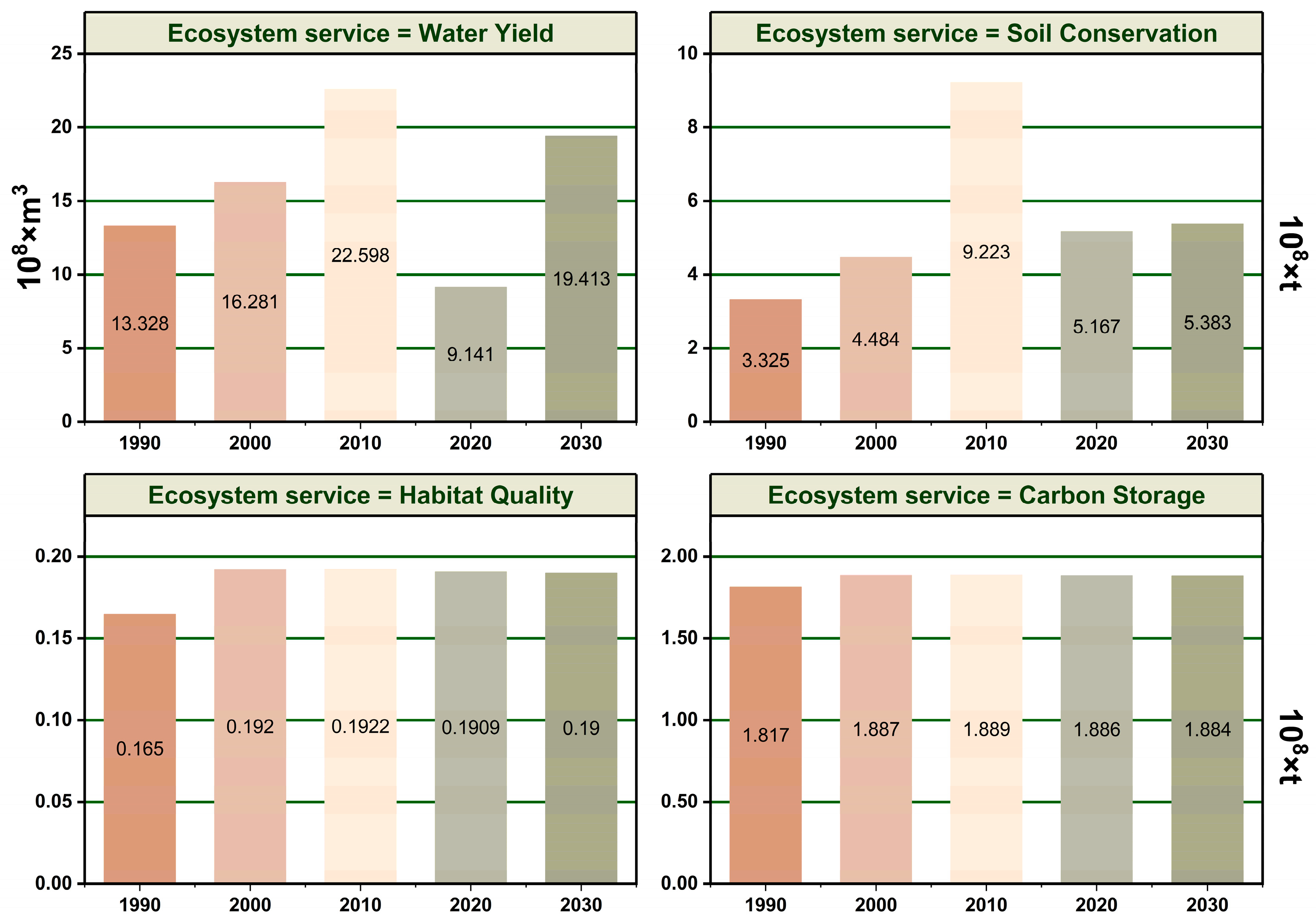

Water yield (WY) in the Kriya River Basin fluctuated between 1990 and 2030 (Figure 5), being characterized by an initial increase, a decrease, and then another rise. Between 1990 and 2000, WY increased by 2.95 × 10⁸ m³, predominantly in mountainous regions. From 2000 to 2010, there was a significant rise of 6.32 × 10⁸ m³ in WY due to extreme precipitation in 2010, with the trend increasing from the upstream to the midstream regions of the basin (Figure 6). However, from 2010 to 2020, WY decreased by 13.46 × 10⁸ m³, with a greater reduction in mountainous areas. Overall, from 1990 to 2020, WY decreased by 4.19 × 10⁸ m³ in the upstream mountainous areas. Predictions for 2030, based on multiyear average precipitation and evapotranspiration data, indicated an increase in WY by 10.27 × 10⁸ m³.

SC in the Kriya River Basin followed a similar fluctuating pattern from 1990 to 2030 (Figure 5). The change was mostly in high-elevation mountains and pre-mountain alluvial plains (Figure 6). SC experienced an overall increase from 1990 to 2020, except for a decline from 2010 to 2020, influenced by precipitation erosion. The total increase in SC during this period was 1.84 × 10⁸ t, and the prediction for 2030 suggested a slight increase in SC compared to 2020.

The average habitat quality values for the Kriya River Basin for the years 1990–2030 were 0.1648, 0.192, 0.1922, 0.1909, and 0.19, respectively. Generally, HQ showed a trend of increasing and then slowly decreasing (Figure 5). The average habitat quality (HQ) for the Kriya River Basin increased from 1990 to 2000, slightly increased in 2010, and slightly decreased in 2020; a further slight decrease was projected for 2030. HQ decrease was mainly concentrated in construction land and cropland in the central region of the basin (Figure 6).

CS in the KRB was relatively stable between 1990 and 2030 (Figure 5). The total increase from 1990 to 2020 was 0.698 × 10⁸ t, with the most relevant growth from 1990 to 2000 due to an increase in grassland area (Figure 6). CS experienced slow growth followed by a minor decline from 2000 to 2020. Ongoing urban expansion was anticipated to lead to a continued decrease in total CS by 2030.

3.4. Ecosystem Services for Different Land Use Types

Table 1. Water yield (WY) for different land use types in 1990 and 2020 in the Kriya River Basin (China).

	WY per Unit Area (m3/hm2)		Total WY (m3 × 104)
Year	1990	2020	1990	2020
Cropland	4.283	11.037	8.190	39.813
Forest	769.424	482.991	1.953	1.965
Grassland	511.405	346.090	14,852.939	12,915.658
Water	0.204	0.041	0.079	0.026
Unused	477.236	329.838	118,438.626	78,484.066
Construction land	36.715	5.077	0.060	0.034

shows the WY for different land use types. In 1990, the order of water production capacity per unit area for different land use types was forestland > grassland > unused land > construction land > cropland > water, with a difference of 769.220 m³ between the maximum and the minimum WY capacity per unit area. In 2020, the order of WY capacity per unit area for each land use type was forestland > grassland > unused land > cropland > construction land > water, with a difference of 482.95 m³ between the maximum and minimum values. In general, forests, grasslands, and unused land had a higher WY per unit area than other land types. In 1990 and 2020, the total water produced by different land use types was in the order of unused land > grassland > cropland > forestland > water > construction land, and the total amount of WY of unused land and grassland was much greater than that of other land use types (in both occurrences), which was directly related to the area proportion of these land use types.

Table 2. Soil conservation (SC) for different land use types in 1990 and 2020 in the Kriya River Basin (China).

	SC per Unit Area (t/hm2)		Total SC (t × 104)
Year	1990	2020	1990	2020
Cropland	0.217	0.709	0.415	2.557
Forest	612.539	796.127	1.555	3.239
Grassland	187.963	203.920	5459.085	7610.046
Water	128.497	397.099	50.025	254.893
Unused	112.244	184.868	27,856.354	43,988.903
Construction land	0.412	0.808	0.00001	0.001

shows the SC for different land use types. In 1990 and 2020, the amount of SC per unit area of forestland was 612,322 t and decreased in the following order: forestland > grassland > water > unused land > construction land > cropland. The total SC for 1990 and 2020 was in the following order: unused land > grassland > water > forestland > cropland > construction land. In summary, areas with high vegetation cover typically had better water conservation, lower soil erosion, and higher SC, while areas with high human activities (croplands and construction lands) exacerbated soil erosion.

Table 3. Average habitat quality (HQ) for different land use types in 1990 and 2020 in the Kriya River Basin (China).

Year	1990	2020
Cropland	0.328	0.313
Forest	0.966	0.967
Grassland	0.828	0.847
Water	0.747	0.708
Unused	0.088	0.088
Construction land	0.000	0.000

shows the HQ of the different land use types. Between 1990 and 2020, the HQ index increased for forestland and grassland, decreased for cropland and water, and remained constant for unused land and construction land, with the largest increase in grassland and the largest decrease in water. The annual average HQ index of different land types increased in the order of forestland > grassland > water > cropland > unused land > construction land, which was mainly because forestland and grassland were further away from threat sources and had high habitat suitability, indicating that natural vegetation serves a very essential part in protecting ecosystem functionality.

Table 4. Carbon storage (CS) for different land use types in 1990 and 2020 in the Kriya River Basin (China).

	CS per Unit Area (t/hm2)		Total CS (t × 104)
Year	1990	2020	1990	2020
Cropland	124.2033	124.2493	237.502	448.179
Forest	222.3081	223.7751	0.564	0.91
Grassland	128.8872	128.8882	3743.305	4809.943
Water	18.9326	18.9166	7.37	1.214
Unused	57.1265	57.1245	14,177.216	13,592.553
Construction land	60.9554	58.9874	0.1	0.395

shows the CS of different land use types. The difference in CS per unit area for each land use type between 1990 and 2020 was relatively small. The highest CS per ha was recorded for forestland, which was followed by grassland and cropland, while the CS per unit area of construction land, unused land, and water was relatively small. The sum of CS of different land use types decreased in the following order: unused land > grassland > cropland > water > forestland > construction land. From 1990 to 2020, the increase in vegetation cover increased the total CS of the basin. This was due to a large amount of unused land being converted into grassland.

According to Table 1, Table 2, Table 3 and Table 4, it can be summarized that (i) the ESs of different land use types are obviously different, and overall, forestland and grassland are more favored than the other four land use types; (ii) for HQ and CS, cropland contributes more than construction land, whereas for WY and SC, construction land is better than cropland; and (iii) WY is highest in forestland, grassland, and unused land; SC is highest in forestland and grassland; HQ is highest in forestland, grassland, and watersheds; and cropland, forestland, and grassland have the highest CS.

3.5. Trade-Off Analysis

All Spearman’s correlation coefficients between ESs in the KRB for 1990–2020 were significant at p = 0.01 (

Table 5. Trade-offs and synergies of ecosystem services in the Kriya River Basin (China) (1990–2030).

	Water Yield	Soil Conservation	Habitat Quality	Carbon Storage
1990
Water Yield	1
Soil Conservation	0.373 **	1
Habitat Quality	0.002	0.040 **	1
Carbon Storage	−0.003	0.034 *	0.907 **	1
2000
Water Yield	1
Soil Conservation	0.436 **	1
Habitat Quality	0.015	0.005	1
Carbon Storage	0.013	−0.002	0.958 **	1
2010
Water Yield	1
Soil Conservation	0.427 **	1
Habitat Quality	0.051	0.023	1
Carbon Storage	0.049 **	0.019	0.950 **	1
2020
Water Yield	1
Soil Conservation	0.440 **	1
Habitat Quality	−0.002	0.005	1
Carbon Storage	−0.008	0.002	0.951 **	1
2030
Water Yield	1
Soil Conservation	0.435 **	1
Habitat Quality	0.015	0.004	1
Carbon Storage	0.008	0.001	0.949 **	1

** significant at p < 0.001, * significant at p < 0.05.

). The degree of correlation was divided into four categories: very low correlation (0–0.1), little correlation (0.1–0.3), moderate correlation (0.3–0.6), and strong correlation (0.6–1). In 1990, there was a trade-off between carbon storage and water yield (−0.003), and the rest of the services were synergistic with each other. In 2000, there was a trade-off between carbon storage and soil conservation (−0.002). The other services were synergistic, with the highest correlation observed between carbon storage and habitat quality (0.958). All services showed synergistic relationships in 2010. The year 2020 saw a negative correlation between habitat quality and water yield (−0.002), as well as a trade-off between carbon storage and water yield (−0.008). Positive correlations were projected between all services in 2030. Overall, carbon storage had the highest correlation with habitat quality, with the correlation remaining at 0.907 to 0.958 (strong correlation) between 1990 and 2030, followed by the relationship between water yield and soil conservation, which remained at 0.373 to 0.440 (moderate correlation). The correlations between the remaining services were low, particularly between water yield and habitat quality and between water yield and carbon storage.

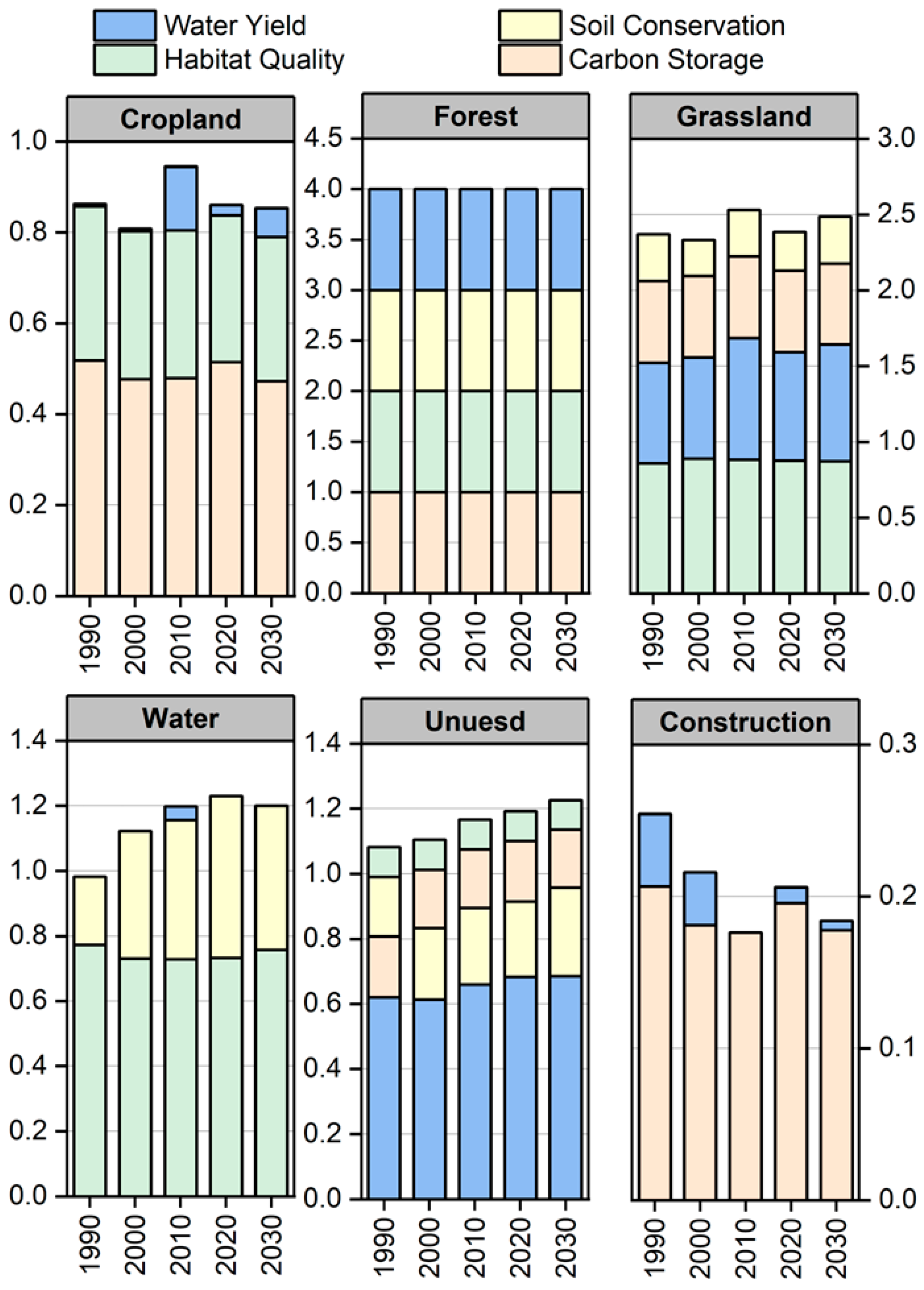

Forestland exhibited the strongest capacity for all four ESs; grassland was second to forestland for all three services except CS; cropland had medium CS capacity and HQ and poor SC and WY capacity; water had good HQ and SC, showed a good growth trend, and almost no WY service and CS capacity; unused land showed better WY compared to the other three services and showed an overall stable growth trend; apart from weak CS capacity, the capacity of construction land for all other services was nearly negligible, and it was the land use type with the weakest ecosystem service functions among the six land use categories (Figure 7).

Overall Benefit Evaluation of Ecosystem Services

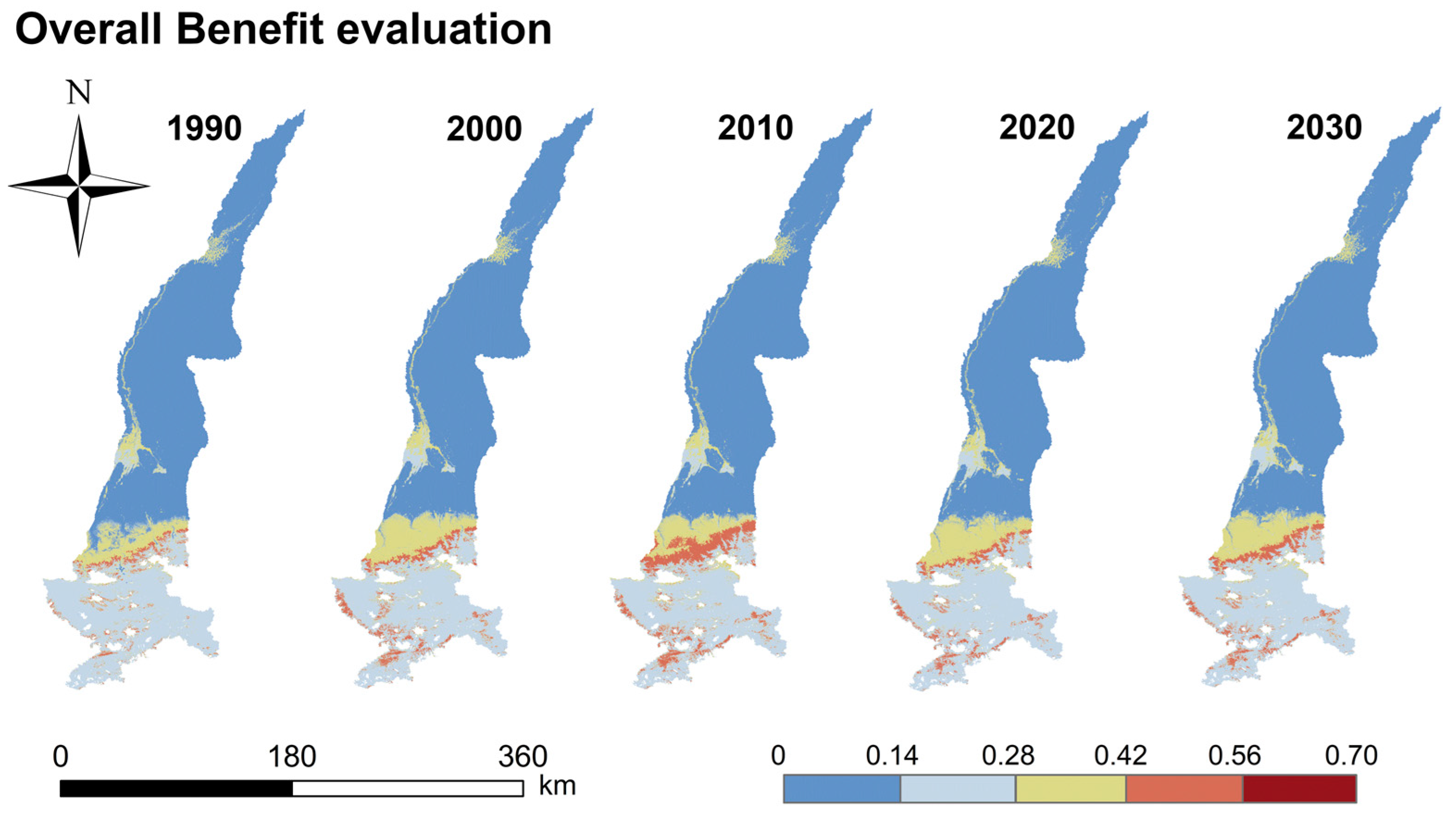

Figure 8 shows the spatial distribution of the overall benefit (OB) of ESs in the Kriya River Basin from 1990 to 2030. Overall, the spatial distribution pattern of the OB of ESs was basically the same in all periods, with high values in the south and low values in the north. The areas with high OB values were characterized by higher vegetation cover, higher elevation, and fewer human activities. The OB of ecosystem services in the basin from 1990 to 2020 showed a pattern of rising and then falling, with the highest value of the overall benefits reached in 2010, with an average value of 0.171, increasing by 0.029 compared to 1990. The year 2020 showed a decrease compared to 2010, but an increase of 0.012 compared to 1990, and OB was projected to continue to increase in 2030.

4. Discussion

4.1. Proposals for a Development Model

The results of this study indicate that areas with high ecosystem service values are ecological core areas of the watershed, and future planning should prioritize safeguarding of these ecological resources. The period 1990–2000 was the peak period of the increase in cropland and grassland, which coincided with western development and the policy of large-scale land reclamation, and later peaks in the period 2010–2020, which was the period when agricultural water conservancy facility projects increased and agricultural technologies such as plowing and irrigation substantially advanced. With the expansion of cropland areas, the phenomenon of alternating abandonment and reclamation has emerged. In the last 20 years, the state has rethought the construction of habitats, and activities such as returning farmland to forests and grasslands and reforestation have been increasing, gradually improving habitats in the Kriya River Basin. At the same time, increasing population pressure and the development of economic projects, such as mining (jade mining), hydraulic engineering (construction of the Giyin Reservoir in the upper part of the Kriya River Basin), the construction of a new highway, etc., have led to the destruction of natural vegetation and pastures. Planting a proportion of woodland and conserving water to irrigate both woodland and steeply sloping grassland will promote improvements in water, soil, and habitat quality, as well as carbon storage, maintaining the importance of the Kriya River Basin as an ecological security barrier. In areas where low values of ecosystem services are concentrated, the protection of forestland and grassland ecosystems should be strengthened, while the intensity of development of construction land should be slowed down to reduce the negative impacts of urban expansion on ecosystems. Considering the root causes of land use change, studies like [62,63] highlight the central role of socio-economic development, policy frameworks, and environmental factors. Socio-economic development particularly drives spatial and temporal changes in land use type, significantly altering the value of ESs. For instance, in the Kriya River Basin, the spatial distribution of the four ESs showed a high correlation with land use type, a phenomenon that was also observed in [64] in a different context.

For specific ecosystem services, extreme weather events, such as the high precipitation in 2010, significantly influence WY and SC in the Kriya River Basin. This observation aligns with the findings in [65], in which similar impacts were noted in other regions. Meanwhile, HQ and CS services maintained a steady growth trend, indicating that, unlike WY and SC, they are less immediately impacted by short-term climatic events but are more sensitive to long-term LUCs, as suggested in [66].

The basin is a complex system formed by multiple elements, including social-economic-natural elements, and the mode of its development and governance play a crucial role in its sustainable development [67]. The transition from unutilized land to grassland and cropland indicates a shift towards more intensive land use. This can have mixed effects on ecosystem services, depending on management practices.

The findings of this study indicate that modifications in LUCs will have a direct impact on the value of ecosystem services in the area, so land use should be rationally planned and controlled by zoning, clarifying the spatial distribution of the three categories of ecology, agriculture, and urbanization, rationally determining the scale of the new construction land and cropland, and avoiding the occupation of grasslands [68,69]. Forestland, which was the strongest contributor to the four ecosystem services per unit area, is extremely rare in the KRB; thus, the protection and restoration of forest resources should be increased and an ecological protection system for forestland and grassland resources should be built. This would not only protect ecosystem services but also help in preventing and controlling desertification [70,71]. To protect ecosystem services, we recommend encouraging sustainable farming methods to enhance SC and WY. Practices such as agroforestry, conservation tillage, and efficient irrigation can be beneficial. It is also important to implement urban planning strategies that incorporate green spaces and consider CS and HQ. Policies encouraging urban greenery, like rooftop gardens and city parks, can mitigate the impact of urban expansion. Initiatives to restore unutilized or degraded land can improve HQ and increase CS. Reforestation and grassland rehabilitation are key strategies. Given the expected increase in WY, it is of vital importance to develop appropriate strategies to sustainably manage water resources. This involves watershed management practices that ensure long-term water availability.

4.2. Deficiencies and Prospects

Land use change (LUC) is a complex process. Our study did not account for potential policy constraints, such as ecological protection red lines and land planning, in simulating future LUCs, introducing some uncertainty to our results.

Second, when using the InVEST model to assess ecosystem services, only four ecosystem services were selected without taking cultural services into account, and the setting of many parameters in the model was highly subjective and lacked measured data, for example, biophysical parameter tables, half-saturation parameters, etc. Therefore, the model relied on parameters from areas with similar environmental conditions, leading to potential biases in the accuracy of the results. In the future, if we can obtain real data from the study area, we will continue to complete the results of the study to reflect the actual local ecological environment more closely.

Correlation coefficients were used to analyze the trade-offs and synergies between ecosystem services. Although they can reflect the degree of trade-offs and synergies between ecosystem services, they are not able to detect the complexity of the relationships between more than two ecosystem services, and the trade-offs and synergies between ecosystem services are extremely complex [72]. Correlation coefficients do not adequately reflect the mechanisms inherent in trade-offs and synergies [73]. Further studies are needed to elaborate on the trade-offs and synergies among ecosystem services, for example, using spatial overlay analysis methods to visualize the spatially differentiated characteristics of trade-offs or synergistic relationships between multiple services [74].

However, although the results of this study cannot completely quantify the actual ES situation of the basin, they can reveal changing trends in various types of services and provide a scientific reference for the sustainable development of the basin and the establishment of ecological governance policies.

5. Conclusions

Land use in the Kriya River Basin is dominated by unused land and grassland. From 2020 to 2030, the trends in land use changes in the Kriya River Basin include an accelerated increase in construction land and cropland, slight increases in unused land, water, and forestland, and a decrease in grassland. WY showed a decreasing trend from 1990 to 2020, but in 2030 it is expected to increase. High-elevation areas in the southern mountains are particularly important for these ecosystem services. SC services have high values in the south and low values in the north, with a general increasing trend from 1990 to 2010, a decrease in 2020, followed by a slight increase in 2030. The spatial distribution pattern of HQ in the basin is spatially consistent with the distribution of LUCs, with forestland and grassland having higher HQ than construction land and cropland. However, the overall habitat quality is low due to the large proportion of unused land. The spatial distribution pattern of CS is closely related to vegetation and showed a positive trend from 1990 to 2020, but it is projected to decline slightly in 2030 due to accelerated urban expansion. There are synergistic relationships between WY and SC, WY and HQ, SC and HQ, SC and CS, and HQ and CS, while a modest trade-off is observed between WY and CS.
