Targeting the Effectiveness Assessment of the Emission Control Policies on the Shipping Industry

Abstract

Compared to air, rail, and road transport, shipping is a more energy-efficient and environmentally friendly way to transport goods over a long distance. However, the unprecedented growth of global seaborne trade has had a significant impact on the environment. The process of shipping transportation, through exhaust gas, wastewater discharge, fuel leakage, etc., has caused very serious environmental pollution. In response to this issue, the International Maritime Organization introduced the International Convention for the Prevention of Pollution from Ships (MARPOL) Convention to regulate the discharge of pollution from ships. Given that there are few studies discussing policy effectiveness, this study comprehensively considers and reviews the implementation effectiveness of all annexed policies under the MARPOL Convention. After discussing the differences between these policies based on the implementation conditions, requirements, strictness, and scope of adoption, the empirical analysis method of time-varying differences-in-differences model is adopted to analyze the policy effectiveness of each annex. It further puts forward suggestions and references for the formulation of effective maritime policies in the future that should be targeted, comprehensive, contingency-based, and proactive. This will help design or revise policies in the shipping industry, thereby promoting the early achievement of shipping emission reduction targets and contributing to the sustainability of the shipping industry.

1. Introduction

Maritime transport is a vital method of transporting goods, accounting for over 80% of global trade [1]. According to the 2023 Review of Maritime Transport released by the United Nations Conference on Trade and Development (UNCTAD), there are nearly 105,500 ships with a gross tonnage of more than 100 tons worldwide, with a total deadweight of about 2.3 billion tons [1]. Maritime transport plays a critical role in the world economy and is a fundamental component of international trade and globalization. With the increasing emphasis on environmentally sustainable development, promoting the utilization of clean energy and reducing carbon emissions have become the general consensus in the international community [2,3,4,5], and many countries have successively proposed the goal of net-zero greenhouse gas emissions or achieving carbon neutrality (Wang et al., 2021) [6]. Although maritime transport is considered a more environmentally friendly mode of transporting goods than other methods, greenhouse gas emissions cannot be ignored [2,7]. To address this issue, the International Maritime Organization (IMO) adopted a preliminary strategy for reducing greenhouse gas emissions from shipping in 2018, proposing quantitative targets for reducing the intensity of greenhouse gas emissions from shipping by 40% in 2030 and 70% in 2050 and reducing total annual greenhouse gas emissions by at least 50% compared to 2008 [8]. In July 2023, the GHG strategy was further updated and ratified at the 80th meeting of the Marine Environment Protection Committee (MEPC). The revised GHG strategy sets a common goal of achieving net-zero greenhouse gas emissions from international shipping by 2050, committing to ensuring the use of alternative-zero and near-zero greenhouse gas fuels by 2030 and introducing phased inspection indicators at two time points (2030 and 2040) [9].

Ship activity not only leads to the emission of greenhouse gases but also contributes to other forms of pollution. To regulate polluting emissions from the shipping industry, IMO introduced the International Convention for the Prevention of Pollution from Ships (MARPOL Convention) in 1973, which consists of six annexes [10]. While many scholars have examined the implications of the Convention’s policy guidance when studying shipping emissions, few have focused on the overall effectiveness of the provisions of the six annexes of the Convention as a whole. As effective policy guidance is crucial to achieve sustainable development and reduce polluting emissions, this study aims to explore the policy effectiveness of the six annexes of the MARPOL Convention, which could compensate for the previous neglect of integrity research on policy. After comprehensively reviewing the content of the six annexes, this study compares the similarities and differences of the regulations implemented by different annexes and conducts a preliminary evaluation of their policy effectiveness using certain quantitative indicators. On this basis, a time-varying differences-in-differences (DID) model is employed for empirical analysis, which combines the qualitative and quantitative analysis results. It ultimately provides targeted suggestions and references for formulating effective shipping policies and discusses policy orientation that is conducive to reducing shipping emissions from a more comprehensive perspective.

The rest of this study is organized as follows: Section 2 surveys the relevant literature on pollution from shipping and establishes the need to explore policy effectiveness. Section 3 presents a detailed review of the content of the six annexes of the MARPOL Convention. Section 4 explores the policy effectiveness of the MARPOL annexes through a time-varying DID model. Section 5 provides a more detailed analysis of MARPOL Annex VI, which has proven to be highly effective, and offers a reference for future maritime policy design. Finally, conclusions are presented in Section 6.

2. Literature Review

The literature reviews aim to map, consolidate, and assess the knowledge area in a certain field, and on this basis, identify the knowledge gaps to be filled to further develop the existing knowledge system [11]. To understand the current state of research on shipping pollution issues, a systematic review was conducted utilizing the published academic literature. The publication data used in this study were collected from the Scopus database. Scopus is the largest abstract and citation database of peer-reviewed research literature introduced by Elsevier. To enhance the relevance of the search results, a specific selection of journals, primarily related to shipping, was chosen. The resulting articles were obtained from publications of Case Studies on Transport Policy (CSTP), International Journal of Shipping and Transport Logistics (IJSTL), Maritime Economics and Logistics (MEL), Maritime Policy and Management (MPM), Ocean and Coastal Management (OCMA), Research in Transportation Business and Management (RTBM), Transport Policy, Transport Reviews, Transportation Research Part A: Policy and Practice (TRA), Transportation Research Part B: Methodological (TRB), Transportation Research Part C: Emerging Technologies (TRC), Transportation Research Part D: Transport and Environment (TRD), Transportation Research Part E: Logistics and Transportation, Transportation Research Record (TRR), and Marine Transport Policy (MTP). These publications encompass the period from 2002 to 2022. Furthermore, the search terms were determined through a trial and error process, taking into account keywords commonly used in previous review papers on shipping pollution [12,13,14,15,16]. The final keyword structure consists of three levels, as shown in

Table 1. Keywords used in the literature search.

Search Keywords
A Three-level search structure
Shipping OR maritime OR ship
AND
Policies OR policy OR review OR effect OR assessment OR assessing OR impact OR recommendations
AND
Green OR emission OR carbon OR pollution OR co2 OR marpol OR eca OR seca OR decarbon

.

A preliminary search yielded 478 articles, which were further refined through the removal of duplicates and irrelevant studies, resulting in the identification of 452 relevant papers. By using the visualization tool of CiteSpace, hot research topics concerning shipping pollution issues were identified based on the frequency of keywords used in the filtered articles (Figure 1). Figure 1 displays the top 11 most popular research topics on shipping pollution issues.

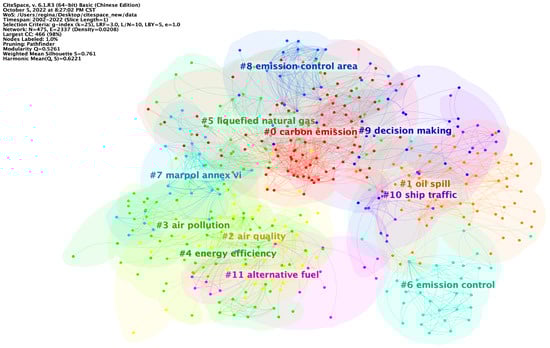

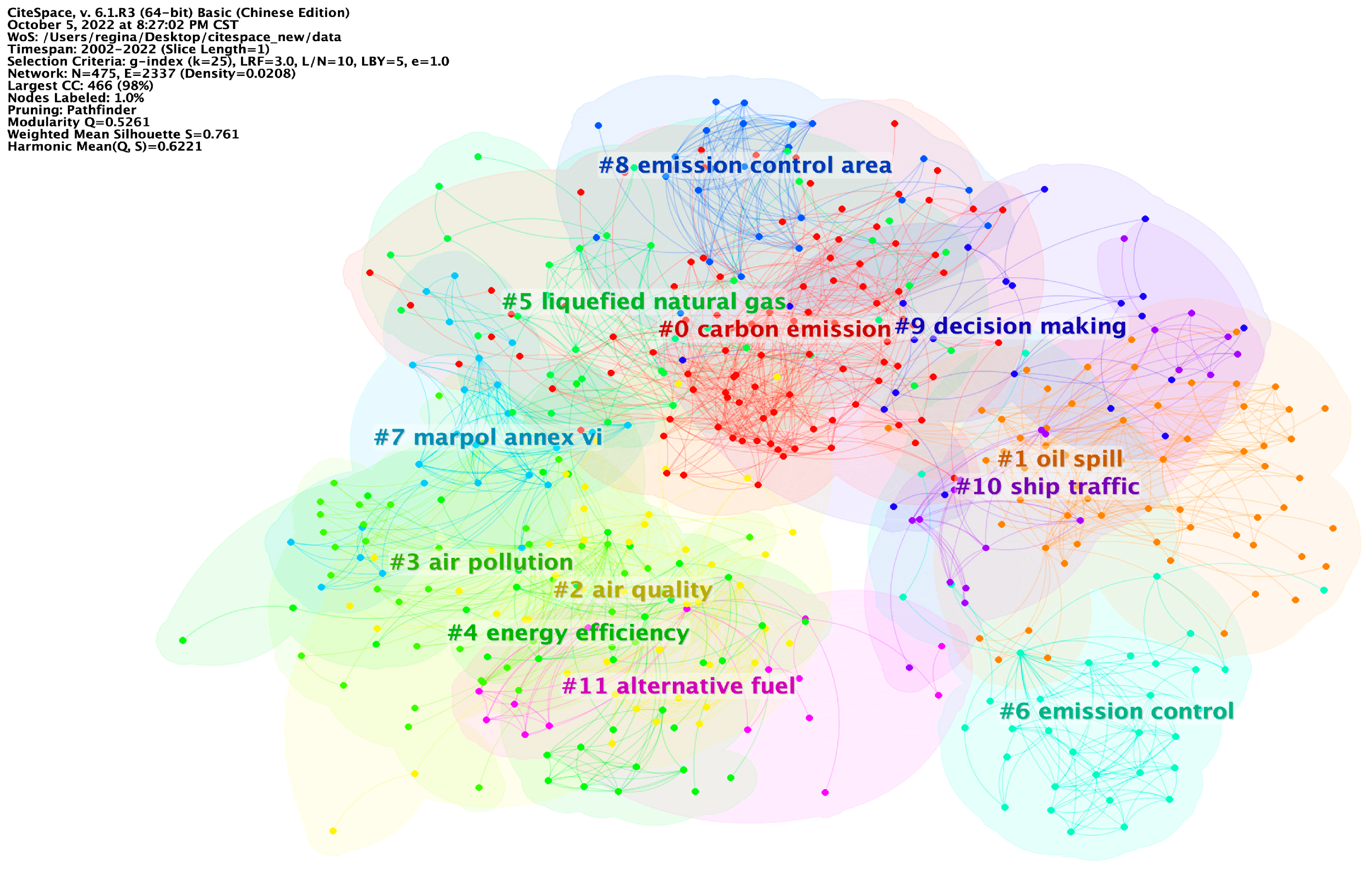

Based on this result and inspired by the study of previous scholars [17], we reclassified these research hotspots with the labels of four guiding factors, which are “Regulation enforcement”, “Technical needs”, “Benefit incentives”, and “Information analysis” (

Table 2. Guiding factors of research on shipping pollution.

Guiding Factors	Regulation Enforcement	Technical Needs	Benefit Incentives	Information Analysis
Hot research topics	#6 emission control #7 MARPOL Annex VI #8 emission control area	#4 energy efficiency #5 liquefied natural gas #11 alternative fuel	#9 decision making #10 ship traffic	#0 carbon emission #1 oil spill #2 air quality #3 air pollution

).

“Regulation enforcement” refers to articles that primarily focus on specific anti-pollution policies or regulations, exploring how the policies control shipping pollution. For example, studies have examined different enforcement regulations in the emission control area for the discharge of pollutants from ships [18,19,20] and compared and analyzed their implementation effects [12,15]. In July 2023, the IMO further revised its GHG strategy. Ref. [21] evaluated the recently revised GHG strategy of the IMO for maritime decarbonization and recommended the use of Life Cycle Assessment (LCA) Guidelines to support GHG strategies for achieving decarbonization targets.

The “Technical needs” category pertains to research on the technological upgrading of ship components to comply with explicit regulations in anti-pollution policies or the restriction of pollution index. As an alternative to switching to compliant fuels, marine companies have chosen to consider switching to clean fuel or installing scrubbers. The changes in pollution emissions brought about by this technological update have attracted a lot of attention [22,23]. Ref. [24] evaluated the performance of electronically controlled diesel engines under the newly introduced Energy Efficiency Existing Ship Index (EEXI) and Carbon Intensity Indicator (CII) regulations and found that their efficiency at low loads and overall flexibility can reduce emissions while decreasing OPEX, thereby promoting their adoption.

“Benefit incentives” pertain to how shipping companies can maximize benefits while complying with regulations. Scholars have analyzed the driving factors of interest, such as route optimization, slow steaming, and the use of clean energy, to save costs and bring greater economic benefits [25,26,27]. For example, [28] developed a multinominal logit model to identify the key determinants influencing shipowners’ choice of emissions solutions, which could guide shipowners in investing in greener vessels. The authors of [29] proposed an integer programming model based on the Marine Emissions Trading Scheme (METS), incorporating variables such as bunker price and the auction and purchase prices of carbon to provide relevant carbon reduction recommendations for container shipping companies and policy makers.

The “Information analysis” category involves analyzing pollution data to guide the reduction in ship pollution emissions and improve ship operational efficiency. For instance, [30] estimated the emission intensity of different pollutants from different ship types and identified the most effective shipping speed with the lowest pollutant emission rate. With the introduction of the “IMO 2020” regulations [31], stricter sulfur emission requirements have attracted scholars’ attention to investigate the impact of these regulations. Ref. [32] used the climate change metric to predict and compare the impact of sulfur emissions on carbon dioxide emissions before and after the sulfur regulations and concluded that the implementation of this provision can effectively reduce sulfur emissions, but there are also certain hidden dangers, that is, increased carbon dioxide emissions.

All the four types of studies above explored the results of the implementation of shipping pollution policies, while very few studies have assessed the effectiveness of policy implementation. It is crucial to assess the effectiveness of policy implementation to guide future policy formulation. Given that the MARPOL Convention is the only comprehensive policy treaty in the shipping industry pertaining to pollution, a systematic and comprehensive comparative study of its various annexes is imperative. This study employs the empirical method to evaluate the effectiveness of each annex so as to propose more targeted suggestions and guidelines for the practice of the shipping industry.

3. MARPOL Convention: A Systematic Policy Review

3.1. Policy Introduction

The MARPOL Convention is a major international convention dealing with the prevention of pollution of the marine environment caused by ships. Initially adopted on 2 November 1973, the convention underwent further development with the establishment of the MARPOL Protocol in 1978. The merged instrument of the parent convention and the protocol entered into force on 2 October 1983. Subsequently, Annex VI was added to the convention in 1997, which entered into force on 19 May 2005. Over the years, a large number of amendments have been made to the MARPOL Convention to ensure its relevance and effectiveness.

The MARPOL Convention addresses various forms of marine pollution resulting from shipping activities, including oil spills, transport of toxic liquids and other harmful substances, sewage, garbage, and air pollution. These different pollution issues have been addressed in separate annexes of the convention:

• Annex I: Regulations for the Prevention of Pollution by Oil (entered into force 2 October 1983);
• Annex II: Regulations for the Control of Pollution by Noxious Liquid Substances in Bulk (entered into force 2 October 1983);
• Annex III: Prevention of Pollution by Harmful Substances Carried by Sea in Packaged Form (entered into force 1 July 1992);
• Annex IV: Prevention of Pollution by Sewage from Ships (entered into force 27 September 2003);
• Annex V: Prevention of Pollution by Garbage from Ships (entered into force 31 December 1988);
• Annex VI: Prevention of Air Pollution from Ships (entered into force 19 May 2005).

3.2. Policy Comparison

In line with the policy design elements mentioned by [33], this study presents a preliminary comparison of the MARPOL Convention’s various annexes and summarizes their essential information in

Table 3. Comparison of basic information among the annexes.

Policy	Policy Issue/Target	Policy Objective/Goal	Policy Tools/Measures/Instruments
Annex I (161 existing member states)	Oil pollution	Help ensure that the majority of oil tankers are safely built and operated and are constructed to reduce the amount of oil spilled in the event of an accident.	Discharge Limitations; Oil Filtering Equipment; Oil Record Book; Oil Discharge Monitoring and Control System; Slop Tank Arrangements; Pump-room Bottom Protection; Shipboard Oil Pollution Emergency Plan (SOPEP); Special Areas; Reception Facilities
Annex II (161 existing member states)	Noxious liquid substance pollution	Addresses discharge criteria and measures for controlling pollution caused by noxious liquid substances (NLSs) carried in bulk.	Categorization of Noxious Liquid Substances and Other Substances; Discharge Provisions; Procedures and Arrangements Manual (P&A Manual); Cargo Record Book (CRB); Shipboard Marine Pollution Emergency Plan for Noxious Liquid Substances; IBC Code
Annex III (151 existing member states)	Pollution by harmful substances in packaged form	Minimize accidental pollution as well as aid recovery by using clear markings to distinguish harmful cargo from other (less harmful) cargo.	Legal Requirements; International Maritime Dangerous Goods (IMDG) Code
Annex IV (147 existing member states)	Sewage pollution	Address the problem of transporting sewage, such as oxygen depletion and obvious visual pollution in coastal areas.	Legal Requirements; Equipment Requirements (Sewage Treatment Plant; Sewage Comminuting and Disinfecting System; Holding Tank)
Annex V (155 existing member states)	Garbage pollution	Seek to eliminate and reduce the amount of garbage being dumped into the sea from ships.	Legal Requirements; Reception Facilities of Garbage; Shipboard Waste Management; Garbage Record Book
Annex VI (105 existing member states)	Air pollution	Seek to minimize airborne emissions from ships (SOx, NOx, CO2, ODS, VOC, and shipboard incineration) and their contribution to local and global air pollution and environmental problems.	Limits on Emission Pollutants; Emission Control Areas (ECAs); International Energy Efficiency (IEE) Certificate; Shipboard Energy Efficiency Management Plan (SEEMP); Market-Based Measures (MBMs); Energy Efficiency Design Index (EEDI); Energy Efficiency Operational Indicator (EEOI); Energy Efficiency Existing Ship Index (EEXI); Carbon Intensity Indicator (CII)

.

3.2.1. Objective of the Annexes

Annex I mainly addresses issues related to oil pollution, which can impact the growth and reproduction of aquatic life. This annex sets out requirements for oil emissions and distinguishes between oil emission requirements for tankers and other vessels. The most stringent requirement prohibits all tanker oil emissions in or near special areas, except after using clean energy or tankers with scrubbers. In addition to the direct control of the oil emissions, this annex requires ship operators to provide information such as an Oil Record Book [34] and a Shipboard Oil Pollution Emergency Plan (SOPEP) to monitor their oil emissions.

Annex II addresses noxious liquid substances and categorizes them into three categories, with different emission restrictions imposed on each. Vessels authorized to carry a certain category of substances must have a Procedures and Arrangements Manual (P&A Manual) approved by the relevant authority on board to provide audit information. The special area mentioned in Annex II is the Antarctic area, where the release of noxious liquid substances is strictly prohibited.

Similarly, Annex III establishes regulations to prevent pollution by hazardous substances in packaging. The rules for the discharge of these harmful substances are straightforward: “Jettisoning of harmful substances carried in packaged form shall be prohibited, except where necessary for the purpose of securing the safety of the ship or saving life at sea”. Therefore, there is no special area under the provisions of this annex. However, the implementation of Annex III initially faced challenges due to the lack of a definitive definition for hazardous substances in packaged form. This issue has been rectified by amending the International Maritime Dangerous Goods (IMDG) Code to include marine pollutants. The introduction of this annex has promoted a more comprehensive definition and specification of hazardous substances in IMO.

Annex IV addresses raw sewage pollution and requires ships to have approved sewage treatment plants in operation or use approved systems to discharge comminuted and disinfected sewage. It also requires ship operators to provide an International Sewage Pollution Prevention Certificate issued by the national shipping administration to ships under their jurisdiction. In an amendment to Annex IV, the Baltic Sea was made a special area and new emission requirements for passenger ships within the area were added.

Annex V aims to eliminate and reduce garbage dumping by ships and bans the discharge of plastics into the sea. It sets out different emission limits for eight designated special areas. Governments are responsible for ensuring that reception facilities are available at ports and terminals to collect ship-generated garbage. Annex V also emphasizes the importance of shipboard waste management, so the Garbage Record Book (GRB) and Record of Garbage Discharges are required during the voyage of the vessel.

As the issue of global warming intensified, the IMO attached particular importance to the issue of air pollution and Annex VI was developed and continuously revised. In response to greenhouse gas emissions, the IMO proposed the “Initial IMO GHG Strategy”, a top-level strategy that has played a crucial role in guiding the revision of Annex VI. Annex VI mainly formulates regulations on the emission of various polluting gases through mandatory emission requirements, technical measures requirements (e.g., EEDI/EEXI/EEOI/IEEC/CII), and economic management measures requirements (e.g., SEEMP/MBMs). The annex designates four special areas.

3.2.2. Comparison of Common Features of the Annexes

In addition to the differences in theme and content of the above different annexes, this study also compares some of the common features of the annexes, including the existence of special areas, progress of national accession, revision intensity, proportion of European countries included, and intervention type.

Table 4. Comparison of special areas under the annexes.

Special Areas (No.)	Annex I (Oil)	Annex II (Noxious Liquid Substances)	Annex III (Harmful Substances in Packaged Form)	Annex IV (Sewage)	Annex V (Garbage)	Annex VI (Air Pollution)
1	Antarctic area	Antarctic area	/	Baltic Sea	Antarctic area (south of latitude 60 degrees south)	Baltic Sea (SOx)
2	Baltic Sea	/	/	/	Baltic Sea	North America (SOx NOx, and PM)
3	Black Sea	/	/	/	Black Sea	North Sea (SOx)
4	Gulf of Aden	/	/	/	“Gulfs” area	United States Caribbean Sea ECA (SOx, NOx, and PM)
5	“Gulfs” area	/	/	/	North Sea	/
6	Mediterranean Sea	/	/	/	Mediterranean Sea	/
7	Northwest European waters	/	/	/	Red Sea	/
8	Oman area of the Arabian Sea	/	/	/	Wider Caribbean region including the Gulf of Mexico and the Caribbean Sea	/
9	Red Sea	/	/	/	/	/
10	Southern South African waters	/	/	/	/	/

summarizes the number of special areas in each annex. Annex I has the most special areas, while Annex III does not set up special areas due to its comprehensive prohibition on hazardous material contamination in the form of packaging; i.e., it does not discriminate in all regions. Both Annex II and Annex IV have only one special area. The special areas set up in Annex V are similar to those in Annex I, with over half of them being the same. Annex VI sets up different Emission Control Areas (ECAs) according to different polluting gases.

A detailed comparison on the various common features of the annexes is illustrated in

Table 5. Comparison of common features of the annexes.

Policy	Focus	Number of Special Areas	Progress of National Accession (Buffer Level)	Revision Intensity (Frequency/Year)	Countries Covered (Europe/All)	Intervention Type
Annex I (160 existing member states)	Oil	10	Short 89%; Long 6%; Medium 5%	0.86	28%	Setting of discharge limitations (based on ship types); Provision of supervisory information; Establishment of special areas; Requirements for reception facilities
Annex II (160 existing member states)	Noxious liquid substances	1	Short 89%; Long 6%; Medium 5%	0.82	28%	Setting of discharge limitations (based on harmful substances category); Provision of supervisory information; Establishment of special areas
Annex III (151 existing member states)	Harmful substances in packaged form	/	Short 69%; Long 24%; Medium 7%	0.32	29%	Absolute prohibition
Annex IV (147 existing member states)	Sewage	1	Short 38%; Long 54%; Medium 8%	0.53	31%	Setting of discharge limitations; Establishment of special areas; Requirements for reception facilities
Annex V (155 existing member states)	Garbage	8	Short 78%; Long 15%; Medium 7%	0.45	29%	Setting of discharge limitations (based on garbage types); Provision of supervisory information; Establishment of special areas; Requirements for reception facilities
Annex VI (105 existing member states)	Air pollution	4	Short 81%; Long 5%; Medium 14%	1.40	36%	(Most targeted) Regulatory/ Technical/ Economic/ Managerial

. The progress of national accession compares the time lag between the signing and the formal entry into force of the contract, which is named as the “buffer level”. In this study, a buffer level of less than 100 days indicates a short-term period, while a buffer level greater than or equal to 100 days but less than 1000 days denotes a medium-term period. A buffer level of 1000 days or more indicates a long-term period. Because there are a lot of amendment issues in each annex, we calculated the mean of the buffer levels in each annex in Table 5. The results indicate that Annex IV experiences the longest buffer level, suggesting that a significant number of countries have experienced a relatively lengthy transition period before fully implementing the regulations. Conversely, the proportion of medium- and short-term buffer levels under Annex VI has reached 95%, indicating a relatively fast policy-promotion process within this annex.

“Revision intensity” is another key indicator for measuring policy or regulation effectiveness. We used the frequency of revisions between the first revision and the latest revision dates of each annex and the year of difference between the two as reference values and defined their ratio as “revision intensity”. According to Table 5, Annex VI exhibits the highest revision intensity (1.40), indicating that it receives the most revisions. Despite being implemented later than the other annexes, Annex VI has undergone more amendments. In contrast, Annex III has the lowest revision intensity, which can be attributed to its complete prohibition status.

Additionally, Annex VI covers a higher proportion of European countries, explaining the greater emphasis on addressing air pollution issues. Regarding the types of policy interventions, all six annexes have both similarities and differences. With the exception of Annex III and Annex VI, the other four annexes primarily focus on setting discharge limitations, providing supervisory information, establishing special areas, and requiring reception facilities. Annex III, on the other hand, completely prohibits the treatment of hazardous material pollution through packaging and does not provide as detailed intervention methods as the other annexes. Compared with the other annexes, Annex VI stands out with the most targeted and comprehensive interventions, including regulatory, technical, economic, and managerial measures.

4. Evaluation of the Phased Implementation of Policies

4.1. Differences-in-Differences Model

The differences-in-differences (DID) model is a widely used empirical method for policy evaluation across various fields. Its primary objective is to measure the effect of existing policies. Compared to other methods, the DID model can provide a more direct assessment of policy effectiveness while simultaneously avoiding endogeneity problems arising from policies as explanatory variables. The model is effective in controlling interaction effects between the predictor and explanatory variables. While traditional DID is mainly applied to policies with the same implementation period across sections, this study employs a time-varying DID method to address the difference in policy adoption time.

As the MARPOL Convention is the only international agreement that addresses shipping emissions, this study used the carbon emission data resulting from ship operations to evaluate the effectiveness of its policies. This study aimed to analyze how carbon dioxide emissions in different countries were affected by the MARPOL policies between 1971 and 2021. The study classified its analysis according to the different annexes of the MARPOL Convention, treating accepted countries as the experimental group and non-accepted countries as the control group. The data sample is divided into four sets, the experimental and control groups before and after accepting the annex policy. The specific time-varying DID model is expressed as follows:

$${\mathrm{Y}}_{\mathrm{i}\mathrm{t}}=\mathsf{\alpha }+\mathsf{\beta }{\mathrm{d}\mathrm{i}\mathrm{d}}_{\mathrm{i}\mathrm{t}}+{\mathrm{X}}_{\mathrm{i}\mathrm{t}}\mathsf{\gamma }+{\mathsf{\mu }}_{\mathrm{i}}+{\mathsf{\delta }}_{\mathrm{t}}+{\mathsf{\epsilon }}_{\mathrm{i}\mathrm{t}}$$

(1)

where ${\mathrm{Y}}_{\mathrm{i}\mathrm{t}}$ represents the amount of carbon dioxide emitted by a country i during year t. ${\mathrm{d}\mathrm{i}\mathrm{d}}_{\mathrm{i}\mathrm{t}}$ is 1 for countries accepting the MARPOL Convention Annex at year t, and 0 is for those not accepting the annex at year t. X_it represents the control variables that affect carbon emissions. ${\mathsf{\mu }}_{\mathrm{i}}$ and ${\mathsf{\delta }}_{\mathrm{t}}$ represent the country-fixed effects and year-fixed effects, respectively. Lastly, ${\mathsf{\epsilon }}_{\mathrm{i}\mathrm{t}}$ is the residual term. After estimation of the coefficients, the study compares the policy impact coefficients of different annexes to determine the policy orientation favorable to reducing carbon emissions.

4.2. Data Sources and Variable Description

The data used in this study are mainly from three sources: the IMO, Clarksons’ Shipping Intelligence Network (SIN), and International Energy Agency (IEA). IMO provides a global data platform that contains information on the ratification of the IMO convention, which is pertinent to the crucial variable of policy implementation timing. The shipping information from SIN was used as control variables in the research model, including ship deadweight, trade volume, and proportion of flag-of-convenience ships. Data on shipping carbon emissions were obtained from IEA. The timeframe for this study spans 51 years (1971–2021) and covers 160 countries that are members of the MARPOL protocol. The specific variables are described below. It is worth noting that all the variables are annual data for each country, and the subscript indices for country i and year t are omitted for ease of reference.

Carbon dioxide emissions (CO₂) refer to the annual carbon dioxide emissions caused by the operation of ships in each country.

GDP (lgdp) represents the logarithm of the GDP of each respective country and indicates the economic situation of each country. When the total economic volume is larger, the GDP is higher, and the energy consumption at this time is larger, which may lead to larger CO₂ emissions.

Trade volume (ltrade) is the logarithmic sum of imports and exports and is also considered one of the control variables affecting carbon emissions, given the role of international trade as a major contributor to environmental challenges.

Ship deadweight (ldwt) signifies each country’s operating volume of ships. To guarantee consistency in units, the variable is expressed as a logarithmic result.

The proportion of flag-of-convenience ships (focratio) measures each country’s foreign-flagged vessel ratio to total ships. Sailing vessels under a flag of convenience is a growing business practice adopted by shipping companies, as it allows ships to operate under less stringent regulations.

Table 6. Descriptive statistics of the variables.

Variables	Description	N	Mean	Std. Dev.	Min	Max
CO2	Ship carbon emissions	5575	3.856	11.886	0	157.75
lgdp	National GDP	6922	23.497	2.605	15.993	30.696
ltrade	National total trade	5782	22.976	2.551	15.593	29.13
ldwt	Total deadweight of ships	872	15.99	2.111	6.908	19.712
focratio	Proportion of flag-of-convenience ships	872	0.585	0.397	0	8.858
didi_ii	Policy effect of Annex I/II	8160	0.526	0.499	0	1
didiii	Policy effect of Annex III	8160	0.423	0.494	0	1
didiv	Policy effect of Annex IV	8160	0.292	0.455	0	1
didv	Policy effect of Annex V	8160	0.458	0.498	0	1
didvi	Policy effect of Annex VI	8160	0.149	0.356	0	1

displays the descriptive statistics of the variables mentioned above and policy effect variables as dummy variables for all the annexes under the MARPOL Convention. The policy implementation variable treat_i = 1 (i = I, II, III, IV, V, VI) was assigned to countries implementing Annex I/II/III/IV/V/VI policies, with a value of 0 assigned for those that did not implement them. A dummy variable year_t = 0 was specified before implementing the policy and assigned a value of 1 after implementing the policy. The final policy effect variable obtained for different annexes is did_it = treat_i×year_t. In particular, because Annex I and II were implemented at the same time, their policy effects are regarded as the same variable in the model, namely did_{i_ii}.

4.3. Benchmark Results and Discussion

Before proceeding with the DID model,

Table 7. Bivariate correlation matrix.

Variables	(1)	(2)	(3)	(4)	(5)	(6)	(7)	(8)	(9)	(10)
(1) CO2	1.000
(2) didi_ii	0.116 ***	1.000
(3) didiii	0.117 ***	0.809 ***	1.000
(4) didiv	0.053 ***	0.605 ***	0.746 ***	1.000
(5) didv	0.114 ***	0.868 ***	0.905 ***	0.688 ***	1.000
(6) didvi	0.184 ***	0.396 ***	0.477 ***	0.607 ***	0.439 ***	1.000
(7) lgdp	0.414 ***	0.380 ***	0.296 ***	0.239 ***	0.325 ***	0.246 ***	1.000
(8) ltrade	0.437 ***	0.407 ***	0.335 ***	0.266 ***	0.361 ***	0.277 ***	0.972 ***	1.000
(9) ldwt	0.320 ***	0.124 ***	0.172 ***	0.053	0.171 ***	0.272 ***	0.669 ***	0.706 ***	1.000
(10) focratio	0.073 ***	0.126 ***	0.287 ***	0.190 ***	0.213 ***	0.174 ***	0.116 ***	0.223 ***	0.125 ***	1.000

*** at 1% significance level.

presents the bivariate correlation matrix of the variables. It suggests that the DID variables and other policy variables have a significant relationship with the dependent variable. This provides a preliminary support for the effect between them.

To ensure the overall reliability and accuracy of the model, a sensitivity analysis was conducted using the stepwise regression method.

Table 8. Benchmark results for the difference-in-differences regression analysis.

Variables	CO2
	(1)	(2)	(3)	(4)	(5)
didi_ii	–5.573 ***	–1.590	–1.371	–2.604	–3.015
	(–2.77)	(–0.74)	(–0.63)	(–1.15)	(–1.34)
didiii		–7.327 ***	–7.782 ***	–9.897 ***	–9.820 ***
		(–4.78)	(–4.78)	(–5.05)	(–5.02)
didiv			0.936	0.675	1.842
			(0.83)	(0.60)	(1.46)
didv				4.075 *	4.180 **
				(1.93)	(1.98)
didvi					–2.438 **
					(–2.06)
lgdp	10.134 ***	11.953 ***	11.845 ***	11.818 ***	11.837 ***
	(4.93)	(5.81)	(5.75)	(5.75)	(5.77)
ltrade	–3.375 *	–4.020 **	–4.413 **	–4.422 **	–3.802 **
	(–1.84)	(–2.22)	(–2.36)	(–2.37)	(–2.02)
ldwt	2.748 ***	3.235 ***	3.172 ***	3.135 ***	3.685 ***
	(3.00)	(3.57)	(3.49)	(3.45)	(3.90)
focratio	–5.610 **	–5.799 **	–5.697 **	–5.064 **	–5.098 **
	(–2.18)	(–2.29)	(–2.25)	(–1.98)	(–2.00)
Constant	–206.454 ***	–243.829 ***	–230.028 ***	–229.315 ***	–254.282 ***
	(–10.76)	(–11.93)	(–8.74)	(–8.73)	(–8.81)
Observations	762	762	762	762	762
R-squared	0.171	0.199	0.200	0.205	0.210
F-Value	27.02	27.08	23.30	20.94	19.18
p-Value	0.000	0.000	0.000	0.000	0.000
Maximum VIFs	7.18	7.24	7.45	7.47	7.64
Country-fixed effect	YES	YES	YES	YES	YES
Year-fixed effect	YES	YES	YES	YES	YES

The standard error in parentheses is cluster standard errors at the country–year level. * at 10% significance level, ** at 5% significance level, and *** at 1% significance level.

reports the results of five models, all of which incorporate the country- and year-fixed effects. All the F- and p-Values suggest that the models are statistically significant. A comparison of the models reveals that the gradual inclusion of the DID variables does not impact the coefficients of all other variables, while the R-squared keeps increasing, suggesting the significant explanatory power of the DID variables. This further confirms that the model constructed in this study is robust and stable. Notably, because some of the independent variables are highly related, VIF indicators were calculated for each model. As shown in Table 8, the maximum VIFs for each model are less than 10, indicating no concerns regarding multicollinearity issues in the models. Thus, to assess the impact of different annexes on ship pollution emissions in a comparable context, Model (5) was chosen for discussion.

Table 8 reports the regression results of the DID model evaluating the impact of policies across each annex of the MARPOL Convention on carbon emissions. As can be seen from the table, the coefficients of did_iii, did_v, and didi_vi are all statistically significant, signifying that the acceptance of MARPOL Annexes III, V, and VI has an impact on carbon emissions. However, the coefficient of the dummy variable did_v representing Annex V is positive. This shows that the implementation of Annex V does not promote the reduction in carbon emissions but aggravates the generation of carbon emissions. Conversely, the coefficients for Annexes III and VI are negative, indicating that accepting policies under these annexes has led to a reduction in CO₂ emissions. This further demonstrates the effectiveness of the policies implemented under these two annexes.

The coefficient for Annex III is larger than that of Annex VI. Considering the previous analysis of Annex III, its effectiveness may be closely related to the complete prohibition of its own regulations. The estimated coefficient for the dummy variable did_vi representing policies under Annex VI is −2.438, and it is statistically significant at the 5% significance level. Annex VI of the MARPOL Convention aims to limit pollution emissions through multiple dimensions. Unlike other annexes, Annex VI not only sets direct numerical restrictions on pollutant discharge but also includes technical requirements for ship equipment, which addresses the problem of pollution discharge from the root. In addition, Annex VI also attempts to implement certain economic or managerial regulations, imposing implicit restrictions on ship emission behavior during operation. The regression result concerning the policy effect variables of Annex VI shows that it is relatively effective to implement emission control policies that are highly targeted and that consider both direct and indirect controls.

5. Discussion and Policy Recommendations

5.1. MARPOL Annex VI

This empirical result demonstrates the effectiveness of Annex VI of the MARPOL Convention in controlling ship pollution emissions. To further explore the reasons for the effectiveness of this annex, we conducted a more detailed analysis and summary of Annex VI.

Annex VI of the MARPOL Convention is the main international treaty addressing air pollution prevention requirements from ships. The regulation of pollution has been carried out through several amendment meetings since its implementation on 19 May 2005. During ship operation, there are three main ways of polluting the atmospheric environment, namely (1) dust or chemical vapors generated when transporting cargo; (2) exhaust gas pollution generated when burning fuel; and (3) technical or accidental leakage. Among these, the exhaust gas pollution emitted by ships has the most serious impact on the atmospheric environment and causes severe harm to humans and animals.

Annex VI has formulated different restrictions, such as limiting the amount of emission, setting standards for fuel oil used by ships, and establishing emission control areas. In order to actively respond to the problem of global warming and achieve green and low-carbon development, the entire international community is committed to promoting carbon peaking and carbon neutrality [6]. Although the proportion of CO₂ in the combustion exhaust gas of ships is not the highest, compared with other types of transportation, the CO₂ emissions of ships cannot be ignored. As a result, the IMO passed a new regulation in MARPOL Annex VI in June 2021 by introducing a Carbon Intensity Indicator (CII) rating scheme to regulate and control the carbon emissions from shipping.

Given the close relationship between fuel consumption and shipping volumes, improving fuel efficiency becomes crucial when shipping volumes cannot be controlled. In addition to direct restrictions on pollutant emissions, Annex VI also incorporates technical indicators related to ship fuel efficiency to promote better emission behavior, such as EEOI, EEDI, and EEXI. The Energy Efficiency Operational Index (EEOI) aims to measure the operational efficiency of all new and existing ships by allowing efficiency comparisons between similar ships on similar routes, prompting operators to take further efficiency measures. The Energy Efficiency Design Index (EEDI) aims to enable ship designers and builders to design and build future ships for maximum fuel efficiency, thereby reducing polluting gas emissions. The Energy Efficiency Existing Ship Index (EEXI) is similar to EEDI in that it measures the same, but EEDI applies to new buildings while EEXI applies to existing ships. The division of these indicators is based on existing ships and new buildings, considering the current situation as well as the future. It can be seen that when formulating regulations, Annex VI largely considers the long-term application of policies.

In addition, at the economic and managerial levels, Annex VI also carries out some indirect regulations on the emission of gas pollution, such as the introduction of the Ship Energy Efficiency Management Plan (SEEMP) and MBMs. At the heart of the SEEMP is the formulation and effective implementation of ship-specific energy efficiency measures. Because each shipping company and ship have their own unique operating characteristics, it is important to conduct scientific evaluations and continuous improvements to ensure the effectiveness and feasibility of energy efficiency measures. The implementation of this plan highlights the contingency of Annex VI in addressing the issue of pollution emissions.

To summarize, Annex VI of the MARPOL Convention primarily focuses on addressing air pollution from ships. It formulates regulations through three levels: Emission Limits, Technical Indicators, and Management Specifications, as shown in

Table 9. Policies and regulations of MARPOL Annex VI.

Emission Limits	Technical Indicators	Management Specifications
Limits on Emission Pollutants; Emission Control Areas (ECAs); International Energy Efficiency (IEE) Certificate	Energy Efficiency Design Index (EEDI); Energy Efficiency Operational Indicator (EEOI); Energy Efficiency Existing Ship Index (EEXI); Carbon Intensity Indicator (CII)	Shipboard Energy Efficiency Management Plan (SEEMP); Market-Based Measures (MBMs)
Tightness/Direct		Elasticity/Indirect

. These three levels, from mandatory emission numerical regulations to management planning methods based on corporate social responsibility, are the embodiment of the transition from tightening to elastic policies and regulations. A policy of combining elasticity and tightness can not only solve the main problems, but also provide more possibilities for better and improved solutions. Therefore, Annex VI stands out among all the annexes as the most targeted and comprehensive solution to ship air emission reduction.

5.2. Recommendations for Future Policies of Maritime Transportation

Examining the effectiveness of a policy serves two important purposes: evaluating the current implementation of the policy and providing guidance for future policy formulation, with the ultimate goal of promoting sustainable development in the shipping industry. Compared with other Annexes of the MARPOL Convention (excluding the particularity of Annex III), Annex VI demonstrates the effectiveness of its policy implementation through both quantitative indicators and specific content. Based on the above discussion of policy effectiveness, this study provides a certain reference direction for the formulation of future shipping policies.

First and foremost, the formulation of policies and regulations needs to be highly targeted. In the formulation of standards that can directly regulate behavior, policy makers should ensure the accuracy of regulations to guarantee effective policy implementation, as exemplified by Annex VI. In situations where specific standards are not feasible, policy formulation should avoid generalization as much as possible in order to align policies with desired outcomes. For instance, Annex VI sets strict emission standards for various polluting gases, with emission limits depending on the ship’s location within different sea areas. In areas prone to air pollution, the emission standards are even more stringent. The establishment of ECAs in Annex VI exemplifies its highly targeted approach in addressing air pollution concerns in specific areas. Similarly, the “2020 Global Sulphur Cap” introduced in recent years also clearly specifies different requirements for different areas. Therefore, policy formulation requires collaboration among relevant departments to ensure their implementation, taking into account the enforceability of the maritime authorities in the formulation of maritime transport policies.

Secondly, policies and regulations should be comprehensive by including multi-dimensional measures; either direct control means or indirect promotion methods should be included. Policy makers can adopt different dimensions or levels as a starting point and look at issues from different perspectives, which could promote policy integrity. For example, Annex VI of the MARPOL Convention is formulated from different perspectives, such as mandatory regulations, technical requirements, and market-based instruments. Furthermore, specific regulations should be aligned with an overarching goal to ensure consistency and create a leading effect. The IMO’s “Initial GHG Strategy” provides a clear vision and targets on air pollution from ships and guides the development of policies and regulations in Annex VI. All these guarantee the enforcement of Annex VI and its effectiveness in turn.

Thirdly, contingency is also one of the characteristics of an effective policy. Contingency allows for the flexibility of adapting to the same regulations for different objects, and is usually reflected in some indirect promotion measures. Moderate easing policies can promote the behavioral norms among regulated entities. In the shipping industry, when formulating some indirect regulations, the enforced (i.e., shipowners) can be given a certain maneuvering space, so that they can regulate their behavior more scientifically and reasonably according to their own ship conditions. The SEEMP, MBMs, and other management specifications implemented in Annex VI of the MARPOL Convention grant shipping companies the freedom to implement emission policies and regulations. Different requirements for new and existing ships, as well as variations in requirements based on ship type and age, also allow policy implementers to adapt their behavior according to their specific circumstances, such as the different requirements for new and existing ships of EEDI and EEXI. Similarly, the specified requirements of EEOI for different ships with different types and ages are also different. This freedom shows that policy makers play a significant role in facilitating regulatory implementation, so as to facilitate the final completion of regulatory implementation.

Lastly, a proactive policy is more effective when implemented. This initiative can be reflected in both policy makers and policy implementers. From the perspective of policy makers, they should actively participate in the formulation and revision of regulations, promptly abolish outdated regulations, and improve defective regulations in a timely manner. This can be reflected by the frequent revisions of Annex VI (see Table 5), whose revision intensity is the highest, almost two to three times that of the other four. The effective implementation of the policy is also inseparable from the good cooperation of those who accept the regulations. From the perspective of ship operators, their active behavior is an important reflection of whether they can cooperate with the implementation of the policy. Therefore, policy formulation should include incentives aimed at stimulating the initiative of shipping companies. Shipping companies primarily pursue benefits, and the market represents their greatest source of profit. Hence, policy makers can collaborate with industry departments to provide market preferences to shipping companies actively implementing emission reduction policies, encouraging more companies to join the efforts of reducing emissions.

6. Conclusions

The increasingly severe global environmental problems have made emission reduction in the shipping industry a crucial issue of international concern. In recent years, research on pollution reduction in the shipping industry has increased in response to the advocacy of the concept of green shipping and sustainability. The MARPOL Convention, developed by the IMO, is the main international maritime convention aimed at preventing pollution from ships. While previous research has mainly focused on individual annexes or regulations within the MARPOL Convention, this study takes a more comprehensive approach by considering the policy effects of all the annexes of the MARPOL Convention.

By comprehensively reviewing and discussing the six annexes of the MARPOL Convention, this study compares the similarities and differences of the regulations implemented by different annexes with certain quantitative indicators. It then adopted the empirical method of time-varying DID to explore the policy effectiveness of the six annexes. The empirical results align with the results of the review and discussion. They show that Annex III is the most effective, and this stems from the peculiarities of its policy, namely a complete ban on emissions. Annex VI is also confirmed to be effective, which proves that a highly targeted and multi-layered regulatory system is conducive to improving the effectiveness of the policy as a whole. Based on the above results, this study analyzes and summarizes the characteristics of Annex VI in detail and recommends that effective maritime policies should be targeted, comprehensive, contingency-based, and proactive.

The empirical study on the comparative analysis of carbon emissions in the shipping industry before and after the implementation of various annex policies of the MARPOL Convention is the result of converting actual shipping industry emissions data into an evaluation of policy effectiveness through econometric models. In addition, this study also combines the empirical results with the obtained policy review results and comprehensively discusses effective policy directions for promoting emission reduction in the shipping industry through a combination of quantitative and qualitative analyses, which could provide data support and an empirical basis for implementing existing and future emission reduction policies, as well as provide assistance for devising efficient policies in the future.

The emerging environmental challenges have made reducing emissions imperative. To develop effective policies on shipping emissions, it is essential to consider and analyze the existing policies. Through an evaluation of the effectiveness of each annex policy under the MARPOL Convention, this study discusses the policy orientation of promoting shipping emission reduction, which contributes to providing guidance for relevant policy makers and practitioners, as well as arousing awareness of emission reductions in the shipping industry to promote the early achievement of shipping emission reduction targets. Nevertheless, because shipping emission reduction policies are continuously being revised and updated and given that the shipping market is ever-changing, there are certain limitations to this study. Firstly, it primarily focuses on policy variables and lacks the inclusion of other relevant variables that could have efficiently evaluated policy effectiveness. Therefore, future research can include more variables with different dimensions for a comprehensive analysis, such as bunker price volatility and the nature of market and policy implementation entities of different countries. Secondly, this study employs the carbon emissions of each country as the research variable in the DID model, which may be influenced by various factors as a macro-level indicator. To conduct a more specific and targeted evaluation of the effectiveness of each policy, it is recommended that future research could distinguish shipping emissions based on different emission types.
