Circular Economy for the Sustainable Disposal and Reuse of Pruning Waste for Generating New Selective Materials

Abstract

Pruning waste (PW) and agricultural timber residue are rarely treated, creating environmental pollution issues. The lack of regulations and environmental control criteria has led to poor ecosystems. In this study, it is proposed to transform PW and turn it from a nuisance into a valuable energy source and other alternative resources under environmental constraints. Current reuse and recycling options include turning the waste into a food source or using it to generate energy, compost, soil fertilizer, and other products. A linear programming model with Boolean variables and a management model are defined and run for the reuse of PW. The management model defines the diverse options for PW reuse in terms of resource recovery. These options depend, to a considerable extent, on the country’s production capacity and the preferred applied alternatives. The country of Israel is split into separate regions, which are classified according to the preferred alternatives for PW treatment and reuse. These alternatives include factors such as the annual amounts of trash generated, transportation expenses, energy demands, and requirements based on annual and daily needs. An optimization model (based on operations research methods) is defined, solved, and subjected to a series of constraints. The goal of the study is to find out the best location for PW treatment facilities and optimal recycling product technology using linear programming software with Boolean variables. The results show that a net profit of approximately 3.5 million USD/year for a total community of close to 10 × 10⁶ residents could be derived from the amounts of waste, including improved environmental control, in addition to the additional energy source. This work raises an urgent need to control and regulate recycling policies for PW in various environmental regions worldwide.

1. Introduction

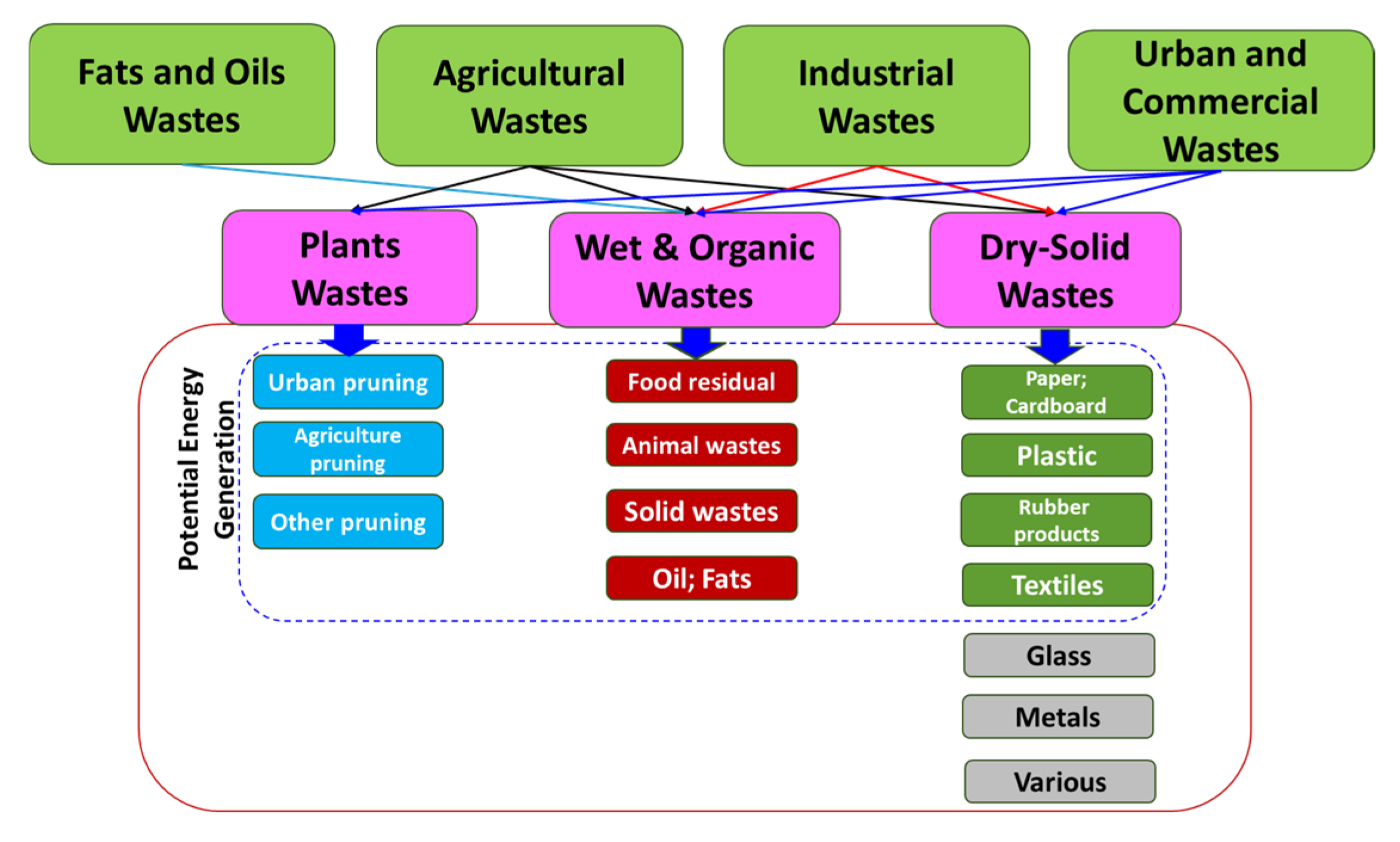

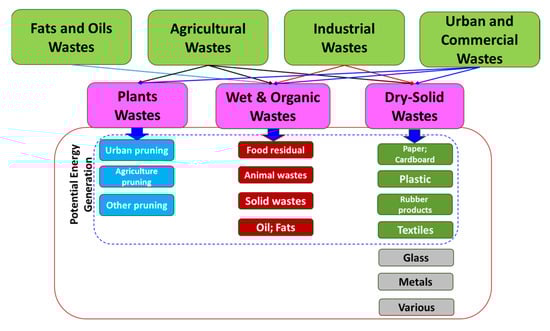

1.1. Types of Solid Waste

One of the main challenges in well-organized and environmentally friendly countries is the treatment and reuse of solid wastes [1,2,3,4,5]. These issues have been mainly addressed in countries with higher living standards and increasing shortages of natural food resources [6]. The amount of waste produced ranges from 1.5 to 2.0 kg per person per day and includes different components but mainly consists of organic material. In Israel, around 5% of total waste consists of pruning waste (PW); around 1 million metric tons per year, equivalent to 100 kg per person per year. However, this figure is deceiving due to the fact that PW originates from urban and agricultural solid wastes. Urban waste includes mainly residual plant branches, bushes, and trees cut and disposed of from small local yards that are located adjacent to urban buildings or agricultural farms. Since farming communities are relatively small, agricultural PW is much denser in these rural and agricultural regions. The agricultural community in the State of Israel includes around 2% of the total population (around 100,000 farmers), and therefore, most PW originates from the agricultural sector.

The recycling of agricultural and urban residual PW refers to the practice of reusing and repurposing leftover plant materials, such as tree stems, branches, and leaves. This residual trash is generated during pruning activities, as well as the remaining timber [7,8]. The sustainable approach presented in this paper considers the contamination nuisance as an extra contributing resource, rather than a burden on society. In addition, this waste has several economic, environmental, and agricultural benefits. A series of scientific studies have emphasized the need to adopt the concept of waste recycling to protect the environment and improve the utilization of natural resources [9,10,11,12,13].

The scientific field of bioenergy has evolved into investigating the potential energy generation from biomass and, more recently, from other active organic substances. To minimize our dependence on fossil energy sources, the vitality from various organic wastes offers possibilities by which to promote renewable energy generation. Edible crops are the main source for the production of fluid biofuels. Algae and duckweed plants are a few examples of plant resources used to generate liquid energy [14,15]. However, the use of edible plants as feedstock for biofuels brings with it worldwide food supply and ethical problems. These issues involve the recycling and utilization of animal wastes—fecal matter and urine—for biofuel generation. Inadequate management of animal feces can expose humans to diseases originating from pathogens, especially in communities where animals live in close proximity to humans. Regulations strictly control environmental factors, such as odor, groundwater and surface-water contamination, soil pollution, and nutrient management. These are the main tools that allow for the adaptation of innovative waste management disposal and reuse methods. This approach could further accelerate the use of animal manure and turn it from a nuisance into a valuable fuel resource. Microbial fuel cells based on bio-electrochemical systems can generate enormous green and sustainable bioenergy by applying conversion technologies that use various kinds of raw waste (for example, urine) [16,17]. Figure 1 demonstrates the options presented by recent advances in biofuel production from animal wastes, urine-fed microbial fuel cells, and other pathways for waste recycling and reuse.

1.2. Pruning Waste

1.2.1. Reuse Options

There are several options for the recycling of organic matter, which most commonly consists of dry waste [18,19]. These alternatives depend on the type of residual substances, the location and options for collection, further treatment, and processing. The organic matter in the recycled residual plant material can be used as organic amendments for diverse purposes, such as improving soil structural properties and protecting the environment. Free recycling can enrich deeper soil layers with nutrients that will improve subsequent agricultural yields [20,21,22,23].

1.2.2. Mulching

Mulch is scattered on the soil surface for the improved control of temperature, evaporation, and water infiltration. Categories of mulch include distinct types of straw (for example, wheat straw or stubble), although there remains a risk that the mulch contains residual weed seeds, white polyethylene film (white mulch), and black plastic film (black mulch). Residual PW can be chopped or shredded into small particles and spread over the area to be mulched into a thin (several centimeters) layer. This mulch cover will hinder water loss due to evaporation, suppress weed growth, and control soil temperatures in both the winter and summer [24]. It also protects the soil from winds, thus preventing erosion and soil losses [25,26,27].

1.2.3. Composting

The green and dry parts of plants—flowers, fruit, vegetative segments, branches, leaves, and other residual plant parts—are brought, along with wet waste (essentially kitchen refuse), to large composting sites to be transformed into compost and/or other alternatives. The composted residual food and additional organic waste provide a number of environmental benefits, including improved soil health, reduced greenhouse gas emissions, recycled nutrients, and the mitigation of drought effects through soil covering. Composting is an oxygen-demanding process that converts organic materials into a nutrient-rich, biologically stable soil amendment or mulch via natural decomposition. The residual PW can be added to a dung hill for composting and the preparation of enriched organic matter soil amendments [28,29,30].

1.2.4. Improving Soil Properties by Adding Amendments

Mulching, or the addition of amendments to the soil, generally serves to use water efficiently, suppress weed development, and improve the soil properties around plants in commercial plantations, gardens, and forests. Mulching supports moisture-retention processes in soils during the warm seasons and improves rainwater penetration into the soils by preventing crust formation. The minimization of weed growth occurs due to reduced water availability for their free development. The mulch cover suppresses evaporation from the soil surface. The decomposed organic mulch promotes healthier soils with high nutrient content. Mulch also enhances the minimization of seasonal and daily changes of soil temperature [24]. It can reduce tillage requirements as well due to the improved soil structure [28,31,32].

1.2.5. Biochar Generation

Biochar results from the dissociation of old branches and residuals of pruned timber. Biochar is a black, charcoal-like product that contains no petroleum. It is obtained by heating biomass through pyrolysis, such as PW residues, non-salvageable timber, and, occasionally, animal manure [33]. The degradation of PW, which is the main source of biochar, occurs in the soil [16]. It is a stable, solid source, rich in fiery carbon, and can endure in the soil for extended periods. It is commonly used in industrial pyrolysis. Biochar amendments improve soil pH, root system growth, and water absorption due to the roots’ improved distribution in the porous soil. Root nutrient and water absorption properties are enhanced in the presence of biochar [34,35,36,37,38,39]. However, the quality of the biochar depends on the properties and status of the PW from which it originates.

1.2.6. Disease and Pest Management

The proper disposal and recycling of PW supports better management of diseases and pest control. Removing and recycling infected plant material can prevent disease spread and reduce pest habitats [8,39]. The reuse of PW enhances scenic views, has valuable aesthetic effects, lowers the risks of disease development, and provides high-quality ecosystem conditions.

1.2.7. Carbon Sequestration

Carbon dioxide (CO₂) is the most commonly generated greenhouse gas. It originates from both natural and human activities. Natural sources of CO₂ include most animals’ excreted waste. Human activities leading to CO₂ emissions primarily involve energy production, including petrol and burning coal, oil, and natural gas. Geological carbon sequestration is the process of capturing and storing CO₂ in underground geological layers. It is one of the most accepted methods of reducing the amount of CO₂ in the atmosphere, with the outcome of reducing global climate changes. CO₂ is usually pressurized until it becomes a liquid and is then injected into porous rock formations in deep geological layers. This stored carbon is also frequently used for enhanced oil recovery, otherwise known as tertiary recovery. Incorporating agricultural residues into the soil or using them for long-term purposes, such as biochar production, contributes to carbon sequestration processes, where lightening enhances the mitigation of the global processes of climate change [4,37,40].

1.2.8. Sustainable Farming Practice

Along with increases in population growth and in the availability and production of high-quality food, advanced approaches have to be adopted to improve agricultural production methods. An innovative approach has to be based on the reuse of wastes that, until recently, were simply considered a nuisance. It would be advantageous to consider these as valuable resources rather than taking the conventional approach of disposing of them. Adopting recycling practices aligns with sustainable farming principles by promoting a circular economy in agriculture. Recycling minimizes waste, conserves resources, and supports long-term environmental health [37,41,42].

1.2.9. Food Sources

Depending on the type of plants being pruned, the residues can sometimes be used as supplementary food for livestock. This not only reduces waste, but it also provides an additional source of nutrition for animal feed [43]. The potential isolation of bioactive polysaccharides from bay tree PW was studied using sequential subcritical water extraction and different time–temperature combinations. The extracted polysaccharides were highly enriched in pectin while preserving their high molecular mass (10–100 kDa)—ideal properties for application as an additive for packaged foods. Pectin-enriched chitosan films were prepared, improving the food’s properties. Chitosan-based films with an antioxidant capacity greater than 95% and water vapor permeability less than or equal to 14 × 10⁻⁷ g/(Pa s m²) were compared with “neat” chitosan-based films, likely referring to chitosan films without additional antioxidant agents or modification.

1.3. Energy

1.3.1. Bioenergy Production

Selected agricultural residues, primarily those with a high content of dissociated cellulose, can be used for bioenergy production through processes such as biomass gasification or biofuel production [44]. The application of pyrolysis or combustion can supply energy at local or even national scales for diverse purposes. These processes have two foremost advantages: (i) they provide an alternative sustainable energy source and reduce dependence on nonrenewable resources, and (ii) they improve environmental quality conditions [39,45].

1.3.2. Pyrolysis

Pyrolysis is the heating of organic materials, such as biomass, in the absence of oxygen. It is one of the technologies available to convert biomass into an intermediate liquid product that can be refined to drop-in hydrocarbon biofuels, oxygenated fuel additives, and replacements for petrochemical constituents [22,46]. Pyrolysis is commonly applied to organic materials and is a main process in carbonizing wood material. In general, the pyrolysis of organic substances produces volatile products and leaves char, a solid carbon-rich residue. High-intensity pyrolysis leaves mostly carbon as the residue and is called carbonization. Pyrolysis is considered the first step in the processes of gasification or combustion. The process is widely used in the chemical industry for producing ethylene, many forms of carbon, petroleum chemicals, coal, and the coke produced from coal. It is also used in the conversion of natural gas (primarily methane) into its hydrogen fraction and solid carbon char. Attempts have been made to use pyrolysis to convert biomass into syngas and biochar, plastic waste back into usable oil, or wastes into safely disposable substances [39,47]. An advanced emerging option is to use the biomass to generate hydrogen as an alternative energy source for a cost of 1.2 to 2.2 USD per kg of hydrogen, applying the pyrolysis process [48].

1.3.3. Combustion

Combustion (burning) is a high-temperature exothermic redox chemical reaction that takes place between a fuel (the reducing agent) and an oxidant, commonly atmospheric oxygen. It is a chemical reaction in which a substance reacts rapidly with oxygen and generates heat [49,50]. The basic substance is the fuel, and the source of the oxygen is the oxidizer. The fuel can be in the form of solid, liquid, or gas, although, for aircraft, the fuel is usually liquid [51]. During the manufacturing process, gaseous materials are commonly produced in a visible mixture termed smoke [51,52]. The oxidizer can also be a solid, liquid, or gas; however, the latter is most common for airplanes. For rockets, both solid fuel and an oxidizer are used. Since combustion is extremely important for aircraft and rocket propulsion, it is considered a fundamental process.

New chemical substances are created from fuel and the oxidizer during combustion. These new substances, termed exhaust, originate from the chemical combinations of the fuel and oxygen. When a hydrogen–carbon-based fuel (like gasoline) burns, the exhaust includes water (hydrogen + oxygen) and CO₂ (carbon + oxygen). However, the exhaust can also include chemical combinations from the oxidizer alone. If the gasoline is burned in air, which contains around 20% oxygen and approximately 80% nitrogen, the exhaust can also include nitrous oxides (nitrogen + oxygen). The temperature of the exhaust is relatively high because heat is transferred to the exhaust during combustion. Due to the elevated temperatures of the process, the exhaust is usually a gas, but it can also be converted into a liquid or a solid.

1.3.4. Incineration

Incineration is a treatment process for solid wastes in which hazardous waste substances are reused via a combustion procedure. During this process, the residual plant substances are turned into energy. The incineration of timber materials is a thermal process that converts the waste into ash, flue gas, and heat [53,54]. The ash consists mostly of inorganic waste constituents and may take the shape of solid lumps or particulates carried by the flue gas. The exhausted flue gases must be cleaned of gaseous elements and particulate pollutants before they are dispersed into the atmosphere. The heat that is generated by incineration can be used to generate electrical power [35].

Incineration that is based on energy recovery is one of several waste-to-energy technologies, such as gasification, pyrolysis, and anaerobic digestion. While incineration and gasification technologies are similar in principle, the energy produced from incineration is high-temperature heat, whereas combustible gas is often the main energy product from gasification. Incineration and gasification may also be implemented without recovering the energy or materials.

Experts in several countries are concerned about the environmental effects of incinerators [54]. In those countries, material separation processes for removing hazardous, bulky, or recyclable materials prior to the combustion stage are often ignored. Proper waste sorting and preprocessing can help mitigate these problems by diverting hazardous and recyclable materials before combustion. These incineration facilities tend to risk the health of the plant workers and the local environment due to inadequate levels of gas cleaning and combustion process control. Most of these facilities do not generate electricity. Incinerators, however, reduce the solid mass of the original waste by 80% to 85% and the volume (already compressed somewhat in garbage trucks) by 94% to 97%. This largely depends on the composition and degree of recovery of materials, such as metals, from the ash for recycling. This means that while the incineration process cannot completely replace landfill methods, it does significantly reduce the volume of the disposed matter. Garbage trucks often have the capacity to reduce the volume of waste with a built-in compressor prior to delivery to the incinerator facility. Alternatively, at landfills, the volume of the uncompressed garbage can be reduced by approximately 70% using a stationary steel compressor, albeit with a significant energy cost. Simpler waste compaction is a widespread practice in landfills.

Waste combustion is needed, for example, in multiproduct chemical plants with diverse toxic streams, which cannot be routed to a conventional wastewater treatment facility. Waste combustion is particularly popular in countries such as Japan, Singapore, and the Netherlands, where land is a scarce resource. Denmark and Sweden have been leaders in using the energy generated from incineration for more than a century in localized combined heat and power facilities supporting district heating schemes. In 2005, waste incineration produced 4.8% of the electricity consumption and 13.7% of the total domestic heat consumption in Denmark. A number of European countries rely heavily on incineration for handling municipal waste, in particular Luxembourg, Germany, the Netherlands, and France. Recycling options and available technologies are listed in

Table 1. Summary of potential recycling processes for residual pruning waste.

Treatment Method	The Process	Percentage of Pruning Waste	Product Outcome and Results	References
Mulching	Shredding for soil cover using straw, polyethylene, and plastic	100	Maintaining soil moisture and temperature	[24,25,26,27]
Composting	Anaerobic wastes: sorting to desired calories; minimal contamination	30–35	Soil amendment: increased carbon addition and disease reduction	[28,29,30,55]
Bio charcoaling	Closed thermochemical: 200–300 °C; similar to pyrolysis	100	Additive for electricity generation and heating	[33,36,37,38,56]
Food production	Extracted polysaccharides; lignin	40–60	Supplementary food for humans	[57,58,59,60,61,62,63]
Animal feed	Mixing according to ratio and animal species	10–50	Wet food as a substitute for fodder	[64]
Pyrolysis	Anaerobic conversion of biomass: thermochemical: 300–900 °C	100	Heat for local use; biochar	[33,39,47,65]
Combustion	High-temperature burning	100	Fuel; rocket propulsion	[23,51]
Incineration	Heating primarily hazardous solid wastes	100	Flue gas; heating source	[53,54]
Anaerobic digestion	Thermophilic: bacterial dismantling at 50–60 °C	20–50	Biogas for electricity; low-quality compost	[60]
Steam generation	Biomass burning; fertilizers	100	Steam for industrial plants	[66]

.

1.4. Economic Aspects

Controlled environmental agriculture in agro-industrial systems, where CO₂ plays a key role, heat is generated, and weeds and other ligneous wastes are recovered or recycled, has the potential to be an environmentally friendly approach combined with economic feasibility. However, such an approach needs careful exploration to ensure both environmental and economic benefits. Techno-economic and life-cycle assessments have been applied to evaluate the constructive collaboration of food production (e.g., tomato and hemp crops) and recovery of industrial wastes (e.g., a heat source and CO₂) in greenhouses under robust uncertainty and sensitivity analyses. For each crop, two scenarios were compared: (i) linear scenarios evaluating the use of raw materials with no waste recovery and (ii) circular economy scenarios focusing on capturing industrial flows and their reuse in the greenhouse, exhausting raw material consumption [67,68]. Circular economic practices had net benefits in terms of global warming potential for agricultural plants, capturing up to 50,000 kg/year of CO₂ of crop biomass and providing competitive product prices. The analysis showed that circular economy considerations for materials can reduce global expenses.

Collecting and recycling agricultural residues lead to a reduction in farmers’ operating expenses. However, reuse of the residual waste depends, to a substantial extent, on the quality of the applied material and the treatment method [69]. Agricultural biomass is an almost untouched energy resource. Various residues from green plant production, such as corn cobs, corn stalks, sunflower stalks, straw, sunflower husks, seeds, and fruit and grape pruning residues, are readily available energy sources [70]. Instead of disposing of PW, farmers can turn it into a valuable resource for soil and environmental improvements, reducing the need for external inputs, such as fertilizers, and alternative energy sources [55,71,72].

2. The Purpose of the Work

In the framework of engineering environmental studies, a management model was developed to achieve optimal assignment of the residual PW for further processing and reuse. The purpose of the work was to find optimal site allocations and treatment methods to use residual timber for energy and other product generation. These depend mainly on the amounts of residue collected, but also on the demand for energy and the additional product in a particular region. A linear model with Boolean variables was defined and solved for the optimal treatment of the residual PW [73,74]. An estimate of PW production in Israel is outlined in

Table 2. Data of residual pruning wastes in Israel by geographical region [75].

Geographical Region	Geographical–Agricultural Subdistrict	Agricultural Areas, Ha	Residual Pruning Wastes, Ton/Y	Residual Regional Pruning Wastes, Ton/Y
1 Northeast	Golan	8249	54,857	155,219
	Zefat	17,863	85,692
	The Jordan Valley	3206	14,670
2 Northwest	Acre	21,416	79,911	137,140
	Hadera–Haifa	13,811	57,229
3 North	Kinneret	15,930	72,498	249,431
	Jezrael	38,338	176,933
4 Center	The Sharon	10,896	54,088	85,887
	Petach-Tikva	7948	31,799
5 Southwest	Ashkelon	48,674	220,791	283,045
	Rehovot–Tel Aviv	12,699	62,254
6 Southeast	Jerusalem	6927	48,085	85,167
	Ramla	8537	37,082
7 South	Beer-Sheva-Besor	74,341	323,739	344,024
	Arava-Dead Sea	4386	20,285

.

3. Materials and Methods

3.1. The Linear Programming Model with Boolean Variables

A linear programming model with Boolean variables (“0” means no and ”1” means yes) was applied. The model consists of an analytical expression for the objective (cost) function. The cost function expresses the expenses for transporting the wastes to recycling sites and the related treatment cost. The optimization process is undertaken subject to a series of technological and environmental constraints (no need to describe it by scheme). The constraints are also given by linear expressions and Boolean variables.

3.2. The Variables

Analytical methods can be applied to tackle and solve issues facing daily life. Linear programming software can be applied by defining the variables in an appropriate way for solving PW recycling topics related to disposal and reuse. Defining the variable in an adequate way allows us to turn theoretical problems into practical tools for solving reuse challenges and maintaining a clean and sustainable environment. As stated, PW typically includes branches, twigs, leaves, and other vegetative residues. The systematic and economic collection of PW from agricultural fields, orchards, gardens, or urban areas was modeled. By defining a management model for these materials and methods, PW can be effectively and economically recycled for energy generation while minimizing environmental impact and contributing to a circular economy. The system variables were defined accordingly (

Table 3. Definitions of the system variables and related parameters.

Dimension and Definitions of Variables/Comments	Meaning of Designation	Parameter Designation
i = 1, …, N	Number of geographic regions (7).	N
1—North-East 2—North-West 3—North 4—Center 5—South-West 6—South-East 7—South
j = 1, …, F	Number of alternative treatment options (4).	F
1—Composting 2—Mulching 3—Steam generation 4—Biochar production
Ton per year	Annual Amount of generated pruning in the i region.	wi
Ton per year	Maximal capacity of treatment facility of type j.	cj
Supplementary Boolean (binary) variable	${\mathrm{t}}_{\mathrm{i}\mathrm{j}}=\left\{\begin{array}{cc}1,\hfill & \hfill {\mathrm{w}}_{\mathrm{i}}>{\mathrm{c}}_{\mathrm{j}}\\ 0,\hfill & \hfill \mathrm{Otherwise}\end{array}\right.$ ${\mathrm{b}}_{\mathrm{i}}=\mathrm{M}\mathrm{i}\mathrm{n} {\mathrm{t}}_{\mathrm{i}\mathrm{j}}\hspace{1em}\forall \mathrm{i}=1,\dots ,\mathrm{N}$ ${\mathrm{b}}_{\mathrm{i}}=\left\{\begin{array}{cc}1,\hfill & \hfill \mathrm{transfer\; pruning\; from\; region\; i\; to\; the\; others}\\ 0,\hfill & \hfill \mathrm{Otherwise}\end{array}\right.$	bi
US$ per ton	Revenue from sale of the new product accepted at treatment site j (out of all raw material entered into the facility).	Pj
US$ per ton	Mean investment in treating the pruning wastes in facility j.	vj
US$ per ton	Operating and maintenance expenses in treating the pruning wastes in facility j.	oj
Distances kilometer (km) based on mean values between district i and district k.	Mean weight distance of pruning wastes transportation from region i to region k.	dik
US Dollars per ton per km	Cost of transporting the pruning wastes to the treatment facility.	tc

).

On top of the conventional variables, supplementary variables were inserted for solving the problem. These variables are given as follows:

$${\mathrm{X}}_{\mathrm{i}\mathrm{j}}=\left\{\begin{array}{cc}1,\hfill & \hfill \mathrm{treatment\; method\; type\; j\; is\; constructed\; in\; region\; i}\\ 0,\hfill & \hfill \mathrm{Otherwise}\end{array}\right.$$

(1)

3.3. The Objective Function

The purpose of the objective (cost) function Z (US$/year) is to maximize the return from energy and other products generation by recycling and reuse of the residual PW. Consequently, it refers to returning energy from deducting all of the related expenses. It is given by the expression:

$$\mathit{max}Z=\sum _{i=1}^N\sum _{k=1}^N\sum _{j=1}^F\left({P_j-v}_j-o_j-d_{ik}\ast tc\right){{\ast Z}_{ik}\ast X}_{ij}$$

(2)

where $Z_{ik}$ is the annual amount of PW in tons/y that is transported from region i to region k. The objective function Z is optimized subject to a series of constraints.

3.4. The Constraints

The constraints are given in a similar order to the defined variables:

$${\sum }_{\mathrm{j}=1}^{\mathrm{F}}{\mathrm{X}}_{\mathrm{i}\mathrm{j}}=1\hspace{1em}\forall \mathrm{i}=1,\dots ,\mathrm{N}$$

(3)

$$\sum _{\mathrm{k}=1}^{\mathrm{N}}{\mathrm{Z}}_{\mathrm{i}\mathrm{k}}={\mathrm{w}}_{\mathrm{i}}\hspace{1em}\forall \mathrm{i}=1,\dots ,\mathrm{N}$$

(4)

$$\sum _{\mathrm{k}=1}^{\mathrm{N}}{\mathrm{Z}}_{\mathrm{i}\mathrm{k}}\le \sum _{\mathrm{j}=1}^{\mathrm{F}}{({\mathrm{c}}_{\mathrm{j}}\ast \mathrm{X}}_{\mathrm{i}\mathrm{j}})\hspace{1em}\forall \mathrm{i}=1,\dots ,\mathrm{N}$$

(5)

$${\mathrm{Z}}_{\mathrm{i}\mathrm{k}}\le {\mathrm{w}}_{\mathrm{i}}\ast {\mathrm{b}}_{\mathrm{i}}\hspace{1em}\forall \mathrm{i}=1,\dots ,\mathrm{N};\hspace{1em}\forall \mathrm{k}=1,\dots ,\mathrm{N};\hspace{1em}\mathrm{k}\ne \mathrm{i}$$

(6)

$${\mathrm{X}}_{\mathrm{i}\mathrm{j}}\in \left\{\mathrm{0,1}\right\}\hspace{1em}\forall \mathrm{i}=1,\dots ,\mathrm{N};\hspace{1em}\forall \mathrm{j}=1,\dots ,\mathrm{F}$$

(7)

$${\mathrm{Z}}_{\mathrm{i}\mathrm{k}}\ge 0\hspace{1em}\forall \mathrm{i}=1,\dots ,\mathrm{N};\hspace{1em}\forall \mathrm{k}=1,\dots ,\mathrm{N}$$

(8)

Analyzing the reuse possibilities and their typical characteristics revealed that the problem consists of nonlinear programming elements. Several geographical regions were considered for PW recycling. The PW is transferred to an adjacent regional treatment facility only after the first facility is fully exhausted with all local regional trash (Equation (6)). This is expressed by the supplementary variable b_i. When the regional reuse facility has enough capacity to treat all local trash, then b_i = 1 and b_i = 0 when the amount of trash exceeds the capacity. The exhibited problem thus consists of 7 geographical regions, 4 recycling treatment methods, 77 decision variables (28 of the ${\mathrm{X}}_{\mathrm{i}\mathrm{j}}$ type and 49 of the ${\mathrm{Z}}_{\mathrm{i}\mathrm{k}}$ type), and a total of 113 constraints.

3.5. The Treatment Facilities

Four types of treatment facilities were considered for the analysis (

Table 4. Data related to the recycling facilities [69].

Treatment Facility Type J	Treatment Type	Maximal Capacity, T/Y, Cj	Mean Investment in Treatment Facility, US$/T, Vj	Operation and Maintenance Expenses, US$/T, Oj	Final Value of Product, US$/T, Pj
1	Compost preparation	54,000	19	37	78
2	Crushing and soil mulching and/or crumbling into the soils	902,000	6	7	15
3	Steam generation by raw material burning	120,000	11	31	39
4	Pyrolysis for biocharcoal production	150,000	13	58	120

). The characteristics of each treatment were capacity, investment expenses, and final market value of the newly generated products. Input data for the treatment facilities were taken from diverse sources [67]. All of these values were incorporated into the management model, allowing us to obtain the optimal solution for the case study set.

4. Results

The distances between the treatment sites were inserted into the model (

Table 5. Mean distances between recycling sites, km.

Region of Recycling		North-East			North-West		North		Center		South-West		South-East		South
		Golan	Zefat	The Jordan	Accre	Hadera+Haifa	Kinneret	Jezrael	The Sharon	Petach Tikva	Ashkelon	Rehovot+Tel-Aviv	Jerusalem	Ramla	Beer-Sheva	The Arava
1 North-East	Golan		37	94	87	118	84	99	147	204	218	204	190	189	247	322
	Zefat	37		84	70	102	69	84	133	149	203	190	177	175	234	311
	The Jordan	94	84		76	73	43	47	79	99	148	133	117	116	174	249
2 North-West	Accre	87	70	76		58	54	56	100	112	166	157	153	148	205	287
	Hadera+Haifa	118	102	73	58		60	47	66	74	129	120	120	114	169	253
3 North	Kinneret	84	69	43	54	60		36	84	101	154	141	130	127	186	265
	Jezrael	99	84	47	56	47	36		70	86	140	127	119	115	173	253
4 Center	The Sharon	147	133	79	100	66	84	70		41	91	78	75	69	125	208
	Petach Tikva	204	149	99	112	74	101	86	41		76	67	75	67	117	201
5 South-West	Ashkelon	218	203	148	166	129	154	140	91	76		40	72	65	72	155
	Rehovot+ Tel-Aviv	204	190	133	157	120	141	127	78	67	40		53	45	71	156
6 South-East	Jerusalem	190	177	117	153	120	130	119	75	75	72	53		30	78	155
	Ramla	189	175	116	148	114	127	115	69	67	65	45	30		79	159
7 South	Beer-Sheva	247	234	174	205	169	186	173	125	117	72	71	78	79		105
	The Arava	322	311	249	287	253	265	253	208	201	155	156	155	159	105

). These distances dictate the recycling expenses due to the amounts of PW transported within and between regions to the recycling facilities. The final recycled products were included in the management analysis and related expenses. The nonlinear model was run with LINGO software (v19.0.55), including the Boolean variables, and only took a few minutes [76,77]. Inserting the raw data into the software is straightforward and does not need special expertise. The main problem was how to characterize and define the nonlinear features and variables of the problem rather than how to solve it. Consequently, the final results for the given input data for newly generated products are presented in Figure 2 and

Table 6. Results for the treatment facilities and their final product from of PW recycling.

Location of Recycling Facility	Use of Recycled PWs (Objective Function—10,358,879 US$/y)
Facility to be constructed in region 1—North-East	Soil mulching
Facility to be constructed in region 2—North-West	Pyrolysis for biocharcoal production
Facility to be constructed in region 3—North	Soil mulching
Facility to be constructed in region 4—Center	Pyrolysis for biocharcoal production
Facility to be constructed in region 5—South-West	Soil mulching
Facility to be constructed in region 6—South-East	Pyrolysis for biocharcoal production
Facility to be constructed in region 7—South	Soil mulching

.

The results in Figure 2 consist of two layers: the upper four rows (excluding the heading) indicate the zero-one solution referring to treatment in the seven facilities, and the lower seven rows refer to the values of the related recycling method in every location. The accepted solution for the zero-one variables is marked with a yellow background. The values of the cost recycling methods are summarized in Table 6.

The total return for the recycling PW was according to the detailed results of 10,358,879 US$/y. The total amount of PW was subject to the input data of 1,339,913 tons, thus giving a net profit of around 7.73 US$/t. That profit is unique for the case study; however, it provides the general range for other pruning recycling examples worldwide.

5. Conclusions

The principles of circular economic perception emphasize the importance of maintaining wasted materials and turning them into new contributive products and materials. It allows us to change nuisance resources and use them for sustainable applications, reducing waste and maximizing their value. Recycling pruning waste based on economic principles enables turning materials like branches, leaves, and other organic waste from landscaping and agriculture into valuable products, thus promoting sustainability.

Linear programming software with Boolean variables was adopted from the general field of operations research. Limited new works have dealt with the principles of operations research combined with fieldwork on pruning recycling. The present work allows us to take theoretical issues and transform them into practical problems, subject to the conditions of providing reasonable and practical variables. Thus, the problem presented in this work allows us to apply a theoretical tool that can be used worldwide, enabling the recycling of any kind of refuse.

The results of this study indicate the advantage of defining (the most difficult step) and solving environmental problems by applying an operational research method; in this case, turning residual PW into valuable products with minimal damage to the environment. This example shows how a circular economy can be a useful tool for creating a better environment. According to the calculations, the net profit is around 7.73 US$ per one metric ton of PW. This implies that, depending upon the local conditions in a particular country, the net profit can be in the range of 5.0 to 10.0 US$/ton of PW.

One of the most effective parameters influencing the recycling solution, aside from treatment characteristics, is PW transport. The expenses involved in transporting the raw materials are important. In the circular economic analysis, distance also played a key role, as did the treatment characteristics and options for reducing the total recycling expenses. This requires a deep look into the market at the new recycled product.

Despite the excessive costs for maintenance and the initial investment, pyrolysis for bio-charcoal production was shown to be the preferred technology. The results also showed the great advantage of using shredded material for soil mulching. It is likely that changes in the four economic parameters of the treatment will change the outcome subject to local conditions.
