Comparison of Artificial Intelligence and Physical Models for Forecasting Photosynthetically-Active Radiation

Abstract

Different kinds of radiative transfer models, including a relative sunshine-based model (BBM), a physical-based model for tropical environment (PBM), an efficient physical-based model (EPP), a look-up-table-based model (LUT), and six artificial intelligence models (AI) were introduced for modeling the daily photosynthetically-active radiation (PAR, solar radiation at 400–700 nm), using ground observations at twenty-nine stations, in different climatic zones and terrain features, over mainland China. The climate and terrain effects on the PAR estimates from the different PAR models have been quantitatively analyzed. The results showed that the Genetic model had overwhelmingly higher accuracy than the other models, with the lowest root mean square error (RMSE = 0.5 MJ m⁻²day⁻¹), lowest mean absolute bias error (MAE = 0.326 MJ m⁻²day⁻¹), and highest correlation coefficient (R = 0.972), respectively. The spatial–temporal variations of the annual mean PAR (APAR), in the different climate zones and terrains over mainland China, were further investigated, using the Genetic model; the PAR values in China were generally higher in summer than those in the other seasons. The Qinghai Tibetan Plateau had always been the area with the highest APAR (8.668 MJ m⁻²day⁻¹), and the Sichuan Basin had always been the area with lowest APAR (4.733 MJ m⁻²day⁻¹). The PAR datasets generated by the Genetic model, in this study, could be used in numerous PAR applications, with high accuracy.

1. Introduction

Solar radiation is the most important energy sources, driving the sources and sinks of energy between the earth surface and atmosphere [1]. Ninety-nine percent of the solar energy concentrated in the wavelength of 0.25 μm–4.0 μm, which can be divided into three broadbands—ultraviolet spectrum (0.25–0.40 μm), visible spectrum (0.40–0.70 μm), and near infrared spectrum (0.70–4 μm). Among them, almost 45% of the solar radiation concentrated in the visible spectrum, namely photosynthetically-active radiation (PAR) [2]. PAR is of vital importance in many biological and physical processes, such as chlorophyll synthesis and plant photosynthesis [3,4,5]. Thus, in a large number of studies accurate observations and estimations of the PAR at the given location, are required [6,7], including concentrating solar power (CPV), meteorology, agriculture, land surface ecosystem, and sustainable development. However, due to the difficulties in calibration, construction, and maintenance of observation platform, in situ PAR stations are relatively sparse for PAR applications, especially in the mountains and remote areas.

In China, the Chinese Ecosystem Research Network (CERN) was established in 2005, to cover the different terrestrial ecosystems, providing high-quality PAR measurements. However, CERN only consisted of about forty field stations, which cannot meet the requirements of large-scale ecological and meteorological studies. PAR can be estimated from surface solar radiation (SSR) at radiation stations, using empirical conversion factors. However, the number of SSR stations was relatively smaller, in comparison with meteorological stations. A lot of PAR products have been calculated using ground measurements and satellite signals [8], such as PAR products from the International Satellite Cloud Climatology Project (ISCCP) [9,10], long-term PAR records obtained by the Total Ozone Mapping Spectrometer (TOMS) [11], and the PAR records obtained by the Moderate Resolution Imaging Spectroradiometer (MODIS) [12]. However, the accuracy, spatial-temporal continuities, and resolutions of these PAR products cannot meet the requirements for PAR applications.

Many attempts have been made to estimate PAR using meteorological measurements and satellite images. These models could be roughly divided into statistical models and physical models. The statistical models assumed the ratio of PAR to SSR (RPAR) as a constant value, for example, Moon [13] found that RPAR was approximately 0.44. However, McCree [14] considered that RPAR would change under various climate conditions. The RPAR under a clear-sky condition was in the range of 0.47–0.52, while the RPAR under a cloudy-sky condition was from 0.5–0.58. Incorporating the atmospheric attenuators, such as cloud fraction, cloud optical depth, aerosol optical depth, and total ozone amount, a lot of statistical models have been developed for simulating PAR, for example, Janjai et al. [15] developed a statistical model to estimate PAR using the cloud index, aerosol optical depth, precipitable water, total ozone column, and the solar zenith angle. The model performance showed that the R² was 0.96, root mean square difference (RMSD) was in the range of 7.3–7.9%, mean bias difference (MBD) ranged from −4.5% to 3.5%. Yu et al. [16] compared ten empirical models for estimating PAR, using ground measurements, the quadratic function model, taking into consideration the solar zenith angle and clearness index, performed better than the other models. Tan and Ismail [17] made a comparative study on the three empirical PAR models in Singapore, the model incorporating SSR, and the clearness index showed better accuracy than the other models. Despite the effectiveness of statistical PAR models, the relatively sparse SSR measurements would limit the application of the above models in remote and mountainous areas.

Taking into consideration the extinction processes in atmosphere, such as ozone absorption, Rayleigh scattering, and aerosol extinction, the physical models could retrieve PAR, with a strict theoretical basis. Physical models could be roughly divided into broadband and spectral models. Dividing the solar spectrum into several small ranges, the spectral models could estimate PAR with high spectral resolutions. Many spectral models have been developed for estimating PAR [18,19]. Despite the high spectral resolutions, these models were subjected to poor computational efficiencies. Compared with the spectral models, broadband models divided the solar spectrum into some relatively wide ranges. A lot of broadband models have been developed for retrieving PAR with a high accuracy and computational efficiency [20,21]. However, these models were limited to sparse meteorological stations. Along with surface meteorological measurements, satellite remote sensing provided an efficient way to retrieve PAR, with high spatial and temporal resolutions, at regional and global scales. Satellite signals derived from numerous polar orbiting satellites (for example, the Moderate Resolution Imaging Spectroradiometer (MODIS), Aura, and MSG2) and geostationary satellites (for example, the Geostationary Operational Environmental Satellites (GOES), Oceansat-1, the Multi-Functional Transport Satellite (MTSAT), and the GMS5) have been applied for PAR estimation. Among them, MODIS products were the most widely used products for retrieving PAR, due to its high spatial resolutions and spectral resolutions [22,23,24,25]. Despite the effectiveness of the satellite-based PAR models, they were subjected to some limitations, such as calibration accuracy, cloud screening effects, and the uncertainties of surface reflection [26].

Meanwhile, the artificial intelligence (AI) models, such as support vector machine regression (SVM), artificial bee colony (ABC), and artificial neural network (ANN) have been widely applied for estimating PAR around the world, in recent years. Among them, ANN was the most frequently used method for retrieving PAR, with a satisfied accuracy [27]. López et al. [28] developed a feed-forward multilayered perception neural network (MLP) for PAR estimation, using meteorological measurements. Pankaew et al. [29] proposed a model in Thailand, using the cosine of the solar zenith angle (θ), cloud index, water vapor, and the aerosol optical depth (AOD). The result showed that the RMSE between the estimated and the measured PAR at Chiang Mai, UbonRatchathani, NakhonPathom, and Songkhla stations were 10.9%, 9.3%, 8.7%, and 9.8%, respectively. Yu and Guo [30] conducted a comprehensive comparative study on the performances of the six MLP models and four statistical models proposed by Alados and Alados-Arboledas [31], the result indicates that the MLP models performed better than the statistical models. Wang et al. [27] further compared three ANN models in different climate zones, across China, including the MLP, the Generalized Regression Neural Network (GRNN), and the Radial Basis Neural Network (RBNN). The results revealed that MLP and RBNN showed better performances than GRNN. However, these AI models were limited to inherent drawbacks, such as the intrinsic disadvantages of revealing the explicit physics of the atmospheric radiative transfer processes in the atmosphere, and the slow convergence speed. These AI models should be further improved by combining them with other optimization algorithms.

Great efforts have been made to estimate PAR in China. Zhang et al. [32] calculated the RPAR in the Tibet Plateau (about 0.439). Xie et al. [33] developed an empirical model for predicting PAR, using MODIS products, the results showed that the R² between the estimated and the measured PAR in Yuncheng was 0.855. Wang et al. [3] proposed an empirical model for PAR estimation in China, during 1961–2012, the estimates showed good agreements with the PAR measurements at CERN stations. Tang et al. [34] reconstructed the daily PAR over China in the past fifty years, using Qin’s PAR model [35], the MBE, RMSE, and R² were 2.4 Wm⁻², 14 Wm⁻², and 0.92, respectively. Tang et al. [8] developed an efficient physical-based parameterization to derive the PAR, using the MODIS atmosphere and land products, based on a clear sky transmittance model [35] and a cloud transmittance parameterization [36]. The RMSE between the estimates and the measurements was 40 Wm⁻² and 15 Wm⁻², for instantaneous and daily scales, respectively. Meanwhile, a lot of PAR models using the LUT method have also been developed in China [37,38], for revealing the spatial and temporal variations of PAR in China. Hu et al. [39] found that the highest PAR in China was in the Qinghai-Tibet Plateau with an RPAR of 1.83 (1.68–1.98). Wang et al. [3] reconstructed the seasonal variations of PAR and RPAR in China, during 1955–2011, the result showed that the annual mean PAR and RPAR were 22.39 mol m⁻²day⁻¹and 1.9, respectively. Further comprehensive studies should be conducted to evaluate the model performances in various ecological zones, climate zones, and terrains, and then the spatial and temporal variation of PAR should be reconstructed with high accuracy and robustness, in China.

This study tried to compare the performances of the ten selected PAR models, including the relative sunshine-based broadband model (BBM), the physical-based model for tropical environment (PBM), the efficient physical-based model (EPP), and the look-up-table method (LUT), back propagation neural network (BP), adaptive neuro fuzzy inference system (ANFIS), least squares support vector machine (LSSVM), genetic algorithm (Genetic), M5 model tree (M5Tree), and the multivariate adaptive regression splines (MARS). Daily PAR measurements at twenty-nine CERN stations across China, during 2005–2014, in different climate zones and terrains, were used to evaluate the model performances. The climate and terrain effects on the PAR estimates from the different PAR models have also been quantitatively analyzed. Daily meteorological measurements at eight hundred and thirty-nine Chinese Meteorological Administration (CMA) stations, aerosol optical depth (0.55 nm) retrievals from the Modern-Era Retrospective analysis for Research and Applications, Version 2 (MERRA-2) datasets, and satellite signals from MODIS and MTSAT were also used as model inputs for estimating PAR in China. The spatial and temporal variations and related causes of PAR in different climate zones and terrain features, across China, were further analyzed in detail.

2. Materials and Methods

2.1. Sites and Data

2.1.1. Observation Data

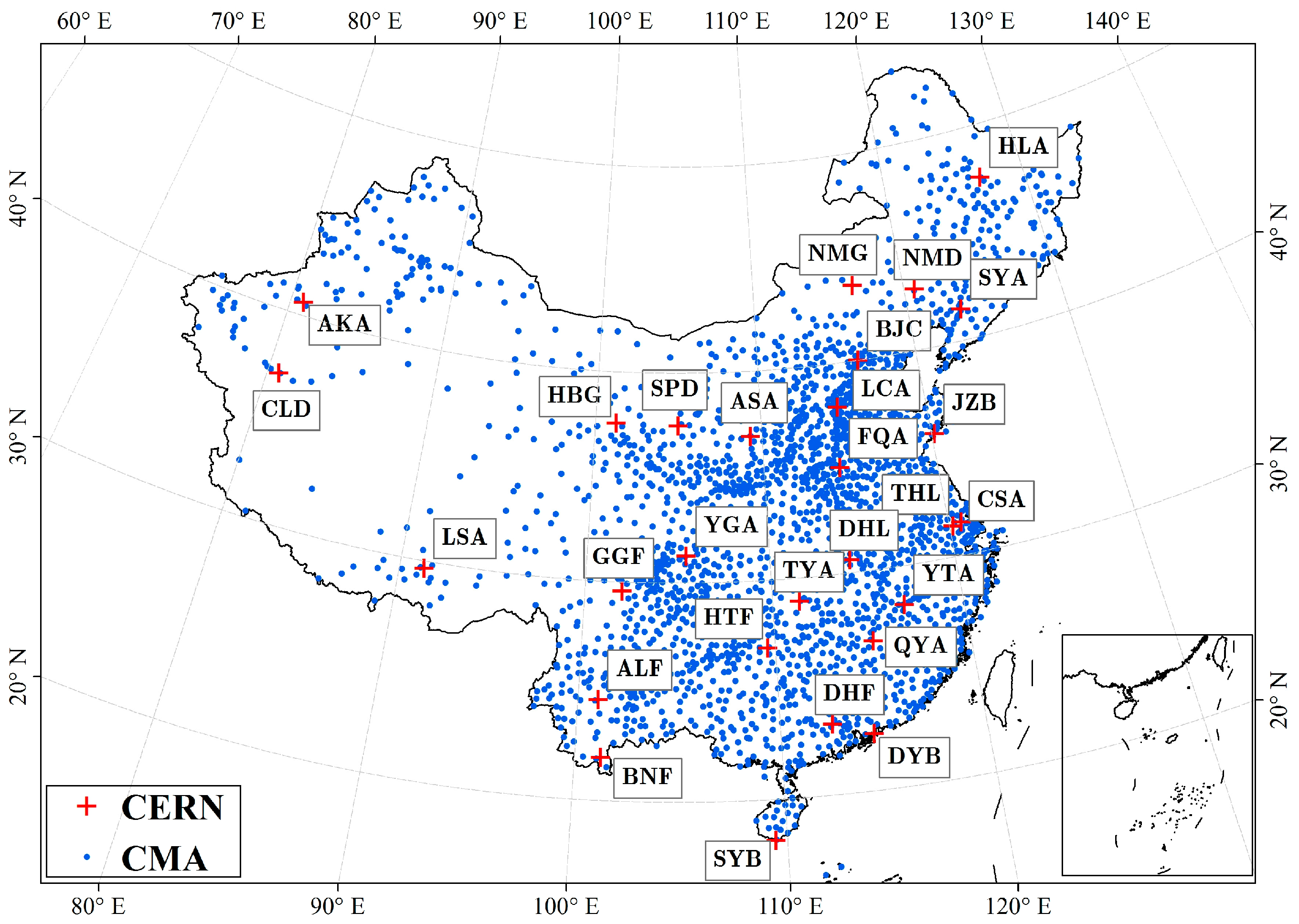

Daily PAR measurements at twenty-nine CERN stations, throughout China, were used for the model calibrations and validations. Figure 1 shows the spatial distributions of the CERN and CMA stations used in this study.

Table 1. The statistical indicators representing the meteorological patterns of the Chinese Ecosystem Research Network (CERN) stations.

Statistics	a (m)	pre (mm)	ps (hpa)	rh	sh (h/day)	at (°C)	ws (m/s)	vis (km)	trise (h)	tset (h)
Max	3688	263	1044.3	1	15.1	36.4	20.3	41.25	10.09	22.11
Min	3	0	638	0.05	0	−35.1	0	0.06	3.68	15.60
Std	977.26	8.65	91.46	0.19	4.08	11.99	1.33	7.92	1.13	1.16
Mean	754.79	2.28	939.45	0.65	6.25	13.18	2.09	18.37	6.65	18.70

a is altitude, pre—precipitation, ps—surface pressure, rh—relative humidity, sh—sunshine duration, at—air temperature, ws—wind speed, vis—visibility, trise—sunrise time, tset—sunset time.

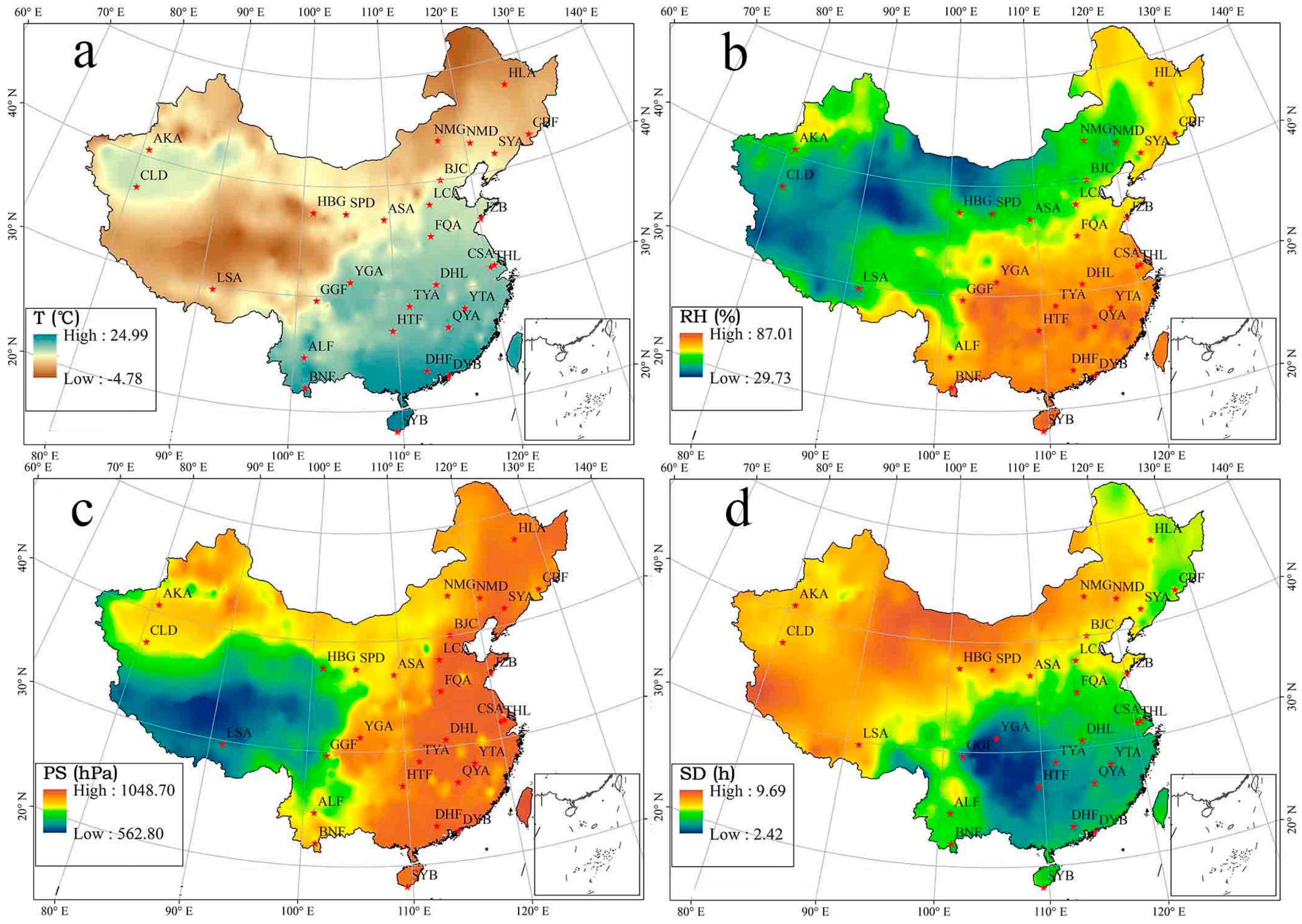

shows the general climatic patterns of these CERN stations, Figure 2 also presents the annual mean air temperature, relative humidity, air pressure at sea-level and the sunshine duration (the hours when solar irradiance is greater than 120 Wm⁻²) in China. It was clear that these CERN and CMA stations spread across most areas of China, with complicated geomorphology and distinctive climatic features.

2.1.2. Satellite Products

The MODIS atmosphere and land products and the MTSAT data were used to derive the input parameters for the PAR models in this study. Atmospheric parameters, including liquid water and ice cloud optical depth (CPO), total column ozone amount (Ioz), total column precipitable water (w), liquid water path and ice water path (CWP), effective particle radius for liquid water clouds and ice water clouds (re), cloud fraction (TCP), solar zenith angle ($\theta$), aerosol optical depth (aod) and surface pressure (PS) were derived from the MOD04/MYD04, MOD06/MYD06, and MOD07/MYD07. The ground albedo (α) was derived from the MOD09CMG and MYD09CMG. The top of atmosphere albedo (p_g) was derived from the MTSAT data. Detailed information for MODIS and MTSAT products are presented in

Table 2. Basic information about Moderate Resolution Imaging Spectroradiometer (MODIS) and Multi-Functional Transport Satellite (MTSAT) products used in this study.

Data Set Name	Parameters	Spatial Resolution	Temporal Resolution
MTSAT (VIS)	Earth-atmospheric albedo	0.05 degree	Hourly
MOD04/MYD04	Aerosol optical depth (AOD)	5 km	Daily
MOD06/MYD06	Cloud phase optical thickness (CPO), solar zenith angle ($\theta$h), cloud water path (CWP), effective particle radius (re), cloud fraction (TCP)	1 km	Daily
MOD07/MYD07	Precipitable water vapor (w), total zone amount (Ioz)	5 km	Daily
MOD09CMG/MYD09CMG	Surface albedo (ρg)	0.05 degree	Daily

.

2.1.3. Terrain and Climate Division Data

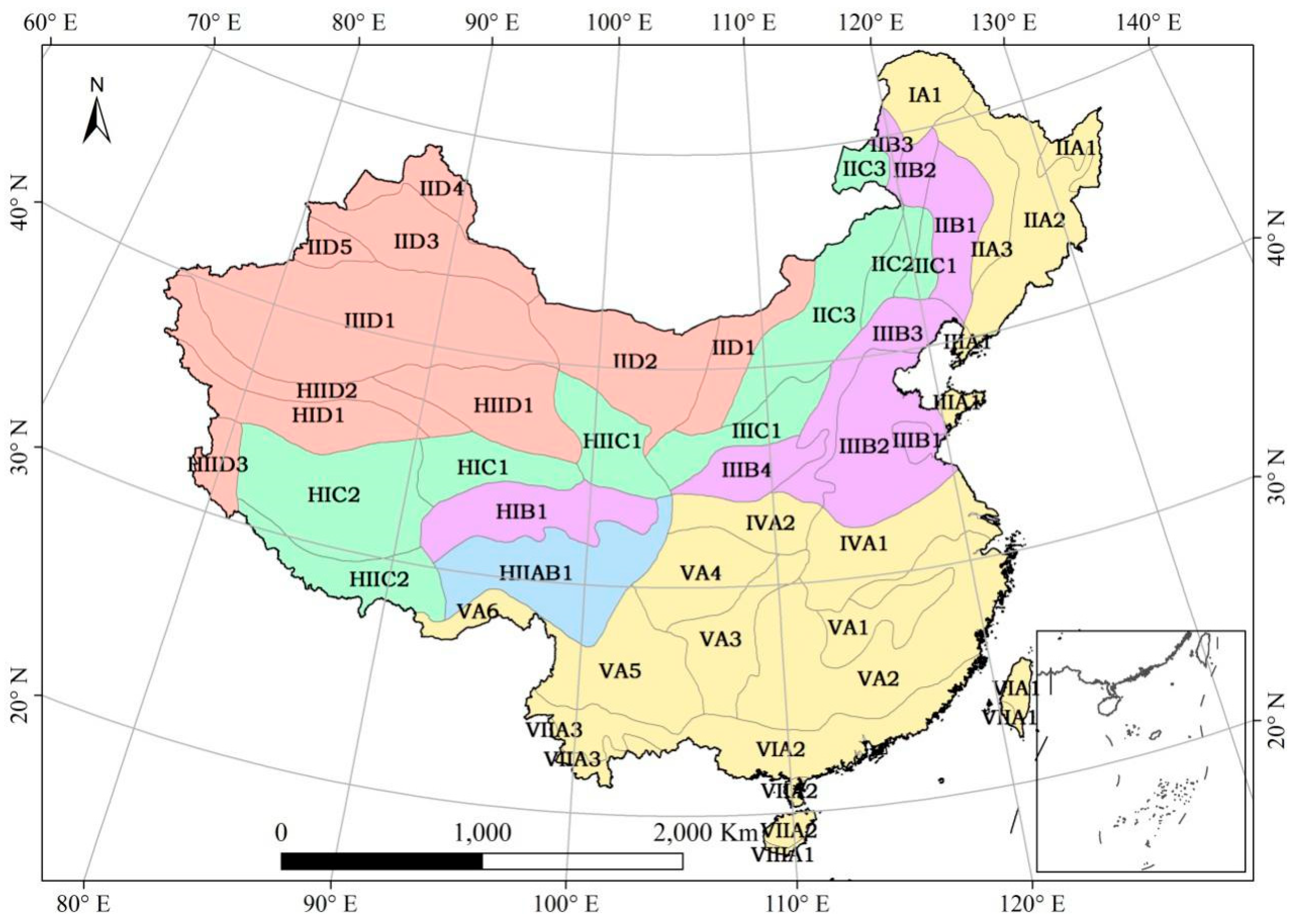

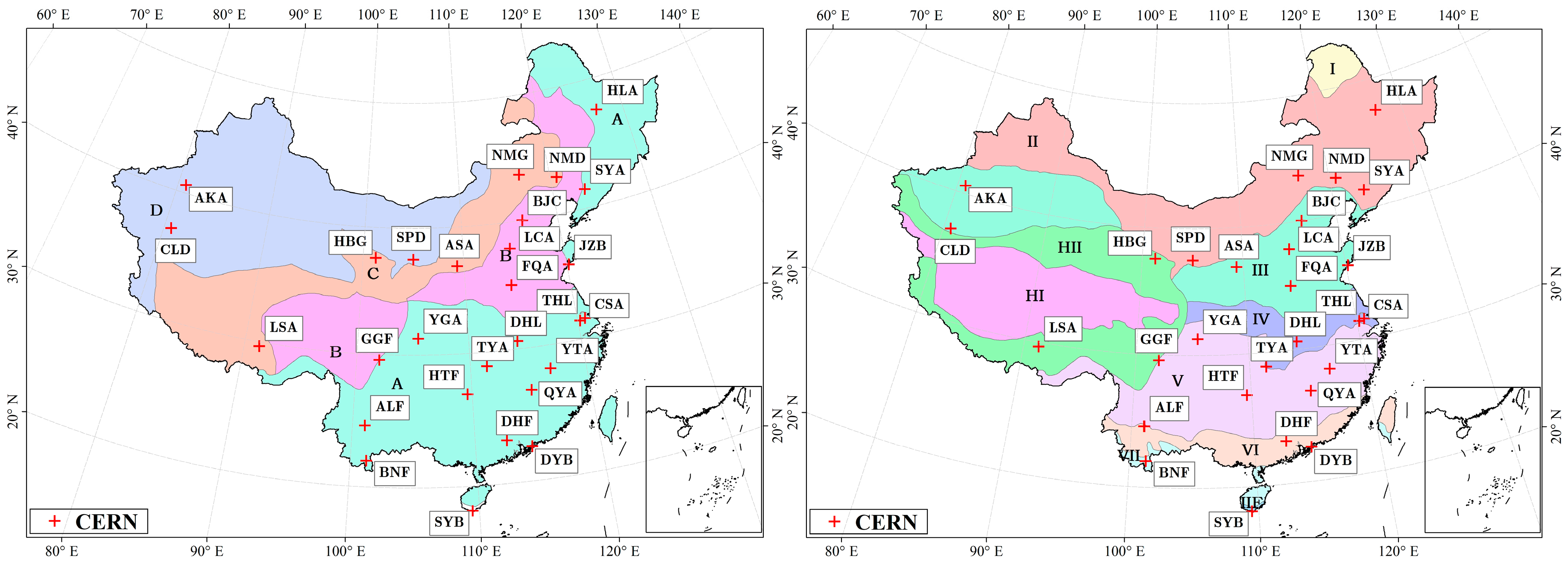

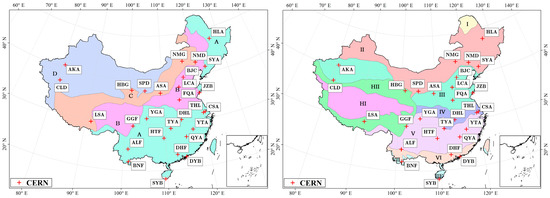

The climate and terrain regionalization data were provided by the Resource and Environment Science Data Center of Chinese Academy of Sciences (http://www.resdc.cn). Figure A1 and Figure A2 shows the climate zones and terrain features in China. There were four humidity zones, ten temperate zones, and fifty topographic zones, over mainland China.

2.2. Photosynthetically-Active Radiation Models

2.2.1. Physically-Based Models

BBM

The BBM model is a physical-based broadband model, which was developed by Qin et al. [35], based on the clear-sky spectral transmittance parameterization. Considering the major radiative extinction processes between the surface and the atmosphere, the BBM model has been proved to be an efficient PAR model, with a high accuracy, at seven Surface Radiation Budget Network (SURFRAD) stations and seven hundred and sixteen CMA stations, which is expressed as following equations:

$$R_{all}={\tau }_c{R}_{clr}$$

(1)

$$R_{clr}=R_b^{clr}+R_d^{clr}$$

(2)

$${\tau }_c=0.2495+1.1415r+0.3910r^2$$

(3)

where $R_{all}$ is the daily PAR under all-sky conditions, and $R_{clr}$ means the daily PAR under clear sky conditions. $R_b^{clr}$ and $R_d^{clr}$ are the beam and diffuse PAR under clear sky conditions, respectively. ${\tau }_c$ means the transmittances due to cloud scattering and absorption; $r$ represents the relative sunshine duration. $R_b^{clr}$ and $R_d^{clr}$ can be calculated using following equations:

$$R_b^{clr}=R_0{(d_0/d)}^2(sin\theta ){\tau }_b$$

(4)

$$R_d^{clr}=R_0{(d_0/d)}^2(sin\theta ){\tau }_d$$

(5)

where $\theta$ is the solar zenith angle (degree); $d_0/d$ is the eccentricity correction factor for the mean sun-earth distance; $R_0$ is the spectral irradiance (400–700 nm) at the mean distance between the earth and the sun in PAR band. ${\tau }_b$ is the beam transmittance in clear sky conditions; ${\tau }_d$ is the diffuse transmittance in clear sky conditions. ${\tau }_b$ and ${\tau }_d$ can be calculated as follows:

$${\tau }_b\approx {\tau }_g{\tau }_R{\tau }_w{\tau }_o{\tau }_a$$

(6)

$${\tau }_d\approx 0.5{\tau }_g{\tau }_w{\tau }_o(1-{\tau }_R{\tau }_a)$$

(7)

where ${\tau }_g$, ${\tau }_R$, ${\tau }_w$, ${\tau }_o$, and ${\tau }_a$ are the transmittances for the mixed gasses absorption, Rayleigh scattering, water vapor absorption, ozone absorption, and the aerosol extinction, respectively.

Where ${\tau }_g$, ${\tau }_R$, ${\tau }_w$, ${\tau }_o$, and ${\tau }_a$ represent the transmittances for mixed gasses, Rayleigh transmittance, water vapor, ozone, and aerosol, respectively, which can be calculated from:

$${\tau }_R=exp[-0.14057{(m^{\prime })}^{0.88384}]$$

(8)

$${\tau }_w=exp[-0.00021{(mw)}^{0.70991}]$$

(9)

$${\tau }_o=exp[-0.005218{(ml)}^{0.96054}]$$

(10)

$${\tau }_o=exp[-2.18157{(m\beta )}^{0.93988}]$$

(11)

$${\tau }_g\approx 1$$

(12)

where m represents the relative air mass; $m^{\prime }$ means the pressure-corrected relative air mass; $w$ is the precipitable water vapor (cm); $l$ is the ozone thickness (cm); and $\beta$ is the Ångström turbidity coefficient.

PBM

This PBM model is a physical-based PAR model taking into consideration the physical relations between PAR and the earth-atmospheric albedo with absorption and scattering atmospheric constituents [22]. The instantaneous PAR at the Earth’s surface in PBM, was obtained from:

$$I_{SUR}=\frac{I_{TOA}[1-{\rho }_B-(1-{\tau }_o)-{\tau }_o({\alpha }_w+{\alpha }_{aer}+{\alpha }_g)]}{(1-{\rho }_g)+{\rho }_g({\alpha }_w+{\alpha }_{aer}+{\alpha }_g)+{\rho }_g(1-{\alpha }_w-{\alpha }_{aer}-{\alpha }_g)(1-{\tau }_o)}$$

(13)

where ${\rho }_B$ is the earth-atmospheric albedo in the PAR band; ${\rho }_g$ is the surface albedo; ${\tau }_o$ means the ozone transmittance; ${\alpha }_w$, ${\alpha }_{aer}$, and ${\alpha }_g$ denote the absorption coefficients of water vapor, aerosols, and mixed gasses, respectively; $I_{TOA}$ is the extraterrestrial solar irradiation at the top of atmosphere in the PAR band, which could be calculated using following equation:

$$I_{TOA}=R_c[1+0.033cos(2\pi d_n/365)]cos\theta$$

(14)

where $R_c$ is the solar constant in the PAR band; $d_n$ means the day number since the first day of the year; ${\theta }_z$ is the solar zenith angle. The ozone transmittance ${\tau }_o$, absorption of water vapor (${\alpha }_w$), and mixed gasses (${\alpha }_g$) were calculated, using

$${\tau }_o=\frac{{\int }_{0.4um}^{0.7um}{I}_{o\lambda }{\tau }_{o\lambda }d\lambda }{{\int }_{0.4um}^{0.7um}{I}_{o\lambda }d\lambda }$$

(15)

$$a_w=1-\frac{{\int }_{0.4um}^{0.7um}{I}_{o\lambda }{\tau }_{w\lambda }d\lambda }{{\int }_{0.4um}^{0.7um}{I}_{w\lambda }d\lambda }$$

(16)

$$a_g=1-\frac{{\int }_{0.4um}^{0.7um}{I}_{o\lambda }{\tau }_{g\lambda }d\lambda }{{\int }_{0.4um}^{0.7um}{I}_{g\lambda }d\lambda }$$

(17)

where $I_{o\lambda }$ is the extraterrestrial solar irradiance; ${\tau }_{o\lambda }$, ${\tau }_{w\lambda }$, and ${\tau }_{g\lambda }$ are the spectral transmission coefficient for ozone, water vapor, and mixed gasses, respectively.

$${\tau }_{o\lambda }=exp(-k_{o\lambda }l{m}_r)$$

(18)

$${\tau }_{g\lambda }=exp[-1.41k_{g\lambda }{m}_a/(1+118.93k_{g\lambda }{m}_a)]$$

(19)

$${\tau }_{w\lambda }=exp[-0.2385k_{w\lambda }{m}_r/(1+20.07k_{w\lambda }w{m}_r{)}^{0.45}]$$

(20)

where $k_{o\lambda }$, $k_{w\lambda }$ and $k_{g\lambda }$ denotes the spectral extinction coefficient for ozone, water vapor, and mixed gasses, respectively; $m_a$ represents the air mass; $m_r$ represents the relative air mass; $l$ means the total ozone amount (cm); and $w$ is the precipitable water vapor (cm).

$$w=0.8933exp(0.1715\frac{rh{p}_s}{T})$$

(21)

where $rh$ is the relative humidity; $p_s$ means the surface pressure (mbar); and T means the air temperature (K).

The absorption and scattering ($Daer$) of aerosol was calculated using Equation (23). ${\alpha }_{aer}$ was partitioned from $Daer$, the detailed descriptions for the estimation of ${\alpha }_{aer}$ could be found in Reference [40,41].

$$Daer=1-\frac{{\int }_{0.4um}^{0.7um}{I}_{o\lambda }{\tau }_{aer\lambda }d\lambda }{{\int }_{0.4um}^{0.7um}{I}_{o\lambda }d\lambda }$$

(22)

where ${\tau }_{aer\lambda }$ is aerosol transmission coefficient, calculated as

$${\tau }_{aer\lambda }=exp(-\beta {\lambda }^{-\alpha }{m}_a)$$

(23)

$\beta$ is the Ångström turbidity coefficient and $\alpha$ denotes the wavelength exponent. $\beta$ was calculated as follows:

$$\beta =0.589-0.068VIS+0.0019VI{S}^2$$

(24)

where VIS is the visibility (km). It must be noted that Equation (25) was not correct in some situations, for example, when VIS was 15, 16, 17, 18, 19, 20, and 21 km, β was −0.0035, −0.0126, −0.0179, −0.0194, −0.0171, −0.011 and −0.0011, respectively. Thus, we introduced the formula below for the $\beta$ estimation [42], which was expressed as follows

$$\beta =(0.025+0.1cos\theta )exp(-0.7z/1000)$$

(25)

where $\theta$ is the latitude and z means the surface elevation.

EPP

This physical-based parameterization (EPP) was proposed by Tang et al. [8], based on the BBM and the cloud parameterization developed by Sun et al. [40]. PAR could be calculated using the following equation:

$$R_{all}=\frac{(1-C_w-C_i)R_{clr}+C_w{R}_{wc}+C_i{R}_{ic}}{1-{\rho }_{a,all}{\rho }_g}$$

(26)

where $C_w$ and $C_i$ are the cloud fractions for water cloud and ice cloud, respectively. $R_{clr}$, $R_{wc}$, and $R_{ic}$ represent PAR in clear sky conditions, water cloudy sky conditions, and ice cloudy sky conditions, respectively; ${\rho }_g$ is the surface albedo; ${\rho }_{a,all}$ denotes the atmospheric spherical albedo, which was calculated as follows

$${\rho }_{a,all}=(1-C_w-C_i){\rho }_{a,clr}+C_w{\rho }_{a,wc}+C_i{\rho }_{a,ic}$$

(27)

where ${\rho }_{a,clr}$, ${\rho }_{a,wc}$, and ${\rho }_{a,ic}$ are the atmospheric spherical albedo for clear sky conditions, water cloudy sky conditions, and ice cloudy sky conditions, respectively. $R_{clr}$, $R_{wc}$, and $R_{ic}$ could be calculated using following equations:

$$R_{clr}=R({\tau }_b^{clr}+{\tau }_d^{clr})$$

(28)

$$R=R_0{(d_0/d)}^2\mu$$

(29)

$$R_{wc}=R_{clr}{\tau }_{wc}$$

(30)

$$R_{ic}=R_{clr}{\tau }_{ic}$$

(31)

where ${\tau }_b$ and ${\tau }_d$ are beam and diffuse transmittance, respectively; ${\tau }_{wc}$ and ${\tau }_{ic}$ denote the global transmittance for water cloud and ice cloud, respectively.

LUT

The LUT method introduced in this study was developed by Zhang et al. [24]. First, the input parameters derived from the MODIS products were preprocessed (geometric correction, reprojection, and calibration). Second, the first look-up table was generated to connect atmospheric condition (visibility, cloud optical depth, water vapor amount, ozone amount, aerosol type, and cloud type, etc.) to the top of the atmosphere radiance ($I_{TOA}$). Then, the second look-up table was generated to connect the atmospheric condition to PAR. At last, the surface PAR was calculated using the look-up Table 1 and Table 2. In this study, GLASS (Global land surface satellite) PAR datasets generated by Zhang et al. [24] were used for the PAR validation, across China (http://glass-product.bnu.edu.cn).

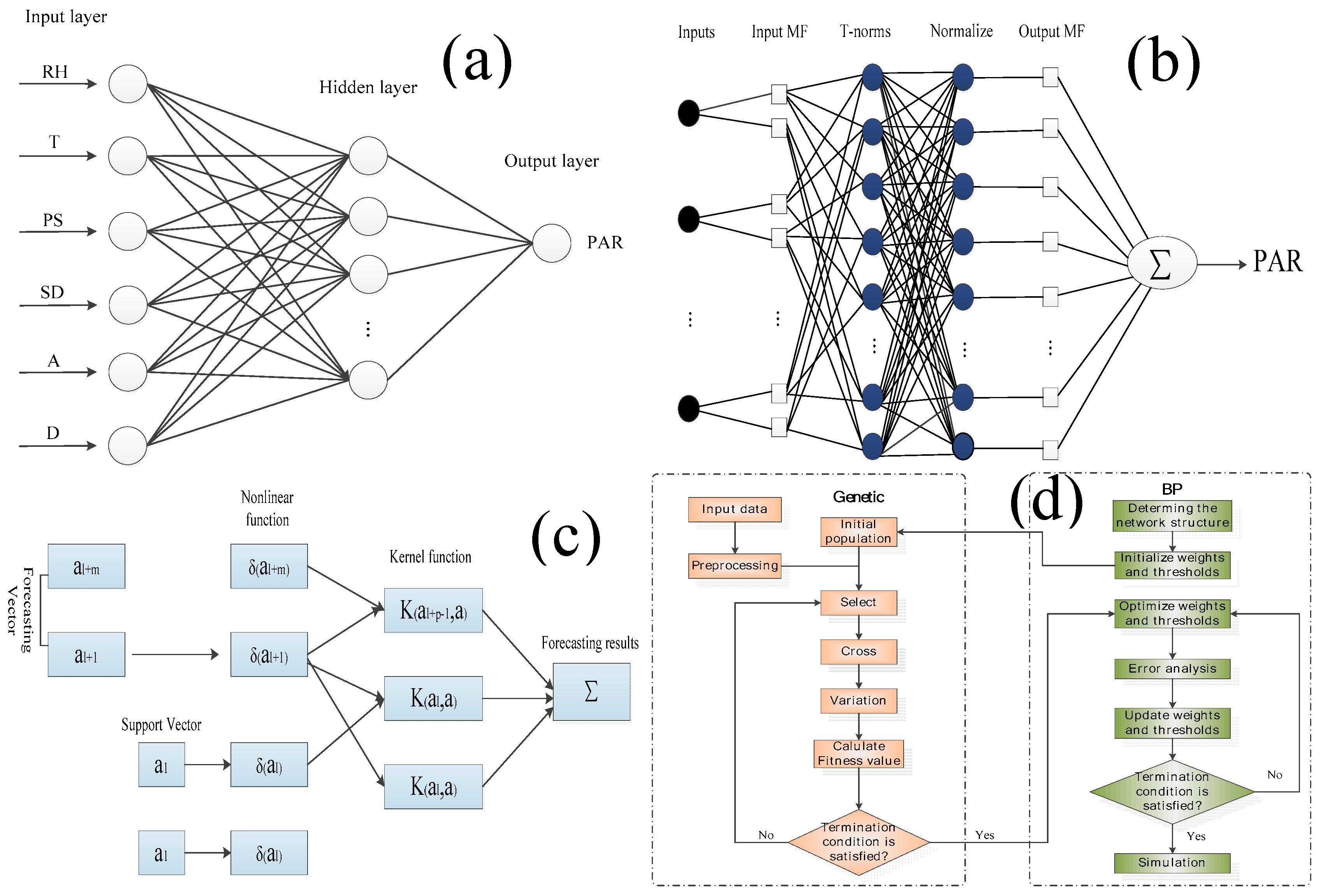

2.2.2. The AI models

BP

The BP model is the most widely used AI models for estimating a solar radiation, with a strong learning ability and high accuracy [27]. The basic schematic architecture of the BP neural network was illustrated in Figure 3a. The BP model was formed by the input layer, the hidden layer, and the output layer. Each layer consisted of some neurons connected to each other. The basic idea of BP is to find a function that best maps a set of input parameters to the correct output values, using a gradient descent optimization algorithm, which minimizes the mean square error between the network’s actual output and the expected output values. In this study, six parameters ($\mathrm{rh}$, $\mathrm{at}$, $\mathrm{ps}$, $\mathrm{sd}$, a, $d_n$) that were closely correlated with the PAR values were set as input parameters for the BP model; daily PAR measurements were set as the model output parameter. The PAR values could be calculated using following equation:

$${\mathrm{F}}_{\mathrm{g}}=\mathrm{Z}\left({\displaystyle \sum }_{\mathrm{i}=1}^{\mathrm{N}}{\mathrm{w}}_{\mathrm{i}}(\mathrm{t}){\mathrm{x}}_{\mathrm{i}}(\mathrm{t})+\mathrm{nb}\right)$$

(32)

where ${\mathrm{F}}_{\mathrm{g}}$ is the estimated PAR; $\mathrm{Z}(.)$ means the hidden transfer function; ${\mathrm{w}}_{\mathrm{i}}(\mathrm{t})$ means the weight; ${\mathrm{x}}_{\mathrm{i}}(\mathrm{t})$ means the input parameters indiscrete time space; and $\mathrm{b}$ means the neuronal bias.

ANFIS

The ANFIS is a hybrid intelligence system integrating the self-learning ability of the ANN and the reasoning ability of fuzzy logic [41]. The general structure of the ANFIS model is shown in Figure 3b. The ANFIS model establishes the appropriate membership function of the input and the output variables, by a set of fuzzy If-Then rules and forms output functions [42]. The $\mathrm{rh}$, $\mathrm{at}$, $\mathrm{ps}$, $\mathrm{sd}$, a, and $d_n$ were the input parameters for the ANFIS, the measured PAR value was the output value for ANFIS. There were five layers for ANFIS, including fuzzification, rules, normalization, defuzzification, and summation in this study.

LSSVM

LSSVM is a powerful AI model for solving nonlinear regression evolved from the Support Vector Machine (SVM) [43]. The procedure of LSSVM in this study is shown in Figure 3c. Given a set of inputs a_i (meteorological parameters) and output y_i (PAR values), the LSSVM could reveal the nonlinear relationship between the input and the output values. The nonlinear function of LSSVM could be briefly expressed as:

$$\mathrm{f}(\mathrm{a})={\mathsf{\omega }}^T\mathsf{\delta }(\mathrm{a})+\mathrm{bt}$$

(33)

where $\mathsf{\omega }$, δ, and bt are the m-dimensional weight vector, mapping function, and bias term, respectively. In this study, daily $\mathrm{rh}$, $\mathrm{at}$, $\mathrm{ps}$, $\mathrm{sd}$, a, $d_n$ and PAR records at twenty-nine CERN stations were used for training and testing the LSSVM model. More detailed information about the LSSVM model could be found in Kisi [44].

Genetic

The Genetic algorithm is a heuristic algorithm inspired by the process of natural selection that belongs to the larger class of evolutionary algorithms [45]. The Genetic algorithm is commonly used to generate high-quality solutions to optimization and search problems. The Genetic model was used to improve the model accuracy for predicting the PAR values. The Genetic models for estimating PAR were conducted as the following setups (Figure 3d):

(1)

Initialize the random population: The basic structure of the BP neural network in this study was 6–10-1 (Figure 3a) with six input layers, ten hidden layers, and one output layer. Thus, the number of weights was 6 × 10 + 10 × 1 = 70; the number of thresholds was 10 + 1 = 11. So, the encoding length was 70 + 11 = 81.

(2)

Selection operation: The new individuals with the high-fitness values would be selected from old individuals using a roulette selection method. The selection probability for individuals were calculated as the following equation:

$$g_i=a/a_i$$

(34)

$$P_i=g_i/{\displaystyle \sum }_{j=1}^n{g}_i$$

(35)

where $P_i$ is the selection probability; $g_i$ is the fitness value, which could be calculated as:

$$g_i=c1({\displaystyle \sum }_{j=1}^{N}abs(y_i-o_i))$$

(36)

where N is the number of input layers of Genetic; y_i is the i-th expected output value; o_i is the i-th predicted output values.

(3)

Crossover operation: The crossover operation was conducted using the arithmetic crossover algorithm:

$$\begin{array}{c}{a}_{cj}=a_{cj}(1-b)+a_{dj}c2\\ a_{dj}=a_{dj}(1-b)+a_{cj}c2\end{array}\}$$

(37)

where $a_{cj}$ and $a_{dj}$ are the c-th and d-th chromosome at j position, respectively; c2 is a constant with the range of 0–1.

(4)

Mutation operation: The mutation operation was conducted using following equations:

$$a_{ij}=\{\begin{array}{c}{a}_{ij}+(a_{ij}-a_{max})\ast f(g)r>0.5\\ a_{ij}+(a_{min}-a_{ij})\ast f(g)r\le 0.5\end{array}$$

(38)

$$f(g)=rr{(1-g/G_{max})}^2$$

(39)

where a_max and a_min are the maximum and minimum values for a_i,j, respectively; r is a random number [0,1]; rr is the random number; g is the number of iterations; and G_max is maximum evolution times.

M5Tree

The M5Tree was first developed by Quinlan [46], based on a binary decision tree. The M5Tree could be used to reconstruct the quantitative relationship between the input and the output values. The M5Tree contains three steps [47,48]: (1) Splitting data into subsets to create decision trees; (2) generating the model tree; (3) building the linear regression model. In this study, the $\mathrm{rh}$, $\mathrm{at}$, $\mathrm{ps}$, $\mathrm{sd}$, a, $d_n$, and the PAR measurements were used for training and testing M5Tree model for predicting the PAR values.

MARS

MARS is a non-parametric regression technique, which could be used to predict the values of a continuous dependent or outcome variable from a set of independent or predictor variables, without any assumption about the underlying functional relationship between the dependent and the independent variables [49,50]. The MARS model for estimating PAR is given as:

$$\mathrm{Y}=\mathsf{\alpha }+{\displaystyle \sum }_{m=1}^M{\beta }_m{h}_m(X)$$

(40)

where Y is the estimated PAR values as a function of the input parameters ($\mathrm{rh}$, $\mathrm{at}$, $\mathrm{ps}$, $\mathrm{sd}$, a, $d_n$); ${\beta }_m$ is the weight; $h_m(X)$ is the basis functions; X is the input parameters. Further details of MARS can be found in Sharda et al. [51].

2.3. Preprocesses for PAR Measurements

The equipment and operation-related errors would degrade the accuracy of the PAR measurements. In this study, the quality control process for the PAR measurements at the CERN stations was conducted following two principles: (1) The ratio between PAR (mol m⁻² s⁻¹) and SSR (MJ m⁻²day⁻¹) must be in the range of 1.3–2.8 mol MJ⁻¹; (2) each measured PAR should not exceed the PAR at the top of the atmosphere (G₀), at the same geographical location. Moreover, the instantaneous PAR is typically expressed as the photon flux density (mol m⁻² s⁻¹) [3,27]. Dye [52] considered that the ratio of energy flux density to the photosynthetic photon flux density was 1/4.57 (MJ mol⁻¹). Therefore, in our study, the unit of PAR measurement was unified to the energy flux density by multiplying 1/4.57.

2.4. The Statistical Indicators Representing Model Accuracy

In this study, a total of 70% of the database, during the whole study period, were used to train these PAR models, and the remaining datasets were used for testing these models. The model accuracies were validated using the following statistical indicators: The mean absolute bias error (MAE), the mean bias error (MBE), the root mean square error (RMSE), and the correlation coefficient (R):

$$RMSE=\sqrt{\left({\displaystyle \sum }_{i=1}^N{(P_{est,i}-P_{obs,i})}^2\right)/N}$$

(41)

$$MAE=\left({\displaystyle \sum }_{i=1}^N\left|(P_{est,i}-P_{obs,i})\right|\right)/N$$

(42)

$$MBE=\left({\displaystyle \sum }_{i=1}^N(P_{est,i}-P_{obs,i})\right)/N$$

(43)

$$R=\frac{({\sum }_{i=1}^N(P_{est,i}-\overline{P_{est,i}})(P_{obs,i}-\overline{P_{obs,i}}))}{{\sum }_{i=1}^N(P_{est,i}-\overline{P_{est,i}}){\sum }_{i=1}^N(P_{obs,i}-\overline{P_{obs,i}})}$$

(44)

where N is the sample number; $P_{est}$ and $P_{obs}$ represent the estimated and observed PAR, respectively; $\overline{P_{est}}$ and $\overline{P_{obs}}$ represent mean values of the estimated and the observed PAR, respectively.

3. Result and Discussion

3.1. Validation of Daily PAR Estimations at CERN Stations

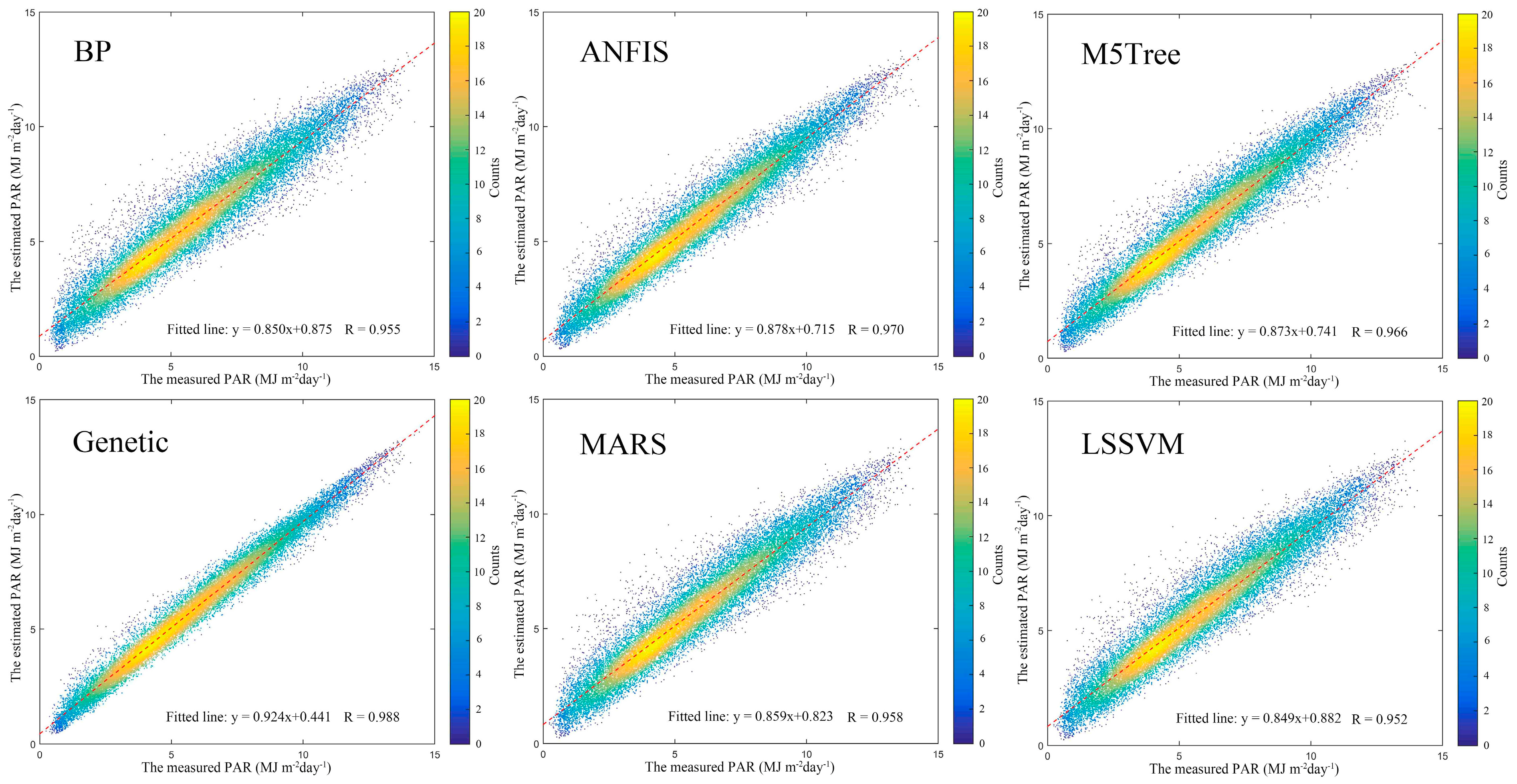

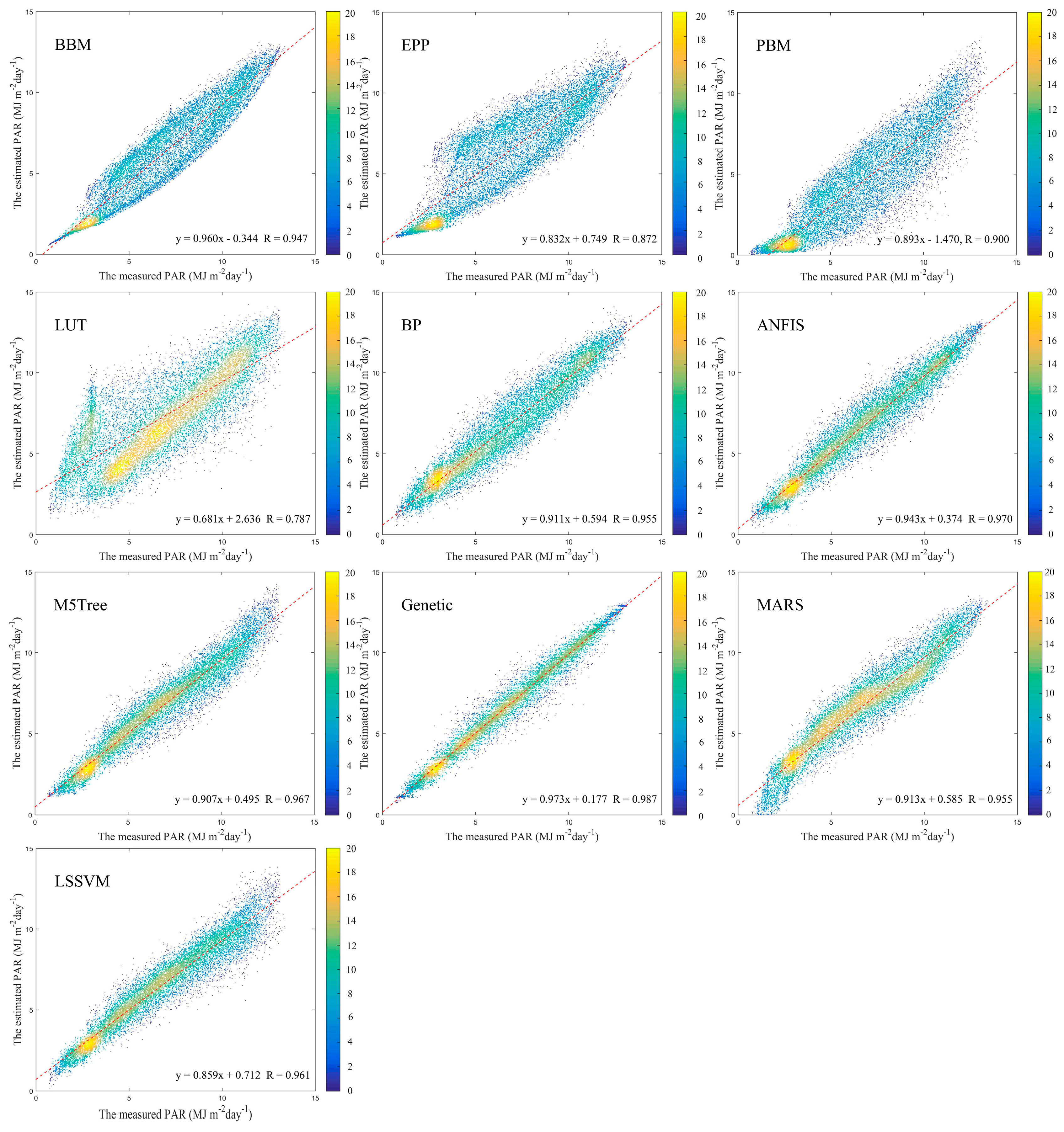

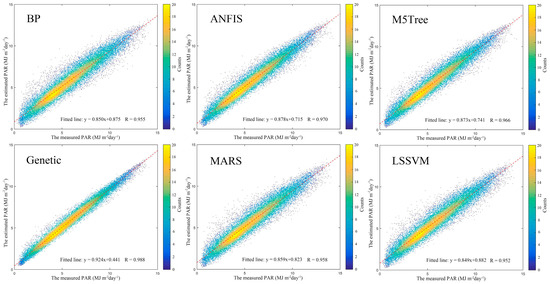

The model accuracies of these ten PAR models were evaluated at twenty-nine CERN stations over mainland China. More than twenty-five thousand six hundred and sixty-six data samples were used for the training phases of six AI models. Figure 4 shows the model performance of these AI models, in the training phases. All the estimated PAR showed good agreements with the PAR measurements. Among these AI models, the Genetic model performed superior to the other AI models. Then, another eleven thousand data samples were used to validate the model performance of all ten PAR models that were used in this study. Figure 5 illustrates the statistical indicators representing model accuracies of all PAR models. All methods produced PAR estimates that positively correlated with the measurements at the CERN stations. The R values for the BBM, EPP, PBM, LUT, BP, ANFIS, M5Tree, Genetic, MARS, and LSSVM were 0.947, 0.872, 0.900, 0.787, 0.955, 0.970, 0.967, 0.987, 0.955, and 0.961, respectively. All AI models (BP, ANFIS, M5Tree, Genetic, MARS, and LSSVM) showed overwhelming superiority than the BBM, EPP, PBM, LUT, owing to their strong learning. The RMSE for the BBM, EPP, PBM, LUT, BP, ANFIS, M5Tree, Genetic, MARS, and LSSVM were 1.175, 1.565, 2.593, 1.975, 0.912, 0.748, 0.799, 0.5, 0.907, and 0.903, respectively; The MAE for the BBM, EPP, PBM, LUT, BP, ANFIS, M5Tree, Genetic, MARS, and LSSVM were 0.976, 1.310, 2.202, 1.463, 0.731, 0.557, 0.595, 0.326, 0.743, and 0.643, respectively. The Genetic model showed better performances than the other PAR models, with the highest R (0.973) and the lowest RMSE (0.5 MJ m⁻²day⁻¹) and MAE (0.326 MJ m⁻²day⁻¹), due to the optimization of the weight and threshold of the neural network. Affected by the cloud cover and changing weather conditions, parameters derived from MODIS level 2 products and the MTSAT data for the EPP were not always accessible at all CERN stations. Thus, the PBM yielded the largest errors with the highest RMSE (2.593 MJ m⁻²day⁻¹) and MAE (2.202 MJ m⁻²day⁻¹).

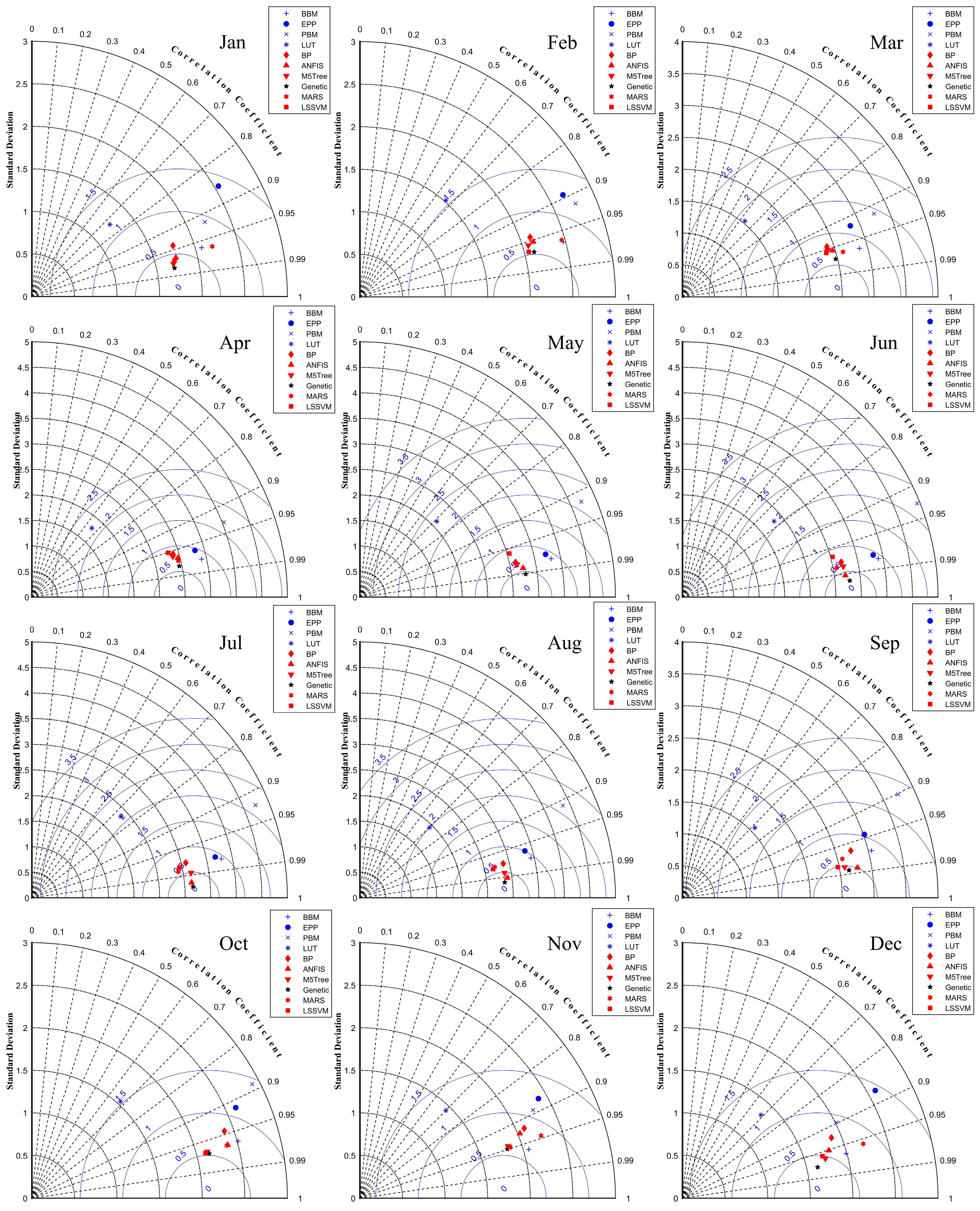

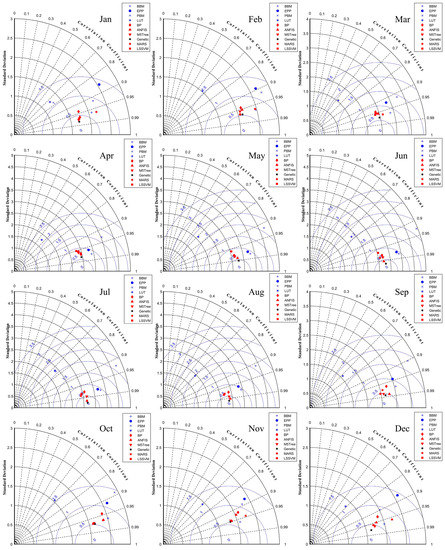

Taylor diagrams were introduced to visualize the model accuracies. Figure 6 shows the Taylor diagrams used to visualize the model accuracies for all PAR models in each month of the year, respectively. It was clear that the model accuracies for all models were subject to seasonal climatic characteristics. The physical models (BBM, EPP, PBM and LUT) showed better performances in winter than those in summer, due to the abundant water vapor and large cloud cover in summer. The smallest RMSE for all physical-based models were in January, the smallest MAE were also in January; the largest RMSE for all physical-based models were also in June, the largest MAE were in June. In contrast, the estimated PAR by the AI models (BP, ANFIS, M5Tree, MARS, Genetic and LSSVM) showed better agreements with the PAR measurements in each month, due to their strong adaptability to the fluctuation of input parameters. The model performances for the Genetic model, throughout the year, were more stable than the other models, the largest RMSE (0.679 MJ m⁻²day⁻¹) and MAE (0.460 MJ m⁻²day⁻¹) for the Genetic were found in April; the smallest RMSE (0.239 MJ m⁻²day⁻¹) and MAE (0.153 MJ m⁻²day⁻¹) were found in July. PBM was not as accurate as other PAR models for estimating PAR values throughout a year, with distinct seasonal variations, and had high RMSE and MAE values, in each month.

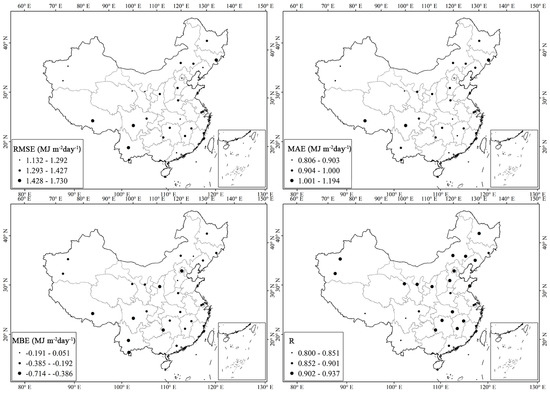

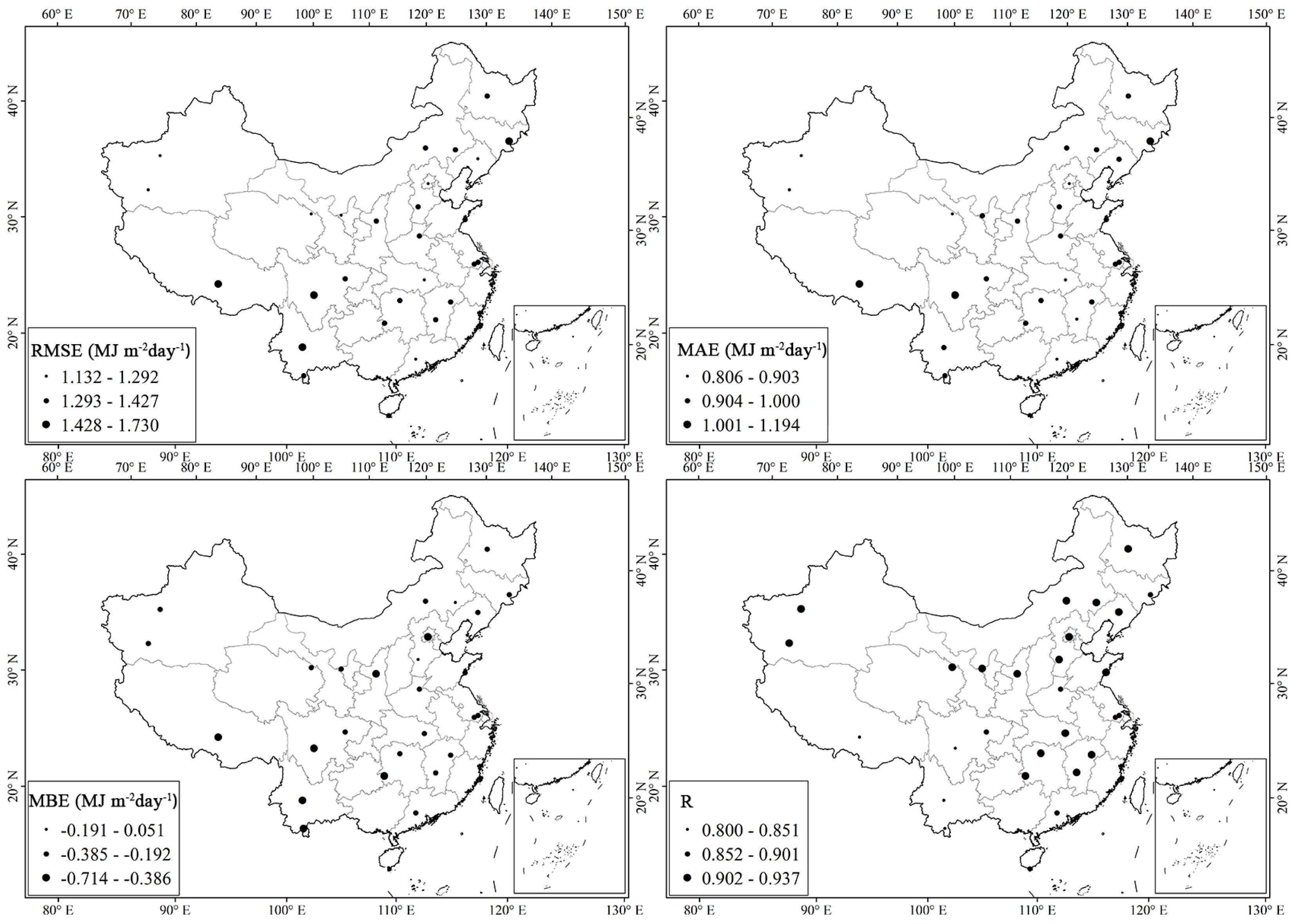

Figure 7 illustrated the spatial distributions of the mean values of the statistical indicators representing model accuracies for all PAR models at CERN stations. Relatively larger errors were mainly observed in the plateau zones, due to the strong heating atmosphere there, for example, the mean RMSE, MAE, R and MBE for all PAR models at Lhasha (LSA), in the Qinghai-Tibetan Plateau, were 1.456 MJ m⁻²day⁻¹, 1.042 MJ m⁻²day⁻¹, 0.804, and −0.528 MJ m⁻²day⁻¹, respectively; the mean RMSE, MAE, R and MBE for all PAR models at Gongga (GGF), in the Qinghai-Tibetan Plateau, were 1.730 MJ m⁻²day⁻¹, 1.194 MJ m⁻²day⁻¹, 0.800, and −0.714 MJ m⁻²day⁻¹, respectively; the mean RMSE, MAE, R and MBE for all PAR models at Ailao (ALF), in the Yunnan-Guizhou Plateau, were 1.458MJ m⁻²day⁻¹, 0.966 MJ m⁻²day⁻¹, 0.851, and −0.549 MJ m⁻²day⁻¹, respectively. The model deviations were also large in the tropical zones, for example, the mean RMSE, MAE, R and MBE for all PAR models at Xishuangbanna (BNF) (tropical zone) were 1.427 MJ m⁻²day⁻¹, 0.954 MJ m⁻²day⁻¹, 0.826, and −0.465 MJ m⁻²day⁻¹, respectively. In contrast, owing to the dry air conditions, relatively lower estimation errors were observed in Northwestern China, for example, the RMSE, MAE, Rand MBE for all PAR models at AKA, in the Tarim Desert, were 1.132 MJ m⁻²day⁻¹, 0.806 MJ m⁻²day⁻¹, 0.937, and −0.259 MJ m⁻²day⁻¹, respectively; the RMSE, MAE, R and MBE for all PAR models at Cele (CLD), in the Tarim Desert, were 1.206 MJ m⁻²day⁻¹, 0.870 MJ m⁻²day⁻¹, 0.918, and −0.284 MJ m⁻²day⁻¹, respectively. The smallest model deviations were observed in Haibei (HBG) and Shapotou (SPD), in the Alashan and the Hexi corridor; the RMSE, MAE, R and MBE, for the HBG, were 1.152 MJ m⁻²day⁻¹, 0.881 MJ m⁻²day⁻¹, 0.909 and −0.211 MJ m⁻²day⁻¹, respectively; the RMSE, MAE, R and MBE, for the SPD, were 1.288 MJ m⁻²day⁻¹, 0.917 MJ m⁻²day⁻¹, 0.924, and −0.250 MJ m⁻²day⁻¹, respectively.

Figure 8 and Figure 9 showed the statistical indicators representing the model accuracies for all PAR models, at different CERN stations. All AI models showed better model accuracies than the BBM, EPP, PBM and LUT, owing to their strong adaptability to the fluctuations of the input parameters. The ranges of RMSE for the BBM, EPP, PBM, LUT, BP, ANFIS, M5Tree, Genetic, MARS, and LSSVM at the CERN stations were 1.027~1.625, 1.186~2.177, 1.938~4.074, 1.168~2.563, 0.675~1.120, 0.504~0.978, 0.515~1.089, 0.324~0.664, 0.690~1.091, and 0.455~1.299 MJ m⁻²day⁻¹, respectively. The ranges of MAE for the BBM, EPP, PBM, LUT, BP, ANFIS, M5Tree, Genetic, MARS, and LSSVM at the CERN stations were 0.819~1.434, 0.992~1.836, 1.504~3.822, 0.933~1.996, 0.540~0.904, 0.382~0.743, 0.392~0.831, 0.215~0.448, 0.571~0.903, and 0.339~0.928 MJ m⁻²day⁻¹, respectively. The ranges of R for the BBM, EPP, PBM, LUT, BP, ANFIS, M5Tree, Genetic, MARS, and LSSVM at the CERN stations were 0.851~0.978, 0.662~0.961, 0.705~0.947, 0.302~0.919, 0.924~0.971, 0.925~0.982, 0.930~0.981, 0.969~0.992, 0.893~0.974, and 0.895~0.985, respectively. The ranges of MBE for the BBM, EPP, PBM, LUT, BP, ANFIS, M5Tree, Genetic, MARS, and SVM at the CERN stations were −1.434~0.220, −1.694~1.045, −3.822~−1.382, −0.539~1.701, −0.194~0.409, −0.309~0.259, −0.565~0.122, −0.048~0.06, −0.4~0.288, and −0.642~−0.02 MJ m⁻²day⁻¹, respectively.

The Genetic performed superior to other models in all CERN stations, due to its optimized weight and threshold for the neural network. The ranges of the RMSE, MAE, R, and MBE for the Genetic, at all CERN stations, were 0.324~0.664 MJ m⁻²day⁻¹, 0.215~0.448 MJ m⁻²day⁻¹, 0.969~0.992 and −0.048~0.060 MJ m⁻²day⁻¹, respectively. The largest model deviations for the Genetic were found in the Changbaishan (CBF) with RMSE, MAE, R and MBE being 0.664 MJ m⁻²day⁻¹, 0.448 MJ m⁻²day⁻¹, 0.977 and −0.039 MJ m⁻²day⁻¹, respectively; The smallest model deviations for the Genetic were found in the ALF, with RMSE, MAE, R and MBE being 0.324 MJ m⁻²day⁻¹, 0.215 MJ m⁻²day⁻¹, 0.991, and 0.020 MJ m⁻²day⁻¹, respectively. In contrast, PBM was not accurate as the other models, at all CERN stations. The ranges of the RMSE, MAE, R, and MBE for the PBM, at all CERN stations, were 1.938~4.074 MJ m⁻²day⁻¹, 1.504~3.822 MJ m⁻²day⁻¹, 0.705~0.947, and −3.822~−1.382 MJ m⁻²day⁻¹, respectively. The largest model deviations for the PBM were found in the GGF with RMSE, MAE, R, and MBE, being 4.074 MJ m⁻²day⁻¹, 3.822 MJ m⁻²day⁻¹, 0.820 and −3.822 MJ m⁻²day⁻¹, respectively. The smallest model deviations for the PBM were found in the CLD with RMSE, MAE, R and MBE being 1.938 MJ m⁻²day⁻¹, 1.527 MJ m⁻²day⁻¹, 0.909, and −1.479 MJ m⁻²day⁻¹, respectively.

In all, the AI models were more accurate and stable than the BBM, EPP, PBM and LUT. BBM, EPP, PBM and LUT were more susceptible to weather conditions than the AI models, which may be attributed to the uncertainties of satellite signals caused by cloud cover and precipitable water vapor. Compared with the AI models, larger spatial and temporal variations of statistical indicators were observed for the BBM, EPP, PBM and LUT. The Genetic showed better accuracies and robustness than the other PAR models, at all selected CERN stations, without significant seasonal variations, due to its strong learning ability and optimized weight and thresholds, for the neural network.

3.2. Validation of PAR Models in Various Climate Zones and Terrains

Many radiation extinction processes occur when solar radiation passes through the atmosphere and is eventually reflected back to space. These extinction processes would vary with time and locations. Temperature was directly proportional to surface solar radiation, without radiation-damping processes in the atmosphere.

Table 3. The root mean square error (RMSE) and mean absolute bias error (MAE) for the PAR models in different temperate zones.

Statistics	Models	HII	II	IIE	III	IV	V	VI	VII
RMSE	BBM	1.178	1.112	1.186	1.116	1.189	1.201	1.266	1.453
	EPP	1.666	1.466	1.369	1.627	1.500	1.568	1.555	1.832
	PBM	2.776	2.454	2.814	2.263	2.728	2.748	2.780	3.141
	LUT	1.820	2.095	1.857	1.854	2.013	1.922	2.195	2.007
	BP	0.918	0.963	0.876	0.973	0.823	0.873	0.902	0.675
	ANFIS	0.830	0.769	0.567	0.806	0.711	0.708	0.719	0.507
	M5Tree	0.817	0.819	0.663	0.858	0.828	0.743	0.754	0.515
	Genetic	0.540	0.520	0.377	0.519	0.488	0.479	0.513	0.324
	MARS	0.988	0.923	0.780	0.959	0.861	0.855	0.897	0.770
	SVM	0.969	0.861	0.579	0.998	0.958	0.878	0.849	0.458
	Mean	1.250	1.198	1.107	1.197	1.210	1.197	1.243	1.168
MAE	BBM	0.946	0.928	1.041	0.935	0.992	0.989	1.056	1.226
	EPP	1.460	1.220	1.198	1.348	1.266	1.308	1.284	1.556
	PBM	2.319	2.100	2.544	1.868	2.365	2.334	2.447	2.729
	LUT	1.319	1.533	1.430	1.336	1.495	1.430	1.740	1.605
	BP	0.724	0.769	0.735	0.789	0.653	0.710	0.710	0.540
	ANFIS	0.642	0.558	0.435	0.609	0.524	0.538	0.526	0.394
	M5Tree	0.617	0.602	0.518	0.648	0.604	0.564	0.557	0.392
	Genetic	0.368	0.333	0.251	0.339	0.317	0.320	0.330	0.215
	MARS	0.823	0.749	0.654	0.787	0.706	0.703	0.727	0.663
	SVM	0.723	0.639	0.435	0.716	0.669	0.630	0.569	0.343
	Mean	0.994	0.943	0.924	0.938	0.959	0.953	0.994	0.966

II for mid temperate; III for warm temperate; IV for north subtropical zone; V for the mid-subtropics; VI for the south subtropics; VII for the edge of tropical zone; HII for temperature zone in plateau; IIE for mid tropical zone with humid weather. The unit for RMSE and MAE: MJ m⁻²day⁻¹.

showed the statistical errors for all PAR models in different temperate zones over China, the largest errors were found in temperature zone in the plateau (HII), due to the strong heating atmosphere. The mean RMSE and MAE for all models in the HII were 1.25 and 0.994 MJ m⁻²day⁻¹, respectively. It was clear that the Genetic performed superior to other PAR models, in different temperate zones, the largest RMSE (0.540 MJ m⁻²day⁻¹) and MAE (0.368 MJ m⁻²day⁻¹) for the Genetic were observed in the HII, while the smallest RMSE (0.324 MJ m⁻²day⁻¹) and MAE (0.215 MJ m⁻²day⁻¹) were in VII. PBM was not as accurate as the other models, in most temperate zones.

The underlying surface properties would have significant effects on the accuracy of the PAR estimations. In this study, seven types of underlying surfaces, including grassland, city, lake, desert, farmland, forest, and water were considered to reveal the effects of the underlying surfaces on the model accuracies.

Table 4. The RMSE and MAE for the PAR models in different underlying surface.

Statistics	Models	Wetland	Desert	Lake	Forest	Farmland	City	Grassland
RMSE	BBM	1.239	1.058	1.063	1.148	1.124	1.341	1.116
	EPP	1.757	1.226	1.352	1.852	1.492	1.647	1.378
	PBM	2.868	2.133	2.433	2.171	2.487	3.032	2.554
	LUT	1.752	2.354	2.027	1.562	2.038	2.100	1.937
	BP	1.002	0.875	0.952	0.981	0.900	0.830	0.937
	ANFIS	0.912	0.743	0.735	0.839	0.734	0.655	0.739
	M5Tree	0.908	0.860	0.835	0.842	0.813	0.677	0.786
	Genetic	0.571	0.491	0.485	0.546	0.500	0.461	0.474
	MARS	1.062	0.884	0.882	0.988	0.894	0.835	0.897
	SVM	0.993	0.639	1.115	1.000	0.933	0.711	0.820
	Mean	1.306	1.126	1.188	1.193	1.191	1.229	1.164
MAE	BBM	1.011	0.872	0.879	0.943	0.935	1.131	0.950
	EPP	1.535	1.004	1.122	1.582	1.251	1.365	1.166
	PBM	2.437	1.866	2.131	1.668	2.111	2.674	2.243
	LUT	1.234	1.822	1.437	1.090	1.486	1.683	1.489
	BP	0.789	0.721	0.780	0.773	0.721	0.661	0.769
	ANFIS	0.706	0.556	0.541	0.639	0.548	0.477	0.553
	M5Tree	0.684	0.651	0.630	0.645	0.604	0.497	0.587
	Genetic	0.384	0.329	0.312	0.369	0.324	0.297	0.305
	MARS	0.878	0.724	0.726	0.803	0.733	0.688	0.742
	SVM	0.770	0.487	0.786	0.723	0.672	0.488	0.589
	Mean	1.043	0.903	0.934	0.923	0.939	0.996	0.939

The unit for RMSE and MAE: MJ m⁻²day⁻¹.

shows the RMSE and MAE, in different underlying surfaces, for all PAR models. Wetland was a land area that permanently or seasonally saturated with water, thus, the radiation processes in wetlands were more complicated than the other ecosystems, which made it more difficult to estimate PAR [43]. The mean RMSE and MAE in wetlands were 1.306 and 1.043 MJ m⁻²day⁻¹, respectively. The surfaces in the city had considerable influences on PAR balances, thus, modeling PAR in the city was also complicated. The mean RMSE and MAE in the city areas were 1.229 and 0.996 MJ m⁻²day⁻¹, respectively. It was obvious that the Genetic model showed much higher accuracy than the other models in all underlying surfaces, the RMSE for the Genetic in wetland, desert, lake, forest, farmland, city, and grassland were 0.571, 0.491, 0.485, 0.546, 0.500, 0.461 and 0.474 MJ m⁻²day⁻¹, respectively. The MAE for the Genetic in the wetland, desert, lake, forest, farmland, city, and grassland were 0.384, 0.329, 0.312, 0.369, 0.324, 0.297 and 0.305 MJ m⁻²day⁻¹, respectively. The PBM showed the poorest model performances in all underlying surfaces, the RMSE for the Genetic in the wetland, desert, lake, forest, farmland, city, and grassland were 2.868, 2.133, 2.433, 2.171, 2.487, 3.032 and 2.554 MJ m⁻²day⁻¹, respectively; the MAE for the Genetic in the wetland, desert, lake, forest, farmland, city, and grassland were 2.437, 1.866, 2.131, 1.668, 2.111, 2.674 and 2.243 MJ m⁻²day⁻¹, respectively. In all, the underlying surface properties were indispensable factors influencing the model accuracies, especially for the grassland and desert.

3.3. Spatial and Temporal Variations of PAR in China

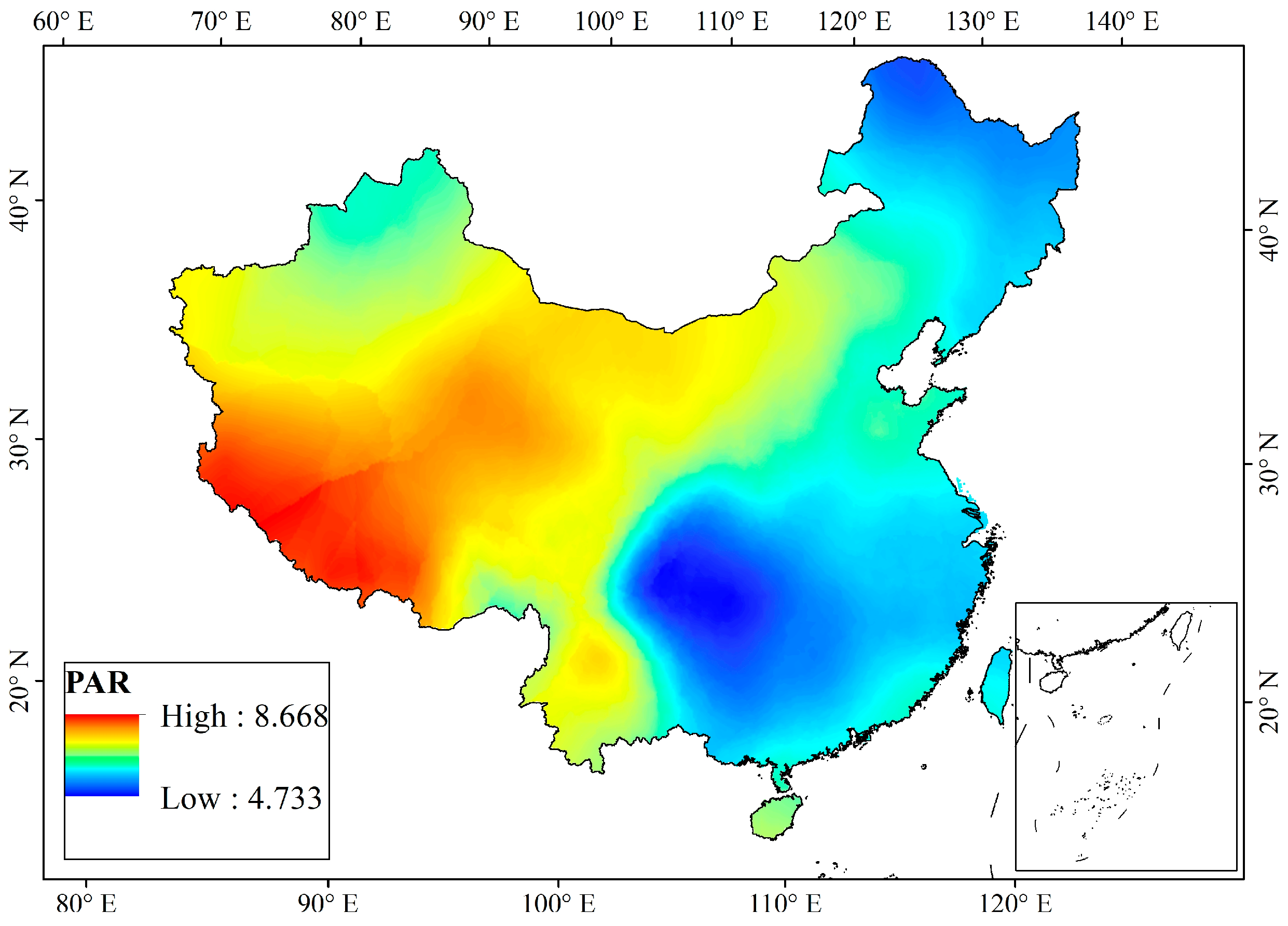

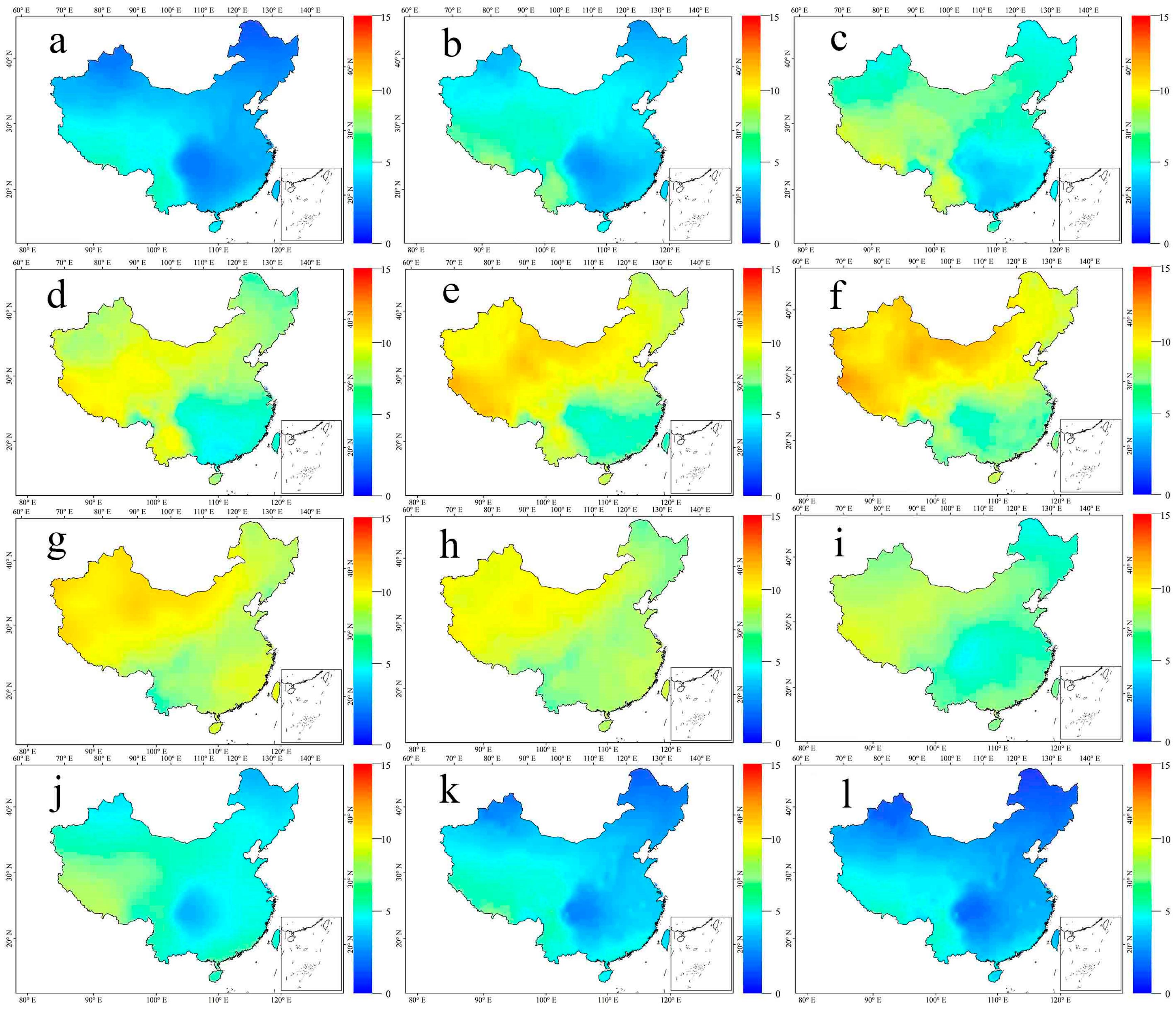

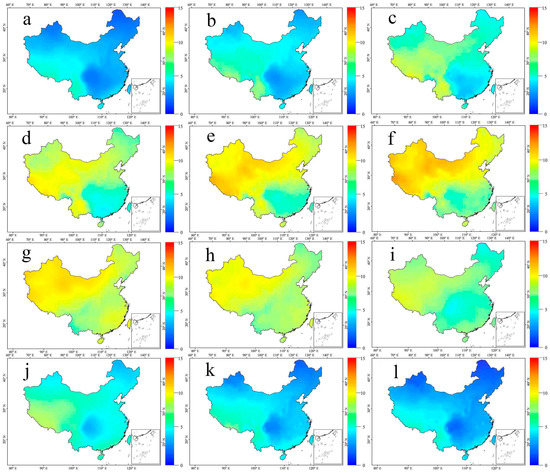

The annual and monthly mean PAR, during 1955–2015, were calculated to reveal the spatial and temporal variations of PAR across China, based on the Genetic model, using meteorological measurements at eight hundred and thirty-nine CMA stations. Figure 10 illustrates the mean PAR values during 1955–2015, the annual PAR values presents a clear decreasing trend at the rate of −0.003 MJ m⁻²day⁻¹/year during 1955–2015. Figure 11 shows the spatial distributions of the annual mean estimated PAR (APAR) over mainland China. Generally, the PAR was higher in Western China than that in the Southern and Northeastern China, the Tibetan Plateau has always been an area with the highest PAR, over mainland China, due to the small atmospheric extinction effects, the maximum APAR was about 8.668 MJ m⁻²day⁻¹ in the Tibetan Plateau. In contrast, the Sichuan Basin in Southern China had always been an area with the lowest PAR, due to the perennial cloudy weather and strong atmospheric extinctions [34], the annual mean PAR was about 4.733 MJ m⁻²day⁻¹ in the Sichuan Basin. The Northeastern China was also an area with low PAR, owing to the relatively short sunshine durations and humid weather there. Figure 12 illustrates the monthly variation of PAR over mainland China, PAR values were generally higher in the summer than that in other seasons, because of higher solar zenith angle and longer sunshine duration, in the summer than that in other seasons. The monthly mean PAR values from January to December were 3.676, 4.697, 6.112, 7.610, 8.570, 8.754, 8.795, 8.281, 6.965, 5.523, 4.202, and 3.468 MJ m⁻²day⁻¹, respectively. The Qinghai Tibetan plateau has always been an area with the highest monthly mean PAR values throughout the year. The largest monthly mean PAR values for the Qinghai Tibetan plateau from January to December were 6.718, 7.975, 9.482, 10.893, 11.917, 12.550, 11.580, 10.727, 9.877, 8.762, 7.261, and 6.373 MJ m⁻²day⁻¹, respectively. In contrast, the Sichuan Basin has always been an area with the lowest monthly mean PAR values. The largest monthly mean PAR values in the Sichuan Basin from January to December were 1.359, 2.619, 3.616, 4.645, 5.495, 5.943, 5.516, 6.368, 4.058, 3.129, 1.656, and 0.991 MJ m⁻²day⁻¹, respectively.

4. Conclusions

The aim of this research was to make a comparative study on the model accuracies of ten models for estimating PAR over mainland China. The performances of the Genetic model, together with other nine PAR models, were evaluated in different climate zones and terrain features, using long-term continuous meteorological and radiation measurements at twenty-nine CERN stations and satellite signals. The spatial and temporal variations of PAR values, during 1955–2015, over mainland China, were further investigated.

Generally, the AI models showed better performances than the BBM, EPP, PBM and LUT. Among all PAR models, the Genetic performed superior to the other PAR models at all CERN stations in terms of RMSE, MAE and R. The model performances for Genetic were more stable than the other PAR models, throughout the year, without large monthly variations. The largest RMSE (0.679 MJ m⁻²day⁻¹) and MAE (0.460 MJ m⁻²day⁻¹) for the Genetic were found in April; the smallest RMSE (0.0.239 MJ m⁻²day⁻¹) and MAE (0.153 MJ m⁻²day⁻¹) were found in July.

Meanwhile, the climate and terrain effects on the PAR estimation for all PAR models were investigated. PAR models showed different performances in different ecosystems, the largest mean RMSE (1.306 MJ m⁻²day⁻¹) and MAE (1.043 MJ m⁻²day⁻¹) for all PAR models were found in wetlands, due to the complicated radiation processes. The model deviations were also larger in city ecosystems with RMSE and MAE of 1.229 and 0.996 MJ m⁻²day⁻¹, respectively. In all, the Genetic model performed better than the other PAR models, with strong robustness in different climate zones and terrain features.

The spatial and temporal variations of the annual mean PAR (APAR) value over mainland China were further analyzed. The Tibetan Plateau had always been an area with the highest APAR (8.668 MJ m⁻²day⁻¹). In contrast, the Sichuan Basin had always been an area with the lowest APAR values (4.733 MJ m⁻²day⁻¹), across China. The PAR values in China were generally higher in the summer than the other seasons.

Certainly, these PAR models should be tested and applied in other climate zones, terrain features, and ecosystems, around the world. Additionally, the relationships between the PAR and natural characteristics (such as climate patterns and terrain features) and social economic conditions (economic development and population density), should be quantitatively analyzed in future.
