Temporal Evolution of Corn Mass Production Based on Agro-Meteorological Modelling Controlled by Satellite Optical and SAR Images

Abstract

This work aims to provide daily estimates of the evolution of popcorn dry masses at the field scale using an agro-meteorological model, named the simple algorithm for yield model combined with a water balance model (SAFY-WB), controlled by the Green Area Index (GAI), derived from satellite images acquired in the microwave and optical domains. Synthetic aperture radar (SAR) satellite information (σ°_VH/VV) was provided by the Sentinel-1A (S1-A) mission through two orbits (30 and 132), with a repetitiveness of six days. The optical data were obtained from the Landsat-8 mission. SAR and optical data were acquired over one complete agricultural season, in 2016, over a test site located in the southwest of France. The results show that the total dry masses of corn can be estimated accurately (R² = 0.92) at daily time steps due to a combination of satellite and model data. The SAR data are more suitable for characterizing the first period of crop development (until the end of flowering), whereas the optical data can be used throughout the crop cycle. Moreover, the model offers good performances in plant (R² = 0.90) and ear (R² = 0.93) mass retrieval, irrespective of the phenological stage. The results also reveal that four phenological stages (four to five leaves, flowering, ripening, and harvest) can be accurately predicted by the proposed approach (R² = 0.98; root-mean-square error (RMSE) = seven days). Nevertheless, some important points must be taken into account before assimilation, namely the SAR signal must be corrected with respect to thermal noise before being assimilated, and the relationship estimated between the GAI and SAR signal must be performed over fields cultivated without intercrops. These results are unique in the literature and provide a new way to better monitor corn production over time.

1. Introduction

Identifying the effective management of agricultural land is essential in order to achieve high socio-economic performance while limiting environmental impacts and ensuring the sustainability of resources. Through these direct and indirect effects on many surface balances (carbon, nitrogen, water, or energy), crops appear as the central element of agro-systems, with their development testifying to the interactions between the edaphological and climatic conditions being closely dependent on cultural practices (tillage, fertilizer, irrigation, and residue management) [1,2,3,4]. The quantification of the advantages or disadvantages associated with the implemented cultural practices then involves the achievement of a balance sheet based on monitoring the cultures, by targeting the key integrative variables (e.g., leaf area index, biomass, and yield) [5,6,7]. In this context, the use of satellite imagery combined with a crop functioning model constitutes a useful tool for diagnosis at a landscape scale.

The recent launch of the Sentinel-1, Sentinel-2, and Landsat-8 satellite missions has opened the way to new opportunities for the combined use of data acquired in visible, infrared, and microwave wavelengths [8,9,10]. In the past, the lack of near-synchronous acquisition of optical and synthetic aperture radar (SAR) image time series during the same agricultural season restricted the possibilities of joint signal analysis to a limited number of studies [11,12,13]. The majority of the studies were then based on a few images, with the analyses of the satellite signals being often temporally and/or spatially separated, which made a comparison of the sensitivity and dynamic observed for contrasting surface states difficult. Nevertheless, these studies provide interesting study cases of the possibilities of using these data in a context of monitoring agricultural areas, with various issues, ranging from land cover classification [14] to the monitoring of crop or soil parameters [15,16,17], the detection of specific cultural practices [18,19,20], or damage concerning crops [21].

Vegetation indices derived from optical image reflectance are often used for monitoring the photosynthetic activity of vegetation during the phenological cycle [22] or to estimate biophysical parameters such as the leaf area index (LAI) or the fraction of absorbed photosynthetically active radiation (FAPAR). Hence, the approaches aiming at modeling the crop cycle at a regional scale were primarily based on the assimilation of optical images [22,23,24,25,26,27] into a simple agro-meteorological model, such as GRAMI [28], Aquacrop [29], or the simple algorithm for yield model combined with a water balance model (SAFY-WB) [30,31].

The limits encountered by the use of optical reflectance/indices are inherent to the image specificities, with, for instance, saturation of the indices when the vegetation becomes dense, or with a lack of observation during cloudy periods. The synthetic aperture radar (SAR) data then constitute an alternative, providing information about substitution by targeting the same ([32,33]) or complementary ([16,34]) variables as those derived from optical imagery. The combined use of optical and SAR images to constraint models remains original and stays confined to a limited number of studies; however, they have all demonstrated the interest of this kind of approach for improving crop monitoring [16,32,33,35,36]. Moreover, to the best of our knowledge, the monitoring of the popcorn variety has never been performed using satellite radar data in order to estimate the time courses of its masses and phenological stages.

In this context, the objective of this study is to estimate the evolution of popcorn dry masses at a field scale, as well as the daily temporal resolution using an agro-meteorological model (SAFY-WB) controlled by the Green Area Index (GAI) derived from satellite optical and SAR images. The remainder of this paper is structured as follows: the materials (site description, satellite and ground data, and model) and method are first presented (Section 2). Section 3 presents the results on mass simulations performed by the model controlled by GAI, derived from satellite data (combined use of SAR and optical images), followed by a discussion in Section 4. The discussion evaluates the capacity of inferring corn phenological stages throughout the crop cycle, as well as their associated masses (ear, plant, and total masses). Moreover, the impact of (1) the SAR signal processing (speckle filtering and thermal noise removal), and (2) the intercrops’ influences on SAR signal and masses retrieval are discussed.

2. Materials and Method

2.1. Site Description

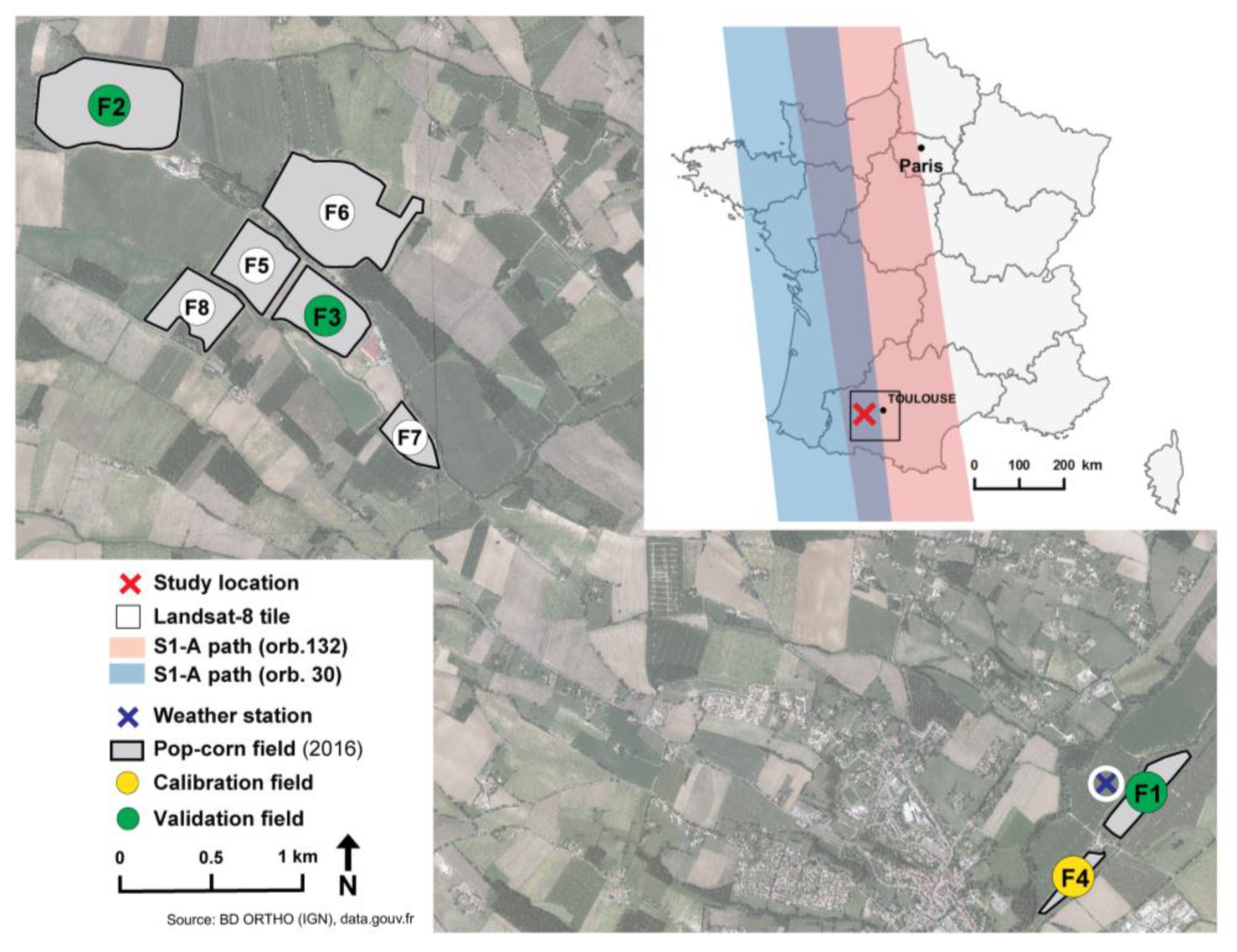

The studied area is located in the southwest of France (Figure 1), near the city of Toulouse, in the Occitanie region (43.49°N 0.93°E). This area is characterized by a temperate climate. It is highly anthropized, and mainly comprises seasonal crops, grasslands, forests, and urban areas. Among the different crop species, this work focused on eight corn fields dedicated to popcorn production. The areas of the corn fields ranged from 2.6 to 30.6 ha (13.8 ha on average).

2.2. Satellite and Ground Data

2.2.1. Satellite Data

Acquisition Calendar

Satellite data were acquired throughout a seasonal crop period, from March to October 2016. The SAR data (51 images from orbit 30 (25) and 132 (26)) were acquired at C-band (at VV and VH polarizations) by the Sentinel 1A (S1-A) platform (freely available at Hub https://scihub.copernicus.eu/), whereas, the 18 optical data were acquired by Landsat-8 Operational Land Imager (OLI) sensor (Figure 2).

Data Pre-Processing

The SAR images were processed in ground range-detected (GRD) mode, with an incidence angle ranging from 29.1° to 46.0° [10]. The S1-A images were pre-processed (radiometric calibration, thermal noise, range doppler terrain correction, and re-sampled at 10 × 10 m² spacing) from the Google Earth engine website, so as to obtain the sigma-naught ratio (${\mathsf{\sigma }}_{\mathrm{VH}/\mathrm{VV}}^0$), the best index for monitoring the vegetative part of corn, from the Sentinel-1 data [35,37].

Optical images were acquired by the sensor OLI onboard of Landsat 8 in four narrow spectral bands, ranging from 0.45 to 0.89 μm, which correspond to the blue, green, red, and near-infrared domains. They were processed using the level 2A processor, named “multi-sensor atmospheric correction and cloud screening” (MACCS), and are available free of charge from Theia Land Data Services (https://www.theia-land.fr/en/). After preprocessing, only 10 images could be used over the fields (between days 90 and 290), because of cloud cover (mean temporal repetitiveness of 21 days instead of 16 in the nominal value). In the following, these images were used to derive the GAI.

2.2.2. Ground Data

Ground data were collected over four fields (identified as ID F1, F2, F3, and F4 in Figure 1). They concerned agricultural practices (e.g., irrigation, sowing, tillage, and harvesting) and vegetation parameters (crop height, main phenological stages, biomass, dry matter, and water content). The surface soil roughness was considered stable during the time after sowing because no tillage events occurred until harvest. Therefore, it was assumed that surface soil roughness changes had no significant impact on the optical and SAR signals. Fields F5 to F8 were used to study the spatial distribution of the production at the working farm scale in Section 3.3 (no ground data were available for these fields). F1 and F4 belong to one working farm, and the others belong to the second working farm.

These fields were sown during March and April and were harvested at the end of September and in early October 2016, as indicated in

Table 1. Dates of the sowing, harvest, and vegetation measurements of the four studied fields. The temporal reference is given in day of year (doy) for 2016, and also in °C day, according to an agronomic point of view.

Field ID	Date of Sowing	Date of Harvest (doy/°C day)	Number of Samples	Date of Sampling (doy/°C day)
F1	102	278/2453	7	(133/214, 148/352, 169/599, 195/985, 215/1299, 232/1574, 266/2095)
F2	104	281/2264	6	(133/201, 169/586, 195/971, 215/1285, 232/1561, 266/2081)
F3	87	273/2261	6	(133/292, 169/677, 195/1063, 215/1377, 232/1652, 266/2173)
F4	102	278/2453	7	(133/214, 148/352, 169/599, 195/985, 215/1299, 232/1574, 266/2095)

. Throughout the crop season, at least six vegetation measurements were performed for each field. Each measurement was composed of five plants of corn, from which the above-ground biomass was directly weighed in situ. Then, the total aboveground dry mass (TDM) was measured after crop drying (the samples were put in an oven for 48 h at 65 °C). The water content was finally derived from the difference between the total biomass and TDM. For these measurements, the ears and the rest of the plant (leaves and stems) were separated, giving access to the ear dry mass (EDM) and the plant dry mass (PDM), respectively.

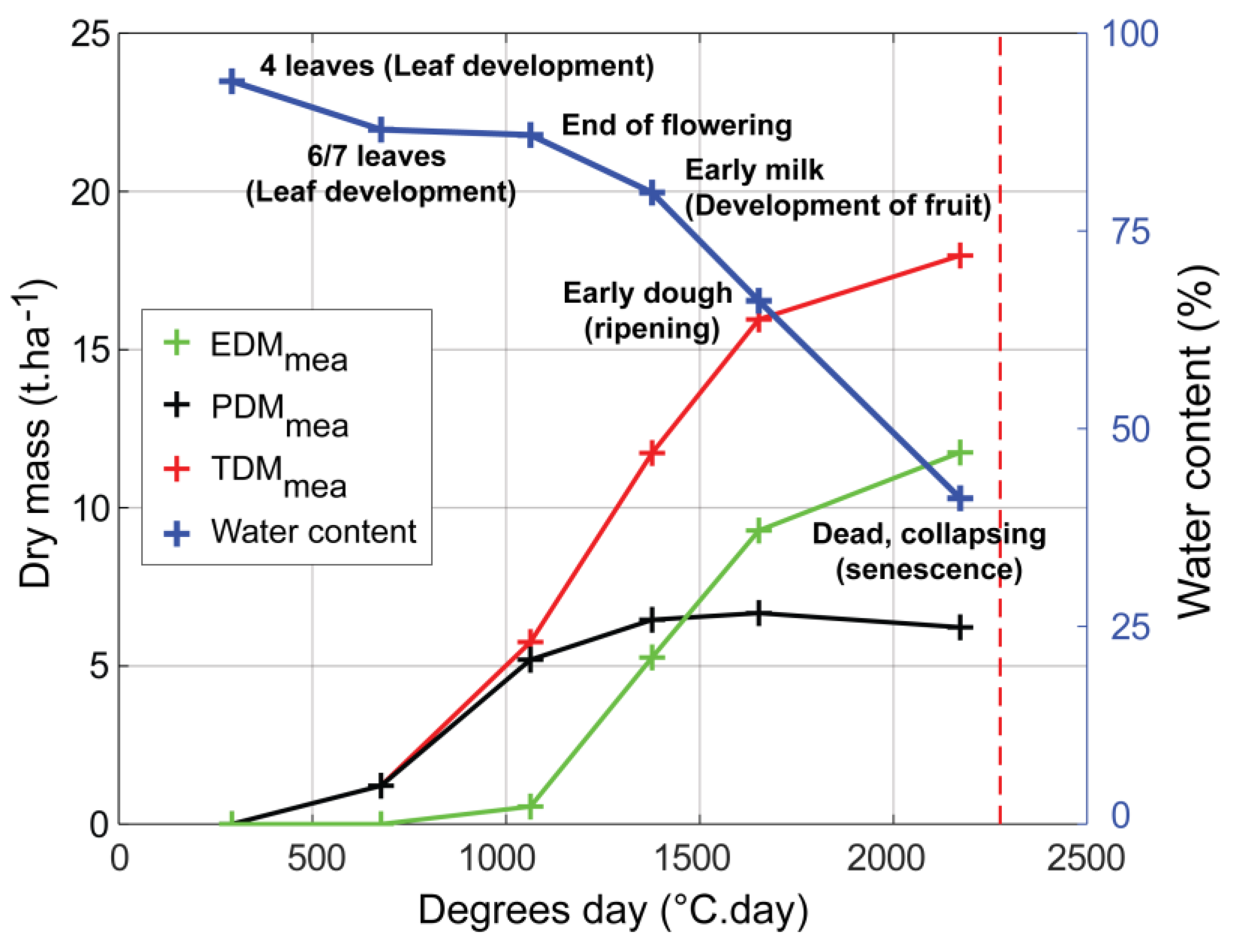

Figure 3 presents an example of temporal dynamics of the dry masses (TDM, EDM, and PDM), crop water content, and phenological stages from the in-situ data processed for field F3 (Figure 1). The TDM starts increasing from emergence, to reach its maximum (17.97 t·ha⁻¹) just before harvest. The allocation of the mass to the ear starts from about 1000 °C day, and its dry mass reaches about 12 t·ha⁻¹ a few days before measurement. The water content, strongly correlated with the biomass (R² mean = 0.95, not shown here), starts from 94% at emergence, and then decreases significantly from flowering, to reach about 25% at harvest (41% was measured a few days before harvest, whereas vegetation continued to strongly dry). Considering the measurements, the mass of the grain represents an average of 77% of the EDM at harvest day. The maximum height of this variety of corn ranged from 1.60 to 1.80 m, depending on the studied field.

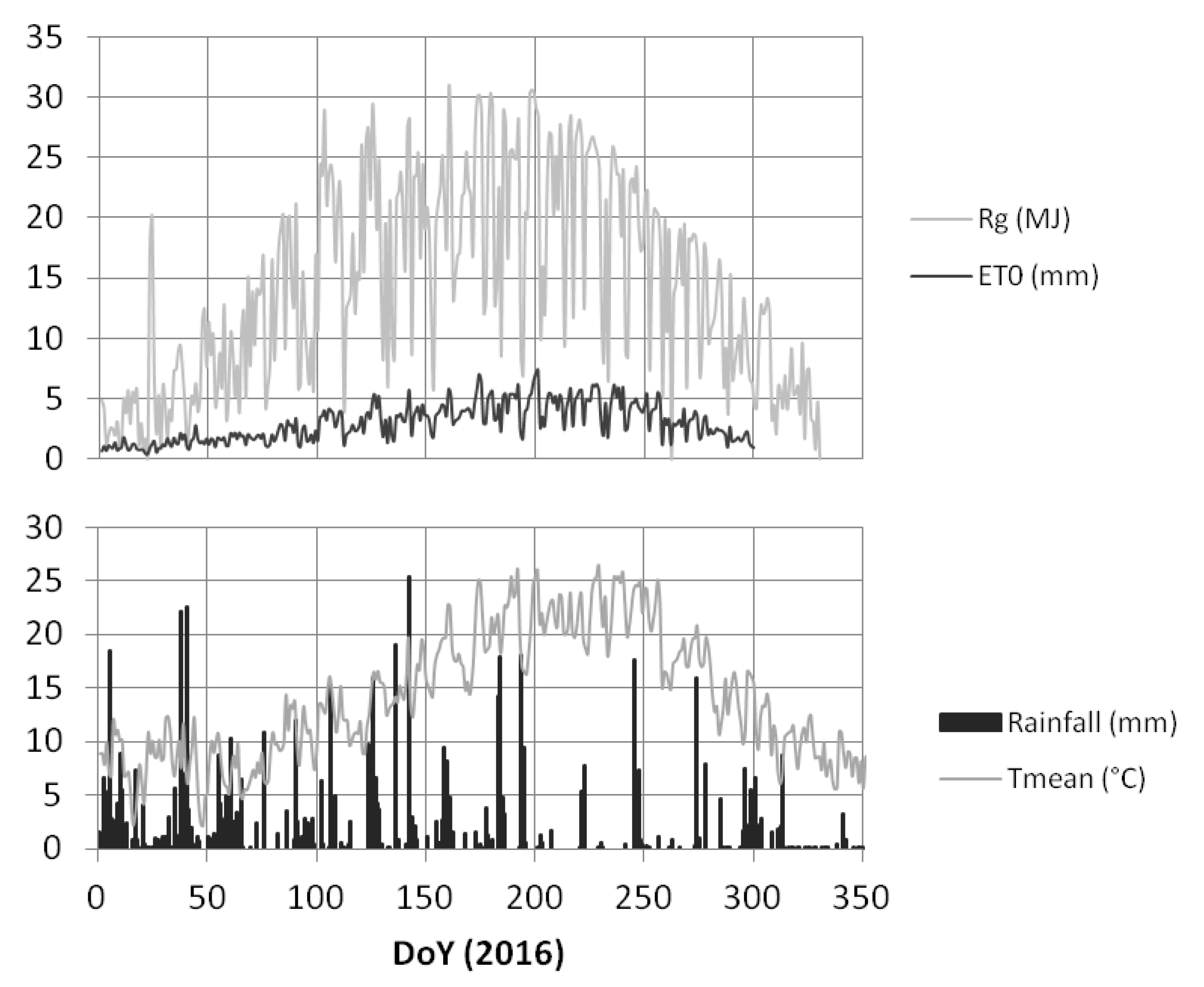

The meteorological data (i.e., air temperature, solar radiation, relative humidity, wind speed, and rainfall) were registered at semi-hourly time steps by one weather station (Figure 1). They were used to derive the daily reference evapotranspiration (ET₀) according to the FAO (Food and Agriculture Organization) method, and were used as the input variables of the agro-meteorological model (Figure 4).

2.3. The Agro-Meteorological Model

The agro-meteorological model, named SAFY-WB (simple algorithm for yield estimates coupled with a water balance model), was used to simulate the time courses (with a daily time step) of the popcorn masses (total, plant, and ear masses), GAI, and evapotranspiration. The model, detailed in the literature [30,31], requires the following meteorological input variables: the global solar radiation, air temperature, precipitation, and potential evapotranspiration (Figure 4). Only the main processes of the vegetation growth model are presented hereinafter.

The TDM and GAI are proportional to the absorbed photosynthetically active radiation, according to the effective light use efficiency, and a stress coefficient related to the meteorological conditions (relationship adapted from the literature [38], in Equations (1)–(4)):

$$TD{M}_{doy}=TD{M}_{doy-1}+\mathsf{\Delta }TD{M}_{doy},$$

(1)

$$\mathrm{with},\mathsf{\Delta }TD{M}_{doy}=ELUE\times PA{R}_{doy}\times Sc,$$

(2)

$$GA{I}_{doy}=GA{I}_{doy-1}+\mathsf{\Delta }GA{I}_{doy},$$

(3)

$$\mathrm{with},\mathsf{\Delta }GA{I}_{doy}=\mathsf{\Delta }TDM\times SL{A}_{doy}\times PL{I}_{doy},$$

(4)

where ELUE represents the effective light use efficiency, SLA the specific leaf area, PLI the partitioning to leaf index, Sc the stress coefficient of water and temperature, and doy the day of the year.

The photosynthetically active fraction of solar radiation absorbed by the plants is proportional to GAI and Rg, according to the Beer-Lambert law (Equation (5)):

$$PA{R}_{doy}=0.47\times Rg\times \left(1-e^{\left(-0.6\times GA{I}_{doy}\right)}\right).$$

(5)

The leaf production and leaf senescence are controlled by a growing degree-day function. During the leaf growing period, a fraction of the daily DM production is allocated to the leaf production (LP) thanks to an empirical parameterization proposed by the authors of [39], in Equations (6) and (7):

$$PR{T}_{doy}=\max \left(0,Pla\times e^{\left(Plb\times \sum Tem{p}_{doy}\right)}\right),$$

(6)

$$L{P}_{doy}=\mathrm{TDM}\times PR{T}_{doy}{\ast \mathrm{SLA}}_{\mathrm{doy}},$$

(7)

where, Pla and Plb (empirical parameters) drive the partitioning to the leaves.

The senescence occurred at a prescribed rate, when the air temperature accumulated from plant emergence ($\sum Tem{p}_{doy}$) reached a crop-specific threshold (given by its variety). A temperature-stress function affected the DM production, considering a 2-degree polynomial specified by an optimal value (30 °C) and two extreme values (6 and 42 °C), beyond which the corn growth stopped ([40]).

The formalism of this model is based on a limited number of parameters (six have been defined as target parameters through the sensitivity study described by the authors of [31]), which allow for combining the model with the remotely sensed data. Four of them describe the development stages of the crop, as follows: partitioning to the leaf parameters (Pl_A and Pl_B) is effective during the growth phase (Equations (6) and (7)), while the cumulative temperature, which induces senescence and the rate of senescence (Stt and Rs), is used to describe the last phenological stages. Parameter D₀ (corresponding to a few days after the emergence of corn) and the effective light use efficiency (ELUE) are related to agricultural practices (Equation (2)).

Four phenological stages are simulated by the model, as follows: four to five leaves, flowering, ripening, and harvest. They are derived from D₀, from the day on which the EDM starts growing, when GAI starts decreasing, and when GAI reaches 0, respectively.

This type of approach has previously been validated for the monitoring of the crop cycle of wheat, corn, and sunflower, using only optical images [23,30,41], and for soybean, sunflower, and grain corn using both optical and SAR images [16,35,42].

2.4. Methodology

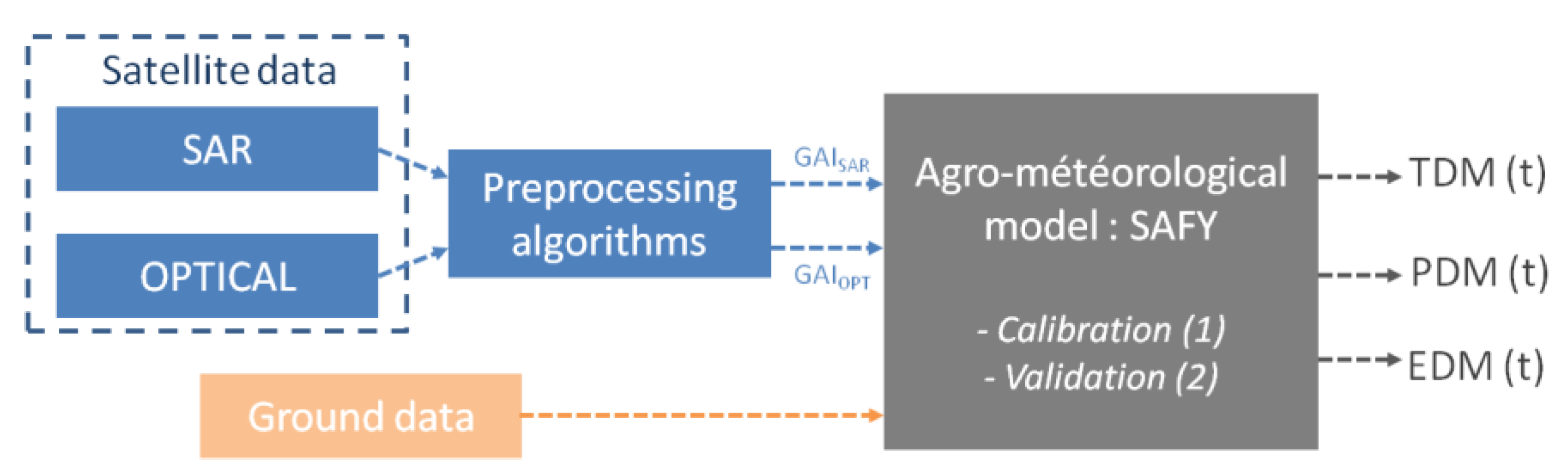

The methodology used to simulate the different masses from the model driven by satellite data is given in Figure 5.

The satellite data were first preprocessed following different steps according to their wavelength domain, as described in Section 2.2.1: Data Processing. The green area indices were then derived from both optical and radar images (GAI_opt and GAI_SAR).

GAI_opt was generated through the BVNet tool (Biophysical Variables Neural NETwork), developed by the authors of [43]. This tool combines a radiative transfer model (SAIL + PROPSPECT = PROSAIL) and artificial neural networks (ANNs). The radiative transfer model was first used to constitute a training dataset, with the constraint of estimating reflectance (from 400 to 2500 nm) for a wide range of conditions regarding the crop biophysical variables. Artificial neural networks were then trained on the dataset estimated from PROSAIL (considering reflectance as the input variable, and GAI, FAPAR, and fCover as the output). Regarding GAI, the domain of validity of such an approach ranges between 0 and 6 m²·m⁻². The trained ANNs were finally applied to the satellite images, using green, red, and near-infrared reflectances. Such an approach has been validated in the South-West of France using optical images provided by Formosat-2, Spot-4, and Landsat-8, on independent ground measurements, showing an accurate performance with a correlation of 0.92 and a root mean square error (RMSE) of 0.4 m²·m⁻² for corn in the literature [41]. These good performances led us to use this approach to derive the GAI of popcorn from optical imagery.

GAI_SAR are empirically derived from the sensitivity of the SAR signals to the GAI, from a non-linear regression (Equation (8)) valid from 0 to 1000 °C day. Among the tested SAR configurations (σ°_VH, σ°_VH/VV, and σ°_VV), the best performances were obtained with σ°_VH/VV (R² = 0.97; RMSE = 0.28 m²·m⁻²). After a 1000 °C day, the quality of the relationship was strongly degraded, as σ°_VH/VV saturated and remained at a high value until harvest, whereas the GAI decreased during senescence, as shown in the literature [35].

$$GA{I}_{SAR}=52.92\times e^{0.55\times {\sigma }_{VH/VV}^0}$$

(8)

Once generated, GAI_SAR and/or GAI_opt were combined to the measured TDM (TDM_mea), in order to control the model during the steps of calibration and validation. This step aims at optimizing the target parameters inside their domains of variation to minimize the bi-objective cost function (

Table 2. Definition and domain of variation of the six target parameters, namely: the crop-specific parameters (Pl_A, Pl_B, Stt, and Rs) and the field-specific parameters (D₀ and ELUE).

Parameter	Definition	Domain of Variation	Unit
PlA	Partition-to-leaf function	0.05–0.5	-
PlB	Partition-to-leaf function	10−5–10−2	-
Stt	Temperature sum for senescence	0–2000	°C day
Rs	Rate of senescence	0–105	°C
D0	Day0	90–250	day
ELUE	Effective light-use efficiency	0.5–6	g.MJ−1

) [23,31,41].

The bi-objective cost function (Equation (11)) is based on the relative root mean square errors, considering the satellite derived green area index (GAI_mea) and using the measured total dry mass dry as reference (Equations (9) and (10)):

$$C_{GAI}=\sqrt{N_{GA{I}_{mea}}^{-1}{{\displaystyle \sum }}_{0<t_i<2500}{\left[GA{I}_{sim}\left(t_i\right)-GA{I}_{mea}\left(t_i\right)\right]}^2},$$

(9)

$$C_{TDM}=\sqrt{N_{TD{M}_{mea}}^{-1}{{\displaystyle \sum }}_{0<t_i<2500}{\left[TD{M}_{sim}\left(t_i\right)-TD{M}_{mea}\left(t_i\right)\right]}^2},$$

(10)

$$\overline{C}=sum\left(\begin{array}{c}{\overline{GA{I}_{mea}}}^{-1}\times C_{GAI}\\ {\overline{TD{M}_{mea}}}^{-1}\times C_{TDM}\end{array}\right),$$

(11)

where GAI_sim or TDM_sim correspond to the values simulated by the model at time (t_i), GAI_mea and TDM_mea are the values obtained from the measurements (satellite or ground), and N represents the amount of data collected between sowing (0 °C day) and harvest (2500 °C day).

In our case, the calibration/validation steps were performed from the data acquired from field F4 (Figure 1) and fields F1, F2, and F3, respectively. These steps consist of comparing the simulated TDM, PDM, and EDM to the measured values. Field F4 was chosen for calibration because it is flat, it is managed with conventional practices in contrast to others (tillage and no intercrop), and the culture is homogeneous. Hence, the results of the calibration were not affected by the local slope of the field, the heterogeneity of the culture, or the presence of an intercrop. The calibration step was performed for one field, reproducing how the agricultural decision-makers operate (they based their recommendations on the data collected in a field considered representative of an agricultural region).

As proposed by the authors of [30,31], the four parameters describing the developmental stages of the crop were estimated during the calibration (Pl_A, Pl_B, Stt, and Rs) step and remained constant for the validation. Two parameters were optimized (using a simplex method) during the calibration and validation for each field, i.e., those related to the agricultural practices (namely, D₀ and ELUE).

Finally, a production map was generated at a working farm scale (six fields, representing 101 ha), in order to analyze its spatial distribution, by considering three target simulation outputs, namely: total, ear, and plant masses.

3. Results

3.1. Model Calibration

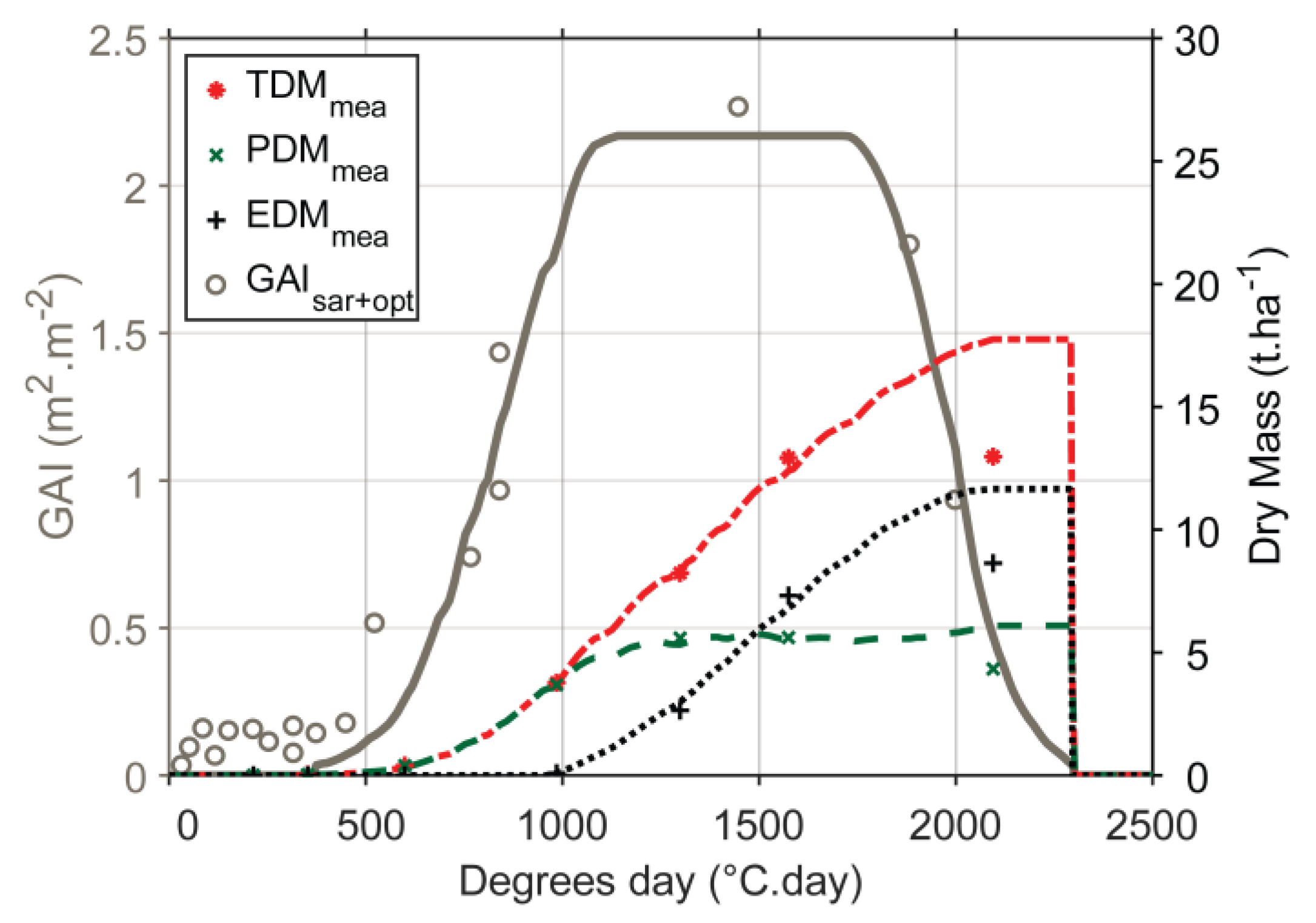

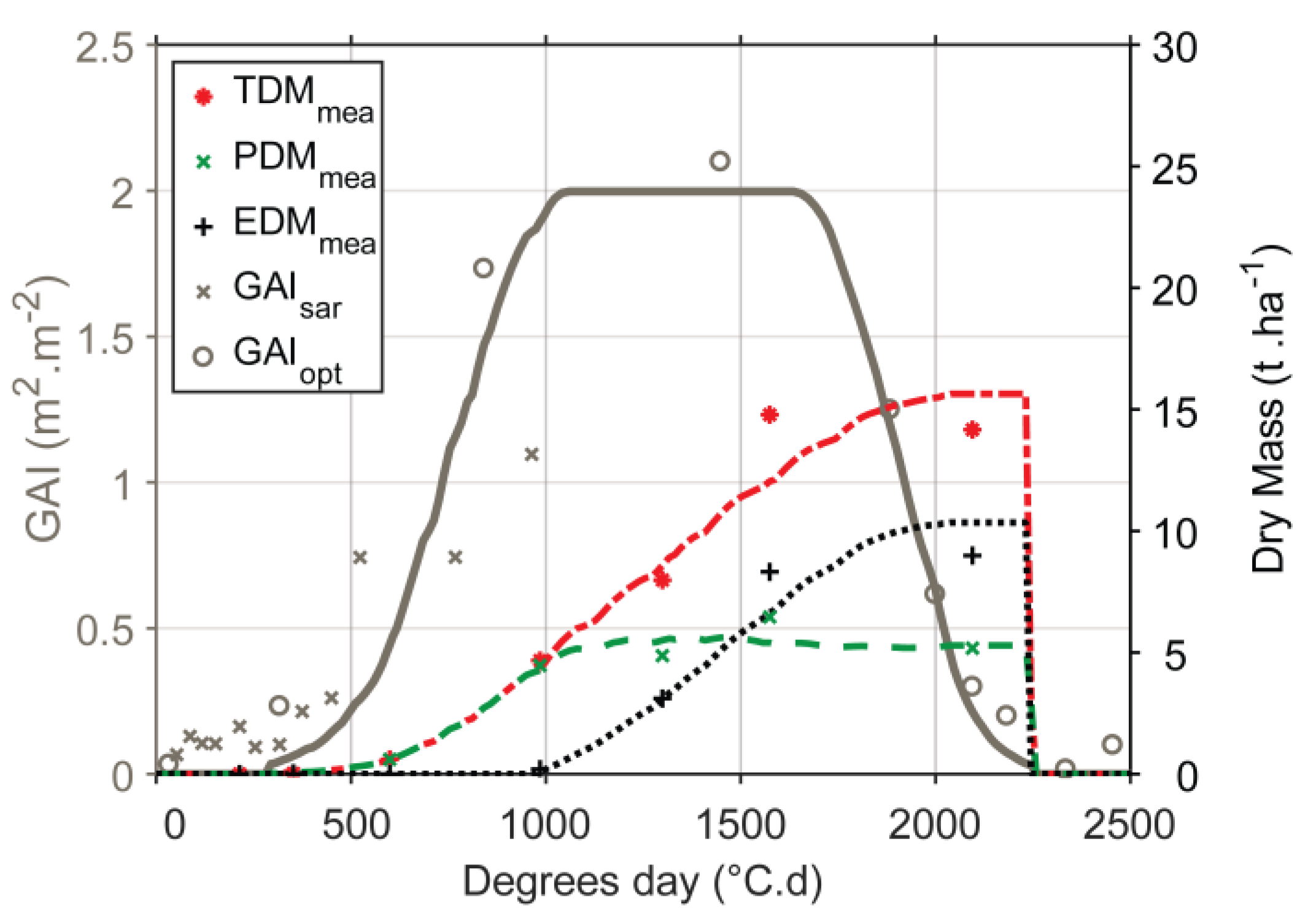

Figure 6 presents the results of the calibration step and compares the temporal evolutions of the simulated and observed GAI and DM along the crop cycle, from sowing (0 °C day) to harvest (about 2500 °C day). The obtained values of the crop-specific parameters (Pl_A, Pl_B, Stt, and Rs) and the field-specific parameters (D₀ and ELUE) are presented in

Table 3. Values of the crop-specific parameters (Pl_A, Pl_B, Stt, and Rs) and the field-specific parameters (D₀ and ELUE) derived from the calibration step.

Parameter	Value
PlA	0.08
PlB	3.0 × 10−3
Stt	1361
Rs	3569
D0	142
ELUE	3.98

.

The temporal trends of the GAI and DM (TDM, EDM, and PDM) were globally well reproduced. All of the biophysical variables were simulated with good performances, as demonstrated by the values of the determination coefficient, which were higher than 0.96 for the simulation of GAI, TDM, EDM, and TDM (

Table 4. Statistical performances estimated for Green Area Index (GAI), Ear Dry Mass (EDM), Plant Dry Mass (PDM), and Total above ground Dry Mass (TDM) retrievals during the calibration step of the model.

Target Output	n	R²	a	b	RMSE	rRMSE (%)
GAI	9	0.99	0.97	−0.08	0.08	10.58
EDM	7	0.96	0.99	−0.05	0.82	27.65
PDM	7	0.97	0.95	0.10	0.45	14.48
TDM	7	0.96	0.96	0.12	1.17	19.35

).

Figure 6 also shows that the GAI, derived from optical or SAR reflectances, was quite stable and exhibited a similar pattern during the first phenological stages (between 0 and 500 °C day). It was not significantly affected by soil moisture change (as a result of irrigation and/or rainfall) when the surface was still mainly bare (just after sowing). This result confirms the pertinence of using the ratio of SAR backscattering coefficients (σ°_VH/VV) instead of using simple co- or cross-polarization (σ°_VV or σ°_VH) to derive the GAI (the latter being much more affected by soil moisture changes, as demonstrated by the authors of [44]).

During the growing period (between 500 and 1000 °C day), the GAI derived from the SAR or optical images exhibited a similar trend, but was not completely the same. This point has a limited impact on the simulation, as the agro-meteorological model was not able to produce so much vegetation variation during the growing period. This approach is thus robust enough to be not significantly affected by the difference in GAI retrieval until flowering (1000 °C day), contrary to empirical approaches in which a small change in the backscattering coefficient induces a proportional change in the GAI retrieval [45,46,47]. From the end of flowering to the harvest, only GAI derived from optical data was assimilated, as the SAR signal saturated and was not sufficiently sensitive to senescence [35,37,48,49].

3.2. Model Validation—Mass Retrieval

Figure 7 shows the comparison between the simulated masses (TDM, EDM, and PDM) and those measured in-situ (data used for calibration, displayed by black crosses in the figure, are not used to calculate the statistical performances of the model retrieval). The performances were good for the three parameters (R² > 0.90 and rRMSE < 30%; Table 6, with TNR). The results show that the model was able to simulate the masses over the full range of mass values (up to around 20 t·ha⁻¹). Nevertheless, the results show that the model was not able to reproduce the behavior of one specific point (surrounded in Figure 7a,c). This point was associated with lower in situ values than those for the simulated ones. This is explained by the falling of leaves, which occurred just before harvest (around 2100 °C day). This phenomenon, illustrated in Figure 8, was not simulated by the model. Consequently, the simulation overestimated the total dry mass.

The values of the field-specific parameters (D₀ and ELUE) are given in

Table 5. Values of the field-specific parameters (D₀ and ELUE) derived from the validation step.

Parameter	F1	F2	F3	F4	F5	F6	F7	F8
D0 (DoY)	150	157	137	143	104	133	132	144
ELUE (g.MJ−1)	4.32	4.40	3.93	3.79	3.14	3.67	3.73	4.12

for the eight studied fields (F1 to F8). The spread of D₀ was in accordance with the different dates of sowing, whereas the values of ELUE (optimized around 4 g.MJ⁻¹) were consistent with the literature [41].

3.3. Mapping the Production of Corn over One Working Farm

Once validated, the method was applied at a field scale for one working farm composed of six fields of corn (Figure 9). The approach allowed for the estimation of biomass production just after harvest (TDM, EDM, and PDM) for all of the considered fields. In our case, the total annual production ranged from 11.11 to 16.70 t·ha⁻¹. The results also show that the ear masses differed between the fields, ranging from 48 t for the lower production (field F7) to 335 t for the highest production (field F2). At the scale of the working farm, an amount of 1492 t of corn was produced, distributed as 510 t of plant and 982 t of ears.

4. Discussion

4.1. Can Corn Phenological Stages Be Accurately Inferred?

Some of the main phenological stages were simulated by the model at different steps. The phenological stage “four to five leaves” was derived from the estimate of D₀, whereas the day of flowering was determined when the derivative of the function where PRT was equal to zero (Equation (6)). Ripening was given by S_tt, and the day of harvest was defined when the simulated GAI decreased to reach zero. These stages are very important in crop management, as they trigger nutrient uptake, e.g., nitrogen, phosphorus, potassium [50], and water consumption for grain production [51,52].

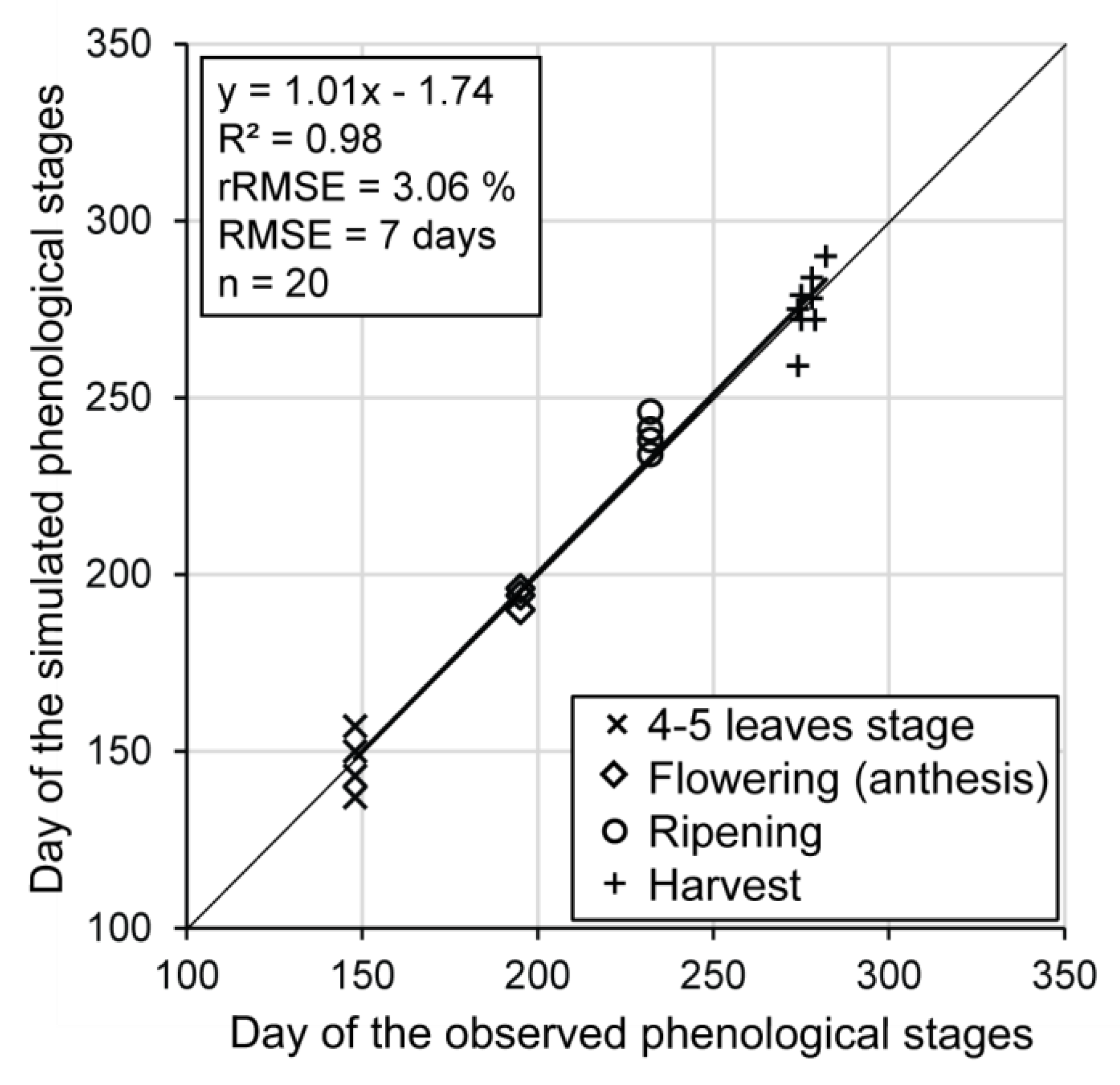

Following these assumptions, the model accurately reproduced the main phenological stages on average (R² = 0.98 and RMSE = seven days on average; Figure 10). Nevertheless, the first stage (four to five leaves) was less accurate because of the difficulty in detecting the emergence of the crop from the satellite images acquired at a 10- or 20-m spatial resolution. During the first phenological stages, both the soil and vegetation contributed to the signal, and the small variation in the vegetation masses did not significantly affect the satellite signal at this spatial resolution (> 20 m). Thus, it is very difficult to simulate the difference in crop development at the beginning of the growing period. Moreover, the dates of the phenological stages were estimated from the images taken on the day that the in-situ measurements were performed. In reality, the phenological stage covers a period of a few days around the date of observation. This phenomenon, not taken into account by the model, induces some offset between the day of the observed and simulated phenological stages.

Flowering and ripening were closely grouped in time and well detected, as they are mainly driven by the variety of the crop (taken into account in the model).

Finally, the date of harvest was always well reproduced. In the formalism of the model, the date of harvest was simulated when GAI_sim reverted to zero after ripening. The decrease of GAI_sim was driven by a non-linear function governed by the GAI, assimilated during senescence and just after harvest. The date of harvest can be thus accurately estimated when the satellite data are numerous enough to control this non-linear function (this is our case). Nevertheless, the simulated date of harvest could have been less accurate if the satellite images were missing during this period. Given that the model was only controlled by optical data during this period, the quality of the results was strongly correlated with cloud cover. To overcome this limitation, the formalism of this process could be revised by using a threshold for grain humidity, for example, instead of using GAI_sim. This threshold, defined as approximately 32–35%, could be provided by seed-producers for each corn variety.

4.2. Can Vegetation Mass Be Retrieved Irrespective the Phenologic Stage?

As illustrated in Figure 7, the biomass can be accurately retrieved up to a couple of days before harvest. Nevertheless, in some particular cases, the model did not properly simulate the total masses just before harvest. These differences can be explained by the falling of the leaves of the corn during this period (phenomenon already observed for soybean in the literature [16]), which is not simulated by the model. Consequently, simulations strongly overestimated the total masses, particularly ear masses (Figure 7c), probably inducing an overestimation of the grain yield (not checked in our study because of the lack of yield data). To overcome this limitation, the falling of leaves should be implemented in the model by using a temperature function, for example, as this phenomenon cannot be observed on radar or optical signals [35,37]. This improvement will be useful for other crops whose leaves fall during certain phenological stages, e.g., grain maize, soybean, and rapeseed.

4.3. What Is the Impact of the SAR Preprocessing Algorithm?

The Sentinel-1 signal preprocessing algorithms differ from one institute to another, namely: openSarToolkit (FAO [53]), Google Earth Engine [54], S1tilling (available at http://tully.ups-tlse.fr/koleckt/s1tiling, version of May 2019). The main preprocessing steps involved in this algorithm are illustrated in Figure 11.

All of the algorithms integrate the steps of border noise removal [55], and radiometric and geometric correction [56]. The two main differences concern the application or not of thermal noise removal (TNR) and of the speckle filter [57]. The impacts of these two algorithms in terms of backscattering coefficients and biomass estimates are investigated in the two following subsections.

4.3.1. Impact of the Speckle Filter on the Backscattering Coefficient at the Field Scale

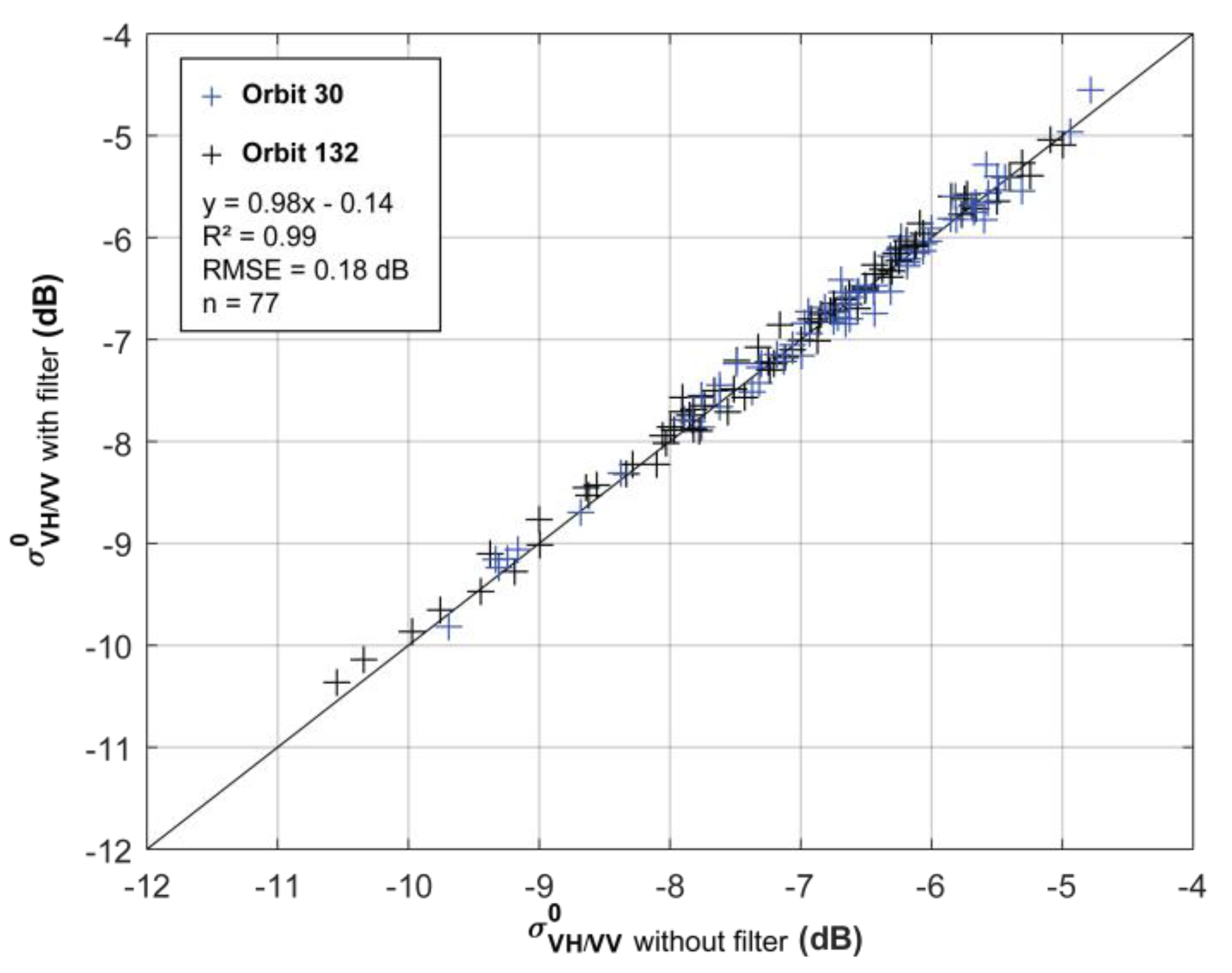

Figure 12 compares the σ°_VH/VV (median value) extracted at a field scale along the crop growing season, over all the popcorn fields, with or without applying a 3 × 3 window adaptive Lee filter. With respect to the mean, the signals were strongly correlated with the y = x regression line (R² = 0.99). This result confirms that the application of a speckle filter has few impact on the SAR signal values extracted at the field scale, as this filter conserves the mean value inside a homogenous area [57]. Nevertheless, the backscattering ratio is not exactly the same because (1) the median values are displayed in Figure 12 (not the mean values), and (2) some fields have a too much of an elongated shape to apply the adaptive Lee filter properly. The only assumption of the filter is that the sample mean and variance of a pixel are equal to its local mean and variance, based on the pixels within a fixed neighborhood surrounding it [57]. When the studied fields have too much of an elongated shape (in the azimuth or range direction of the image), the neighborhood around one pixel is composed of a mixed-pixel (defined as a mixel). Contrary to pure pixels, mixels contain multiple constituents within a single pixel (corn, forest, bare soil, river, etc.), which can blur the value of backscattering coefficients to some extent.

These two combined effects—median instead of mean, and shape of the field—explain the slight scattering of the backscattering coefficients (RMSE = 0.18dB) observed in Figure 12.

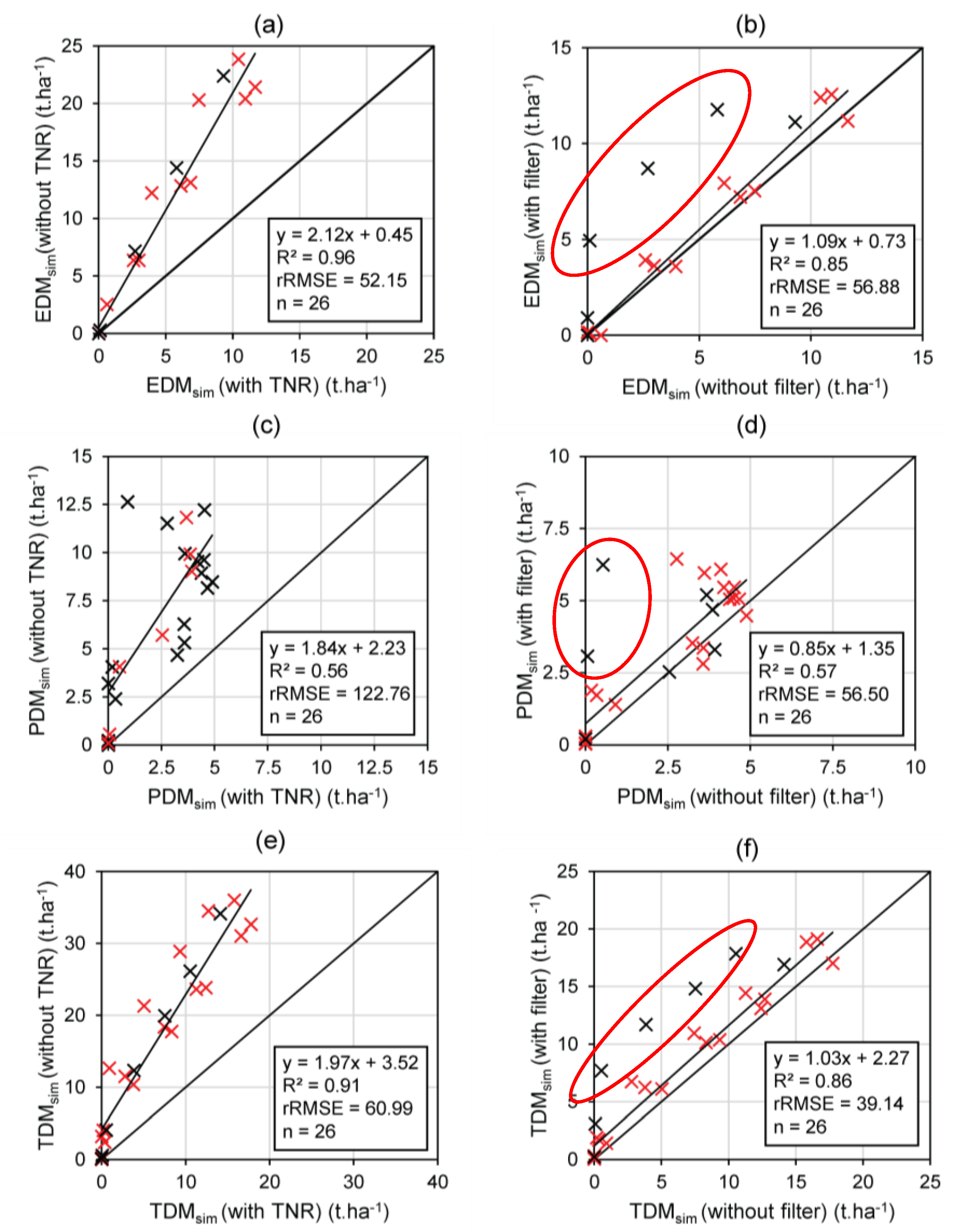

Figure 13b,d,f presents the effects of the filter on the estimates of EDM, TDM, and PDM compared to the simulation performed using no filtered backscattering coefficients (at the date of the ground measurements). The relationships estimated between the masses could be considered quite similar for EDM, TDM, and PDM, except for some points surrounded by red ellipsoids.

These points correspond to the simulations performed in field F4, the more elongated field of the study, namely: 420 m long by 70 m wide on average (Figure 1). This size must be compared with the native spatial resolution of the SAR data, which is 20 m (in the range direction) by 22 m (in the azimuth direction). This means that a maximum of three pixels are pure along the range direction. For this field, the median backscattering coefficients (σ°_VH/VV) were superior when the filter was applied. The overestimation of σ°_VH/VV induced an overestimation of the associated GAI_SAR and thus justified the higher simulations of the dry masses, as observed in Figure 13b,d,f. This phenomenon was not as pronounced on others fields, as they were larger and had a more regular rectangular shape.

4.3.2. Impact of Thermal Noise Removal (TNR) on Backscattering Coefficients and on Mass Retrieval

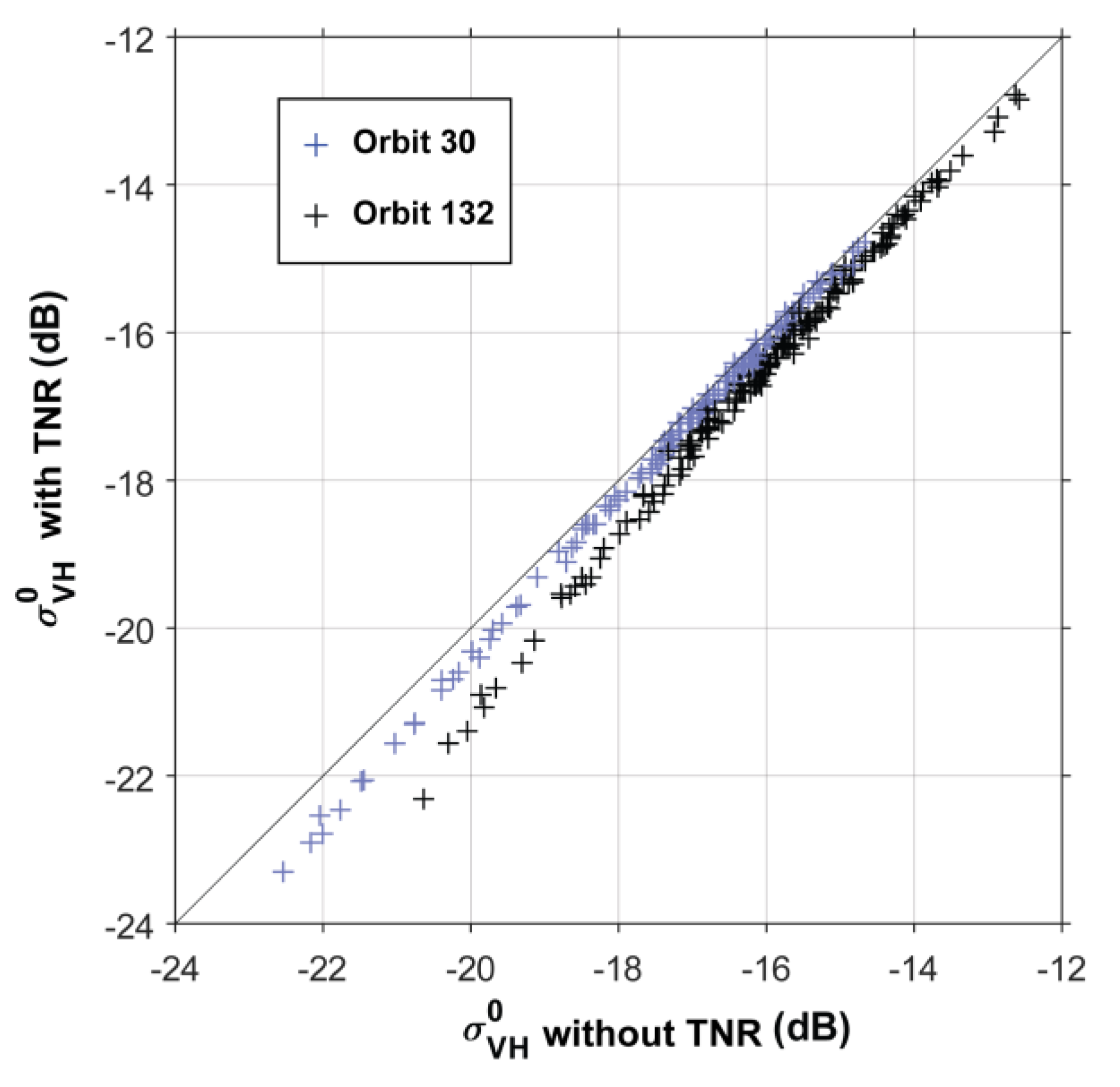

Figure 14 shows the influence of the thermal noise removal on the backscattering coefficient acquired at VH polarization, according to the acquisition orbit (30 or 132). The thermal noise comes from the electronic circuits and is one of the major sources of noise in microwaves. It mainly affects the signal when the signal to noise ratio (SNR) is low. Given that the cross-polarization signal is less powerful for corn than the co-polarization [35,37], this phenomenon mainly affects the cross polarization states. In the case of corn, the results of Figure 14 show that this correction can reach 2 dB in the worst case, when the VH decreases to −24 dB. Conversely, this correction is weak (less than 0.5 dB) when the HV signal becomes greater than −16 dB.

In VV polarization, there is no significant difference with or without the thermal noise removal, as the SNR is superior to the one obtained using VH signal (results not shown here).

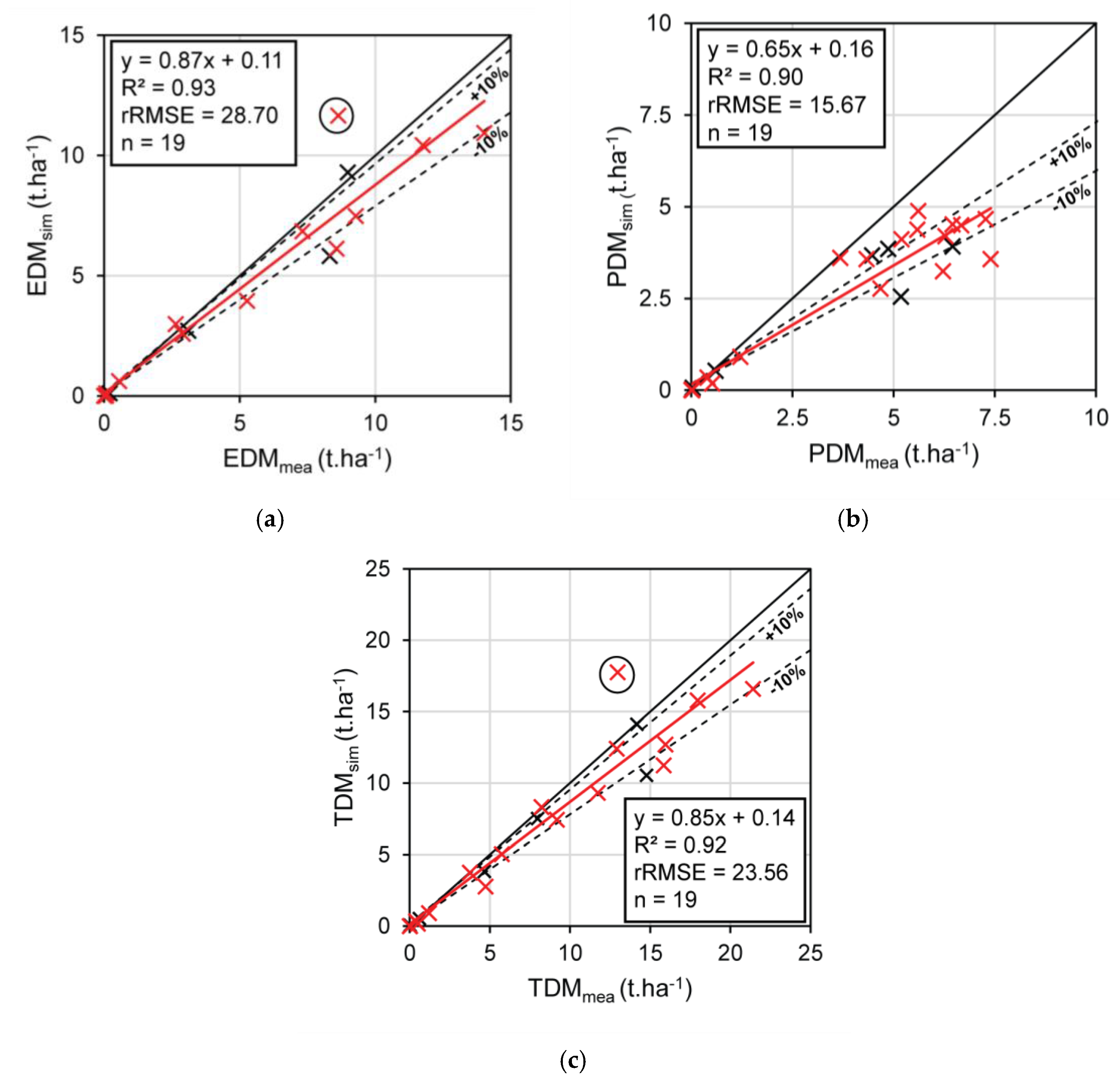

The impact of the thermal noise on mass retrieval (EDM, PDM, and TDM) is illustrated in Figure 13a,c,e. In this figure, the masses simulated using the GAI_SAR derived from the backscattering signal corrected from the thermal noise (x-axes) are presented, versus those simulated without the thermal noise (y-axes). The results show that the performances for mass retrieval were strongly degraded when the TNR was not considered (

Table 6. Statistical performances of the mass inversion (EDM, PDM, and TDM) with or without considering the thermal noise removal and speckle filter. TNR—thermal noise removal.

		n	R²	a	b	RMSE	rRMSE
with TNR and without speckle filter	EDM	19	0.93	0.87	0.11	1.07	28.70
	PDM	19	0.90	0.65	0.16	0.59	15.67
	TDM	19	0.92	0.85	0.14	1.77	23.56
with TNR and with speckle filter	EDM	19	0.95	0.96	0.08	0.94	25.32
	PDM	19	0.68	0.65	0.92	1.23	32.74
	TDM	19	0.95	0.92	1.09	1.46	19.44
without TNR	EDM	19	0.94	1.81	0.57	2.19	58.57
	PDM	19	0.36	0.99	3.34	3.72	98.77
	TDM	19	0.87	1.65	4.02	4.46	59.40

). The relative errors exceeded 58%, whereas they were lower than 30% when the radar signal was corrected for thermal noise. Moreover, the mean coefficients of determination decreased on average from 0.91 to 0.72. This phenomenon can be explained by the fact that σ°_VH was overestimated when not corrected for thermal noise, especially when the signal was low, as illustrated in Figure 14. This phenomenon was particularly well marked during the first phenological stages of the crop, just after sowing, when soil was still bare and dry. The overestimation of σ°_VH directly impacted the value of D₀ because the model wrongly considered that the vegetation started growing early in the season. Consequently, D₀ decreased, and the duration of the crop cycle lengthened until harvest. This led to an overestimation of the simulated masses (EDM, PDM, and TDM) compared to the ground measurements.

4.4. What Is the Impact of an Intercrop?

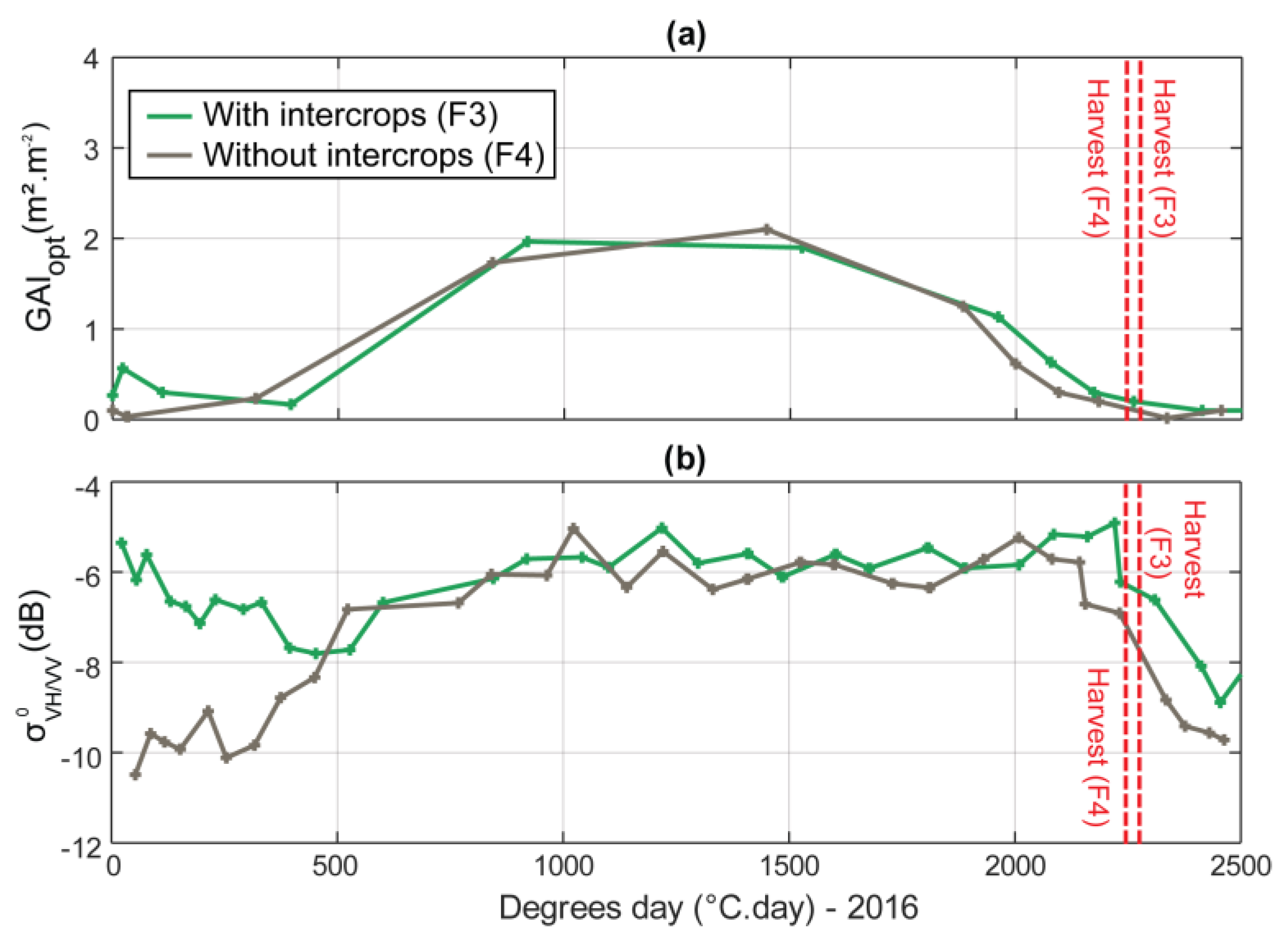

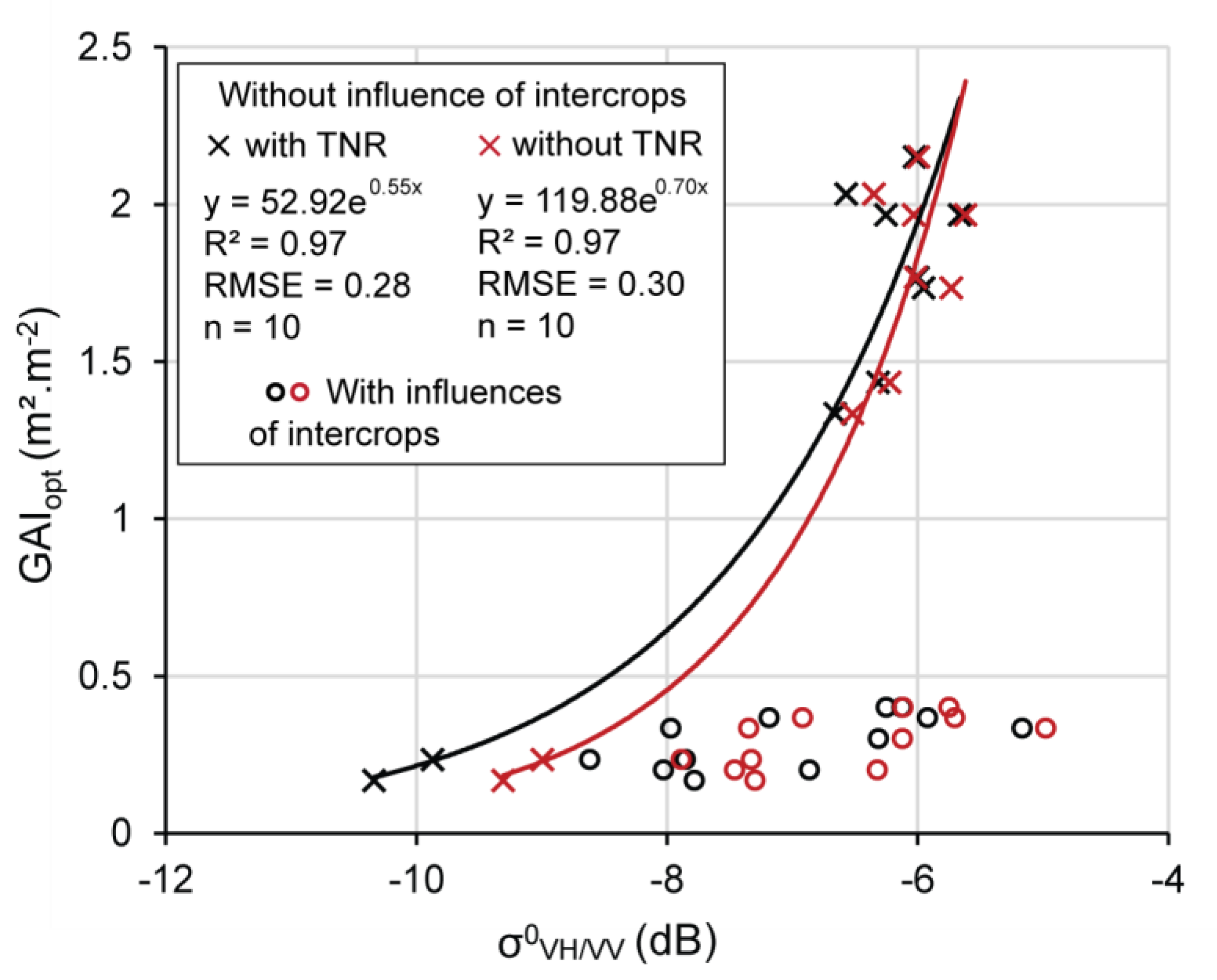

Intercrops play a major role in the quality of mass estimates. As illustrated in Figure 15, intercrops strongly affected the signal ${\sigma }_{VH/VV}^0$ at the beginning of the corn cycle (between 0 and 500 °C day). In our case, these crops were mainly composed of beans (Vicia faba L.). They were sown at the end of the year (before October–November) and were mechanically and chemically destroyed in May–June 2016, when corn began vegetative development. To restrain the impact of the SAR signal on the simulations, only ${\sigma }_{VH/VV}^0$ higher than −7.5 dB was assimilated (level defined by the intersection of the black and green curves in Figure 15 at the bottom). The GAI_opt estimated from the optical data was not affected by the presence of this crop, as it was undergoing senescence (Figure 15, at the top). At this stage, the color of the crop was close to the bare soil color (yellow, brown), and the BVnet algorithm (used to invert the GAI_opt) considered the reflectance to be the same as that observed for bare soil. Consequently, the algorithm simulated a GAI close to 0.

Without precaution, the impact of intercrops could affect the empirical function used to estimate the GAI from the SAR signals (Equation (8)). Figure 16 illustrates the impact of intercrops on the relationship estimated between GAI and ${\sigma }_{VH/VV}^0$. With intercrops, ${\sigma }_{VH/VV}^0$ strongly increased (until −5 dB), whereas the GAI of the corn remained low (less than 0.5 m²·m⁻²). It is thus very important to remove a parcel with intercrops to estimate this relationship.

5. Conclusions

The aim of this work was to estimate the temporal evolution of popcorn dry masses (ear, plant, and total amount) at a field scale using an agro-meteorological model (SAFY-WB) controlled by GAI, derived from optical (GAI_opt) and synthetic aperture radar (SAR) (GAI_sar) satellite images and total dry masses (TDM) measured in-situ.

The results show that once calibrated for one field, the total dry masses were accurately simulated with a daily time step in the range 0 to 20 t·ha⁻¹ (R² = 0.92; rRMSE = 23%). The simulated TDM must be nevertheless corrected from the underestimation trend, by applying a scaling factor equal to 1.17 (TDM_sim = 0.85.TDM_meas + 0.14) in order to obtain accurate absolute values. Moreover, the use of the model permitted separating the TDM into ear and plant dry masses (EDM and PDM) with good performances (R² > 0.90). The approach also permitted accurate simulation (seven days of offset) of the following four phenological stages: four to five leaves, flowering, ripening, and harvest. The Discussion section pointed out some important points to consider for a good estimate of dry masses of corn during the preprocessing steps. In our study case, it was not wise to apply a speckle filter to the SAR data (because of the specific shape of some of the fields), whereas it was important to apply the thermal noise removal in order to obtain an accurate simulation of the dry masses.

From an agronomic point of view, the results have shown that new agricultural techniques (with intercrop management) significantly affects the SAR signal, which becomes unusable for establishing the relationship with GAI during the first phenological stages of the crop. This phenomenon was not observed when plots of corn were cultivated traditionally without intercrops.

This work could be extended to larger areas governed by heterogeneous climatic conditions. In this case, a dense network of weather stations is required to control the agro-meteorological model with local climatic measurements (wind, temperature, radiation, etc.). Moreover, the limitation in GAI_SAR retrieval could be overcome by using a lower frequency signal to control the model, similar to that offered by ALOS-2 PALSAR sensors (L-band).
