A Review of Earth Observation-Based Analyses for Major River Basins

Abstract

Regardless of political boundaries, river basins are a functional unit of the Earth’s land surface and provide an abundance of resources for the environment and humans. They supply livelihoods supported by the typical characteristics of large river basins, such as the provision of freshwater, irrigation water, and transport opportunities. At the same time, they are impacted i.e., by human-induced environmental changes, boundary conflicts, and upstream–downstream inequalities. In the framework of water resource management, monitoring of river basins is therefore of high importance, in particular for researchers, stake-holders and decision-makers. However, land surface and surface water properties of many major river basins remain largely unmonitored at basin scale. Several inventories exist, yet consistent spatial databases describing the status of major river basins at global scale are lacking. Here, Earth observation (EO) is a potential source of spatial information providing large-scale data on the status of land surface properties. This review provides a comprehensive overview of existing research articles analyzing major river basins primarily using EO. Furthermore, this review proposes to exploit EO data together with relevant open global-scale geodata to establish a database and to enable consistent spatial analyses and evaluate past and current states of major river basins.

1. Introduction

1.1. Relevance of River Basins

Since the origin of ancient civilization, human activity primarily evolved in regions where the Earth’s surface is shaped by rivers [1]. In terms of freshwater supply and food production, rivers are essential to human societies [2]. At the same time, rivers are systematically exploited for extensive irrigation, transportation, or hydropower generation. Mesopotamia, also referred to as cradle of civilization, is formed by the Tigris and Euphrates river system providing fertile soils as well as direct access to freshwater for livelihoods and agricultural productivity. However, the Tigris–Euphrates river basin has faced extreme drought events over recent decades that have contributed to agricultural failures [3]. In comparison, the Mekong river, considered to be the lifeline of Southeast Asia, has undergone vast human-induced changes. The natural river flow has been thoroughly modified through the construction of dams with a tremendous impact mainly on biodiversity and sediment transportation [4]. A decrease in sediment transportation from the Mekong river to the sea already resulted in large-scale erosion at its delta [5].

Growing human societies, increasing demand for freshwater, and global climate change put high pressure on river systems and their entire drainage area [6,7,8]. As freshwater is not evenly distributed on the globe, many regions must deal with water scarcity [9]. In this regard, Mekonnen and Hoekstra [10] reported that around 4 billion people suffer severe water scarcity over a period of at least 1 month a year. With accelerating climate change, the number of people affected by climatic and hydrological extreme events might increase considerably.

In the light of land and water resource management, monitoring of rivers and their entire drainage area is highly important [11]. With more detail, the drainage area of a river, also called river basin, covers all parts of the land surface that contribute to the river discharge at a certain point. In fact, river basins are a functional unit of the Earth’s surface with unique characteristics with respect to their land surface properties, topography, geology, and climate. Here, it is important to note that any changes made in the upstream area might have a considerable impact on downstream regions. Therefore, governance of major river basins, particularly transboundary river basins where collaboration between nations is a prerequisite for avoiding political conflicts [12], is of utmost significance with respect to environmental health and economic development. Figure 1 briefly visualizes selected features and processes of a river basin.

River basin management requires comprehensive monitoring of its unique characteristics. To date, there are several inventories and interactive data portals providing information on selected major river basins. AQUASTAT, maintained by the Food and Agriculture Organization (FAO), provides tabular inventories on water resources, dams, and irrigation characteristics, but just at the spatial entity of countries. Additionally, a detailed geographical description is available for a selection of transboundary river basins only. Furthermore, HydroSHED provides a suite of geospatial datasets related to hydrographic information on river basins at global scale [13]. The Global Runoff Data Centre (GRDC) offers geospatial datasets on river basin boundaries as well, including tabular inventories on drainage area and mean annual discharge. Additionally, the United Nations Environment Programme (UNEP) coordinates the Transboundary Waters Assessment Programmes (TWAP) river basin component. This platform quantifies baseline information for all transboundary river basins at global scale, including indicators such as water stress, water pollution, governance aspects, and socio-economic variables mainly focusing on risks related to the environment and society. In addition, the World Resources Institute (WRI) provides geospatial information on water related topics, such as water risk on the Aqueduct platform. However, an exploitation of available geospatial thematic data as well as a consistent monitoring of the spatial and temporal distribution of land surface and surface water properties lack for major river basins at global scale [14,15,16]. In Figure 2 general characteristics of major river basins, such as basin area, measured mean annual discharge, population data, and change of selected land cover information are described.

1.2. Earth Observation in Times of Open Archives

Considering the large size and spatial as well as temporal variability of major river basins, Earth observation (EO) has the potential to serve as an efficient tool for river basin characterization. This includes direct and indirect measurements e.g., on land cover and land use, surface water, and river or lake water levels.

The open data policies for many satellite programs offer free access to data archives, e.g., from the European Copernicus Sentinel or the USGS Landsat and MODIS missions, including optical, synthetic aperture radar (SAR), or altimetry instruments. Depending on the requirements and research questions, analyses of land surface and surface water dynamics can be performed at high to low spatial resolution (10 to 1000 m) covering local to global scale. Here, the temporal resolution of change analyses highly depends on the selected data source. Long-term analyses are possible at medium spatial resolution (30 m) e.g., using optical Landsat data (since 1972). Landsat data have the potential to retrieve information on e.g., land cover and land use, vegetation condition, or water clarity at a revisit time of 16 days [15,20,21]. Considering time-series analyses, the low revisit time and data gaps of multispectral Landsat images caused by cloud coverage might drastically reduce the number of valid observations. However, incorporating multi-source Sentinel-2 imagery (since 2015) at 10 to 20 m spatial resolution and a revisit time of up to 5 days, it is possible to densify time-series of optical imagery at high spatial resolution. On the other hand, MODIS (since 2000) and NOAA–AVHRR (since 1978) provide multispectral imagery at low spatial resolution (250 to 1 km) with the advantage of very high temporal resolution up to twice a day. These data offer the opportunity to perform time-series analyses at very high temporal resolution, e.g., to monitor crop growth or inundation dynamics [22,23]. In comparison, SAR missions have the capability to observe land surface dynamics independent of illumination and weather conditions. In detail, open SAR data is provided e.g., by the Sentinel-1 mission at a spatial resolution up to 10 m and a temporal resolution up to 3 days. SAR data have the potential to characterize e.g., inundated areas with or without vegetation cover [24,25].

1.3. Objectives and Scope of this Review

In this review, we analyze all available studies focusing on EO-based characterization of river basins and we assess how EO can contribute to quantifying land surface and surface water parameters with respect to major river basins. To our knowledge, there is no review article mainly focusing on EO-based applications in the context of large river basins. However, we identified related reviews e.g., investigating the use of EO in characterizing surface water [14], EO for monitoring river corridors [26], EO for water resources management [11], EO for monitoring flood extent and water level [27], or application of EO in hydrology [28,29]. The overarching objective of this review is to analyze EO-based datasets and their respective spatial and temporal scale. For this purpose, we review all available literature and provide a general overview of what type of information has been made available to date. In this context, the following research questions will be addressed:

• Which land surface and surface water parameters are studied for major river basins?
• Which remote sensing data sources are used in the reviewed articles?
• What is the availability of basin wide studies, also with respect to the analyses of transboundary river basins?
• What are the limitations of major river basin analyses and what are challenges for future studies?

In Section 2, we start with the description of the methodological review approach. In the following, we present the results of the literature review in Section 3. With more detail, we provide a broad overview of the reviewed studies that investigate river basin characteristics using satellite data. Here, we focus on parameters, such as the spatial distribution of the studies, the identified research foci, employed sensor types, temporal resolution, and spatial scale of the reviewed studies. We also elaborate relevant open geospatial datasets describing land surface and surface parameters at global scale. Afterwards, a detailed review of the investigated land surface and surface water parameters is given. Next, we discuss the findings of our review in Section 4. In Section 5, the review is summarized focusing on the main findings.

2. Methodology

We collocated all available research articles investigating land surface and surface water parameters, specifically those measurable directly at the Earth’s surface, using primarily spaceborne remote sensing data. In the literature, a major river basin is categorized e.g., based on its mean annual discharge, total length of the river, or total size of the drainage area. In this review, the selection of major river basins is solely based on their drainage area. To incorporate at least one major river basin per continent, we selected all river basins with a drainage area greater than 500,000 km². It must be noted that lake drainage areas are not considered for this review. The resulting sample size amounts to the 28 largest river basins, visualized in Figure 2.

Literature search has been conducted based on the bibliographic database of Web of Science and Scopus (last accessed on 09.04.2019) including research articles of the last two decades, specifically published between 2000 and end of the first quarter of 2019. During literature search we used the names of the selected major river basins together with additional keywords including ’river’, ’delta’, ’basin’, ’catchment’, ’watershed’, or ’floodplain’. This search query resulted in a very large number of research articles. Hence, we reduced the number of journals by pre-selection, since this review focused primarily on EO-based studies of river basins. In particular, this pre-selection limited the literature search to 14 relevant journals and was conducted based on criteria such as compliance of the scope between journal and literature review and relevance of the published research articles. The selected journals as well as the number of identified research articles are listed in

Table 1. List of included journals and the corresponding count of reviewed articles.

Journal Title	Number of Articles
Remote Sensing of Environment	75
Remote Sensing	62
International Journal of Remote Sensing	59
Applied Geography	12
International Journal of Applied Earth Observation and Geoinformation	11
Hydrological Processes	11
IEEE Transactions on Geoscience and Remote Sensing	9
IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing	8
Science of the Total Environment	7
Hydrology and Earth System Sciences	7
Journal of Applied Remote Sensing	5
Journal of Hydrology	5
Environmental Earth Sciences	5
Photogrammetric Engineering and Remote Sensing	4
ISPRS Journal of Photogrammetry and Remote Sensing	4
Water Resources Research	3
∑	287

. Accordingly, the research focus of the selected journals is on EO, geoscience, and hydrology. In a final step, we screened all resulting literature based on the following inclusion criteria:

• The literature addressed EO-based land surface and surface water characterization.
• The research article investigated the spatial entity “basin”, “subbasin”, or “regional”. Studies with a small local study area are excluded.
• The research article employed primarily spaceborne EO data.
• The research article did not focus on sea surface water or land–atmosphere interaction applications.

The remaining 287 studies were analyzed to extract relevant information for this review, such as the parameters research focus, employed remote sensing sensor, spatial scale of the study area, and temporal resolution of the study (see Supplement Table S1). Regarding the thematic focus of this review, the research articles were categorized into “biosphere”, “hydrosphere”, and “cryosphere”. Studies analyzing urban areas were assigned to the category “biosphere”. Throughout the literature review, research foci were identified and associated with one of the defined spheres. Corresponding research foci are listed in

Table 2. Summary of categories and corresponding research foci.

Category	Research Focus
Biosphere	Agriculture, coastline, land cover and land use, urban, vegetation
Hydrosphere	River discharge, river water level, surface water, water quality
Cryosphere	Permafrost, river and lake ice, snow and ice cover

.

3. Results: EO Applications for River Basins

In this section, we first provide a broad overview of the spatial distribution of the reviewed studies and their respective research foci. Afterwards, we evaluate the used sensor types, the temporal resolution as well as the spatial scale of the reviewed research articles. In the following, a more detailed review of the identified research foci is provided presenting key results and findings of the reviewed studies.

3.1. Spatial Distribution of Reviewed Research Articles

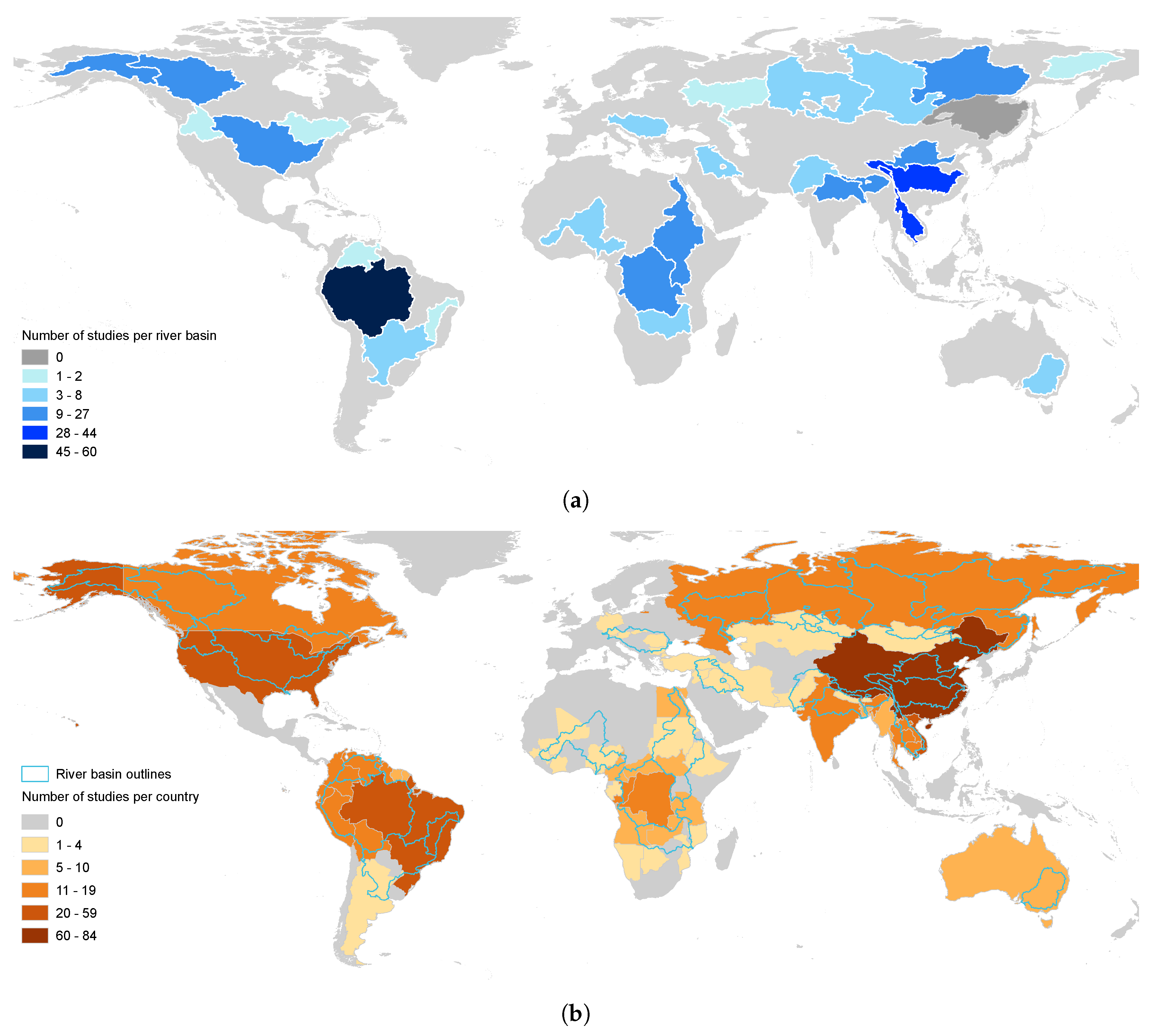

The results of this review revealed that analyses of land surface and surface water parameters mainly focused on selected major river basins. The frequency of studies with respect to each individual river basin as well as country are compiled in Figure 3. In detail, we found that the number of published studies is highest for the Amazon river basin, specifically, it was investigated by ∼21% of all reviewed studies. Also, we identified a high research interest for river basins in Southeast Asia, specifically the Yangtze, Mekong, and Yellow river basin. In particular, the percentage of research articles analyzing these river basins amounts to ∼15%, ∼15%, and ∼9%, respectively. Even though the Congo river basin is the second largest in the world, it was investigated in only ∼6% of the reviewed articles. Furthermore, the Mississippi and Mackenzie river basins, located in North America, have a share of ∼5% each. With respect to Arctic river basins, Figure 3a demonstrates that the number of reviewed studies is comparably low, i.e., 2 studies for the Kolyma [30,31] and Volga [32,33] river basins, respectively. To our knowledge, no studies have been conducted for the Amur river basin.

In Figure 3b, the number of reviewed research articles per investigated country is illustrated. Considering the riparian countries of the Amazon river basin, we found that the number of studies is highest for Brazil (e.g., [34,35,36,37]). Although river basins are a functional unit regardless of national boundaries, Figure 3b clearly indicates areas of special interest. With more detail, these include China, Brazil, Vietnam, and the United States of America, where the percentage of studies amounts to ∼29%, ∼21%, ∼11%, ∼8%, respectively. For several major river basins, such as the Niger, Nile, Zambezi, and Danube, it becomes apparent that the territory of some countries included in the functional unit of the river basin remained entirely unstudied.

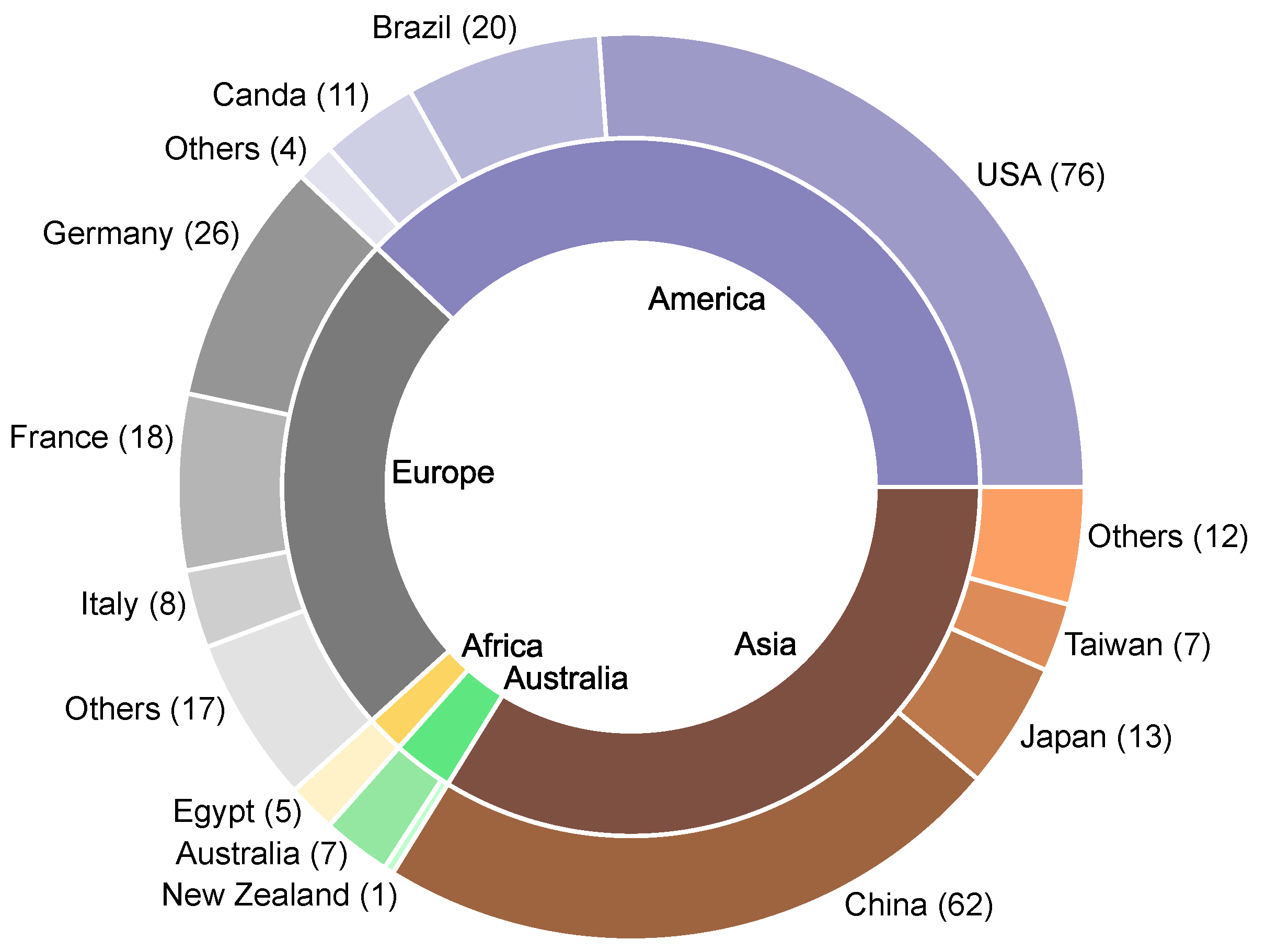

In this framework, Figure 4 describes the institutional affiliation of the first authors of all reviewed research articles. Here, an alignment of the number of institutional affiliations and the number of reviewed studies per investigated country is noticeable (see Figure 3b and Supplement Table S1). We figured that studies conducted by first authors affiliated to China also dealt with study areas located in China in ∼89% of the investigations. In case of Brazil, the corresponding percentage amounts to ∼75%. First authors associated with Germany mostly investigated study areas located in Asia (∼85%). Moreover, first authors affiliated with the United States of America dealt with study areas located on the American continent in ∼60% of all studies. It must be noted that regarding institutional affiliations of co-authors, ∼42% of all reviewed studies are conducted by cross-border collaborations.

3.2. Broad Categorization of Research Foci

During literature review, we categorized all research articles into “biosphere”, “hydrosphere”, and “cryosphere”. According to these spheres, we identified research foci as sub-categories describing EO-based quantification of land surface and surface water parameters (see Table 2 and Figure 5). With a share of ∼53%, the research category biosphere was studied in more than half of the reviewed investigations. Within this category, the main research focus was on vegetation characteristics (∼39%). Following this, multi-class land cover and land use classifications were studied in ∼32% of all investigations (Figure 5). Studies associated with the research foci “urban”, “agriculture”, and “coastline” amount to a share of ∼12%, ∼12%, and ∼5%, respectively. On the other hand, the research category hydrosphere was studied in ∼39% of all reviewed articles. This category includes research foci related to the quantification of surface water and river characteristics. Here, the topic “surface water” had the highest share of articles (∼45%). These studies primarily focused on binary surface water extent classification as well as on the quantification of flooding and inundation dynamics. Finally, investigations related to river properties such as “water quality”, “river water level”, and “river discharge” amount to ∼27%, ∼16%, and ∼12%, respectively. In comparison, the category cryosphere included ∼8% of the reviewed research articles. Here, we identified “snow and ice cover”, “permafrost”, and “river and lake ice” as research foci.

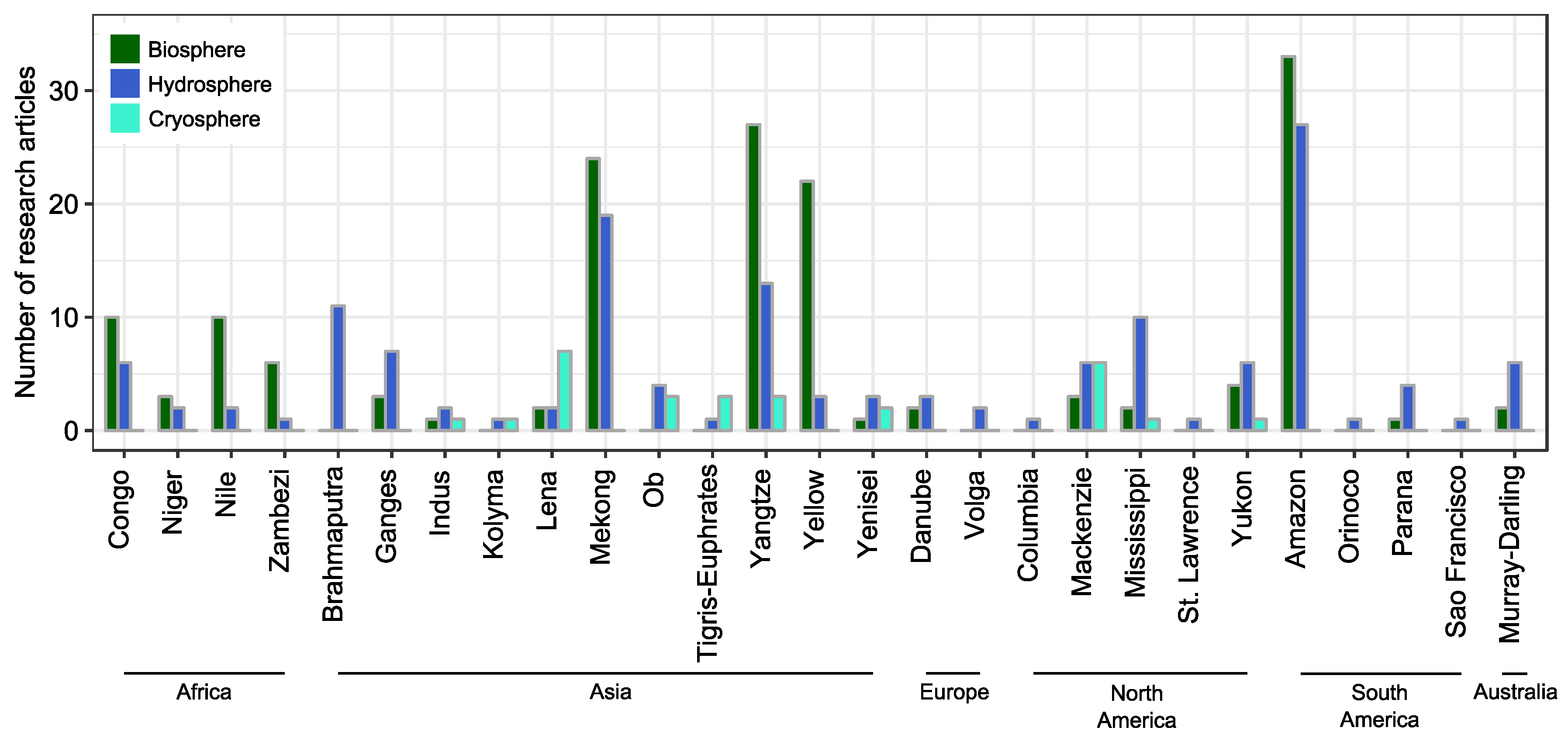

Figure 6 presents the number of reviewed research articles with respect to one of the defined research categories per investigated major river basin. This figure indicates that Arctic river basins as well as several river basins with highly mountainous source regions, such as the Indus and Tigris–Euphrates, have a comparably higher share of studies associated with the category cryosphere. In the case of the Brahmaputra, Columbia, Orinoco, Sao Francisco, St. Lawrence, and Volga river basins, all reviewed articles investigated research foci related to the hydrosphere. Yet, the total number of reviewed articles is comparably low for these river basins. Furthermore, for the Amazon, Congo, Mekong, Yangtze, and Yellow river basins, the category biosphere accounted for more than half of all studies in each individual river basin.

3.3. Employed Sensor Types in Reviewed Research Articles

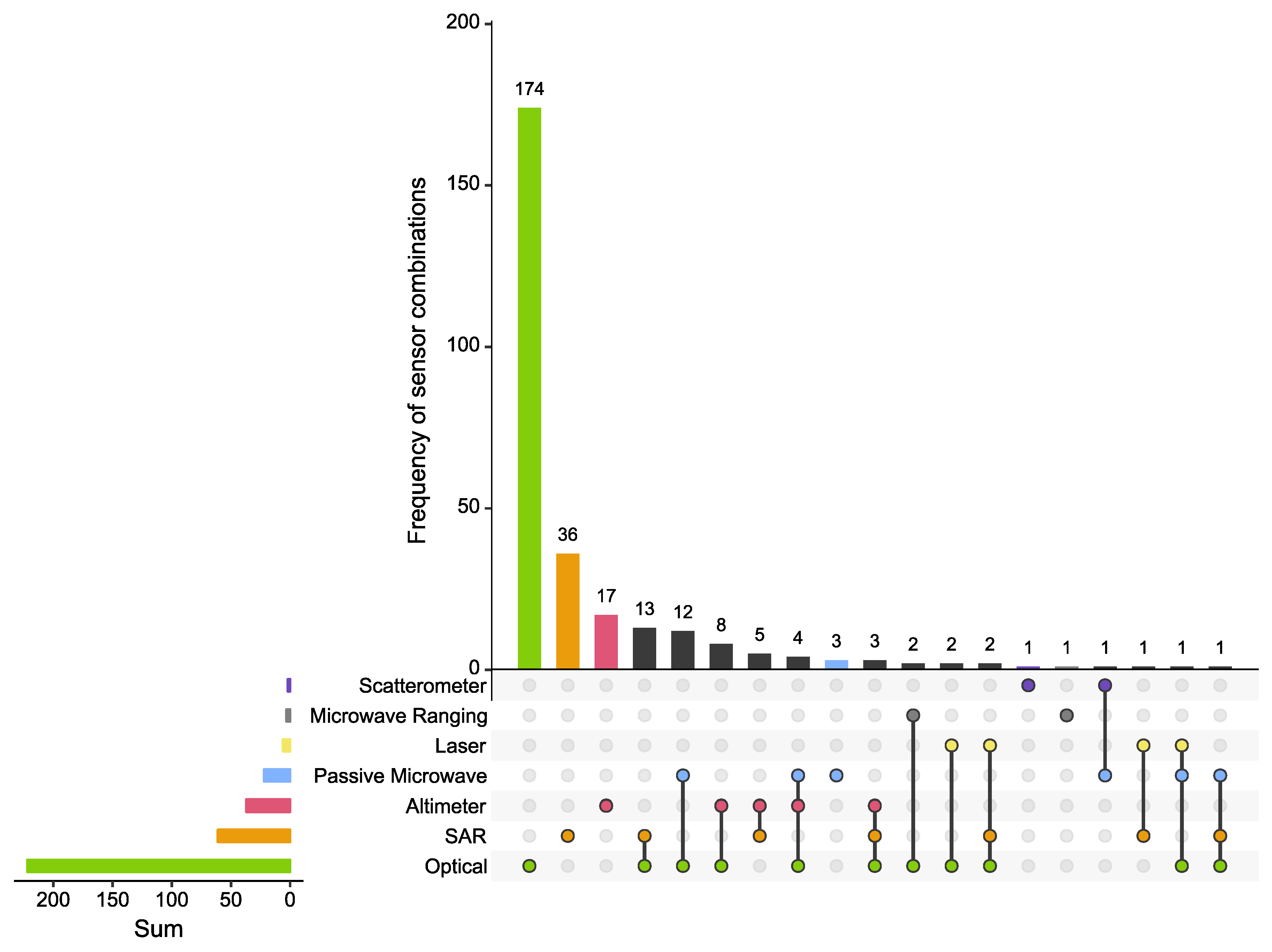

In terms of used sensor types within the studies, we found that imagery recorded by optical sensors were most frequently used (see Figure 7). Specifically, ∼61% of all studies rely solely on optical remote sensing data. Furthermore, ∼13% of all studies only used SAR and ∼6% altimetry data. Optical and SAR data are most frequently combined (∼5%), while synergistic use of optical and passive microwave data accounted for ∼4% of all investigations. Further sensor combinations are visualized in Figure 7 and amount together to ∼11%.

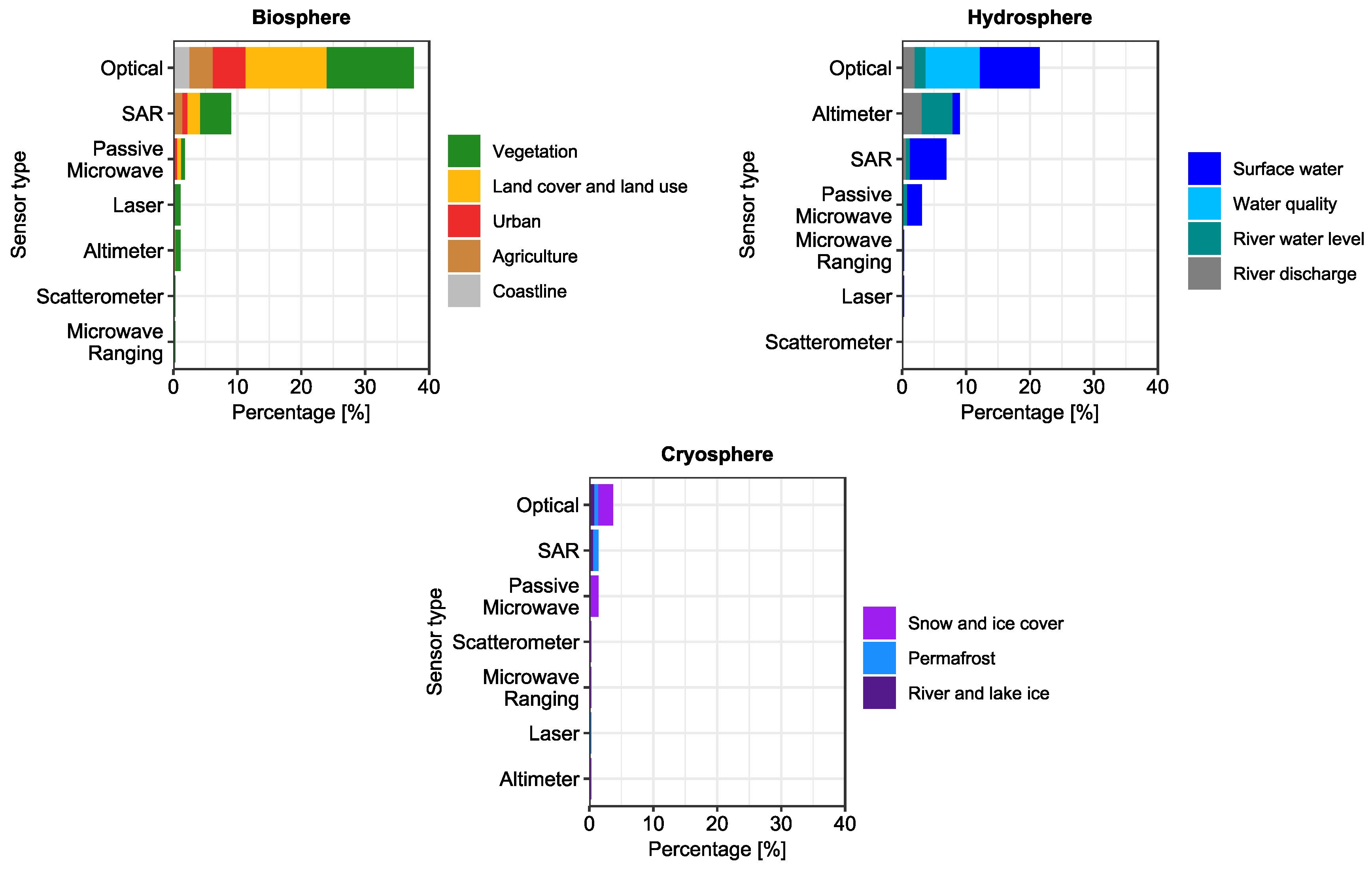

Figure 8 visualizes the share of used sensor types with respect to the identified research foci. Similar to the results in Figure 7, optical imagery is the most frequently used data source across all research categories. With more detail, ∼14% of the studies investigating research questions related to vegetation characteristics used optical imagery. Similarly, optical data was the primary data source for studies with their research focus on “land cover and land use” (∼13%), “urban” (∼5%), “agriculture” (∼4%), and “coastline” (∼3%). Within the research category biosphere, SAR data was most often used for vegetation mapping (∼5%).

Following this, optical imagery was also primarily used for surface water (∼9%) and water quality (∼9%) mapping. In ∼6% of all studies, SAR images were applied to characterize surface water. Considering river water level and river discharge estimation, altimetry data was used most frequently accounting for ∼5% and ∼3%, respectively.

Regarding the research category cryosphere, optical imagery was most often used (∼13%) for snow and ice (∼2%) as well as river and lake ice monitoring (∼1%). Studies focusing on permafrost employed SAR data in most cases (∼1%).

3.4. Temporal Resolution of Reviewed Research Articles

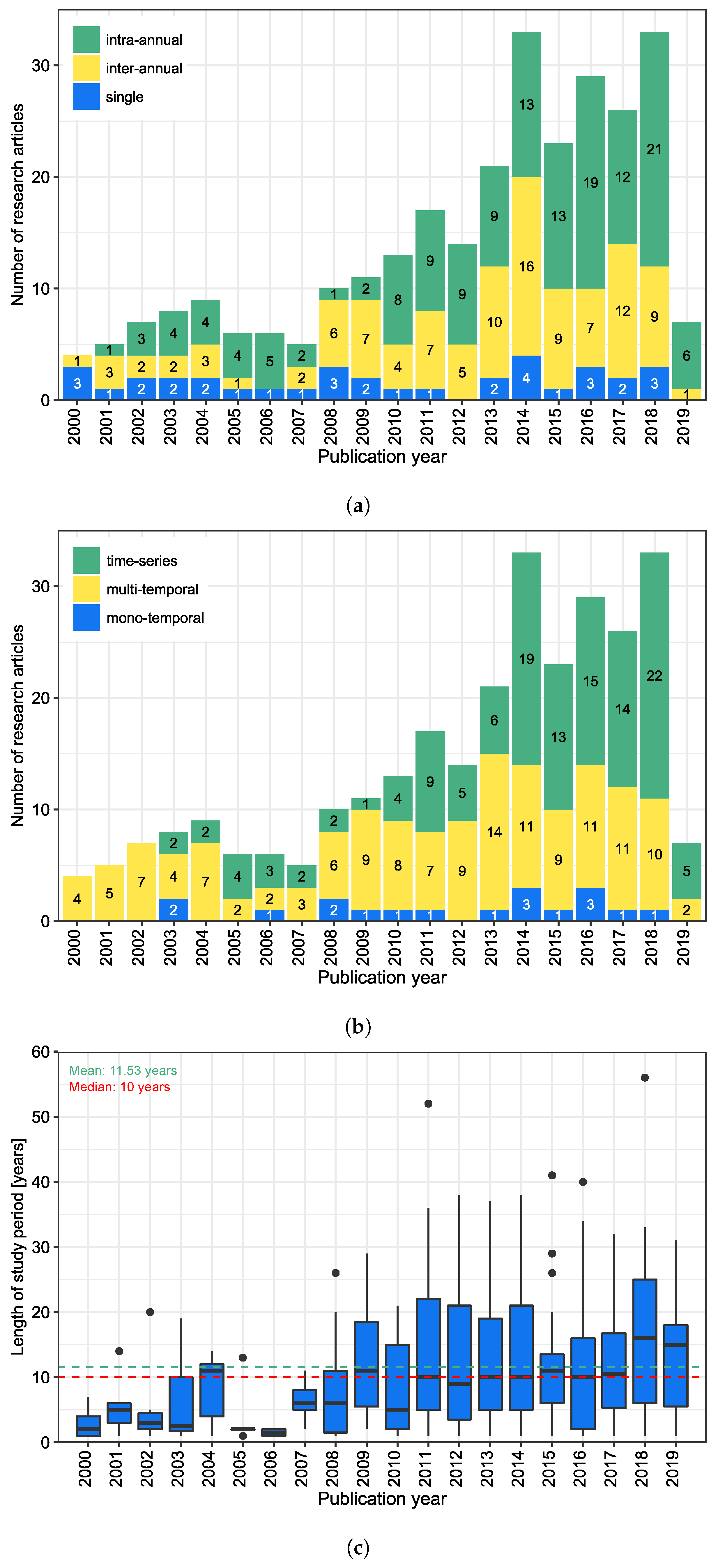

Figure 9 shows the temporal resolution and total observation length of all reviewed investigations. Considering the temporal resolution of the reviewed investigations, we established the classes “single”, “intra-annual”, and “inter-annual”. The class “single” includes all studies performing no change analysis in their results. If the change analysis was conducted at an interval of less than 12 months, we assigned the respective study to the class “intra-annual”. The class “inter-annual” comprises all studies conducting a change analysis at an interval greater than a year. In total, we found that ∼12% of all studies performed no change analysis. Furthermore, the results indicate that inter-annual change analyses were undertaken in ∼37% of all reviewed articles, while ∼51% investigated intra-annual changes of a respective parameter. In general, we found that intra-annual investigations considered shorter time periods than inter-annual change analyses. The maximum study period for intra-annual analyses amounts to 29 years and to 56 years for inter-annual analyses. Over the two investigated decades, the number of studies performing no change analysis remained constant (Figure 9a). There is a remarkable increase in the number of studies undertaking intra-annual change analyses starting in 2009. Similarly, we also detected an increase with respect to inter-annual change analysis.

In addition, we categorized the studies with respect to the temporal resolution of the employed satellite imagery. Here, we differentiated between “mono-temporal”, “multi-temporal”, and “time-series” analyses. The first class includes studies that only used single acquisitions and the second class includes investigations that used multiple images at several time steps. The third class “time-series” includes studies where a series of images was used at a constant revisit time and/or the research objective was to perform a trend analysis. The results show that only ∼6% of all considered studies applied single acquisitions as input. In comparison, ∼49% of all reviewed articles used multi-temporal imagery and satellite image time-series were employed in ∼45% of all cases. The distribution of the classes over the two investigated decades is depicted in Figure 9b. It is noticeable that the number of time-series applications increased consistently since 2011. This also aligns with the identified increase in intra-annual change analyses (see Figure 9a). Corresponding to the increase of the total number of published articles, there was also a slight increase in the use of multi-temporal satellite images since 2008. The usage of mono-temporal satellite imagery remained constantly low.

Considering the length of the investigated study periods, we identified that ∼54% of all study periods were below or equal to 10 years and ∼18% greater than 20 years. Figure 9c visualizes the length of the study periods per publication year. In general, this figure indicates an overall increase in the length of study periods.

3.5. Spatial Scale of Reviewed Research Articles

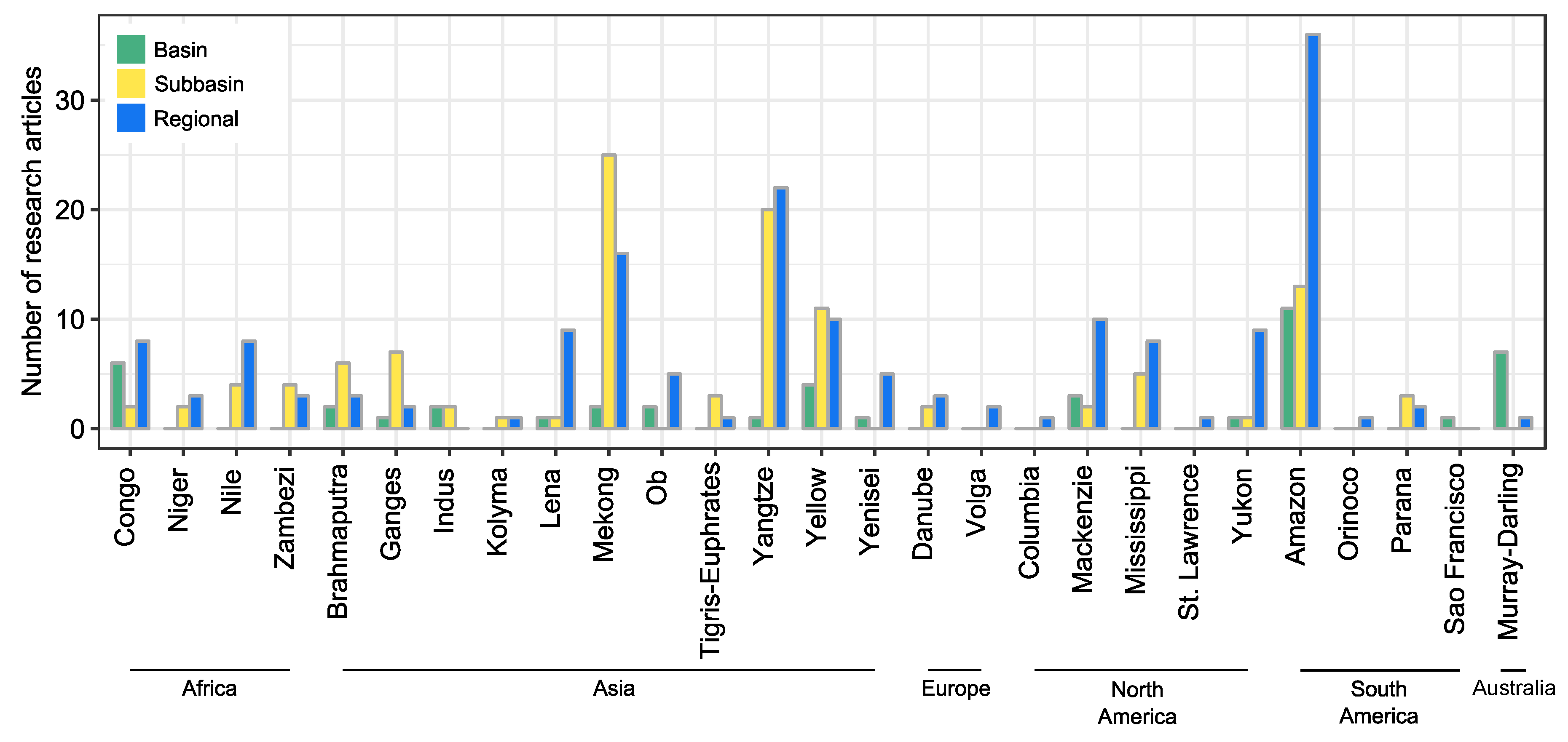

Moreover, the reviewed research articles were categorized according to the spatial extent of the investigated study area. In this context, we classified the reviewed articles into “basin”, “subbasin”, and “regional”. Here, investigations at the spatial scale of an entire major river basin are assigned to the class “basin”. The category “subbasin” considers functional subsets of a river basin, including e.g., source or mouth regions. Lastly, “regional” describes study areas with no spatial relation to the functional unit of a river basin i.e., studies analyzing single satellite acquisitions only. However, these studies still have a clear research focus with respect to one of the selected major river basins.

Considering the investigated spatial extent of the reviewed articles in Figure 10, it is evident that the frequency of basin wide studies is comparably low. In total, only ∼14% of the studies focused on the analysis of an entire major river basin and, in comparison, ∼37% of all studies investigated study areas at subbasin scale. Almost half of the reviewed studies, specifically ∼49% investigated a study area at regional scale.

With more detail, we found that most of the basin wide applications were conducted for the Amazon river basin (∼4%). The river basin with the second highest number of basin wide investigations is the Murray–Darling river basin in Australia (∼2%). Considering the Murray–Darling river basin, almost all available studies are at basin scale. Moreover, the number of studies related to the category “subbasin” is highest for the Mekong, Yangtze, and Yellow river basin. Here, most subbasin analyses had their focus on delta regions. Regional analyses were mostly conducted for the Amazon river basin (∼13%) as well as for the Yangtze (∼8%) and Mekong (∼6%) river basins.

Furthermore, our analysis revealed that most of the reviewed studies focused on the investigation of single river basins only, in particular ∼94% of all articles (e.g., [15,38,39]). In ∼6% of all studies, more than one river basin was analyzed (e.g., [40,41,42]). Additionally, ∼69% of all studies dealt with a transboundary river basin; however, among these studies ∼67% investigated the functional unit of a river basin within one riparian country only.

3.6. Additional EO-Based Data

Despite basin wide applications, global geospatial datasets are already available for many land surface parameters. A list of selected layers is presented in

Table 3. Summary of selected open geospatial data sets characterizing land surface and surface water parameters. The temporal resolution is described as yearly (Y), monthly (M), and daily (D).

Dataset	Data Basis	Spatial Resolution	Temporal Resolution	Reference
Land cover
ESA CCI land cover	ENVISAT-MERIS, NOAA-AVHRR, PROBA-V	300 m	1992–2015 (Y)	[19]
GLC2000	SPOT	1 km	2000	[48]
MODIS land cover	MODIS	500 m	2001–2013 (Y)	[49]
GlobCover	MERIS	300 m	2005, 2009	[50]
GlobLand30	Landsat	30 m	2000, 2010 (Y)	[51]
Agriculture
Global cropland extent	MODIS	250 m	2000–2008	[52]
Global map of irrigation areas	multi-source	5 km	2013	[53]
Vegetation
Global forest change	Landsat	30 m	2000–2018 (Y)	[54]
MODIS biophysical parameters	MODIS	250–1000 m	2000– present (D,M,Y)	[55]
Copernicus global land service	SPOT-VGT, PROBA-V	varies	varies	(e.g., [56,57])
Urban
Global human settlement layer (GSHL)	Landsat, Sentinel-1	30 m	1975, 1990, 2000, 2014 (Y)	[58]
Global urban footprint (GUF)	TanDEM-X	12 m	2012	[59]
World settlement footprint (WSF)	Landsat, Sentinel-1	10 m	2015	[60]
River properties
Global river network	HydroSHEDS	500 m	–	[61]
Copernicus water level	Altimeter missions	virtual stations	2002– present	[62,63]
Surface water
Global surface water	Landsat	30 m	1984–2018 (M)	[64]
Global WaterPack	MODIS	250 m	2003– present (D)	[65]
Snow cover
Global SnowPack	MODIS	500 m	2000– present (D)	[66]
Basemaps
TimeScan	Landsat	30 m	2000, 2010, 2015 (Y)	[67]
Global reservoir and dam v1.3	multi-source	vector	2019	[68]
OpenStreetMap	multi-source	vector	present	[69]

. To our knowledge, the first global land cover dataset was published at a spatial resolution of 1 degree [43]. Later, Loveland et al. [44] used NOAA-AVHRR data, acquired in 1992 and 1993, to generate global land cover data at a spatial resolution of 1 km. Since then, further datasets at even higher spatial and temporal resolution became available. Recently, a yearly global land cover product was published by the European Space Agency’s (ESA) Climate Change Initiative (CCI) Land Cover project for the period between 1992 and 2015 and at a spatial resolution of 300 m [19]. However, global land cover data at high to medium spatial resolution are still lacking. Further layers are available for the parameter vegetation, surface water, and urban areas at global scale. For these thematic datasets, the spatial resolution reaches up to 10 m. Many studies included subsets of global thematic datasets into their analysis. For example, Wang et al. [45] used the global surface water layer to analyze surface water dynamics over the Yangtze river basin. In another study, OSM data was applied to extract built-up areas [20]. Also, MODIS-based land cover products were used in several studies (e.g., [40,46,47]).

3.7. Review of Research Foci

In this section, a detailed review for the research foci is provided. Here, the review of each research focus is structured based on the spatial scale of the corresponding research articles. Studies at basin scale are reviewed first, followed by studies at regional and subbasin scale.

3.7.1. Biosphere: Land Cover and Land Use

Monitoring the state of the Earth’s surface is of high importance for quantification of global environmental change. In the context of river basins, data on regional land cover and land use characteristics of a river basin act as baseline information for decision-makers and support river basin and water management. We found that ∼17% of all reviewed articles focused on multi-class land cover and land use classifications. Among these, only ∼10% quantified and analyzed land cover and land use at the spatial scale of an entire major river basin [16,70,71,72,73]. Here, we found that most of the basin wide land cover and land use studies were conducted for the Yellow river basin. With more detail, Wohlfart et al. [16] quantified land cover change for two time steps, specifically 2003 and 2013, using time-series of MODIS data at a spatial resolution of 250 m. Also, Wang et al. [72] evaluated land cover change for the entire Yellow river basin between the years 1990, 1995, and 2000 by means of Landsat imagery. On the other hand, Matsuoka et al. [71] analyzed land cover for East China, including the whole Yellow river basin. They used MODIS as well as nighttime light imagery for one time step and employed a decision tree classifier. Moreover, land cover of the Mekong river basin was quantified for 2010 by using time-series of MODIS-based vegetation indices for 11 years at a spatial resolution of 500 m [73]. Here, the authors used phenological metrics to classify land use classes. Another basin wide land cover study was performed for the Amazon river basin [70]. In this study, the authors used a mosaic of JERS-1 imagery of 1995 and mainly focused on vegetation type classification.

On the contrary, ∼90% of the studies within this research focus investigated regional and subbasin scale land cover and land use classification. Here, ∼21% of these studies assessed the state of land cover and land use for a single time step. In particular, regional land cover classifications were generated for the delta regions of the Arctic river basins Lena and Mackenzie [74,75,76]. Schneider et al. [74], for instance, used multi-temporal Landsat-ETM images recorded in 2000 and 2001 to generate the first land cover classification of the Lena river delta. The authors used the resulting land cover map to quantify methane emissions over the delta region. Ullmann et al. [76] used polarimetric SAR and Landsat-OLI data to conduct a regional land cover classification over the Mackenzie river delta. Due to the Arctic environment in this study, the classes bare ground, tundra vegetation, and wetland areas were of particular interest. Also, Walker et al. [77] presented a hierarchical classification scheme that used optical and SAR, particularly Landsat-TM and ALOS-PALSAR imagery, in a synergistic way to derive a land cover map for a subset of the Amazon river basin. Further studies dealt with the Yellow river delta [78,79,80]. For example, Liu et al. [78] employed a random forest classifier on a mono-temporal Landsat-OLI acquisition together with derived texture parameters to classify land cover. Next, Guan et al. [79] generated a mono-temporal land cover map combining the classification results based on MODIS and Landsat-OLI imagery. On the other hand, ∼79% of these studies performed regional and subbasin scale land cover and land use change analyses. Here, dam induced land cover change was analyzed particularly often [81,82,83,84,85]. For example, Feng et al. [85] investigated regional land cover change induced by the construction of the Belo Monte dam in the Amazon river basin. In this study, the authors used high and very high spatial resolution multispectral imagery from 4 different sensors, acquired between 2011 to 2016. The results indicated an increase in water body and settlement area, and in contrast, a decrease in bare soil, forest, and agriculture. Furthermore, several studies quantified land cover and land use change for subsets of the Nile river basin using multi-temporal Landsat imagery [86,87,88,89,90]. Abdulaziz et al. [87], for example, found that cropland increased considerably in the East Nile delta region between 1984 and 2003. Similarly, an increase in cropland as well as built-up areas was also detected for the Western Nile Delta [88]. Further studies investigated land cover change on the African continent for the subsets of the Niger [91,92,93] and Congo river basin [94]. Here, Ruelland et al. [92] performed a land cover classification for a period covering 52 years. In this study, aerial as well as satellite imagery were used to quantify land cover changes. The results indicated an increase in croplands and a decrease in tree cover. Apart from that, many studies examined land cover and land use change for study areas in East Asia, including the Mekong, Yangtze, and Yellow river basin (e.g., [95,96,97,98,99]). In particular, Hu et al. [97] and Ren et al. [98] focused on quantification of aeolian desertification for the source regions of the Yangtze and Yellow river basin. In case of the Yellow river basin, the study period included the years between 1975 and 2005. Hu et al. [97] found that increasing temperature, overgrazing, and the drainage of wetlands are the main drivers behind aeolian desertification. In addition, recently published research articles use the Google Earth Engine (GEE) platform for land cover classifications [20]. Here, the authors applied the random forest classifier on 3 yearly Landsat composites for a regional area of the lower Yenisei river basin over the period of 1985 and 2017. The results of this study revealed a significant change of vegetation cover, particularly infilling of vegetation in tundra and open forests.

3.7.2. Biosphere: Vegetation

Considering ecological health, vegetation cover has an important role in river basins. Particularly trees store carbon, regulate surface runoff, and reduce soil erosion in many ways. Overall, ∼21% of all reviewed articles investigated vegetation characteristics. Among these, ∼19% performed basin wide analyses. Here, the Amazon river basin was studied most frequently (e.g., [46,100,101]). For example, de Moura et al. [100] analyzed the response of vegetation to drought events using MODIS time-series as well as further remote sensing-based products, such as precipitation and leaf area index data. Hilker et al. [101] evaluated the usability of MODIS vegetation products to determine changes in vegetation greenness between the years 2000 and 2012. Further studies conducted basin wide analyses for the Congo river basin (e.g., [102,103,104]). Here, Yan et al. [103] evaluated the impact of the number of good quality observations on the derivation of land surface phenology. For this purpose, they used time-series of SEVIRI and MODIS-based vegetation indices for the period between 2006 and 2013. The results indicated that SEVIRI outperformed MODIS in terms of double annual canopy greenness cycle identification. In a subsequent study, Yan et al. [104] analyzed land surface phenology using SEVIRI data, but also incorporated remote sensing-based precipitation and land cover data. The authors characterized the impact of land cover on the relation between the timing of vegetation greenness and precipitation. According to their findings, the onset of the rainy season has a strong impact on the canopy greenness cycle particularly in regions with lower tree cover, such as shrublands and grasslands. Moreover, basin wide investigations exist for the Murray–Darling and Yellow river basin [15,38]. For instance, Broich et al. [15] used all available Landsat data covering a period of 25 years to study vegetation response to hydroclimatic events such as flooding and drought for the Murray–Darling river basin.

Furthermore, ∼81% of these studies investigated study areas at regional and subbasin scale. Among these, ∼27% of the investigations undertook no change analysis and focused on vegetation type classification for a single time step. Here, most studies dealt with the Amazon river basin and particularly forest type (e.g., [105,106,107]) as well as aquatic plant classification [108,109]. Further studies estimated mangrove extent for regional study areas in the Mekong and Zambezi river basin [110,111,112]. Instead, ∼73% of all regional and subbasin scale studies conducted change analyses. A common research objective was monitoring of forest disturbance i.e., caused by deforestation in the Amazon river basin (e.g., [113,114,115,116]). To this aim, most studies employed multispectral Landsat imagery. In addition, Yoshikawa and Sanga-Ngoie [116] used NOAA-AVHRR imagery at low spatial resolution to map deforestation between 1981 and 2001. Incorporating data on transportation infrastructure, the authors showed that most of the land cover transformations occurred in close distance to these infrastructures. In comparison, Leinenkugel et al. [117] analyzed deforestation patterns in the Mekong river basin by means of MODIS and Landsat imagery as well as ancillary data on transportation infrastructure. Similar to the aforementioned study, the authors found that deforestation was higher in locations closest to roads. Apart from that, forest disturbances were also caused by fire as investigated for the Yukon river basin [118,119]. For example, Huang et al. [118] evaluated land surface change induced by fire events using Landsat-based normalized difference vegetation index (NDVI), albedo, and land surface temperature. In addition, several studies quantified vegetation cover changes with specific focus on the source regions of the Mekong, Yangtze, and Yellow river basins (e.g., [39,120,121]). These studies used MODIS as well as SPOT-VGT data at low spatial resolution together with meteorological measurements. Liang et al. [120] used MODIS NDVI together with DEM and meteorological data. They identified an increase in vegetation cover with increasing precipitation in high, unpopulated elevations as well as vegetation degradation close to human settlements in the source region of the Yellow river basin. In comparison, Ge et al. [39] observed an increase in grassland cover between the period 2001 and 2016. Moreover, Liu et al. [121] analyzed spring phenology for the source region of the Mekong, Yangtze, and Yellow river basin using a SPOT NDVI time-series covering 15 years. Their results showed a significant trend in the advancement of the greening date. This trend correlates highly with elevation. Moreover, several research articles studied vegetation changes for study areas in the Zambezi river basin (e.g., [122,123,124]). Shapiro et al. [123], for instance, classified mangrove extent for the Zambezi delta region for the years 1994, 2000, and 2013 using Landsat data. Accordingly, they detected a net increase of mangrove forest extent in inland regions. In addition, Bunting et al. [124] analyzed vegetation change using a time-series of GIMMS3g NDVI at a spatial resolution of 8 km and covering 29 years together with meteorological data. The authors identified changes in soil moisture due to increasing temperatures as well as changes in vegetation greening patterns.

3.7.3. Biosphere: Agriculture

In addition, ∼6% of all reviewed studies focused on agricultural applications. To our knowledge, there is no research article analyzing research objectives in this context at basin wide scale. Yet, we found that ∼77% of all regional and subbasin scale studies dealt with study areas in the Mekong river basin. The majority investigated research objectives related to rice crop mapping, in particular classification of rice cropping systems (e.g., [125,126,127]). Most of these studies used optical imagery, such as MODIS or Landsat. For example, Son et al. [125] derived rice cropping systems using a phenology-based classification approach. To this aim, they employed time-series of MODIS imagery at a spatial resolution of 500 m. In comparison, Kontgis et al. [126] used stacks of multi-temporal Landsat images for 2000 and 2010 together with an object-based decision tree classifier to analyze changes in rice cropping systems. Furthermore, Nguyen et al. [127] mapped rice fields and cropping systems in the Mekong delta using ENVISAT-ASAR time-series over a period of 5 years. Apart from the classification of rice cropping systems, Clauss et al. [128] estimated rice field extent by means of Sentinel-1 time-series and a decision tree classification approach. In a subsequent study, Clauss et al. [129] retrieved rice production estimates based on Sentinel-1 time-series and national census data. Moreover, we found three studies dealing with the Amazon, Nile, and Yangtze river basin [130,131,132]. For instance, Shi and Huang [132] classified rice field extent for the Yangtze river delta using 11 years of MODIS images at a spatial resolution of 500 m. Additionally, Xu et al. [131] mapped cropland change for a regional study area including the Nile river delta over a period of approximately 31 years using Landsat imagery. According to their study, a constant increase in cropland area was observed.

3.7.4. Biosphere: Urban

Urbanization is one of the most prevalent land use conversions and leads to an increase of impervious surfaces and thus decrease of water permeability. Hence, urban areas are particularly vulnerable to hydrological extreme events including floods. The reviewed studies (∼6%) investigating urban extent classification, urban growth analyses, and impervious surface area mapping merely focus on regional and subbasin scale study areas in China, specifically the Yangtze and Mekong river basin. With more detail, ∼65% of these articles conducted their studies over the Yangtze river delta and ∼29% for regional study areas in the Middle or Lower Yangtze river basin. Here, one of the research objectives was the analysis of the urban heat island effect [133,134]. In particular, Zhou et al. [134] quantified surface urban heat island intensity using MODIS imagery between 2010 and 2015. Contrary to previous assumptions, the results demonstrated that the intensity of the urban heat island effect was not highest in highly urbanized cities such as Shanghai. Additionally, the authors stated that urban heat island intensity largely depends on climate, solar radiation, and vegetation activity. Following this, Yao et al. [135] evaluated the impact of urbanization on vegetation condition. For this purpose, they used nighttime light data acquired by the DMSP-OLS sensor and MODIS land cover information covering a period of 16 years. The authors extracted urban areas and performed a trend analysis on the enhanced vegetation index (EVI) as well as the urban heat island layer. The results indicated significant negative trends of EVI for nearly all the study areas within the Yangtze river basin. On the other hand, a significant positive trend of the urban heat island effect was detected for the study areas. Further studies also employed DMSP-OLS data to quantify urban growth [136,137,138,139] and impervious surface area [140,141]. Xiao et al. [136], for example, analyzed urban growth for a period of 30 years based on nighttime lights, NOAA-AVHRR, and SPOT NDVI data at a spatial resolution of 1 km. Moreover, Liu and Chen [142] evaluated urban growth for the middle Yangtze river basin. The authors used MODIS and Landsat data for the years 2000, 2008, and 2016. The results indicated that urban areas experienced a considerable growth in terms of area, specifically small and medium sized cities. In comparison, Shao and Liu [140] retrieved impervious surface area and its temporal dynamics from MODIS and DMSP-OLS nighttime lights data at a spatial resolution of 1 km. With respect to the Mekong river delta, Leinenkugel et al. [143] derived a binary settlement mask using TerraSAR-X data, whereas the impervious surface area was derived with SPOT-5 imagery.

3.7.5. Biosphere: Coastline

Sediment load of rivers is important with respect to the environmental condition of estuarine regions. Human-induced modifications of river flow might tremendously alter sediment transportation and affect the development of delta regions. In this context, the evolution of coastlines was analyzed in ∼3% of all reviewed studies at regional and subbasin scale including the Mississippi [144], Nile [145,146], Yangtze [147,148,149], and Yellow river basin [150,151,152]. Among these, Amer et al. [144] studied the Mississippi river delta which is facing a land loss due to various drivers such as sea level rise or wave erosion. In detail, they used Landsat-based modified normalized difference water index (NDWI) for the years 2000 and 2015. Moreover, Hereher [146] analyzed the evolution of the Nile river delta using Landsat images between 1973 and 2008 to find that coastal area experienced severe erosion affecting approximately 12 km². In addition, Qiao et al. [149] focused on the Yangtze river delta and quantified coastline dynamics for a period of 55 years. To this aim, they classified the shoreline in 5 year intervals using historical aerial and Landsat imagery. The authors identified that accretion was the dominant process over the delta region. Further on, Kong et al. [152] analyzed the evolution of the Yellow river delta using Landsat data between 1983 and 2011. They quantified the impact of river discharge and sediment load on the delta region and found that the amount of land increased by 248 km² within the study period.

3.7.6. Hydrosphere: Surface Water

Surface water monitoring is important for quantification of the availability of water resources and mitigating impacts of hydrological as well as climatic extreme events. Estimation of surface water extent is possible using optical (e.g., [34]) and active (e.g., [153]) as well as passive (e.g., [154]) microwave sensors. According to our analysis, surface water dynamics were investigated in ∼18% of all reviewed articles. Among these, ∼22% were at basin wide scale and performed change analysis. Here, the investigated study areas included the Amazon [155], Congo [156], Indus [157,158], Murray–Darling [23,159,160,161,162], and Yangtze river basin [163] as well as several Arctic river basins [40]. For example, Chapman et al. [155] used ALOS-PALSAR ScanSAR data acquired between 2006 and 2010 covering the entire Amazon river basin to classify open water and inundated vegetation extent. Their results indicated that L-band ALOS-PALSAR ScanSAR data was insensitive to inundated herbaceous vegetation. In case of the Indus river basin, Khan et al. [157] simultaneously used MODIS and ENVISAT-ASAR imagery to map inundation extent, specifically for the flooding event in 2010. Additionally, TRMM-based rainfall estimates and AMSR-E brightness temperature was incorporated to quantify precipitation and streamflow patterns. Similarly, Kwak et al. [158] mapped inundated areas during the Indus flood event of 2010 applying a rule-based approach using a modified land surface water index based on MODIS and SRTM data. Moreover, Du et al. [40] derived fractional water for the entire Arctic region, including the Mackenzie, Yukon, Lena, Yenisei, and Ob river basins using multi-source remote sensing data, comprising AMSR-E brightness temperature and land surface parameters as well as MODIS land cover product. Here, surface water dynamics were estimated at a spatial resolution of 5 km and a temporal resolution of 10 days. Apart from that, Huang et al. [23] developed an approach to classify inundation dynamics by integrating gauge measurements and MODIS imagery for the Murray–Darling basin between 2001 and 2010. To this aim, the authors determined river flow peaks to select and analyze corresponding MODIS imagery using the open water likelihood algorithm [164]. The inundation maps were computed at a spatial resolution of 500 m and validated against Landsat images. Furthermore, the authors aggregated single inundation maps to annual maps and quantified yearly inundation frequencies. In comparison, Tulbure et al. [161] mapped inundation dynamics for the Murray–Darling river basin using Landsat data for a period of 26 years. According to their results, climatic extremes such as dry and wet periods have a high impact on the surface water dynamics. In a further study, Heimhuber et al. [162] performed an integrated analysis using water masks derived from 26 years of Landsat data [161] as well as precipitation, evapotranspiration, soil moisture, and in situ discharge measurements to model inundation extent dynamics over the Murray–Darling river basin.

On the other hand, ∼78% of all studies with focus on surface water parameters analyzed regional and subbasin scale study areas. Here, a number of the reviewed studies investigated inundation dynamics in wetlands (e.g., [25,47,165]). For example, Yuan et al. [47] estimated wetland water level and inundation dynamics for a subset of the Congo river basin using ALOS-PALSAR imagery between the years 2002 and 2011. Since the SAR backscattering signal of ALOS-PALSAR imagery was affected by volumetric scattering caused by vegetation cover, the authors also included ENVISAT-RA2 altimeter data and the MODIS vegetation continuous fields product in their investigation. On the contrary, Wilusz et al. [165] mapped monthly wetland inundation in the Sudd wetland region. For this purpose, they analyzed monthly time-series of ENVISAT-ASAR data at 1 km spatial resolution over a period of 5 years. In addition, further studies carried out analyses in the context of wetlands using JERS-1 imagery, which were acquired in the framework of the “Global Rain Forest Mapping” (GRFM) project (e.g., [166,167]). Moreover, several studies observed inundation dynamics in delta regions (e.g., [41,168,169,170]). For example, Sakamoto et al. [168] used MODIS time-series to quantify annual inundation extent over 6 years for the Mekong river delta. Next, Gstaiger et al. [169] developed a threshold-based approach to generate a binary water mask using SAR imagery at different spatial resolutions from the TerraSAR-X, RADARSAT-2, and COSMO-SkyMed sensors. Following this, Kuenzer et al. [170] analyzed patterns of inundation in the Mekong river delta using a time-series of 60 ENVISAT-ASAR scenes at a spatial resolution of 150 m and covering the period between 2007 and 2011. In another study, the effectiveness of daily MODIS time-series for intra-annual monitoring of inundation dynamics was evaluated for the Mekong, Ganges–Brahmaputra, Mackenzie, and Yellow river deltas [41]. Moreover, several studies performed surface water classification using Landsat imagery (e.g., [45,171,172,173]). In this framework, Du et al. [171] used a dynamic thresholding approach to derive binary surface water extent maps for a regional study area within the Yangtze river basin. In detail, they used Landsat data for 15 time steps between 1973 and 2010. Here, the authors identified that changes in surface water extent were mostly induced by constructed dams. Furthermore, Li et al. [172] quantified the performance of 11 different NDWI to classify surface water extent using multi-source multispectral imagery, including Landsat-TM, Landsat-ETM, and EO-1 Advanced Land Imager (ALI). The results indicated that ALI-based NDWI using green and SWIR bands resulted in highest accuracies. Furthermore, Wang et al. [45] developed an approach to evaluate surface water dynamics in the middle Yangtze river basin between 1990 and 2017. To extract yearly minimal and maximal surface water extent, Landsat images were processed using the GEE platform. The results were then compared to the JRC global surface water layer indicating comparable surface water extents. In a further study, multispectral imagery, specifically Planet imagery from the RapidEye and PlanetScope sensors were used to quantify the capability of the sensors to derive surface water extent dynamics [174]. These multispectral sensors provide imagery at high spatial resolution and a high revisit time; however, limiting factors were automatic cloud masking, inconsistent radiometric calibration, and geolocation errors.

3.7.7. Hydrosphere: Water Quality

Human-induced land use conversions put high pressure on water ecosystems. In this context, it is important to monitor the impact of such processes on water quality. In the framework of water quality monitoring, it can be distinguished between estimation of water clarity or turbidity and chlorophyll concentration as well as suspended sediment concentration and organic matter. These features can be measured using optical sensors. Accordingly, all reviewed studies (∼10%) applied multispectral imagery and performed analyses at regional and subbasin scale, expect for one study covering the Amazon river basin [175]. Among these studies, ∼30% dealt with an estimation of water color, more specifically turbidity (e.g., [176,177,178,179]). Here, Massicotte et al. [176] analyzed the spatial and temporal dynamics of water color at the St. Lawrence river using Landsat-TM/-ETM imagery over a period of 25 years. In fact, they found a significant decrease in the reflectance of the river between 1984 and 2009, potentially caused by land use changes. In a further study, the impact of the Three Gorges dam on water clarity of the Yangtze river was evaluated [178]. To this aim, in situ Secchi disk depth, being a water clarity measure, and further spectral measurements were used together with Landsat-OLI imagery. The results of this study indicated that water clarity of the Three Gorges reservoir and Dongting lake was mainly influenced by total suspended matter.

On the contrary, ∼70% of the reviewed studies dealt with an estimation of sediment concentration or organic matter (e.g., [180,181,182,183]). For example, Fassoni-Andrade and de Paiva [183] predicted surface suspended sediment concentration for the Central Amazon river basin, in particular for surface water of rivers and floodplain lakes. They were the first to use a 15 year long time-series of MODIS data to investigate spatial and temporal dynamics of sediment concentration for areas characterized by different water types in the Amazon river basin. Following this, Park and Latrubesse [184] analyzed suspended sediment concentration in the confluence of the Solimões–Amazon and Negro rivers, characterized by white and black water, respectively. For this purpose, the authors used a time-series of MODIS 8-day composites over a period of 14 years. With more detail, suspended sediment concentration and surface water types were modeled for the post-confluence area for three selected years under average, drought, and flood hydrological condition. The authors concluded that surface water mixing patterns along the main channel mainly depend on the hydrological season. Furthermore, several studies investigated water quality impacted by urban areas and mining activities (e.g., [21,185,186]). Lobo et al. [21], for example, analyzed water turbidity in a subbasin of the Amazon river basin for the period between 1973 and 2013 using Landsat-MSS/-TM/-OLI imagery. They estimated suspended sediment concentration and evaluated the results in the context of gold mining activities. The results demonstrated that during high water level, sediment concentration is low. In comparison, during low water level periods, mining activities intensified, and sediment concentration increased. Moreover, Zhu et al. [32] used EO-1 Hyperion imagery to estimate colored dissolved organic matter for 10 major rivers around the globe. For this purpose, the authors used an algorithm, tailored to water conditions in coastal regions. In addition, dissolved organic matter is estimated for 6 Arctic river basins using Landsat imagery over a period of 14 years [31]. Here, a regression-based method is used to derive organic matter using field samples along with Landsat imagery. The correlation coefficient between estimated and measured dissolved organic matter accounted for 0.67 to 0.84 for most of the study areas.

3.7.8. Hydrosphere: River Water Level

Measurements of river water level are important for quantification of water storage and assessment of risks related to droughts and floods [187]. Here, EO-based monitoring of water level provides consistent measurements of remote and large river basins. These measurements are performed by spaceborne altimetry at satellite ground track, also called virtual gauge stations. Since satellite altimeters illuminate footprints at a certain diameter, land and water signals are mixed. Thus, EO-based water level measurements of small water bodies or rivers are challenging [188,189].

In the context studies related to river water level, most investigations are conducted for the Amazon (e.g., [190,191,192]), Brahmaputra (e.g., [193,194]), Congo (e.g., [195,196]), Ganges (e.g., [197,198]), and Mekong river basin (e.g., [199,200]). Among these, ∼33% of the studies retrieved river water level for virtual stations distributed over the entire river basins and the remaining studies for virtual stations at regional and subbasin scale only. For example, da Silva et al. [191] used ERS-RA and ENVISAT-RA2 altimeter data to predict river water level at 45 virtual stations. The authors performed an internal and external validation using crossovers of altimeter tracks and gauge measurements, respectively. The results of the validation indicate high variations for the root mean square difference, in particular between 12 cm and several meters. Moreover, Huang et al. [194] developed a novel waveform retracking algorithm called “threshold and Ice-1 combination” for river water level retrieval. This algorithm was particularly proposed for high mountainous areas and tested for the Upper Brahmaputra river basin. The results demonstrate that the suggested algorithm derives more accurate estimations of water level than other retracking algorithms. In a further study, Villadsen et al. [201] used CryoSat-2 altimeter data for river water level estimation over the Ganges and Brahmaputra and evaluated their results with water levels retrieved from ENVISAT-RA2 measurements. CryoSat-2 altimeter data are characterized by a smaller along track footprint enabling measurements of smaller water bodies. The resulting time-series were compared on annual basis and indicated comparable water levels with a reported mean difference of 10 cm for all virtual stations. Similarly, CryoSat-2 SAR altimeter data are used to retrieve water levels over the Mekong river basin [202]. For validation, ENVISAT-RA2-based water level estimations and gauge measurements were used. Here, the authors obtained a median difference of 0.76 m. Next, Liu et al. [203] performed an integrated analysis using altimeter data from the ENVISAT-RA2 and Poseidon-3 instrument on-board JASON-2 as well as Landsat imagery and TRMM-based precipitation data to quantify downstream water level changes induced by dam constructions at the Mekong river. According to their findings, the water level decreased and increased in wet and dry season, respectively. Furthermore, Pham et al. [200] for the first time used MODIS-based land surface temperature together with JASON-2 altimetry data and in situ water level measurements to estimate daily water level at virtual stations along the Mekong river. In this study, seasonal linear regression models were used to predict water levels. The results indicated that the river water level estimations were best for cold/dry and hot/dry seasons.

3.7.9. Hydrosphere: River Discharge

Considering the forecasting of extreme events such as floods, river discharge is an essential parameter to study. Traditionally it is measured at in situ gauge stations; however, these networks are scarce in many regions. Accordingly, estimation of river discharge is possible using indirect EO-based approaches [204]. Regarding river basins, studies are performed the Amazon [205,206], Brahmaputra [207,208], Congo [209], Mekong (e.g., [210,211]), and Yangtze river (e.g., [212]). Here, common methods to retrieve river discharge are rating curves (e.g., [213]) or the Manning’s equation (e.g., [214]). In this context, Paris et al. [205] formulated rating curves based on river water level derived from altimeter data over the entire Amazon river basin for around 1000 virtual stations. Corresponding discharge simulations are predicted by a rainfall–runoff model. A comparison of the predicted discharge with in situ observations resulted in a Nash–Sutcliffe efficiency of 0.71. Moreover, Dubey et al. [207] retrieved water level based on TOPEX-Poseidon and ENVISAT-RA2 data for 6 virtual stations along the Brahmaputra river between the years 2002 and 2010. The rating curves were developed based on estimated water level and in situ discharge observations. This relationship was then used to predict discharge at virtual stations. The resulting discharge estimations indicated high correlations with observed discharge. In addition, Kouraev et al. [215] applied rating curves as well. Here, the authors retrieved TOPEX-Poseidon-based water level for the Ob river and related it to discharge observations at a gauge station. Observed and estimated river discharge indicated good agreement; however, due to the spatial resolution of TOPEX-Poseidon measurements, the proposed approach is only applicable to rivers with a width of several kilometers. Furthermore, Huang et al. [208] aimed at river discharge estimation in the Upper Brahmaputra river basin, which is characterized by high mountainous landscape. In this study, 3 algorithms were tested and compared. The first depended on water level, the second on river width, and the third on both variables. Water level was derived using satellite altimeter data and river width was estimated with multispectral and SAR imagery. Here, data processing and discharge estimation was performed on the GEE. The derived water surface extent was validated using high spatial resolution optical imagery. Discharge estimations were compared to observations obtained from gauge stations resulting in a Nash–Sutcliffe efficiency between 0.68 and 0.98. In a further study, Manning’s equation was used to estimate river discharge at 2 virtual stations of the Yangtze river [212]. Here, the hydraulic parameters river width, water level and velocity were derived using remote sensing data only. Specifically, ENVISAT-RA2 was used for water level and MODIS for river width estimations. Given that, velocity was retrieved using time lag analysis of temporal river width observations. The Nash–Sutcliffe efficiency value was 0.5 and 0.76 for the two virtual stations.

3.7.10. Cryosphere

The cryosphere, including snow- and ice-covered areas, permafrost, river and lake ice, is mostly an elementary component of river basins, particularly in high-mountain source or Arctic regions. Monitoring dynamics of the cryosphere is important to quantify resulting impacts on downstream or surrounding areas. Due to the limited number of studies in this category, we reviewed all related research foci in one section. With more detail, ∼8% of all studies investigated research questions in the context of the cryosphere, out of which ∼14% at basin wide scale. Among all studies, ∼54% dealt with snow and ice cover (e.g., [216,217,218,219,220]). Chao et al. [216], for instance, employed altimeter data from GLAS-ICESat to analyze glacier elevation change in the source region of the Yangtze river basin. In fact, they identified a shrinking of the glacier between 2000 and 2009. In comparison, Wang et al. [217] quantified glacier retreat in the source region of the Yangtze river using two Landsat images from 1992 and 2009. Additionally, the authors analyzed dynamics of glacial runoff using in situ discharge data from 1957 to 2009. The results indicated an accelerated glacier melting and a loss in glacier area of around 45 km². In another study, snow cover variability was evaluated for the same study area using MODIS-based snow cover products between 2000 and 2012 [218]. The analysis showed an increase in snow cover extent, whereas long-term analysis of temperature between 1960 and 2012 indicated an earlier start time and a later end of snow melting. Moreover, we identified several studies that dealt with lake and river ice characterization. These studies were conducted for the Arctic river basins Mackenzie, Lena, Yenisei, and Ob [221,222,223,224,225]. In particular, river ice breakup dates for these four Arctic rivers were successfully classified using NOAA-AVHRR and MODIS imagery for a period of 10 years [221]. Furthermore, Sakai et al. [223] quantified the applicability of Landsat-TM/-ETM images to monitor floods induced by river ice breakup. Here, the shortening of the Landsat revisit time to 2.6 days was of particular advantage due to the triple overlap of tiles in high latitudes. Instead, lake ice phenology was studied using TerraSAR-X time-series for a period of three years in the Lena river delta [224]. In addition, we found studies investigating permafrost in the Arctic river basins Lena, Yukon, and Kolyma [30,226,227,228,229]. Soil erosion in permafrost riverbanks was analyzed for a regional study area in the Lena river delta using TerraSAR-X time-series [227]. In particular, the authors classified changing cliff-top line during summer months between 2013 and 2015. In comparison, Whitley et al. [229] evaluated the advantages of LIDAR and IKONOS data to classify permafrost distribution at a subset of the Yukon river delta. Here, best overall accuracies were obtained for estimations based on LIDAR only.

4. Discussion

4.1. Requirement of Higher Spatial Coverage

This review revealed that the analysis of major river basins is mostly limited to regional or subbasin scale study areas (see Section 3.5). In this regard, the spatial coverage of the study areas was mostly defined by national boundaries, instead of the functional unit of a river basin. In fact, this circumstance obviously hampered the analysis of transboundary river basins and is most likely caused by factors, such as research funding or motivation i.e., as indicated by the relation between institutional affiliation of the first authors (Figure 4) and their investigated study areas (Figure 3b and Supplement Table S1). Due to the availability of mostly regional or subbasin scale studies, it is difficult to compare or assess land surface changes within or between major river basins. In this context, we found that basin wide studies are overall lacking for all regarded research foci. Indeed, there are no basin wide studies for 12 of the regarded major river basins (see Figure 10). Furthermore, our review also demonstrates that comparisons between major river basins are mostly avoided. Specifically, we only identified a small number of studies investigating multiple river basin at once (e.g., [40,179]). However, more studies and remote sensing products at higher spatial coverage, most preferably at basin wide scale, are needed for consistent and homogenous spatial analyses. Considering the identified research foci, we particularly found that elements of the cryosphere remain understudied as demonstrated in Figure 5. Here, higher spatial coverage analyses are necessary for Arctic river basins, which are particularly vulnerable to accelerating climate change.

4.2. Requirement of Comparability between Major River Basins

During the last decade, many global remote sensing products outlining land surface and surface water parameters became available (Table 3). These data are essential for a variety of applications including hydrological, climate, and environmental change modeling. In this context, several data portals, such as the UNEP-TWAP or WRI platform, are available. However, these are mostly not up to date and focus on selected indicators only. Hence, databases gathering relevant state-of-the-art geospatial data with respect to river basin characterization are still lacking. To enable a consistent and detailed analysis of major river basins, a database on global open geodata, including available and relevant EO products is needed. However, we must note that already existing global land cover products are probably not applicable for change analyses at regional scale, since their spatial resolution is too coarse [230]. Thus, basin wide monitoring of land surface dynamics at medium to high spatial resolution is necessary to provide valuable baseline information, e.g., on land cover and land use to support researchers, stake-holders, and decision-makers with respect to river basin and water resource management.

4.3. Potential of EO for Major River Basins

Monitoring large-scale river basins, where land surface and surface water are highly variable in space and time, is possible using EO data. Here, the increasing amount of free and open remote sensing imagery as well as improving processing and technological capacities support EO applications for large river basins. In this context, it is noteworthy that characterization of land surface and surface water dynamics using open satellite image time-series at medium to high spatial resolution is only possible since the last decade. Notable missions in this context are the USGS Landsat, European Copernicus Sentinel-1/-2, and several altimetry instruments. According to the increasing abundance of satellite missions and open archives, we detected a considerable increase in intra-/inter-annual change analyses and time-series applications since 2008 (see Figure 9a,b). Additionally, as visualized in Figure 9c, we identified an increase in the length of study periods since 2008. At the same time, our review revealed that these open long-term archives are exploited insufficiently when it comes to basin wide analyses of land surface and surface water parameters. This might be due to mass amounts of EO data that need to be processed for basin wide analyses. In fact, it needs to be considered that the technological infrastructure, such as data storage and computing capabilities, might still pose a major challenge for these amounts of data. However, in times of cloud computing, it is possible to partially leave these limitations behind. In the context of large river basins, applications exploiting the potential of EO data and products (Table 3) are lacking and need to be studied by processing and analyzing long-term archives for environmental change monitoring.

5. Conclusions

This review provides an extensive overview of EO related research articles with respect to selected major river basins. In particular, we reviewed studies on land surface and surface water parameters with specific emphasis on their (1) spatial distribution, (2) employed sensor types, (3) temporal resolution, (4) spatial scale and (5) presented relevant global remote sensing products. Corresponding to the results of this review, the main findings of this study are summarized considering the research questions defined in Section 1.3:

• During literature review, we identified 287 research articles and defined three main research categories, in particular biosphere, hydrosphere, and cryosphere as well as more detailed sub-categories. In summary, ∼53% of all studies focused on research foci related to the biosphere, ∼39% on the hydrosphere, and ∼8% on the cryosphere. With more detail, the reviewed studies most frequently investigated research foci related to vegetation (∼21%), surface water (∼18%), and land cover and land use (∼17%).
• Throughout all research categories, optical EO data were most frequently used. Here, ∼61% of all studies solely used optical imagery and ∼17% combined optical with other sensor types. In detail, Landsat sensors were mostly employed, specifically in ∼43% of all studies. Following optical sensors, SAR (∼13%) and satellite altimeters (∼6%) were the second and third most used sensor type, respectively.
• Considering the spatial scale of the reviewed research articles, we found that studies at basin scale were performed in ∼14% of all studies only. Most of these studies were available for the Amazon river basin. Following this, studies at subbasin and regional scale accounted for ∼37% and ∼49%, respectively. In addition, our review revealed that transboundary river basins remain understudied. In particular, ∼67% of studies analyzing transboundary river basins focused on one of the riparian countries only. We also identified a strong relation between investigated study area and the institutional affiliation of the first authors. Moreover, the number of studies incorporating multiple major river basins into their analyses was low (∼6%).
• Regarding the large scales of major river basins, the availability of accurate and consistent reference data is a major limitation. These are crucial in terms of model training and validation. Furthermore, sensor specific limitations exist with respect to e.g., water level estimation for small water bodies or cloud obstruction for optical sensors. However, we expect an increasing number of studies exploiting data of the current Sentinel-1/-2 and Landsat missions and providing EO products at even higher spatial coverage and resolution in the coming years. In addition, upcoming missions, such as SWOT and P-band Biomass, will enable monitoring e.g., of smaller water bodies and certainly boost applications related to river water level and river discharge modeling as well as improve quantification of wetland areas and inundated forest areas, respectively.

In conclusion, our review for the first time provides a detailed overview of available EO related studies and products analyzing land surface and surface water variables over large river basins. Furthermore, we emphasize the importance and need for a database enabling the joint exploitation of EO data and products to improve environmental change monitoring in the context of river basins. Overall, this review greatly contributes to a better understanding of the potentials and limitations of EO-based major river basin analyses.
