Change Detection of Soil Formation Rate in Space and Time Based on Multi Source Data and Geospatial Analysis Techniques

Abstract

Spatialization of soil formation rate (SFR) is always a difficult problem in soil genesis. In this study, the dissolution rate in karst areas of China during the period 1983–2015 was estimated on the basis of geospatial analysis techniques and detection of variation via the law of chemical thermodynamics in conjunction with long-term serial ecohydrology data. SFR at different lithological backgrounds was calculated on the basis of the content of acid-insoluble substances. Results showed that the spatial dissolution rate of carbonate rock ranges between 0 and 106 mm/ka, averaged at 22.51 mm/ka, and the SFR ranges between 10 and 134.93 t km⁻² yr⁻¹, averaged at 18.59 t km⁻² yr⁻¹. The dissolution rate and SFR exhibit a slight increasing trend with 0.04 mm/ka and 0.003 t km⁻² yr⁻¹, respectively. The risk for soil erosion was reevaluated on the basis of the SFR results, and the area with erosion risk and the ecologically safe area were corrected. Results indicated that the area with erosion risk is four times higher than the ecologically safe area. This study will hopefully instigate and facilitate the application and popularization of geospatial analysis technology to the research field of rock weathering and soil formation.

1. Introduction

Approximately 25% of the world’s population currently depends on the karst ecosystem for survival [1]. The environment of a karst landscape is fairly vulnerable [2,3,4,5,6], and in many karst areas, soil erosion and degradation have been regarded as severe geological disasters [7,8,9,10]. However, soil formation rate (SFR) is the key factor and important link restricting the formation and evolution of the karst ecosystem. Therefore, an in-depth study of the weathering of karst rocks and the formation and evolution of soil will promote the study and understanding of regional ecological risk assessment.

In the past several decades, a large scientific literature has reported on this subject of SFR. Morgan [11] believed that the mean SFR of source rock is ca. 100 t km⁻² yr⁻¹, varying from 10 t km⁻² yr⁻¹ to 300 t km⁻² yr⁻¹ depending on climatic and other factors. Norman Hudson [12], a soil conservation scientist, indicated that the mean SFR is approximately 1 cm/12a (equal to 11. 2 t km⁻²yr⁻¹) under an ideal soil management condition. Wei QF [13] calculated the SFR in karst areas of south China and found that developing 1 cm of lime soil takes 13–32 thousand years, with a similar SFR to that in Yugoslavia wherein developing the same thickness of lime soil takes 20 thousand years. Yuan DX [14] determined that the time for carbonate rock to develop 1 cm of soil is approximately 2.5–8.5 thousand years. Cai ZX [15] reported that the SFR in karst areas of Guangxi is approximately 68–143 t km⁻² yr⁻¹ (approximately 11.6–24.4 thousand years) based on the dissolution rate of carbonate rock, the properties during soil formation, and the proportion of rocks. YL [16] found that the SFR in Guizhou Province is 6.84–103.46 t km⁻² yr⁻¹.

At present, the SFR of carbonate rock in karst areas is calculated on the basis of the dissolution rate of carbonate rock at the experimental scale of positioned observation and the content of acid-insoluble substances [15,16,17]. Long-term positioned observation only solves problems at the point or section scale. This approach requires considerable manpower, material resources, and financial resources; it is not applicable to large-scale continuous monitoring nor feasible for solving problems at the national or regional scale. Conventional approaches have constrained studies concerning the SFR of carbonate rocks and related scientific problems. Therefore, SFR at the spatial scale remains to be addressed. Remote sensing (RS) technology has played a huge role in the study of geoscientist scale extension [18,19,20,21,22,23]. Long-term, dynamic, and continuous large-scale data are provided by RS technology [24], e.g., precipitation (P), evapotranspiration (ET), and temperature (T) [25,26,27]. ZL [28] summarized the basic climatic data of relevant areas, such as T, P, and ET, to calculate the intensity of karstification.

In the present study, the main purposes are as follows: (1) Hydrochemical monitoring data of 43 basins and long time series of ecological and hydrological grid data were used to define the spatiotemporal difference of the dissolution rate of carbonate rocks via maximum potential dissolution (MPD) method and Multiple Linear Regression (MLR). (2) The dissolution rate, content of acid-insoluble substances, bulk weight, and content of carbonate rocks, as well as the SFR of noncarbonate rocks, were utilized to determine the SFR in rock weathering and calculate the temporal variation and spatial pattern of the SFR of carbonate rocks. (3) The effects of climate change on SFR under different lithologies were examined.

2. Materials and Methods

2.1. Study Area

China is one of the largest countries covered by karst landscape, which explains 3.44 × 10⁶ km² and more than 1/3 of the total land area of China. The exposed area of carbonate rock is about 9.07 × 10⁵ km², accounting for 1/7 of the total land area of China. The karst landscape is mainly distributed in eight provinces and regions in China, including Yunnan, Guizhou, Guangxi, Guangdong, Hunan, Hubei, Chongqing, and Sichuan Province. [29]. In karst areas, the longitudinal and latitudinal continuous distribution of heat and water is broken by the difference in geological structure and lithology. The weathered layer and degree of soil erosion are both influenced strongly by chemical reaction and hydropower, leading to a mosaic distribution of regional and non-regional soils. The vertical mosaic distribution of different types and different thickness of soils lead to a three-dimension highly spatiotemporal heterogeneity of karst landscape and weathering crust. Meanwhile, rocks are exposed and soil distributes discretely at the horizontal direction. At the vertical direction, the proportion of soil, rock and vegetation are different [30]. Classified by regions, karst areas can be divided into south karst area, north karst area and plateau karst area. Classified by lithology, it can be divided into homogenous carbonate rock (HC), carbonate rock intercalated with clastic rock (CI) and carbonate/clastic rock alternations (CA). The HC is further divided into homogenous limestone (HL), homogenous dolomite (HD) and mixed dolomite/limestone (HDL) (Figure 1) [31].

2.2. Data Source and Pretreatment

This research involved a large amount of not only measured data but also ecological hydrological grid data, such as P, T, ET, soil moisture (SM), and NDVI.

Table 1. Materials sources information.

Parameters	Time Span	Temporal Resolution	Spatial Resolution	Sources
Precipitation (P)	1983.1–2015.12	Monthly	0.25° × 0.25°	Global Land Data Assimilation System
Temperature (T)	1983.1–2015.12	Monthly	0.25° × 0.25°	Global Land Data Assimilation System
Evaporation (ET)	1983.1–2015.12	Monthly	0.25° × 0.25°	Global Land Data Assimilation System
soil moisture (SM)	1983.1–2015.12	Monthly	0.125° × 0.125°	European Centre for Medium-Range Weather Forecasts
NDVI	1983.1–2015.12	15 days	0.083° × 0.083°	Global Inventory Modeling and Mapping Studies
Ca2+, Mg2+, Na+, K+, CO32−, HCO3−, SO42− and Cl− concentration		multi-year average	/	GEMS-GLORI world river discharge database
Region boundaries	Present	/	/	State Bureau of China’s Survey and Measurement.
Carbonate rock outcrops	Present	/	/	the Ministry of China Geological Survey
Soil erosion modulus	1980s, 1990s, 2000, 2005, 2010, 2015	Year	1 km × 1 km	Institute of Mountain Hazards and Environment, Chinese Academy of Science.

described the data source, time span, and spatial resolution. For data of P, T, ET and SM, we accumulated monthly data of P, T, ET and SM into annual data of P, T, ET and SM, respectively. The NDVI dataset was a 15 days’ composite value, First, we applied the maximum value composite (MVC) technique to synthesize monthly data [32], Second, we calculated the mean value of NDVI at 12 months per year to get the average NDVI per year. After that, all raster data were resampled to preserve the 0.083° spatial resolution of the NDVI data using a nearest neighbor algorithm replicating the pixels without changing the original cell values [33].

2.2.1. P, T, and ET

P, T, and ET data (1983–2015) were obtained from the Global Land Data Assimilation System (GLDAS) model at a resolution of 0.25° × 0.25° (https://ldas.gsfc.nasa.gov/gldas/). The goal of the NASA GLDAS was to ingest satellite- and ground-based observational data products by using advanced land surface modeling and data assimilation techniques for generating the optimal fields of land surface states and fluxes [34,35].

2.2.2. SM

The monthly SM dataset (1983–2015) [36] (https://www.ecmwf.int/) was acquired from the ERA-Interim reanalysis data of the European Centre for Medium-Range Weather Forecasts with a spatial resolution of 0.125°. The land Surface process used by the ERA-Interim is still TESSEL (Tiled ECMWF Scheme for Surface Exchanges over land). The dataset provided four layers of SM with soil depths of 7, 28, 100, and 289 cm, respectively. In this study, soil water data with a soil depth of 7 cm were selected.

2.2.3. NDVI

The NDVI data of the Global Inventory Modeling and Mapping Studies represent a vegetation product obtained by the AVHRR sensor mounted on a NOAA satellite [37,38]. The dataset had a spatial resolution of 8 km × 8 km (0.083°) and composite values of 15 days from 1982 to present [39]. The data were accessible online at https://ecocast.arc.nasa.gov/data/pub/gimms/. In this study, the time span of 1983–2015 was adopted.

2.2.4. Hydrochemical Data

Concentration data of Ca²⁺, Mg²⁺, Na⁺, K⁺, CO₃²⁻, HCO₃⁻, SO₄²⁻, and Cl⁻ were obtained from the GEMS-GLORI world river discharge database [40], which recorded information of more than 500 rivers. We selected hydrochemical data from 43 river basins in the database to calculate the ionic activity coefficients of calcium and bicarbonate ions (Figure 2). The multiyear average data were from 1996 to 2012.

2.2.5. Carbonate Rock Outcrops

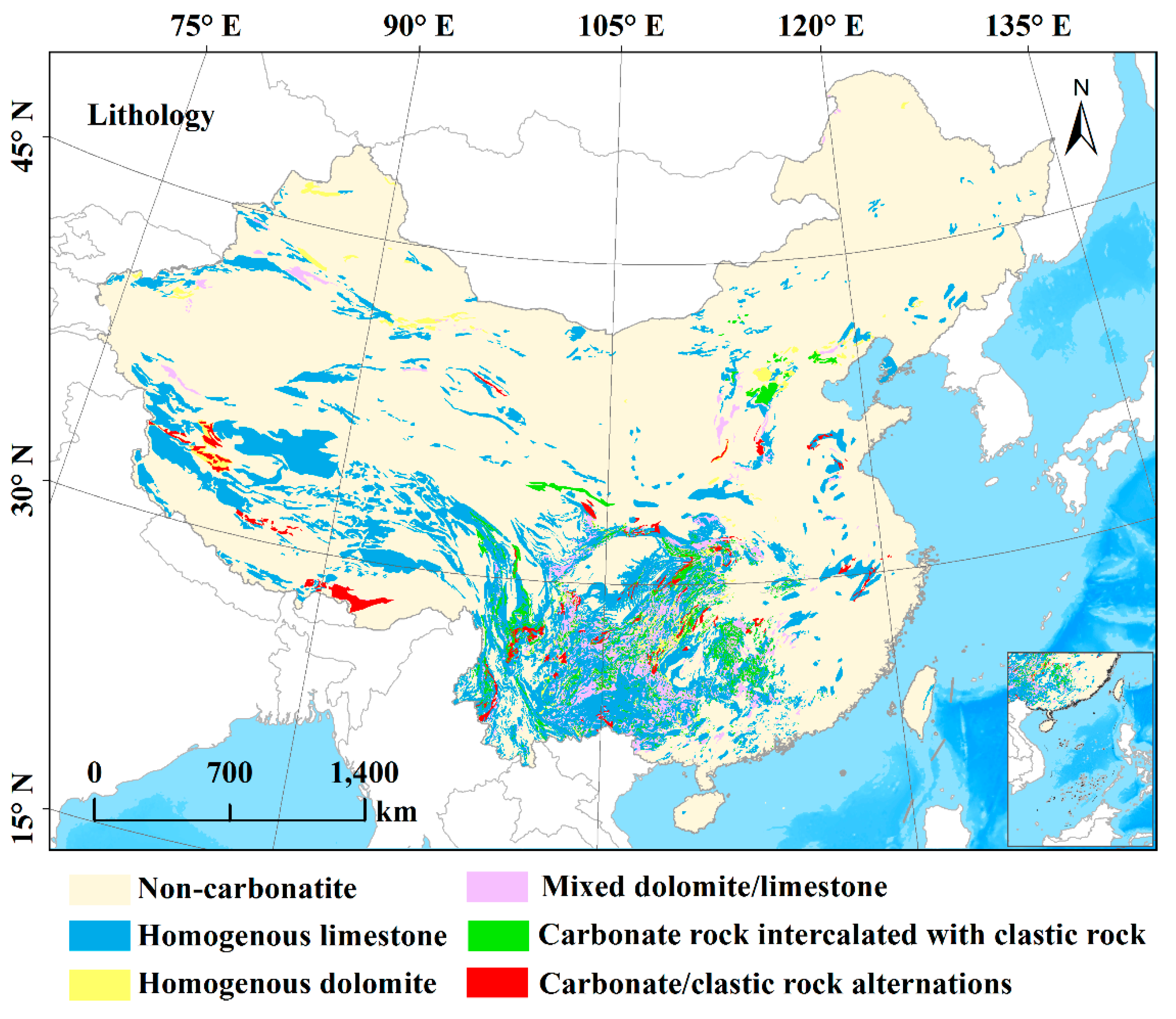

The distribution and zoning of carbonate rocks were from the geological map (1:500,000) and the map of soluble rock types in China (1:4,000,000) supplied by the Ministry of China Geological Survey. After digitalization, carbonate rocks in the karst areas of China were divided into HC, CI, and CA. Homogenous carbonate rocks were further divided into HL, HD, and HDL.

2.2.6. Soil Erosion Modulus

The soil erosion data (http://ir.imde.ac.cn/) were provided by the Institute of Mountain Hazards and Environment, Chinese Academy of Science. We utilized soil erosion modulus data for the time series of the 1980s and 1990s and 2000, 2005, 2010, and 2015 with a spatial resolution of 1 km [41].These data were calculated using the improved USLE model based on geographical big data. Equation (1) presented the basic form.

$$A=R\times K\times L\times S\times C\times P\times M$$

(1)

where A (t·km⁻² yr⁻¹) refers to the amount of soil loss per unit area. R (MJ·mm·hm⁻² yr⁻¹) refers to the rainfall erosivity factor. K [t·hm²·h/(hm²·MJ·mm)] refers to the soil erodibility factor. L refers to the slope length factor (dimensionless, 0–1), and S refers to the slope factor (dimensionless, 0–1). C refers to the coverage factor for vegetation. P refers to the conservation measure factor, which included engineering and tillage measure factors. M was a correction factor (dimensionless).

2.3. Methods

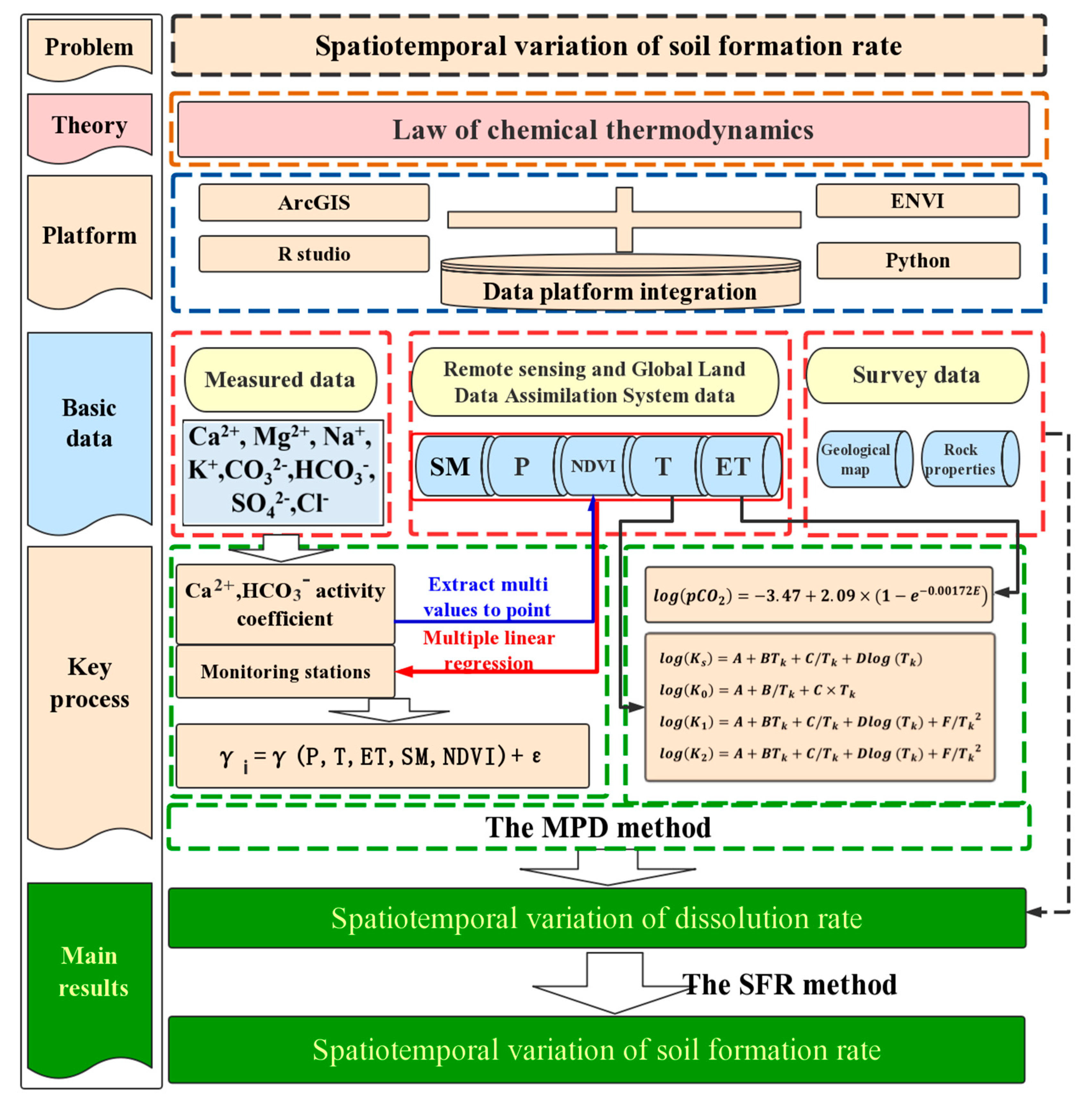

The objective is to solve the spatialization problem of SFR. On the basis of the law of chemical thermodynamics and through various platforms, such as ArcGIS, ENVI, R studio, and Python, we must calculate the various parameters required for the dissolution rate. These parameters included Ca²⁺ activity coefficient (${\gamma }_{{Ca}^{2+}}$) and HCO³⁻ activity coefficient (${\gamma }_{{HCO}_3{}^{-}}$), limestone solubility product constant (K_s), equilibrium constant of CO₂ dissolved in water (K₀), first-order ionization constant of H₂CO₃ (K₁), second-order ionization constant of H₂CO₃ (K₂), and carbon dioxide partial pressure (pCO₂). (1) In order to simulate the spatial distribution of activity coefficients of Ca²⁺ and HCO₃⁻ ions, firstly, the Ca²⁺ and HCO₃⁻ activity coefficients of 43 stations were calculated by using the hydrochemical data of 43 river basins. Then the corresponding values of P, ET, T, NDVI and SM were extracted from the geographical coordinates of 43 stations. The activity coefficients of Ca²⁺ and HCO₃⁻ ions were used as dependent variables, and the extracted P, ET, T, NDVI and SM values were used as independent variables. Multiple linear regression (MLR) was carried out in SPSS, and the relationship between the dependent variables and independent variables was quantified. Finally, the spatial distribution of Ca²⁺, HCO₃⁻ ion activity coefficients is retrieved by the regression relationship and P, ET, T, NDVI and SM spatial data. (2) K_s, K₀, K₁, and K₂ were calculated by T. (3) pCO₂ was measured by ET. We calculated the dissolution rate of limestone via the MPD method. Then, we obtained the spatial distribution of five lithological dissolution rates in the karst areas of China on the basis of the dissolution ratio of other lithologies and limestones. Finally, we measured the SFR by combining the density of rocks and the content of acid-insoluble substances (Figure 3).

2.3.1. Maximal Potential Dissolution (MPD) Method

We used the MPD method to calculate the dissolution rate of limestone in China, which had been applied in quantifying karstification at global and regional scales [42,43]. The intensity of karstification can be obtained by the MPD method if the temperature, precipitation and evapotranspiration of a given area are known. The formula is expressed as follows:

Based on the usual equations for the dissolution of calcite at equilibrium given in Equation (2), Gombert created the MPD method of Equation (3) for carbonate zones with the assumption that the chemical reactions were at equilibrium in local hydrological, meteorological and geochemical conditions [42,43,44,45].

$$CaC{O}_3+C{O}_2+H_{2}O\rightleftharpoons C{a}^{2+}+2HC{O}_3{}^{-}$$

(2)

$$D_{max}={10}^6\left(P-E\right){\left[C{a}^{2+}\right]}_{eq}={10}^6\left(P-E\right){\left(K_s{K}_1{K}_0/4K_2{\gamma }_{C{a}^{2+}}{\gamma }_{(HC{O}_3{}^{-})}{}^2\right)}^{1/3}{\left(pC{O}_2 \right)}^{1/3}$$

(3)

where $D_{max}$ is the maximum potential dissolution rate (mol km⁻²yr⁻¹), P and E are the total rainfall and evapotranspiration, respectively. K_S is the calcite solubility constant, K₁ is the equilibrium constant of CO₂ hydration and dissociation as $HC{O}_3{}^{-}$, K₀ is the equilibrium constant of CO₂ in water, K₂ is the equilibrium constant for $C{O}_3{}^{2-}$. ${\gamma }_{C{a}^{2+}}$ and ${\gamma }_{HC{O}_3{}^{-}}$ are the activity coefficients of Ca²⁺ and $HC{O}_3{}^{-}$ ions in water. $pC{O}_2$ is the partial pressure of CO₂ in soil or aquifer.

Table 2. Factor coefficient of K_i.

	A	B	C	D	F
Ks	−171.9065	−0.07793	2839.3191	71.595log
K1	−356.3094	−0.06091964	21834.37	126.8339	−1684915
K0	−14.0184	2385.73	0.015264
K2	−107.8871	−0.03252849	5151.79	38.92561	−563713.9

and Equations (4)–(7) showed that K_s, K₁, K₀ and K₂ were the functions of temperature T_k (°K) [46].

$$log\left(K_s\right)=A+B{T}_k+C/T_k+Dlog\left(T_k\right)$$

(4)

$$log\left(K_1\right)=A+B{T}_k+C/T_k+Dlog\left(T_k\right)+F/T_k{}^2$$

(5)

$$log\left(K_0\right)=A+B/T_k+C\times T_k$$

(6)

$$log\left(K_2\right)=A+B{T}_k+C/T_k+Dlog\left(T_k\right)+F/T_k{}^2$$

(7)

The activities of Ca²⁺ and $HC{O}_3{}^{-}$ were calculated according to the formula below.

$$log\left({\gamma }_i\right)=-A{Z}_i{}^2\frac{\sqrt{I}}{1+B{a}_i\sqrt{I}}$$

(8)

A and B are the coefficients related to temperature. The calculation formula was as follows:

$$A=0.4883+8.074\times {10}^{-4}T$$

(9)

$$B=0.3241+1.6\times {10}^{-4}T$$

(10)

$I$ is the strength of solution ions. The formula was as follows:

$$I=\frac{1}{2}{\displaystyle \sum }_i{Z}_i{}^2{C}_i$$

(11)

where $C_i$ is the ionic concentration (mol·L⁻¹), $Z_i$ is the charge of the ionic.

The partial pressure of CO₂ in soil or water-bearing stratum was calculated in accordance with Brook’s formula, as follows [47].

$$log\left(pC{O}_2\right)=-3.47+2.09\times \left(1-e^{-0.00172E}\right)$$

(12)

The above calculation is the maximum dissolution rate of limestone, and the difference of dissolution rate of different lithology can be characterized by dissolution coefficient (DC). The calculation formula of dissolution rate of carbonate rocks of various lithologies was as follows [48]:

$$v=DC\times Dmax$$

(13)

When estimating the dissolution rate of carbonate rock, the specific degree of different lithology was considered as the coefficient of lithology (

Table 3. Dissolution coefficient of various lithologic assemblages.

Lithology	HL	HD	HDL	CI	CA
DC	0.965	0.505	0.8015	0.767	0.767

).

2.3.2. Method of Computing SFR

In previous studies, the average dissolution rate was often used to replace the regional dissolution rate. However, the dissolution rate was closely related to temperature, precipitation, hydrological and other environmental conditions, different regions had different dissolution rate. therefore, in this paper, the dissolution rate of pixel scale had calculated by MPD method was substituted into the Equation (14) to reflect the spatiotemporal heterogeneity of soil formation rate [16,31]. As per the results of an in-house laboratory investigation, The density of limestone and dolomite is 2.75 and 2.86 t m⁻³. The soil formation rate of other rock types is 200 t km⁻² yr⁻¹. The content of acid-insoluble components is shown in

Table 4. Characteristics of various lithologic assemblages.

Lithology		C	Q
HC	HL
	HD	>90%	<10%
	HDL
CI		70~90%	10~30%
CA		30~70%	30~70%

.

$$SFR=vQ\rho C+R\left(1-C\right)$$

(14)

where SFR is the soil formation rate (t km⁻² yr⁻¹), v is the dissolution velocity of carbonate rocks (m³km⁻² yr⁻¹), Q is the content of acid-insoluble components (%), $\rho$ is the carbonate density (t m⁻³), C is the proportion of carbonate and R was the soil formation rate of other rock types. The acid-insoluble components can be computed based on 5, 20 and 50% for HC, CI and CA. In addition, carbonate rock can be computed based on 95, 80 and 50% for HC, CI and CA (Table 4).

The acid-insoluble components can be computed based on 5, 20 and 50% for HC, CI and CA. In addition, carbonate rock can be computed based on 95, 80 and 50% for HC, CI and CA.

2.3.3. Multiple Linear Regression (MLR)

MLR was mainly used to study the correlation between a dependent variable and multiple independent variables [49,50,51], and had a wide range of applications. The basic structure of multiple linear regression model was as follows:

$$y_a=b_0+b_1{x}_{1a}+b_2{x}_{2a}+\dots +b_k{x}_{ka}+{\epsilon }_a$$

(15)

where $y_a$ is dependent variable, $x_{1a}$, $x_{2a}$, $\dots$, $x_{ka}$ are independent variables, $b_0$, $b_1,\dots ,b_k$ are undetermined parameter. ${\epsilon }_a$ is random variable. In this study, the dependent variable is the ion activity coefficient, and the independent variables are P, T, ET, SM and NDVI.

2.3.4. Least Squares Trend Analysis

We perform the least squares linear regression analysis to quantify the trend of SFR. This method has been extensively performed at regional to global scales as a means of understanding the evolution trend of time-series data [52,53]. The formula is expressed as follows:

$$K=\frac{n{{\displaystyle \sum }}_{i=1}^n\left(i\times M_{SFR,i}\right)-{{\displaystyle \sum }}_{i=1}^{n}i\times {{\displaystyle \sum }}_{i=1}^n{M}_{SFR,i}}{n\times {{\displaystyle \sum }}_{i=1}^n{i}^2-{\left({{\displaystyle \sum }}_{i=1}^{n}i\right)}^2}$$

(16)

where the value of n is 33, i is the year number, M_SFR is the average value of the SFR, and i is the SFR of the i th year. K is the regression slope. When K > 0, the evolution trend of SFR increases in the 33-year period; otherwise, this trend decreases. No uniform standard exists for the division of K-value trends [54,55]. According to the overall distribution of the SFR in the study area and the calculation of the changes in the K-value, the K-value conforms to a normal distribution [56]. Thus, SFR is used in the equal-pitch division method. We divide the K-value into seven levels, namely, significant decrease (K ≤ −0.05), slight decrease (−0.05 < K ≤ −0.01), constant (−0.001 < K ≤ 0.01), slight increase (0.01 < K ≤ 0.05) and significant increase (K ≥ −0.05).

2.3.5. Pearson Correlation Analysis

For more than a decade, scholars had used SFR data from different regions, time series, and resolutions to study the relationship among variables [57,58]. The determination of the relationship between SFR and climatic factors is mainly accomplished by calculating and verifying the correlation coefficients [59]. The formula is presented as follows:

$$R_{xy}=\frac{{{\displaystyle \sum }}_{i=1}^n\left[\left(x_i-\overline{X}\right)\left(y_i-\overline{Y}\right)\right]}{\sqrt{{{\displaystyle \sum }}_{i=1}^n{\left(x_i-\overline{X}\right)}^2{{\displaystyle \sum }}_{i=1}^n{\left(y_i-\overline{Y}\right)}^2}}$$

(17)

where n is the number of samples; X⁻ and Y⁻ are the means of variables x and y, respectively; and R_xy is the correlation coefficient between variables x and y. If |R| ≤ 0.5, then the correlation between SFR and climatic factors is insignificant; if |R| ≥ 0.5, then the correlation coefficients are taken as statistically significant at p = 0.05.

3. Results

3.1. Spatialization of Activity Coefficients of Calcium Ions and Bicarbonate

We selected the hydrochemical data of 43 research areas and nearby monitoring stations from the GEMS-GLORI world river discharge database [40] and calculated the ${\gamma }_{C{a}^{2+}}$ and ${\gamma }_{HC{O}_3{}^{-}}$ of 43 monitoring stations. Then, the corresponding values of P, ET, T, NDVI, and SM grids were obtained through the geographical coordinates of the 43 monitoring stations. Subsequently, the two ion activity coefficients were regressed by MLR with P, ET, T, NDVI, and SM. The results showed that the MLR equations were effective, with R² reaching 0.79 (p <0.01) (Equation (18)).

Table 5. The coefficient of ${\gamma }_{C{a}^{2+}}$ and ${\gamma }_{HC{O}_3{}^{-}}$ fitted with MLR.

	${\mathit{b}}_0$	${\mathit{b}}_1$	${\mathit{b}}_2$	${\mathit{b}}_3$	${\mathit{b}}_4$	${\mathit{b}}_5$	$\mathit{\epsilon }$
${\gamma }_{C{a}^{2+}}$	0.8296	5.8 × 10−7	0.0003	1.2713 × 10−6	−3.7831 × 10−5	0.0068	0.0002
${\gamma }_{HC{O}_3{}^{-}}$	0.9413	2.15 × 10−7	−1.20 × 10−4	4.72 × 10−7	−1.40 × 10−5	−0.0025	−0.0001

lists the regression coefficients.

$$\begin{array}{cc}\hfill {\gamma }_i=\gamma (P,T,ET,SM,& NDVI)+\epsilon \hfill \\ & =\left(b_0+b_{1}P+b_{2}T+b_{3}ET+b_{4}SM+b_{5}NDVI\right)\hfill \\ & +\epsilon (R2=0.7909,R2=0.7914)\hfill \end{array}$$

(18)

In Figure 4, the spatial distribution of ${\gamma }_{C{a}^{2+}}$ and ${\gamma }_{HC{O}_3{}^{-}}$ was high in northwest and low in southeast; the value ranges were 0.818–0.833 and 0.936–0.942, with averages of 0.823 and 0.939, respectively. The spatial distribution pattern of the two ion activity coefficients is similar because Ca²⁺ and HCO₃⁻ have high correlation.

3.2. Diversity of Dissolution Rate and Its Evolutionary Rule

3.2.1. Spatial Pattern of Dissolution Rate

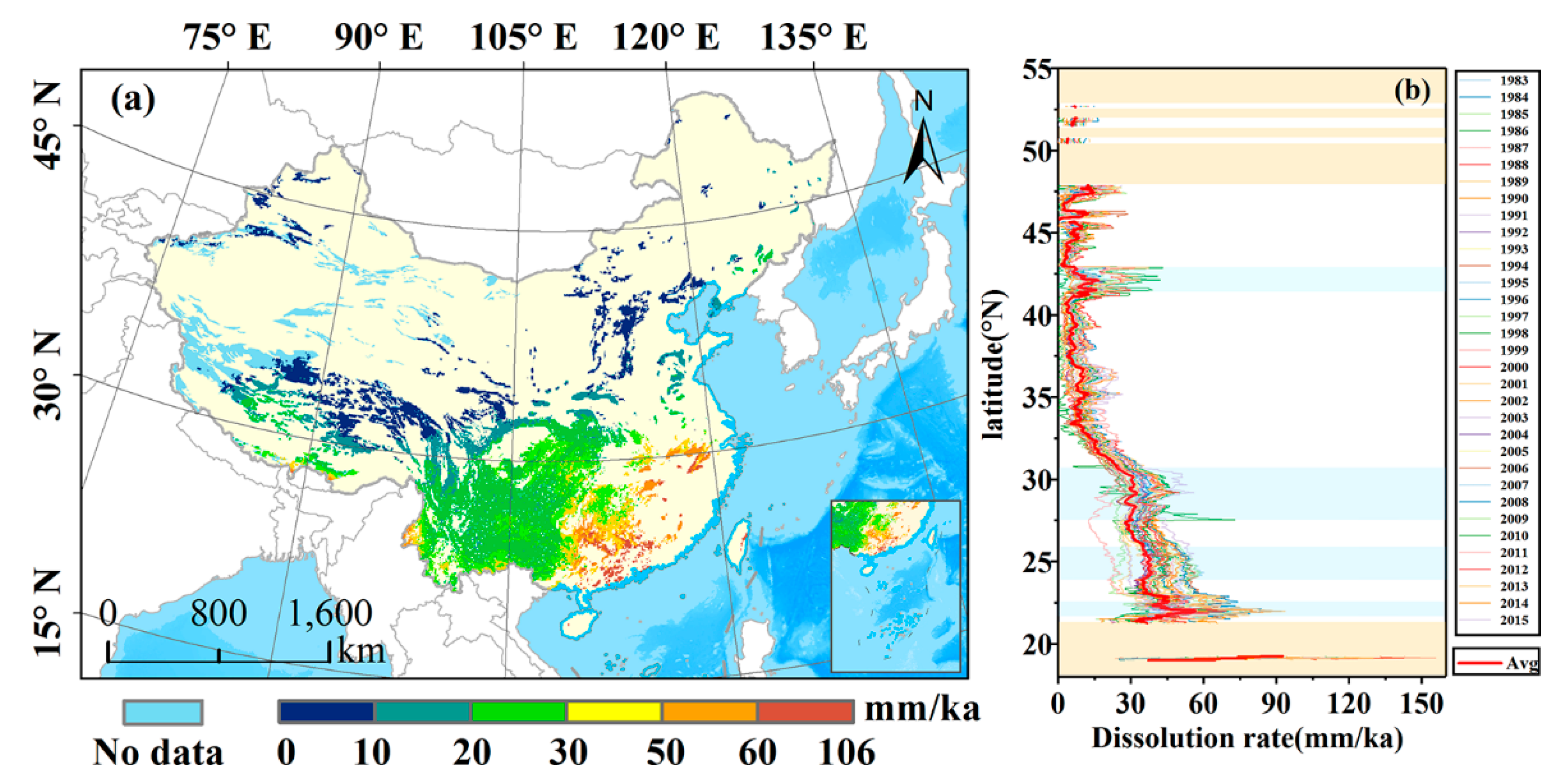

Influenced by landform, topography, and meteorological factors, the dissolution rate is high in the southeast and low in the northwest. It also showed a significant regional difference. On the basis of the spatial distribution during the period 1983–2015 (Figure 5a), the dissolution rate of the study area ranged between 0 mm/ka and 106 mm/ka, averaged at 22.51 mm. Spatially, the dissolution rate is high in southeast and low in northwest. The mean values of different grades of dissolution rate were analyzed statistically. The results showed that 19.40% of the study area had a dissolution rate of <10 mm/ka, distributed mainly in the northwest part. Moreover, 29.50% of the study area had a dissolution rate of 10–30 mm/ka, distributed mainly in the west and east parts, and 37.71% had a dissolution rate of 30–50 mm/ka, distributed mainly in the central south part. Furthermore, 5.72% of the study area had a dissolution rate of 50–60 mm/ka, distributed mainly in the southeast part, and 7.67% had a dissolution rate of >60mm/ka, distributed mainly in the southeast coastal area.

As displayed in Figure 5b, the dissolution rate decreases with the increase of latitude. The dissolution rate at different latitudes fluctuated considerably during 1983–2015, with four high-value areas. In particular, the area with the highest fluctuation was located at 13.66° N with a maximal dissolution rate of 94 mm/ka. The area with the second highest value was located at 21.50° N–22.50° N, which is the most active area of karstification in China, with a maximal dissolution rate of 64 mm/ka. The area with the third highest value was located in central south China (27.44° N–28.50° N), with a maximal dissolution rate of 33.70 mm/ka. The fourth area with high dissolution rate was located at 42.04° N–43.79° N, with a maximal dissolution rate of 19.34 mm/ka. As the south area was more easily affected by monsoon than the north area, considerable rainfall and numerous thermal resources were observed. Therefore, the dissolution rate in the south area fluctuated greater than that in the north area.

3.2.2. Evolutionary Process of Dissolution Rate

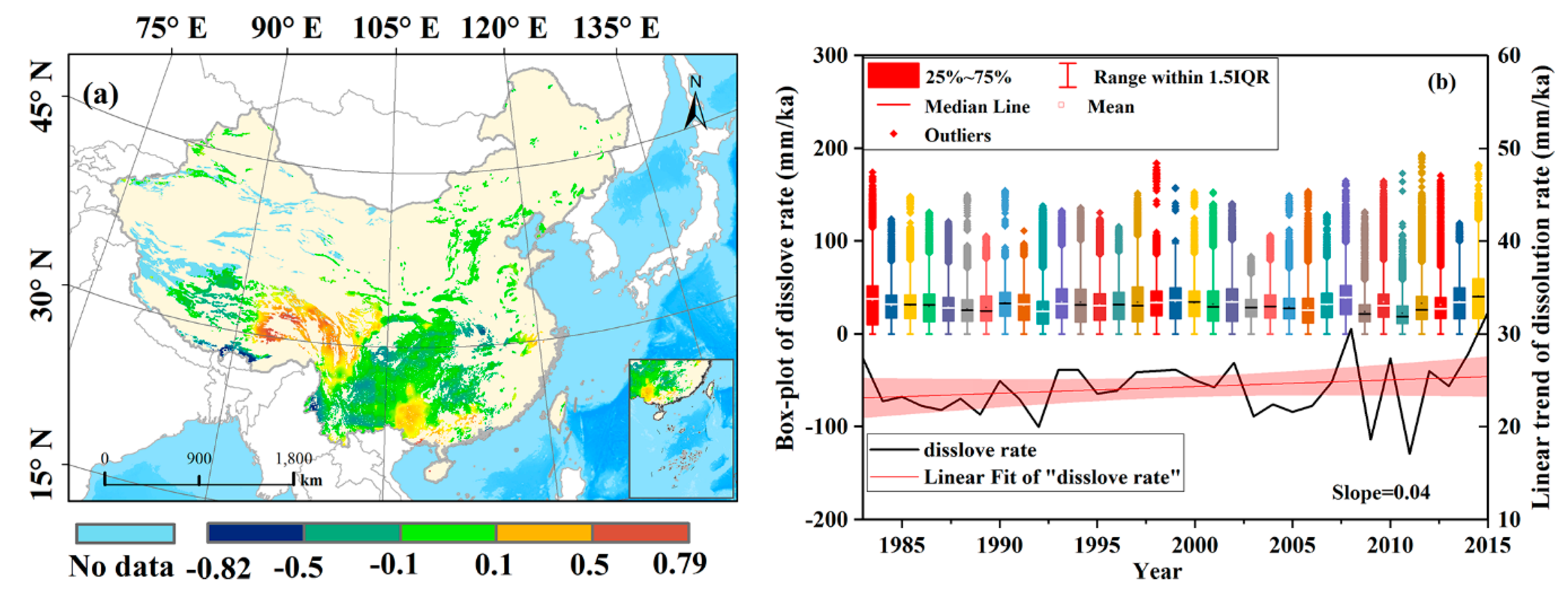

As shown in Figure 6b, the change of the dissolution rate from 1983 to 2007 was relatively stable, while the change of the dissolution rate from 2008 to 2015 was relatively drastic. In general, the dissolution rate showed a slight upward trend, with an acceleration rate of 0.04 mm/ka during 1983–2015. In particular, the lowest dissolution rate (21.96 mm/ka) in the study area occurred in 2009, and the highest (33.92 mm/ka) occurred in 2015.

To understand the spatiotemporal evolutionary pattern of the dissolution rate fully, the evolutionary trend during 1983–2015 was analyzed at the pixel scale (Figure 6a). The results showed that the dissolution rate in the southwest area tended to decrease, whereas that in the south area tended to increase. The proportions of significant reduction, slight reduction, no change, slight increase, and significant increase were 6.96%, 32.46%, 35.73%, 16.02%, and 8.83%, respectively. As illustrated in Figure 6a, significant reduction was sporadically distributed in the south area, and slight reduction was mainly distributed in the southwest area. The area with slight increase was mainly situated at 27° N–30° N, and the significant increase was mainly distributed in the west and southeast areas. The area with no change was only sporadically distributed.

3.3. Diversity of SFR and Its Evolutionary Process

3.3.1. Spatial Pattern of SFR

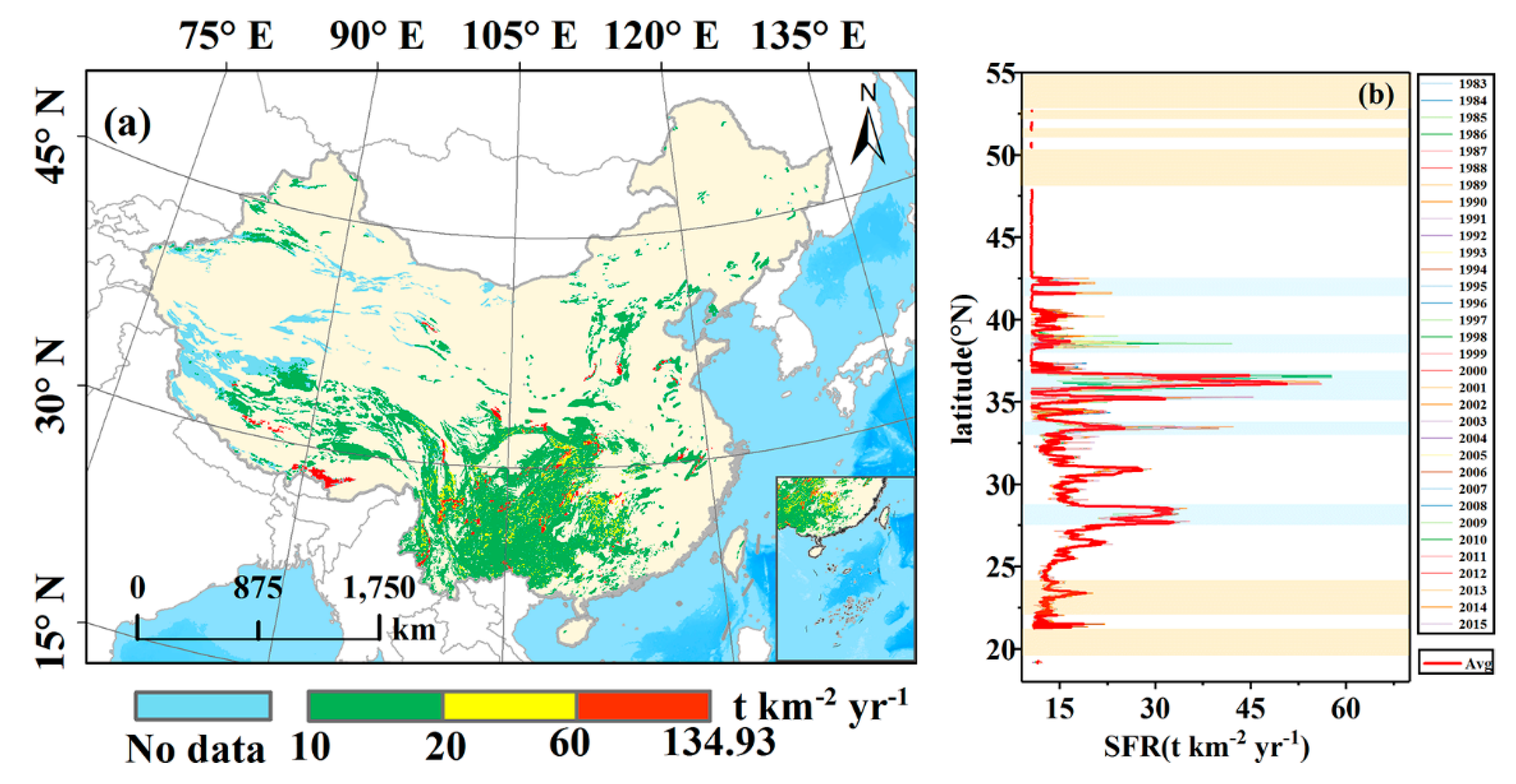

Influenced by lithology, landform, topography, and meteorological factors, SFR in the study area showed a significant regional difference. On the basis of the multiyear average SFR during 1983–2015, the SFR in the study area ranged between 10 t km⁻² yr⁻¹ and 134.93 t km⁻² yr⁻¹, averaged at 18.59 t km⁻² yr⁻¹ (Figure 7a). Spatially, the SFR was high in southeast and low in northwest. The different grades of SFR were analyzed statistically. The results showed that 86.44% of the study area had an SFR of <15 t km⁻² yr⁻¹, distributed anywhere in the study area. Furthermore, 9.06% of the study area had an SFR ranging between 15 t km⁻² yr⁻¹ and 55 t km⁻² yr⁻¹, distributed sporadically, and 4.50% had an SFR ranging between 55 t km⁻² yr⁻¹ and 134.93 t km⁻² yr⁻¹, distributed dispersively.

As presented in Figure 7b, the SFR at different latitudes fluctuated considerably during 1983–2015, with three high-value areas. In particular, the highest SFR occurred at 36.54° N, with a maximal dissolution rate of 56.92 t km⁻² yr⁻¹. The second highest SFR occurred at 27° N–28° N, which is the most active area of karstification in China, i.e., south karst area, with a maximal dissolution rate of 36 t km⁻² yr⁻¹. The one-to-one correspondence between the SFR and dissolution rate was not observed, and this phenomenon was closely related to that of the lithology.

3.3.2. Dynamic Variation of SFR

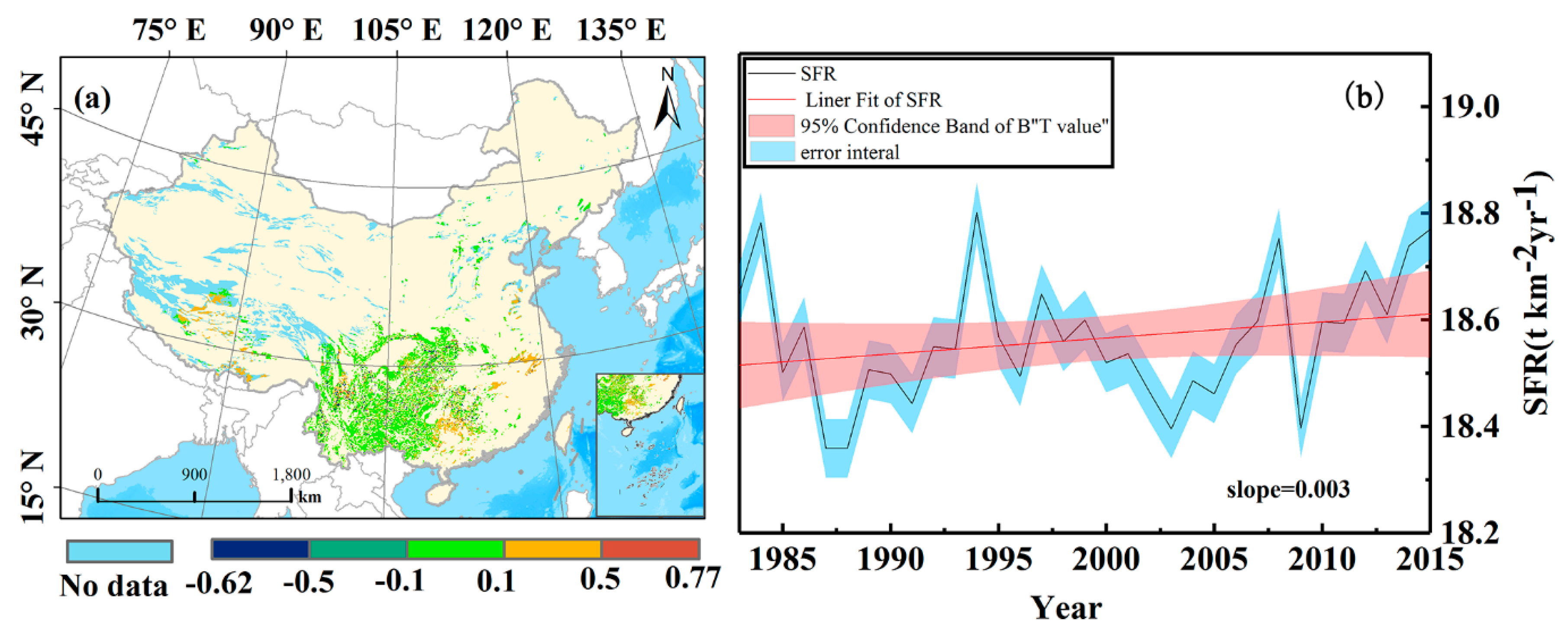

As shown in Figure 8b, the SFR in the study area fluctuated upward at an accelerating rate of 0.003 mm/ka during 1983–2015. In particular, three low-value and three high-value periods were observed. The periods with low values were years 1987, 2003, and 2009, with SFRs of 18.35, 18.39, and 18.40 t km⁻² yr⁻¹, respectively. The periods with high values were years 1984, 1994, and 2015, with SFRs of 18.78, 18.80, and 18.77 t km⁻² yr⁻¹, respectively.

The evolutionary trend of SFR was analyzed at the pixel scale (Figure 8a). Generally, a slight increase in SFR occurred locally, whereas in most areas, it remained stable. On the basis of the area proportion of different SFRs (Figure 8a), the proportions of significant reduction, slight reduction, no change, slight increase, and significant increase were 4.54%, 0.06%, 75.03%, 19.14%, and 1.23%, respectively.

3.3.3. Statistical Characteristics of SFR under Different Lithologies

As shown in

Table 6. Statistic SFR of each lithology at pixel scale during 1983~2015.

Lithology		Mean	Min	Max	Std dev.
HC		12.01	10	20.71	1.45
	HL	12.25	10	20.71	1.49
	HD	10.85	10	12.92	0.78
	HDL	12.17	10.01	18.90	1.12
CI		47.98	41.04	61.40	2.81
CA		111.13	100	134.93	6.29

, the statistical results of multiyear SFR under different lithologies presented a trend of SFR_CA > SFR_{C I} > SFR_HC, and the SFRs of CA, CI, and HC were 111.13, 47.98, and 12.01 t·km⁻² yr⁻¹, respectively. In terms of HC, the trend was SFR_HL > SFR_{HD L} > SFR_HD, and the SFRs of HL, HDL, and HD were 12.25, 12.17, and 10.85 t·km⁻² yr⁻¹, respectively.

SFR has multiple values and diverse characteristics. The value of SFR is related to the content of acid-insoluble substances in rocks. When carbonate rock occurs in HC, CA, and CI, its SFR may differ considerably because the key factors affecting SFR are related to the contents of acid-insoluble substances in rocks, in addition to the contents of clastic rock in the stratum of a region.

3.4. Correlation between Ecohydrological Factors and SFR under Different Lithological Backgrounds

Figure 9b–f display the correlations between SFR_HL, SFR_HD, SFR_HDL, SFR_CI, and SFR_CA and the ecological hydrological factors, respectively. SFR_HL, SFR_HD, and SFR_HDL had strong correlations with P, SM, and T, and all correlation coefficients exceeded 0.65. They had the strongest correlation with P, with correlation coefficients of 0.91, 0.94, and 0.92, respectively. The correlation coefficient of SFR_HD and SM reached 0.92, whereas the correlation coefficients of SFR_HL and SFR_HDL and SM were only 0.71 and 0.65, respectively. The reason may be the better soil continuity of HD than that of HL and HDL, which increases the correlativity of SFR_HD and SM.

Figure 9e,f clearly illustrate that the correlations between SFR_CI and SFR_CA and P were good, with correlation coefficients of 0.89 and 0.75, respectively, but the correlations between the two and SM, T, and ET were poor. The main factor is that they contain a high proportion of acid-insoluble matter, which is the main source of weathered soil. Furthermore, the content of rock acid-insoluble matter is mainly affected by the diagenesis process and less effected by the outside world, leading SFR_CI and SFR_CA and all factors, except P, to respond poorly.

In conclusion, P is the most important climatic factor that affects the carbonate formation rate.

4. Discussion

4.1. Comparison with Similar Studies

4.1.1. Dissolution Rate

We compared our results with the relevant studies on the watershed scale [48,60,61,62], the spatial distribution map of the dissolution rate calculated in this study was clipped and compared with the vector boundary of relevant studies, and found that the results of this study were similar to those of many studies, although they are different from the existing research results, they could explicable. For example, Wang LC calculated the average dissolution rate of Muzhu cave watershed in Guizhou Province as 41.5 mm/ka by calcium ion concentration [60], which is 2.9 mm/ka higher than the result in this study (38.6 mm/ka). The reason is that the method of calculating dissolution rate by ion concentration does not exclude the influence of exogenous acid on dissolution. Han GL [61] and Zeng C [62] estimated the dissolution rate of Wujiang River and Banzhai watershed as 33 mm/ka and 24.91 mm/ka by hydro-chemical runoff method, which slightly deviated from the results of this study by 2.05 mm/ka and 2.31 mm/ka, respectively, this is because the method of solute load relies on manual monitoring and sampling test, and different sampling seasons and locations will affect the calculation results. Cao JH monitored the dissolution rate of limestone in the Pearl River watershed through the dissolution test piece method, and obtained that the dissolution rate of the Pearl River watershed is 21.4 mm–115.1 mm [63], the result of dissolution rate of the Pearl River watershed clipped in this paper is 16–101.32 mm, the test piece buried in the soil is susceptible to the influence of bio-organic acids or other exogenous acids in the soil, making the dissolution rate higher than the results in this study (

Table 7. Compare with other results of dissolution rate.

Source	Study Area	Lithology	Dissolution Rate (mm/ka)	This Study	Ratio, This to Other
Wang LC (2010) [60]	Muzhu cave watershed	HL	41.5	38.6	2.9
Cao JH (2011) [48]	Pearl River watershed	HL, HD, HDL, CI, CA	21.4~115.1	16~101.32	5.4~13.78
Zeng C (2017) [62]	Banzhai watershed in Province	HL	24.91	27.22	−2.31
Han GL (2005) [61]	Wujiang	HL	33	30.95	2.05
This study (2019)	Carbonate area of China	HL, HD, HDL, CI, CA	0~106

).

4.1.2. Soil Formation Rate

We compared the calculation results with related [16,31,63] studies and found that the results in this paper were similar to those of existing studies, but slightly higher than those of existing studies. For example, the soil formation rate calculated by Li YB 16] in Guizhou Province was between 6.75 to 103.46 t km⁻² yr⁻¹. The range of this article was from 10.78 to 117.68 t km⁻² yr⁻¹; the soil formation rate calculated by Cao JH [63] in southwest China was from 4 to 120 t km⁻² yr⁻¹, while the range calculated in this paper was from 10 to 122.77 t km⁻² yr⁻¹; the soil formation rate calculated by Li Y [31] in southern China was to serve the allowable soil loss, so only one estimate was proposed, and the estimation result was 20 < SFR ≤ 100. The reason for the higher results in this paper was that the maximum potential dissolution method was used in calculating the dissolution rate. In an open karst system, karstification may not reach the dissolution equilibrium, so the dissolution rate calculated in this study was the maximum. However, in previous studies, spatial heterogeneity was not considered in calculating soil formation rate, and the value of dissolution rate was one lithology and one value. Therefore, the soil formation rate calculated by previous studies will be lower than this study.

4.2. Application of Soil Formation Rate in the Risk Reassessment of Soil Erosion

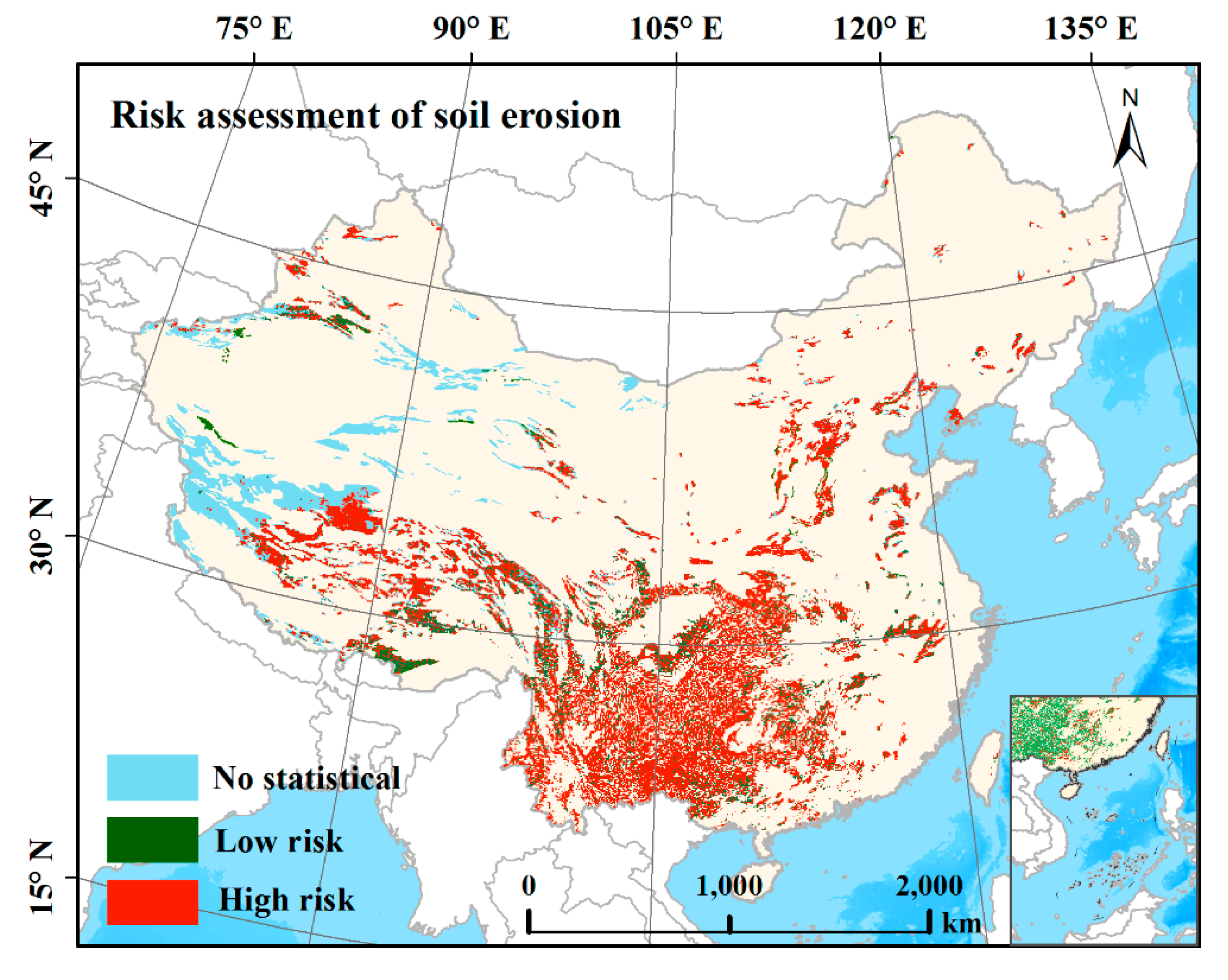

In China, allowable amount of soil erosion is an indicator for the risk assessment of water and soil erosion. The Standards for Classification and Gradation of Soil Erosion indicated that the allowable amount of soil erosion in karst area is 500 t km⁻² yr⁻¹, and any areas with lower amount of soil erosion are safe for soil erosion. The calculation of the present study shows that the average SFR in the karst areas in China is 18.59 t km⁻² yr⁻¹, which is equal to 3.7% of the allowable amount of soil erosion of 500 t. Therefore, the existing Standards for Classification and Gradation of Soil Erosion are far from stringent, thereby leading to a negligence of soil erosion risks in karst areas. This condition is probably also a reason for the occurrence and development of soil degradation and solidification in the karst areas. Therefore, considerable attention should be paid to soil conservation in the karst areas. In other words, low modulus of soil erosion does not necessarily mean low risks of soil erosion. Many field observations have shown that erosion in karst areas is low, but the risk of erosion is very high because of the slow soil formation rate, thin soil layers, and in some places even no soil can to lose [64,65]. Therefore, the risk of soil erosion should be determined by the relation of actual amount of soil erosion and SFR and not by the actual amount of erosion or the erosion modulus.

SFR is theoretically the upper limit of allowable amount of soil erosion in karst areas and can be the threshold minimum of soil erosion risk. If the theoretical amount of erosion is higher than the SFR, then the area will be in danger of soil erosion. If the theoretical amount of erosion is lower than the SFR, then the area will be safe for soil erosion. If the theoretical amount of erosion is equal to the SFR, then the area will be a critical area for soil erosion. Using the theoretical erosion rate supplied by the database of Mountain Hazards and Environment of China, we conclude that the safe area for soil erosion explains 20%, and the risky area explains 80% of the carbonate rock areas. The risky area is four times the safe areas (Figure 10). Therefore, considerable attention should be paid to soil conservation in this area.

4.3. Applicability of the Method

The method used in this study is divided into two parts. The first part is the MPD method to calculate the dissolution rate, and the second part is the method to calculate SFR.

The MPD method is applicable to all limestone areas [42,43,45]. In this study, we calculate the dissolution rate of carbonate rock on the basis of the specific corrodibility of other rocks in the carbonate rock and limestone. The parameters used in the method can be calculated from data such as T, P, and ET. These data comprise RS or reanalysis data products. The link in the model that requires the measured data is a simulation of Ca²⁺ and HCO₃⁻ ion activity coefficients. When performing ion concentration simulation, Ca²⁺ and HCO₃⁻ ion activity coefficients are calculated, and an estimation model is established with local environment meteorological data. The meteorological and hydrological spatial data are inversely transformed into space to achieve the spatialization of the ion activity coefficient. The MPD method can also be extended to other soluble rock areas. This method can be generalized only through replacing the chemical equation, deriving a new formula on the basis of the principle of chemical thermodynamics, and changing the solubility product constant (Ks) of the rock in water.

In addition, the SFR model is mainly calculated on the basis of the carbonate rock dissolution velocity, rock density, acid insoluble matter, and the proportion of carbonate rock. Therefore, the model is only applicable to karst carbonate areas instead of all karst areas. In recent years, this model has been widely used in permissible amount of carbonate soil loss and its erosion characteristics in southwestern China [16,31].

In summary, although the method used in this study is only applicable to carbonate rock areas, the global carbonate rock area is as high as 22 million km² [66]. Approximately 25% of population depends on carbonate rock areas to survive [1]. Thus, this method should be promoted globally.

4.4. Analysis of Limitation, Deficiency, and Uncertainty

Considerable basic data, including RS and measured data, are used in this study to calculate SFR. RS and reanalysis data with different spatial resolutions are also utilized. The data obtained through the method of adjacent data resampling are 8 km × 8 km (0.083°). The nearest neighbor method is simple and has small computational complexity but has poor visual effect. After sampling, discontinuing the image is outstanding, and the gray formation of the original image has high precision. We refer to the 1:400,000 soluble rock-type map and combine it with the 1:500,000 geological map when drawing the lithological boundary of China. The combination of strata with different scales may lead to errors.

In deeply negative assumptions, runoff in the study area does not present karstification. However, in pixels, the actual runoff depth of areas, such as Yuan, is difficult to determine through computations. Therefore, the method in [42,43] is adopted. The difference between precipitation and evaporation to replace the actual runoff depth may have a certain deviation between the two processes. Therefore, this method has certain limitations.

In the current study, the MPD method is used to calculate the dissolution rate. karst action in an open karst system may not reach the solution equilibrium. Therefore, the calculation result will deviate from the actual dissolution rate. In analyzing the correlation between SFR of different lithology and ecohydrological factors, the characteristics of seasonal changes may be ignored. Therefore, this work must be performed in a future study.

5. Conclusions

In this study, based on multi-source data and geospatial technology, we have used the MPD method and SFR calculation model to estimate the dissolution rate and SFR in karst areas of China during the period of 1983–2015, analyzed their spatial diversity and temporal variation, and reevaluated the risk of soil erosion. The following main conclusions were drawn: (1) Geospatial technology, combined with chemical thermodynamics theory, created the key link of geographical science and experimental chemistry, which can play an important role in the spatial calculation of rock weathering and soil formation rate. The calculated results were basically consistent with the actual monitoring of long-term positioning, which proved the practicability and extensibility of the method. (2) The dissolution rate of carbonate rock ranges between 0 and 106 mm/ka and has an average of 22.51 mm/ka. The SFR ranges between 10 and 134.93 t km⁻² yr⁻¹ and has an average of 18.59 t km⁻² yr⁻¹. A total of 86.44% of the study area has an SFR below 15 t km⁻² yr⁻¹, and most of the areas were distributed at HC. The risk of soil erosion in karst areas of China was reassessed, and the high erosion risk areas and ecological safety areas were corrected; we found that the former was nearly three times higher than the latter.

In conclusion, the contribution of this study is to solve the problem that traditional positioning monitoring is difficult to realize SFR spatialization, to promote the application of geospatial data and technology in new fields such as rock weathering and soil formation, and to provide an example and a new perspective for international counterparts to carry out relevant research.
