A Framework Integrating DeeplabV3+, Transfer Learning, Active Learning, and Incremental Learning for Mapping Building Footprints

Abstract

Convolutional neural network (CNN)-based remote sensing (RS) image segmentation has become a widely used method for building footprint mapping. Recently, DeeplabV3+, an advanced CNN architecture, has shown satisfactory performance for building extraction in different urban landscapes. However, it faces challenges due to the large amount of labeled data required for model training and the extremely high costs associated with the annotation of unlabelled data. These challenges encouraged us to design a framework for building footprint mapping with fewer labeled data. In this context, the published studies on RS image segmentation are reviewed first, with a particular emphasis on the use of active learning (AL), incremental learning (IL), transfer learning (TL), and their integration for reducing the cost of data annotation. Based on the literature review, we defined three candidate frameworks by integrating AL strategies (i.e., margin sampling, entropy, and vote entropy), IL, TL, and DeeplabV3+. They examine the efficacy of AL, the efficacy of IL in accelerating AL performance, and the efficacy of both IL and TL in accelerating AL performance, respectively. Additionally, these frameworks enable the iterative selection of image tiles to be annotated, training and evaluation of DeeplabV3+, and quantification of the landscape features of selected image tiles. Then, all candidate frameworks were examined using WHU aerial building dataset as it has sufficient (i.e., 8188) labeled image tiles with representative buildings (i.e., various densities, areas, roof colors, and shapes of the building). The results support our theoretical analysis: (1) all three AL strategies reduced the number of image tiles by selecting the most informative image tiles, and no significant differences were observed in their performance; (2) image tiles with more buildings and larger building area were proven to be informative for the three AL strategies, which were prioritized during the data selection process; (3) IL can expedite model training by accumulating knowledge from chosen labeled tiles; (4) TL provides a better initial learner by incorporating knowledge from a pre-trained model; (5) DeeplabV3+ incorporated with IL, TL, and AL has the best performance in reducing the cost of data annotation. It achieved good performance (i.e., mIoU of 0.90) using only 10–15% of the sample dataset; DeeplabV3+ needs 50% of the sample dataset to realize the equivalent performance. The proposed frameworks concerning DeeplabV3+ and the results imply that integrating TL, AL, and IL in human-in-the-loop building extraction could be considered in real-world applications, especially for building footprint mapping.

1. Introduction

Worldwide, rapid urbanization and urban revitalization are occurring, and approximately two-thirds of the world population will live in urban areas by 2050 [1]. Extracting and updating building footprints is critical for a wide range of sustainable development applications, including urban planning, population health, and risk assessment [2,3].

Due to rapid advancements in remote sensing (RS) technology and deep learning (DL), pixel-level image segmentation using very high resolution (VHR) RS data and Convolutional Neural Network (CNN) architectures have become widely used methods for extracting building footprints, with many studies focusing on developing new models or improving the accuracy of existing models [2,4,5,6,7,8,9]. Some CNN architectures have demonstrated good performance in mapping the building footprints in a variety of landscapes (e.g., urban areas, suburban areas, urban villages/slums, and damaged buildings) [4,10,11,12,13]. More recently, DeeplabV3+, the latest Deeplab architecture, has been increasingly used for building extraction and multiple land use mapping as it enables refinement of the building boundaries while incorporating other strategies, such as dilated convolution and spatial pyramid pooling [5,14,15,16].

In real-world applications, generating sufficient informative labeled data is an important issue for achieving accurate building extraction. Although there are some open-source datasets for building footprints, such as SpaceNet, Inria Aerial Image, Massachusetts Building dataset, and WHU aerial building dataset [14,17,18,19,20,21], and some publicly available pre-trained models, mapping building footprints in a specific study area, especially a large-scale region, still needs a sufficient number of training and validation samples to calculate and update the hyperparameters due to landscape differences and the complexity and diversity of buildings [6,22,23]. However, manual data labeling is highly dependent on prior knowledge of RS and geographic information systems (GIS), time consuming, and labor intensive [24,25]. Additionally, RS images covering the study area should be divided into an appropriate number of image tiles, with a small size (e.g., 512 × 512 pixels) acceptable CNN architectures. However, it is commonly unknown which image tiles are informative for model training. These limitations impede the efficient extraction and updating of building footprints, particularly when large-scale building footprint mapping is required. In this case, it is crucial to propose an efficient framework for selecting informative data and achieving a satisfying building footprint map with fewer labeled data.

Numerous methods have been proposed in the field of artificial intelligence to facilitate model training with fewer labeled samples from a variety of perspectives, including active learning (AL), incremental learning (IL), and transfer learning (TL). To begin with, a framework incorporating AL and deep learning is used to query the unlabeled dataset. It prioritizes informative unlabeled data for human annotation, thereby lowering the cost of data annotation and optimizing the performance of models built with fewer labeled data [26]. Recently, it has been applied to a variety of computer vision tasks, including segmentation of satellite images [27,28], segmentation of medical images [29,30], and image classification [31]. Secondly, IL accelerates the accumulation of DL model knowledge by retaining previous model knowledge and continuously fine-tuning the previous model with new samples, which has been used in land use mapping [22,32,33]. Thirdly, TL refers to a method of learning that makes use of pre-trained models’ knowledge to address target tasks [34]. In RS applications, pre-trained models are often transferred in space and time for the same task, such as transferring pre-trained CNN architectures for crop mapping to identify crop types in different regions or periods [35,36], or pre-trained models are transferred based on their similarity to two distinct tasks, such as transferring CNN architectures trained on nighttime light intensities to predict poverty [37]. Additionally, it has been demonstrated that combining AL with IL and/or TL accelerates DL model training with fewer labeled data in a variety of tasks [33,38]. To our knowledge, no studies on the performance of AL, IL, TL, and incorporated methods in building footprint mapping have been conducted to date.

In this context, focusing on building footprint mapping using DeeplabV3+, this study aims to clarify the effectiveness of AL in reducing the efforts of data annotation and the role of both IL and TL in facilitating DeeplabV3+ training and propose a human-in-the-loop framework for building footprint mapping by integrating AL, IL, and TL. It makes three contributions as follows: (i) We summarize the commonly used AL strategies, IL, and TL for RS image segmentation, as well as their interrelations. (ii) We propose a framework by integrating AL, IL, TL, and DeeplabV3+ and greatly improve the effectiveness of building footprint mapping. The proposed framework suggests that leveraging the knowledge of an appropriate pre-trained model and incrementally acquiring knowledge from actively selected samples can significantly reduce the effort associated with data annotation. (iii) We preliminarily understand the priority of image tiles in data annotation to achieve an efficient building footprint mapping.

The remainder of this paper is organized as follows: Section 2 reviews related works on AL strategies, IL, and TL for RS image segmentation; Section 3 proposes three candidate frameworks for improving the effectiveness of building footprint mapping; Section 4 outlines experiments quantifying and comparing the performance of the candidate frameworks; Section 5 presents the results of the experiments; Section 6 discusses the limitations of this study and makes some recommendations for future building extraction; Section 7 summarizes the major findings in this study.

2. Related Works

2.1. AL in RS Image Segmentation

AL aims to query data iteratively using a variety of different strategies, select informative data from an unlabeled dataset for manual annotation in each iteration, and optimize model performance using fewer labeled data. As a result, AL enables the cost of human annotation to be reduced. There are several types of query strategies described in the literature on AL, including uncertainty sampling, query-by-committee, expected model change, expected error reduction, variance reduction, and density-based methods [39]. Uncertainty sampling is the most frequently used method in machine learning or DL-based LULC mapping, which selects samples with the greatest prediction uncertainty. For instance, Li et al. (2014) computed margin sampling to select candidate samples for the margin of the model and enhanced the performance of the model in LULC mapping using Landsat images and 15 different pixel- and object-based machine learning classifiers [40]. Hamrouni et al. (2020) efficiently constructed a global random forest classifier for poplar plantations from a local one by using margin sampling and entropy to select informative samples in new geographical regions and retain the local classifier [41]. Recently, Wang et al. (2021) investigated landslide mapping using two widely used AL strategies, uncertainty sampling and query by committee, in conjunction with a support vector machine classifier. They found that uncertainty sampling significantly reduced the cost of data annotation and outperformed queries by committee [42]. Robinson et al. (2020) used entropy, min-margin, randomness, and mistakes to fine-tune the model for high-resolution LULC mapping, and compared the performance of models to that of models fine-tuned with human-selected samples [27]. Additionally, random sampling is frequently used as a baseline for evaluating the contribution of AL strategies to machine learning and DL tasks [27,41].

2.2. IL in RS Image Segmentation

IL aims to incrementally update the model with new data while retaining the knowledge gained from previous data, thereby speeding up the training process. Thus, IL complements the current DL model by continuously accumulating knowledge. It has benefited land use (LU) mapping based on image segmentation in RS communities in recent years. For instance, Zhang et al. (2017) constructed a neural network (NN), adjusted the hidden layer of the NN to incrementally learn from new samples, and obtained an efficient and accurate model of road type recognition using 1 million RS images [43]. Tasar et al. (2019) proposed an IL method based on three RS datasets with multiple spectral bands and very high spatial resolution that enables learning capability for new LU classes while maintaining dense labeling capability for previous classes [32]. Yang et al. (2020) proposed a geographical IL model (named GeoBoost) for achieving the building footprint mapping required by the CNN architecture, a model that combines the U-Net and NASNet-Mobile to learn from data containing varying geographical information. The proposed method is valid for image segmentation when applied to a self-defined building dataset covering 100 cities worldwide with red, green, and blue spectral bands and a spatial resolution of 30 cm [22].

2.3. TL in RS Image Segmentation

TL, which includes inductive, transductive, and unsupervised TL, aims to use the knowledge gained from an existing task to solve a new task that is related to the existing one [34]. It is a viable option for reducing the effort required to collect training data and training time in real-world applications, which has benefited image segmentation in the RS community [44]. For example, Wurm et al. (2019) examined model transferability by focusing on slum mapping and transferring the pre-trained FCN model on QuickBird to Sentinel-2 and TerraSAR-X using an inductive TL approach. The findings indicate that pre-trained FCNs can significantly improve segmentation accuracy when used in conjunction with Sentinel-2 [4]. Ulmas and Liiv (2020) trained the ResNet50 on the BigEarthNet dataset, used the pre-trained model as the encoder for the modified U-Net, and retrained the modified U-Net on a small dataset to obtain land cover (LC) maps [45]. Zhang et al. (2020) addressed road extraction on Wuhan satellite data using the ResNet37 model trained on other two road datasets (i.e., Deepglobe and Spacenet road datasets) and FND-Linknet as encoder and decoder, respectively [46]. Nowakowski et al. (2021) addressed crop type classification using VGG16 and GoogLeNet trained on the ImageNet dataset, a computer vision dataset and fine-tuned the parameters of pre-trained models using training data derived from unmanned aerial vehicles (UAVs) [35]. TL and CNN architectures, in particular, can be used in conjunction to transfer knowledge and overcome the lack of training data. However, pre-trained models should be used carefully, and it provides a better starting point for the final convergence of the target task in case of sufficient data in the source task and high similarity between source and target tasks [47].

2.4. Interrelations between AL, IL, and TL

More recently, integrating AL, IL, and/or TL has been used to solve the problem with less resource consumption. For example, Zhou et al. (2017) successfully combined AL and IL to process biomedical images by fine-tuning the parameters of an existing network, thereby reducing both annotation effort and training time [38]. Lin et al. (2020) used a combination of three AL strategies and IL to segment ALS point clouds. They actively selected unlabeled data for annotation and incrementally fine-tuned the parameters of PointNet++ [33]. Shi et al. (2019) used a pre-trained multiple-input deep neural network (MIDNN) model and AL to select samples from unlabeled data and incrementally fine-tune the previous model to detect atrial fibrillation using electrocardiogram data [48]. These applications imply the interrelations between AL, IL, and TL in image segmentation tasks: adaptive use of a pre-trained model on the source domain data can provide more useful knowledge for model training; AL permits iteratively querying the target domain data using different strategies to select more informative unlabeled data to be annotated; IL permits accumulation of knowledge obtained from the pre-trained model and newly labeled data and incrementally updates the parameters in the process of the model training (Figure 1).

3. The Candidate Frameworks for Efficient Building Footprint Mapping

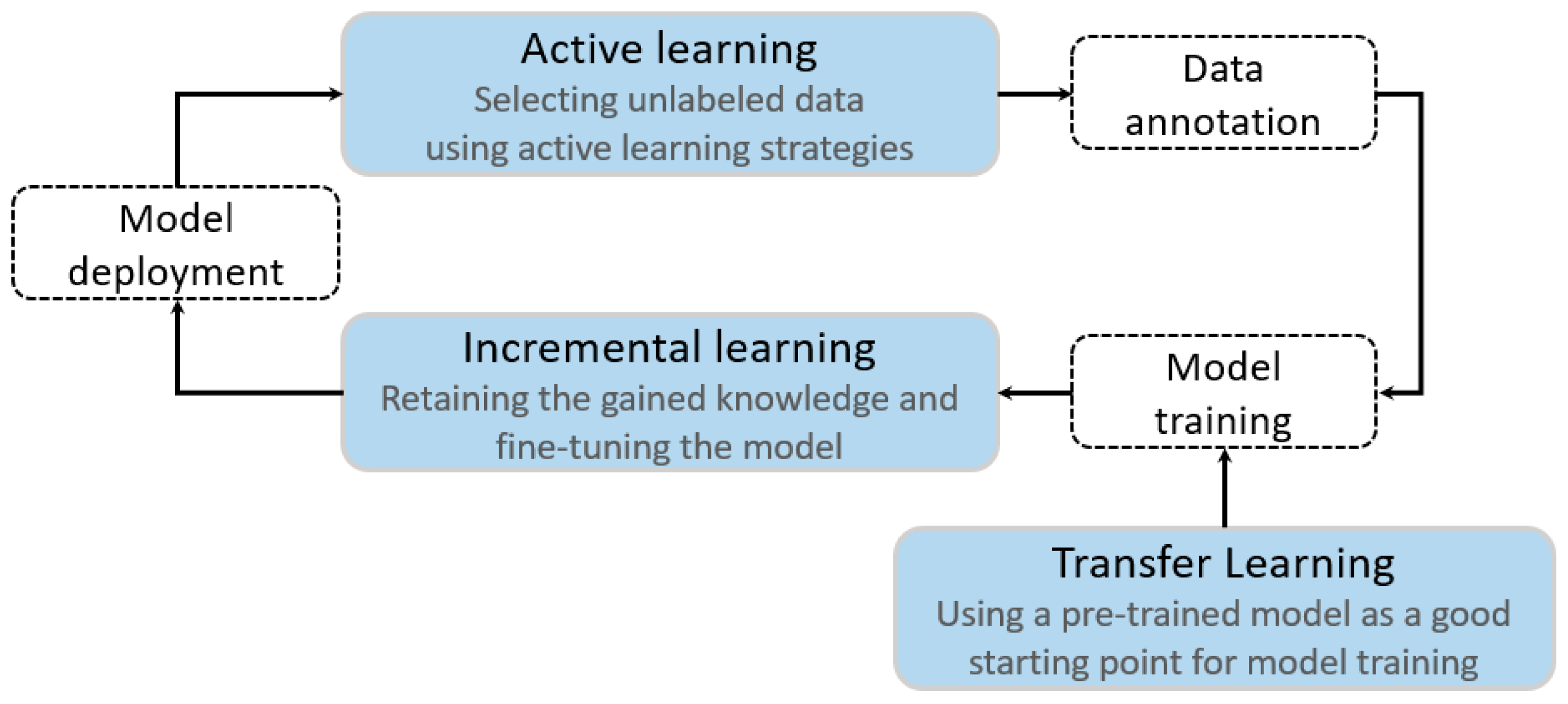

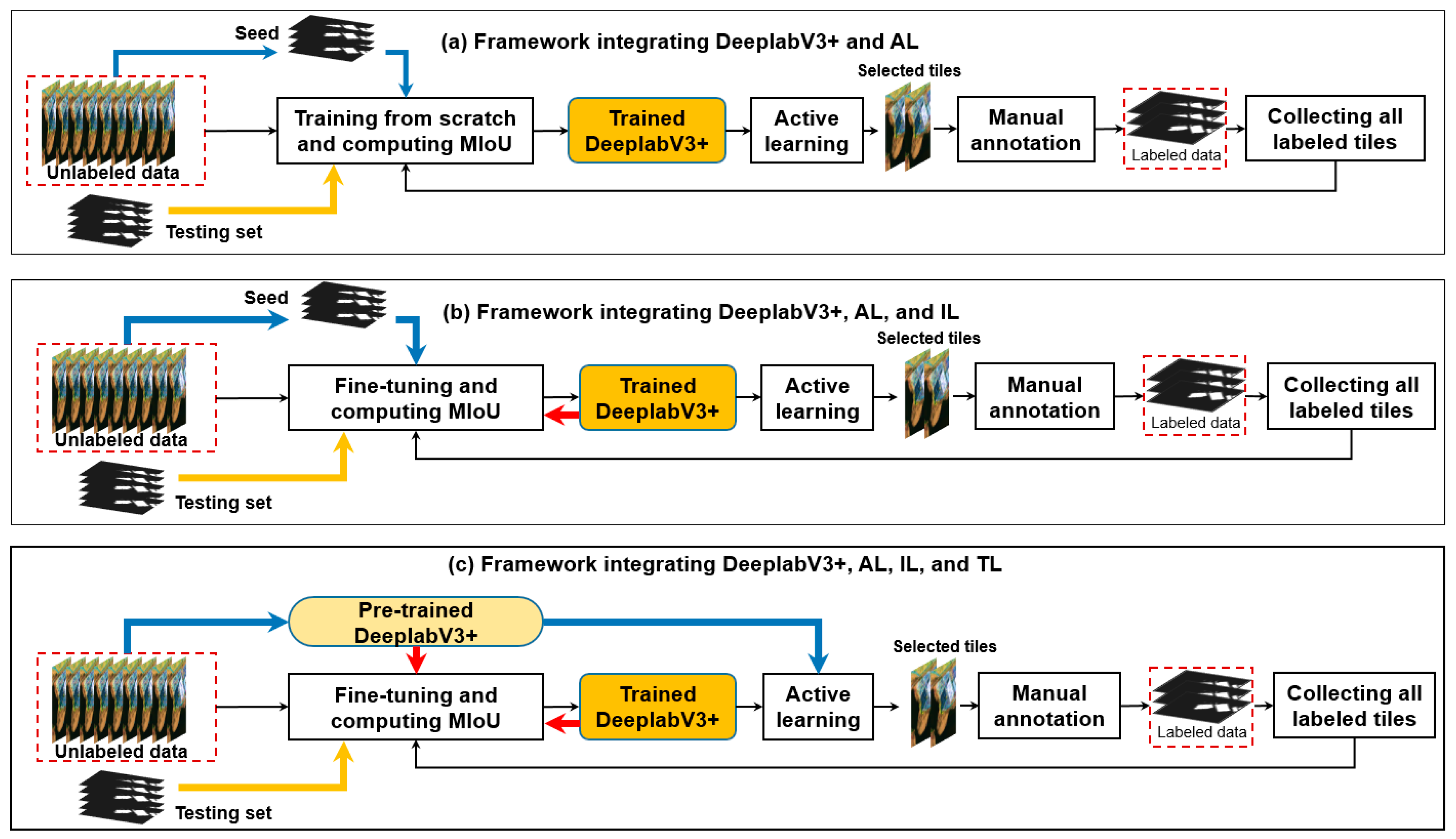

Based on the interrelations between AL, IL, and TL (Figure 1) and the human–machine collaboration method for LULC mapping [27], three candidate frameworks for efficient building footprint mapping using DeeplabV3+ are proposed (Figure 2).

They have the following common steps: (1) model training and evaluation in the first iteration, and (2) AL-based data selection, manual data annotation, collection of all labeled data, model re-training, and model evaluation in each iteration from the second iteration.

Differently, framework (a) examines the efficacy of various AL strategies and uses the seed set to initialize the model in the first iteration and trains the model from scratch (i.e., constructing and training a new model) in the next iteration; framework (b) examines the efficacy of using both AL and IL and also uses the seed set to initialize the model in the first iteration, but keeps the last trained model and fine-tunes it in the next iteration; framework (c) examines the efficacy of using AL, IL, and IL and uses a pre-trained model (i.e., a model trained on another dataset) in the first iteration and fine-tunes it in the next iteration.

Each framework generates a series of trained models (i.e., one trained model per iteration), which are evaluated using the testing set.

3.1. DeepLabV3+

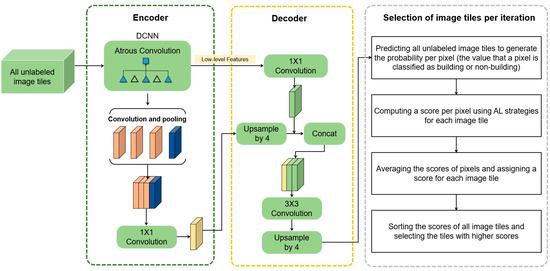

DeepLabV3+ is one of the most powerful image segmentation networks available [49]. It uses DeepLabV3 to encode multi-view information and decode it using the corresponding low-level features. DeepLabV3 takes advantage of a combination of atrous spatial pyramid pooling (ASPP) and variable dilation rates. It improves the resolution of the final feature map while also dealing with multi-scale objects. This study chose pre-trained MobileNetV2 as the backbone of DeepLabV3. MobileNetV2 is a lightweight Deep Convolutional Neural Network (DCNN). It accelerates computations by substituting Depthwise separable convolution for standard convolution. MobileNetV2 also makes use of residual blocks. The key enhancements to Deeplab models are atrous convolution and ASPP. In DCNN, a constrained receptive field limits the amount of information gained from the upper layers.

Subsampling techniques such as pooling and convolution are always used to increase the receptive field and reduce computation. However, traditional subsampling methods reduce the resolution of the feature map, making it more difficult to segment the image precisely. Atrous convolution and ASPP address this issue by extracting information at multiple scales with varying dilation rates. Rather than processing pixels one after the other, atrous convolution and ASPP jump a fixed number of pixels to efficiently expand the receptive field while maintaining an acceptable feature map resolution. DeeplabV3+ further improves atrous convolution by introducing atrous separable convolution. It combines atrous and depthwise separable convolution to significantly accelerate the computation. In the case of ASPP, both cascaded and parallel modules can improve performance. In this project, parallel modules were chosen. Instead of upsampling bilinearly by the fixed number, DeepLabV3+ upsamples twice and makes use of low-level features from DCNNs in the decoder. Due to the detailed pixel-level information obtained from DCNN, the additional decoder module significantly outperforms the naive decoder module.

3.2. Sample Selection

Three frequently used AL strategies were used in this study to iteratively select new data for manual annotation: margin sampling (MS), entropy (H), and vote entropy (VE). All three strategies choose informative samples based on $P_{\theta }\left(y_i|x\right)$, which is the probability of $x$ being classified as $y_i$ in the current model $\theta$. MS is an example of an uncertainty-based strategy in which the difference between the first and second-largest probability of a sample is calculated and the samples with the smallest difference are selected [50].

$$MS\left(x\right)=argmi{n}_x\left(P_{\theta }\left({\widehat{y}}_1|x\right)-P_{\theta }\left({\widehat{y}}_2|x\right)\right)$$

(1)

where $MS\left(x\right)$denotes the difference between the first and second-largest probabilities of the sample, and ${\widehat{y}}_1$ and ${\widehat{y}}_2$ denote the labels with the largest and second-largest probabilities, respectively.

H is another uncertainty-based strategy that ranks all unlabeled data in descending order by Shannon’s entropy and chooses samples with a high entropy for human annotation [50].

$$H\left(x\right)=argma{x}_x-{{\displaystyle \sum }}_i{P}_{\theta }\left(y_i|x\right)\ast \ln P_{\theta }\left(y_i|x\right)$$

(2)

where$H\left(x\right)$ denotes Shannon’s entropy and$y_i$ ranges over all possible labels of $x$.

VE is one of the AL strategies for query-by-committee that assesses the level of committee disagreement and selects the samples with the highest entropy for human annotation [50].

$$VE\left(x\right)=argma{x}_x-{{\displaystyle \sum }}_i\frac{V\left(y_i\right)}{C}\ast \ln \frac{V\left(y_i\right)}{C}$$

(3)

where$VE\left(x\right)$ denotes the voter entropy, $V\left(y_i\right)$ is the number of votes that a label received from the committee member, and C is the number of the committee members.

All unlabeled image tiles in the training set are predicted using the last-trained DeeplabV3+ to compute the probability per pixel (i.e., the probability that a pixel is classified as building or non-building). Then, the score values are computed for pixels of each tile using AL, and a score per image tile is given by averaging the scores of pixels. A fixed number of unlabeled image tiles are selected by sorting the image tile-level scores and selecting the tiles with higher scores (Figure 3). Additionally, to evaluate the performance of AL strategies, random sampling was used and the same amount of unlabeled data was selected in each iteration.

3.3. IL and TL

In frameworks (b) and (c), IL is used to fine-tune the CNN model using both AL strategies and random sampling in each iteration, as well as previously selected tiles. It is worth noting that the task of this study is a binary classification (i.e., built-up/non-built-up mapping), and no new classes are introduced during the AL process. Additionally, to introduce TL in framework (c), we make use of pre-trained CNN models to implement the initial selection of informative samples via AL strategies and random sampling.

3.4. Model Evaluation per Iteration

Based on the testing set, we evaluated the model performance using mIoU, which represents the ratio of intersection and union of ground truth and prediction. The mIoU is calculated as follows [50]:

$$mIoU=\frac{1}{k+1}{\displaystyle \sum }_{i=0}^k\frac{p_{ii}}{{{\displaystyle \sum }}_{j=0}^k{p}_{ij}+{{\displaystyle \sum }}_{j=0}^k(p_{ji}-p_{ii})}$$

(4)

where k + 1 denotes the total number of classes, $p_{ii}$ denotes the number of pixels belonging to i that are predicted to be class i, $p_{ij}$denotes the number of pixels belonging to i that are predicted to be class j, and $p_{ji}$ denotes the number of pixels belonging to j that are predicted to be class i.

4. Datasets and Experiments

4.1. Datasets

To illustrate the effectiveness of frameworks (a), (b), and (c), three experiments (i.e., experiments (a), (b), and (c)) were conducted using the WHU aerial building dataset, respectively. It is a standard dataset of building footprints consisting of 8188 labeled tiles with 512 × 512 pixels and a spatial resolution of 0.30 m [46]. It includes three datasets: training, validation, and testing sets (

Table 1. The number of tiles in the training set, validation set, and testing set of the WHU aerial building dataset.

Dataset	Training Set	Validation Set	Testing set	Total
WHU aerial building dataset	4736	1036	2416	8188

), which are spatially separated (Figure 4). It includes tiles with buildings of various densities, areas, roof colors, and shapes (Figure 4) [18].

4.2. Experiments

As illustrated in Figure 2, the seed set was selected from the training set and used to train the DeeplabV3+ model in experiments (a) and (b) in the first iteration. To introduce TL in experiment (c), we trained a DeeplabV3+ model with all image tiles of another dataset, namely WHU satellite building dataset II. This dataset is frequently used in building footprint mapping; it includes 3135 image tiles in the training set and 903 image tiles in the testing set covering East Asia cities. All image tiles have the same size (i.e., 512 × 512 pixels) and spatial resolution (i.e., 0.45 m) [18]. This pre-trained model was applied in the first iteration of experiment (c) for the initial data selection. Then, using an active and random selection process, 5% of the dataset was selected at a time for data annotation, and all the labeled tiles in previous iterations were used to retrain the DeeplabV3+ model. Here, the portion of data was selected as 5% to query in each iteration subjectively because selecting one tile per iteration requires a significant amount of time to run the training and selection processes, and selecting more tiles (e.g., 10% and 20%) per iteration conflicts with the objective of AL (i.e., reducing the cost of data annotation). In experiment (a), the DeeplabV3+ model was trained from scratch. The DeeplabV3+ model was fine-tuned in experiments (b) and (c) using all labeled data to introduce IL and TL. The obtained model in each iteration was used to segment the image tiles in the testing set, and the mIoU was calculated by comparing the predicted results to the labels in the testing set. The epoch was set to 100 for the mIoU computation, the mIoU was computed every 20 epochs, and the maximum of the five mIoU values was saved. Additionally, the learning rate was set to 0.1 and the batch size was set to 64 during training. The experiments (a), (b), and (c) were implemented without interruption on two Nvidia Tesla V100 GPUs until all image tiles in the training set were used. The DeeplabV3+ models used in experiments (a), (b), and (c) all had the same parameters as those in

Table 2. Experiment parameters used in the study.

Parameters	Description
GPU	Tesla V100 × 2
Image size	320, 320
Loss function	Cross entropy loss
Epoch	100
Batch size	64
Learning rate	0.1
Optimizer	Stochastic gradient descent (SGD)
Seed set	240 tiles
Active selection size	240 tiles
Max iteration	20
Selection mode	VE, H, MS, and random sampling
Parallel computing	Distributed data parallel (DDP)

.

4.3. Comparison of Tiles Selected per Iteration and That of the Testing Set

To determine which image tiles will be prioritized by active learning, the average percentage of buildings per iteration, the number of tiles without buildings per iteration, and the average number of buildings per iteration were computed based on labeled tiles selected for each iteration in frameworks (a), (b), and (c) and three class-level metrics (i.e., the proportion of landscape, total area, and the number of patches) provided by PyLandStats, an open-source Pythonic library for computing landscape metrics [51]. We also computed the same landscape metrics for image tiles of the testing set to compare the difference between selected tiles of each iteration (i.e., tiles used for model training in the next iteration) and the testing set.

5. Results

5.1. Comparison of AL Strategies and Random Sampling in Terms of Model Performance and Landscape Metrics

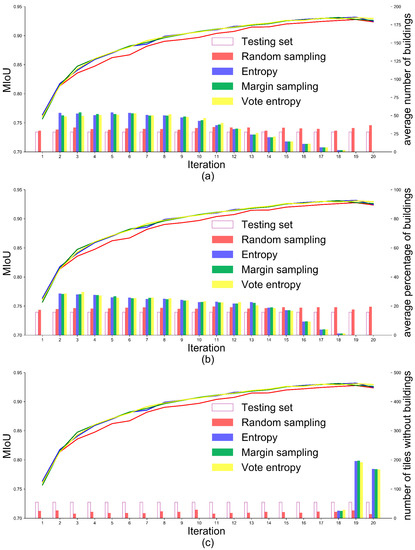

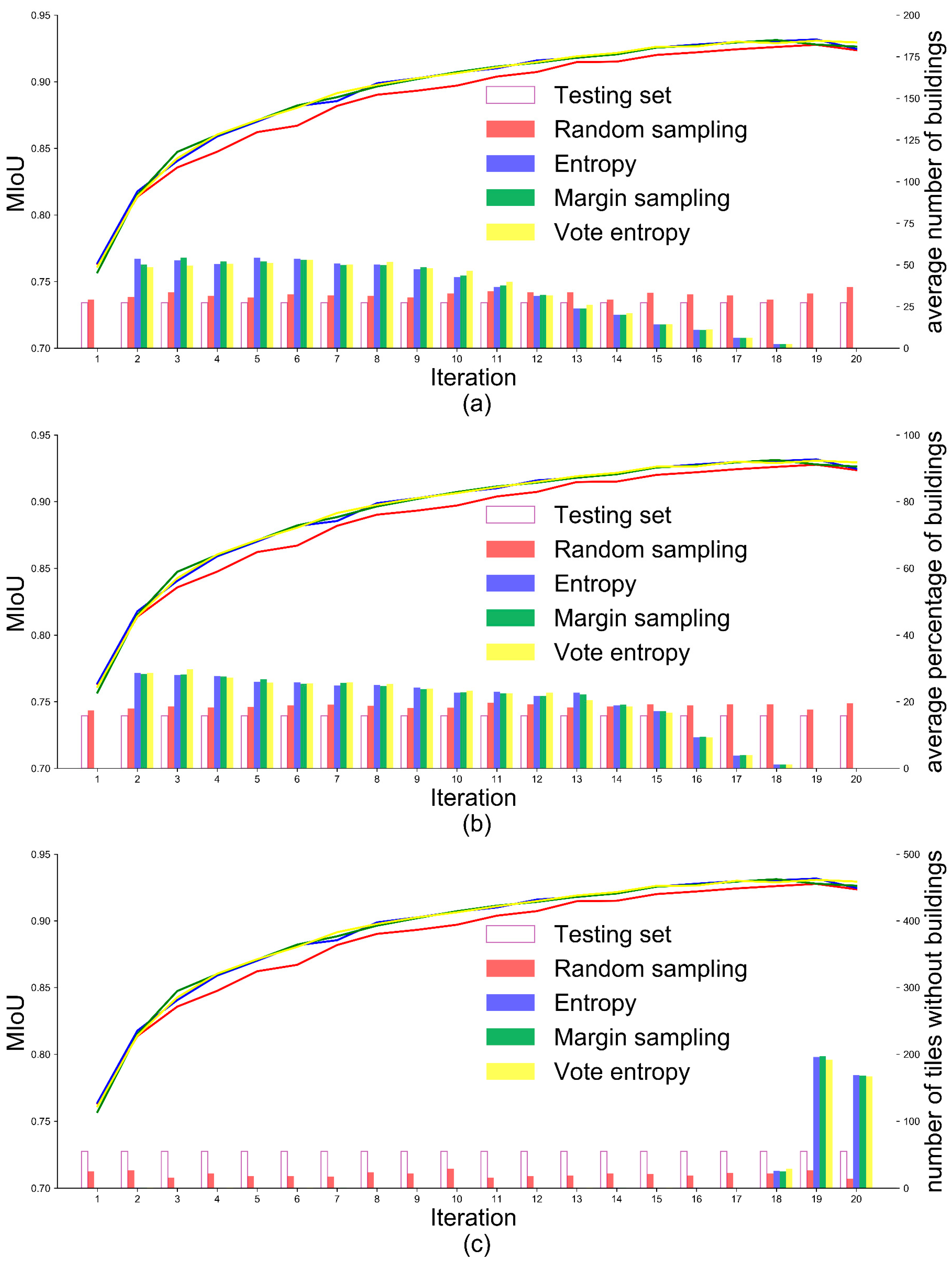

Figure 5 presents the performance of the framework incorporating DeeplabV3+ and AL (i.e., framework (a) in Figure 2) and the values of landscape metrics in each iteration of experiment (a). The mIoU of DeeplabV3+ increases with the increase in the number of iterations (i.e., the increase in the number of selected tiles), and AL strategies consistently outperformed random sampling. This demonstrates that incorporating DeeplabV3+ and AL selects informative image tiles for DeeplabV3+ model training and thus minimizes data annotation effort. However, when comparing the three AL strategies, it is difficult to determine which one is superior. In terms of landscape metrics of image tiles selected by AL, the average number of buildings (Figure 5a) and the average percentage of buildings (Figure 5b) have been trending downward with the increase in the number of tiles. The tiles without building had little or no effect on model training between the 2nd and 17th iterations (Figure 5c). In contrast, landscape metrics for tiles selected randomly and the testing set remain relatively constant throughout the sample selection process (Figure 5a–c). This demonstrates that when incorporating DeeplabV3+ and AL, image tiles with more building patches and a larger building area are preferred.

5.2. Comparative Analysis of Incorporating IL and TL in Deep Active Learning in Terms of Model Performance Improvement

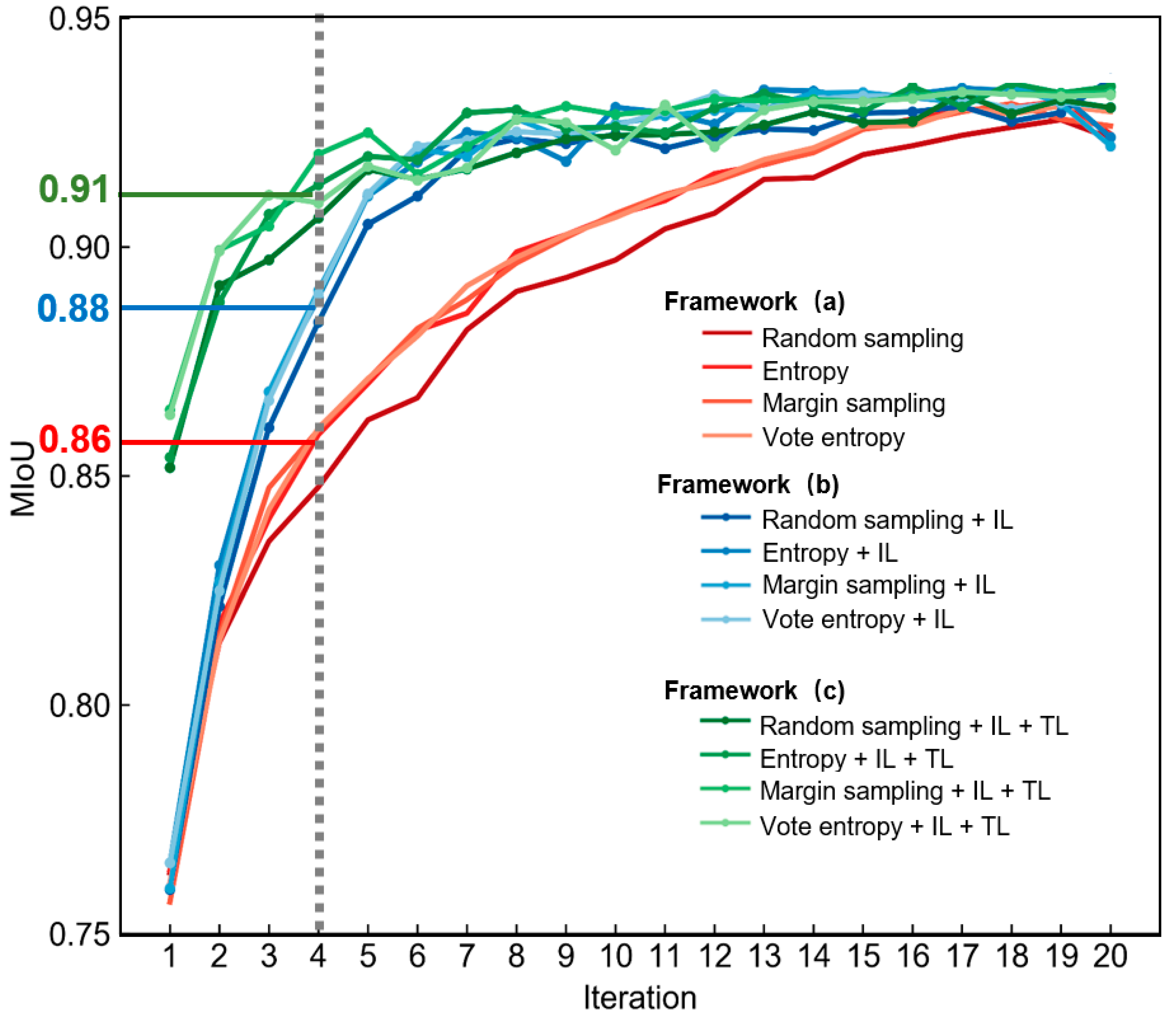

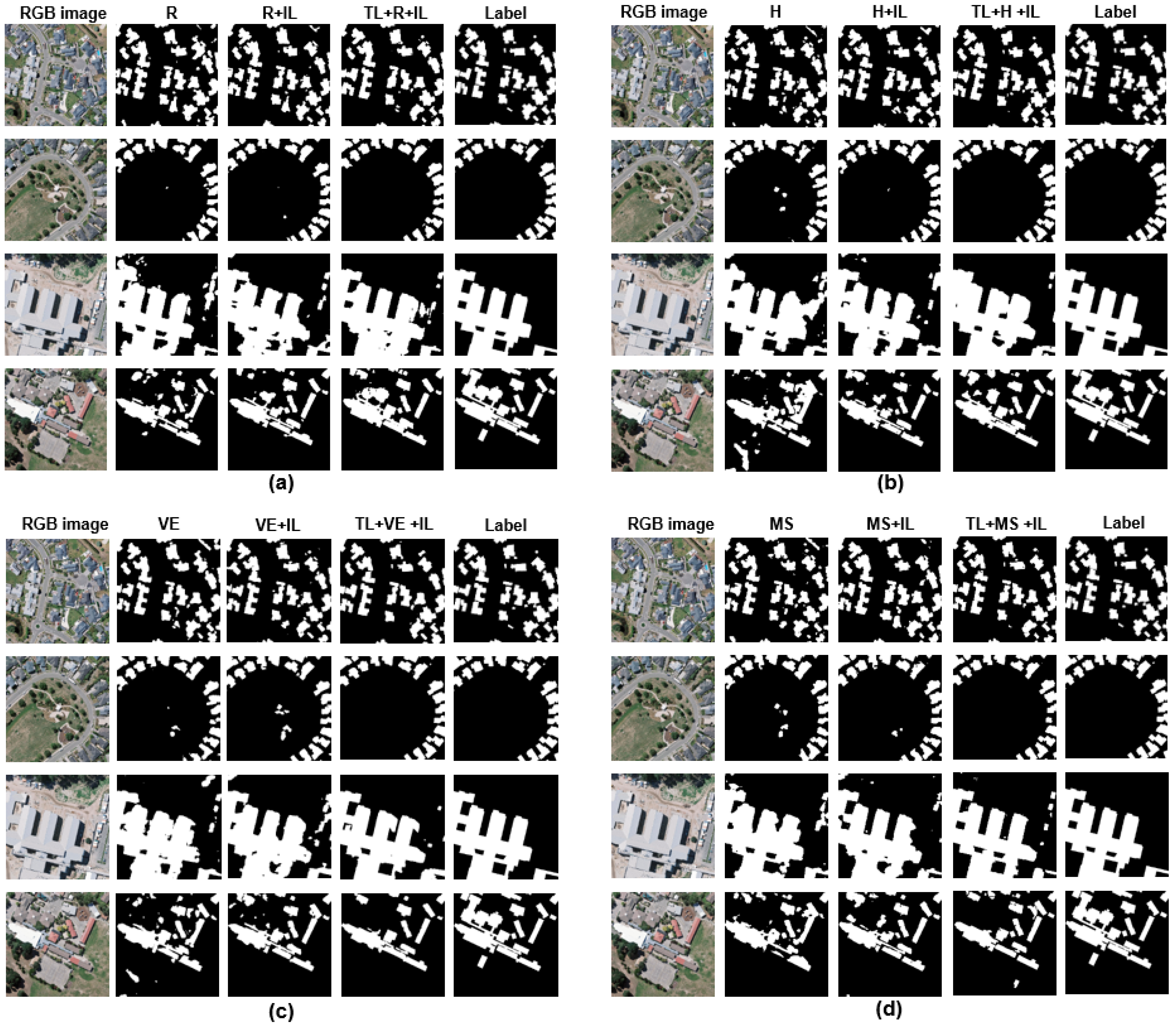

Figure 6 presents the comparison of frameworks (a), (b), and (c) in terms of model performance and the number of image tiles. Compared with framework (a), framework (b) (i.e., integrating IL with framework (a)) greatly improved the model performance (see the blue curves in Figure 6). It allows the model performance to be improved rapidly with increasing sample size, reaching satisfactory accuracy with fewer labeled tiles. This confirms that accumulating knowledge from previously selected tiles and fine-tuning can accelerate the model training. Framework (c) (i.e., integrating TL with framework (b)) could achieve the optimal accuracy of building footprint mapping with the fewest labeled image tiles. The high mIoU values (i.e., 0.85–0.87) in the first iteration for framework (c) suggest that pre-trained models incorporated the knowledge from other datasets and can provide a stronger foundation for the next iteration (see the green curves in Figure 6).

Moreover, the three frameworks have a large difference in terms of model performance when using a small size of labeled image tiles (e.g., from 2nd to 6th iteration). Taking the 4th iteration as an example, the image segmentation accuracies achieved by frameworks (a), (b), and (c) are 0.86, 0.88, and 0.91, respectively. The segmented results are shown in Figure 7; the results derived from framework (c) are closer to the labels.

5.3. Comparative Analysis of Incorporating IL and TL in Deep Active Learning in Terms of Landscape Metrics

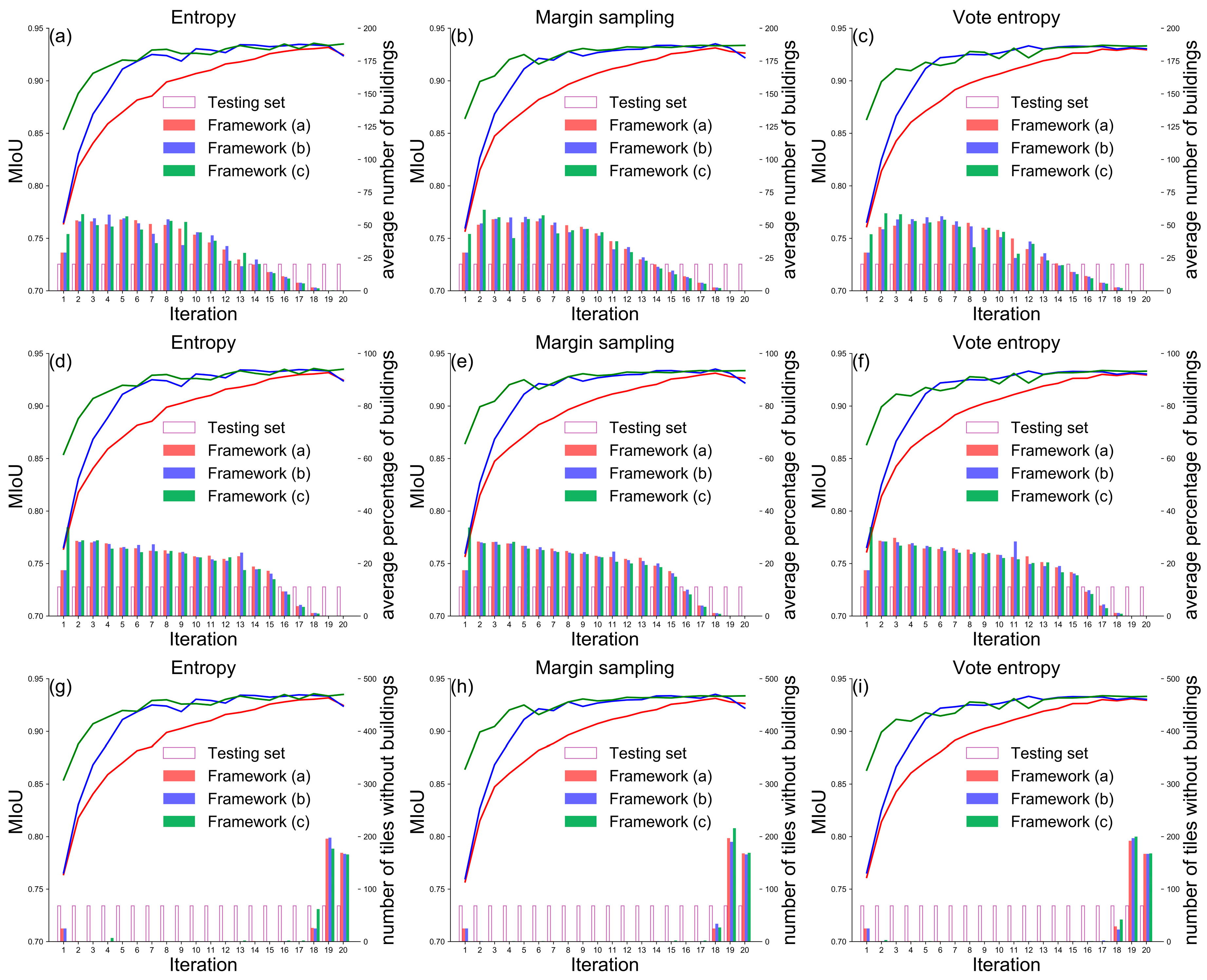

Figure 8 presents the mIoU values, the average number of buildings, the average percentage of building area, and the number of tiles without buildings in each iteration. Compared with the results of framework (a) (Figure 3), the three landscape metrics selected by framework (b) and framework (c) keep the same trends of change with the increase in the number of tiles. During the process of active data selection (i.e., from the 2nd and the 20th iteration), the average number of buildings (Figure 8a–c) and the average percentage of buildings (Figure 8d–f) have been trending downward, and the tiles without building had little or no effect on model training between the 2nd and 17th iterations (Figure 8g–i).

6. Discussion

This study has described the interrelations between AL, IL, and TL; examined their efficacy in reducing the number of unlabelled images to be annotated in building footprint mapping based on DeeplabV3+; and proposed an efficient framework integrating the DeeplabV3+ with AL, IL, and TL. In this study, three candidate frameworks were proposed and their performance was evaluated using experiments with a very high spatial resolution building dataset with a variety of landscape features. By comparing the results of the three frameworks, this study confirmed that AL can reduce the effort required for data annotation by selecting informative tiles (i.e., tiles with more buildings and a larger area of buildings) for the actual model, IL can accumulate knowledge learned by the model, and appropriate TL can provide a capable initial learner. These findings inspire us to consider the framework integrating TL, AL, IL, and DeeplabV3+ (i.e., framework (c) in Figure 2) in future building mapping, especially for large-scale building mapping.

The good results can be attributed to the following: (1) the light-weighted DeeplabV3+ with MobileNet backbone was able to avoid model overfitting during the iterative process of model training; (2) the high-quality building dataset used in this study consisted of manually delineated and checked building footprints; and (3) the pre-trained DeeplabV3+ used in framework (c) was derived from the WHU satellite building dataset II, which is comparable to the WHU aerial building dataset in terms of landscape features, spatial resolution, and spectral bands [18]. They have labeled image tiles with the same size (i.e., 512 × 512 pixels) and close spatial resolution (i.e., 0.45 m and 0.3 m).

This research focused on a binary image segmentation task based on DeeplabV3+, a straightforward situation involving building and non-building classes. The building footprint mapping based on other state-of-the-art CNN models and other real-world applications of binary VHR image segmentation tasks may benefit from the framework proposed to aid in visual interpretation during labeled data collection. However, several issues should be considered while using the proposed framework: (1) The representative landscapes within the whole study area (e.g., residential, commercial, and industrial buildings) should be considered in the testing set [23]. (2) the spatial independence between training and testing areas should be considered while splitting data in real-world applications [52]. The adjacent image tiles often have similar building landscapes, and the spatial correlation of the image tiles in the two sets affects the model evaluation based on the testing set. (3) the selection of a pre-trained model should be judicious. An inappropriate pre-trained model can make the starting accuracy of the model (i.e., the mIoU of the pre-trained model in the first iteration) even lower than that of the model trained on the seed set [47]. The initial model with high accuracy allows faster achievement of satisfactory accuracy and reduction of the gap to the best performance of the model trained on all training data.

In addition, the following aspects may be considered in the future to reduce the effort associated with data annotation in building footprint mapping. To begin with, incorporating other AL strategies such as diversity-based strategies or hybrid active learning (HAL) alongside IL and TL may be an effective way to increase the annotation effort reduction effectiveness [53]. Secondly, images with a greater number of spectral bands may be used. The dataset of buildings was used, each of which consisted of image tiles with red, green, and blue bands. However, satellite image with blue, green, red, and near-infrared (NIR) bands could be used to compute the Normalized Difference Built-up Index (NDBI) and Ratio Build-up Index (RBI) [54], which might give the tile-level label using the Gaussian distribution of indices. Collecting informative tiles at both the pixel and tile levels may be more efficient in terms of achieving model training with acceptable accuracy. Third, one-shot AL may be more practical than the iterative process of data selection and model training, as the iterative framework necessitates more interaction with subject matter experts, as well as more time spent reading data and training models [55].

7. Conclusions

Based on the interrelations between AL, IL, and TL, this study proposed three candidate frameworks for efficient building footprint mapping based on DeeplabV3+ by incorporating three AL strategies, IL, and TL. They were evaluated on a standard building dataset, and the comparison of the results of the three frameworks indicates that AL can reduce data annotation effort by selecting informative unlabelled data to be manually annotated. The image tiles with more buildings and the larger building area are prioritized during the data selection process. IL and TL can facilitate the model training to achieve satisfactory performance by accumulating knowledge and providing a more capable initial learner, respectively. The findings imply that DeeplabV3+ incorporating AL, IL, and TL could be considered in future building footprint mapping, especially for large-scale tasks, and the proposed frameworks could also be applied to other binary image segmentation tasks in the RS community.
