Estimation of the Multielement Content in Rocks Based on a Combination of Visible–Near-Infrared Reflectance Spectroscopy and Band Index Analysis

Abstract

Rock geochemical methods are effective for geological surveys, but typical sampling and laboratory-based analytical methods are time-consuming and costly. However, using visible–near-infrared spectroscopy to estimate the metal element content of rock is an alternative method. This study discussed the potential of hyperspectral estimation of Cu and its significant associated elemental content. Ninety-five rock samples were collected from the Kalatage Yudai copper–nickel deposit in Hami, Xinjiang. The effects of different spectral resolutions, spectral preprocessing, band indices, and characteristic band selection on the estimation of the element contents of Fe, Cu, Co, and Ti were investigated. The results show that when the spectral resolution is 5 nm, good results are obtained for all four metal elements, Fe, Cu, Co, and Ti, with the coefficients of determination R² reaching 0.54, 0.59, 0.41, and 0.78, respectively. The best results are obtained for all transformed spectra with continuum removal, inverse transformation, continuum removal, and logarithmic transformation, respectively. In addition, the accuracy of the estimation models constructed by combining band indices and feature band selection was superior compared with full-band spectra for Fe (R² = 0.654, MAE = 1.27%, and RPD = 1.498), Cu (R² = 0.694, MAE = 20.509, and RPD = 1.711), Co (R² = 0.805, MAE = 2.573, and RPD = 2.199), and Ti (R² = 0.501, MAE = 0.04%, and RPD = 1.412). The results indicate that using band indices can provide a more accurate estimation of metal element content, providing a new technical method for the efficient acquisition of regional mineralization indicator element content distribution.

1. Introduction

The rock geochemical method is an essential tool for mineral exploration and is one of the most effective chemical exploration methods for finding occult deposits of hydrothermal origin [1,2,3,4,5,6]. A traditional rock geochemical survey is performed by collecting many rock samples in the field, analyzing them in the laboratory to determine the metal content, and then tracing the survey area based on geochemical anomalies. Although this method has high measurement accuracy, it is inefficient, costly, and problematic to obtain a continuous, large-area spatial distribution of elemental content [7,8,9]. Although it has been shown that handheld XRF can directly determine the essential content in the field, this method can only obtain sample point data and then get the regional elemental distribution according to the spatial interpolation method. The accuracy of the results is related to the number and spatial distribution of the test sample points [10,11]. The inability to obtain samples of areas where the natural environment is harsh and particularly inaccessible to humans will result in a lack of data in the area [12,13].

On the contrary, remote sensing technology has the advantages of a wide detection range, high efficiency, and low cost. The rapid development of hyperspectral remote sensing, which has hundreds of bands in the entire wavelength range, has enabled the technology to characterize the finer features of the target [14,15]. For example, soil organic matter and iron oxide have unique spectral absorption characteristics in the visible-NIR due to the presence of cations such as Fe²⁺, Fe³⁺, and Cr³⁺; overtone and combined vibrations of OH⁻, H₂O, and CO₃²⁻ and clay minerals have specific absorption characteristics in the shortwave infrared interval [16,17,18,19,20,21]. Additional studies have shown a quantitative relationship between elemental aluminum content and absorption position in the shortwave infrared gap [22]. However, metallic elements such as Cu, Pb, Zn, Ni, and Cr strongly correlate with these characteristic bands, providing a theoretical basis for the rapid and nondestructive estimation of metallic elemental content from hyperspectral data [23,24,25,26,27]. In recent years, many scholars have attempted to estimate the metal element content, soil organic matter content, and vegetation stress level using linear or nonlinear methods, such as partial least squares regression, stepwise regression, multiple regression, random forest, support vector machines, extreme machine learning, and neural networks, and they have achieved high estimation accuracy [28,29,30,31,32,33,34,35,36,37,38,39]. These results show that using hyperspectral techniques to estimate elemental content is feasible and practical.

However, the previous use of remote sensing technology to estimate elemental content has mostly been constrained to a single element; for mineral resource exploration, the formation process is more complex, and using only one fundamental content anomaly area to circle the exploration area will increase the uncertainty of mineral prediction [40,41,42]. Therefore, combining anomalous areas of mineralized elemental content and the abnormal regions of significantly related elements of mineralized elements for survey de-construction can make up for the shortcomings of single fundamental anomalies and thus improve the accuracy of mineral resource prediction [43,44]. Much research has been conducted on the factors affecting single-element estimation models, and an appropriate spectral resolution can reduce spectral redundancy and improve the model’s accuracy [45,46]. Appropriate preprocessing of the spectra before model construction, such as spectral smoothing and spectral transformation, can reduce the random noise and baseline drift generated by the instrument or external environment on the spectra, thus improving the prediction accuracy [39,47,48,49]. However, more research is required on whether estimating multiple elemental contents at the exact spectral resolution or with the same spectral transformation method has the same effect.

The greatest advantage of hyperspectral remote sensing is its high spectral resolution, but it also increases the redundancy of spectral information. Many studies have shown that the accuracy of models constructed by selecting feature bands is higher than that of models built using full bands, as features that introduce noise reduce model performance [50,51,52]. Furthermore, feature variable selection attempts to reduce the complexity of the model and improve its robustness. In feature variable selection, methods such as continuous projection algorithms (SPA), genetic algorithms (GA), stepwise regression (SRA), competing adaptive reweighting sampling (CARS), variable importance of projection (VIP), artificially introduced noise for uninformative variable elimination (NVE), and interval selection strategies are often used for optimal subset selection of spectra before the model constructed using the spectral subsets [53,54,55,56,57,58,59,60]. However, whether the models are built in a full band or feature interval bands, they are models constructed based on one-dimensional spectral data [61]. In practice, the quality of the spectral data strongly influences the model’s accuracy. Recent studies have shown that using multidimensional spectral data formed by combining multiple bands, such as two-band and three-band spectral indices, gives better results in terms of soil properties. These results not only improve the predictive power of the model but also enhance the robustness of the model [62,63,64,65]. The application of band indices has good potential for estimating the elemental content of a wide range of metals, which is a critical guideline for delineating mineral resource exploration areas.

Therefore, the objectives of this study were (1) to explore the best spectral resolution for estimating metals’ elemental content and the optimal spectral transformation method for different elemental content estimations; (2) to compare the performance of different three-band spectral indices for elemental content estimation; and (3) to determine whether it is possible to construct a multimetal elemental content estimation model with a simple model and good robustness using the characteristic indices selected from the three-band spectral indices.

2. Materials and Methods

2.1. Study Area and Sampling

The study area is located in Wubao Township, Hami City, Xinjiang, at the southern edge of the Tuha Basin in the Eastern Tianshan metallogenic belt, in the Kalatage area, about 140 km from Hami City. Study area: longitude 91°42′52.19″ to 91°47′4.60″E; latitude 42°41′3.03″ to 42°42′46.32″N. The study area is part of the Gobi Desert, with expansive valley hills, relatively flat terrain, and an average altitude of about 500–600 m [66]. The study area has a typical continental arid climate, with an average annual precipitation and temperature of 34.9 mm and 38 °C, respectively, and a maximum temperature of over 40 °C from June to August. The study area has no vegetation cover on the ground surface and is suitable for exploration work using remote-sensing techniques [67,68].

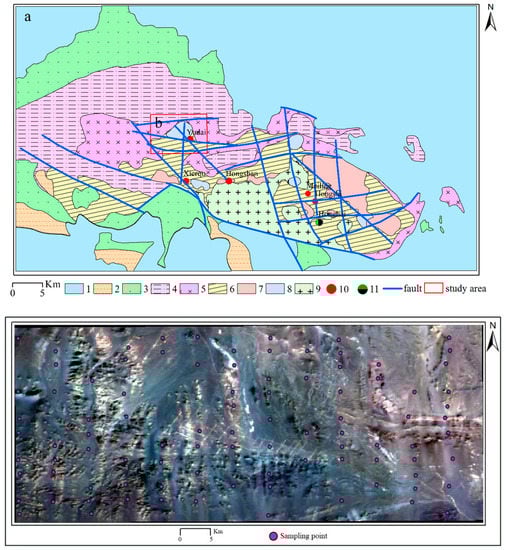

Ninety-five rock chip samples were collected from the study area on 18 September 2017 (Figure 1). Samples were collected and mixed into a sample bag (approximately 500 g) at five locations within a 1 m × 1 m area, while the coordinates of the sample centroid were recorded as the coordinates of the mixed sample point using a global positioning system (GPS). The collected samples were sent to the Xinjiang Nonferrous Geological Exploration Bureau Analysis and Testing Center for elemental content analysis. Before elemental content analysis, all samples were ground into powder with a particle diameter of less than 75 microns. The samples were then digested with nitric acid, hydrochloric acid, perchloric acid, and hydrofluoric acid, respectively; the Ti elemental content was measured using inductively coupled plasma emission spectrometry (ICP-OES), and the remaining elemental content was measured via inductively coupled plasma mass spectrometry (ICP-MS). Sample processing, analysis testing, and quality control were carried out by the “Specification for Geochemical Survey” (DZ/T0011-2010) and the “Quality Management Specification for Geological and Mineral Laboratories”.

2.2. Spectral Measurements and Preprocessing

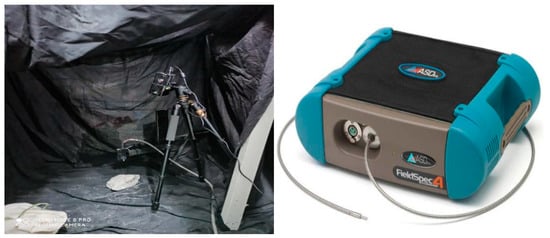

The sample spectra were measured in a laboratory darkroom environment using an Analytical Spectral Device (ASD) FieldSpec4 (Malvern Panalytical Ltd., Malvern, UK, formerly Analytical Spectral Devices Inc., Westborough, MA, USA) spectrometer. The spectrometer probe field of view was 25°, with a reflective domain of 350–2500 nm. From 350 to 1000 nm, the spectral sampling interval is 1.4 nm for a spectral resolution of 3 nm, and from 1000 to 2500 nm, the spectral sampling interval is 2 nm for a spectral resolution of 10 nm https://www.malvernpanalytical.com/en/products/product-range/asd-range (accessed on 14 July 2023). The probe is located 10 cm directly above the sample, and the reflectance output to users was resampled with ViewSpecPro (Version 6.20, Malvern Panalytical Ltd., Malvern, UK) to 1 nm for both spectral ranges, resulting in 2151 spectral bands. During the measurement process, it is difficult to hold the spectrometer probe stationary by hand, because when exploring, the shaking will unnecessarily increase spectral noise. Therefore, this experiment uses the stationary test platform shown in Figure 2. Five pieces of spectral data were collected for each sample, and the average of the remaining spectra was taken as the spectral data of the sample after removing the spectra with significant differences. The 350–400 nm spectral data with a low signal-to-noise ratio were excluded before data analysis. It was also shown that smoothing the spectra can reduce the effect of noise on the spectra [69]. Compared with other spectral smoothing methods, the Savitzky–Golay smoothing filter has apparent advantages for information noise removal; so, this study uses a Savitzky–Golay filter with a window of 7 for spectral smoothing [70].

2.3. Spectral Preprocessing

Spectral preprocessing involves a series of enhanced preprocessing operations on the original spectrum to highlight the characteristic spectrum of a characterization target by reducing the effect of the background environment, illumination, and atmospheric scattering on the spectrum [71]. In this study, spectral preprocessing such as continuum removal, logarithmic, inverse, and derivative methods were used. Continuum removal can highlight absorption valleys and reflection peaks in the spectral profile, facilitating the extraction of characteristic bands between similar spectra [72,73,74]. Logarithmic transformation can reduce the effects of light variations by reducing the covariance and anisotropy between the data [40,75,76]. For discrete spectral data, difference techniques are often used to calculate spectral derivatives, with lower-order derivatives removing background noise and topographic shadows and higher-order derivatives removing atmospheric Rayleigh scattering [61,77,78].

$$R^{\prime }\left({\lambda }_i\right)=\frac{R\left({\lambda }_i\right)-R\left({\lambda }_{i-1}\right)}{∆\lambda }$$

(1)

$$R^{″}\left({\lambda }_i\right)=\frac{R\left({\lambda }_{i+1}\right)-2R\left({\lambda }_i\right)+R\left({\lambda }_{i-1}\right)}{∆{\lambda }^2}$$

(2)

where ${\lambda }_i$ denotes the wavelength of the band i; $R^{\prime }\left({\lambda }_i\right)$ and $R^{″}\left({\lambda }_i\right)$ are the first- and second-order derivatives of wavelength ${\lambda }_i$, respectively; and ∆λ is the interval between two adjacent wavelengths.

2.4. Three-Band Index

Band indices are used to extract target spectral parameters by selecting characteristic bands for combination, and three-band index are used to determine three bands for combination to obtain parameters that can identify target features [20,62,79,80]. In this study, six band index methods were formed using combinations of bands (

Table 1. Calculation of band indices.

Band Index	Calculation Formula
BI1	$\frac{R_a-R_b}{R_a+R_c}$
BI2	$\frac{R_a}{R_b+R_c}$
BI3	$R_a-{2R}_b+R_c$
BI4	$\frac{R_a}{R_b\times R_c}$
BI5	$\frac{R_a-R_b}{R_b+R_c}$
BI6	$\frac{R_a-R_b}{R_c}$

). Each band index calculation is obtained by traversing all band combinations and analyzing the correlation coefficient r between all band indices and elemental content, sorting the |r| values in descending order and extracting the band combination with the most significant |r| value for subsequent modeling. The optimal band combination algorithm is calculated in Python.

Where $R_a$, $R_b$, and $R_c$ are the spectral values at wavelengths a, b, and c, respectively, with a, b, and c taking values in the 400–2500 nm range, while a ≠ b ≠ c.

2.5. Stepwise Regression Analysis

Hyperspectral data have a strong correlation between adjacent bands, leading to a high information redundancy level [81]. The complexity of models constructed based on full-band spectral data is increased, thus reducing the robustness of the model [82]. Therefore, selecting a subset of characteristic spectra that can characterize the target from a large number of bands not only reduces the spectral dimensionality but also improves the computational efficiency and enhances the model’s generalization capability [51,83]. This study uses a stepwise regression analysis method to select the characteristic spectral bands. The stepwise regression analysis method adds bands to the model one by one from many bands, adding bands based on a p-value of 0.05 for the F-statistic and removing bands if the p-value is 0.1. After the new bands are added, an F-test is performed on all bands to remove bands with insignificant sums of squares for the partial regression. This process is repeated until no bands are added or removed [84,85].

2.6. Model Building and Validation

In this paper, in order to effectively analyze the relationship between the spectral estimation of the metal element content of rocks, the 95 sample data were sorted; 1 sample was taken every 2 samples at an interval from the 2nd sample onwards, and a total of 32 samples were taken for the validation set, and the remaining samples were used for the training set. A partial least squares regression model was developed using spectral reflectance (the independent variable) and metal element content (the dependent variable). Partial least squares is a multivariate regression model that combines multiple regression analysis, principal component analysis, and typical correlation analysis and has been successfully applied to remote sensing data to quantify vegetation characteristics and elemental content [19,86,87]. To avoid the degradation of model performance due to a low amount of training sample data, the model was constructed using leave-one-out cross-validation in the training set [61,88]. We use three statistical parameters—the coefficient of determination (R²), mean absolute error (MAE), and the ratio of the performance to deviation (RPD)—to evaluate the performance of the model. The closer the coefficient of determination is to 1, the smaller the MAE and the larger the RPD value, and the better the model performance. The range of RPD values can be divided into good models (RPD > 2.0), better models (2.0 > RPD > 1.4), and failed models (RPD < 1.4) [89,90]. This paper defines the best model performance as having a high coefficient of determination, a petite MAE, and a large RPD in the validation set.

3. Results

3.1. Elemental Correlation Analysis

The descriptive statistics of the content of the nine elements for all samples are shown in

Table 2. Descriptive statistics for the content of each element (ppm).

Element Type	Min	Max	Mean	Standard Deviation	Coefficient of Variation (%)
Fe	0.21%	9.15%	3.41%	1.99%	0.58
Mn	259.39	3035.49	1054.30	558.83	0.53
As	0.50	12.45	3.94	2.49	0.63
Zn	17.58	233.40	60.30	29.79	0.49
Cu	3.71	257.63	52.31	50.11	0.96
Ni	2.04	21.51	9.30	5.06	0.54
S	69.00	5550.00	1035.54	928.25	0.90
Ti	0.12%	0.46%	0.28%	0.07%	0.23
Co	1.02	32.06	11.58	7.18	0.62

. With the exception of As and Ni, all the other seven elements have a wide range of content. The range of Fe content was the largest, with minimum and maximum values of 0.21% and 9.15%, respectively, and the range of As content was the smallest, with minimum and maximum values of 0.5 ppm and 12.45 ppm, respectively, indicating that there were significant gradients in the content of the nine elements, which provided primary data for the subsequent spectral estimation analysis.

At the same time, we aimed to identify abnormal areas for the mineralizing element Cu via remote sensing, where using a single element may result in information asymmetry or loss of information due to elemental imbalance effects [41]. For this reason, we propose to use multiple elemental combinations of anomalies to compensate for the lack of single elemental anomalies. The correlation between the content of nine elements (

Table 3. Correlation and confidence ellipse for contents of 9 elements.

	Fe	Mn	As	Zn	Cu	Ni	S	Ti	Co
Fe	1
Mn	0.56 **	1
As	−0.02	−0.08	1
Zn	0.27 **	0.22 *	−0.14	1
Cu	0.72 **	0.30 **	0.02	0.15	1
Ni	0.47 **	0.20 *	0.14	0.04	0.49	1
S	−0.27 **	−0.08	0.11	−0.24 *	−0.15	−0.25 *	1
Ti	0.56 **	0.29 **	0.05	0.30 **	0.61 **	0.34 **	−0.23 *	1
Co	0.74 **	0.36 **	0.07	0.32 **	0.73 **	0.69 **	−0.30 **	0.61 **	1

* Significantly correlated at the 0.01 level. ** Significantly correlated at the 0.05 level.

) was used to screen for elements significantly correlated with the mineralizing element Cu. The lower left part of Table 3 shows the correlation between the content of the two elements, and the upper right part shows the confidence ellipse between the content of the two elements. The results show that Fe, Mn, Ti, and Co are significantly correlated with Cu at the 0.05 level, with correlations of 0.72, 0.3, 0.61, and 0.73, respectively [44]. For this reason, we selected Fe, Ti, and Co, which are significantly correlated with Cu at the 0.05 level and have a correlation greater than 0.5, as the strange combination of elements. Thus, it is shown that the mineralized Cu elements are significantly correlated with these three elements [91].

3.2. Element Content and Spectral Analysis

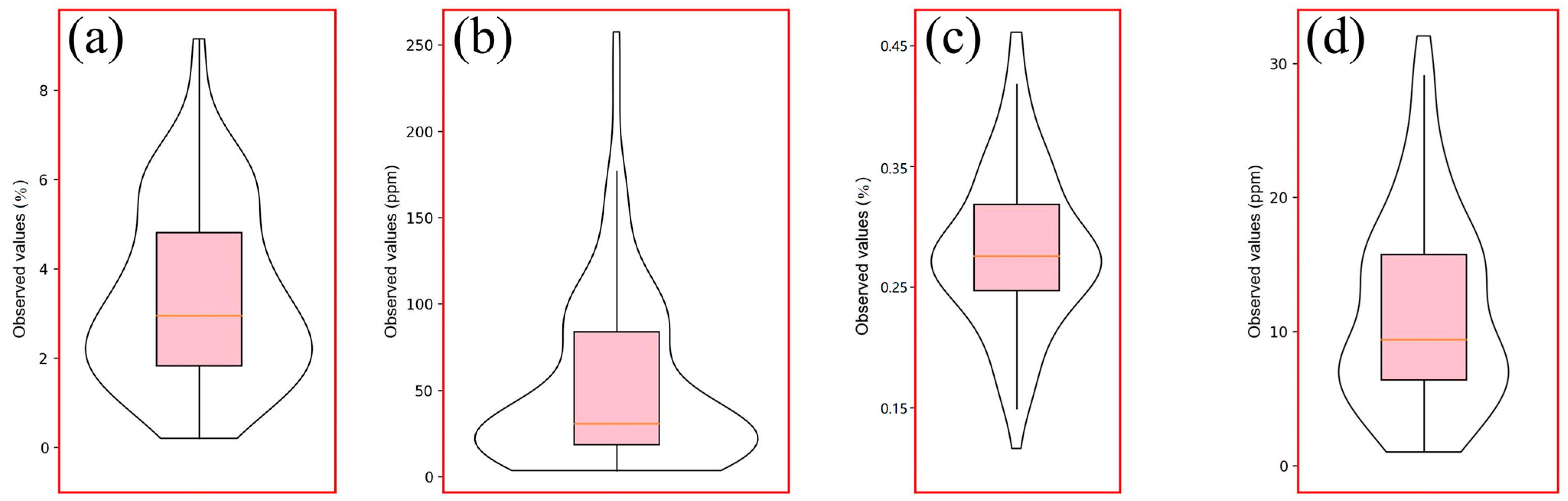

The mean content and CV of the total samples for the four elements Fe, Cu, Ti, and Co were 0.34% and 58%, 52.31 ppm and 96%, 0.28%, and 23%, and 11.58 ppm and 62%, respectively (Figure 3). The variation in the content of all three elements was significant, except for the relatively small variation in the content of Ti.

The average spectral reflectance and continuum removal spectra for all sample sets are shown in Figure 4. The spectral reflectance increases gradually over the 0.4–2.5 μm, particularly over the range of 0.4–0.8 μm range, where the spectral value increases by 0.15. We can also see a clear reflection peak at 2.15 μm in the original spectra due to the absorption valleys at 1.9 μm and 2.2 μm, which are associated with the generalization of water absorption. After continuum removal, some absorption features are highlighted, such as absorption valleys at wavelengths of 0.43 μm, 0.49 μm, 0.7 μm, and 0.925 μm due to Fe electron leaps; absorption valleys at 0.58 μm, 1.04 μm, 1.12 μm, and 1.34 μm associated with organic matter; absorption valleys at 1.41 μm, 1.91 μm, and 2.22 μm associated with water oscillations; O-H stretching or Al-OH bending at 2.25 μm and 2.33 μm; and clay minerals associated with OH groups or carbonate at 2.25 μm and 2.33 μm [19,35,92]. In summary, these initial analyses of spectral reflectivity provide the basis for subsequent spectral modeling.

3.3. Effect of Spectral Resolution on the Accuracy of Elemental Content Estimation

In this study, 95 samples are divided into 63 training sets and 32 validation sets for model construction. In training the models, we used a leave-one-out cross-validation approach to avoid the problem of poor model performance due to the small number of samples, and we used the validation set to assess the accuracy of the models. PLSR models with different spectral resolutions were combined to relate the Fe, Cu, Ti, and Co contents to spectral reflectivity, resulting in 20 models (

Table 4. Accuracy of estimating elemental contents of Fe, Cu, Ti, and Co at different spectral resolutions.

Spectral Resolution	Data Segmentation	Fe	Cu	Ti	Co
1 nm	Number of principal components	5	4	18	5
	Training sets	0.54	0.6	0.44	0.8
	Validation sets	0.54	0.59	0.41	0.78
5 nm	Number of principal components	5	5	13	5
	Training sets	0.55	0.6	0.44	0.8
	Validation sets	0.54	0.59	0.41	0.78
10 nm	Number of principal components	5	4	12	5
	Training sets	0.55	0.6	0.44	0.81
	Validation sets	0.54	0.59	0.35	0.78
15 nm	Number of principal components	8	7	13	7
	Training sets	0.55	0.6	0.42	0.82
	Validation sets	0.5	0.59	0.33	0.79
20 nm	Number of principal components	1	5	14	6
	Training sets	0.51	0.59	0.39	0.8
	Validation sets	0.47	0.58	0.37	0.78

). It is evident in Table 4 that the estimation of the Fe, Cu, Ti, and Co content is relatively good when the spectral resolution is 1 nm, and the coefficients of determination in the validation set are all greater than 0.5; meanwhile, for Co, the coefficient of perseverance in the validation set is relatively low, only 0.44. The Fe, Cu, and Co element estimation accuracy at the spectral resolution of 1 nm, 5 nm, and 10 nm varies less and is more significant than 0.54. In particular, the accuracy of the estimation of Co content is the highest, reaching 0.78. However, the accuracy of the estimate of Ti is relatively low, reaching its highest at the spectral resolution of 1 nm and 5 nm (R² = 0.41).

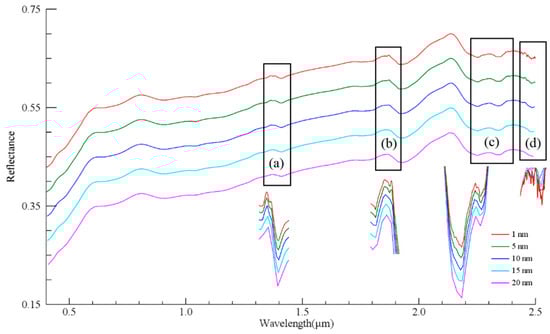

We also found that the estimation accuracy of Fe, Cu, and Ti content decreased with a decreasing spectral resolution (Table 4). The coefficients determined in the validation set for the three elemental content estimates decrease by 0.07, 0.01, and 0.04, respectively, as the spectral resolution decreases from 1 nm to 20 nm. However, regarding the Co content, the model accuracy does not differ significantly across the five spectral resolutions, staying around 0.78. The results of previous studies have shown that as the spectral resolution increases, the more beneficial the observation of the fine spectral features contained in the segment becomes. Still, accordingly, it also increases the data’s redundancy, increasing the model’s complexity and reducing the efficiency of model training [93,94]. In Table 4, we find that when the spectral resolution is 5 nm, the model’s accuracy is close to that of the model with a spectral resolution of 1 nm, and both perform optimally or suboptimally. Combined with Figure 5, it can be seen that as the spectral resolution decreases, the spectral absorption features are also weakened. The continuum removal spectrograms for the corresponding intervals are shown below the rectangular boxes in Figure 5a–d. In Figure 5a–c, the absorption features at 1.38 μm, 1.85 μm, and 2.31 μm in the curve gradually disappear as the spectral resolution decreases (Figure 5). At the same time, the higher the spectral resolution, the more pronounced the “sawtooth” in the spectrum. The lower the spectral resolution, the smoother the spectrum is (Figure 5d). Combining Table 4 and Figure 5, we can see that when the spectral resolution is 5 nm, the spectral features are better represented, and the data redundancy is reduced, thus simplifying the complexity of the model while ensuring its accuracy.

3.4. Estimation of Elemental Content by Full-Band Transform Spectroscopy

Table 5. Accuracy of different transformation spectra for estimating elemental contents of Fe, Cu, Ti, and Co.

TP	Element
	Fe			Cu			Ti			Co
	PCs	T	V	PCs	T	V	PCs	T	V	PCs	T	V
R	5	0.55	0.54	5	0.60	0.59	13	0.44	0.41	5	0.8	0.78
C(R)	17	0.66	0.60	16	0.62	0.59	17	0.71	0.63	17	0.69	0.6
$\mathrm{l}\mathrm{o}\mathrm{g}\left(R\right)$	5	0.50	0.50	6	0.65	0.63	14	0.52	0.45	10	0.82	0.8
1/R	1	0.47	0.52	4	0.66	0.65	9	0.46	0.42	9	0.83	0.78
(R)′	16	0.38	0.39	4	0.42	0.39	1	0.17	0.13	8	0.73	0.73
(R)″	18	0.37	0.36	4	0.40	0.37	1	0.16	0.11	8	0.70	0.60
eR	5	0.55	0.52	3	0.54	0.53	9	0.56	0.46	5	0.77	0.76
$\sqrt{R}$	6	0.53	0.50	5	0.63	0.62	8	0.59	0.58	5	0.82	0.79
R^2	5	0.55	0.51	3	0.51	0.51	9	0.54	0.48	5	0.74	0.73

TP: spectral preprocessing; PCs: number of principal components; T: training sets; V: validation sets.

shows the effect of transforming spectra with a spectral resolution of 5 nm for the estimation of different elemental contents. For the Fe content, the coefficients of determination of the original spectra are relatively high in the training and validation sets, 0.55 and 0.54, respectively. The overall accuracy of the seven transform spectra, except for the derivative spectra, is relatively high, with an R² greater than 0.5 in the validation set. Still, the accuracy of the transform spectra decreases for the original spectra, except for the continuum removal spectra. Regarding the Cu content, the original spectra achieved better accuracy, with R² reaching 0.59 in the validation set. The logarithmic, inverse, and square root spectra improved the accuracy of the Cu content estimation by 0.04, 0.06, and 0.03, respectively. The highest accuracy was achieved by the inverse spectrum, with a validation set accuracy of 0.65. The original spectrum could have been better regarding Ti content, achieving only 0.41. All six transformed spectra were improved, except for the first- and second-order derivative spectra, which were equivalent to the original spectrum with reduced accuracy. The best accuracy was achieved for the continuum removal spectra, with a validation set R² of 0.63. The estimation of the Ti content by the original spectra was relatively average, only reaching 0.41. The estimation of the remaining six transformed spectra was improved, except for the first-order derivative and second-order derivative spectra, which were equivalent to the reduced estimation accuracy of the original spectra. The estimation accuracy of the original spectra for the Co content was significantly better than that of the remaining three elemental content estimations, and the R² of the validation set could reach 0.78. Except for the continuum removal and second-order derivative spectra, which significantly reduced the estimation accuracy, the estimation accuracy of the remaining six spectra was relatively consistent, and the best estimation accuracy was achieved. The best estimation accuracy was obtained for the logarithmic spectrum (R² = 0.8).

In Table 5, it can be found that the best spectral resolutions achieved for the estimation accuracy of Fe, Cu, Ti, and Co elements were the continuum removal spectra (R² = 0.6), inverse spectra (R² = 0.65), continuum removal spectra (R² = 0.63), and logarithmic spectra (R² = 0.8). From this, we conclude that for different elemental content estimates, different spectral preprocessing achieves different accuracies, in line with the results of previous studies [95,96,97]. The results suggest that in the future, studying one transformation formalism should not be used to estimate multiple elemental contents, as different elemental contents have other effects on the spectra, and different preprocessing has different effects on the extraction of feature information in the spectra. Therefore, highlighting the spectral features can be the research focus of future studies.

3.5. Estimation of Elemental Content via Optimal Band Combinations

Although better results were obtained for the estimation of the four elemental contents using the entire band (Table 5), since hyperspectral data possess thousands of bands, and the neighboring bands have high similarity; inputting all bands into the model for modeling will increase the redundancy of the model, which in turn increases the complexity of the model. For this reason, we propose a three-band indicator approach to construct an estimation model. Figure 6(a1–a6,b1–b6,c1–c6,d1–d6) shows the slice plots of the optimal band combinations with the highest correlation between the elemental contents of Fe, Cu, Ti, and Co for each band index, respectively, where the X, Y, and Z axes indicate the spectral ranges of bands b1, b2, and b3 at 400–2500 nm, respectively. Different band indices have different optimal slice positions (i.e., different band combinations) and different correlations (i.e., color changes). As shown in Figure 6, the band indices with the highest correlations with Fe, Cu, Ti, and Co elemental content are BI4, BI3, BI4, and BI3, with absolute correlation coefficients of 0.68, 0.82, 0.65, and 0.87, respectively.

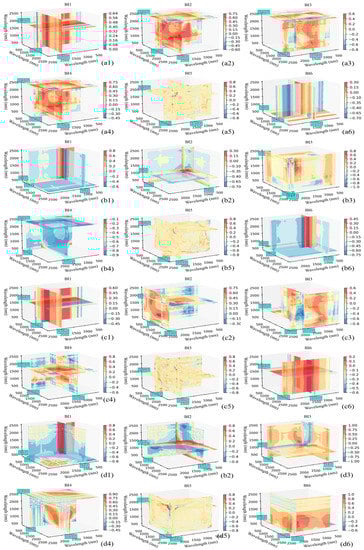

In addition, we also analyzed the effect of each optimum band index on the estimation of Fe, Cu, Ti, and Co elemental contents (

Table 6. Quantitative analysis between the optimal band combinations of different BIs and the Fe, Cu, Ti, and Co elemental content.

Element Type	Band Index	Optimal Band Combination	Training Sets	Validation Sets
			Regression Equation	R2	MAE	RPD
Fe	Tb1	(λ1937, λ1312, λ1812)	y = 642684x + 43225	0.638	1.523%	1.310
	Tb2	(λ1967, λ1397, λ2417)	y = 1 × 106x − 538605	0.655	1.598%	1.268
	Tb3	(λ1397, λ1967, λ2417)	y = 299329x + 51763	0.654	1.459%	1.369
	Tb4	(λ1942, λ1302, λ2417)	y = 288837x − 251738	0.619	1.420%	1.392
	Tb5	(λ1397, λ2052, λ1912)	y = −22622x + 19386	0.581	1.343%	1.415
	Tb6	(λ1397, λ1417, λ532)	y = −2 × 106x + 42801	0.675	1.616%	1.260
Cu	Tb1	(λ942, λ797, λ407)	y = 3018.5x + 28.577	0.385	28.939	1.275
	Tb2	(λ782, λ732, λ952)	y = −5895.4x + 2950.3	0.388	25.985	1.278
	Tb3	(λ2437, λ2277, λ2147)	y =−799.44x − 36.584	0.549	23.657	1.489
	Tb4	(λ1722, λ637, λ2357)	y = −387.85x + 270.71	0.624	22.489	1.631
	Tb5	(λ2037, λ1927, λ2002)	y = −100.01x − 136.8	0.565	30.665	1.516
	Tb6	(λ797, λ937, λ602)	y = −1443.3x + 26.864	0.390	28.629	1.280
Ti	Tb1	(λ1962, λ1397, λ1647)	y = 29958x + 3007.3	0.389	0.0432%	1.279
	Tb2	(λ2500, λ1052, λ1737)	y = 34949x − 15647	0.442	0.0418%	1.339
	Tb3	(λ1737, λ2500, λ1052)	y = −9689.8x + 1786.6	0.444	0.0416%	1.342
	Tb4	(λ1282, λ1092, λ1737)	y = 21390x − 19851	0.441	0.0419%	1.337
	Tb5	(λ1962, λ1382, λ1392)	y = 69.963x + 3087.9	0.441	0.0400%	1.337
	Tb6	(λ1397, λ1962, λ1647)	y = −15048x + 3007.9	0.390	0.0432%	1.281
Co	Tb1	(λ947, λ842, λ417)	y = 349.15x + 9.5702	0.523	3.964	1.448
	Tb2	(λ1017, λ777, λ1142)	y = 261.11x − 119.82	0.495	3.798	1.407
	Tb3	(λ747, λ792, λ952)	y = −250.4x + 3.3574	0.743	2.754	1.973
	Tb4	(λ1617, λ977, λ2492)	y = 6.5417x + 25.165	0.564	3.859	1.514
	Tb5	(λ2242, λ2142, λ1937)	y = −20.281x − 4.6484	0.441	4.292	1.337
	Tb6	(λ2152, λ2067, λ712)	y = 456.3x + 28.246	0.654	3.389	1.701

). In the validation set, BI6 had the highest coefficient of determination (R² = 0.675) for estimating Fe elemental content in all band indices and in the whole band. However, the rest of the band indices are less effective than the full-band model for estimating the elemental content of Cu, Ti, and Co. The results show that spectral indices can improve the correlation between spectral parameters and elemental content. Still, it is difficult to better estimate fundamental rock content using only a single spectral parameter because stone is a complex object.

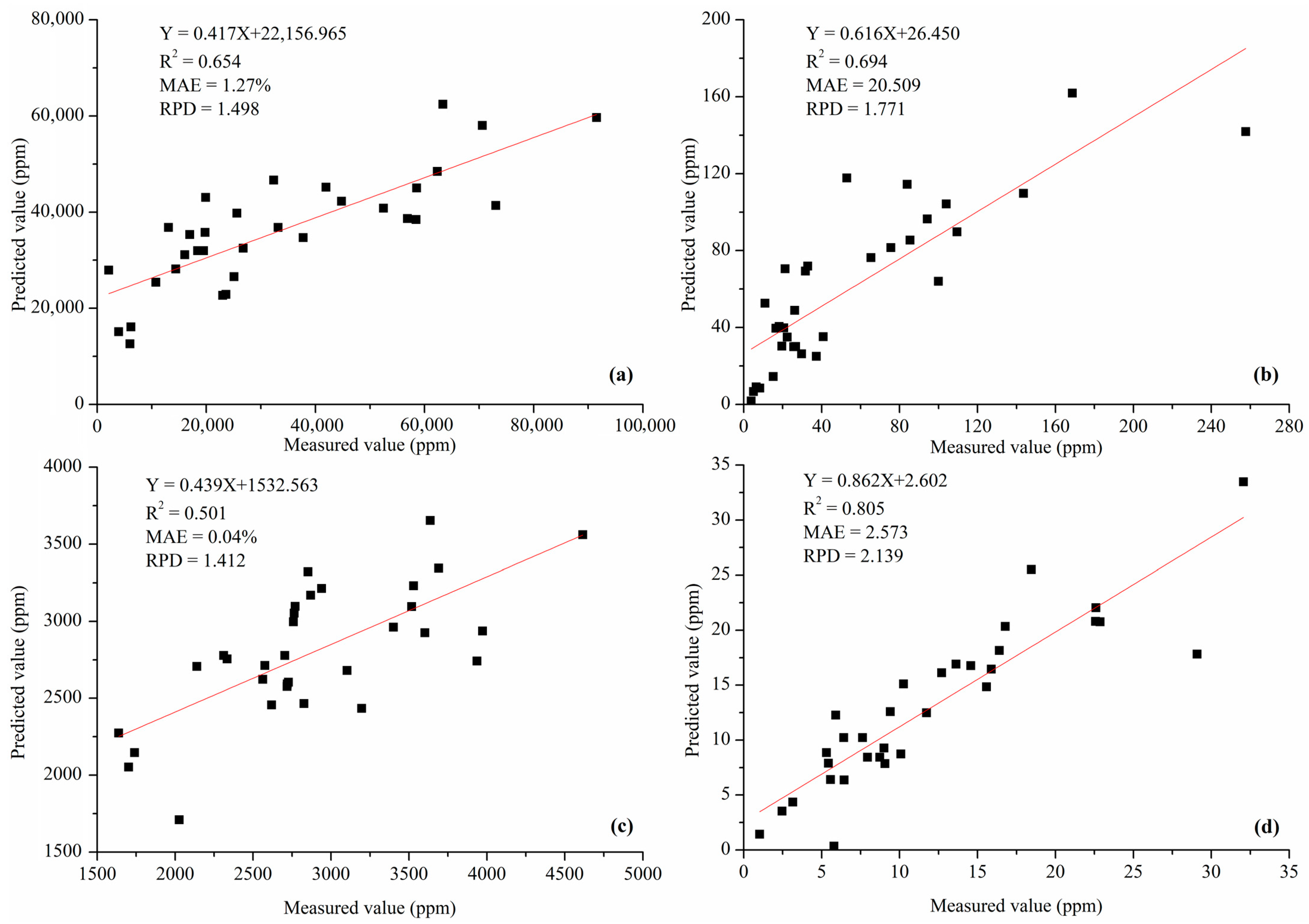

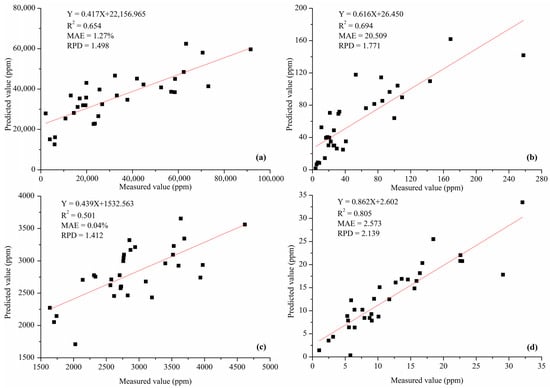

To this end, six kinds of band indices were fed into the stepwise regression model to filter out the band indices that significantly improved the performance of each elemental content. The index with enhanced performance for Fe, Cu, Ti, and Co were BI1, BI5, and BI6; BI4, BI5, and BI6; BI1, BI3, and BI5; and BI1, BI3, and BI6. We then fed the screened indices into the PLS model to estimate the Fe, Cu, Ti, and Co content separately (Figure 7). Compared with the individual spectral index, using the combined band indices as input variables improved performance in both validation sets. The performance of the four elemental content estimates for Fe, Cu, Ti, and Co were R² = 0.654, MAE = 1.27%, and RPD = 1.498; R² = 0.694, MAE = 20.509, and RPD = 1.711; R² = 0.501, MAE = 0.04%, and RPD = 1.412; and R² = 0.805, MAE = 2.573, and RPD = 2.199. We also found that the model after feature band preferences had improved performance (Fe, Cu, and Co) or was similar (Ti) in the validation set compared with the model constructed in the full band. Using a small number of spectra gives overall better results and simplifies the complexity of the model.

4. Discussion

Geochemical anomalies are vital in geological surveys, providing data to support the delineation of favorable mineralization zones in contrast to background areas [98,99]. However, combining information from multiple anomalies is essential to achieve better results and vice versa. Previous studies have shown that there is a significant bias in the trapping of favorable mineralization zones using only one anomaly or one elemental anomaly. This may be due to the migration of different elements due to external conditions, resulting in anomalies that deviate from the in situ information [100]. Therefore, using mineralized elemental anomalies and their significant correlations to define favorable mineralization zones will reduce the number of false anomalies caused by information imbalance [101]. In this study, we analyzed all measured elemental contents and found Fe, Mn, Ti, and Co to be significantly correlated with Cu at the 0.05 level. Porphyry copper ores, in previous studies, have also been shown to have significant correlations with these elements. This indicates the reliability of using standard anomalous zones for these elements to narrow the exploration area.

Spectral resolution plays an essential role in identifying diagnostic spectral features of a feature target, and studies have shown that a high spectral resolution can highlight diagnostic features that are not detected by multiple spectra [17]. As can be seen in Figure 5, the spectral profile absorption features gradually decrease as the spectral resolution decreases. The absorption feature at 1850 nm disappears when the spectral resolution is greater than 5 nm. Meanwhile, as seen in Table 4, the model performs poorly when the spectral resolution is low. This may be caused by weakening the diagnostic information of its features as the spectral resolution decreases. The best estimation of the four elemental contents of Fe, Cu, Ti, and Co was achieved at a spectral resolution of 5 nm, consistent with previous studies showing that the spectral resolution affects the model’s accuracy [102,103]. When the spectral resolution is chosen appropriately, it offers characteristic diagnostic features and reduces the redundancy between adjacent bands.

Previous studies have shown that models constructed using raw spectra often find it challenging to achieve the desired results [104]. Therefore, many researchers have used different spectral transformation techniques to preprocess the spectra to add spectral feature information while eliminating background noise [70]. The first- and second-order derivatives represent the slope and curvature of the spectra, respectively. The results of this paper show that the performance of the model constructed from the first-order derivative spectra is significantly better than that of the second-order derivative spectra, which is because although the derivatives can eliminate the baseline shift, the second-order derivatives may introduce more noise information and thus reduce the accuracy of the model, in line with the results of previous studies [61,105]. Furthermore, in this study, the estimation model constructed using envelope spectroscopy achieved optimal or suboptimal outcomes for the four metal elemental contents, since continuum removal normalizes the spectra to a consistent spectral background, thus effectively highlighting the absorption characteristics of the spectral profiles. The results of this study support the conclusion that previous work using continuum removal spectroscopy achieved better results in elemental estimation.

The spectral index is a simple and efficient method for extracting the spectral parameters of a feature [106]. In this paper, we obtained spectral parameters for all combinations of bands by traversing all bands, and we also found that the correlation between the spectral parameters obtained from spectral indices formed by different combinations of bands and the content of each element was distinct. Moreover, the correlation between the spectral parameters obtained by this algorithm and the elemental content was significantly improved compared with the original spectral values (Figure 6). Previous estimation models constructed based on spectral reflectance values or a single spectral index are not satisfactory in terms of model performance, as their spectral information is often saturated. Therefore, many scholars have proposed high-dimensional spectral indices and achieved better estimation results [107]. The results of many studies have shown that spectral indices constructed based on three wavelengths can provide better predictions of elemental content [62], and the same findings were obtained in this paper.

Although spectral indices can achieve good predictions, different spectral indices use various spectral bands that have other effects on the original content and thus achieve different results. Using all spectral indices as independent variables can reduce the model performance by introducing unnecessary variables [83]. In contrast, variable selection techniques can extract parameters significantly correlated with the original content, thereby improving the predictive accuracy of the model [108]. In this paper, the variables related to the content of four elements, Fe, Cu, Ti, and Co, were selected from six spectral indices for model construction using a stepwise regression technique, and better results were obtained. The coefficients of determination R² for Fe, Cu, Ti, and Co in the validation set were improved by 0.112, 0.100, 0.087, and 0.023, respectively, compared with the model constructed in the whole band (Table 5 and Figure 7). However, the model performance was improved in all cases compared with individual spectral indices, thus indicating that the model constructed by combining the spectral index and band selection techniques has better predictive performance. The method can reduce the dimensionality of the hyperspectral data and extract favorable information from the spectra compared with the full-spectral data, thus improving the model’s accuracy (Figure 7). In addition, the bands in which the spectral indices selected by stepwise regression are located are significantly correlated with iron oxides (needle iron ore, hematite, water, iron, etc.) and anionic groups (OH, CO3, Al-OH, Mg-OH, C-O, etc.), indicating that the constructed model has some physical significance [109,110,111].

Although a combination of spectral transformation, spectral index, and characteristic band-selection techniques yielded promising results in estimating the elemental content of a wide range of metals, the accuracy was still significantly lower than that obtained from laboratory analysis [24,109]. This may be due to the difficulty of interpreting the variable rock properties using spectral data alone. Therefore, in future studies, multiple data sources can be combined to improve the prediction accuracy of the model, such as fusing VNIR-SWIR with data such as NIR spectra and magnetization or adding other environmental covariates (e.g., topographic data, PH values, and climate data) [112,113,114]. This work provides new technical means for extracting favorable information on mineralization from aerial or space imagery, enabling the efficient exploration and low-cost trapping of favorable mineralization zones.

5. Conclusions

This study discussed the potential of spectral resolution, spectral variability, band combination, and optimal band selection methods for multielement content estimation of Fe, Cu, Ti, and Co. The results obtained show the following:

(1) The spectral resolution is significant for the display of spectral diagnostic features and the model’s accuracy. When the spectral resolution is 5 nm, the spectral features can be better highlighted, and the estimation model constructed can also be obtained with higher accuracy.

(2) The accuracy of the model constructed using different transformed spectra is extra for other elemental contents. No singe spectral transformation is suitable for estimating multiple elemental contents; so, an appropriate transformation method can significantly improve the model’s accuracy.

(3) For the four elemental contents of Fe, Cu, Ti, and Co, the model constructed using a combination of the three-band index and the characteristic band selection method not only reduces the complexity of the model but also exhibits better accuracy than the model constructed using the entire band.

(4) The combination of spectral index and feature variable selection methods to estimate the mineralized elemental content and its significantly correlated elemental content has very high potential to improve the efficiency of a presurvey and reduce the uncertainty caused by the asymmetric information of single elemental anomalies, providing data support and technical reference for subsequent space or airborne remote sensing to detect regional elemental anomalies.
