Crop Water Productivity from Cloud-Based Landsat Helps Assess California’s Water Savings

Abstract

Demand for food and water are increasing while the extent of arable land and accessible fresh water are decreasing. This poses global challenges as economies continue to develop and the population grows. With agriculture as the leading consumer of water, better understanding how water is used to produce food may help support the increase of Crop Water Productivity (CWP; kg/m³), the ratio of crop output per unit of water input (or crop per drop). Previous large-scale CWP studies have been useful for broad water use modeling at coarser resolutions. However, obtaining more precise CWP, especially for specific crop types in a particular area and growing season as outlined here are important for informing farm-scale water management decision making. Therefore, this study focused on California’s Central Valley utilizing high-spatial resolution satellite imagery of 30 m (0.09 hectares per pixel) to generate more precise CWP for commonly grown and water-intensive irrigated crops. First, two products were modeled and mapped. 1. Landsat based Actual Evapotranspiration (ET_a; mm/d) to determine Crop Water Use (CWU; m³/m²), and 2. Crop Productivity (CP; kg/m²) to estimate crop yield per growing season. Then, CWP was calculated by dividing CP by CWU and mapped. The amount of water that can be saved by increasing CWP of each crop was further calculated. For example, in the 434 million m² study area, a 10% increase in CWP across the 9 crops analyzed had a potential water savings of 31.5 million m³ of water. An increase in CWP is widely considered the best approach for saving maximum quantities of water. This paper proposed, developed, and implemented a workflow of combined methods utilizing cloud computing based remote sensing data. The environmental implications of this work in assessing water savings for food and water security in the 21st century are expected to be significant.

1. Introduction

Water availability and its role in agriculture is becoming ever more crucial to the health of our nations, economies, and the natural environment. Water scarcity has become a worldwide concern in recent decades, and is expected to further increase due to socio-economic and climatic changes [1]. As the global population continues to climb in the 21st century, demand for food and water is accelerating whereas availability of sustainable arable land and accessible fresh water are declining. Food and water security for the estimated 10 billion people by 2050 and 12 billion people by 2100 will require a major shift in how land and water are used to produce food [2]. This looming problem may be mitigated by increasing agricultural Crop Water Productivity (CWP), or the ratio of crop yield over water consumed, to produce more food with less water [3]. Growing food demands and increasing standards of living have raised global water use 8-fold from around 500 to 4000 km³/yr from 1900–2010 [4]. In the last century water use grew at almost twice the rate of population increase [5]. Having accessible fresh water to grow enough food to feed the planet in the 21^st century has become increasingly challenging as the world’s population added one billion people since 2007 and two billion since 1994 [6] reaching 8 billion in 2022 [7]. The need for irrigated food production is projected to increase by more than 50% by 2050; however, the amount of water withdrawn by agriculture can increase by only 10% with current infrastructure and availability [2].

With demand for agricultural products expected to exceed production by 2050, addressing the needs of an increasing global population coupled with decreased water availability presents a significant challenge. A solution to address this problem is to increase crop production while decreasing water consumption by sustainably improving CWP. A better understanding of the variables that affect CWP including crop water use may support production of more crops with less water. Several studies have been done to calculate Actual Evapotranspiration (ET_a) using remote sensing (e.g. Wong et al. [8], Schauer and Senay [9], Senay et al. [10], He et al. [11], Semmens et al. [12]). As these studies and others demonstrate great capabilities in Evapotranspiration and water use analysis, few provide sufficient data on crop yield per unit of water used. Remote sensing based CWP studies that can distinguish various crops from diverse fields are still in the nascent stage, especially using higher spatial resolution data such as Landsat [13,14,15]. However, the potential usefulness for such studies is great given the ability of high-resolution remote sensing to capture field level CWP and assess different crops in different growing seasons.

Due to a steadily increasing demand for water during the last few decades, water scarcity has become a threat to the sustainable development of society [16]. Globally, agriculture comprises approximately 70–90% of human freshwater use [4,17,18]. Better quantification of agricultural water use relative to crop yield may help improve how water is used to produce food at field and regional extents. Establishing a framework to better understand CWP is important for rapidly changing agricultural regions shifting from lower value annual crops to higher value and more water-intensive perennials. For example, in the Central Valley of California (CVC) row crops have been increasingly shifted to longer-lived drought intolerant cropland such as orchards in recent years [19]. CWP studies with remote sensing data that can be tracked over time to adapt to changing agricultural practices may support improved understanding of the impacts of crop changes on CWP.

The overarching goal of this study is to better understand, model, map, and monitor agricultural CWP of some of the leading world crops using remote sensing. This study aims to provide a set of methodologies to calculate ET_a and CWP with Google Earth Engine (GEE) at 30 m resolution. Our approach was to develop a suite of methods utilizing various data sets including ground based meteorological data and local agricultural statistics for a benchmark study location as a test of concept. Major research questions to answer include: What is the CWP of world staple crops and high-water consuming crops, how does CWP vary between crops, and how much water can be potentially saved by increasing CWP? Major objectives of this paper include to establish methods for ET_a and CWP modeling, mapping, and monitoring. In the future this benchmark study site may be used to provide insight to scale up to larger areas and greater time-series leveraging the power of cloud computing.

2. Materials and Methods

2.1. Study Area

The area of study is within the CVC, a narrow (50–110 km) north–south trending, elongated (640 km) alluvial valley with a highly irrigated agriculture industry estimated to be worth over $50 billion [20]. As variation in weather and growing/irrigation practices can vary across the valley, we chose a CVC county-scale region for analysis. We used geospatial datasets containing overlapping Landsat images with low cloud cover in close proximity to weather stations to provide ground data. We focused on the southern CVC, which has a hotter and drier climate relative to its northern section and thus more heavily irrigated crops. Therefore, the region centered around the California Irrigation Management Information System (CIMIS) Firebaugh/Telles weather station number 7 (Latitude: 36.851222, Longitude: −120.59092) was chosen (Figure 1). This station at an elevation of 56 m [21] and approximately 61 km west of Fresno surrounded by mostly low gradient agricultural land collects inputs utilized in our modeling approach. This area, with its diverse row, paddy, orchard, and vineyard crops, is ideal for assessing commonly-grown and water-intensive crops of interest. The zone of study is 1135.54 km² in area (373 km² cropland) with a perimeter of 135.26 km that comprises about 1.25 million pixels in Landsat 8 imagery at 30 m resolution.

All analyses were performed in our study area predominantly in Fresno County within the greater San Joaquin Watershed (SJW). The SJW contains various land use types including cropland, pasture-based livestock farming, and forests. Major crops grown in the SJW include nuts, vegetables, cotton, fruits, and field crops. The soils are mostly clay loams to fine sandy loams [22]. The SJW has a typical Mediterranean climate, with cool, rainy winters and hot, dry summers. Its annual average rainfall ranges from 200 to 300 mm with the majority of rainfall during November to April with little from May to October [23]. With its variable climatic conditions, the CVC is highly dependent on irrigation demanding 80% of California’s complex water allocation system delivering almost five times the amount of surface water than the annual average state runoff can support [24]. Several irrigation districts provide water to users through irrigation canals and aqueducts in the SJW. With sparse surface water and increased stress on the water supply system due to prolonged drought, many farmers have turned to limited groundwater sources [23].

2.2. Meteorological Data

Meteorological data provided by the CIMIS weather station network were used to derive Reference Evapotranspiration (ET_o) to aid in calculations of crop water use. CIMIS was established by the California Department of Water Resources and the University of California Davis in 1982 to provide weather information for irrigation management [25]. This system provides over 145 automated weather stations that collect and store climatological data around California. Integral to this study, the CIMIS network also calculates and disseminates standardized ET_o updated on a daily basis. CIMIS methods for ET_o calculation use hourly equations as described by Allen et al. [26] that are summed over 24 h computing daily ET_o (mm/d) [27]. These daily ET_o (mm/d) values derived from grass reference measurements were taken from dates corresponding with each Landsat image analyzed.

2.3. Cropland Data

The Cropland Data Layer (CDL) from the U.S. Department of Agriculture (USDA) National Agricultural Statistics Service (NASS) [28] was used to select almonds, cotton, winter wheat, pistachios, grapes, barley, rice, corn, and walnuts (Figure 1). The CDL is a comprehensive, raster-formatted, georeferenced, crop specific land cover classification product that utilizes orthorectified imagery to geospatially identify field crop types [29]. This remote-sensing based annual product has provided conterminous coverage of the U.S. at 30 m resolution since 2010 [30,31]. The food and fiber crops present in the study area in various amounts were chosen to be representative of world staple and prominent high-water consuming crops.

2.4. Landsat Satellite Sensor Data

Monitoring change in agricultural systems is vital for understanding food production, water conservation, climate change, and evaluating major environmental challenges [31,32]. This can be completed more efficiently by analyzing large agricultural areas with satellite-based remote sensing. Landsat 8 Tier 1 Collection 1 Surface Reflectance images imported and processed via the GEE cloud-based image catalog were used for analysis. The imagery contains five visible and near-infrared (VNIR) bands and two short-wave infrared (SWIR) bands processed to orthorectified surface reflectance, as well as two thermal infrared (TIR) bands processed to orthorectified brightness temperature pre-processed by the United States Geological Survey (USGS). These data have been atmospherically corrected using the Landsat Surface Reflectance Code algorithm and includes a cloud, shadow, and snow mask produced using the C Function of Mask algorithm as well as a per-pixel saturation mask [33]. To select viable images a filter was applied in GEE to select 18% or less overall cloud cover for all Landsat 8 images covering the study area in 2016. This atmospheric threshold was established by examining images to maximize cloudless scenes of cropland areas at this location. Images were then visually inspected for cloud-free coverage of study area croplands. To provide more accurate raster ET_a maps, 15 cloud-free Landsat 8 images from 2016 were utilized for ET_a analysis in this study.

2.4.1. Growing Season and NDVI

The growing season of each crop was determined based on Normalized Difference Vegetation Index (NDVI), a widely recognized remote sensing index to monitor crop health and phenology. As cropping patterns change in the CVC, 2016 was chosen due to the diversity of both annual row and perennial tree crops present in the relatively small agricultural study area at this time. Next, as California experienced a drought considered to be one of the worst in state history from 2012–2016 [34,35], CWP was of great concern as agricultural drought impacts in California were often buffered by local groundwater [36]. Moreover, a GEE time-series yearly rainfall analysis from 2000–2021 using the Climate Hazards group Infrared Precipitation with Stations (CHIRPS) [37] was performed over the CVC. From this assessment, 2016 was chosen on being the maximum CVC year of annual precipitation between 2012–2016 to not reflect extreme drought conditions yet to still be within the moderate 25–75% percentile range from 2000–2021.

To determine NDVI of select crop types, data points were manually input to pinpoint nine crop types [28] within the study area as separate geometries in GEE. Then, GEE time-series image processing of NDVI at these points spanning the 2016 Landsat 8 image collection at 18% or less cloud cover was performed. In this analysis, NDVI represents the ratio of the difference between the near-infrared (NIR) and red bands divided by the sum of the NIR and red bands utilzing Equation (1) where $\rho$_nir and $\rho$_r are measured surface reflectance values of NIR and red spectral bands [38].

$$NDVI=\frac{{\rho }_{\mathrm{n}\mathrm{i}\mathrm{r}}-{\rho }_{\mathrm{r}}}{{\rho }_{\mathrm{n}\mathrm{i}\mathrm{r}}+{\rho }_{\mathrm{r}}}$$

(1)

Year-round NDVI data specific to each crop type from 19 Landsat images with at least one image per month were produced. Whereas only 15 cloud free images were used for per pixel ET_a calculation, more images could be used for NDVI yearly analysis as points of selection for each crop could be selected outside of sparsely cloudy areas. These measurements were used to determine substantial increases and decreases in NDVI to demarcate the beginning and ending of each growing season for subsequent ET_a, Crop Water Use (CWU), and CWP calculations. The growing season for cotton, winter wheat, grapes, barley, rice, and corn was estimated to be 15 May–15 November, 15 January–15 May, 15 March–15 November, 15 January–15 May, 15 May–15 November, and 15 April–15 September, respectively. As these Landsat 8 images providing daily ET_a values were scattered throughout the year, to estimate growing season, the start and end date was rounded either to the 1st or 15th of the month depending on which date the image was closer to. The growing season was considered year-round for tree nut crops including almonds, pistachios, and walnuts.

2.4.2. Land Surface Temperature Data from Thermal Bands

Land Surface Temperature (LST) derived from TIR imagery acquired from satellites such as Landsat has successfully been used to estimate evapotranspiration over a range of spatial scales [12]. LST (°C) maps were produced from instantaneous Landsat 8 thermal band values collected at the time of overpass to aid in ET_a calculation. To determine image thermal properties, the TIR Band 10 (B10) containing brightness temperature was selected to provide less image noise relative to TIR Band 11. While originally collected with a resolution of 100 m/pixel, B10 has been resampled using cubic convolution to 30 m with a wavelength of 10.6–11.2 $\mathsf{\mu }$ and a scale of 0.1 [33].

2.5. Methods for Workflow

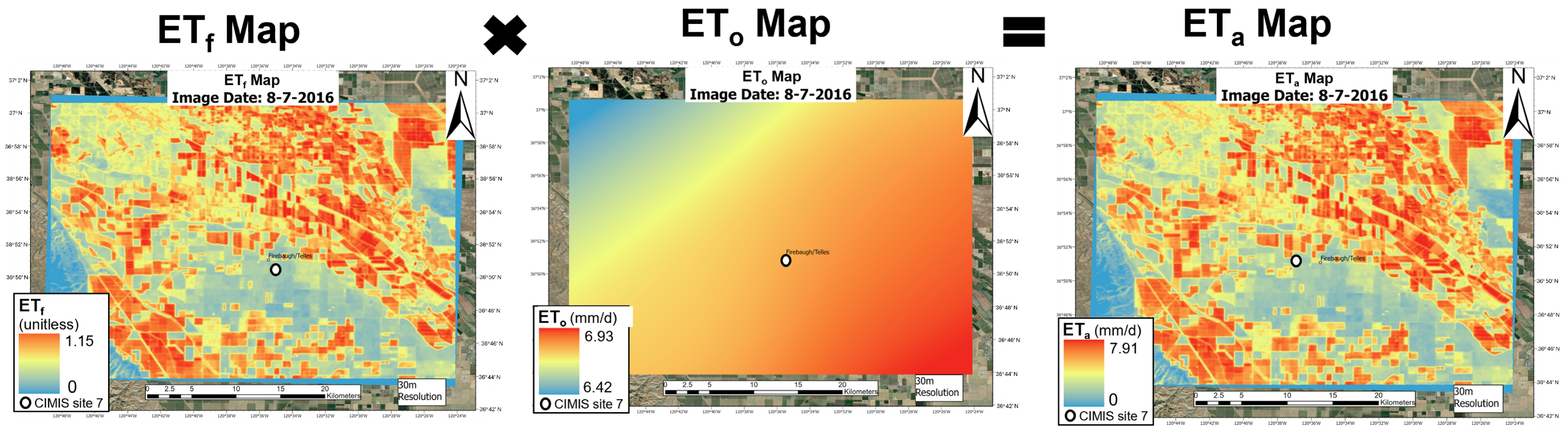

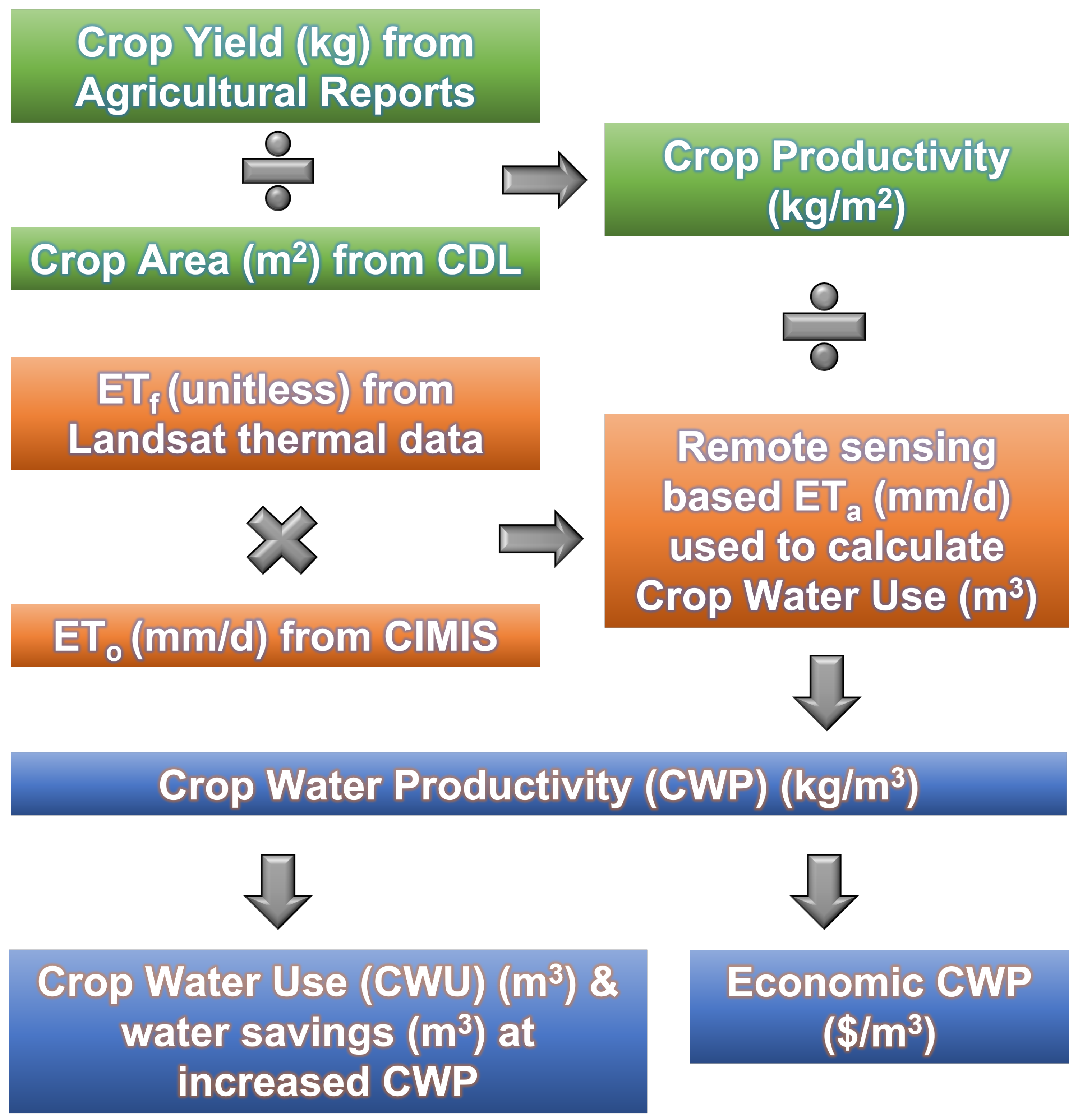

The methods for this research are outlined in Figure 2.

ET_a has become a standard measurement for water resource users and managers to accurately determine consumptive water use over large spatial and temporal extents. This measurement represents a major component in the water cycle as most water consumption can be derived via ET_a as water returns to the atmosphere via evaporation from the surface and transpiration from plants. ET_a is an ideal measurement for remote sensing as it occurs throughout the day making it optimal for polar orbiting satellites such as Landsat that have a single site visit per day during daylight hours. Methods for determining CWP were based on daily ET_a calculated for each Landsat 8 image analyzed are described below.

2.5.1. Step 1: Reference Evapotranspiration (ET_o)

Reference Evapotranspiration (ET_o) represents the amount of water used by a specific reference crop, usually a well-watered grass with known measurements [39]. ET_o characterizes the rate of evapotranspiration from a hypothetical reference crop with an assumed crop height of 0.12 m, a fixed surface resistance of 70 s/m, and an albedo of 0.23 [40]. We acquired daily grass reference ET_o from 19 CIMIS weather stations throughout the southern CVC corresponding to each Landsat image date analyzed [28]. ET_o (mm/d) data was then Kriging interpolated to produce raster maps for each Landsat image date analyzed throughout 2016 to aid in ET_a calculation.

2.5.2. Step 2: Evaporative Fraction (ET_f)

Evaporative Fraction (ET_f) is the ratio of latent heat to total available energy over land surfaces to infer daily energy balance information based on midday remote sensing measurements [41]. To determine ET_f, LST maps were produced from instantaneous thermal values at the time of image acquisition for pixel selection based on methods from Senay et al. [42]. This included a Hot Pixel (T_h) from non-vegetated land, a Cold Pixel (T_c) from cropland, and a Pixel X (T_x) representing the LST of any pixel for analysis. Hot and Cold Pixels were selected based on the 94th–95th and 5th–6th percentile temperature ranges of a LST histogram. Maps of these were overlaid to select pixels between these designated temperature ranges to produce per pixel ET_f (unitless) maps at the time of overpass with Equation (2) for each image analyzed.

$$E{T}_{\mathrm{f}}=\frac{T_{\mathrm{h}}-T_{\mathrm{x}}}{T_{\mathrm{h}}-T_{\mathrm{c}}}$$

(2)

where:

• ET_f = Evaporative Fraction, 0–1 (unitless);
• T_c = Land Surface Temperature of cold pixel (°C);
• T_h = Land Surface Temperature of hot pixel (°C);
• T_x = Land Surface Temperature of any pixel (°C).

2.5.3. Step 3: Actual Evapotranspiration (ET_a) and Crop Water Use (CWU)

ET_a was calculated based on the Simplified Surface Energy Balance (SSEB) model (Equation (3)) [42]. This was determined per pixel by multiplying a ET_o map (mm/d) by an ET_f (unitless) map, producing an ET_a (mm/d) raster map (Figure 3). This model was selected as a test of concept for our methodology as SSEB has been well established worldwide in various environments allowing scalability for the diverse and complex CVC cropping patterns. This model provides a framework for ET_a monitoring in irrigated croplands suitable for this study with highly irrigated and variable crop fields allowing flexibility for local conditions. However, we acknowledge there are more advanced versions of SSEB based remote sensing ET_a models such as Senay et al. 2013 [43], 2018 [44], 2022 [45], and 2023 [46].

Image analysis was performed utilizing GEE cloud computing of Landsat images to produce ET_a (mm/d) raster maps at 30 m resolution for 15 images spanning 2016 (Figure 4). Crop specific ET_a was then determined by overlaying a CDL crop type map to generate 115,000 evenly spaced points across the image. Values from these points were then extracted to export a dataset designating both ET_a and crop type per point. From this, ET_a was averaged per crop for each image to provide daily ET_a (mm/d) per crop per image. For January and May, cloud free Landsat 8 images were not available to produce a complete per pixel study area ET_a map. Therefore, January and May ET_a were interpolated based on a ratio of calculated ET_a/NDVI per crop from each image analyzed based on crop specific NDVI analysis selected from cloud free points in January and May images. This ratio was then averaged over the less than a year growing seasons for cotton, winter wheat, grapes, barley, rice, and corn. For the tree crops almonds, pistachios, and walnuts considered to have year-round growing seasons, the ET_a/NDVI ratio to estimate January and May ET_a was determined by averaging three-month intervals of ET_a/NDVI closest to the corresponding interpolated month. This per crop growing season ET_a/NDVI ratio was then multiplied by respective January and May NDVI per crop to estimate a daily ET_a (mm/d) to represent May and January allowing for ET_a estimation per month throughout 2016.

Daily ET_a values calculated from this study were utilized to extrapolate total CWU (m³) and CWU per area (m³/m²). Out of the 15 Landsat images used in this study, February, April, July, August, and September had two images per month. Therefore, the two ET_a values per month were averaged to provide a daily average crop ET_a (mm/d) per month. For months with only one cloud free image available or an interpolated ET_a, the ET_a calculated that month was used to represent daily crop ET_a (mm/d) for that month. Next, ET_a (mm/d) was converted to mm/month by multiplying by days per month. Then, ET_a (m/month) was multiplied by crop area (m²) to produce total CWU (m³) per month. If the crop growing season started or ended approximately at the month halfway mark (cotton, winter wheat, grapes, barley, rice, and corn), total CWU (m³) for that month was divided by half. Then, the monthly total CWU (m³) of each crops respective growing season was summed to estimate total CWU (m³) per crop. The total CWU (m³) was then divided by crop area (m²) to produce CWU per area (m³/m²).

$$E{T}_{\mathrm{a}}=E{T}_{\mathrm{f}}\ast E{T}_{\mathrm{o}}$$

(3)

2.6. Methods for Calculating Crop Productivity (kg/m²)

Crop Productivity (CP), a measure of crop yield (kg) per area (m²) (Equation (4)) was used to determine CWP. CP (kg/m²) was calculated from the California Department of Food and Agriculture (CDFA) [47,48] published 2016 ratio of crop yield per crop area and then scaled to the study area. This statewide ratio (kg/m²) was then multiplied by crop area (m²) to estimate crop yield within the study area (

Table 1. Crop Productivity (CP) (kg/m²) data. CP and yield (kg) estimated for nine commonly-grown and water-intensive crops in the Central Valley of California study area. Based on CDFA yield per area data for 2016 [48].

Crop Type	Crop Area (m2)	Crop Yield (kg)	Crop Productivity (kg/m2)
Almonds	158,556,066	40,520,371	0.26
Cotton	108,200,973	20,132,373	0.19
Winter Wheat	84,959,597	44,567,062	0.52
Pistachios	37,588,230	15,799,336	0.42
Grapes	29,242,400	32,948,449	1.13
Barley	8,538,869	3,445,550	0.40
Rice	5,247,748	5,201,005	0.99
Corn	1,497,109	1,738,476	1.16
Walnuts	509,877	249,177	0.49

). Similar to crop estimation methods of Cai and Sharma [15] who used district level statistical data to linearly extrapolate yield for water productivity, the accuracy is bounded by a satisfactory range as census data is governed by accepted state and national standards [15,48].

$$\mathrm{Crop}\mathrm{Productivity}(\mathrm{kg}/{\mathrm{m}}^2)=\frac{\mathrm{Crop}\mathrm{Yield}\left(\mathrm{kg}\right)}{\mathrm{Crop}\mathrm{Area}({\mathrm{m}}^2)}$$

(4)

2.7. Methods for Calculating Crop Water Productivity (CWP)

CWP (kg/m³) is the ratio of Crop Productivity (CP; kg/m²) divided by Crop Water Use (CWU; m³/m²) (Equation (5)) or total crop yield (kg) divided by total CWU (m³) for a given area representing the volume of water used to produce a certain amount of crop [49]. Prior to calculating CWP, CWU was calculated for each crop type based on ET_a (mm/d), and CP was estimated from agricultural reports [48]. From this, an average CWP was calculated for almonds, cotton, winter wheat, pistachios, grapes, barley, rice, corn, and walnuts by dividing each respective CP by CWU. The estimated 2016 growing season in the study area for almonds, pistachios, and walnuts was considered year-round with cotton, wheat, grapes, barley, rice, and corn estimated to be 185, 122, 246, 122, 185, 185 days respectively.

$$\mathrm{Crop}\mathrm{Water}\mathrm{Productivity}(\mathrm{kg}/{\mathrm{m}}^3)=\frac{\mathrm{Crop}\mathrm{Productivity}(\mathrm{kg}/{\mathrm{m}}^2)}{\mathrm{Water}\mathrm{Use}({\mathrm{m}}^3/{\mathrm{m}}^2)}$$

(5)

2.8. Methods for Estimating Crop Water Savings or Yield Increase by Increasing CWP

Changes in CWP can be used to determine potential crop water savings or yield increases. For a hypothetical demonstration, the value of CWP (kg/m³) per crop was increased by 10, 20, and 30%. First, crop yield (kg) was determined by multiplying total CWU (m³) by CWP per crop. To estimate the amount of water (m³) that could be saved by increasing CWP and maintaining yield, the original total crop yield was divided by the CWP value increased at 10, 20, and 30% to provide new total CWU (m³) estimates at each respective CWP increase. These modified total CWU estimates were then subtracted from the original total CWU to provide the amount of water that can be saved (m³) by increasing CWP. Next, to determine potential yield increase while maintaining total CWU (m³), CWP increased at 10, 20, and 30% was multiplied by the original total CWU (m³) per crop. From this, the original total crop yield may be subtracted from the increased yield calculated at each respective CWP increase to provide the amount of yield gained by increasing CWP.

There are three main ways to increase CWP: reduce applied water use while maintaining crop yields, increase crop yield while maintaining CWU, or a combination of decreasing CWU and increasing crop yield. While CWP analysis can elucidate water savings potential and provide an incentive to increase CWP, a detailed methodology on how to do so is beyond the scope of our objectives. For broad-scale CWP solutions, a combination of biological water-saving measures with engineering solutions and agronomic and soil manipulation may be most successful [50]. Existing agricultural tactics that can be implemented at the farm to national scale include precision agriculture, drip irrigation, organic soil remedies, buffer strips and wetland restoration, new crop varieties that reduce needs for water and fertilizer, perennial grains and tree-cropping systems, paying farmers for environmental services, soil management practices, and proper plant nutrition [49,51,52,53,54,55,56,57,58].

3. Results

3.1. Crop Type Areas

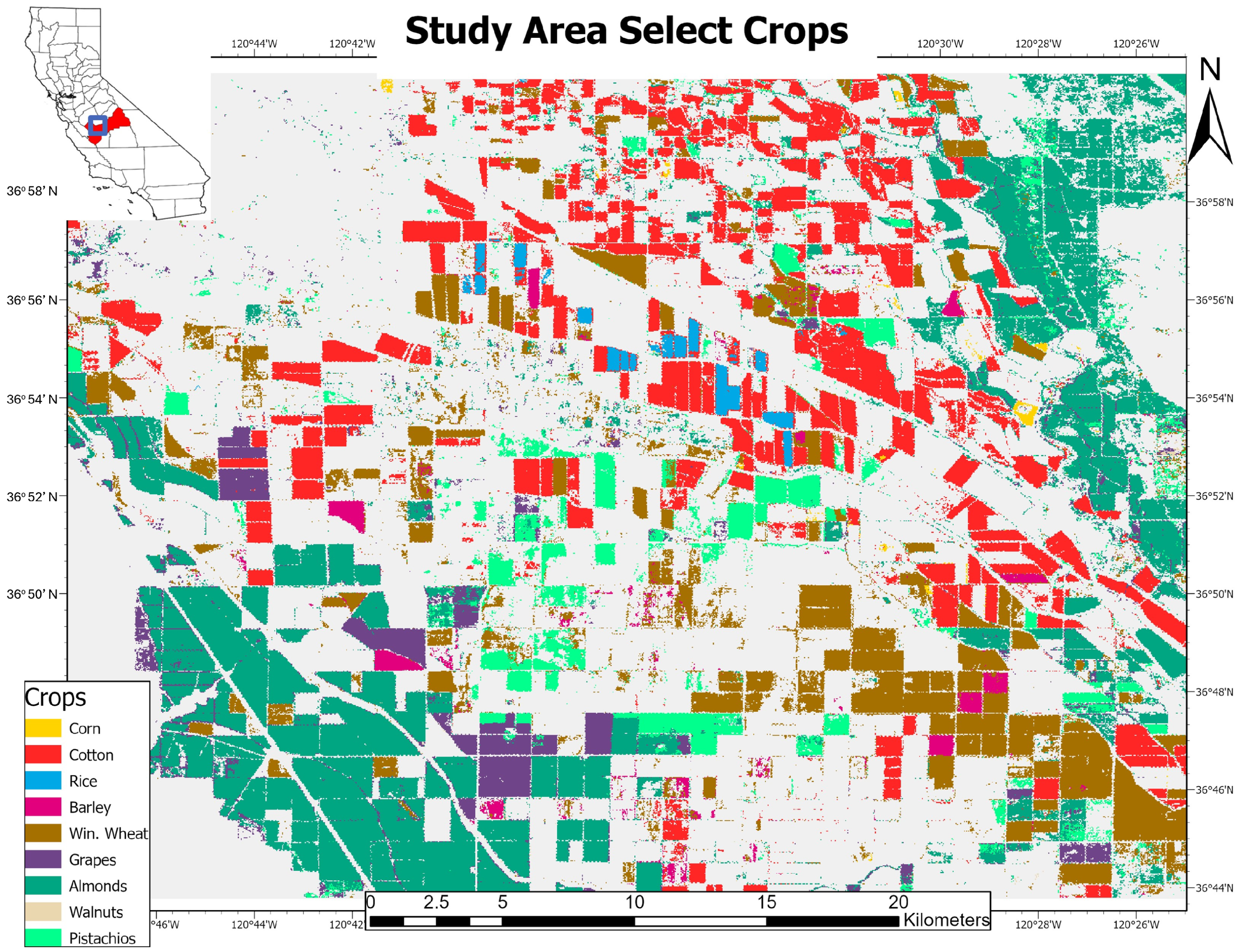

Results from the nine crops analyzed comprised 38.24% of the 1135.93 km² area (

Table 2. Table of crop area. Crop area (m²) and percentage of study area for almonds, cotton, winter wheat, pistachios, grapes, barley, rice, corn, and walnuts [28].

Number	Crop	Percent of Study Area (%)	Area (m2)
1	Almonds	13.96	158,556,066
2	Cotton	9.53	108,200,973
3	Winter Wheat	7.48	84,959,597
4	Pistachios	3.31	37,588,230
5	Grapes	2.57	29,242,400
6	Barley	0.75	8,538,869
7	Rice	0.46	5,247,748
8	Corn	0.13	1,497,109
9	Walnuts	0.04	509,877
	All select crop	38.24	434,340,869
	All Other	61.76	888,071,759
	Total	100	1,135,931,091

).

3.2. Actual Evapotranspiration (ET_a) Results

ET_a calculated in this study ranged considerably with rice at the highest ET_a (4.39 mm/d) and pistachios at the lowest (1.45 mm/d) (

Table 3. Table of Crop Water Use (CWU). Table displaying crop area (m²) [28], averaged daily Actual Evapotranspiration (ET_a) (mm/d), total CWU (m³), and CWU per area (m³/m²) by crop type per growing season.

Crop Type	Crop Area (m2)	ETa (mm/d)	Total CWU (m3)	CWU per Area (m3/m2)
Almonds	158,556,066	3.32	191,968,501	1.21
Cotton	108,200,973	3.50	78,273,341	0.72
Winter Wheat	84,959,597	1.82	21,512,784	0.25
Pistachios	37,588,230	1.45	19,945,161	0.53
Grapes	29,242,400	2.68	26,249,854	0.90
Barley	8,538,869	1.89	2,322,164	0.27
Rice	5,247,748	4.39	4,767,264	0.91
Corn	1,497,109	4.23	1,050,105	0.70
Walnuts	509,877	1.76	328,008	0.64
Total	434,340,869		346,417,181

). Corn, cotton, and almonds had higher ET_a at 4.23, 3.50, and 3.32 mm/d respectively. Barley, winter wheat, and walnuts had lower ET_a at 1.89, 1.82, 1.76 mm/d respectively. Grapes had moderate ET_a at 2.68 mm/d. Given the CDL based crop area [28] and total CWU (m³) per crop derived in this study, a ratio of CWU per area also determined to asses CWU (Table 3). CWU (m³/m²) also ranged considerably with almonds representing the highest at 1.21 m³/m² and winter wheat the lowest at 0.25 m³/m². Rice, grapes, and cotton were also higher water consumers per area with values of 0.91, 0.90, and 0.72 m³/m² respectively. Corn had a moderate CWU per area at 0.70 m³/m². On the lower end were walnuts, pistachios, and barley at 0.64, 0.53, and 0.27 m³/m² respectively.

3.2.1. Comparison of Actual Evapotranspiration (ET_a)

ET_a calculated in this study were compared with scientific publications documenting ET_a for the same crops. This resulted in 29 different ET_a values from 21 sources (

Table 4. Actual Evapotranspiration (ET_a) compared to scientific publications. Comparison of average ET_a (mm/d) calculated from this study to a literature review of published sources. References, locations, and available measurement years from each source are listed. Note for USA locations the state is provided.

Crop Type	This Study		From References
	ETa Calculated (mm/d)	ETa Average Reference (mm/d)	ETa References (mm/d)	Location	Year (s)	References
Almonds	3.32	4.06	4.01	California	2018	[59]
			3.30	California	2018	[59]
			4.36	California	2016	[60]
			4.57	Australia	2008–2009	[61]
Cotton	3.50	4.84	4.76	Arizona	2009	[62]
			4.91	Arizona	2011	[62]
Winter wheat	1.82	2.00	1.60	China	1995–2000	[63]
			2.40	China	1987–1997	[63]
Pistachios	1.45	4.46	3.73	California	2016	[60]
			4.43	California	1984	[64]
			5.23	California	2016–2017	[65]
Grapes	2.68	3.23	3.85	Brazil	2002-2003	[66]
			1.32	Australia	2010-2012	[67]
			4.15	California	2013–2014	[12]
			3.60	California	2013–2014	[12]
Barley	1.89	2.49	2.48	Ethiopia	2010	[68]
			2.25	Tunisia	2001–2002	[69]
			2.74	Czech Republic	2011–2014	[70]
Rice	4.39	4.64	4.05	Philippines	2008–2009	[71]
			5.30	India	1994	[72]
			6.10	California	2007	[73]
			3.10	Bangladesh	2007	[74]
Corn	4.23	4.32	5.77	California	2018	[59]
			4.49	California	2018	[59]
			3.15	China	1987–1997	[75]
			3.87	Colorado	2008–2013	[76]
Walnuts	1.76	4.65	4.89	California	1998	[77]
			4.65	California	2011–2016	[77]
			4.41	California	2002	[78]

). Some sources included either more than one year of study and location or provided ET_a for more than one crop type. Although uncertainties exist in comparing ET_a from various locations and different years, this provides a baseline benchmark for comparison.

3.2.2. ET_a from This Study in Comparison to OpenET

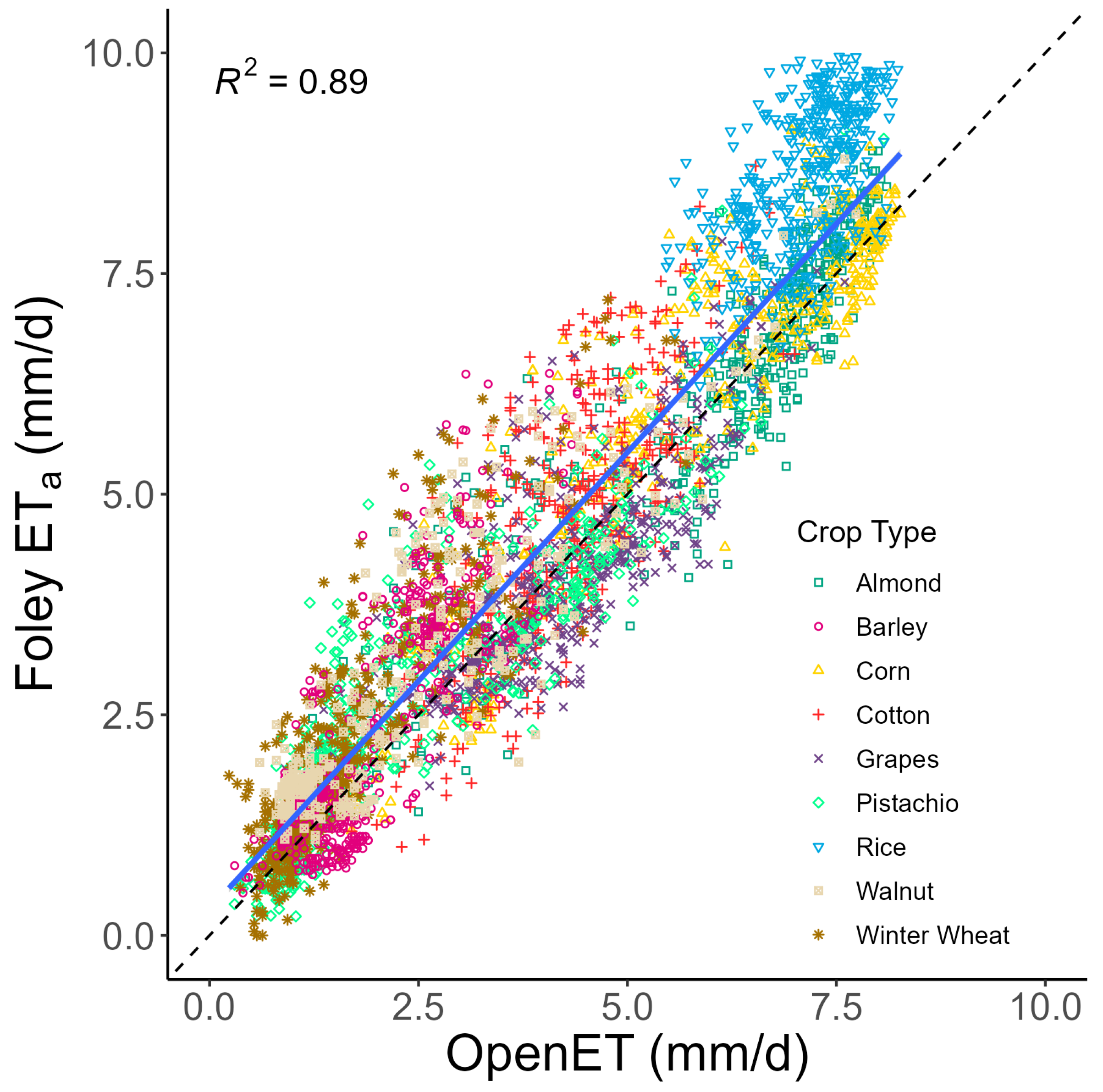

Actual Evapotranspiration (ET_a) values calculated in this study, referred to here as Foley ET_a (for naming purposes to note comparison) were compared to OpenET [47] (Figure 5). OpenET is a remote sensing-based evapotranspiration product that provides an ensemble monthly evapotranspiration approximating consumptive water use based on satellite data (including Landsat, Sentinel-2, GOES, and others), weather station networks and models, and field boundary and crop type datasets [47]. The OpenET ensemble product integrated from the GEE catalog used in this study is derived from well-established Surface Energy Balance (SEB) ET_a models including ALEXI/DisALEXI [79,80], geeSEBAL [81,82], METRIC [83,84,85], PT-JPL [86], SSEBop [43,44], and SIMS [87,88]. This ensemble product is comparable to Foley ET_a as it also utilized grass surface reference ET_o from CIMIS data [47].

To compare Foley ET_a (mm/d) from this study to OpenET, the total monthly OpenET value (mm) was disaggregated by dividing by the number of days in the month. For example, the total monthly value for June 2016 was divided by 30 (days) to provide a daily mm/d value. Then in GEE, 500 randomly selected points within the study area were utilized to acquire a per-pixel ET_a value from OpenET and Foley ET_a for each crop type. Outliers (5.27% of sample) were removed using Cook’s Distance analysis [89] and linear regression analysis was done on the remaining points in R programming language for statistical computing [90]. With all crops pooled for June 2016 the R² value was 0.89 (Figure 5). This coefficient of determination relationship demonstrates a strong statistical correlation with ET_a calculated in this study.

3.3. Crop Water Productivity Results

An average CWP was determined and mapped for almonds, cotton, winter wheat, pistachios, grapes, barley, rice, corn, and walnuts for the 2016 growing season (

Table 5. Crop Water Productivity (CWP) by crop type. Average CWP (kg/m³) displayed for nine crops within the study area for 2016. Total crop yield, total Crop Water Use (CWU), and CWP is represented for each crops growing season. Total CWU is based on daily average ET_a calculated in this study.

Crop Type	Crop Area		Yield	CWU	CWP
	(%)	(m2)	(kg)	(m3)	(kg/m3)
Almonds	13.96	158,556,066	40,520,371	191,968,502	0.21
Cotton	9.53	108,200,973	20,132,373	78,273,341	0.26
Winter Wheat	7.48	84,959,597	44,567,062	21,512,784	2.07
Pistachios	3.31	37,588,230	15,799,336	19,945,161	0.79
Grapes	2.57	29,242,400	32,948,449	26,249,854	1.26
Barley	0.75	8,538,869	3,445,550	2,322,164	1.48
Rice	0.46	5,247,748	5,201,005	4,767,264	1.09
Corn	0.13	1,497,109	1,738,476	1,050,105	1.66
Walnuts	0.04	509,877	249,177	328,008	0.76

, Figure 6). Winter wheat resulted in the highest CWP at 2.07 kg/m³ whereas almonds had the lowest at 0.21 kg/m³. Corn, barley, and grapes had higher CWP of 1.66, 1.48, and 1.27 kg/m³ respectively. Pistachios, walnuts, and cotton had lower CWP of 0.79, 0.76, and 0.26 kg/m³ respectively. These values provide insight into how much water a crop used to produce a certain amount of yield in a given area. A higher CWP value indicates the crop is using less water to produce more yield relative to lower CWP. For example, not taking into account other factors such as nutritional content, winter wheat has a ten-fold higher CWP than almonds, suggesting it takes significantly more water to produce the same biomass of yield of almonds versus winter wheat.

A literature review of CWP documenting the reference, location, and year of measurement was compared to CWP in this study in

Table 6. Crop Water Productivity (CWP) compared to scientific publications. CWP (kg/m³) calculated in this study compared to published sources by crop type documenting location, year(s) when available, and reference. Note USA locations list the state where data were acquired.

	This Study		From References
Crop Type	Crop Area (%)	CWP	CWP Average	CWP	Location	Year (s)	References
Almonds	13.96	0.21	0.39	0.28	California	2005–2009	[91]
				0.25	Spain	2004–2006	[92]
				0.21	Spain	2017	[93]
				0.69	California	2001–2009	[23]
				0.53	California	2010–2018	[23]
Cotton	9.53	0.26	0.36	0.24	Global	1977–2002	[94]
				0.52	California	2001–2009	[23]
				0.62	California	2010–2018	[23]
				0.42	Uzbekistan	2007	[95]
				0.46	Uzbekistan	2007	[96]
				0.28	Uzbekistan	2006	[97]
				0.23	India	2002	[98]
				0.08	India	2014	[99]
Winter Wheat	7.48	2.07	1.36	1.15	Global	1977–2002	[94]
				1.09	Global	1979–2016	[49]
				0.98	Global	1998–2008	[100]
				1.20	Australia	2007–2012	[101]
				1.60	Spain	2004–2007	[102]
				2.10	Mediterranean		[103]
				1.40	Italy		[104]
Pistachios	3.31	0.79	0.32	0.28	California	2001–2009	[23]
				0.35	California	2010–2018	[23]
Grapes	2.57	1.26	3.32	1.77	Brazil	2002–2003	[66]
				5.92	Australia	2010–2012	[67]
				4.48	California	2001–2009	[23]
				4.67	California	2010–2018	[23]
				2.37	Brazil	2005	[105]
				2.44	Brazil	2005	[105]
				2.46	Mexico	2005	[106]
				2.49	Mexico	2006	[106]
Barley	0.75	1.51	1.51	1.03	Ethiopia	2010	[68]
				1.50	Spain	2004–2007	[102]
				1.70	Mediterranean		[107]
				1.70	Mediterranean		[108]
				1.60	Australia		[109]
Rice	0.46	1.09	0.99	1.10	Global	1977–2002	[94]
				0.89	Global	1979–2016	[49]
				0.98	Global	1998–2008	[100]
Corn	0.13	1.86	1.86	1.90	Global	1977–2002	[94]
				1.87	Global	1979–2016	[49]
				2.25	Global	1998–2008	[100]
				1.60	Italy	1996–1997	[110]
				1.70	China		[111]
Walnuts	0.04	0.76	0.47	0.48	California	2001–2009	[23]
				0.45	California	2010–2018	[23]

. Twenty-six sources providing CWP were reviewed resulting in 44 CWP values as some sources listed multiple years of study, locations, and/or crops. This provided at least two different published CWP values per crop for comparison.

3.4. Crop Water Savings and Yield Increase Results

Increasing CWP calculations show that modest increases in CWP can result in drastic decreases of water use with substantial potential for water savings or significant yield increases (

Table 7. Crop water savings potential with CWP increase of 10%, 20%, and 30%. Calculations demonstrate that with a constant yield and increasing CWP, total Crop Water Use (CWU) decreases and water savings increase substantially. Or by holding total CWU constant and increasing CWP, yield increases significantly.

	Crop Type	CWP (kg/m3)	CWU (m3)	Water Savings (m3)	Yield (kg)
CWP + 0%	Almonds	0.21	1.92 × 108	0	4.05 × 107
	Cotton	0.26	7.83 × 107	0	2.01 × 107
	Winter Wheat	2.07	2.15 × 107	0	4.46 × 107
	Pistachios	0.79	1.99 × 107	0	1.58 × 107
	Grapes	1.26	2.62 × 107	0	5.24 × 107
	Barley	1.48	2.32 × 106	0	3.45 × 106
	Rice	1.09	4.77 × 106	0	5.20 × 106
	Corn	1.66	1.05 × 106	0	1.74 × 106
	Walnuts	0.76	3.28 × 105	0	2.49 × 105
CWP + 10%	Almonds	0.23	1.75 × 108	1.75 × 107	4.46 × 107
	Cotton	0.28	7.12 × 107	7.12 × 106	2.21 × 107
	Winter Wheat	2.28	1.96 × 107	1.96 × 106	4.90 × 107
	Pistachios	0.87	1.81 × 107	1.81 × 106	1.74 × 107
	Grapes	1.40	2.39 × 107	2.39 × 106	5.77 × 107
	Barley	1.63	2.11 × 106	2.11 × 105	3.79 × 106
	Rice	1.20	4.33 × 106	4.33 × 105	5.72 × 106
	Corn	1.82	9.55 × 105	9.55 × 104	1.91 × 106
	Walnuts	0.84	2.98 × 105	2.98 × 104	2.74 × 105
CWP + 20%	Almonds	0.25	1.60 × 108	3.20 × 107	4.86 × 107
	Cotton	0.31	6.52 × 107	1.30 × 107	2.42 × 107
	Winter Wheat	2.49	1.79 × 107	3.59 × 106	5.35 × 107
	Pistachios	0.95	1.66 × 107	3.32 × 106	1.90 × 107
	Grapes	1.52	2.19 × 107	4.37 × 106	6.29 × 107
	Barley	1.78	1.94 × 106	3.87 × 105	4.13 × 106
	Rice	1.31	3.97 × 106	7.95 × 105	6.24 × 106
	Corn	1.99	8.75 × 105	1.75 × 105	2.09 × 106
	Walnuts	0.91	2.73 × 105	5.47 × 104	2.99 × 105
CWP + 30%	Almonds	0.27	1.48 × 108	4.43 × 107	5.27 × 107
	Cotton	0.33	6.02 × 107	1.81 × 107	2.62 × 107
	Winter Wheat	2.69	1.65 × 107	4.96 × 106	5.79 × 107
	Pistachios	1.03	1.53 × 107	4.60 × 106	2.05 × 107
	Grapes	1.65	2.02 × 107	6.06 × 106	6.82 × 107
	Barley	1.93	1.79 × 106	5.36 × 105	4.48 × 106
	Rice	1.42	3.67 × 106	1.10 × 106	6.76 × 106
	Corn	2.15	8.08 × 105	2.42 × 105	2.26 × 106
	Walnuts	0.99	2.52 × 105	7.57 × 104	3.24 × 105
CWP + 0%	All Crops		3.46 × 108	0	1.65 × 108
CWP + 10%			3.15 × 108	3.15 × 107	1.81 × 108
CWP + 20%			2.89 × 108	5.77 × 107	1.98 × 108
CWP + 30%			2.66 × 108	7.99 × 107	2.14 × 108

). For example, almonds with a CWP of 0.21 kg/m³ were estimated to consume approximately 192 million m³ of water; increasing CWP by 10, 20, and 30% would result in CWP of 0.23, 0.25, and 0.27 kg/m³ respectively. With holding yield constant, this in turn results in decreasing total CWU to approximately 175, 160, and 148 million m³ while providing potential water savings of approximately 17, 32, and 44 million m³ respectively. Or alternatively by holding total CWU constant and increasing CWP, this demonstrates that yield increases considerably with increasing CWP (Table 7). For instance, almonds with an estimated total yield of 40.52 million kg, had a predicted increased yield increase of 4.05, 8.1, and 12.16 million kg at respective CWP increases of 10, 20, and 30%.

To put water savings potential into a perspective that can be more readily visualized a comparison to a known body of water is effective. With a CWP increase of 10% in almonds, an estimated 6980 Olympic swimming pools (2500 m³) or 685 Lincoln Memorial Reflecting Ponds in Washington, DC, USA (25,500 m³) worth of water could be saved. Furthermore, CWP can be used to estimate water footprint, a measure of human water consumption in volume of water per unit of product [112,113,114,115,116]. Based on our assessment of this particular study area and time frame with an estimated almond yield of 40,520,371 kg using 191,968,502 m³ of water and with one almond kernel weighing 1.2 g [117,118], given the many uncertainties present it can be generally estimated that approximately 5.7 L of water were consumed to produce one almond. This type of analysis can provide insight into making more informed water management decisions.

4. Discussion

This innovative suite of methodologies to determine ET_a at 30 m resolution with Landsat images for individual crops at field to regional scales has the potential to expand to other agricultural areas and time frames. The methods here demonstrated that ET_f can be determined per crop type utilizing our approach for hot and cold pixel selection from thermal image bands. Furthermore, this method of deriving ET_o using meteorological data in conjunction with GIS interpolation analysis can be applied to other regions. In the absence of site-specific crop yield measurements, we show how yield can be estimated from extrapolating agricultural reports scaled to a designated area. These aspects have shown that various datasets can be combined to provide more insight on CWP.

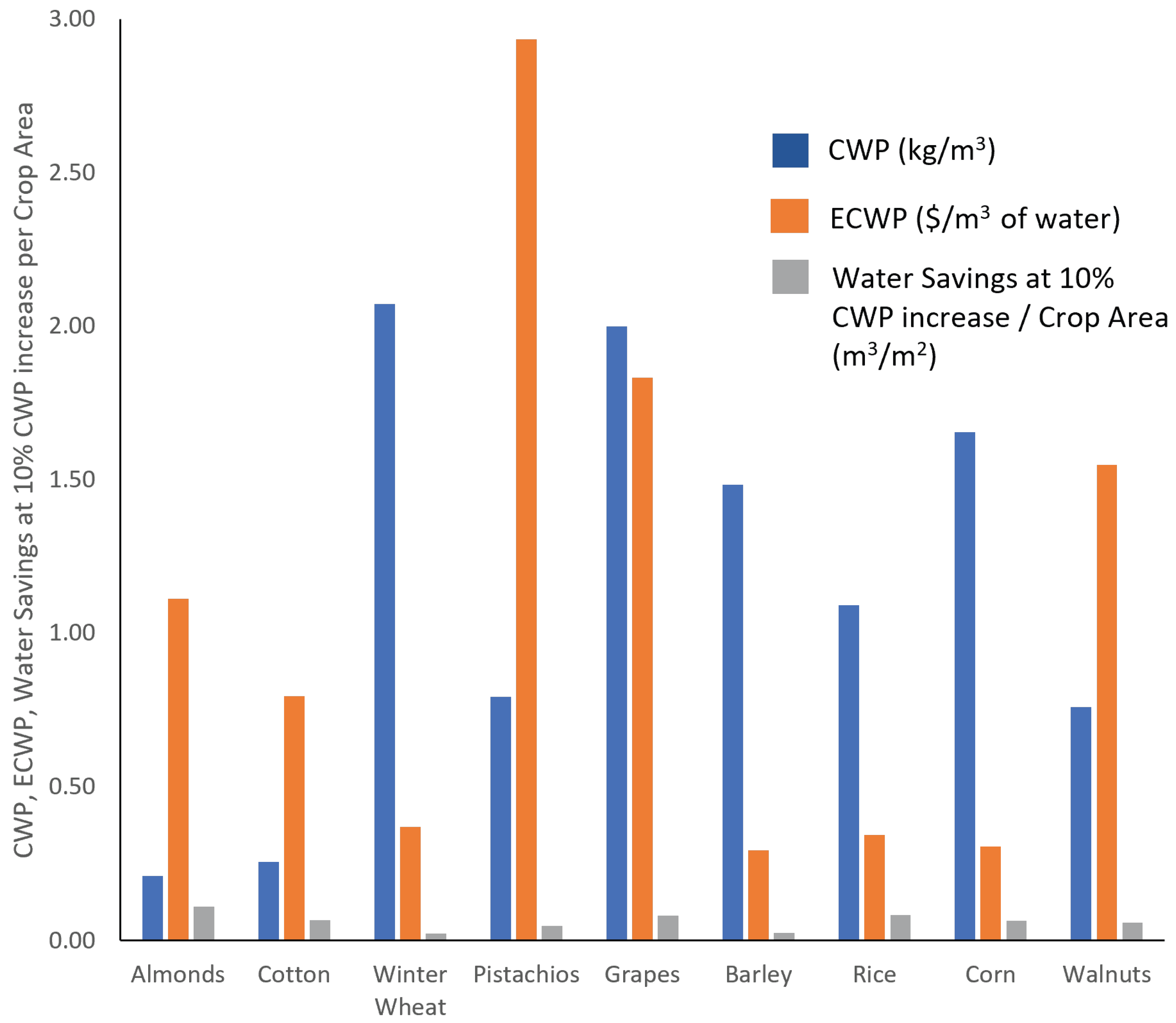

The economics of water use in crop production provide insight on predicting and interpreting water allocation procedures that can guide users toward socially desirable outcomes [113]. California was the top agricultural commodity producing state in the USA, generating over $46 billion while exporting approximately 26% of its agricultural production in 2016 [48]. Therefore, the value a crop can generate is of great concern in assessing water management decisions. This provides further incentive for CWP study where the known market value a crop is sold for in a given year can be ascertained. This is especially apparent when limited local water is used to grow crops for export as California is the USA’s sole exporter for numerous agricultural commodities, exporting 99% or more of several crops including almonds [48].

Economic Crop Water Productivity (ECWP) is the ratio of a monetary value ($) of crop output divided by the amount of water input (m³) providing a measure of net economic benefits per unit of water ($/m³) consumed [114,115]. ECWP was calculated based on the 2016 price of a crop sold by weight ($/kg) in California for almonds, winter wheat, pistachios, grapes, barley, rice, corn, and walnuts from CDFA agricultural reports [116]. For cotton, the dollar value was derived from the average 2013 and 2014 market price per yield utilized to estimate 2016 value for ECWP calculations in absence of 2016 CDFA cotton values [116]. To estimate ECWP ($/m³), the statewide value of crop per kilogram ($/kg) was multiplied by CWP (kg/m³) determined for the study area. This ratio essentially demonstrates how much money is generated from a yield of crop produced from a m³ unit of water consumed. Of crops analyzed in this study, the orchard nut crops and grapes were estimated to be highest with pistachios at 2.93 ($/m³) whereas barley was the lowest at 0.29 ($/m³) (

Table 8. Table of Economic Crop Water Productivity (ECWP). ECWP ($/m³) and ratio of crop monetary value per unit of mass ($/kg) based on CWP from this study and 2016 market value from the California Department of Food Agriculture [116]. Data is displayed for the nine crops in the Central Valley of California study area.

Crop Type	CWP (kg/m3)	Value per kg (USD/kg)	Total Value (1000 USD)	ECWP (USD/m3)
Almonds	0.21	5.27	183,148	1.11
Cotton	0.26	3.09	53,303	0.79
Winter Wheat	2.07	0.18	6813	0.37
Pistachios	0.79	3.70	50,197	2.93
Grapes	1.26	0.92	41,258	1.16
Barley	1.48	0.20	584	0.29
Rice	1.09	0.32	1406	0.34
Corn	1.66	0.18	271	0.31
Walnuts	0.76	2.04	436	1.55

). This indicates from an economic standpoint not considering other factors such as associated growing time and cost of production, it can be inferred that more money per m³ of water used is generated from sales of pistachios than barley at point of sale by over ten-fold. Results of CWP, ECWP, and a ratio of water savings potential at 10% CWP increase divided by crop area (m³/m²) is displayed in Figure 7. This figure illustrates tree nut orchard crops tend to have low CWP yet high ECWP and relatively high potential for water savings per area (m³/m²) compared to row crops.

Up-to-date monitoring and feedback systems to assess CWP may support safeguarding the production of crops. Advances in satellite remote sensing imagery and data capture make it possible to chart crop progress in real-time. Information generated from remote sensing can be utilized for agriculture in a variety of ways to assess water use and to optimize crop yields. This benchmark study site in the CVC has provided a test of concept to expand to larger areas including state, national, and international extents. It may be possible to automate this suite of methodologies with cloud computing for rapid assessment of CWP in other areas and time frames. This could help assess how crops use water to produce food and identify opportunities to manage water. We acknowledge that many CWP uncertainties exist in estimating remote sensing-based ET_a, CWU, and crop yield including many variables such as crop characteristics, soil properties, irrigation system efficiency, and management practices. However, this study has provided a base methodology for more refined calibration and automation.

5. Conclusions

We present a suite of methodologies to measure Actual Evapotranspiration (ET_a; mm/d) to determine Crop Water Use (CWU; m³/m²), Crop Productivity (CP; kg²/m²), and Crop Water Productivity (CWP; kg/m³) or “crop per drop” for commonly-grown and water-intensive irrigated crops utilizing cloud computing. As cropping patterns change over time and different crops consume varying amounts of water, analyzing CWP by crop type over growing seasons on a yearly basis may help inform crop growing and water management decision making. With a finite irrigation water supply and crops affected by market prices, CWP and Economic Crop Water Productivity (ECWP) may allow for making more informed water optimization strategies. This study proposed and implemented comprehensive approaches to CWU and CWP assessments, modeling, and mapping using 30 m resolution Landsat data with potential for greater time-series assessments. Significant findings from this study indicate that agricultural CWP (kg/m³) was significantly higher for annual food crops such as winter wheat (2.07), corn (1.66), barley (1.48), and rice (1.09) when compared with orchard crops like pistachios (0.79), walnuts (0.76), and almonds (0.21). Grapes (1.27) had intermediate CWP with cotton lower at (0.26). However, ECWP ($/m³) was highest for the plantation or cash crops like pistachios (2.93), walnuts (1.55), grapes (1.16), almonds (1.11), and cotton (0.79) relative to annual crops like winter wheat (0.37), rice (0.34), corn (0.31), and barley (0.29). This study estimated the potential water savings at 10%, 20%, and 30% increase in CWP for each crop. In the 434 million m² cropland area, a 10% increase in CWP across all nine crops was estimated to result in water savings of 31.5 million m³ or 31.5 billion liters of water. An increase of CWP obtainable by various agricultural and irrigation improvements is widely considered the best approach to saving maximum quantities of water.

Establishing a viable methodology for CWP and ET_a measurement over large spatial and temporal extents may help to reduce uncertainties in CWU and CWP calculations. Our methods were used to determine ET_a comparable to OpenET and CWP for nine globally dominant crops in irrigated croplands within the Central Valley of California. Such calculations are especially useful to track the role crop types play in overall water use in drought prone regions. Moreover, these methods can be expanded to model numerous crops at regional, national, and global scales for various years where remote sensing images, meteorological data, and crop yield information are available. Such CWP models may help implement better water management strategies and make substantial contributions in addressing food and water security in the 21st century.
