Pore and Microfracture Characterization in Tight Gas Sandstone Reservoirs with a New Rock-Physics-Based Seismic Attribute

Abstract

Pores and microfractures provide storage spaces and migration pathways for gas accumulation in tight sandstones with low porosity and permeability, acting as one of the controlling factors of gas production. The development of a rational rock physics model is essential for better understanding the elastic responses of tight sandstone with complex pore structures. Accordingly, seismic characterization of pores and microfractures based on the rock physics model provides valuable information in predicting high-quality tight gas sandstone reservoirs. This paper proposes a rock-physics-based approach to compute the pore–microfracture indicator (PMI) from elastic properties for pore structure evaluation in tight sandstones. The PMI is achieved based on the axis rotation of the elastic parameter space using well-log data. The rotation angle is determined by finding the maximum correlation between the linearized combination of the elastic parameters and the introduced factor associated with total porosity and microfracture porosity. The microfracture porosity is then estimated with an inversion scheme based on the double-porosity model. Finally, the optimized rotation angle is employed to compute the PMI with seismic data. The obtained results are of great benefit in predicting the permeable zones, providing valuable information for sweet spot characterization in tight gas sandstone reservoirs.

1. Introduction

The Ordos Basin is one of the most petroliferous in north-central China, with numerous natural gases being produced in the tight sandstones from the petroleum systems of the basin. In general, tight sandstones in the Ordos Basin are characterized by low porosity (<10%) and low permeability (<1 mD). Pores and microfractures developed in tight sandstones lead to the increase of reservoir permeability, providing migration pathways for gas accumulation. Relatively high-porosity and well-developed microfractures are essential to configuring permeable zones in tight gas sandstone reservoirs, functioning as one of the dominant factors for gas enrichment. Simultaneously, the development of natural microfractures facilitates the formation of pore–fracture networks during hydraulic fracturing, which is a crucial factor in gas productivity [1,2,3]. The primary types of pore space in tight sandstones include dissolved inter-granular and intra-granular pores, microcracks, microfractures, and structural fractures. Core analysis and well-logging interpretation provide valuable information for characterizing various pores and fractures. Nevertheless, pore and fracture identification with seismic methods is of great significance in predicting sweet spots in tight gas sandstone reservoirs over a large area.

Tight sandstones with high-angle fractures are usually described as the effective medium with horizontal transverse isotropy or orthorhombic anisotropy, relying on the features of the host medium. In view of this, these near-vertical fractures are predicted via various azimuthal seismic inversion methods [4,5,6,7]. However, different from predicting vertical fractures utilizing azimuthal seismic signatures, delineating microfractures with seismic methods is challenging due to their implicit elastic properties. In this case, the rock-physics-based approaches provide an effective solution in characterizing microfractures, wherein the elastic behaviors associated with pore structures are described with appropriate rock physics models.

Based on core and thin section observations, complex pore structures in tight sandstone were simplified as the combination of round pores and low-aspect-ratio microfractures [8,9]. The corresponding scattering velocity–porosity relationships were then reasonably interpreted by varied crack concentrations. Further, the sophisticated double-porosity model [10,11] and the multiple-porosity model [12] were proposed to explain tight sandstone’s poroelastic behaviors accurately. Experimental investigations confirmed the applicability of the double-porosity model for tight sandstones [13,14]. By extending the model to delineate heterogeneous pore structures, pore structure evaluation and shear-wave velocity prediction were performed in tight sandstones [15].

In practice, various templates constructed based on appropriate rock physics models provide effective tools for estimating reservoir parameters utilizing elastic properties in various hydrocarbon resources [16,17,18,19]. For instance, the rock physics templates (RPTs) were employed for fluid identification [20] and brittleness evaluation [21] in tight sandstone reservoirs. At the same time, several successful applications have been reported for estimating pore microstructure in tight sandstones using RPTs [22,23]. However, one of the inherent limitations of applying RPTs for estimating reservoir parameters is that the corresponding implementation is target-oriented, where the interpretation on a particular template may work only for a specific target layer. In comparison, direct seismic inversion of pore parameters may be attractive [24,25], but the robustness of the complex iteration process in seismic inversion should be properly assessed.

This paper is aimed to propose a rock-physics-based indicator for estimating pores and microfractures in tight gas sandstone reservoirs from seismic data. First, the workflow associated with the double-porosity model is given, followed by predicting microfracture porosity using well-log data. Next, a new pore–microfracture indicator is introduced by optimizing the correlation between elastic properties and the pore factor defined by total and microfracture porosity. After analyzing the applicability of the proposed indicator using well-log data, the suggested method is applied to seismic data to identify permeable zones in tight gas sandstone reservoirs.

2. Methods

2.1. Rock Physics Model of Tight Gas Sandstones

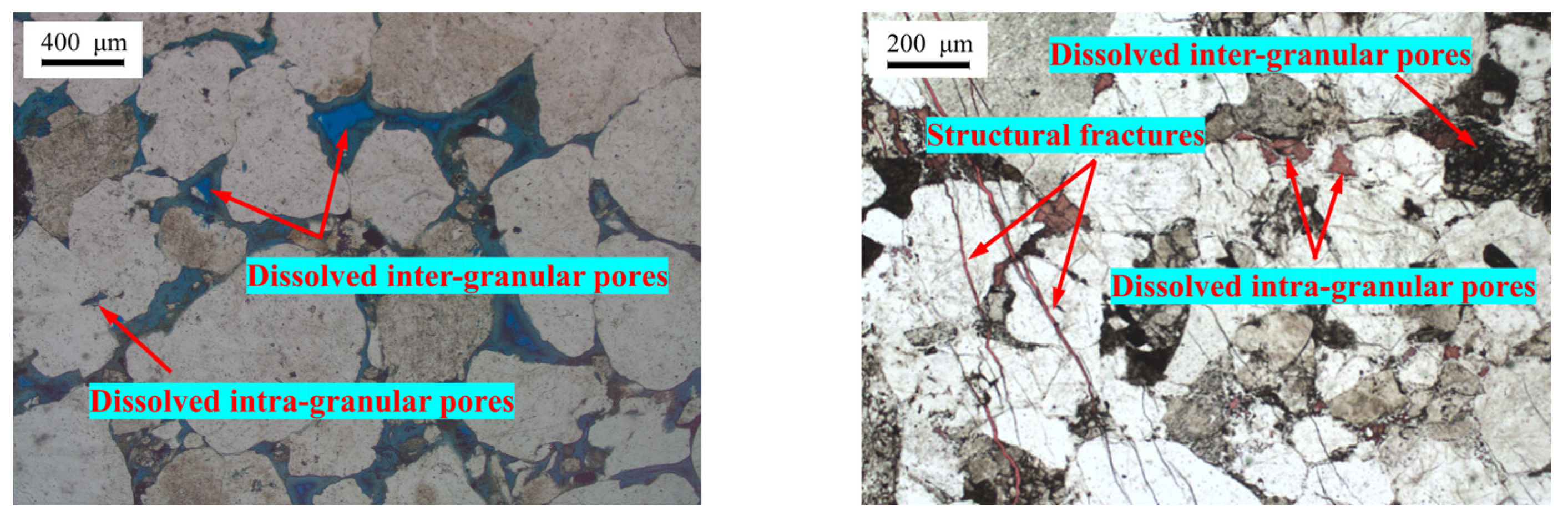

As presented in Figure 1, thin sections of cores from the Ordos Basin indicate that tight sandstones exhibit complex pore structures, including dissolved inter-granular and intra-granular pores and structural fractures. The rock physics model correlates pore parameters and elastic properties and is essential for assessing pores and microfractures using seismic-inverted attributes.

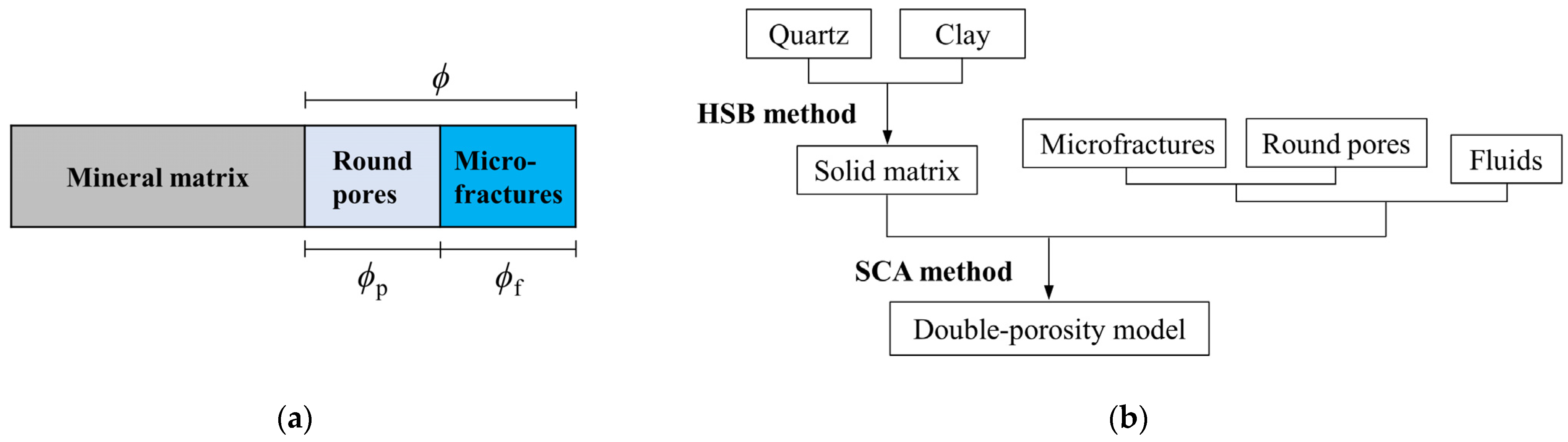

In the schematic illustration of the tight sandstone (Figure 2a), the total porosity (ϕ) of tight sandstone is divided into the spaces occupied by round pores (ϕ_p) and microfractures (ϕ_f). Hence, our rock physics modeling workflow (Figure 2b) takes into account the corresponding double-porosity model based on effective medium theories.

First, the Hashin–Shtrikman bounds (HSB) method [26] is used to capture the elastic properties of the mineral matrix, which is assumed to be chiefly composed of quartz and clay. The HSB predicts the equivalent elastic modulus of a medium in the following form:

$$K^{HS+}=\Lambda \left({\mu }_{\max }\right), K^{HS-}=\Lambda \left({\mu }_{\min }\right)$$

(1)

$${\mu }^{HS+}=\Gamma \left(\zeta \left(K_{\max },{\mu }_{\max }\right)\right), {\mu }^{HS-}=\Gamma \left(\zeta \left(K_{\min },{\mu }_{\min }\right)\right)$$

(2)

in which

$$\Lambda \left(z\right)=\langle \frac{1}{K\left(r\right)+\frac{4}{3}z}\rangle -\frac{4}{3}z, \Gamma \left(z\right)={\langle \frac{1}{\mu \left(r\right)+z}\rangle }^{-1}-z, \zeta \left(K,\mu \right)=\frac{\mu }{6}\left(\frac{9K+8\mu }{K+2\mu }\right)$$

(3)

where $K^{HS+}$ and $K^{HS-}$ represent the upper and lower limits of the equivalent bulk modulus of the solid matrix, ${\mu }^{HS+}$ and ${\mu }^{HS-}$ are the upper and lower limits of the equivalent shear modulus, $K_{\max }$ and $K_{\min }$ denote the maximum and minimum values of the bulk modulus of each component in the solid matrix, ${\mu }_{\max }$ and ${\mu }_{\min }$ are the maximum and minimum values of the corresponding shear modulus, $K\left(r\right)$ and $\mu \left(r\right)$ represent the bulk and shear modulus of the r-th component composing the solid matrix, and the parentheses $\langle \cdot \rangle$ indicate the weighted average of the components by their corresponding volume fractions.

Then, the double-porosity is modeled with the self-consistent approximation (SCA) method [27] to quantify the influences of pores and microfractures. The SCA-based theory for multi-phase media could be presented as follows:

$${{\displaystyle \sum }}_{j=1}^n{f}_j\left(K_j-K_{SC}^{*}\right)P^{*j}=0$$

(4)

$${{\displaystyle \sum }}_{j=1}^n{f}_j\left({\mu }_j-{\mu }_{SC}^{*}\right)Q^{*j}=0$$

(5)

where j represents the j-th phase and $f_j$ denotes the corresponding volume fraction, $K_j$ and ${\mu }_j$ are the bulk and shear modulus of the j-th component, $P^{*j}$ and $Q^{*j}$ are geometric factors of the inclusion added to the background medium, and finally, $K_{SC}^{*}$ and ${\mu }_{SC}^{*}$ denote the estimated equivalent bulk modulus and shear modulus.

It is assumed that the fluids are homogeneously distributed in the double-pore spaces, with the bulk modulus of the fluid mixture modeled as:

$$K_f=S_{\mathrm{w}}{K}_{\mathrm{w}}+S_{\mathrm{g}}{K}_{\mathrm{g}}$$

(6)

where $K_{\mathrm{w}}$ and $K_{\mathrm{g}}$ denote the bulk modulus of water and gas, and $S_{\mathrm{w}}$ and $S_{\mathrm{g}}$ represent water and gas saturation.

The density of the fluid mixture is computed as follows:

$${\rho }_f=S_{\mathrm{w}}{\rho }_{\mathrm{w}}+S_{\mathrm{g}}{\rho }_{\mathrm{g}}$$

(7)

where ${\rho }_{\mathrm{w}}$ and ${\rho }_{\mathrm{g}}$ are the densities of water and gas.

2.2. Estimation of Microfracture Porosity Based on the Double-Porosity Model via Well-Log Data

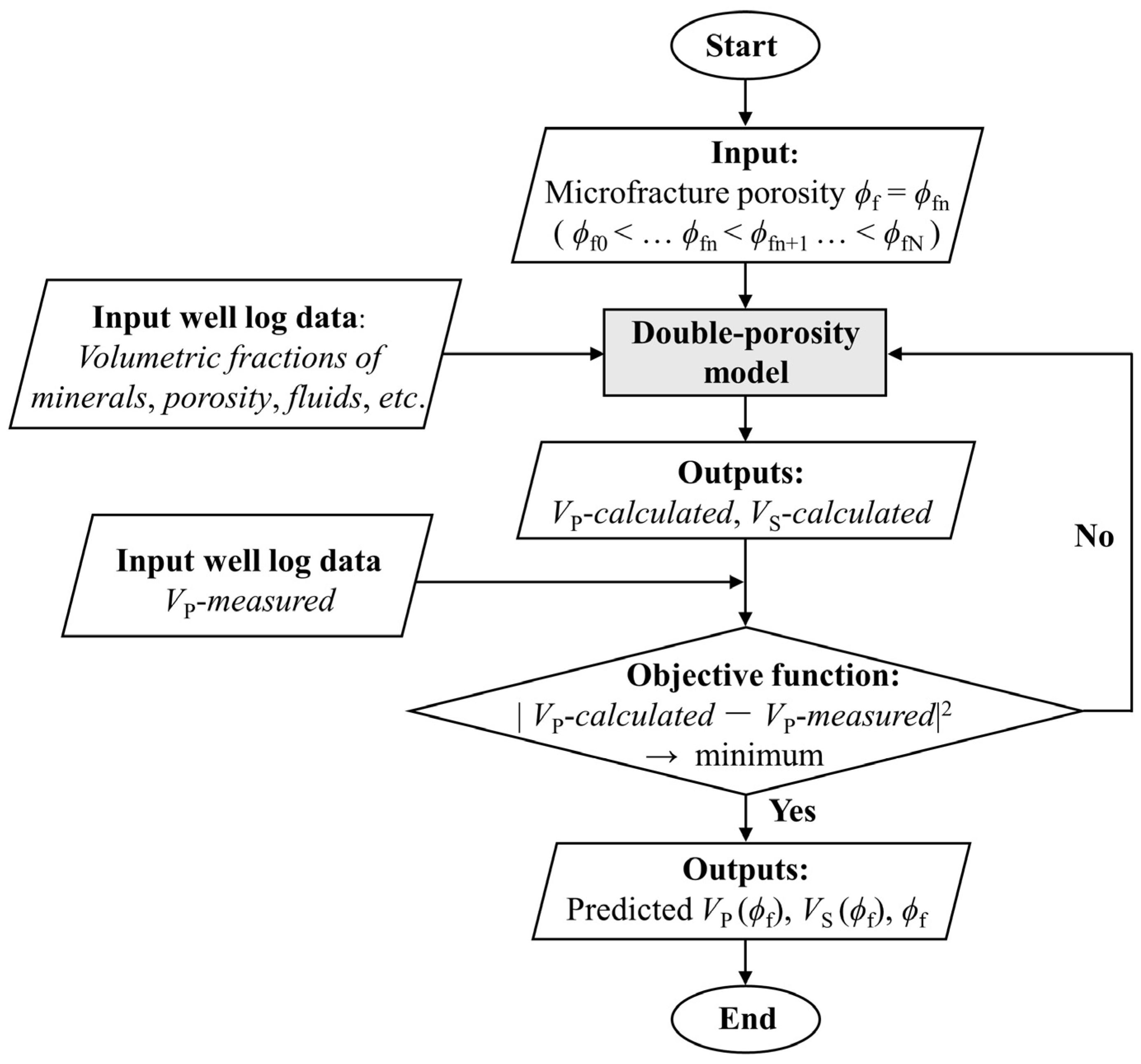

We employ the double-porosity model to estimate microfracture porosity using well-log data, as illustrated by the workflow in Figure 3. The double-porosity model plays an effective modeling tool role in the model-based inversion scheme.

Specifically, microfracture porosity (ϕ_f) is regarded as the fitting parameter to be retrieved, with the volumetric fractions of minerals, porosity, and fluids properties as inputs of the double-porosity model at each logging interval. The value of ϕ_f is estimated by finding the best match between the P-wave velocity calculated by the model (V_P-calculated) and that measured (V_P-measured) in the borehole for a particular value of ϕ_f. The straightforward grid-searching scheme is employed to realize the estimation of ϕ_f within a preset range of ϕ_f values in solving the objective function. The outputs include the predicted ϕ_f and the corresponding V_P(ϕ_f). A by-product is the simultaneously estimated V_S(ϕ_f), which gives an appropriate reference for validating the applicability of the rock physics model in practice. Repeating the above computation at each logging interval can produce the curves of the fitted V_P(ϕ_f) and predicted ϕ_f and V_S(ϕ_f).

2.3. Pore–Microfracture Indicator (PMI) Defined Using Elastic Properties

Based on the concept of the Poisson impedance (PI) [28] and the previously developed method for estimating the optimized PI [29,30], a novel pore–microfracture indicator (PMI) is proposed to appropriately describe features of pore spaces in tight sandstones by utilizing seismic attributes:

$$\mathrm{PMI}\left(\theta \right)=I_{\mathrm{P}}\cos \theta -V_{\mathrm{P}}/V_{\mathrm{S}}\sin \theta$$

(8)

where I_P represents P-wave impedance, V_P/V_S is velocity ratio, and θ denotes the rotation angle transferring I_P and V_P/V_S to PMI.

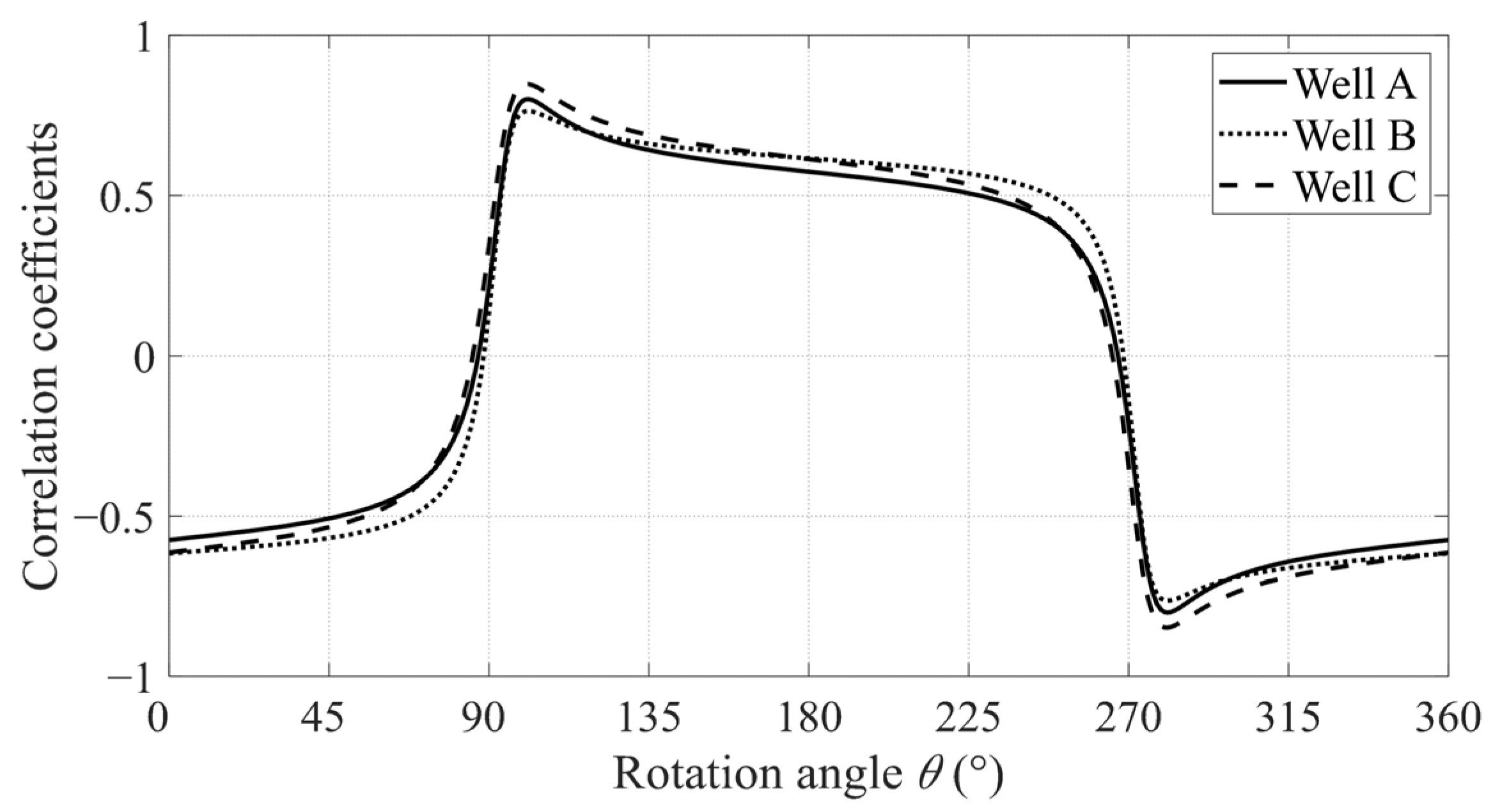

In practice, the optimized θ_max value is determined by seeking the maximum correlation between PMI(θ) and the factor ϕ × ϕ_f using well-log data. Herein, the factor ϕ × ϕ_f is utilized to describe characteristics of pore spaces since both total porosity (ϕ) and microfracture porosity (ϕ_f) are vital for improving the permeability of tight sandstones. In this case, the obtained PMI(θ_max) exhibits the maximum correlation with ϕ × ϕ_f and is employed to assess permeable zones in tight sandstones. In the following sections, the effectiveness of PMI(θ_max) for evaluating the factor ϕ × ϕ_f is proved.

3. Results

3.1. Study Area and Datasets

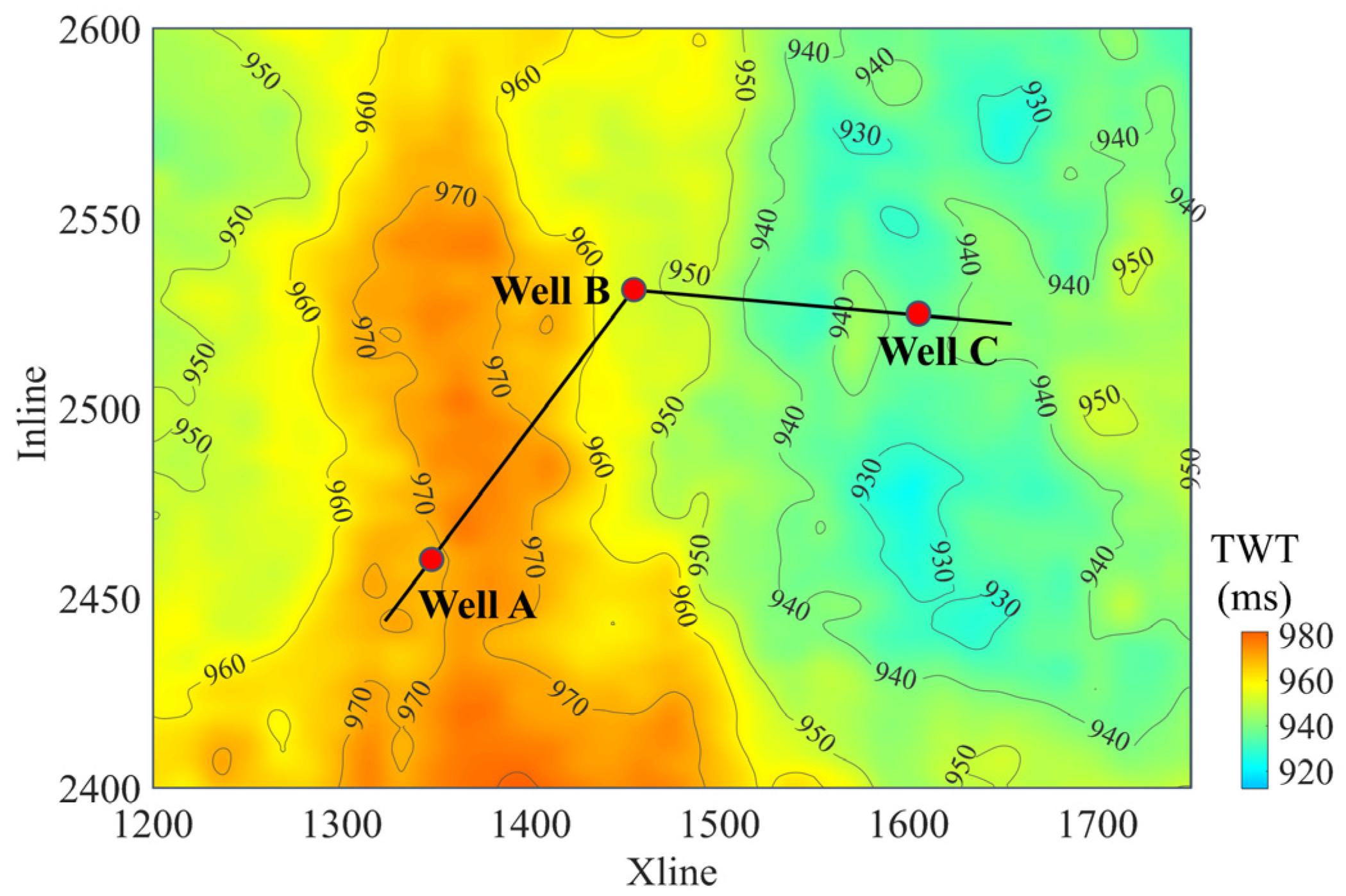

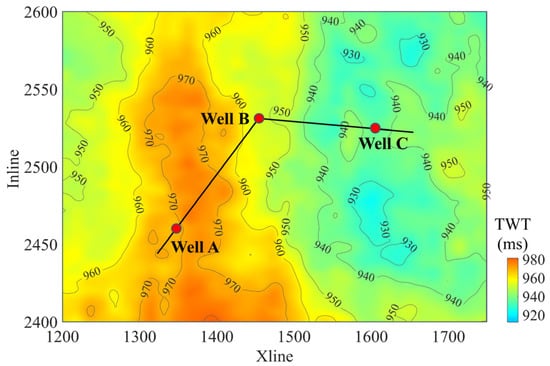

Our study area is located on the eastern margin of the Ordos Basin. Seismic data are collected by implementing a three-dimensional (3D) seismic prospecting method in the understudied region. As shown by the two-way travel time (TWT) of seismic reflections from the target tight sandstone (see Figure 4), the tectonic structure in the study area is relatively simple. Seismic lines and the locations of three gas-producing wells have been demonstrated in Figure 4.

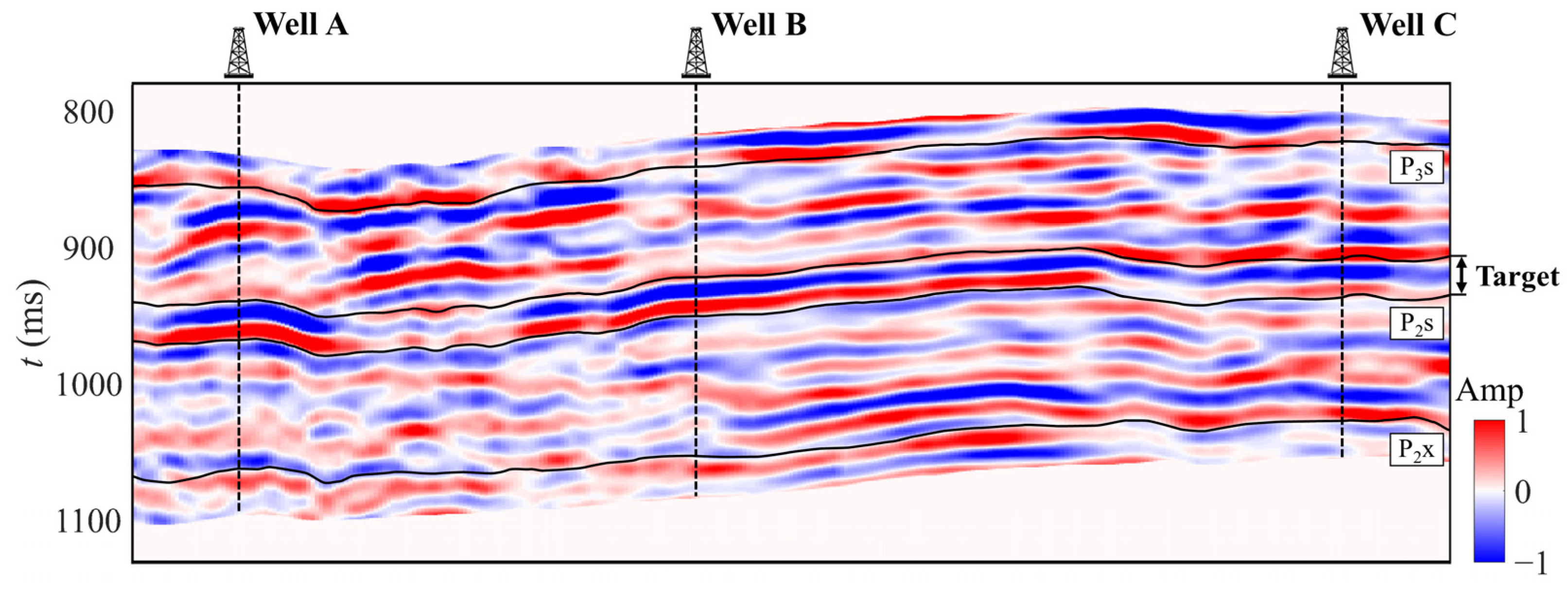

Figure 5 displays the cross-well seismic section where the interpreted horizons and the target interval of the tight gas sandstone formation are illustrated. The sampling interval of the seismic data is 1 ms. The 3D cubes of elastic wave velocities and bulk density are obtained via the pre-stack seismic inversion, which will be used to quantitatively interpret pores and microfractures based on the method proposed in Section 2.3. The well-log curves measured in the three wells are employed to capture microfracture porosity with the model-based method in Figure 3.

3.2. Prediction of the Microfracture Porosity in Tight Sandstones Using Well-Log Data

To estimate the factor ϕ × ϕ_f proposed in Section 2.3, we should evaluate ϕ and ϕ_f appropriately. The total porosity (ϕ) can be obtained from the standard logging curve. Microfracture porosity (ϕ_f) is computed with the method presented in Section 2.2 using well-log data, with the predicted results shown in Figure 6. The properties of the minerals and fluids used in the method are provided in

Table 1. Properties of constituents used for the rock physics modeling [31].

Properties	Clay	Quartz	Water	Gas
K (GPa)	21.00	36.60	2.25	0.012
μ (GPa)	7.00	45.00	0.00	0.000
ρ (g/cm3)	2.60	2.65	1.04	0.078

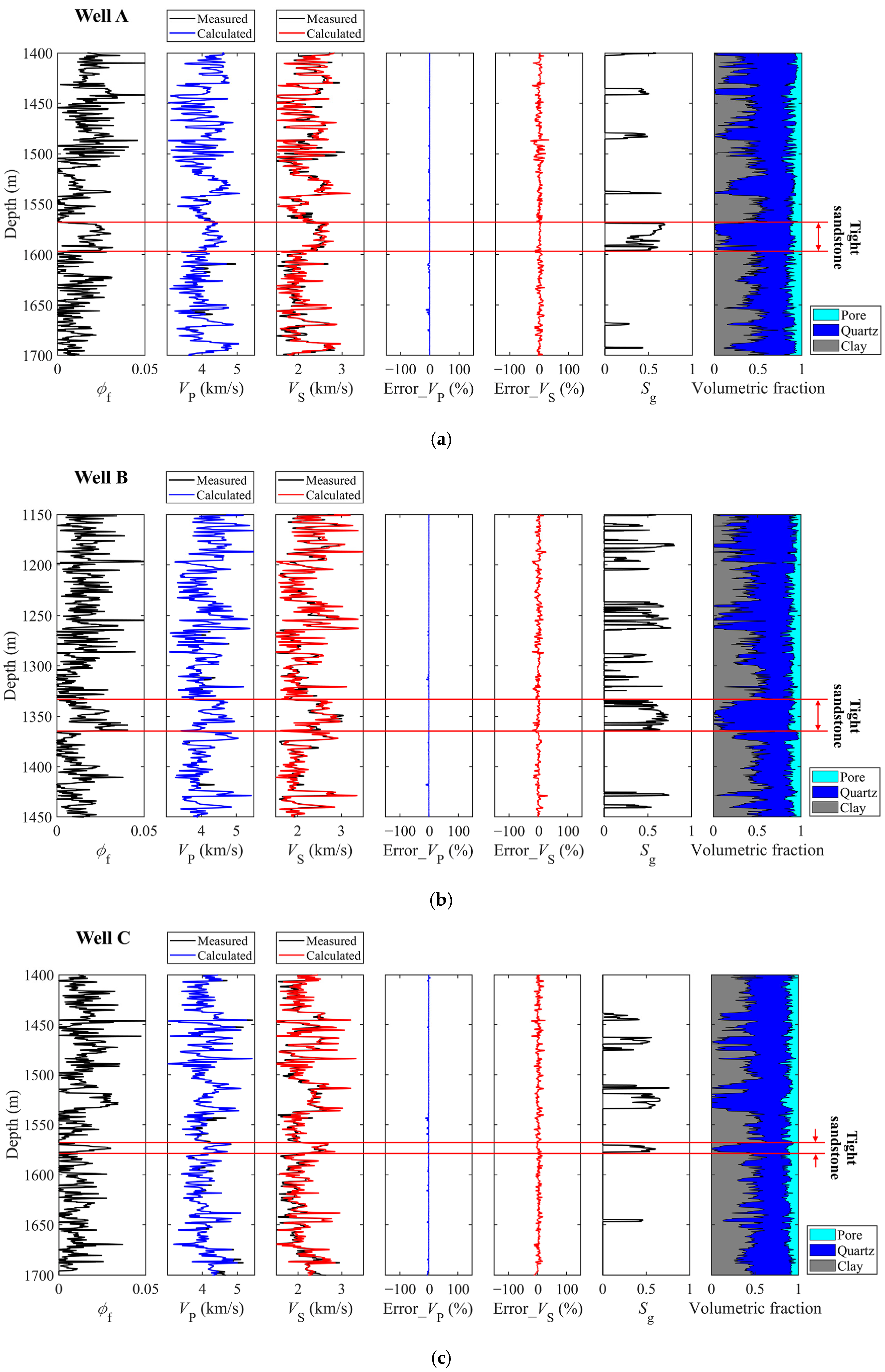

. The values of ϕ_f are predicted by fitting the V_P obtained with the double-porosity model (blue curves) and the V_P measured in the borehole (black curves). As illustrated by the relative errors in V_P estimation for all three wells, the calculated V_P rationally fits with the measured V_P, demonstrating the applicability of the proposed model and the corresponding method for ϕ_f estimation in the tight gas sandstone of the understudied area.

Meanwhile, the relative errors in vs. estimation show that the predicted vs. values (red curves) are in good agreement with the measured vs. values (black curves). Quantitative analysis indicates that the averaged correlation coefficients of the predicted and measured vs. curves are 0.93, 0.95, and 0.93 in wells A, B, and C. The averaged relative errors are 4.6%, 4.4%, and 4.6% in these 3 wells. The vs. prediction results somehow justify the proposed method.

3.3. Calculation of the PMI for Pore and Microfracture Evaluation in Tight Gas Sandstones

The factor ϕ × ϕ_f is now computed using the measured total porosity (ϕ) and the estimated microfracture porosity (ϕ_f), with the results presented in Figure 7. Based on the method described in Section 2.3, the PMI is then computed for various rotation angles (θ), where the optimization of θ (i.e., θ_max) is evaluated by finding the maximum correlation between PMI(θ) and ϕ × ϕ_f. As demonstrated in Figure 8, the computed correlation coefficients for various values of θ values indicate that its optimized value (θ_max) is approximately equal to 101° for the three wells (see Figure 8). The corresponding curves of the PMI for θ_max = 101° are displayed in Figure 7.

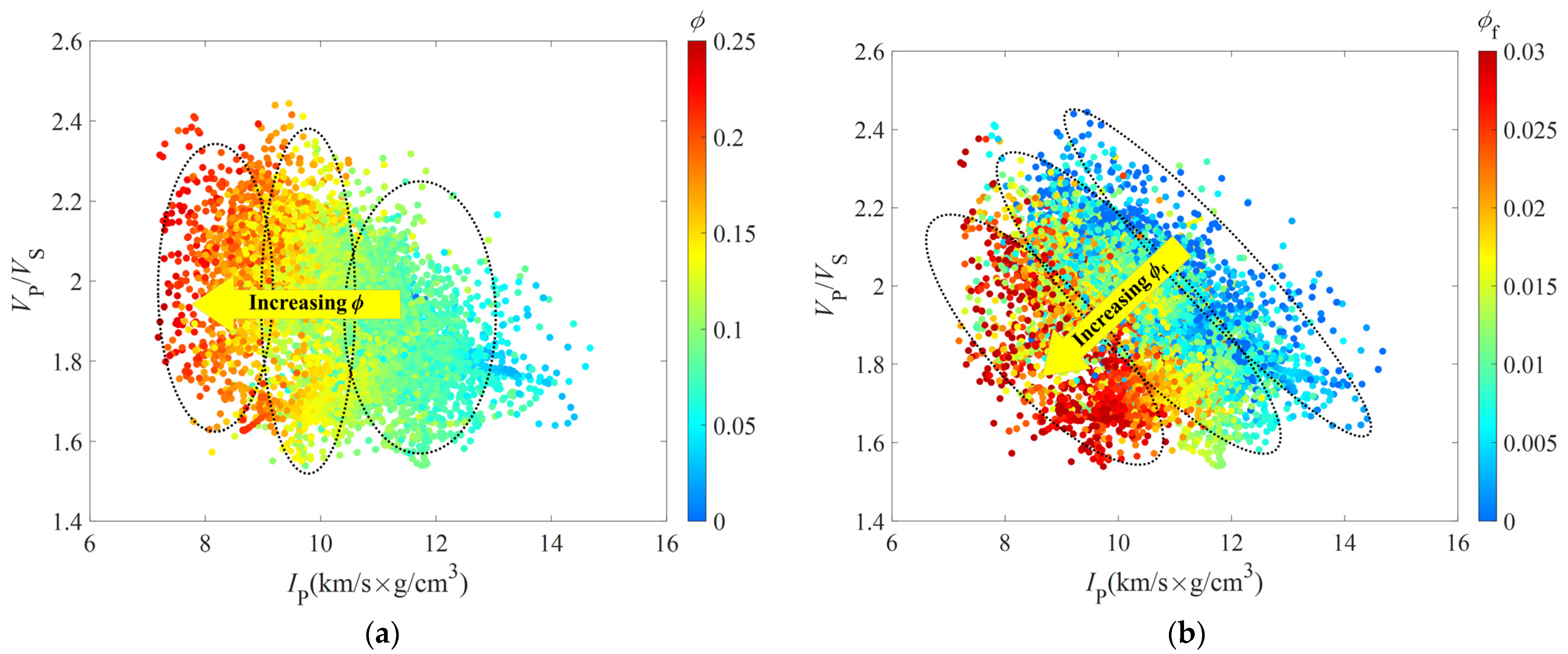

Based on the presented results in Figure 6 and Figure 7, the cross-plots of V_P/V_S and I_P color-coded by ϕ and ϕ_f are illustrated in Figure 9a,b, respectively. The obtained results indicate that ϕ can be distinguished by I_P such that the growth of ϕ is associated with the decreasing I_P for all V_P/V_S cases (see Figure 9a). On the other hand, as demonstrated in Figure 9b, data points with various values of ϕ_f exhibit particular clusters. Specifically, the increase in ϕ_f corresponds to the lessening of both V_P/V_S and I_P.

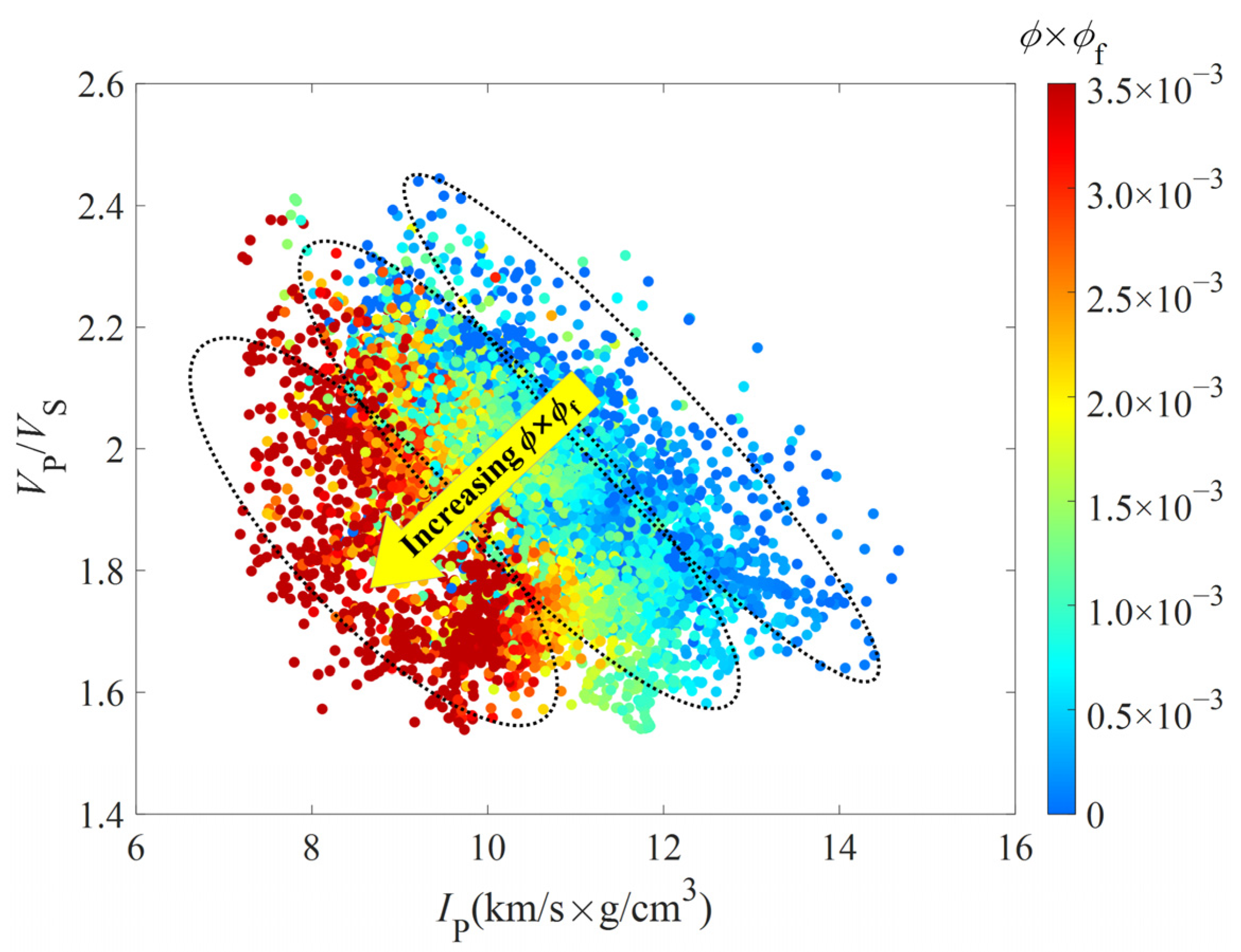

The data points have identical distributions in Figure 9b and Figure 10. As illustrated by the color-coded legends, however, the data points with different values of ϕ × ϕ_f (see Figure 10) exhibit more focusing and separable characteristics than those with varying ϕ_f (see Figure 9b). Therefore, the obtained results reveal that the discrimination of ϕ × ϕ_f based on elastic properties V_P/V_S and I_P could be more reliable than the discrimination of an individual factor ϕ_f based on the same elastic properties. At the same time, the factor ϕ × ϕ_f exhibits a more rational evaluation of high-quality tight sandstones because total porosity and microfracture porosity present inclusive influences on the gas storage capacity and the rock’s permeability.

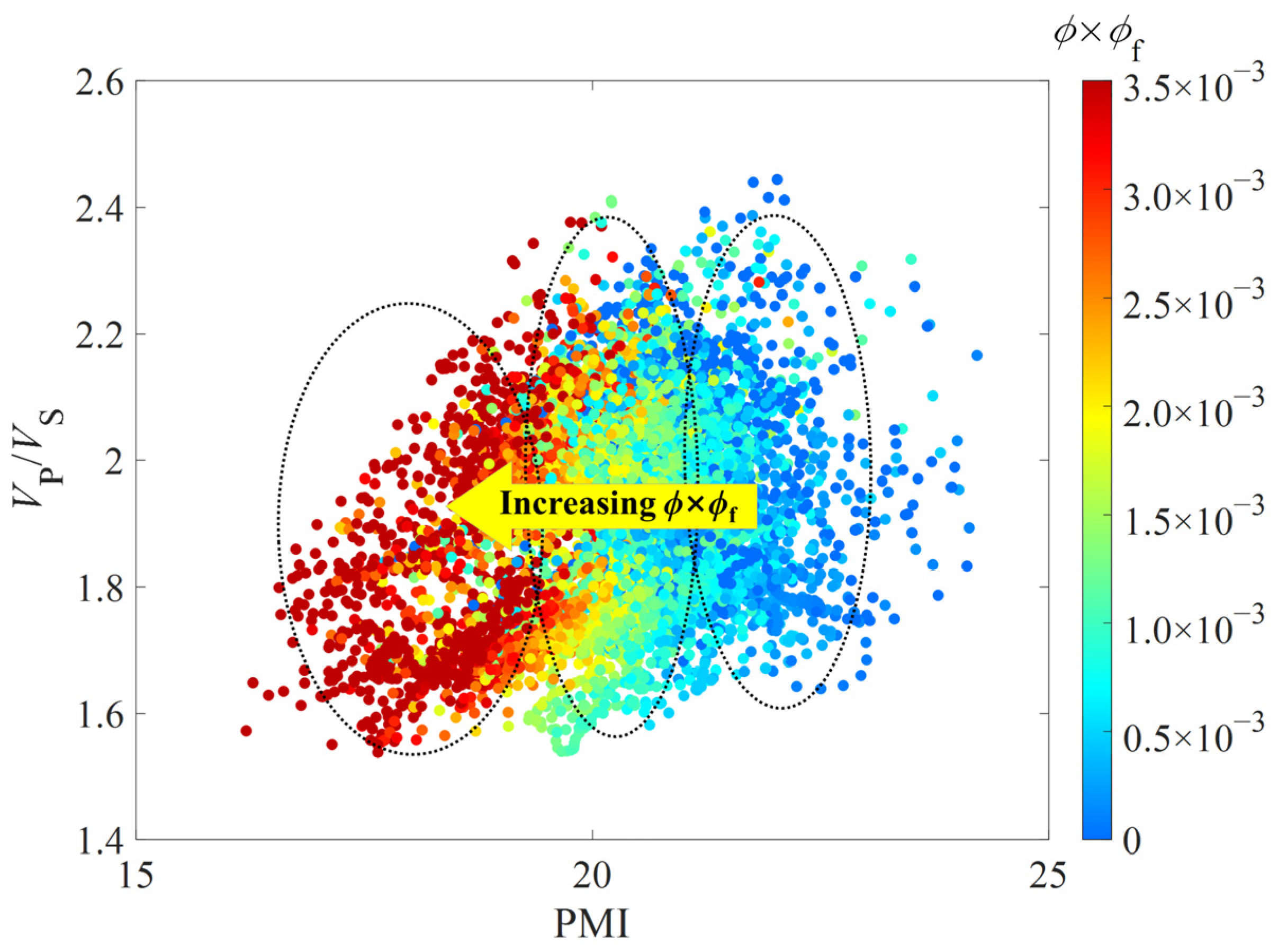

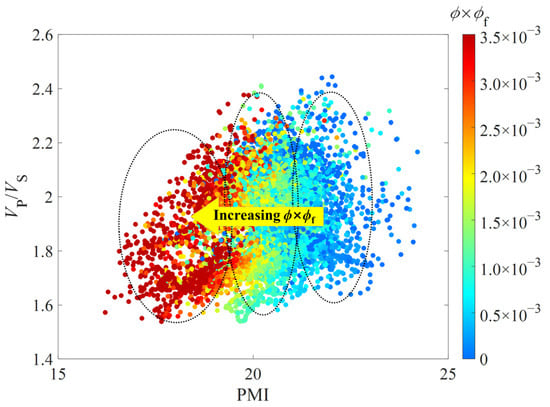

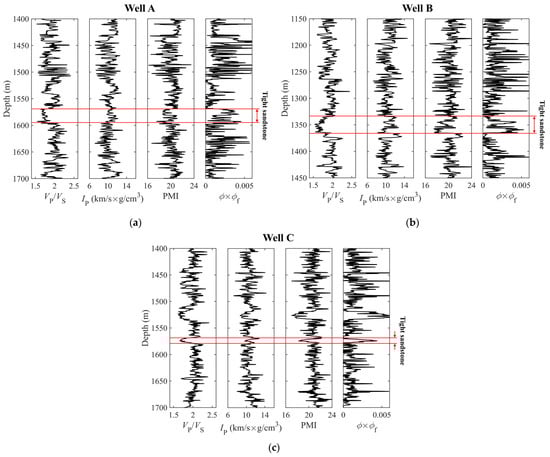

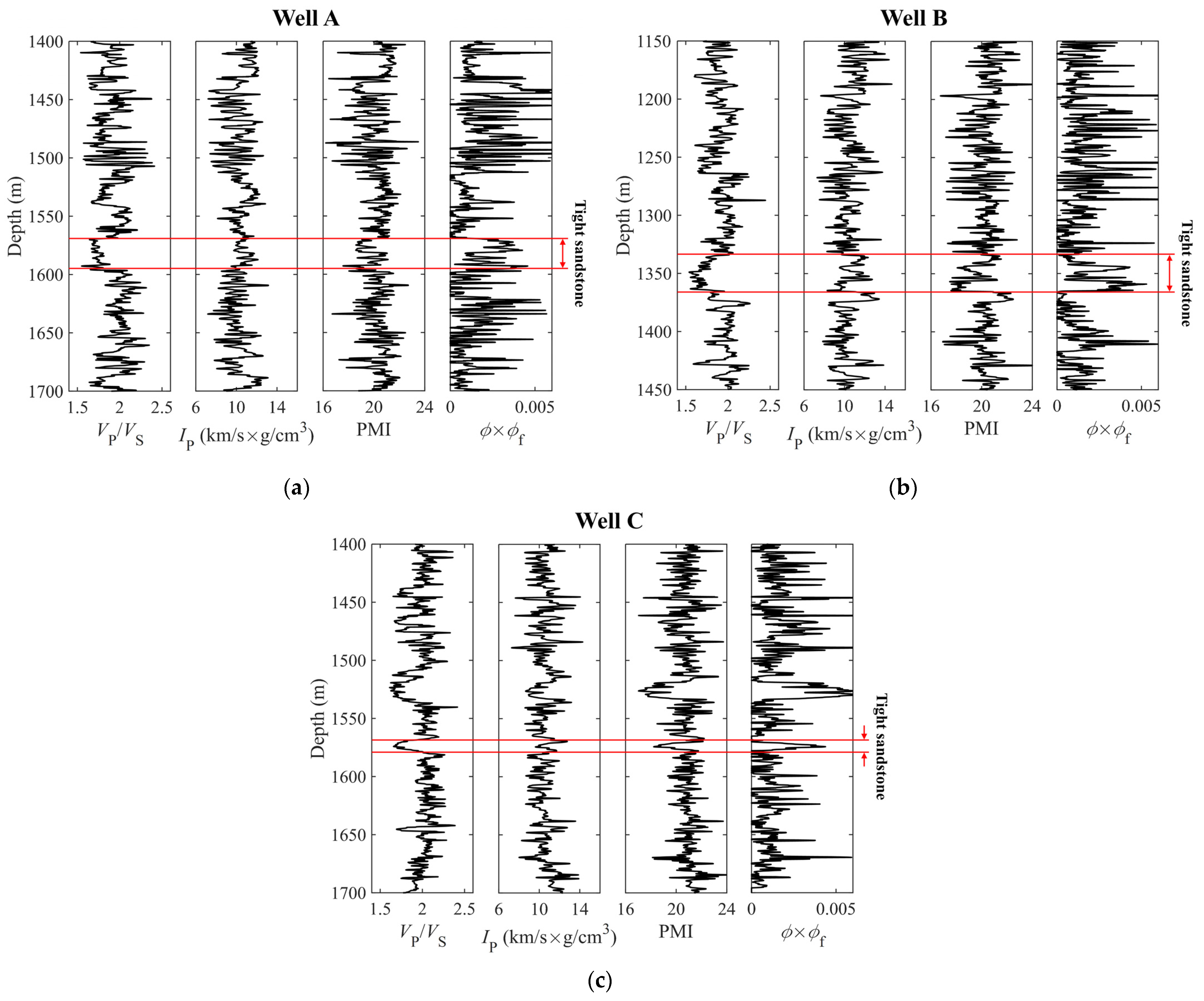

Figure 11 illustrates the cross-plot of V_P/V_S and PMI color-coded by ϕ × ϕ_f. The values of PMI are estimated as illustrated in Figure 7. It shows that the PMI exhibits a good correlation with ϕ × ϕ_f, where the increase in ϕ × ϕ_f is associated with the lessening of the PMI. The results suggest that the PMI acts as a rational indicator to evaluate the development of pores and microfractures in tight sandstones.

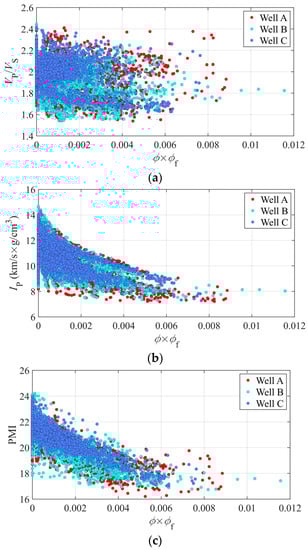

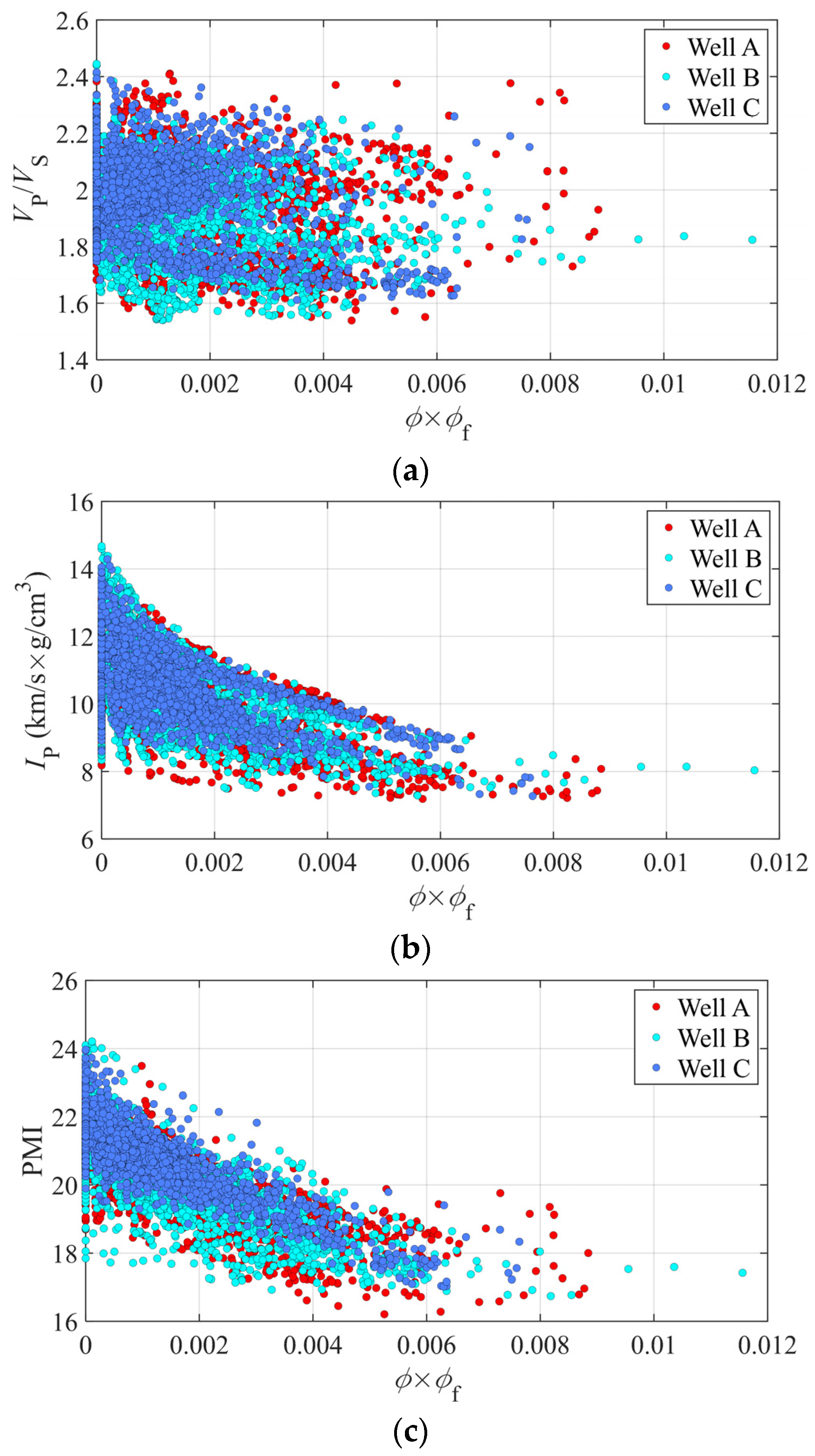

Furthermore, Figure 12 compares the responses of various parameters to the factor ϕ × ϕ_f. The results demonstrate that ϕ × ϕ_f presents no correlation with V_P/V_S (see Figure 12a). In contrast, ϕ × ϕ_f exhibits a visible negative correlation with I_P (see Figure 12b), while the correlation between ϕ × ϕ_f and the PMI is more noticeable (see Figure 12c). The obtained results further confirm the applicability of the PMI as an indicator to assess the pore space in tight sandstones.

3.4. Estimation of the PMI Using Seismic Data

The plotted results in Figure 11 and Figure 12c suggest that the proposed PMI exhibits a distinct correlation with ϕ × ϕ_f; therefore, it can be utilized to discriminate permeable zones with highly developed pores and microfractures in tight gas sandstone reservoirs. Subsequently, based on Equation (8) and the estimated θ_max, we converted seismic-inverted V_P/V_S and I_P (Figure 13 and Figure 14) to the PMI (Figure 15).

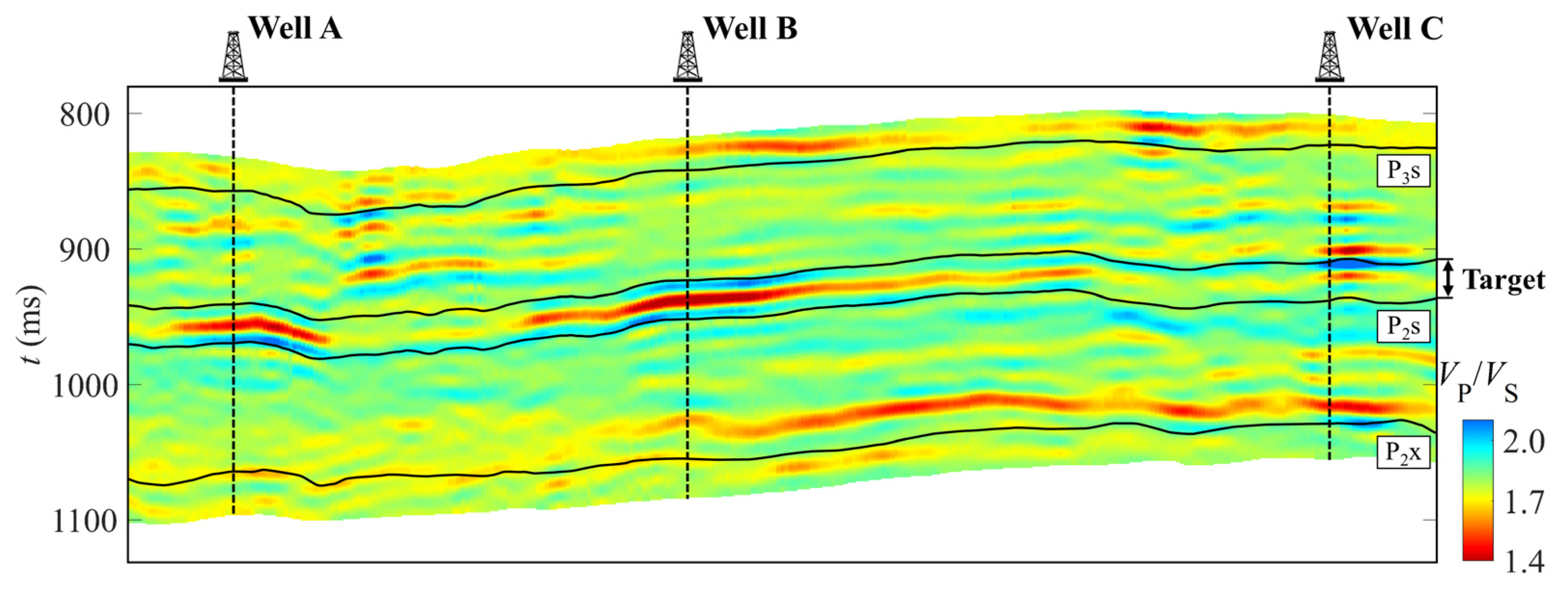

In general, low values of V_P/V_S in Figure 13 indicate high gas potential in tight sandstone. Estimated using well-log data, averaged gas saturations of tight sandstone reservoirs in the target formation are approximately equal to 0.56, 0.60, and 0.45 in wells A, B, and C. This result is consistent with the relative magnitude of the V_P/V_S value for the target layer in Figure 13. Meanwhile, as Figure 9a suggests, low I_P values in Figure 14 present areas with high total porosity (ϕ). The averaged porosities of the tight sandstone reservoirs measured based on the log data in the three boreholes are somehow comparable, which are 0.14, 0.11, and 0.13 in wells A, B, and C, respectively. The tight sandstone with low I_P in well B exhibits a thinner layer thickness, corresponding to a slight drop in averaged porosity obtained in the borehole.

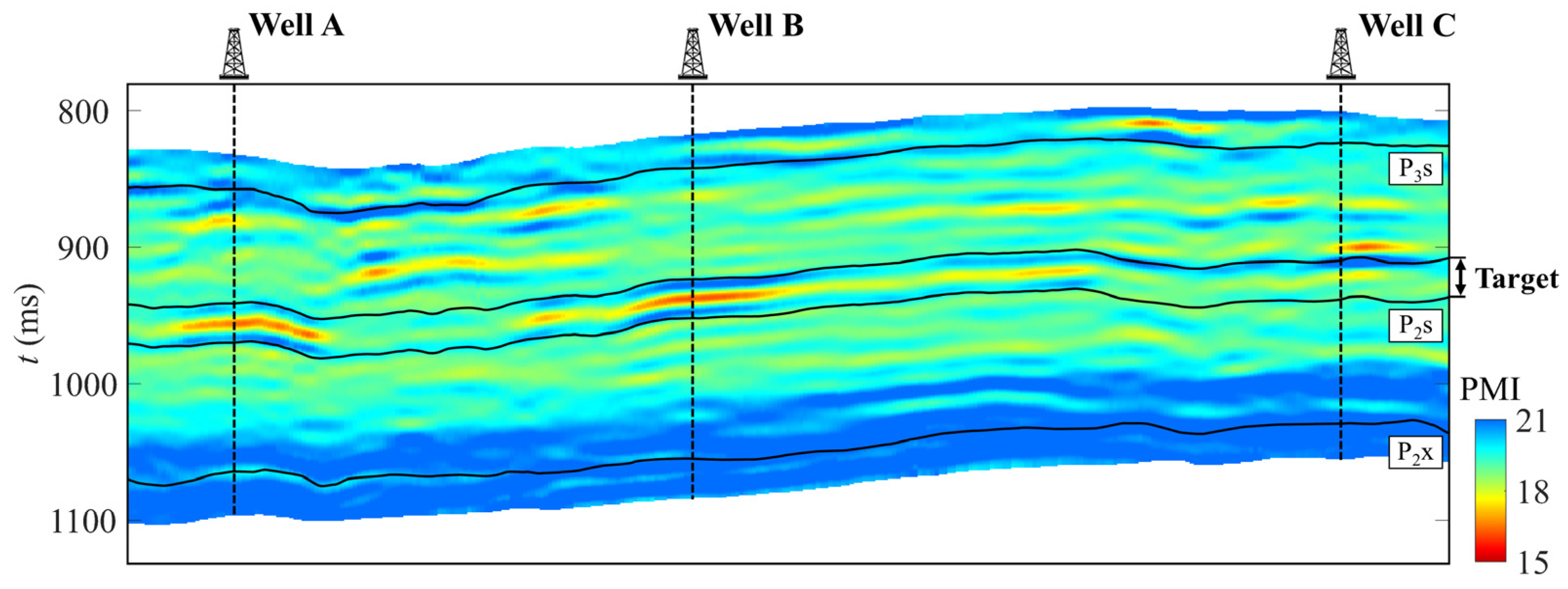

As discussed above, the computed PMI in Figure 15 performs as an indicator for detecting permeable zones with high total porosity and microfracture porosity. The difference between PMI (see Figure 15) and I_P (see Figure 14) could reflect the presence of microfractures. Further, the averaged permeability values estimated using well-log data are 1.96, 2.59, and 1.05 mD for the tight sandstone reservoirs in wells A, B, and C, with their relative magnitudes agreeing with the PMI anomalies presented in Figure 15.

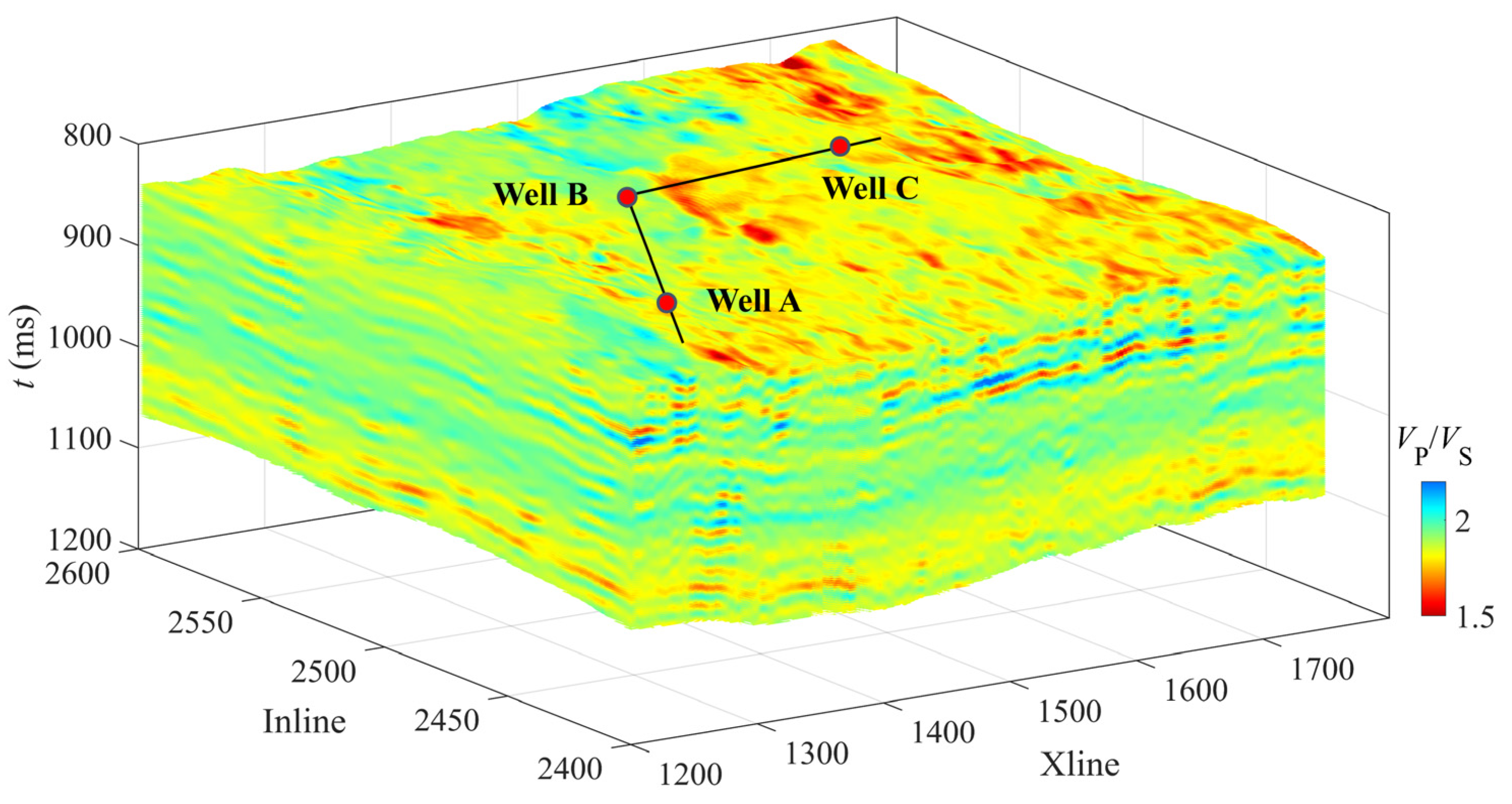

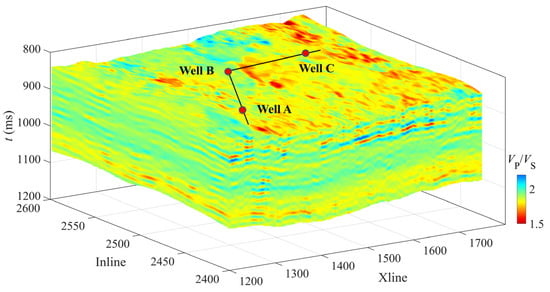

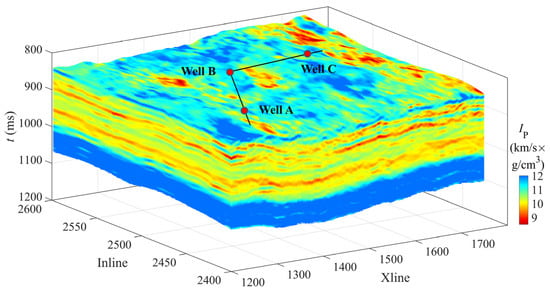

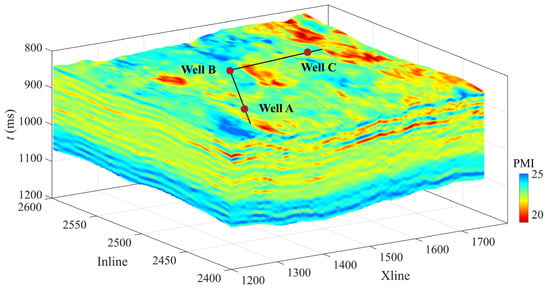

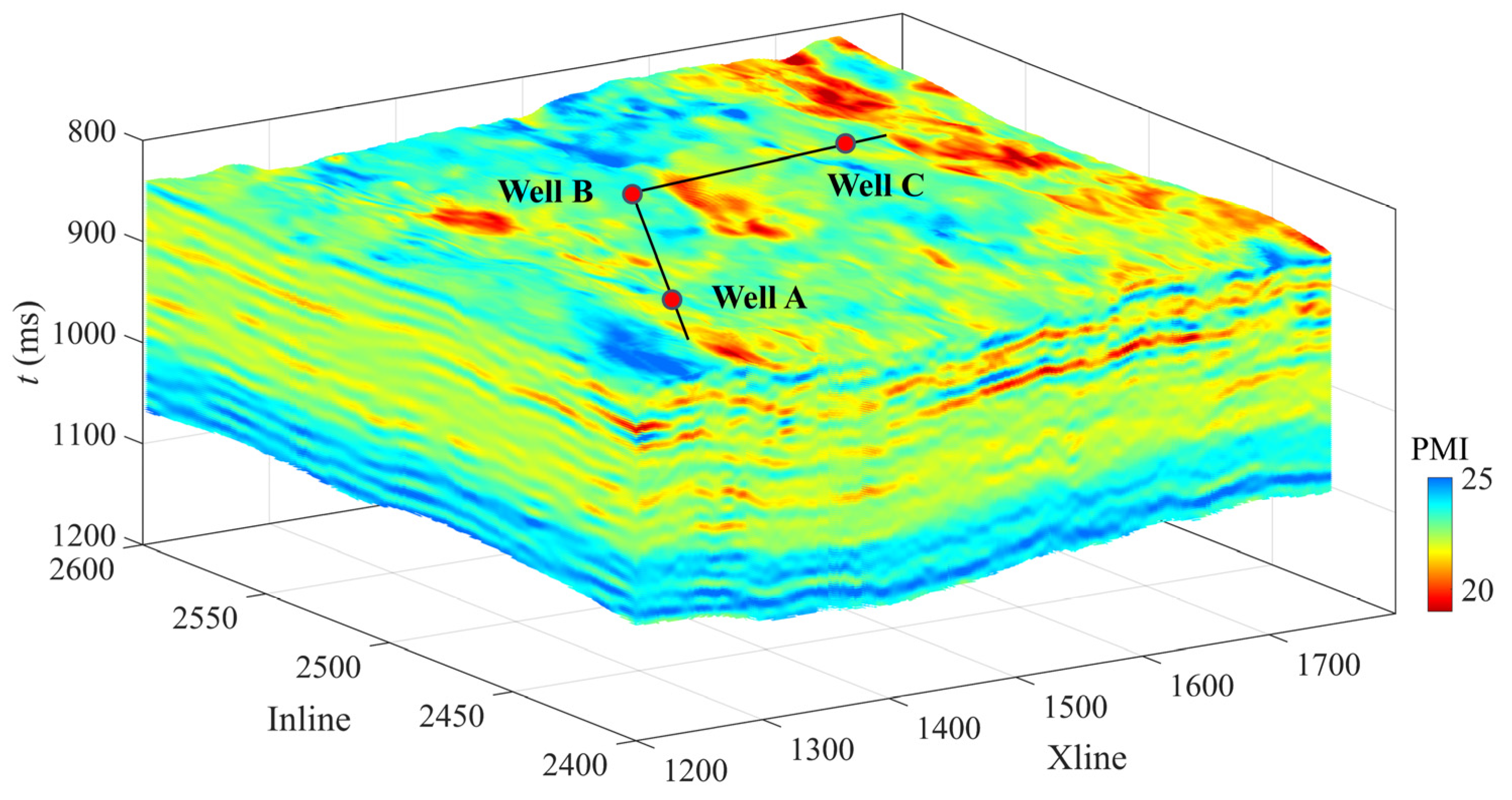

Finally, the cubes of V_P/V_S, I_P, and PMI are illustrated in Figure 16, Figure 17 and Figure 18, giving useful information for the characterization of the tight gas sandstone reservoirs.

4. Discussions

4.1. Construction of the PMI for Pore and Microfracture Characterization in Tight Sandstones

The distribution pattern of data clusters with variable ϕ × ϕ_f in the V_P/V_S–I_P space (see Figure 10) inspired us to propose PMI based on Equation (8). Although the data clouds the present separated distribution in Figure 10, direct estimation of the factor ϕ × ϕ_f is not simple. We determined the optimized rotation angle (i.e., θ_max) in Equation (8) by finding the maximum correlation coefficient between the factor ϕ × ϕ_f and the linearized combination of V_P/V_S and I_P, with the results illustrated in Figure 8. Consequently, data clouds with different values of ϕ × ϕ_f in the rotated space can be conveniently identified by the PMI at θ_max (see Figure 11).

The method presented in the present study can be regarded as an extension of the commonly used Poisson impedance [28]. One merit of our proposed PMI is to give valuable information for pore and microfracture evaluation in tight gas sandstone reservoirs, which has not been thoroughly revealed by most current methods based on elastic properties. At the same time, the proposed method is rock-physics-based, not solely depending on straightforward well-log data analysis like the Poisson impedance. Specifically, the construction of the PMI incorporates the microfracture porosity (ϕ_f), which is predicted by the double-porosity model using well-log data (see Figure 6). The microfracture porosity is a crucial constituent in the factor ϕ × ϕ_f and cannot be directly measured in a borehole. Nevertheless, the impact of ϕ_f or ϕ × ϕ_f on the rock permeability and the gas productivity of tight sandstone reservoirs deserves further explorations when more well-log and production data are available in the future.

4.2. Applicability of the Double-Porosity Model for Tight Sandstones

Successful application of the PMI for pore and microfracture evaluation relies on the reliable estimation of ϕ_f. Accordingly, a rational modeling approach is of great significance for tight sandstones. In this paper, the double-porosity model (see Figure 2) is employed based on the geological understanding of tight sandstones in the understudied area (see Figure 1). The double-porosity model offers an effective approach for predicting microfracture porosity based on the scheme proposed in Figure 3. As demonstrated in Figure 6, the modeling of elastic wave velocities validates the effectiveness of the double-porosity model for tight sandstones in the understudied area. Subsequently, the obtained ϕ × ϕ_f is utilized to introduce the PMI for pore and microfracture characterization in tight sandstones (see Figure 7).

Therefore, the double-porosity model could be employed for the tight sandstones in the study area. However, in future investigations, other sophisticated models could be developed based on a better understanding of pore structures for improved modeling of elastic responses in tight sandstones. The double-porosity model used in this paper assumes a uniform mixture of multi-phase fluids (gas and water) in pore spaces. However, heterogeneous distributions of fluids and the associated dispersion and attenuation should be explored in future studies. Accordingly, one aspect that should be noted is the applicable frequency bands of the modeling method. Herein, after predicting ϕ_f with the double-porosity model based on the log data (see Figure 6), the PMI is constructed (see Figure 7, Figure 8, and Figure 11) and subsequently applied to the seismic data (see Figure 13, Figure 14, Figure 15, Figure 16, Figure 17 and Figure 18). This process does not consider the potential velocity dispersion, which deserves further exploration via more sophisticated modeling methods. Another limitation is that the double-porosity model and the PMI do not consider high-angle tectonic fractures. However, the vertical fractures are modeled by the anisotropic model and detected with azimuthal seismic inversion, which is another significant research area in facture characterization.

4.3. Potential Applications of the PMI

As mentioned above, the proposed PMI provides helpful information for pore and microfracture evaluation in tight sandstones. One potential application of the PMI estimation results (see Figure 18) is to comprehensively characterize sweet spots in tight gas sandstone reservoirs by incorporating the results of gas prediction using V_P/V_S (see Figure 16) and porosity estimation based on I_P (see Figure 17).

Furthermore, the proposed PMI could be incorporated into the seismic inversion scheme [32,33,34] to directly predict PMI using pre-stack seismic data. In addition, the presented method for constructing PMI in this paper could inspire the development of other effective indicators for pore and fluid identification.

5. Conclusions

This paper proposed a new method to compute PMI as an indicator for pore and microfracture characterization in tight gas sandstone reservoirs. The PMI was constructed based on the rock physics estimation of microfractures using well-log data, and it was subsequently applied to seismic-inverted elastic properties for detecting permeable zones in tight sandstones. The main obtained results include the following:

• The rock-physics-based PMI is an estimation of the factor ϕ × ϕ_f, representing the comprehensive effect of pores and microfractures. Therefore, the proposed PMI provides essential information in predicting high-quality tight gas sandstone reservoirs.
• The double-porosity model exhibits an effective tool for describing complex pore structures in tight sandstones in the study area. The modeling results of elastic wave velocities using well-log data confirmed the applicability of the double-porosity model. The computed microfracture porosity is a significant factor in defining the factor ϕ × ϕ_f and subsequently introducing PMI.
• The proposed PMI evaluates pore features and could be further employed to comprehensively characterize tight gas sandstones by incorporating other reservoir properties estimated with seismic methods.

In future studies, the obtained PMI should be calibrated based on available petrophysical data and the production status of gas-producing wells. Meanwhile, other sophisticated modeling methods can be developed for tight sandstones based on an enhanced understanding of pore structures and the advancement of rock physics theories. In addition, the method to obtain PMI could inspire the construction of other fluid and fracture identification indicators.
