A Multi-Cycle Echo Energy Concentration Method for High-Mobility Targets Enveloped by Time-Varying Plasma Sheath

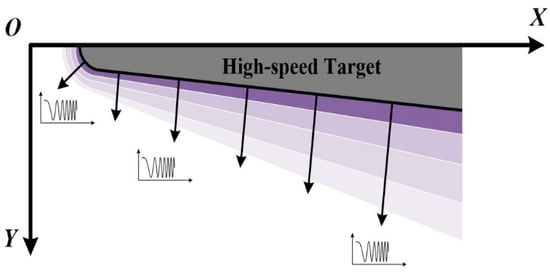

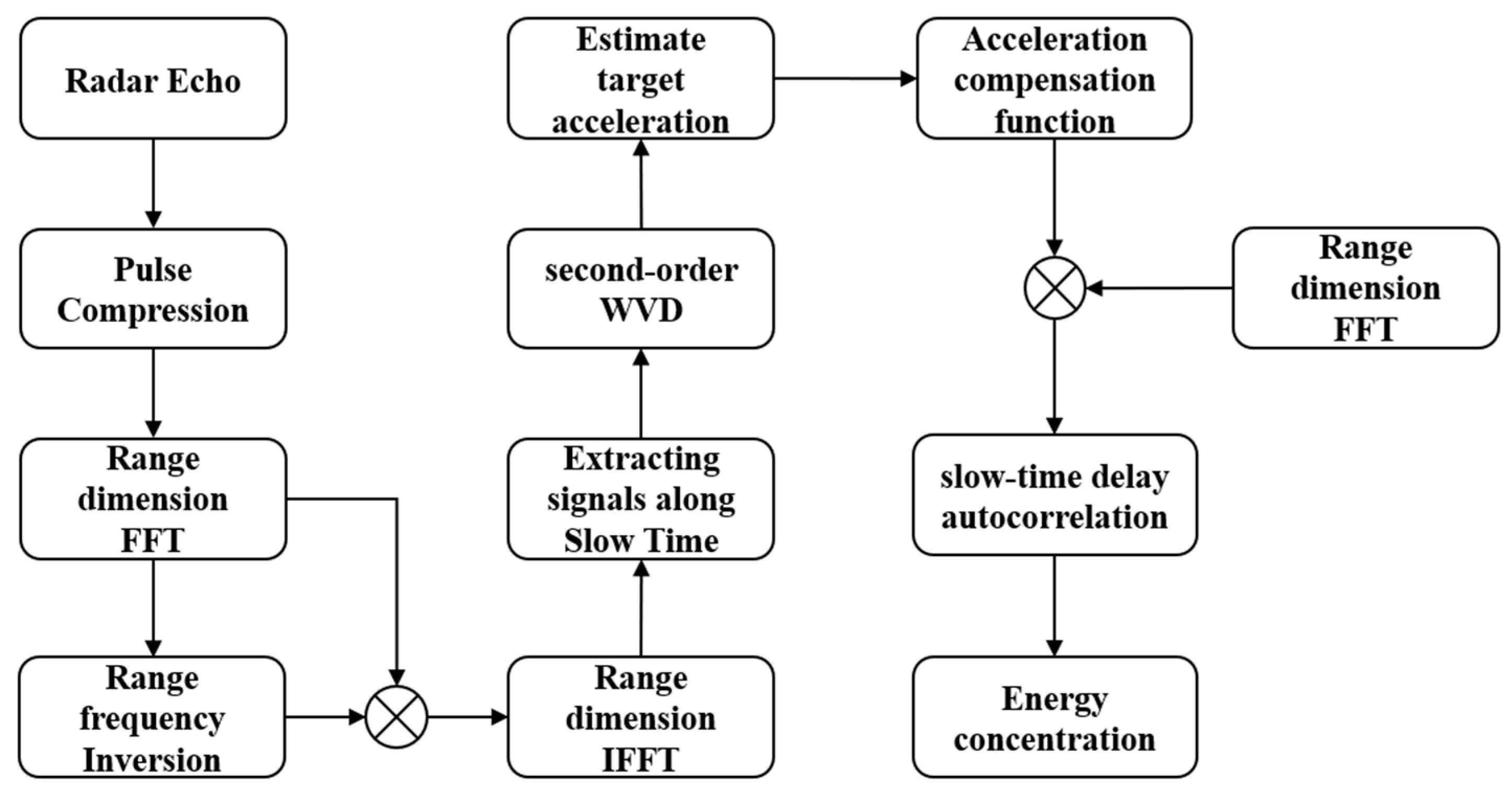

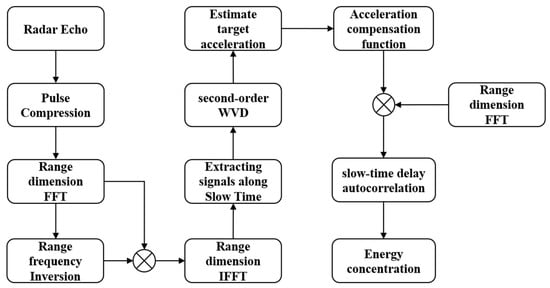

When a target moves at hypersonic speed, the aerodynamic thermal effect will cause air molecules to form a plasma sheath that envelopes the outer surface of the target, which consists of a large number of charged particles. The plasma sheath imposes a complicated modulation effect on the radar echo signal in terms of amplitude, phase, and frequency. When the plasma sheath is time-varying, the inter-pulse coherence of the multi-cycle echo signals is severely disrupted, resulting in the failure of coherent accumulation. To address the problem of abnormal inter-pulse energy accumulation in targets covered with time-varying plasma sheaths, we analyzed the dynamic modulation effects of time-varying plasma sheaths on echo signals and constructed a radar echo model enveloped with time-varying plasma sheaths. Based on this, we propose a method for inter-pulse energy concentration of multi-cycle echo signals based on range-frequency inversion, second-order Wigner–Ville distribution (WVD), and slow-time symmetric auto-correlation. The proposed method is capable of realizing energy concentration for targets enveloped with time-varying plasma sheaths and can accurately estimate the motion parameters of the target. The effectiveness of our proposed method has been verified via simulation analysis of multi-cycle echo signals from targets enveloped with time-varying plasma sheaths, and the reliability of the method has been further validated through statistical experimental analysis.
