Uncovering a Seismogenic Fault in Southern Iran through Co-Seismic Deformation of the Mw 6.1 Doublet Earthquake of 14 November 2021

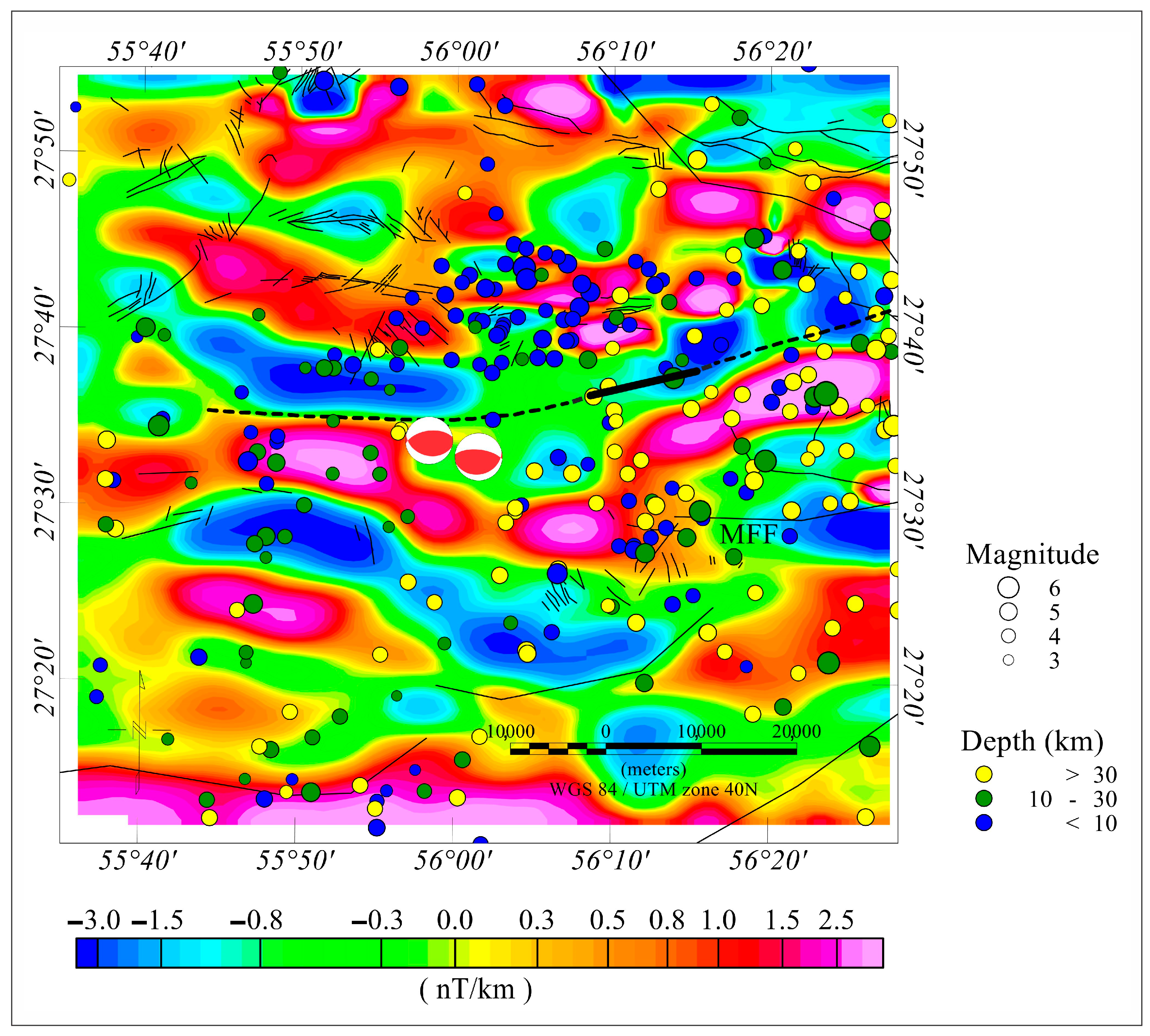

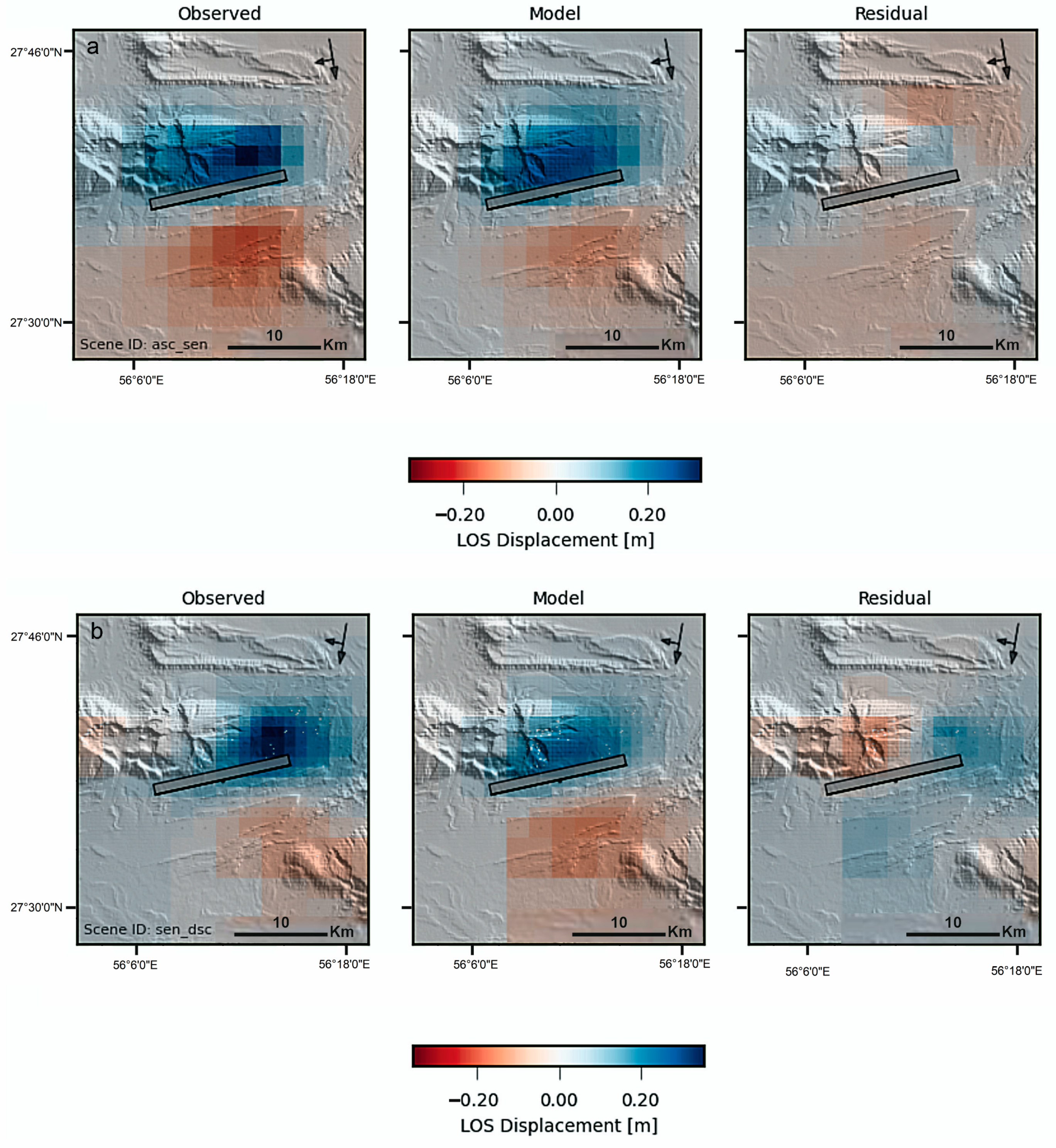

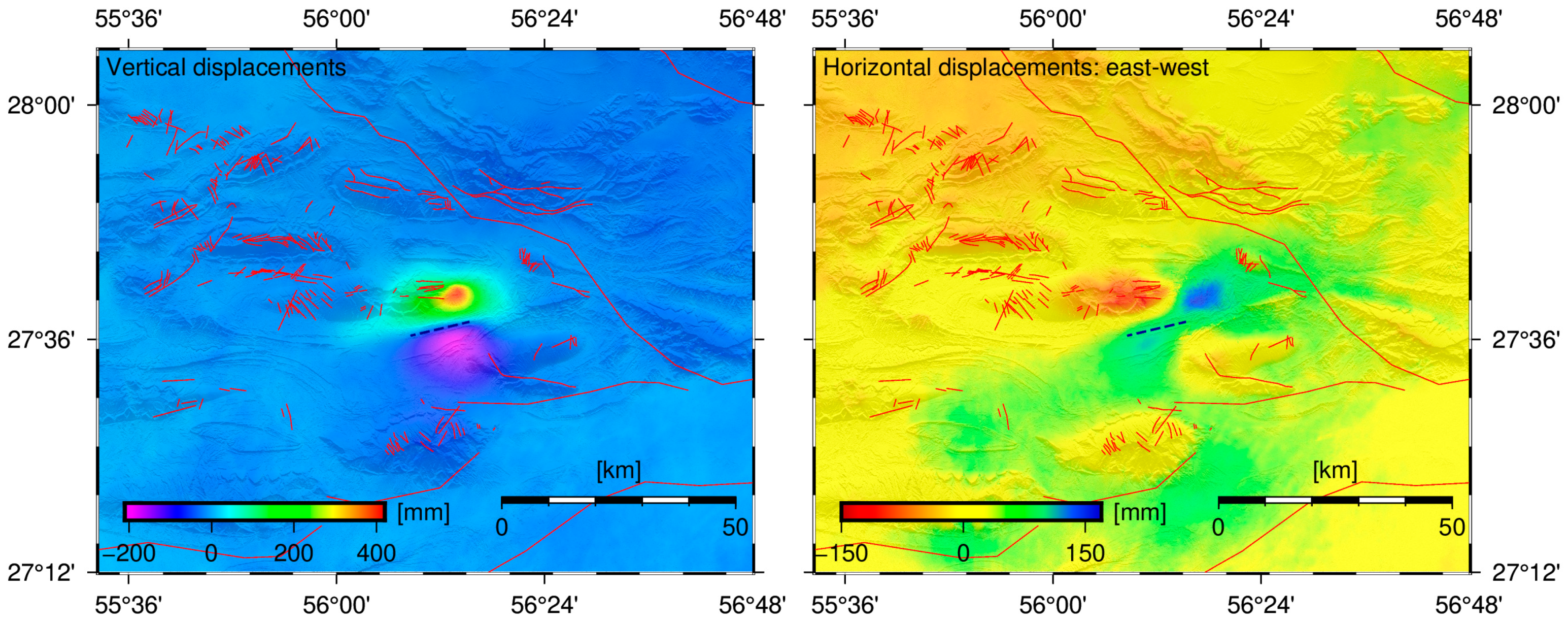

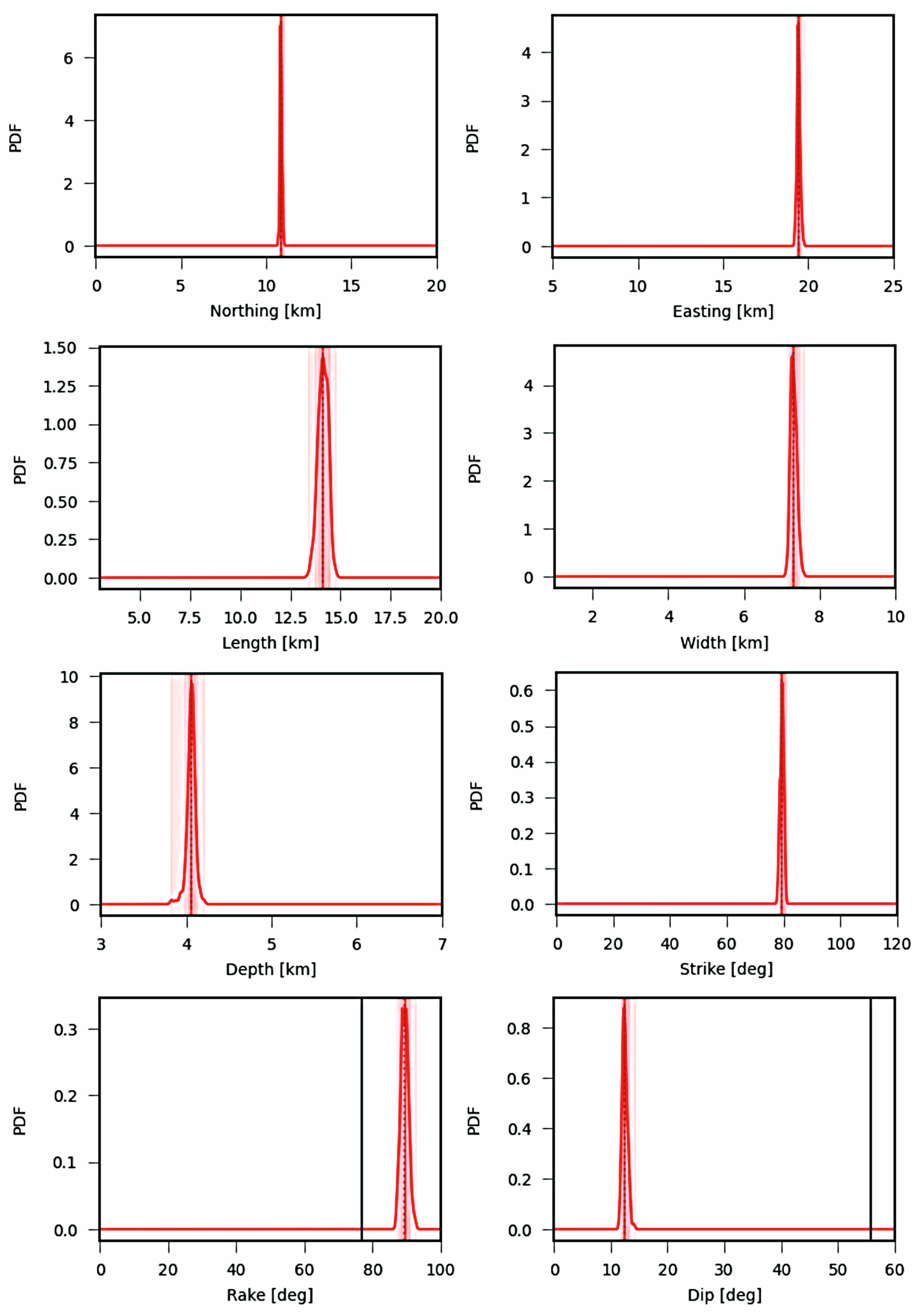

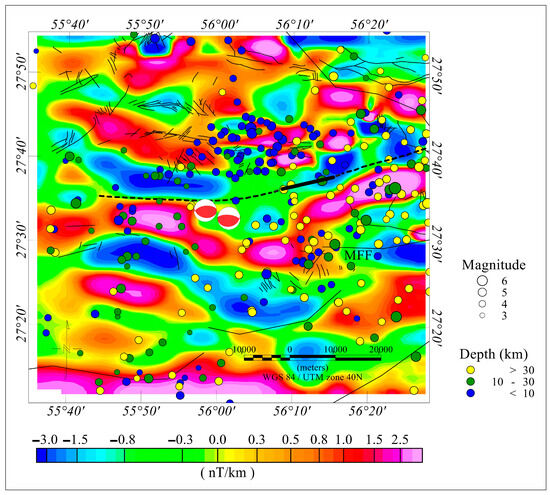

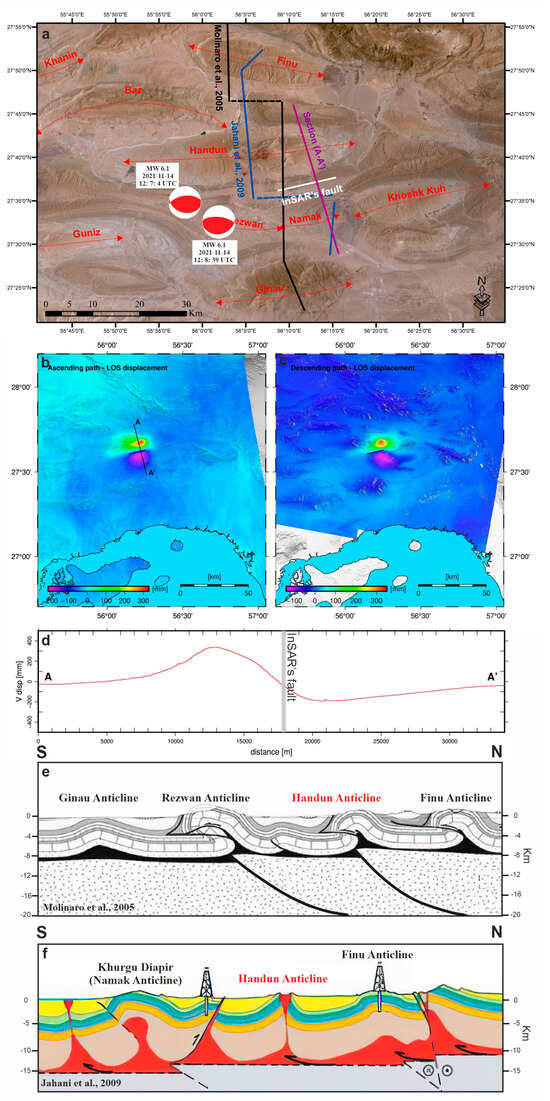

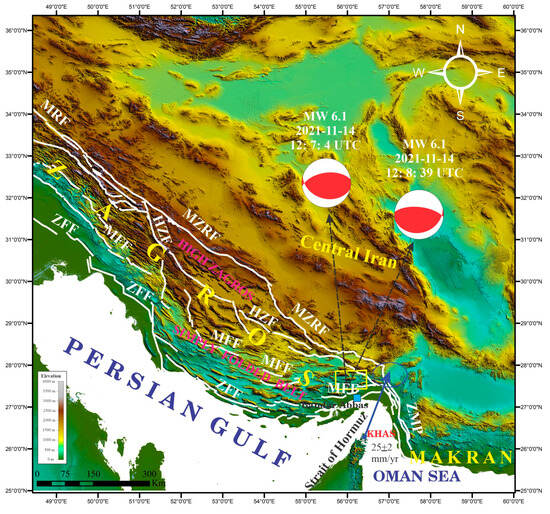

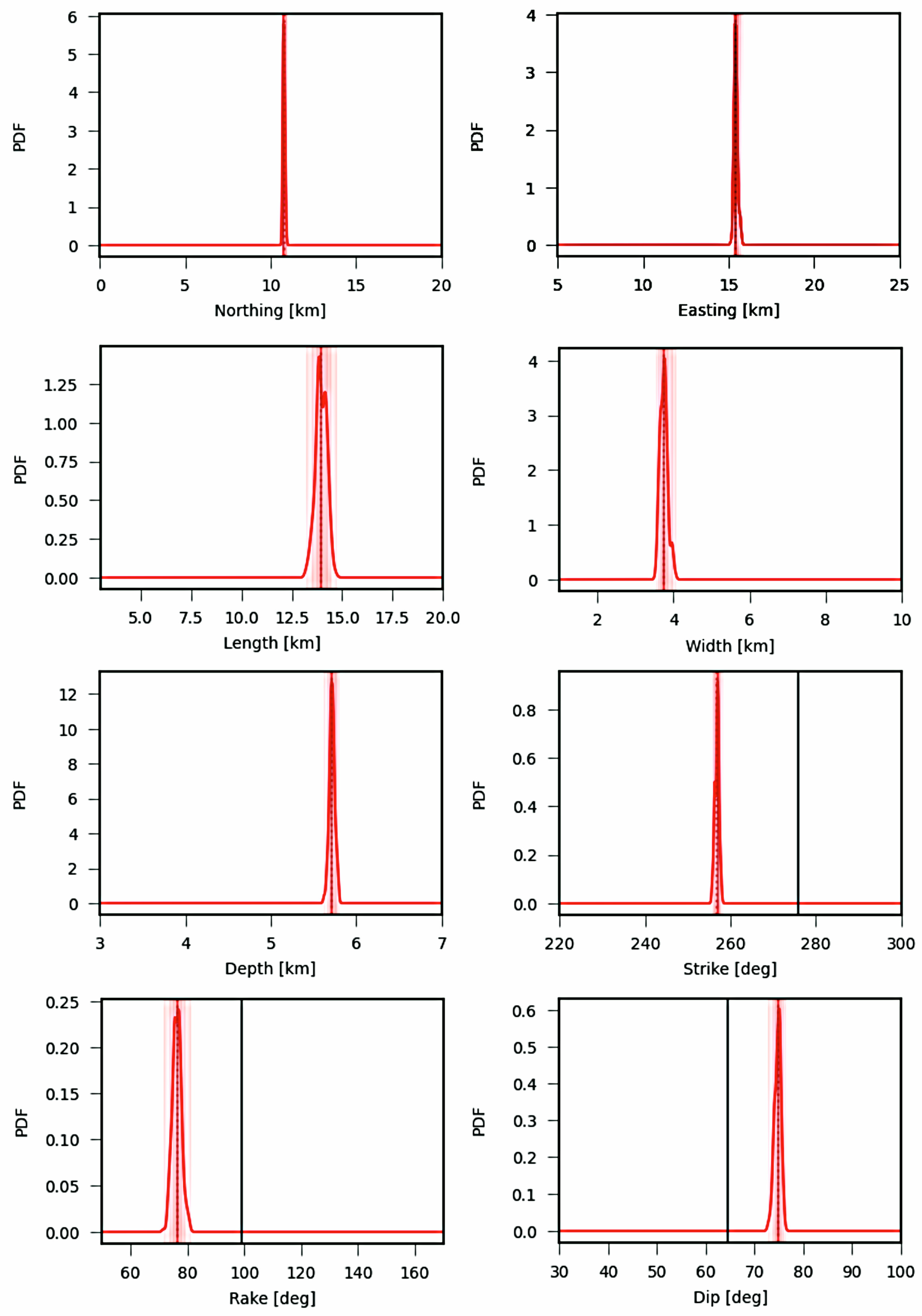

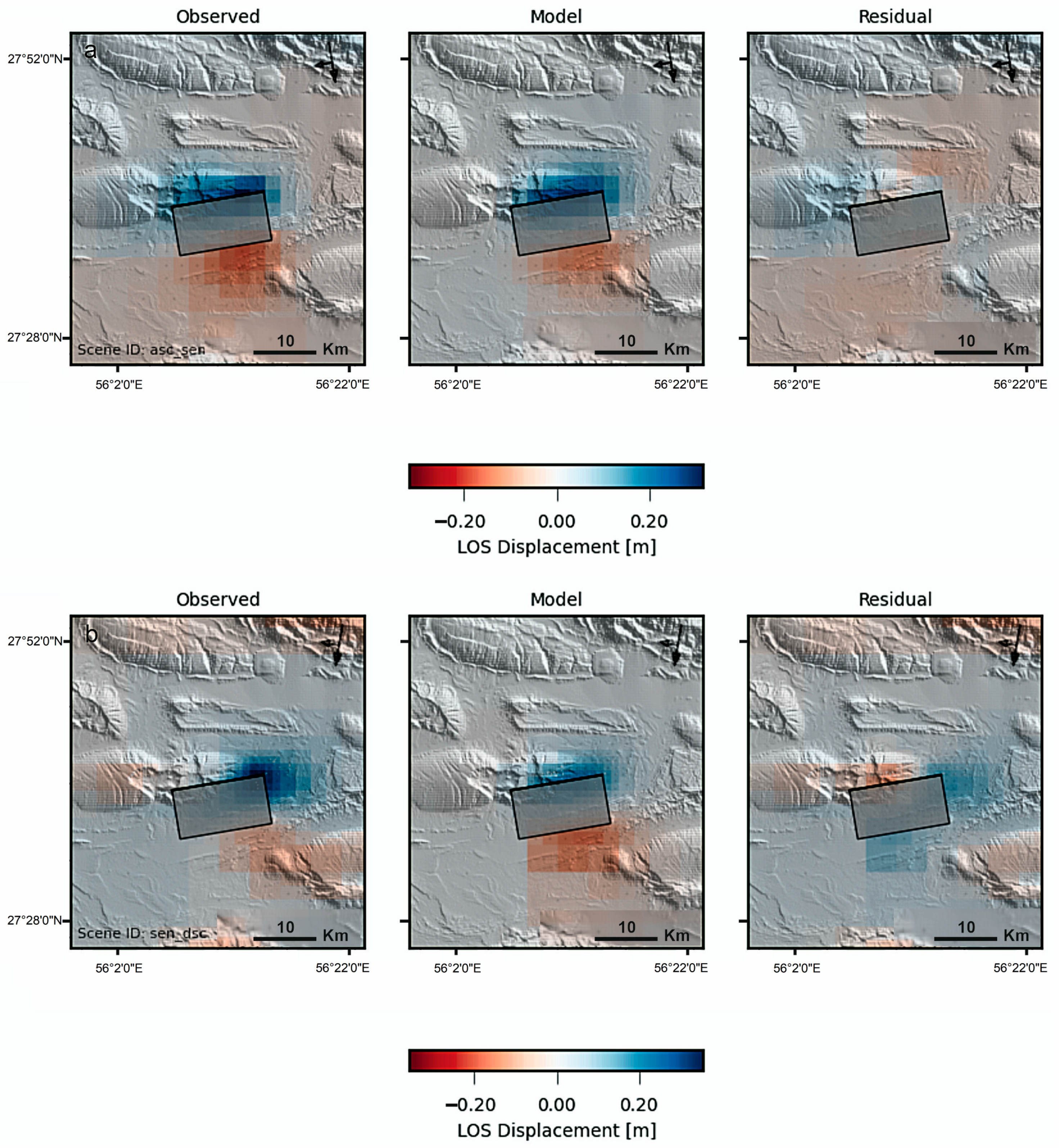

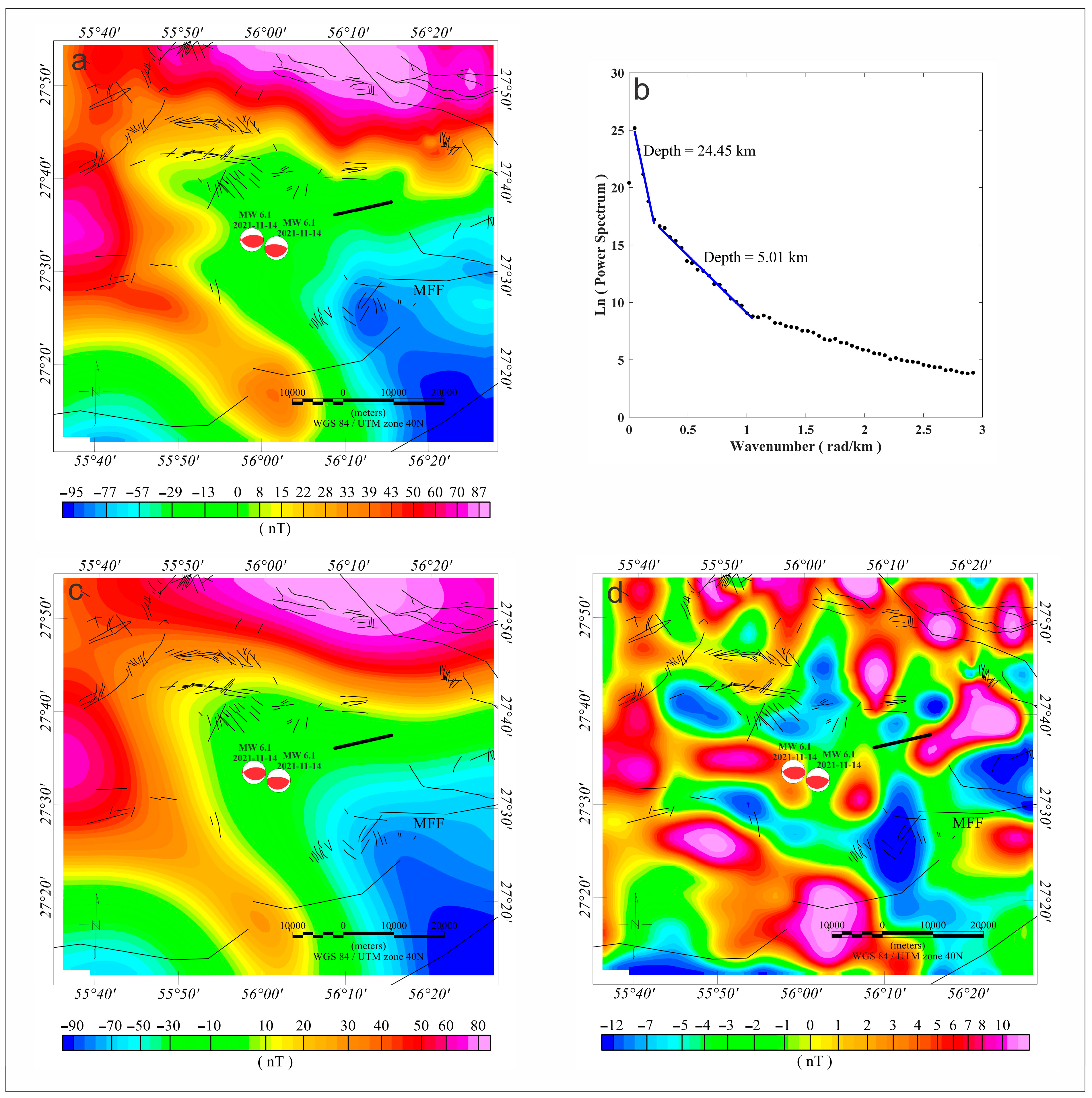

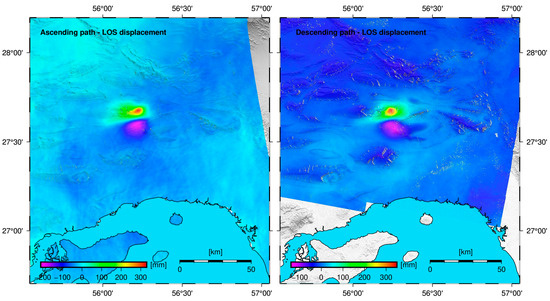

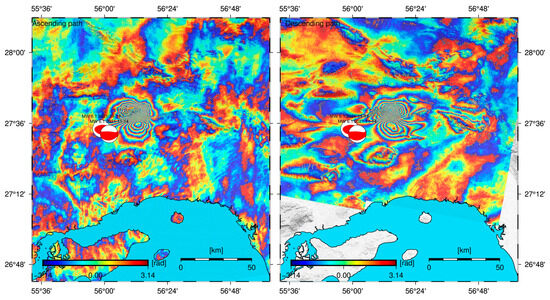

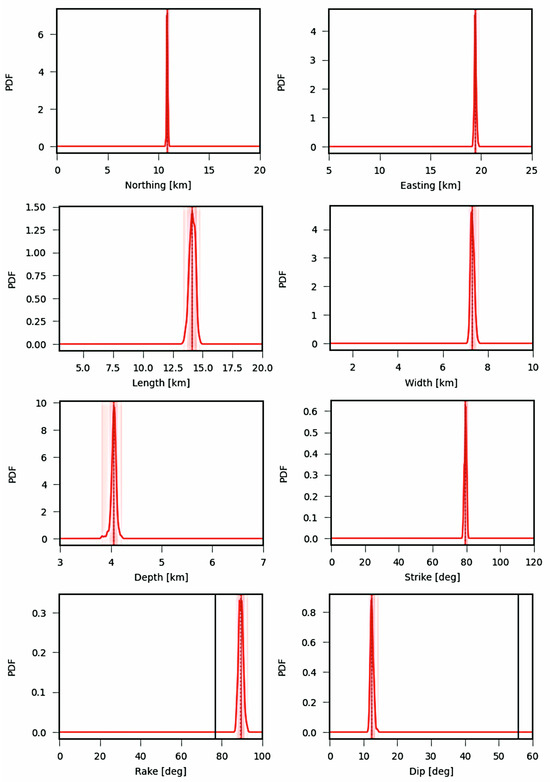

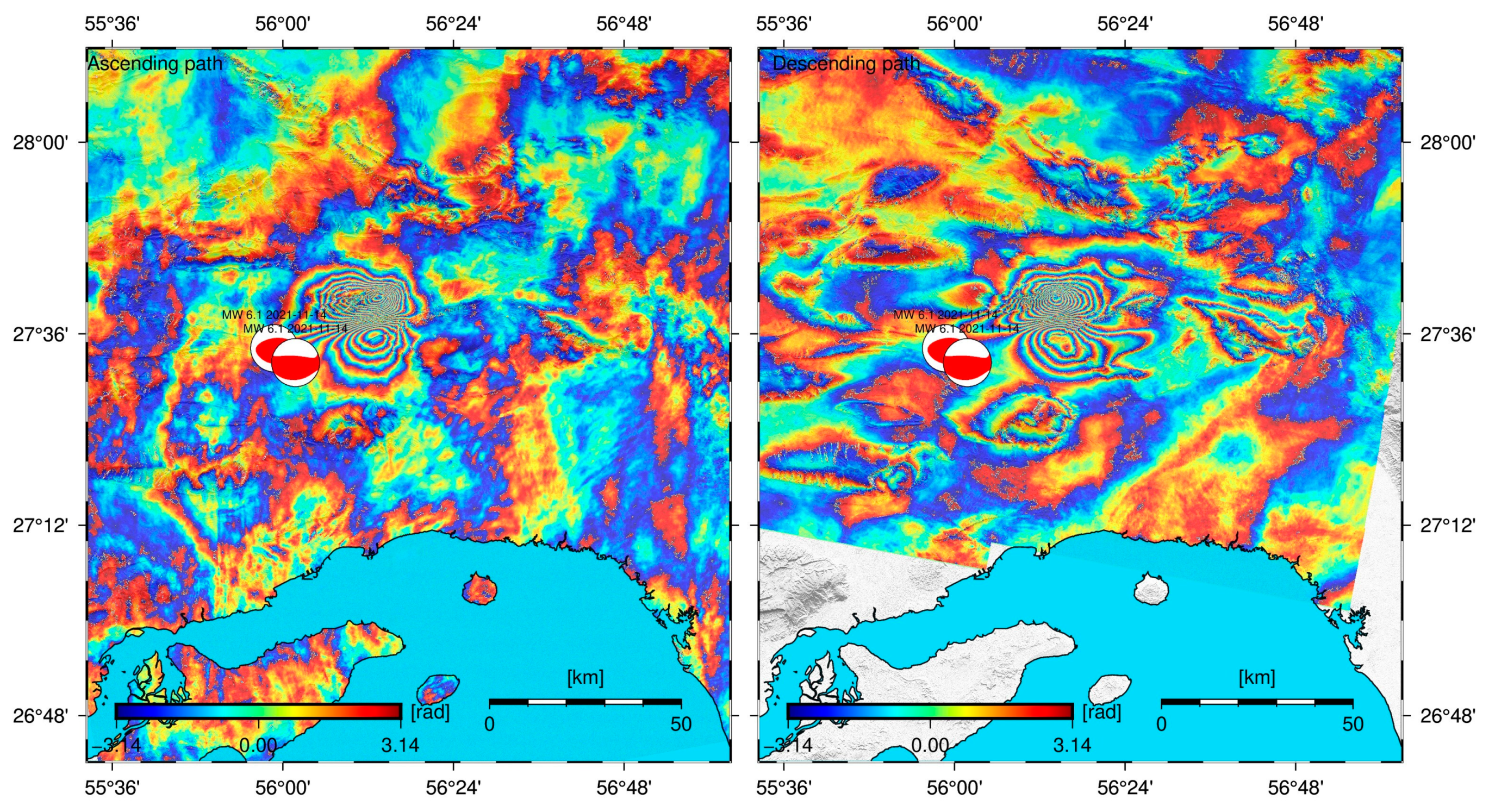

On 14 November 2021, a doublet earthquake, each event of which had an Mw of 6.1, struck near Fin in the Simply Folded Belt (SFB) in southern Iran. The first quake occurred at 12:07:04 UTC, followed by a second one just a minute and a half later. The SFB is known for its blind thrust faults, typically not associated with surface ruptures. These earthquakes are usually linked to the middle and lower layers of the sedimentary cover. Identifying the faults that trigger earthquakes in the region remains a significant challenge and is subject to high uncertainty. This study aims to identify and determine the fault(s) that may have caused the doublet earthquake. To achieve this goal, we utilized the DInSAR method using Sentinel-1 to detect deformation, followed by finite-fault inversion and magnetic interpretation to determine the location, geometry, and slip distribution of the fault(s). Bayesian probabilistic joint inversion was used to model the earthquake sources and derive the geometric parameters of potential fault planes. The study presents two potential fault solutions—one dipping to the north and the other to the south. Both solutions showed no significant difference in strike and fault location, suggesting a single fault. Based on the results of the seismic inversion, it appears that a north-dipping fault with a strike, dip, and rake of 257°, 74°, and 77°, respectively, is more consistent with the geological setting of the area. The fault plane has a width of roughly 3.6 km, a length of 13.4 km, and a depth of 5.6 km. Our results revealed maximum displacements along the radar line of sight reaching values of up to −360 mm in the ascending orbit, indicating an unknown fault with horizontal displacements at the surface ranging from −144 to 170 mm and maximum vertical displacements between −204 and 415 mm. Aeromagnetic data for Iran were utilized with an average flight-line spacing of 7.5 km. The middle of the data observation period was considered to apply the RTP filter, and the DRTP method was used. We calculated the gradient of the residual anomaly in the N-S direction due to the direction of the existing faults and folds. The gradient map identified the fault and potential extension of the observed anomalies related to a fault with an ENE-WSW strike, which could extend to the ~ E-W. We suggest that earthquakes occur in the sedimentary cover of the SFB where subsurface faulting is involved, with Hormuz salt acting as an important barrier to rupture. The multidisciplinary approach used in this study, including InSAR and magnetic data, underscores the importance of accurate fault characterization. These findings provide valuable insights into the seismic hazard of the area.
