RIRNet: A Direction-Guided Post-Processing Network for Road Information Reasoning

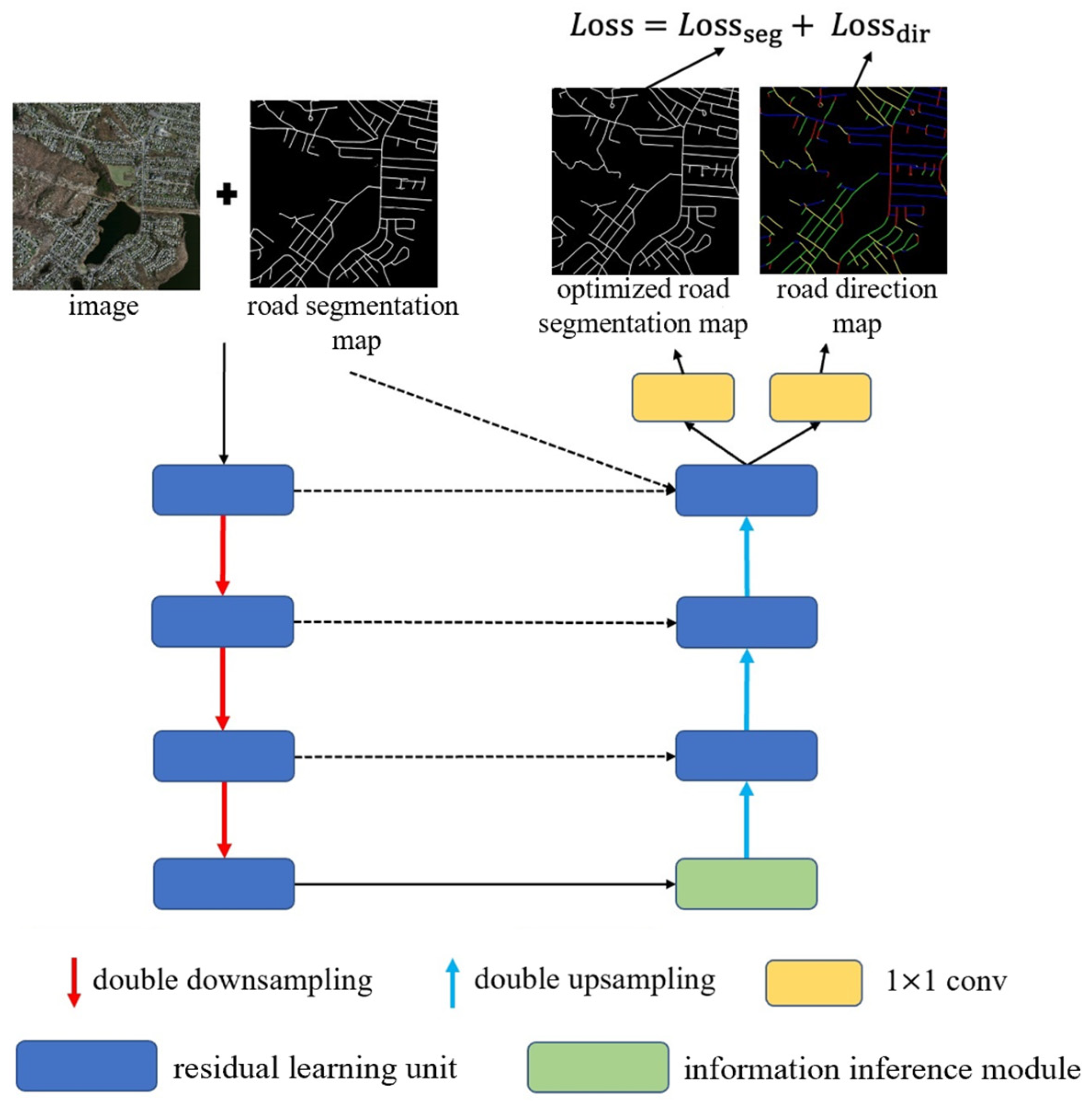

Road extraction from high-resolution remote sensing images (HRSIs) is one of the tasks in image analysis. Deep convolutional neural networks have become the primary method for road extraction due to their powerful feature representation capability. However, roads are often obscured by vegetation, buildings, and shadows in HRSIs, resulting in incomplete and discontinuous road extraction results. To address this issue, we propose a lightweight post-processing network called RIRNet in this study, which include an information inference module and a road direction inference task branch. The information inference module can infer spatial information relationships between different rows or columns of feature images from different directions, effectively inferring and repairing road fractures. The road direction inference task branch performs the road direction prediction task, which can constrain and promote the road extraction task, thereby indirectly enhancing the inference ability of the post-processing model and realizing the optimization of the initial road extraction results. Experimental results demonstrate that the RIRNet model can achieve an excellent post-processing effect, which is manifested in the effective repair of broken road segments, as well as the handling of errors such as omission, misclassification, and noise, proving the effectiveness and generalization of the model in post-processing optimization.
