Climatology of Polar Stratospheric Clouds Derived from CALIPSO and SLIMCAT

Abstract

Polar stratospheric clouds (PSCs) play a crucial role in ozone depletion in the polar stratosphere. In this study, the space-based PSCs record from CALISPO and an offline three-dimensional chemical transport model (SLIMCAT) are used to analyze the PSCs in the Arctic and the Antarctic for the period 2006−2021. Observations indicate that the seasonal evolution of the Antarctic PSC area is similar from year to year. In contrast, the Arctic PSCs show large differences in seasonal variations of coverage and duration in different years. The SLIMCAT simulations effectively capture the seasonal and interannual variations of PSCs. However, the simulated PSC areas are larger than CALIPSO observations, which can be attributed to the relatively high instrumental detection threshold of CALIPSO. SLIMCAT can capture the zonal asymmetry of PSCs in both the Antarctic and Arctic, and it can reproduce a more accurate spatial distribution of PSCs when the PSC coverage area is larger. In addition, accurate simulation of HNO₃ is important for PSC simulation. Because the simulation of denitrification processes is poor in SLIMCAT, which uses the thermodynamic equilibrium PSC scheme, the PSCs modeled by SLIMCAT are located at higher altitudes compared to the observation in the Antarctic, where the denitrification processes are strong. In contrast, for ice PSCs of which HNO₃ is not required in calculations and the Arctic where denitrification is weak, the simulated PSC at different altitudes closely matches the observations.

1. Introduction

Polar Stratospheric clouds (PSCs) play an important role in polar stratospheric ozone depletion [1]. Heterogeneous chemical reactions on PSC particles can transfer the chlorine, bromine, etc., from reservoir species (HCl, ClONO₂, etc.) to the active species (Cl, ClO, etc.), which can destroy ozone directly with sunlight. Furthermore, the denitrification and dehydration occurring on large PSC particles can prolong the lifetime of active chlorine and bromine. Airborne radar observations and laboratory studies [2,3,4,5,6] show that there are three main types of PSC particles: nitric acid trihydrate (NAT), supercooled ternary solution (STS), and ice PSCs. In polar winter, stratospheric sulfuric acid aerosols (SSA) start to grow by uptake of H₂O and HNO₃, and a rapid formation of STS occurs below 192 K. The NAT particles are the dominant PSC composition [7], which can efficiently form not only on pre-existing ice PSCs [8,9] but also on SSA particles containing meteoritic dust and wildfire smoke [10,11]. Homogeneous nucleation of ice PSCs takes place when the temperature is lower than the frost point, about 3–4 K [8,12]. Subsequent observations revealed that the ice PSCs can also nucleate on meteoric debris [13] and pre-existing NAT particles [14] at a higher temperature.

The above-mentioned three types of particles all play important roles in polar chemical ozone depletion. STS provides the surface for heterogeneous chemical reactions, while NAT and ice particles redistribute the HNO₃ and H₂O in the stratosphere through sedimentation processes. The decreased HNO₃ will impede chlorine deactivation [15], while the formation of ice PSCs can irreversibly reduce the amount of H₂O in the polar vortex and lead to lower ozone depletion by reducing OH radicals [16,17]. Therefore, it is important to analyze the spatial and temporal distribution of PSCs and optimize the parameterization of PSCs in the Chemistry Transport Models (CTMs) and the Chemistry-Climate Models (CCMs) to accurately simulate stratospheric ozone chemical depletion in polar regions.

PSCs can be observed by infrared spectrometers, such as the Michelson Interferometer for Passive Atmospheric Sounding (MIPAS) [18,19] and Fourier transform spectrometer on Atmospheric Chemistry Experiment (ACE) [20,21], as well as by lidar detections [22,23]. Ground-based lidar has been observing the PSCs for almost 40 years, and it can provide observations with high temporal and vertical resolution. However, ground-based lidar is susceptible to tropospheric clouds, and it is only able to observe at specific locations, which restricts it from providing a comprehensive view of the PSCs across the polar regions [24]. In contrast, space-borne lidars, such as Cloud-Aerosol Lidar with Orthogonal Polarization (CALIOP) on Cloud Aerosol Lidar and Infrared Pathfinder Satellite Observations (CALIPSO), overcome this limitation. The depolarization rate obtained from CALIOP can effectively distinguish between spherical and non-spherical particles, which is the key factor in identifying different PSC classes [25]. Observation of PSCs from CALIPSO can help us understand the formation process of PSCs and optimize the parameterization scheme of PSCs [13,26,27,28,29].

There are two methods to simulate PSCs in numerical models. One method adopts a detailed microphysics of PSC parameterizations. For instance, Zhu et al. [26,27,30] developed a microphysical scheme for PSCs in CESM-WACCM/CARMA, including nucleation and growth processes of NAT and ice PSCs. Compared with CALIPSO observations, PSCs simulated by Zhu et al. [26,27,30] still lack a large density of small-size NAT particles induced by gravity waves. Tritscher et al. [28] included the formation and dehydration processes of ice PSCs in the Chemical Lagrangian Model of the Stratosphere (CLaMS), which makes the model can simulate the evolution of PSC particles, encompassing nucleation, growth, deposition, and evaporation. However, the model run with microphysical parameterization is computationally expensive. An alternative method is using a thermal equilibrium scheme, which assumes thermodynamic equilibrium between the particle and the gas phase [31]. The thermodynamic equilibrium schemes, which are faster than the microphysical parameterization, are used in most CTMs/CCMs and provide a good approximation of the fundamental properties of PSCs [29,32].

The SLIMCAT uses the thermodynamic equilibrium scheme to simulate heterogeneous chemistry and denitrification, which has been widely used to study chemical processes in the stratosphere [33,34,35] and can reproduce stratospheric chemicals as well as polar stratospheric ozone depletion well [36,37]. However, many studies using the SLIMCAT model, as well as other models, focus on the influence of PSCs on chemical species, such as O₃, H₂O, HNO_3, and HCl [32,35,38,39,40,41,42,43], while paying less attention to the characteristics of PSCs themselves. Given the importance of PSCs in ozone depletion, it is necessary to assess the SLIMCAT model’s ability to simulate PSCs’ features, such as area, volume, and spatial and temporal variations.

Some research evaluated the abilities of CTMs or CCMs in simulating PSCs by comparing modeled PSCs with observation only for a few days or a single year [26,27,28,29]. Few studies have paid attention to the long-term simulation of PSCs. This study focuses on the long-term simulation of PSCs in the Arctic and Antarctic from 2006 to 2021 using SLIMCAT. We conduct a thorough comparison with the observations from CALIPSO, assessing the performance of SLIMCAT in PSC simulation, and discuss the potential sources of the errors. Section 2 presents the data, model, and methods used in this paper, and Section 3 presents the results of the comparative analysis. Discussion and conclusions are presented in Section 4 and Section 5, respectively.

2. Materials and Methods

2.1. CALIPSO PSC Observations

CALIOP is a dual-wavelength polarization-sensitive lidar aboard the CALIPSO polar-orbiting satellite [44], which is a joint U.S. (National Aeronautics and Space Administration, NASA) and French (Center National d’Etudes Spatiales, CNES) satellite mission launched on 28 April 2006. The lidar has three receiver channels: the 1064 nm backscatter intensity channel and the orthogonal polarization backscatter coefficients (${\mathsf{\beta }}_{\parallel }$ and ${\mathsf{\beta }}_{\perp }$) at 532 nm. Pitts et al. [23,45,46,47] detected and classified the PSCs based on the backscatter coefficients and the scattering ratio ${\mathrm{R}}_{532}$ at 532 nm, which is defined as

$${\mathrm{R}}_{532}={\displaystyle \frac{{\mathsf{\beta }}_{\parallel }+{\mathsf{\beta }}_{\perp }}{{\mathsf{\beta }}_{\mathrm{m}}}},$$

(1)

where ${\mathsf{\beta }}_{\mathrm{m}}$ is the molecular backscattering coefficient, calculated from the Modern-Era Retrospective analysis for Research and Applications, version 2 (MERRA-2) [48] molecular number density. There are differences between different types of PSCs in terms of shape, particle size, and physical phase state. Since non-spherical particles can cause depolarization, the ${\mathsf{\beta }}_{\perp }$ can be used to distinguish between spherical and non-spherical particles. NAT and ice PSC are non-spherical solid particles, which can cause a large ${\mathsf{\beta }}_{\perp }$, while STS is a spherical droplet that has a small ${\mathsf{\beta }}_{\perp }$ close to 0. In addition, ice PSC particles are larger than NAT, which can produce a larger scattering ratio. Therefore, ${\mathrm{R}}_{532}$ can be utilized to distinguish NAT and ice PSC [23,46]. In the latest CALIPSO Lidar Level 2 Polar Stratospheric Cloud Mask V2.00 Product, PSCs are classified as STS, NAT-mix, Ice, NAT-enhanced, and Wave ice [23]. The vertical coverage of this PSC product ranges from 8.4 to 30 km, and the latitude coverage is 50–82°. Its vertical and along-track horizontal resolution is 180 m and 5 km, respectively. As a polar-orbiting satellite, CALIPSO passes over the polar region about 14–15 times per day, which makes CALIPSO’s observations of the polar region dense enough to characterize the actual distribution of PSCs well. In addition, the CALIPSO dataset provides profiles of temperature from MERRA-2 and profiles of HNO₃ and H₂O from Microwave Limb Sounder (MLS). The dataset used in this paper is derived from the NASA Langley Research Center Atmospheric Sciences Data Center (ASDC; https://asdc.larc.nasa.gov/, accessed on 26 April 2024).

2.2. TOMCAT/SLIMCAT 3D CTM

TOMCAT/SLIMCAT (hereafter SLIMCAT) is an offline three-dimensional chemical transport model (CTM) [49] developed by the University of Leeds, United Kingdom. It contains a detailed description of stratospheric and tropospheric chemistry and is now widely used in the study of atmospheric chemical processes [34,41,50,51,52]. The current version of the SLIMCAT model uses a simplified PSC scheme for the simulation of heterogeneous chemistry, which assumes thermodynamic equilibrium between the particle and the gas phase [31]. Note that size distribution is important to denitrification and dehydration as the sedimentation velocity depends on particle size [53]. In the PSC scheme of SLIMCAT, the radius of NAT particles is assumed 0.5 μm, and the SAD of NAT particles is calculated based on the condensation of HNO₃. For ice PSC particles, a number density of N_ice = 10 cm⁻³ is assumed to calculate the SAD. Recent studies show that the model can capture well PSC processing and chlorine activation [41,43]. Here, we perform a control simulation from 2006 to 2021, including the heterogeneous chemistry processes. The temporal resolution of the SLIMCAT output data is 6 h, and daily averages are calculated. The model was forced by the European Centre for Medium-Range Weather Forecasts (ECMWF) ERA5 [54] winds and temperatures with a horizontal resolution of 2.8° × 2.8° and a total of 32 levels from the surface to ~60 km. Note that different reanalysis products, such as ERA40, ERA-Interim have been utilized to force the SLIMCAT model [49,50,55,56]. Both SLIMCAT forced by ERA-Interim and ERA5 can reproduce the spatial and temporal distribution of stratospheric ozone [56]. In comparison to ERA-Interim, the high-resolution ERA5 shows improved ability to resolve mountain waves [28]. Therefore, the ERA5 data is better for the parameterization of PSCs in the SLIMCAT.

2.3. PSC Area Calculation

In this study, the daily SLIMCAT PSCs are present when the daily ambient temperature falls below the NAT equilibrium temperature (T_NAT), which is calculated by the stratospheric HNO₃ and H₂O [2]. Similarly, ice PSCs are present when the temperature is below the frost point (T_ice), which is calculated by H₂O [2]. The SLIMCAT PSC and ice PSC area is obtained by summing the area of the model grids where PSCs are present, hereafter referred to as the “Grid method”. CALIPSO PSC data are orbital data and cannot be used to directly calculate PSC coverage area like SLIMCAT. Therefore, a statistical method introduced by Pitts et al. [23] (hereafter, the P18 method) was used to calculate the CALIPSO PSC area in this study. Firstly, the latitude range of 50−90°S or N is grouped into 10 latitude bands. Within each band, the frequency of PSC occurrence is defined as the ratio of the number of PSC observations to the total number of observations. Subsequently, this frequency is multiplied by the area of each latitude band. Finally, the areas calculated for the 10 latitude bands are summed to obtain the daily coverage area of CALIPSO PSCs. The calculation formula can be expressed as follows:

$${\mathrm{A}}_{\mathrm{p}\mathrm{s}\mathrm{c}}={\displaystyle \sum _{\mathrm{i}=1}^{10}\frac{{\mathrm{n}}_{\mathrm{p}\mathrm{s}\mathrm{c},\mathrm{i}}}{{\mathrm{n}}_{\mathrm{o}\mathrm{b}\mathrm{s},\mathrm{i}}}{\mathrm{A}}_{\mathrm{i}}},$$

(2)

where i is different latitude bands, ${\mathrm{n}}_{\mathrm{p}\mathrm{s}\mathrm{c},\mathrm{i}}$ is the number of PSC observations within the i-th latitude band, ${\mathrm{n}}_{\mathrm{o}\mathrm{b}\mathrm{s},\mathrm{i}}$ is the total number of observations within the i-th latitude band, and ${\mathrm{A}}_{\mathrm{i}}$ is the area of the i-th latitude band. As a statistical method, the sample size of observations determines the reliability of the PSC area calculated by the P18 method. There are approximately 14~15 CALIPSO orbits per day, and the satellite orbit coverage is dense in polar regions, which makes the P18 method reliable. Note that orbits are missing on some days. To avoid the area anomalies from missing orbits, only per day with orbits greater than 7 is used to calculate the PSC area in this study. In addition, CALIPSO PSC data is interpolated to 320−700 K isentropic levels at 10 K intervals before calculating the area. We will show the comparison between the P18 and the Grid method in Section 3.

2.4. Relative Standard Deviation

The relative standard deviation (RSD) is obtained by the standard deviation divided by the mean value and can be used to characterize the dispersion of a data set relative to its mean value. In this study, we used the RSD to characterize the seasonal and interannual variability in PSC volume, calculated using the following formula:

$$\mathrm{R}\mathrm{S}{\mathrm{D}}_{\mathrm{j}}={\displaystyle \frac{\sqrt{\frac{{\displaystyle {\sum }_{\mathrm{i}=\mathrm{1}}^n{({\mathrm{x}}_{\mathrm{i}\mathrm{j}}-{\overline{\mathrm{x}}}_{\mathrm{j}})}^2}}{\mathrm{n}}}}{{\overline{\mathrm{x}}}_{\mathrm{j}}}}\times 100\%,$$

(3)

For the calculation of seasonal variation, j is the year, n is the total number of days (December to March for the Arctic and May to October for the Antarctic), i is the day (i = 1, 2, 3,..., n), ${\mathrm{x}}_{\mathrm{i}\mathrm{j}}$ is the daily PSC volume, ${\overline{\mathrm{x}}}_{\mathrm{j}}$ is the annual average PSC volume, and the seasonal variability is obtained by calculating the mean value of $\mathrm{R}\mathrm{S}{\mathrm{D}}_{\mathrm{j}}$.

For the calculation of interannual variability, j is the day, n is the total number of years, i is the year (i = 1, 2, 3,..., n), ${\mathrm{x}}_{\mathrm{i}\mathrm{j}}$ is the daily PSC volume, ${\overline{\mathrm{x}}}_{\mathrm{j}}$ is the average PSC volume on a given day over the years, and the interannual variability is obtained by calculating the mean value of $\mathrm{R}\mathrm{S}{\mathrm{D}}_{\mathrm{j}}$.

3. Results

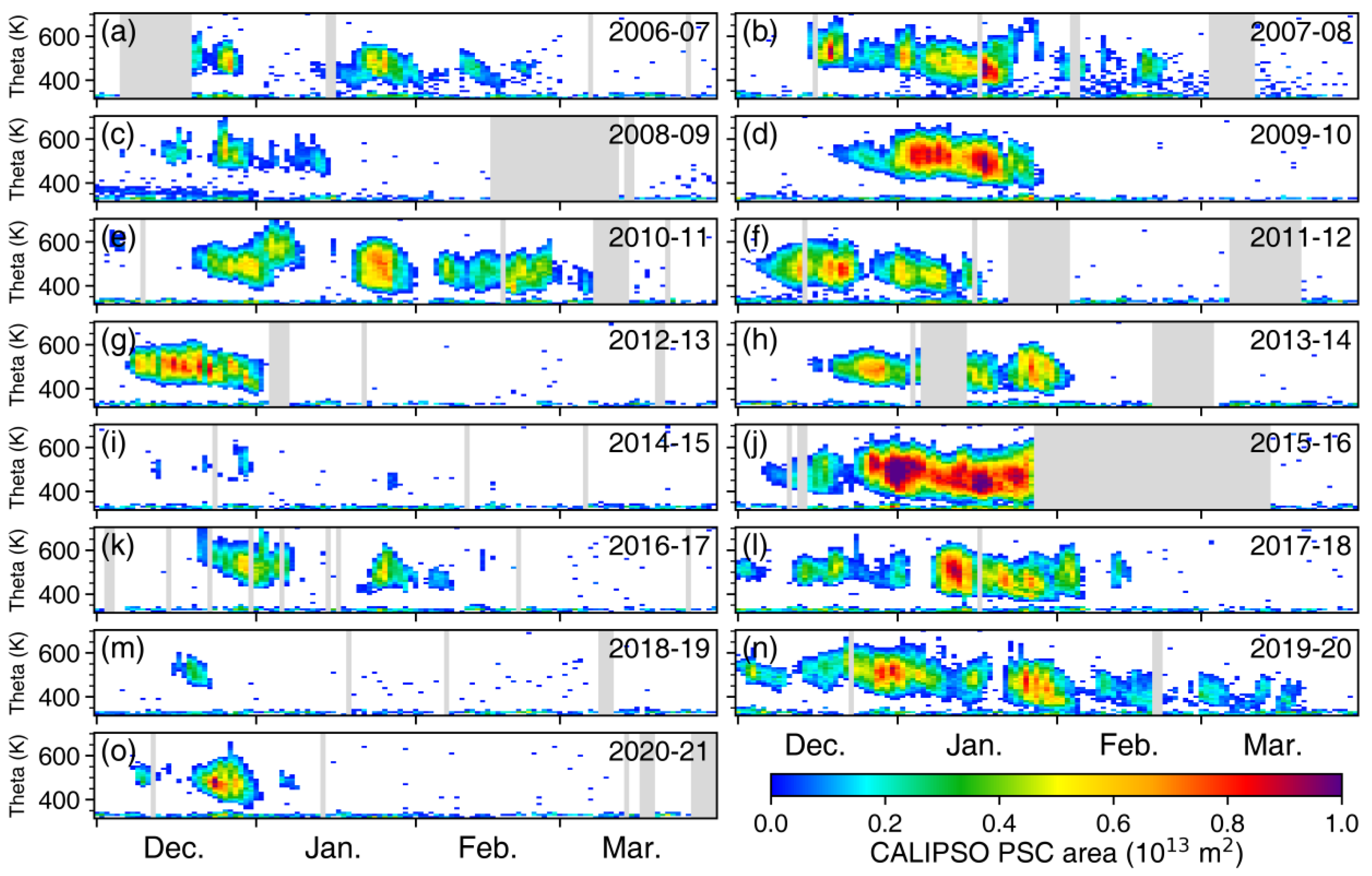

Figure 1 and Figure 2 show the seasonal evolution of the Antarctic and Arctic PSC areas observed by CALIPSO, respectively. The seasonal evolution of the Antarctic PSC area is similar from year to year. It forms near the 500 K isentropic level in middle or late May and gradually expands vertically, with cloud thickness and coverage area increasing afterward. The maximum PSC coverage area and cloud thickness typically occur during middle to late July. As the temperature increases around the 500 K isentropic level in August, the PSC coverage area gradually decreases. This decrease is accompanied by a reduction in the altitude of the maximum PSC coverage area existing, which is consistent with the downward shift in the coldest center within the polar vortex [57,58]. Although the seasonal variation of PSC coverage in the Antarctic is generally similar every year, the PSCs in each month have sizeable interannual variability, and so does the PSC duration. In most cases, PSC disappears before October, while in some years, it can persist to mid-October, which is closely related to the intensity and breakup time of the stratospheric polar vortex. In addition, the long-lasting PSC areas in 2015 and 2020 may be associated with the increasing injection of aerosols from Calbuco volcanic eruptions [59] and Australian wildfires [11]. Note that a rapid decrease in PSCs was observed in mid-September 2019, which is caused by the sudden stratospheric warming (SSW) in the Antarctic [60].

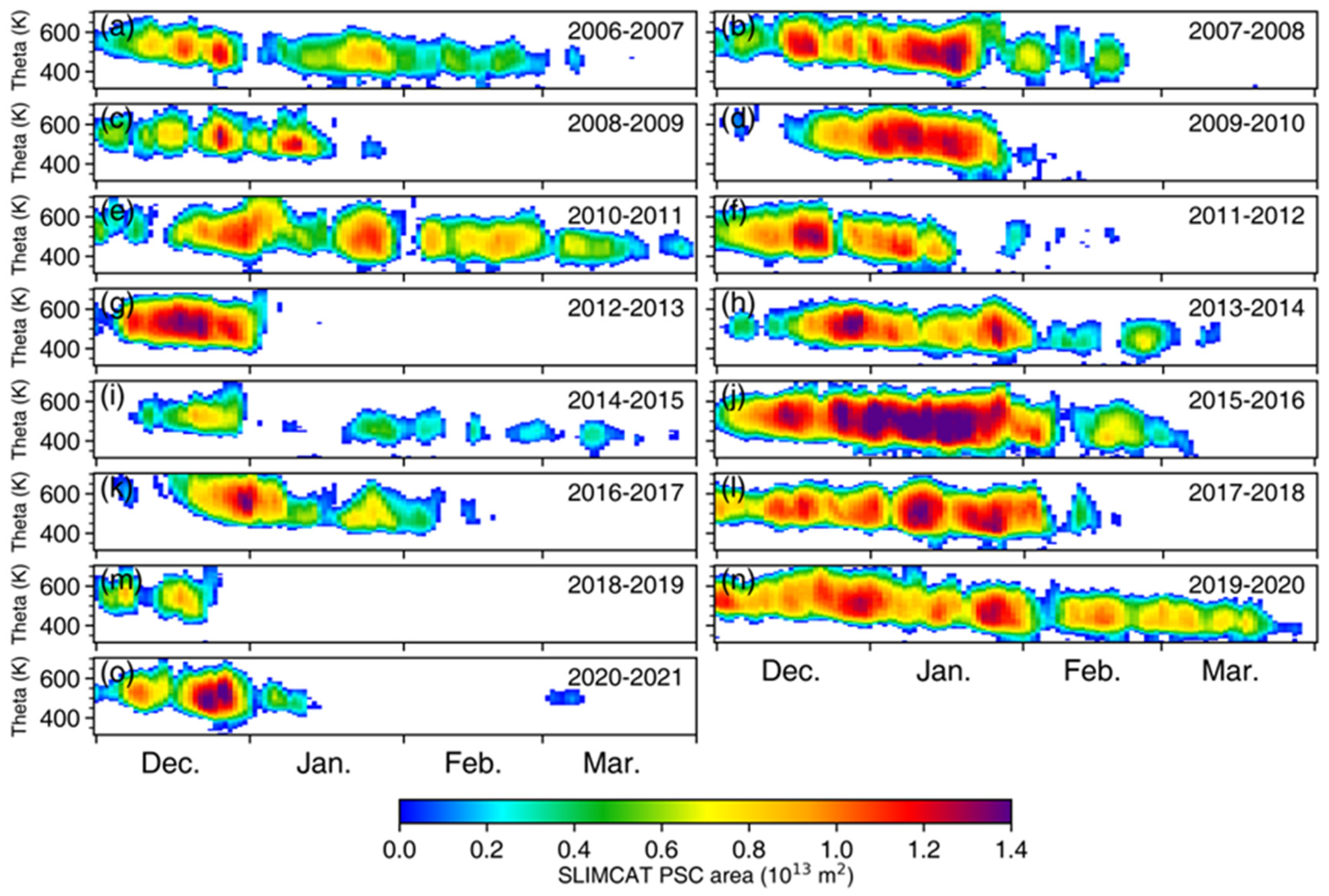

The Arctic PSC coverage area (Figure 2) is much smaller than the Antarctic. This difference can be attributed to the enhanced wave propagation into the stratosphere, which is much stronger in the Northern Hemisphere due to forced waves by topography and ocean-land thermal contrast. The dissipation of planetary waves warms the polar regions and consequently leads to a smaller occurrence of PSCs. Furthermore, note that the PSC coverage area over the Arctic exhibits a much greater interannual variability in timing and duration than that over the Antarctic. This feature is closely related to the behavior of the polar vortex. For example, the PSC coverage and thickness observed during December and January 2015/2016 (Figure 2j) are the largest over the past decade due to a strong and stable Arctic stratospheric polar vortex [14], corresponding to a significant potential for stratospheric ozone depletion. However, due to the PSC disruption caused by a major SSW occurring in late winter and major stratospheric final warming in March [61,62,63,64], no significant ozone depletion was observed in the spring of 2016. By contrast, large Arctic PSCs at 500 K persist into March in 2010/2011 (Figure 2e) and 2019/2020 (Figure 2n), which leads to severe Arctic ozone depletion in 2011 and 2020 spring [41,65]. In addition, the warmer temperature prevented the formation of PSCs in 2014/2015 and 2018/2019, so the frequency of PSC occurrence is much less in these years (Figure 2i,m).

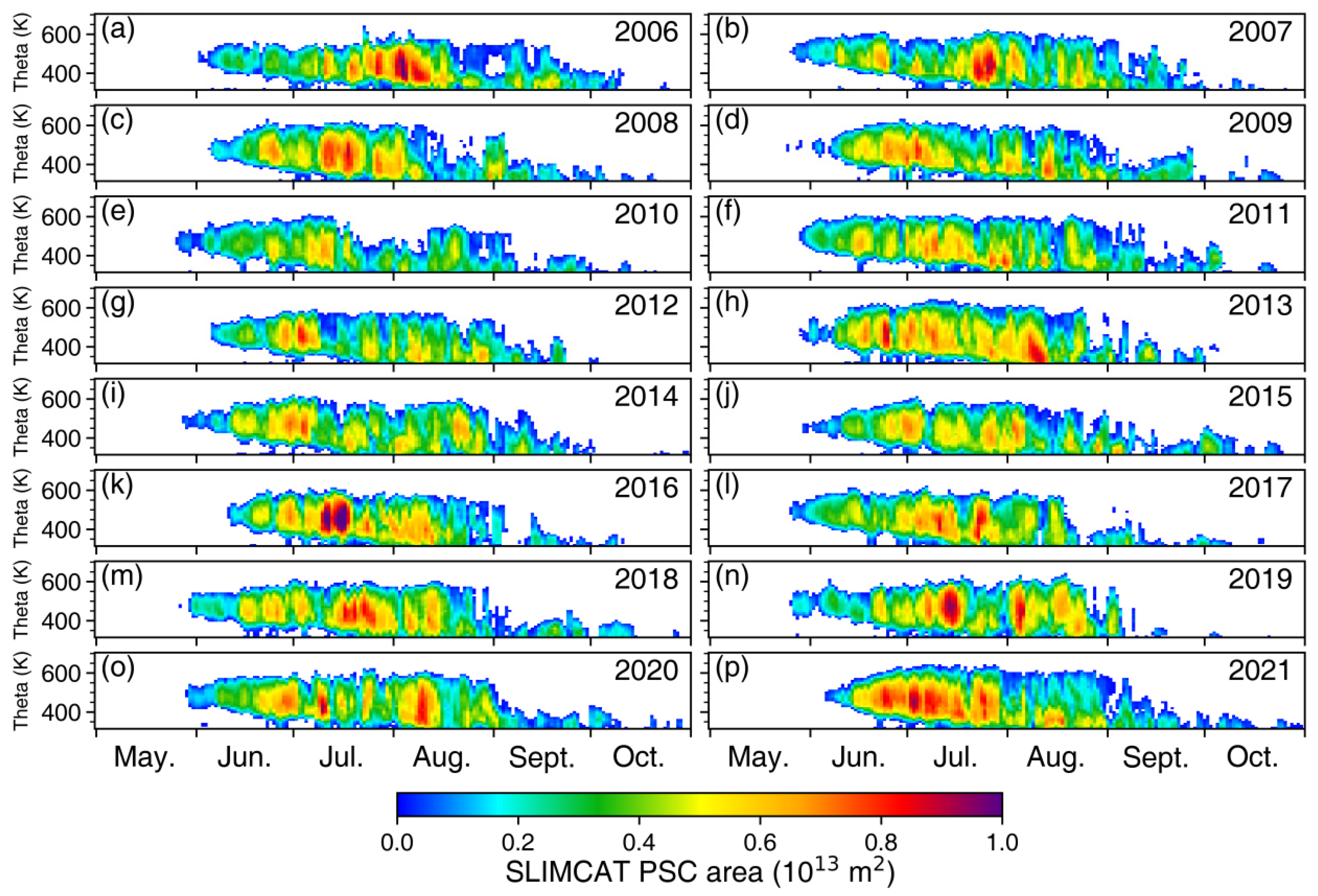

Figure 3 shows the seasonal evolution of the Antarctic PSC areas simulated by the SLIMCAT model. The modeled PSC compares well with the CALIPSO observations at both seasonal and interannual time scales, e.g., the rapid decrease in mid-September 2019. However, on a daily time scale, the variability of PSC area observed by CALIPSO is relatively larger than that simulated by SLIMCAT in all years. In addition, we found that the modeled PSC maximum areas are ~5 million km² (~25%) larger than CALIPSO observation, and it forms earlier and persists for a longer period compared with CALIPSO observation. The discrepancies between the observation and model simulation will be discussed in the following text. In the Arctic, the SLIMCAT effectively captures the large seasonal and interannual variability of PSCs (Figure 4). Note that the modeled PSCs reproduce the extensive PSC formation observed in early winter during 2015/2016 and the long-lasting existence of PSCs in 2010/2011. However, SLIMCAT also overestimates the PSC area and its duration in the Arctic. Figure S1 shows the seasonal variation of the Antarctic and Arctic PSC area climatology from CALIPSO observations (a, b) and SLIMCAT simulations (c, d). Although the simulated PSC areas are larger than the CALIPSO observations, the SLIMCAT simulations effectively capture the seasonal variations of PSCs in both the Antarctic and Arctic.

There are two possible explanations for the larger PSC coverage in SLIMCAT than CALIPSO. The main reason is the higher instrument detection threshold of CALIPSO. In the SLIMCAT, the PSC parameterization is based on thermodynamic equilibrium theory, which assumes the existence of PSCs when the environmental temperature is lower than T_NAT. Considering the number density of PSC particles increases as the temperature decreases, SLIMCAT simulates the occurrence of PSCs in certain regions when the temperature is slightly below T_NAT. However, the lower number density and backscatter of the thinner PSCs may prevent the PSCs from being detected by CALIPSO [30,45], which results in a larger PSC coverage area in SLIMCAT than in CALIPSO. To verify this, we recalculated PSCs along the orbital profile (Figures S2 and S3) based on the thermodynamic equilibrium method using MERRA2 temperature, H₂O, and HNO₃ provided by MLS data. Similar to the simulation of PSCs by SLIMCAT, the range of PSCs obtained through the thermodynamic equilibrium method using observed temperature, H₂O, and HNO₃ data is larger than direct CALIPSO observations. MIPAS is more sensitive and able to detect the presence of PSCs earlier compared to CALPSO [7]. Figure S4 shows the climatology of the PSC area derived by MIPAS during 2002−2012. Although the seasonal variability of the MIPAS PSC is significantly different from that of the CALIPSO and SLIMCAT PSCs, its maximum coverage area is larger than that of CALIPSO and closer to that of SLIMCAT. Tritscher et al. [7] also showed that the volume of the MIPAS PSC is larger than that of the CALPSO PSC by a factor of 1.38 in the Antarctic and 1.63 in the Arctic. The comparison with MIPAS indicates that CALIPSO, which has a high instrumental detection threshold, may underestimate PSCs. Besides, in the CALIPSO PSC detection algorithm, the PSCs are detected by statistical anomalies of stratospheric background aerosols [47]. However, some PSCs may be misclassified as background aerosols or as “sub-visible” PSCs [10,23], resulting in an underestimation in CALIPSO. Even so, we still use the direct observation by CALIPSO as the standard for PSCs in the following analysis since there is no alternative long-term PSC observation. Another reason could be the relatively low resolution of SLIMCAT (2.8° × 2.8°). Once T < T_NAT, the PSCs are considered to fill the entire grid, and the nucleation and growth times of the particles are ignored, which can lead to an overestimation of the simulated PSC area.

In addition, the method of calculating the PSC area may also cause errors. Steiner et al. [29] interpolated the CALIPSO observation data into the model grid and found that the PSC coverage area calculated by the Grid method is larger than that calculated by the P18 method. The CALIPSO daily orbits do not cover all the model grids in the polar regions, and the CALIPSO missing grids may be PSC-existing. To address this issue, Steiner et al. [29] utilized grids with orbit coverage at the same latitude to fill in the missing grids. This method is suitable for the Antarctic region as the spatial distribution of PSCs exhibits a weaker zonal asymmetry. However, in the Arctic region, there is a notable zonal asymmetry in the spatial distribution of PSCs, which makes the P18 method unsuitable. In this study, we interpolate the SLIMCAT PSCs to the CALIPSO orbits and recalculated the SLIMCAT PSC coverage using the P18 method (Figures S5 and S6). Note that the values of the modeled PSC area using P18 method are almost the same as those using the Grid method. To compare the difference between the two calculation methods more clearly, Figure S7 shows a contrast between the SLIMCAT PSC areas calculated by the P18 method and the Grid method. Overall. The points at both the North and South Poles are distributed near the diagonal, indicating that the difference in PSC area calculated by the two methods is small. In this case, the use of the P18 method resulted in a decrease in the Antarctic PSC area of 0.71 million km² (relative error: −6.10%) and an increase in the Arctic area of 0.15 million km² (relative error: 3.14%) compared to the Grid method, indicating that the PSC area calculated by the P18 method is reasonable. This result is not consistent with that of Steiner et al. [29], which may be related to the interpolation process. Steiner et al. [29] interpolated PSCs from high-resolution orbital points to low-resolution grids, where a single PSC may occupy an entire grid, resulting in an increase in PSC coverage area. In contrast, in this study, interpolation from low-resolution grid points to high-resolution orbital points avoids this issue. However, after applying the P18 method, the daily variation in the SLIMCAT PSC area increases, which may be related to the daily variation in CALIPSO orbits. To avoid this problem, all SLIMCAT PSC areas still use the Grid method in this paper, while the CALIPSO PSC areas are calculated using the P18 method.

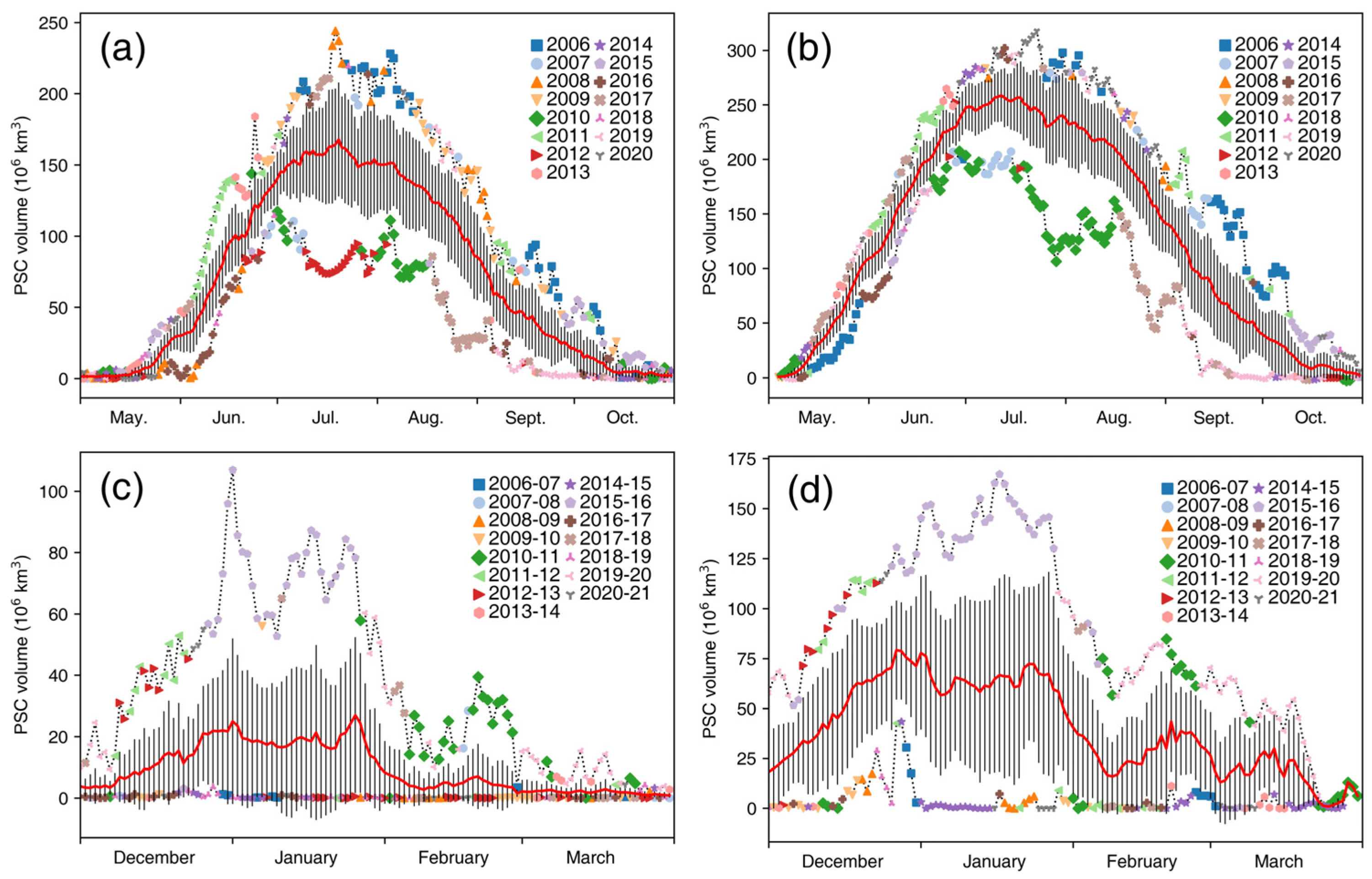

The polar-averaged volume of PSCs is obtained by vertically integrating the PSC area in the altitude coordinate. It is an indicator of the total area coverage of PSCs at all heights in the lower stratosphere. Figure 5 shows the seasonal evolution of PSC volume in the Antarctic and Arctic. The climatological PSC volume in the Antarctic reaches its maximum value around mid-July in both CALIPSO observation and SLIMCAT simulation, consistent with the maximum time in PSC area and thickness (Figure 1 and Figure 3). However, the modeled climatological maximum PSC volume is approximately 60% larger than that observed by CALIPSO, primarily due to the larger PSC area in SLIMCAT. Furthermore, in the Antarctic late winter and spring, SLIMCAT can reproduce the years when the daily minimum and maximum PSC volume occur (Figure 5a,b). In the Arctic, years with the maximum PSC volume are nearly consistent between CALIPSO and SLIMCAT. The climatological maximum PSC volume is approximately 20 million km³, which is significantly smaller than the 150 million km³ in Antarctica. The climatological Arctic PSC volume and interannual standard deviation reach their maximum values during January in both model and observation. Particularly note that the maximum daily volume of the Arctic PSCs in January often occurred in 2015 and 2016. The PSCs in these two years are significantly larger than the multi-year average volume. Besides, the model simulation and CALIPSO are in close agreement for seasonal variation of PSC volume. However, the modeled climatological maximum PSC volume is about 200% larger than that observed by CALIPSO, and it shows larger fluctuations in February and March.

Table 1. Summary of PSC volumes for the Antarctic during 2006−2020 and the Arctic during 2006−2021 from CALIPSO observations and SLIMCAT simulations.

Items	Antarctic		Arctic
	CALIPSO	SLIMCAT	CALIPSO	SLIMCAT
Mean value (106 km3)	71.72	135.49	9.82	46.84
Seasonal variation (%)	86.39	67.49	148.23	75.08
Interannual variation (%)	41.12	36.02	128.92	74.95
Linear trend (106 km3/year)	−1.21 ± 1.40	0.07 ± 0.89	0.05 ± 0.58	0.39 ± 1.96

summarizes the mean value, seasonal variability, interannual variability, and long-term trends in PSC volumes from CALIPSO observations and SLIMCAT simulations. The volume of both Antarctic and Arctic PSCs simulated by SLIMCAT is larger than that observed by CALIPSO. Note that the seasonal variability and the interannual variability of the modeled PSC volume are smaller than that of the observed, indicating a smaller variability in SLIMCAT PSCs than that in CALIPSO PSC. In addition, both observations and simulations show that the seasonal variability and interannual variability of PSC volume in the Arctic is much larger than that in the Antarctic, which is consistent with that of the PSC area. The long-term trend is calculated from the annual average volume (average of December to March in the Arctic and May to October in the Antarctic), and there is a large difference between the long-term trends of the observed and modeled Antarctic PSC volumes in the table. The CALIPSO observed Antarctic PSC volume shows a slight decline, whereas the SLIMCAT simulated PSC volume has a trend close to zero. It should be noted that none of the linear trends in the table are statistically significant, indicating no significant trend in the annual average PSC volume.

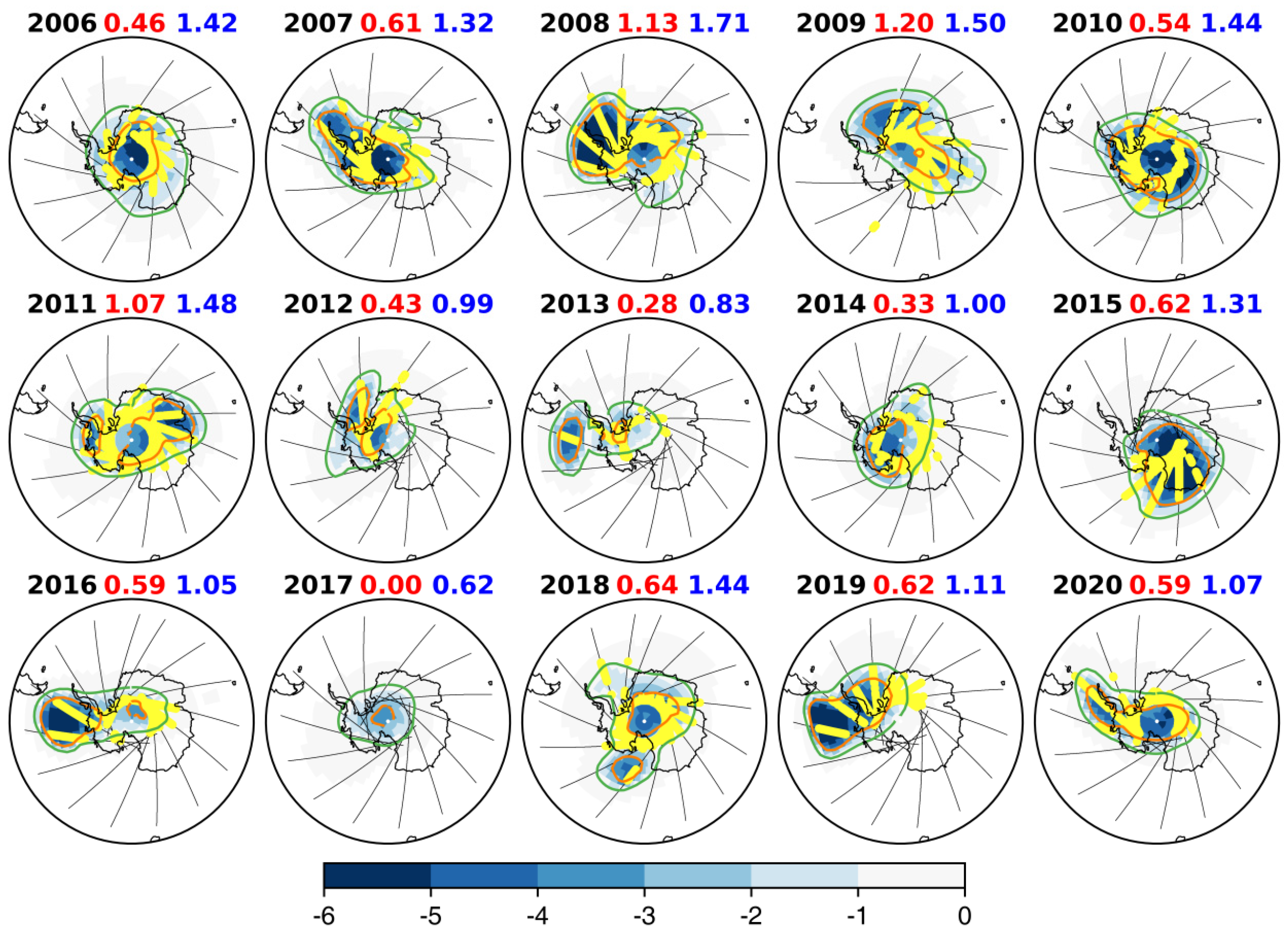

Figure 6 shows the Antarctic PSCs observed by CALIPSO and the spatial distribution of T−T_NAT on 470 K isentropic level derived from the SLIMCAT. We note that the SLIMCAT model reproduces the key features of the PSCs distribution. In particular, the modeled PSCs are in good agreement with the observation when the PSC areas are large, such as in 2008 and 2011. However, in the years with fewer PSCs, such as 2017, the modeled PSCs are significantly larger than the CALIPSO observation. In the Arctic (Figure 7), T_NAT isolines (green lines) also cover a larger area than CALIPSO observation (yellow dots) in most cases. If we take the T_NAT−3 K as the threshold of PSC formation, the region enclosed by the orange contour line is in better agreement with the observed PSC distribution. It should be noted that we do not consider the use of T_NAT−3 K as the threshold for PSC formation in the model to be a better choice. In some cases, although the boundaries of PSCs coincide closely with the orange contour line, there are still a significant number of PSC occurrences between the green and orange contours. Due to the good agreement between the modeled PSCs with T_NAT−3 K as a threshold and the observations, we will later utilize this to compare with the observations.

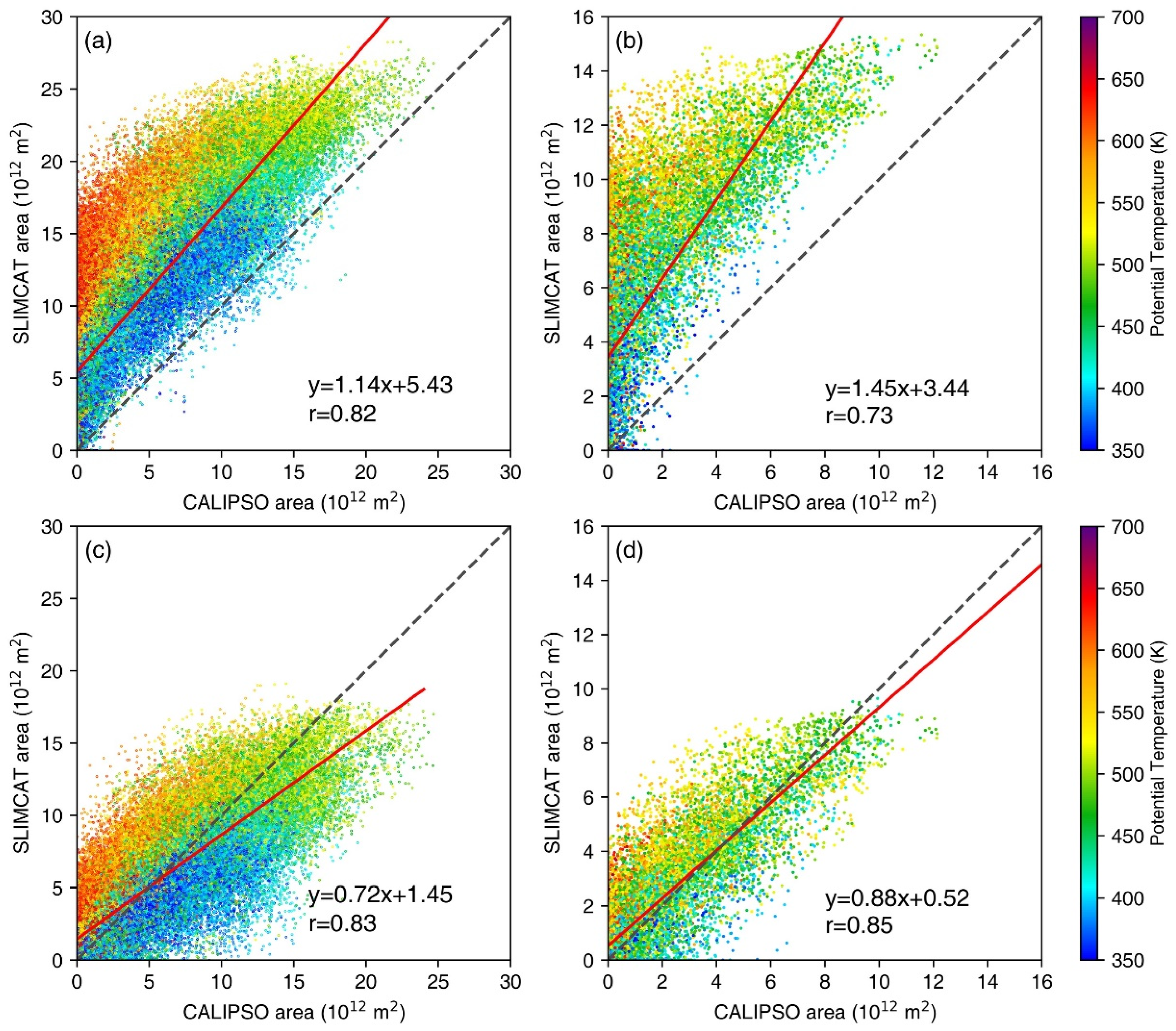

Figure 8 shows the PSC area on different isentropic levels derived from CALIPSO and SLIMCAT. To eliminate the impact of zero values on the regression line, the data with zero PSC area for both CALIPSO and SLIMCAT are removed. The modeled PSC coverage areas over the Antarctic and Arctic regions are both larger than the CALIPSO observation, and thus, the SLIMCAT values are located at the left upper corner of the diagonal. Note that the slope of the linear fit line is 1.14 and 1.45 in the Antarctic and Arctic, respectively, suggesting that the simulated PSCs in the Antarctic have a better correlation with observed values. According to the regression coefficient, the modeled PSC coverage area is about 5.43 million km² (relative error: 113%) larger than the CALIPSO observation in the Antarctic, while it is about 3.44 million km² (relative error: 269%) larger in the Arctic.

In the Antarctic, the modeled PSC coverage area in the middle stratosphere is much larger than the observation, while it is gradually closer to the observation as altitude decreases. Figure 8c shows that the adjusted modeled PSC area using T_NAT−3 K is larger on the high isentropic levels and smaller on the low isentropic levels, suggesting that the occurrence altitude of the modeled PSCs is higher than that in observation. This discrepancy between the simulation and observation may be caused by poor simulation of PSC sedimentation processes of the simplified PSC scheme in SLIMCAT. Feng et al. [66] found that the simplified PSC scheme in SLIMCAT could potentially result in an overestimation of denitrification, which may be the main reason for this disparity between the model and observation. In the Arctic, points at different levels are more uniformly concentrated around the linear fit lines compared to the Antarctic, indicating that the discrepancy between model and observation is less dependent on levels (Figure 8d).

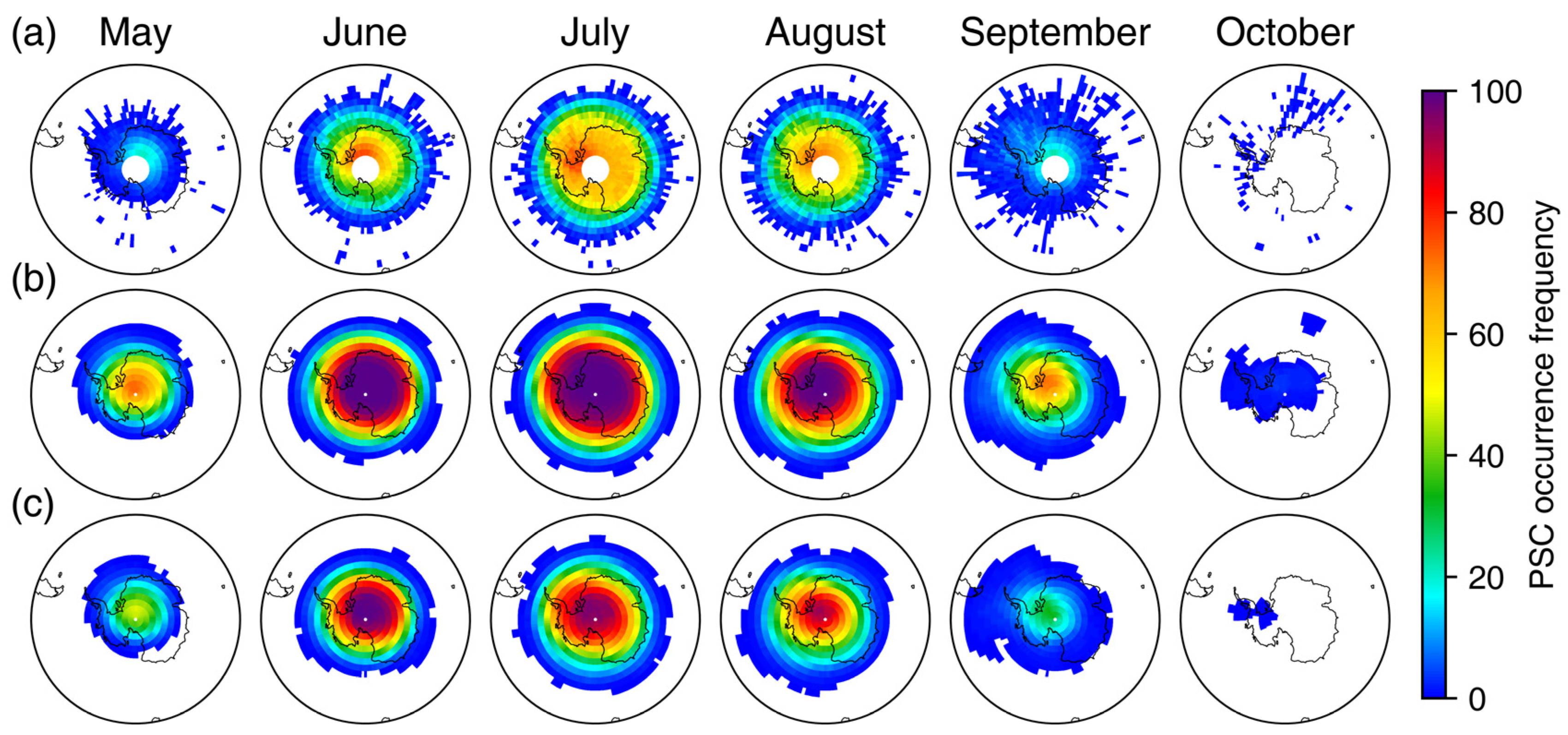

Figure 9 shows the PSC occurrence frequency on 500 K isentropic level at which the maximum PSC is located. The CALIPSO observation indicates that the PSC occurrence frequency in the Antarctic reaches its peak value in July and subsequently decreases gradually. Due to the steady descent of air masses over the Antarctic stratosphere during spring [57,58], there are no PSCs at 500 K in October, and most of the PSCs are located below the 400 K isentropic level (Figure 1). Furthermore, the maximum PSC frequency occurs near the Antarctic Peninsula. The high-frequency mountain wave activity near the Antarctic Peninsula results in local temperature fluctuations, which rapidly decreases the ambient temperature below T_ice and leads to ice nucleation. These ice particles further induce NAT nucleation [19,23,67]. Compared to the CALIPSO observation, the SLIMCAT simulation shows a higher PSC occurrence frequency, and the relative bias can reach 100% over the entire Antarctic region. Additionally, the SLIMCAT simulations can reproduce the zonal asymmetry in PSC occurrence frequency, with higher PSC occurrence frequency in May and September near the Antarctic Peninsula, which is not significant in July. However, the PSC frequency with T_NAT−3 K as the threshold of PSC formation (Figure 9c) is significantly smaller, and there is a significant zonal asymmetry in July. Therefore, the possible reason for the insignificant asymmetry of SLIMCAT PSC frequency in July is that the PSC frequency reached nearly 100% over the Antarctic continent, which overshadows and masks this underlying asymmetry.

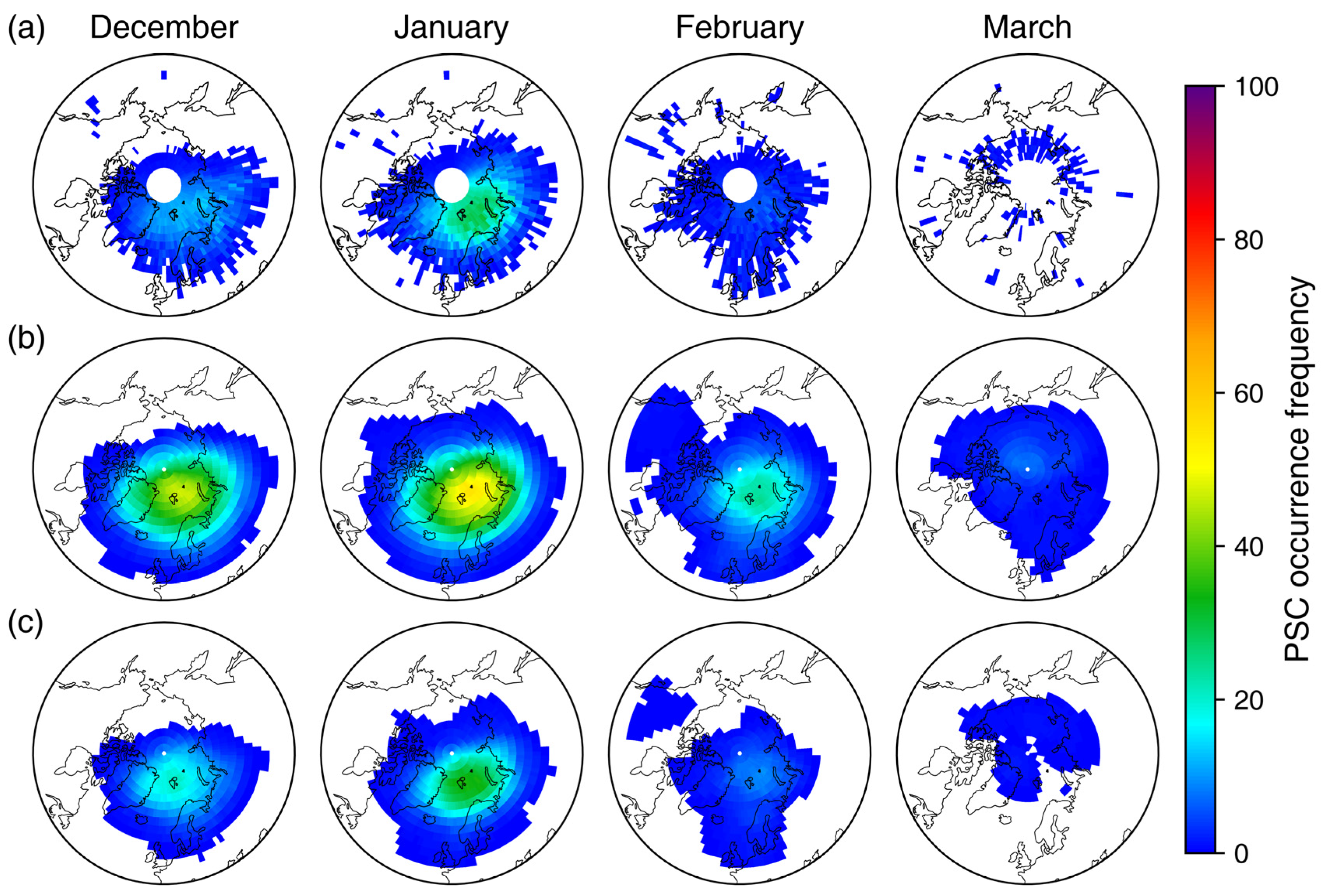

Figure 10 shows the PSC occurrence frequency in the Arctic region on 460 K isentropic level from December to March based on CALIPSO observation and SLIMCAT simulation. Due to the higher temperature in the Arctic, the PSC occurrence frequency is notably lower than that in the Antarctic. The PSC occurrence frequency shows a noticeable zonally asymmetric structure, with the maximum frequency between the Svalbard Archipelago and Novaya Zemlya, which is related to the location of the climatological polar vortex center [68]. The CALIPSO observed PSC occurrence frequency reaches its maximum in January, while the modeled maximum PSC occurrence frequency is also in January but significantly higher than the CALIPSO observation.

Figure 11 shows the seasonal evolution of Antarctic ice PSC areas observed by CALIPSO. Since ice PSCs rarely occur in the Arctic, only the Antarctic PSCs are shown. Influenced by the temperature inside the polar vortex, the interannual variability of ice PSC area over the Antarctic is large, and its seasonal evolution differs from that of total PSCs (Figure 1). The seasonal variation of ice PSCs in the Antarctic is characterized by periodic extreme values occurring every few days. This phenomenon can be attributed to the requirement of very low temperatures for ice PSC formation. The synoptic-scale variations in the polar vortex significantly influence the occurrence of ice PSCs. Ice PSCs usually appear in June and disappear before October. Figure 12 shows the seasonal evolution of Antarctic ice PSC areas derived from SLIMCAT simulation. Although the modeled ice PSC areas are larger than those observed by CALIPSO, the modeled ice PSCs can capture its interannual variability, as well as several large ice PSC events (e.g., 2013, 2016, 2018, and 2020).

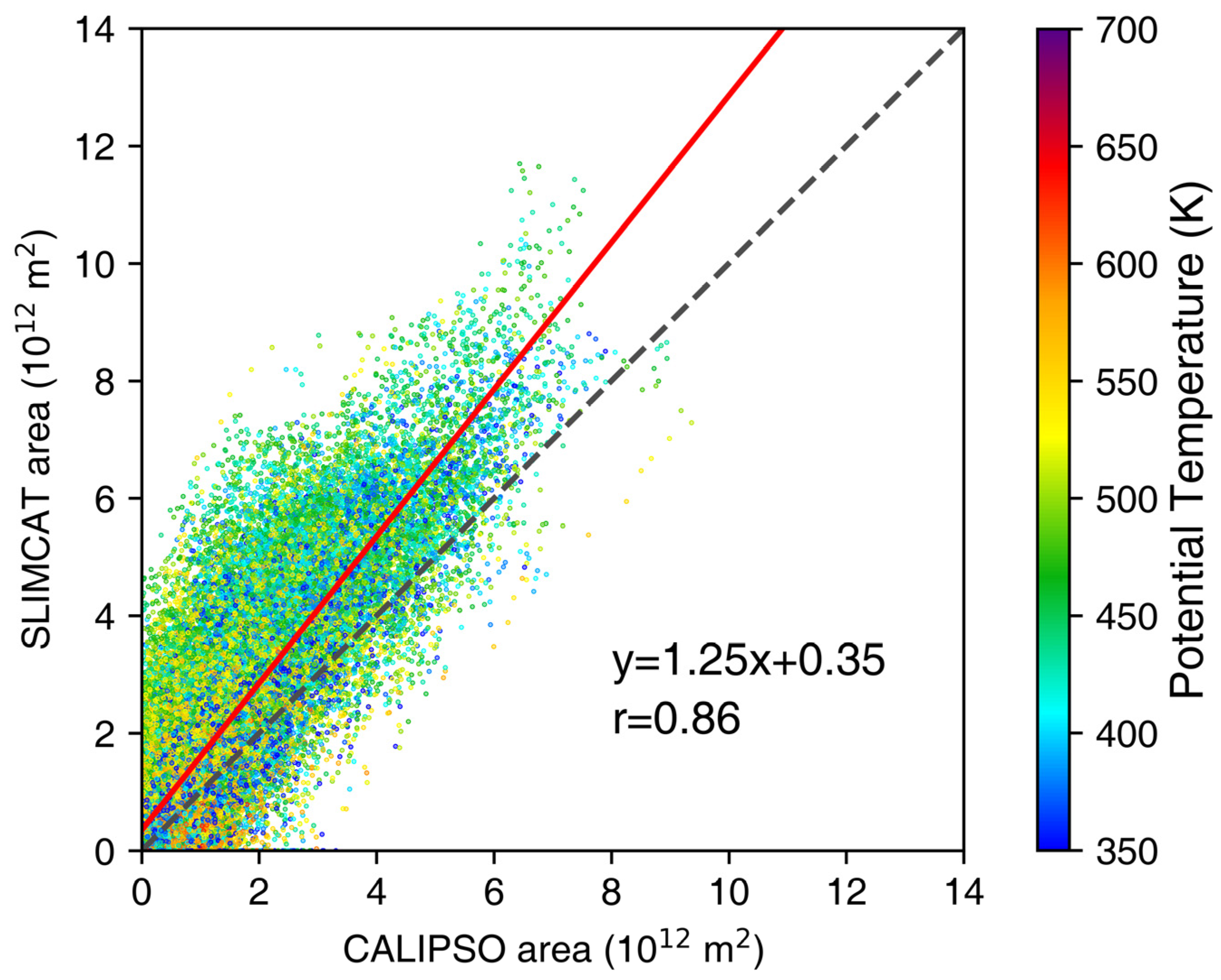

Figure 13 shows the ice PSC area on different isentropic levels derived from CALIPSO and SLIMCAT. Although the modeled ice PSCs are larger than the observation, the correlation coefficient between SLIMCAT and CALIPSO is 0.86, and the absolute error (0.35 million km²) and relative error (35%) are smaller than that of total PSCs (Figure 8), indicating that the modeled ice PSC areas are in better agreement with the observation. The large ice PSC areas are located around 450 K, which is lower than the level at the maximum coverage of total PSC locates. In addition, the points of ice PSC area at different levels are uniformly concentrated around the linear fit lines, indicating that the altitude of the modeled ice PSCs agrees well with the observed one. Since T_ice depends only on H₂O, while T_NAT depends not only on H₂O but also on HNO₃, the altitude discrepancy in Figure 8a,c between simulations and observations can be attributed to the HNO₃ simulation bias and insufficient simulation of the NAT sedimentation. It also indicates that the role of HNO₃ (as well as H₂O) in PSC calculations cannot be ignored. Thus, it is not accurate to employ fixed HNO₃ and H₂O for PSC threshold temperatures or even use 195 K as the threshold temperature for PSC formation, which may have considerable discrepancies. We experimented with using 195 K as the threshold temperature for PSC formation (Figure S8), and the discrepancy between simulations and observations is much larger than that in Figure 8a,b, which suggest that the simulation of PSCs can be effectively improved after considering realistic HNO₃ and H₂O.

4. Discussion

There is a better agreement between the simulated and observed spatial distribution of PSCs when the T_NAT−3 K is used as the threshold temperature for PSC formation. A sensitivity experiment conducted by Steiner et al. [29] involved offsetting a cold temperature bias in the polar lower stratosphere by +3 K, resulting in a significantly improved agreement between the simulated PSC coverage area and observed from CALIPSO. Furthermore, Pitts et al. [45] found that the agreement between the observed CALIPSO PSC area and the area of T < T_STS (assuming T_STS is 4 K colder than T_NAT) is better than that with the area of T < T_NAT. Observation indicates that when the temperature is slightly below T_NAT, the number of NAT is relatively small, which cannot be detected. As the temperature decreases, the number of NAT peaks at approximately 3–4 K below T_NAT, primarily due to different exposure times of air parcels below T_NAT [23,32,46,69]. In contrast, for STS and ice PSCs, the peak occurs rapidly once the temperature is below the respective formation threshold temperatures, T_STS and T_ice. In thermodynamic equilibrium models, PSCs take place once the temperature falls below the threshold temperature. As a result, using T_NAT as the threshold of PSC formation leads to a larger simulated PSC area than the observation, while using T_ice for ice yields better agreement with observations of ice PSCs. Although the use of T_NAT–3 K as a threshold for PSC formation has significantly improved the simulation, it is not a good decision to adjust the PSC formation threshold in the model to cater to the CALIPSO observations.

In addition, our results indicate that accurate simulation of HNO₃ (as well as H₂O) is crucial for PSC simulation. The simplified PSC scheme in SLIMCAT still exhibits deficiencies in simulating HNO₃ [66]. Considering the critical role of HNO₃ in the PSCs and the conversion of active chlorine to chlorine reservoir species in spring [15], it is necessary to improve the simulation of denitrification. In future model development, denitrification schemes with detailed microphysical schemes where the air parcel is moving along the trajectory in Lagrangian can be included to improve the simulation of PSCs as well as ozone.

5. Conclusions

Using a CTM (SLIMCAT), we simulate the PSCs in the North and South Polar stratosphere and compare the features of PSCs, including their area, volume, and distribution, to the observed PSCs from the CALIPSO satellite. We use two different methods to calculate the SLIMCAT (Grid method) and CALIPSO (P18 method) PSC areas. Although Steiner et al. [29] suggested that the two methods lead to relatively large differences in PSC area, our results show that the modeled PSC areas calculated by the two methods are close.

The seasonal evolution of the Antarctic PSC area is similar from year to year. It forms near the 500 K isentropic level in middle and late May, and then its area gradually increases. After reaching a maximum in middle and late July, the PSC area begins gradually to decrease until it disappears in October. In contrast, the year-to-year variability in PSC coverage area, timing, and duration in the Arctic is much larger. There is a zonal asymmetry in the spatial distribution of PSCs, especially in the Arctic. The maximum occurrence frequency of the Antarctic PSCs is near the Antarctic Peninsula, which is influenced by topographic gravity waves. In the Arctic, the maximum occurrence frequency is between the Svalbard and Novaya Zemlya, which is related to the location of the climatological polar vortex center.

The SLIMCAT agrees well with the observation of seasonal variation and spatial distribution of PSCs. However, the SLIMCAT simulations overestimate the PSC coverage, with the simulated PSCs appearing earlier and persisting for a longer duration. There are several factors contributing to the discrepancy between simulated and observed PSCs. One is the high detection threshold of CALIPSO, which leads to the thin PSC layer not being monitored. Additionally, the discrepancy may also stem from the coarse resolution of SLIMCAT. Comparing the spatial distribution of PSCs from SLIMCAT simulation with CALIPSO observation, we found that the simulated spatial distribution of PSCs is consistent with the observation when the PSC coverage area is larger. However, when the PSC coverage area is smaller, the observed PSC coverage area is significantly larger than the simulated results. Finally, our results indicate that accurate simulation of HNO₃ (as well as H₂O) is crucial for PSC simulation.
