Unified Model and Survey on Modulation Schemes for Next-Generation Automotive Radar Systems

Abstract

Commercial automotive radar systems for advanced driver assistance systems (ADASs) have relied on frequency-modulated continuous wave (FMCW) waveforms for years due to their low-cost hardware, simple signal processing, and established academic and industrial expertise. However, FMCW systems face several challenges, including limited unambiguous velocity, restricted multiplexing of transmit signals, and susceptibility to interference. This work introduces a unified automotive radar signal model and reviews the alternative modulation schemes such as phase-coded frequency-modulated continuous wave (PC-FMCW), phase-modulated continuous wave (PMCW), orthogonal frequency-division multiplexing (OFDM), orthogonal chirp division multiplexing (OCDM), and orthogonal time frequency space (OTFS). These schemes are assessed against key technological and economic criteria and compared with FMCW, highlighting their respective strengths and limitations.

1. Introduction

Radars are essential for spatial perception in automotive systems, providing range, speed, and angle data to create a 360-degree view of the surroundings of vehicles [1]. Radar systems are fundamental to advanced driver assistance systems (ADASs), such as lane change warning (LCW) and emergency brake assist (EBA). As vehicles advance to higher levels of autonomy (L4 and L5) [2], demands on radar sensors intensify, presenting significant challenges for next-generation systems. The integration of advanced modulation schemes into automotive radars faces several obstacles, including technical complexity, cost-effectiveness, market readiness, and reliable performance in diverse scenarios. Cost-effectiveness remains critical for commercial viability, necessitating a balance between advanced capabilities and affordability in the competitive automotive market.

Commercial automotive radar systems for ADASs rely predominantly on frequency-modulated continuous wave (FMCW) waveforms due to their low-cost hardware, straightforward signal processing, and established expertise. However, FMCW faces limitations in spatial resolution, detection ranges, maximum unambiguous velocities, and robustness against mutual interference and adverse weather conditions. To address these challenges, next-generation automotive radar waveforms must fulfill the following key requirements:

• Achieve finer range and angular resolution through a wider instantaneous bandwidth and advanced multiple input multiple output (MIMO) multiplexing methods;
• Enable high unambiguous velocity detection, which is essential for reliable tracking in high-speed scenarios;
• Exhibit strong robustness against interference, multipath propagation, and adverse environmental conditions;
• Facilitate efficient hardware implementations for commercial viability.

Recent research has explored various innovative waveform designs, such as digitally modulated waveforms (phase-modulated continuous wave (PMCW), orthogonal frequency-division multiplexing (OFDM)), hybrid analog–digital modulation (phase-coded frequency-modulated continuous wave (PC-FMCW)), orthogonal chirp division multiplexing (OCDM), and orthogonal time frequency space (OTFS). These schemes offer greater flexibility, interference mitigation, and the potential integration of joint radar–communication functionalities.

Early automotive radar systems used short-pulse transmissions with limited resolution and range. Advances led to continuous wave (CW) radar systems, which cannot estimate range. Further development introduced FMCW chirp modulation, transmitting signals with linearly increasing frequency to enable range estimation. Modulation schemes are generally classified into analog and digital [3]. Automotive radar systems for up to L-2 and L-3 ADASs predominantly use chirp sequence-based FMCW analog modulation, which, with steeper frequency ramps and shorter pulse durations [4], enables higher unambiguous velocities than earlier slow-chirp systems [5]. FMCW radar utilizes stretch processing, mixing transmitted and received signals to produce a low-frequency beat signal [6] that is sampled by analog-to-digital converters (ADCs) at relatively low rates, making it cost-effective. Radar systems are increasingly adopting MIMO technology to improve angular resolution in azimuth and elevation [7]. Although most current radar sensors use a single monolithic microwave integrated circuit (MMIC), the trend is moving toward cascading multiple MMICs to improve angular measurements [8]. Ideally, all transmit antennas operate simultaneously, but this requires multiplexing in time, frequency, or code domains. For an FMCW radar, multiplexing methods such as time-division multiplexing (TDM) or Doppler-division multiplexing (DDM) become challenging, as increasing transmit antennas reduces unambiguous velocity [9]. Furthermore, FMCW radar systems are susceptible to interference, which is increasingly significant with more radar sensors on the roads [10]. As illustrated in Figure 1, the radar sensor market is expected to grow substantially between 2024 and 2032. Thus, addressing multiplexing complexities and interference issues is essential for effectively deploying radar systems in autonomous driving.

Various approaches have been employed for overcoming FMCW limitations, with digital modulation schemes (e.g., PMCW, OFDM [11]) and hybrid solutions (e.g., PC-FMCW [12]) gaining popularity. These approaches provide flexible waveform generation, improved maximum unambiguous velocities [13], potential for joint radar and communication (JRC) [14], and they eliminate the need for linear frequency synthesizers. However, fine-range resolution demands a large instantaneous bandwidth [15], increasing power consumption, processing overhead, storage requirements [16], and costs. While PMCW and OFDM are currently prominent, alternatives such as OCDM [17] and OTFS [18] show promise in resisting Doppler frequency shifts and inter-symbol interference (ISI) [18,19], although they have not reached commercial maturity.

Figure 1. Automotive radar market size forecast from 2023 to 2034 [20], indicating significant growth in the coming years.

Figure 1. Automotive radar market size forecast from 2023 to 2034 [20], indicating significant growth in the coming years.

1.1. Related Work

Modulation schemes have been extensively studied, focusing on interference mitigation and signal processing.

Table 1. An overview of related works and their contributions.

Modulation						Ref.	Year	Authors	Title	Contribution
FMCW	PMCW	PC-FMCW	OFDM	OCDM	OTFS
✓	✓	×	✓	×	×	[5]	2021	Waldschmidt et al.	Automotive Radar—From First Efforts to Future Systems	Review of radar development over the years with a focus on research topics of automotive radar such as digital modulation schemes, radar networks, radar imaging, and machine learning.
✓	✓	×	✓	×	×	[21]	2023	Giuffrida et al.	A Survey of Automotive Radar and LiDAR Signal Processing and Architectures	Review of radar and LiDAR technology with a focus on modulation schemes and imaging systems, highlighting the weaknesses and strengths and presenting sensor fusion concepts
✓	✓	×	✓	×	×	[22]	2019	Hakobyan et al.	High-Performance Automotive Radar: A Review of Signal Processing Algorithms and Modulation Schemes	Review of modulation schemes with a focus on signal processing and interference mitigation.
✓	×	×	✓	×	×	[23]	2017	Patole et al.	Automotive Radars: A Review of Signal Processing Techniques	Review of aspects such as waveform design, architectures, estimation algorithms, implementation complexity, resolution, processing for complex environments, and unique problems associated with automotive radars.
✓	✓	✓	×	×	×	[24]	2021	Kumbul et al.	Automotive Radar Interference Study for Different Radar Waveform Types	Interference study on different waveforms and experimental demonstration of PC-FMCW waveforms.
✓	×	×	✓	×	×	[25]	2020	Carvajal et al.	Comparison of Automotive FMCW and OFDM Radar Under Interference	Performance Comparison of FMCW and OFDM in Terms of Interference. The results show that both waveforms can perform similarly under proper windowing, but OFDM is more sensitive to interference.
×	✓	×	✓	×	×	[16]	2021	Schweizer et al.	The Fairy Tale of Simple All-Digital Radars: How to Deal With 100 Gbit/s of a Digital Millimeter-Wave MIMO Radar on an FPGA	Implementation of PMCW and OFDM modulation on Xilinx RFSoC FPGA with performance demonstration, showing that sophisticated digital design is required to realize the radar processing.
✓	✓	×	✓	×	×	[11]	2019	Roos et al.	Radar Sensors for Autonomous Driving: Modulation Schemes and Interference Mitigation	Presentation of modulation schemes and interference mitigation for automotive radars, namely FMCW, PMCW, and OFDM.
✓	✓	×	✓	✓	✓	[26]	2016	Giroto de Oliveira et al.	Joint Radar–Communication Systems: Modulation Schemes and System Design	Overview of modulation schemes for JRC systems with detailed systems models and parameters for quantifying radar and communication performance.

provides an overview of the related reviews and surveys, highlighting contributions and investigated modulation schemes. Section 4 provides the additional literature on commercial radar parameters.

1.2. Terminology

Modulation schemes can be categorized into analog schemes (e.g., FMCW, OCDM) and digital schemes (e.g., PMCW, OFDM). Analog modulation allows signals to take continuous values, while digital modulation employs discrete symbols (e.g., binary phase shift keying (BPSK), quadrature phase shift keying (QPSK), quadrate amplitude modulation (QAM)) to generate an analog signal.

1.3. Contributions

The existing literature often neglects practical commercial requirements such as cost efficiency and the complexity of implementation. This paper advances next-generation automotive radar development by reviewing the commercial feasibility of modulation schemes. A unified waveform-agnostic signal model adaptable to various schemes is introduced. This analysis encompasses waveform characteristics, system architectures, Doppler-variant impulse response processes, multiplexing techniques, and parameters for the following six modulation schemes: FMCW, PC-FMCW, PMCW, OFDM, OCDM, and OTFS. This work assesses automotive radar requirements, highlighting each scheme’s advantages and limitations, and outlines future research directions.

2. Waveform-Agnostic Signal Model

Physically present entities such as cars, other traffic participants, road boundaries, and curbs are collectively referred to as objects. Each object may contain several scattering centers, with each scattering center being referred to as a target. Consequently, an object can consist of multiple targets. The primary goal of modern radar systems is to capture the Doppler-variant impulse response of the channel, known as the spreading function [27]. This function is essential because it directly corresponds to two fundamental dimensions of radar operation—range and velocity. In addition, antenna characteristics and spatial processing influence azimuth and elevation, completing the four-dimensional perception space.

The propagation delay, ${\mathsf{\tau }}_{n_{\mathrm{tgt}}}$, is proportional to the path length $r_{n_{\mathrm{tgt}}}$ between the radar and target $n_{\mathrm{tgt}}$ via ${\mathsf{\tau }}_{n_{\mathrm{tgt}}}=2r_{n_{\mathrm{tgt}}}/c_0$, where $c_0$ is the propagation velocity. The Doppler frequency shift, $f_{\mathrm{D},n_{\mathrm{tgt}}}=2v_{\mathrm{r},n_{\mathrm{tgt}}}/\lambda$, with $\lambda =c_0/f_{\mathrm{c}}$, reflects the time-dependent change in the propagation path. Here, $v_{\mathrm{r},n_{\mathrm{tgt}}}$ denotes the relative radial velocity between the radar and target. For short observation times relative to the target distance and velocity, the Doppler frequency can be approximated as constant and proportional to $v_{\mathrm{r},n_{\mathrm{tgt}}}$.

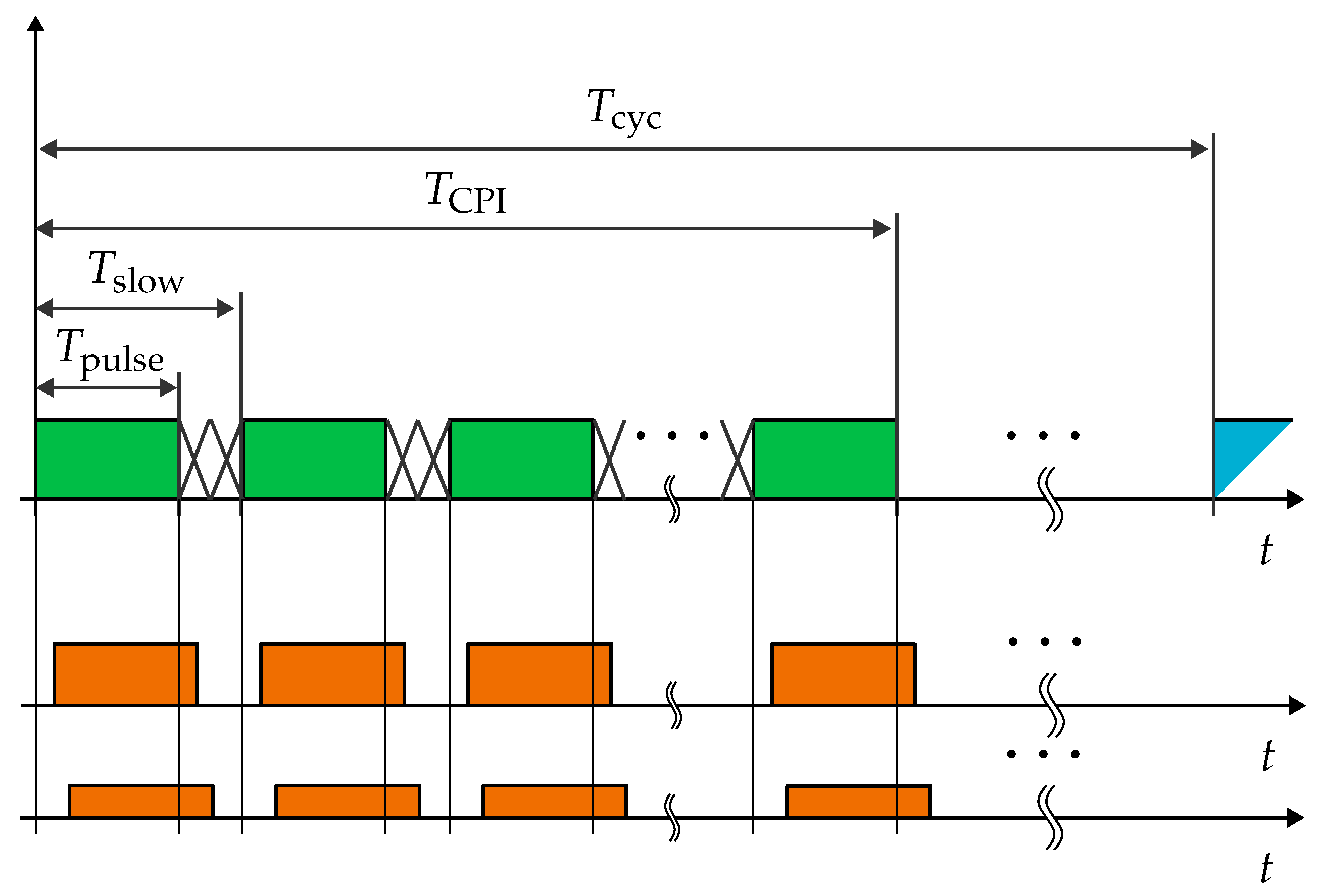

As shown in Figure 2, the channel is typically probed with short-duration pulses, ${\mathit{T}}_{\mathrm{p}\mathrm{u}\mathrm{l}\mathrm{s}\mathrm{e}}$, during which it can be approximated as quasi-static. The range axis, derived from the propagation delay information, can be obtained from a single pulse. However, longer pulses may violate this assumption, requiring compensation for pulse extension. The velocity axis, linked to the Doppler-variant channel component, is not directly measurable but is inferred from consecutive probes separated by the slow-time period $T_{\mathrm{slow}}=T_{\mathrm{pulse}}+T_{\mathrm{idle}}$, where $T_{\mathrm{idle}}\in {\mathbb{R}}_{\ge 0}$. The slow-time interval determines the unambiguous velocity interval, $[-v_{\max },v_{\max })$, with $v_{\max }=\lambda /\left(4T_{\mathrm{slow}}\right)$. Although $T_{\mathrm{slow}}$ is waveform-agnostic, its structure depends on the specific waveform. Multiple probes are coherently processed over the total interval, called the coherent processing interval (CPI), with duration $T_{\mathrm{CPI}}=N_{\mathrm{pulse}}{T}_{\mathrm{slow}}$, where $N_{\mathrm{pulse}}\in {\mathbb{N}}_{\ge 2}$. The CPI duration determines the velocity resolution, $v_{\mathrm{res}}=\lambda /\left(2T_{\mathrm{CPI}}\right)$.

To obtain periodic channel updates, measurements are repeated with a cycle period $T_{\mathrm{cyc}}$, typically $T_{\mathrm{cyc}}=30 \mathrm{m}\mathrm{s} \mathrm{t}\mathrm{o} 60 \mathrm{m}\mathrm{s}$ in automotive applications [28]. Multiple cycles are used for higher-layer processing, e.g., target tracking or environment modeling. This work focuses on modulation schemes, limiting the scope to a single cycle, i.e., the CPI of duration $T_{\mathrm{CPI}}$.

To establish a unified waveform-agnostic model, the radar pulse $x_{\mathrm{pulse}}\left(t\right)$ is defined to be an arbitrary time-dependent function $f\left(t\right)$ with duration ${\mathit{T}}_{\mathrm{p}\mathrm{u}\mathrm{l}\mathrm{s}\mathrm{e}}$, expressed as follows:

$$x_{\mathrm{pulse}}\left(t\right)=f\left(t\right)\mathrm{rect}\left({\displaystyle \frac{t}{{\mathit{T}}_{\mathrm{p}\mathrm{u}\mathrm{l}\mathrm{s}\mathrm{e}}}}\right)$$

(1)

where $\mathrm{rect}\left(t\right)$ is the rectangular window function constrained to $0\le t<1$. We adopt the signal model proposed by Hakobyan et al. in [22], where a sequence of identical waveforms is transmitted within a single CPI. While this model is a simplification, modern automotive radar systems often employ more advanced schemes that introduce pulse-to-pulse variation over the slow-time domain, such as DDM [9], stepped-frequency carriers [15], and others. However, these variants can generally be derived as extensions of the basic model by Hakobyan et al., and their exact implementation details are often proprietary to radar manufacturers. To ensure clarity and accessibility, we adhere to the simplified assumption of identical pulses. Under this model, the complete baseband (BB) pulse sequence $x_{\mathrm{BB}}\left(t\right)$ is constructed by periodically repeating a single pulse with a slow-time interval $T_{\mathrm{slow}}$, and can be expressed as follows:

$$x_{\mathrm{BB}}\left(t\right)=\sum _{n_{\mathrm{pulse}}=0}^{N_{\mathrm{pulse}}-1}{x}_{\mathrm{pulse}}(t-n_{\mathrm{pulse}}{T}_{\mathrm{slow}})$$

(2)

The BB pulse sequence $x_{\mathrm{BB}}\left(t\right)$ is generated by repeating $x_{\mathrm{pulse}}\left(t\right)$ with a period of ${\mathit{T}}_{\mathrm{s}\mathrm{l}\mathrm{o}\mathrm{w}}$, as follows:

$$x_{\mathrm{RF}}\left(t\right)=x_{\mathrm{BB}}\left(t\right)exp\left(j2\pi f_{\mathrm{c}}t\right)$$

(3)

We focus on CW waveforms, characterized by ${\mathit{T}}_{\mathrm{p}\mathrm{u}\mathrm{l}\mathrm{s}\mathrm{e}}\gg \underset{n_{\mathrm{tgt}}}{max}{\mathsf{\tau }}_{n_{\mathrm{tgt}}}$, which necessitates simultaneous transmission and reception. The pulse duration is constrained by ${\mathit{T}}_{\mathrm{s}\mathrm{l}\mathrm{o}\mathrm{w}}\ge {\mathit{T}}_{\mathrm{p}\mathrm{u}\mathrm{l}\mathrm{s}\mathrm{e}}$ to avoid overlap between pulses. Durations shorter than ${\mathit{T}}_{\mathrm{s}\mathrm{l}\mathrm{o}\mathrm{w}}$ are allowed, creating idle periods between pulses, primarily due to hardware limitations or implementation constraints. The received signal $y_{\mathrm{RF}}\left(t\right)$ is modeled as the sum of delayed, time-scaled, and attenuated replicas of the transmit signal.

$$y_{\mathrm{RF}}\left(t\right)\approx \sum _{n_{\mathrm{tgt}}=0}^{N_{\mathrm{tgt}}-1}{a}_{n_{\mathrm{tgt}}}{x}_{\mathrm{RF}}\left(t-{\tau }_{n_{\mathrm{tgt}}}\left(t\right)\right)$$

(4)

where $a_{n_{\mathrm{tgt}}}$ represents target attenuation, and ${\tau }_{n_{\mathrm{tgt}}}\left(t\right)$ is the propagation delay. This approximation assumes constant $a_{n_{\mathrm{tgt}}}$ and $N_{\mathrm{tgt}}$ over the CPI, justified by typical automotive radar parameters, with CPI of $T_{\mathrm{CPI}}=5 \mathrm{m}\mathrm{s} \mathrm{t}\mathrm{o} 25 \mathrm{m}\mathrm{s}$ and maximum relative speeds up to 400 $\mathrm{k}$$\mathrm{m}$ $\mathrm{h}$ [28].

The magnitude of $a_{n_{\mathrm{tgt}}}$ encapsulates all the pertinent information from the radar equation, including range-dependent attenuation and the radar cross-section (RCS) of the target. Additionally, the phase captures the effects on the target echoes related to propagation, antenna, and reflection on the target surface. For the propagation delay, we further use the approximate model as follows:

$${\mathsf{\tau }}_{n_{\mathrm{tgt}}}\left(t\right)\approx {\mathsf{\tau }}_{n_{\mathrm{tgt}}}\left(0\right)+{\displaystyle \frac{2v_{\mathrm{r},n_{\mathrm{tgt}}}}{c_0}}t$$

(5)

where there is a linear relationship between the target radial velocity $v_{\mathrm{r},n_{\mathrm{tgt}}}$ and the propagation delay ${\mathsf{\tau }}_{n_{\mathrm{tgt}}}$(t). The approximation in (5) is valid under the assumption of constant radial velocity during the CPI, which is reasonable for the short CPI typically used in automotive radars. Accordingly, the received BB signal can be modeled as follows:

$$\begin{array}{cc}\hfill y_{\mathrm{BB}}\left(t\right)& =y_{\mathrm{RF}}\left(t\right)exp(-j2\pi f_{\mathrm{c}}t)\hfill \\ \hfill & \approx {\displaystyle \sum _{n_{\mathrm{tgt}}=0}^{N_{\mathrm{tgt}}-1}}{a}_{n_{\mathrm{tgt}}}{x}_{\mathrm{RF}}\left(t-{\tau }_{n_{\mathrm{tgt}}}\left(t\right)\right)exp(-j2\pi f_{\mathrm{c}}t)\hfill \\ \hfill & \approx {\displaystyle \sum _{n_{\mathrm{tgt}}=0}^{N_{\mathrm{tgt}}-1}}{a}_{n_{\mathrm{tgt}}}{\displaystyle \sum _{n_{\mathrm{pulse}}=0}^{N_{\mathrm{pulse}}-1}}(x_{\mathrm{pulse}}\left(t-{\tau }_{n_{\mathrm{tgt}}}\left(n_{\mathrm{pulse}}{T}_{\mathrm{slow}}\right)-n_{\mathrm{pulse}}{T}_{\mathrm{slow}}\right)\hfill \\ & ·exp\left(-j2\pi f_{\mathrm{c}}{\mathsf{\tau }}_{n_{\mathrm{tgt}}}\left(n_{\mathrm{pulse}}{T}_{\mathrm{slow}}\right)\right)).\hfill \end{array}$$

(6)

This model includes two approximations. First, time scaling is essentially not visible in the BB signal; second, the fast-time Doppler frequency shift is negligible. Range estimation is performed using the delay in the fast-time pulse signal, $x_{\mathrm{pulse}}(t-{\tau }_{n_{\mathrm{tgt}}}\left(n_{\mathrm{pulse}}{T}_{\mathrm{slow}}\right)-n_{\mathrm{pulse}}{T}_{\mathrm{slow}})$, while the phase shift $exp\left(-j2\pi f_{\mathrm{c}}{\mathsf{\tau }}_{n_{\mathrm{tgt}}}\left(n_{\mathrm{pulse}}{T}_{\mathrm{slow}}\right)\right)$ along slow time is used for the velocity estimation. In practice, the received signal $y_{\mathrm{RF}}\left(t\right)$ is downconverted, demodulated, and digitalized at the receiver side [29]. Digital samples are stored as a two-dimensional matrix $\mathrm{y}$ whose columns and rows denote the dimension along fast time and slow time, respectively. Afterward, range-Doppler (RD) processing [30] is applied to this matrix to obtain the RD spectrum, $\mathcal{S}$, whose columns and rows correspond to ranges and velocities, respectively. However, in highly dynamic scenarios with significant acceleration, the linear phase assumption may introduce artifacts in the RD spectrum. In such cases, a polynomial phase model may be more appropriate [31].

3. Waveform Models and Processing

The general waveform-agnostic signal model determines the fundamental properties derived from the slow-time parameters of the waveform. These properties, such as Doppler resolution and the range of unambiguous Doppler values, are independent of the specific waveform utilized. Using a modular “plug and play” approach, diverse waveforms can now be interchangeably considered for the pulses of a radar system. The choice of a specific waveform significantly impacts the radar characteristics observed along the fast-time axis, notably affecting the radar range and range resolution. Furthermore, the choice of waveform significantly shapes the architecture, hardware, and signal processing necessary to achieve the Doppler-variant impulse response. It also has a notable effect on implementing, for example, MIMO multiplexing techniques.

Accordingly, this section outlines specific descriptions of several modulation schemes pertinent to next-generation automotive radar systems, including FMCW (Section 3.1), PMCW (Section 3.2), PC-FMCW (Section 3.3), OFDM (Section 3.4), OCDM (Section 3.5), and OTFS (Section 3.6). Each scheme is analyzed in detail, explicitly discussing the following essential waveform-dependent aspects: waveform characteristics, system architecture, fast-time/slow-time processing, multiplexing capabilities, and other critical system parameters. Detailed waveform representations and system block diagrams are provided in each respective section. The waveform-specific symbol notation is presented in

Table 2. An overview of waveform-specific symbol notations.

Modulation	Bandwidth	Number of Pulses	Pulse Duration	Slow-Time Interval
Agnostic	B	$N_{\mathrm{pulse}}$	$T_{\mathrm{pulse}}$	$T_{\mathrm{slow}}$
FMCW	$B_{\mathrm{chirp}}$	$N_{\mathrm{chirp}}$	$T_{\mathrm{chirp}}$	$T_{\mathrm{chirp}}+T_{\mathrm{slow}}$
PMCW	$B_{\mathrm{chip}}$	$N_{\mathrm{seq}}$	$T_{\mathrm{seq}}=N_{\mathrm{chip}}{T}_{\mathrm{chip}}$	$N_{\mathrm{acc}}{T}_{\mathrm{seq}}$
PC-FMCW	$B_{\mathrm{chirp}},B_{\mathrm{chip}}$	$N_{\mathrm{chirp}}$	$T_{\mathrm{chirp}}$	$T_{\mathrm{chirp}}+T_{\mathrm{idle}}$
OFDM	$B_{\mathrm{sc}}=N_{\mathrm{sc}}\mathrm{\Delta }f$	$N_{\mathrm{sym}}$	$T_{\mathrm{sym}}=1/\mathrm{\Delta }f$	$T_{\mathrm{sym}}+T_{\mathrm{CP}}$
OCDM	$B_{\mathrm{chirp}}$	$N_{\mathrm{sym}}$	$T_{\mathrm{sym}}=1/\mathrm{\Delta }f$	$T_{\mathrm{sym}}+T_{\mathrm{CP}}$
OTFS	$B_{\mathrm{sc}}=N_{\mathrm{sc}}\mathrm{\Delta }f$	$N_{\mathrm{sym}}$	$T_{\mathrm{sym}}=1/\mathrm{\Delta }f$	$T_{\mathrm{sym}}+T_{\mathrm{CP}}$

$B_{\mathrm{chirp}}$: swept chirp bandwidth, $B_{\mathrm{chip}}$: chip bandwidth, $B_{\mathrm{sc}}$: subcarrier-spanned bandwidth, $N_{\mathrm{acc}}$: number of accumulations, $N_{\mathrm{chip}}$: number of chips, $N_{\mathrm{chirp}}$: number of chirps, $N_{\mathrm{seq}}$: number of sequences, $N_{\mathrm{sc}}$: number of subcarriers, $N_{\mathrm{sym}}$: number of symbols, $T_{\mathrm{CP}}$: cyclic prefix interval, $T_{\mathrm{chip}}$: chip duration, $T_{\mathrm{chirp}}$: chirp duration, $T_{\mathrm{idle}}$: idle time, $T_{\mathrm{seq}}$: sequence duration, $T_{\mathrm{sym}}$: symbol duration, $\mathrm{\Delta }f$: subcarrier spacing.

. A summary of the system parameters is also presented in

Table 3. System parameters for FMCW, PMCW, PC-FMCW, OFDM, OCDM, and OTFS modulation schemes.

Waveform	Range Resolution ${\mathit{r}}_{\mathbf{res}}$	Unambiguous Range ${\mathit{r}}_{\mathbf{max}}$	Velocity Resolution ${\mathit{v}}_{\mathbf{res}}$	Unambiguous Velocity ${\mathit{v}}_{\mathbf{max}}$
FMCW	${\displaystyle \frac{c_0}{2B_{\mathrm{chirp}}}}$	${\displaystyle \frac{c_0{T}_{\mathrm{chirp}}}{4B_{\mathrm{chirp}}}{f}_{\mathrm{s}}}$	${\displaystyle \frac{\lambda }{2N_{\mathrm{chirp}}(T_{\mathrm{chirp}}+T_{\mathrm{idle}})}}$	${\displaystyle \frac{\lambda }{4(T_{\mathrm{chirp}}+T_{\mathrm{idle}})}}$
PMCW	${\displaystyle \frac{c_0{T}_{\mathrm{chip}}}{2}}$	${\displaystyle \frac{c_0{N}_{\mathrm{chip}}{T}_{\mathrm{chip}}}{2}}$	${\displaystyle \frac{\lambda }{2N_{\mathrm{seq}}{N}_{\mathrm{chip}}{T}_{\mathrm{chip}}}}$	${\displaystyle \frac{\lambda }{4N_{\mathrm{acc}}{N}_{\mathrm{chip}}{T}_{\mathrm{chip}}}}$
PC-FMCW	${\displaystyle \frac{c_0}{2B_{\mathrm{chirp}}}}$	${\displaystyle \frac{c_0{T}_{\mathrm{chirp}}}{4B_{\mathrm{chirp}}}{f}_{\mathrm{s}}}$	${\displaystyle \frac{\lambda }{2N_{\mathrm{chirp}}(T_{\mathrm{chirp}}+T_{\mathrm{idle}})}}$	${\displaystyle \frac{\lambda }{4(T_{\mathrm{chirp}}+T_{\mathrm{idle}})}}$
OFDM	${\displaystyle \frac{c_0}{2N_{\mathrm{sc}}\mathrm{\Delta }f}}$	${\displaystyle \frac{c_0{T}_{\mathrm{sym}}}{2}}$	${\displaystyle \frac{\lambda }{2N_{\mathrm{sym}}(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$	${\displaystyle \frac{\lambda }{4(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$
OCDM	${\displaystyle \frac{c_0}{2B_{\mathrm{chirp}}}}$	${\displaystyle \frac{c_0{T}_{\mathrm{sym}}}{2}}$	${\displaystyle \frac{\lambda }{2N_{\mathrm{sym}}(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$	${\displaystyle \frac{\lambda }{4(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$
OTFS	${\displaystyle \frac{c_0}{2N_{\mathrm{sc}}\mathrm{\Delta }f}}$	${\displaystyle \frac{c_0{T}_{\mathrm{sym}}}{2}}$	${\displaystyle \frac{\lambda }{2N_{\mathrm{sym}}(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$	${\displaystyle \frac{\lambda }{4(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$

$B_{\mathrm{chirp}}$: chirp bandwidth, $f_{\mathrm{s}}$: sampling rate, $N_{\mathrm{acc}}$: number of accumulations, $N_{\mathrm{chip}}$: number of chips, $N_{\mathrm{chirp}}$: number of chirps, $N_{\mathrm{sc}}$: number of subcarriers, $N_{\mathrm{seq}}$: number of sequences, $N_{\mathrm{sym}}$: number of symbols, $T_{\mathrm{CP}}$: cyclic prefix interval, $T_{\mathrm{chip}}$: chip duration, $T_{\mathrm{chirp}}$: chirp duration, $T_{\mathrm{idle}}$: idle time, $T_{\mathrm{seq}}$: sequence duration, $T_{\mathrm{sym}}$: symbol duration, $\mathrm{\Delta }f$: subcarrier spacing.

for a comprehensive comparison.

3.1. Frequency-Modulated Continuous Wave (FMCW)

3.1.1. Waveform

Among the various FMCW modulation schemes, the chirp sequence modulation scheme [32] and its variants are predominantly adopted by most automotive manufacturers. The waveform signal can be expressed as follows:

$$f_{\mathrm{FMCW}}\left(t\right)=exp\left(j\varphi \left(t\right)\right)$$

(7)

where $\varphi \left(t\right)=2\pi \left(f_{0}t+{\displaystyle \frac{\alpha }{2}}{t}^2\right)+{\varphi }_0$ with $0\le t<T_{\mathrm{chirp}}$ is the instantaneous phase, $f_0$ is the starting frequency (at the beginning of the pulse), and ${\varphi }_0$ is the initial phase. The instantaneous phase is governed by the slope $\alpha =B_{\mathrm{chirp}}/T_{\mathrm{chirp}}$, where $B_{\mathrm{chirp}}$ denotes the swept bandwidth. The waveform in two representations is illustrated in Figure 3a,b. For transmission, the BB signal is modulated on a carrier wave. The received signal in (4) is demodulated by a stretch processing [6], i.e., it is mixed with the transmitted signal, resulting in an intermediate frequency (IF) beat signal expressed by the following equation:

$$y_{\mathrm{IF}}\left(t\right)=y_{\mathrm{RF}}\left(t\right)x_{\mathrm{RF}}^{*}\left(t\right)$$

(8)

where ${\left(·\right)}^{*}$ denotes the complex conjugate.

3.1.2. Architecture

FMCW is a modulation scheme that uses analog frequency chirps for individual pulses, where the term chirp stands for compressed high-intensity pulse. The chirp is generated by a voltage-controlled oscillator (VCO) and phase-locked loop (PLL), which increases the frequency during the chirp duration. This chirp is then modulated onto a carrier wave within the 24 $\mathrm{G}$$\mathrm{Hz}$ or 77 $\mathrm{G}$$\mathrm{Hz}$ band designated for automotive radar applications, amplified, and then transmitted. Upon encountering targets, the reflected signal undergoes amplification and is demodulated using the transmitted chirp signal, yielding a low-frequency beat signal—a process known as stretch processing. The demodulation can be performed by either in-phase/quadrature (IQ)- or real-mixers. After demodulation, bandpass filters (BPFs) eliminates low-frequency components resulting from the demodulation, such as bumper reflections and high-frequency components. ADCs digitize the resultant signals at a frequency corresponding to the frequency of the beat signal. The sampled signal can then be processed to obtain range, Doppler, and angle information. The system architecture is illustrated in Figure 4.

3.1.3. Obtaining Doppler-Variant Impulse Response

A 2D-discrete Fourier transform (DFT) processing is used on the sampled beat signal to extract range and Doppler information. First, a DFT along the samples of a chirp retrieves the beat frequency $f_{\mathrm{b}}=f_{\mathrm{r}}+f_{\mathrm{D}}$, i.e., the sum of a range-dependent frequency $f_{\mathrm{r}}$ and a Doppler-dependent frequency $f_{\mathrm{D}}$. Given the significant slope of chirps in the chirp sequence modulation, in typical automotive scenarios, $f_{\mathrm{D}}$ is considerably smaller than $f_{\mathrm{r}}$ [22]. Consequently, if the range accuracy requirement is not stringent, the Doppler component within the beat signal may be disregarded; however, if needed, it can be compensated for post-Doppler frequency estimation. Second, DFTs along the samples of consecutive sampled waveforms estimate the Doppler frequency shift.

3.1.4. Multiplexing

In automotive applications, MIMO-FMCW radar systems often employ TDM for their simplicity and cost effectiveness [33]. TDM activates only one transmit antenna at a time, increasing the interval between transmissions with each additional antenna. The increase in delay expands the sampling interval, reducing the sampling rate over multiple pulses and constraining the maximum unambiguous velocity. Thus, TDM alone is unlikely to suffice in large-scale MIMO systems, though it can be combined with other modulation schemes.

Recently, chip manufacturers have promoted DDM [9,34]. Unlike TDM-MIMO, DDM supports simultaneous transmissions on the same frequency band. Transmitters emit identical waveforms with distinct initial phases, segmenting the Doppler domain into multiple parts, one per transmit antenna, and requiring additional processing to separate antenna-specific signals [9]. For further DDM literature, see [9,35].

Although both multiplexing approaches offer advantages, such as increased system capacity, they also reduce unambiguous velocities.

3.1.5. System Parameters

In FMCW radar systems, the chirp bandwidth $B_{\mathrm{chirp}}$, i.e., swept bandwidth during $T_{\mathrm{chirp}}$, determines the range resolution, represented in the following equation:

$$r_{\mathrm{res}}={\displaystyle \frac{c_0}{2B_{\mathrm{chirp}}}}$$

(9)

The maximum unambiguous range

$$r_{\max }={\displaystyle \frac{c_0{T}_{\mathrm{chirp}}}{4B_{\mathrm{chirp}}}}{f}_{\mathrm{s}}$$

(10)

is determined by the chirp duration $T_{\mathrm{chirp}}$, sampling rate $f_{\mathrm{s}}$ of the ADC, and the chirp bandwidth. Furthermore, the chirp duration determines the maximum unambiguous velocity, as in the following equation:

$$v_{\max }={\displaystyle \frac{\lambda }{4T_{\mathrm{slow}}}}={\displaystyle \frac{\lambda }{4(T_{\mathrm{chirp}}+T_{\mathrm{idle}})}}$$

(11)

The CPI duration expressed by the product of transmitted chirps $N_{\mathrm{chirp}}$ and chirp duration, i.e., $T_{\mathrm{CPI}}=N_{\mathrm{chirp}}{T}_{\mathrm{chirp}}$, determines the velocity resolution as follows:

$$v_{\mathrm{res}}={\displaystyle \frac{\lambda }{2T_{\mathrm{CPI}}}}={\displaystyle \frac{\lambda }{2N_{\mathrm{chirp}}(T_{\mathrm{chirp}}+T_{\mathrm{idle}})}}$$

(12)

Note that using DDM reduces the maximum unambiguous velocity by a factor equal to the number of transmit antennas [35]. When designing a DDM radar system, this should be considered.

3.2. Phase-Modulated Continuous Wave (PMCW)

3.2.1. Waveform

In PMCW, a code sequence, e.g., a binary code (−1, +1), is assigned to a constant frequency wave, where a symbol of this sequence is called a chip. A single pulse consists of $N_{\mathrm{chip}}\in {\mathbb{N}}_{\ge 2}$ chips, whereas a pulse in PMCW is typically called a sequence. The waveform is shown in Figure 5. The waveform signal can be expressed as follows:

$$f_{\mathrm{PMCW}}\left(t\right)=\sum _{n_{\mathrm{chip}}=0}^{N_{\mathrm{chip}}-1}exp\left(j{\phi }_{n_{\mathrm{chip}}}\right)\mathrm{rect}\left({\displaystyle \frac{t-n_{\mathrm{chip}}{T}_{\mathrm{chip}}}{T_{\mathrm{chip}}}}\right)$$

(13)

where ${\phi }_{n_{\mathrm{chip}}}$ denotes the phase shift of the $n_{\mathrm{chip}}$-th chip with duration $T_{\mathrm{chip}}$. For transmission, the signal is modulated on a carrier wave, as shown in (3). The received signal is demodulated with the same carrier wave, resulting in the receiver BB signal. As explained in [36], the received demodulated signal is sampled at a rate of $R_{\mathrm{chip}}=1/T_{\mathrm{chip}}$ and stored in a matrix representation as $y_{n_{\mathrm{chip}}{n}_{\mathrm{seq}}}=y_{\mathrm{BB}}(n_{\mathrm{chip}}{T}_{\mathrm{chip}}+n_{\mathrm{seq}}{T}_{\mathrm{seq}})$ for further processing, where $n_{\mathrm{seq}}$ denotes the sequence index, and $T_{\mathrm{seq}}$ is the sequence and pulse duration, respectively. Generally, the slow-time interval is assumed to be equal to the sequence duration because sequences with good periodic auto-correlation and cross-correlation properties are used.

3.2.2. Architecture

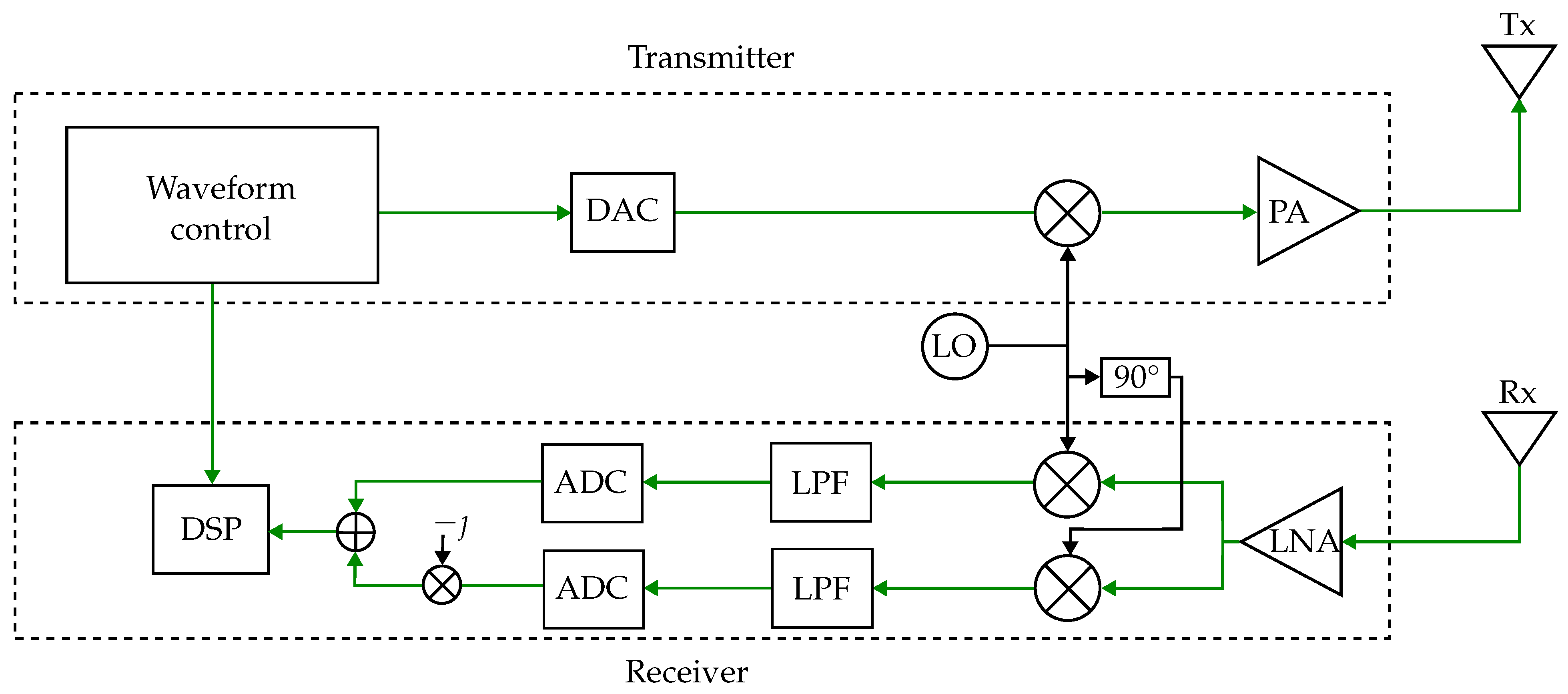

A PMCW radar comprises $N_{\mathrm{chip}}$ chips in one pulse, each with a duration of $T_{\mathrm{chip}}$ and a sequence duration $T_{\mathrm{seq}}=N_{\mathrm{chip}}{T}_{\mathrm{chip}}$. Typically, pseudo-random binary sequences (PRBSs) (such as BPSK) are used to simplify transmitter hardware requirements, transmitting only real-valued signals (−1 and +1) and obviating the need for an IQ modulator at the transmitter. These sequences can be generated through linear-feedback shift registers (LFSRs) [37]. The digital signal is then converted to analog, modulated onto a carrier wave by a local oscillator, amplified, and transmitted. In MIMO systems, each transmit antenna uses a unique sequence to enable signal separation at the receiver. After receiving the reflected signal, the received signal is amplified again before being demodulated with the same carrier frequency used for modulation. Therefore, the BB bandwidth equals the radio frequency (RF) bandwidth. After mixing with the carrier wave, an low-pass filter (LPF) filters the high-frequency components, and an ADC digitizes the signal. Each chip should be sampled at least once, i.e., the sampling frequency should be at least as high as the chip rate $R_{\mathrm{chip}}$, i.e., $f_{\mathrm{s}}\ge R_{\mathrm{chip}}$. After sampling, the signal is processed to obtain the range, Doppler, and angle information. The system architecture is shown in Figure 6.

3.2.3. Obtaining Doppler-Variant Impulse Response

Correlations between transmitted and received signals are calculated to extract the time delay ${\mathsf{\tau }}_{n_{\mathrm{tgt}}}\left(0\right)$ between transmission and reception. If the correlation is performed in the time domain, many correlators must match all potential time delays. However, the correlation can also be implemented efficiently in the frequency domain [38], enabling the use of dedicated fast Fourier transform (FFT) engines. $N_{\mathrm{acc}}$ impulse responses can be accumulated before the correlation to increase the signal-to-noise ratio (SNR). However, this increases the slow-time sampling interval $T_{\mathrm{slow}}=N_{\mathrm{acc}}{T}_{\mathrm{seq}}$, resulting in a decrease in the maximum unambiguous velocity by a factor of $N_{\mathrm{acc}}$ [39].

Different studies have shown that the Doppler shift affects the correlation performance and must be considered when designing a radar system. Moreover, choosing phase sequences with good autocorrelation and cross-correlation properties is crucial for correlation performance and, hence, for the target detection probability [40]. To estimate the relative velocities, DFT along the sequences are calculated to estimate the Doppler frequency shift.

3.2.4. Multiplexing

MIMO-PMCW uses code-division multiplexing (CDM) to transmit unique sequences at different transmit antennas simultaneously in the same frequency band. The following approaches have been proposed:

• Sequence coding: In this approach, each transmitter is assigned a unique sequence. To recover the signals from the $N_{\mathrm{TX}}$ individual transmit antennas, $N_{\mathrm{TX}}$ parallel correlators (i.e., matched filters), each matched to one of the transmitted sequences, are required [41].
• Outer coding: As proposed in [13], the same base sequence is used for all transmitters, but it is multiplied by a code word, e.g., a Hadamard code, to ensure orthogonality (zero cross-correlation) among the transmitters. The length of the outer code is $N_{\mathrm{TX}}$. In [13], the authors first repeat the sequence multiple times to form a block, thereby improving the SNR, and then repeat this block $N_{\mathrm{TX}}$ times with sign inversions applied according to the chosen Hadamard code.

The sequences should have good autocorrelation and cross-correlation properties, determining self-isolation and crosstalk between adjacent channels. The higher the cross-correlation sidelobe level, the greater the risk of ghost targets or weak target masking. Another important parameter is the autocorrelation property of the sequences used, which determines the self-isolation. Ideally, the auto-correlation function (ACF) would have a peak at the target delay and zero elsewhere. This would result in the maximum peak-tosidelobe ratio (PSR). The cross-correlation function (CCF) should be zero for all possible delays. However, several works have shown that perfect orthogonality is impossible with binary sequences, and sequence choice is always a tradeoff between autocorrelation and cross-correlation properties [42,43]. Furthermore, the Doppler frequency shift affects the correlation performance [44] and leads to reduced PSRs.

Assuming that the number of antennas per radar will increase in next-generation radar systems, the cross-correlation properties will become increasingly important. In [45], an analysis showed that the cross-correlation properties determine the performance of large-scale MIMO-PMCW systems, and the greater the number of transmit antennas, the lower the PSR.

3.2.5. System Parameters

In PMCW, the chip duration $T_{\mathrm{chip}}$ or instantaneous bandwidth $B_{\mathrm{chip}}$ determine the range resolution, as follows:

$$r_{\mathrm{res}}={\displaystyle \frac{c_0}{2B_{\mathrm{chip}}}}={\displaystyle \frac{c_0{T}_{\mathrm{chip}}}{2}}$$

(14)

The shorter the chip duration or the larger the bandwidth, the finer the range resolution. However, large bandwidths require fast-sampling ADCs. Furthermore, the sequence duration expressed $T_{\mathrm{seq}}$ determines the maximum unambiguous range, as follows:

$$r_{\max }={\displaystyle \frac{c_0{T}_{\mathrm{seq}}}{2}}={\displaystyle \frac{c_0{N}_{\mathrm{chip}}{T}_{\mathrm{chip}}}{2}}$$

(15)

The longer the sequence length, the greater the processing gain in the range profile can be expected. The sequence duration also determines the unambiguous velocity, as follows:

$$v_{\max }={\displaystyle \frac{\lambda }{4T_{\mathrm{slow}}}}={\displaystyle \frac{\lambda }{4N_{\mathrm{acc}}{T}_{\mathrm{seq}}}}={\displaystyle \frac{\lambda }{4N_{\mathrm{acc}}{N}_{\mathrm{chip}}{T}_{\mathrm{chip}}}}$$

(16)

In the case of short sequence durations, i.e., pulse repetition interval (PRI), the unambiguous velocity can be high, which is beneficial compared to the reduced unambiguous velocities in TDM and DDM systems. The CPI duration expressed by $T_{\mathrm{CPI}}=N_{\mathrm{seq}}{T}_{\mathrm{seq}}$ determines the velocity resolution, as follows:

$$v_{\mathrm{res}}={\displaystyle \frac{\lambda }{2T_{\mathrm{CPI}}}}={\displaystyle \frac{\lambda }{2N_{\mathrm{seq}}{T}_{\mathrm{seq}}}}$$

(17)

3.3. Phase-Coded Frequency-Modulated Continuous Wave (PC-FMCW)

3.3.1. Waveform

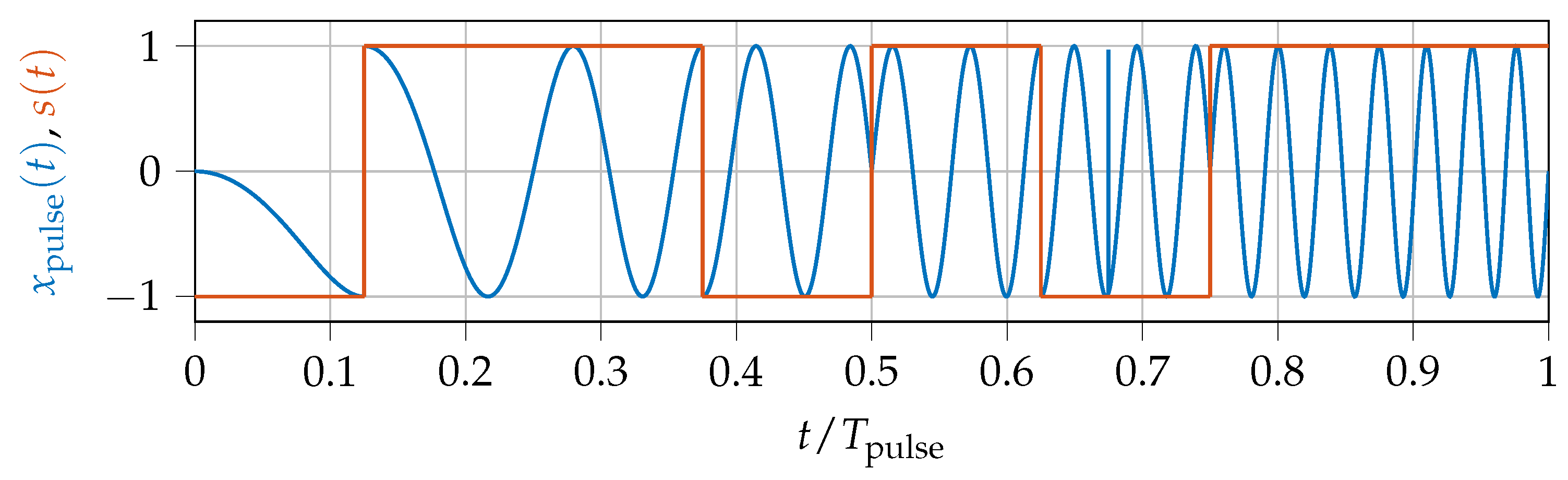

PC-FMCW combines a chirp waveform with phase sequences, where phase shifts are encoded in the chirp. The waveform is shown in Figure 7. PC-FMCW uses an intra-chirp phase-coding, whereas in contrast FMCW with DDM uses an inter-chirp phase coding. Phase shifts represent complex values, such as BPSK or QPSK constellation points. A sequence consists of $N_{\mathrm{chip}}\in {\mathbb{N}}_{\ge 2}$ chips. The waveform signal can be expressed by the following:

$$\begin{array}{c}\hfill f_{\mathrm{PC}}-\mathrm{FMCW}\left(t\right)=s\left(t\right)exp\left(j\varphi \left(t\right)\right)\end{array}$$

(18)

where $s\left(t\right)$ is the phase sequence given as follows:

$$s\left(t\right)=\sum _{n_{\mathrm{chip}}=0}^{N_{\mathrm{chip}}-1}exp\left(j{\phi }_{n_{\mathrm{chip}}}\right)\mathrm{rect}\left({\displaystyle \frac{t-n_{\mathrm{chip}}{T}_{\mathrm{chip}}}{T_{\mathrm{chip}}}}\right)$$

(19)

The chirp configuration is similar to the FMCW systems in Section 3.1.1. After transmitting the signal, the signals received are demodulated by stretch processing [6]. The signal after the LPF is a beat signal that still contains phase shifts at an IF. It can be expressed by the following:

$$y_{\mathrm{IF}}\left(t\right)=as\left(t-\tau \left(t\right)\right)exp\left(j{\varphi }_{\mathrm{B},\mathrm{PC}}\left(t\right)\right)$$

(20)

where ${\varphi }_{\mathrm{B},\mathrm{PC}}\left(t\right)$ can be denoted as follows:

$${\varphi }_{\mathrm{B},\mathrm{PC}}\left(t\right)=\varphi \left(t\right)-\varphi \left(t-\tau \left(t\right)\right)$$

(21)

3.3.2. Architecture

Due to technical challenges, digital modulation has yet to mature for market deployment. As a transitional solution, PC-FMCW has emerged as a hybrid modulation scheme that integrates digital phase sequences into analog frequency chirps. Unlike the bandwidth typically used in PMCW, the bandwidth of the phase coding in PC-FMCW is much lower (e.g., less than 1 $\mathrm{M}$$\mathrm{Hz}$ in [6]). In PC-FMCW, a coder applies phase sequences (chips) to each chirp; these sequences differ between transmit antennas to facilitate transmitter identification. The frequency- and phase-modulated signal is then upconverted to a carrier, amplified, and transmitted, while an uncoded reference chirp is routed to the receiver for demodulation.

On the receiving side, the signal is amplified and demodulated using the uncoded chirp, yielding a low-frequency beat signal—an approach already familiar from FMCW radar systems (see Section 3.1.1). After low-pass filtering to remove high-frequency components, the signal is digitized by an ADC. However, this beat signal still contains phase shifts. Unlike PMCW, where phase shifts are used for range processing (see Section 3.2.3), PC-FMCW employs phase shifts only for transmitter identification. Consequently, these phase shifts must be eliminated before conducting range and Doppler processing. Because the received signal may contain reflections from multiple ranges (i.e., different beat frequencies), it first passes through a group delay filter (GDF) that delays each frequency component to the maximum possible delay associated with the chirp duration, thus corresponding to the maximum unambiguous range [6]. As a result, the envelopes of all beat frequencies align in time, allowing the subsequent decoding stage to remove the phase shifts. The decoded signal can then be processed to extract range, Doppler, and angle information. Figure 8 illustrates this system architecture.

3.3.3. Obtaining Doppler-Variant Impulse Response

In contrast to the FMCW beat signal, each reflection introduces an additional shifted signal envelope received, $s\left(t-\tau \left(t\right)\right)$, as depicted in (20). In [6], Uysal assumes that this is a slowly varying envelope modulated on a beat frequency. Consequently, this envelope can be effectively addressed using a GDF. The signal of a single reflection following the GDF can be represented as follows:

$$y_{\mathrm{IF},\mathrm{GDF}}\left(t\right)=s\left(t-\tau \left(t\right)-{\tau }_{\max }\right)exp\left(j{\varphi }_{\mathrm{B},\mathrm{PC}}(t-{\tau }_{\varphi })\right)$$

(22)

where ${\tau }_{\varphi }$ is the time delay corresponding to the beat frequency, and ${\tau }_{\max }$ is the maximum time delay. Since the received signal typically comprises multiple beat frequencies resulting from various target ranges, aligning these different beat frequencies in the signal before decoding is imperative. In practice, it has been recommended to use spectral estimation methods (such as DFT) to exploit the range information after stretch processing [6]. A decoding stage removes the phase shifts to obtain the pure beat signal that can be expressed by the following equation:

$$\begin{array}{c}\hfill y_{\mathrm{IF},\mathrm{decoded}}={\displaystyle \frac{1}{s\left(t-\tau \left(t\right)-{\tau }_{\max }\right)}}{y}_{\mathrm{BB},\mathrm{GDF}}\left(t\right)\end{array}$$

(23)

Note that the GDF causes a quadratic phase shift on the phase-coded signal, which distorts the phase sequence received. This distortion results in imperfect decoding, leading to increased sidelobe levels [46].

To retrieve the range and Doppler information from the decoded beat signal in (23), a 2D-DFT processing is applied. The processing is similar to the range-Doppler processing of FMCW, described in Section 3.1.3. DFTs along the samples of the beat signal extract the range information, while DFTs along consecutive beat signals extract the Doppler frequency shift.

3.3.4. Multiplexing

MIMO-PC-FMCW uses CDM to achieve orthogonality between simultaneously operating transmit antennas. Phase sequences, such as binary sequences, e.g., maximum length sequences (MLSs) and Gold sequences, or polyphase sequences, are encoded in each chirp to distinguish between transmitters. In the receiver, these sequences identify the transmit antenna using the decoding procedure proposed above.

3.3.5. System Parameters

In PC-FMCW radar systems, the performance indicators are similar to those of FMCW radars. The chirp bandwidth $B_{\mathrm{chirp}}$ determines the range resolution, as follows:

$$r_{\mathrm{res}}={\displaystyle \frac{c_0}{2B_{\mathrm{chirp}}}}$$

(24)

The maximum unambiguous range is as follows:

$$r_{\max }={\displaystyle \frac{c_0{T}_{\mathrm{chirp}}}{4B_{\mathrm{chirp}}}}{f}_{\mathrm{s}}$$

(25)

where the chirp duration $T_{\mathrm{chirp}}$, the sampling rate $f_{\mathrm{s}}$ of the ADC, and the chirp bandwidth are determined. The chirp duration $T_{\mathrm{chirp}}$ determines the maximum unambiguous velocity, as follows:

$$v_{\max }={\displaystyle \frac{\lambda }{4T_{\mathrm{slow}}}}={\displaystyle \frac{\lambda }{4(T_{\mathrm{chirp}}+T_{\mathrm{idle}})}}$$

(26)

The CPI duration $T_{\mathrm{CPI}}$ determines the velocity resolution, as follows:

$$v_{\mathrm{res}}={\displaystyle \frac{\lambda }{2T_{\mathrm{CPI}}}}={\displaystyle \frac{\lambda }{2N_{\mathrm{chirp}}(T_{\mathrm{chirp}}+T_{\mathrm{idle}})}}$$

(27)

3.4. Orthogonal Frequency-Division Multiplexing (OFDM)

3.4.1. Waveform

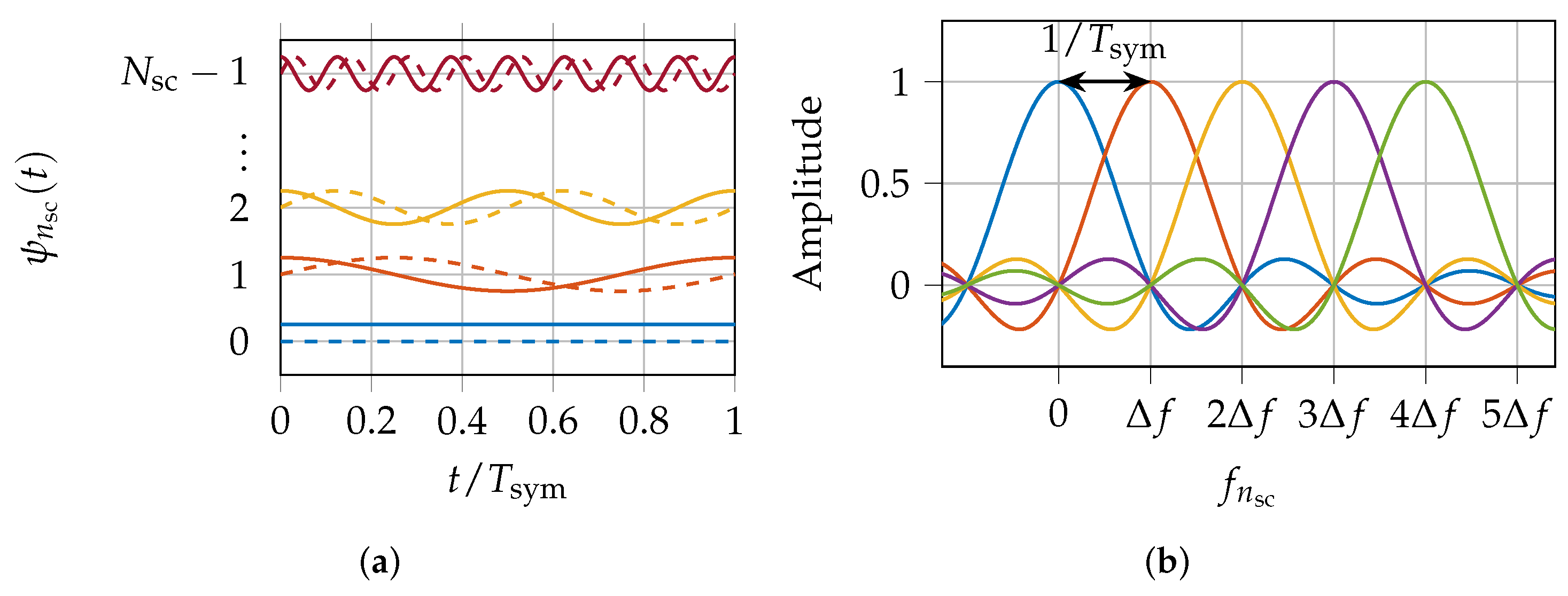

An OFDM signal consists of a sequence of $N_{\mathrm{sym}}\in {\mathbb{N}}_{\ge 2}$ symbols. Each symbol consists of $N_{\mathrm{sc}}\in {\mathbb{N}}_{\ge 2}$ subcarriers, modulated with a modulation symbol $c_{n_{\mathrm{sc}}}$, where $n_{\mathrm{sc}}\in \{0,1,\cdots ,N_{\mathrm{sc}}-1\}$ is the subcarrier index. The modulation symbols are taken from an alphabet, e.g., QPSK or QAM. The bandwidth spanned by the subcarriers is $B_{\mathrm{sc}}=N_{\mathrm{sc}}\mathrm{\Delta }f$, and the waveform signal can be expressed as in the following equation:

$$\begin{array}{c}\hfill f_{\mathrm{OFDM}}\left(t\right)={\displaystyle \frac{1}{N_{\mathrm{sc}}}}\sum _{n_{\mathrm{sc}}=0}^{N_{\mathrm{sc}}-1}{c}_{n_{\mathrm{sc}}}{\psi }_{n_{\mathrm{sc}}}\left(t\right)\end{array}$$

(28)

where ${\psi }_{n_{\mathrm{sc}}}\left(t\right)=exp\left(j2\pi n_{\mathrm{sc}}\mathrm{\Delta }ft\right)$. In addition, a cyclic prefix (CP) is added before transmission, avoiding the ISI resulting from multipath propagation [22]. Assuming a single moving target reflection, the received demodulated signal after removal of the CP is given by (4). The waveforms in time-domain and frequency-domain representations are shown in Figure 9a,b.

3.4.2. Architecture

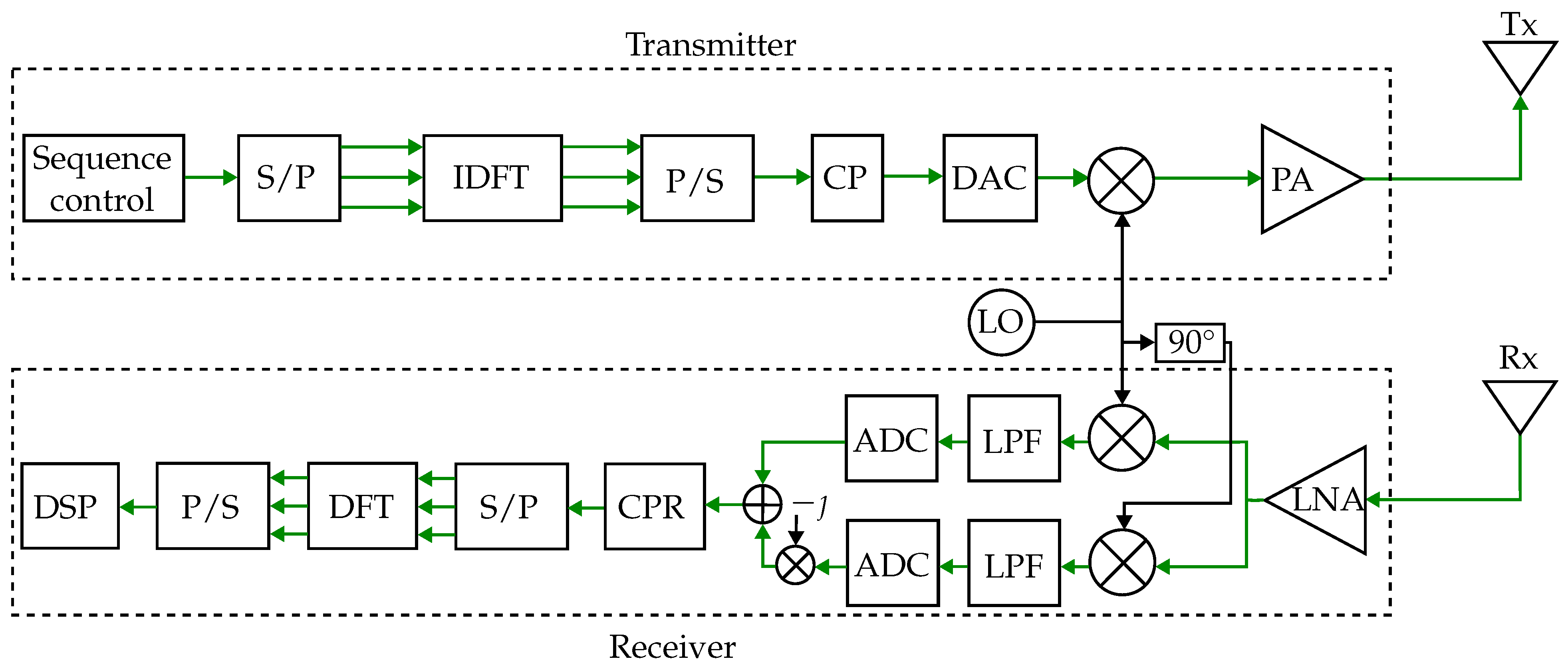

In an OFDM system, a sequence, such as a binary sequence, is transmitted on multiple subcarriers. Therefore, OFDM is called a multi-carrier modulation scheme instead of a single-carrier scheme like FMCW and PMCW. A sequence of symbols is generated and parallelized into $N_{\mathrm{sc}}$ narrowband streams via an inverse discrete Fourier transform (IDFT). Each subcarrier is modulated individually, similar to a single carrier system, for example, by BPSK, QPSK, or QAM. A subcarrier occupies only a fraction of the total bandwidth. The subcarrier spacing $\mathrm{\Delta }f$ is chosen as the inverse of the symbol duration $T_{\mathrm{sym}}=1/\mathrm{\Delta }f$ to allow orthogonality and avoid inter-carrier interference (ICI). The subcarrier spacing depends on three conditions. First, it should be large enough to avoid ICI, such that the loss of orthogonality due to the Doppler shift is minimized, which requires $\mathrm{\Delta }f\ge 10f_{\mathrm{D}},\max$, with $f_{\mathrm{d}},\max$ denoting the maximum Doppler frequency, as analyzed in [47]. Second, it must be large enough to obtain the desired maximum unambiguous velocity $v_{\max }$, which is proportional to the subcarrier spacing, i.e., $v_{\max }\propto \mathrm{\Delta }f$. Third, the subcarrier spacing determines the maximum unambiguous range, i.e., $r_{\max }\propto 1/\mathrm{\Delta }f$. The outputs of the IDFT blocks are serialized into a single wideband signal, after which a CP is appended. The resulting digital signal is converted to analog, upconverted to the carrier frequency, amplified, and transmitted. Because the subcarriers add coherently, the analog signal can exhibit a high peak-to-average power ratio (PAPR), demanding a highly linear power aplifier (PA) [48]. After reflection from the targets, the received signal is amplified, downconverted using the same carrier frequency, and high-frequency components are filtered out. The remaining signal is brought to the IF domain, and the CP is removed. Next, it is divided into $N_{\mathrm{sc}}$ subcarrier streams and processed by a DFT—the inverse of the IDFT at the transmitter—to recover the modulation symbols in the frequency domain.

The recovered symbols are then serialized and subjected to element-wise division, effectively nullifying the transmit modulation symbols (see Chapter 3.2 in [49]). A further DFT is performed, accompanied by additional element-wise divisions in the spectral domain, resulting in signals composed solely of complex sinusoids. For a complete system model, refer to Chapter 3.2 in [49]. The overall system architecture is shown in Figure 10.

3.4.3. Obtaining Doppler-Variant Impulse Response

The time delay between transmission and reception results in a subcarrier-dependent phase shift, proportional to the time delay and range, respectively. For this purpose, IDFTs are calculated along the subcarriers to estimate the time delay, namely the range. Afterward, DFTs along the symbols estimate the Doppler frequency shift $f_{\mathrm{D}}$ and the relative radial velocity $v_{\mathrm{r}}$, respectively.

3.4.4. Multiplexing

MIMO-OFDM uses frequency-division multiplexing (FDM) to transmit symbols on different subcarriers. For multiplexing, subcarriers can be assigned to different transmit antennas. In [22], the author presented the following three approaches for the subcarrier assignment:

• Equidistant subcarrier interleaving: The subcarriers are equally spaced among the transmitters, using the same bandwidth. The frequency spacing between subcarriers of the same antenna increases by a factor equal to the number of antennas, reducing the maximum unambiguous range.
• Non-equidistant subcarrier interleaving: Subcarriers are assigned non-equidistantly, preserving the maximum unambiguous range. However, this method requires advanced signal processing, such as compressed sensing, to reconstruct the uniformly sampled signal.
• Space-time block codes: All transmitters share all subcarriers simultaneously, modulated with space-time block codes. This retains the maximum unambiguous range but decreases the maximum unambiguous velocity.

3.4.5. System Parameters

In OFDM, the bandwidth $B_{\mathrm{sc}}=N_{\mathrm{sc}}\mathrm{\Delta }f$ spanned by the $N_{\mathrm{sc}}$ subcarriers and the spacing between the subcarriers $\mathrm{\Delta }f$ determine the range resolution, as follows:

$$r_{\mathrm{res}}={\displaystyle \frac{c_0}{2B_{\mathrm{sc}}}}={\displaystyle \frac{c_0}{2N_{\mathrm{sc}}\mathrm{\Delta }f}}$$

(29)

Details on the requirements of the subcarrier spacing can be found in Section 3.4.2. The OFDM symbol duration $T_{\mathrm{sym}}$ and subcarrier spacing $\mathrm{\Delta }f$ determine the maximum unambiguous range, as follows:

$$r_{\max }={\displaystyle \frac{c_0{T}_{\mathrm{sym}}}{2}}={\displaystyle \frac{c_0}{2\mathrm{\Delta }f}}$$

(30)

Further, the slow-time interval $T_{\mathrm{slow}}=T_{\mathrm{sym}}+T_{\mathrm{CP}}$, comprising both the symbol duration $T_{\mathrm{sym}}$ and the CP period $T_{\mathrm{CP}}$, defines the maximum unambiguous velocity.

$$v_{\max }={\displaystyle \frac{\lambda }{4T_{\mathrm{slow}}}}={\displaystyle \frac{\lambda }{4(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$$

(31)

The CPI duration $T_{\mathrm{CPI}}$ determines the velocity resolution, as follows:

$$v_{\mathrm{res}}={\displaystyle \frac{\lambda }{2T_{\mathrm{CPI}}}}={\displaystyle \frac{\lambda }{2N_{\mathrm{sym}}(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$$

(32)

3.5. Orthogonal Chirp Division Multiplexing (OCDM)

3.5.1. Waveform

An OCDM signal is composed of $N_{\mathrm{sym}}\in {\mathbb{N}}_{\ge 2}$ symbols. Each symbol contains $N_{\mathrm{sc}}\in {\mathbb{N}}_{\ge 2}$ subcarriers (also referred to as subchirps in the OCDM context), each modulated by a symbol $c_{n_{\mathrm{sc}}}$, where $n_{\mathrm{sc}}\in \{0,\cdots ,N_{\mathrm{sc}}-1\}$ denotes the subcarrier index. Although every subchirp spans the entire bandwidth, they differ in their instantaneous frequency profiles. The modulation symbols are drawn from an alphabet such as QPSK or QAM.

In OCDM, orthogonality is achieved in the chirp domain employing a discrete Fresnel transform (DFnT), which yields a set of orthogonal subchirps in the time-frequency domain. All subchirps share the same frequency slope, i.e., ${\alpha }_{\mathrm{OCDM}}={\displaystyle \frac{N_{\mathrm{sc}}}{T_{\mathrm{sym}}^2}}$. The $n_{\mathrm{sc}}$th subchirp can be represented by the following:

$${\psi }_{n_{\mathrm{sc}}}\left(t\right)=exp\left(j{\displaystyle \frac{\pi }{4}}\right)exp\left(-j\pi {\displaystyle \frac{N_{\mathrm{sc}}}{T_{\mathrm{sym}}^2}}{\left(t-n_{\mathrm{sc}}{\displaystyle \frac{T_{\mathrm{sym}}}{N_{\mathrm{sc}}}}\right)}^2\right)$$

(33)

where the sweep bandwidth of each subchirp is $B_{\mathrm{chirp}}=N_{\mathrm{sc}}/T_{\mathrm{sym}}$. The overall waveform signal can be expressed as follows:

$$\begin{array}{c}\hfill f_{\mathrm{OCDM}}\left(t\right)={\displaystyle \frac{1}{N_{\mathrm{sc}}}}\sum _{n_{\mathrm{sc}}=0}^{N_{\mathrm{sc}}-1}{c}_{n_{\mathrm{sc}}}{\psi }_{n_{\mathrm{sc}}}\left(t\right)\end{array}$$

(34)

For a complete derivation of this signal model, please refer to [50]. Furthermore, a CP is appended before transmission to mitigate the ISI caused by multipath propagation [22]. Hence, the OCDM symbol duration becomes $T_{\mathrm{OCDM}}=T_{\mathrm{sym}}+T_{\mathrm{CP}}$.

The waveforms in two representations are shown in Figure 11a,b.

3.5.2. Architecture

OCDM is fundamentally similar to OFDM, with the primary difference that it uses an inverse discrete Fresnel transform (IDFnT) instead of an IDFT to generate the baseband-modulated signal. As shown in [26], the IDFnT can be constructed from the IDFT by introducing pre- and post-multiplication factors. Consequently, OCDM can be regarded as a multi-carrier modulation scheme. At the transmitter, $N_{\mathrm{sc}}·N_{\mathrm{sym}}$ modulation symbols are generated and arranged in a 2D matrix of dimension $N_{\mathrm{sc}}\times N_{\mathrm{sym}}$. Each column of length $N_{\mathrm{sc}}$ undergoes an IDFnT, which, in practice, is performed via an IDFT with pre- and post-multiplications by ${\mathit{\theta }}_2^{*}\in {\mathbb{C}}^{N_{\mathrm{sc}}}$ and ${\mathit{\theta }}_1^{*}\in {\mathbb{C}}^{N_{\mathrm{sc}}}$. Here, ${\theta }_1\left(m\right)=exp\left(-j\frac{\pi }{4}\right)exp\left(j\pi \frac{m^2}{N_{\mathrm{sc}}}\right)$, ${\theta }_2\left(n\right)=exp\left(j\pi \frac{n^2}{N_{\mathrm{sc}}}\right),$ where $n,m\in \{0,\cdots ,N_{\mathrm{sc}}-1\}$ and ${log}_2\left(N_{\mathrm{sc}}\right)\in \mathbb{N}$. The outputs of the IDFnT, namely the discrete-time domain OCDM frame ${\mathcal{C}}_{\mathrm{OCDM}}\in {\mathbb{C}}^{N_{\mathrm{sc}}\times N_{\mathrm{sym}}}$, are then serialized into a single wideband signal. Afterward, a CP is appended, and the signal is converted to analog form, modulated onto a carrier, amplified, and transmitted. The ADC sampling frequency must be at least equal to the instantaneous bandwidth [19], which in this context matches $B_{\mathrm{chirp}}$ [26].

Upon receiving the reflection from the targets, the signal is downconverted to a baseband and digitized by the ADC, followed by the removal of the CP. The resulting signal is then restructured into a 2D matrix of dimension $N_{\mathrm{sc}}\times N_{\mathrm{sym}}$ and processed column-wise through a DFT. The resulting frame is then multiplied element-wise by the complex conjugate of the transmitter’s column-wise DFT output on ${\mathcal{C}}_{\mathrm{OCDM}}$. After that, the RD processing that will be detailed in Section 3.5.3 can be followed. This approach provides an alternative to the symbol division method in OFDM, which can add more noise and is therefore less beneficial for OCDM [51]. The overall system architecture is shown in Figure 12.

3.5.3. Obtaining Doppler-Variant Impulse Response

Analogous to OFDM (see Section 3.4.3), 2D-DFT processing is used to derive the range and Doppler parameters. As described in [51], the procedure begins with a joint range-Doppler window applied to the matrix once the symbol cancellation has been performed. Subsequently, IDFTs are executed along the subchirps, i.e., the frequency dimension, to determine the time delay. Following this, DFTs are executed along the symbols, i.e., the time dimension, to estimate the Doppler frequency shift and the corresponding relative radial velocity.

3.5.4. Multiplexing

In [52], how MIMO-OCDM can be realized in two different multiplexing schemes—FDM and CDM—was presented. Although OCDM and OFDM share some similarities, the frequency interleaving used in MIMO-OFDM systems cannot be applied to OCDM, as interleaving to OCDM can violate the orthogonality of the subchirps.

• Multiplexing can naturally occur within the Fresnel and chirp domains. However, this method is applicable only to radar-exclusive systems. For JRC systems, approaches can be used based on CDM and FDM.
• In CDM-based MIMO-OCDM systems employing outer coding, signals from various transmitters are orthogonalized by multiplying them with orthogonal codewords, for example, derived from rows of the Hadamard matrix. At the receiver end, outer coding needs to be decoded to distinguish signals from the different transmitters.
• In an FDM-based MIMO-OCDM system employing frequency shift precoding (FSP), unique frequency shifts are implemented on the transmitted signals across all channels to ensure their orthogonality in the frequency domain. This precoding process involves multiplying the signals by two matrices, as described in detail in [53]. In general, this approach is very similar to CDM-based multiplexing.

3.5.5. System Parameters

Because of the similarity between OCDM and OFDM, the performance parameter can be calculated in a similar way as given in Section 3.4.5. In OCDM, the bandwidth $B_{\mathrm{chirp}}$ is occupied by each subchirp, which defines the range resolution, as follows:

$$r_{\mathrm{res}}={\displaystyle \frac{c_0}{2B_{\mathrm{chirp}}}}={\displaystyle \frac{c_0}{2N_{\mathrm{sc}}\mathrm{\Delta }f}}$$

(35)

Note that each subchirp spans the entire bandwidth, unlike OFDM where each subcarrier uses only a portion. Consequently, in OCDM, the frequency spacing $\mathrm{\Delta }f$ is determined by the differences between the instantaneous frequencies of the subchirps. The OCDM symbol duration $T_{\mathrm{sym}}$ and subcarrier spacing $\mathrm{\Delta }f$ determine the maximum unambiguous range, as follows:

$$r_{\max }={\displaystyle \frac{c_0{T}_{\mathrm{sym}}}{2}}={\displaystyle \frac{c_0}{2\mathrm{\Delta }f}}={\displaystyle \frac{c_0{N}_{\mathrm{sc}}}{2B_{\mathrm{sc}}}}$$

(36)

Further, the slow-time interval $T_{\mathrm{slow}}=T_{\mathrm{sym}}+T_{\mathrm{CP}}$, comprising both the symbol duration $T_{\mathrm{sym}}$ and the CP period $T_{\mathrm{CP}}$, defines the maximum unambiguous velocity as follows:

$$v_{\max }={\displaystyle \frac{\lambda }{4T_{\mathrm{slow}}}}={\displaystyle \frac{\lambda }{4(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$$

(37)

The CPI duration $T_{\mathrm{CPI}}$ determines the velocity resolution, as follows:

$$v_{\mathrm{res}}={\displaystyle \frac{\lambda }{2T_{\mathrm{CPI}}}}={\displaystyle \frac{\lambda }{2N_{\mathrm{sym}}(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$$

(38)

3.6. Orthogonal Time Frequency Space (OTFS)

3.6.1. Waveform

In OTFS, modulation symbols are placed on a two-dimensional grid in the delay-Doppler (dD) domain, represented as a matrix ${\mathrm{x}}_{\mathrm{dD}}\in {\mathbb{C}}^{N_{\mathrm{sc}}\times N_{\mathrm{sym}}}$. Here, $N_{\mathrm{sc}}\in {\mathbb{N}}_{\ge 2}$ represents the number of cells in the delay domain, and $N_{\mathrm{sym}}\in {\mathbb{N}}_{\ge 2}$ represents the number of cells in the Doppler domain. The grid corresponds to one OTFS symbol, with each column corresponding to a subsymbol. The waveform signal can be expressed as follows:

$$\begin{array}{cc}\hfill f_{\mathrm{OTFS}}\left(t\right)& =\sum _{n_{\mathrm{sym}}=0}^{N_{\mathrm{sym}}-1}\sum _{n_{\mathrm{sc}}=0}^{N_{\mathrm{sc}}-1}{x}_{\mathrm{tf}}[n_{\mathrm{sc}},n_{\mathrm{sym}}]g(t-n_{\mathrm{sym}}{T}_{\mathrm{sym}})exp\left(j2\pi n_{\mathrm{sc}}\mathrm{\Delta }f(t-n_{\mathrm{sym}}{T}_{\mathrm{sym}})\right)\hfill \end{array}$$

(39)

where ${\mathrm{x}}_{\mathrm{tf}}\in {\mathbb{C}}^{N_{\mathrm{sc}}\times N_{\mathrm{sym}}}$ represents the signal in the time-frequency (tf) domain, and $g\left(t\right)$ serves as a pulse shaping filter. It is notable that the waveform definition differs from that of the other waveforms, which have only specified a signal pulse. The representation in the delay-Doppler domain requires the expression of signals transmitted within a CPI. Section 3.6.2 offers a comprehensive explanation of the transformations between the delay-Doppler, time-frequency, and time domains.

3.6.2. Architecture

In OTFS, orthogonality is realized in the two-dimensional delay-Doppler domain rather than the traditional time-frequency domain, where the symbols overlap. An inverse symplectic finite Fourier transform (ISFFT) transforms modulation symbols from the delay-Doppler domain to the time-frequency domain, as described in (40). This transformation involves an IDFT along the Doppler axis and a DFT along the delay axis of ${\mathrm{x}}_{\mathrm{dD}}$. The transformation can be expressed by the following:

$$\begin{array}{cc}\hfill x_{\mathrm{tf}}[n_{\mathrm{sc}},n_{\mathrm{sym}}]& ={\displaystyle \frac{1}{\sqrt{N_{\mathrm{sc}}{N}_{\mathrm{sym}}}}}\sum _{{\tilde{n}}_{\mathrm{sym}}=0}^{N_{\mathrm{sym}}-1}\sum _{{\tilde{n}}_{\mathrm{sc}}=0}^{N_{\mathrm{sc}}-1}{x}_{\mathrm{dD}}[{\tilde{n}}_{\mathrm{sc}},{\tilde{n}}_{\mathrm{sym}}]exp\left(j2\pi \left({\displaystyle \frac{n_{\mathrm{sym}}{\tilde{n}}_{\mathrm{sym}}}{N_{\mathrm{sym}}}}-{\displaystyle \frac{n_{\mathrm{sc}}{\tilde{n}}_{\mathrm{sc}}}{N_{\mathrm{sc}}}}\right)\right)\hfill \end{array}$$

(40)

Subsequently, a Heisenberg transform, namely an IDFT along the frequency axis, converts the signal from the time-frequency domain to a time-domain signal in (39). When using a rectangular window filter, the Heisenberg transform operates as an OFDM modulator applied to every column of ${\mathrm{x}}_{\mathrm{tf}}$. Therefore, OTFS modulation can be viewed as a two-dimensional version of an OFDM modulation, which is enhanced by applying precoding through ISFFT. To mitigate ISI, a CP or a sequence of zeros between OTFS subsymbols can be added. This is analogous to the approach used for OFDM (see Section 3.4).

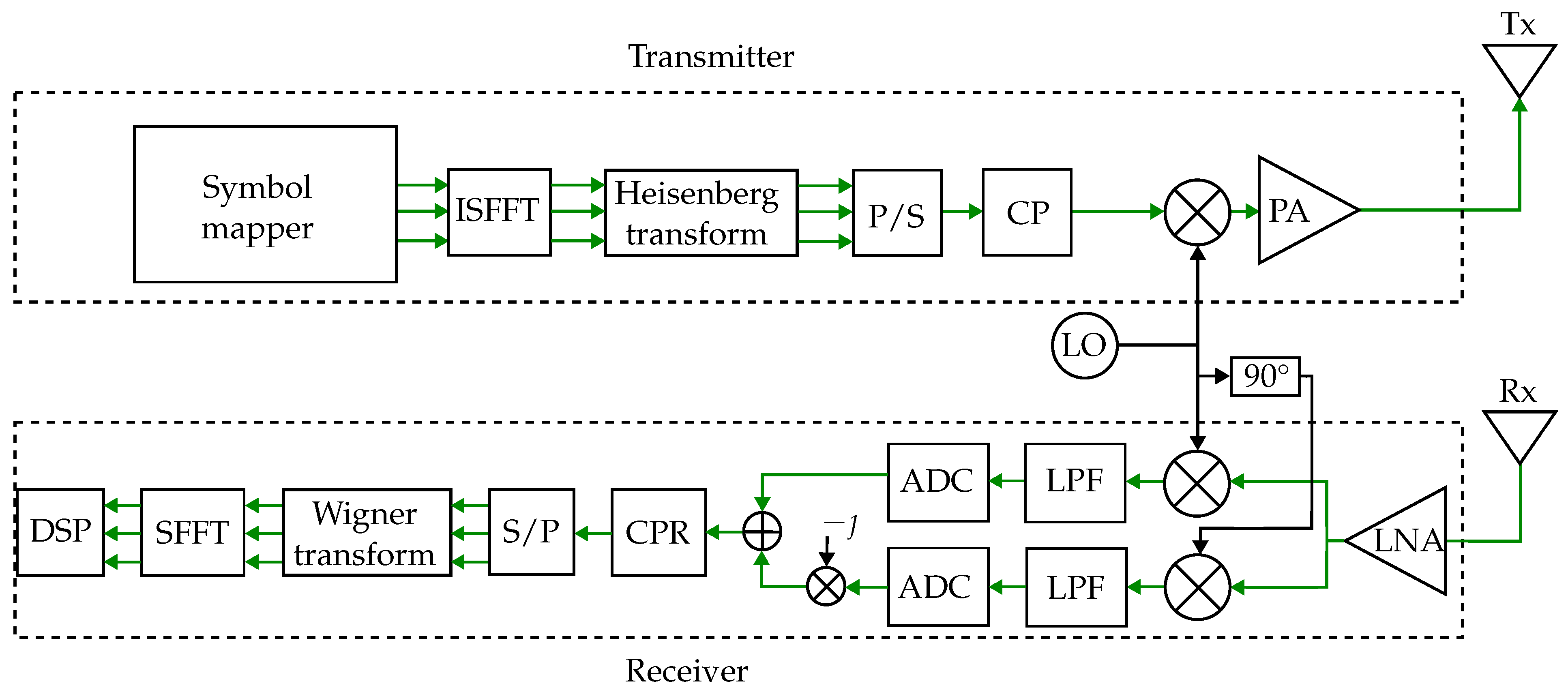

In the receiver, a Wigner transform [54] is utilized as an inverse operation of the Heisenberg transform, facilitating the transformation of the signal from the time domain to the time-frequency domain, represented by ${\mathrm{y}}_{\mathrm{tf}}$. When a rectangular pulse shaping filter is employed, a symplectic finite Fourier transform (SFFT) converts ${\mathrm{y}}_{\mathrm{tf}}\in {\mathbb{C}}^{N_{\mathrm{sc}}\times N_{\mathrm{sym}}}$ from the time-frequency domain to the delay-Doppler domain, denoted as ${\mathrm{y}}_{\mathrm{dD}}\in {\mathbb{C}}^{N_{\mathrm{sc}}\times N_{\mathrm{sym}}}$. The system architecture is illustrated in Figure 13.

3.6.3. Obtaining Doppler-Variant Impulse Response

As discussed in Section 3.6.2, the received signal undergoes a Wigner transform to transition from the time domain to the time-frequency domain. The SFFT then maps the signal to the delay-Doppler domain, ${\mathrm{y}}_{\mathrm{dD}}$. Radar processing focuses on estimating the channel response from the difference between ${\mathrm{x}}_{\mathrm{dD}}$ and ${\mathrm{y}}_{\mathrm{dD}}$. Although a matched filter algorithm in [18] offers high Doppler tolerance, it is computationally expensive. To mitigate this, Correas-Serrano et al. introduced a computationally efficient approach for low-speed scenarios in [55], employing symbol-wise division in the time-frequency domain, followed by SFFT. The resulting signal represents the desired RD spectrum for radar applications. This processing is very similar to the processing at an OFDM radar receiver.

3.6.4. Multiplexing

OTFS operates in the delay-Doppler domain but maps its signal to the time-frequency domain for transmission. Multiple transmit antennas send their signals in different time-frequency slots, ensuring orthogonality. To combat reduced unambiguity in range and Doppler non-uniform slots selection has been proposed in [55]. Despite its similarity to OFDM, its nature rooted in the coding jointly in the delay-Doppler domain makes its robustness against Doppler effects, while OFDM suffers the ICI in high-mobility scenarios.

3.6.5. System Parameters

In OTFS, the spanned bandwidth $B_{\mathrm{sc}}=N_{\mathrm{sc}}\mathrm{\Delta }f$ defined by the $N_{\mathrm{sc}}$ delay grid cells, i.e., subcarriers, and the spacing between the subcarriers $\mathrm{\Delta }f$ determine the range resolution, as follows:

$$r_{\mathrm{res}}={\displaystyle \frac{c_0}{2B_{\mathrm{sc}}}}={\displaystyle \frac{c_0}{2N_{\mathrm{sc}}\mathrm{\Delta }f}}={\displaystyle \frac{c_0{T}_{\mathrm{sym}}}{2N_{\mathrm{sc}}}}$$

(41)

The symbol duration $T_{\mathrm{sym}}$ and subcarrier spacing $\mathrm{\Delta }f$ determine the maximum unambiguous range, as follows:

$$r_{\max }={\displaystyle \frac{c_0{T}_{\mathrm{sym}}}{2}}={\displaystyle \frac{c_0}{2\mathrm{\Delta }f}}$$

(42)

Further, the slow-time interval $T_{\mathrm{slow}}=T_{\mathrm{sym}}+T_{\mathrm{CP}}$, comprising both the symbol duration $T_{\mathrm{sym}}$ and the CP period $T_{\mathrm{CP}}$, defines the maximum unambiguous velocity, as follows:

$$v_{\max }={\displaystyle \frac{\lambda }{4T_{\mathrm{slow}}}}={\displaystyle \frac{\lambda }{4(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$$

(43)

The CPI duration $T_{\mathrm{CPI}}$ determines the velocity resolution, as follows:

$$v_{\mathrm{res}}={\displaystyle \frac{\lambda }{2T_{\mathrm{CPI}}}}={\displaystyle \frac{\lambda }{2N_{\mathrm{sym}}(T_{\mathrm{sym}}+T_{\mathrm{CP}})}}$$

(44)

4. Essential Features of Automotive Radar Waveforms

This section delves into the prerequisites, challenges, and applications of automotive radar systems, examining the following six modulation schemes: FMCW, PC-FMCW, PMCW, OFDM, OCDM, and OTFS.

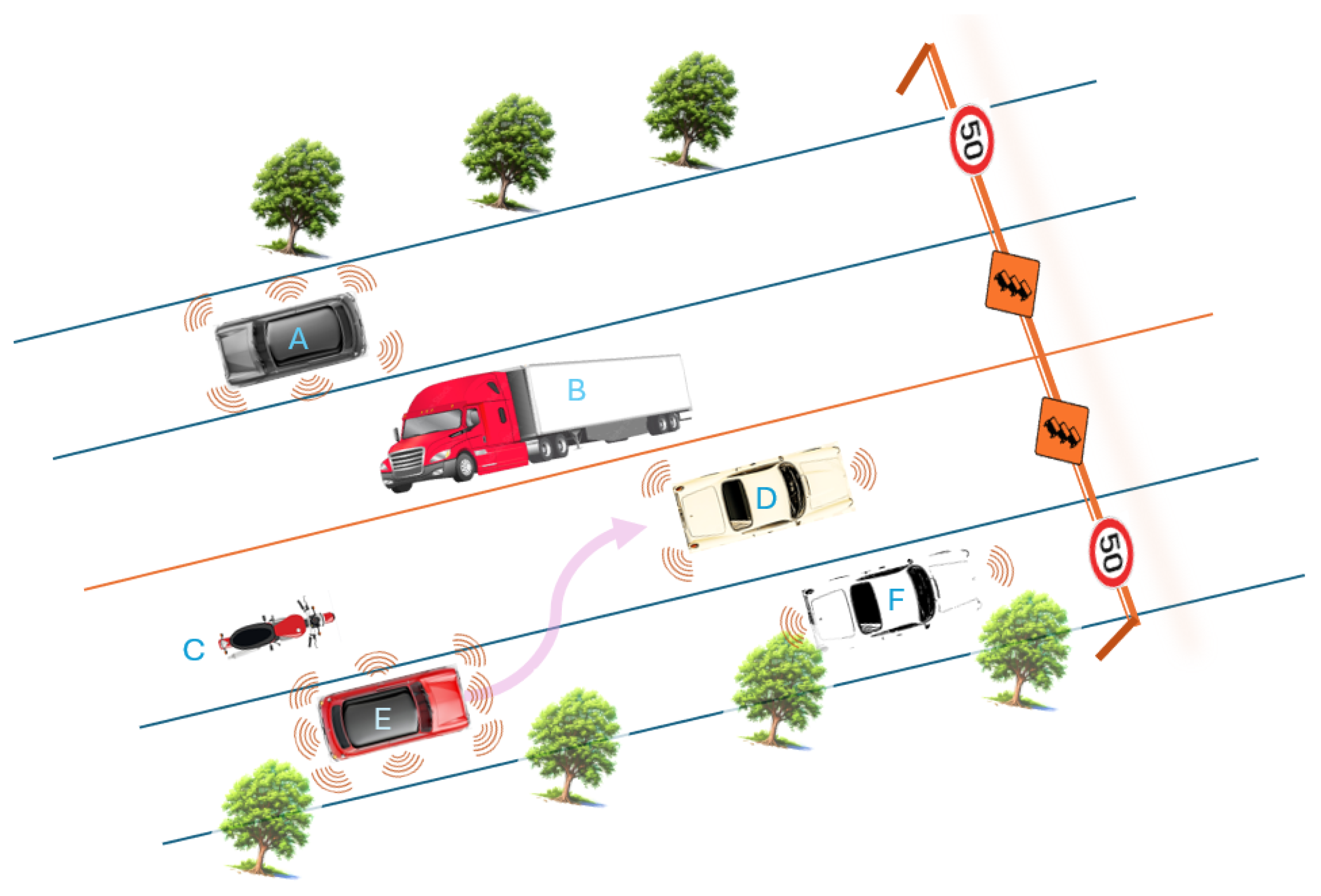

Figure 14 illustrates a typical road scenario involving eight road users, highlighting several common radar detection challenges. Car E intends to perform a lane change, creating a dynamic scenario requiring precise target tracking. Motorcycle C represents a vulnerable road user (VRU) with a relatively small RCS, posing detection challenges. Mutual radar interference occurs because radars mounted on cars A, D, and F directly irradiate car E, affecting the performance of the radar system. Additionally, the large reflective surface of truck B introduces multipath effects impacting the radar sensors on cars D and E. Furthermore, the overhead sign gantry represents a potential source of false alarms for radars lacking elevation measurement capabilities, which could erroneously trigger autonomous emergency braking (AEB). These challenges underscore critical radar requirements such as improved angular resolution, accurate target parameter estimation, robust interference mitigation, and multipath tolerance. The analysis provided in this section includes performance metrics including angular resolution, hardware complexity, and feasibility, along with economic factors such as cost-effective implementation.

This section is structured into the following seven subsections: angular resolution (Section 4.1), interference robustness (Section 4.2), joint radar and communication (Section 4.3), Doppler influence and tolerance (Section 4.4), implementation aspects and limitations (Section 4.5), and summary (Section 4.6).

4.1. Angular Resolution

Compared to Light Detection and Ranging (LiDAR) sensors operating in the infrared band, commercial automotive radar sensors generally have a lower angular resolution. The study in [56] presents an example where achieving an angular resolution of $1^{\circ }$ is possible using a LiDAR setup with an optical aperture of 10 $\mathrm{m}$$\mathrm{m}$, while a radar system operating at 77 $\mathrm{G}$$\mathrm{Hz}$ requires a larger aperture of 20 $\mathrm{c}$$\mathrm{m}$. The aperture, along with wavelength and beamwidth, contributes to determining the resolution. The current state-of-the-art automotive radar systems achieve about $1^{\circ }$ azimuth resolution [57], which remains inadequate for tasks such as estimating the precise shape of objects in high-level automated driving. Consequently, the automotive radar industry aims to improve both angular resolution in azimuth and elevation directions and the discrimination of closely spaced objects. Elevation measurement is especially challenging, as ground reflections often distort readings, and tunnel environments exacerbate this through additional roof reflections. Numerous methods, such as sparse arrays [58,59], high-resolution subspace techniques [29,60], coherent networks [61,62], artificial intelligence (AI) [63], and hybrids, have been proposed. However, they usually assume conditions such as a nearly stationary environment, high SNRs, data sparsity, or perfect synchronization, which rarely hold in practice.

A more common solution is to increase the radar aperture via a virtual array to improve angular performance [7]. Strict azimuth and elevation requirements can drastically increase the number of transmit and receive antennas, driving the development of MIMO designs that balance complexity and cost. However, operating many transmitters simultaneously demands resource sharing and multiplexing in frequency, time, or code, complicating interference mitigation and velocity accuracy.

Different multiplexing schemes lead to different antenna array applications. Ideally, all transmit antennas would operate simultaneously with orthogonal waveforms, allowing unambiguous signal separation for angle estimation. While modulation defines the multiplexing method rather than the angle measurement capability, schemes supporting simultaneous transmission (e.g., CDM and FDM) are generally preferable to TDM or DDM. Notably, TDM blocks parallel operation, and DDM reduces the maximum unambiguous velocity by the number of transmit antennas.

4.2. Interference Robustness

Increasing radar sensors in vehicles and on roadways [5] increases interference risks that degrade target detection.

In this work, radar interference refers to unwanted signals originating from internal or external sources that adversely affect the proper functioning of radar systems. Mutual interference between automotive radars typically occurs unintentionally, arising from factors such as production tolerances, the lack of synchronization among radars installed on different vehicles, and environmental perturbations. It is important to emphasize that deliberate jamming or radar spoofing by adversaries is beyond the scope of this discussion.

Mitigation strategies can be classified as reactive vs. proactive [64], transmission vs. receiver [10], or in six domains [65]. The four classes in [22] are receiver-based suppression, detect-and-avoid, cognitive radar, and coordination.

Prominent approaches include protocol-based coordination (e.g., compass [66]) and signal processing methods for reconstructing interference-free signals [67,68,69,70,71,72]. While protocol-based coordination avoids interference without active communication, it remains capacity-limited [66]. Centralized scheduling has been investigated but is not implemented, is hampered by hardware/infrastructure demands, and has strict latency requirements. Alternatively, distributed coordination via vehicle-to-vehicle (V2V)-enabled radar (RadChat [64,73], multi-hop [74]) improves efficiency, and vehicle-to-infrastructure (V2I) architectures [75,76] provide further gains. Finally, joint radar and communication (JRC) [64] (see Section 4.3) merges sensing and communication to maximize cost and resource efficiency.

The following subsections detail interference in various modulation schemes and associated mitigation approaches. Since FMCW-based systems dominate due to maturity and cost effectiveness, the focus is on FMCW-specific interference scenarios.

4.2.1. FMCW

Due to the mass deployment of FMCW radars, most mutual interference on the street happens between FMCW radars. Thus, it has been studied for a long time in academia, and industrial experiences also exist. For studies on interference involving FMCW and other modulation schemes, refer to Section 4.2.3 and Section 4.2.4, as well as [10,25,77].

Numerous studies, such as those by Rameez et al. [78], Chen et al. [71,79,80], Fei et al. [70], and Wang et al. [81], have focused on removing interference from received signals in FMCW radars. This approach does not require adjustments to the hardware architecture. However, computational demands escalate significantly as the number of interference sources and amount of mitigation performance required increase. Thus, techniques that can prevent the interfering power from jamming into the victim’s radar become vital.

In [10], it was shown that the slope of the waveforms in combination with LPF significantly influenced the number of data points in the digital beat signal affected by interference. In most scenarios, as shown in Figure 15a, the difference in slope between the victim and aggressor waveforms is substantial enough that only a small portion of digital samples in the beat signal are distorted. This suggests the possibility of post-processing repair using the approaches mentioned in the received signal as mentioned above.

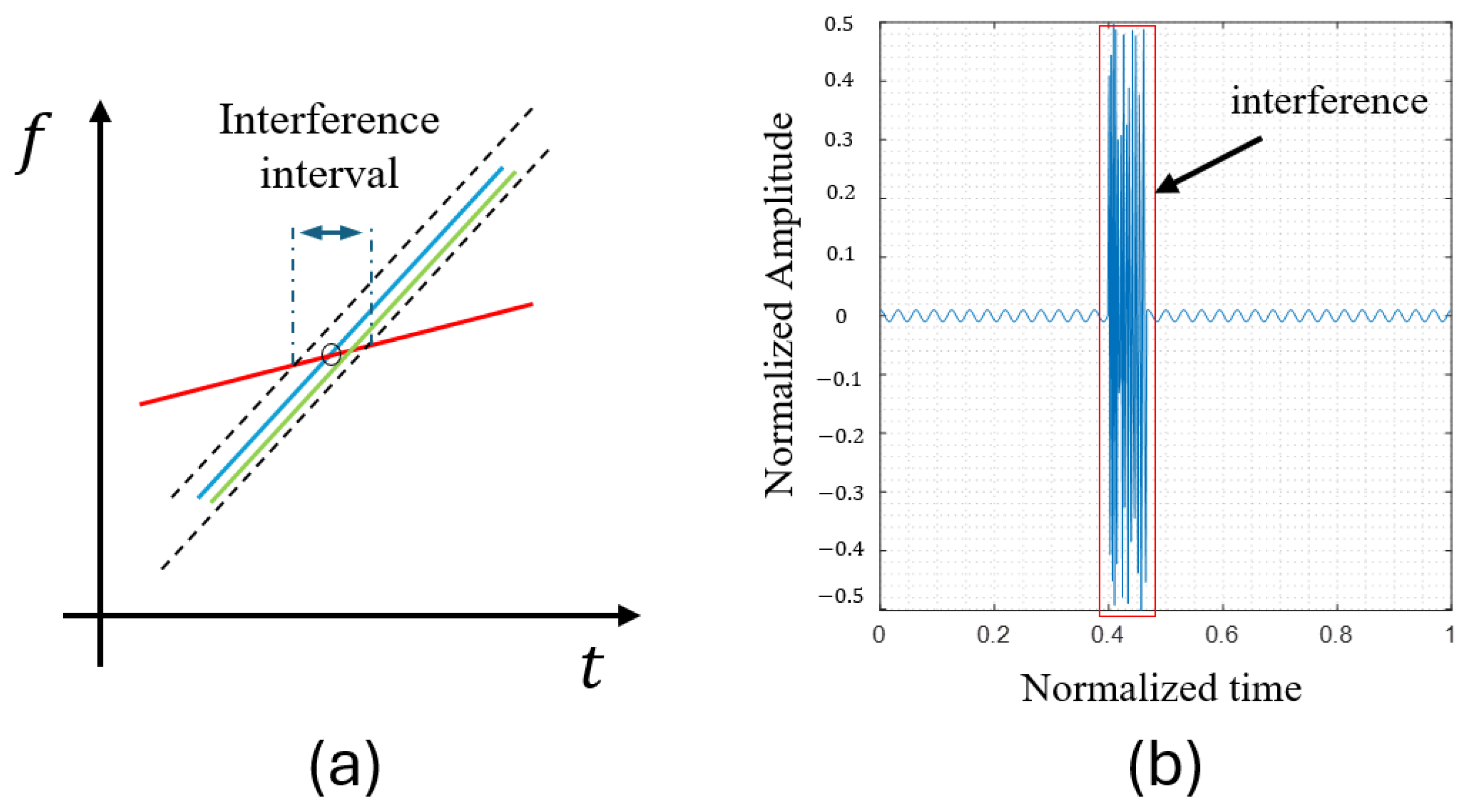

Figure 15b shows an impulse-like interference signal that produces a broadband frequency spectrum in the range profile, often exceeding the background noise floor. Consequently, DFTs along the slow time smears the interference power across the entire RD spectrum, cf. Figure 16b, which raises the background power level, potentially masking weak targets or introducing ghost targets. In this case, the PRI of the aggressor is comparable to the CPI of the victim, and only digital samples near the chirp intersections are distorted.

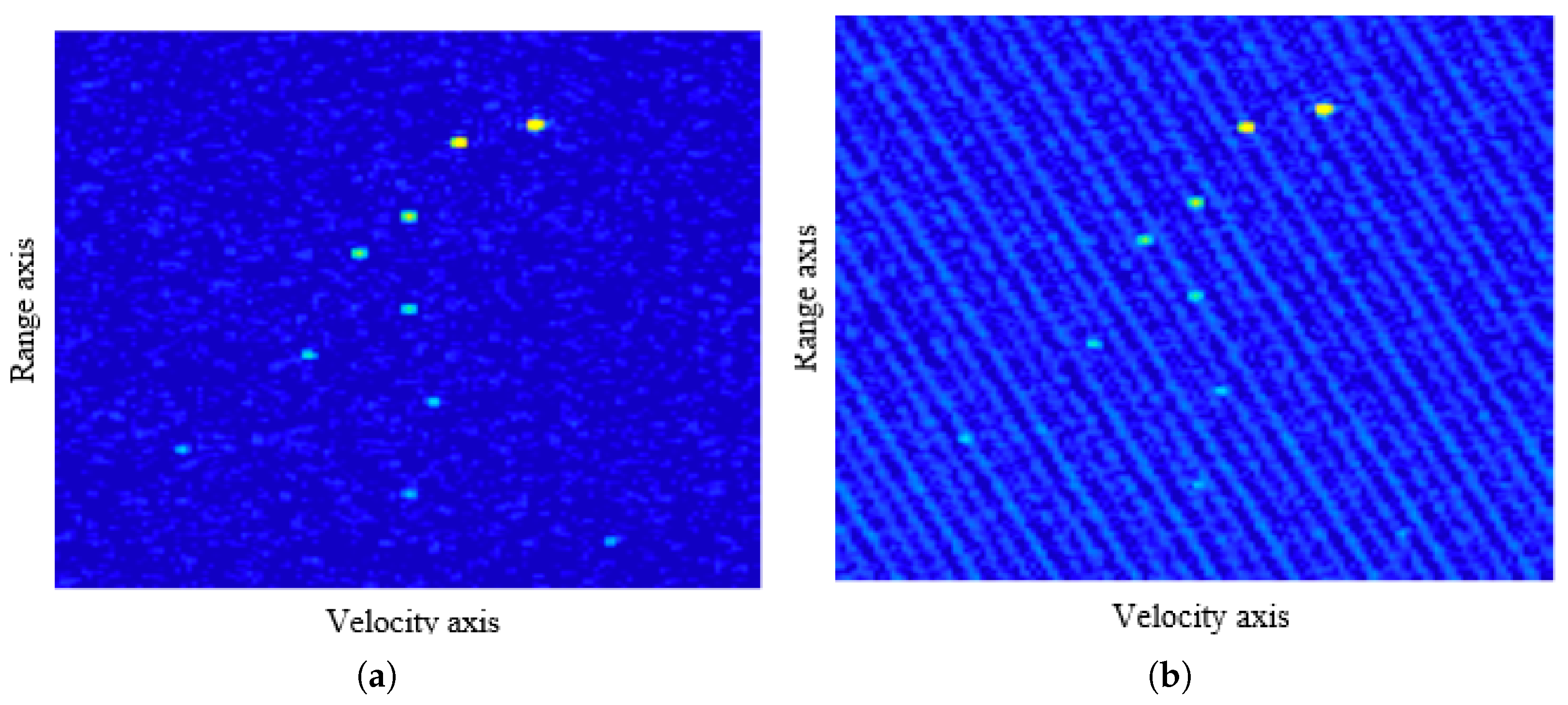

Interference patterns between chirp sequences with similar PRIs [22] can exhibit significant complexity. To illustrate this, two examples are presented. In Figure 17a, both the victim and the aggressor have identical PRIs, leading to interference occurring at the same position within each chirp, highlighted by red circles. In contrast, Figure 17c illustrates a situation where the PRI vary slightly, showing the aggressor’s PRI as 10% shorter compared to that of the victim. This minor variation causes the interference positions to shift progressively across chirps, reducing the overall number of distorted points. As a result, the interference intensity in Figure 17d is significantly weaker. These examples underscore the crucial impact of small differences in parameter configurations on mutual interference. By carefully adjusting modulation parameters, interference can be statistically mitigated, offering an effective strategy for managing such effects.

4.2.2. PMCW

PMCW radars offer interference mitigation advantages through flexible waveform generation enabled by large code sets. Several code families have been studied, such as MLSs, Gold sequences, and almost perfect auto-correlation sequences (APASs), providing adaptability against interference from another vehicle while minimizing the risk of accidental synchronization. Nonetheless, interference remains relevant due to the wide bandwidth employed by PMCW for fine range resolution. As long as the interfering signal is uncorrelated with the applied sequence, it behaves as wideband noise [11].

Mutual interference between FMCW and PMCW radars was examined in [77], showing a comparable sensitivity for both waveforms. An extended study in [82] considered phase noise effects and concluded that PMCW was more robust than FMCW when victim and aggressor radars used the same waveforms or exhibited bandwidth mismatch. In contrast, ref. [83] showed no PMCW advantage over FMCW in terms of interference suppression (probability of missed detections) in two typical automotive scenarios. In [84], the impact of FMCW–PMCW interference on the range-Doppler (RD) spectrum was analyzed, demonstrating that a mismatch in PRIs introduced ripple-like patterns concentrated at Doppler bins near half the relative velocity, potentially obscuring weak targets or generating ghost targets.

In [40], several PMCW interference mitigation strategies were proposed considering the permutation of sequences. Two further approaches were described in [10]. The first used phase code information from other radars to adapt transmitted waveforms, requiring information exchange through JRC. The second applied blind interference suppression techniques from code division multiple access (CDMA), exploiting the cyclostationary structure of aggressor signals [85]. Although these methods did not completely remove interference, they significantly reduced it by estimating the correlation matrix and employing an orthogonalizing matched filter [86]. Standardization efforts would further enhance these strategies.

4.2.3. PC-FMCW

In [24], a simulation-based interference study was conducted and experimentally validated in real-time automotive radar systems using commercial off-the-shelf radar transceivers. Due to the similarity between PC-FMCW and FMCW, it was shown that time-limited broadband impulse-like interference—as illustrated in Figure 15b—emerged in the spectrogram after applying the short time Fourier transform (STFT) to the discrete beat signal of a single chirp in PC-FMCW scenarios. This interference appeared as a V-shaped pattern in the spectrogram.

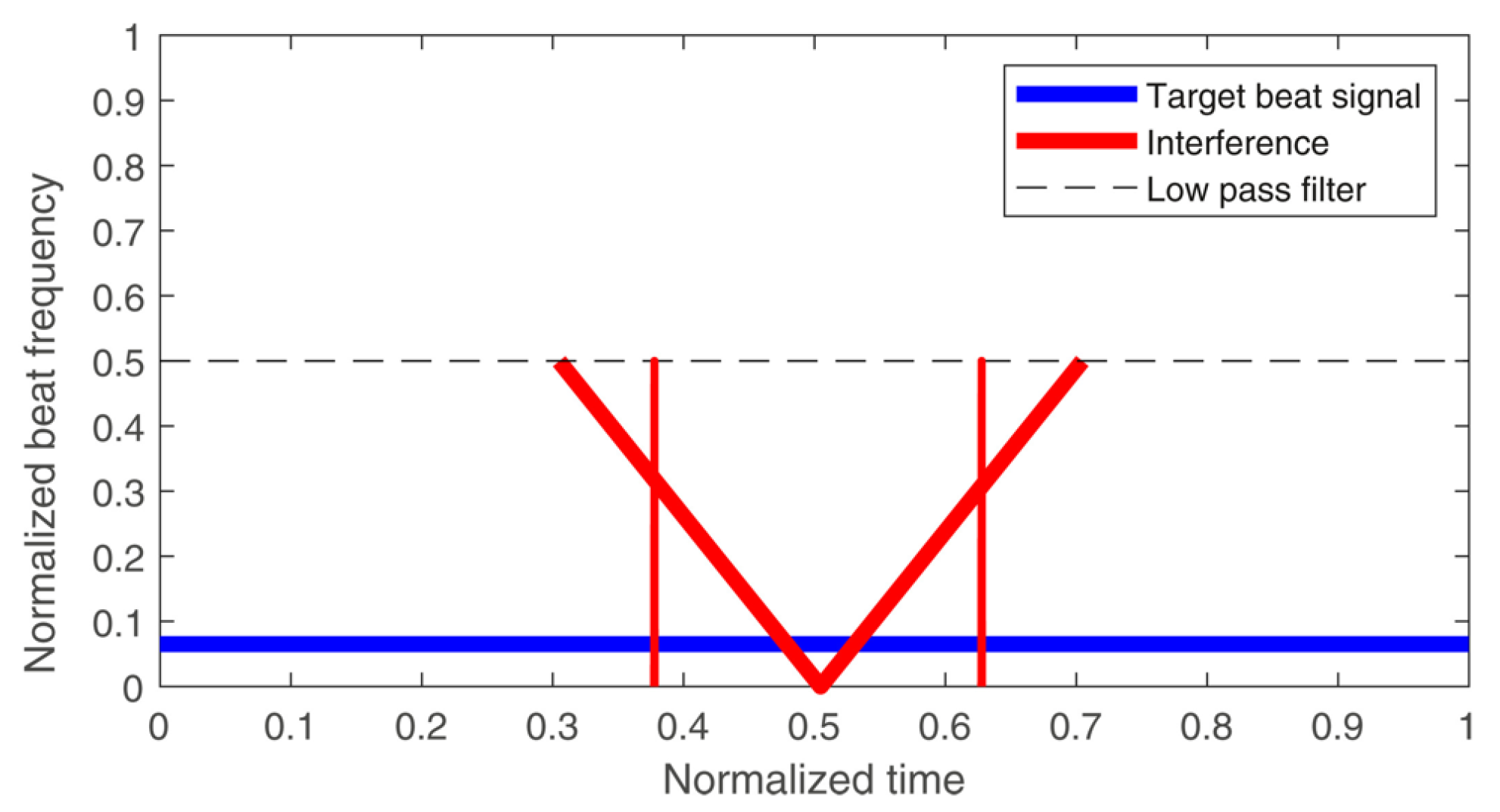

Moreover, the phase-coding characteristic of PC-FMCW led to multiple Dirac delta peaks in the spectrogram of victim radars, as depicted in Figure 18. As analyzed in [24], non-decoded PC-FMCW chirps acting as aggressors induced a similar effect in the RD spectrum of victim FMCW radars as incorrectly decoded FMCW chirps did in the RD spectrum of victim PC-FMCW radars. Consequently, broadband clutter was likely to occur in the RD spectra of victim radars under both circumstances. An example of such clutter appears in Figure 15 of [6].

4.2.4. OFDM

OFDM modulation is a coding technique with similarities to PMCW. If decoding or synchronization fails, OFDM interference appears as background noise in the RD spectrum. However, the orthogonality of its subcarriers confines interference with FMCW to specific time segments where the FMCW chirp overlaps with occupied OFDM subcarriers. Conversely, a FMCW aggressor exhibits time-frequency sparsity, affecting only a small set of OFDM subcarriers as the chirp sweeps through. Taking advantage of this sparsity, distorted data points can be selectively mitigated during RD processing. Furthermore, ref. [87] addressed interference between two OFDM radars by detecting and removing corrupted subcarrier data. This concept was extended in [88] to handle sparsely spaced subcarriers, utilizing a compressed sensing (CS) algorithm for RD processing.

4.2.5. OCDM

OCDM is an emerging modulation in the community, and related studies on interference are very limited. While FMCW, based on linearly swept chirps, can experience interference if multiple overlapping chirps are transmitted, OCDM transmits orthogonal chirps whose cross-correlation remains minimal if they are well synchronized. Compared to OFDM, which is also multicarrier-based modulation, OCDM extends its orthogonality to time and frequency through chirps. In general, OCDM can outperform FMCW and OFDM in certain interference scenarios due to its orthogonality of time-frequency. However, factors such as synchronization, hardware constraints, and resource allocation ultimately determine whether the theoretical advantages of OFDM fully realize in real-world automotive radar systems. As research progresses, concrete evaluations in dense radar environments will shed more light on OCDM’s efficacy against these established waveforms.

4.2.6. OTFS

The study detailed in [89] examined how sinusoidal co-channel CW interference affected the spectral efficiency of a communication system based on OTFS. The experimental results showed that CW interference originating from a specific channel path was confined to limited Doppler domain spacing, with the interference length approximately twice the Doppler domain resolution. The simulations demonstrated that OTFS remained robust against CW interference when the Doppler domain resolution was sufficiently refined.

4.2.7. Summary

Each modulation scheme presented is affected by interference. Therefore, significant measures are the degree of interference and possible mitigation approaches. For next-generation automotive radar systems, mutual interference between FMCW and a potential modulation scheme must always be evaluated, since modern radars are mainly equipped with FMCW modulation and will also be available in the coming years.

4.3. Joint Radar and Communication

Digital modulation schemes such as PC-FMCW, PMCW, and OFDM enable JRC by supporting both communication and sensing with a single device. Communication data can be embedded in waveforms by modulating the phase in PC-FMCW [90] and PMCW [14], or by coding the waveform in OFDM [91,92]. According to [93], JRC system designs can be broadly categorized into the following three types:

• Radar-centric design, which adds communication functions to existing radar systems;
• Communication-centric design, which integrates sensing into communication systems;
• Joint design, which targets both functionalities without relying on an underlying system.

Although sensing is already well established in the radar industry, embedding communication data in radar waveforms remains a developing field. A notable use case is V2V or more general vehicle-to-everything (V2X) communication, where JRC waveforms can help vehicles exchange radar parameters and thus mitigate interference. This work provides only a brief overview of JRC; a more comprehensive review of the modulation schemes that enable JRC can be found in [26].

4.3.1. FMCW

JRC is not possible with a conventional FMCW modulation. However, if the single-carrier FMCW chirp modulation was replaced by a multi-carrier OCDM waveform, JRC would be feasible, which will be detailed in the part for OCDM.

4.3.2. PC-FMCW

In [90], the authors analyzed PC-FMCW for JRC by comparing two receiver architectures, namely phase-lag-compensated group-delay receivers and filter bank receivers. Their findings showed that the phase-lag-compensated group-delay receiver offered better sensing performance in terms of sidelobe levels and required less computational complexity, using FFTs instead of matrix multiplications; however, it lagged in communication capabilities in terms of bit error rate (BER). The BER was shown to be worse when the code bandwidth increased. For a complete examination, we recommend consulting the paper. PC-FMCW currently serves as an intermediate step between traditional analog modulation and fully digital modulation, pending advances in hardware and signal processing. Its communication capacity remains limited by a relatively low phase update rate, which reduces ADC demands but also constrains data throughput.

4.3.3. PMCW

By carefully designing the code sequence, PAPR in PMCW-based systems can remain low, although the Doppler effect, data rate constraints, and resource efficiency continue to pose challenges. Probst et al. demonstrated a 15 Gbits⁻¹ PMCW-based JRC system operating in the D-band, which is currently outside the automotive radar spectrum. In [14], a JRC PMCW system achieved data rates up to 627.03 kbits⁻¹ while preserving the sensing performance of conventional PMCW and maintaining robust communication. Furthermore, Su et al. [94] introduced a 6G-oriented PMCW design that used orthogonal codes for parallel pilot and data transmission, improving resource efficiency and communication reliability. This approach also mitigated Doppler effects without compromising radar functionality.

4.3.4. OFDM

In [91], a communication-centric OFDM JRC system was introduced and shown to be effective through analytical and simulation-based evaluations. In [95], various over-the-air (OTA) synchronization methods, such as preamble symbols and pilot subcarriers, were discussed. Integrating radar and communication functions via OFDM could yield notable throughput enhancements. For example, one approach achieved a 7% throughput gain over conventional methods by reserving sensing symbols [96]. Moreover, another study designed OFDM waveforms with subcarrier interleaving, aiming to optimize the PAPR and SNR, both of which are critical for joint radar and communication operations [97].

Despite these advances, challenges persist to maintain optimal performance across all parameters. Although the OFDM radar can perform well using coherent integration, the traditional FMCW radar may still surpass it in terms of SNR and target detection under certain conditions [98]. This underscores the need to further refine and tailor OFDM-based radar systems for vehicular environments to fully realize their potential in combined sensing and communication.

4.3.5. OCDM

OFDM has been widely used in JRC systems due to its high spectral efficiency and robustness, but its high PAPR has spurred growing interest in OCDM-based JRC. In [99], an OCDM JRC signal was introduced alongside a novel PAPR reduction strategy that reserved specific chirps for peak cancellation. Unlike tone reservation in OFDM, this method preserved valuable frequency resources for standard JRC transmission. Expanding on this, ref. [100] proposed a hybrid OCDM-OFDM waveform that multiplexed signals in the chirp and frequency domains, achieving higher communication rates and improved BER performance compared to conventional OCDM or OFDM. Additionally, Oliveira et al. [52] enhanced signal orthogonality using CDM with outer coding or FDM via frequency-shift precoding, highlighting the flexibility of OCDM-based JRC systems.

While OFDM faces challenges such as sensitivity to phase noise and reliance on CP, OCDM mitigates some of these limitations, offering a robust and efficient alternative for JRC [17,52]. However, the tradeoffs must be considered, such as the potential for higher range sidelobe levels in certain configurations. The integration of OCDM into the existing systems also demands careful system design and optimization of processing algorithms to fully exploit its advantages. Despite these challenges, the efficiency and robustness of OCDM position it as a compelling candidate for future integrated sensing and communication systems.

4.3.6. OTFS

OTFS modulation has gained significant attention as a promising technology for JRC, particularly in high-mobility environments where traditional waveforms face limitations. By exploiting the delay-Doppler domain, OTFS allows the seamless integration of communication and sensing functions within a single waveform, addressing the growing need for systems capable of delivering high data rates and precise sensing simultaneously. This dual capability is achieved through efficient parameter optimization, such as adjusting the number of subcarriers and pilot symbol strength. These adjustments reduce channel estimation errors and minimize guard symbol overhead, thereby improving communication reliability and overall system efficiency [101]. Advances in OTFS-based JRC have introduced innovative frameworks and algorithms to further improve joint performance. Techniques such as hybrid message passing detection have been shown to enhance symbol demodulation, while fractional delay-Doppler estimation provides more accurate radar parameter extraction, enabling precise detection in complex environments [102]. These developments underline the potential of OTFS to support robust JRC operations under dynamic conditions.

However, several challenges remain in optimizing the tradeoffs between communication and sensing performance. Managing interference, mitigating fractional delay-Doppler shifts, and meeting stringent real-time processing requirements represent ongoing areas of research. Additionally, integrating OTFS with complementary techniques, such as the weighted-type fractional Fourier transform, offers a promising avenue for further enhancing JRC system capabilities [103]. As research progresses, OTFS modulation is poised to play a key role in advancing the performance and scalability of future JRC systems.

4.3.7. Comparison

Digital modulation schemes are suitable for JRC and enable an additional feature for radar systems. OFDM, OCDM, and OTFS waveforms have proven effective in high-speed data transmission, while PMCW and PC-FMCW waveforms require further examination. PMCW radar provides faster data rates than PC-FMCW due to its requirement for larger bandwidths to achieve fine-range resolutions. PC-FMCW only allows low-speed transmissions to avoid the high costs associated with large bandwidths. Although JRC requires additional signal processing compared to conventional sensing radar systems, it is a necessary tradeoff for the benefits it provides. However, the integration of communication into radar sensors needs to be debated within the automotive community and, to the best of our knowledge, radar-centric JRC systems are not commercially available.

4.4. Doppler Influence and Tolerance

The relative movement between a radar system and its target can result in effects such as range migration along the slow-time axis and Doppler frequency shifts along the fast-time axis. In the literature, a variety of algorithms have been proposed to mitigate range migration (cf. [104,105]). This study focused on addressing Doppler frequency shifts, as they can severely affect detection accuracy and range estimation in fast time. The dynamic nature of automotive scenarios further underscores the importance of tackling this challenge.

4.4.1. FMCW

For FMCW waveforms, the Doppler frequency shift causes a range-Doppler coupling in the beat frequency estimate, which is expressed as $f_{\mathrm{b}}=f_{\mathrm{r}}+f_{\mathrm{D}}$, where $f_{\mathrm{r}}$ and $f_{\mathrm{D}}$ are the range-dependent and Doppler-dependent components, respectively. The beat frequency, crucial for range estimation, is detailed in Section 3.1.3. Typically, $f_{\mathrm{r}}\gg f_{\mathrm{D}}$, but compensating for $f_{\mathrm{D}}$, especially in high-performance radar systems, enhances range accuracy [106].

4.4.2. PMCW

The Doppler frequency introduces a phase shift, represented as $exp\left(j2\pi f_{\mathrm{D}}t\right)$. While the Doppler shift along slow time aids velocity estimation, its effect along fast time compresses or stretches symbols, degrading correlation processing, and reducing PSRs. Doppler-tolerant code selection is therefore crucial in the design of PMCW radar systems. More Doppler-tolerant sequences offer improved dynamic range and higher target detection probabilities in high-speed scenarios. Previous studies [42,43] have shown that certain sequence families exhibit better Doppler tolerance in terms of target peak power and PSR. A notable challenge arose from decreasing PSRs as velocity increased, posing significant issues in high-speed scenarios. It was shown that APASs and zero correlation zone (ZCZ) sequences PSRs of about 40 dB, while the PSR of the Gold sequences was only about 12 dB, when the relative velocity was low. However, as the velocity increased, the PSRs of APASs and ZCZ sequences decreased, while it remained constant for the Gold sequences. At approximately 80 m${\mathrm{s}}^{-1}$, the PSRs showed only small variations. To address this issue, Doppler mitigation techniques, such as those in [107,108], compensate for fast-time Doppler shifts. These methods are applied post-Doppler processing and before range processing, ensuring enhanced system performance.

4.4.3. PC-FMCW

In [46], the Doppler tolerance of BPSK, Gaussian, and Gaussian minimum shift keying (GMSK) PC-FMCW waveforms was analyzed and compared with the FMCW waveform. Simulations showed that the range integrated sidelobe level (ISL) was not affected by Doppler shift, while the angle peak-sidelobe level (PSL) was only degraded by 0.5 dB when the relative velocity changed from 0 ms⁻¹ to 30 ms⁻¹. Further, the results demonstrated that these PC-FMCW waveforms exhibited the same Doppler tolerance as FMCW, with the range-Doppler coupling determined by the chirp slope. As with FMCW radars, compensating for the Doppler frequency shift in beat frequency estimation is essential for high-performance measurements.

4.4.4. OFDM

In OFDM radars, Doppler shifts cause non-orthogonality between subcarriers, i.e., $\mathrm{\Delta }f\ne 1/T_{\mathrm{sym}}$, leading to reduced dynamic range in range-Doppler estimations [47]. As detailed in Section 3.4.2, the subcarrier spacing $\mathrm{\Delta }f$ must be sufficiently large to prevent ICI and maintain orthogonality, requiring $\mathrm{\Delta }f\ge 10f_{\mathrm{d}},\max$. To address these challenges, Doppler mitigation techniques, such as those proposed in [22,109], apply all-cell Doppler correction (ACDC) before range estimation, similar to PMCW systems. The experimental results in [22], a study which was conducted in a real-world automotive environment with $f_{\mathrm{D}}/\mathrm{\Delta }f=0.34$, showed that the ACDC approach was capable of compensating for sidelobes in the range domain induced by ICI, improving target detection.

4.4.5. OCDM

The OCDM radar offers improved robustness against Doppler shifts by leveraging its discrete-Fresnel domain representation. As reported in [19], time and frequency shifts caused by relative velocities resulted in subchirp shifts and phase rotations, leading to interchirp interference (IChI). However, the spread-out nature of the OCDM signal in both time and frequency domains helped mitigate these effects, preserving target detection accuracy. Moreover, the inherent flexibility in managing multipath propagation, as highlighted in [51], reduced interference from reflections common in automotive scenarios. Consequently, the OCDM radar exhibits improved performance and resilience against Doppler-induced phase variations and complex propagation environments encountered in vehicular applications.

4.4.6. OTFS

The OTFS radar leverages the distribution of information in the delay-Doppler domain to mitigate time and frequency variations, particularly under high Doppler conditions. In [54], experiments with relative velocities of 30 km h⁻¹ and 120 km h⁻¹ in single input single output (SISO) and MIMO setups were performed, demonstrating the superior robustness of OTFS compared to OFDM. However, as shown in [110], fractional delay shifts can spread signals into adjacent bins, causing ISI. This relationship between robust high-mobility performance and potential interference due to fractional shifts underscores the importance of careful system design and parameter optimization in OTFS-based radar applications.

4.4.7. Comparison

All the radar waveforms discussed degrade under Doppler shifts, but in different ways. FMCW and PC-FMCW require Doppler-dependent frequency compensation due to range-Doppler coupling in the beat frequency. PMCW suffers reduced PSRs at higher velocities, risking ghost or weak target masking; ACDC mitigates these effects. OFDM experiences broken subcarrier orthogonality under Doppler, reducing the detection dynamic range, which ACDC can also address.

More recent OCDM and OTFS waveforms offer stronger Doppler robustness. OCDM uses discrete-Fresnel domain processing to spread signal components in time and frequency, combating Doppler-induced subchirp shifts and phase rotations while handling multipath. OTFS leverages delay-Doppler domain signaling to combat rapid time-frequency fluctuations, improving detection in high-mobility or multipath scenarios, although fractional delays can leak interference into adjacent bins. Both show promise for mitigating Doppler distortions in next-generation automotive radar systems.

4.5. Implementation Aspects and Limitations

Commercial automotive radar systems primarily employ fast-chirp FMCW modulation due to the long experience and cost-effective implementation. This section delves into the state-of-the-art and obstacles in the practical application of each modulation scheme, focusing on hardware intricacy.

4.5.1. FMCW

FMCW has been in development for numerous years and continues to be utilized in modern radar systems. As a result, it has been extensively researched theoretically and practically in real-world automotive scenarios. Moreover, ongoing research efforts are focused on enhancing the effectiveness of modern FMCW systems.

One significant benefit is the relatively simple hardware complexity. The generation of the waveform involves creating a linear chirp using a frequency synthesizer. The chirp’s linearity is crucial for its performance, with the frequency synthesizer’s linearity being a major factor influencing the hardware complexity [111]. Due to the low-frequency beat signal in the receivers, only slow-sampling ADCs are required (less than 10 $\mathrm{M}$$\mathrm{Hz}$), enabling data processing and storage on cost-efficient hardware, which has been explained in Section 3.1. The DFTs for range, Doppler, and angle processing can be calculated using specially designed dedicated engines for fast and efficient calculations.

4.5.2. PMCW

PMCW has recently gained more attention in academia and industry. The waveform generation in PMCW radars consists of a constant carrier frequency and a phase shifter to apply the phase sequences that can be generated through LFSRs. The implementation is flexible due to many different code families and sequences. Moreover, much knowledge from CDMA-based communication regarding codes is available. In [112], PRBS generation was presented and designed using a 22 nm fully-depleted silicon on insulator technology. The technology is usable for programmable feedback, while standard LFSRs exhibit fixed feedback to generate different binary sequences. This is especially advantageous for MIMO systems, where different PRBSs are required at the transmit antennas. Polyphase-phase codes are often not considered to avoid needing IQ-modulators at the transmitters. For further literature on waveform generation in hardware, we recommend referring to [37,41].

The correlation for range processing can be performed in the digital domain [38], and the DFTs for Doppler processing are a conventional signal processing step, similar to the other presented modulation schemes. The question of how PMCW systems perform regarding self-interference and inter-vehicle interference remains open when the number of radar systems increases in the following years. Different studies have shown that dynamic scenarios lead to a degradation of orthogonality and performance loss, and perfect orthogonality cannot be achieved when binary sequences are used [42]. In [41], the concept of a $2\times 2$ MIMO PMCW system-on-chip (SoC) was presented, and the performance was demonstrated. The radar achieved a range resolution of $7.5$ $\mathrm{c}$$\mathrm{m}$ and an angular resolution of $5^{\circ }$ in both azimuth and elevation by applying the multiple signal classification (MUSIC) algorithm.

In [16], a $4\times 4$ system demonstrator was presented for two digital modulation schemes, PMCW and OFDM, based on a radio frequency system-on-chip (RFSoC) field programmable gate array (FPGA) solution. The system was capable of using 1 $\mathrm{G}$$\mathrm{Hz}$ bandwidth, resulting in a range resolution of 15 $\mathrm{c}$$\mathrm{m}$. Due to short sequence durations, it was also possible to achieve a maximum unambiguous velocity of more than 450 m s ⁻¹, surpassing the relative velocities achievable with TDM or DDM in FMCW systems. The challenge of dealing with fast data rates up to 100 Gbits⁻¹ and large amounts of data was especially emphasized.

Uhnder, an American startup, has entered the market with a digital radar solution. They presented a 77 $\mathrm{G}$$\mathrm{Hz}$ imaging radar-on-chip (RoC) with 192 virtual channels (12 transmitters, 16 receivers) and range resolutions of about 7.5 cm, as well as Doppler resolutions up to 0.01 m s ⁻¹ [113].

A disadvantage of PMCW is the sampling requirement for achieving fine-range resolutions, which requires fast-sampling ADCs and much memory to store the sampled data. The sampling rates should satisfy the Nyquist sampling theorem, i.e., each chip must be sampled at least once, which requires fast sample rates in the case of short chip durations, e.g., a chip duration of 1 $\mathrm{n}$$\mathrm{s}$ requires a sampling rate of 1 $\mathrm{G}$$\mathrm{Hz}$. Methods to decrease sampling needs were introduced in [15], demonstrating that ADC requirements could be reduced through waveform design, making the implementation more cost-effective. It was shown that a stepped-frequency PMCW (SF-PMCW) waveform with an instantaneous bandwidth of 100 $\mathrm{M}$$\mathrm{Hz}$ could achieve range estimates comparable to the conventional PMCW waveform with an instantaneous bandwidth of 1 $\mathrm{G}$$\mathrm{Hz}$. Other works, such as [114], focused on reducing resolution by employing one-bit sampling, thereby reducing the cost and power consumption of ADCs.

4.5.3. PC-FMCW

PC-FMCW has been extensively studied by the Delft University of Technology through simulations and experiments in recent years [6]. The waveform generation typically consists of linear chirp generation using a frequency synthesizer and a coder that adds phase codes to the waveform. Generally, the chip rate is reduced relative to PMCW radars since phase codes serve only for transmitter identification rather than for range estimation. As in FMCW, the linearity of the chirp is essential for performance. The system architecture is slightly more complex than the FMCW architecture due to additional components such as the coder at the transmitter and the GDF and decoder at the receiver. The extent to which these components add to hardware complexity and increase cost remains to be investigated. Compared to PMCW and OFDM, the sampling rate is comparably low, with less than 100 $\mathrm{M}$$\mathrm{Hz}$. The sampling rate depends mainly on the bandwidth of the applied phase sequences, which determines the chip duration.

To our knowledge, there is no commercial implementation of PC-FMCW for automotive radars and consequently performance in automotive scenarios has not yet been studied.

4.5.4. OFDM

OFDM is a well-established waveform in communication technologies, such as WLAN. The waveform generation consists of an IDFT for generating signals in the time domain from signals in the frequency domain by summing the modulated subcarriers as expressed in (28). OFDM waveform generation provides a high degree of flexibility because each time-frequency symbol can be configured arbitrarily, enabling the generation of a wide variety of signal shapes [22]. As a result, OFDM requires linear PAs due to high PAPRs, as described in Section 3.4, unlike FMCW, PC-FMCW, and PMCW. Approaches to PAPR reduction were presented in [48].

Similarly to PMCW, the BB bandwidth is equal to the RF bandwidth. Therefore, wideband signals require fast sampling ADCs, and a large amount of data must be processed and stored. However, in [115], an approach to reducing sampling requirements using a stepped-carrier processing scheme was presented. This approach made OFDM more attractive for implementation in automotive radars by reducing hardware requirements.

In [16,116], $2\times 2$ and $4\times 4$ FPGA-based demonstrators operating in the band between 76 GHz to 81 GHz with bandwidths of more than 500 MHz and with real-time processing capabilities were presented.

4.5.5. OCDM

Due to its robustness against ISI and Doppler frequency shifts, OCDM is considered a promising waveform for next-generation communications and automotive radar. This is especially critical in vehicular environments, where rapid velocity changes and strong multipath propagation demand resilient signaling. In [117], researchers demonstrated a cost-effective OCDM implementation by integrating phase controllers into a conventional OFDM system thus reusing the existing hardware.

Despite these benefits, several key implementation issues persist. Precise phase alignment is crucial to fully leverage OCDM’s Doppler tolerance. As noted in [19], small timing misalignments or subchirp phase offsets can trigger inter-chirp interference (IChI), degrading detection. Moreover, high-speed automotive scenarios with strong multipath reflections impose tighter synchronization requirements [51]. Although discrete Fresnel domain processing helps reduce interference, it increases digital signal processing overhead. Nevertheless, careful parameter tuning, coupled with calibration and equalization, can address these challenges, paving the way for robust, cost-effective OCDM solutions in future automotive radar applications.

4.5.6. OTFS

OTFS is well-suited to highly dynamic automotive radar scenarios, as it embeds signals in the delay-Doppler domain, providing resilience against velocity variations and multipath effects [54]. A key benefit is its lower PAPR compared to OFDM, reducing the linearity requirements for power amplifiers and increasing efficiency [118]. A SISO-OTFS modulator on an FPGA was presented in [119], showing faster convergence and fewer detection errors, making it appealing for high-mobility situations. Similarly, an software-defined radio (SDR)-based OTFS prototype in [120] underlines the need for precise frame synchronization to preserve channel sparsity; without it, performance suffers.

However, several challenges remain. The two-dimensional transform for delay-Doppler processing increases computational complexity, and tight synchronization is vital to fully exploit channel sparsity. Moreover, fractional Doppler shifts and heavy multipath can cause interference between delay-Doppler bins, demanding robust channel estimation and equalization. Despite these hurdles, OTFS remains a promising candidate for a high-performance automotive radar in rapidly changing environments.

4.5.7. Comparison

A significant advantage of FMCW is its extensive history in the automotive radar market. It has been rigorously studied in academia, resulting in various improved and optimized approaches. However, the hardware complexity associated with waveform generation in FMCW and PC-FMCW radars can be mitigated by employing PMCW. In PMCW radars, a linear frequency synthesizer is no longer required for the generation of chirps, simplifying the waveform generation process. Despite this advantage, PMCW radars face challenges when larger RF bandwidths are required. These bandwidths demand faster ADCs and increased data storage, which significantly increase costs. A similar challenge is encountered in OFDM, OCDM, and OTFS systems. While FMCW and PC-FMCW radars can achieve gigahertz-level performance with megahertz sampling rates, PMCW, OFDM, OCDM, and OTFS require gigahertz sampling rates to achieve similar performance, resulting in increased hardware complexity and cost. Another limitation of OFDM is the requirement for linearity in the PA due to the high PAPR. However, this drawback can be mitigated using OCDM waveforms, which inherently reduce PAPR.

Although promising approaches exist to address the high sampling rate requirements, it remains to be seen whether these challenges can be fully resolved by implementing complete digital modulation schemes. Similarly, techniques to reduce PAPR are available and should be carefully considered when designing an automotive OFDM radar. In addition, the automotive industry must acquire hands-on experience with digital modulation schemes. Practical expertise will play a crucial role in determining whether these schemes can overcome their current limitations and deliver the desired performance and cost-efficiency for future automotive radar systems.

4.6. Summary

Each modulation scheme presented has its strengths and weaknesses for future automotive radar systems. While PMCW and OFDM offer strong multiplexing capabilities in the code and frequency domains for large-scale MIMO, FMCW benefits from a long history and cost-effective implementation. PC-FMCW merges the advantages of an analog FMCW scheme with CDM-based digital modulation; however, its practical viability remains to be demonstrated. The increasing number of radar sensors on the road worsens interference for all schemes, and perfect orthogonality is unachievable in dynamic automotive environments. Additionally, JRC needs to be considered. FMCW is seldom explored for JRC, so if JRC-based V2X communication becomes the norm, an alternative to FMCW is needed. JRC also supports coordinated radar transmissions between vehicles to mitigate interference. In this regard, PC-FMCW stands out by accommodating JRC and retaining a simple implementation. A low-speed JRC solution appears sufficient for future-generation radars, given that vehicles are already equipped with dedicated high-speed communication units.

Table 4. Essential features for FMCW, PMCW, PC-FMCW, OFDM, OCDM, and OTFS modulation schemes.

Parameter	FMCW	PMCW	PC-FMCW	OFDM	OCDM	OTFS
Modulation	Analog	Digital	Analog + Digital	Digital	Digital	Digital
Multiplexing	TDM/DDM	CDM	CDM	FDM	chirp/FDM via FSP/CDM	delay-Doppler
Communication	proof-of-concepts available	high-speed communication possible	low-speed communication possible	high-speed communication possible	high-speed communication possible	high-speed communication possible
Interference	susceptible	susceptible	susceptible	susceptible	N/A	N/A
Doppler tolerance	good—range-Doppler coupling	low—decreased PSR after range processing	good—range-Doppler coupling	low—loss of subcarrier orthogonality	good—loss of subchirp orthogonality	good—native
Implementation	simple, but linear frequency synthesizer required	fast-sampling ADCs required + a large amount of data must be stored and processed	simple, but linear frequency synthesizer and additional components compared to FMCW are required	high PAPR + synchronization for decoding required + fast-sampling ADCs required + large amount of data must be stored and processed	reduced PAPR compared to OFDM possible + integration/coexistence with OFDM system possible	reduced PAPR compared to OFDM possible
Range processing	DFT	Correlation	DFT	IDFT	IDFT	Wigner transform + SFFT
Doppler processing	DFT	DFT	DFT	DFT	DFT	Wigner transform + SFFT
ADC rate	slow—less than $10 \mathrm{MHz}$	fast—up to $4 \mathrm{GHz}$	mid—less than $100 \mathrm{MHz}$	fast—up to $4 \mathrm{GHz}$	fast—up to 4 $\mathrm{GHz}$	fast—up to 4 $\mathrm{GHz}$
Cost	cost-efficient	expensive	cost-efficient	expensive	expensive	expensive
Status	mature in industry	started in industry	academia	academia	academia	academia

summarizes the key characteristics of these modulation schemes.

5. Future Research Directions

More research is needed to gradually advance towards L-4 and L-5 automation. Key challenges include enhancing angular resolution in azimuth and elevation (see Section 4.1) and mitigating interference (see Section 4.2). Current approaches to improving angular resolution involve increasing the number of antennas per system, deploying sparse arrays [58,59], leveraging high-resolution subspace techniques [29,60], or employing CS [121]. However, more antennas demand stronger orthogonality, favoring modulation schemes beyond FMCW. Another strategy is to adopt coherent radar systems for a larger virtual aperture [61,62], although synchronization and interference management present significant hurdles in automotive environments.

Although radar interference has been extensively studied, the increase in radar sensors intensifies the issue. The proposed solutions range from specialized interference mitigation strategies to synchronized scheduling among radars. In this context, JRC allows vehicles to share information about their waveforms, although its practicality and impact on sensing must still be verified in real-world settings. Although the increasing role of AI in signal processing, classification, and cognitive radar [63] offers novel opportunities, it also introduces uncertainties that require further investigation. Such AI-driven methods require vast and varied datasets, which might be partially generated through ray tracing simulators; however, the extent to which synthetic data can replace scarce real-world measurements requires a closer examination.

Sensor fusion with other technologies (e.g., LiDAR, cameras) remains critical. These modalities must be reliably integrated under all conditions, such as weather and lighting, to provide a comprehensive environmental view [1]. Finally, advanced modulation schemes like OCDM and OTFS may gain prominence with ongoing hardware and signal processing improvements. However, practicality should always be the benchmark, as academic assumptions often diverge from real-world automotive conditions.

6. Conclusions

Modern FMCW automotive radar systems face challenges such as interference, MIMO scalability, and the reliance on a linear frequency synthesizer; however, they remain cost-effective, which is crucial for their widespread commercial use. This study examined five alternative modulation schemes to address the limitations of FMCW: PC-FMCW, PMCW, OFDM, OCDM, and OTFS. Each has distinct strengths and weaknesses. PC-FMCW combines FMCW’s benefits with enhanced MIMO scalability via digital phase coding, although at the cost of a slightly more complex architecture. Digital modulation schemes such as PMCW, OFDM, OCDM, and OTFS enable large MIMO deployments in various domains but often require sampling the entire RF bandwidth, increasing costs. Although approaches to reduce these sampling requirements exist, more experimental validation is needed. Among the digital techniques, OCDM and OTFS show particularly strong performances under high mobility and multipath conditions. Overall, PC-FMCW holds promise for future radar systems, yet FMCW itself will likely remain a viable contender in next-generation automotive radar.
