Flood Monitoring Using Satellite-Based RGB Composite Imagery and Refractive Index Retrieval in Visible and Near-Infrared Bands

Abstract

Satellite remote sensing provides significant information for the monitoring of natural disasters. Recently, on a global scale, floods have been increasing both in frequency and in magnitude. In order to map the inundation area, flooding events are investigated using unique RGB composite imagery based on the MODIS surface reflectance (MOD09GA) data obtained from the Terra satellite, which is used to visualize and analyze these events. This study proposes using an RGB combination of MODIS band 6 (1.64 μm), band 5 (1.24 μm), and band 2 (0.86 μm) data from the visible and the near-infrared spectral ranges to map flood events. The flooding events that were investigated in this study occurred on 25 October 2015 along the Pampanga River in the Philippines, and on 28 July 2016 along the Poyang and Dongting Lakes in China. In the case of the Pampanga River, the inundated areas were estimated with surface reflectance (R) thresholds of 0.0 ≤ R₆ ≤ 0.102, 0.0 ≤ R₅ ≤ 0.138, and 0.03 ≤ R₂ ≤ 0.148 for MODIS bands 6, 5, and 2, respectively, which were determined using Otsu’s method. The total inundated area was estimated to be 487.75 km². This estimate was indirectly compared with the results obtained from SENTINEL-1A Synthetic Aperture Radar (SAR) data. The total inundated area on 26 October 2015 for the case of the Pampanga River was estimated to be 486.37 km² using histogram analysis based on Otsu’s method. For the flooding case in China, the total estimated inundated area using MODIS RGB imagery on 28 July 2016 and SAR on 3 August 2016 was 1148.25 km² and 1110.096 km², respectively. In addition, RGB imagery results using MODIS 6-5-2 bands were supported by the refractive index retrieval along the inundation area. A threshold of 1.6 for the real part of the complex refractive index allows for the discrimination between the flooded and non-flooded areas using the Hong and ASH approximations. This study shows that the RGB composite techniques using advanced sensors with more bands and higher spatio-temporal resolutions, and supported by the refractive index retrieval method, are useful for estimating flood events.

1. Introduction

The recent increase in the number of natural disasters has become a global issue, because of the damages to the hydrological and ecological environment and human-made infrastructure, and the threats to human lives. Satellite remote sensing techniques provide valuable support for monitoring these disasters and for post-event crisis management.

To obtain detailed and valuable information for flood monitoring, satellite missions, such as TerraSAR-X, Radarsat-2, and the Cosmo-SkyMed constellation, with Synthetic Aperture Radar (SAR) data, have been used to support flood emergency situations [1,2,3,4,5,6]. Many studies have demonstrated the effectiveness of SAR data in mapping wetlands [7,8], because it has the advantage of observations during the night and day, and under cloud cover [9,10]. However, these methods also have a disadvantage: SAR data largely depends on the accuracy of the determined thresholds that are usually static in space and time, despite the significant variability of the backscatter. This may lead to the misidentification of pixels [11].

Despite the limitations of optical satellites, which are mainly due to the effects of cloud cover, a flood detection method using visible (VIS) and near-infrared (NIR) bands was investigated [12]. One of the benefits of using these satellites is the ability to visualize flooded areas, separately, without including the non-flooded areas. Much of the pioneering work on the remote sensing of floods using band 0.8–1.1 μm of Landsat-1 [13,14,15,16,17,18] was accomplished for flooding in Iowa [19,20], Arizona [21], Virginia [20], and along the Mississippi River [22,23,24]. The Advanced Very High Resolution Radiometer (AVHRR) has also been successfully used for studying very large river floods [25,26,27,28], displaying three-band color composites for visual analysis, because flood and standing water absorbs infrared wavelengths of energy and appears as blue or black in the RGB composite imagery [29]. Flood monitoring based on the land surface temperature and Normalized Difference Vegetation Index (NDVI) [30,31] is also studied, because the NDVI tends to have a positive value in an area containing a dense vegetation canopy, and is low for standing water in both VIS and IR spectral bands. The normalized difference water index (NDWI) generally serves to distinguish water areas from non-water areas. It typically uses the difference between green and near-infrared bands [32]. Various studies have applied this method using other wavelength bands, such as short-wave infrared (SWIR) and mid-infrared (MIR) bands [33,34]. However, NDWI is sometimes ineffective in extracting water features in the case of urban areas, because the reflectance pattern of urban features is similar to that of water in the green band [35]. To compensate for this weakness, Xu suggested a new NDWI method (modified NDWI) that uses green and MIR bands [36]. Many of the studies for flood detection in non-water areas have applied both NDWI and modified NDWI to generate inundation hazard models and maps, and to calculate the flooded areas [35,37,38]. The Moderate Resolution Imaging Spectrometer (MODIS) onboard the Aqua and Terra satellites [39,40] is a useful instrument for mapping inundation areas, regardless of the optical sensors’ major disadvantage related to cloud cover. Different techniques for the use of MODIS data have been discussed, considering both their advantages and drawbacks [41,42,43]. These techniques usually have high frequency temporal measurements as far as the inundation extent is concerned. However, they are not ideal for detecting the flooded area on a fine scale, due to their low spatial resolution, which ranges from 250 m to 1 km. Despite these limitations, various approaches that use the MODIS data, such as spectral indices, have been employed to prevent the hazards of a flooding event [44,45,46].

The reflectance of terrestrial surfaces is often characterized mathematically, by the bidirectional reflectance distribution function (BRDF), which depends on the incident and reflected viewing directions, and the refractive index ($\widehat{n}=n+i·k, i=\sqrt{-1}$) of the surface itself. In the VIS and NIR spectral regions, the vertical profiles of the soil moisture, temperature, and organic matter, are not significant for modeling [47]. Accordingly, red-green-blue (RGB) composite imagery based on the surface reflectances are useful because, physically, the surface reflection like absorption, transmission, emission, and scattering, requires a priori knowledge of the complex refractive index of a medium [48,49].

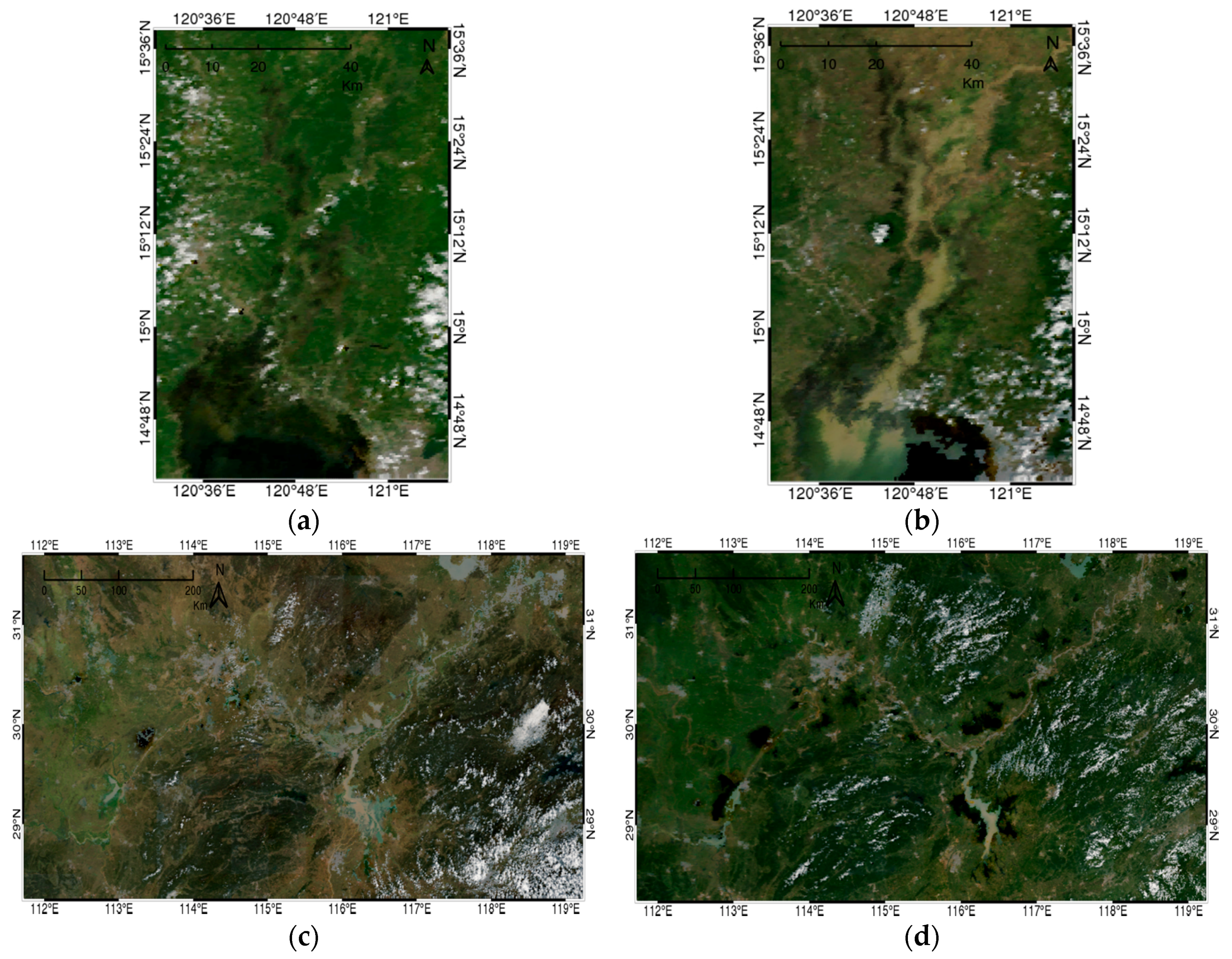

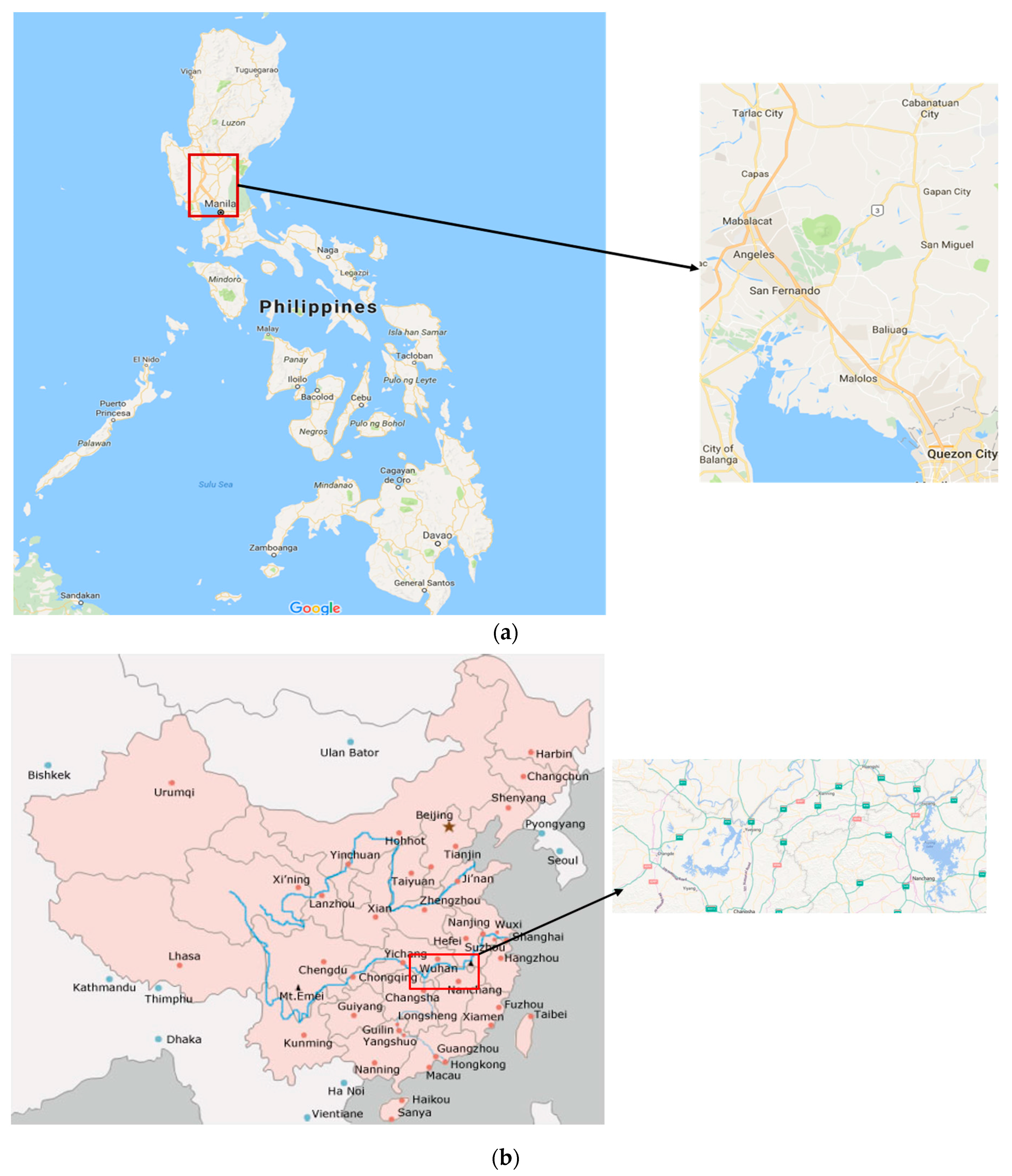

In this study, we provide a new RGB-composite technique that combines appropriate bands for mapping the inundation area based on knowledge of spectral bands and empirical experience. We investigated the flooding of the Pampanga River in the Philippines (Figure 1a), and the Poyang and Dongting Lakes in China (Figure 1b). In the case of the Pampanga River, a riverside flooding event occurred on 25 October 2015 due to Typhoon Koppu. Figure 2 shows the true color images of the Pampanga River area on 16 September 2015 at 02:20 UTC in the pre-flooding stage, and on 25 October 2015 at 02:25 UTC in the post-flooding stage. The case of the Poyang and Dongting Lakes occurred due to the heavy rainfall during the monsoon season and Typhoon Chaba. Figure 2c,d show the true color images using the surface reflectance values of the MODIS 1-4-3 bands , obtained on 27 March and 28 July 2016, respectively. We physically validated the proposed method for flood estimations using the refractive index retrieval derived by the Hong (Equation (6)) and ASH (Equation (8)) approximations using MODIS data, SENTINEL-1A Synthetic Aperture Radar (SAR) data for the same events.

2. Data and Methods

2.1. Data and Procedure

The MODIS instruments, which were onboard the TERRA launched in 1999, have 36 spectral bands ranging from 0.4 μm to 14.4 μm [50,51]. The nadir spatial resolution of bands 1 to 2, 3 to 7, and 8 to 36, are 250 m, 500 m, and 1 km, respectively. The MODIS surface reflectance data at 500 m resolution (MOD09GA) are used for masking the cloud and sea area. MOD09GA consists of seven bands in the VIS and NIR ranges, and we describe the information of each band as follows; MODIS band 1 (0.65 μm) corresponds to red light. Accordingly, the absorption of red lights in vegetation at this band results in being able to distinguish between vegetation and soil. Band 2 (0.86 μm), with strong absorption by water, is useful for separating water from dry soil or vegetated surfaces. Consequently, water appears dark, while soil and vegetation appear bright [52]. Band 3 (0.47 μm), corresponding to blue light, is useful for monitoring sediment in water and the water depth. Band 4 (0.56 μm) matches the wavelength of the green for vegetation. The sensitivity to moisture at Band 5 (1.24 μm), 6 (1.64 μm), and 7 (2.13 μm) are useful for monitoring the soil moisture and vegetation, and to differentiate the cloud and snow. The reflectance information of clay, sand, grass, snow, and water are shown with the MODIS spectral response function in Figure 3.

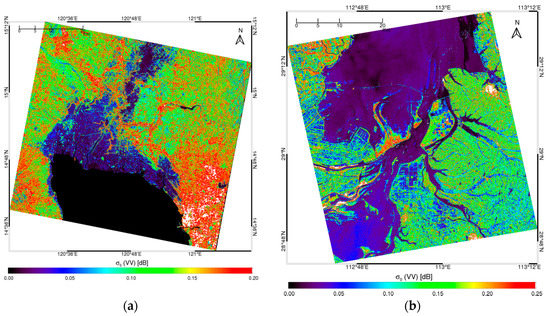

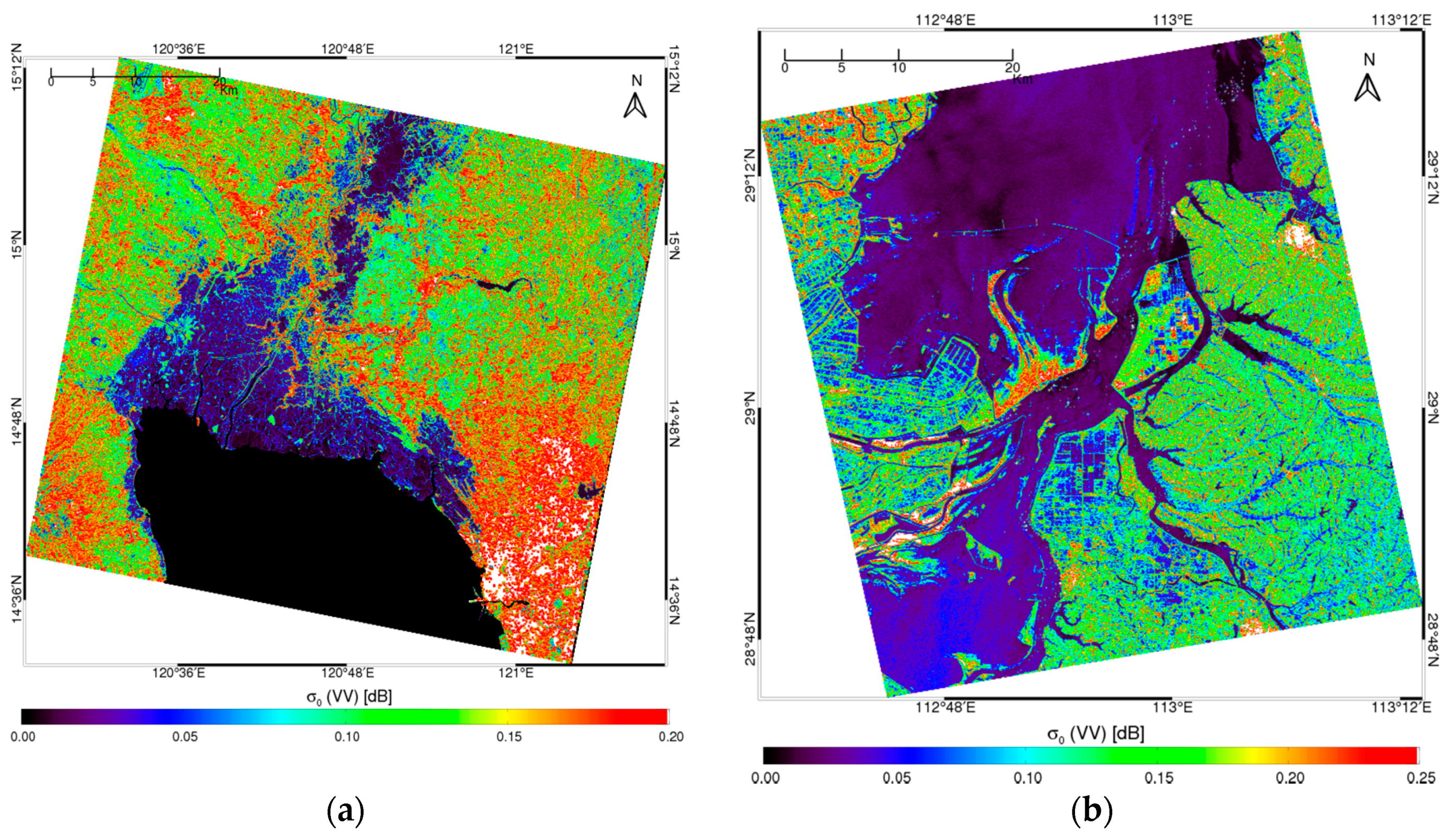

SAR data has frequently been used for flood detection due to its high resolution, minimal distortion from clouds, and guaranteed observations regardless of it being day or night [4]. However, SAR has a long observation period and is mainly used for historical analysis. One of the C-band SAR satellites, SENTINEL-1A, was launched in 2014 by the European Space Agency (ESA). We used Level-1, Ground Range Detected (GRD) data from SENTINEL-1A [54]. For SAR data, pre-processing was carried out to convert the intensity to a backscattering coefficient (${\mathsf{\sigma }}_0$), and the Lee filter (7 × 7) method was applied to reduce the noise. Figure 4a,b show the VV(vertical transmitting, vertical receiving)-polarized backscattering coefficients (${\mathsf{\sigma }}_0$) observed from SENTINEL-1A around the Pampanga River in the Philippines on 26 October 2015 at 21:46 UTC and around the Poyang and Dongting Lakes in China on 3 August 2016 at 10:27 UTC, respectively.

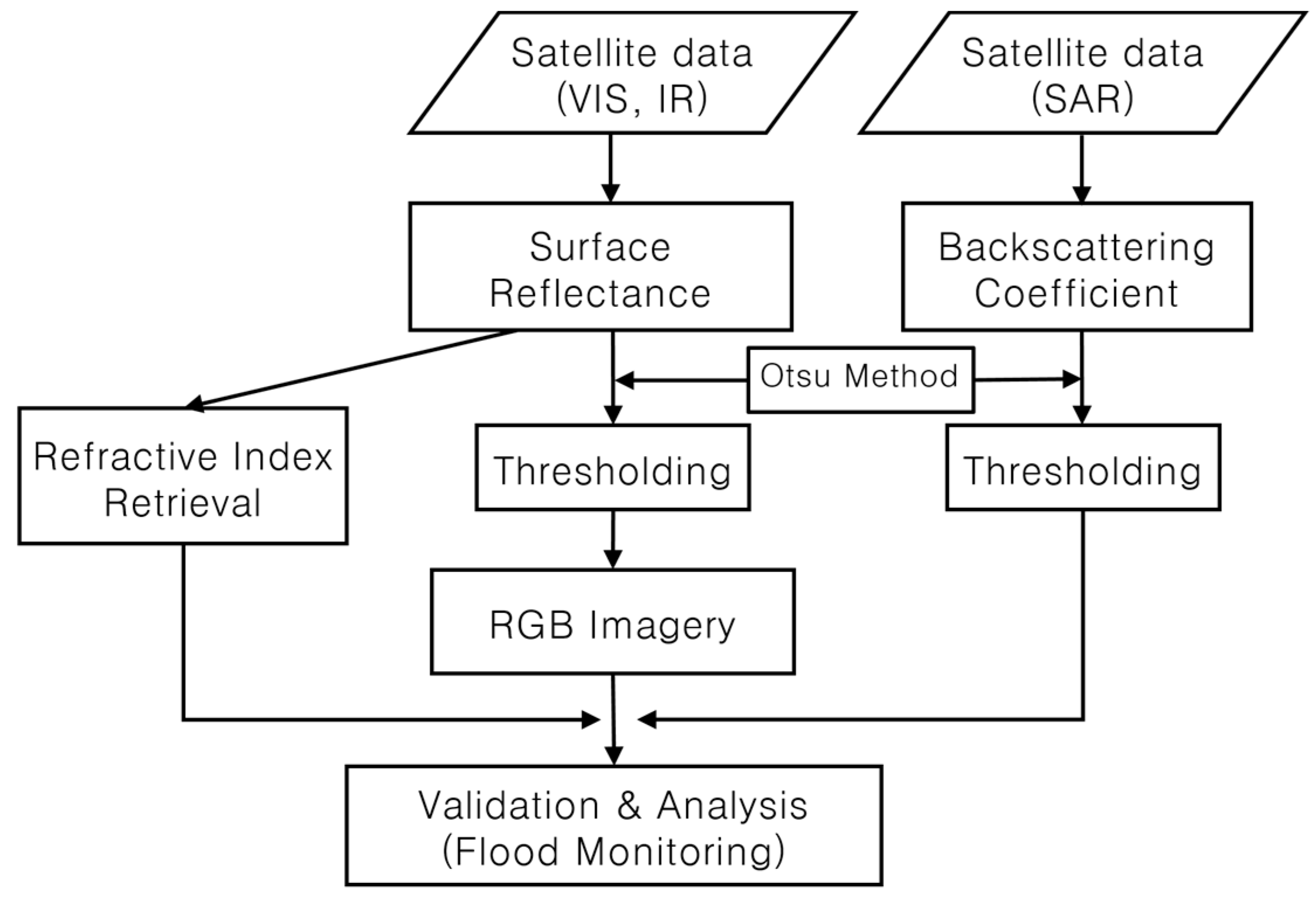

The research procedure (referred to in Figure 5) adopted in this study can be summarized as follows.

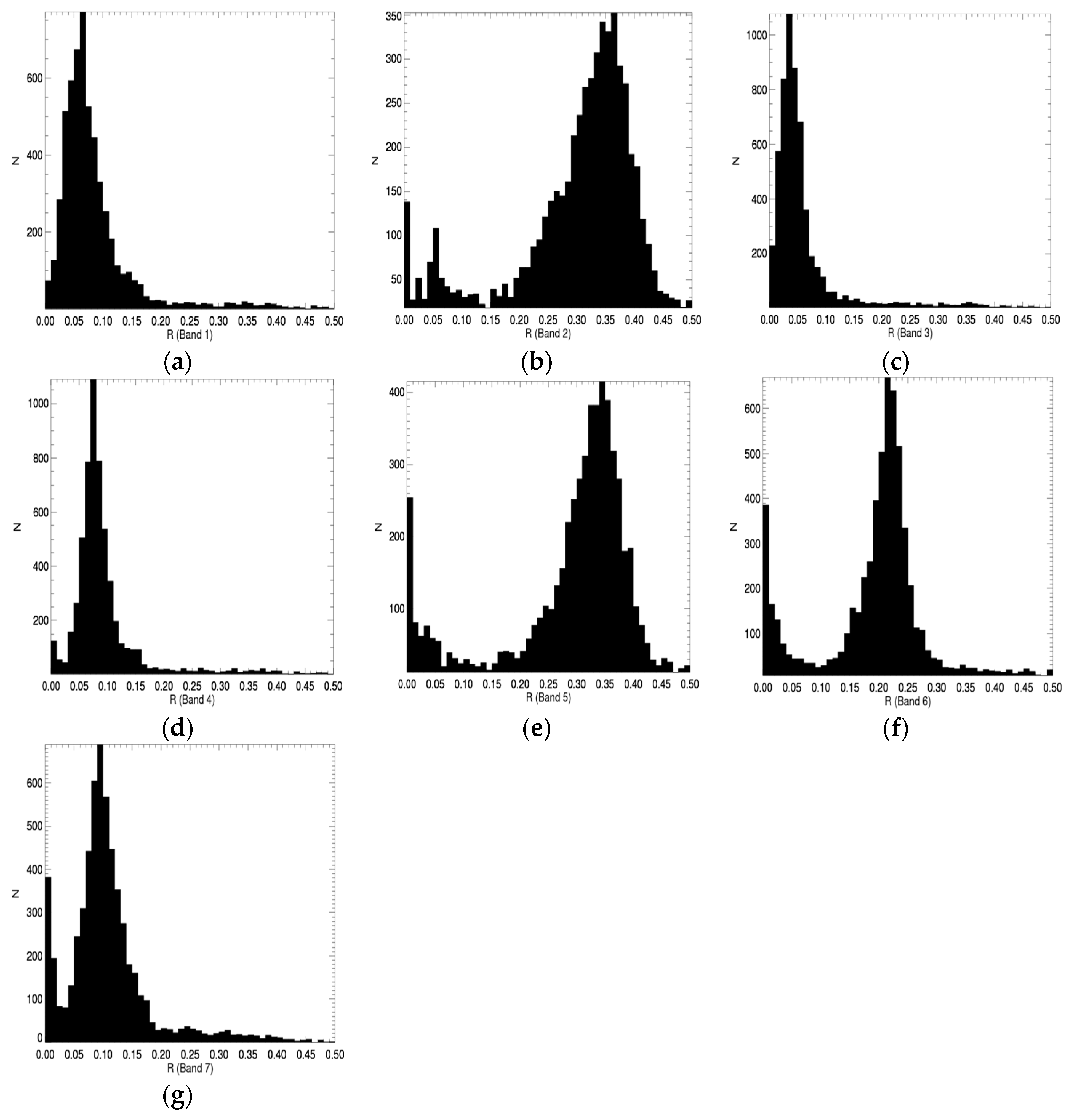

First, the surface reflectance values for VIS and NIR radiation were downloaded from the MODIS surface reflectance. Second, the separation of the flooded areas from the non-flooded areas was performed based on the distribution and threshold values of the surface reflectivity estimated using Otsu’s method, which is a simple and effective method for determining the threshold values, in order to extract objects from their background using binarization for the distribution of the histogram. The goodness of these thresholds was evaluated by measuring the separability of the gray-level classes [55]. Third, the three MODIS bands best suited to flooding detection were selected. Fourth, one-to-one matching of surface reflectivity values in the selected bands and RGB color saturations was performed. Finally, the flooded area in the RGB composite image was visualized and analyzed. The flooded area was indirectly compared using results obtained from the SENTINEL-1A SAR sensor. In addition, the model was physically validated using decomposed surface reflectivities and refractive indexes estimated from decomposed surface reflectivities.

2.2. RGB Composite Technique

The physical basis of the RGB color model is the tri-chromatic theory, in which three separate lights (red, green, and blue) can match any visible band [56]. The RGB space may be visualized as a cube with three axes corresponding to red, green, and blue. In the RGB space, according to Grassman’s first law of color mixture, a color can be matched by units of red, green, and blue in an n-bit display system, as follows [57]:

$$C_{i,j,k}=R_c(r_i)+G_c({\mathrm{g}}_j)+B_c(b_k),0\le i,j,k<2^n$$

(1)

where $R_C$, $G_C$, and $B_C$ are the units measured in any form that quantifies light power, $C_{i,j,k}$ is the color, and $r_i$, $g_j$, and $b_k$ represent the color saturation in red, green, and blue colors, respectively. The subscripts $i$, $j$, and $k$ are the different contributions of RGB color saturation from 0 to $2^n$, respectively.

In this study, the 8-bit computing colors are applied and $n=8$. In 8-bit computing, the color can range from 0 to 255 ($=2^8$). Accordingly, yellow (255, 255, 0), cyan (255, 0, 255), and magenta (0, 255, 255) can be analyzed as secondary colors, because the mixture of three-band observations determines an RGB color. Meanwhile, black (0, 0, 0) indicates no contribution and gray indicates an equal contribution from the three channels [57].

In this study, the key idea of RGB imaging is the one to one mapping of the satellite-observed surface reflectance ($R$) to a three-dimensional RGB color cube. The appropriate selection of Robservation bands in satellite sensors plays a key role in RGB image analysis. This combination requires knowledge of spectral bands and empirical experience of band combinations. Therefore, the color saturations in each of the red, green, and blue RGB colors can be rewritten as a function of $R$, within a range of maximum and minimum values of $R$ at bands 1, 2, and 3 of the sensor onboard the satellite, as follows:

$$r_i=255\cdot \frac{R_i-R_{i,MIN}}{R_{i,MAX}-R_{i,MiIN}},\mathrm{at}bandi$$

(2)

$$g_j=255\cdot \frac{R_j-R_{j,MIN}}{R_{j,MAX}-R_{j,MIN}},\mathrm{at}bandj$$

(3)

$$b_k=255\cdot \frac{R_k-R_{k,MIN}}{R_{k,MAX}-R_{k,MIN}},\mathrm{at}bandk$$

(4)

where $R_i$, $R_j$, and $R_k$ are the surface reflectivities observed at bands $i$, $j$, and $k$ of the MODIS sensor in this study, respectively.

In general, the gamma corrections for an image in 8-bit computing can be expressed as follows:

$$Colorsaturation=255\cdot {\left[\frac{R-R_{MIN}}{R_{MAX}-R_{MIIN}}\right]}^{\frac{1}{\Gamma }}$$

(5)

where Equations (2)–(4) are the specific form of gamma corrections with $\Gamma =1$ to the color saturation. In this study, we use $\Gamma =1$.

2.3. Refractive Index Retrieval

Consequently, the RGB imagery depends on the appropriate selection and combination of observing bands, based on the knowledge of spectral bands and empirical experiences. To estimate the refractive index, many free-space experimental systems have been developed using the polarization ratio $R_H/R_V$ [58,59]. Recently, $R_H/R_V$ on a specular surface as a function of one polarization $R_V$ or $R_H$, was derived from the generalized Fresnel equations [60], by taking the first term in the Taylor series of the logarithmic ratio $\ln R_H/\ln R_V$ at the incidence angle $\theta$ [61], as follows:

$$\frac{R_H}{R_V}=R_V^{{\tan }^2\theta }$$

(6)

where R_V and R_H are polarized reflectances. The usefulness of Equation (6) was shown in a variety of applications, including in the detection of Asian dust (Hwangsa) [62], the validation of an IR sea-surface emissivity model [63], surface roughness retrieval [64,65], the estimation of global soil moisture [66], sea ice studies [67,68], and wind speed retrieval [69,70,71].

Recently, a squared form of Azzam’s relationship (${\widehat{r}}_H={\widehat{r}}_V·\left({\widehat{r}}_V-cos2\theta \right)/\left(1-{\widehat{r}}_V·cos2\theta \right)$) [72,73,74] has been derived, as follows [75]:

$$\frac{R_H}{R_V}=\frac{{(\sqrt{R_V}-\cos 2\theta )}^2+2(\sqrt{R_V}-\mathrm{Re}({\widehat{r}}_V)\cdot \cos 2\theta )}{{(1-\sqrt{R_V}\cdot \cos 2\theta )}^2+2(\sqrt{R_V}-\mathrm{Re}({\widehat{r}}_V)\cdot \cos 2\theta )}$$

(7)

where ${\widehat{r}}_V=Re\left({\widehat{r}}_V\right)+\mathrm{i}·\mathrm{Im}\left({\widehat{r}}_V\right)$, Re(${\widehat{r}}_V$) and Im(${\widehat{r}}_V$) are the real and imaginary part of ${\widehat{r}}_V$, respectively. $R_V={\left|{\widehat{r}}_V\right|}^2$, and $R_H={\left|{\widehat{r}}_H\right|}^2$.

Equation (7) requires a priori knowledge of the refractive index value because of the term of ${\widehat{r}}_V$, which is a complex value. However, for a non-absorbing material (k = 0), a squared form of Azzam’s relationship (Equation (7)) is simplified to an ASH approximation, as follows [75]:

$$\frac{R_H}{R_V}={\left(\frac{\sqrt{R_V}+\cos 2\theta }{1+\sqrt{R_V}\cdot \cos 2\theta }\right)}^2$$

(8)

A method which can be used to estimate the refractive index based on the decomposition of unpolarized surface reflectivity [76] was presented using Equation (6) and no preference for either polarization [77], as follows:

$$R=\frac{R_V+R_H}{2}$$

(9)

where $R_V$ and $R_H$ can be numerically determined using Equations (6) or (8), and (9) for a given angle and a measured reflectivity.

The following solution is used to determine the refractive index from polarized reflectivities [78], along with a variety of inversion methods such as spectroscopic ellipsometry [79,80] and Kramers-Kronig phase shift analysis [81,82]:

$$n=\sqrt{\frac{B^2-A^2+{\sin }^2\theta +\sqrt{{{(A}^2+B^2-{\sin }^2\theta )}^2+{(2AB)}^2}}{2}}\mathrm{and}k=\frac{AB}{n},$$

(10)

where $B=\frac{(a-b)\sin \theta \cot 2\theta }{ab+(1-a^2){\cos }^2\theta -1}$, $A=\sqrt{-B^2-2aB\cos \theta -{\cos }^2\theta }$, $a=\frac{R_V+1}{R_V-1}$, and $b=\frac{R_H+1}{R_H-1}$. The refractive index of soil ranges from 1.39 + 0.0053i to 1.42 + 0.05i [83] in the optical band from 0.5 μm to 1.1 μm. The refractive index of water ranges from 1.339 + 1.86 × 10⁻⁹ i at 0.4 μm, to 1.296 + 2.89 × 10⁻⁹ i at 2.2 μm [81].

3. Results and Discussion

3.1. RGB Composite Technique

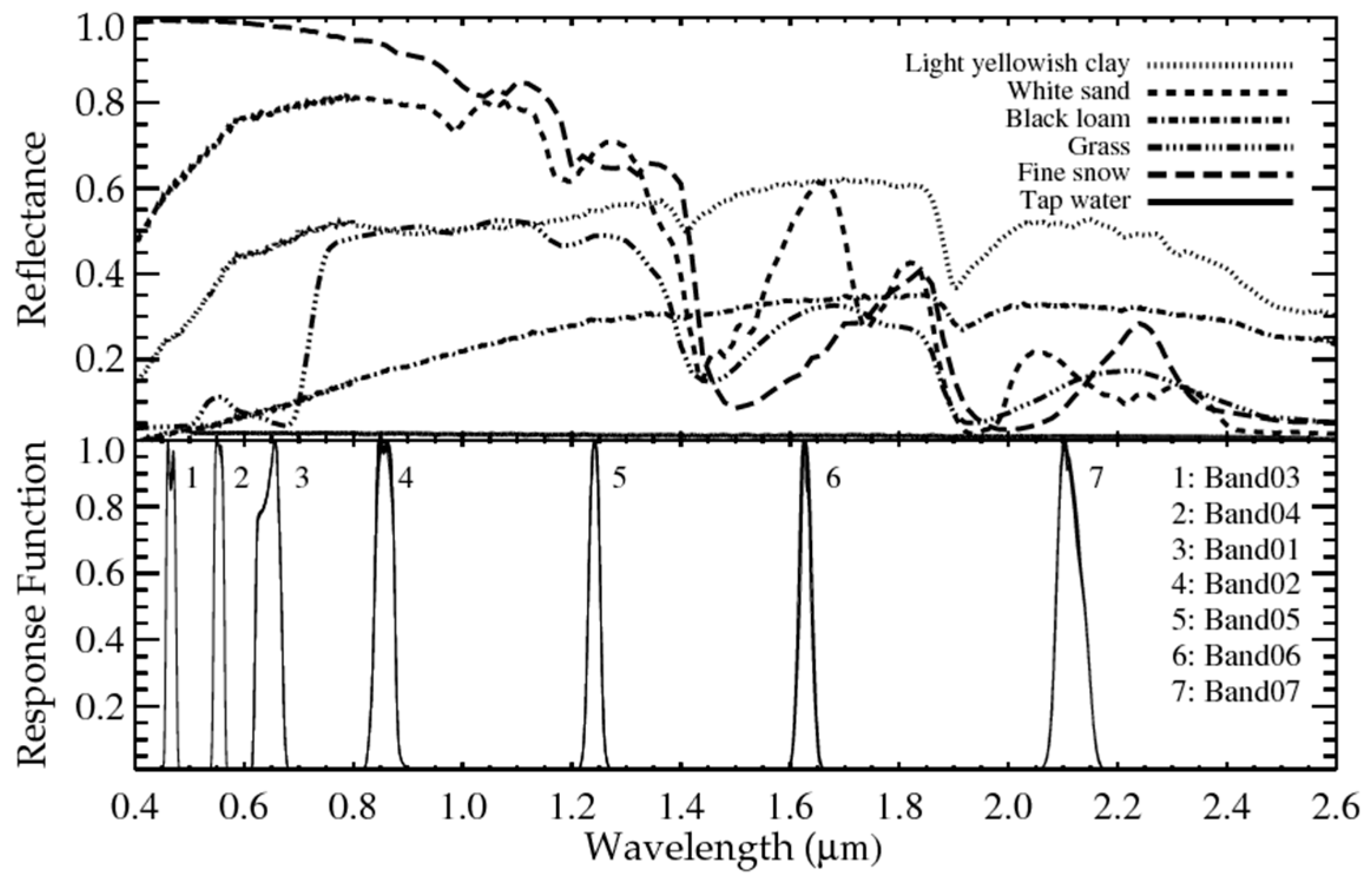

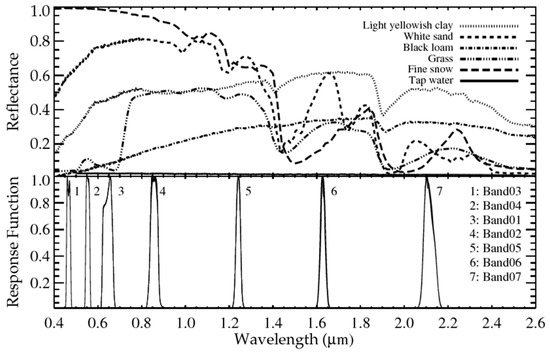

We tested an RGB combination of bands 1, 2, 3, 4, 5, 6, and 7 because of the spectral sensitivity, in order to distinguish water from soil/vegetation. This particular combination delineates the inundated and adjacent areas with a color contrast. We assume that the land surface is quasi-specular for computational efficiency, but the land surface is simulated as a linear combination of three Bidirectional Reflectance Distribution Function (BRDF) kernels [84]. Physically, the reflectance from a specular surface is larger than from a rough surface. The structure of the soil-water mixed layer is neglected and all of the constituents are regarded as evenly distributed. For monitoring floods, the distributions of reflectance at each band were described using the histograms in Figure 6. True color images of the Pampanga River make it easy to distinguish flooded and non-flooded areas (Figure 2). Bimodal distributions of the surface reflectance histograms were more suitable for the separation of the flooded areas from the non-flooded areas for MODIS band 2 (0.86 μm), band 5 (1.24 μm), and band 6 (1.64 μm) data. Thus, in the case of the Pampanga River, threshold values from Otsu’s method were determined as 0.0 ≤ $R_6$ ≤ 0.102, 0.0 ≤ $R_5$ ≤ 0.138, and 0.03 ≤ $R_2$ ≤ 0.148 for MODIS bands 6, 5, and 2, respectively. We also derived the threshold values for the case of the Poyang and Dongting Lakes, which are 0.0 ≤ $R_6$ ≤ 0.103, 0.0 ≤ $R_5$ ≤ 0.105, and 0.0 ≤ $R_2$ ≤ 0.133 for MODIS bands 6, 5, and 2, respectively.

Then, the observed surface reflectance values in these bands were matched to color saturations in each of the red, green, and blue RGB colors as a function of $R$, using Equations (2)–(4), respectively.

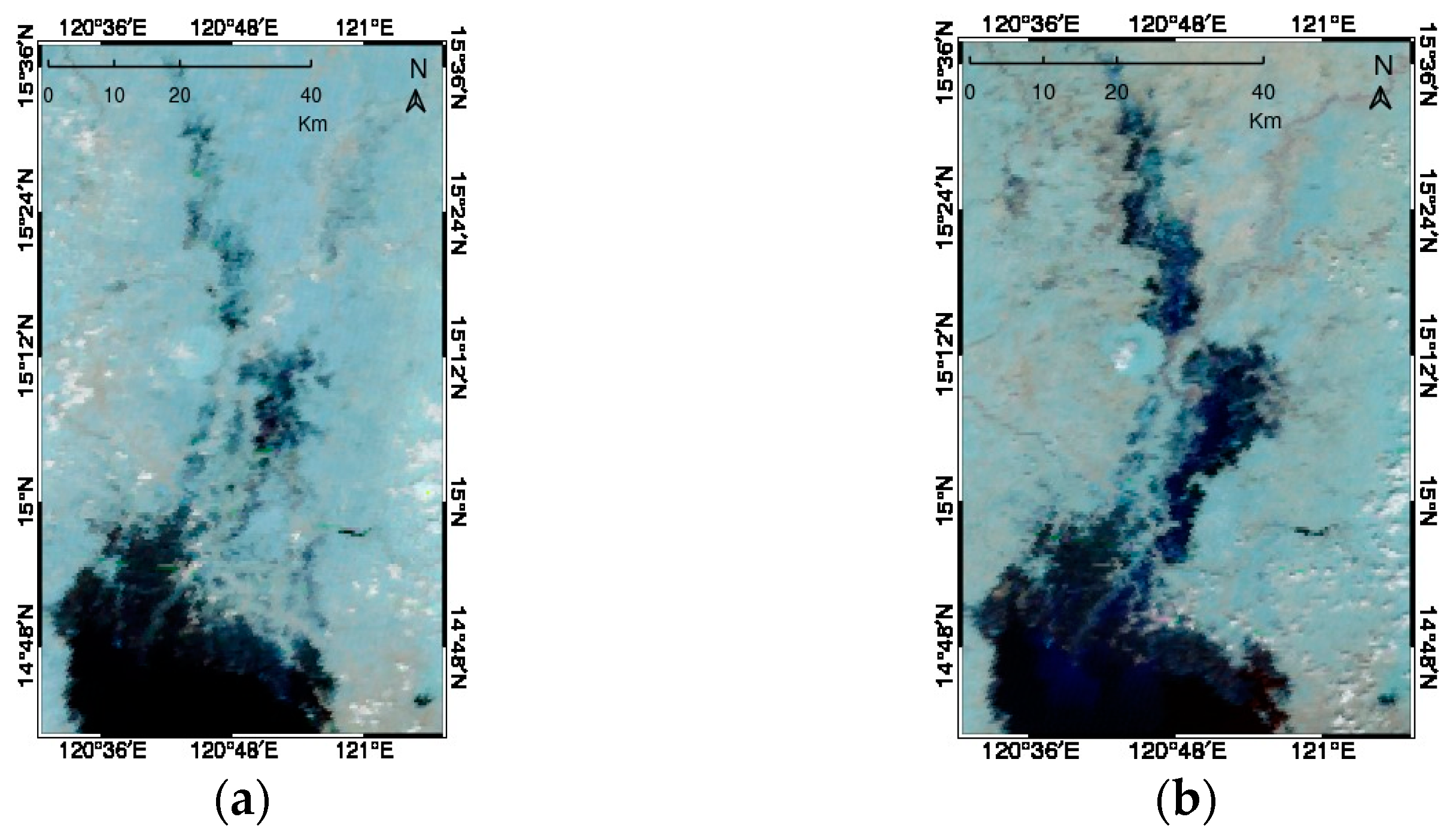

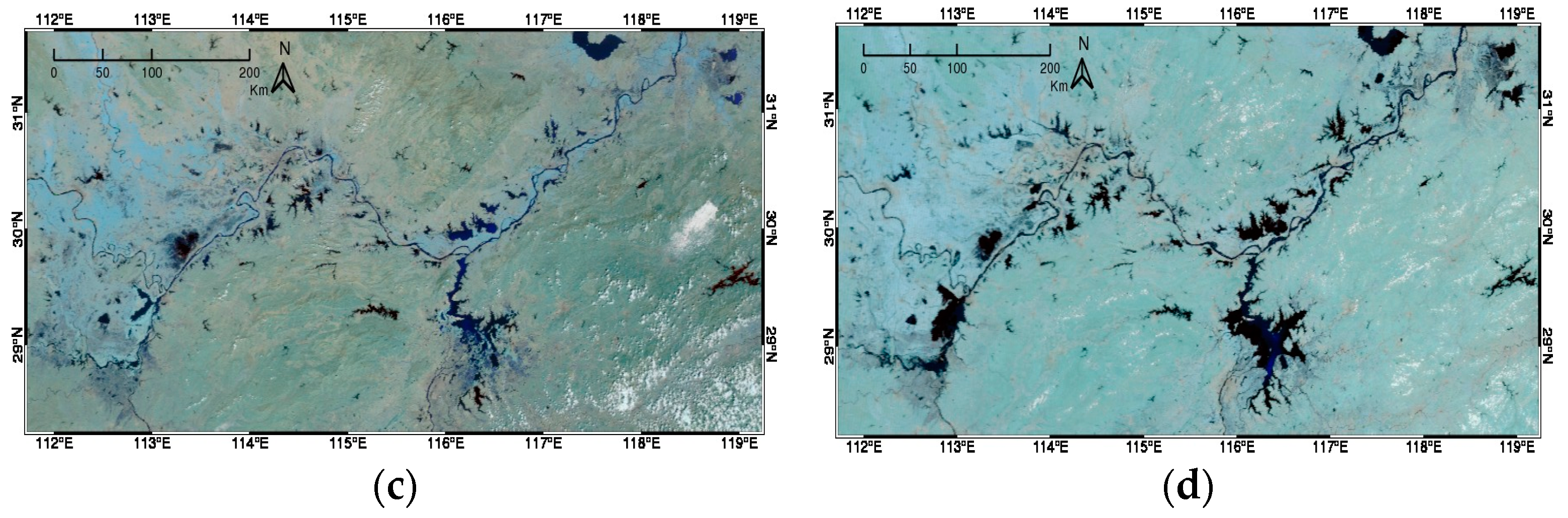

Figure 7 shows the RGB 6-5-2 composite image before and after flooding, respectively, showing the contrast between water and non-water (vegetation and land) areas. In these images, water ranges in color from dark blue to navy blue, vegetation appears sky-blue, bare ground is ivory for RGB 6-5-2, and clouds are white. RGB 6-5-2 delineates the flooded area in the map, and is more useful for setting the threshold value to derive flood areas than other bands, because near-infrared bands show clear bimodal distribution in a histogram, as shown in Figure 6.

In the true color image, band 3, which corresponds to the blue light, was not found to be useful for analyzing the land surface. Instead, MODIS band 2 was a better indicator of the land surface. It is worth noting that water shows strong absorption in band 2.

3.2. SAR Technique

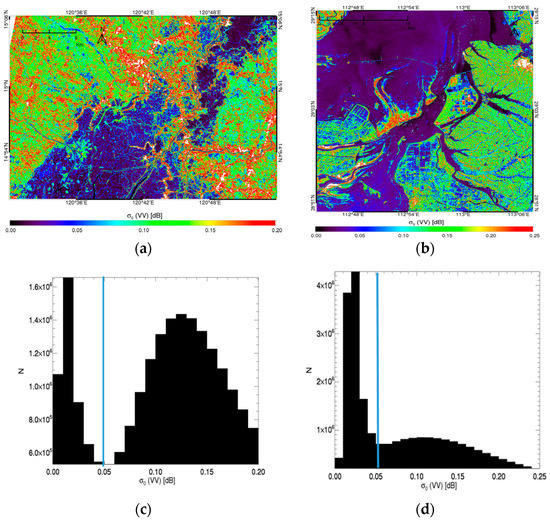

Figure 8a,b present the backscattering coefficient images of VV-polarized SNTINEL-1A data around the Pampanga River basin and the Poyang and Dongting Lakes, respectively, within the same spatial limits. Figure 8c,d show that the histograms of σ₀ were more suitable for the separation of the flooded areas from the non-flooded areas for SENTINEL-1A VV data. Otsu’s method was applied to determine the threshold values in both cases. The estimated threshold values were 0.0497 for Figure 8a and 0.0496 for Figure 8b.

3.3. Comparison with SAR Analysis

First, we distinguish water features from non-water areas, using the Otsu’s method in each RGB and SAR image. The calculation of the flooded areas in both images is conducted using the derived threshold values. The values of the results and thresholds are clarified in Section 3.1.

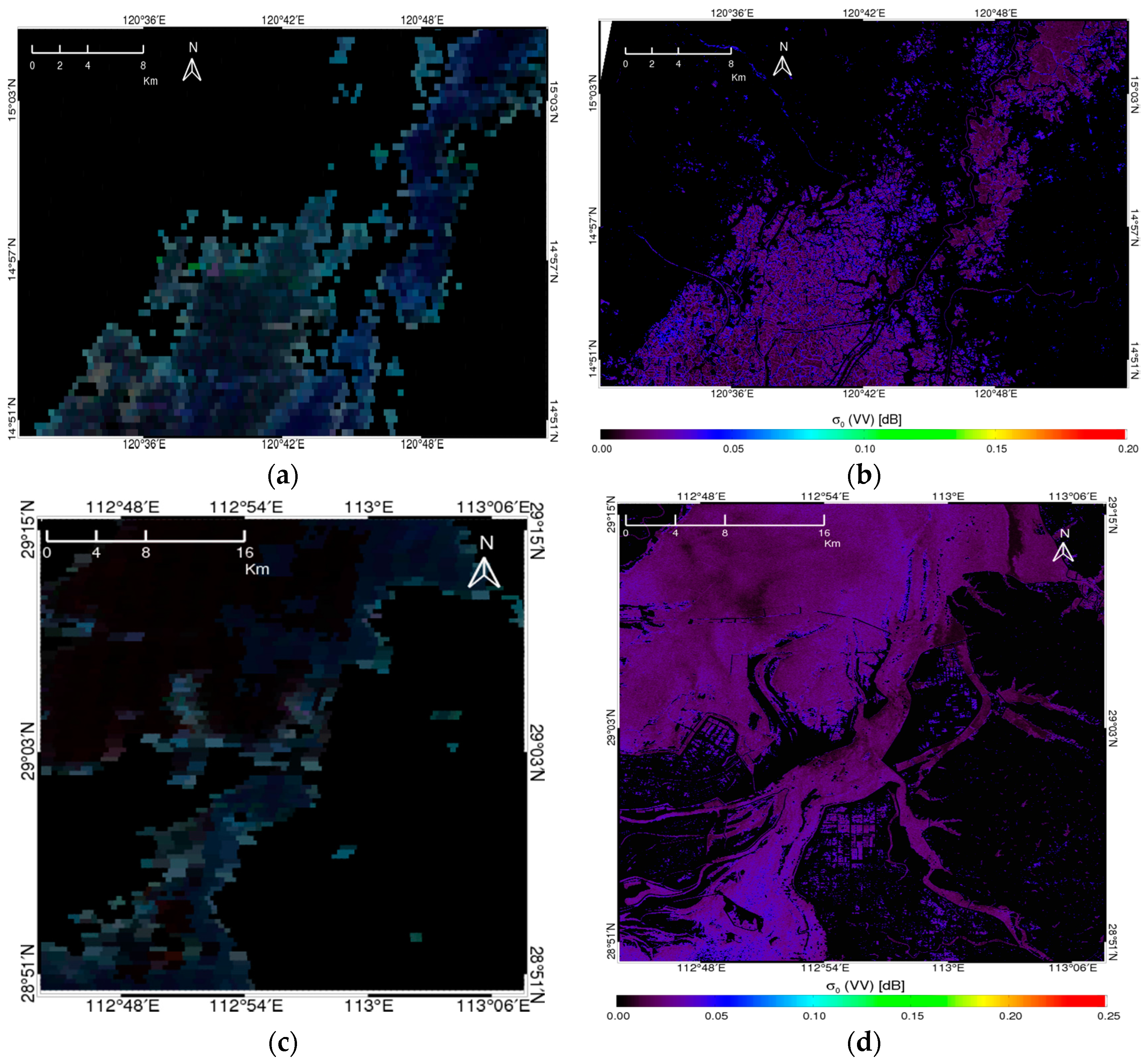

Figure 9 shows images of estimation and indirect verification of flood areas in small parts of Figure 7b,d. In Figure 9a, the total number of MODIS pixels in the flooded area was about 1951. The total flood area was estimated as being 487.75 km² using 0.5 km MODIS spatial resolution data. In Figure 9b, the total number of pixels in the flooded area is about 4,863,657 and the flood area was estimated as being 486.37 km² with 0.01 km SENTINEL-1A SAR spatial resolution of data, using the same histogram analysis applied to the RGB composite imagery. The results from RGB analysis and SAR analysis are in good agreement, with a 1.42 km² difference in the estimated flood area, which is reasonable uncertainty. It should be noted that there was a one day time gap between the RGB analysis and SAR analysis. Similar estimations have been done in the case of the Poyang and Dongting Lakes, as described in Figure 9c,d. The results from RGB analysis and SAR analysis are in good agreement, with a 38 km² difference in the estimated flood area, which is again within reasonable uncertainty. Note that there was a six day time gap between RGB analysis and SAR analysis.

3.4. Refractive Index Retrieval Results

In this study, the error analysis of Equations (6) and (8) is performed for the flooding event. To support the result of an RGB combination, the refractive index is retrieved and validated for soil and water in these spectral bands.

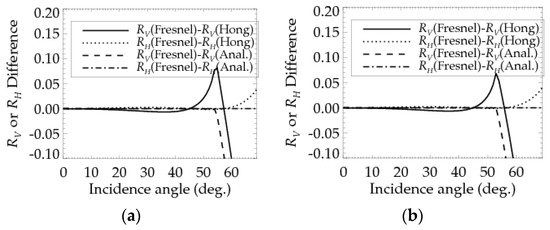

Figure 10 shows the error of polarized reflectivities between the Fresnel equation, the Hong approximation, and the ASH approximation for soil and water in the VIS bands. In this case, the refractive index of the soil at 0.56 μm and water at 0.4 μm is found to be $\widehat{n}=1.405+0.01i$ [83] and $\widehat{n}=1.339+1.86\times {10}^{-9}i$ [81], respectively. Soil has a relatively larger value for the imaginary part of the refractive index than water in this wavelength. However, the analytical approximation exhibits a good agreement with the Fresnel equation from nadir to about 60° for soil and water. The Hong approximation shows agreement at around nadir and 45° viewing angles.

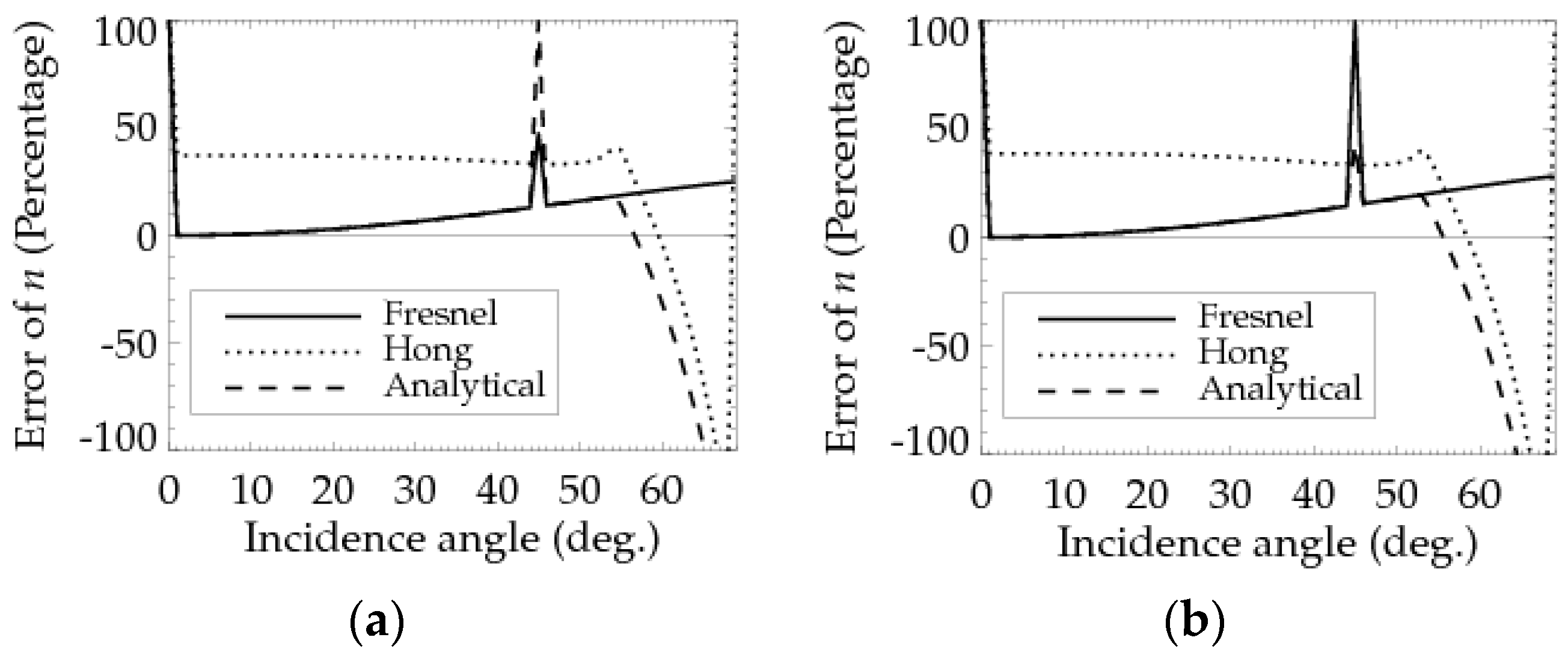

Figure 11 shows the error of the retrieved refractive indexes from the Fresnel equation, Hong approximation (Equation (6)), and ASH approximation (Equation (8)) for soil and water. In the case of the Fresnel equation, the error originates from the inversion method (Equation (10)), which greatly depends on the incidence angle, in good agreement with previous work [85]. In order to retrieve $n$ (refractive index value for soil and water in VIS band), the analytical approximation is used and shows accurate results for simulating the Fresnel equation from nadir to about 55°, with an error of approximately 20%. The Hong approximation only appears to be accurate at around nadir and 45° viewing angles. The retrieval uncertainty in this case is primarily due to the inversion method (Equation (10)).

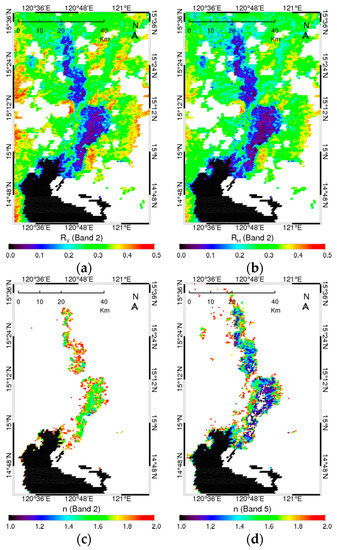

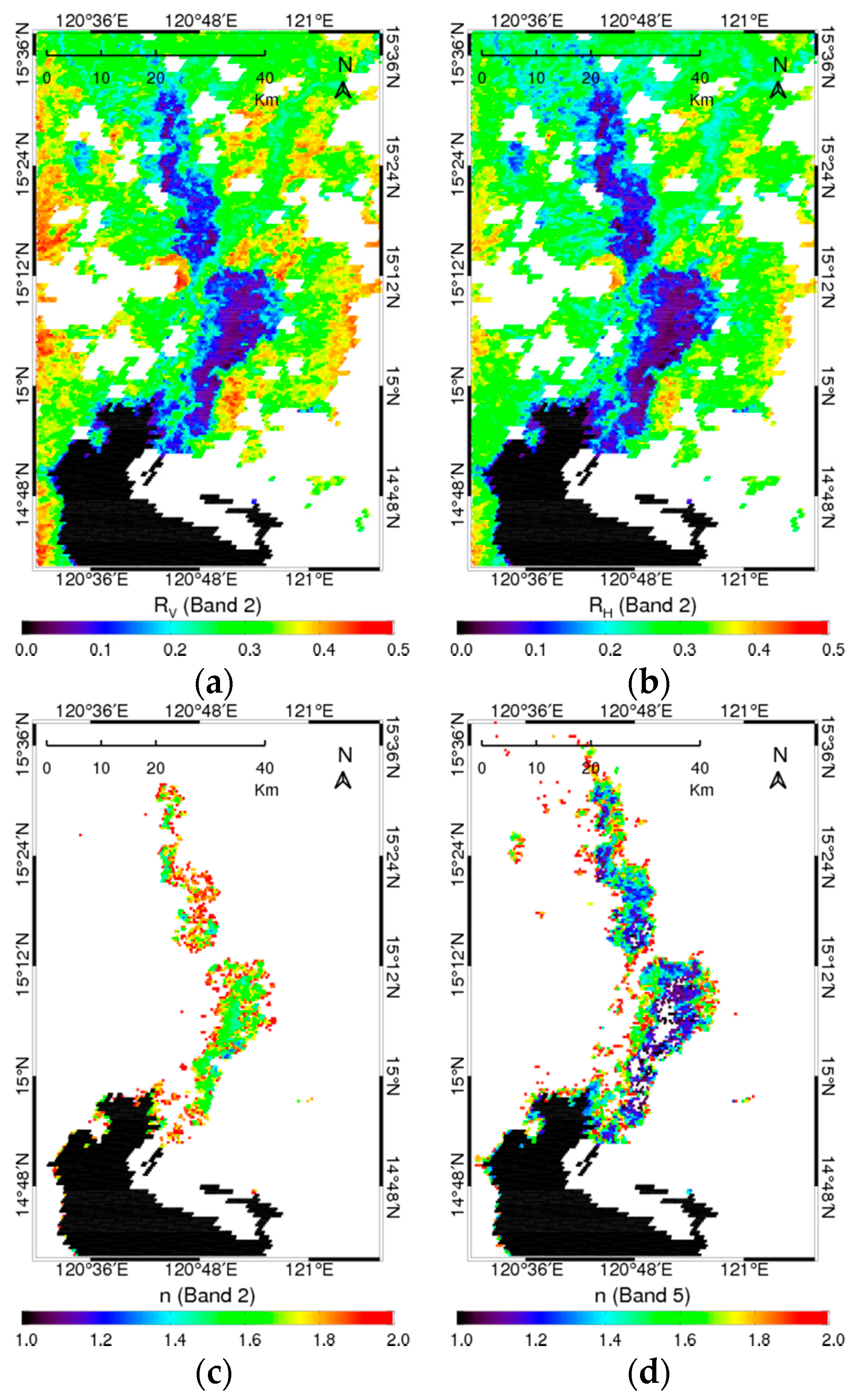

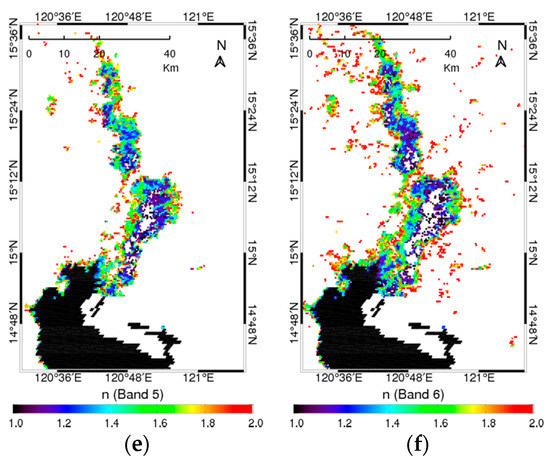

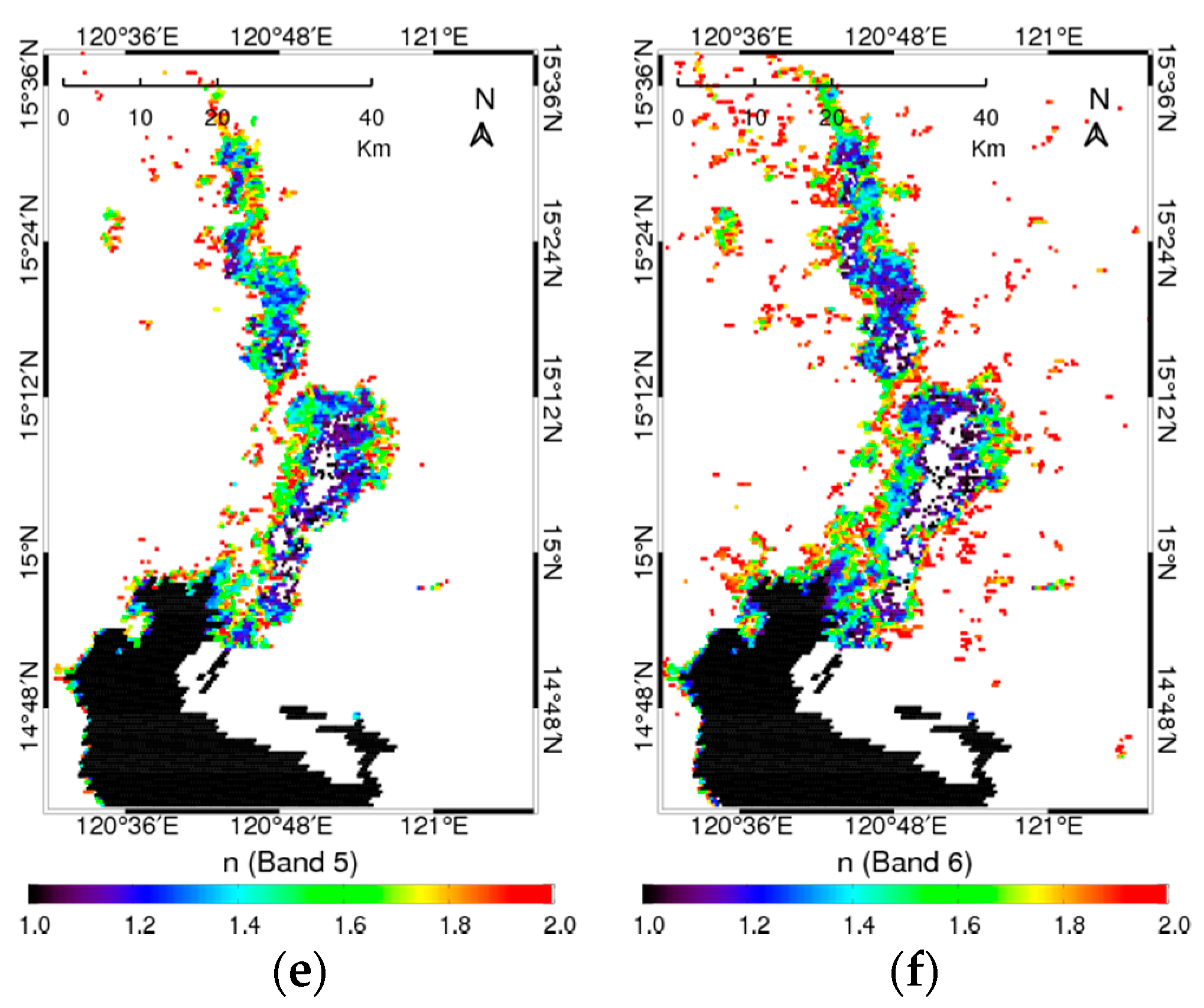

The real values of the refractive index for dry silica, calcite, soil, pure water, and seawater are 1.48 [86,87], 1.60 [86,88], 1.4 [83], and 1.33 [81], respectively. In this case, the incidence angles of MODIS data range from nadir to 30°. Figure 12 shows the result of part of the surface refractive index using the new combination of RGB 6-5-2bands. Figure 12a,b show the decomposed components of surface reflectivity for V- and H-polarizations, respectively. As mentioned previously, these bands were selected from a histogram analysis for RGB imagery flood detection, because they show high sensitivity to water absorption. Thus, the error of retrieved n due to the inversion methods is approximately 40% for the Hong approximation, and within 10% for the ASH approximation. As for the ASH approximation, the n value in the inundation area is retrieved from 1.6 to 2.0, as shown in Figure 12c. This value is relatively higher than that of the soil-water mixture. However, for the Hong approximation, the estimated n value in the inundation area ranges from 1.3 to 1.6, as shown in Figure 12d. In contrast, the values for vegetation and bare soil are greater than 1.6. This result is congruent because water is known to have a relatively lower value than that of soil. Accordingly, the refractive indexes of the flood area are generally less than 1.6 in the NIR wavelength, because of the high portion of water in the soil-water mixture. The larger error in the analytical approximation may be caused by several assumptions that were made, including the assumption of a specular surface, which ignores the effects of surface roughness, and the uncertainty of the refractive index inversion method. Figure 12e,f show the n values for bands 5 and 6, respectively. These results were useful for understanding the flood events using the new RGB composite imagery, as the color saturation of the RGB image was based on the surface reflectivities, which in turn depend on the refractive index values of the surfaces.

4. Conclusions

According to the recent increase in the frequency and magnitude of natural hazards such as flooding events, satellite remote sensing has become more valuable for disaster monitoring and relief efforts from the beginning to post-crisis of an event through space. For flood detection, much of the pioneering work on satellite remote sensing, including VIS and NIR sensors such as AVHRR and MODIS, has been done during the past three decades. Estimations of flooded areas serve as important input information for the models used for determining the extent of natural disasters and for making decisions regarding the recovery plans for the damaged areas. In particular, MODIS onboard the Aqua and Terra satellites is very useful for mapping the inundation area. In this study, the suitability of RGB composite image techniques for flood mapping based on the MODIS data is assessed for the flood area with a flood event at Pampanga River in the Philippines, in 2015. Methodologically, the RGB composite imagery of the MODIS 6-5-2 bands among many combinations of bands is suggested, because of their spectral sensitivity to distinguish water and soil/vegetation. The total flood area was estimated as being 499.5 km² and is compared to the SAR analysis results of 483.3 km², within a reasonable level of uncertainty. In addition, the RGB estimation is supported by the retrieval of the refractive index in the inundation area. The n value of the refractive index in the inundation area is estimated from 1.3 to 1.6 using the Hong approximation, and from 1.6 to 2.0 using the ASH approximation. The error in the estimated value may be caused by several assumptions that were made, including the assumption of a specular surface, which ignores the effects of surface roughness and the uncertainty of the refractive index inversion method.

Consequently, this study provides a useful RGB imagery technique for mapping flood events using a physical validation based on the refractive index. The technique can be applied to a variety of spectral ranges from ultraviolet to microwave wavelengths.
