Criteria Comparison for Classifying Peatland Vegetation Types Using In Situ Hyperspectral Measurements

Abstract

This study aims to evaluate three classes of methods to discriminate between 13 peatland vegetation types using reflectance data. These vegetation types were empirically defined according to their composition, strata and biodiversity richness. On one hand, it is assumed that the same vegetation type spectral signatures have similarities. Consequently, they can be compared to a reference spectral database. To catch those similarities, several similarities criteria (related to distances (Euclidean distance, Manhattan distance, Canberra distance) or spectral shapes (Spectral Angle Mapper) or probabilistic behaviour (Spectral Information Divergence)) and several mathematical transformations of spectral signatures enhancing absorption features (such as the first derivative or the second derivative, the normalized spectral signature, the continuum removal, the continuum removal derivative reflectance, the log transformation) were investigated. Furthermore, those similarity measures were applied on spectral ranges which characterize specific biophysical properties. On the other hand, we suppose that specific biophysical properties/components may help to discriminate between vegetation types applying supervised classification such as Random Forest (RF), Support Vector Machines (SVM), Regularized Logistic Regression (RLR), Partial Least Squares-Discriminant Analysis (PLS-DA). Biophysical components can be used in a local way considering vegetation spectral indices or in a global way considering spectral ranges and transformed spectral signatures, as explained above. RLR classifier applied on spectral vegetation indices (training size = 25%) was able to achieve 77.21% overall accuracy in discriminating peatland vegetation types. It was also able to discriminate between 83.95% vegetation types considering specific spectral range [350–1350 $\mathrm{n}\mathrm{m}$], first derivative of spectral signatures and training size = 25%. Conversely, similarity criterion was able to achieve 81.70% overall accuracy using the Canberra distance computed on the full spectral range [350–2500 $\mathrm{n}\mathrm{m}$]. The results of this study suggest that RLR classifier and similarity criteria are promising to map the different vegetation types with high ecological values despite vegetation heterogeneity and mixture.

1. Introduction

Peatlands represent a diverse array of wetlands that accumulate partially decomposed organic material. Whilst they may only cover a small proportion (~3%) of the Earth’s land surface, these ecosystems are highly important in terms of functional and ecological values. Indeed, undisturbed, global peatland systems act as net atmospheric carbon sinks, storing approximately a third of the world’s soil organic carbon [1], the vast majority of which (450–547 $\mathrm{G}\mathrm{t}$C (Gigatons of Carbon)) is held in northern peatlands (those above $45°\mathrm{N}$ [2]). From an ecological perspective, these environments also provide important habitats for a number of rare plant and animal species [3].

Traditionally, species discrimination for floristic mapping needs intensive field work, including taxonomical information and the visual estimation of percentage cover for each species which are costly and time-consuming and sometimes inapplicable due to their poor accessibility [4]. Remote sensing is a technique that gathers data regularly about the earth’s features. The main advantages that make remote sensing preferable to field-based methods in land cover classification, are that it has repeat coverage potential, allowing continuous monitoring, and its digital data can be easily integrated into a geographic information system (GIS) for more analysis which is less costly and less time-consuming [5,6].

Historically, aerial photography was the first remote sensing method to be employed for mapping wetland vegetation [7]. Currently, a variety of remotely sensed images are available for mapping wetland vegetation thanks to of airborne and space-borne vectors with multi-spectral sensors or hyperspectral sensors which operate within the different optical spectra [8].

Mapping and monitoring wetlands’ (and even though peatland) floristic diversity is really challenging. Indeed, both temporal and spatial resolutions of remotely sensed imageries and in situ plant diversity and mixing contribute to the limitation of such techniques. Wetland plants are not as easily detectable as terrestrial plants since herbaceous wetland vegetations exhibit high spectral and spatial variabilities because of its steep environmental gradients [5,8]. Besides, the reflectance spectra of wetland vegetation canopies are often very similar and can be combined with reflectance spectra of the underlying soil, hydrologic regime and atmospheric vapour [9,10].

However, plant species have been successfully classified in estuarine [11], palustrine [12] and riparian habitats [13], as well in saltmarsh [5], in mangrove [14,15], in swamp [16] but not in peatlands, to our knowledge. Peatland mapping faces two great challenges at local and global scales due to their high environmental function (biodiversity hotspot, greenhouse gas fluxes, etc.): characterizing their internal diversity [8] and delineating their extent [17]. This study focuses on the first challenge for which only high-spectral or spatial-resolution imageries appear appropriate (see for instance [18,19,20]).

Plant species classification can benefit from several existing and recent techniques commonly used in remote sensing. Two main methods are applied for vegetation discrimination: the similarity measurement techniques and the supervised classification methods with sometimes application of a preliminary spectral band reduction technique. On one hand, similarity measures enable us to discriminate between similar classes from a set of spectra, extracted from images or acquired on the field. Some spectral measures, such as the Spectral Angle Mapper (SAM) are related to the difference of the spectral shape (e.g., Yagoub, H. et al. [21] identified forests of the Liege oaks from other forests, grain crops and steppes using the multispectral Advanced Very High Resolution Radiometer (AVHRR) with five bands from 580 $\mathrm{n}$$\mathrm{m}$ to 1250 $\mathrm{n}$$\mathrm{m}$, 1 $\mathrm{k}\mathrm{m}$ spatial resolution (Overall Accuracy (OA) = 94.10%, $\kappa =0.93$); Bahri, E.M. et al. [22] discriminated between tree species using the multispectral Advanced Spaceborne Thermal Emission and Reflection Radiometer (ASTER) sensor with 9 spectral bands from 520 $\mathrm{n}$$\mathrm{m}$ to 2430 $\mathrm{n}$$\mathrm{m}$ and a spatial resolution of 15 $\mathrm{m}$ or 30 $\mathrm{m}$ ($\kappa =0.66$)). Other spectral measures, such as the Spectral Information Divergence (SID) are related to probabilistic behaviour (e.g., Sobhan, I. [23] classified different tree species at leaf and vegetation cover scales using the hyperspectral HyMap sensor: 126 spectral bands from 436 $\mathrm{n}$$\mathrm{m}$ to 2485 $\mathrm{n}$$\mathrm{m}$ and a spatial resolution of 4 $\mathrm{m}$ (OA = 91.10%, $\kappa =0.87$)). On the other hand, the supervised classification methods may contribute as well to discriminate between (group of) spectral signatures for plant species discrimination. The Linear Discriminant Analysis (LDA) is a method assuming that independent variables are normally distributed and which attempts to look for linear combination of variables to model the difference between the classes of the data (e.g., Clark, M.L. et al. [24] succeeded in classifying different tree species at leaf and vegetation cover scales using the HYperspectral Digital Imagery Collection Experiment (HYDICE) sensor with 210 spectral bands from 400 $\mathrm{n}$$\mathrm{m}$ to 2500 $\mathrm{n}$$\mathrm{m}$, 1.6 $\mathrm{m}$ spatial resolution (OA = 86% using an object-based approach)). The Random Forest is an ensemble learning method based on the construction of multiple decision trees (e.g., Lawrence, R.L. et al. [25] succeeded in mapping invasive plants using the hyperspectral Probe-1 sensor: 128 bands from 450 $\mathrm{n}$$\mathrm{m}$ to 2507 $\mathrm{n}$$\mathrm{m}$, 5 $\mathrm{m}$ spatial resolution (OA = 86% for the leafy spurge classification)). The Support Vector Machines (SVM) is a classifier that looks for the best separating hyperplane (e.g., Dalponte, M. [26] succeeded in classifying different tree species in boreal forest using HySpex VNIR-1600-instrument: 160 spectral bands ranging from 410 $\mathrm{n}$$\mathrm{m}$ to 990 $\mathrm{n}$$\mathrm{m}$ , with a spatial resolution of 0.4 $\mathrm{m}$ (OA = 79.2%); Vyas, D. et al. [27] classified successfully tropical vegetation using the Hyperion (EO-1) sensor (OA = 80%)). The Regularized Logistic Regression (RLR) is the combination of a linear model (logistic regression) and a regularization term. It is usually used for feature selection (e.g., Pant, P. et al. [28] applied it to reduce the 64 spectral bands from the hyperspectral AisaEAGLE II sensor to classify tree species in boreal forest using SVM; Pal, M. [29] applied it for reducing the 79 bands from the hyperspectral Digital Airborne Imaging Spectrometer (DAIS) sensor and the 220 bands from the hyperspectral Airborne Visible/Infrared Imaging Spectrometer (AVIRIS) sensor to classify different land covers using SVM) is investigated in this paper as a classifier.

Discriminating between and classifying plant species can be done. Firstly, using different techniques hyperspectral measurements can be made thanks to a portable spectroradiometer (FieldSpec Pro FR, Analytical Spectral Devices—ASD) which ranges on the reflective domain ([350–2500 $\mathrm{n}\mathrm{m}$] with a spectral resolution of 3 $\mathrm{n}\mathrm{m}$ in Visible and Near InfraRed (VNIR) and approximatively 10 $\mathrm{n}\mathrm{m}$ in the ShortWave InfraRed (SWIR)) either on laboratory [14] or immediately after the leaf was cut using the leaf clip accessory [16]. This can be an indicator of the ability of discriminating plant species using specific wavelengths or evaluating the performance of a classifier. Then, the wetlands heterogeneity mixing vegetation types can be catched still using a portable spectroradiometer: orbick, N. et al. [12] used the ASD spectroradiometer, Ground Field of View (GFOV) = 0.43 $\mathrm{m}$; Schmidt, K. et al. [5] used the GER 3700 (Geophysical and Environmental Research Corporation) which ranges from 350 $\mathrm{n}$$\mathrm{m}$ to 2509 $\mathrm{n}$$\mathrm{m}$) with a spectral resolution of 2 $\mathrm{n}\mathrm{m}$ below 1000 $\mathrm{n}\mathrm{m}$ and from 6 to 10 $\mathrm{n}\mathrm{m}$ beyond 1000 $\mathrm{n}\mathrm{m}$, GFOV = 0.13 $\mathrm{m}$. Secondly, with airborne imageries, hyperspectral sensors (SOC-700: 120 spectral bands between 394 and 890 $\mathrm{n}\mathrm{m}$ with a 4 $\mathrm{n}\mathrm{m}$ bandwidth and a spatial resolution of 0.5 $\mathrm{m}$ and a spatial resolution of 3 $\mathrm{m}$ [13]; HyMap: 128 bands in the visible and near infrared (VNIR: 0.45–1.50 $\mathrm{m}\mathrm{m}$ with a 10 $\mathrm{n}\mathrm{m}$ bandwidth) through the shortwave infrared (SWIR: 1.50–2.50 $\mathrm{m}\mathrm{m}$ with a 15–20 $\mathrm{n}\mathrm{m}$ bandwidth [11]). Thirdly, with spaceborne imageries using hyperspectral sensors (Hyperion: 242 spectral bands from 357 to 2756 $\mathrm{n}\mathrm{m}$ with a spectral interval of 10 $\mathrm{n}\mathrm{m}$ and a spatial resolution of 30 $\mathrm{m}$ [15]) or multispectral sensors (SPOT-5: 4 bands with 10 $\mathrm{m}$ resolution [15]) can be used to map wetlands.

This study aims at inventorying and evaluating the performance of discrimination techniques for peatland habitats based on in situ spectra. These habitats are characterized by more or less homogeneous vegetation mixing and have been chosen because of their ecological values (i.e., biodiversity). As defined by [30], mapping these habitats is therefore important to identify potential and/or effective areas with (at least) a floristic biodiversity function. For instance, we do not aim at detecting Drosera rotundifolia but at mapping the habitat favorable to this species (Sphagnum ...). Similarity measures and classifiers were applied on spectral signatures and some of their transformations (first and second derivatives, continuum removal, first derivative of continuum removal, normalized spectral signatures, log transformation). These transformations have been chosen because they enhance biophysical components which may help to distinguish plant species. These techniques were applied on different spectral ranges that either characterize specific biophysical components [31]. Classifiers were applied on spectral vegetation indices, characterizing specific biophysical components such as chlorophyll, pigments, nitrogen, cellulose, water.

This paper is organized as follows. After presenting the study site located in the Pyrenees (France) and associated data collection in Section 2 the methodology is detailed in Section 3. Then Section 4 presents and discussed the results of the different classifications that are suitable for distinguishing vegetation types. Finally, in Section 5, the conclusion summarizes the main results and some perspectives that have arisen in applying these techniques to hyperspectral imageries.

2. Material

2.1. Study Site

The study site is the Bernadouze peatbog (Latitude: 42°47′N, Longitude: 1°24′E; approximatively 2 $\mathrm{h}\mathrm{a}$), which is part of Human-Nature Observatory “Haut-Vicdessos” located in Ariège (Pyrénées, France) (Figure 1) and supported by the French CNRS and the LabEx DRIIHM. It is a long term monitored study site where hydrological, climatological, botanical, archeological, remotely sensed surveys are regularly conducted.

2.2. Field Data Collection

In this study, thirteen vegetation units with ecological values and potentials (i.e., biodiversity) have been identified in the Bernadouze peatbog. These units are named hereafter “vegetation types” according to the dominant land cover type or to the potential development of interesting plant species which may have ecological values (

Table 1. Species names, number of measurements, number of locations and total number of spectra collected.

Vegetation Types	Code	Measurements			No. of Locations	No. of Spectra
		09/04/2014	09/05/2014	09/12/2014
Calluna vulgaris	CAVU		2	2	2	14
Sphagnum sp.	SPHA		2	4	5	22
Eleocharis quinqueflora	ELQU	1	2	1	2	15
Pinguicula sp.	PING	1	1		1	8
Menyanthes trifoliata	METR	1	1	1	1	12
Juniperus communis	JUCO	1	2	2	2	19
Rhododendron ferrugineum	RHFR		2	2	2	14
Salix sp.	SALI	1		3	3	17
Aquatic environment a	AQ_A	3	6	7	6	53
Aquatic environment b	AQ_B		1	1	1	7
Aquatic environment c	AQ_C	1	1	1	1	12
Carex sp. homogeneous vegetation	CA_HV	2	2	3	4	26
Pinguicula sp. combined vegetation	PI_CV	1	2	1	2	15

). For each type, several locations have been surveyed to characterize their plant species composition (

Table A1. Presence (+) and actual cover percentage of plant species collected on Bernadouze peatbog (Ariège, France) by Florence Mazier & Nicolas de Munik (2014/09/04 & 2014/09/11).

Plant Species/Plots	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Code	SPHA	SPHA	SPHA	SPHA	SPHA	CAVU	CAVU	ELQU	ELQU	PING	METR	JUCO	JUCO	RHFR	RHFR	SALI
Alchemilla glabra
Anthoxanthum odoratum	2	2	2	1	+
Apiaceae
Bare ground							1	5	4	15
Briza media								2		+
Calluna vulgaris		2		5	15	70	25			+
Caltha palustris																5
Campyllium stellatum								35
Cardamine pratensis				+							+
Carex demissa
Carex echinata	5	2	2	+	2				+	+	5
Carex flava								+		+
Carex nigra	5	2	2		2				10	5
Carex panicea				+				+		+	5			1
Carex paniculata
Carex rostrata																5
Carex sp.						2	25
Circaea lutetiana													4
Cirsium palustre													2
Dactylorhiza masculata	2				+		+
Drepanocladus revolvens											30
Drosera rotundifolia				+	+	1					+
Dryopteraceae													+
Eleocharis quinqueflora								60	40	40
Epikeros pyrenaeus				+		+								+
Equisetum sp.	1	+	+				+									5
Eriophorum angustifolium				5		10
Festuca rubra				3
Galium palustre
Galium saxatile											1		2
Gentiana ciliata										+
Hylocomium brevirostre
Hypnum cupressiforme													2
Juncus alpinus										+
Juncus bulbosus
Juncus sp.
Juniperus communis						5						95	80
Lathyrus montanus						5						+
Leotodon hispidus
Lotus sp.				+	2
Luzula sp.
Lychnis floscuculi											4
Mentha arvensis
Menyanthes trifoliata											10
Moliniacaerulea ssp. caerulae	15	25	30	15	20	10	20	15	5	10	30		5
Narthecium ossifragum							2
Parnassia palustris					1	4	+	1		2	3
Pedicularis sylvatica				1	+
Pilosella lactucella					+					1
Pinguicula sp.									1
Pinguicula vulgaris								+		5
Plagiomnium elatum
Plantago lanceolata
Polytrichum sp.		2
Potentilla erecta	5	5	5	5	10	5	6			5		2	+
Potentilla sp.
Prunella vulgaris					+					2
Ranunculus acris													+
Rhododendron ferrugineum
Salix atrocinerea
Scorpidium sp.
Selaginella selaginoides									+	1
Sphagnum capillifolium	10	5	5	70		25
Sphagnum palustre	90	75	65	10	80	20	20				8
Sphagum papillosum		15	25
Sphagunm cuspidatum
Succisa pratensis							+
Tofieldia calyculata										+
Tomenthypnum nitens							3		30	10
Trichophorum cespitosum	+
Trifolium arvense
Trifolium pratense					1						1
Utricularia sp.
Vaccinium myrtillus										+		3
Vicia sepium
Viola palustris	2
Viola sp.					+								5
Water
Plant Species/Plots	17	18	19	20	21	22	23	24	25	26	27	28	29	30	31
Code	SALI	SALI	AQ_A	AQ_A	AQ_A	AQ_A	AQ_A	AQ_A	AQ_B	AQ_C	CA_HV	CA_HV	CA_HV	CA_HV	PI_CV
Alchemilla glabra											2	+	3
Anthoxanthum odoratum
Apiaceae													+
Bare ground										40
Briza media											5	5
Calluna vulgaris
Caltha palustris	10			2						1
Campyllium stellatum
Cardamine pratensis
Carex demissa
Carex echinata			1									2	2
Carex flava
Carex nigra
Carex panicea
Carex paniculata				50										100
Carex rostrata			35	70			40	10
Carex sp.										2			60		50
Circaea lutetiana
Cirsium palustre														5
Dactylorhiza masculata											+
Drepanocladus revolvens							+
Drosera rotundifolia
Dryopteraceae
Eleocharis quinqueflora						70
Epikeros pyrenaeus
Equisetum sp.		5		1	30		+	+		+	+				+
Eriophorum angustifolium
Festuca rubra											1	+			10
Galium palustre				+	2
Galium saxatile				+						+	1
Gentiana ciliata
Hylocomium brevirostre	+
Hypnum cupressiforme
Juncus alpinus
Juncus bulbosus											1
Juncus sp.			+
Juniperus communis
Lathyrus montanus													+
Leotodon hispidus
Lotus sp.
Luzula sp.													+
Lychnis floscuculi	+									1
Mentha arvensis				+										2
Menyanthes trifoliata	5	10		10				4
Moliniacaerulea ssp. caerulae			5			5				4	60	70	40		50
Narthecium ossifragum															+
Parnassia palustris	+									2	2	2		+	1
Pedicularis sylvatica															+
Pilosella lactucella											1
Pinguicula sp.
Pinguicula vulgaris
Plagiomnium elatum
Plantago lanceolata											+	2	+		+
Polytrichum sp.
Potentilla erecta										3	2		1		2
Potentilla sp.	+
Prunella vulgaris											4	5	1		1
Ranunculus acris											1	+	2		+
Rhododendron ferrugineum
Salix atrocinerea	90	100
Scorpidium sp.											4			25
Selaginella selaginoides			1			1
Sphagnum capillifolium
Sphagnum palustre
Sphagum papillosum
Sphagunm cuspidatum			25
Succisa pratensis													4
Tofieldia calyculata
Tomenthypnum nitens													1
Trichophorum cespitosum
Trifolium arvense										1
Trifolium pratense											4	5	2		1
Utricularia sp.						5			80
Vaccinium myrtillus
Vicia sepium
Viola palustris
Viola sp.	+							1	+
Water			50	25	70	30	60	90	20

).

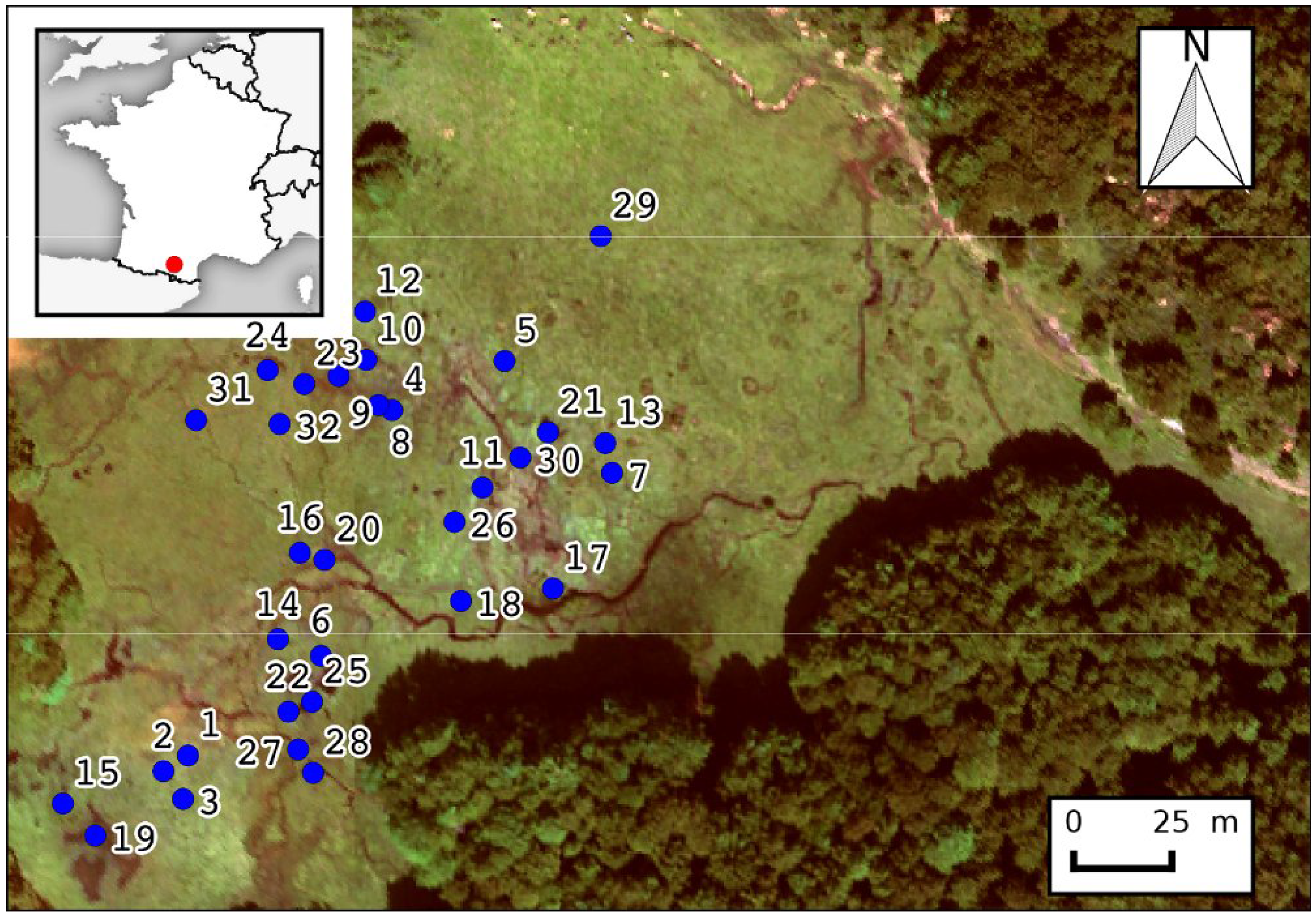

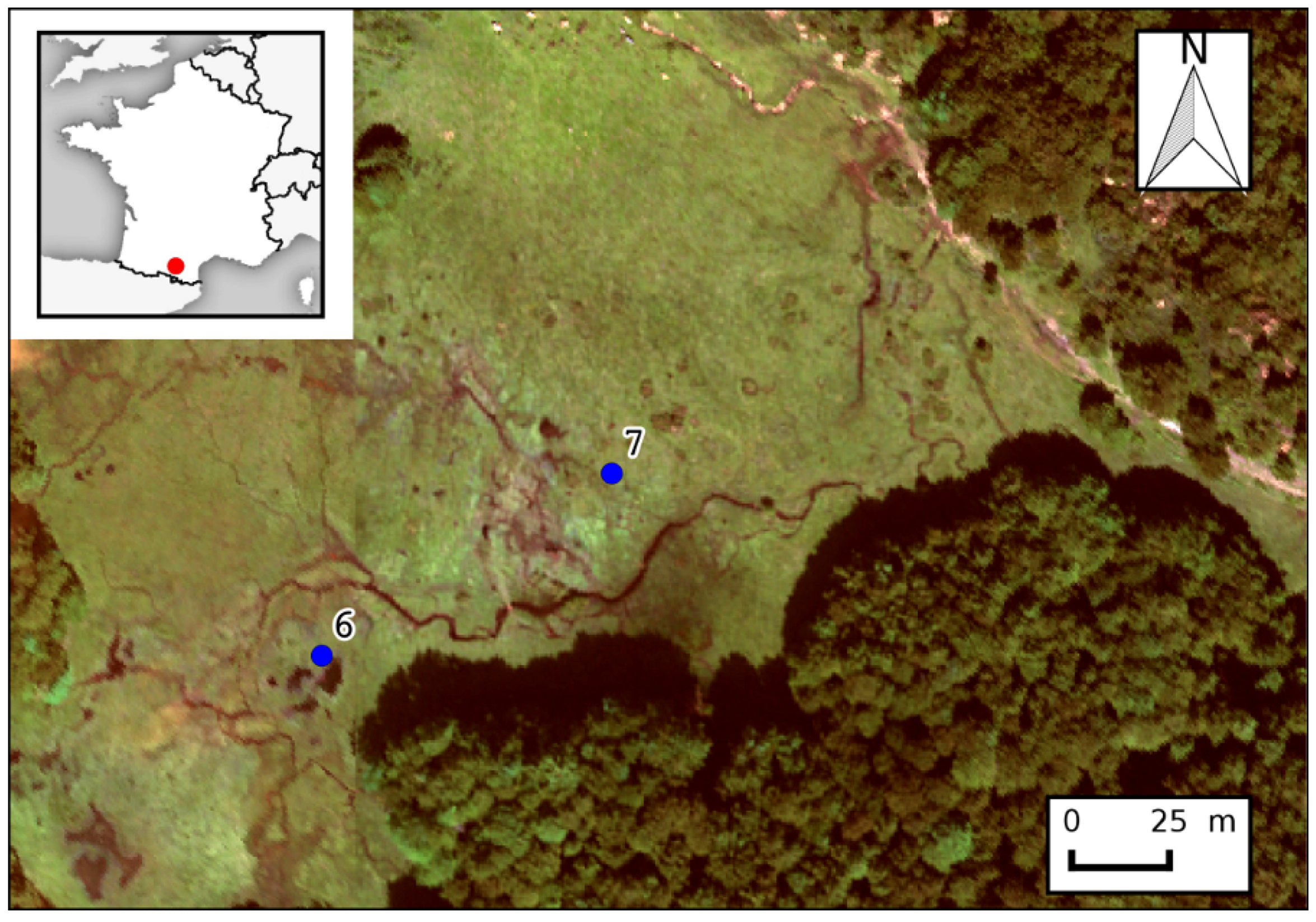

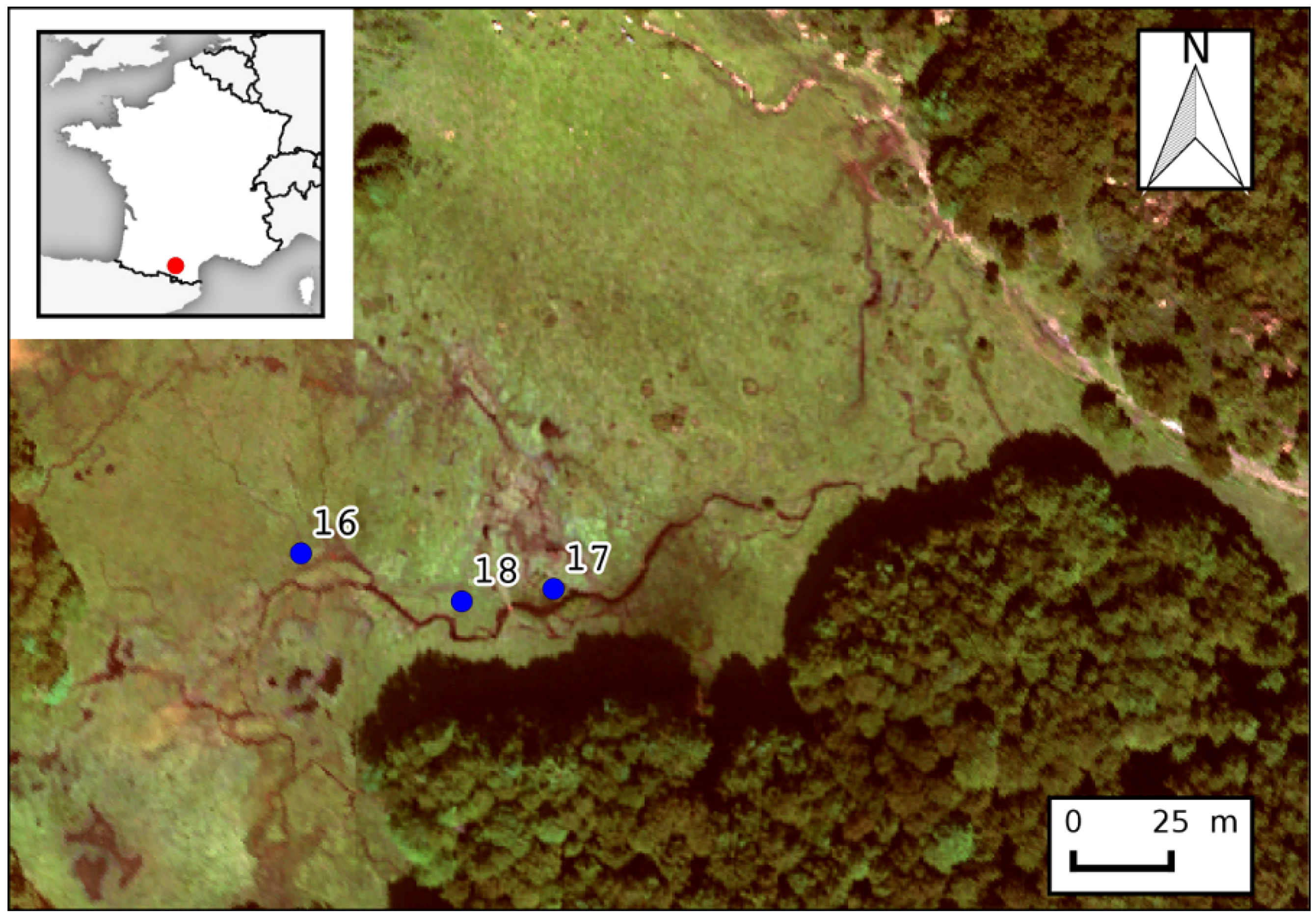

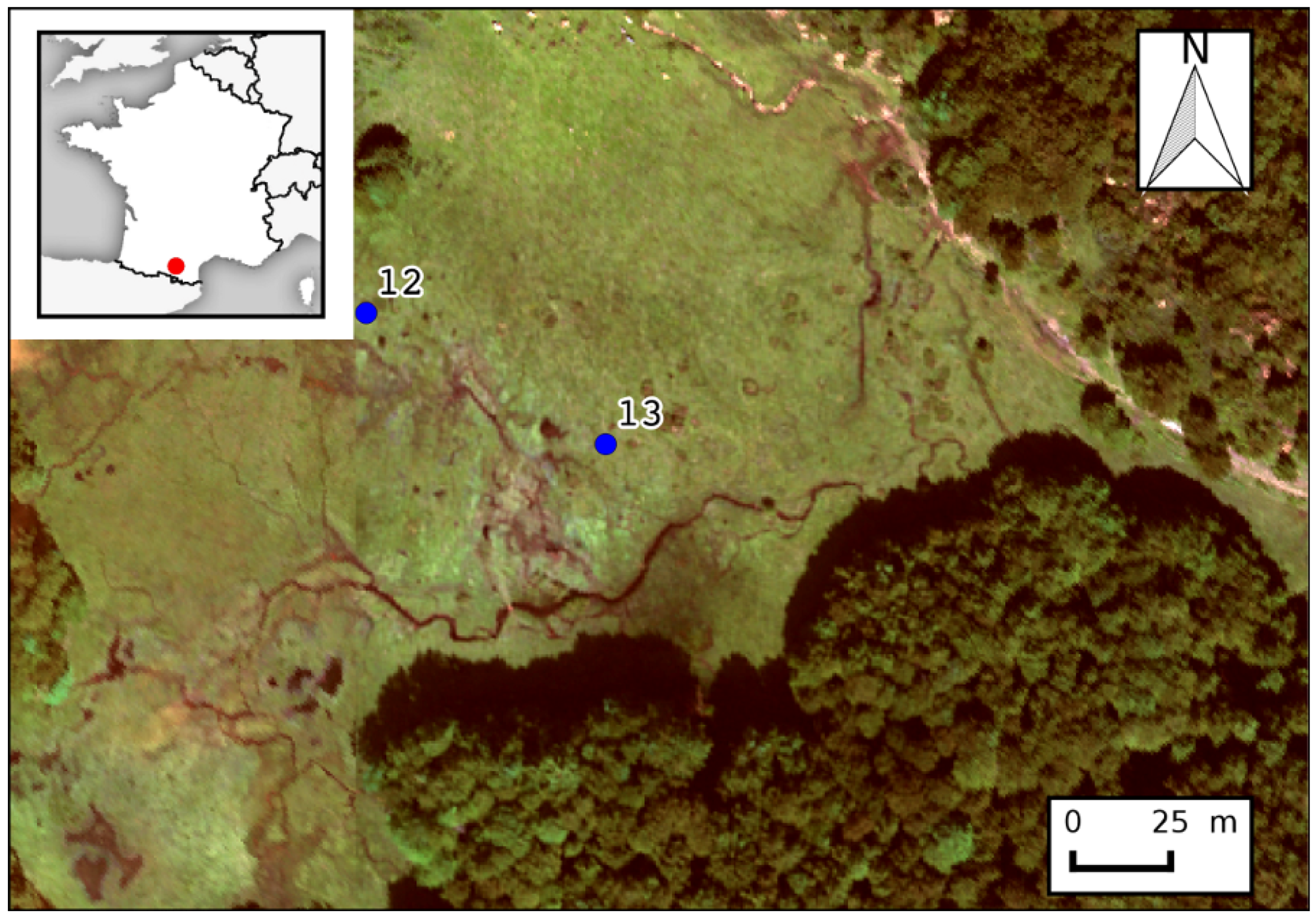

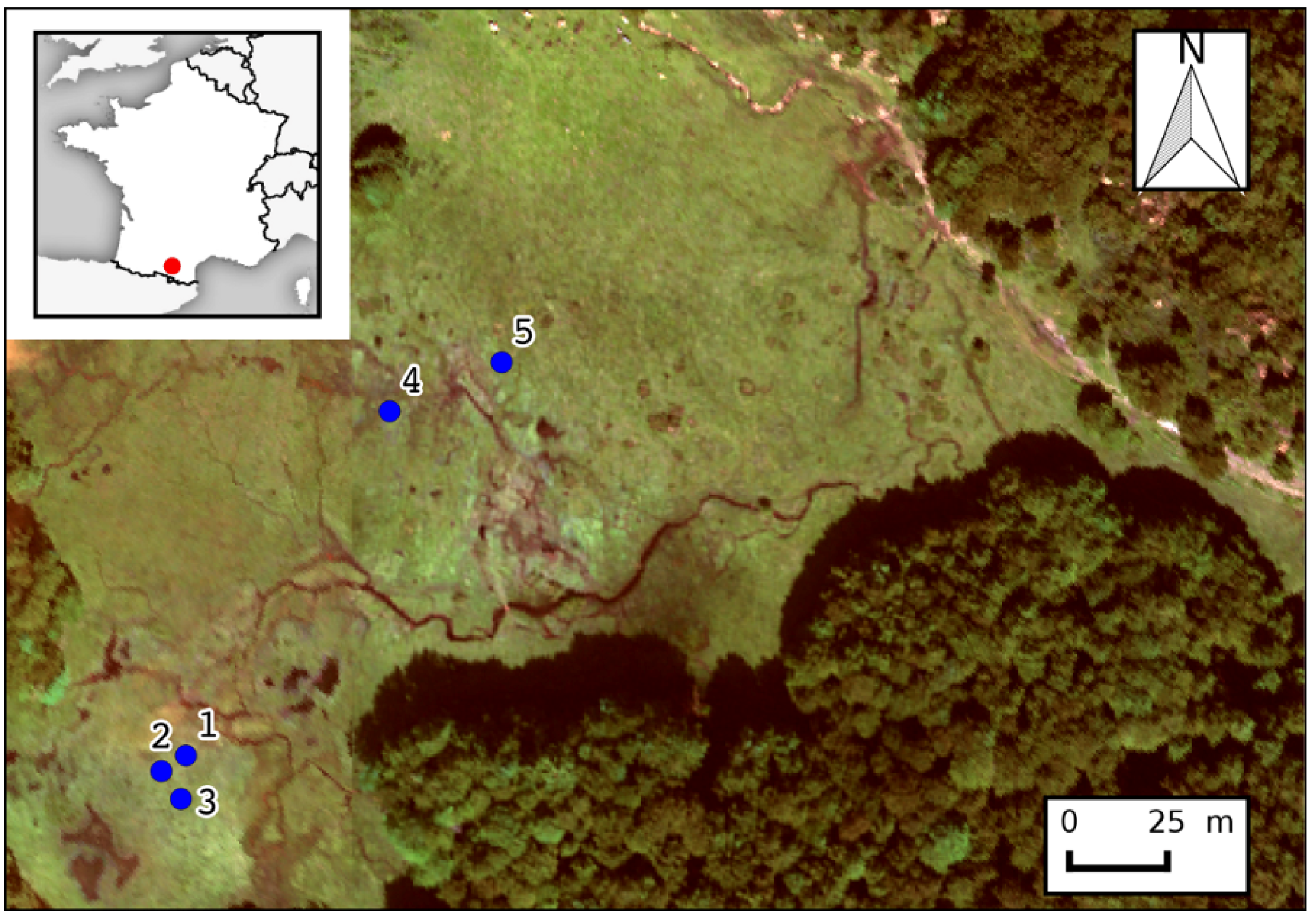

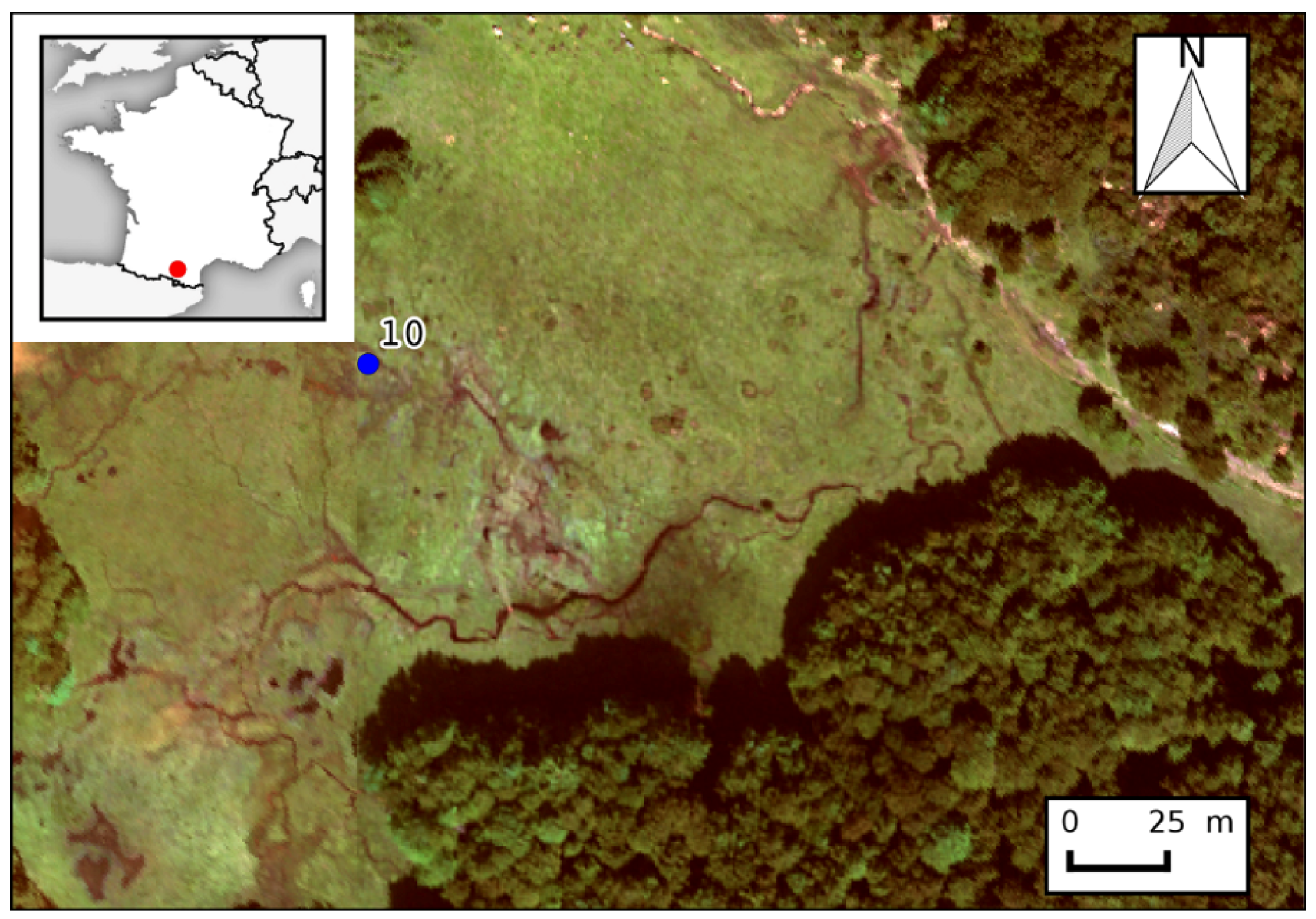

For all these 32 sample locations (Figure 1), radiances are measured at three different dates over 9 days in September 2014 (4 September 2014, 5 September 2014, 12 September 2014) under sunny and cloudless conditions between 10:00 a.m. and 1:00 p.m. and Sun’s azimuth angle ranging from 106° and 160°. Data have been collected using an Analytical Spectral Device (ASD) spectroradiometer which ranges on the reflective domain (350–2500 $\mathrm{n}\mathrm{m}$) with a 3–12 $\mathrm{n}\mathrm{m}$ spectral resolution depending on the spectral domain. Its spectral specifications are summarized in

Table 2. Analytical Spectral Device (ASD) FieldSpec Pro specifications.

	Spectral Range	Spectral Resolution	Spectral Sampling
VNIR (Visible and Near InfraRed)	0.35 $\mathsf{\mu }$m–1.00 $\mathsf{\mu }$m	$3.00 \mathrm{n}\mathrm{m}$ at $0.70 \mathrm{\mu }\mathrm{m}$	$1.40 \mathrm{n}\mathrm{m}$ (0.35 $\mathsf{\mu }$m–1.05 $\mathsf{\mu }$m)
SWIR (Short Wave InfraRed)	1.00 $\mathsf{\mu }$m–2.05 $\mathsf{\mu }$m	$10.00 \mathrm{n}\mathrm{m}$ at $1.40 \mathrm{\mu }\mathrm{m}$	$2.00 \mathrm{n}\mathrm{m}$ (1.05 $\mathsf{\mu }$m–2.50 $\mathsf{\mu }$m)
		$12.00 \mathrm{n}\mathrm{m}$ at $2.10 \mathrm{\mu }\mathrm{m}$

.

To measure the reflectance of a sample plot $\left(\rho \right)$ the reflectance of a white reference $\left({\rho }_{\mathrm{ref}}\right)$ is required. This latter was obtained with a Spectralon (Labsphere, North Sutton, NH, USA) panel. Finally, after dark current correction, $\rho$ is given by:

$$\rho ={\displaystyle \frac{L_{\mathrm{sam}}}{L_{\mathrm{ref}}}}{\rho }_{\mathrm{ref}},$$

(1)

where $L_{\mathrm{sam}}$ is the measured radiance from the sample plot and $L_{\mathrm{ref}}$ is the measured radiance from the white reference.

The sensor was positioned approximatively 1 $\mathrm{m}$ over the target with a 10° field of view. Consequently the ground spatial resolution is 0.18 $\mathrm{m}$. The ASD was configured to collect 20 samples and automatically average in order to provide a single mean spectral measurement. Then a total of 7 to 53 field spectroradiometer measurements, i.e., spectral signatures, depending on vegetation type was taken.

2.3. Data Preprocessing

Some spectral bands (1350 $\mathrm{n}$$\mathrm{m}$ to 1450 $\mathrm{n}$$\mathrm{m}$, 1810 $\mathrm{n}$$\mathrm{m}$ to 1940 $\mathrm{n}$$\mathrm{m}$ and 2400 $\mathrm{n}$$\mathrm{m}$ to 2500 $\mathrm{n}$$\mathrm{m}$) have been removed due to a small signal-to-noise ratio resulting from strong atmospheric absorption mainly due to the presence of water vapour. More precisely, if the atmospheric transmittance value of the U.S. Standard profile was lower than 0.8 for a given wavelength, this wavelength was not taken into account in the analyse. Thus, each measured spectrum has been smoothed using a Savitzky-Golay filter [32] for reducing the noise. Figure 2 graphs the mean spectral reflectance of each vegetation type and the atmospheric transmittance. For the sake of clarity, the standard deviation of each vegetation type is not printed on Figure 2 but can be seen in Appendix B.

3. Method Description

The flowchart to evaluate the potential of hyperspectral data to discriminate between and classify wetland vegetation types is given in Figure 3. More precisely, three classes of methods have been investigated and compared:

• similarity measures calculated on spectral reflectance,
• supervised classification based on “local” information (spectral vegetation indices),
• supervised classification based on “global” information (spectral ranges).

Indeed, spectral matching can be used to discriminate between different vegetation types, because it is assumed that the spectral signatures of a given vegetation type must have similarities. To catch those similarities, several mathematical transformations—enhancing absorption features are applied on spectral signatures—(Section 3.1) and several similarity criteria—related to distances or spectral shapes or probabilistic behaviour—(Section 3.2) are investigated. Furthermore those similarity measures are applied on several spectral ranges which characterize specific biophysical properties (Section 3.5) and compared to a reference spectral database using relative spectral discriminatory probability (Section 3.3).

On the other hand as it may be difficult to have a spectral reference database, different supervised classifiers are used (Section 3.6). Besides, we assume that specific biophysical properties/components may help discriminating vegetation types. Biophysical components can be used in a local way considering spectral vegetation indices (Section 3.4.3) or in a global way considering spectral ranges and transformed spectral signatures as explained above.

To evaluate performance of similarity measures and supervised classification, the overall accuracy and F1-score are used (Section 3.7).

3.1. Transformed Spectral Signatures

As vegetation types are composed by a mix of various plant species that can be found in various vegetation types, different transformations are used (

Table 3. Transformed spectral signatures.

Transformation	Formulation	Reference
Brightness-normalized spectral signature	${\tilde{\rho }}_{i,\lambda }={\displaystyle \frac{{\rho }_{i,\lambda }}{{\left({\displaystyle \sum _{\lambda =1}^L{\rho }_{i,\lambda }^2}\right)}^{\frac{1}{2}}}},\forall \lambda \in [1,\dots ,L].$	[33]
First derivative	${\left.{\displaystyle \frac{\mathrm{d}\rho }{\mathrm{d}\lambda }}\right|}_i\simeq {\displaystyle \frac{{\rho }_{{\lambda }_j}-{\rho }_{{\lambda }_i}}{\Delta \lambda }},$ where $\Delta \lambda$ is the separation between adjacent bands, $\Delta \lambda ={\lambda }_j-{\lambda }_i$ and ${\lambda }_j>{\lambda }_i$	[34]
Second derivative	${\left.{\displaystyle \frac{{\mathrm{d}}^2\rho }{\mathrm{d}{\lambda }^2}}\right|}_j={\left.{\displaystyle \frac{\mathrm{d}}{\mathrm{d}\lambda }}\left({\displaystyle \frac{\mathrm{d}\rho }{\mathrm{d}\lambda }}\right)\right|}_j\simeq {\displaystyle \frac{{\rho }_{{\lambda }_i}-2{\rho }_{{\lambda }_j}+{\rho }_{{\lambda }_k}}{{(\Delta \lambda )}^2}},$ where $\Delta \lambda ={\lambda }_k-{\lambda }_j={\lambda }_j-{\lambda }_i,{\lambda }_k>{\lambda }_j>{\lambda }_i$.	[34]
log transformation or pseudo absorbance	${\tilde{\rho }}_{i,\lambda }=log\left({\displaystyle \frac{1}{{\rho }_{i,\lambda }}}\right),\forall \lambda \in [1,\dots ,L].$	[35]
Continuum Removal	$C{R}_{\lambda }={\displaystyle \frac{{\rho }_{\lambda }}{C_{\lambda }}},$ where C is a convex hull fitting over the top of the spectrum to connect local spectrum maxima.	[36,37]
Continuum removal derivative reflectance	${\left.{\displaystyle \frac{\mathrm{d}C{R}_{\lambda }}{\mathrm{d}\lambda }}\right|}_i$	[38]

L is the number of wavelengths.

). Brightness-normalized spectral signature and second derivative are relatively insensible to variations in illumination intensity causes by changes in sun angle [33,34]. Other transformations (first derivative, second derivative, log transformation, Continuum Removal, Continuum Removed Derivative Reflectance (CRDR)) are linked to absorption features that may differ from one vegetation type to another, depending on the floristic composition.

3.2. Similarity Measures

Let ${\rho }_i$ be a spectral signature, ${\rho }_{i,\lambda }$ its reflectance at wavelength $\lambda$ and $[1,\dots ,L]$ its spectral range. Several criteria have been used (

Table 4. Similarity measures.

Similarity Measures	Formulation	Comments	Reference
Minkowski distance	$\begin{array}{cc}\hfill D_p({\rho }_i,{\rho }_j)& =\Vert {\rho }_i-{\rho }_j{\Vert }_p,\hfill \\ & ={\left[\sum _{\lambda =1}^L{|{\rho }_{i,\lambda }-{\rho }_{j,\lambda }|}^p\right]}^{1/p}.\hfill \end{array}$	Spectral signatures are represented by vectors from ${\mathbb{R}}^L$. $D_2$ is the usual Euclidean distance ; $D_1$ is the Manhattan or City Block distance	$D_2$: [24,39,40]; $D_1$: [41,42]
Canberra distance	${\displaystyle D_{\mathrm{Canberra}}({\rho }_i,{\rho }_j)=\sum _{\lambda =1}^L{\displaystyle \frac{|{\rho }_{i,\lambda }-{\rho }_{j,\lambda }|}{|{\rho }_{i,\lambda }|+|{\rho }_{j,\lambda }|}}.}$	It is a weighted version of the Manhattan distance	[43]
Spectral Angle Mapper (SAM)	$\mathrm{SAM}({\rho }_i,{\rho }_j)={cos}^{-1}\left({\displaystyle \frac{{\displaystyle \sum _{\lambda =1}^L{\rho }_{i,\lambda }{\rho }_{j,\lambda }}}{{\displaystyle {\left(\sum _{\lambda =1}^L{\rho }_{i,\lambda }^2\right)}^{1/2}{\left(\sum _{\lambda =1}^L{\rho }_{j,\lambda }^2\right)}^{1/2}}}}\right).$	Since the angle between two vectors is invariant with respect to the length of the vectors, this technique is relatively insensitive to illumination and albedo effects	[23,44]
Spectral Information Divergence (SID)	$SID({\rho }_i,{\rho }_j)=D({\rho }_i\Vert {\rho }_j)+D({\rho }_j\Vert {\rho }_i),$	It calculates the probabilistic behaviour between spectral signatures	[45]
	where $D({\rho }_i\Vert {\rho }_j)={\sum }_{\lambda =1}^L{p}_{\lambda }log\left({\displaystyle \frac{p_{\lambda }}{q_{\lambda }}}\right),$ where $p_{\kappa }={\displaystyle \frac{{\rho }_{i,\kappa }}{{\displaystyle \sum _{\lambda =1}^L{\rho }_{i,\lambda }}}},q_{\kappa }={\displaystyle \frac{{\rho }_{j,\kappa }}{{\displaystyle \sum _{\lambda =1}^L{\rho }_{j,\lambda }}}}$
SAM-SID	$\mathrm{SID}-\mathrm{Tan}({\rho }_i,{\rho }_j)=\mathrm{SID}({\rho }_i,{\rho }_j)\times tan\left(\mathrm{SAM}({\rho }_i,{\rho }_j)\right),$	It is a combination of probability and geometry spaces that improves discrimination ability	[46]
	$\mathrm{SID}-\mathrm{Sin}({\rho }_i,{\rho }_j)=\mathrm{SID}({\rho }_i,{\rho }_j)\times sin\left(\mathrm{SAM}({\rho }_i,{\rho }_j)\right).$
Spectral Correlation Measure (SCM)	$SCM({\rho }_i,{\rho }_j)={\displaystyle \frac{{\displaystyle L\sum _{\lambda =1}^L{\rho }_{i,\lambda }{\rho }_{j,\lambda }-\sum _{\lambda =1}^L{\rho }_{i,\lambda }\sum _{\lambda =1}^L{\rho }_{j,\lambda }}}{{\displaystyle {\left[L\sum _{\lambda =1}^L{\rho }_{i,\lambda }^2{\left(\sum _{\lambda =1}^L{\rho }_{i,\lambda }\right)}^2\right]}^{1/2}{\left[L\sum _{\lambda =1}^L{\rho }_{j,\lambda }^2{\left(\sum _{\lambda =1}^L{\rho }_{j,\lambda }\right)}^2\right]}^{1/2}}}}.$	It is calculated as the correlation coefficient of the pixel and their respective spectral signatures	[47]
Pearson Correlation Coefficient (PCC)	$PCC({\rho }_i,{\rho }_j)={\displaystyle \frac{{\displaystyle \sum _{\lambda =1}^L({\rho }_{i,\lambda }-{\mu }_i)({\rho }_{j,\lambda }-{\mu }_j)}}{{\displaystyle {\left[\sum _{\lambda =1}^L{({\rho }_{i,\lambda }-{\mu }_i)}^2\right]}^{1/2}{\left[\sum _{\lambda =1}^L{\left({\rho }_{j,\lambda }-{\mu }_j\right)}^2\right]}^{1/2}}}},$ where ${\mu }_i$ is the mean of ${\rho }_i$.
Spectral Similarity Value (SSV)	$SSV({\rho }_i,{\rho }_j)=\sqrt{D_2{({\rho }_i,{\rho }_j)}^2+{\left(1-{\left[PCC({\rho }_i,{\rho }_j)\right]}^2\right)}^2}.$	Low value of SSV means high similarity and vice versa	[48]
Spectral Correlation Angle (SCA)	$SCA({\rho }_i,{\rho }_j)={cos}^{-1}\left({\displaystyle \frac{1+PCC({\rho }_i,{\rho }_j)}{2}}\right).$	It is an improvement of SAM derivated from PCC that has been shown to be able to distinguish between positive and negative correlations and to yield better estimates in some experiments	[49,50]
Spectral Gradient Angle (SGA)	$\begin{array}{cc}\hfill SGA({\rho }_i,{\rho }_j)& =SAM\left(|\nabla {\rho }_i|,|\nabla {\rho }_j|\right),\hfill \\ & ={cos}^{-1}\left({\displaystyle \frac{{\displaystyle \sum _{\lambda =1}^{L-1}|{\rho }_{i,\lambda +1}-{\rho }_{i,\lambda }||{\rho }_{j,\lambda +1}-{\rho }_{j,\lambda }|}}{{\displaystyle {\left[\sum _{\lambda =1}^{L-1}{\left({\rho }_{i,\lambda +1}-{\rho }_{i,\lambda }\right)}^2\right]}^{1/2}{\left[\sum _{\lambda =1}^{L-1}{\left({\rho }_{j,\lambda +1}-{\rho }_{j,\lambda }\right)}^2\right]}^{1/2}}}}\right).\hfill \end{array}$	It is invariant to illumination conditions	[51]

). Some criteria characterize the difference between reflectance levels (like the distances) and other ones are related to the difference of the spectral shape (e.g., SAM) and other ones are related to probabilistic behaviour (e.g., SID, ...). Table 4 inventories main similarity measurement techniques described in the literature.

3.3. Relative Spectral Discriminatory Probability

To determine if a spectral signature belongs to a class, the method proposed by [45] is used. Let ${\left\{{\rho }_j\right\}}_{j=1}^J$ J spectral signatures in $\Delta$ an existing spectral reference database and $\tau$ be a target signature to be identified using $\Delta$. Let $m(·,·)$ be a given hyperspectral measure, the spectral discriminatory probabilities of all ${\rho }_j$ in $\Delta$ with respect to $\tau$ as is defined as follows:

$$p_{\tau ,\Delta }^m\left(i\right)={\displaystyle \frac{m(\tau ,{\rho }_i)}{{\displaystyle \sum _{j=1}^{J}m(\tau ,{\rho }_j)}}}, \mathrm{for}i=1,2,\dots ,J,$$

(2)

where ${\displaystyle \sum _{j=1}^{J}m(\tau ,{\rho }_j)}$ is a normalization constant determined by $\tau$ and $\Delta$. The resulting probability vector is defined as

$${\mathbf{p}}_{\tau ,\Delta }^m={\left(p_{\tau ,\Delta }^m\left(1\right),p_{\tau ,\Delta }^m\left(2\right),\dots ,p_{\tau ,\Delta }^m\left(J\right)\right)}^T.$$

(3)

Using Equation (3), the target signature can be identified by selecting the one with the smallest spectral discriminatory probability because $\tau$ and the selected one have the minimum spectral discrimination.

Spectral Reference Database

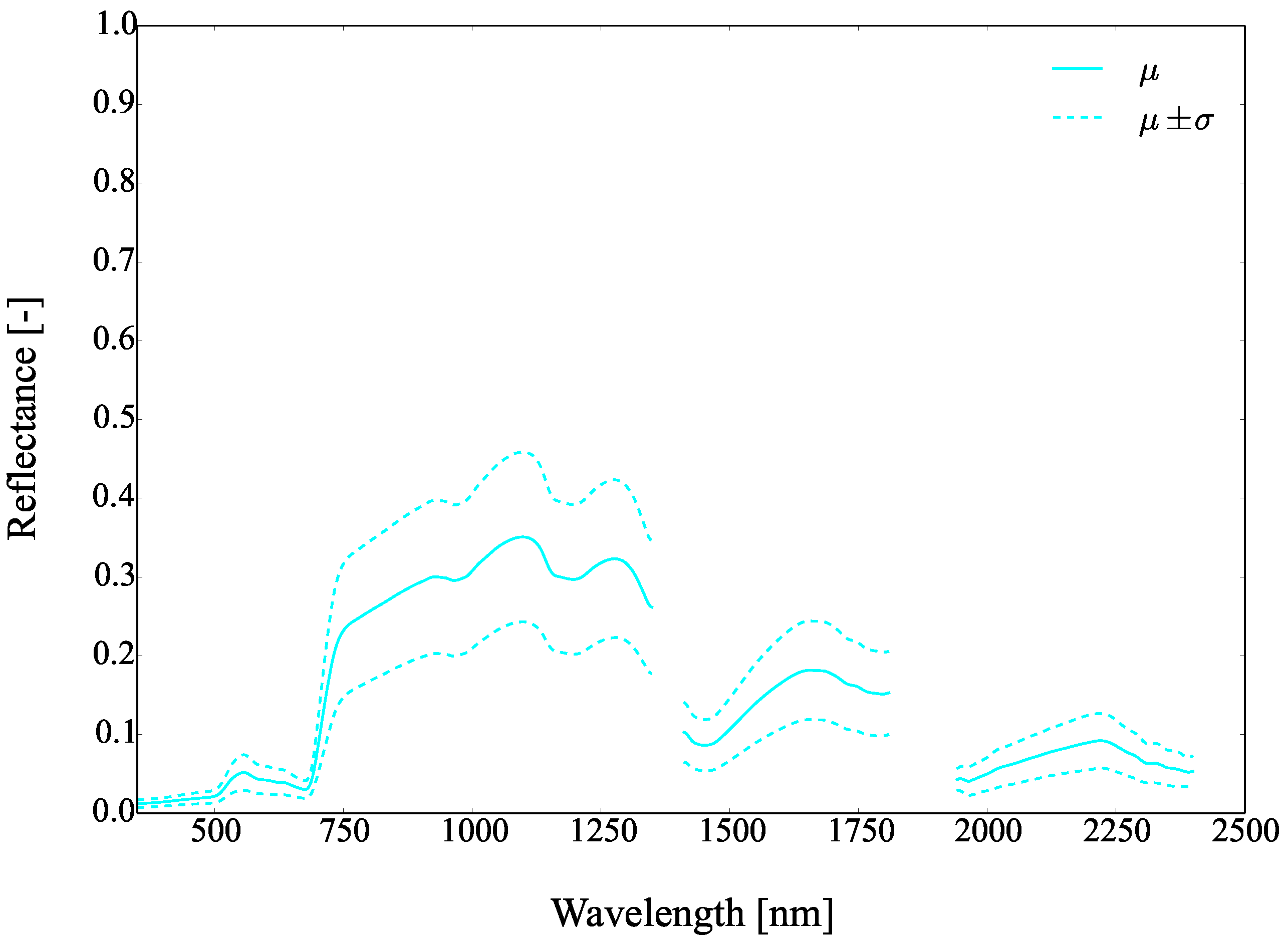

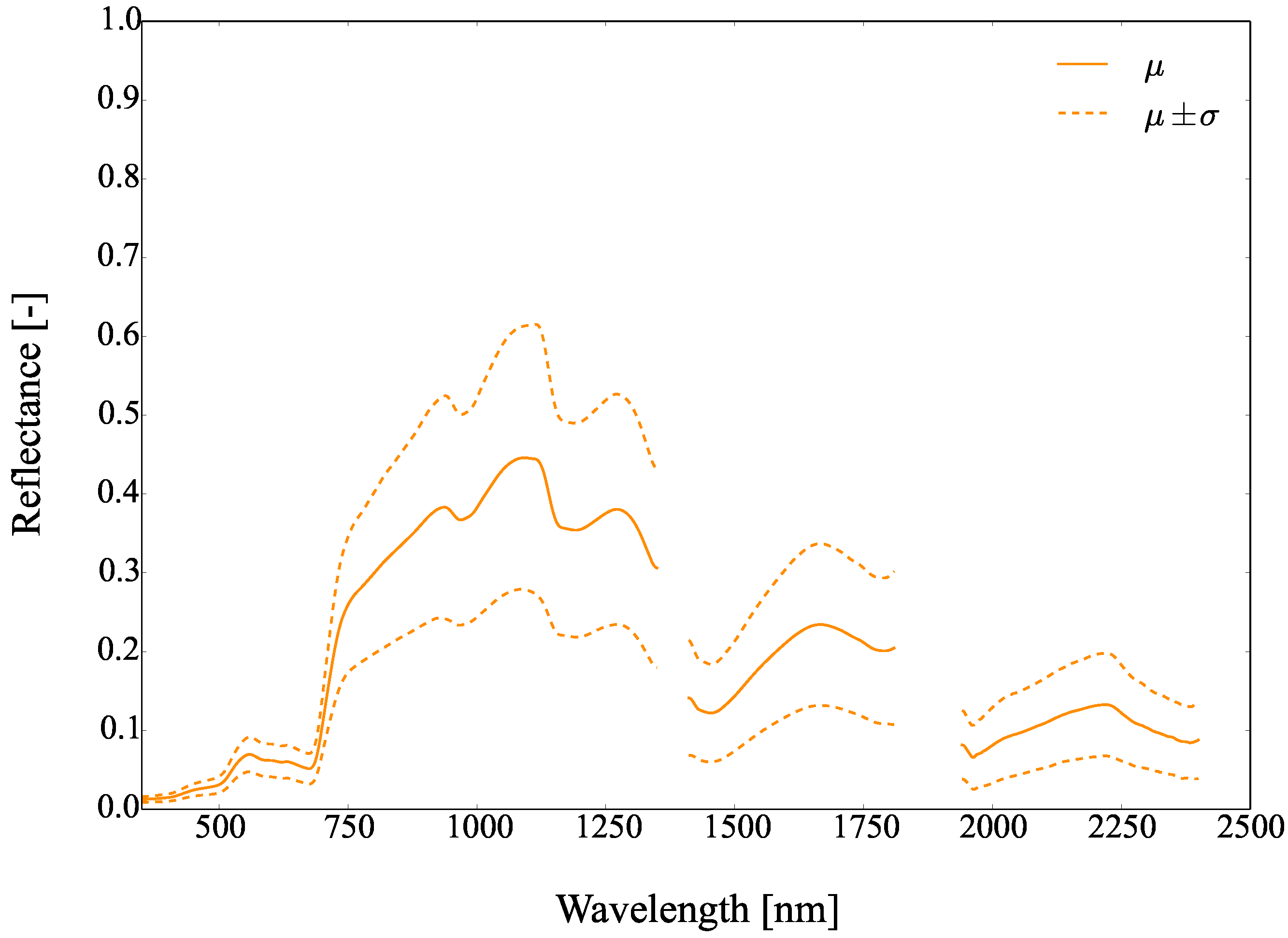

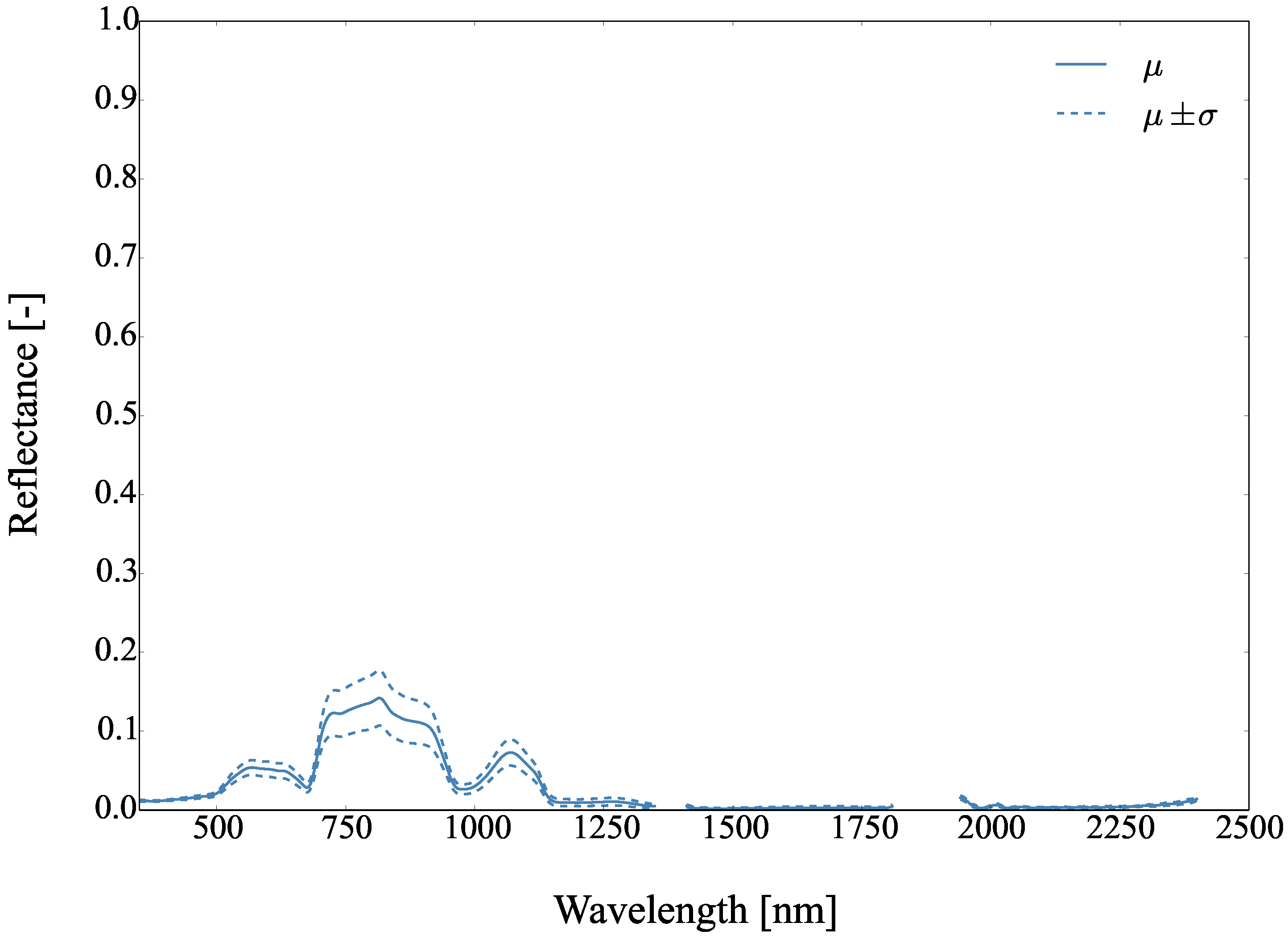

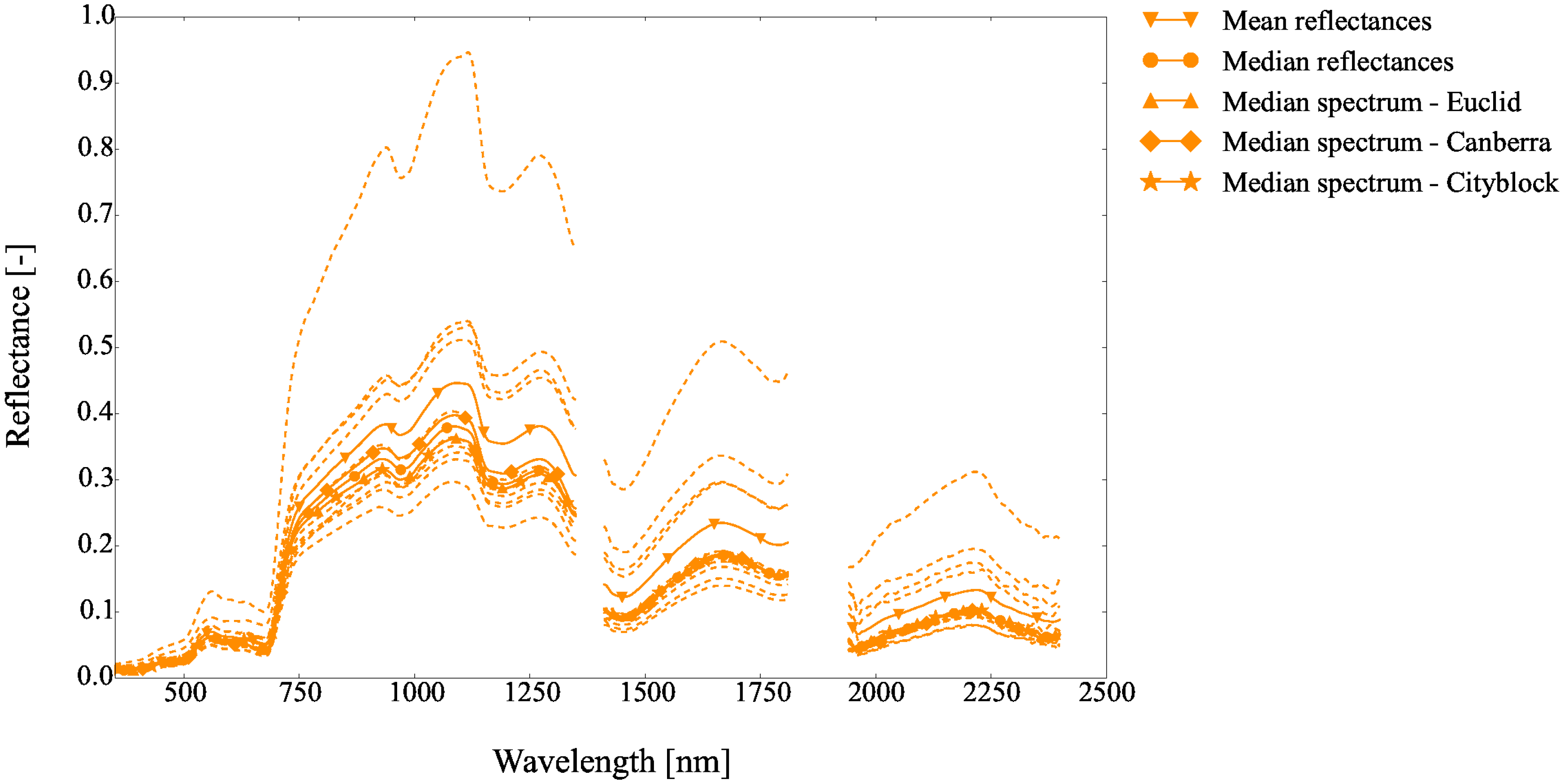

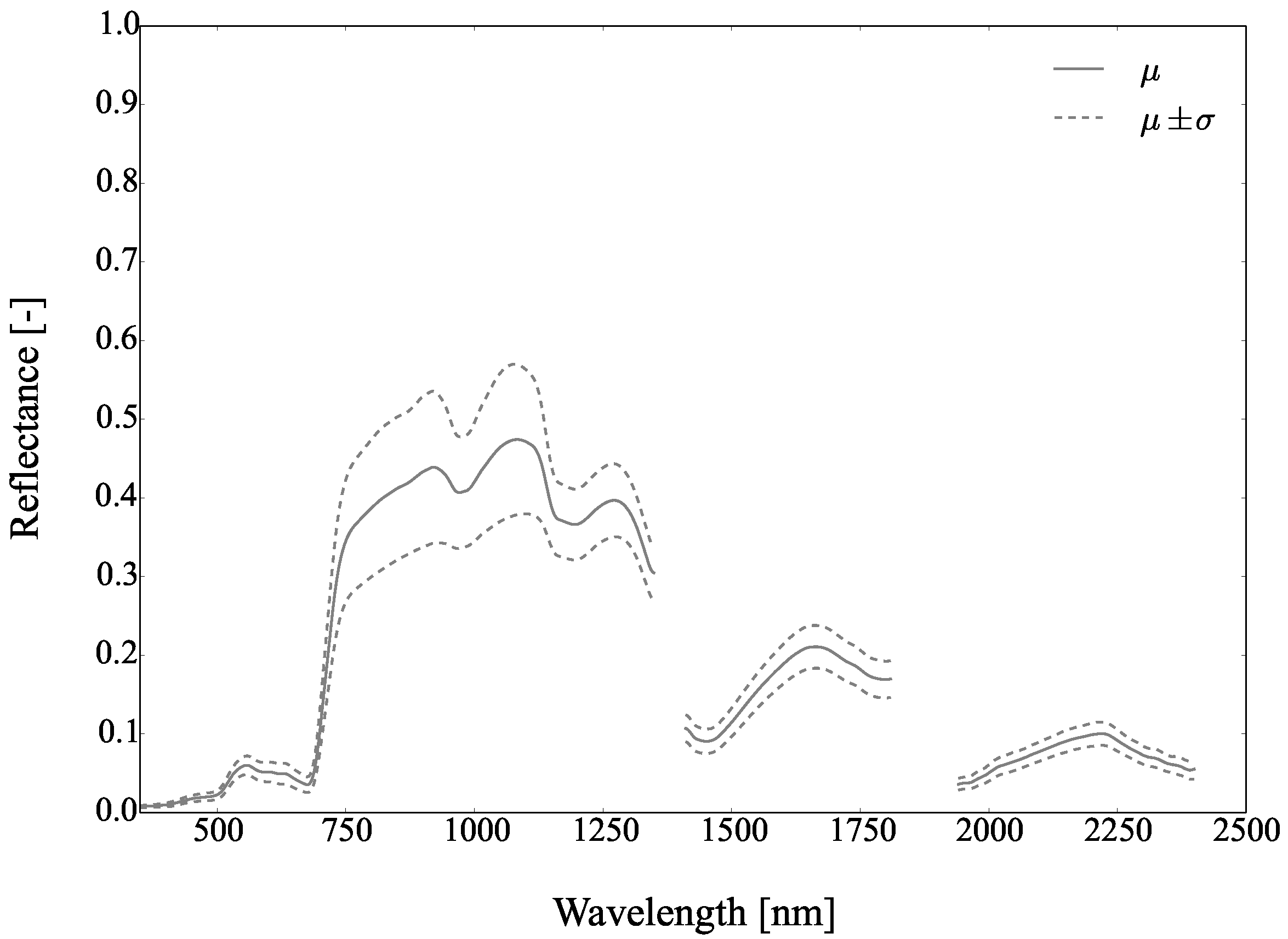

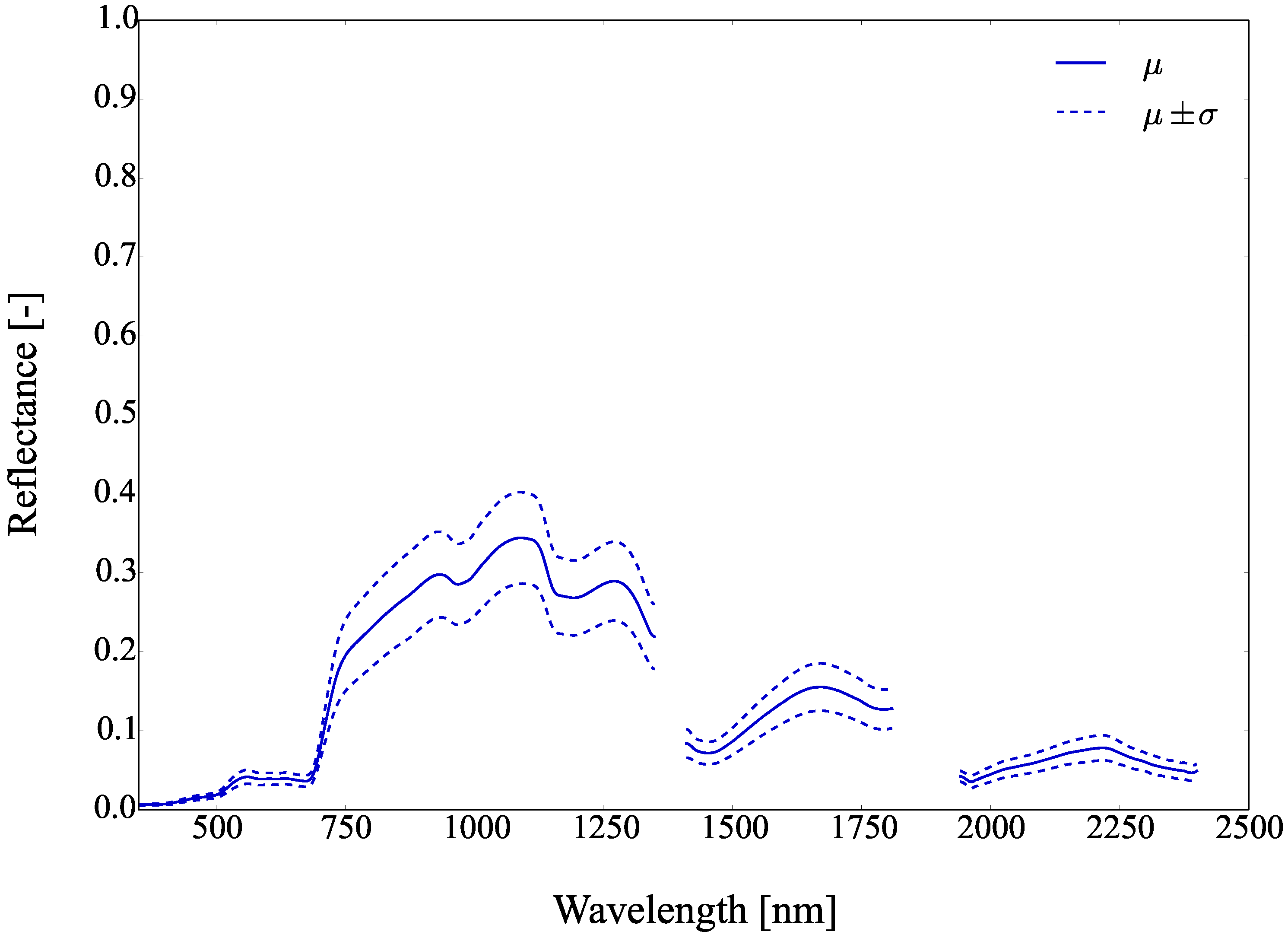

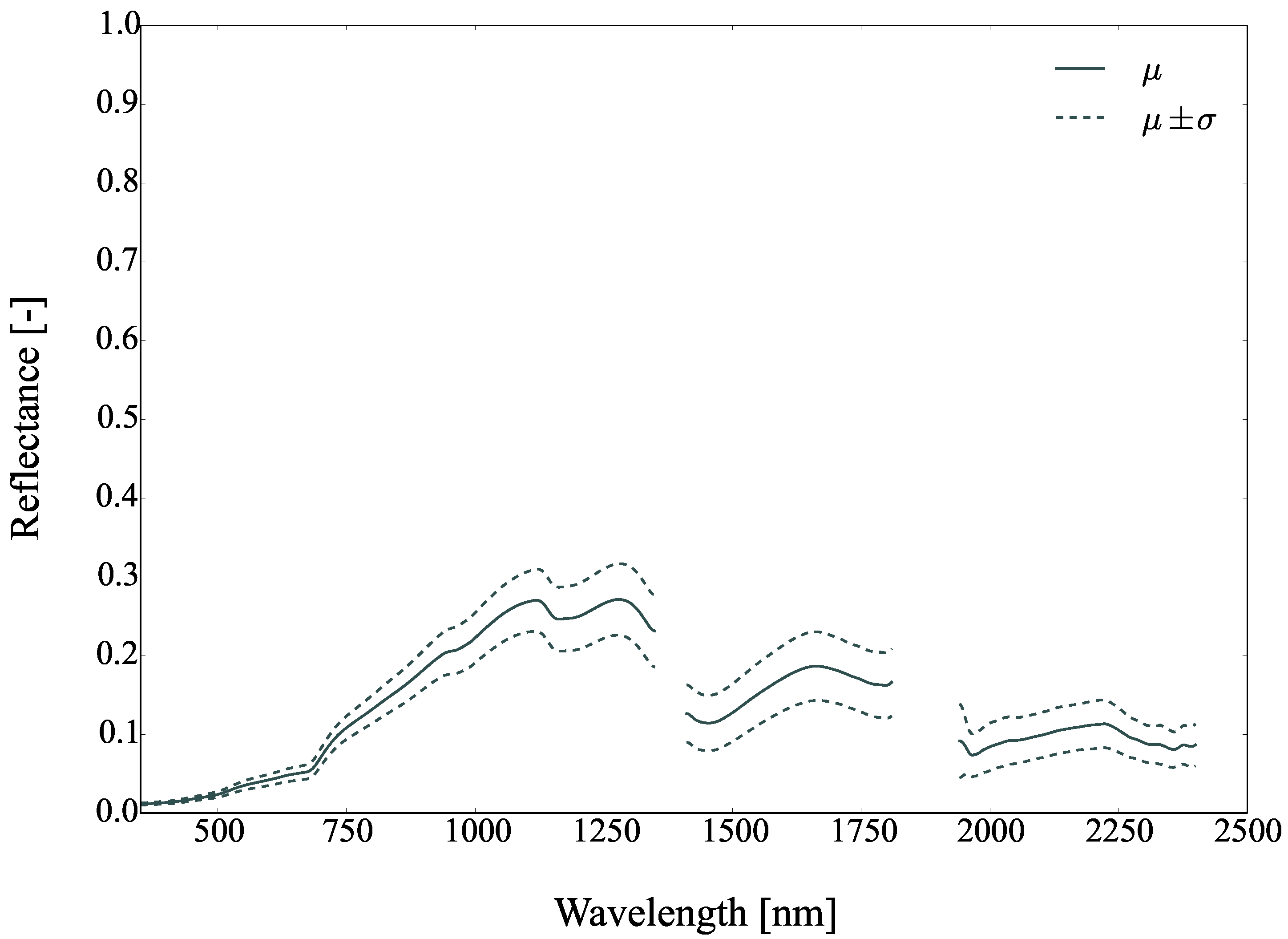

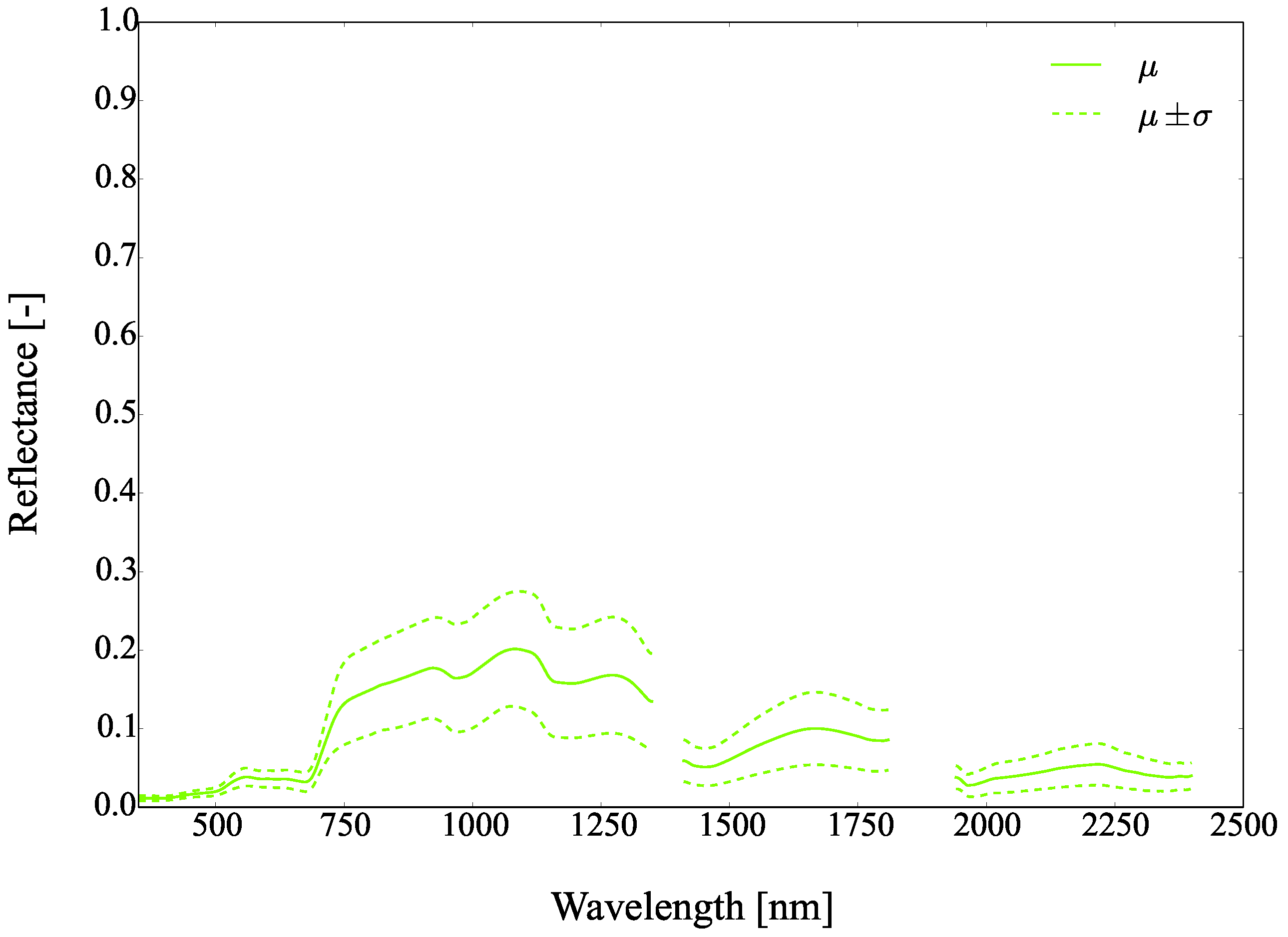

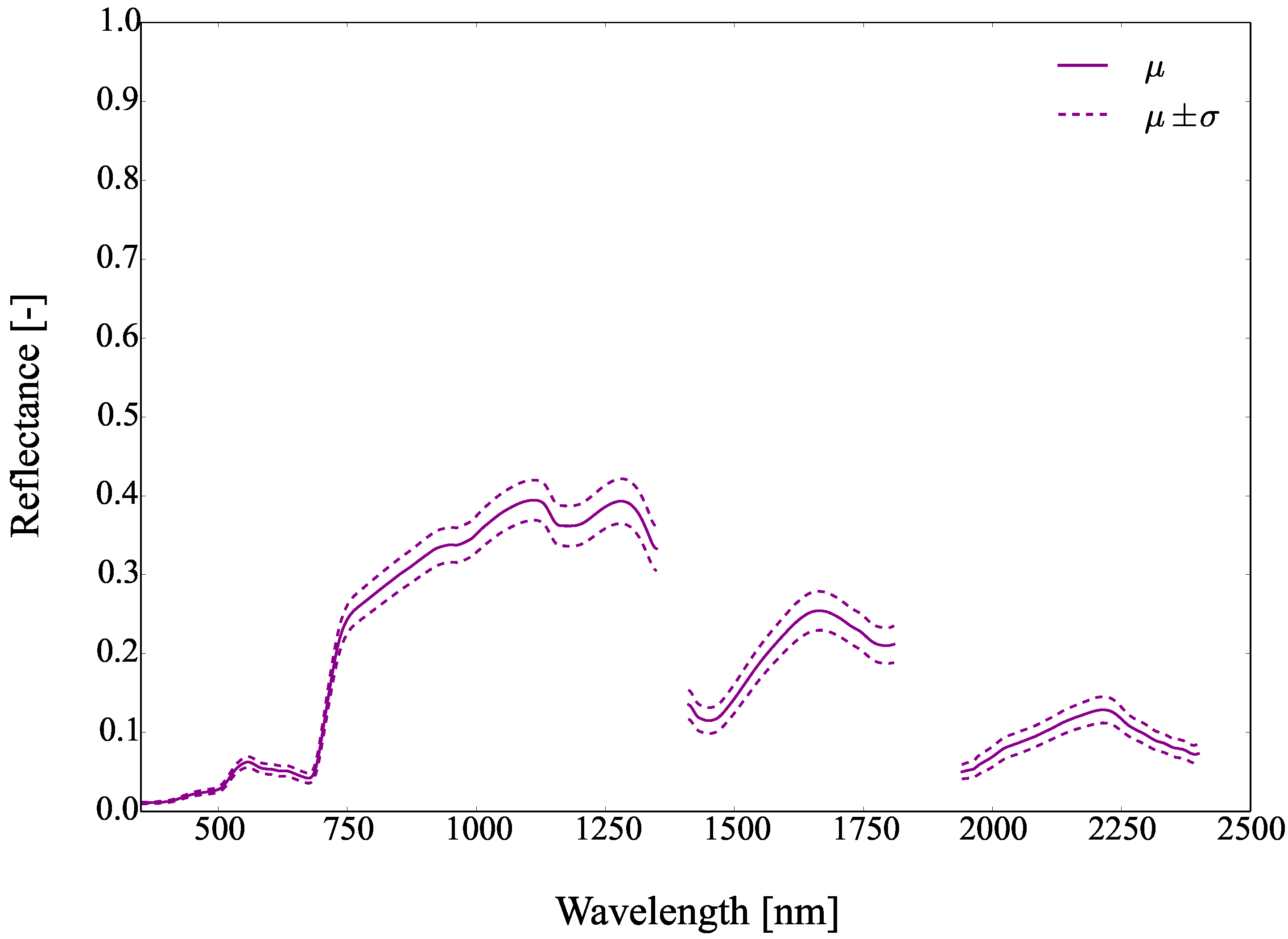

To build the spectral reference database, spectra of mean reflectance, spectra of median reflectance and median spectra are used. Spectra of mean reflectance is defined as the mean of reflectances for each wavelength $\lambda$:

$${\displaystyle \overline{{\rho }_{\lambda }}={\displaystyle \frac{1}{N}}\sum _{i=1}^N{\rho }_{i,\lambda },\forall \lambda \in [1,\dots ,L],}$$

(4)

where N is the number of spectra for a plant species. Similarly, spectra of median reflectance is defined as the median of reflectances for each wavelength $\lambda$. Median spectra is defined as the “closest” spectrum of the median reflectance considering a vegetation type. In other words, giving a spectrum of median reflectance, the spectrum that minimize the Minkowski distance between them is considered as the median spectrum (Figure 4 shows differences between the median reflectances spectrum which is an theoretic spectral signature and the different median spectra which were investigated). As distances are not equivalent considering high-dimensional data, three Minkowski distances are investigated for this study: the Euclidean distance, the Canberra distance and the City Block or Manhattan distance (which are reminded in Section 3.1).

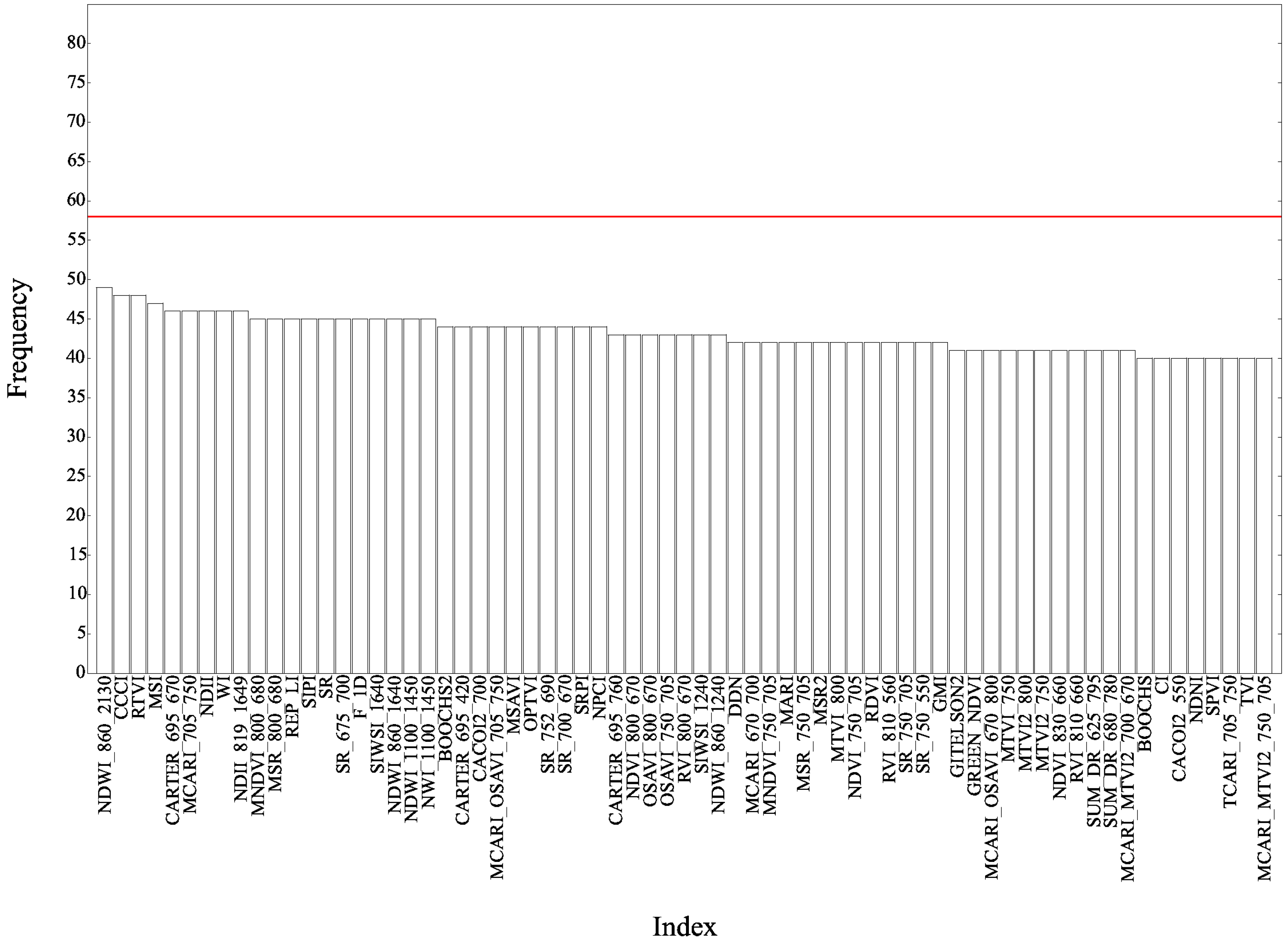

3.4. Feature Selection of Spectral Indices

3.4.1. Spectral Index Description

Spectral indices are combinations of surface reflectance (or the derivated reflectance) at two or more wavelengths or narrow spectral bands. Lots of spectral indices can be found in literature (

Table 5. Spectral vegetation indices.

Index Name	Formulation	Vegetation Properties Highlighted by the Index	String Type
Boochs	$D_{703}$	Chlorophyll	[52]
Boochs2	$D_{720}$	Chlorophyll
CAI (Cellulose Absorption Index)	${\displaystyle \frac{R_{2000}+R_{2200}}{2}}-R_{2100}$	Cellulose, soil litter	[53]
CARI (Chlorophyll Absorption Ratio Index)	${\displaystyle \frac{R_{700}\sqrt{{(670a+R_{670}+b)}^2}}{R_{670}\sqrt{a^2+1}}}$	Chlorophyll	[54]
	where $a={\displaystyle \frac{R_{700}-R_{550}}{150}}$; $b=R_{550}-550a$
CI (Curvature Index)	${\displaystyle \frac{R_{675}{R}_{690}}{R_{683}^2}}$	Chlorophyll	[55]
CCI (Canopy Chlorophyll Index)	${\displaystyle \frac{D_{720}}{D_{700}}}$	Chlorophyll	[56]
CCCI (Canopy Chlorophyll Content Index)	${\displaystyle \frac{\mathrm{NDRE}}{\mathrm{NDVI}}}$	Chlorophyll	[57]
Carter[695,420]	${\displaystyle \frac{R_{695}}{R_{420}}}$	Stress	[58]
Carter[695,760]	${\displaystyle \frac{R_{695}}{R_{760}}}$	Stress
Carter[605,760]	${\displaystyle \frac{R_{605}}{R_{760}}}$	Stress
Carter[710,760]	${\displaystyle \frac{R_{710}}{R_{760}}}$	Stress
Carter[695,670]	${\displaystyle \frac{R_{695}}{R_{670}}}$	Stress
Carter2	$R_{550}$
CaCoI[515,550] (Carotenoid Concentration Index)	${\displaystyle \frac{1}{R_{515}}}-{\displaystyle \frac{1}{R_{550}}}$	Carotenoid	[59,60]
CaCoI[515,700]	${\displaystyle \frac{1}{R_{515}}}-{\displaystyle \frac{1}{R_{700}}}$	Carotenoid
CaCoI2[770,510,700]	$R_{770}\left({\displaystyle \frac{1}{R_{510}}}-{\displaystyle \frac{1}{R_{700}}}\right)$	Carotenoid	[59,60]
CaCoI2[770,510,550]	$R_{770}\left({\displaystyle \frac{1}{R_{510}}}-{\displaystyle \frac{1}{R_{550}}}\right)$	Carotenoid
Datt[850]	${\displaystyle \frac{R_{850}-R_{710}}{R_{850}-R_{680}}}$	Chlorophyll	[61]
Datt[780]	${\displaystyle \frac{R_{780}-R_{710}}{R_{780}-R_{680}}}$	Chlorophyll	[61]
Datt2[850,710]	${\displaystyle \frac{R_{850}}{R_{710}}}$	Chlorophyll
Datt2[672,550]	${\displaystyle \frac{R_{672}}{R_{550}}}$	Chlorophyll
Datt_prime	${\displaystyle \frac{D_{754}}{D_{704}}}$	Chlorophyll
Datt3[672]	${\displaystyle \frac{R_{672}}{R_{550}{R}_{708}}}$	Chlorophyll	[62]
Datt3[860]	${\displaystyle \frac{R_{860}}{R_{550}{R}_{708}}}$	Chlorophyll	[62]
DCI	${\displaystyle \frac{D_{723}}{D_{703}}}$		[63]
DCNI (Double-peak Canopy Nitrogen Index)	${\displaystyle \frac{R_{720}-R_{700}}{\left(R_{700}-R_{670}\right)\left(R_{720}-R_{670}+0.03\right)}}$	Nitrogen	[64]
DD (Double Difference Index)	$(R_{749}-R_{720})-(R_{701}-R_{672})$	Chlorophyll	[65]
DDn (new Double Difference Index)	$2\left(R_{710}-R_{(710-50)}-R_{(710+50)}\right)$	Chlorophyll	[66]
DPI (Double Peak Index)	${\displaystyle \frac{D_{688}{D}_{710}}{D_{967}^2}}$	Chlorophyll	[55]
dG	${\displaystyle \underset{i\in \left[\right[500,580\left]\right]}{max}{D}_i}$	Chlorophyll, stress
dRE	${\displaystyle \underset{i\in \left[\right[680,750\left]\right]}{max}{D}_i}$	Chlorophyll, stress	[67]
D[730,706]	${\displaystyle \frac{D_{730}}{D_{706}}}$	Chlorophyll	[55]
D[705,722]	${\displaystyle \frac{D_{705}}{D_{722}}}$
EVI (Enhanced Vegetation Index)	$2.5{\displaystyle \frac{R_{800}-R_{670}}{R_{800}-6R_{670}-7.5R_{475}+1}}$	Chlorophyll	[68]
EGFR (Edge-Green First derivative Ratio)	${\displaystyle \frac{\mathrm{dRE}}{\mathrm{dG}}}$	Chlorophyll, nitrogen	[69]
EGFN (Edge-Green first Derivative Normalized difference)	${\displaystyle \frac{\mathrm{dRE}-\mathrm{dG}}{\mathrm{dRE}+\mathrm{dG}}}$	Chlorophyll, nitrogen
GEMI (Global Environment Monitoring Index)	$\eta (1-0.25\eta )-{\displaystyle \frac{R_{660}-0.25}{1-R_{660}}},$		[70]
	where $\eta =2{\displaystyle \frac{R_{830}^2-R_{660}^2+1.5R_{830}+0.5R_{660}}{R_{830}+R_{660}+0.5}}$
GI (Greeness Index)	${\displaystyle \frac{R_{554}}{R_{677}}}$	Chlorophyll	[71]
Gitelson	${\displaystyle \frac{1}{R_{700}}}$	Chlorophyll	[72]
Gitelson2	${\displaystyle \frac{R_{750}-R_{800}}{R_{965}-R_{740}}}-1$	Chlorophyll	[59]
GMI (Gitelson and Merzlyak Index)	${\displaystyle \frac{R_{750}}{R_{550}}}$	Chlorophyll	[73]
Green NDVI	${\displaystyle \frac{R_{800}-R_{550}}{R_{800}+R_{550}}}$	Chlorophyll	[74]
Maccioni	${\displaystyle \frac{R_{780}-R_{710}}{R_{780}-R_{680}}}$	Chlorophyll	[75]
MARI (Modified Anthocyanin Reflectance Index)	$R_{800}\left({\displaystyle \frac{1}{R_{550}}}-{\displaystyle \frac{1}{R_{700}}}\right)$	Anthocyanin	[76,77]
MCARI[700,670] (Modified Chlorophyll Absorption Index)	$\left((R_{700}-R_{670})-0.2(R_{700}-R_{550})\right){\displaystyle \frac{R_{700}}{R_{670}}}$	Chlorophyll, Leaf Area Index	[78]
MCARI[750,705]	$\left((R_{750}-R_{705})-0.2(R_{750}-R_{550})\right){\displaystyle \frac{R_{750}}{R_{705}}}$	Chlorophyll	[79]
MCARI[700,670]/OSAVI[800,670]	${\displaystyle \frac{\left((R_{700}-R_{670})-0.2(R_{700}-R_{550})\right)\frac{R_{700}}{R_{670}}}{(1+0.16)\frac{R_{800}-R_{670}}{R_{800}+R_{670}+0.16}}}$	Chlorophyll	[80]
MCARI[750,705]/OSAVI[750,705]	${\displaystyle \frac{\left(R_{750}-R_{705})-0.2(R_{750}-R_{550})\right)\frac{R_{750}}{R_{705}}}{(1+0.16)\frac{R_{750}-R_{705}}{R_{750}+R_{705}+0.16}}}$	Chlorophyll	[79]
MCARI[750,705]/MTVI2[750]	${\displaystyle \frac{\mathrm{MCARI}[750,705]}{\mathrm{MTVI}2\left[750\right]}}$	Nitrogen	[81]
MNDVI[800,680] (Modified NDVI)	${\displaystyle \frac{R_{800}-R_{680}}{R_{800}+R_{680}-2R_{445}}}$	Chlorophyll	[82]
MNDVI[750,705]	${\displaystyle \frac{R_{750}-R_{705}}{R_{750}+R_{705}-2R_{445}}}$	Chlorophyll
MSAVI (Modified Soil Adjusted Vegetation Index)	$0.5\left(2R_{800}+1-\sqrt{{(2R_{800}+1)}^2-8(R_{800}-R_{670})}\right)$	Chlorophyll	[83]
MSI (Moisture Stress Index)	${\displaystyle \frac{R_{1599}}{R_{819}}}$	Water stress	[84]
MSR[800,680] (modified Simple Ratio)	${\displaystyle \frac{R_{800}-R_{445}}{R_{680}-R_{445}}}$	Chlorophyll	[82]
MSR[750,705]	${\displaystyle \frac{R_{750}-R_{445}}{R_{705}-R_{445}}}$	Chlorophyll
MSR2	${\displaystyle \frac{R_{750}}{R_{705}}}-{\displaystyle \frac{1}{\sqrt{\frac{R_{750}}{R_{705}}+1}}}$	Chlorophyll, Leaf Area Index	[85]
MTCI (MERIS 1 Terrestrial Chlorophyll Index)	${\displaystyle \frac{R_{754}-R_{709}}{R_{709}-R_{681}}}$	Chlorophyll	[86]
MTVI[800] (Modified Triangular Vegetation Index)	$1.5\left(1.2(R_{800}-R_{550})-2.5(R_{670}-R_{550})\right)$	Leaf Area Index	[87]
MTVI[750]	$1.5\left(1.2(R_{750}-R_{550})-2.5(R_{670}-R_{550})\right)$	Leaf Area Index	[87]
MTVI2 [800]	${\displaystyle \frac{1.5\left(1.2(R_{800}-R_{550})-2.5(R_{670}-R_{550})\right)}{\sqrt{{(2R_{800}+1)}^2-(6R_{800}-5\sqrt{R_{670}})-0.5}}}$	Leaf Area Index	[87]
MTVI2 [750]	${\displaystyle \frac{1.5\left(1.2(R_{750}-R_{550})-2.5(R_{670}-R_{550})\right)}{\sqrt{{(2R_{750}+1)}^2-(6R_{750}-5\sqrt{R_{670}})-0.5}}}$		[87]
NDII (Normalized Difference Infrared Index)	${\displaystyle \frac{R_{850}-R_{1650}}{R_{850}+R_{1650}}}$	Water status	[88]
	${\displaystyle \frac{R_{819}-R_{1649}}{R_{819}+R_{1649}}}$
NDLI (Normalized Difference Lignin Index)	${\displaystyle \frac{log\left({\displaystyle \frac{1}{R_{1754}}}\right)-log\left({\displaystyle \frac{1}{R_{1680}}}\right)}{log\left({\displaystyle \frac{1}{R_{1754}}}\right)+log\left({\displaystyle \frac{1}{R_{1680}}}\right)}}$	Lignin	[35]
NDNI (Normalized Difference Nitrogen Index)	${\displaystyle \frac{log\left({\displaystyle \frac{1}{R_{1510}}}\right)-log\left({\displaystyle \frac{1}{R_{1680}}}\right)}{log\left({\displaystyle \frac{1}{R_{1510}}}\right)+log\left({\displaystyle \frac{1}{R_{1680}}}\right)}}$	Nitrogen	[35]
NDRE (Normalized Difference Red Edge)	${\displaystyle \frac{R_{830}-R_{red}}{R_{830}+R_{red}}}$, with $R_{red}=0.5(R_{670}+R_{780})$		[57]
NDVI[800,670] (Normalised Difference Vegetation Index)	${\displaystyle \frac{R_{800}-R_{670}}{R_{800}+R_{670}}}$	Chlorophyll, Leaf Area Index	[89]
NDVI[750,705]	${\displaystyle \frac{R_{750}-R_{705}}{R_{750}+R_{705}}}$	Chlorophyll	[73]
NDVI[682,553]	${\displaystyle \frac{R_{682}-R_{553}}{R_{682}+R_{553}}}$	Chlorophyll	[90]
NDVI[573,440]	${\displaystyle \frac{R_{573}-R_{440}}{R_{573}+R_{440}}}$	Nitrogen	[91]
NDWI[860,1240] (Normalized Difference Water Index)	${\displaystyle \frac{R_{860}-R_{1240}}{R_{860}+R_{1240}}}$
NDWI[860,1640]	${\displaystyle \frac{R_{860}-R_{1640}}{R_{860}+R_{1640}}}$	Water status	[92]
NDWI[860,2130]	${\displaystyle \frac{R_{860}-R_{2130}}{R_{860}+R_{2130}}}$
NDWI[1100,1450]	${\displaystyle \frac{R_{1100}-R_{1450}}{R_{1100}+R_{1450}}}$	Water stress	[93]
NDWI[1280,1450]	${\displaystyle \frac{R_{1280}-R_{1450}}{R_{1280}+R_{1450}}}$	Water stress	[93]
NPCI (Normalised Pigment Chlorophyll Index)	${\displaystyle \frac{R_{680}-R_{430}}{R_{680}+R_{430}}}$	(Total pigments)/chlorophyll	[94]
VI_opt (Vegetation Index optimal)	$(1+0.45){\displaystyle \frac{R_{800}^2+1}{R_{670}+0.45}}$	Nitrogen	[95]
OSAVI[800,670] (Optimised Soil-Adjust Vegetation Index)	$(1+0.16){\displaystyle \frac{R_{800}-R_{670}}{R_{800}+R_{670}+0.16}}$	Chlorophyll	[96]
OSAVI[750,705]	$(1+0.16){\displaystyle \frac{R_{750}-R_{705}}{R_{750}+R_{705}+0.16}}$	Chlorophyll	[79]
PRI (Photochemical Reflectance Index)	${\displaystyle \frac{R_{531}-R_{570}}{R_{531}+R_{570}}}$	Stress	[97]
RDVI (Renormalised Difference Vegetation Index)	${\displaystyle \frac{R_{800}-R_{670}}{\sqrt{R_{800}+R_{670}}}}$	Chlorophyll, Leaf Area Index	[98]
REIP (Red-Edge Inflexion Point)	${\displaystyle \left\{i|\underset{i\in \left[\right[680,750\left]\right]}{max}{D}_i\right\}}$	Chlorophyll, Leaf Area Index	[67,99,100]
REMI (Red-Edge Model Index)	${\displaystyle \frac{R_{750}}{R_{720}}}-1$	Chlorophyll	[101]
REP_LE (Red-Edge Position Linear Extrapolation)	$-{\displaystyle \frac{c_1-c_2}{m_1-m_2}}$ where $m_1$ and $c_1$ represent the slope and the intercept of the far-red line and $m_2$ and $c_2$ represent the slope and the intercept of the NIR line	Nitrogen, chlorophyll	[102]
REP_LI (Red-Edge Position Linear Interpolation)	$700+40{\displaystyle \frac{0.5(R_{800}+R_{780})}{R_{740}-R_{700}}}$	Chlorophyll	[103]
RVI[810,660] (Ratio Vegetation Index)	${\displaystyle \frac{R_{810}}{R_{660}}}$	Nitrogen	[104]
RVI[810,560]	${\displaystyle \frac{R_{810}}{R_{560}}}$	Nitrogen	[105]
RVI[800,670]	${\displaystyle \frac{R_{800}}{R_{670}}}$
SIPI (Structure Insensitive Pigment Index)	${\displaystyle \frac{R_{800}-R_{445}}{R_{800}-R_{680}}}$	Pigments/chlorophyll, stress	[106]
SPVI (Spectral Polygon Vegetation Index)	$0.4\left[3.7(R_{800}-R_{670})-1.2\sqrt{{(R_{530}-R_{670})}^2}\right]$	Chlorophyll × Leaf Area Index	[107]
SR[800,680] (Simple Ratio Index)	${\displaystyle \frac{R_{800}}{R_{680}}}$	Chlorophyll	[108]
SR[750,700]	${\displaystyle \frac{R_{750}}{R_{700}}}$		[73]
SR[752,690]	${\displaystyle \frac{R_{752}}{R_{690}}}$
SR[750,550]	${\displaystyle \frac{R_{750}}{R_{550}}}$
SR[700,670]	${\displaystyle \frac{R_{700}}{R_{670}}}$	Chlorophyll	[109]
SR[675,700]	${\displaystyle \frac{R_{675}}{R_{700}}}$	Chlorophyll	[110]
SR[750,710]	${\displaystyle \frac{R_{750}}{R_{710}}}$	Chlorophyll	[111]
SR[440,690]	${\displaystyle \frac{R_{440}}{R_{690}}}$	Stress	[112]
SRPI (Simple Ratio Pigment Index)	${\displaystyle \frac{R_{430}}{R_{680}}}$	(Total pigments)/chlorophyll, stress	[106]
Sum_Dr[625,795]	${\displaystyle \sum _{i=625}^{795}{D}_i}$	Chlorophyll	[113]
Sum_Dr[680,780]	${\displaystyle \sum _{i=680}^{780}{D}_i}$	Chlorophyll, Leaf Area Index	[67]
TCARI[700,670] (Transformed Chlorophyll Absorption Ratio Index)	$3\left(R_{700}-R_{670}-0.2(R_{700}-R_{550}){\displaystyle \frac{R_{700}}{R_{670}}}\right)$	Chlorophyll	[80]
TCARI[750,705]	$3\left(R_{750}-R_{705}-0.2(R_{750}-R_{550}){\displaystyle \frac{R_{750}}{R_{705}}}\right)$	Chlorophyll	[79]
TCARI[700,670]/OSAVI[800,670]	$\frac{\mathrm{TCARI}}{\mathrm{OSAVI}}$	Chlorophyll	[80]
TCARI[750,705]/OSAVI[750,705]	$\frac{\mathrm{TCARI}2}{\mathrm{OSAVI}2}$	Chlorophyll	[79]
TVI (Triangular Vegetation Index)	$0.5(120(R_{750}-R_{550})-200(R_{670}-R_{550}))$	Leaf Area Index, Canopy chlorophyll density	[114]
Vogelmann	${\displaystyle \frac{R_{740}}{R_{720}}}$	Chlorophyll	[115]
Vogelmann2	${\displaystyle \frac{R_{734}-R_{747}}{R_{715}+R_{726}}}$	Chlorophyll
Vogelmann3	${\displaystyle \frac{D_{715}}{D_{705}}}$	Chlorophyll
Maximum first derivatives of 8 different regions whithin the spectra		Pigments absorption, w., c., s., l absorption ; refer to Table 2 in [116] for a full description.	[116]
	A_1D: 495–550 $\mathrm{n}\mathrm{m}$
	B_1D: 550–650 $\mathrm{n}\mathrm{m}$
	C_1D: 680–780 $\mathrm{n}\mathrm{m}$
	D_1D: 970–1090 $\mathrm{n}\mathrm{m}$
	E_1D: 1110–1205 $\mathrm{n}\mathrm{m}$
	F_1D: 1205–1285 $\mathrm{n}\mathrm{m}$
	H_1D: 1455–1640 $\mathrm{n}\mathrm{m}$
	J_1D: 1925–2200 $\mathrm{n}\mathrm{m}$
Corresponding spectral positions of the maximum first derivatives		Pigments absorption, w., c., s., l. absorption ; refer to Table 2 in [116] for a full description.	[116]
	A_WP: 495–550 $\mathrm{n}\mathrm{m}$
	B_WP: 550–650 $\mathrm{n}\mathrm{m}$
	C_WP: 680–780 $\mathrm{n}\mathrm{m}$
	D_WP: 970–1090 $\mathrm{n}\mathrm{m}$
	E_WP: 1110–1205 $\mathrm{n}\mathrm{m}$
	F_WP: 1205–1285 $\mathrm{n}\mathrm{m}$
	H_WP: 1455–1640 $\mathrm{n}\mathrm{m}$
	J_WP: 1925–2200 $\mathrm{n}\mathrm{m}$

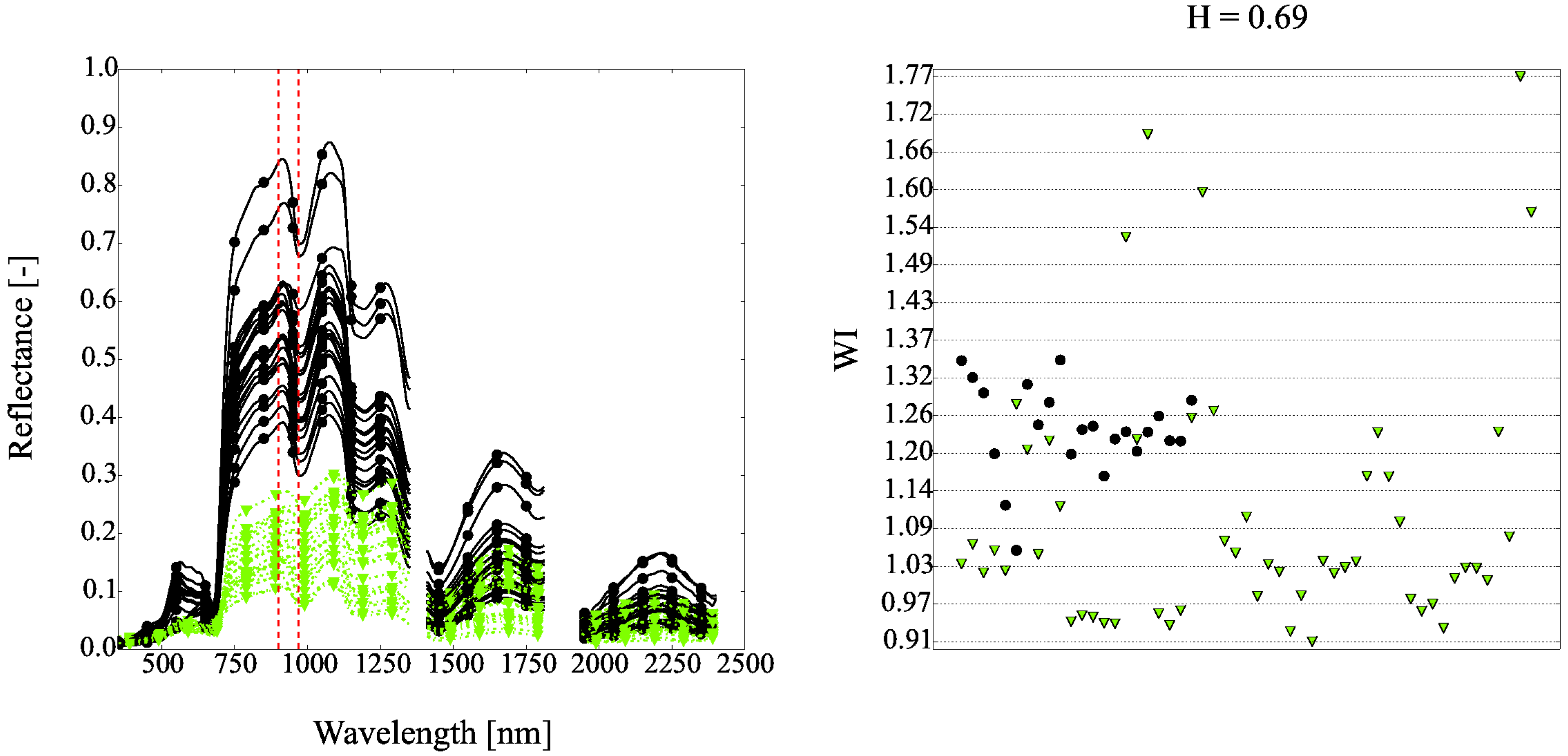

WI (Water Index)	${\displaystyle \frac{R_{900}}{R_{970}}}$	Water status	[117]
WI[1100,1450]	${\displaystyle \frac{R_{1100}}{R_{1450}}}$	Water stress	[93]
WI[1280,1450]	${\displaystyle \frac{R_{1280}}{R_{1450}}}$	Water stress	[93]
WI2	${\displaystyle \frac{1}{R_{1450}}}$	Water stress	[93]

R_x represents reflectance at wavelength x nm. D_x represents the derivative of the reflectance spectrum at wavelength x nm. w., c., s., l = water, cellulose, starch, lignin.

) to characterize some biochemical components of plant species such as chlorophyll, nitrogen, lignin, cellulose, water. Although these indices have never been selected in the literature to characterize wetlands plant species, we assume that some of them can still be useful to classify them.

3.4.2. Classical Feature Selection Method—The Kruskal-Wallis H-Test

As some spectra per vegetation types were quite small (8 spectra for Pinguicula sp. (PING), 7 spectra for Aquatic type b (AQ_B)), usual ANOVA [118] test or Mann-Whitney U-test [119] can not be used. That is the reason why Kruskal-Wallis H-test [120], a non-parametric test is proposed. Moreover this test is adapted to not independent data and not normally distributed data. The H-test is used to test the hypothesis that there was no significant difference between the median spectral index value between pairs of plant species.

The null hypothesis for $N=13$ vegetation types and $I=129$ spectral vegetation indices per reflectance measurements is:

$$H_0:{\eta }_n\left(i\right)={\eta }_{n+1}\left(i\right),$$

(5)

where ${\eta }_n$ is the median spectral index value for vegetation type number $n=0,\dots ,N$, and $i=1,\dots ,I$ the spectral index. The maximum frequency for this study is ${\displaystyle \left(\genfrac{}{}{0pt}{}{13}{2}\right)=\frac{13\times (13-1)}{2}=78}$. The hypothesis was therefore tested 78 times for all possible combinations of the 13 plant species at the adjusted Bonferroni significance level of $\alpha ={\displaystyle \frac{0.05}{78}}={6.410}^{-4}$.

3.4.3. Principle of the Applied Feature Selection Method

In order to discriminate between the 78 pairs of vegetation types, the Hellinger distance, which is introduced further, is computed for each vegetation spectral index (Table 5). Then indices are ordered by frequency discrimination. A first subset of indices is composed of ones that can discriminate between pairs of vegetation types and that are not redundant. If there is no discrimination between a pair of vegetation types, the Hellinger distance is computed for a pair of vegetation indices composed of the single most discriminating one and the other ones ordered by frequency distribution amongst previous selected. Then, a second subset of pairs of indices is composed by ordering those pairs of indices by frequency discrimination. To stop the process, a maximum number of subsets is then defined. In our case, the maximum subset consists of not more than three indices. Indeed, the longer the tuple length is, the more difficult it is to explained why such combinations of indices or such biophysical components combination can discriminate between such pairs. Finally, selected vegetation indices come from each subset and single spectral vegetation indices or spectral index combinations are retained.

For a better understanding of the feature selection method, an example is given. We consider four vegetation types named: $V_1,V_2,V_3,V_4$ and 5 spectral vegetation indices named: $I_1,I_2,I_3,I_4,I_5$. We suppose that no single spectral vegetation index can discriminate between neither $V_1$ and $V_3$ nor $V_2$ and $V_4$ nor $V_3$ and $V_4$. But different single indices can separate $V_1$ from $V_2$, $V_1$ from $V_4$ and $V_2$ from $V_3$. This is summarized in the following table:

	$V_2$	$V_3$	$V_4$
ine $V_1$	$I_1,I_3$	∅	$I_2,I_3$
$V_2$	-	$I_2,I_3$	∅
$V_3$	-	-	∅

We obtain the first subset $S_1=\{I_1,I_2,I_3\}$. To discriminate between $V_1$ and $V_3$, $V_2$ and $V_4$, and $V_3$ and $V_4$, we are looking among the following combinations: $\{I_3-I_2\},\{I_3-I_1\},\{I_3-I_4\},\{I_3-I_5\}$ because indices are ordered by frequency discrimination: [$I_3,I_2,I_1,I_4,I_5$]. We suppose that $\{I_3-I_1\}$ can discriminate between $V_1$ and $V_3$, and $V_2$ and $V_4$ but there is still no index that can discriminate between $V_3$ and $V_4$. For the latter case, possible combinations are looking among $\{I_3-I_1-I_2\},\{I_3-I_1-I_4\},\{I_3-I_1-I_5\}$. Whatever a combination of spectral vegetation indices can be found to discriminate between those plant species or not, the process will stop in our case.

3.4.4. The Bhattacharyya Coefficient and the Hellinger Distance

For two arbitrary discrete probability distributions $\mathbf{p}$ and $\mathbf{q}$, the amount of overlap between those distributions can be measured using the Bhattacharyya coefficient:

$${\displaystyle C(\mathbf{p},\mathbf{q})=\sum _{i=1}^n\sqrt{p_i{q}_i},}$$

(6)

where n is the partition number. To measure the similarity between two statistical distributions in remote sensing the Hellinger distance (also known as the Matusita distance) is commonly used. It is defined as:

$$\begin{array}{cc}\hfill H(\mathbf{p},\mathbf{q})& =\sqrt{{\displaystyle {\displaystyle \frac{1}{2}}\sum _{i=1}^n{\left(\sqrt{p_i}-\sqrt{q_i}\right)}^2}},\hfill \end{array}$$

(7)

$$\begin{array}{c}=\sqrt{1-C(\mathbf{p},\mathbf{q})}.\hfill \end{array}$$

(8)

The Hellinger distance defined in Equation (8) has upper bound equal to 1, indicating the total separability of the class pairs characterized by their distribution. As a general rule adapted from [121],

• if $H(\mathbf{p},\mathbf{q})\ge 0.95$ then the classes can be separated,
• if $0.85\le H(\mathbf{p},\mathbf{q})<0.95$ the separation is fairly good,
• if $H(\mathbf{p},\mathbf{q})<0.85$ the separation is poor.

3.5. Spectral Ranges

The transformed spectral signatures defined in Section 3.2 and the spectral ranges adapted from [31] (

Table 6. The spectral reflectances of green vegetation on the four regions of electromagnetic spectrum from [31].

Wavelength Range [nm]	Description	Spectral Reflectance of Vegetation	References
400–700	Visible	Low reflectance and transmittance due to chlorophyll and biologically active pigments (such as carotene) absorptions	[122,123]
680–750	Red-edge	The reflectance is strongly correlated with plant biochemical and biophysical parameters	[124,125]
700–1300	Near infrared	High reflectance and transmittance, very low absorption resulting from photon scattering at the air-cell interfaces within the leaf spongy mesophyll	[126,127]
1300–2500	Shortwave infrared	Lower reflectance than other spectral regions due to strong water absorption and minor absorption of biochemical contents such as lignin and carbon constituants	[126,128]

) were investigated:

• visible: 350 $\mathrm{n}$$\mathrm{m}$–750 $\mathrm{n}$$\mathrm{m}$,
• near infrared: 750 $\mathrm{n}$$\mathrm{m}$–1350 $\mathrm{n}$$\mathrm{m}$,
• shortwave infrared a: 1410 $\mathrm{n}$$\mathrm{m}$–1810 $\mathrm{n}$$\mathrm{m}$,
• shortwave infrared b: 1940 $\mathrm{n}$$\mathrm{m}$–2400 $\mathrm{n}$$\mathrm{m}$.

The shortwave infrared domain is split into two parts. The near infrared and the shortwave infrared are not continuous because of atmospheric water absorption.

3.6. Supervised Classification

All the classifications are performed using Python scikit-learn package [129].

3.6.1. Random Forest (RF)

RF is an ensemble classifier that uses a set of Classification And Regression Trees (CARTs) to make a prediction [130]. The trees are created by drawing a subset of training samples through replacement (a bagging approach). In standard classification trees, each node is split using the best split among all variables. In RF, each node is split using the best predictor, among a user-defined number of features (Mtry that is usually set to the square root of the number of input variables [131]). By growing the forest up to a user-defined number of trees (Ntree that is usually set to 500 but different values such as 100, 1000 or 5000 have been investigated [131]), the algorithm creates trees that have high variance and low bias. The final classification decision is taken by averaging (using the arithmetic mean) the class assignment probabilities calculated by all produced trees.

For this study, Mtry = 500 and Ntree ∈ [500, 1000, 2000, 5000].

3.6.2. Support Vector Machines (SVM)

SVM is a supervised non-parametric statistical learning technique therefore there is no assumption on the distribution of the data [132]. The main idea of SVM classification is to construct a hyperplane as a decision surface in a way that the margin of separation between two classes is maximized. To do this, the original feature space is mapped into a space with a higher dimensionality, where classes can be modelled to be linearly separable. This transformation is implicitly performed by applying kernel functions to the original data. The learning of the classifier is performed using a constrained optimization process that is associated with a complex cost function. For problems that involve identification of multiple classes, adjustments are made to the simple SVM binary classifier to operate as a multi-class classifier using methods such as one-against-all, one-against-others.

For this study, two kernels are retained: a linear kernel (SVM linear) and a Gaussian kernel (SVM RBF).

3.6.3. Regularized Logistic Regression (RLR)

RLR is a linear model based on logistic regression with an additional regularization term. This classifier has been successfully used with high dimensional data (gene selection in cancer classification [133], feature selection in remote sensing [28,29,134]).

For this study, the ${\ell }_1$-norm and ${\ell }_2$-norm regularization term are investigated.

3.6.4. Partial Least Squares-Discriminant analysis (PLS-DA)

PLS-DA is based upon the classical partial least square regression method for constructing predictive models [135]. The goal of PLS regression is to provide dimension reduction in an application where the response variable is related to the predictor variables. In the case of PLS-DA, the response variable (i.e., vegetation types) is binary and expresses class membership [136,137]. This classifier has been successfully used with high dimensional data (gene selection [138], tree species discrimination [139]).

For this study the number of latent variables is fixed to the number of vegetation types-1 [138]. This method is not applied on spectral vegetation indices selected but on spectral signatures and their transformations on spectral ranges because it is commonly used when the number of features is much bigger than the number of spectra.

3.7. Classification Accuracy Evaluation

To evaluate the classification accuracy of supervised classifiers, a 30 fold cross-validation is used and six training samples size were investigated: 50%, 45%, 40%, 35%, 30% and 25% of all spectra.

To evaluate the classifier precision overall accuracy and F1-score are used. Overall accuracy computes number of correct spectra over all spectra, whereas F1-score is given by:

$$\mathrm{F}1-\mathrm{score}=2·{\displaystyle \frac{\mathrm{PA}·\mathrm{UA}}{\mathrm{PA}+\mathrm{UA}}},$$

(9)

where PA (Producer’s Accuracy) is the fraction of retrieved classes that are relevant whereas UA (User’s Accuracy) is the fraction of relevant classes that are retrieved.

4. Results and Discussion

4.1. Similarity Measures

Considering all transformed spectral signatures, spectral ranges and similarity measures, only the Canberra distance on [350 $\mathrm{n}$$\mathrm{m}$–2500 $\mathrm{n}$$\mathrm{m}$] gives an overall accuracy higher than 50% whatever the spectral reference database (

Table 7. Overall accuracy (%) for Canberra distance on [350–2500 $\mathrm{n}\mathrm{m}$].

	Median Spectra			Median	Mean
	Canberra Dist.	City Block Dist.	Euclidean Dist.	Reflectance	Reflectance
Spectral signature	53.62	52.34	51.91	57.02	50.64
Normalized spectral signature	51.91	52.34	50.64	55.74	57.87
log transformation of spectral signature	52.34	52.34	51.49	55.74	51.91
First Derivative	70.64	$\mathbf{70.21}$	$\mathbf{67.23}$	74.47	71.49
Second Derivative	$\mathbf{71.06}$	68.51	64.68	$\mathbf{81.70}$	$\mathbf{77.45}$
Continuum removed Reflectance	51.06	50.64	51.06	54.04	52.77
Continuum Removed Derivative Reflectance	64.68	62.98	61.28	78.30	75.32

). Indeed, the Canberra distance gives the higher overall accuracy because it is sensitive to a small change when both coordinates are closed to zero [140,141].

Because of the high variability of some vegetation types (Appendix B), spectral reference database built from median spectra, that are real spectra, gave worse results than spectral reference database built from median and mean spectra, that are theoretical spectra not representative of a in situ measured vegetation type (Table 7). There is a need to collect more spectral signatures to build a consistent spectral database.

As spectral signatures can be considered as high dimensional vectors, a specific distance is needed to compare them. It is well known that Euclidean distance is not good when comparing high dimension data [142].

Table 8. Overall accuracy (%) for different distances on [350–2500 $\mathrm{n}\mathrm{m}$] considering Median reflectances as spectral reference database.

	Distance			SAM
	Euclid	Manhattan	Canberra
Spectral signature	50.21	51.06	$\mathbf{57.02}$	41.70
First Derivative	62.98	70.64	$\mathbf{74.47}$	59.15
Second Derivative	65.96	74.04	$\mathbf{81.70}$	63.83
CRDR	71.06	74.47	$\mathbf{78.30}$	69.36

shows that the Canberra distance always outperforms other distances, including SAM, which is commonly used in remote sensing, when considering the whole spectral range (1823 wavelengths).

Using the Canberra distance, best results (overall accuracy higher than 60%) are given with the second derivative, first derivative and CRDR (Table 7), that are closely related to absorption features rather than reflectance magnitude [38]. Indeed, it is possible to discriminate between vegetation types thanks to their biophysical components which will be discussed in details in Section 4.2.1. Furthermore,

Table 9. Overall classification accuracy (%) for different spectral ranges considering Median reflectances as spectral reference database and Canberra distance.

	350–750 nm	750–1350 nm	1410–1810 nm	1940–2400 nm	350–2500 nm
Spectral signature	47.23	47.66	37.87	34.47	$\mathbf{57.02}$
First Derivative	59.15	64.68	60.43	55.74	$\mathbf{74.47}$
Second Derivative	72.34	69.79	72.34	53.19	$\mathbf{81.70}$
CRDR	74.47	57.87	59.57	59.57	$\mathbf{78.30}$

shows that the whole spectral range gives the best results. Although spectral ranges are related to specific biophysical components (Table 6), the whole spectral range is needed to discriminate between the 13 vegetation types because some of them are sharing same plant species (Table A1) and the spectral signatures are mixed. Worse results are obtained in [1940–2400 $\mathrm{n}\mathrm{m}$] whatever the transformed spectral signature. Table 9 show that worse results are obtained by the spectral signature whatever the spectral range. Indeed those transformations are related to absorption features as explained above, which confirms that transformed spectral signatures are more suitable to discriminate between vegetation types than spectral signatures.

Considering classification accuracy for each vegetation type,

Table 10. Confusion matrix of the classification based on Second derivative, Canberra Distance on [350–2500 $\mathrm{n}\mathrm{m}$] with Median reflectance as reference spectral database. The producer’s and user’s accuracies, the overall accuracy and the F1-score are also shown.

	SPHA	CAVU	RH_FR	CA_HV	AQ_A	SALI	PING	JUQO	ELQU	METR	PI_CV	AQ_B	AQ_C	Producer’s Accuracy (%)
SPHA	$\mathbf{22}$	0	0	0	0	0	0	0	0	0	0	0	0	100.00
CAVU	0	$\mathbf{8}$	0	2	0	0	1	0	0	0	3	0	0	57.14
RHFR	0	0	$\mathbf{11}$	0	0	3	0	0	0	0	0	0	0	78.57
CA_HV	0	0	0	$\mathbf{22}$	0	0	1	0	1	0	3	0	0	81.48
AQ_A	0	0	0	0	$\mathbf{30}$	0	8	0	3	4	1	1	6	56.60
SALI	0	0	0	0	0	$\mathbf{17}$	0	0	0	0	0	0	0	100.00
PING	0	0	0	1	0	0	$\mathbf{7}$	0	0	0	0	0	0	87.50
JUCO	0	0	0	0	0	0	0	$\mathbf{18}$	0	0	1	0	0	94.74
ELQU	0	0	0	1	0	0	0	0	$\mathbf{13}$	1	0	0	0	86.67
METR	1	0	0	0	0	0	0	0	0	$\mathbf{11}$	0	0	0	91.67
PI_CV	0	0	0	0	0	0	1	0	0	0	$\mathbf{14}$	0	0	93.33
AQ_B	0	0	0	0	0	0	0	0	0	0	0	$\mathbf{7}$	0	100.00
AQ_C	0	0	0	0	0	0	0	0	0	0	0	0	$\mathbf{12}$	100.00
User’s accuracy (%)	95.65	100.00	100.00	84.62	100.00	85.00	38.89	100.00	76.47	68.75	63.64	87.50	66.67	Overall accuracy: $\mathbf{81.70}$
F1-score (%)	97.78	72.73	88.00	83.02	72.29	91.89	53.85	97.30	81.25	78.57	75.68	93.33	80.00

shows that best F1-score is obtained by Sphagnum sp. (SPHA) (≃98%), Juniperus communis (JUCO) (≃97%), AQ_B (≃93%) and Salix sp. (SALI) (≃92%). Except for JUCO, all of these vegetation types are well classified and their user’s accuracy is higher than 85%. Indeed these vegetation types are less mixed than others: Table A1 shows that SPHA is mainly dominated by different kinds of sphagnum; AQ_B is dominated by Utricularia sp; JUCO is dominated by Juniperus communis and SALI is dominated by Salix. Only three other vegetation types have user’s accuracy equal to 100%: Rhododendron ferrugineum (RHFR), Calluna vulgaris (CAVU) and Aquatic type a (AQ_A). However, only around 57% of spectral signatures are well identified for CAVU and AQ_A. This can be explained by the high variability of these sample plots. Contrary to SPHA, JUCO, AQ_B and SALI, there is not a single dominated plant species neither for CAVU nor for AQ_A (Table A1). Worse F1-score is obtained by Pinguicula sp. (PING) (≃54%) which is not dominated by only one plant species: this vegetation type is mainly dominated by Eleocharis quinqueflora (ELQU) (40%), bare ground (15%), Molinia caerulea ssp caerulae (10%) and Tomenthypnum nitens (10%). It can explain the difficulty to identify this vegetation type in particular rather than the low number of spectra: PING has eight spectra whereas AQ_B has seven spectra.

4.2. Supervised Classification Based on Feature Selection of Spectral Vegetation Indices

4.2.1. Feature Selection

The Kruskal-Wallis method (Section 3.4.2, p. 13) does not show any significant index (frequency discrimination $>75\%$) that allow discrimination between vegetation types (Figure 5, only the first 69 indices are drawn). The best vegetation index (NDWI [860, 2130]) only allows us to discriminate between 49 pairs of vegetation types, that may be explained by the plant species mixing within several vegetation types. The proposed method reduced the number of selected indices from 129 to 26 (

Table 11. Single selected indices from the Hellinger distance and their occurrences.

Biophysical Component	Index Name	No. of All Occurrences	No. of Single Occurrences	No. of Occurrences within Pair	No. of Occurrences within Triple
Chlorophyll	CCCI ${}^{*}$	35	24	10	1
	GMI ${}^{*}$	33	25	8	0
	DPI ${}^{**}$	33	16	17	0
	NDVI[750,705] ${}^{**}$	32	25	7	0
	BOOCHS2 ${}^{*}$	32	24	8	0
	SR[700,670] ${}^{*}$	31	25	6	0
	OSAVI[800,670] ${}^{*}$	31	20	8	3
	DDN ${}^{**}$	26	18	8	0
	MNDVI[800,680] ${}^{*}$	23	18	5	0
	GITELSON ${}^{***}$	13	5	5	3
Water	WI ${}^{*}$	40	33	6	1
	MSI ${}^{*}$	39	31	8	0
	NDWI[860,1240] ${}^{*}$	38	31	7	0
	NDII ${}^{**}$	38	28	9	1
	NDWI[860,2130] ${}^{*}$	35	24	11	0
	NDWI[1100,1450] ${}^{**}$	32	22	10	0
Stress	CARTER[695,670] ${}^{*}$	36	26	9	1
	CARTER[695,420] ${}^{**}$	36	16	20	0
Pigment	MARI ${}^{*}$	75	13	62	0
	PRI ${}^{*}$	35	9	26	0
Nitrogen	NDNI ${}^{*}$	37	18	19	0
	MCARI/MTVI2[750,705] ${}^{**}$	30	22	8	0
(Total pigments)/chlorophyll	NPCI ${}^{*}$	31	18	13	0
	SRPI ${}^{*}$	29	16	13	0
Water, cellulose, starch, lignin	F_1D ${}^{*}$	89	27	62	2
	F_WP ${}^{*}$	20	15	5	0

* index selected on first step. ** index selected on second step. *** index selected on third step.

). More precisely, on the first step of the method, only 17 single indices amongst 26 are needed to discriminate between 59 pairs of vegetation types amongst 78. On the second step, these single indices must be completed by 7 additional spectral vegetation indices to discriminate between 17 more pairs of vegetation types (

Table 12. Single spectral index or pairs of spectral indices retained to discriminate between vegetation types pairs.

	CAVU	RHFR	CA_HV	AQ_A	SALI	PING
SPHA	F_WP	F_WP	WI	OSAVI[800,670]	F_WP	MSI
CAVU	-	∅	∅	F_1D	∅	GMI
RHFR	NPCI-F_1D	-	∅	∅	∅	MNDVI[800, 680]
CA_HV	MARI-WI	CARTER[695, 670]-MCARI/MTVI2[750, 705]	-	∅	∅	∅
AQ_A	-	F_1D-WI	NDNI-NDWI[1100,1450]	-	∅	∅
SALI	CARTER[695, 420]-NDII	CARTER[695, 670]-BOOCHS2	SRPI-NDVI[750,705]	F_1D-MSI	-	NPCI
PING	-	-	NDNI-WI	DDN-NDWI[860,2130]	-	-
JUCO	-	F_1D-WI	-	-	-	-
ELQU	-	-	MARI-WI	MARI-MSI	-	-
METR	-	-	CCCI-NDWI[860,1240]	-	-	DPI-F_ AD
PI_CV	-	-	-	-	-	-
AQ_B	-	-	-	-	-	-
	JUCO	ELQU	METR	PI_CV	AQ_B	AQ_C
SPHA	F_WP	CCCI	CCCI	WI	WI	OSAVI[800,670]
CAVU	MARI	CCCI	GMI	GMI	WI	SR[700, 670]
RHFR	∅	SRPI	CCCI	WI	WI	MNDVI[800, 680]
CA_HV	F_WP	∅	∅	∅	WI	CCCI
AQ_A	F_1D	∅	∅	NDNI	WI	MSI
SALI	F_WP	NPCI	NPCI	NPCI	WI	MNDVI[800,680]
PING	NDWI[860, 2130]	PRI	∅	BOOCHS2	NDWI[860,1240]	BOOCHS2
JUCO	-	F_WP	F_WP	F_WP	WI	MNDVI[800,680]
ELQU	-	-	MARI	CARTER[695,420]	NDWI[860,1240]	BOOCHS2
METR	-	-	-	∅	NDWI[860,1240]	BOOCHS2
PI_CV	-	-	PRI-WI	-	NDWI[860,1240]	OSAVI[800,670]
AQ_B	-	-	-	-	-	NDWI[860,1240]

∅ means either it is not possible to discriminate between a pair of vegetation typess thanks to a pair of spectral vegetation indices built from single ones selected on the first step, or more than two vegetation indices are needed to discriminate between a pair of vegetation types.

; ∅ means either a pair of vegetation type can not be discriminated thanks to a pair of spectral vegetation indices built from single ones selected on the first step, either more than two vegetation indices are needed to discriminate between a pair of vegetation types). On the last step, a single index is added to discriminate between two vegetation types whereas a combination of previous selected indices allows us to discriminate between another pair of vegetation type (Table 11). Finally several different—single or pair or triplet—vegetation indices allow us to discriminate between pairs of vegetation types. However, none single spectral index allows us to discriminate between all pairs of vegetation types nor the majority: e.g., the most discriminating single spectral index, the Water Index (WI), only discriminates between around 42% pairs of vegetation types (Table 11).

Table 13. Single main discriminating biophysical components for each vegetation type and their occurrences (%).

Biophysical Components	SPHA	CAVU	RHFR	CA_HV	AQ_A	SALI	PING	JUCO	ELQU	METR	PI_CV	AQ_B	AQ_C
Water	33.33	8.33	16.67	16.67	16.67	8.33	25.00	16.67	8.33	8.33	25.00	100.00	16.67
Chlorophyll	33.33	41.67	25.00	8.33	8.33	8.33	33.33	8.33	25.00	33.33	25.00	0.00	83.33
Stress	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	8.33	0.00	8.33	0.00	0.00
Nitrogen	0.00	0.00	0.00	0.00	8.33	0.00	0.00	0.00	0.00	0.00	8.33	0.00	0.00
Pigment	0.00	8.33	0.00	0.00	0.00	0.00	8.33	8.33	16.67	8.33	0.00	0.00	0.00
(Total pigments)/chlorophyll	0.00	0.00	8.33	0.00	0.00	33.33	8.33	0.00	16.67	8.33	8.33	0.00	0.00
W., c., s., l.	33.33	16.67	8.33	8.33	16.67	16.67	0.00	58.33	8.33	8.33	8.33	0.00	0.00
Total	100.00	75.00	58.33	33.33	50.00	66.67	75.00	91.67	83.33	66.67	83.33	100.00	100.00

W., c., s., l. = Water, cellulose, starch, lignin.

shows that one single biophysical component can discriminate between most of the vegetation types except for Carex sp. homogeneous vegetation (CA_HV). More precisely, three kinds of vegetation types (Sphagnum sp. (SPHA), Aquatic type b (AQ_B) and Aquatic type c (AQ_C)) are separated thanks to a single biophysical component. However, some biophysical components are more discriminant than others according to vegetation types: e.g., the chlorophyll is more discriminant than the water content for AQ_C whereas the water content is the only discriminant biophysical component for AQ_B; the water content, the chlorophyll and water, cellulose, starch, lignin (w., c., s., l.) equally discriminate between SPHA and all other vegetation types.

Only two indices related to water content are needed to separate AQ_B from all other vegetation types: WI and NDWI[860,1240] (Table 13) because AQ_B vegetation type is mainly composed of Utricularia sp. and water (Table A1). The AQ_B spectral signatures are lower than the spectral reflectance values of the other vegetation types and the water absorption band at 900 $\mathrm{n}\mathrm{m}$ and 970 $\mathrm{n}\mathrm{m}$ are highlighted (Figure 6).

The chlorophyll is the main biophysical component (86.33%) able to discriminate between AQ_C and all other vegetation types, except with Aquatic type a (AQ_A) and AQ_B differentiated by considering additional water indices (MSI and NDWI [860,1240]). Indeed, dry matter can be seen on spectral signatures (Figure 7): AQ_B has the lowest slope on the spectral range [705–730 $\mathrm{n}\mathrm{m}$] whereas other vegetation types (except AQ_A and AQ_B) have higher values because they still contain chlorophyll. However, as AQ_B and AQ_C have low values of Boochs2 index, it is possible to discriminate between them thanks to a water index (right side of Figure 8 shows that those vegetation types can be clearly separated; indeed, those vegetation types have different shapes and values that characterize each type).

In some case, there is no single biophysical component allowing us to discriminate between vegetation types: e.g., both water content (33.33%), chlorophyll (33.33%) and w., c., s., l. (33.33%) are needed to distinguish SPHA from all other vegetation types (Table 13). More precisely, biophysical components related to water (WI, MSI) are discriminating SPHA from CA_HV, Pinguicula sp. (PING), Pinguicula sp. combined vegetation (PI_CV) and AQ_B ; biophysical components related to chlorophyll (CCCI, OSAVI [800,670]) are differentiating SPHA from AQ_A, AQ_C, Eleocharis quinqueflora (ELQU) and Menyanthes trifoliata (METR) ; biophysical components related to w., c., s., l. (F_WP) are separating SPHA from Calluna vulgaris (CAVU), Rhododendron ferrugineum (RHFR), Salix sp. (SALI) and Juniperus communis (JUCO) (Table 13). Unlike an index related to water content (Figure 9), an index related to the chlorophyll will discriminate between SPHA and AQ_A. Indeed, the right side of Figure 9 shows that some AQ_A plant species can not be distinguished from SPHA because it is a dry moss and the left side of Figure 9 shows that SPHA and non discerned AQ_A have the same spectral signature shape. The right side of Figure 10 shows that these two vegetation species can clearly be separated despite the class variability of AQ_A. A complex biophysical component such as F_WP will differentiate SPHA from CAVU (left side of Figure 11) shows that different spectral shapes between those vegetation types can be exploited on the [1220–1280 $\mathrm{n}\mathrm{m}$] domain. The right side of Figure 10 shows that the wavelengths corresponding to the maximum of the first derivatives can clearly discern these two vegetation types even if these vegetation types can be mixed.

In most cases, a single biophysical component is sufficient to class a vegetation type from the others (except for CA_HV), but a pair of biophysical components is needed to discriminate more specifically between some vegetation types (Table 12), apart from some particular cases where a pair of biophysical components is needed CA_HV (Figure 12). Indeed, CAVU and SALI are differentiated with the stress index (CARTER [695, 420]) and the water index (NDII).

Among the 78 combinations of pair of vegetation types, only two require three indices to be separated: CA_HV vs. PING and AQ_A vs. METR. Indeed, because of its within class variability (Table A1), only 33.33% of a single biophysical component can discriminate between CA_HV and all other vegetation types (Table 13). Besides, as mentioned in Section 4.1, none of the main plant species of PING represents more than 50% of this vegetation type. The advent of a third index only improves significantly their discrimination (Figure 13).

4.2.2. Supervised Classification

The 26 indices selected with the Hellinger distance enables overall classification accuracy scores ranging from 72.90% to 85.20% depending on the training size, whereas when considering all indices overall accuracy, scores range from 66.70% to 82.80% (

Table 14. Vegetation types identification (overall accuracy (±standard deviation) in %) with indices.

Training Size	Classifier	Overall Accuracy (±Standard Deviation) (%)
		All Indices	Kruskal-Wallis	Hellinger Distance
50%	SVM linear	79.17 (±3.51)	75.45 (±3.95)	83.31 (±3.95)
	SVM RBF	77.63 (±2.82)	75.45 (±3.65)	$\mathbf{83}.\mathbf{55}(\pm \mathbf{3.65})$
	RLR-${\ell }_1$	$\mathbf{80.58}(\pm \mathbf{3.05})$	$\mathbf{78.37}(\pm \mathbf{3.54})$	82.84 (±3.54)
	RLR-${\ell }_2$	80.55 (±3.33)	78.07 (±3.48)	83.22 (±3.48)
	RF	78.71 (±3.34)	71.05 (±3.56)	81.60 (±3.56)
45%	SVM linear	78.44 (±3.09)	74.82 (±3.86)	82.46 (±3.86)
	SVM RBF	76.59 (±4.39)	74.49 (±4.53)	83.21 (±4.53)
	RLR-${\ell }_1$	$\mathbf{80.26}(\pm \mathbf{4.25})$	77.26 (±4.16)	$\mathbf{83.51}(\pm \mathbf{4.16})$
	RLR-${\ell }_2$	79.85 (±3.36)	$\mathbf{77.64}(\pm \mathbf{3.80})$	83.13 (±3.80)
	RF	77.26 (±4.14)	70.33 (±3.04)	80.26 (±3.04)
40%	SVM linear	76.95 (±3.59)	73.33 (±3.48)	81.89 (±3.48)
	SVM RBF	76.28 (±3.27)	73.43 (±3.84)	81.68 (±3.84)
	RLR-${\ell }_1$	79.69 (±3.43)	77.72 (±3.62)	$\mathbf{83.19}(\pm \mathbf{3.62})$
	RLR-${\ell }_2$	$\mathbf{79.74}(\pm \mathbf{2.47})$	$\mathbf{78.25}(\pm \mathbf{3.34})$	82.97 (±3.34)
	RF	76.86 (±3.41)	70.34 (±3.96)	80.96 (±3.96)
35%	SVM linear	76.02 (±3.35)	70.41 (±3.57)	80.02 (±3.57)
	SVM RBF	73.44 (±4.38)	71.02 (±4.17)	79.20 (±4.17)
	RLR-${\ell }_1$	74.98 (±2.74)	74.87 (±3.78)	80.89 (±3.78)
	RLR-${\ell }_2$	$\mathbf{77.25}(\pm \mathbf{2.80})$	$\mathbf{75.06}(\pm \mathbf{2.76})$	$\mathbf{81.04}(\pm \mathbf{2.76})$
	RF	75.32 (±3.32)	67.79 (±3.55)	79.37 (±3.55)
30%	SVM linear	73.62 (±3.84)	70.53 (±3.18)	78.34 (±3.18)
	SVM RBF	72.71 (±2.82)	69.68 (±4.33)	79.13 (±4.33)
	RLR-${\ell }_1$	74.08 (±4.03)	$\mathbf{73.66}(\pm \mathbf{3.23})$	79.25 (±3.23)
	RLR-${\ell }_2$	$\mathbf{75.74}(\pm \mathbf{3.99})$	73.39 (±3.33)	$\mathbf{80.36}(\pm \mathbf{3.33})$
	RF	72.53 (±2.60)	66.00 (±2.74)	77.17 (±2.74)
25%	SVM linear	71.37 (±3.18)	68.38 (±3.44)	75.91 (±3.44)
	SVM RBF	69.85 (±3.54)	67.63 (±2.67)	75.76 (±2.67)
	RLR-${\ell }_1$	69.42 (±4.06)	70.90 (±3.34)	76.35 (±3.34)
	RLR-${\ell }_2$	$\mathbf{73.31}(\pm \mathbf{3.34})$	$\mathbf{71.22}(\pm \mathbf{3.72})$	$\mathbf{77.21}(\pm \mathbf{3.72})$
	RF	70.79 (±2.95)	65.10 (±3.31)	75.05 (±3.31)

). Moreover, these selected indices are robust because no significant difference between classifiers score (except for RF) regardless of the training size is noted (Figure 14). As expected, the worst results are given by the Kruskal-Wallis method (to compare performance of the two features selection methods, 26 first indices given by Kruskal-Wallis method have been selected).

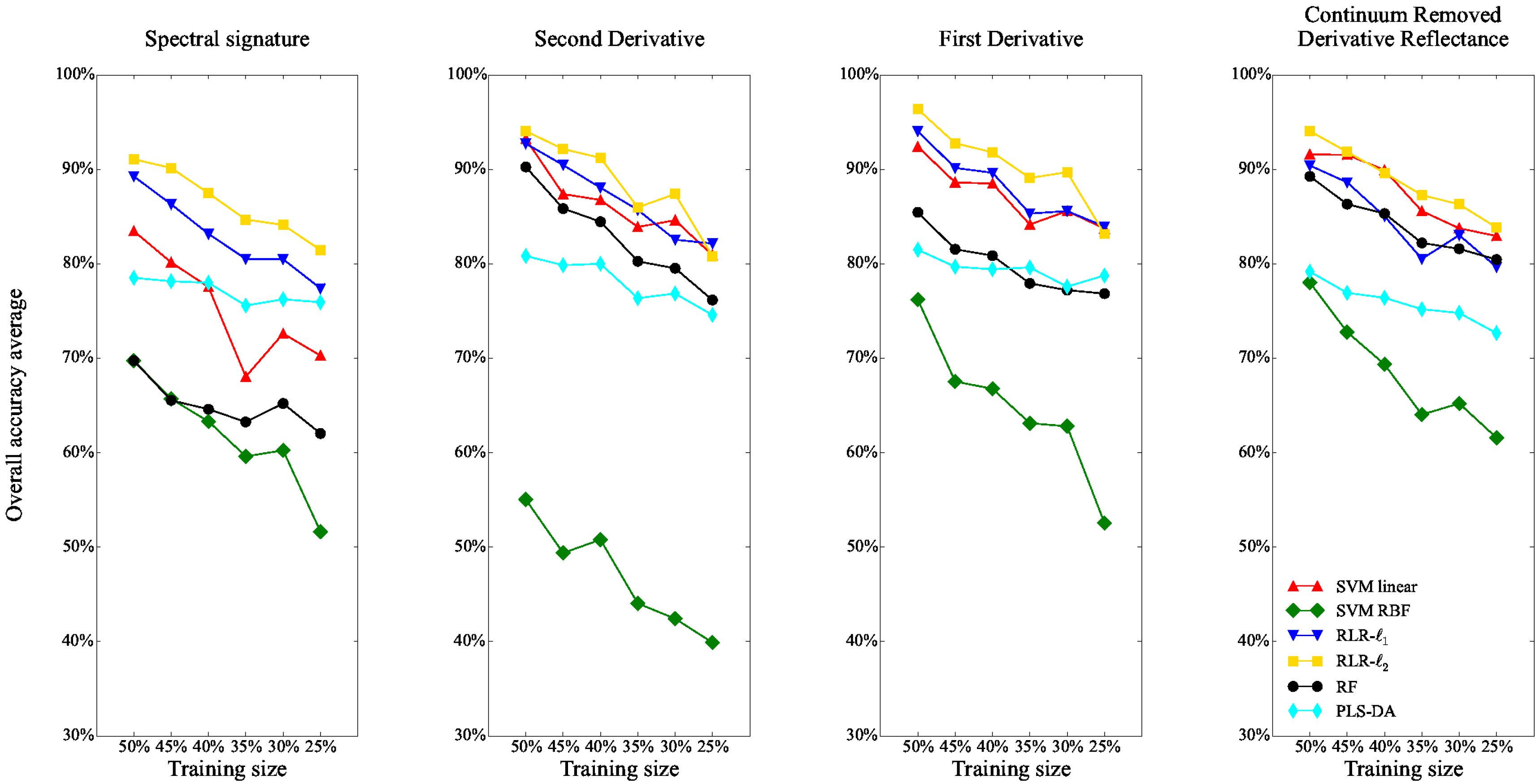

RLR gives better results than SVM and RF (Table 14, Figure 14) except when the size of the training set equals 50% for the Hellinger distance. That may be explained by the possible confusion between some vegetation types due to their plant species composition. Indeed, SVM aims to find the best hyperplane that can separate data, whereas RLR aims to find a probability (according to a logistic function) to separate them.

Considering RLR-$\ell 2$ some vegetation types are not easily discriminated whatever the indices.

Table 15. Confusion matrix of the classification based on Regularized Logistic Regression (RLR)-${\ell }_2$ with all indices and training size = 25%. The producer’s and user’s accuracies and the overall accuracy average (OAA) are also shown.

	SPHA	CAVU	RH_FR	CA_HV	AQ_A	SALI	PING	JUCO	ELQU	METR	PI_CV	AQ_B	AQ_C	Producer’s Accuracy (%)
SPHA	$\mathbf{15.20}$	0.73	0.43	0.33	0.00	0.17	0.00	0.00	0.07	0.03	0.03	0.00	0.00	89.46
CAVU	2.30	$\mathbf{6.20}$	0.67	0.83	0.00	0.07	0.30	0.20	0.17	0.10	0.17	0.00	0.00	56.31
RHFR	1.13	0.77	$\mathbf{4.20}$	0.00	0.07	1.67	0.70	1.57	0.50	0.17	0.23	0.00	0.00	38.15
CA_HV	0.00	0.17	0.00	$\mathbf{12.17}$	1.03	0.00	0.53	0.07	0.57	0.57	4.90	0.00	0.00	60.82
AQ_A	0.00	0.00	0.07	0.47	$\mathbf{33.40}$	0.20	0.83	0.00	0.80	1.60	1.00	0.17	1.47	83.48
SALI	0.00	0.30	1.00	0.13	1.33	$\mathbf{8.57}$	0.23	0.00	0.30	0.40	0.70	0.00	0.03	65.97
PING	0.00	0.23	0.23	1.57	1.13	0.00	$\mathbf{1.10}$	0.00	0.60	0.27	0.83	0.00	0.03	18.36
JUCO	0.07	0.00	0.10	0.00	0.13	0.00	0.10	$\mathbf{13.40}$	0.00	0.00	0.20	0.00	0.00	95.71
ELQU	0.00	0.00	0.00	0.00	0.00	0.00	0.07	0.00	$\mathbf{10.93}$	0.00	0.00	0.00	0.00	$\mathbf{99.36}$
METR	0.07	0.00	0.00	1.17	1.40	0.00	0.23	0.00	0.63	$\mathbf{4.43}$	1.03	0.00	0.03	49.28
PI_CV	0.00	0.00	0.07	1.83	0.40	0.03	0.37	0.00	0.03	0.10	$\mathbf{8.03}$	0.00	0.13	73.07
AQ_B	0.23	0.00	0.00	0.00	0.30	0.00	0.00	0.00	0.00	0.00	0.07	$\mathbf{4.40}$	0.00	88.00
AQ_C	0.00	0.07	0.00	0.10	0.67	0.03	0.03	0.00	0.00	0.07	0.30	0.00	$\mathbf{7.73}$	85.89
User’s accuracy (%)	80.00	73.20	62.04	65.43	83.79	79.80	24.50	87.93	74.86	57.24	45.91	$\mathbf{96.28}$	82.06	OAA: $\mathbf{73.31}$
F1-score (%)	84.47	63.66	47.24	63.04	83.64	72.23	20.99	91.66	85.39	52.96	56.39	$\mathbf{91.95}$	83.93

and

Table 16. Confusion matrix of the classification based on RLR-${\ell }_2$ with indices selected by the Hellinger distance and training size = 25%. The producer’s and user’s accuracies and the overall accuracy average (OAA) are also shown.

	SPHA	CAVU	RH_FR	CA_HV	AQ_A	SALI	PING	JUCO	ELQU	METR	PI_CV	AQ_B	AQ_C	Producer’s Accuracy (%)
SPHA	$\mathbf{15.40}$	0.90	0.13	0.47	0.00	0.00	0.00	0.00	0.03	0.07	0.00	0.00	0.00	90.59
CAVU	0.90	$\mathbf{8.03}$	0.67	0.47	0.00	0.03	0.70	0.00	0.03	0.03	0.13	0.00	0.00	73.07
RHFR	0.47	0.30	$\mathbf{6.70}$	0.03	0.00	2.53	0.43	0.20	0.13	0.20	0.00	0.00	0.00	60.96
CA_HV	0.00	0.17	0.20	$\mathbf{11.93}$	0.77	0.00	0.77	0.03	0.57	0.63	4.93	0.00	0.00	59.65
AQ_A	0.00	0.00	0.23	0.40	$\mathbf{33.40}$	0.43	1.50	0.03	0.43	1.63	1.33	0.00	0.60	83.54
SALI	0.00	0.00	2.30	0.00	0.87	$\mathbf{7.77}$	0.80	0.07	0.03	0.40	0.60	0.00	0.17	59.72
PING	0.00	0.27	0.17	1.67	0.37	0.00	$\mathbf{2.20}$	0.00	0.17	0.40	0.73	0.00	0.03	36.61
JUCO	0.00	0.03	0.20	0.07	0.10	0.17	0.07	$\mathbf{12.93}$	0.00	0.07	0.37	0.00	0.00	92.29
ELQU	0.00	0.00	0.00	0.07	0.00	0.00	0.33	0.00	$\mathbf{10.60}$	0.00	0.00	0.00	0.00	$\mathbf{96.36}$
METR	0.00	0.00	0.03	0.87	0.73	0.00	0.07	0.00	0.03	$\mathbf{6.23}$	1.03	0.00	0.00	69.30
PI_CV	0.00	0.00	0.10	1.23	0.17	0.07	0.23	0.00	0.00	0.37	$\mathbf{8.83}$	0.00	0.00	80.27
AQ_B	0.03	0.00	0.47	0.00	0.10	0.00	0.07	0.00	0.00	0.10	0.00	$\mathbf{4.23}$	0.00	84.60
AQ_C	0.00	0.00	0.00	0.03	0.47	0.00	0.10	0.00	0.00	0.00	0.00	0.00	$\mathbf{8.40}$	93.33
User’s accuracy (%)	91.67	82.78	59.82	69.20	90.32	70.64	30.26	97.51	88.19	61.50	49.19	$\mathbf{100.00}$	91.30	OAA: $\mathbf{77.21}$
F1-score (%)	91.12	77.62	60.39	64.07	86.80	64.72	33.13	$\mathbf{94}.\mathbf{83}$	92.09	65.17	61.00	91.66	92.31

show that PING has the lowest F1-score (20.99% and 33.13% respectively) which can be explained by the mixed composition of this habitat (Appendix B) and not the low number of spectra. Indeed, AQ_B has about the same number of spectra: 7 spectra whereas 8 spectral measurements have been collected for PING. Yet it has a F1-score = 91.95% considering all indices and F1-score = 91.66% considering indices selected by the Hellinger distance that can be explained by its composition dominated by Utricularia sp.

Focusing on shrubs, JUCO has the best performances (F1-score = 94.83%) whereas SALI and RHFR are often confounded. Table 16 shows that on average 2.53 spectra of RHFR (≃20.02%) are classified as SALI and on average 2.30 spectra of SALI (≃19.15%) are classified as RHFR. Indeed, as JUCO has a higher foliage density, the overall spatial signature is less sensitive to the ground influence and as a result JUCO spectral reflectance is close to a pure endmember (Appendix B). In the latter case, the spectral measurements are composed of soil and more affected by mixed signatures. Another pair of vegetation types is hardly discriminated: PI_CV and CA_HV. Table 16 shows that on average 4.93 spectra of CA_HV (≃25%) are classified as PI_CV which may be explained by the plant species they have in common: Carex (50–100% depending on the location) and Molinia caerulea ssp. caerulae (40–70%) (Appendix B).

4.3. Supervised Classification According to the Spectral Ranges

Only the best results are presented, obtained with the four spectral ranges ([350–750 $\mathrm{n}\mathrm{m}$], [750–1350 $\mathrm{n}\mathrm{m}$], [350–1350 $\mathrm{n}\mathrm{m}$], [350–2500 $\mathrm{n}\mathrm{m}$]) and the spectral signature as reference and the three transformed spectral signatures (second derivative, first derivative, Continuum Removed Derivative Reflectance).

Table 17. Vegetation types identification accuracies (overall accuracy (±standard deviation) in %) on [350–750 $\mathrm{n}\mathrm{m}$].

Training Size	Classifier	Overall Accuracy (±Standard Deviation) (%)
		Spectral Signature	Second Derivative	First Derivative	Continuum Removed Derivative Reflectance
50%	SVM linear	80.99 (±6.61)	86.94 (±5.21)	85.95 (±3.81)	$\mathbf{88.26}(\pm \mathbf{2.53})$
	SVM RBF	67.44 (±4.69)	78.35 (±2.74)	81.32 (±2.13)	86.94 (±3.11)
	RLR-${\ell }_1$	86.45 (±3.57)	86.94 (±4.10)	89.75 (±2.48)	86.94 (±1.76)
	RLR-${\ell }_2$	$\mathbf{88.10}(\pm \mathbf{3.64})$	$\mathbf{88.43}(\pm \mathbf{2.02})$	$\mathbf{90.91}(\pm \mathbf{2.86})$	87.44 (±1.84)
	RF	62.98 (±3.52)	84.79 (±4.92)	73.88 (±2.84)	86.45 (±4.07)
	PLS-DA	75.21 (±3.88)	71.90 (±4.99)	73.72 (±3.52)	75.04 (±3.28)
45%	SVM linear	81.38 (±4.80)	85.85 (±1.79)	84.62 (±1.54)	$\mathbf{87.69}(\pm \mathbf{1.88})$
	SVM RBF	64.15 (±2.41)	73.54 (±4.71)	76.92 (±2.06)	86.00 (±1.02)
	RLR-${\ell }_1$	83.85 (±4.01)	84.00 (±2.64)	85.85 (±4.63)	86.00 (±1.57)
	RLR-${\ell }_2$	$\mathbf{85.85}(\pm \mathbf{2.78})$	$\mathbf{86.92}(\pm \mathbf{2.01})$	$\mathbf{87.08}(\pm \mathbf{2.64})$	85.69 (±1.66)
	RF	59.85 (±3.35)	82.31 (±4.43)	72.46 (±3.13)	85.23 (±3.13)
	PLS-DA	75.38 (±2.18)	72.62 (±2.86)	72.15 (±1.23)	71.08 (±2.60)
40%	SVM linear	75.97 (±4.31)	83.60 (±3.23)	$\mathbf{84.89}(\pm \mathbf{2.69})$	$\mathbf{87.77}(\pm \mathbf{2.77})$
	SVM RBF	62.45 (±3.07)	73.09 (±4.50)	72.52 (±4.69)	83.45 (±2.41)
	RLR-${\ell }_1$	80.72 (±2.06)	82.16 (±1.47)	83.88 (±2.83)	82.73 (±1.11)
	RLR-${\ell }_2$	$\mathbf{84.46}(\pm \mathbf{3.48})$	$\mathbf{85.18}(\pm \mathbf{3.17})$	84.60 (±3.85)	84.32 (±1.79)
	RF	56.69 (±1.95)	80.29 (±4.50)	70.36 (±3.17)	83.74 (±2.93)
	PLS-DA	76.69 (±2.75)	72.52 (±1.79)	72.81 (±1.32)	70.22 (±1.62)
35%	SVM linear	69.74 (±7.38)	$\mathbf{80.52}(\pm \mathbf{5.15})$	80.00 (±3.22)	$\mathbf{83.77}(\pm \mathbf{2.63})$
	SVM RBF	56.23 (±3.09)	68.05 (±4.01)	68.31 (±3.86)	80.39 (±2.07)
	RLR-${\ell }_1$	77.92 (±4.11)	77.79 (±3.37)	80.00 (±4.78)	79.74 (±3.35)
	RLR-${\ell }_2$	$\mathbf{82.08}(\pm \mathbf{2.80})$	78.96 (±3.55)	$\mathbf{82.47}(\pm \mathbf{3.36})$	81.69 (±2.07)
	RF	53.25 (±3.05)	77.27 (±3.15)	67.27 (±2.12)	80.52 (±2.17)
	PLS-DA	75.45 (±3.42)	69.48 (±2.63)	70.52 (±2.12)	68.70 (±1.71)
30%	SVM linear	70.42 (±3.08)	$\mathbf{79.52}(\pm \mathbf{5.22})$	79.64 (±1.78)	$\mathbf{84.48}(\pm \mathbf{1.82})$
	SVM RBF	55.39 (±5.74)	67.03 (±4.17)	68.61 (±3.48)	80.73 (±1.50)
	RLR-${\ell }_1$	78.30 (±2.08)	74.91 (±7.86)	77.94 (±3.77)	78.79 (±6.37)
	RLR-${\ell }_2$	$\mathbf{80.85}(\pm \mathbf{2.98})$	77.33 (±9.20)	$\mathbf{81.94}(\pm \mathbf{3.42})$	81.70 (±4.01)
	RF	54.30 (±1.86)	76.97 (±4.58)	68.00 (±0.97)	79.88 (±3.33)
	PLS-DA	72.00 (±3.54)	69.09 (±4.58)	68.73 (±3.20)	68.48 (±4.85)
25%	SVM linear	65.65 (±4.57)	$\mathbf{74.69}(\pm \mathbf{2.46})$	74.46 (±2.33)	$\mathbf{80.45}(\pm \mathbf{2.49})$
	SVM RBF	52.54 (±5.26)	60.45 (±5.24)	63.28 (±4.33)	78.42 (±3.36)
	RLR-${\ell }_1$	75.59 (±2.49)	71.98 (±3.33)	75.25 (±4.25)	75.25 (±4.92)
	RLR-${\ell }_2$	$\mathbf{77.74}(\pm \mathbf{3.81})$	72.99 (±6.61)	$\mathbf{79.77}(\pm \mathbf{3.79})$	77.63 (±2.52)
	RF	52.66 (±4.40)	73.79 (±1.41)	65.42 (±1.69)	77.40 (±2.34)
	PLS-DA	71.53 (±0.92)	69.72 (±3.96)	70.40 (±2.44)	70.40 (±4.18)

,

Table 18. Vegetation types identification accuracies (overall accuracy (±standard deviation) in %) on [750–1350 $\mathrm{n}\mathrm{m}$].

Training Size	Classifier	Overall Accuracy (±Standard Deviation) (%)
		Spectral Signature	Second Derivative	First Derivative	Continuum Removed Derivative Reflectance
50%	SVM linear	83.31 (±1.10)	89.09 (±2.05)	90.91 (±1.38)	84.13 (±2.42)
	SVM RBF	57.69 (±4.03)	79.34 (±4.37)	87.60 (±2.34)	78.68 (±2.93)
	RLR-${\ell }_1$	$\mathbf{90.41}(\pm \mathbf{2.00})$	88.76 (±2.19)	89.92 (±1.42)	87.44 (±2.42)
	RLR-${\ell }_2$	86.28 (±3.25)	$\mathbf{91.07}(\pm \mathbf{1.42})$	$\mathbf{94.88}(\pm \mathbf{1.10})$	$\mathbf{90.91}(\pm \mathbf{2.45})$
	RF	53.88 (±2.05)	86.28 (±1.70)	79.83 (±1.44)	80.66 (±1.53)
	PLS-DA	77.52 (±2.30)	73.72 (±1.91)	77.69 (±2.96)	70.74 (±2.84)
45%	SVM linear	78.15 (±5.43)	84.15 (±1.86)	86.31 (±4.17)	82.77 (±3.85)
	SVM RBF	59.54 (±2.21)	72.77 (±3.82)	82.77 (±4.20)	75.85 (±2.31)
	RLR-${\ell }_1$	$\mathbf{86.46}(\pm \mathbf{3.46})$	85.38 (±3.67)	87.69 (±2.43)	82.92 (±1.78)
	RLR-${\ell }_2$	85.23 (±3.49)	$\mathbf{85.69}(\pm \mathbf{2.86})$	$\mathbf{90.46}(\pm \mathbf{2.46})$	$\mathbf{85.85}(\pm \mathbf{1.58})$
	RF	53.54 (±1.79)	80.15 (±2.73)	76.77 (±3.87)	77.54 (±2.20)
	PLS-DA	73.54 (±3.97)	70.46 (±2.31)	74.15 (±3.56)	68.15 (±3.53)
40%	SVM linear	77.70 (±5.46)	80.72 (±3.98)	83.88 (±3.82)	80.43 (±6.11)
	SVM RBF	58.85 (±2.20)	69.64 (±4.20)	80.29 (±3.04)	72.95 (±1.62)
	RLR-${\ell }_1$	$\mathbf{85.32}(\pm \mathbf{3.88})$	84.46 (±3.60)	88.06 (±3.24)	81.29 (±2.91)
	RLR-${\ell }_2$	82.88 (±2.25)	$\mathbf{86.19}(\pm \mathbf{2.38})$	$\mathbf{89.64}(\pm \mathbf{3.39})$	$\mathbf{82.73}(\pm \mathbf{3.83})$
	RF	53.24 (±2.61)	77.99 (±2.75)	74.96 (±3.29)	73.96 (±3.48)
	PLS-DA	72.09 (±1.54)	72.09 (±2.89)	74.96 (±3.07)	68.35 (±3.61)
35%	SVM linear	72.86 (±4.33)	78.44 (±4.81)	80.65 (±4.47)	75.84 (±2.83)
	SVM RBF	55.06 (±2.03)	67.14 (±4.69)	76.23 (±3.50)	66.88 (±2.87)
	RLR-${\ell }_1$	$\mathbf{80.39}(\pm \mathbf{3.71})$	79.22 (±3.60)	84.55 (±2.89)	73.90 (±3.27)
	RLR-${\ell }_2$	78.57 (±3.46)	$\mathbf{82.86}(\pm \mathbf{5.61})$	$\mathbf{87.27}(\pm \mathbf{3.22})$	$\mathbf{78.57}(\pm \mathbf{4.19})$
	RF	52.99 (±2.08)	73.64 (±2.89)	73.51 (±3.00)	69.61 (±3.14)
	PLS-DA	70.65 (±2.80)	70.52 (±2.92)	72.47 (±3.66)	66.23 (±2.82)
30%	SVM linear	74.18 (±1.70)	80.48 (±3.37)	81.58 (±2.83)	75.39 (±2.53)
	SVM RBF	55.27 (±2.93)	70.06 (±3.81)	76.24 (±4.72)	67.39 (±7.39)
	RLR-${\ell }_1$	$\mathbf{80.97}(\pm \mathbf{1.19})$	79.88 (±2.61)	84.73 (±3.05)	76.12 (±1.61)
	RLR-${\ell }_2$	80.00 (±3.49)	$\mathbf{83}.\mathbf{88}(\pm \mathbf{3}.\mathbf{38})$	$\mathbf{87}.\mathbf{64}(\pm \mathbf{3}.\mathbf{31})$	$\mathbf{78}.\mathbf{79}(\pm \mathbf{2}.\mathbf{06})$
	RF	52.00 (±1.69)	74.42 (±2.58)	73.21 (±2.61)	70.55 (±2.35)
	PLS-DA	72.36 (±3.69)	70.06 (±4.35)	73.45 (±3.31)	64.48 (±0.82)
25%	SVM linear	67.80 (±3.52)	75.48 (±2.59)	78.19 (±1.37)	73.11 (±0.68)
	SVM RBF	53.11 (±2.20)	60.90 (±3.90)	69.94 (±3.63)	66.78 (±2.98)
	RLR-${\ell }_1$	75.14 (±3.31)	77.29 (±2.93)	80.90 (±2.46)	72.77 (±1.65)
	RLR-${\ell }_2$	$\mathbf{76.84}(\pm \mathbf{2.88})$	$\mathbf{78.87}(\pm \mathbf{3.46})$	$\mathbf{83.05}(\pm \mathbf{4.55})$	$\mathbf{76.95}(\pm \mathbf{2.66})$
	RF	48.59 (±4.14)	71.64 (±3.87)	73.11 (±2.04)	69.83 (±2.36)
	PLS-DA	70.62 (±2.70)	69.83 (±0.68)	72.09 (±2.28)	63.95 (±3.12)

,

Table 19. Vegetation types identification accuracies (overall accuracy (±standard deviation) in %) in [350–1350 $\mathrm{n}\mathrm{m}$].

Training Size	Classifier	Overall Accuracy (±Standard Deviation) (%)
		Spectral Signature	Second Derivative	First Derivative	Continuum Removed Derivative Reflectance
50%	SVM linear	83.47 (±2.77)	93.22 (±0.96)	92.40 (±1.42)	91.57 (±2.24)
	SVM RBF	69.75 (±2.98)	55.04 (±4.10)	76.20 (±4.66)	78.02 (±1.53)
	RLR-${\ell }_1$	89.26 (±1.65)	92.73 (±1.69)	94.05 (±2.63)	90.41 (±1.34)
	RLR-${\ell }_2$	$\mathbf{91.07}(\pm \mathbf{3.56})$	$\mathbf{94.05}(\pm \mathbf{1.32})$	$\mathbf{96.36}(\pm \mathbf{2.00})$	$\mathbf{94.05}(\pm \mathbf{1.76})$
	RF	69.75 (±2.80)	90.25 (±1.91)	85.45 (±1.44)	89.26 (±2.45)
	PLS-DA	78.51 (±2.45)	80.83 (±2.05)	81.49 (±2.80)	79.17 (±2.24)
45%	SVM linear	80.15 (±4.02)	87.38 (±2.15)	88.62 (±3.05)	91.54 (±1.61)
	SVM RBF	65.69 (±3.91)	49.38 (±3.87)	67.54 (±4.70)	72.77 (±2.31)
	RLR-${\ell }_1$	86.31 (±3.49)	90.46 (±1.43)	90.15 (±3.01)	88.62 (±0.58)
	RLR-${\ell }_2$	$\mathbf{90.15}(\pm \mathbf{3.35})$	$\mathbf{92.15}(\pm \mathbf{2.09})$	$\mathbf{92.77}(\pm \mathbf{1.73})$	$\mathbf{91.85}(\pm \mathbf{2.21})$
	RF	65.54 (±3.99)	85.85 (±3.25)	81.54 (±3.08)	86.31 (±4.28)
	PLS-DA	78.15 (±1.79)	79.85 (±3.17)	79.69 (±2.04)	76.92 (±1.54)
40%	SVM linear	77.55 (±3.71)	86.76 (±1.62)	88.49 (±3.44)	$\mathbf{89.93}(\pm \mathbf{4.07})$
	SVM RBF	63.31 (±3.37)	50.79 (±3.60)	66.76 (±5.62)	69.35 (±3.24)
	RLR-${\ell }_1$	83.17 (±1.91)	88.06 (±1.33)	89.64 (±1.33)	85.04 (±3.26)
	RLR-${\ell }_2$	$\mathbf{87.48}(\pm \mathbf{2.79})$	$\mathbf{91.22}(\pm \mathbf{0.95})$	$\mathbf{91.80}(\pm \mathbf{1.41})$	89.64 (±1.96)
	RF	64.60 (±2.51)	84.46 (±3.17)	80.86 (±2.64)	85.32 (±4.70)
	PLS-DA	77.99 (±1.68)	80.00 (±2.00)	79.42 (±1.33)	76.40 (±1.24)
35%	SVM linear	68.05 (±5.02)	83.90 (±3.77)	84.16 (±2.68)	85.58 (±2.74)
	SVM RBF	59.61 (±3.06)	44.03 (±3.37)	63.12 (±4.81)	64.03 (±3.69)
	RLR-${\ell }_1$	80.52 (±2.25)	85.71 (±2.79)	85.32 (±2.04)	80.52 (±5.08)
	RLR-${\ell }_2$	$\mathbf{84.68}(\pm \mathbf{2.83})$	$\mathbf{85.97}(\pm \mathbf{3.71})$	$\mathbf{89.09}(\pm \mathbf{1.99})$	$\mathbf{87.27}(\pm \mathbf{3.73})$
	RF	63.25 (±2.42)	80.26 (±3.33)	77.92 (±1.74)	82.21 (±3.35)
	PLS-DA	75.58 (±1.86)	76.36 (±2.65)	79.61 (±1.95)	75.19 (±1.04)
30%	SVM linear	72.61 (±1.93)	84.61 (±3.22)	85.58 (±1.97)	83.76 (±4.10)
	SVM RBF	60.24 (±2.62)	42.42 (±3.36)	62.79 (±7.09)	65.21 (±3.08)
	RLR-${\ell }_1$	80.48 (±2.11)	82.55 (±4.01)	85.58 (±2.95)	83.03 (±4.29)
	RLR-${\ell }_2$	$\mathbf{84.12}(\pm \mathbf{4.12})$	$\mathbf{87.39}(\pm \mathbf{4.76})$	$\mathbf{89.70}(\pm \mathbf{4.22})$	$\mathbf{86.30}(\pm \mathbf{4.48})$
	RF	65.21 (±3.31)	79.52 (±4.22)	77.21 (±1.98)	81.58 (±3.08)
	PLS-DA	76.24 (±3.37)	76.85 (±4.99)	77.58 (±4.20)	74.79 (±3.27)
25%	SVM linear	70.28 (±2.44)	80.90 (±2.16)	83.73 (±2.75)	82.94 (±2.59)
	SVM RBF	51.64 (±1.54)	39.89 (±1.91)	52.54 (±2.84)	61.58 (±2.34)
	RLR-${\ell }_1$	77.40 (±1.96)	$\mathbf{82.15}(\pm \mathbf{3.64})$	$\mathbf{83.95}(\pm \mathbf{1.70})$	79.66 (±2.02)
	RLR-${\ell }_2$	$\mathbf{81.47}(\pm \mathbf{1.10})$	80.79 (±4.42)	83.16 (±6.33)	$\mathbf{83.84}(\pm \mathbf{3.17})$
	RF	62.03 (±3.86)	76.16 (±3.20)	76.84 (±1.86)	80.45 (±3.67)
	PLS-DA	75.93 (±2.74)	74.58 (±2.88)	78.76 (±2.28)	72.66 (±2.49)

and

Table 20. Vegetation types identification accuracies (overall accuracy (±standard deviation) in %) on [350–2500 $\mathrm{n}\mathrm{m}$].

Training Size	Classifier	Overall Accuracy (±Standard Deviation) (%)
		Spectral Signature	Second Derivative	First Derivative	Continuum Removed Derivative Reflectance
50%	SVM linear	83.47 (±2.34)	85.29 (±4.10)	$\mathbf{87.44}(\pm \mathbf{1.21})$	$\mathbf{91.90}(\pm \mathbf{1.76})$
	SVM RBF	61.98 (±4.31)	19.34 (±5.95)	22.81 (±0.40)	25.12 (±0.84)
	RLR-${\ell }_1$	91.07 (±2.30)	82.31 (±3.16)	83.80 (±3.07)	88.26 (±1.60)
	RLR-${\ell }_2$	$\mathbf{91.57}(\pm \mathbf{1.42})$	81.49 (±2.37)	82.81 (±2.05)	84.79 (±2.37)
	RF	71.24 (±2.63)	$\mathbf{89.92}(\pm \mathbf{1.98})$	84.96 (±2.42)	90.58 (±0.40)
	PLS-DA	75.04 (±2.05)	78.35 (±4.91)	75.70 (±2.98)	79.83 (±0.84)
45%	SVM linear	79.08 (±1.32)	79.38 (±1.57)	$\mathbf{82.31}(\pm \mathbf{1.61})$	$\mathbf{90.62}(\pm \mathbf{1.78})$
	SVM RBF	55.38 (±6.10)	22.31 (±0.00)	22.46 (±0.31)	24.15 (±1.58)
	RLR-${\ell }_1$	85.23 (±2.25)	79.69 (±2.86)	81.08 (±2.56)	84.77 (±2.89)
	RLR-${\ell }_2$	$\mathbf{86.00}(\pm \mathbf{2.73})$	79.23 (±2.33)	79.54 (±2.36)	77.69 (±3.61)
	RF	69.08 (±4.42)	$\mathbf{85.08}(\pm \mathbf{2.46})$	80.92 (±1.32)	87.69 (±2.96)
	PLS-DA	73.08 (±3.34)	75.23 (±4.31)	72.00 (±3.29)	77.69 (±1.88)
40%	SVM linear	76.12 (±0.84)	79.42 (±0.86)	$\mathbf{82.30}(\pm \mathbf{2.35})$	$\mathbf{88.06}(\pm \mathbf{1.68})$
	SVM RBF	53.24 (±3.61)	23.02 (±0.00)	23.45 (±0.58)	25.18 (±1.02)
	RLR-${\ell }_1$	83.88 (±3.69)	79.28 (±1.79)	79.86 (±3.83)	82.59 (±3.98)
	RLR-${\ell }_2$	$\mathbf{84.75}(\pm \mathbf{2.86})$	81.01 (±3.11)	79.57 (±2.35)	79.28 (±3.57)
	RF	65.90 (±3.48)	$\mathbf{84.17}(\pm \mathbf{3.34})$	79.28 (±2.67)	86.04 (±2.60)
	PLS-DA	73.67 (±1.85)	74.39 (±2.07)	71.94 (±3.75)	76.55 (±4.31)
35%	SVM linear	69.74 (±1.13)	77.27 (±1.09)	$\mathbf{79.87}(\pm \mathbf{1.79})$	$\mathbf{84.42}(\pm \mathbf{4.35})$
	SVM RBF	49.87 (±3.64)	20.00 (±5.45)	20.13 (±5.53)	22.21 (±4.69)
	RLR-${\ell }_1$	82.47 (±3.74)	74.42 (±2.38)	76.23 (±2.04)	78.05 (±1.26)
	RLR-${\ell }_2$	$\mathbf{83.64}(\pm \mathbf{3.19})$	77.27 (±2.87)	77.14 (±1.99)	74.94 (±2.80)
	RF	64.03 (±3.01)	$\mathbf{79.35}(\pm \mathbf{2.83})$	77.27 (±1.23)	82.47 (±2.82)
	PLS-DA	71.95 (±2.19)	72.34 (±2.27)	70.65 (±3.57)	74.42 (±3.20)
30%	SVM linear	69.94 (±3.90)	77.33 (±1.82)	$\mathbf{79.64}(\pm \mathbf{2.59})$	$\mathbf{84.36}(\pm \mathbf{5.88})$
	SVM RBF	48.85 (±4.05)	22.42 (±0.00)	22.42 (±0.00)	24.12 (±0.89)
	RLR-${\ell }_1$	79.39 (±2.24)	71.27 (±3.29)	76.36 (±3.27)	78.06 (±5.44)
	RLR-${\ell }_2$	$\mathbf{83.27}(\pm \mathbf{3.48})$	75.88 (±4.64)	75.52 (±3.03)	75.15 (±4.11)
	RF	65.21 (±3.83)	$\mathbf{78.06}(\pm \mathbf{2.22})$	77.21 (±2.67)	80.00 (±4.25)
	PLS-DA	70.18 (±2.80)	71.27 (±3.61)	68.85 (±4.67)	73.45 (±2.58)
25%	SVM linear	65.31 (±4.24)	74.24 (±1.54)	$\mathbf{77.51}(\pm \mathbf{1.49})$	$\mathbf{83.05}(\pm \mathbf{3.29})$
	SVM RBF	43.05 (±1.31)	22.60 (±0.00)	22.60 (±0.00)	24.07 (±0.58)
	RLR-${\ell }_1$	74.92 (±1.70)	67.46 (±3.44)	71.64 (±2.35)	75.03 (±5.27)
	RLR-${\ell }_2$	$\mathbf{80.23}(\pm \mathbf{0.80})$	73.79 (±3.57)	74.35 (±2.19)	70.73 (±1.84)
	RF	62.49 (±4.15)	$\mathbf{74.58}(\pm \mathbf{2.14})$	76.61 (±2.22)	79.10 (±2.95)
	PLS-DA	70.17 (±1.40)	70.96 (±4.00)	70.06 (±3.24)	72.43 (±2.64)

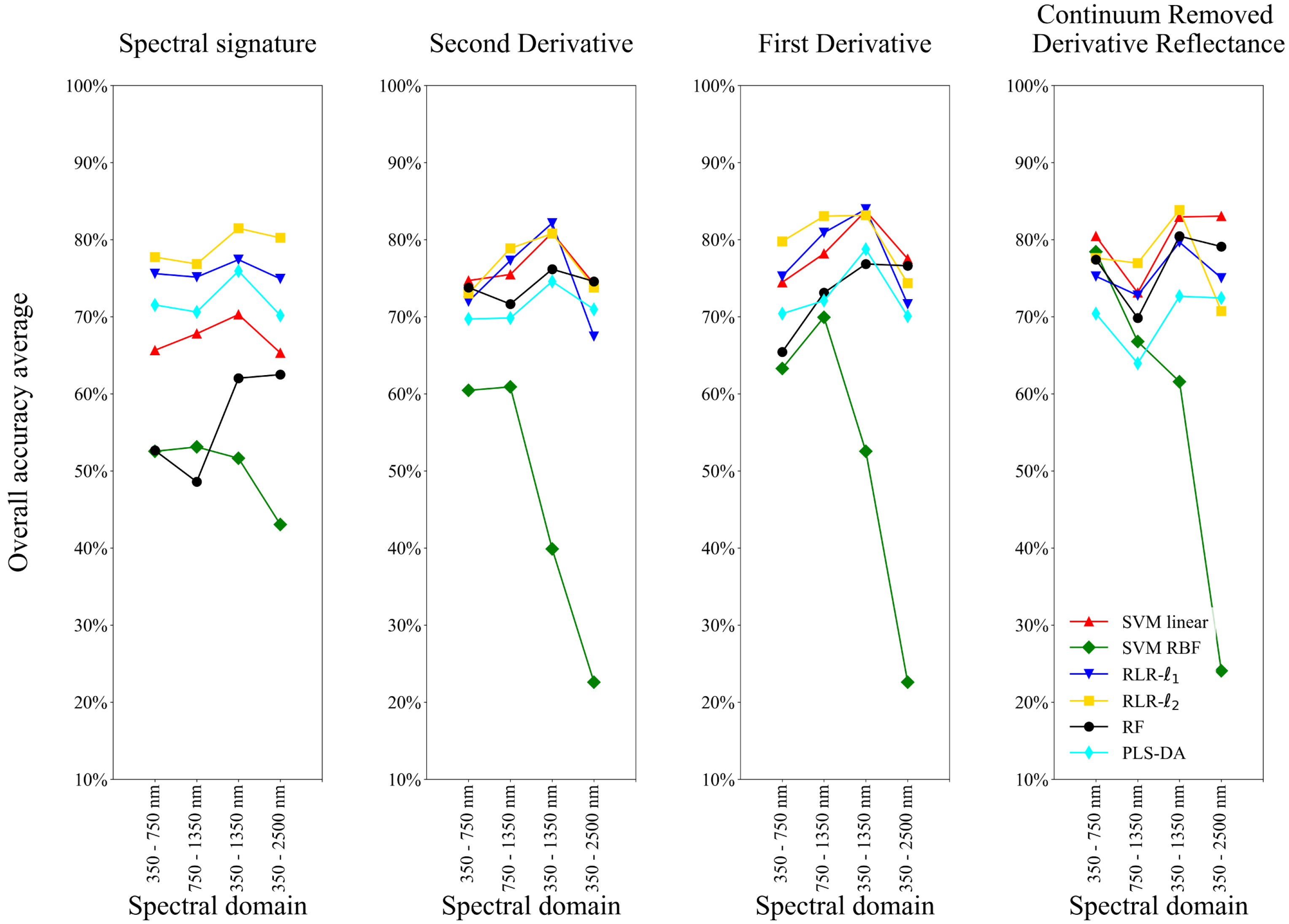

show the best results obtained with RLR-${\ell }_2$ on [350–1350 $\mathrm{n}\mathrm{m}$] whatever the transformed spectral signatures.

Considering wavelengths used by selected indices (Section 4.2.1), most of them use spectral bands located on [350–1350 $\mathrm{n}\mathrm{m}$] either: 50% are located in visible range and 32.35% in near-infrared range. Indeed, in this spectral range all the biophysical components discriminating the peatland vegetation types can be taken into account. That is confirmed by Figure 15 which shows that the best results are given by [350–1350 $\mathrm{n}\mathrm{m}$] considering the training size = 25% regardless the transformed spectral signatures and the the classifier, except for RF applied on the spectral signature. In this case, considering the whole spectral range improves the result by 1% compared with [350–1350 $\mathrm{n}\mathrm{m}$].

Considering RLR-${\ell }_2$ in [350–1350 $\mathrm{n}\mathrm{m}$],

Table 21. Vegetation types identification accuracies (overall accuracy (±standard deviation) in %) on [350–1350 $\mathrm{n}\mathrm{m}$] for RLR-${\ell }_2$.

Training Size	Overall Accuracy (±Standard Deviation) (%)
	Spectral Signature	Second Derivative	First Derivative	Continuum Removal	Continuum Removed Derivative Reflectance	log Transformation
50%	91.07 (±3.56)	94.05 (±1.32)	$\mathbf{96.36}(\pm \mathbf{2.00})$	89.59 (±1.93)	94.05 (±1.76)	93.72 (±2.13)
45%	90.31 (±3.39)	92.15 (±2.09)	$\mathbf{92.77}(\pm \mathbf{1.73})$	87.85 (±2.59)	91.85 (±2.21)	89.69 (±4.03)
40%	87.48 (±2.79)	91.22 (±0.95)	$\mathbf{91.80}(\pm \mathbf{1.41})$	83.31 (±3.79)	89.64 (±1.96)	88.35 (±2.15)
35%	84.68 (±2.83)	85.97 (±3.71)	$\mathbf{89.09}(\pm \mathbf{1.99})$	81.56 (±3.45)	87.27 (±3.73)	86.23 (±3.45)
30%	84.24 (±4.07)	87.39 (±4.76)	$\mathbf{89.70}(\pm \mathbf{4.22})$	82.79 (±4.09)	86.30 (±4.48)	84.36 (±4.22)
25%	81.47 (±1.10)	80.79 (±4.42)	83.16 (±6.33)	80.45 (±2.62)	$\mathbf{83.84}(\pm \mathbf{3.17})$	82.15 (±2.13)

shows that the best overall accuracies are given by first derivative, second derivative and CRDR. First and second derivatives overall accuracies are very close (difference lower than 1%). However, those transformations are sensitive to noise. However, CRDR delivered better results than spectral signatures and similar performances to the first and second derivatives (difference is lower than 4%). As mentioned in Section 4.1, those transformations are closely related to absorption features rather than reflectance magnitude [38], and are helpful to discriminate between peatland vegetation types which are clearly characterized by different biophysical components as mentioned in Section 4.2.1.

Considering RLR, ${\ell }_1$ regularization, which controls the selection or the removal of variables, always underperforms ${\ell }_2$-regularization, which handles collinear variables [16]. Because of mixed plant species, it is difficult to remove variables that are not involved in the classification of all the vegetation types. Although SVM and RF are popular classifiers in remote sensing community, they are outclassed by RLR in [350 $\mathrm{n}$$\mathrm{m}$–1350 $\mathrm{n}$$\mathrm{m}$] which is the spectral range where results are the best (Figure 16). Results given by SVM RBF are lower than those obtained with RLR and can be explained by the difficulty to find adapted parameters considering this high dimensionality problem. However, it is interesting to note that results from SVM linear are close to RLR ones considering first derivative, second derivative and CRDR. Further investigations should be conducted to better understand the link between those classifiers and improve the choice of the parameters. Figure 16 shows that PLS-DA is the least sensitive classifier to training size regardless transformed spectral signatures in [350–1350 $\mathrm{n}\mathrm{m}$].

Table 22. Confusion matrix of the RLR-${\ell }_2$ classification using Continuum Removed Derivative Reflectance (CRDR) on [350–1350 $\mathrm{n}\mathrm{m}$] (training size = 25%). The producer’s and user’s accuracies, the overall accuracy and the F1-score are also shown.

	SPHA	CAVU	RH_FR	CA_HV	AQ_A	SALI	PING	JUQO	ELQU	METR	PI_CV	AQ_B	AQ_C	Producer’s Accuracy (%)
SPHA	$\mathbf{15.40}$	1.40	0.00	0.20	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	90.59
CAVU	3.20	$\mathbf{7.00}$	0.00	0.00	0.00	0.00	0.20	0.00	0.20	0.00	0.40	0.00	0.00	63.64
RHFR	1.40	0.00	$\mathbf{8.20}$	0.20	0.00	0.40	0.20	0.60	0.00	0.00	0.00	0.00	0.00	74.55
CA_HV	0.00	0.00	0.00	$\mathbf{16.00}$	1.40	0.20	0.00	0.20	0.00	0.20	2.00	0.00	0.00	80.00
AQ_A	0.20	0.00	0.00	1.80	$\mathbf{31.80}$	0.00	0.00	0.20	0.40	1.40	0.20	3.20	0.80	79.50
SALI	0.00	0.00	0.20	0.40	0.20	$\mathbf{11.80}$	0.00	0.40	0.00	0.00	0.00	0.00	0.00	90.77
PING	0.00	0.20	0.00	0.40	0.40	0.00	$\mathbf{3.20}$	0.00	0.40	0.00	1.40	0.00	0.00	53.33
JUCO	0.00	0.00	0.00	0.00	0.00	0.00	0.00	$\mathbf{14.00}$	0.00	0.00	0.00	0.00	0.00	$\mathbf{100.00}$
ELQU	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	$\mathbf{11.00}$	0.00	0.00	0.00	0.00	$\mathbf{100.00}$
METR	0.00	0.00	0.00	0.00	2.60	0.00	0.00	0.00	0.60	$\mathbf{5.80}$	0.00	0.00	0.00	64.44
PI_CV	0.00	0.00	0.00	0.40	0.00	0.00	0.00	0.00	0.00	0.00	$\mathbf{10.60}$	0.00	0.00	96.36
AQ_B	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	$\mathbf{5.00}$	0.00	$\mathbf{100.00}$
AQ_C	0.00	0.00	0.00	0.00	0.40	0.00	0.00	0.00	0.00	0.00	0.00	0.00	$\mathbf{8.60}$	95.56
User’s accuracy (%)	76.24	81.40	$\mathbf{97.62}$	82.47	86.41	95.16	88.89	90.91	87.30	78.38	72.60	60.98	91.49	OAA: $\mathbf{83.84}$
F1-score (%)	82.80	71.43	84.54	81.22	82.81	92.91	66.67	$\mathbf{95.24}$	93.22	70.73	82.81	75.76	93.48

shows that Pinguicula sp. (PING) has the lowest F1-score (66.67% and 56.00% respectively) as well as for the spectral vegetation indices (Section 4.2.2). Besides, this vegetation type can hardly be discriminated from the other ones (Producer’s accuracy (PA) = 53.33%) and some Pinguicula sp. combined vegetation (PI_CV) spectra are classified as PING). However, it should be kept in mind that PING has a small number of spectra. Considering Aquatic type b (AQ_B) which has about the same number of spectra (7 spectra against 8 for PING), User’s Accuracy (UA) = 60.98% and some Aquatic type a (AQ_A) spectra are predicted as AQ_B ones. These poor UA results compared to one obtained by spectral vegetation indices can not be explained by the spectral domain. Indeed, the best spectra vegetation index (NDWI[860,1240]) that discriminate between AQ_A and AQ_B has both wavelengths in [350–1350 $\mathrm{n}\mathrm{m}$]. However, this result may be qualified by PA. Indeed, on [350–1350 $\mathrm{n}\mathrm{m}$] domain, UA = 100.00% whereas UA = 84.60% for spectral vegetation indices. Nevertheless, using a continuous spectral domain can lead to worse results for other vegetation types such as Sphagnum sp. (SPHA), Calluna vulgaris (CAVU), AQ_A: F1-score is always better considering the same classifier (RLR-${\ell }_2$) applied on spectral vegetation indices selected by the Hellinger distance (SPHA: 91.12% vs. 82.80%; CAVU: 77.62% vs. 71.43%; AQ_A: 86.80% vs. 82.81%). Considering SPHA, if PA = 90.59% for spectral vegetation indices or for [350–1350 $\mathrm{n}\mathrm{m}$], the latter predicts more SPHA than observed (UA = 76.24%) and is more confused with CAVU. This can be explained by plot 7 which is mainly composed of Calluna vulgaris (20%), Carex rostrata (25%), Molinia caerulea ssp. caerulae (20%) and Sphagnum palustre (20%) (Appendix B).

In our case, reducing feature space by selecting most discriminant wavelengths (using PCA or MNF) has not been implemented, whereas it can be an interesting track to explore to see if it improves results for RLR-${\ell }_2$. Juniperus communis (JUCO), Eleocharis quinqueflora (ELQU) and Aquatic type c (AQ_C) have about the same F1-score considering spectral vegetation indices or [350–1350 $\mathrm{n}\mathrm{m}$]: less than 2% difference. However, they have better PA on the continuous spectral range (PA = 100.00% for JUCO; 95.56% for AQ_C) which means that this spectral range contains discriminant wavelengths able to catch characteristics of those vegetation types.

Rhododendron ferrugineum (RHFR), Carex sp. homogeneous vegetation (CA_HV), Salix sp. (SALI) and Menyanthes trifoliata (METR) have better results considering [350–1350 $\mathrm{n}\mathrm{m}$]. This can be explained by the fact that the spectral vegetation indices used have not been built for that kind of vegetation type. Further investigations can be undertaken to find specific indices that can discriminate between those vegetation types and other ones.

5. Conclusions and Perspectives

This study aimed at inventorying and evaluating the performance of discrimination techniques for peatland habitats based on in situ hyperspectral measurements with a high spectral resolution and high signal-to-noise ratio. To evaluate the potential of hyperspectral data to separate and classify those habitats, three classes of methods were investigated and compared:

• similarity measures calculated on spectral reflectance,
• supervised classification based on “local” information (spectral vegetation indices),
• supervised classification based on “global” information (spectral ranges).

This study demonstrated that is it possible to discriminate between peatland vegetation types by using the Canberra distance on the whole spectral range [350–2500 $\mathrm{n}\mathrm{m}$]. This distance is sensitive to a small change when both coordinates approach zero which is the case of reflectance especially in the visible ranges and in the SWIR (Figure 2). Further investigations should be conducted to see if combinations of spectral range can improve overall accuracy or if the lack of spectral signatures in the reference database (which is a weakness of this method) may explain why the whole spectral range is needed to compare spectra in that case. Besides, it is of importance to collect more spectral signatures from peatland vegetation types to build a spectral reference database of peatland vegetation types that can catch more spectral variability.

Although there are no spectral vegetation indices built to discriminate between peatland vegetation types, this study showed that some indices could be selected using the Hellinger distance. Although those indices have not been built to discriminate between peatland vegetation types, they were able to classify them because they focus on biochemical properties such as chlorophyll, nitrogen, water stress, etc. Further investigations have to be done to see the impact of spectral bandwidth around the wavelength of selected indices instead of working with one particular wavelength. For instance, there are lots of indices that catch the same biochemical property but wavelengths of interest change because they focus on specific plant species (e.g., for the chlorophyll, SR [700,670] is built for field corn, whereas SR [675,700] is built for soy beans leaves; contrary to SR [675,700], SR [700,670] has been selected with the Hellinger distance).

Contrary to similarity measures which had the best results considering the whole spectral range, supervised classification on specific spectral range as defined by [31] achieved the best overall accuracy considering [350–1350 $\mathrm{n}\mathrm{m}$] domain. This is in agreement with the spectral vegetation indices: only 4 indices (NDWI [860, 1240], NDWI [860, 2130], NDWI [1110, 1450], MSI) over the 26 selected have a discriminant wavelength which is not in this spectral range. More precisely, the discriminant wavelength is located in the SWIR and all concerned vegetation indices are linked to the water status. Further investigations should be conducted on the extraction or the reduction of features of this spectral range to understand why this domain sometimes gave worse results than spectral vegetation indices depending on the vegetation type.

Among the three methods, the best results are obtained considering a specific spectral domain [350–1350 $\mathrm{n}\mathrm{m}$] with RLR regardless of the transformed spectral signatures and the size of the training size (overall accuracy ranges from 81.47% to 96.36%). However, it should be of interest to apply feature reduction methods usually applied on remote sensing (such as PCA or MNF) to see it results are improved or specific spectral wavelength can be selected.

To our knowledge, although not popular in remote sensing for classifying (but already used for feature selection), the RLR classifier achieves the best overall classification accuracy when applied to the spectral vegetation indices selected by the Hellinger distance (77.21%) on the [350–1350 $\mathrm{n}\mathrm{m}$] domain (83.84%) considering training size = 25%.

Furthermore, this study showed that CRDR gave encouraging results event if it is slightly below those obtained by the first derivative and the second derivative considering RLR classifier.

Considering the habitats, some vegetation types were more easily separated. For instance, JUCO had the best F1-score with the spectral vegetation indices selected by the Hellinger distance (94.83%) or on the [350–1350 $\mathrm{n}\mathrm{m}$] (95.24%) with RLR and the training size = 25%. In some cases, this specific spectral domain gave better results (F1-score = 92.21% whereas with spectral vegetation indices F1-score = 64.72% for SALI) while in other case, the spectral vegetation indices gave better results (F1-score = 91.12% whereas F1-score = 82.80% for SPHA). As mentioned earlier, reducing feature space needs to be investigated to see if a particular feature space exists that can discriminate between and classify all vegetation types or if we need to consider either spectral vegetation indices or a specific spectral domain depending on the vegetation type to classify.

Although all the results strongly depended on the current dataset, this study illustrated promising methods for classifying peatland vegetation types using in situ hyperspectral measurements. The next step concerns the application or adaptation of those methods to airborne hyperspectral imageries with high spatial resolution acquired on September 2014 (simultaneously with in situ measurements). With the objective of evaluating the benefits of airborne or spaceborne sensors with a lower spectral resolution a lower signal-to-noise ratio, these conclusions may change. For that purpose, some indices (involving wavelengths lower than 480 $\mathrm{n}\mathrm{m}$) will not be used because of the camera spectral range sensitivity and some transformed spectral signatures such as second derivative will also not be used because of signal-to-noise ratio. Similarly, the first derivative transformation is very sensitive to the noise coming from the instrument but also from the atmosphere correction and this can degrade its performance.

Additional imageries acquired in October 2012 and July 2013 would allow us to test these methods with spectral signatures extracted from the ancillary dataset. Multi-temporal analysis could also be conducted to discriminate between vegetation types thanks to the phenological changes. This step would be of interest to evaluate the robustness of spectral measurements, spectral vegetation indices and classifiers selected previously from in situ hyperspectral measurements to airborne data.
