Article

LC-MS/MS Validation and Quantification of Cyanotoxins in Algal Food Supplements from the Belgium Market and Their Molecular Origins

by
Wannes Hugo R. Van Hassel
1,2,*,
Anne-Catherine Ahn
3,
Bart Huybrechts
1,†,
Julien Masquelier
1,
Annick Wilmotte
2,3 and
Mirjana Andjelkovic
4
1
Unit Toxins, Organic Contaminants and Additives, Sciensano, Rue Juliette Wytsmanstraat 14, 1050 Brussels, Belgium
2
InBios-Centre for Protein Engineering, Departement of Life Sciences, University of Liège, Allée du six Août 11, 4000 Liège, Belgium
3
BCCM/ULC Collection, University of Liège, Allée du six Août 11, 4000 Liège, Belgium
4
Risk and -Health Impact Assessment, Sciensano, Rue Juliette Wytsmanstraat 14, 1050 Brussels, Belgium
*
Author to whom correspondence should be addressed.
†
The author has passed away.
Toxins 2022, 14(8), 513; https://doi.org/10.3390/toxins14080513
Submission received: 27 June 2022 / Revised: 19 July 2022 / Accepted: 22 July 2022 / Published: 27 July 2022
(This article belongs to the Special Issue Cyanotoxins in the Food Chain)
Browse Figures
Review Reports Versions Notes

Abstract

:
Food supplements are gaining popularity worldwide. However, harmful natural compounds can contaminate these products. In the case of algae-based products, the presence of toxin-producing cyanobacteria may cause health risks. However, data about the prevalence of algal food supplements on the Belgian market and possible contaminations with cyanotoxins are scarce. Therefore, we optimized and validated a method based on Ultra High Performance Liquid Chromatography-Tandem Mass Spectrometry to quantify eight microcystin congeners and nodularin in algal food supplements. Our analytical method was successfully validated and applied on 35 food supplement samples. Nine out of these samples contained microcystin congeners, of which three exceeded 1 µg g−1, a previously proposed guideline value. Additionally, the mcyE gene was amplified and sequenced in ten products to identify the taxon responsible for the toxin production. For seven out of these ten samples, the mcyE gene could be amplified and associated to Microcystis sp. EFSA and posology consumption data for algal-based food supplements were both combined with our toxin prevalence data to establish different toxin exposure scenarios to assess health risks and propose new guideline values.
Keywords:
ultra-high performance liquid chromatography; Tandem Mass Spectrometry; BGAS; microcystin; Microcystis; sequencing; food safety
Key Contribution: MC contaminated BGAS were quantified using UHPLC-MS/MS and the origin of the toxins were elucidated using molecular methods. Implications of the MCs presence for public health are calculated using the most recent consumption and toxicological data.

1. Introduction

The use of cyanobacteria- and Chlorella-based food supplements are becoming more and more common worldwide. Overall consumption of food supplements in the United States of America increased by 12% compared to a decade earlier as shown by the Council for Responsible Nutrition (CRN) Consumer Survey in 2017 [1]. The survey further revealed that the supplements are primarily consumed to improve overall health and energy [1]. However, similar consumption data are not yet available for Europe nor Belgium, which prevents a more realistic assessment of a health risk. Following the last National Consumption Survey in Belgium [2], food supplements on the basis of ‘spirulina’ and Chlorella were the third most consumed supplements, not belonging to the group of vitamins and minerals. They were ranked below yeast supplements and bee products. However, these results were obtained with food frequency surveys, which are only descriptive. A risk assessment for cyanobacteria- and Chlorella-based food supplements is necessary as a more frequent ingestion of these products could also lead to an increased exposure of the public to the ingredients used for their production, which might unintentionally contain harmful compounds. For instance, natural toxins such as phyto-, myco-, or phycotoxins can sometimes be found in these types of food supplements [3,4].
Two types of blue-green algae-based food supplements (BGAS) are commonly found on the market. The first product is ‘spirulina’, which is mainly produced from cultivated Arthrospira platensis and occasionally Arthrospira maxima. The denomination ‘spirulina’ is a commercial one. It originates from the time before molecular taxonomy methods proved that the true Spirulina sp. were very different from the cyanobacteria of the Arthrospira genus, used as food supplement [5]. In this paper, any Arthrospira sp. based product will be referred under the general product name ‘spirulina’. The cultivation of these cyanobacteria is generally performed in open air ponds and occasionally in closed incubators [6,7,8,9]. The culture medium required for growth of Arthrospira sp. has a high pH and high salinity, which protects against contamination by other cyanobacteria [9]. The second BGAS product found on the market is based on the cyanobacterial species Aphanizomenon flos-aquae. The product names most associated to this food supplement are Klamath and AFA (Aphanizomenon flos-aquae). Aphanizomenon flos-aquae occurs naturally in the Klamath Lake in Oregon, USA, and is being harvested there for already more than 30 years [10]. However, the harvest of naturally occurring blooms is not unique to Oregon. In South America and Africa, local populations have been harvesting Arthrospira sp. from soda lakes for centuries [11].
Natural lakes usually contain mixed populations of cyanobacteria. By harvesting natural cyanobacteria, potentially toxic organisms could be included in the BGAS. Moreover, food supplements can also be contaminated during the after-harvest processing. The presence of toxins produced by cyanobacteria was already shown in commercially available BGAS by several studies [3,12,13,14,15,16,17].
Different types of cyanotoxins exist based on their effect on the human body, and include neurotoxins and hepatotoxins. Neurotoxins consist of three major members: saxitoxin (STX), anatoxin-a (ATX), and β-methylamino-L-alanine (BMAA). STX is regularly monitored and might be found in shellfish (filter feeding organisms) but until now, it was not reported in BGAS [18]. In contrast, ATX and BMAA were already detected in BGAS either by HPLC-LFD or HPLC-MS/MS [3,12,13,15].
Another major group of cyanotoxins are hepatotoxins, including cylindrospermopsin, nodularin and microcystin. The first two were never detected in BGAs [12,13,16,19,20,21]. This is in strong contrast with the results obtained for the microcystin congeners (MCs). These heptacyclic peptides with their specific ADDA ((2S,3S,8S,9S)-3-amino-9-methoxy-2,6,8-trimethyl-10-phenyl-4,6-decadienoic acid)-moiety are produced by different species of cyanobacteria (e.g: Microcystis, Anabaena, Oscillatoria, Nostoc) [22], and are commonly found in the environment as well as in BGAS [12,13,14,17,19,20,21,23,24,25,26,27].
The toxicity of microcystin and nodularin results from the interaction of their ADDA tail with protein phosphatase 1 (PPI) or 2a (PPIIa), enabling the covalently binding of the hepatotoxin to the enzyme and inhibiting the protein activity. In particular, the toxicology of MCs is well studied. They are primarily transported to the liver by bile salts, where specific organic anion transporting polypeptides (OATPS) transport the MCs into the cells [28,29,30,31]. The function of the liver cells is disrupted, causing liver cirrhosis after prolonged exposure [32,33,34,35]. Based on the available toxicological research, the World Health Organization (WHO) suggested a tolerable daily intake (TDI) for MC-LR of 0.04 µg kg bw−1 day−1. However, this does not take into account that multiple MCs can be present [36]. In addition, the structural variation between different congeners causes differences in chemical characteristics that can alter the toxicity of a congener [25]. Amino acids composition of the MCs at position 2 and 4 can be variable, while other positions can be methylated, demethylated and/or acetylated [25,37,38,39,40,41,42,43,44,45,46,47]. Overall, 279 different congeners have been reported [25].
Several analytical methods have already been used to detect MCs in BGAS. The ELISA method was first used to detect MCs in BGAS originating from the Upper Klamath lakes. Concentrations of MCs reaching up to 16.4 µg g−1 were found in 85 of the 87 tested products. MC-LR was determined by HPLC-separation and ELISA quantification as the most dominant congener in the products [14]. Other approaches, LC-MS, LC-MS/MS and Phospho-Inhibition Assay approach have been compared and used to determine MCs concentrations between 0.1 and 35.7 µg g−1 [19].
During the past years, the LC-MS(/MS) has evolved to become a commonly used technique to detect MCs in BGAS. Multiple groups have developed and validated methods capable of accurately detecting MCs. The amount of different congeners that they were able to detect, was primarily dependent on the availability of standards [12,13,17,20,21,23,48].
Furthermore, molecular techniques allow to screen for cyanotoxin synthetase genes and thus to determine the capacity to produce cyanotoxins in a given sample. The gene clusters are identified based on the mcyE and the ndaF genes encoding a microcystin and nodularin synthetase, respectively [49,50]. For example, Saker et al. [51] amplified the mcyA and mcyE genes in BGAS and corroborated the result with an ELISA test.
Currently, only a limited number of studies have evaluated the contamination of BGAS by cyanotoxins and even fewer have tried to quantify the health risk for the consumers based on consumption data. In this work, we explored the presence of eight MCs and NOD in BGAS sold on the Belgium market using a validated UHPLC-MS/MS method. In addition, the mcyE gene was amplified and sequenced from the positive samples to determine the primary producer of the toxin. Elucidating the presence and the source of the contamination allows a more comprehensive assessment of the public health risks. A new assessment of the daily exposure to MCs was made and new guideline values were proposed based on the available posology and consumption data for BGAS.

2. Results

2.1. Validation of UPLC-MS/MS Method

The validation of our method was successful for all nine toxins. The criteria for specificity were met. Namely, blank samples did not present toxin signals. All spiked samples showed signals for the quantifier and qualifier ion, and the ion ratio between both was within the limits set by the EU commission decision 2002/657/EC [52].
The LOQ for each toxin was determined as the lowest validated concentration (50 µg kg−1). Signal to Noise (S/N) values were above 10 for each toxin, shown in Table 1. Usually, LOD is calculated as 1/3 of the LOQ, which in this case would be ± 16.66 µg kg−1. However, the LOD was validated as 22.5 µg kg−1 because this was also the lowest point, for which S/N values were obtained. Table 1 shows that the S/N values for the LOD are above 3, as dictated by the guidelines EU commission decision 2002/657/EC [52].
Furthermore, the Mandel’s fitting test showed a preference for an exponential fit. However, the linear fits for all the curves showed R2 values higher or equal to 0.99, resulting in this fit being chosen to determine concentrations in the samples, as it is more straightforward to calculate (shown in Table 1) [53].
Additionally, a matrix effect was observed for seven out of nine toxins in the BGAS matrix during the validation, as shown by the non-parallel relationship between the two calibration curves (Figure 1) and further evaluated with a student t-test (Table 2). All congeners except MC-LA and NOD were affected by a matrix effect. The calibration curve was therefore made in blank matrix, which reduces the effect of the matrix on the quantification.
The apparent recoveries were calculated for the four different spiking levels (50 µg kg−1, 400 µg kg−1, 800 µg kg−1 and 1200 µg kg−1) and additionally as average of the four levels. Recoveries were situated between 69% and 104% (Table 1).
For the repeatability and reproducibility, the Horwitz ratio determined maximum values from 10.3 to 14.7% average variance and 15.5 to 22.0% coefficient of variation (CV), respectively. These thresholds were calculated for each toxin at each concentration level. The actual average variance and CV obtained from the measured concentrations were both below their respective threshold values for each toxin at each spiked concentration (Table 1).
At last, the measurement’s uncertainty for all toxins for all spike levels was comprised between 6.26% and 37.48% as seen in Table 1.

2.2. Toxin Occurrence in Food Supplements

Cyanotoxins, under the form of six MCs congeners, were detected in nine out of the 35 analyzed samples. Nodularin, MC-LW, and MC-LF were not detected in any of the samples. All contaminated products contained 100% Aphanizomenon flos-aquae with the exception of Mx-852, which was a mix of the ‘spirulina’, Chlorella sp. and A. flos-aquae. However, only MC-RR below LOQ was found in Mx-852 below LOQ. The other eight contaminated products contained total MCs concentration between 238.45 and 5645.33 µg kg−1, as shown in Table 3.
The congener compositions varied between the different products. Between two and six different congeners were detected in the eight MCs contaminated samples by our validated method (Figure 2). It should be noted that the samples with the highest congener diversity (Apha-430 and Apha-1230) contained MC-WR below LOQ, whereas the five other congeners could be quantified. MC-LA and MC-LR were the most prevalent toxins found in the products, as shown in Figure 2.

2.3. Microcystin Synthetase Encoding Genes

The HEP amplicons (385 bp) of seven food supplements (Apha-430, Apha-584, Apha-585, Apha-587, Apha-650, Apha862 and Apha-1230) corresponded to the sequences of the mcyE gene of different Microcystis sp. No HEP amplicons could be obtained from the samples Sp-475, Mx-582 and Apha-696. Moreover, the samples Apha-430, Apha-650, Apha-862 and Apha-1230 contained more than one Microcystis sp. strain as there were single nucleotide polymorphisms in their HEP amplicon sequence. Samples of Apha-584, Apha-585 and Apha-587 contained only a single HEP amplicon sequence, which was identical for the three samples and which could be associated with Microcystis sp. clone Bel-Nar12/07-1 (100% identity, accession: KF219536.1).

2.4. Exposure and Risk Assessment Estimate

Based on the EFSA Comprehensive Food Consumption database, the average and 95th percentile consumption from the acute consumption data of algae based formulations (e.g., ‘spirulina’, Chlorella) for all population groups (Adolescents, Adults, Elderly, Other children, Pregnant women, Vegetarians and Very elderly) is 2.6 g and 3.5 g, respectively. However, the data can be considered statistically robust only for the adults, with a number of observations higher than 60. Recalculating the consumption for adults, based on the data found in the EFSA database, provides values of 1.62 g and 2.58 g on average per day and at the 95th percentile per day, respectively. These values were considered during the toxin exposure estimations (estimated daily intake (EDI)) in Table 4.
Additionally, the posology data (suggested daily dose) found on the package of the tested products was also used as a measure of the consumption. The average suggested daily dose for each food supplement was 3.14 g day−1, while for the 95th percentile, this was 6.25 g day−1. Therefore, an average EDI was 0.02 µg kgbw−1 day−1 for an adult person of 70 kg (Table 4). In a worst case exposure scenario (only upper bound approach), where only the contaminated samples were included, the average EDI was 0.10 µg kgbw−1 day−1 and the 95th percentile exposure at the recommended doses was 0.33 µg kgbw−1 day−1. For the comparison, the exposure estimation was also done using the mean consumption calculated for the adults using the EFSA Food Consumption Comprehensive Database (Table 4).
In the worst case exposure scenario, the tolerable daily intake (TDI) [36] of 0.04 µg kgbw−1 for an adult was exceeded for both the average (0.10 µg kgbw−1 day−1) and 95th (0.33 µg kgbw−1 day−1) percentile EDI. For children, the TDI values would be severely exceeded by the EDI in both exposure scenario’s. This suggests that there might be a potential health concern risk for some consumers and in particular for children when contaminated products are consumed.
Furthermore, we suggest a maximum allowed MCs concentration in BGAS for adults, ranging from 0.70 to 1.08 µg MC-LR equivalent g −1 day−1. The lower limit was calculated based on the 95th percentile of consumption based on posology data (representing high consumers in worst case exposure scenario. The upper limit represents the average consumer use (average consumption based on posology data). If children (15 kg average weight) might consume these BGAS, the maximal allowed level should be even lower (0.15 µg MC-LR equivalent g−1 day−1 BGAS). The average and 95th percentile of MCs concentration found in BGAS during our study for the worst case scenario were 1.84 µg MC-LR equivalent g−1 and 5.72 µg MC-LR equivalent g−1, respectively, and both surpass the suggested maximum allowed MCs concentration for adults and children.

3. Discussion

Based on the data from the literature cited in this study, it is clear that a ± 80% MeOH extraction is the most appropriate way to extract the MCs and NOD, with the addition of a mechanical extraction and/or sonication [12,17,20,21,48]. Moreover, no additional purification seems to be needed for BGAS samples for MS/MS analysis, which significantly reduces material cost and analysis duration.
Several quantification methods for MCs in food supplements have already been validated. Turner et al. (2018), validated a method using the same extraction method but a different detection and quantification method compared to our method, which uses a calibration curve in the matrix. A matrix-matched calibration curve should result in a more accurate determination of the recovery, as the matrix effect is taken into account. Our recoveries seem to be similar to the results from Turner et al. (2018), except for the lower recoveries of MC-LF. The values of the other parameters (LOD, LOQ, repeatability, …) are difficult to compare as different calculations were used [48]. Other validated methods are even more difficult to compare as the methods used different techniques during extraction and/or quantification of the methods. Parker et al. (2015) included a SPE step in their validated method. Up concentration of the samples during SPE lowers the LOD and LOQ, while optimizing recovery for all MCs and NOD and minimizing the matrix effect. However, this methodology does increase the needed time and the associated costs to perform the method [21]. Ortelli et al. (2008) validated a method for quantification of MC-RR, MC-YR, MC-LR, MC-LA and NOD using LC-MS. They used a time of flight MS instead of the triple quadrupole used in our method [20].
A more complex method for MCs quantification was also validated by Roy-Lachappelle et al. using LC-HRMS. The recovery and LOD/LOQ were comparable to our results, while the repeatability and reproducibility were lower [13].
During our screening of BGAS (Chlorella sp., ‘spirulina’ and Klamath derived products) on the Belgium food market, we found nine products that were contaminated with MCs with concentrations between 0.24 and 5.6 µg g−1 total microcystin, and with MC-LR and MC-LA as most abundant congeners. They were exclusively observed in products containing Aphanizomenon flos-aquae. Our concentrations fit perfectly with the earlier reported toxin concentrations ranging between 0 and 60 µg g−1 in BGAS using different methods (e.g., MS/MS, MS, ELISA, PPIA) [12,14,17,19,20,54,55]. Roy-Lachappelle et al. (2017) also found toxin concentrations between 0.25 and 8.2 µg g−1 total microcystin, present in ‘spirulina’ products, which is uncommon [13].
Besides UPLC-MS/MS methods, PCR amplification of the mcyE gene could be a valuable simple tool during screening of BGAS and detection of possible contaminations during the production process. The sequencing of the mcyE amplicon allowed to identify the producer of the microcystin. In seven MCs positive BGAS, the mcyE gene of Microcystis sp. could be detected by PCR [49]. In three other samples, PCR amplification failed, but this could be explained. The sample Sp-475 was a negative control made on a sample where no MCs were detected and the lack of amplification of the mcyE gene was expected. For sample Mx-582, MC-LR was detected but in too low concentration to be quantified. For sample Apha-696, a quantifiable level (499.52 total microcystin µg kg−1) of MCs was measured but it was the only Apha sample in tablet form. Therefore, we hypothesize that the treatment used for tablet production sheared the DNA too much for proper PCR amplification. The presence of Microcystis sp. in food supplements has previously be reported in several studies [17,51,56,57]. Therefore, we advise the producers to take additional precautions to avoid the presence of such known toxin-producing cyanobacteria and control their absence by regular screenings using microscopy or PCR.
However, knowing the presence of toxin-producing cyanobacteria or even the concentration of toxins is not sufficient to assess the risk to public health. However, a risk assessment for cyanotoxins in BGAS is difficult to perform, due to a lack of occurrence and toxicity data for some microcystin congeners, as well as a lack of regulation on food supplements, in particular regarding these toxins. For instance, the average daily consumption of BGAS should be known to calculate the risk. Yet, recommended doses are not uniform between different products. Generally, the amount of a tea spoon (2 g day−1) is recommended on a daily basis, although some products recommend a higher consumption or do not provide a recommended dose on the product packaging. Therefore, an average dose of 3.14 g day−1 was calculated on the basis of the posology data of the tested products. Additionally, there is a chance that users will not comply with the recommended dose. For instance, Dietrich and Hoeger [58] mentioned that parents might increase the dose for their children above the recommendation in an attempt to further increase the beneficial results of the BGAS but obtain the inverse effect. Marsan et al. found products with a recommended dose of up to 15 g day−1 [54]. Moreover, Gilroy et al. report recommended doses of BGAS up to 20 g day−1 [14]. If we use the data from the EFSA food consumption database, we calculated an average daily dose of 1.6 g of BGAS and 2.58 g day−1 in the highest 95th percentile of consumption for adults in the food category “Algae formula” (e.g., ‘spirulina’, Chlorella) [18]. This dose was two times lower than the average calculated in our study. Unfortunately, the consumption of these products in Belgium has not yet been quantified. The difference between recommended and real consumption complicates the evaluation and the recommendation of a guideline value.
The WHO considers a value of 0.04 µg kgbw−1 day−1 as a tolerable daily intake (TDI) for MCs, which is assumed to be a safe dose for a lifetime ingestion. Using the suggested doses, we have estimated that in a worst case exposure scenario (when MCs are present at the level found in the study), EDI might be on average as high as 0.1 µg kgbw−1 day −1 for an adult person. However, for some consumers, this might be as high as 0.33 µg kgbw−1 day−1. These estimated values exceed the TDI value. Nevertheless, only a small proportion of the samples showed a contamination, and it was linked to the presence of Aphanizomenon flos-aquae. Gilroy et al. already proposed a regulatory value of 1 µg g−1 of BGAS consumption based on the TDI of MCs suggested by the WHO, which considers an average consumption of 2 g day−1 for an average human of 60 kg. Based on the results of our study, where the average consumption is above 2 g and the average body weight was estimated as 70 kg following the EFSA guidance, a similar recommendation can be given [59]. The MCs concentration should not exceed 1.08 µg g−1 BGAS for most consumers. Dietrich and Hoeger also mentioned that the supplements are also consumed by children, who, due to a lower body mass, are more susceptible to intoxication [58,60]. Recalculating a guideline value for infants and children would be advised, especially as BGAS consumption generally represents a long term exposure. If the same values for the consumption of BGAs would be applied to adults and children, the regulatory threshold would decrease more than four times to ensure a safe consumption for all the population below the TDI level. Based on the concentrations found in our study, the recommended regulatory level could be as low as 0.15 µg g−1. Similarly, the new WHO provisional guidelines for MCs in drinking water recommends a 3 µg L−1 total microcystin for children during short exposure. They also used the average body weight of a child (15 kg) while calculating the guideline value for recreational waters, instead of the average body weight of an adult (60 kg) [36].
For the Belgium market, three products exceeded the value proposed by Gilroy et al. Eight products contained a MC-LR equivalent concentration higher than 0.5 µg g−1. If the original consumption estimate from EFSA (3.5 g) was used, the guideline value for adults would become 0.8 µg g−1 MC-LR equivalent, meaning that sample Apha-862 would also be considered as unsafe.
Further research should be done to obtain more data concerning the daily consumption of BGAS as well as the toxin presence in the BGAS to improve the risk assessment for the consumers. A regular monitoring is also advisable, as Gilroy et al. showed that there could be variations in toxin concentration between different batches [14].

4. Conclusions

In this study, the validation of a quantitative UHPLC-MS/MS method to quantify eight MCs and NOD in BGAS is performed for the first time with a matrix-matched calibration curve. Validation results adhered to the pre-set parameters. Using this method, the presence of five MCs was determined in nine of the BGAS samples at concentrations that could pose a risk to the public health. Additionally, we were able to determine that the mcyE gene, involved in MCs production, originated from Microcystis sp. Although the recommended maximum MCs level in BGAS were calculated, the actual risk to the public health is difficult to determine. A lack of BGAS consumption data, MCs occurrence and toxicological data for most MCs needs to be resolved to obtain a proper risk assessment for the Belgian population. However, using the currently available data, multiple exposure scenarios were discussed and new guidelines were suggested. Establishing proper regulation and monitoring programs for MCs in BGAS would be advisable, especially for products harvested from the environment. These products are a protein rich and eco-friendly food source that should not be dismissed out of hand due to the possibility for toxin contamination, which is also possible in more ‘traditional’ food sources (e.g., phyto-, myco- and bacterial toxins).

5. Materials and Methods

5.1. BGAS Sampling on the Belgium Market

Samples were selected after an offline and online market inquiry. In total, 35 BGAS were selected with a balance between Chlorella, ‘spirulina’ and Klamath-based products and purchased within few weeks after the inquiry. Mixed products, with two or more of these ingredients were also included. More details on these samples are available in Table 3.

5.2. Reagents and Materials

The solvents for the extraction and for the basis of the mobile phase were UHPLC-MS grade. All toxin standards for MCs (MC-LR, MC-RR, MC-LA, MC-LY, MC-LF, MC-LW, MC-YR, MC-WR) and NOD came from Enzo Life Sciences® (Antwerp, Belgium) and were received under the form of a solid powder. After dilution in 100% methanol (MeOH), mixed stock solutions were prepared in 50% methanol (MeOH) (50% Milli-Q water with 1% acetic acid (v/v)). The stock and the intermediate solutions were stored at −20 °C.

5.3. Sample Preparation and Extraction of Cyanotoxins

Before extraction, the tablets were crushed to a powder using a mortar. If the BGAS was enclosed in a capsule, it was opened and the powder was removed. The complete package content was processed to ensure homogeneity within the sample. Then, 0.5 g BGAS powder was weighed, and dissolved in 80% MeOH (v/v). This mixture was blended for 1 h in an overhead shaker. Thereafter, the sample was centrifuged for 10 min at 2500× g. The supernatant was removed and filtered through a Phenomenex 0.2 µm RC-syringe filter (Utrecht, The Netherlands).

5.4. Detection and Quantification of Cyanotoxins

To continue the analysis, each BGAS extract was diluted ten times. Samples were injected onto the UPLC-MS/MS system (Xevo TQ-S triple quadrupole mass spectrometer —Waters, Milford, MA, USA) at a volume of 5 µL. UHPLC and MS/MS conditions were already described in detail in earlier published works [27,61]. In short, during injection, the congeners were separated on a 1.7 µm, 2.1 mm × 100 mm BEH-C18 column from Waters © (Eten-Leur, The Netherlands) preceded by a 1.7 µm BEH C-18 VANGUARD pre-column from Waters©. A gradient elution with an initial high percentage (98%) water phase was used, while gradually increasing the proportion of acetonitrile over time.
The precursor, quantifier and qualifier ion used for detection can be found in Table 5, accompanied by corresponding collision energies and cone voltages.
Toxin concentrations were calculated by the TargetLynx extension included in the MassLynx V4.2 (Waters©) software based on dilution factors and a six-pointed calibration curve, which was made in blank matrix (sample extract containing no MCs or NOD) with concentrations between 0.5 µg L−1 (45 µg kg−1) and 50 µg L−1 (4500 µg kg−1). The calibration curve in the blank matrix corrects for the matrix effect. During each run, a quality control (QC) sample was also added to calculate the recovery of the toxins during the analysis run. A blank matrix sample was spiked with a mixture of all the toxin standards resulting in a final concentration of 800 µg kg−1 for each of the MCs and NOD. The QC was further extracted and analyzed in accordance with our method. Eventually, the observed concentration in the unknown (BGAS or Chlorella) samples should be corrected with the recovery.

5.5. Validation of the MS/MS Method

The validation study was performed using a blank (containing no MCs or NOD) ‘spirulina’ sample and completed before analysis of the BGAS samples. Aliquots of blank ‘spirulina’ powder were spiked with a toxin mix of eight MCs and NOD to validate the method. Each toxin was added at concentrations of 50 µg kg−1, 400 µg kg−1, 800 µg kg−1 and 1600 µg kg−1 in triplicate. The procedure was repeated on three different days. The following multiple parameters that are described below were evaluated to assess the validity of the method: specificity, limit of detection (LOD) and the limit of quantification (LOQ), apparent recovery, reproducibility, repeatability, measurement uncertainty, linearity and matrix effect.
The specificity of the method was stated as sufficient if the quantifier ion and the qualifier ion were both present during detection, and the ion ratio adhered to the EU commission decision’s 2002/657/EC limits [52]. Furthermore, no residual signal should be detected in the blank samples above 1% of the signal intensity found in the 800 µg kg−1 spike.
The LOQ was determined as the lowest concentration, for which a toxin was fully validated and the signal to noise (S/N) ratio was 10. The LOD was defined as 1/3 of the value of the LOQ if the S/N signal is higher than 3. Moreover, the boundaries set for the apparent recovery laid between 60% and 120% and the limits for reproducibility and repeatability were obtained using the Horwitz ratio. Reproducibility is calculated as the average variance of the validation results, representing the variability of the method over multiple days of analysis. Repeatability is calculated as the CV of the validation results representing variability of the method during one day of analysis. The measurement uncertainty was calculated as the double of the CV. Linearity of the standard curve was determined with a Mandel’s fitting test between concentrations of 0.1 and 50 µg L−1 for all toxins. However, if the R2 of the linear fit was equal or higher than 0.99, a linear fit was used for quantification.
Furthermore, the matrix effect in the BGAS was determined with an additional method during the validation. For each toxin, a standard curve between 0.1 and 50 µg L−1 was measured in the solvent solution (MeOH:H2O Milli-Q 50:50 +1% acetic acid) and in the blank matrix (annotated as addition). The slopes of the resulting curves were compared using a student t-test, and a matrix effect was deduced when the slopes were significantly different (t(b) > t (95%)).

5.6. DNA Extraction, PCR with HEP Primers, and Sequencing of PCR Products

DNA was extracted from nine BGAS samples (Apha-430, Mx-582, Apha-584, Apha-585, Apha-587, Apha-650, Apha-696, Apha-862, Apha-1230), for which contamination with MCs was found by the LC-MS/MS method in this study. DNA extracted from the Microcystis aeruginosa strain PCC7806 and Aphanizomenon gracile Niva-Cya626 were used as positive controls in the PCR, while DNA from the ‘spirulina’ sample Sp-475, in which no MCs were found in this study, was used as a negative control. Approximately 50 mg of powder or tablets (previously grinded for toxin analysis) were used for DNA extraction with the NucleoSpin Tissue kit (Macherey-Nagel, Düren Germany), following the supplier’s recommendations, with the addition of an initial crushing of the samples with a pestle and glass beads. Thereafter, DNA samples were cleaned with the Genomic DNA Clean & Concentrator kit (Zymo). The DNA samples were stored at −20 °C until further processing. PCR was performed on these DNA samples with the HEP primers HEPF (5′-TTTGGGGTTAACTTTTTTGGGCATAGTC-3′) and HEPR (5′-AATTCTTGAGGCTGTAAATCGGGTTT-3′) amplifying the aminotransferase (AMT) domain situated in the mcyE and ndaF genes encoding the microcystin and nodularin synthetase enzyme complexes [50]. The cycling protocol included an initial denaturation step at 98 °C (1 min), followed by 40 cycles of a denaturation at 98 °C (30 s), an annealing at 57 °C (45 s) and an extension at 72 °C (40 s), and a final extension at 72 °C (7 min). The reaction mix contained in a total volume of 50 µL, 1U Q5 High Fidelity DNA polymerase (New England Biolabs, Ipswich, MA, USA), 1× Q5 Reaction Buffer, 200 μM dNTP, 1 mg mL−1 BSA, 0.5 μM of both primers, and 1 µL gDNA. Negative controls without DNA were processed in parallel. The presence or absence of bands of the expected size was visualised after electrophoresis of 4 µL of PCR product on 1.0% agarose gel. PCR products were purified with the NucleoSpin Gel and PCR Clean-up Purification kit (Macherey-Nagel, Düren Germany) according to the furnisher’s protocol, and sent for sequencing with the HEPF primer to the GIGA-GenoTranscriptomics Platform (ULiege, Liège, Belgium). Amplicon sequences were deposited under the GenBank accessions MW924666 to MW924672.

5.7. Exposure and Risk Assessment

The exposure to toxins via intake of food supplements should be estimated by using the consumption data for the food supplements. However, these data are scarce. For a more realistic approach, the posology data for each food supplement analyzed in the study were collected. These data were used to estimate the exposure by multiplying the daily dose suggested by the producer with the determined toxin concentration (average and maximum concentrations) to estimate the exposure. The worst case exposure scenario was estimated only for the BGAS where MCs were detected (n = 8). Additionally, a comparison was performed where the consumption data from the EFSA Comprehensive Food Consumption data was used for the same calculations [62].
To estimate the exposure, the intake was calculated based on all analyzed samples (real case) and based on only the concentrations found in the contaminated samples (worst case exposure scenario). For the latter, the values for non-detected were imputed according to the bounding approach. All non-detected values were replaced by LOD values and all not quantified values by LOQ value (upper bound approach). The calculation was performed using the following equation for estimated daily intake (EDI):
Equation (1): formula to calculate estimated daily intake (EDI)
E D I   ( µ g kg   ( bw ) day ) = c o n c e n t r a t i o n µ g ( M C   t o t a l ) g   ( B G A S ) × d a i l y   d o s e g   ( B G A S ) bw   ( kg )

Author Contributions

Conceptualization, W.H.R.V.H., B.H., A.W. and M.A.; Data curation, A.-C.A. and W.H.R.V.H.; Formal analysis, W.H.R.V.H. and A.-C.A.; Funding acquisition, A.W. and M.A.; Investigation, W.H.R.V.H. and A.-C.A.; Methodology, W.H.R.V.H., A.-C.A., B.H., J.M. and M.A.; Project administration, W.H.R.V.H., J.M., M.A. and A.W.; Supervision, J.M., A.W. and M.A.; Validation, W.H.R.V.H. and B.H.; Visualization, W.H.R.V.H. and A.-C.A.; Writing—original draft, W.H.R.V.H., A.-C.A., B.H., J.M., A.W. and M.A.; Writing—review & editing, W.H.R.V.H., A.-C.A., J.M., A.W. and M.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Federal Agency for the Safety of the Food Chain (FAVV-AFSCA-FASFC) in the framework of the work of WVH towards his PhD. FAVV-AFSCA-FASFC cannot be held liable for the use of the data nor the conclusions that could be drawn from their treatment. A.W. is Senior Research Associate of the FRS-FNRS. The BCCM/ULC collection is supported by the Belgian Science Policy Office (C5/00/BCCM).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Council for Responsible Nutrition Growth of Dietary Supplement Use over the Last Decade 2017. Available online: www.crnusa.org/survey (accessed on 1 June 2021).
  2. Brocatus, L.; De Ridder, K. Verrijkte voeding en voedingssupplementen. In Voedselconsumptiepeiling 2014–2015; Bel, S., Tafforeau, J., Eds.; Rapport 4; WIV-ISP: Brussels, Belgium, 2016. [Google Scholar]
  3. Sánchez-Parra, E.; Boutarfa, S.; Aboal, M. Are Cyanotoxins the Only Toxic Compound Potentially Present in Microalgae Supplements? Results from a Study of Ecological and Non-Ecological Products. Toxins 2020, 12, 552. [Google Scholar] [CrossRef]
  4. Muys, M.; Sui, Y.; Schwaiger, B.; Lesueur, C.; Vandenheuvel, D.; Vermeir, P.; Vlaeminck, S.E. High Variability in Nutritional Value and Safety of Commercially Available Chlorella and Spirulina Biomass Indicates the Need for Smart Production Strategies. Bioresour. Technol. 2019, 275, 247–257. [Google Scholar] [CrossRef]
  5. Nelissen, B.; Wilmotte, A.; Neefs, J.-M.; De Wachter, R. Phylogenetic Relationships Among Filamentous Helical Cyanobacteria Investigated on the Basis of 16S Ribosomal RNA Gene Sequence Analysis. Syst. Appl. Microbiol. 1994, 17, 206–210. [Google Scholar] [CrossRef]
  6. Delrue, F.; Alaux, E.; Moudjaoui, L.; Gaignard, C.; Fleury, G.; Perilhou, A.; Richaud, P.; Petitjean, M.; Sassi, J.-F. Optimization of Arthrospira platensis (Spirulina) Growth: From Laboratory Scale to Pilot Scale. Fermentation 2017, 3, 59. [Google Scholar] [CrossRef] [Green Version]
  7. El-Sayed, A.; El-Sheekh, M. Outdoor Cultivation of Spirulina platensis for Mass Production. Not. Sci. Biol. 2018, 10, 38. [Google Scholar] [CrossRef] [Green Version]
  8. Costa, J.A.; Freitas, B.C.; Santos, T.; Mitchell, B.; Morais, M. Open pond systems for microalgal culture. In Biomass, Biofuels Biochemicals; Elsevier: Amsterdam, The Netherlands, 2019; pp. 199–223. ISBN 9780444641922. [Google Scholar]
  9. Furmaniak, M.A.; Misztak, A.E.; Franczuk, M.D.; Wilmotte, A.; Waleron, M.; Waleron, K.F. Edible Cyanobacterial Genus Arthrospira: Actual State of the Art in Cultivation Methods, Genetics, and Application in Medicine. Front. Microbiol. 2017, 8, 2541. [Google Scholar] [CrossRef]
  10. Carmichael, W.W.; Drapeau, C.; Anderson, D.M. Harvesting of Aphanizomenon flos-aquae Ralfs Ex Born. & Flah. var. flos-aquae (Cyanobacteria) from Klamath Lake for Human Dietary Use. J. Appl. Phycol. 2000, 12, 585–895. [Google Scholar] [CrossRef]
  11. Ciferri, O. Spirulina, the Edible Microorganism. Microbiol. Rev. 1983, 47, 551–578. [Google Scholar] [CrossRef]
  12. Heussner, A.H.; Mazija, L.; Fastner, J.; Dietrich, D.R. Toxin Content and Cytotoxicity of Algal Dietary Supplements. Toxicol. Appl. Pharmacol. 2012, 265, 263–271. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Roy-Lachapelle, A.; Solliec, M.; Bouchard, M.F.; Sauvé, S. Detection of Cyanotoxins in Algae Dietary Supplements. Toxins 2017, 9, 76. [Google Scholar] [CrossRef] [Green Version]
  14. Gilroy, D.J.; Kauffman, K.W.; Hall, R.A.; Huang, X.; Chu, F.S. Assessing Potential Health Risks from Microcystin Toxins in Blue-Green Algae Dietary Supplements. Environ. Health Perspect. 2000, 108, 435–439. [Google Scholar] [CrossRef]
  15. Rellán, S.; Osswald, J.; Saker, M.; Gago-Martinez, A.; Vasconcelos, V. First Detection of Anatoxin-a in Human and Animal Dietary Supplements Containing Cyanobacteria. Food Chem. Toxicol. 2009, 47, 2189–2195. [Google Scholar] [CrossRef]
  16. Gutiérrez-Praena, D.; Jos, Á.; Pichardo, S.; Moreno, I.M.; Cameán, A.M. Presence and Bioaccumulation of Microcystins and Cylindrospermopsin in Food and the Effectiveness of Some Cooking Techniques at Decreasing Their Concentrations: A Review. Food Chem. Toxicol. 2013, 53, 139–152. [Google Scholar] [CrossRef]
  17. Vichi, S.; Lavorini, P.; Funari, E.; Scardala, S.; Testai, E. Contamination by Microcystis and Microcystins of Blue-Green Algae Food Supplements (BGAS) on the Italian Market and Possible Risk for the Exposed Population. Food Chem. Toxicol. 2012, 50, 4493–4499. [Google Scholar] [CrossRef] [PubMed]
  18. Testai, E.; Buratti, F.M.; Funari, E.; Manganelli, M.; Vichi, S.; Arnich, N.; Fessard, V.; Sialehaamoa, A. Review and Analysis of Occurrence, Exposure and Toxicity of Cyanobacteria Toxins in Food. EFSA Extern. Sci. Rep. 2016, 13, 998E. [Google Scholar] [CrossRef]
  19. Lawrence, J.F.; Niedzwiadek, B.; Menard, C.; Lau, B.P.; Lewis, D.; Kuper-Goodman, T.; Carbone, S.; Holmes, C. Comparison of Liquid Chromatography/Mass Spectrometry, ELISA, and Phosphatase Assay for the Determination of Microcystins in Blue-Green Algae Products. J. AOAC Int. 2001, 84, 1035–1044. [Google Scholar] [CrossRef] [Green Version]
  20. Ortelli, D.; Edder, P.; Cognard, E.; Jan, P. Fast Screening and Quantitation of Microcystins in Microalgae Dietary Supplement Products and Water by Liquid Chromatography Coupled to Time of Flight Mass Spectrometry. Anal. Chim. Acta 2008, 617, 230–237. [Google Scholar] [CrossRef]
  21. Parker, C.H.; Stutts, W.L.; Degrasse, S.L. Development and Validation of a Liquid Chromatography-Tandem Mass Spectrometry Method for the Quantitation of Microcystins in Blue-Green Algal Dietary Supplements. J. Agric. Food Chem. 2015, 63, 10303–10312. [Google Scholar] [CrossRef]
  22. Mantzouki, E.; Lürling, M.; Fastner, J.; de Senerpont Domis, L.; Wilk-Wo’zniak, E. Temperature Effects Explain Continental Scale Distribution of Cyanobacterial Toxins. Toxins 2018, 10, 156. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Giménez-Campillo, C.; Pastor-Belda, M.; Campillo, N.; Arroyo-Manzanares, N.; Hernández-Córdoba, M.; Viñas, P. Determination of Cyanotoxins and Phycotoxins in Seawater and Algae-Based Food Supplements Using Ionic Liquids and Liquid Chromatography with Time-Of-Flight Mass Spectrometry. Toxins 2019, 11, 610. [Google Scholar] [CrossRef] [Green Version]
  24. Svirčev, Z.; Lalić, D.; Bojadzija Savic, G.; Tokodi, N.; Drobac Backovic, D.; Chen, L.; Meriluoto, J.; Codd, G. Global Geographical and Historical Overview of Cyanotoxin Distribution and Cyanobacterial Poisonings. Arch. Toxicol. 2019, 93, 2429–2481. [Google Scholar] [CrossRef]
  25. Bouaïcha, N.; Miles, C.O.; Beach, D.G.; Labidi, Z.; Djabri, A.; Benayache, N.Y.; Nguyen-Quang, T. Structural Diversity, Characterization and Toxicology of Microcystins. Toxins 2019, 11, 714. [Google Scholar] [CrossRef] [Green Version]
  26. Turner, A.D.; Dhanji-Rapkova, M.; O’Neill, A.; Coates, L.; Lewis, A.; Lewis, K. Analysis of Microcystins in Cyanobacterial Blooms from Freshwater Bodies in England. Toxins 2018, 10, 39. [Google Scholar] [CrossRef] [Green Version]
  27. Van Hassel, W.H.R.; Andjelkovic, M.; Durieu, B.; Marroquin, V.A.; Masquelier, J.; Huybrechts, B.; Wilmotte, A. A Summer of Cyanobacterial Blooms in Belgian Waterbodies: Microcystin Quantification and Molecular Characterizations. Toxins 2022, 14, 61. [Google Scholar] [CrossRef]
  28. Fischer, A.; Hoeger, S.J.; Stemmer, K.; Feurstein, D.J.; Knobeloch, D.; Nussler, A.; Dietrich, D.R. The Role of Organic Anion Transporting Polypeptides (OATPs/SLCOs) in the Toxicity of Different Microcystin Congeners in Vitro: A Comparison of Primary Human Hepatocytes and OATP-Transfected HEK293 Cells. Toxicol. Appl. Pharmacol. 2010, 245, 9–20. [Google Scholar] [CrossRef] [Green Version]
  29. Altaner, S.; Jaeger, S.; Fotler, R.; Zemskov, I.; Wittmann, V.; Schreiber, F.; Dietrich, D.R. Machine Learning Prediction of Cyanobacterial Toxin (Microcystin) Toxicodynamics in Humans. ALTEX 2020, 37, 24–36. [Google Scholar] [CrossRef]
  30. Feurstein, D.; Stemmer, K.; Kleinteich, J.; Speicher, T.; Dietrich, D.R. Microcystin Congener- and Concentration-Dependent Induction of Murine Neuron Apoptosis and Neurite Degeneration. Toxicol. Sci. 2011, 124, 424–431. [Google Scholar] [CrossRef] [Green Version]
  31. Steiner, K.; Zimmermann, L.; Hagenbuch, B.; Dietrich, D. Zebrafish Oatp-Mediated Transport of Microcystin Congeners. Arch. Toxicol. 2016, 90, 1129–1139. [Google Scholar] [CrossRef]
  32. Hooser, S.B. Fulminant Hepatocyte Apoptosis in Vivo Following Microcystin-LR Administration to Rats. Toxicol. Pathol. 2000, 28, 726–733. [Google Scholar] [CrossRef]
  33. Hooser, S.B.; Beasley, V.R.; Waite, L.L.; Kuhlenschmidt, M.S.; Carmichael, W.W.; Haschek, W.M. Actin Filament Alterations in Rat Hepatocytes Induced In Vivo and In Vitro by Microcystin-LR, a Hepatotoxin from the Blue-Green Alga, Microcystis aeruginosa. Vet. Pathol. 1991, 28, 259–266. [Google Scholar] [CrossRef] [PubMed]
  34. Falconer, I.R.; Burch, M.D.; Steffensen, D.A.; Choice, M.; Coverdale, O.R. Toxicity of the Blue-green Alga (Cyanobacterium) Microcystis aeruginosa in Drinking Water to Growing Pigs, as an Animal Model for Human Injury and Risk Assessment. Environ. Toxicol. Water Qual. 1994, 9, 131–139. [Google Scholar] [CrossRef]
  35. Yoshida, T.; Makita, Y.; Nagata, S.; Tsutsumi, T.; Yoshida, F.; Sekijima, M.; Tamura, S.I.; Ueno, Y. Acute Oral Toxicity of Microcystin-LR, a Cyanobacterial Hepatotoxin, in Mice. Nat. Toxins 1997, 5, 91–95. [Google Scholar] [CrossRef]
  36. World Health Organization. Cyanobacterial Toxins: Microcystins. Background Document for Development of WHO Guidelines for Drinking-Water Quality and Guidelines for Safe Recreational Water Environments; WHO: Geneva, Switzerland, 2020. [Google Scholar]
  37. Miles, C.O.; Sandvik, M.; Haande, S.; Nonga, H.; Ballot, A. LC-MS Analysis with Thiol Derivatization to Differentiate [Dhb7]- from [Mdha7]-Microcystins: Analysis of Cyanobacterial Blooms, Planktothrix Cultures and European Crayfish from Lake Steinsfjorden, Norway. Environ. Sci. Technol. 2013, 47, 4080–4087. [Google Scholar] [CrossRef] [PubMed]
  38. Park, H.; Namikoshi, M.; Brittain, S.M.; Carmichael, W.W.; Murphy, T. [D-Leu1] Microcystin-LR, a New Microcystin Isolated from Waterbloom in a Canadian Prairie Lake. Toxicon 2001, 39, 855–862. [Google Scholar] [CrossRef]
  39. Botes, D.P.; Kruger, H.; Viljoen, C.C. Isolation and Characterization of Four Toxins from the Blue-Green Alga, Microcystis aeruginosa. Toxicon 1982, 20, 945–954. [Google Scholar] [CrossRef]
  40. Welker, M.; Von Dohren, H. Cyanobacterial Peptides: Nature’s Own Combinatorial Biosynthesis. FEMS Microbiol. Rev. 2006, 30, 530–563. [Google Scholar] [CrossRef] [Green Version]
  41. Puddick, J.; Prinsep, M.R.; Wood, S.A.; Cary, S.C.; Hamilton, D.P.; Holland, P.T. Further Characterization of Glycine-Containing Microcystins from the McMurdo Dry Valleys of Antarctica. Toxins 2015, 7, 493–515. [Google Scholar] [CrossRef]
  42. Foss, A.J.; Miles, C.O.; Samdal, I.A.; Løvberg, K.E.; Wilkins, A.L.; Rise, F.; Jaabæk, J.A.H.; McGowan, P.C.; Aubel, M.T. Analysis of Free and Metabolized Microcystins in Samples Following a Bird Mortality Event. Harmful Algae 2018, 80, 117–129. [Google Scholar] [CrossRef] [PubMed]
  43. Sivonen, K.; Namikoshi, M.; Evans, W.R.; Fardig, M.; Carmichael, W.W.; Rinehart, K.L. Three New Microcystins, Cyclic Heptapeptide Hepatotoxins, from Nostoc sp. Strain 152. Chem. Res. Toxicol. 1992, 5, 464–469. [Google Scholar] [CrossRef]
  44. Namikoshi, M.; Rinehart, K.L.; Sakai, R.; Stotts, R.R.; Dahlem, A.M.; Beasley, V.R.; Carmichael, W.W.; Evans, W.R. Identification of 12 Hepatotoxins from a Homer Lake Bloom of the Cyanobacteria Microcystis aeruginosa, Microcystis viridis, and Microcystis wesenbergii: Nine New Microcystins. J. Org. Chem. 1992, 57, 866–872. [Google Scholar] [CrossRef]
  45. Namikoshi, M.; Rinehart, K.L.; Sakai, R.; Sivonen, K.; Carmichael, W.W. Structures of Three New Cyclic Heptapeptide Hepatotoxins Produced by the Cyanobacterium (Blue-Green Alga) Nostoc sp. Strain 152. J. Org. Chem. 1990, 55, 6135–6139. [Google Scholar] [CrossRef]
  46. Namikoshi, M.; Yuan, M.; Sivonen, K.; Carmichael, W.W.; Rinehart, K.L.; Rouhiainen, L.; Sun, F.; Brittain, S.; Otsuki, A. Seven New Microcystins Possessing Two L-Glutamic Acid Units, Isolated from Anabaena Sp. Strain 186. Chem. Res. Toxicol. 1998, 11, 143–149. [Google Scholar] [CrossRef] [PubMed]
  47. Namikoshi, M.; Sivonen, K.; Evans, W.R.; Carmichael, W.W.; Rouhiainen, L.; Luukkainen, R.; Rinehart, K.L. Structures of Three New Homotyrosine-Containing Microcystins and a New Homophenylalanine Variant from Anabaena sp. Strain 66. Chem. Res. Toxicol. 1992, 5, 661–666. [Google Scholar] [CrossRef]
  48. Turner, A.D.; Waack, J.; Lewis, A.; Edwards, C.; Lawton, L. Development and Single-Laboratory Validation of a UHPLC-MS/MS Method for Quantitation of Microcystins and Nodularin in Natural Water, Cyanobacteria, Shellfish and Algal Supplement Tablet Powders. J. Chromatogr. B Analyt. Technol. Biomed. Life. Sci. 2018, 1074–1075, 111–123. [Google Scholar] [CrossRef] [PubMed]
  49. Tillett, D.; Dittmann, E.; Erhard, M.; von Döhren, H.; Börner, T.; Neilan, B.A. Structural Organization of Microcystin Biosynthesis in Microcystis aeruginosa PCC7806: An Integrated Peptide–Polyketide Synthetase System. Chem. Biol. 2000, 7, 753–764. [Google Scholar] [CrossRef] [Green Version]
  50. Jungblut, A.-D.; Neilan, B.A. Molecular Identification and Evolution of the Cyclic Peptide Hepatotoxins, Microcystin and Nodularin, Synthetase Genes in Three Orders of Cyanobacteria. Arch. Microbiol. 2006, 185, 107–114. [Google Scholar] [CrossRef]
  51. Saker, M.L.; Jungblut, A.D.; Neilan, B.A.; Rawn, D.F.K.; Vasconcelos, V.M. Detection of Microcystin Synthetase Genes in Health Food Supplements Containing the Freshwater Cyanobacterium Aphanizomenon flos-aquae. Toxicon 2005, 46, 555–562. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Publications Office of the European Union. CELEX1, 2002/657/EC: Commission Decision of 12 August 2002 Implementing Council Directive 96/23/EC Concerning the Performance of Analytical Methods and the Interpretation of Results (Text with EEA Relevance) (Notified under Document Number C(2002) 3044). Available online: http://op.europa.eu/en/publication-detail/-/publication/ed928116-a955-4a84-b10a-cf7a82bad858/language-en (accessed on 30 November 2020).
  53. Van Loco, J.; Elskens, M.; Croux, C.; Beernaert, H. Linearity of Calibration Curves: Use and Misuse of the Correlation Coefficient. Accredit. Qual. Assur. 2002, 7, 281–285. [Google Scholar] [CrossRef]
  54. Marsan, D.W.; Conrad, S.M.; Stutts, W.L.; Parker, C.H.; Deeds, J.R. Evaluation of Microcystin Contamination in Blue-Green Algal Dietary Supplements Using a Protein Phosphatase Inhibition-Based Test Kit. Heliyon 2018, 4, e00573. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Miller, T.R.; Xiong, A.; Deeds, J.R.; Stutts, W.L.; Samdal, I.A.; Løvberg, K.E.; Miles, C.O. Microcystin Toxins at Potentially Hazardous Levels in Algal Dietary Supplements Revealed by a Combination of Bioassay, Immunoassay, and Mass Spectrometric Methods. J. Agric. Food Chem. 2020, 68, 8016–8025. [Google Scholar] [CrossRef]
  56. Saker, M.L.; Welker, M.; Vasconcelos, V.M. Multiplex PCR for the Detection of Toxigenic Cyanobacteria in Dietary Supplements Produced for Human Consumption. Appl. Microbiol. Biotechnol. 2007, 73, 1136–1142. [Google Scholar] [CrossRef]
  57. Yakes, B.J.; Handy, S.M.; Kanyuck, K.M.; DeGrasse, S.L. Improved Screening of Microcystin Genes and Toxins in Blue-Green Algal Dietary Supplements with PCR and a Surface Plasmon Resonance Biosensor. Harmful Algae 2015, 47, 9–16. [Google Scholar] [CrossRef]
  58. Dietrich, D.; Hoeger, S. Guidance Values for Microcystins in Water and Cyanobacterial Supplement Products (Blue-Green Algal Supplements): A Reasonable or Misguided Approach? Toxicol. Appl. Pharmacol. 2005, 203, 273–289. [Google Scholar] [CrossRef] [Green Version]
  59. EFSA. Scientific Committee Guidance on Selected Default Values to Be Used by the EFSA Scientific Committee, Scientific Panels and Units in the Absence of Actual Measured Data. EFSA J. 2012, 10, 32. [Google Scholar] [CrossRef]
  60. Dietrich, D.R.; Fischer, A.; Michel, C.; Hoeger, S. Toxin Mixture in Cyanobacterial Blooms–A Critical Comparison of Reality with Current Procedures Employed in Human Health Risk Assessment. Adv. Exp. Med. Biol. 2008, 619, 885–912. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Van Hassel, W.H.R.; Huybrechts, B.; Masquelier, J.; Wilmotte, A.; Andjelkovic, M. Development, Validation and Application of a Targeted LC-MS Method for Quantification of Microcystins and Nodularin: Towards a Better Characterization of Drinking Water. Water 2022, 14, 1195. [Google Scholar] [CrossRef]
  62. European Food Safety Authority Use of the EFSA Comprehensive European Food Consumption Database in Exposure Assessment. EFSA J. 2011, 9, 34. [CrossRef]
Toxins 14 00513 g001 550
Figure 1. Matrix effect in a blank ‘spirulina’ matrix is assessed during the validation by comparing the response area of a calibration curve in blank matrix (e.g., addition) to a calibration curve in solvent (e.g., standard). Matrix effect is not observed when the curves are parallel to each other. However, when the curves intersect, there is a matrix effect.
Figure 1. Matrix effect in a blank ‘spirulina’ matrix is assessed during the validation by comparing the response area of a calibration curve in blank matrix (e.g., addition) to a calibration curve in solvent (e.g., standard). Matrix effect is not observed when the curves are parallel to each other. However, when the curves intersect, there is a matrix effect.
Toxins 14 00513 g001
Toxins 14 00513 g002 550

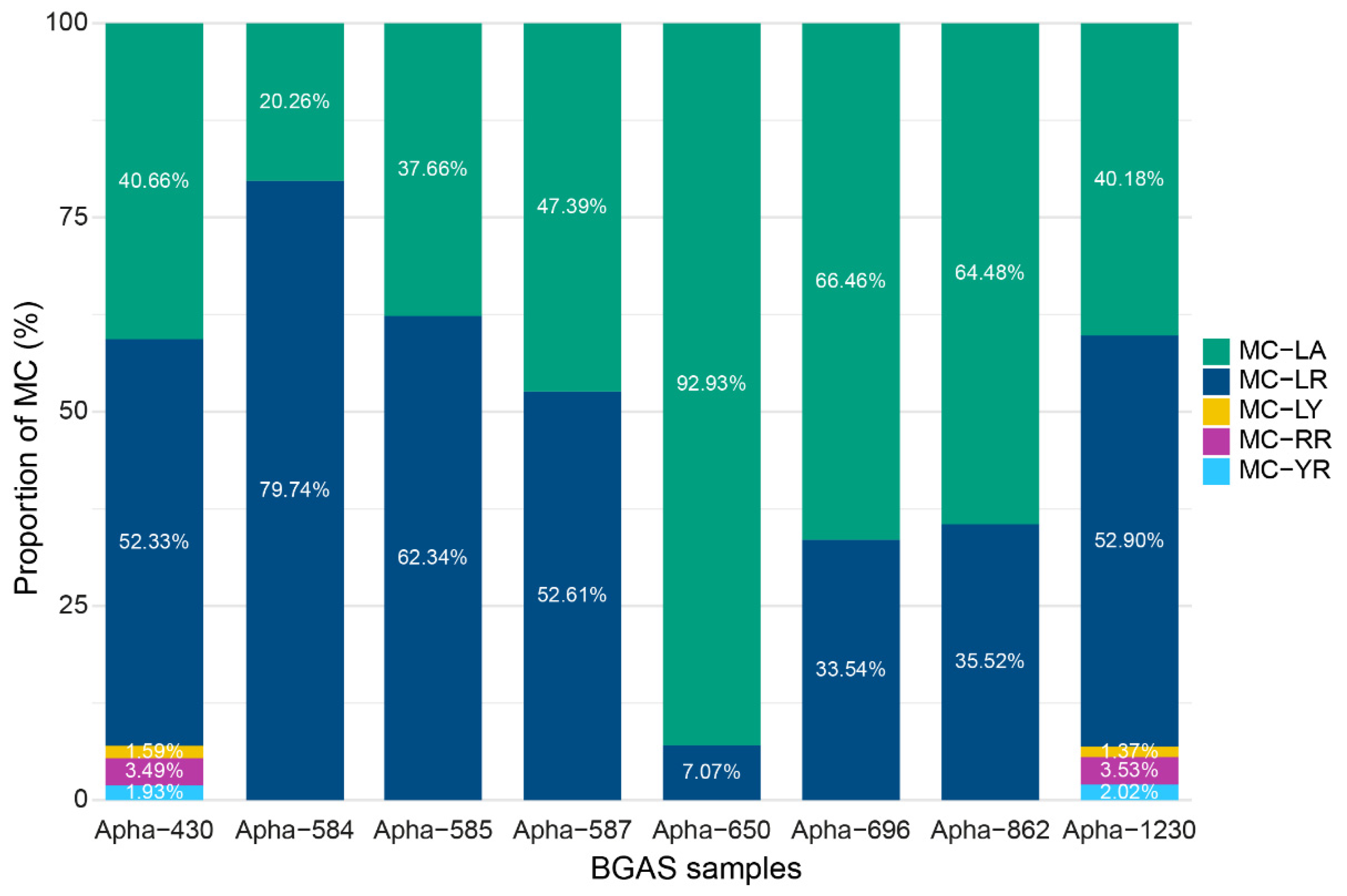

Figure 2. The proportionate contribution (%) of each microcystin congener to the total concentration of microcystin congeners (MCs) per sample of BGAS.
Figure 2. The proportionate contribution (%) of each microcystin congener to the total concentration of microcystin congeners (MCs) per sample of BGAS.
Toxins 14 00513 g002
Table
Table 1. Overview of results for the validation parameters: recovery, repeatability, reproducibility and measurement uncertainty are calculated for each microcystin congener (MC), Nodularin (NOD) and the sum at each independent concentration level and on average.
Table 1. Overview of results for the validation parameters: recovery, repeatability, reproducibility and measurement uncertainty are calculated for each microcystin congener (MC), Nodularin (NOD) and the sum at each independent concentration level and on average.
ToxinsSpiked Concentration (µg kg−1)Recovery (%)Repeatability (%)Reproducibility (%)Measurement Uncertainty (%)Average S/N * LOD (22.5 µg kg−1)Average S/N LOQ (50 µg kg−1)R2 **
MC-RR5080.004.2013.2626.53224.16445.870.998
40076.008.879.4618.91
80084.001.6414.0228.05
120083.001.1011.6823.36
Average80.753.9512.1124.21
NOD5095.003.307.7315.46220.22328.440.998
40086.008.9415.4630.92
80089.002.5015.5531.11
120089.000.9113.1926.39
Average89.753.9112.9925.97
MC-LA50102.002.7910.5221.0335.1074.090.998
40095.008.4713.6027.20
80099.002.066.9513.90
120099.001.174.338.65
Average98.753.628.8517.69
MC-LF50102.003.728.0616.1134.0178.610.999
40099.009.3710.9621.91
800103.001.4014.0528.10
1200103.001.4814.3328.67
Average101.753.9911.8523.70
MC-LR5092.005.617.0614.1273.46142.570.998
40079.008.8618.7437.48
80082.002.5413.7227.45
120082.001.887.0414.08
Average83.754.7211.6423.28
MC-LY50102.003.508.0116.0225.5349.620.998
40094.009.0715.5331.06
80096.001.218.8017.61
120096.000.753.136.26
Average97.003.638.8717.74
MC-LW50103.003.773.857.7023.6250.090.998
400100.008.5011.2522.50
800104.002.2415.1330.26
1200103.001.6414.5429.07
Average102.504.0411.1922.38
MC-YR5086.003.319.8519.7033.8668.870.997
40073.0010.2116.8133.61
80075.001.8516.2132.42
120075.001.9312.2424.47
Average77.254.3313.7827.55
MC-WR5090.003.2416.0032.0029.1779.900.999
40069.009.5915.8931.78
80069.002.0413.8827.66
120069.002.019.6519.30
Average74.254.2213.8627.69
Sum45095.001.904.989.95N.A.N.A.N.A.
360086.008.9813.1726.34
720089.001.6211.9834.96
1080089.000.839.4830.22
Average89.753.339.9025.37
* Signal to Noise (S/N) is assessed as parameter for the limit of quantification (LOQ). LOQ is assessed at the lowest spiked concentration with an acceptable threshold of 10. S/N is assessed for the limit of detection (LOD) at the lowest concentration in the calibration curve with an acceptable threshold of 3. ** Linearity of the calibration curve for each toxin is determined by R2.The LOD and LOQ are assessed for each toxin separately. LOD and LOQ is not calculated for the sum of the concentrations for all toxins and is therefore not applicable (N.A.).
Table
Table 2. This table shows the values for the calculated t(b) compared with the tabulated t at the 95% confidence level (2.09) to determine the presence of a matrix effect. If t(b) is higher than t(95%), a matrix effect is present. The t(b) value compares a significant difference between the slope of standard and addition curve.
Table 2. This table shows the values for the calculated t(b) compared with the tabulated t at the 95% confidence level (2.09) to determine the presence of a matrix effect. If t(b) is higher than t(95%), a matrix effect is present. The t(b) value compares a significant difference between the slope of standard and addition curve.
ToxinsMC-RRNODMC-LAMC-LFMC-LRMC-LYMC-LWMC-YRMC-WR
t(b)19.461.761.247.7017.532.423.1410.4515.60
Table
Table 3. Overview of samples ID with the type of BGAS (pill, powder or tablet), the species indicated on the package, the type of retailer, the total microcystin concentration found, the proposed dose per day and estimated daily consumption.
Table 3. Overview of samples ID with the type of BGAS (pill, powder or tablet), the species indicated on the package, the type of retailer, the total microcystin concentration found, the proposed dose per day and estimated daily consumption.
Sample IDTypeSpecies Indicated on the PackageType of RetailerTotal Microcystin (µg kg−1)Proposed Dose day−1 *Estimated Daily Consumption (g)
Apha-430powderAphanizomenon flos-aquaeHealth food store5645.332 teaspoons or sprinkel4
Apha-584powderAphanizomenon flos-aquaewebshop431.261 teaspoon (2 g)2
Apha-585powderAphanizomenon flos-aquaewebshop308.111 teaspoon (1.5 g)1.5
Apha-587capsulesAphanizomenon flos-aquaewebshop238.452 capsules (800 mg/capsule)1.6
Apha-650powderAphanizomenon flos-aquaewebshop1106.061 or 2 teaspoons (2 = 3 g)3
Apha-696tabletsAphanizomenon flos-aquaewebshop499.52first 15 days: 2 capsules, after 4 caplsules (400 mg/tablet)1.6
Apha-862capsulesAphanizomenon flos-aquaewebshop623.392 capsules (800 mg/capsule)1.6
Apha-1230powderAphanizomenon flos-aquaeHealth food store5436.312 teaspoons or sprinkel4
Sp-589tabletsArthrospira maximawebshop<LOD3 capsules (600 mg/tablet)1.8
Sp-698capsulesArthrospira maximawebshop<LOD3 capsules (600 mg/tablet)1.8
Sp-433tabletsArthrospira pacificaHealth food store<LOD6 tablets (500 mg/tablet)3
Sp-431powderArthrospira platensisHealth food store<LODNot mentioned on package2
Sp-432tabletsArthrospira platensiswebshop<LODup to 6 tablets (500 mg/tablet)3
Sp-475powderArthrospira platensisHealth food store<LOD2 teaspoons (6 g) or sprinkel6
Sp-543powderArthrospira platensisHealth food store<LOD1 teaspoon (1.5 g)1.5
Sp-544powderArthrospira platensisHealth food store<LOD1 tablespoon (7 g)7
Sp-545tabletsArthrospira platensisHealth food store<LOD6–10 tablets (300 mg/tablet)3
Sp-579powderArthrospira platensiswebshop<LODadults 3 g, children 1.5 g3
Sp-581powderArthrospira platensiswebshop<LODNot on package2
Sp-583powderArthrospira platensiswebshop<LOD2 teaspoons (6 g) or sprinkel6
Sp-586powderArthrospira platensiswebshop<LOD1 teaspoon (1 g)1
Sp-588tabletsArthrospira platensiswebshop<LOD2–6 tablets (500 mg/tablet)3
Sp-651powderArthrospira platensiswebshop<LOD1 teaspoon2
Sp-863tabletsArthrospira platensiswebshop<LOD2–3 tablets (500 mg/tablet)6
Sp-864powderArthrospira platensiswebshop<LOD2 × 1 measuring spoon (±3 g)6
Sp-865powderArthrospira platensiswebshop<LOD1 teaspoon2
Mx-582powderArthrospira platensis, Chlorella vulgaris, Aphanizomenon flos-aquaewebshop< LOQ2 teaspoons or sprinkel4
Mx-821powderArthrospira platensis, Chlorella vulgariswebshop<LOD1 teaspoon first two weeks than 1 eatspoon (7.5 g)7.5
Mx-822powderArthrospira platensis, Chlorella vulgariswebshop<LOD2 × 1 teaspoon4
Ch-546powderChlorella vulgarisHealth food store<LOD3 teaspoons6
Ch-547tabletsChlorella vulgarisHealth food store<LOD1–12 tablets (500 mg/tablet)6
Ch-580powderChlorella vulgariswebshop<LODNot on package2
Ch-649powderChlorella vulgariswebshop<LOD1 spoon (unspecified)7.5
Ch-652tabletsChlorella vulgariswebshop<LOD6 tablet (500 mg/tablet) 12 in special cases3
Ch-697tabletsChlorella vulgariswebshop<LOD4 to 6 tablets (400 mg/tablet)2.4
Sp-823powderSpirulina platensis/maximawebshop<LODNot mentioned on package2
* The weight of BGAS measured as a teaspoon suggested by EFSA (2 g), was used when the proposed daily dose is not mentioned on the package or the weight of a teaspoon is not mentioned.
Table
Table 4. Mean, median and 95th percentile estimated daily intake (EDI) (µg kgbw−1 day−1) for an adult population to microcystins detected in BGAS.
Table 4. Mean, median and 95th percentile estimated daily intake (EDI) (µg kgbw−1 day−1) for an adult population to microcystins detected in BGAS.
Exposure ScenarioEDI µg kgbw−1 day−1
adults (consumption following the posology recommendation)meanmedianP95
real (UB) *0.020.000.14
worst (UB) **0.100.020.33
adults (mean consumption as calculated from the EFSA database***)meanmedianP95
real (UB) *0.010.000.06
worst (UB) **0.040.010.13
* Real (UB), the exposure scenario where all analyzed BGAS were taken into account (upper bound approach); ** worst (UB), only results of the positive samples (at least one MC detected) were taken into account (upper bound approach), *** EFSA, the mean chronic consumption was calculated from the EFSA Food Consumption Comprehensive Database.
Table
Table 5. MS/MS parameters used for the ion fragmentation.
Table 5. MS/MS parameters used for the ion fragmentation.
ToxinsPrecursor Ion (m/z)Quantifier Ion
(m/z)		Collision Energy
(eV) 		Cone Voltage
(V)		Qualifier Ion
(m/z)		Collision Energy
(eV)		Cone Voltage
(V)
MC-LR995.4135.07080213.16080
MC-RR519.8134.83050107.26050
MC-YR1045.5135.38060212.96060
MC-WR1068.4135.370100213.160100
MC-LY1002.4135.46050213.05050
MC-LA910.3135.16050107.18050
MC-LF986.3135.06070213.16070
MC-LW1025.4134.96060213.15060
NOD825.25134.95080102.79080
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Van Hassel, W.H.R.; Ahn, A.-C.; Huybrechts, B.; Masquelier, J.; Wilmotte, A.; Andjelkovic, M. LC-MS/MS Validation and Quantification of Cyanotoxins in Algal Food Supplements from the Belgium Market and Their Molecular Origins. Toxins 2022, 14, 513. https://doi.org/10.3390/toxins14080513

AMA Style

Van Hassel WHR, Ahn A-C, Huybrechts B, Masquelier J, Wilmotte A, Andjelkovic M. LC-MS/MS Validation and Quantification of Cyanotoxins in Algal Food Supplements from the Belgium Market and Their Molecular Origins. Toxins. 2022; 14(8):513. https://doi.org/10.3390/toxins14080513

Chicago/Turabian Style

Van Hassel, Wannes Hugo R., Anne-Catherine Ahn, Bart Huybrechts, Julien Masquelier, Annick Wilmotte, and Mirjana Andjelkovic. 2022. "LC-MS/MS Validation and Quantification of Cyanotoxins in Algal Food Supplements from the Belgium Market and Their Molecular Origins" Toxins 14, no. 8: 513. https://doi.org/10.3390/toxins14080513

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
