Silicon oxynitride (SiNxOy) is a highly promising functional material for its luminescence performance and tunable refractive index, which has wide applications in optical devices, non-volatile memory, barrier layer, and scratch-resistant coatings. This review presents recent developments, and discusses the preparation methods, performance, and applications of SiNxOy film. In particular, the preparation of SiNxOy film by chemical vapor deposition, physical vapor deposition, and oxynitridation is elaborated in details.

1. Introduction

Silicon oxynitride (SiNxOy) is an important inorganic material widely studied for its outstanding electronic and mechanical performance. SiNxOy is the intermediate phase between silicon dioxide (SiO2) and silicon nitride (Si3N4) [1,2], which possesses high durability at high temperature, high resistance to thermal-shock and oxidation, high density, excellent mechanical performance, and a low dielectric constant [3,4,5,6,7,8]. Due to these unique performance, SiNxOy has great potential for high-temperature related applications, for example, it is typically used in non-linear optics [9] and as mechanical component owing to its high strength, thermal insulation, and electronic and chemical resistance [10,11]. When Si3N4 thin film is utilized as the core material of waveguide devices, Si3N4 waveguides have better tolerance to sidewall roughness and geometric variations than silicon waveguides, and its relative refractive index difference can increase to 0.62, allowing for much tighter bending radius. Tighter bending radius will not only reduce the bending radius and improve the device integration, but also narrow the waveguide and reduce the input loss [12,13,14,15,16]. However, Si3N4 has low fracture toughness and poor electrical insulation, limiting its wide applications. SiO2 film has a wide range of applications, from microelectronics [17,18] to optical waveguides [19], due to its low dielectric constant, low defect density, and low residual stress. However, SiO2 does not perform as an encapsulation layer since oxygen, sodium, and boron can diffuse within it [20,21], which is different from Si3N4. For these mentioned applications, SiNxOy is a more promising candidate, in addition, it has tunable optical and electrical performance. By varying the chemical composition of SiNxOy, during the fabrication process, its refractive index and dielectric constant will be tuned [22,23,24]. Except the tunable refractive index, SiNxOy also has adjustable thin film stress [25] and exhibits photoluminescence (PL) in the visible light range at room temperature [26]. Thus, SiNxOy is highly attractive in integrated circuits (IC) [27], barrier layers [28,29], non-volatile memory [30], optical waveguides [31], organic light emitting diode (OLED) [32], and anti-scratch coatings [33,34]. This review presents a discussion and summary of the preparation methods, performance, and applications of SiNxOy film.

2. Performance of SiNxOy Film

2.1. Luminescent Performance

With the development of semiconductor technology, silicon-based micro/nano devices with applications in optoelectronics and IC are in the rapid development. Optoelectronic integration technology urgently requires high-efficiency and high-intensity luminous materials, and the currently-existing silicon integration technology is utilized to develop high-performance optoelectronic devices/systems. Previously, the research on PL of porous silicon and nano-scale silicon at room temperature has aroused widespread attention in this field [34,35,36]. However, porous silicon exhibits several disadvantages such as degradation and poor stability, and it is the most important that it isvery difficult to use it on standard CMOS circuits, thin film sensors, or flexible substrates [37,38]. In addition, nano-scale silicon has problems such as insufficient density, difficulty in controlling size and distribution, unbalanced carrier injection efficiency, complicated luminescence mechanism, and non-radiative recombination [39,40,41,42,43]. As known to all, SiNxOy film is an important protective and barrier film with its luminescence characteristics, high mechanical performance, and high reliability [44,45]. Therefore, it is of great significance to study the luminescence characteristics of SiNxOy film. Some reported results showed that the luminescence mechanism of SiNxOy film is generally divided into three types: defect-state radiation composite luminescence [46], band-tail (BT) radiation composite luminescence [47] and quantum dot radiation composite luminescence [48].
The light-emitting performance of SiNxOy film is effected by its composition, because its composition has significant influences on the formation of Si-O, Si-N, Si-H, and N-H bonds, resulting in the changes of absorption peak position of SiNxOy film [49,50]. As a result, many researchers studied the atom ratio of N and O in SiNxOy film [51,52]. During the preparation of SiNxOy film, it is found that the luminescence performance of the SiNxOy film can be adjusted by changing the flow rate of nitrogen (N2) and concentration of oxygen. In order to investigate the effect of flow rate of N2 on the evaporated SiNxOy film, Lee et al. [53] prepared a SiNxOy film on a poly(ethylene naphthalate) (PEN) substrate by ion-beam assisted electron beam evaporation at room temperature. It is found that when the flow rate of N2 is 40 sccm, the refractive index of SiNxOy film increased to 1.535, and the SiNxOy film density increased to ~2.5 g cm−3, whereas the surface roughness and optical transmittance of SiNxOy film decreased. In preparation of the SiNxOy film, adjusting the flow rate of N2 has a significant improvement on the luminescent performance of the doped SiNxOy film. Among them, Labbé et al. [54] prepared a nitrogen-rich SiNxOy film doped with Tb3+ by reactive magnetron co-sputtering under N2 with different flow rates and annealing conditions. The influences of flow rate of N2 on the atomic composition of SiNxOy film, the N excess (Nex) in the sedimentary layer and the deposition rate are shown in Figure 1a. For the synthesis, the reverse flow of N2 during deposition is studied. Through the characterization results, the researchers carefully identified different vibration modes of Si-N and Si-O bonds, especially the ‘non-phase’ tensile vibration mode of Si-O bonds. The highest PL intensity of Tb3+ is obtained by optimizing the nitrogen incorporation and annealing condition. The aggregation effect in Si3N4 matrix is significantly reduced, thus allowing the higher concentration of optically active Tb3+, which promoted its luminescence applications. In related researches, Ehré and co-workers [55] prepared a cerium (Ce)-doped SiNxOy film by magnetron sputtering under N2 atmosphere. Their results showed that a broad and strong PL peak is red-shifted at the N2 flow rate of 2 sccm. The peak of PL band shifts to 450 nm, and the results showed that the PL strength is 90 times higher than the BT strength of the sample deposited at a low flow rate of N2. The effects of flow rate of N2 on PL of Ce-doped SiNxOy film, PL spectrum (solid line), and PL excitation spectrum (dotted line) at flow rate of N2 (2 sccm) are shown in Figure 1b,c. As described above, it is possible to adjust not only the luminescence characteristics of the SiNxOy film by changing the flow rate of N2 but also the oxygen content, such as Huang et al. [56] demonstrated the strong PL of SiNxOy film by adjusting the oxygen content. With the oxygen content in the SiNxOy film increasing from 8% to 61%, the PL changed from red light to orange light and white light, and they indicated that the change in PL performance of SiNxOy film is due to the change in the center of the defect luminescence and the change in the main phase structure from Si3N4 to SiNxOy and SiO2. Similarly, the researchers studied the effect of oxygen concentration on PL of SiNxOy film doped with other components. Steveler et al. [57] prepared an Er3+-doped amorphous SiNxOy film by reactive evaporation. They found that the PL of Er3+ is observed only in the samples with oxygen concentration equal to or less than 25%, and they indicated that oxygen will make Er3+ ions optically active and can be indirectly excited in the presence of excess Si. It is further confirmed that, when both the amounts of oxygen and nitrogen are equal to or about 25%, Er3+ related PL increases with the increase of annealing temperature.
Processing conditions of the preparation of SiNxOy film also have influences on the PL performance of SiNxOy film, such as the annealing process. For instance, the SiNxOy film prepared by reactive sputtering on a silicon substrate, and then vacuum-annealed at 900 °C for 1 hour, is amorphous, composed of mixed Si-N and Si-O bonds, and blue and green emission are observed in the PL spectra of this prepared SiNxOy film, as shown in Figure 1d [46], so the SiNxOy film integrated with a top electrode is used for a electroluminescent device.

2.2. Adjustable Refractive Index

Adjustable refractive index means that the refractive index can be continuously tuned along the normal direction of the surface of the SiNxOy film by changing the proportion of the reaction gas [58]. In order to prepare graded-index SiNxOy film for applications in optical waveguide materials, gradient-index films, and anti-reflection films, researchers conducted extensive research on the refractive index-adjustable performance of SiNxOy film, such as the research on controlling the flow rate and ratio of reactive gas, reaction process, etc. [59,60,61]. Hänninen et al. [62] found that the refractive index and extinction coefficient of the SiNxOy film decrease with the increase of oxygen and nitrogen contents in the SiNxOy film, which could be adjusted by controlling the ratio of reactive gas. Therefore, in order to control the ratio, they applied reactive high-power pulsed magnetron sputtering to synthesize a SiNxOy film using N2O as a single source, providing oxygen and nitrogen for SiNxOy film’s growth. The characterization results showed that the synthesized SiNxOy film has the characteristics of silicon-rich, amorphous, and randomly-chemical-bonding structure. Furthermore, Himmler et al. [32] used reactive magnetron sputtering to deposit SiNxOy film and found that the refractive index of SiNxOy film depends on its oxygen and nitrogen contents, so they adjusted the refractive index by controlling the content ratio of oxygen/nitrogen. It is found that the reaction gases are differently incorporated into the layer due to different plasma conditions in the coating region, so there is a higher nitrogen incorporation and a higher refractive index in plasma regions with a high plasma density, while plasma regions with lower plasma density will result in a higher oxygen bonding and a lower refractive index. In addition to controlling the proportion of gas, the preparation method also has a certain influence on the refractive index of the SiNxOy film. Farhaoui et al. [63] used the reactive gas pulse in sputtering process (RGPP) to adjust the composition of SiNxOy film from oxide to nitride by controlling the average flow rate of O2. Compared with the conventional reaction process (CP), not only did the deposition rate increase, but also a wide range of SiNxOy films’ refractive indexes varying within the same range could be obtained through this pulse process. Moreover, extinction coefficient of the SiNxOy film is low, and this SiNxOy film can be used for multi-layer anti-reflection coating (ARC). Nakanishi et al. [64] also introduced argon (Ar) in the preparation of SiNxOy film by pulsed direct current (DC) reactive magnetron sputtering. They found that the higher the Ar concentration is, the more stable the SiNxOy film’s formation and the higher the deposition rate is. The researchers claimed that a large amount of sputtered silicon atoms reach the substrate at high Ar concentration, causing the oxidation probability of the SiNxOy film to decrease and the refractive index of the SiNxOy film to gradually change with the percentage of oxygen in the reactive gas. The tunable refractive index of SiNxOy film makes it superior to Si3N4 and SiO2 in optical device applications. Furthermore, it also provides a new strategy for development of optical devices.

3. Preparation of SiNxOy Film

At present, the preparation methods of SiNxOy film are mainly classified into chemical vapor deposition (CVD), physical vapor deposition (PVD), high-temperature nitridation, and ion implantation [65]. The descriptions and comparisons of these preparation processes are as follows.

3.1. CVD Method

CVD is a vapor phase growth method for preparing materials by introducing one or more compounds containing a constituent film element. During this growth process, the reactive gas is purged into a reaction chamber in which a substrate is placed, and a depositing process on the gas–phase or gas–solid interface is executed to generate solid sediments [66]. CVD based methods are mainly divided into plasma enhanced CVD (PECVD), low-pressure CVD (LPCVD), photochemical vapor deposition [67], thermal CVD [68], etc. Among them, PECVD and LPCVD are the most commonly employed methods. Additionally, PECVD can be extended to radio frequency PECVD (RF-PECVD) [69], electron cyclotron resonance PECVD (ECR-PECVD) [70,71], and inductively coupled PECVD (IC-PECVD) [72].

3.1.1. PECVD

PECVD is a method for preparing a semiconductor thin film which is subjected to chemical reaction deposition on a substrate using a glow discharge in a deposition chamber [73]. The preparation process of SiNxOy film via PECVD is generally described as follows: at low temperature (<400 °C), ammonia (NH3), pure silane (usually SiH4), N2, and nitrous oxide (N2O) are generally employed in a PECVD chamber with a certain power. There are generally some differences in the composition of the precursor gases reported in studies. In general, the flow rates of NH3, pure silane, and N2 remain the same, and the total flow rate is controlled by adjusting the flow rate of N2O [74]. Generally, SiNxOy film is deposited on silicon substrate or quartz substrate, wherein the substrate’s temperature is kept at room temperature, but some composite films are deposited on other composite layers by PECVD, such as the preparation of SiNxOy and Si3N4 by Park et al. [75]. For composite film, they deposited a SiNxOy film directly on the deposited Si3N4 layer.
For SiNxOy film by PECVD, NH3 is often used as the reaction gas of the nitrogen source, and SiH4 is used as the reaction gas of the silicon source. Although NH3 reacts with SiH4 easily, the SiNxOy film produced by NH3 at a lower temperature has a higher hydrogen content, which causes the decreased electrical performance of SiNxOy film, so some studies used RF-PECVD, with N2 and SiH4 as precursor gases to prepare SiNxOy film with lower hydrogen content, and some studies used RF-PECVD, with N2, SiH4 and NH3 as the front gases [76]. For example, Kijaszek et al. [77] used RF-PECVD and maintained the RF of 13.56 MHz, pressure, power, and substrate temperature (350 °C), and controlled the composition of SiNxOy film by the flow ratio of different gaseous precursors: NH3, 2% SiH4/98% N2 and N2O, wherein the flow rate of 2% SiH4/98% N2 and N2O remained the same, and the flow rate of NH3 is adjusted to control the SiNxOy film’s performance. When the flow rate of NH3 is low, the SiNxOy film’s hydrogen content is also lowered, and the electrical performance of the SiNxOy film is improved.
ECR-PECVD is also included in the PECVD method. Okazaki et al. [78] deposited a SiNxOy film under hydrogen-free conditions by ECR-PECVD at a low temperature of ~200 °C with O2 and N2 as reaction gases, and the obtained deposition rate is ~0.1 μm min−1. The deposited SiNxOy film has good optical performance. Furthermore, Wood [79] used an ECR-PECVD system to deposit SiNxOy dielectric film at low substrate temperature. The electrical performance of these films is found to be comparable with those deposited in systems using ion-assisted PVD and sputtering systems. Furthermore, thin film electroluminescence devices containing ECR SiNxOy dielectrics exhibit high brightness and excellent breakdown characteristics.

3.1.2. LPCVD

For LPCVD, a gas source under low pressure is decomposed to deposit SiNxOy film directly on a substrate. Since the mean free path of the reactive gas molecules increases at a low pressure, the diffusion coefficient increases. Thereby, the transmission speeds of gaseous reactants and by-products are increased, the aggregation of impurities on the substrate is reduced to some extent, and the film is more uniform. It has the advantages of structural integrity, few pinhole defects, and high deposition rate, therefore it is suitable for large-area production [80]. Kaghouche et al. [81] deposited a SiNxOy film on a single crystal silicon wafer using LPCVD at a high temperature of 850 °C with N2O, NH3 and dichlorosilane (SiH2Cl2) as precursor gases. In the synthesis, the control variable experiment is carried out by adjusting the flow ratio of NH3/N2O via keeping the flow rate of SiH2Cl2 as constant. Additionally, the deposition duration remains constant to maintain similar annealing conditions during the deposition process. Finally, the thickness of the obtained SiNxOy film is generally in the range of 300–400 nm.
However, the LPCVD has its disadvantages of low heating rate, long reaction time, and high deposition temperature (generally >550 °C), which limit its applications to some extent. A comparison of different CVD methods is summarized in Table 1 [76,82,83,84,85].

3.1.3. High Temperature Thermochemical Vapor Deposition (HTCVD)

The HTCVD method uses a direct heating method to decompose or chemically react to obtain a solid film on the surface of a substrate [86]. Since the HTCVD method uses direct heating to provide activation energy for the gas, it does not require complicated equipment, and the operation is relatively facile. In addition, the reaction rate is high, and the formed film has less impurity of hydrogen and a dense structure [80]. However, the heating temperature of the HTCVD method is generally high (≥700 °C), which easily causes deformation and internal structural change of the substrate, reducing the mechanical performance of the substrate and the bonding force between film and substrate.
For optimization of this method, a rapid thermal CVD (RTCVD) is investigated [68]. RTCVD refers to the formation of a single-layer SiNxOy film by a rapid annealing method to seal the substrate, thereby avoiding the substrate being affected by high temperature [76]. The RTCVD method can deposit advanced dielectric films on III-V substrates under high temperature. This method not only has the advantages of HTCVD, but also prevents the V group elements from sublimating due to high temperature. Lebland et al. [87] deposited SiNxOy film on III-V substrates by RFCVD. They controlled the deposition rate and stoichiometry of the SiNxOy film by adjusting the partial pressure of N2O and temperature. It is found that a deposition rate of up to 10 nm s−1 is obtained at 750 °C, and the InP substrate does not degrade, solving the contradiction between the high deposition temperature using the direct CVD method and the degradation of the V group element.

3.1.4. Photochemical Vapor Deposition (Photo-CVD)

Photo-CVD is a novel low-temperature deposition method using ultraviolet (UV) light or laser to photodecompose a reaction gas to obtain a solid film [88]. It has the following advantages: greatly reducing the substrate temperature (≤250 °C), avoiding the damage caused by high-energy particle radiation on the surface of the film, making the surface of the film smooth, and reducing the by-product [89]. However, the main disadvantages of the photo-CVD are its high cost, and that the formed film is not stable.
The CVD method has certain advantages and many extension methods, Table 2 shows the pros and cons of four different CVD approaches [80,89,90,91,92], among them PECVD and LPCVD are the most commonly used deposition methods. Even so, it is difficult to avoid the existence of hydrogen in preparing SiNxOy film by PECVD or LPCVD, and the hydrogen deposited in the raw material is difficult to remove due to the low deposition temperature of the CVD method, further affecting the performance of SiNxOy film [90]. To this end, researchers have proposed various methods to reduce the hydrogen content of SiNxOy film. Among them, the thermal oxidation treatment by Hallam et al. [91] is highly promising, they deposited a SiNxOy film by PECVD and demonstrated that the SiNxOy film with Si-H peak wave number of >2200 cm−1 has an open circuit voltage of up to 80 mV during thermal annealing. They pointed out that the result is due to an increase in oxygen content. In addition, increasing the flow of raw materials and the annealing temperature will also reduce the hydrogen content to various degrees.

3.2. PVD

PVD is a physical method of vaporizing a material source into gaseous atoms, molecules, or ionized ions under vacuum conditions, and depositing a film on the substrate by sputtering or plasma technology [93]. The main processes of PVD are vacuum evaporation, sputter coating, ion plating, arc plasma coating, etc. [94,95,96]. Among them, sputter coating is a widely used and mature method, which means that under vacuum conditions, the surface of the target material is bombarded with the particles having the function, then the surface atoms of the target are obtained with sufficient energy to escape, and the sputtered target is deposited on the substrate to form a film [97]. The large-scale magnetron sputtered coating developed on the basis of sputter coating has high deposition rate, good process repeatability, easy automation, etc. [90].
Magnetron sputtering coating method is also divided into several categories such as reactive pulsed magnetron sputtering, pulsed DC magnetron sputtering, rotatable dual magnetron pulsed DC reactive magnetron sputtering, intermediate frequency (MF) magnetron sputtering, etc. [98]. Tang et al. [99] deposited SiNxOy film by reactive pulsed magnetron sputtering, and the effects of nitrogen ratio on the optical, structural, and mechanical performance of SiNxOy film are investigated. They found that with the increase of nitrogen ratio, the refractive index of the SiNxOy film increased from 1.487 to 1.956, its surface roughness decreased from 1.33 to 0.97 nm, its hardness increased from 13.51 to 19.74 GPa, and its Young’s modulus increased from 110.41 to 140.49 GPa. When the SiNxOy film is applied to the anti-reflection coating, the hardness of the coating is greatly improved. Additionally, Simurka et al. [100] deposited a SiNxOy film on a glass substrate by pulsed DC magnetron sputtering with a constant flow of Ar (38–94 sccm) as the working gas and a constant gas flow ratio of oxygen (2–5 sccm) and nitrogen (20 sccm) is employed. Through experimental characterizations, it is found that as the sputtering power increases, the density, refractive index, hardness, and Young’s modulus of the film increase slightly. Therefore, in the preparation process, it is very important to select the appropriate sputtering power according to the requirements. Furthermore, in the preparing process of SiNxOy film, not only a reasonable sputtering power should be set, but also the voltage is important. Himmler et al. [32] deposited a single layer of SiOx, SiNy, and SiNxOy using a rotatable dual magnetron pulsed DC reactive magnetron sputtering, as shown in Figure 2a, showing a layout of deposition zone within the roll-to-roll coating tool. Experimental results demonstrated that the ratio of oxygen/nitrogen in the layer is determined not only by the reactive gas, but also by the voltage. Furthermore, Li et al. [101] deposited a multilayer film of hydrogenated silicon nitride (SiNx:H)/silicon nitride (SiNx)/SiNxOy for silicon crystal solar cells using intermediate frequency (MF) magnetron sputtering, and the process design and application of passivation film on anti-reflection surface of silicon solar cell in laboratory are shown in Figure 2b. The multilayer film prepared by this process has excellent cell efficiency when applied to solar cells.
Although the SiNxOy film prepared by the PVD method has a lower hydrogen content than that of the SiNxOy film by CVD, the PVD is superior to the CVD for preparing SiNxOy film. Moreover, the sputtering method has a low deposition temperature and is easy to control. However, it is difficult to perform rapid film deposition on a large-scale substrate by sputtering method [102] and the sputtering method is prone to “target poisoning” [103], that is the added reaction gas generates a composite material on the target, thereby changing the sputtering yield and the deposition rate. Finally, the film stoichiometry is changed.

3.3. Oxynitridation

Oxynitridation is generally a method of reacting gas such as N2O, NO, NH3, N2, and O2 with Si, SiO2, or Si3N4 under suitable conditions to obtain a SiNxOy film.
The high-temperature nitridation is a more commonly used method, which refers to the preparation of SiNxOy film by introducing N into SiO2 film by means of thermal nitriding [104], rapid annealing [105], and plasma nitriding [106] under certain conditions with reactive gas containing nitrogen (e.g., N2O, NO, NH3, N2) [107]. Among them, a SiO2 film which can be obtained by a thermal oxidation method [108] and a sol–gel method [109]. Different performance of membranes prepared under different oxidation/nitridation conditions in the nitrogen oxidation process are obtained. When the temperature is 800–1200 °C, NH3 is introduced as a nitrogen source for high-temperature nitridation of SiO2 by thermal nitridation, although a simple and smooth SiNxOy film can be obtained, H is inevitably introduced. H doping in the SiNxOy film affects its electrical performance, such as the formation of a large number of electron traps in the SiNxOy film. In order to reduce the effect of H on membrane performance, reoxidation is an effective method [110]. Furthermore, a nitrogen-containing gas without H can be used as a nitrogen source, such as N2O, to form a Si-O-N film in situ generation without introducing a H atom. However, the high temperature conditions of the high temperature nitridation process have a serious influence on the substrate and are prone to defects. In addition, the SiNxOy film obtained by this method has poor uniformity and poor compactness.
Three methods for preparing SiNxOy film are introduced above, and the advantages and disadvantages of different preparation methods are summarized in Table 3 [110,111,112,113].
The deposition process of the SiNxOy film is reviewed. The properties of the film microstructure for different growth conditions and post-growth thermal annealing will be illustrated by Figure 3. As shown in Figure 3a–c, when the ratio of Ar/SiH4 and O2/(O2 + N2) is 4.5 and 0.1, respectively, the porosity of the SiNxOy film gradually decreases. However, at this state, the SiNxOy film is still porous and pore-oriented. The effect of the rate reduction is small. As shown in Figure 3d, by changing Ar/SiH4 from 4.5 to 41 and RF to 0.9 KW, a very significant decrease in porosity is observed, showing a very dense SiNxOy film, and it is shown by Figure 3e when Ar/SiH4 changes from 4.5 to 41, and when the RF is 0.9 KW, its water vapor transmission rate (WVTR) is the lowest, and it has good protection function [72]. Figure 3f,g shows HRTEM images of different types of Ce3+ and Tb3+ co-doped SiNxOy film and structure (III) multilayer designs. It is worth noting that no ripples and layer mixing are observed. Furthermore, the fact that the morphological structure remained unchanged even after annealing at 1180 °C for 1 h confirmed the manufacturing process and showed the robustness of the sample (Figure 3g) [114]. As shown in Figure 3h, (I) and (II) are infrared transmission photographs of the bond pairs and the annealed pairs, respectively. The results show that the crack length of the composite is obviously shortened after annealing at 120 °C, and the bond strength is obviously improved. After the sample is annealed at 300 °C for 2 h, the bond strength is sufficient to withstand peeling, and the infrared transmission photograph is shown in Figure 3 h(III). As shown in the AFM chart (Figure 3i), the SiNxOy film has a smooth and uniform surface with a root mean square (RMS) roughness of 0.162 nm, which is sufficient for direct soldering without complicated grinding and polishing processes. Figure 3j shows the corresponding depth profiles of N, O, and Si. Obviously, you can find two layers. From the surface to a depth of about 40 nm, the amounts of O and N are about 40% and 20%, respectively. Starting from 40 nm, the O concentration gradually decreases compared with the first layer, but the concentration of N increases. After annealing at 1100 °C, the higher structural disorder confirmed by XRD analysis in the SiNxOyy film can be attributed to the presence of O. This helps to inhibit polycrystallization of the buried insulator during post-annealing in conventional CMOS processes [115]. By analyzing the effects of different growth conditions and the properties of the thermally annealed film microstructure by post-growth on the performance of SiNxOy film, it is helpful to effectively control the parameters as needed in later applications.

4. Applications of SiNxOy Film

As an intermediate of SiNx and SiO2, SiNxOy film has an adjustable dielectric constant, refractive index, and extinction coefficient by controlling the ratio of nitrogen/oxygen in the chemical composition [116]. The gas ratio and process parameters of the various reactants involved in the preparation of SiNxOy are different, so that the stoichiometry of each element in SiNxOy is different, and the limit forms may be a-Si, SiO2, and Si3N4.As shown in the Figure 4, a series of possible forms of the SiNxOy film is given, as well as changes in the properties of different film forms as the O content and H content increase, are mainly reflected in changes in transparency, band gap width, refractive index, and insulation [117]. SiNxOy film has performance between SiO2 and Si3N4. Due to its excellent photoelectric performance, it has been widely used in optical devices, dielectric gate dielectric materials, and optical waveguide materials [118]. The SiNxOy film also has high chemical stability, high resistance to impurity diffusion, and water vapor permeability, which is highly promising for applications in barrier devices such as gas barriers [119]. In addition, the SiNxOy film has a small defect density and is advantageous in applications as a storage medium. The applications of SiNxOy film in microelectronic devices, optical devices, barrier materials, and non-volatile memory will be introduced in this section.

4.1. Application of Barrier Material

Most organic conductive polymers and chemically reactive electrodes degrade when exposed to water or oxygen, causing failure of electronic devices [120]. Therefore, in order to enhance the service life of device, it is necessary to use a barrier material for encapsulation layer of the device with a low water vapor transmission rate and oxygen permeability. Currently, glass or metal is often used for device packaging, however, these rigid materials with high spring constant will greatly limit the widespread applications of devices, especially in flexible devices. On this basis, researchers studied thin-film encapsulation (TFE) technology [121]. In recent years, the SiNxOy film has also been widely used as encapsulating layers. However, SiNxOy film has some problems served as an encapsulation layer. The basic degradation mechanism of water vapor or oxygen on a single layer of SiNxOy film is studied, and it is found that water vapor diffuses into the SiNxOy film through the percolation channel and nano-defects to react with SiON:H, making Si-N gradually changes to Si-O bond under repeated erosion of water vapor, eventually becoming a fully oxidized film. Therefore, the degradation of SiO2:H becomes a way for water vapor to diffuse, and because of the lower density of SiO2:H, the diffusion rate of water vapor in the SiNxOy film is further enhanced [116]. In addition, the difference in moisture resistance of the SiNxOy film is explained by film oxidation and surface defect density. Oku and co-workers [122] indicated that the surface of SiNxOy film easily changes to a low-quality film containing an excessive amount of H2O molecule and O-H bond, which reduces the waterproofness, after pressure cooker test (PCT) test. Therefore, it is generally formed by depositing a multilayer film to reduce film defects and the probability of film pores communicating with the atmosphere, thereby forming a perfect barrier layer. On the other hand, SiNxOy film deposited at a higher temperature has higher performance, and its defects are less, however, the high-temperature treatment should be avoided in some devices, and the deposited SiNxOy film has poor barrier performance under low temperature, which is not conducive to the protection of the device. Therefore, Satoh et al. [123] developed a AlOx/SiON composite bilayer structure deposited at a relatively low temperature (<160 °C), in which the AlOx layer is used as a barrier layer, and the SiNxOy layer ensured the chemical and thermal stability of the film to protect the device from damage during processing. The test results indicated that the device did not show any degradation at 85 °C, and 85% relative humidity (RH) is obtained.
Additionally, some researchers have developed other methods, such as changing the preparation process and controlling the preparation parameters, to optimize the barrier performance of SiNxOy film to air and water vapor. Shim et al. [124] deposited a thin SiNxOy layer on the surface of poly(ether sulfone) (PES) membrane by PECVD using a mixture of hexamethyldisiloxane (HMDSO) and ammonia. SiNxOy is used as gas barrier layer, and a silicon-based coating layer of an organic/inorganic hybrid structure is added between the surface of PES and SiNxOy film as a buffer layer for both. The results showed that the undercoat layer is indispensable in the composite film. Under the action of the undercoat layer, the dense inorganic SiNxOy layer has an excellent oxygen barrier performance of 0.2 cm3 m−2 day−1 at a critical coating thickness of ~20 nm. Moreover, the presence of the undercoat layer not only prevents the film from being cracked when the composite film is highly curved, but also maintains the initial gas barrier performance of the curved film. Iwamori et al. [125] prepared a SiNxOy-based transparent gas barrier material by depositing a SiNxOy film on a polyethylene terephthalate (PET) substrate by reactive sputtering in a nitrogen plasma. The results showed that the SiNxOy film has a lower oxygen transmission rate than that of the SiO2 film, because the use of nitrogen plasma instead of oxygen suppresses the formation of defects induced by peroxide, and the increase in nitrogen content greatly enhances the density of SiNxOy film, forming a composite film with excellent gas barrier performance. Liu et al. [126] deposited a SiNxOy film on PES by RF magnetron sputtering in Ar/N2 atmosphere as a barrier to prevent water vapor permeation. The experimental results showed that the RF power is 250 W. At the fixed film pressure of 1.6 Pa, with the deposition time of 30 min, the 100% N2 content, and the absence of substrate bias, the water vapor transmission rate of the composite film is two orders of magnitude smaller than that of the uncoated PES.
These studies provided some new research ideas for the development of high-quality SiNxOy barrier material, and have important research significance for the applications of SiNxOy film in packaging materials, protective layer materials, and gas barriers.

4.2. Application of Non-Volatile Semiconducting Memory

Non-volatile semiconducting memory (NVSM) means that when the current is turned off, the stored data does not disappear, which can be applied to many fields [127,128,129]. Wrazien et al. [130] conducted a lot of work on non-volatile memory. They studied NVSM with silicon-oxide-nitride-oxide-silicon (SONOS) structure, which theoretically proves its storage capacity under low pressure and 150 °C can be as long as 10 years and the erase/write cycle is 105 times. Moreover, the SONOS based device has an oxynitride charge storage layer. In recent years, resistive memory is considered as a non-volatile memory with broad application prospects because of its excellent durability, high data transmission speed, and low power consumption [131]. Resistive random access memory (RRAM) is also known as a memristor-an electronic component with memory function [132]. Currently, excellent resistance switching characteristics of silicon-based dielectrics are often applied in RRAM devices. Recently, with the development of SiNxOy film, it has been found that the defect density of SiNxOy film is low, and the high operating voltage is more advantageous when used as a storage medium. Chen et al. [133] proposed that the SiNxOy film has non-uniformities such as operating voltage and current, and improved uniformity of the RRAM by doping. They prepared SiNxOy film with different oxygen concentrations by reactive magnetron sputtering. The resistance conversion performance and conduction mechanisms of Cu/SiNxOy/ITO device are investigated. The SiNxOy is deposited under O2 with a flow rate of 0.8 sccm in their investigation. The fabricated Cu/SiNxOy/ITO device showed reliable resistance conversion behavior, including high durability and retention. Zhang et al. [134] prepared a SiNxOy film with ultra-low power a-SiN0.69O0.53:H by PECVD and pass N2O into a vacuum chamber. An a-SiN0.69O0.53:H film is prepared under high resistance state and low power conversion. The RRAM cells based on the a-SiN0.69O0.53:H film shows an ultra-low current compared with the pure a-SiN0.62:H-based RRAM, effectively reducing the operating current.
Recently, Wang et al. [135] developed a diffusion type memristor composed of two electrodes and a SiNxOy film embedded with nano silver particles, wherein the film is placed between the two electrodes. The SiNxOy film is an insulator, but after electrification, under the action of heat and electric power, the positions of the silver particles arranged neatly on the film begin to scatter, gradually diffuse, and penetrate the film to finally form a cluster of conductive filaments. Current is passed from one electrode to the other. After turning off the power, the temperature drops and the nano silver particles are rearranged. The work of the memristor developed by the researchers is very similar to that of calcium ions in biological synapses, so the device can simulate the short-term plasticity of neurons, and the schematic diagram and circuit diagram of RRAM simulating synaptic memory are shown in Figure 5. In addition, the diffusion memristor can also be used as a selector with large transient nonlinearity, which has great research significance and application prospects.

4.3. Application of Optical Devices

By controlling the ratio of oxygen and nitrogen in the SiNxOy film, the refractive index and extinction coefficient of the SiNxOy film can be controlled, and it can be used as an optical waveguide material and an anti-reflection film.
Optical waveguide materials are generally required to have low transmission loss, single mode transmission, and the ability to fabricate a variety of active and passive devices on the same platform. The outstanding feature of planar optical waveguides based on SiNxOy and SiN is their ultra-low loss. Planar waveguides with attenuations less than 0.1 dB m−1 have been implemented, such as Baudzus et al. [136] studied phase shifters based on electro-optic (EO) polymers and SiN and SiNxOy waveguide materials systems, and found that SiNxOy and SiN can be combined with EO polymers and a fast adaptive phase shifter with very low attenuation can be made. The phase shifter has an attenuation of 0.8 dB cm−1 at 1550 nm and an EO efficiency factor of 27%, which can achieve lower loss and has important research significance.
Optical waveguide materials, such as SiNxOy and SiN, also have applications in resonators. Compared with the straight waveguide structure, the ring resonator (RR) has the advantages of small footprint, high wavelength selectivity, and accumulated light intensity in the cavity, so that a large absorption is obtained in the case of a short absorption medium. Therefore, the microring resonator structure can achieve high responsiveness in the photodetector, achieving large extinction in the modulator. In recent years, the excellent performance of silicon waveguide photodetectors with integrated graphene has been experimentally verified. In a recent study of SiN microring resonators, Wang et al. [137] used a graphene-photonic integrated circuits (PICs) structure to fabricate microring resonators on the Si3N4 platform. Compared with the graphene-Si3N4 straight waveguide, the absorption of the ring resonator is increased, and the length of the required graphene is greatly shortened, and the quality factor of the prepared resonator is 0.282 × 105–0.038 × 105. In 2018, Jia et al. [138] developed a SiNxOy-based optical waveguide ring resonator (OWRR), which employed a liquid source CVD (LSCVD) method to deposit a SiNxOy film with a good refractive index. It is found that the SiNxOy-based resonator achieves a measured waveguide loss of 4.07 dB cm−1 and a quality factor of 0.93 × 105 in the transverse electric (TE) mode, which provides a new idea for the preparation of other SiNxOy-based optical devices. The use of SiN and SiNxOy described above in ring resonators exhibits different ranges of quality factors, and in specific applications, is effectively selected based on the required bandwidth. In order to improve the controllability of the deposition process and the precise control of the SiNxOy film performance, PECVD and LPCVD methods are both used in the preparation process. When the refractive index is less than 1.7, it is suitable for deposition by PECVD. When the refractive index is greater than 1.7, the dependence of the refractive index of the SiNxOy film on the gas flow rate in PECVD deposition is large, which is not conducive to precise control. It must be deposited by LPCVD. The product rate is 1–10 nm/min, suitable for growing thin films with a thickness of 10–500 nm. The two deposition methods described above have thickness and refractive index uniformity and process repeatability of the resulting SiNxOy film deposited in the respective refractive index ranges, which can meet the requirements of high performance waveguides [139]. In addition to these, Trenti et al. [140] not only confirmed the low loss of SiNxOy, but also assumed that SiNxOy has thermal and nonlinear optical properties, and that SiNxOy is an excellent platform for nonlinear and quantum optical integrated photonic circuit design.
As an anti-reflective film, SiNxOy film can greatly reduce light reflection and loss, and increase efficiency when applied to photovoltaic devices such as solar cells and OLEDs. The excellent optical properties of SiNxOy film can increase the transmittance of light and reduce the reflectivity. Sapphire substrate is widely used in various photoelectric applications on glass substrate. However, sapphire has a low transmittance. In order to increase the transmittance of sapphire substrate and reduce the refractive index, Loka et al. [141] used RF magnetron sputtering to deposit a layer of SiNxOy film on the surface of sapphire, followed by annealing at a high temperature of 1099.85°C.The visible light transmittance is comparable with that of sodium-calcium glass. In this study, it is worth noting that after high temperature annealing, the nitrogen in the SiNxOy film disappears and the film is converted into SiOn. It is believed that the formation of SiOn and the high temperature annealing by increasing the oxygen content help to lower the refractive index and reflectivity. Moreover, SiNxOy film is used as an anti-reflection film on solar cells and OLEDs, which not only improves efficiency, but also protects the device due to its high resistance to corrosion and oxidation. However, in most preparation processes, composite films of SiNxOy and other components are usually double or even multilayered in order to obtain higher performance. In these studies, Nguyen et al. [142] developed a dual stack of SiNxOy/Al2O3 for n-type c-Si solar cells. They deposited a SiNxOy layer on the surface of Al2O3 as a coating by PECVD. It is found that the Al2O3/a-SiNx:H phase is excellent due to its excellent anti-reflection and front surface passivation of the Al2O3/SiON stack. The refractive index and high positive fixed charge of the SiNxOy cap layer in the Al2O3/SiNxOy stack are reduced, but the lifetime is significantly improved, and the optical properties are excellent, such as the average transmission in the entire wavelength range of 300–1100 nm. The rate is 93.8%, the average absorption rate is 0.33%, the energy conversion efficiency is increased from 17.55% to 18.34%, the short-circuit current density and open circuit voltage are also improved. Sahouane et al. [143] further investigated the application of multilayer anti-reflective coatings to reduce optical losses in solar cells. They deposited multilayer silicon nitride film and SiNxOy film by PECVD and found that the best reflectivity of six layers of film is 1.05%, and that of four layers is 3.26%. It is proved that multilayer deposition can greatly reduce reflectivity, reduce loss, and improve efficiency. Parashar et al. [144] found that the hybrid plasma structure formed by adding self-assembled silver-aluminum alloy nanoparticles to the SiNxOy film can also significantly reduce the reflectivity of silicon. The results showed that SiNxOy/Ag2Al nanoparticles reduce the average reflectance of silicon from 22.7% to 9.2%, and the SiNxOy cover layer reduces the reflectivity of silicon from 9.2% to 3.6% in the wavelength range of 300–1150 nm. By further enhancing photon management, the reflectivity decreased from 22.7% to ~3.6% in a 35 nm SiNxOy/Ag2Al nanoparticles /25 nm SiNxOy hybrid plasma structure, and when used as a battery, photocurrent and cell efficiency are improved to some extent.

4.4. Application of Anti-Scratch Coating

With the development of flexible optoelectronic devices, more and more transparent polymers are developed as flexible substrate in devices, and the polymer is widely used because of its advantages of light weight, low cost, high transparency, and easy to process and design [145,146]. However, for long-term use, the polymer is limited in many applications due to its poor scratch resistance, fragility, or influence on device. Researchers have further protected the device by depositing a coating on the surface of the transparent polymer to enhance its scratch resistance. In recent years, silica-based coatings (SiNxOy film) have been considered as promising transparent coatings for protection of transparent polymers. Lin et al. [147,148] deposited organo-silicon oxynitride (SiOxCyNz) film on a flexible polycarbonate (PC) substrate by low-temperature tetramethylsilane (TMS)-O2-N2 plasma polymerization at room temperature. They also studied the effect of N2 flow rate on scratch resistance of PC substrates, and found that the optimal flow rate of N2 is 3 sccm, and the scraping rate is 0% after scraping 200 times with steel wool under the pressure of 300 g. The SiOxCyNz film covered PC substrate has very good scratch resistance and provides a hard and smooth surface for flexible PC substrates. In addition, they also deposited SiOxCyNz film on reinforced carbon fiber reinforced polymer composites (FCFRPCs) by atmospheric pressure plasma low temperature polymerization to enhance the scratch resistance of the composites. There is a large amount of scratching (100%) on the original FCFRPC. By depositing SiOxCyNz film, the scratch resistance of FCFRPCs is significantly improved. After scratch testing, there are no scratches (0%), which is of great significance for the development of FCFRPCs. Furthermore, Zhang et al. [149] prepared a SiNxOy coating on glass and PET films by thermally annealing the inorganic polymer perhydropolysilazane (PHPS) between 60 and 200 °C. The results showed that the glass and PET film covered by SiNxOy film have higher hardness, stronger hydrophobicity and excellent adhesion. Additionally, the coated PET film exhibited high transparency and excellent scratch resistance in the visible wavelength range, and is advantageous as a hydrophobic scratch-resistant coating in optical devices, as shown in Figure 6.
The high hardness and high scratch resistance of the SiNxOy film make it widely used as a coating on transparent polymer and glass, which enhances the reliability of devices and has important research significance.

5. Conclusions

The SiNxOy film has important applications in optical devices, non-volatile memory, barrier materials, and scratch-resistant materials due to its good optoelectronic performance, mechanical strength, chemical stability, and barrier performance. The review focuses on the optical performance of SiNxOy, including luminescent performance and adjustable refractive index. This is a characteristic of SiNxOy film that is superior to conventional silicon-containing films such as Si3N4 and SiO2. Moreover, several methods for preparing SiNxOy film, including chemical deposition methods, sputtering methods, and nitrogen oxidation methods, which are mainly used at present, are reviewed and compared, and the advantages and disadvantages of different methods will help us design and select the preparation methods correctly.
As a new type of thin film, SiNxOy film has a wide range of research space in many aspects. We believe that with the maturity and development of various preparation methods, the application prospect of SiNxOy film will be brighter.

Author Contributions

Y.S. and L.H. summarized and wrote the related research progress. R.L. revised the review article. All the authors participated in the discussion, writing, and revision of this review.

Funding

This work was supported by the Beijing Municipal Science and Technology Commission (Z181100004418004), the National Natural Science Foundation of China (61501039), the Beijing Natural Science Foundation (2162017), the Research and Development Program of Beijing Institute of Graphic Communication (Ec201808, Ea201803), the Programme of Key Technologies of Thin Film Printing Electronics (04190118002/042), and the Programme of Flexible Printed Electronic Materials and Technology Innovation (04190118002/092).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Iwase, Y.; Horie, Y.; Daiko, Y.; Honda, S.; Iwamoto, Y. Synthesis of a Novel Polyethoxysilsesquiazane and Thermal Conversion into Ternary Silicon Oxynitride Ceramics with Enhanced Thermal Stability. Materials 2017, 10, 1391. [Google Scholar] [CrossRef] [PubMed]
  2. Meziani, S.; Moussi, A.; Mahiou, L.; Outemzabet, R. Compositional analysis of silicon oxide/silicon nitride thin films. Mater. Sci. 2016, 34, 315–321. [Google Scholar] [CrossRef] [Green Version]
  3. Larker, R. Reaction Sintering and Properties of Silicon Oxynitride Densified by Hot Isostatic Pressing. J. Am. Ceram. Soc. 1992, 75, 62–66. [Google Scholar] [CrossRef]
  4. Ohashi, M.; Tabata, H.; Kanzaki, S. High-temperature flexural strength of hot-pressed silicon oxynitride ceramics. J. Mater. Sci. Lett. 1988, 7, 339–340. [Google Scholar] [CrossRef]
  5. Li, S.Q.; Pei, Y.C.; Yu, C.Q.; Li, J.L. Mechanical and Dielectric Properties of Porous Si2N2O-Si3N4 in Situ Composites. Ceram. Int. 2009, 35, 1851–1854. [Google Scholar]
  6. Ohashi, M.; Kanzaki, S.; Tabata, H. Processing, Mechanical Properties, and Oxidation Behavior of Silicon Oxynitride Ceramics. J. Am. Ceram. Soc. 1991, 74, 109–114. [Google Scholar] [CrossRef]
  7. Ohashi, M.; Kanzaki, S.; Tabata, H. Effect of additives on some properties of silicon oxynitride ceramics. J. Mater. Sci. 1991, 26, 2608–2614. [Google Scholar] [CrossRef]
  8. Rocabois, P.; Chatillon, C.; Bernard, C. Thermodynamics of the Si-O-N System: II, Stability of Si2N2O(s) by High-Temperature Mass Spectrometric Vaporization. J. Am. Ceram. Soc. 1996, 79, 1361–1365. [Google Scholar] [CrossRef]
  9. Ikeda, K.; Saperstein, R.E.; Alic, N.; Fainman, Y. Thermal and Kerr nonlinear properties of plasma-deposited silicon nitride/silicon dioxide waveguides. Opt. Express 2008, 16, 12987–12994. [Google Scholar] [CrossRef]
  10. Feng, Y.; Gong, H.; Zhang, Y.; Wang, X.; Che, S.; Zhao, Y.; Guo, X. Effect of BN content on the mechanical and dielectric properties of porous BNp/Si3N4 ceramics. Ceram. Int. 2016, 42, 661–665. [Google Scholar] [CrossRef]
  11. Lee, S.J.; Baek, S. Effect of SiO2 content on the microstructure, mechanical and dielectric properties of Si3N4 ceramics. Ceram. Int. 2016, 42, 9921–9925. [Google Scholar] [CrossRef]
  12. Philipp, H.; Andersen, K.; Svendsen, W.E.; Ou, H. Amorphous silicon rich silicon nitride optical waveguides for high density integrated optics. Electron. Lett. 2004, 40, 419–421. [Google Scholar] [CrossRef]
  13. Wang, J.; Zhang, L.; Chen, Y.; Geng, Y.; Hong, X.; Li, X.; Cheng, Z.; Zhenzhou, C. Saturable absorption in graphene-on-waveguide devices. Appl. Phys. Express 2019, 12, 032003. [Google Scholar] [CrossRef]
  14. Wang, J.Q.; Cheng, Z.; Chen, Z.; Xu, J.-B.; Tsang, H.K.; Shu, C. Graphene photodetector integrated on silicon nitride waveguide. J. Appl. Phys. 2015, 117, 144504. [Google Scholar] [CrossRef]
  15. Levy, J.S.; Saha, K.; Okawachi, Y.; Foster, M.A.; Gaeta, A.L.; Lipson, M. High-Performance Silicon-Nitride-Based Multiple-Wavelength Source. IEEE Photonics Technol. Lett. 2012, 24, 1375–1377. [Google Scholar] [CrossRef] [Green Version]
  16. Gruhler, N.; Benz, C.; Jang, H.; Ahn, J.-H.; Danneau, R.; Pernice, W.H.P. High-quality Si3N4 circuits as a platform for graphene-based nanophotonic devices. Opt. Express 2013, 21, 31678–31689. [Google Scholar] [CrossRef] [PubMed]
  17. Bhatt, V.; Chandra, S. Silicon dioxide films by RF sputtering for microelectronic and MEMS applications. J. Micromech. Microeng. 2007, 17, 1066–1077. [Google Scholar] [CrossRef]
  18. Ho, S.-S.; Rajgopal, S.; Mehregany, M. Thick PECVD silicon dioxide films for MEMS devices. Sens. Actuators A Phys. 2016, 240, 1–9. [Google Scholar] [CrossRef]
  19. Chen, J.; Zheng, Y.; Xue, C.; Zhang, C.; Chen, Y. Filtering effect of SiO2 optical waveguide ring resonator applied to optoelectronic oscillator. Opt. Express 2018, 26, 12638–12647. [Google Scholar] [CrossRef]
  20. Brown, D.M.; Gray, P.V.; Heumann, F.K.; Philipp, H.R.; Taft, E.A. Properties of SixOyNz Films on Si. J. Electrochem. Soc. 1968, 115, 311–317. [Google Scholar] [CrossRef]
  21. Gunning, W.J.; Hall, R.L.; Woodberry, F.J.; Southwell, W.H.; Gluck, N.S. Codeposition of continuous composition rugate filters. Appl. Opt. 1989, 28, 2945–2948. [Google Scholar] [CrossRef] [PubMed]
  22. Lipiński, M.; Kluska, S.; Czternastek, H.; Zięba, P. Graded SiOxNy layers as antireflection coatings for solar cells application. In Proceedings of the 8th International Conference on Intermolecular and Magnetic Interaction in Matter, Nałeczów, Poland, 8–10 September 2005; pp. 1009–1016. [Google Scholar]
  23. Hayafuji, Y.; Kajiwara, K. Nitridation of Silicon and Oxidized-Silicon. J. Electrochem. Soc. 1982, 129, 2102–2108. [Google Scholar] [CrossRef]
  24. Sombrio, G.; Franzen, P.L.; Maltez, R.; Matos, L.G.; Pereira, M.B.; Boudinov, H. Photoluminescence from SiNxOy films deposited by reactive sputtering. J. Phys. D Appl. Phys. 2013, 46, 235106. [Google Scholar] [CrossRef]
  25. Temple-Boyer, P.; Hajji, B.; Alay, J.; Morante, J.; Martinez, A. Properties of SiOxNy films deposited by LPCVD from SiH4/N2O/NH3 gaseous mixture. Sens. Actuators A Phys. 1999, 74, 52–55. [Google Scholar] [CrossRef]
  26. Augustine, B.H.; Hu, Y.Z.; Irene, E.A.; McNeil, L.E. An annealing study of luminescent amorphous silicon-rich silicon oxynitride thin films. Appl. Phys. Lett. 1995, 67, 3694–3696. [Google Scholar] [CrossRef]
  27. Dong, J.; Du, P.; Zhang, X. Characterization of the Young’s modulus and residual stresses for a sputtered silicon oxynitride film using micro-structures. Thin Solid Films 2013, 545, 414–418. [Google Scholar] [CrossRef]
  28. Lim, J.W.; Jin, C.K.; Lim, K.Y.; Lee, Y.J.; Kim, S.-R.; Choi, B.-I.; Kim, T.W.; Kim, D.H.; Hwang, D.K.; Choi, W.K. Transparent high-performance SiOxNy/SiOx barrier films for organic photovoltaic cells with high durability. Nano Energy 2017, 33, 12–20. [Google Scholar] [CrossRef]
  29. Trinh, T.T.; Jang, K.; Nguyen, V.D.; Dao, V.A.; Yi, J. Role of SiOxNy surface passivation layer on stability improvement and kink effect reduction of ELA poly silicon thin film transistors. Microelectron. Eng. 2016, 164, 14–19. [Google Scholar] [CrossRef]
  30. Park, J.-H.; Shin, M.-H.; Yi, J.-S. The Characteristics of Transparent Non-Volatile Memory Devices Employing Si-Rich SiOX as a Charge Trapping Layer and Indium-Tin-Zinc-Oxide. Nanomaterials 2019, 9, 784. [Google Scholar] [CrossRef]
  31. Soman, A.; Antony, A. Broad range refractive index engineering of SixNy and SiOxNy thin films and exploring their potential applications in crystalline silicon solar cells. Mater. Chem. Phys. 2017, 197, 181–191. [Google Scholar] [CrossRef]
  32. Himmler, A.; Fahland, M.; Linß, V. Roll-to-roll deposition of silicon oxynitride layers on polymer films using a rotatable dual magnetron system. Surf. Coat. Technol. 2018, 336, 123–127. [Google Scholar] [CrossRef]
  33. Rats, D.; Martinu, L.; Von Stebut, J. Mechanical properties of plasma-deposited SiOxNy coatings on polymer substrates using low load carrying capacity techniques. Surf. Coat. Technol. 2000, 123, 36–43. [Google Scholar] [CrossRef]
  34. Wang, J.; Bouchard, J.P.; Hart, G.A.; Oudard, J.F.; Paulson, C.A.; Sachenik, P.A.; Price, J.J. Silicon oxynitride based scratch resistant anti-reflective coatings. In Proceedings of the Advanced Optics for Defense Applications: UV through LWIR III (2018), Orlando, FL, USA, 15–16 April 2018; Volume 10627. [Google Scholar]
  35. Vivaldo, I.; Moreno, M.; Torres, A.; Ambrosio, R.; Rosales, P.; Carlos, N.; Calleja, W.; Monfil, K.; Benítez, A. A comparative study of amorphous silicon carbide and silicon rich oxide for light emission applications. J. Lumin. 2017, 190, 215–220. [Google Scholar] [CrossRef]
  36. Shcherban, N.D. Review on synthesis, structure, physical and chemical properties and functional characteristics of porous silicon carbide. J. Ind. Eng. Chem. 2017, 50, 15–28. [Google Scholar] [CrossRef]
  37. Chang, I.M.; Pan, S.C.; Chen, Y.F. Light-induced degradation on porous silicon. Phys. Rev. B 1993, 48, 8747–8750. [Google Scholar] [CrossRef] [PubMed]
  38. Dudel, F.P.; Gole, J.L. Stabilization of the photoluminescence from porous silicon: The competition between photoluminescence and dissolution. J. Appl. Phys. 1997, 82, 402–406. [Google Scholar] [CrossRef]
  39. Qin, G.; Jia, Y. Mechanism of the visible luminescence in porous silicon. Solid State Commun. 1993, 86, 559–563. [Google Scholar] [CrossRef]
  40. Qin, G.G.; Li, Y.J. Photoluminescence mechanism model for oxidized porous silicon and nanoscale-silicon-particle-embedded silicon oxide. Phys. Rev. B 2003, 68, 085309. [Google Scholar] [CrossRef]
  41. Torchynska, T.; Cano, A.D.; Rodríguez, M.M.; Khomenkova, L.; Khomenkova, L. Hot carriers and excitation of Si/SiOx interface defect photoluminescence in Si nanocrystallites. Phys. B Condens. Matter 2003, 340, 1113–1118. [Google Scholar] [CrossRef]
  42. Wolkin, M.V.; Jorne, J.; Fauchet, P.M.; Allan, G.; Delerue, C. Electronic States and Luminescence in Porous Silicon Quantum Dots: The Role of Oxygen. Phys. Rev. Lett. 1999, 82, 197–200. [Google Scholar] [CrossRef]
  43. Prokes, S.M.; Glembocki, O.J. Role of interfacial oxide-related defects in the red-light emission in porous silicon. Phys. Rev. B 1994, 49, 2238–2241. [Google Scholar] [CrossRef] [PubMed]
  44. Godinho, V.; De Haro, M.J.; García-López, J.; Goossens, V.; Terryn, H.; Delplancke-Ogletree, M.; Fernández, A.; De Haro, M.C.J. SiOxNy thin films with variable refraction index: Microstructural, chemical and mechanical properties. Appl. Surf. Sci. 2010, 256, 4548–4553. [Google Scholar] [CrossRef]
  45. Godinho, V.; Rojas, T.C.; Fernández, A. Magnetron sputtered a-SiOxNy thin films: A closed porous nanostructure with controlled optical and mechanical properties. Microporous Mesoporous Mater. 2012, 149, 142–146. [Google Scholar] [CrossRef]
  46. Jou, S.; Liaw, I.-C.; Cheng, Y.-C.; Li, C.-H. Light emission of silicon oxynitride films prepared by reactive sputtering of silicon. J. Lumin. 2013, 134, 853–857. [Google Scholar] [CrossRef]
  47. Jan, V.; Michael, G.; Sebastian, G.; Daniel, H.; Margit, Z. Photoluminescence performance limits of Si nanocrystals in silicon oxynitride matrices. J. Appl. Phys. 2017, 122, 144303. [Google Scholar]
  48. Goncharova, L.V.; Nguyen, P.H.; Karner, V.L.; D’Ortenzio, R.; Chaudhary, S.; Mokry, C.R.; Simpson, P.J. Si quantum dots in silicon nitride: Quantum confinement and defects. J. Appl. Phys. 2015, 118, 224302. [Google Scholar] [CrossRef]
  49. Augustine, B.H.; Irene, E.A. Visible light emission from thin films containing Si, O, N, and H. J. Appl. Phys. 1995, 78, 4020–4030. [Google Scholar] [CrossRef]
  50. Claassen, W.A.P.; Pol, H.A.J.T.; Goemans, A.H.; Kuiper, A.E.T. Characterization of Silicon-Oxynitride Films Deposited by Plasma-Enhanced CVD. J. Electrochem. Soc. 1986, 133, 1458–1464. [Google Scholar] [CrossRef]
  51. Alayo, M.; Pereyra, I.; Scopel, W.; Fantini, M.; Scopel, W.; Fantini, M. On the nitrogen and oxygen incorporation in plasma-enhanced chemical vapor deposition (PECVD) SiOxNy films. Thin Solid Films 2002, 402, 154–161. [Google Scholar] [CrossRef]
  52. Zhang, P.; Zhang, L.; Wu, Y.; Wang, S.; Ge, X. High photoluminescence quantum yields generated from N-Si-O bonding states in amorphous silicon oxynitride films. Opt. Express 2018, 26, 31617–31625. [Google Scholar] [CrossRef]
  53. Lee, D.K.; Shin, H.J.; Sohn, S.H. Characteristics of Silicon Oxynitride Barrier Films Grown on Poly(ethylene naphthalate) by Ion-Beam-Assisted Deposition. Jpn. J. Appl. Phys. 2010, 49, 05EA14. [Google Scholar] [CrossRef]
  54. Labbé, C.; An, Y.T.; Zatryb, G.; Portier, X.; Podhorodecki, A.; Marie, P.; Frilay, C.; Cardin, J.; Gourbilleau, F. Structural and emission properties of Tb3+-doped nitrogen-rich silicon oxynitride films. Nanotechnology 2017, 28, 115710. [Google Scholar] [CrossRef] [PubMed]
  55. Ehré, F.; Labbé, C.; Dufour, C.; Jadwisienczak, W.M.; Weimmerskirch-Aubatin, J.; Portier, X.; Doualan, J.L.; Cardin, J.; Richard, A.L.; Ingram, D.C.; et al. The Nitrogen concentration effect on Ce doped SiOxNy emission: Towards optimized Ce3+ for DEL applications. Nanoscale 2018, 10, 3823–3837. [Google Scholar] [CrossRef] [PubMed]
  56. Huang, R.; Lin, Z.; Guo, Y.; Song, C.; Wang, X.; Lin, H.; Xu, L.; Song, J.; Li, H. Bright red, orange-yellow and white switching photoluminescence from silicon oxynitride films with fast decay dynamics. Opt. Mater. Express 2014, 4, 205–212. [Google Scholar] [CrossRef]
  57. Steveler, E.; Rinnert, H.; Vergnat, M. Photoluminescence of erbium in SiOxNy alloys annealed at high temperature. J. Alloy. Compd. 2014, 593, 56–60. [Google Scholar] [CrossRef]
  58. Kim, D.S.; Yoon, S.G.; Jang, G.E.; Suh, S.J.; Kim, H.; Yoon, D.H. Refractive index properties of SiN thin films and fabrication of SiN optical waveguide. J. Electroceram. 2006, 17, 315–318. [Google Scholar] [CrossRef]
  59. Zhu, Y.; Gu, P.F.; Shen, W.D.; Zou, T. Study of Silicon Oxynitride Film Deposited by RF Magnetron Sputtering. Acta Opt. Sin. 2005, 25, 567. [Google Scholar]
  60. Hu, J.L.; Hang, L.X.; Zhou, S. Preparation of Low Refractive Index Optical Thin Film by PECVD Technology. Surf. Technol. 2013, 42, 95–97. [Google Scholar]
  61. Xue, J.; Hang, L.X.; Lin, H.X. Study on controlled refractive index of optical thin films by PECVD. Opt. Tech. 2014, 40, 353–356. [Google Scholar]
  62. Hänninen, T.; Schmidt, S.; Jensen, J.; Hultman, L.; Högberg, H. Silicon oxynitride films deposited by reactive high power impulse magnetron sputtering using nitrous oxide as a single-source precursor. J. Vac. Sci. Technol. A 2015, 33, 05E121. [Google Scholar] [CrossRef] [Green Version]
  63. Farhaoui, A.; Bousquet, A.; Smaali, R.; Moreau, A.; Centeno, E.; Cellier, J.; Bernard, C.; Rapegno, R.; Réveret, F.; Tomasella, E. Reactive gas pulsing sputtering process, a promising technique to elaborate silicon oxynitride multilayer nanometric antireflective coatings. J. Phys. D Appl. Phys. 2017, 50, 015306. [Google Scholar] [CrossRef]
  64. Nakanishi, Y.; Kato, K.; Omoto, H.; Tomioka, T.; Takamatsu, A. Stable deposition of silicon oxynitride thin films with intermediate refractive indices by reactive sputtering. Thin Solid Films 2012, 520, 3862–3864. [Google Scholar] [CrossRef]
  65. Yadav, A.; Polji, R.H.; Singh, V.; Dubey, S.; Rao, T.G. Synthesis of buried silicon oxynitride layers by ion implantation for silicon-on-insulator (SOI) structures. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. Atoms 2006, 245, 475–479. [Google Scholar] [CrossRef]
  66. Jasinski, J.M.; Meyerson, B.S.; Scott, B.A. Mechanistic Studies of Chemical Vapor Deposition. Annu. Rev. Phys. Chem. 1987, 38, 109–140. [Google Scholar] [CrossRef]
  67. Ouvry, S. Random Aharonov–Bohm vortices and some exactly solvable families of integrals. J. Stat. Mech. Theory Exp. 2005, 2005, 09004. [Google Scholar] [CrossRef]
  68. Pandey, R.; Patil, L.; Bange, J.; Patil, D.; Mahajan, A.; Patil, D.; Gautam, D.; Mahajan, A. Growth and characterization of SiON thin films by using thermal-CVD machine. Opt. Mater. 2004, 25, 1–7. [Google Scholar] [CrossRef]
  69. Balaji, N.; Nguyen, H.T.T.; Park, C.; Ju, M.; Raja, J.; Chatterjee, S.; Jeyakumar, R.; Yi, J. Electrical and optical characterization of SiOxNy and SiO2 dielectric layers and rear surface passivation by using SiO2/SiOxNy stack layers with screen printed local Al-BSF for c-Si solar cells. Curr. Appl. Phys. 2018, 18, 107–113. [Google Scholar] [CrossRef]
  70. Piqueras, J.; Hernandez, M.J.; Garrido, J.; Martinez, J. Compositional and electrical properties of ECR-CVD silicon oxynitrides. Semicond. Sci. Technol. 1997, 12, 927–932. [Google Scholar]
  71. Ramírez, J.M.; Wójcik, J.; Berencén, Y.; Ruiz-Caridad, A.; Estrade, S.; Peirò, F.; Mascher, P.; Garrido, B. Amorphous sub-nanometre Tb-doped SiOxNy /SiO2 superlattices for optoelectronics. Nanotechnology 2015, 26, 85203. [Google Scholar] [CrossRef]
  72. Bang, S.-H.; Suk, J.-H.; Kim, K.-S.; Park, J.-H.; Hwang, N.-M. Effects of radio frequency power and gas ratio on barrier properties of SiOxNy films deposited by inductively coupled plasma chemical vapor deposition. Thin Solid Films 2019, 669, 108–113. [Google Scholar] [CrossRef]
  73. Chen, W.; Lee, A.; Deng, W.; Liu, K. The implementation of neural network for semiconductor PECVD process. Expert Syst. Appl. 2007, 32, 1148–1153. [Google Scholar] [CrossRef]
  74. Varanasi, V.G.; Ilyas, A.; Velten, M.F.; Shah, A.; Lanford, W.A.; Aswath, P.B. Role of Hydrogen and Nitrogen on the Surface Chemical Structure of Bioactive Amorphous Silicon Oxynitride Films. J. Phys. Chem. B 2017, 121, 8991–9005. [Google Scholar] [CrossRef] [PubMed]
  75. Park, S.; Park, H.; Kim, D.; Nam, J.; Yang, J.; Lee, D.; Min, B.K.; Kim, K.N.; Park, S.J.; Kim, S.; et al. Continuously deposited anti-reflection double layer of silicon nitride and silicon oxynitride for selective emitter solar cells by PECVD. Curr. Appl. Phys. 2017, 17, 517–521. [Google Scholar] [CrossRef]
  76. Kalisz, M.; Szymanska, M.; Dębowska, A.K.; Michalak, B.; Brzozowska, E.; Górska, S.; Smietana, M. Influence of biofunctionalization process on properties of silicon oxynitride substrate layer. Surf. Interface Anal. 2014, 46, 1086–1089. [Google Scholar] [CrossRef]
  77. Kijaszek, W.; Oleszkiewicz, W.; Zakrzewski, A.; Patela, S.; Tłaczała, M. Investigation of optical properties of silicon oxynitride films deposited by RF PECVD method. Mater. Sci. Pol. 2016, 34, 868–871. [Google Scholar] [CrossRef] [Green Version]
  78. Okazaki, K.; Nishi, H.; Tsuchizawa, T.; Hiraki, T.; Ishikawa, Y.; Wada, K.; Yamamoto, T.; Yamada, K. Optical coupling between SiOxNy waveguide and Ge mesa structures for bulk-Si photonics platform. In Proceedings of the 12th International Conference on Group IV Photonics (GFP), Vancouver, BC, Canada, 26–28 August 2015; pp. 122–123. [Google Scholar]
  79. Wood, R. ECR-PECVD silicon oxynitride thin films for flat panel displays. In Proceedings of the Opto-Canada: SPIE Regional Meeting on Optoelectronics, Photonics, and Imaging, Ottawa, ON, Canada, 9–10 May 2002; Volume 103133N. [Google Scholar]
  80. Meng, X.S.; Yuan, J.; Ma, Q.S.; Ge, M.Z.; Yang, H. Study on the Preparation Methods of Silicon Oxynitride Thin Films. Mater. Sci. Eng. 1999, 17, 10–13. [Google Scholar]
  81. Kaghouche, B.; Mansour, F.; Molliet, C.; Rousset, B.; Temple-Boyer, P. Investigation on optical and physico-chemical properties of LPCVD SiOxNy thin films. Eur. Phys. J. Appl. Phys. 2014, 66, 20301. [Google Scholar] [CrossRef]
  82. Gan, Z.; Wang, C.; Chen, Z. Material Structure and Mechanical Properties of Silicon Nitride and Silicon Oxynitride Thin Films Deposited by Plasma Enhanced Chemical Vapor Deposition. Surfaces 2018, 1, 59–72. [Google Scholar] [CrossRef] [Green Version]
  83. Pernas, P.; Ruiz, E.; Garrido, J.; Piqueras, J.; Pászti, F.; Climent-Font, A.; Lifante, G.; Cantelar, E. Silicon Oxynitride ECR-PECVD Films for Integrated Optics. Mater. Sci. Forum 2005, 480, 149–154. [Google Scholar] [CrossRef]
  84. Rangarajan, B.; Kovalgin, A.Y.; Schmitz, J. Deposition and properties of silicon oxynitride films with low propagation losses by inductively coupled PECVD at 150 °C. Surf. Coat. Technol. 2013, 230, 46–50. [Google Scholar] [CrossRef]
  85. Halova, E.; Alexandrova, S.; Szekeres, A.; Modreanu, M. LPCVD-silicon oxynitride films: Interface properties. Microelectron. Reliab. 2005, 45, 982–985. [Google Scholar] [CrossRef]
  86. Faller, F.; Hurrle, A. High-temperature CVD for crystalline-silicon thin-film solar cells. IEEE Trans. Electron Devices 1999, 46, 2048–2054. [Google Scholar] [CrossRef]
  87. Lebland, F.; Licoppe, C.; Gao, Y.; Nissim, Y.; Rigo, S. Rapid thermal chemical vapour deposition of SiOxNy films. Appl. Surf. Sci. 1992, 54, 125–129. [Google Scholar] [CrossRef]
  88. Watanabe, J.; Hanabusa, M. Photochemical vapor deposition of silicon oxynitride films by deuterium lamp. J. Mater. Res. 1989, 4, 882–885. [Google Scholar] [CrossRef]
  89. Bergonzo, P.; Kogelschatz, U.; Boyd, I.W. Photo-CVD of dielectric materials by pseudo-continuous excimer sources. In Proceedings of the Laser-Assisted Fabrication of Thin Films and Microstructures, Quebec City, QC, Canada, 16–20 August 1993; pp. 174–181. [Google Scholar]
  90. Zhang, Z.B.; Luo, Y.M.; Xu, C.H. Research Progress on Silicon Oxynitride Films. Mater. Rev. 2009, 11, 110–114. [Google Scholar]
  91. Hallam, B.; Tjahjono, B.; Wenham, S. Effect of PECVD silicon oxynitride film composition on the surface passivation of silicon wafers. Sol. Energy Mater. Sol. Cells 2012, 96, 173–179. [Google Scholar] [CrossRef]
  92. Li, X.B.; Zhang, F.H.; Mou, Q. Effect of Plasma Enhanced Chemical Vapor Deposition Parameters on Characteristics of Silicon nitride Film. Mater. Prot. 2006, 39, 12–16. [Google Scholar]
  93. Mubarak, A.; Hamzah, E.; Toff, M.R.M. Review of physical vapour deposition (PVD) techniques for hard coating. J. Mek. 2005, 20, 42–51. [Google Scholar]
  94. Mattox, D.M. Ion plating—Past, present and future. Surf. Coat. Technol. 2000, 133, 517–521. [Google Scholar] [CrossRef]
  95. Nakao, H.; Hori, K.; Iwazaki, Y.; Ueno, T. Investigation of High Current Tetracene-TFT Using Surface Nitrided SiO2 Gate Insulator Film. ECS Trans. 2016, 75, 81–85. [Google Scholar] [CrossRef]
  96. Baptista, A.; Silva, F.; Porteiro, J.; Míguez, J.; Pinto, G. Sputtering Physical Vapour Deposition (PVD) Coatings: A Critical Review on Process Improvement and Market Trend Demands. Coatings 2018, 8, 402. [Google Scholar] [CrossRef]
  97. Mattox, D.M. The Foundations of Vacuum Coating Technology; Noyes Publications: Norwich, UK, 2003; ISBN 978-0-8155-1495-4. [Google Scholar]
  98. Yu, D.H.; Wang, C.Y.; Cheng, X.L.; Song, Y.X. Recent development of magnetron sputtering processes. Vacuum 2009, 46, 19–25. [Google Scholar]
  99. Tang, C.J.; Jiang, C.C.; Tien, C.L.; Sun, W.C.; Lin, S.C. Optical, structural, and mechanical properties of silicon oxynitride films prepared by pulsed magnetron sputtering. Appl. Opt. 2017, 56, C168–C174. [Google Scholar] [CrossRef] [PubMed]
  100. Šimurka, L.; Čtvrtlík, R.; Roch, T.; Turutoglu, T.; Erkan, S.; Tomáštík, J.; Bange, K. Effect of deposition conditions on physical properties of sputtered silicon oxynitride thin films on float glass. Int. J. Appl. Glas. Sci. 2018, 9, 403–412. [Google Scholar] [CrossRef]
  101. Li, J.; Shen, G.; Chen, W.; Li, Z.; Hong, R. Preparation of SiNx multilayer films by mid-frequency magnetron sputtering for crystalline silicon solar cells. Mater. Sci. Semicond. Process. 2017, 59, 40–44. [Google Scholar] [CrossRef]
  102. Arnell, R.; Kelly, P. Recent advances in magnetron sputtering. Surf. Coat. Technol. 1999, 112, 170–176. [Google Scholar] [CrossRef]
  103. Sangines, R.; Abundiz-Cisneros, N.; Diliegros-Godines, C.; Machorro-Mejia, R.; Hernández-Utrera, O. Plasma emission spectroscopy and its relation to the refractive index of silicon nitride thin films deposited by reactive magnetron sputtering. J. Phys. D Appl. Phys. 2018, 51, 095203. [Google Scholar] [CrossRef]
  104. Yount, J.; Lenahan, P. Bridging nitrogen dangling bond centers and electron trapping in amorphous NH3-nitrided and reoxidized nitrided oxide films. J. Non-Cryst. Solids 1993, 164, 1069–1072. [Google Scholar] [CrossRef]
  105. Hori, T.; Naito, Y.; Iwasaki, H.; Esaki, H. Interface states and fixed charges in nanometer-range thin nitrided oxides prepared by rapid thermal annealing. IEEE Electron Device Lett. 1986, 7, 669–671. [Google Scholar] [CrossRef]
  106. Itakura, A.; Shimoda, M.; Kitajima, M. Surface stress relaxation in SiO2 films by plasma nitridation and nitrogen distribution in the film. Appl. Surf. Sci. 2003, 216, 41–45. [Google Scholar] [CrossRef]
  107. He, S.C.; Jia, Q.M.; Su, H.Y.; Ma, A.H.; Shan, S.Y.; Hu, T.D. Review on the Research Progress of Silicon Oxynitride Materials. Mater. Rev. 2016, 8, 80–84. [Google Scholar]
  108. Yamamoto, M.; Matsumae, T.; Kurashima, Y.; Takagi, H.; Suga, T.; Itoh, T.; Higurashi, E. Growth Behavior of Au Films on SiO2 Film and Direct Transfer for Smoothing Au Surfaces. Int. J. Autom. Technol. 2019, 13, 254–260. [Google Scholar] [CrossRef]
  109. Chen, Z.; Wang, H.; Wang, Y.; Lv, R.; Yang, X.; Wang, J.; Li, L.; Ren, W. Improved optical damage threshold graphene Oxide/SiO2 absorber fabricated by sol-gel technique for mode-locked erbium-doped fiber lasers. Carbon 2019, 144, 737–744. [Google Scholar] [CrossRef]
  110. Lai, C.H.; Lin, B.C.; Chang, K.M.; Hsieh, K.Y.; Lai, Y.L. A novel process for forming an ultra-thin oxynitride film with high nitrogen topping. J. Phys. Chem. Solids 2008, 69, 456–460. [Google Scholar] [CrossRef]
  111. Wong, H.; Yang, B.; Cheng, Y. Chemistry of silicon oxide annealed in ammonia. Appl. Surf. Sci. 1993, 72, 49–54. [Google Scholar] [CrossRef]
  112. Rebib, F.; Tomasella, E.; Dubois, M.; Cellier, J.; Sauvage, T.; Jacquet, M. SiOxNy thin films deposited by reactive sputtering: Process study and structural characterisation. Thin Solid Films 2007, 515, 3480–3487. [Google Scholar] [CrossRef]
  113. Dasgupta, A.; Takoudis, C.G. Growth kinetics of thermal silicon oxynitridation in nitric oxide ambient. J. Appl. Phys. 2003, 93, 3615–3618. [Google Scholar] [CrossRef]
  114. Ramírez, J.M.; Ruiz-Caridad, A.; Wojcik, J.; Gutierrez, A.M.; Estradé, S.; Peiró, F.; Sanchís, P.; Mascher, P.; Garrido, B. Luminescence properties of Ce3+ and Tb3+ co-doped SiOxNy thin films: Prospects for color tunability in silicon-based hosts. J. Appl. Phys. 2016, 119, 113108. [Google Scholar] [CrossRef]
  115. Zhu, M.; Shi, X.; Chen, P.; Liu, W.; Wong, M.; Lin, C.; Chu, P.K. Formation of silicon on plasma synthesized SiOxNy and reaction mechanism. Appl. Surf. Sci. 2005, 243, 89–95. [Google Scholar] [CrossRef]
  116. Lee, H.-I.; Park, J.-B.; Xianyu, W.; Kim, K.; Chung, J.G.; Kyoung, Y.K.; Byun, S.; Yang, W.Y.; Park, Y.Y.; Kim, S.M.; et al. Degradation by water vapor of hydrogenated amorphous silicon oxynitride films grown at low temperature. Sci. Rep. 2017, 7, 14146. [Google Scholar] [CrossRef]
  117. Dan, Y.P.; Yue, R.F.; Wang, Y.; Liu, L.T. Optical Properties of Silicon Oxynitride Films and Applications in Optical Waveguides. In Proceedings of the 1th National Conference on Nanotechnology and Applications (2008), Xiamen, China, 27–30 November 2000; pp. 98–101. [Google Scholar]
  118. Lin, Z.; Chen, K.; Zhang, P.; Xu, J.; Dong, H.; Li, W.; Ji, Y.; Huang, X. The Role of N-Si-O Defect States in Optical Gain from an a-SiNxOy/SiO2 Waveguide and in Light Emission from an n-a-SiNxOy/p-Si Heterojunction LED. Phys. Status Solidi (A) 2018, 215, 1700750. [Google Scholar] [CrossRef]
  119. Shahpanah, M.; Mehrabian, S.; Abbasi-Firouzjah, M.; Shokri, B. Improving the oxygen barrier properties of PET polymer by radio frequency plasma-polymerized SiOxNy thin film. Surf. Coat. Technol. 2019, 358, 91–97. [Google Scholar] [CrossRef]
  120. Madogni, V.I.; Kounouhéwa, B.; Akpo, A.; Agbomahéna, M.; Hounkpatin, S.A.; Awanou, C.N. Comparison of degradation mechanisms in organic photovoltaic devices upon exposure to a temperate and a subequatorial climate. Chem. Phys. Lett. 2015, 640, 201–214. [Google Scholar] [CrossRef] [Green Version]
  121. Yu, D.; Yang, Y.-Q.; Chen, Z.; Tao, Y.; Liu, Y.-F. Recent progress on thin-film encapsulation technologies for organic electronic devices. Opt. Commun. 2016, 362, 43–49. [Google Scholar] [CrossRef] [Green Version]
  122. Oku, T.; Okumura, M.; Totsuka, M.; Shiga, T.; Takemi, M. Surface protection mechanism of insulating films at junctions in compound semiconductor devices. In Proceedings of the 15th International Workshop on Junction Technology (IWJT), Kyoto, Japan, 11–12 June 2015; pp. 71–76. [Google Scholar]
  123. Satoh, R.; Ro, T.; Heo, C.J.; Lee, G.H.; Xianyu, W.; Park, Y.; Park, J.; Lim, S.J.; Leem, D.S.; Bulliard, X.; et al. Bi-layered metal-oxide thin films processed at low-temperature for the encapsulation of highly stable organic photo-diode. Org. Electron. 2016, 41, 259–265. [Google Scholar] [CrossRef]
  124. Shim, J.; Yoon, H.G.; Na, S.-H.; Kim, I.; Kwak, S. Silicon oxynitride gas barrier coatings on poly(ether sulfone) by plasma-enhanced chemical vapor deposition. Surf. Coat. Technol. 2008, 202, 2844–2849. [Google Scholar] [CrossRef]
  125. Iwamori, S.; Gotoh, Y.; Moorthi, K. Characterization of silicon oxynitride gas barrier films. Vacuum 2002, 68, 113–117. [Google Scholar] [CrossRef]
  126. Liu, C.C.; Chang, L.S. Gas permeation properties of silicon oxynitride thin films deposited on polyether sulfone by radio frequency magnetron reactive sputtering in various N2 contents in atmosphere. Thin Solid Films 2015, 594, 35–39. [Google Scholar] [CrossRef]
  127. Wen, S.; Xie, X.; Yan, Z.; Huang, T.; Zeng, Z. General memristor with applications in multilayer neural networks. Neural Netw. 2018, 103, 142–149. [Google Scholar] [CrossRef]
  128. Wang, B.; Zou, F.; Cheng, J. A memristor-based chaotic system and its application in image encryption. Optik 2018, 154, 538–544. [Google Scholar] [CrossRef]
  129. Liu, S.; Wang, Y.; Fardad, M.; Varshney, P.K. A Memristor-Based Optimization Framework for Artificial Intelligence Applications. IEEE Circuits Syst. Mag. 2018, 18, 29–44. [Google Scholar] [CrossRef]
  130. Wrazien, S.J.; Zhao, Y.; Krayer, J.D.; White, M.H. Characterization of SONOS oxynitride nonvolatile semiconductor memory devices. Solid State Electron. 2003, 47, 885–891. [Google Scholar] [CrossRef]
  131. Ielmini, D. Resistive switching memories based on metal oxides: Mechanisms, reliability and scaling. Semicond. Sci. Technol. 2016, 31, 063002. [Google Scholar] [CrossRef]
  132. Chua, L. Memristor-The missing circuit element. IEEE Trans. Circuit Theory 1971, 18, 507–519. [Google Scholar] [CrossRef]
  133. Chen, D.; Huang, S.; He, L. Effect of oxygen concentration on resistive switching behavior in silicon oxynitride film. J. Semicond. 2017, 38, 043002. [Google Scholar] [CrossRef]
  134. Zhang, H.; Ma, Z.; Zhang, X.; Sun, Y.; Liu, J.; Xu, L.; Li, W.; Chen, K.; Feng, D. The Ultra-Low Power Performance of a-SiNxOy:H Resistive Switching Memory. Phys. Status Solidi (A) 2018, 215, 1700753. [Google Scholar] [CrossRef]
  135. Wang, Z.; Joshi, S.; Savel’Ev, S.E.; Jiang, H.; Midya, R.; Lin, P.; Hu, M.; Ge, N.; Strachan, J.P.; Li, Z.; et al. Memristors with diffusive dynamics as synaptic emulators for neuromorphic computing. Nat. Mater. 2016, 16, 101–108. [Google Scholar] [CrossRef] [Green Version]
  136. Baudzus, L.; Krummrich, P.M. Low Loss Electro-Optic Polymer Based Fast Adaptive Phase Shifters Realized in Silicon Nitride and Oxynitride Waveguide Technology. Photonics 2016, 3, 49. [Google Scholar] [CrossRef]
  137. Wang, J.Q.; Cheng, Z.; Shu, C.; Tsang, H.K. Optical Absorption in Graphene-on-Silicon Nitride Microring Resonator. IEEE Photon. Technol. Lett. 2015, 27, 1765–1767. [Google Scholar] [CrossRef]
  138. Jia, Y.; Dai, X.; Xiang, Y.; Fan, D. High quality factor silicon oxynitride optical waveguide ring resonators. Opt. Mater. 2018, 85, 138–142. [Google Scholar] [CrossRef]
  139. De Ridder, R.; Warhoff, K.; Driessen, A.; Lambeck, P.; Albers, H. Silicon oxynitride planar waveguiding structures for application in optical communication. IEEE J. Sel. Top. Quantum Electron. 1998, 4, 930–937. [Google Scholar] [CrossRef]
  140. Trenti, A.; Borghi, M.; Biasi, S.; Ghulinyan, M.; Ramiro-Manzano, F.; Pucker, G.; Pavesi, L. Thermo-optic coefficient and nonlinear refractive index of silicon oxynitride waveguides. AIP Adv. 2018, 8, 025311. [Google Scholar] [CrossRef]
  141. Loka, C.; Lee, K.; Moon, S.W.; Choi, Y.; Lee, K.-S. Enhanced transmittance of sapphire by silicon oxynitride thin films annealed at high temperatures. Mater. Lett. 2018, 213, 354–357. [Google Scholar] [CrossRef]
  142. Nguyen, H.T.T.; Balaji, N.; Park, C.; Triet, N.M.; Le, A.H.T.; Lee, S.; Jeon, M.; Oh, D.; Dao, V.A.; Yi, J. Al2O3 /SiON stack layers for effective surface passivation and anti-reflection of high efficiency n-type c-Si solar cells. Semicond. Sci. Technol. 2017, 32, 25005. [Google Scholar] [CrossRef]
  143. Sahouane, N.; Necaibia, A.; Ziane, A.; Dabou, R.; Bouraiou, A.; Mostefaoui, M.; Rouabhia, A.; Mostefaoui, M. Realization and modeling of multilayer antireflection coatings for solar cells application. Mater. Res. Express 2018, 5, 065515. [Google Scholar] [CrossRef]
  144. Parashar, P.K.; Komarala, V.K. Engineered optical properties of silver-aluminum alloy nanoparticles embedded in SiON matrix for maximizing light confinement in plasmonic silicon solar cells. Sci. Rep. 2017, 7, 12520. [Google Scholar] [CrossRef]
  145. Qu, L.; Tang, L.; Bei, R.; Zhao, J.; Chi, Z.; Liu, S.; Chen, X.; Aldred, M.P.; Zhang, Y.; Xu, J. Flexible Multifunctional Aromatic Polyimide Film: Highly Efficient Photoluminescence, Resistive Switching Characteristic, and Electroluminescence. ACS Appl. Mater. Interfaces 2018, 10, 11430–11435. [Google Scholar] [CrossRef]
  146. Lam, J.-Y.; Shih, C.-C.; Lee, W.-Y.; Chueh, C.-C.; Jang, G.-W.; Huang, C.-J.; Tung, S.-H.; Chen, W.-C. Bio-Based Transparent Conductive Film Consisting of Polyethylene Furanoate and Silver Nanowires for Flexible Optoelectronic Devices. Macromol. Rapid Commun. 2018, 39, 1800271. [Google Scholar] [CrossRef]
  147. Lin, Y.-S.; Liao, Y.-H.; Hu, C.-H. Effects of N2 addition on enhanced scratch resistance of flexible polycarbonate substrates by low temperature plasma-polymerized organo-silicon oxynitride. J. Non-Cryst. Solids 2009, 355, 182–192. [Google Scholar] [CrossRef]
  148. Lin, Y.S.; Lai, Y.C.; Chen, J.H. Low temperature atmospheric pressure plasma-polymerized organosilicon oxynitride films enhance scratch resistance of flexible carbon fiber-reinforced polymer composites. In Proceedings of the International Symposium on Material Science and Engineering (ISMSE 2018), Seoul, South Korea, 19–21 January 2018; p. 020002. [Google Scholar]
  149. Zhang, Z.B.; Shao, Z.H.; Luo, Y.M.; An, P.Y.; Zhang, M.Y.; Xu, C.H. Hydrophobic, transparent and hard silicon oxynitride coating from perhydropolysilazane. Polym. Int. 2015, 64, 971–978. [Google Scholar] [CrossRef]
Figure 1. The luminescent performance of SiNxOy film. (a) Above part shows the effect of flow rate of N2 on the atomic composition of the Tb-doped nitrogen-rich SiNxOy film, and below part shows the effect of the flow rate of N2 on the nitrogen excess parameter (Nex) and deposition rate of the deposited layer [53]. Copyright 2017, Nanotechnology. (b) Effect of flow rate of N2 on the PL of the Ce-doped SiNxOy film. (c) PL spectrum (solid line) and photoluminescence excitation spectrum (PLE) (dashed line) of a Ce-doped SiNxOy film at flow rate of N2 of 2 sccm [55]. Copyright 2018, Nanoscale. (d) Effect of annealing temperature on SiNxOy film [46]. Copyright 2013, J. Lumin.
Figure 1. The luminescent performance of SiNxOy film. (a) Above part shows the effect of flow rate of N2 on the atomic composition of the Tb-doped nitrogen-rich SiNxOy film, and below part shows the effect of the flow rate of N2 on the nitrogen excess parameter (Nex) and deposition rate of the deposited layer [53]. Copyright 2017, Nanotechnology. (b) Effect of flow rate of N2 on the PL of the Ce-doped SiNxOy film. (c) PL spectrum (solid line) and photoluminescence excitation spectrum (PLE) (dashed line) of a Ce-doped SiNxOy film at flow rate of N2 of 2 sccm [55]. Copyright 2018, Nanoscale. (d) Effect of annealing temperature on SiNxOy film [46]. Copyright 2013, J. Lumin.
Micromachines 10 00552 g001
Figure 2. Physical vapor deposition (PVD). (a) Schematic of the deposition zone inside the roll-to-roll tool [32]. Copyright 2018, Surf. Coat. Technol. (b) The procedure design and application for laboratory silicon solar cell of the anti-reflection and surface passivation film [101]. Copyright 2017, Mater. Sci. Semicond. Process.
Figure 2. Physical vapor deposition (PVD). (a) Schematic of the deposition zone inside the roll-to-roll tool [32]. Copyright 2018, Surf. Coat. Technol. (b) The procedure design and application for laboratory silicon solar cell of the anti-reflection and surface passivation film [101]. Copyright 2017, Mater. Sci. Semicond. Process.
Micromachines 10 00552 g002
Figure 3. The surface morphology and performance of SiNxOy film are changed under different conditions. (ad) FESEM cross-section images of SiNxOy film deposited at Ar/SiH4, O2/(O2+N2) of 4.5 and 0.1, respectively with RF power of (a) 0.5 kW, (b) 0.7 kW, (c) 0.9 kW, and (d) at Ar/SiH4, O2/(O2 + N2) of 41 and 0.1, respectively with RF power of 0.9 kW. (e) Effect of Ar/SiH4 ratio and RF power variation on the density and WVTR of 100 nm-thick SiNxOy film deposited at O2/(O2 + N2) ratio of 0.1 [72]. Copyright 2019, Thin Solid Films. (f) Sample description, being (I) a Ce3+ and Tb3+ co-doped SiNxOy film, 60 nm thick with 42 at.% of N; (II) a bilayer composed of a Ce3+ doped SiNxOy single layer and a Tb3+- doped SiNxOy single layer, each 30 nm thick; and (III) a multilayer made of two layers of Tb3+- doped SiNxOy and two layers of Ce3+-doped SiNxOy (each sub-layer with a thickness of 15 nm), separated by SiO2 spacers of 5 nm. All SiNxOy layers have a nitrogen content of 42 at. %. (g) HRTEM image of the multilayer design (structure (III), as-deposited sample). The inset shows a magnified region of the multilayer close to the Si substrate, for a sample annealed at 1180 °C for 1 h [114]. Copyright 2016, J. Appl. Phys. (h) Infrared transmission image of a bonded pair after the crack-opening test: (I) as-bonded, (II) after annealing at 120 °C, (III) after annealing at 300 °C. (i) AFM image of SiNxOy film synthesized by plasma immersion ion implantation (PIII). (j) Depth profiles of Si, O, and N in SiNxOy film acquired by sputtering XPS [115]. Copyright 2005, Appl. Surf. Sci.
Figure 3. The surface morphology and performance of SiNxOy film are changed under different conditions. (ad) FESEM cross-section images of SiNxOy film deposited at Ar/SiH4, O2/(O2+N2) of 4.5 and 0.1, respectively with RF power of (a) 0.5 kW, (b) 0.7 kW, (c) 0.9 kW, and (d) at Ar/SiH4, O2/(O2 + N2) of 41 and 0.1, respectively with RF power of 0.9 kW. (e) Effect of Ar/SiH4 ratio and RF power variation on the density and WVTR of 100 nm-thick SiNxOy film deposited at O2/(O2 + N2) ratio of 0.1 [72]. Copyright 2019, Thin Solid Films. (f) Sample description, being (I) a Ce3+ and Tb3+ co-doped SiNxOy film, 60 nm thick with 42 at.% of N; (II) a bilayer composed of a Ce3+ doped SiNxOy single layer and a Tb3+- doped SiNxOy single layer, each 30 nm thick; and (III) a multilayer made of two layers of Tb3+- doped SiNxOy and two layers of Ce3+-doped SiNxOy (each sub-layer with a thickness of 15 nm), separated by SiO2 spacers of 5 nm. All SiNxOy layers have a nitrogen content of 42 at. %. (g) HRTEM image of the multilayer design (structure (III), as-deposited sample). The inset shows a magnified region of the multilayer close to the Si substrate, for a sample annealed at 1180 °C for 1 h [114]. Copyright 2016, J. Appl. Phys. (h) Infrared transmission image of a bonded pair after the crack-opening test: (I) as-bonded, (II) after annealing at 120 °C, (III) after annealing at 300 °C. (i) AFM image of SiNxOy film synthesized by plasma immersion ion implantation (PIII). (j) Depth profiles of Si, O, and N in SiNxOy film acquired by sputtering XPS [115]. Copyright 2005, Appl. Surf. Sci.
Micromachines 10 00552 g003
Figure 4. A series of possible forms of the SiNxOy film and their performance.
Figure 4. A series of possible forms of the SiNxOy film and their performance.
Micromachines 10 00552 g004
Figure 5. Resistive random-access memory (RRAM) that mimics synaptic memory. (a) Schematic illustration of the analogy between Ca2+ and Ag dynamics. (b) Illustration of biological synaptic connections between presynaptic and postsynaptic neurons and circuit diagrams of electrical synapses [135]. Copyright 2016, Nat. Mater.
Figure 5. Resistive random-access memory (RRAM) that mimics synaptic memory. (a) Schematic illustration of the analogy between Ca2+ and Ag dynamics. (b) Illustration of biological synaptic connections between presynaptic and postsynaptic neurons and circuit diagrams of electrical synapses [135]. Copyright 2016, Nat. Mater.
Micromachines 10 00552 g005

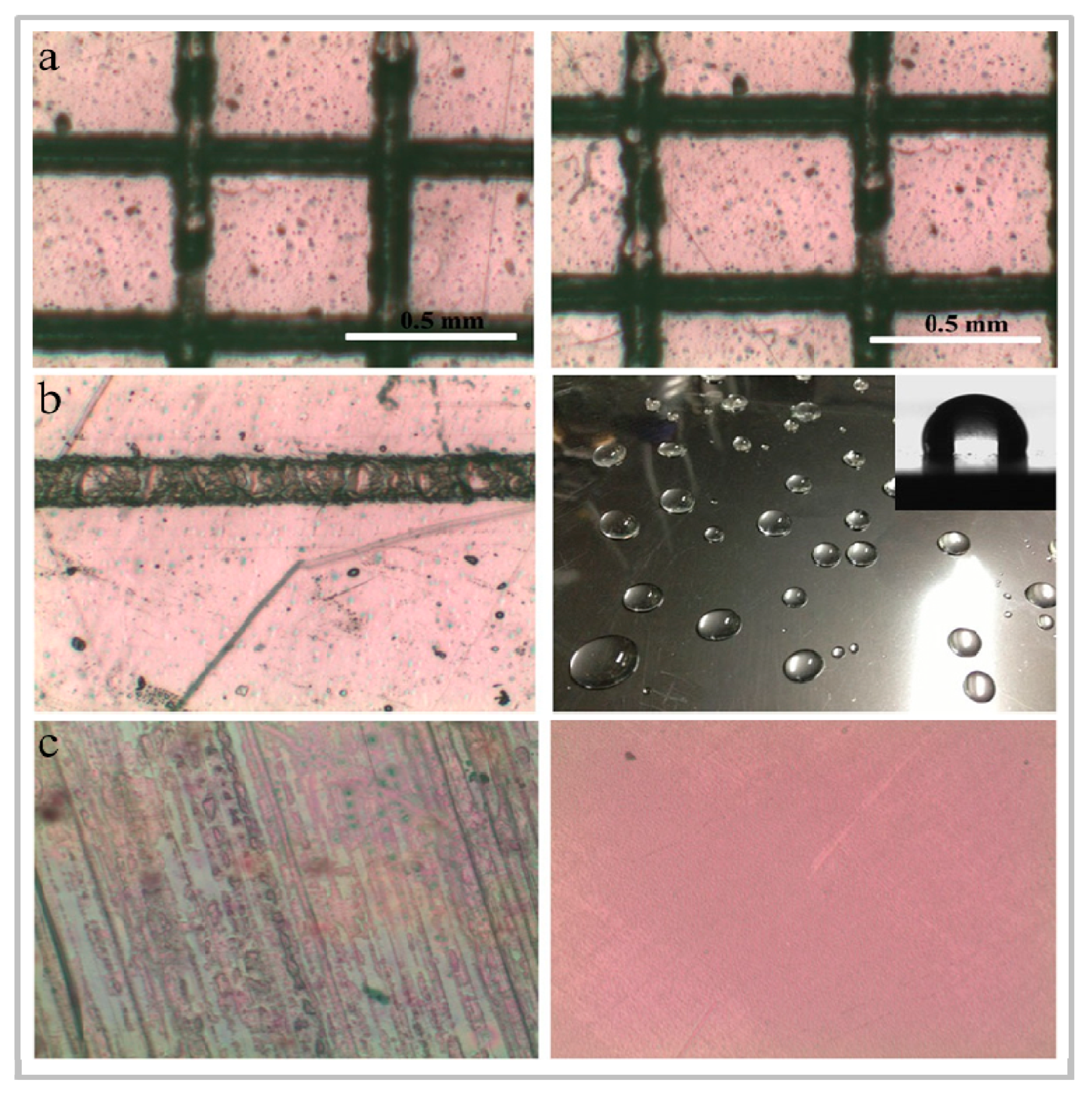

Figure 6. Scratch-resistant coating properties of the coated polyethylene terephthalate (PET) film. (a) Optical pictures of the coated films after cut-cross tape test (the left side shows a magnification of 1 time, and the right side shows a magnification of 10 times). (b) The left side shows the sample under the load of 1000 g left for the pencil scratch marks over 9 hours, and the water droplets on the coated PET film are shown in the right image. (c) Optical images of naked PET film. The PET film after coating is observed on the left and the right shows the coated PET film after wear test [149]. Copyright 2015, Polym. Int.
Figure 6. Scratch-resistant coating properties of the coated polyethylene terephthalate (PET) film. (a) Optical pictures of the coated films after cut-cross tape test (the left side shows a magnification of 1 time, and the right side shows a magnification of 10 times). (b) The left side shows the sample under the load of 1000 g left for the pencil scratch marks over 9 hours, and the water droplets on the coated PET film are shown in the right image. (c) Optical images of naked PET film. The PET film after coating is observed on the left and the right shows the coated PET film after wear test [149]. Copyright 2015, Polym. Int.
Micromachines 10 00552 g006
Table 1. Comparison of materials, ratios, and deposition conditions in different chemical vapor deposition (CVD) methods.
Table 1. Comparison of materials, ratios, and deposition conditions in different chemical vapor deposition (CVD) methods.
Deposition MethodPrecursor GasesRatio of Precursor GasesDeposition ConditionReference
PECVDSiH4, N2OSiH4/N2O = 0.05–0.125200 °C, 97.09 Pa[82]
RF-PECVDSiH4, N2O, NH3(NH3 + SiH4)/N2O = 0.64–3.22120 Pa[76]
ECR-PECVDN2, O2, SiH4O2/N2 = 0.03–0.1-[83]
IC-PECVDN2, Ar, SiH4N2/Ar = 0.0625–0.590–250 °C, 1–6 Pa [84]
LPCVDN2O, NH3 SiH2Cl2N2O/NH3 = 4.8-860 °C, 53.2 Pa[85]
Table 2. Advantages and disadvantages of SiNxOy film prepared by PECVD, LPCVD, HTCVD and Photo-CVD methods.
Table 2. Advantages and disadvantages of SiNxOy film prepared by PECVD, LPCVD, HTCVD and Photo-CVD methods.
MethodAdvantagesDisadvantages
PECVDFlexible operation method,
High process repeatability,
High step coverage,
Low deposition temperature (<400 °C) [92]
High cost,
High H content in film
LPCVDUniform film,
Complete structure,
Less pinhole defects,
High deposition speed,
Large-area preparation [80]
Low heating rate,
Long reaction time,
High deposition temperature (generally >550 °C)
HTCVDSimple operation and operation, High reaction rate,
Low H content in film and dense structure [80]
High deformation,
Impaired interface performance
Photo-CVDLow reaction temperature (≤250 °C),
Smooth film surface,
Less by-products [89]
High cost,
Low film stability
Table 3. Preparation methods of SiNxOy film.
Table 3. Preparation methods of SiNxOy film.
MethodAdvantagesDisadvantages
CVDHigh deposition rate
Low deposition temperature
Uniform film
Hydrogen content has an effect on electrical conductivity [111]
PVDLow hydrogen contentLow deposition rate [112]
Target poisoning is common
OxynitridationRelatively simple operation, large-scale preparationFilm thickness is difficult to control
Toxicity of raw gas [110]
Low N2 nitriding degree [113]

Share and Cite

MDPI and ACS Style

Shi, Y.; He, L.; Guang, F.; Li, L.; Xin, Z.; Liu, R. A Review: Preparation, Performance, and Applications of Silicon Oxynitride Film. Micromachines 2019, 10, 552. https://doi.org/10.3390/mi10080552

AMA Style

Shi Y, He L, Guang F, Li L, Xin Z, Liu R. A Review: Preparation, Performance, and Applications of Silicon Oxynitride Film. Micromachines. 2019; 10(8):552. https://doi.org/10.3390/mi10080552

Chicago/Turabian Style

Shi, Yue, Liang He, Fangcao Guang, Luhai Li, Zhiqing Xin, and Ruping Liu. 2019. "A Review: Preparation, Performance, and Applications of Silicon Oxynitride Film" Micromachines 10, no. 8: 552. https://doi.org/10.3390/mi10080552

APA Style

Shi, Y., He, L., Guang, F., Li, L., Xin, Z., & Liu, R. (2019). A Review: Preparation, Performance, and Applications of Silicon Oxynitride Film. Micromachines, 10(8), 552. https://doi.org/10.3390/mi10080552

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
