Motion and Load Analysis of the Flexible Platform Based on Noncontact Processing

Abstract

In this paper, we explore the applicability of the positioning stage based on flexible hinges for noncontact processing. According to the actual application of the positioning stage, Hooke’s law, the Euler–Bernoulli beam theory, and the geometric relationship of the structure are applied to analyze the coupled displacement in the movement of the positioning stage and the changes in the performance of the positioning stage caused by external loads. The coupled-displacement matrix and the external-load matrix obtained from the analysis are substituted into the ideal-displacement expression of the positioning stage to obtain the displacement expression of the platform in noncontact machining. The platform trajectory obtained by the referenced curve is analyzed. In addition, the coupled displacement in the X- and Y-directions and the coupled displacement caused by the external load in the Z-direction are nanoscales and about one-thousandth of the output displacement, which meets the requirement of tracking accuracy for micron-level machining. Finally, we use finite element analysis (FEA) and experiments to prove the correctness of the theoretical analysis.

1. Introduction

Under the action of the driving force, the compliant mechanism causes the elastic deformation of its flexible components and realizes the transmission of movement, force, and energy. Compared with the rigid mechanism, the outstanding advantage of the compliant mechanism is that it avoids friction, wear, and clearance and reduces vibration and noise. Moreover, the integrated processing does not require complicated assembly, especially nanolevel and high-precision movement. The most common flexible component is flexible hinges. Through the long-term research of related scholars, the forms of flexible hinges are rectangle-type [1,2], circular-type [3], vaulted-type [4], staggered-axis type [5], hybrid-type [6], and so on. Since the flexible component is slightly deformed, various flexible-displacement amplifiers have been invented to increase the moving stroke of the flexible mechanism. At present, the forms of flexible-displacement amplifier include bridge-type [7], rhombus-type [8,9], composite-type [10], Scott–Russell mechanism [11], lever-type [12], hybrid-type [13], and many more. The introduction of the flexible-displacement amplifier improves the moving stroke of the flexible mechanism and expands the applicable range of the flexible mechanism. Currently, in microgripper [14], ultraprecision machining [15], microvibration suppression [16], fluid transport and control [17], energy harvester [18], microelectromechanical systems [19], biomedicine [20], and other fields have used flexible mechanisms. Among them, the research on the precise positioning stage is more concentrated.

Table 1. Comparison of developed micropositioning stages based on compliant mechanisms.

Stage	DOF	Motion Ranges	Coupling Ratio
[29]	2 (XY)	25 μm × 25 μm	Low
[30]	2 (XY)	181.0 μm × 179.5 μm	1.07%
[7]	3 (ZθXθY)	190 μm, 0.5 μm × 0.5 mrad	Unknown
[13]	3 (XYZ)	177.33 μm × 179.30 μm × 17.45 μm	Less than 1.6%
[31]	3 (XYθ)	58.0 μm ×58.0 μm, 1.05 mrad	Less than 1.6%
[32]	6 (XYZθXθYθZ)	8.2 μm × 10.5 μm × 13.2 μm, 225 μrad × 107 μrad × 100 μrad	High
[2]	6 (XYZθXθYθZ)	291.80 μm × 297.42 μm × 442.65 μm, 9.22 mrad × 9.22 mrad × 2.71 mrad	XYZ: less than 0.1%, θXθYθZ: less than 3.08%

compares the compliant micropositioning platforms developed based on flexible mechanisms. It can be seen from Table 1 that the current compliant micropositioning stage can realize multi-degree-of-freedom motion, the motion stroke is at the micrometer level, and there is a specific coupling motion. Among them, a guiding mechanism [21,22] is used to reduce the influence of coupling motion. Research on compliant micropositioning stages generally focuses on platform design [5,21,22], static/dynamic analysis [9,23], and kinematic analysis [2,24]. In order to promote the application of the platform, the motion control of the platform [1,25], error analysis [1,26], load analysis [27,28], and other aspects are studied. However, the application analysis of the platform is mainly for the two-dimensional motion platform and less for the six-degree-of-freedom motion platform. In addition, in the noncontact processing, the workpiece will be placed on the positioning stage, and the workpiece holder should be installed in advance, which will change the position and performance of the platform.

Therefore, this paper studies the motion and load of the flexible platform in non-contact machining. According to the practical application of the flexible platform, the analysis is carried out using Hooke’s law, Euler-Bernoulli beam theory and the geometric relationship of the structure. The motion performance changes of the flexible platform after the piezoelectric ceramic actuator (PZA) is installed, the displacement changes and coupled displacement changes of the flexible platform under load, and the coupled displacement changes in the Y/X direction caused by the movement in the X/Y direction are analyzed. In addition, the displacement expression of the flexible platform in non-contact machining is obtained through the derived mathematical equation. Finally, the correctness of the theoretical analysis and the feasibility of the flexible platform in non-contact machining is verified by simulation and experiment. It is worth mentioning that the crossed axis coupling displacement generated by parasitic motion when the platform only moves in the X/Y-direction is analyzed in the literature [33], and this coupling displacement is reduced to less than 1 μm through error compensation, which will not be studied in this paper. In this paper, the coupling displacement in the Y/X-direction caused by the movement of the platform in the X/Y-direction, and the coupling displacement in the Y/X-direction caused by the load in the Z-direction are analyzed.

2. Mechanism Description

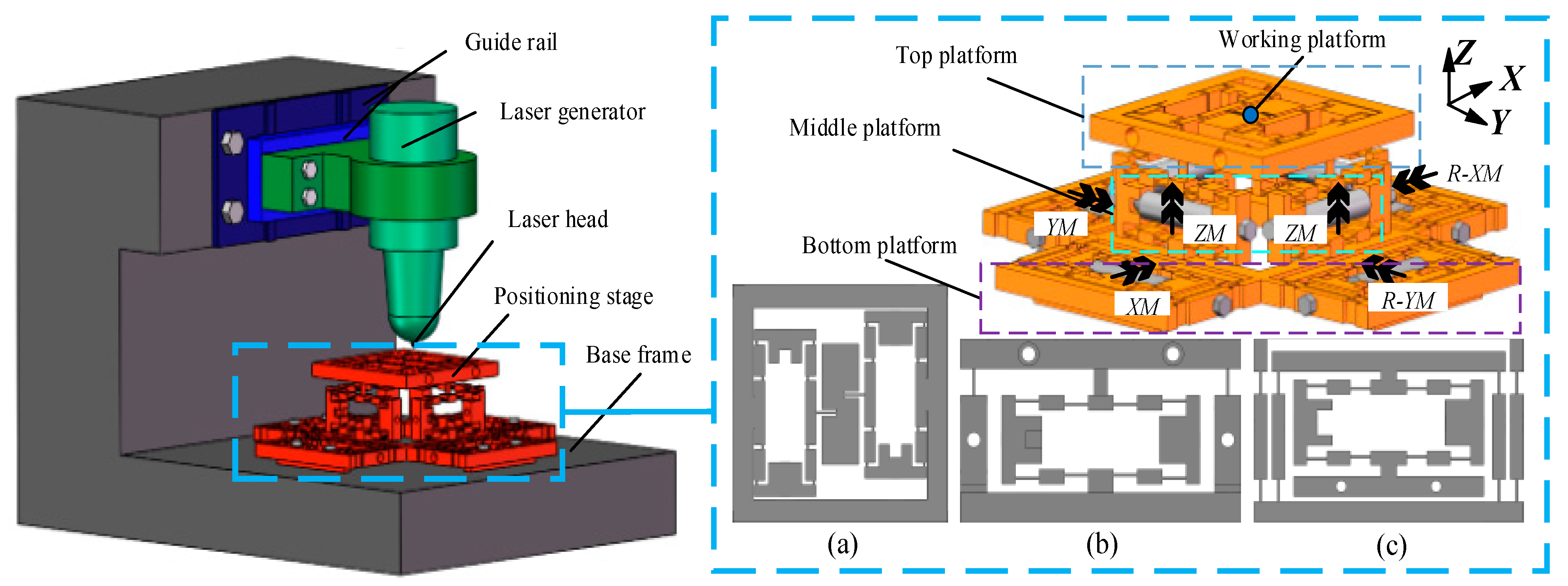

By consulting the design manual of the laser machine and using SOLIDWORKS 2016 software (Solidworks, Concord, MA, USA) to perform a three-dimensional solid model of the laser machine, the solid model is shown in Figure 1. Different from the traditional laser machine, this device employs a flexible platform to achieve micron-level precision processing. Compared with the positioning stage of the transmission guide, the flexible platform achieves higher accuracy and is less affected by nonlinear factors, and it can better realize the processing of fine and small parts.

It can be seen from Figure 1 that the positioning stage is composed of the top platform, middle platform, and bottom platform. Figure 1a is the overlooking map of the top platform, Figure 1b is the main view of the middle platform, and Figure 1c is a quarter view of the bottom platform. The bottom platform realizes X-axis movement (XM), Y-axis movement (YM), X-axis reverse movement (R-XM), and Y-axis reverse movement (R-YM), respectively, and the middle platform achieves Z-axis movement (ZM).

In laser processing, the laser generator emits a laser beam through the laser head to the surface of the workpiece, with high laser energy to remove, melt the material, and change the surface performance of the workpiece. The Z-axis motion of the machine includes the large stroke of the sliding guide to facilitate the assembly of the workpiece. The flexible platform can also realize the Z-axis motion to meet the processing requirements. During machining, the laser head releases the laser beam, and the desired shape of the part is performed through the moving trajectory of the platform. It is worth mentioning that the flexible platform can realize six-degree-of-freedom motion, including linear motion in X-, Y-, and Z-directions and rotation around X-, Y-, and Z-axes. However, it is difficult to apply to precision trajectory due to the large-coupling effect and small-rotation-angle of the flexible platform around X-, Y-, and Z-axes.

For the rotation along with the X-, Y-, and Z-axis, there is a detailed analysis in [14]. The bridge-type displacement amplifier (BDA) with the same geometric parameters is employed in the positioning stage. Figure 1c is a quarter top view of the bottom platform and a combined mechanism of BDA and guiding mechanism. The relevant geometric parameter of the combined mechanism is depicted in Figure 2a, where the thickness of the combined mechanism is b. Figure 2b is the geometric parameters related to the joint between the middle and top platforms.

Table 2. Values of related parameters.

Parameters	l (mm)	l1 (mm)	la (mm)	lm (mm)	lc (mm)	h (mm)	b (mm)	h1 (mm)
Values	8	15	1	9	14	0.8	10	5
Parameters	hm (mm)	L (mm)	Lm (mm)	L1 (mm)	L2 (mm)	b (mm)	bt (mm)	l2 (mm)
Values	5	8	30	63	100	10	5	9
Parameters	L3 (mm)	ht (mm)	E (GPa)	ρ (kg/m3)	µ
Values	95	10	206	7850	0.27

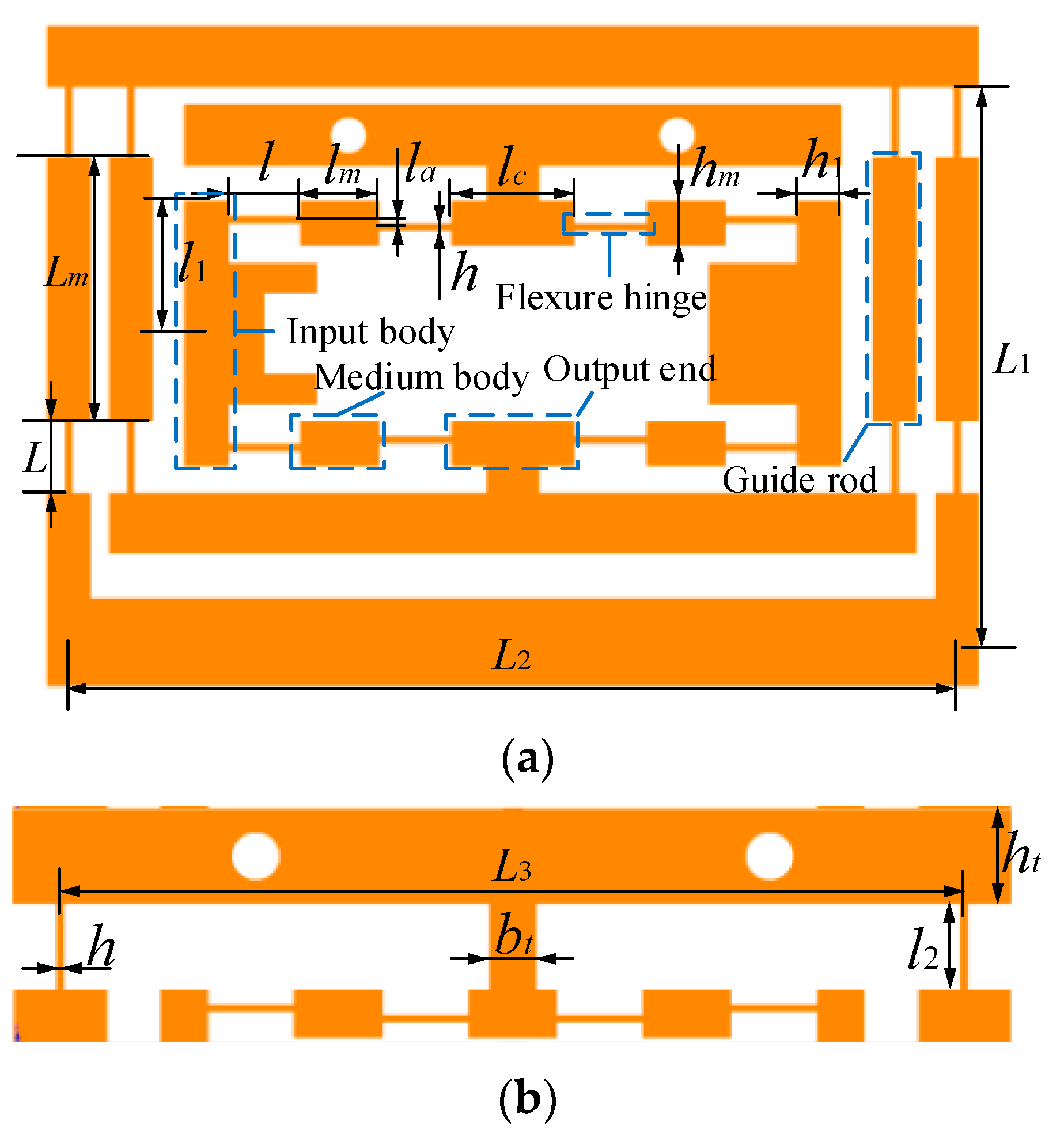

shows the parameter values in Figure 2 and platform materials.

3. The Kinematic Analysis of Positioning Stage

According to the research in the literature [9], the expression of the moving displacement X_stg of the platform is as follows:

$$X_{stg}=\frac{1}{1+\frac{R^2\cdot K_{out}\cdot K_{load}}{\left(K_{out}+K_{load}\right)\left(K_p+K_{in}\right)}}\cdot \frac{K_{out}}{K_{out}+K_{load}}\cdot \frac{K_p}{K_p+K_{in}}\cdot X_p\cdot R$$

(1)

where R is the displacement amplification ratio of BDA, X_p is the output displacement of piezoelectric ceramic actuator (PZA), K_p is the axial stiffness of PZA, K_in is the input stiffness of BDA, K_out is output stiffness of PZA, and K_load is external-load stiffness of BDA.

In reference to [2], the calculating for the relevant parameters in Equation (1) is studied intensely. The calculating expression for the parameters in the literature [2] is as follows:

$$R=\frac{I_1\left(\frac{l_a{l}^2}{4I}+\frac{E}{F_x}{l}_a\left(1-\cos {\theta }_x\right)+\frac{E}{F_x}{l}_m\sin {\theta }_x\right)-\frac{h_1^2}{240}\left(\mu +2+\frac{30l_1^2}{h_1^2}\right)-\frac{2F_x{l}_1^2}{K_{out}}\left(2+\frac{\left(8+9\mu \right)h_1^2}{20l_1^2}\right)}{\frac{E{I}_1}{F_x}\left(l_a-l_z\right)\sin {\theta }_x+\frac{2l{I}_1}{hb}+\frac{l_m{I}_1}{h_{m}b}+\frac{l_1^3}{6}\left[1+\frac{3h_1^2}{5l_1^2}\left(1+\frac{11\mu }{12}\right)-\frac{3l_a}{4l_1}\right]}$$

(2)

where θ_x = F_xl_al/(4EI), I = h³b/12, I₁ = h₁³b/12, E is Young’s modulus of the material, F_x is the input force of BDA, μ is shear modulus, and I and I₁ are the inertia moment of the flexible hinge and BDA input, respectively.

$$K_{in}=\frac{1}{\frac{l_a{}^2\cdot l}{4EI}+\frac{l}{Ehb}+\frac{l_m}{E{h}_{m}b}+\frac{l_1^3}{6E{I}_1}\left[1+\frac{3h_1^2}{5l_1^2}\left(1+\frac{11\mu }{12}\right)-\frac{3l_a}{4l_1}\right]}$$

(3)

$$K_{out}=\frac{6EI}{4l^3+6l_m{l}^2+3l_m^{2}l}$$

(4)

The movement of the bottom platform will be hindered by the relative BDA and guiding mechanism. Therefore, the calculation of K_load needs to obtain the output stiffness K_out of the BDA and the swing stiffness K_w of the guide mechanism. The expression of K_w is as follows:

$$K_w=\frac{12E{I}_g}{4L_{}^3+6L_{}^2{L}_m+3L{L}_m^2}$$

(5)

where I_g is the inertia moment of the guiding mechanism.

The positioning stage platform needs the drive of PZA in the application, so the output stiffness of the BDA with PZA installed changes, and the output stiffness is no longer K_out but K_outb. Next, solve K_outb in the platform.

When the external load 2F_y acts on the BDA, the input body of the BDA driven by PZA will produce an interaction force 4F_x to inhibit the deformation of the BDA. Hence, as shown in Figure 3a, when 2F_y is applied to the output of BDA, BDA will be affected by 2F_y and 4F_x, and PZA will be squeezed by 4F_x. Suppose that PZA is taken as the object of inhibiting movement for BDA, according to the force analysis at a quarter of BDA in Figure 3b. In that case, the displacement changes of BDA caused by the combined action of 4F_x and 2F_y includes:

• The total displacement x_k of the input body of BDA without PZA is caused by the action of 2F_y.
• When the PZA hinders the deformation of the BDA, an X-direction force 4F_x is generated, which causes the input body of the BDA to produce a restrained displacement x_f.
• Under the action of 4F_x, PZA produces compression displacement x_y, and it is considered that x_y is the final displacement of BDA in the X-direction under the action of 2F_y.

Through the above analysis, the following relationships can be obtained as:

$$x_k-x_f=x_y$$

(6)

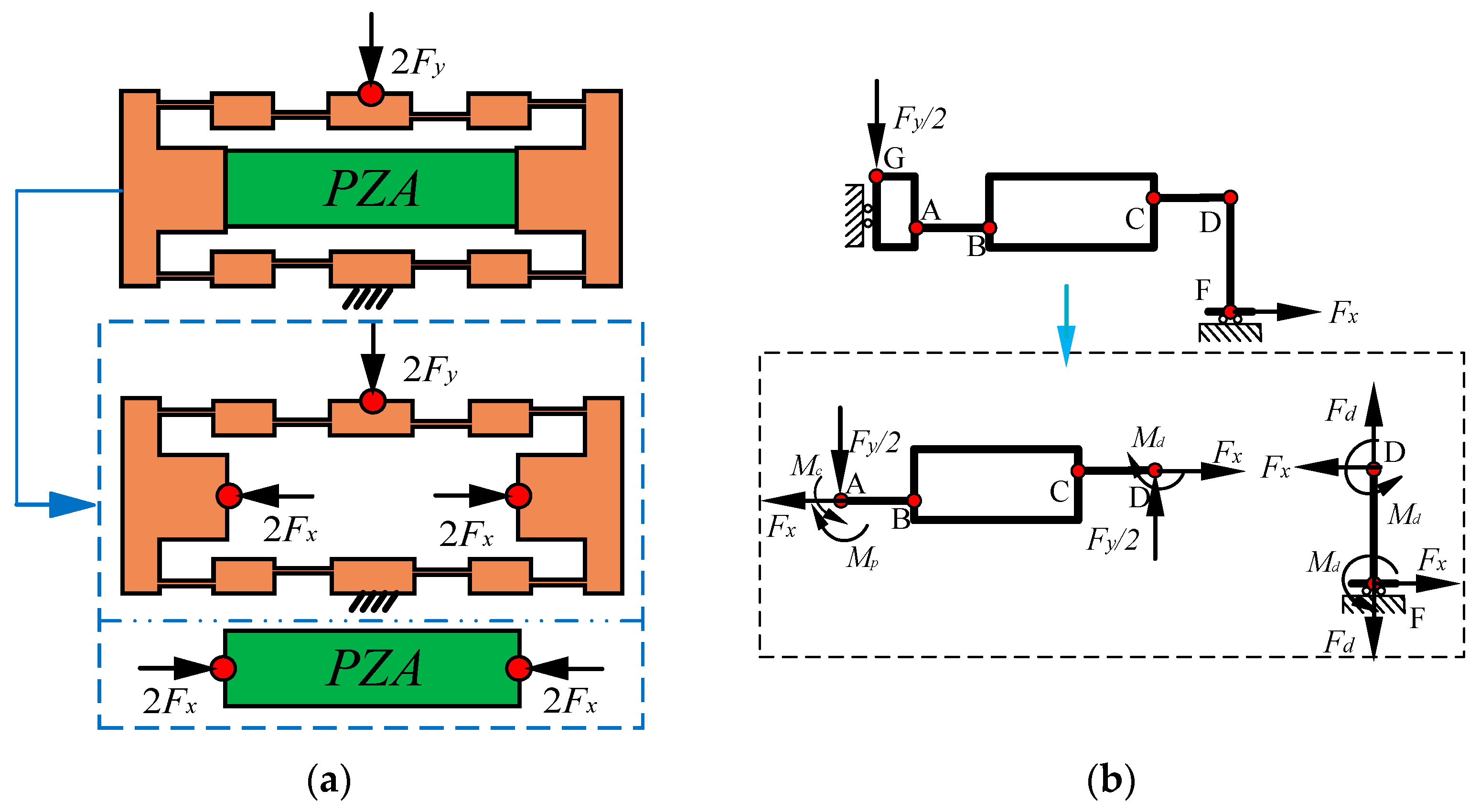

Combining the analysis in literature [2] and Figure 3, the expression of each variate in Equation (6) is obtained, as shown below:

$$\{\begin{array}{l}{x}_k=\frac{F_y\left(2l+l_m\right)l_1^2}{4EI}+2\left(l_a-\frac{l_m\sin \left({\theta }_A\right)}{\cos \left({\theta }_A\right)}\right)\sin \left({\theta }_A\right)\\ x_f=\frac{4F_x}{K_{in}}\\ x_y=\frac{2F_x}{K_p}\end{array}$$

(7)

where θ_A is the rotation angle of the end for flexible hinges under the action of F_y/2 for the BDA without PZA, the θ_A is derived as follows:

$${\theta }_A=\frac{F_y\left(l+l_m\right)l}{4EI}$$

(8)

Substituting Equation (7) into Equation (6) allows the generation of F_x. Bring the obtained F_x into y_x = 4F_xR/K_in to get the restrained displacement y_x of the BDA in the Y-direction. The output displacement y_k of the BDA without PZA under the action of 2F_y is reached by y_k = 2F_y/K_out. From y = y_k-y_x, the actual displacement y of the output end for the BDA equipped with PZA under the action of 2F_y is obtained. Then, K_outb is expressed according to Hooke’s law, and its expression is as follows:

$$K_{outb}=\frac{F_y}{2\left[\left(\frac{F_y{l}^3}{3EI}+\frac{F_y{l}_m{l}^2}{4EI}\right)+l_a\left(1-\cos {\theta }_A\right)+l_m\cdot \sin {\theta }_A\right]-\frac{4R{F}_x}{K_{in}}}$$

(9)

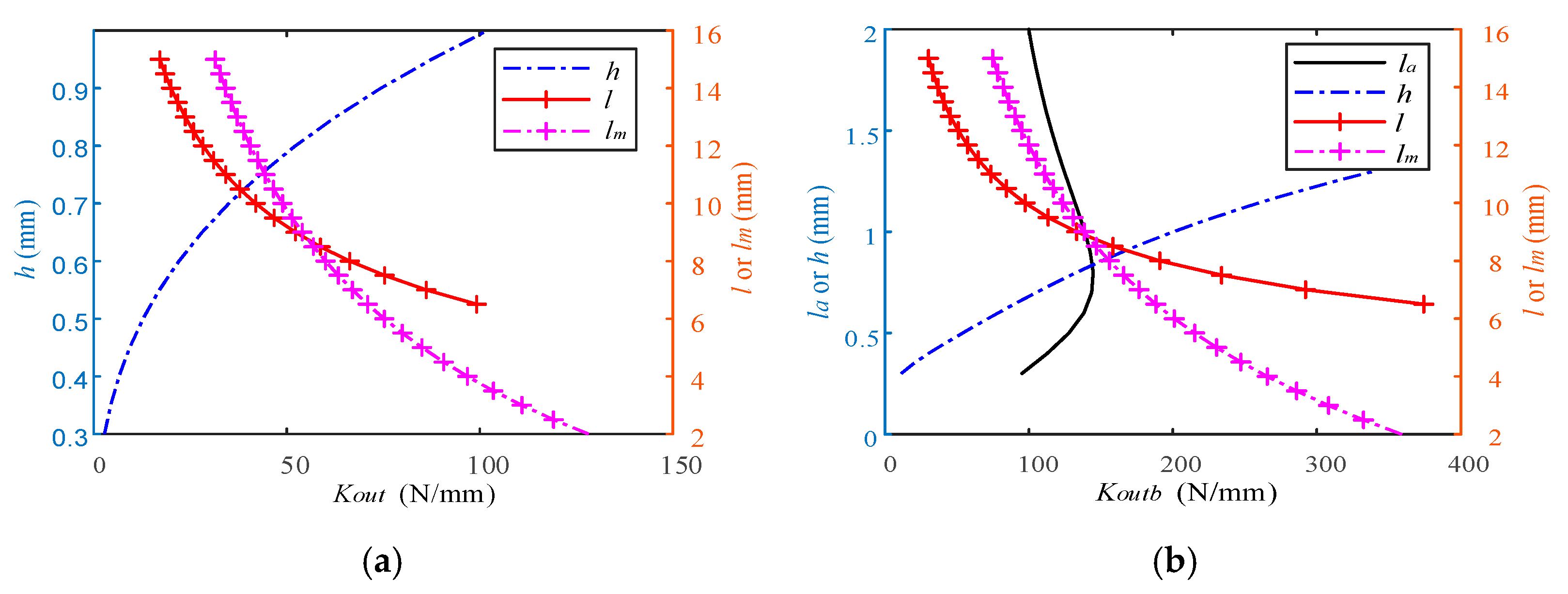

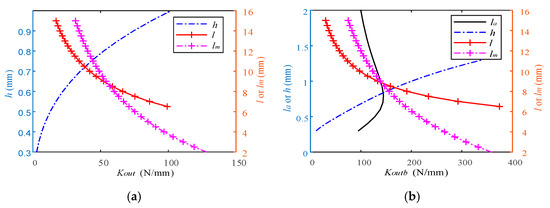

Combining Equations (1)–(5) and (9), the output displacement of the platform in the X- and Y-directions under the action of different PZA numbers can be obtained. In order to observe the influence of PZA on the output stiffness of BDA, the relationship between the crucial parameters in BDA and its output stiffness is analyzed. Figure 4 shows the relationship between crucial parameters in BDA and K_outb and K_out, respectively. As shown in Figure 4, the output stiffness of BDA is significantly increased after PZA is installed. Among them, l_a has a relationship with K_outb but has nothing to do with K_out. This is because y_k has nothing to do with l_a, and y_x is related to l_a, so there is a relationship between y and l_a to get the relationship between K_outb and l_a.

4. The Load Analysis of Positioning Stage

The positioning stage may be affected by the Z-direction load in the application. For example, the platform is applied to the microscope to fine-tune the position of the sample. At this time, the top of the positioning platform will be affected by the gravitational load of the sample and the fixed sample device. Therefore, it is necessary to analyze the influence of the positioning platform on the Z-direction load.

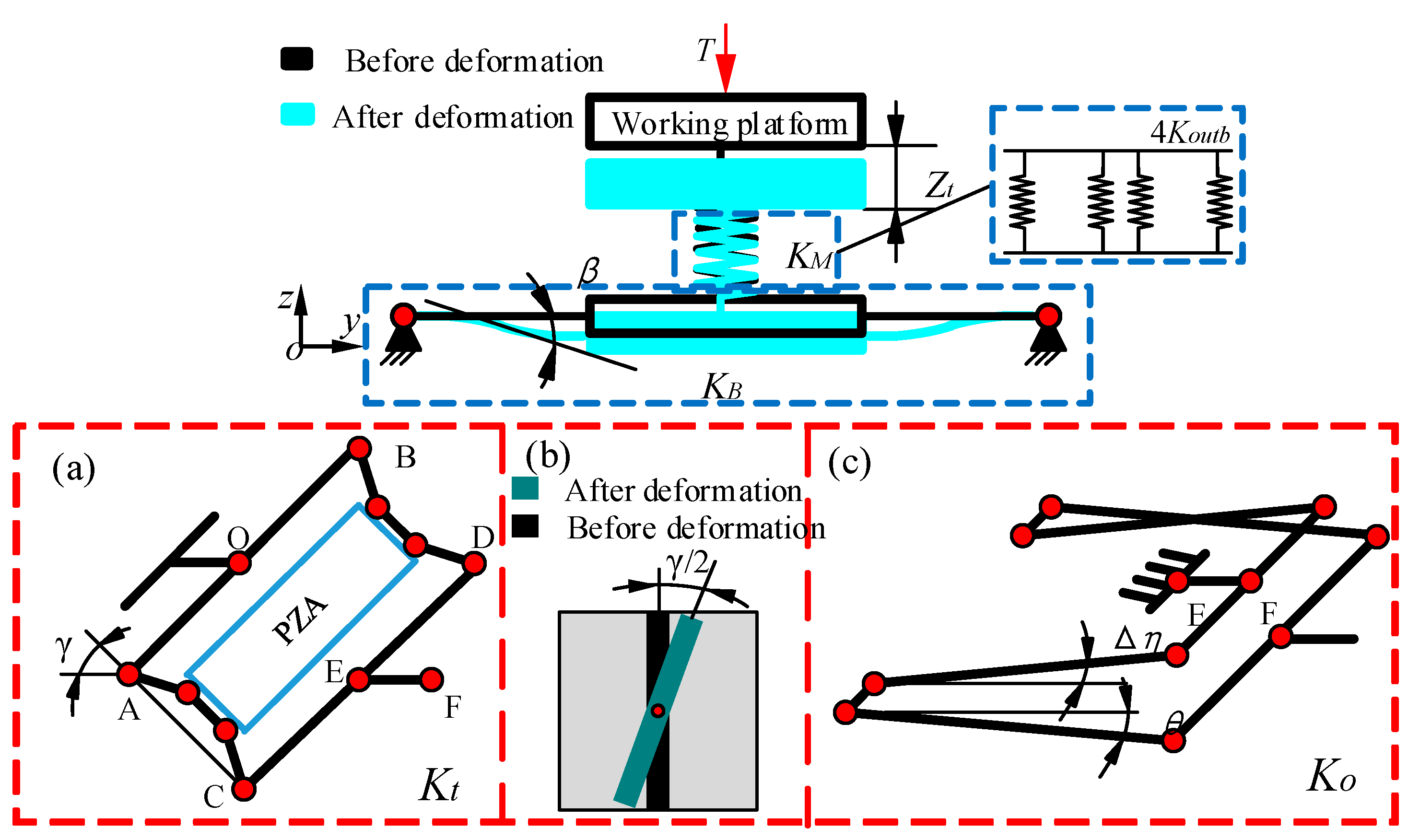

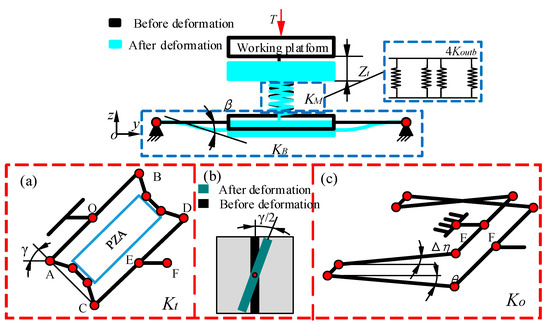

First, the total displacement change in the Z-direction of the platform is being analyzed. As shown in Figure 5, under the action of the external load T, the middle platform, and the bottom platform descend simultaneously, and the total descending displacement is Z_t. The four BDAs of the middle platform obstruct the load T to cause the platform to deform in the Z-direction. The combined mechanism formed by the BDA and the guiding mechanism in the bottom platform prevents the load T from causing the platform to deform in the Z-direction, and its roll angle is β. Since the Z-direction stiffness K_M of the middle platform and the Z-direction stiffness K_B of the bottom platform are in series, the expression of Z_t is as follows:

$$Z_t=\frac{T\left(K_M+K_B\right)}{K_M\cdot K_B}$$

(10)

where K_M = 4K_outb and K_B is a series of K_t and K_o. K_t is the roll stiffness for BDA in the Z-direction, and K_o is the Z-direction roll stiffness of the guide mechanism in the bottom platform.

Under the action of load T, the X-, Y-, and Z-direction movement of the platform will change. For the Z-direction movement of the middle platform, it is necessary to overcome the effect of the external load T to make the platform rise. The X- and Y-direction movement is different from the Z-direction movement. Under the action of the load T, each combined mechanism of the BDA and the guiding mechanism in the bottom platform produces the same deformation, so only one combined mechanism can be studied. Figure 5a illustrates that the flexible hinges in the BDA are twisted under the influence of the torque, and its total torsion angle is γ. Figure 5b is a cross-sectional view of the torsion of a flexible hinge in BDA. The flexible hinges of the two guiding mechanisms are affected by the load T to produce bending deformation for the two guiding mechanisms. As a result, the medium body between the flexible hinges rotates with the flexible hinges. The tilt angles of the two guiding mechanisms are shown in Figure 5c as Δη and θ, respectively.

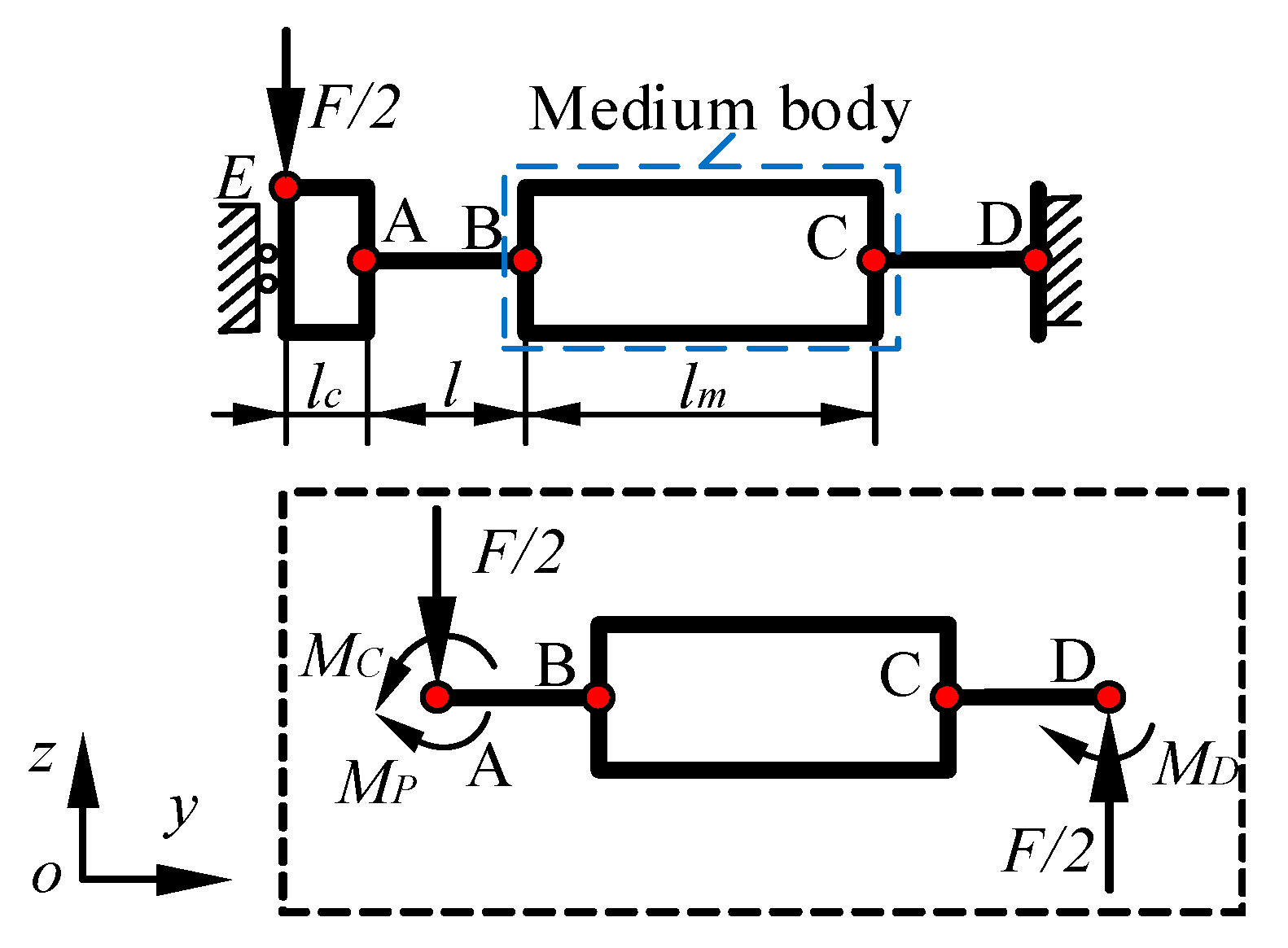

Since the combined mechanism formed by the BDA and the guiding mechanism in the bottom platform includes three groups of flexible mechanisms, a simplified diagram of the mechanism is depicted in Figure 6. It is assumed that only the flexible hinges are deformed, and the flexible hinge is subjected to the same load. Thus, it is considered that M_B = M_C in Figure 6. Combined with the force analysis in Figure 6, the following expressions can be generated as:

$$\{\begin{array}{l}{M}_B=M_C=\frac{F{l}_m}{4}\\ M_D=\frac{F\left(2l+l_m\right)}{4}\\ M_p=\frac{F\left(2l+l_m+l_c\right)}{4}\end{array}$$

(11)

According to Euler-Bernoulli beam theory, the calculating expression of the rotation angle θ_B and the deflection W_B at point B are respectively expressed as:

$$\{\begin{array}{l}{\theta }_B=\frac{F\left(l+l_m\right)l}{4EI}\\ W_B=\frac{F{l}^3}{6EI}+\frac{F{l}_m{l}^2}{8EI}\end{array}$$

(12)

Due to the flexible hinges AB and CD being subjected to equivalent loads, the rotation angle and deflection of point C are the same as those at point B. Since the rotation angle of the medium body and the end of the flexible hinge in the flexible mechanism is equal, the maximum displacement W_m of the medium body in the Z-direction changes to l_msinθ_B. Combined with the displacement change of the flexible hinge, the displacement change at point E is W_m + 2W_B.

When the moment M is applied to point E, the analysis method is the same as the above, and the expression of the displacement change at point E is as follows:

$$W_{T2}=\frac{Ml\left(l_m+l\right)}{2EI}$$

(13)

When the flexible hinge only produces torsion deformation, the analysis method is the same as the above. Take the torque M at the output end of BDA as an example. The displacement of the flexible hinge is small when it is twisted, but it drives the displacement of the input body to increase the displacement of the output end. The maximum displacement change W_T3 of the input body is considered the total displacement change. This displacement expression can be written as:

$$W_{T3}=\frac{M{l}_{m}l}{2Gsh{b}^3}$$

(14)

where G is the shear modulus and s is a factor related to the side length ratio of the section, which is taken as 1/3 in this article.

Based on the previous analysis, the displacement expression of the bottom platform under the load T in the Z-direction is taken as:

$$W=\frac{TL\left[12L_{m}L+8L^2+6L_m{}^2+3L_1\left(L+L_m\right)\right]}{96E{I}_2}+\frac{T{L}_{1}l{l}_1}{32sGh{b}^3}+\frac{T{L}_2^3}{96E{I}_3}$$

(15)

Therefore, the Z-direction stiffness K_B of the bottom platform is expressed as:

$$K_B=1/(\frac{L\left[12L_{m}L+8L^2+6L_m{}^2+3L_1\left(L+L_m\right)\right]}{96E{I}_2}+\frac{L_{1}l{l}_1}{32sGh{b}^3}+\frac{L_2^3}{96E{I}_3})$$

(16)

5. The Analysis of Coupled Movement

In this paper, the positioning stage is a symmetrical structure, and a guiding mechanism is used to eliminate the cross-coupling between the axes of the bottom platform. The guide mechanism greatly eliminates cross-coupling between the X-axis and Y-axis. The remaining cross-coupling is affected by the symmetry of the positioning stage, causing the positioning stage to deform irregularly, which results in the cross-coupling displacements between axes on the upper surface of the top platform being unequal. Since the bottom platform and the middle platform are not on the same level, the cross-coupling displacement between X/Y-axis and Z-axis is minimal, mainly caused by the irregular deformation under the influence of the symmetry of the positioning stage. To sum up, the analysis of the cross-coupling between the axes of the positioning stage is complex, and the coupling displacement varies from place to place, so it will not be studied in the following. This section mainly studies the X/Y-direction movement causes coupled displacement in Y/X-direction, and the coupled displacement in the X- and Y-directions under load.

5.1. The X/Y-Direction Movement of Platform Causes Coupled Displacement in the Y/X-Direction

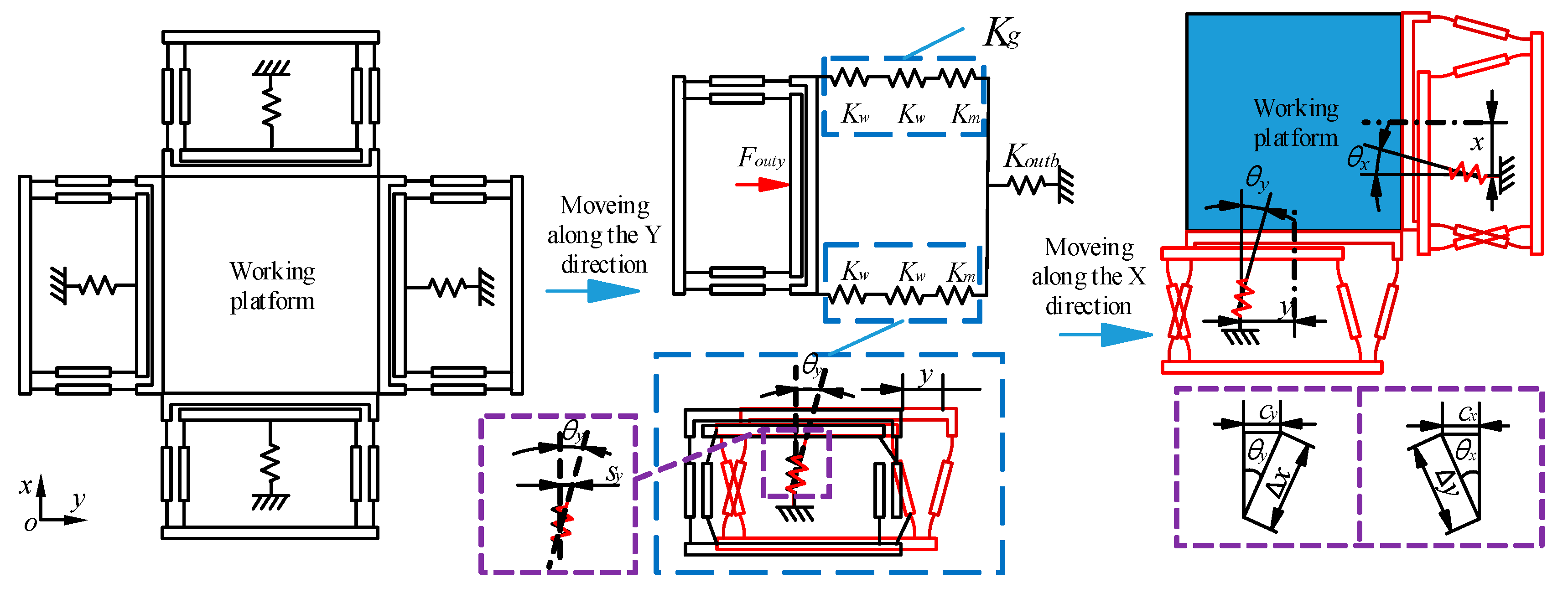

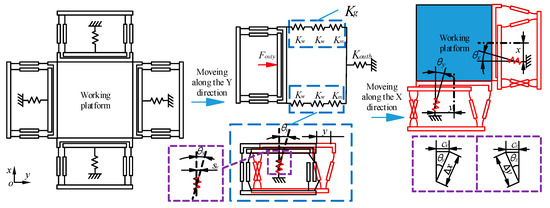

Figure 7 is the moving analysis diagram of the platform, which is the influence of the X/Y-direction movement on the Y/X-direction movement. In the picture, the Y-direction movement of the platform starts, and the input force F_outy in the Y-direction movement is generated under the actuation of the BDA as the input source. Under the action of the force F_outy, the BDAs on the Y-axis produce linear movement, while the BDAs on the X-direction produce lateral movement. The stiffness K_g of the X-direction combined mechanism for lateral movement is the series connection of the stiffness 2K_w of the two guide mechanisms and the lateral stiffness K_m of the BDA. The combined mechanism on the X-axis will produce a Y-direction displacement Δy, and BDA produces not only an X-direction tilt angle θ_y but also a Y-direction roll displacement s_y.

When the Y-direction movement is completed, the X-direction movement is started. The X-direction movement is the same as the Y-direction movement. However, due to the Y-direction movement, the output end of the X-direction movement BDA produces a tilt angle θ_y, which makes the Y-direction produce a coupled displacement C_y caused by the X-direction displacement Δx, and the X-direction will also exist the coupled displacement C_x produced by the Y-direction displacement Δy. Through the above analysis, the expression of the coupled displacement C_y/x generated as:

$$C_{y/x}=\frac{\Delta y{K}_m{K}_w}{2l_1\left(2K_m+K_w\right)K_m}\Delta x$$

(17)

The above expression can be simplified as C_y/x = AΔxΔy, where A is the coupled constant of the platform X/Y-direction movement.

From Equation (17), it can be demonstrated that reducing the stiffness K_g, increasing the lateral stiffness K_m and width 2l₁ of the BDA can reduce the coupled displacement C_y/x. Meanwhile, l₁ is related to BDA performance, so under the premise of considering BDA performance, l₁ can be appropriately increased to reduce C_y/x. Because the analysis of K_m is complex, this article replaces it with simulated values.

5.2. The Z-Direction Load Causes Coupled Displacement in the Y/X-Direction

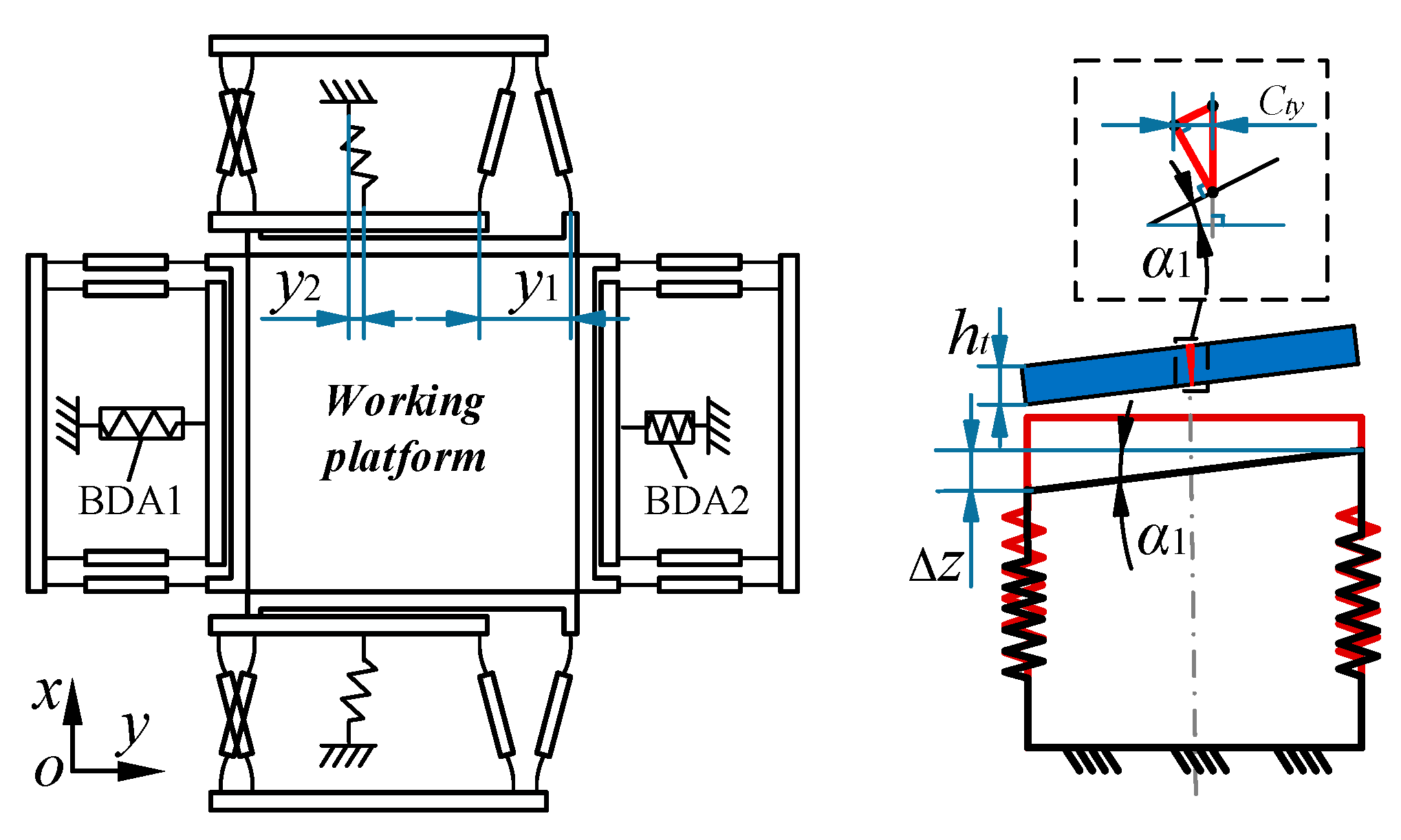

After analyzing the displacement change of the platform in the Z-direction under the load T, the coupled displacement caused by the load T is then analyzed. When there is no movement in the X/Y-direction, the X- and Y-directions of the platform will not produce coupled displacement under the influence of the load T. When the platform produces displacement in the X/Y-direction, the original balance of the X- and Y-directions is broken to produce a coupled displacement. As shown in Figure 8, when the platform moves in the Y-direction, BDA1 and BDA2 on the Y-axis are respectively pulled and pressed, and the output displacements of the two BDAs change oppositely, where the output displacement of BDA1 increases by y₁+y₂. Under the action of the load T, the two BDAs will change, the BDA under tension will receive a more significant moment, and the BDA under compression will receive a little moment. Through the above analysis, the displacement of the BDA1 in Z-direction is reduced by ΔZ/2, the displacement of the BDA2 in Z-direction is increased by ΔZ/2, the top platform produces a tilt angle α₁, and under the influence of the height h_t of the top platform, the platform produces coupled displacement C_ty in Y-direction.

Through the above analysis and according to the geometric relationship in Figure 8, the expression of the coupled displacement C_tx/y in the X/Y-direction under the action of the load T can be obtained as follows:

$$\{\begin{array}{l}{C}_{tx}=2\sin \left(\frac{T{L}_{1}l}{64Gsh{b}^3}\right)\frac{h_t\Delta x}{L_3}\\ C_{ty}=2\sin \left(\frac{T{L}_{1}l}{64Gsh{b}^3}\right)\frac{h_t\Delta y}{L_3}\end{array}$$

(18)

The Equation (18) can be simplified as C_tx/y = BΔx/y, where B is the coupled constant of X- and Y-direction movement under the load in the Z-direction.

Through Equation (18), it can be derived that the coupled displacement C_tx/y can be reduced by appropriately reducing the thickness h_t of the top platform, the length l of the flexible hinge for BDA in the bottom platform, and the total length L₁ of the flexible hinge and the medium body in the guiding mechanism as well as increasing the thickness b and height h of the flexible hinge for BDA in the bottom platform and the side length L₃ of the top platform. However, b, h, and l are related to the BDA of the input source and can be increased or decreased appropriately only under the premise of ensuring the performance of the BDA. L₃ is closely related to the overall space of the platform and can be appropriately increased according to the place of application. The simple way to change the platform coupled displacement C_tx/y is to reduce h_t and L₁.

5.3. The Pose Equation of Positioning Stage

Since the load stiffness exists when the platform moves in the X- and Y-directions, the displacement expression is in Equation (1). The Z-direction motion of the platform does not affect the load stiffness. When the load stiffness K_load in Equation (1) is zero, it is the Z-direction motion equation of the platform. Through the above analysis, it is considered that the ideal motion expression of the platform without considering the coupling motion of the platform and the influence of the external load is as follows:

$$\{\begin{array}{l}{S}_x=W\cdot \frac{K_{out}}{K_{out}+K_{load}}\cdot \frac{K_p}{K_p+K_{in}}\cdot R\cdot X_x\\ S_y=W\cdot \frac{K_{out}}{K_{out}+K_{load}}\cdot \frac{K_p}{K_p+K_{in}}\cdot R\cdot X_y\Rightarrow \left(\begin{array}{l}{S}_x\\ S_y\\ S_z\end{array}\right)\\ S_z=\frac{K_p}{K_p+K_{in}}\cdot R\cdot X_z\end{array}=\left(\begin{array}{l}\begin{array}{ccc}C& 0& 0\end{array}\\ \begin{array}{ccc}0& C& 0\end{array}\\ \begin{array}{ccc}0& 0& P\end{array}\end{array}\right)\left(\begin{array}{l}{X}_x\\ X_y\\ X_z\end{array}\right)$$

(19)

Equation (18) can be simplified as S = MX where S is the ideal output displacement of the platform, M is the ideal displacement matrix of the platform, and X is the input displacement of the platform.

Since the PZA is taken as the input source in the motion of the platform, the calculating expression of the input displacement for the positioning stage can be obtained according to the inverse position solution of the positioning stage:

$$\left(\begin{array}{l}{X}_x\\ X_y\\ X_z\end{array}\right)=\left(\begin{array}{l}\begin{array}{ccc}1/C& & \end{array}\\ \begin{array}{ccc}& 1/C& \end{array}\\ \begin{array}{ccc}& & 1/P\end{array}\end{array}\right)\left(\begin{array}{l}{S}_x\\ S_y\\ S_z\end{array}\right)$$

(20)

Convert the Equation (17) of the coupled displacement C_y/x caused by the platform X/Y-axis movement to the Y/X-axis movement into a matrix expression and combine with Equation (19) to obtain the following expression:

$$\left(\begin{array}{l}{S}_{cx}\\ S_{cy}\\ S_{cz}\end{array}\right)=\left(\begin{array}{l}\begin{array}{ccc}A& 0& 0\end{array}\\ \begin{array}{ccc}0& A& 0\end{array}\\ \begin{array}{ccc}0& 0& 0\end{array}\end{array}\right)\left(\begin{array}{l}\begin{array}{ccc}{S}_y& 0& 0\end{array}\\ \begin{array}{ccc}0& S_x& 0\end{array}\\ \begin{array}{ccc}0& {}_{}0& 0\end{array}\end{array}\right)\left(\begin{array}{l}{S}_x\\ S_y\\ S_z\end{array}\right)$$

(21)

Equation (20) can be simplified as S_c = M₁S₁S, where M₁ is the coupling displacement matrix of X- and Y-direction motions and S₁ is the output displacement matrix under the coupled action. Equation (18) of the coupled displacement C_tx/y for the X/Y-direction motion under the action of the load T is transformed into a matrix expression, and the following expression is generated as:

$$\left(\begin{array}{l}{S}_{tx}\\ S_{ty}\\ S_{tz}\end{array}\right)=\left(\begin{array}{l}\begin{array}{ccc}B& 0& 0\end{array}\\ \begin{array}{ccc}0& B& 0\end{array}\\ \begin{array}{ccc}0& 0& 0\end{array}\end{array}\right)\left(\begin{array}{l}{S}_x\\ S_y\\ S_z\end{array}\right)$$

(22)

Equation (22) can be simplified as S_t = M₂S, where M₂ is the coupled displacement matrix of X- and Y-direction motion caused by load T. The total coupled displacement matrix is the difference between S_c and S_t. Based on Equations (19)–(22), the expression of the platform motion considering the influence of coupling displacement and Z-direction load is as follows:

$$\left(\begin{array}{l}{S}_{sx}\\ S_{sy}\\ S_{sz}\end{array}\right)=\left(\begin{array}{l}{S}_{tx}\\ S_{ty}\\ S_{tz}\end{array}\right)-\left(\begin{array}{l}{S}_{cx}\\ S_{cy}\\ S_{cz}\end{array}\right)-\left(\begin{array}{l}0\\ 0\\ W\end{array}\right)+\left(\begin{array}{l}{S}_x\\ S_y\\ S_z\end{array}\right)$$

(23)

Equation (23) can be simplified as S_s = S_c − S_t − C+S, where C is the Z-direction coupled constant caused by the load T.

6. Comparative Analysis of Theory, Experiment and Simulation

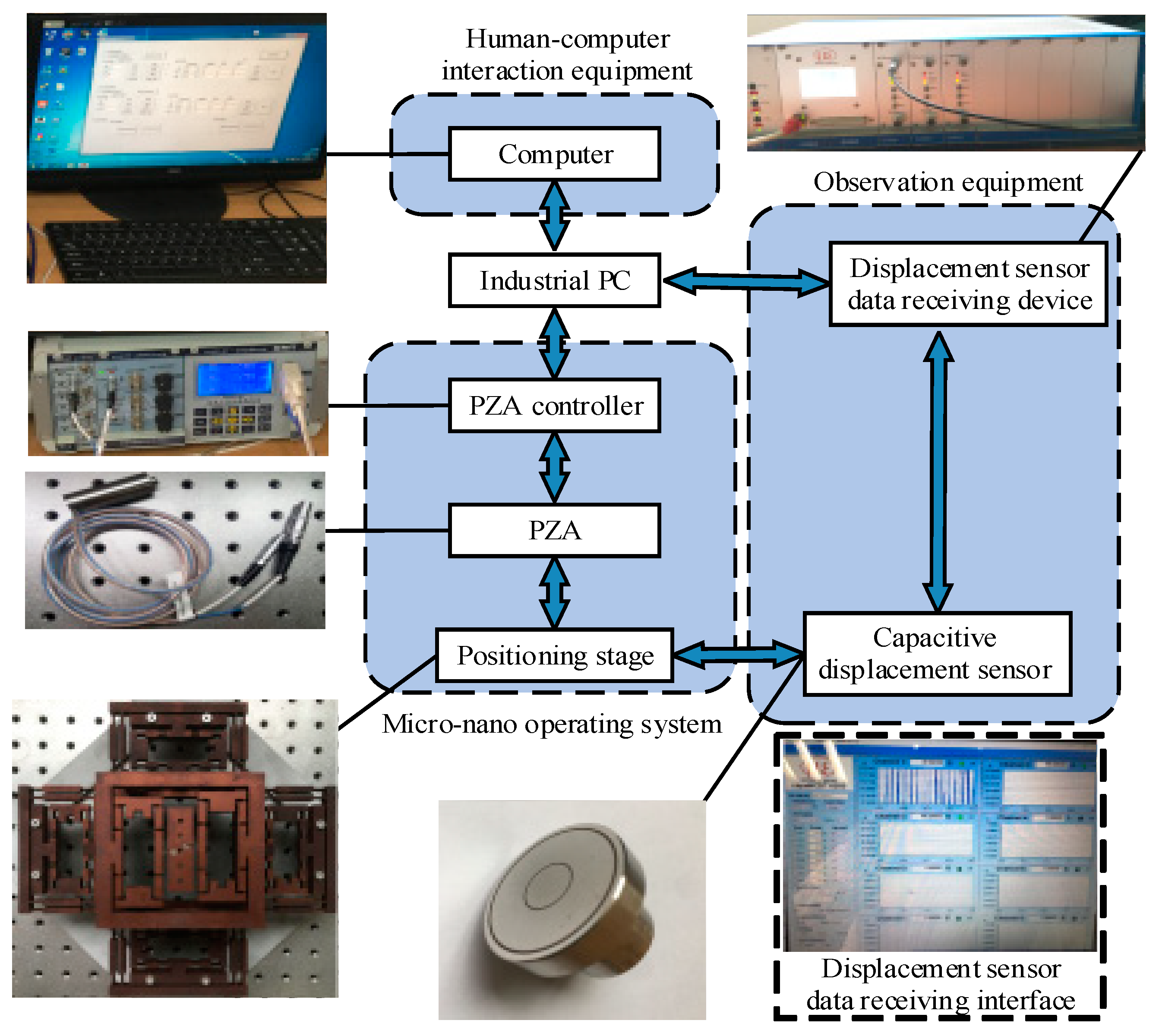

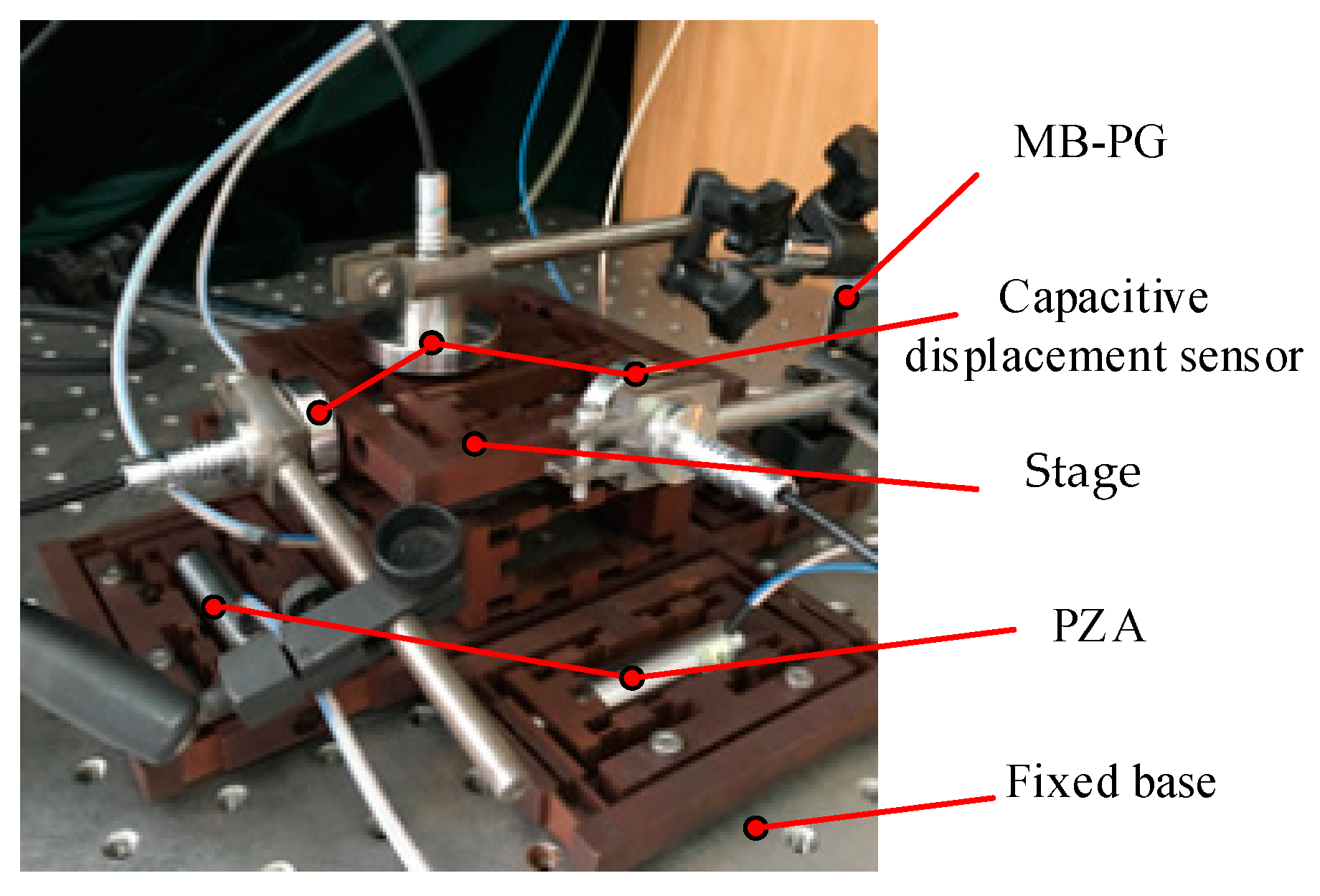

The positioning stage is driven by the PZA (model PSt-40VS15). The characteristics of PZA are shown in

Table 3. The specifications of PZA.

Properties	Values
Nominal displacement (μm)	38 ± 10%
Stiffness (N/μm)	60 ± 20%
Blocked force (N)	2300
Capacitance (μF)	7.2 ± 20%
Resonant frequency (kHz)	20
Dimensions (mm)	Φ15 × 50

, and the maximum output displacement under 120 V driving voltage is 38 μm. When the PZA is installed in the BDA, it is fixed by bolts. Among them, the PZA controller can realize closed-loop control and eliminate the nonlinear error of PZA. A capacitive displacement sensor CS5 with a measurement range of 5 mm, a static resolution of 3.75 nm and a dynamic resolution of 100 nm is used to measure the output displacement of the platform. Finally, the measurement results are displayed on the computer. The experimental process is shown in Figure 9. The layout of the positioning stage in the experiment is shown in Figure 10.

In addition, due to the influence of machining accuracy, compared with theoretical and simulation analysis, there are errors in the geometric parameters of the positioning stage in the experiment, which leads to deviations between the experimental model and the theoretical and simulation models. Therefore, it is necessary to control and compensate for the machining error of the positioning stage in the experiment. Researchers [34] discuss the machining error of the positioning stage in this paper and use the drive displacement of the PZA to compensate for the machining error of the positioning stage. Since the positioning stage can realize X-, Y-direction reciprocating motion and Z-direction unidirectional motion, it is necessary to perform displacement compensation for the five-direction motion. According to Equation (20), the inverse equation of the platform motion with the displacement compensation coefficient added is obtained, which is shown by the following formula:

$$\left(\begin{array}{l}{X}_{xr}\\ X_{xl}\\ X_{yr}\\ X_{yl}\\ X_z\end{array}\right)=\left[\begin{array}{lllll}{\epsilon }_{xr}\hfill & \hfill & \hfill & \hfill & \hfill \\ \hfill & {\epsilon }_{xl}\hfill & \hfill & \hfill & \hfill \\ \hfill & \hfill & {\epsilon }_{yr}\hfill & \hfill & \hfill \\ \hfill & \hfill & \hfill & {\epsilon }_{yl}\hfill & \hfill \\ \hfill & \hfill & \hfill & \hfill & {\epsilon }_z\hfill \end{array}\right]\left[\begin{array}{lllll}{C}^{-1}\hfill & \hfill & \hfill & \hfill & \hfill \\ \hfill & C^{-1}\hfill & \hfill & \hfill & \hfill \\ \hfill & \hfill & C^{-1}\hfill & \hfill & \hfill \\ \hfill & \hfill & \hfill & C^{-1}\hfill & \hfill \\ \hfill & \hfill & \hfill & \hfill & P^{-1}\hfill \end{array}\right]\left(\begin{array}{l}{S}_{xr}\\ S_{xl}\\ S_{yr}\\ S_{yl}\\ S_z\end{array}\right)$$

(24)

where ε is the compensation coefficient for input displacement, xr, xl, yr, and yl are X-axis movement, X-axis reverse movement, Y-axis movement, and Y-axis reverse movement, respectively.

By measuring the surface of the positioning stage, the machining errors of various geometric parameters are obtained. Then the machining error is introduced into the motion equation of the positioning stage to obtain the motion equation after considering the machining error. Finally, the results of the two motion equations are compared, and the compensation coefficient for input displacement in each direction is obtained. After calculation, the compensation coefficient for input displacement in each direction [ε_xr, ε_xl, ε_yr, ε_yl, ε_z] is [1.0274, 1.0257, 1.0287, 1.0234, 1.0226].

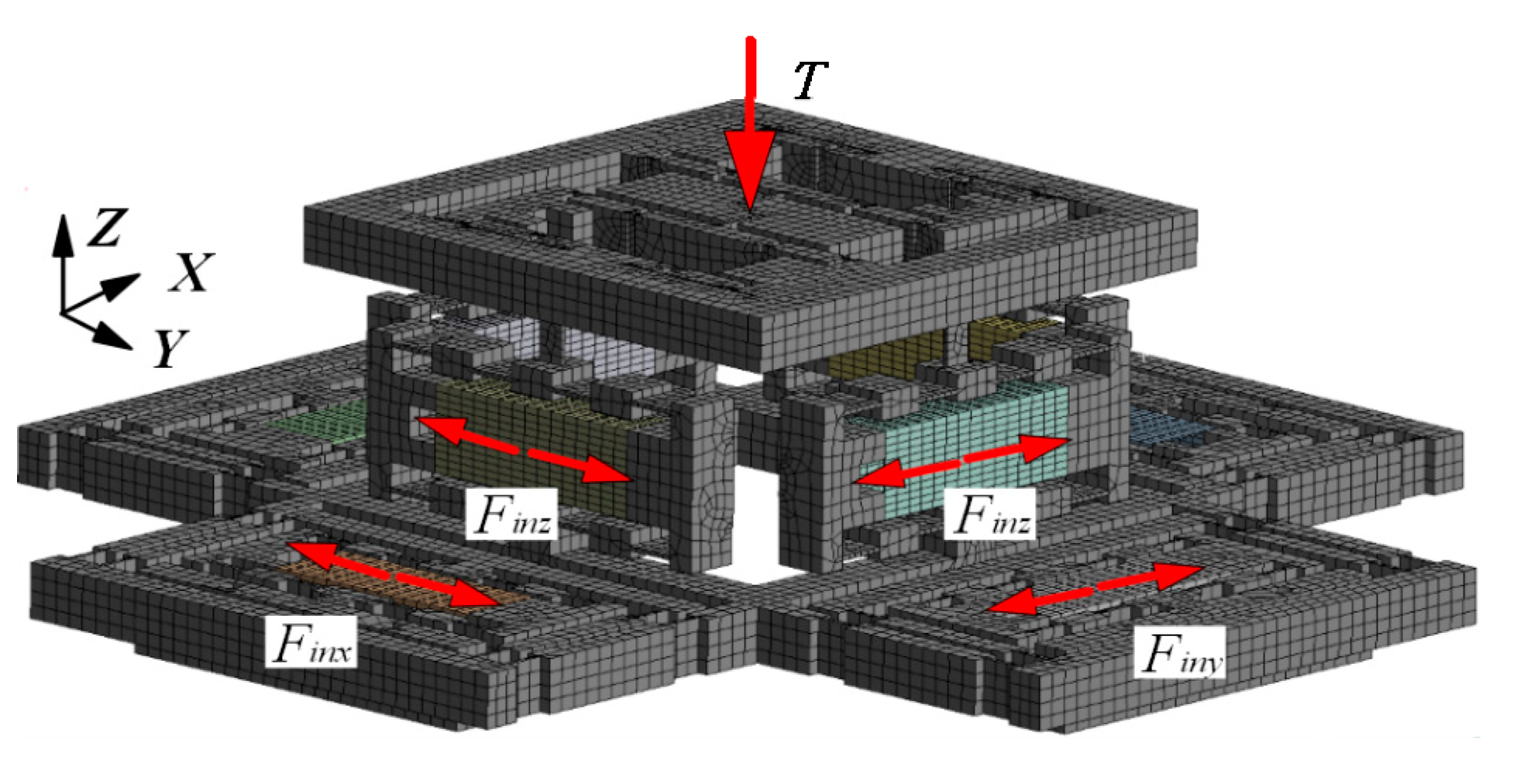

For FEA, ANSYS 17 software (ANSYS, Inc., Canonsburg, PA, USA) is used for static analysis. The mesh is divided according to the hex dominant in the analysis, and the convergence is set to 5%. The finite element model is shown in Figure 11. In FEA, the relationship between the input and output displacement in the motion of each direction of the platform is first obtained. Then the input displacement of PZA to get the ideal output displacement is input into the simulation analysis to obtain the simulated output displacement. Finally, the simulated trajectory is obtained by the method of connecting points. For the theoretical analysis, the input displacement in FEA is used to obtain the theoretical trajectory of the platform.

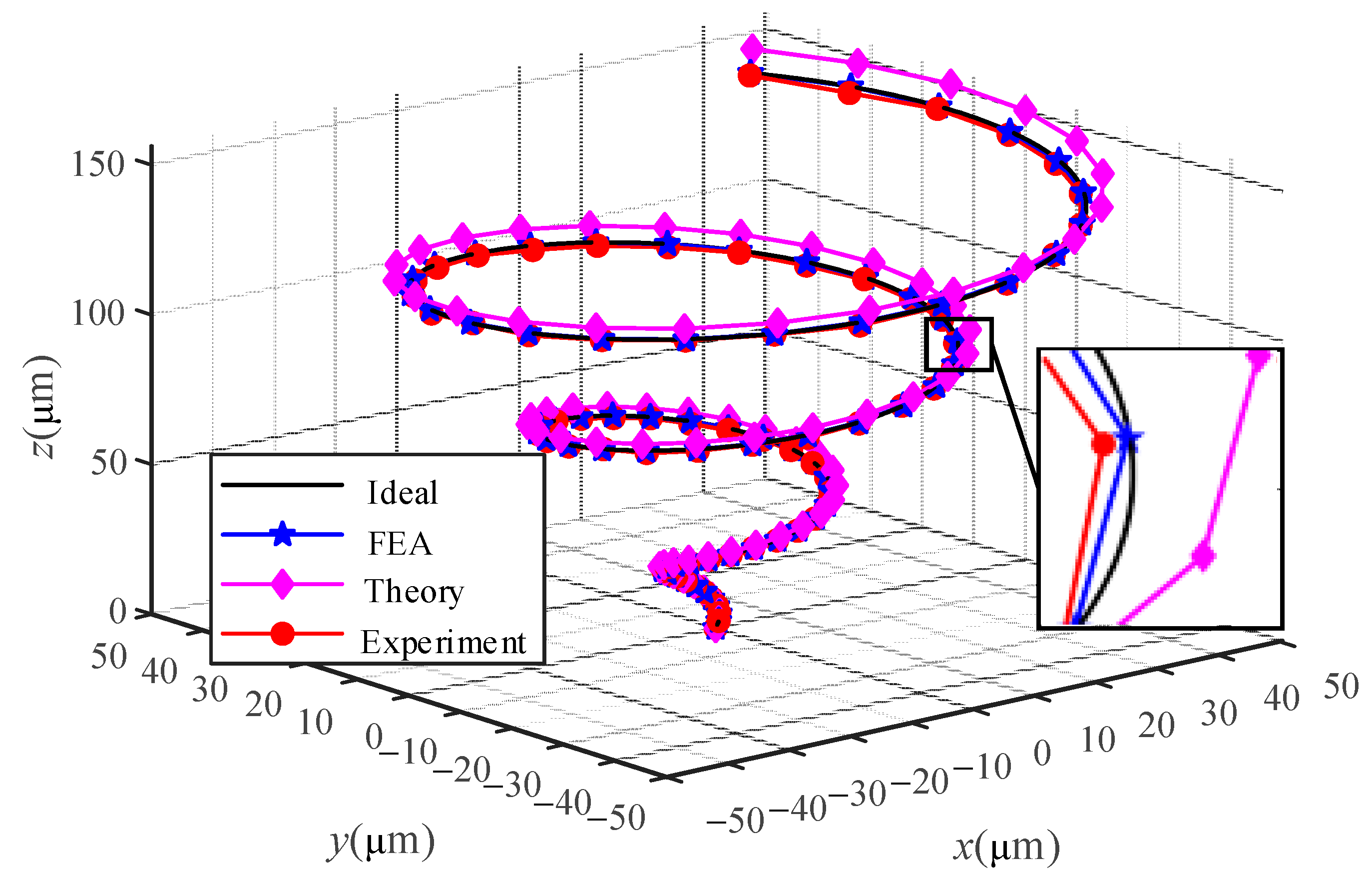

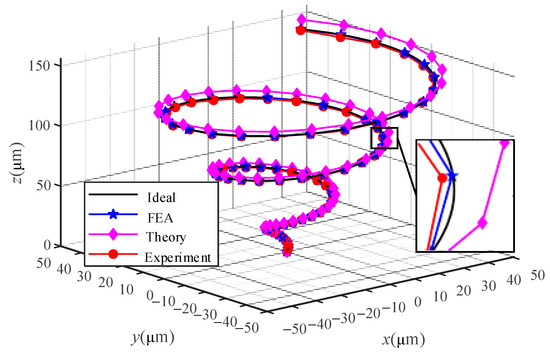

In the research, the conical spiral trajectory is used as the reference trajectory, and the experimental, simulated, and theoretical trajectory curves are obtained, respectively. Figure 12 is a comparison of conical spiral trajectories. It can be seen from Figure 12 that the experimental, simulation, and theoretical trajectories have fixed errors caused by the point-to-point connection method compared with the ideal trajectory. The FEA results and the experimental results are almost in agreement with the ideal values from the track points studied, while the theoretical results are close to the ideal values.

Table 4. The comparative data of motion trajectory.

FEA	z (μm)	108.04	110.03	112.03	114.02	116.00	117.99	119.98	121.97	123.96	125.95
	x (μm)	−9.49	−18.67	−26.88	−33.51	−38.03	−40.05	−39.34	−35.87	−29.79	−21.43
Theory	z (μm)	112.49	114.57	116.64	118.71	120.78	122.85	124.92	126.99	129.06	131.14
	error (%)	4.12	4.13	4.11	4.11	4.12	4.12	4.12	4.12	4.11	4.12
	x (μm)	−9.99	−19.65	−28.30	−35.27	−40.03	−42.15	−41.41	−37.75	−31.35	−22.56
	error (%)	5.27	5.25	5.28	5.25	5.26	5.24	5.26	5.24	5.24	5.27
Experiment	z (μm)	106.87	109.57	111.34	113.44	115.50	116.61	119.63	121.06	123.36	125.32
	error (%)	1.08	0.42	0.62	0.50	0.43	1.17	0.29	0.74	0.48	0.50
	x (μm)	−9.42	−18.49	−26.75	−33.25	−37.89	−39.87	−38.96	−35.59	−29.49	−21.28
	error (%)	0.79	0.99	0.50	0.78	0.37	0.44	0.97	0.78	0.98	0.71

lists some of the values in the trajectory to better understand the data in the trajectory. Since the high accuracy of the FEA results is considered to be the actual value of the positioning stage, the experimental and theoretical errors in Table 4 are obtained based on the FEA results. It can be deduced from Table 4 that the error of the theoretical value relative to the simulated value tends to be a constant value, in which the error of the Z-direction movement is about 4.12%, and the error of the X-direction movement is about 5.25%. The large deviation of the theoretical value from the simulated value may be due to: (1) In the theoretical modeling, the complex deformation of the positioning stage is simplified. (2) In the theoretical modeling, the influence of the self-weight of the positioning stage on its performance is ignored. The error of the experimental value relative to the simulated value is variable, which may be due to the measurement noise, coupling errors, etc. The error of the Z- and X-direction movement in the experiment is less than 1.5%. The above analysis shows that the correctness of the equation of motion and the correctness of the calculation of the relevant parameters in the equation can be found.

Next, the coupled displacement of the motion trajectory is compared and analyzed. This article studies that the coupled displacement in the motion trajectory of the positioning stage includes the coupled displacement between the X- and Y-direction motions and the X- and Y-direction coupled displacements under the influence of an external load in the Z-direction. Therefore, the five-pointed star and circular trajectory in the previous section are applied as references for analysis. The coordinates of the pentagram trajectory are shown in

Table 5. Five-pointed star coordinate values.

Coordinate Point	1	2	3	4	5	6	7	8	9	10
x(μm)	0	−17.634	−74.697	−28.532	−46.165	0	46.165	28.532	74.697	17.634
y(μm)	78.541	24.271	24.271	−9.271	−63.541	−30	−63.541	−9.271	24.271	24.271

, and the circular trajectory is a circle with a radius of 60 µm. Since the dynamic resolution of the displacement sensor in the experiment is 100 nm and the environmental error in the measurement fluctuates within a few hundred nanometers, the experimental results are challenging to meet the accuracy requirements. The simulation results are used to verify the correctness of the theory. Figure 13a,b are the coupled displacement diagrams of the five-pointed star and the circular X- and Y-direction motions. From Figure 13a,b, it can be deduced that the theoretical results are consistent with the simulation results. Still, the error of the theoretical results increases with the increase of the coupled displacement. Figure 13c,d are the coupled displacements of X- and Y-directions under the influence of external load in the Z-direction, respectively. Figure 13c,d depict that the coupled displacement is related to the trajectory graph and varies in a particular proportion with the graph trajectory. The theoretical results are close to the FEA results.

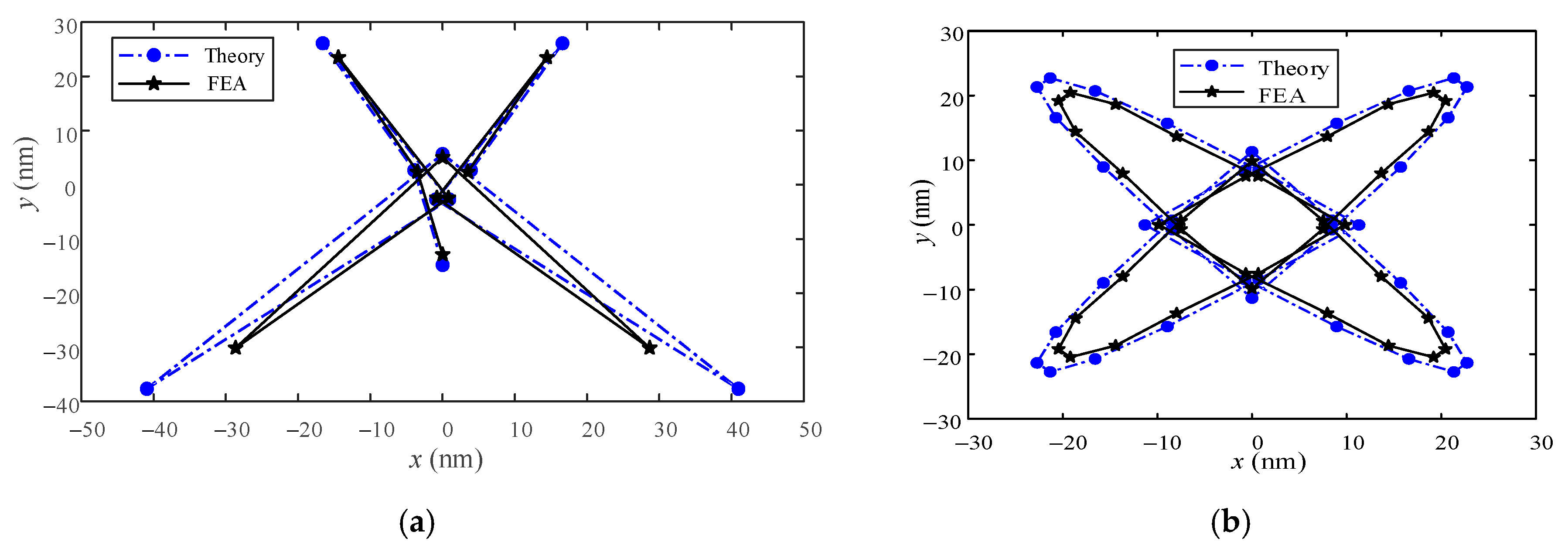

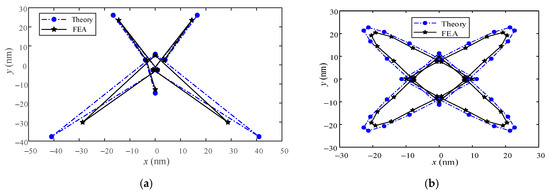

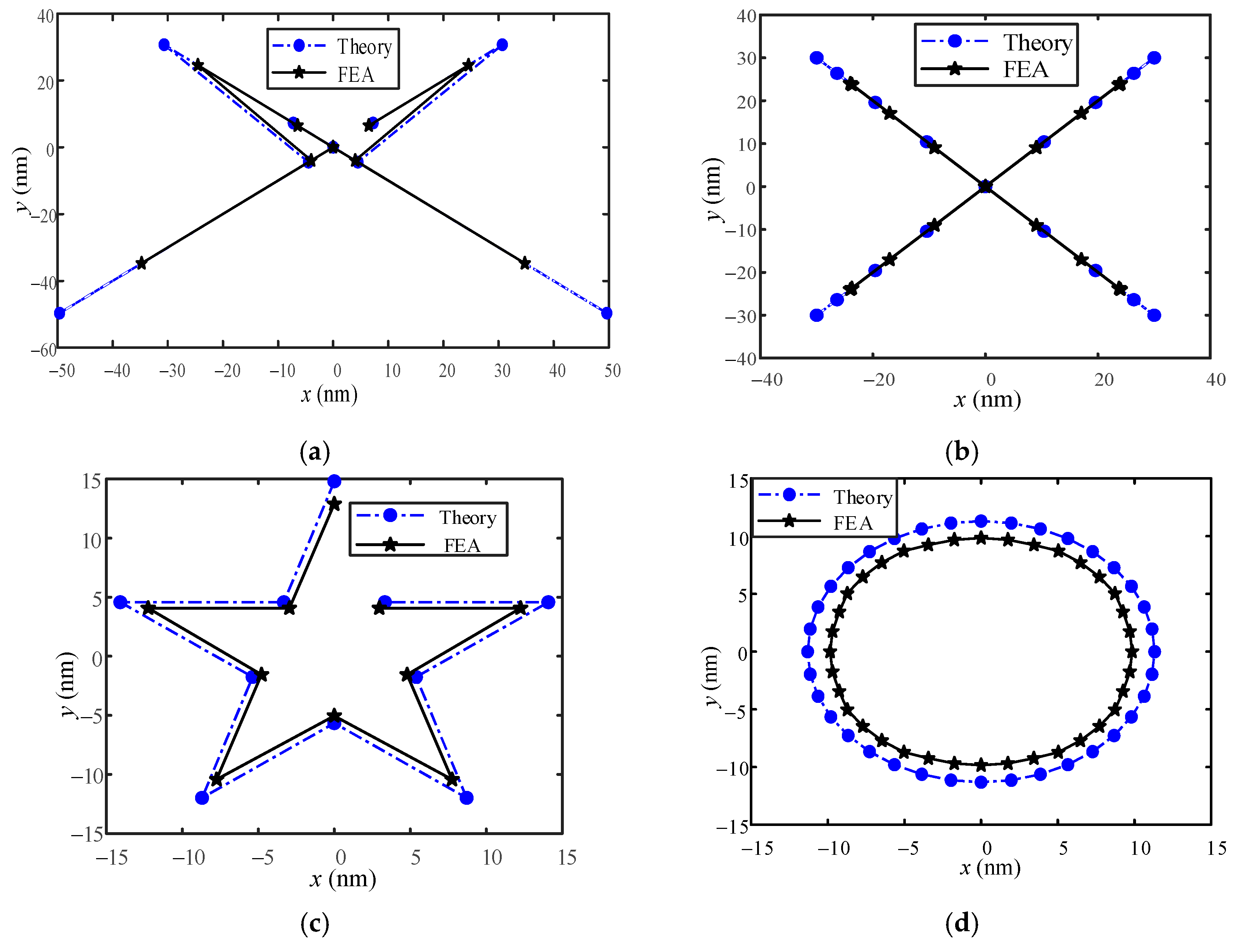

Figure 14 is a comparison diagram of theory and simulation about the combined coupling displacement. Through Figure 14, it can be further determined that the study of the coupled displacement for the platform in this article is correct and conforms to the law of simulation analysis. Although it conforms to the law of change, the error is large, the maximum error is 42.86%, and the maximum stroke in the trajectory is 75 μm. If the motion stroke increases, the error of theoretical analysis will increase. The coupled displacement in the circular trajectory is very regular and symmetrical, which further confirms the above conclusion. The large deviation between the FEA results and the theoretical results, may be because the platform has other coupling motions in the motion, which is not considered in this paper.

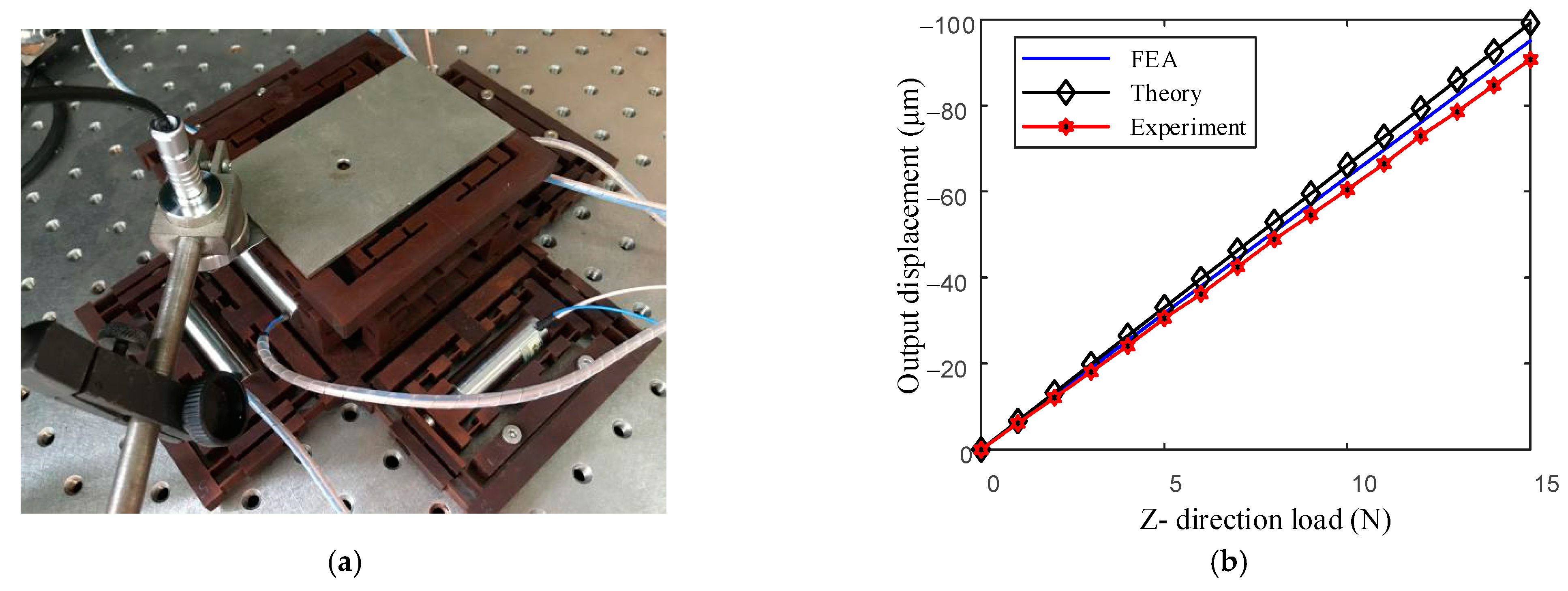

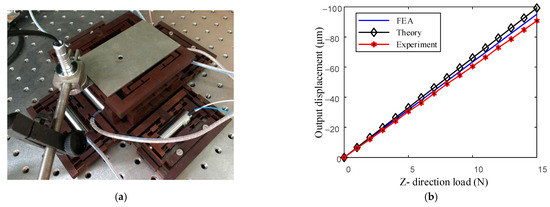

In addition, the effect of Z-direction load on displacement is analyzed. As shown in Figure 15a, the Z-direction load on the positioning stage is represented by placing aluminum blocks of the same mass on the upper surface of the top platform as the load reference surface, wherein the mass of each aluminum block is 100 g. The simulation, theoretical and experimental results are shown in Figure 15b when the positioning stage is subjected to the Z-direction load. From Figure 15b, the results are similar, and the average errors of the theoretical and experimental results relative to the simulation results are 4.34% and 3.69%, respectively. The above analysis shows that when the platform is loaded in the Z-direction, the theoretical analysis has a high prediction accuracy.

7. Conclusions

This paper discusses the applicability of the positioning stage based on the flexible hinge in noncontact processing. According to the actual application of the platform, the Euler–Bernoulli beam theory and the geometric relationship of the structure are used to analyze the coupling displacement of the platform X- and Y-direction motion and the changes in the performance and displacement of the platform caused by external loads such as workpieces and fixtures. The displacement expressions in the Z-direction and the coupling displacement expressions in X- and Y-directions under the load in Z-direction, and the coupling displacement expressions in the X- and Y-directions of the platform are obtained. Combine the above expressions to obtain the displacement expression of the platform in noncontact machining situations. The correctness of the theory is verified through experiments and simulation analysis.

This paper found that the coupling displacement of the X- and-Y direction is about 15 nm when Z-direction moves 0.5 mm under the action of the Z-direction load. It can be seen that the appropriate Z-direction load has little effect on the displacement of X- and Y-direction, which can meet the accuracy requirements of the trajectory in micron machining. When the X- and Y-direction displacements are 46 and 63 μm, the coupling displacement in the simulation analysis is about 30 nm, and the error is close to one-thousandth of the output displacement. The coupling displacement can be appropriately reduced by reducing the stiffness of the guiding mechanism and increasing the lateral stiffness of the BDA. In the range of PZA stroke, it can meet the accuracy requirements of trajectory in micron-level machining.

The analysis of this paper proves that the positioning stage based on a flexible hinge can meet the accuracy and stability requirements in noncontact machining. Subsequently, the trajectory accuracy of the positioning stage can be further improved through error compensation combined with the theory in this paper.
