A 3.3 kV SiC Semi-Superjunction MOSFET with Trench Sidewall Implantations

by
Marco Boccarossa
1,2,*,
Kyrylo Melnyk
1,
Arne Benjamin Renz
1,
Peter Michael Gammon
1,
Viren Kotagama
1,
Vishal Ajit Shah
1,
Luca Maresca
2,
Andrea Irace
2 and
Marina Antoniou
1
1
School of Engineering, University of Warwick, Coventry CV4 7AL, UK
2
Department of Electrical Engineering and Information Technologies, University of Naples Federico II, Via Claudio 21, 80125 Naples, Italy
*
Author to whom correspondence should be addressed.
Micromachines 2025, 16(2), 188; https://doi.org/10.3390/mi16020188
Submission received: 23 December 2024 / Revised: 30 January 2025 / Accepted: 4 February 2025 / Published: 6 February 2025
(This article belongs to the Special Issue SiC Based Miniaturized Devices, 3rd Edition)
Browse Figures
Versions Notes

Abstract

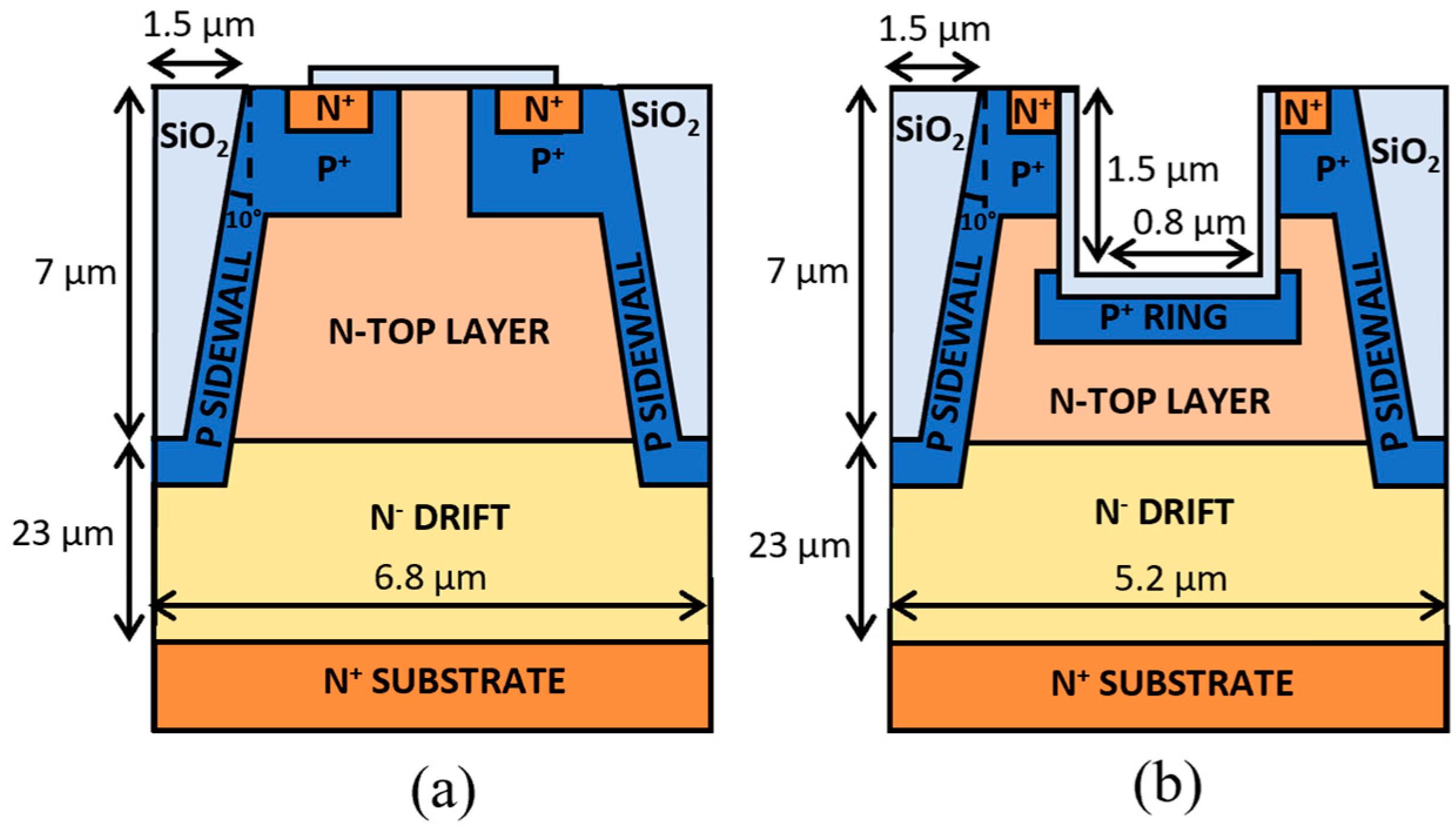

Superjunction (SJ) technology offers a promising solution to the challenges faced by silicon carbide (SiC) Metal Oxide Semiconductor Field-Effect Transistors (MOSFETs) operating at high voltages (>3 kV). However, the fabrication of SJ devices presents significant challenges due to fabrication complexity. This paper presents a comprehensive analysis of a feasible and easy-to-fabricate semi-superjunction (SSJ) design for 3.3 kV SiC MOSFETs. The proposed approach utilizes trench etching and sidewall implantation, with a tilted trench to facilitate the implantation process. Through Technology Computer-Aided Design (TCAD) simulations, we investigate the effects of the p-type sidewall on the charge balance and how it affects key performance characteristics, such as breakdown voltage (BV) and on-state resistance (RDS-ON). In particular, both planar gate (PSSJ) and trench gate (TSSJ) designs are simulated to evaluate their performance improvements over conventional planar MOSFETs. The PSSJ design achieves a 2.5% increase in BV and a 48.7% reduction in RDS-ON, while the TSSJ design further optimizes these trade-offs, with a 3.1% improvement in BV and a significant 64.8% reduction in RDS-ON compared to the benchmark. These results underscore the potential of tilted trench SSJ designs to significantly enhance the performance of SiC SSJ MOSFETs for high-voltage power electronics while simplifying fabrication and lowering costs.
Keywords: SiC MOSFET; superjunction; semi-superjunction; trench etching; sidewall implantation; tilted trench SiC MOSFET; superjunction; semi-superjunction; trench etching; sidewall implantation; tilted trench
