Article

Immuno-Interface Score to Predict Outcome in Colorectal Cancer Independent of Microsatellite Instability Status

by
Ausrine Nestarenkaite
1,2,*,
Wakkas Fadhil
3,4,
Allan Rasmusson
1,5,
Susanti Susanti
3,4,
Efthymios Hadjimichael
3,4,
Aida Laurinaviciene
1,5,
Mohammad Ilyas
3,4 and
Arvydas Laurinavicius
1,5
1
National Center of Pathology, Affiliate of Vilnius University Hospital Santaros Klinikos, 08406 Vilnius, Lithuania
2
Institute of Biosciences, Life Sciences Center, Vilnius University, 10257 Vilnius, Lithuania
3
Molecular Pathology Group, Unit of Academic Molecular Pathology, Division of Cancer and Stem Cell, School of Medicine, Queen’s Medical Centre, University of Nottingham, Nottingham NG7 2UH, UK
4
Nottingham Molecular Pathology Node, Queen’s Medical Centre, University of Nottingham, Nottingham NG7 2UH, UK
5
Department of Pathology, Forensic Medicine and Pharmacology, Faculty of Medicine, Institute of Biomedical Sciences, Vilnius University, 03101 Vilnius, Lithuania
*
Author to whom correspondence should be addressed.
Cancers 2020, 12(10), 2902; https://doi.org/10.3390/cancers12102902
Submission received: 1 September 2020 / Revised: 28 September 2020 / Accepted: 5 October 2020 / Published: 9 October 2020
(This article belongs to the Special Issue Surgical Pathology in the Digital Era)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

For pathologists, how to precisely diagnose cancer from microscopy slides of tumor tissue samples so that each patient may receive the optimal treatment for his specific type of disease is a major task. Recent research based on digital pathology image analysis enables new approaches to assess tumor-host interaction at a microscopic level. The current study applies a novel spatial analysis method which computes Immunogradient indicators to estimate the migration of immune cells towards the tumor across the tumor/stroma interface. These indicators, computed for two types of immune cells (CD8 and CD20), proved to be independent prognostic factors in this study of 87 patients with colorectal cancer. The indicators were combined with infiltrative tumor growth pattern, assessed by a pathologist, into a new immuno-interface score which enabled prediction of the patient survival independent of other clinical, pathology and molecular characteristics of the tumor. The study demonstrates the value of computational pathology to advance the precision of clinical decision-making.

Abstract

Tumor-associated immune cells have been shown to predict patient outcome in colorectal (CRC) and other cancers. Spatial digital image analysis-based cell quantification increases the informative power delivered by tumor microenvironment features and leads to new prognostic scoring systems. In this study we evaluated the intratumoral density of immunohistochemically stained CD8, CD20 and CD68 cells in 87 cases of CRC (48 were microsatellite stable, MSS, and 39 had microsatellite instability, MSI) in both the intratumoral tumor tissue and within the tumor-stroma interface zone (IZ) which was extracted by a previously developed unbiased hexagonal grid analytics method. Indicators of immune-cell gradients across the extracted IZ were computed and explored along with absolute cell densities, clinicopathological and molecular data, including gene mutation (BRAF, KRAS, PIK3CA) and MSI status. Multiple regression modeling identified (p < 0.0001) three independent prognostic factors: CD8+ and CD20+ Immunogradient indicators, that reflect cell migration towards the tumor, were associated with improved patient survival, while the infiltrative tumor growth pattern was linked to worse patient outcome. These features were combined into CD8-CD20 Immunogradient and immuno-interface scores which outperformed both tumor-node-metastasis (TNM) staging and molecular characteristics, and importantly, revealed high prognostic value both in MSS and MSI CRCs.

1. Introduction

Colorectal cancer (CRC) is globally the third most commonly diagnosed and second leading cause of cancer-related deaths for both sexes [1]. Recent improvements in survival are associated with both earlier disease detection and the development of personalized tumor biology-based therapies [1,2]. The main factor in cancer management however is still the traditional tumor-node-metastasis (TNM) staging system. Although this provides very powerful and robust prognostic information, there is wide variation in the outcome of patients within individual stage categories [3]. The precision in identifying the patients at high risk of tumor progression and those who may benefit from combined therapies could be improved by including the information on the molecular profiles of tumors and “immune” community in the tumor microenvironment (TME) to the TNM system [4,5,6].
Currently, only a few molecular markers have been implemented for the management of CRC although these have mainly been for therapy stratification such as testing for activating KRAS, NRAS and BRAF gene mutations as exclusion criteria for the use of EGFR-targeted therapies in metastatic CRC (mCRC) [2]. Although RAS and BRAF mutations are considered to be poor prognostic factors [7], outside of targeted therapies, they are not used for outcome predictions in routine CRC diagnostics. Recently, tumor microsatellite instability (MSI) traditionally used to identify Lynch syndrome patients [8], was rediscovered as a biomarker for immunotherapy in CRC [9,10]. Tumors with MSI are highly immunogenic due to loss of DNA mismatch repair function. This results in an increased mutation rate with consequent generation of neo-antigens stimulating an anti-tumor immune response which is considered as the basis of improved patient survival [11,12]. CRC MSI tumors have been shown to be enriched with checkpoint proteins like PD-1, PD-L1, and CTLA-4 that are targeted clinically with immune checkpoint inhibitors [13]. Over the last decade, comprehensive research of the TME, especially the cancer immunome and local cell infiltrates, has led to the recognition of host immunity as one of the major factors in cancer biology [14,15]. Tumor infiltrating lymphocytes (TIL) can be viewed as a surrogate marker of the anti-tumor immune response and, histologically, tumors can be seen to be “immune hot” (containing large numbers of TIL) and “immune cold” (containing few TIL) [16]. A number of studies, using both visual assessment and digital image analysis (DIA), have demonstrated that TIL are highly prognostic markers associated with better patient survival in various malignancies including lung, breast, melanoma, pancreas and CRC [17,18,19,20,21].
Digital immunohistochemistry (IHC) based methods have been demonstrated to increase the informative power of immune cell quantification in cancers [22,23]. The Immunoscore® method based on direct quantification of CD3+ and CD8+ cell densities in the core of tumor (CT) and its invasive margin (IM) first proposed in 2012 [24], was in 2018 shown to be a prognostic score superior to TNM-staging in CRC [25,26]. Moreover, Immunoscore® and other immune assessment approaches have shown TIL to be a stronger predictor of tumor recurrence than microsatellite instability status [27,28,29]. Furthermore, immune response assessment and Immunoscore®, as a reference method that has demonstrated the immune component to be of the highest relative contribution to the tumor recurrence risk compared to all clinical parameters in CRC [6], was proposed to complement the World Health Organization classification of tumors of digestive system [30].
DIA-based immune profiling analysis was further advanced by Nearchou et al. by a combined tumor budding and immune cell quantification and proximity analysis; they proposed a spatial immuno-oncology index based on spatial relationships between tumor buds, TIL and macrophage populations within TME which enabled significant prognostic stratification of stage II CRC [31,32]. Recently, Rasmusson et al. proposed a set of Immunogradient indicators which quantifies the immune cell density gradient across the tumor-stroma interface zone (IZ), sampled by an automated hexagonal tiling statistical modeling; the Immunogradient indicators for CD8+ cell density provided independent prognostic value in CRC and hormone receptor positive breast cancer patients [33].
In this study we investigated the prognostic value of immune cell density and Immunogradient indicators for CD8+, CD20+ and CD68+ in the context of MSI status and a variety of clinicopathological and molecular features in a selected CRC patient cohort. Based on identified three independent prognostic indicators (CD8+ and CD20+ Immunogradient indicators and the histological feature of infiltrative tumor growth pattern), we computed CD8-CD20 Immunogradient score and immuno-interface score (IIS) for CRC which is a potential MSI status-independent prognostic tool based exclusively on TME features.

2. Results

2.1. Patient Clinicopathological Characteristics

The study was performed in an 87 CRC patient cohort with formalin-fixed paraffin embedded (FFPE) surgical resection specimens tested for microsatellite and gene mutation status. A comparison of the clinicopathological and tumor molecular features showed that patients with MSI tumors were older, as has been previously observed in sporadic CRC [34,35]; MSI tumors were associated with poor differentiation by histology, BRAF mutations and right-sided location, whereas MSS tumors displayed a higher frequency of KRAS mutations; this is in line with observations in other studies [36,37]. There were no associations between MSI status and patient age, sex, the TNM-staging, lymphovascular invasion, perineural invasion, tumor growth pattern or budding (Table 1).

2.2. Summary Statistics of Immunogradient and Intratumoral Immune Cell Density Indicators

Cell densities were calculated for all biomarkers in both the intratumoral tissue and inside the IZ, which consists of three aspects: tumor (T), tumor edge (TE) and stroma (S); mean CD8+, CD20+ and CD68+ cell densities were calculated within each aspect. The CD8+ and CD68+ cell densities within the aspects of IZ of width 3 (IZ) and the intratumoral densities were higher in MSI than in MSS tumors, whereas no differences in IZ and intratumoral CD20+ cell densities were observed comparing MSI and MSS tumors (Table 2).
The Immunogradient indicator Center of Mass (CM) for CD8+ or CD68+ cell densities revealed higher cell density gradient towards the T aspect within the IZ of MSI compared to MSS tumors. In contrast, CM for CD20+ cell density indicated more prominent cell density gradient towards the T aspect within the IZ of MSS than MSI tumors (Table 2). Overall, IZ and intratumoral CD8+ and CD68+ cell densities were similar in MSS tumors, whereas a higher CD8+ cell density compared to CD68+ cell density was seen in the aspects of IZ in MSI tumors; IZ and intratumoral CD20+ cell densities were lowest both in MSI and MSS tumors (p < 0.05). CD8+ cell density distributions were similar in the S and TE aspects of IZ, the same was seen for CD68+ cell density distributions, however, both cell markers were less abundant in the T aspect of IZ in MSI and MSS tumors (p < 0.05). The density of CD20+ cells were highest in the S, less abundant in TE and lowest in T aspect of IZ in MSI and MSS tumors. There were no significant differences between cell densities in the T aspect of IZ and the tumor tissue, both in MSI and MSS tumors.

2.3. Associations of Clinicopathological Parameters, Immunogradient and Intratumoral Immune Cell Density Indicators

The overall survival (OS) estimates for the clinicopathological parameters and tissue immune response indicators in this cohort of patients are presented in Table 3. For the CM and the cell densities in the IZ aspects, cut-off values were obtained by log-rank test (Cutoff Finder [38]) to stratify the patients into groups with high versus low indicator values. In univariate analysis, statistically significant patient stratifications were obtained by the CM indicator for both CD8+ and CD20+ cell densities, for S and T aspects CD20+ cell densities, and for intratumoral CD20+ cell density, whereas no CD68+ cell density indicators showed any significant associations with the patient outcomes. The OS for Immunogradient-based patient stratifications are presented in Figure 1A,D. CM for CD8+ cell density stratified patients by their 5-year OS probabilities at 75% and 43%; CM for CD20+ cell density provided 5-year OS rates at 76% and 56%. Among the clinicopathological parameters only the tumor growth pattern provided significant prognostic stratification while neither TNM-staging, nor molecular features were associated with the patient OS. The tumor growth pattern predicted 5-year OS at 73% and 47% rates in pushing and infiltrative categories, respectively (Figure 1G). The univariate Immunogradient-based OS stratifications were similar in the subgroups of MSS and MSI tumors (Figure 1 B,C,F), except for CM for CD20+ cell density which did not reach statistical significance (Figure 1E). This finding may indicate a different role of CD20+ cells in MSS tumors; however, additional studies are needed to explore this effect further. The tumor growth pattern revealed significant stratification in MSS and a similar trend in MSI tumors (Figure 1H,I).
The features that revealed significant patient stratification in univariate analyses (p < 0.05, Table 3) were tested for their independent prognostic value by multiple Cox regression (Table 4). A strong prognostic model (Model#1, LR: 23.03; p < 0.0001) was obtained with high CM for CD8+ and CD20+ cell densities predicting longer patient OS, and infiltrative tumor growth pattern independently associated with worse patient survival; an example of independent indicators’ estimates in an individual CRC case is presented in Figure 2.

2.4. Immuno-Interface Score for Predicting Patient Overall Survival

To integrate the independent informative value of all three indicators, we calculated a combined immune-interface score (IIS) by summing positive prognostic scores obtained from the patient stratifications based on cut-off values for each factor: the CM for both CD8+ and CD20+ cell densities were assigned a value of 1 (favorable) or 0 (unfavorable) for the high and low indicator scores, respectively. Similarly, the tumor growth pattern was assigned a value of 1 (favorable) or 0 (unfavorable) for a pushing or infiltrative tumor margin, respectively.
Figure 3A outlines patient stratifications obtained by the combined score of CMs for CD8+ and CD20+ cell densities (a combined CD8-CD20 Immunogradient score), which provided three prognostic groups: score 2 with 87%, score 1 with 64%, and score 0 with 33% 5-year OS rates, respectively. Further, we added the prognostic impact of the tumor growth pattern, to calculate IIS, which stratified the patients into four prognostic groups (Figure 3D): score 3 with 94%, score 2 with 73%, score 1 with 53%, score 0 with 19% 5-year OS rates.

3. Discussion

This study presents the prognostic value of a novel IIS based on spatial properties of immune response and the tumor-stroma interface histology pattern. Specifically, the score combines the independent prognostic impacts of both CD8+ and CD20+ cell density gradients within the IZ and the tumor growth pattern assessed by pathologist as infiltrative margin. Importantly, the IIS predicted CRC patient OS independently of other clinicopathological and molecular variables, including the MSI status, and provided similar prognostic stratifications in both MSI and MSS subgroups. Furthermore, significant prognostic stratification could be achieved exclusively based on IHC data by computing the combined CD8-CD20 Immunogradient (Model#2, Table 4).
Our study provides further evidence for the value of the recently proposed Immunogradient indicators as independent prognostic factors reported in CRC and hormone receptor-positive breast cancer patients [33]. In particular, the CM for CD8+ cell density within the IZ (CD8+ Immunogradient) was a strong independent predictor of better OS in CRC patients (HR: 0.39, p = 0.0071) [33], similar to that in the current analysis of an independent CRC cohort (HR: 0.31, p = 0.0029, Table 4). In contrast to other DIA studies, based on enumeration of immune cell densities and their proportions in CT and IM [25] or distances between the cell populations [31,32] that improved prognostic accuracy, the CM indicator represents directional change (gradient) of immune cell density within the stroma-to-tumor transition TME compartment, automatically sampled as IZ. The precision of the sampling and, subsequently, of the Immunogradient computation is therefore less affected by variable tumor growth patterns. Remarkably, the Imunogradient indicators outperform absolute or relative immune cell densities in TME compartments in the multiple prognostic models, both in MSS and MSI tumor subgroups.
In this study, we also tested the prognostic value of CD20+ and CD68+ cell density indicators. Although several studies have shown the prognostic value of tumor-associated macrophage infiltrates in CRC [39,40], we were not able to demonstrate an independent prognostic value of TME CD68+ cell densities. Despite CD20+ cells were less abundant than CD68+ cells and CD8+ cells in tumors, CD20+ cell density features were associated with patient survival. Higher IZ and intratumoral CD20+ cell densities were significantly associated with better patient survival in univariate analyses, except the MSS tumors (Figure 1E, Table 3). Only CD20+ Immunogradient (by CM) was an independent predictor of longer patient OS (Table 4). Previous studies have demonstrated beneficial prognostic impact of B cell infiltrates in TME of various cancers, including primary and metastatic CRCs [41,42,43]. Of note, the CD20+ Immunogradient indicators provided significant patient stratifications in MSI tumors (Figure 1F) but did not reach the level of significance in MSS tumors (Figure 1E), suggesting that highly immunogenic MSI tumors may benefit more than MSS tumors from B cell-mediated antigen presentation for T-cell activation or antibody-dependent cellular cytotoxicity [44,45,46].
In the comprehensive analyses of in situ immune infiltrates Galon et al. noted close correlation between B cells (CD20+) and the T cell subset network within the CT and particularly with memory T cells at the IM region [47]. Later investigation of CRC intrametastatic immune infiltrates revealed the Immunoscore® and TB score (Immunoscore®-like score combining CD8+ and CD20+ cells) to be the only parameters significantly associated with prolonged mCRC patient survival in multiple analysis [48]. Along with increased cytotoxic T cell and macrophage densities, elevated B cell counts were encountered in MSI tumors [27]. In addition, patient clusters with both high memory and cytotoxic T and B cell densities had prolonged disease-specific survival regardless of MSI status [27]. Our study therefore supports the added value of combined T and B cell prognostic power: the CD8+ and CD20+ Immunogradient indicators provided independent prognostic input in the multiple Cox regression models, importantly, pertinent to both MSS and MSI-CRCs. CD8-CD20 Imunogradient score provided significant prognostic stratifications both in MSS and MSI tumors (Figure 3B,C).
The infiltrative tumor growth pattern assessed by pathologist served as another independent feature and increased the prognostic power of the model. In agreement with the previous observations [49,50,51], IIS revealed the infiltrative tumor margin to be an adverse prognostic factor; IIS, score 0 identified the worst survival subgroup both in MSS and MSI tumors (Figure 3E,F). Inverse correlation between infiltrative tumor growth and the presence of immune response at the advancing tumor margin has been reported previously [52,53]. Although these associations may be of value for further TME studies, our data show that the tumor growth pattern maintains an independent prognostic value and indicates the need for robust assessment of this feature, similar to the efforts to quantify the tumor budding phenomenon in CRC [31,54]. Of note, tumor budding assessment by pathologist did not provide a prognostic value in our study.
Zlobec et al. reported a combined assessment of CD8+ cell infiltrates in TMA, tumor margin configuration data and lymph node spread to predict local recurrence in MSS CRCs; however, their study did not include MSI tumors that are commonly defined as non-budding tumors [55]. Another study introduced semi-quantitative Bayreuth score, based on tumor gland formation, budding and TIL analyzed in hematoxylin and eosin-stained whole slide images (WSI) to provide independent prognostic value along with TNM-staging for low-grade CRC [56]. Nearchou et al. proposed a spatial immuno-oncology index based on TIL and macrophages proximity analysis to tumor buds to provide highly significant combinatorial risk model for stage II CRC patient stratification [31,32]. Similarly, our study combines the prognostic power of tumor histology features and interacting immune cell subsets, yet with different spatial analysis methodologies applied. We show independent prognostic value for CD8+ and CD20+ cell infiltrates, measured by Immunogradient methodology, and the added prognostic value of the tumor growth pattern as IIS—an integrated prognostic biomarker for MSS and MSI CRCs.
The findings in the current study were achieved in a relatively small sample size cohort both for MSS and MSI-CRCs; larger cohort studies are needed to elucidate the role for immune cell populations and measurement methodologies for robust prognostic modeling. In addition, the prognostic power of the models achieved in this study remains to be directly compared to the Immunoscore®, immuno-oncology index and other systems proposed for practical implementation, which is best achieved in appropriately designed studies. Of note, the study was undertaken in patients who had not received neoadjuvant therapy. Tumor necrosis induced by neoadjuvant therapy is likely to change the tumor stromal community and thus the Immunogradient indicators. However, the nature of the change and its prognostic impact are currently unknown. Finally, tumor growth pattern reveals an independent prognostic value and therefore indicates the need for further efforts in tumor histology feature extraction to quantify growth pattern and budding.

4. Materials and Methods

4.1. Patients

A series of 99 cases of CRC which had undergone curative resection was retrieved from the archives of the Pathology Department at the Nottingham University Hospitals NHS Trusts. The series was selected to include 50 CRCs with MSI and 49 CRCs which were MSS and had been used to develop a screening test for Lynch Syndrome [57]. These cases had been tested by IHC for mismatch repair protein (MMR) for the purpose of either making a decision on adjuvant chemotherapy or for screening for Lynch Syndrome. Overall survival (OS) was defined as the time interval between first surgery and death due to any cause. Tumor samples of patients with preoperative treatment (n = 2), un-resected metastasis (n = 3), cases of mucinous cancer (i.e. >50% of the tumor section showing mucinous histology, n = 4) since a specific tissue classifier is needed, appendiceal tumor (n = 1), and tumor section area below <4.5 mm2 (n = 2) were excluded from further analyses. All tumor specimens were tested by IHC for expression of DNA MMR proteins, i.e., MLH1, PMS2, MSH2, MSH6, and by PCR followed by high-resolution melting analysis for MSI status and BRAF, KRAS, PIK3CA gene mutations, as described previously [57,58]. The MLH1 gene promoter methylation analysis revealed MSI tumors to be mainly sporadic [57].Clinicopathological parameters and follow-up data of the final CRC patient cohort were obtained from the pathology reports and the clinical records and are summarized in Table 1.

4.2. Ethics Statement

Study approval and access for anonymized use of tumor tissue were granted by Nottingham Health Sciences Biobank (REC reference: 15/NW/0685).

4.3. Digital Image Acquisition and Analysis

IHC was performed on FFPE as previously described [57]. Four micrometer thick tissue sections were cut and stained for cytotoxic T cell marker CD8 (clone SP57, Roche Diagnostics, Mannheim, Germany), B cell marker CD20 (clone L26, Roche Diagnostics) and macrophage marker CD68 (clone KP1, Dako, Glostrup, Denmark). Slides were scanned at x20 objective magnification (0.5 μm resolution) using an Aperio AT2 Slide Scanner (Leica Microsystems, Wetzlar, Germany). Initial image analysis to segment tissue compartments was performed on WSIs using HALO™ software (version 2.2.1870; Indica Labs, Corrales, NM, USA). The tissue classification algorithm utilizes an artificial intelligence-based classifier trained to segment tissue into tumor, stroma, lymphoid follicles and background (i.e., necrotic areas, mucin pools, artifacts, and glass). The HALO Multiplex IHC algorithm (Version 1.2) was used to detect and extract coordinates of CD8+, CD20+, CD68+ cells.

4.4. Extraction of Interface-Zone and Immunogradient Indicators

The systematic extraction of the Immunogradient indicators was previously described [33]. In brief, the WSI of a tumor is processed by DIA software to identify tissue classes for each pixel and to extract coordinates and counts of positive cells. The DIA data is then subsampled by a hexagonal grid, as described in previous studies [59,60] and biomarker densities are calculated in each hexagon. The tumor edge (TE), which consists of hexagons on the interface between tumor and stroma, is computed based on changes in tissue class area fractions inside each hexagon; in Figure 2 the extracted TE are all yellow hexagons. The remaining hexagons are classified as either tumor, stroma or background, also by area fractions. Subsequently, the distance from each hexagon to the nearest TE is calculated. Using this distance, hexagons are ranked so that hexagons at the TE have rank 0 (distance 0), tumor-epithelium hexagons are assigned a rank equal to their distance from the nearest TE, while hexagons on the stromal side of the TE are assigned a rank equal to their negative distance to the nearest TE. This allows easy extraction of a tumor-stroma interface zone (IZ) of any width, e.g. an interface zone of width 9 would cover ranks [−4; 4]. For CRC, an IZ of width 3 (ranks [−1; 1]), abbreviated IZ3, was previously found optimal [33]. The tumor aspect (T) (rank = 1) and stroma aspect (S) (rank = −1) of IZ3 are highlighted in Figure 2 as the red and green hexagons, respectively. From the extracted IZ, simple Immunogradient indicators can be calculated, for example, mean CD8+ cell densities in the tumor aspect and in the stroma aspect. Additionally, the ranking allows plotting biomarkers gradient profiles across the interface zone (Figure 2A); and computing indicators like the Center of mass (CM) which estimates which part the cell density gravitates towards:
Center of mass (CM):
CM ( q )   =   ∑ r i r i   q r i ∑ r i q r i
where ri indexes the IZ3 ranks, ri ∈ [−1;1], and q(ri) denotes the rank statistics, e.g., the mean of CD8+ cell density.
In addition to the Immunogradient indicators, the intratumoral CD8+, CD20+ and CD68+ cell densities, i.e., densities in all tumor tissue, were extracted.

4.5. Statistic Analyses

Fisher’s exact test was used to examine the associations between clinicopathological parameters and MSI status. Since immune cell density distributions in the CRC samples showed left asymmetry (by the Kolmogorov–Smirnov test), cell density indicators were log-transformed for parametric statistics. The statistical significance of cell density variations in the aspects of IZ3 and tumor compartment were tested by one-way ANOVA followed by Bonferroni’s post-hoc test for pairwise comparisons and a two-sided Welch’s t-test for homogeneity of variances. Cutoff Finder [38] was used to obtain an optimal cut-off value for cell density indicators to test their interrelationships and predictions of OS. Univariate and multivariate survival analyses were performed using Cox proportional hazards models obtained by a stepwise likelihood ratio test. A leave-one-out cross-validation was used to analyze the relevance of the selected indicators, to compare the accuracy of predictive models [61]. All statistical tests were two-sided and conducted at a nominal significance level of 0.05. Statistical calculations were performed by SAS software (version 9.4; SAS Institute Inc., Cary, NC, USA); graphs were generated by R (version 4.0.0; R Foundation for Statistical Computing, Vienna, Austria) and GIMP (version 2.10.14; The GIMP team, www.gimp.org).

5. Conclusions

In summary, we present a novel combinatorial prognostic model for MSS and MSI CRC patients, based on 3 independent features: IZ Immunogradient indicators of CD8+ and CD20+ cell densities and infiltrative tumor growth pattern assessed by pathologist. The immuno-interface score, IIS, was superior to TNM-staging and molecular features, and displayed as strong predictor of patient outcomes in both MSS and MSI tumors.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6694/12/10/2902/s1, Figure S1: An image of original CD8 IHC tissue section which was used for IZ overlay in Figure 2.

Author Contributions

A.N., A.R., A.L. (Aida Laurinaviciene), M.I., A.L. (Arvydas Laurinavicius) participated in the conception and design of the study; A.N. performed digital image and statistical analyses; A.N. in collaboration with A.R., A.L. (Arvydas Laurinavicius), M.I. participated in the interpretation of the results and drafted essential parts of the manuscript; data was curated by A.N., W.F., A.R., M.I., A.L. (Arvydas Laurinavicius); visualization by A.N.; digital tumor sample images were provided by W.F., S.S., E.H., M.I.; clinicopathological and molecular testing data was collected and assessed by W.F., M.I.; supervision by M.I. All authors critically revised and approved the final version of the manuscript.

Funding

This project has received funding from European Social Fund, project No. 09.3.3-LMT-K-712-01-0139 under grant agreement with the Research Council of Lithuania (LMTLT). The APC was funded by Vilnius University.

Conflicts of Interest

A.L. (Arvydas Laurinavicius), A.R., and A.N. are co-authors of “Automated Tumour-Stroma Interface Zone Detection for Anti-tumour Immune Response Assessment by Immunogradient Indicators” submitted by Vilnius University for an international patent for the Immunogradient indicators (No. PCT/IB2020/053396, International Bureau of the World Intellectual Property Organization).

References

  1. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA A Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef] [Green Version]
  2. Xie, Y.-H.; Chen, Y.X.; Fang, J. Comprehensive review of targeted therapy for colorectal cancer. Signal Transduct. Target. Ther. 2020, 5, 22–30. [Google Scholar] [CrossRef] [PubMed]
  3. Puppa, G.; Sonzogni, A.M.; Colombari, R.; Pelosi, G. TNM staging system of colorectal carcinoma: A critical appraisal of challenging issues. Arch. Pathol. Lab. Med. 2010, 134, 837. [Google Scholar] [PubMed]
  4. Turley, S.J.; Cremasco, V.; Astarita, J.L. Immunological hallmarks of stromal cells in the tumour microenvironment. Nat. Rev. Immunol. 2015, 15, 669–682. [Google Scholar] [CrossRef] [PubMed]
  5. Dienstmann, R.; Vermeulen, L.; Guinney, J.; Kopetz, S.; Tejpar, S.; Tabernero, J. Erratum: Consensus molecular subtypes and the evolution of precision medicine in colorectal cancer. Nat. Rev. Cancer 2017, 17, 268. [Google Scholar] [CrossRef] [PubMed]
  6. Angell, H.K.; Bruni, D.; Barrett, J.C.; Herbst, R.; Galon, J. The Immunoscore: Colon Cancer and Beyond. Clin. Cancer Res. 2019, 26, 332–339. [Google Scholar] [CrossRef] [Green Version]
  7. Garcia-Carbonero, N.; Martínez-Useros, J.; Li, W.; Orta, A.; Perez, N.; Caramés, C.; Hernandez, T.; Moreno, I.; Serrano, G.; García-Foncillas, J. KRAS and BRAF Mutations as Prognostic and Predictive Biomarkers for Standard Chemotherapy Response in Metastatic Colorectal Cancer: A Single Institutional Study. Cells 2020, 9, 219. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Giardiello, F.M.; Allen, J.I.; Axilbund, J.E.; Boland, R.C.; Burke, C.A.; Burt, R.W.; Church, J.M.; Dominitz, J.A.; Johnson, D.A.; Kaltenbach, T.; et al. Guidelines on Genetic Evaluation and Management of Lynch Syndrome: A Consensus Statement by the US Multi-Society Task Force on Colorectal Cancer. Am. J. Gastroenterol. 2014, 109, 1159–1179. [Google Scholar] [CrossRef]
  9. Overman, M.J.; Lonardi, S.; Wong, K.Y.M.; Lenz, H.-J.; Gelsomino, F.; Aglietta, M.; Morse, M.A.; Van Cutsem, E.; McDermott, R.; Hill, A.; et al. Durable Clinical Benefit With Nivolumab Plus Ipilimumab in DNA Mismatch Repair–Deficient/Microsatellite Instability–High Metastatic Colorectal Cancer. J. Clin. Oncol. 2018, 36, 773–779. [Google Scholar] [CrossRef]
  10. Le, D.T.; Kim, T.W.; Van Cutsem, E.; Geva, R.; Jäger, D.; Hara, H.; Burge, M.; O’Neil, B.; Kavan, P.; Yoshino, T.; et al. Phase II Open-Label Study of Pembrolizumab in Treatment-Refractory, Microsatellite Instability-High/Mismatch Repair-Deficient Metastatic Colorectal Cancer: KEYNOTE-164. J. Clin. Oncol. 2019, 38, 11–19. [Google Scholar] [CrossRef]
  11. Guastadisegni, C.; Colafranceschi, M.; Ottini, L.; Dogliotti, E. Microsatellite instability as a marker of prognosis and response to therapy: A meta-analysis of colorectal cancer survival data. Eur. J. Cancer 2010, 46, 2788–2798. [Google Scholar] [CrossRef] [PubMed]
  12. Maby, P.; Tougeron, D.; Hamieh, M.; Mlecnik, B.; Kora, H.; Bindea, G.; Angell, H.K.; Fredriksen, T.; Elie, N.; Fauquembergue, E.; et al. Correlation between Density of CD8+ T-cell Infiltrate in Microsatellite Unstable Colorectal Cancers and Frameshift Mutations: A Rationale for Personalized Immunotherapy. Cancer Res. 2015, 75, 3446–3455. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Llosa, N.J.; Cruise, M.W.; Tam, A.; Wicks, E.C.; Hechenbleikner, E.M.; Taube, J.M.; Blosser, R.L.; Fan, H.; Wang, H.; Luber, B.S.; et al. The vigorous immune microenvironment of microsatellite instable colon cancer is balanced by multiple counter-inhibitory checkpoints. Cancer Discov. 2014, 5, 43–51. [Google Scholar] [CrossRef] [PubMed]
  14. Gonzalez, H.; Hagerling, C.; Werb, Z. Roles of the immune system in cancer: From tumor initiation to metastatic progression. Genes Dev. 2018, 32, 1267–1284. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Becht, E.; Giraldo, N.A.; Dieu-Nosjean, M.-C.; Sautès-Fridman, C.; Fridman, W.H. Cancer immune contexture and immunotherapy. Curr. Opin. Immunol. 2016, 39, 7–13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Van Der Woude, L.L.; Gorris, M.; Halilovic, A.; Figdor, C.G.; De Vries, I.J.M. Migrating into the Tumor: A Roadmap for T Cells. Trends Cancer 2017, 3, 797–808. [Google Scholar] [CrossRef] [PubMed]
  17. Hendry, S.; Salgado, R.; Gevaert, T.; Russell, P.A.; John, T.; Thapa, B.; Christie, M.; Van De Vijver, K.; Estrada, M.V.; Gonzalez-Ericsson, P.I.; et al. Assessing tumor infiltrating lymphocytes in solid tumors: A practical review for pathologists and proposal for a standardized method from the International Immuno-Oncology Biomarkers Working Group: Part 1: Assessing the host immune response, TILs in invasive breast carcinoma and ductal carcinoma in situ, metastatic tumor deposits and areas for further research. Adv. Anat. Pathol. 2017, 24, 235–251. [Google Scholar] [CrossRef] [Green Version]
  18. Hendry, S.; Salgado, R.; Gevaert, T.; Russell, P.A.; John, T.; Thapa, B.; Christie, M.; Van De Vijver, K.; Estrada, M.V.; Gonzalez-Ericsson, P.I.; et al. Assessing tumor infiltrating lymphocytes in solid tumors: A practical review for pathologists and proposal for a standardized method from the International Immuno-Oncology Biomarkers Working Group: Part 2: TILs in melanoma, gastrointestinal tract carcinomas, non-small cell lung carcinoma and mesothelioma, endometrial and ovarian carcinomas, squamous cell carcinoma of the head and neck, genitourinary carcinomas, and primary brain tumors. Adv. Anat. Pathol. 2017, 24, 311–335. [Google Scholar] [CrossRef]
  19. Acs, B.; Ahmad, F.S.; Gupta, S.; Wong, P.F.; Gartrell, R.D.; Pradhan, J.S.; Rizk, E.M.; Rothberg, B.G.; Saenger, Y.M.; Rimm, D.L. An open source automated tumor infiltrating lymphocyte algorithm for prognosis in melanoma. Nat. Commun. 2019, 10, 1–7. [Google Scholar] [CrossRef]
  20. Abe, N.; Matsumoto, H.; Takamatsu, R.; Tamaki, K.; Takigami, N.; Uehara, K.; Kamada, Y.; Tamaki, N.; Motonari, T.; Unesoko, M.; et al. Quantitative digital image analysis of tumor-infiltrating lymphocytes in HER2-positive breast cancer. Virchows Archiv 2019, 476, 701–709. [Google Scholar] [CrossRef]
  21. Orhan, A.; Vogelsang, R.P.; Andersen, M.B.; Madsen, M.T.; Hölmich, E.R.; Raskov, H.; Gögenur, I. The prognostic value of tumour-infiltrating lymphocytes in pancreatic cancer: A systematic review and meta-analysis. Eur. J. Cancer 2020, 132, 71–84. [Google Scholar] [CrossRef] [PubMed]
  22. Steele, K.E.; Tan, T.H.; Korn, R.; Dacosta, K.; Brown, C.; Kuziora, M.; Zimmermann, J.; Laffin, B.; Widmaier, M.; Rognoni, L.; et al. Measuring multiple parameters of CD8+ tumor-infiltrating lymphocytes in human cancers by image analysis. J. Immunother. Cancer 2018, 6, 20. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Koelzer, V.; Sirinukunwattana, K.; Rittscher, J.; Mertz, K.D. Precision immunoprofiling by image analysis and artificial intelligence. Virchows Archiv 2018, 474, 511–522. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Galon, J.; Pagès, F.; Marincola, F.M.; Angell, H.K.; Thurin, M.; Lugli, A.; Zlobec, I.; Berger, A.; Bifulco, C.B.; Botti, G.; et al. Cancer classification using the Immunoscore: A worldwide task force. J. Transl. Med. 2012, 10, 205. [Google Scholar] [CrossRef] [PubMed]
  25. Pagès, F.; Mlecnik, B.; Marliot, F.; Bindea, G.; Ou, F.-S.; Bifulco, C.; Lugli, A.; Zlobec, I.; Rau, T.T.; Berger, M.D.; et al. International validation of the consensus Immunoscore for the classification of colon cancer: A prognostic and accuracy study. Lancet 2018, 391, 2128–2139. [Google Scholar] [CrossRef]
  26. Marliot, F.; Chen, X.; Kirilovsky, A.; Sbarrato, T.; El Sissy, C.; Batista, L.; Eynde, M.V.D.; Haicheur-Adjouri, N.; Anitei, M.-G.; Musina, A.-M.; et al. Analytical validation of the Immunoscore and its associated prognostic value in patients with colon cancer. J. Immunother. Cancer 2020, 8, e000272. [Google Scholar] [CrossRef]
  27. Mlecnik, B.; Bindea, G.; Angell, H.K.; Maby, P.; Angelova, M.; Tougeron, D.; Church, S.E.; Lafontaine, L.; Fischer, M.; Fredriksen, T.; et al. Integrative Analyses of Colorectal Cancer Show Immunoscore Is a Stronger Predictor of Patient Survival Than Microsatellite Instability. Immunity 2016, 44, 698–711. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Williams, D.S.; Mouradov, D.; Newman, M.R.; Amini, E.; Nickless, D.K.; Fang, C.G.; Palmieri, M.; Sakthianandeswaren, A.; Li, S.; Ward, R.L.; et al. Tumour infiltrating lymphocyte status is superior to histological grade, DNA mismatch repair and BRAF mutation for prognosis of colorectal adenocarcinomas with mucinous differentiation. Mod. Pathol. 2020, 33, 1420–1432. [Google Scholar] [CrossRef]
  29. Rozek, L.S.; Schmit, S.L.; Greenson, J.K.; Tomsho, L.P.; Rennert, H.S.; Rennert, G.; Gruber, S.B. Tumor-Infiltrating Lymphocytes, Crohn’s-Like Lymphoid Reaction, and Survival From Colorectal Cancer. J. Natl. Cancer Inst. 2016, 108. [Google Scholar] [CrossRef] [Green Version]
  30. Bosman, F.; Carneiro, F.; Hruban, R.; Theise, N. Digestive System Tumours. WHO Classification of Tumours, 5th ed.; World Health Organization: Geneva, Switzerland, 2019; Volume 1, ISBN 13-978-92-832-4499-8. (Print Book). [Google Scholar]
  31. Nearchou, I.P.; Lillard, K.; Gavriel, C.G.; Ueno, H.; Harrison, D.J.; Caie, P.D. Automated Analysis of Lymphocytic Infiltration, Tumor Budding, and Their Spatial Relationship Improves Prognostic Accuracy in Colorectal Cancer. Cancer Immunol. Res. 2019, 7, 609–620. [Google Scholar] [CrossRef] [Green Version]
  32. Nearchou, I.P.; Gwyther, B.M.; Georgiakakis, E.C.T.; Gavriel, C.G.; Lillard, K.; Kajiwara, Y.; Ueno, H.; Harrison, D.J.; Caie, P.D. Spatial immune profiling of the colorectal tumor microenvironment predicts good outcome in stage II patients. NPJ Digit. Med. 2020, 3, 1–10. [Google Scholar] [CrossRef] [PubMed]
  33. Rasmusson, A.; Zilenaite, D.; Nestarenkaite, A.; Augulis, R.; Laurinaviciene, A.; Ostapenko, V.; Poskus, T.; Laurinavicius, A. Immunogradient Indicators for Antitumor Response Assessment by Automated Tumor-Stroma Interface Zone Detection. Am. J. Pathol. 2020, 190, 1309–1322. [Google Scholar] [CrossRef] [PubMed]
  34. Kakar, S.; Burgart, L.J.; Thibodeau, S.N.; Rabe, K.G.; Petersen, G.M.; Goldberg, R.M.; Lindor, N.M. Frequency of loss ofhMLH1 expression in colorectal carcinoma increases with advancing age. Cancer 2003, 97, 1421–1427. [Google Scholar] [CrossRef] [PubMed]
  35. Boland, C.R.; Goel, A. Microsatellite Instability in Colorectal Cancer. Gastroenterology 2010, 138, 2073–2087. [Google Scholar] [CrossRef]
  36. Weisenberger, D.J.; Siegmund, K.D.; Campan, M.; Young, J.P.; Long, T.I.; Faasse, M.A.; Kang, G.H.; Widschwendter, M.; Weener, D.; Buchanan, D.; et al. CpG island methylator phenotype underlies sporadic microsatellite instability and is tightly associated with BRAF mutation in colorectal cancer. Nat. Genet. 2006, 38, 787–793. [Google Scholar] [CrossRef] [PubMed]
  37. Jenkins, M.A.; Hayashi, S.; O’Shea, A.-M.; Burgart, L.J.; Smyrk, T.C.; Shimizu, D.; Waring, P.M.; Ruszkiewicz, A.R.; Pollett, A.; Redston, M.; et al. Pathology Features in Bethesda Guidelines Predict Colorectal Cancer Microsatellite Instability: A Population-Based Study. Gastroenterology 2007, 133, 48–56. [Google Scholar] [CrossRef] [Green Version]
  38. Budczies, J.; Klauschen, F.; Sinn, B.V.; Győrffy, B.; Schmitt, W.D.; Darb-Esfahani, S.; Denkert, C. Cutoff Finder: A Comprehensive and Straightforward Web Application Enabling Rapid Biomarker Cutoff Optimization. PLoS ONE 2012, 7, e51862. [Google Scholar] [CrossRef] [Green Version]
  39. Waniczek, D.; Lorenc, Z.; Śnietura, M.; Wesecki, M.; Kopec, A.; Muc-Wierzgoń, M. Tumor-Associated Macrophages and Regulatory T Cells Infiltration and the Clinical Outcome in Colorectal Cancer. Arch. Immunol. Ther. Exp. 2017, 65, 445–454. [Google Scholar] [CrossRef] [Green Version]
  40. Kim, Y.; Wen, X.; Bae, J.M.; Kim, J.H.; Cho, N.-Y.; Kang, G.H. The distribution of intratumoral macrophages correlates with molecular phenotypes and impacts prognosis in colorectal carcinoma. Histopathology 2018, 73, 663–671. [Google Scholar] [CrossRef]
  41. Wouters, M.C.A.; Nelson, B.H. Prognostic Significance of Tumor-Infiltrating B Cells and Plasma Cells in Human Cancer. Clin. Cancer Res. 2018, 24, 6125–6135. [Google Scholar] [CrossRef] [Green Version]
  42. Meshcheryakova, A.; Tamandl, D.; Bajna, E.; Stift, J.; Mittlboeck, M.; Svoboda, M.; Heiden, D.; Stremitzer, S.; Jensen-Jarolim, E.; Gruenberger, T.; et al. B Cells and Ectopic Follicular Structures: Novel Players in Anti-Tumor Programming with Prognostic Power for Patients with Metastatic Colorectal Cancer. PLoS ONE 2014, 9, e99008. [Google Scholar] [CrossRef] [PubMed]
  43. Berntsson, J.; Nodin, B.; Eberhard, J.; Micke, P.; Jirström, K. Prognostic impact of tumour-infiltrating B cells and plasma cells in colorectal cancer. Int. J. Cancer 2016, 139, 1129–1139. [Google Scholar] [CrossRef] [PubMed]
  44. Nielsen, J.S.; Sahota, R.A.; Milne, K.; Kost, S.E.; Nesslinger, N.J.; Watson, P.H.; Nelson, B.H. CD20+ Tumor-Infiltrating Lymphocytes Have an Atypical CD27- Memory Phenotype and Together with CD8+ T Cells Promote Favorable Prognosis in Ovarian Cancer. Clin. Cancer Res. 2012, 18, 3281–3292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Maletzki, C.; Jahnke, A.; Ostwald, C.; Klar, E.; Prall, F.; Linnebacher, M. Ex-vivo Clonally Expanded B Lymphocytes Infiltrating Colorectal Carcinoma Are of Mature Immunophenotype and Produce Functional IgG. PLoS ONE 2012, 7, e32639. [Google Scholar] [CrossRef]
  46. Edin, S.; Kaprio, T.; Hagström, J.; Larsson, P.; Mustonen, H.; Böckelman, C.; Strigård, K.; Gunnarsson, U.; Haglund, C.; Palmqvist, R. The Prognostic Importance of CD20+ B lymphocytes in Colorectal Cancer and the Relation to Other Immune Cell subsets. Sci. Rep. 2019, 9, 19997–19999. [Google Scholar] [CrossRef]
  47. Bindea, G.; Mlecnik, B.; Tosolini, M.; Kirilovsky, A.; Waldner, M.; Obenauf, A.C.; Angell, H.; Fredriksen, T.; Lafontaine, L.; Berger, A.; et al. Spatiotemporal Dynamics of Intratumoral Immune Cells Reveal the Immune Landscape in Human Cancer. Immunity 2013, 39, 782–795. [Google Scholar] [CrossRef] [Green Version]
  48. Mlecnik, B.; Eynde, M.V.D.; Bindea, G.; Church, S.E.; Vasaturo, A.; Fredriksen, T.; Lafontaine, L.; Haicheur, N.; Marliot, F.; Debetancourt, D.; et al. Comprehensive Intrametastatic Immune Quantification and Major Impact of Immunoscore on Survival. J. Natl. Cancer Inst. 2017, 110, 97–108. [Google Scholar] [CrossRef] [Green Version]
  49. Zlobec, I.; Baker, K.; Minoo, P.; Hayashi, S.; Terracciano, L.; Lugli, A. Tumor border configuration added to TNM staging better stratifies stage II colorectal cancer patients into prognostic subgroups. Cancer 2009, 115, 4021–4029. [Google Scholar] [CrossRef]
  50. Morikawa, T.; Kuchiba, A.; Qian, Z.R.; Mino-Kenudson, M.; Hornick, J.L.; Yamauchi, M.; Imamura, Y.; Liao, X.; Nishihara, R.; Meyerhardt, J.A.; et al. Prognostic significance and molecular associations of tumor growth pattern in colorectal cancer. Ann. Surg. Oncol. 2011, 19, 1944–1953. [Google Scholar] [CrossRef]
  51. Pinheiro, R.S.; Herman, P.; Lupinacci, R.M.; Lai, Q.; Mello, E.S.; Coelho, F.F.; Perini, M.V.; Pugliese, V.; Andraus, W.; Cecconello, I.; et al. Tumor growth pattern as predictor of colorectal liver metastasis recurrence. Am. J. Surg. 2014, 207, 493–498. [Google Scholar] [CrossRef]
  52. Zlobec, I.; Lugli, A. Invasive front of colorectal cancer: Dynamic interface ofpro-/anti-tumor factors. World J. Gastroenterol. 2009, 15, 5898–5906. [Google Scholar] [CrossRef] [PubMed]
  53. Halvorsen, T.B.; Seim, E. Association between invasiveness, inflammatory reaction, desmoplasia and survival in colorectal cancer. J. Clin. Pathol. 1989, 42, 162–166. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Weis, C.-A.; Kather, J.N.; Melchers, S.; Al-Ahmdi, H.; Pollheimer, M.J.; Langner, C.; Gaiser, T. Automatic evaluation of tumor budding in immunohistochemically stained colorectal carcinomas and correlation to clinical outcome. Diagn. Pathol. 2018, 13, 64. [Google Scholar] [CrossRef] [PubMed]
  55. Zlobec, I.; Terracciano, L.M.; Lugli, A. Local Recurrence in Mismatch Repair-Proficient Colon Cancer Predicted by an Infiltrative Tumor Border and Lack of CD8+ Tumor-Infiltrating Lymphocytes. Clin. Cancer Res. 2008, 14, 3792–3797. [Google Scholar] [CrossRef] [Green Version]
  56. Lang-Schwarz, C.; Melcher, B.; Haumaier, F.; Schneider-Fuchs, A.; Lang-Schwarz, K.; Krugmann, J.; Vieth, M.; Sterlacci, W. Budding, tumor-infiltrating lymphocytes, gland formation: Scoring leads to new prognostic groups in World Health Organization low-grade colorectal cancer with impact on survival. Hum. Pathol. 2019, 89, 81–89. [Google Scholar] [CrossRef]
  57. Susanti, S.; Fadhil, W.; Ebili, H.O.; Asiri, A.; Nestarenkaite, A.; Hadjimichael, E.; Ham-Karim, H.A.; Field, J.; Stafford, K.; Matharoo-Ball, B.; et al. N_LyST: A simple and rapid screening test for Lynch syndrome. J. Clin. Pathol. 2018, 71, 713–720. [Google Scholar] [CrossRef]
  58. Fadhil, W.; Ibrahem, S.; Seth, R.; Ilyas, M. Quick-multiplex-consensus (QMC)-PCR followed by high-resolution melting: A simple and robust method for mutation detection in formalin-fixed paraffin-embedded tissue. J. Clin. Pathol. 2010, 63, 134–140. [Google Scholar] [CrossRef]
  59. Plancoulaine, B.; Laurinaviciene, A.; Herlin, P.; Besusparis, J.; Meškauskas, R.; Baltrušaitytė, I.; Iqbal, Y.; Laurinavicius, A. A methodology for comprehensive breast cancer Ki67 labeling index with intra-tumor heterogeneity appraisal based on hexagonal tiling of digital image analysis data. Virchows Archiv 2015, 467, 711–722. [Google Scholar] [CrossRef]
  60. Laurinavicius, A.; Plancoulaine, B.; Herlin, P.; Laurinaviciene, A. Comprehensive Immunohistochemistry: Digital, Analytical and Integrated. Pathobiology 2016, 83, 156–163. [Google Scholar] [CrossRef]
  61. Rushing, C.; Bulusu, A.; Hurwitz, H.I.; Nixon, A.B.; Pang, H. A leave-one-out cross-validation SAS macro for the identification of markers associated with survival. Comput. Biol. Med. 2014, 57, 123–129. [Google Scholar] [CrossRef] [Green Version]
Cancers 12 02902 g001 550

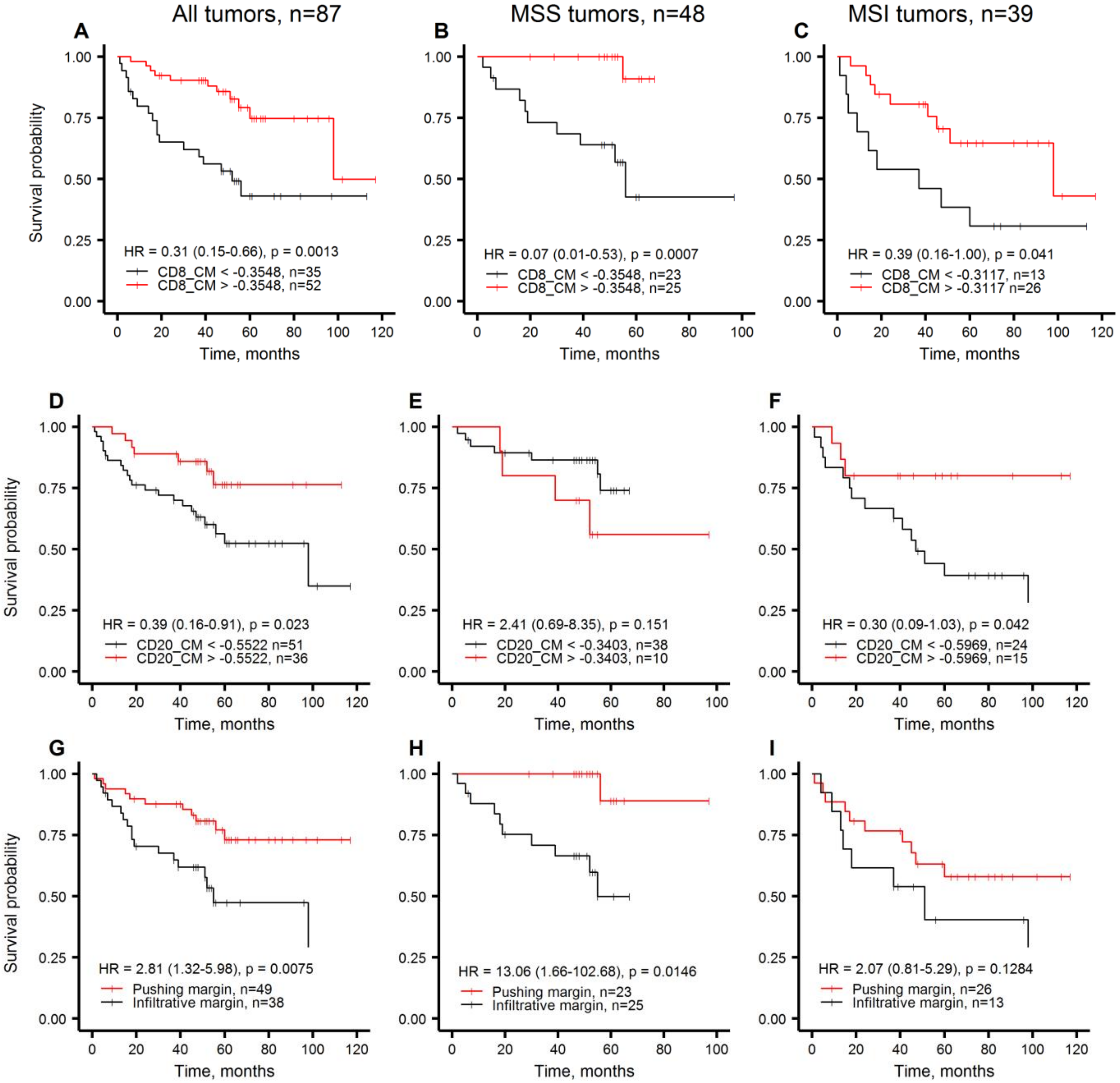

Figure 1. Kaplan-Meier plots representing overall survival probabilities obtained by Immunogradient and histology indicators in all tumors, MSS tumors, MSI tumors, respectively. (A–C): CM for CD8+ cell density in the IZ; (D–F): CM for CD20+ cell density in the IZ; (G–I): tumor growth pattern.
Figure 1. Kaplan-Meier plots representing overall survival probabilities obtained by Immunogradient and histology indicators in all tumors, MSS tumors, MSI tumors, respectively. (A–C): CM for CD8+ cell density in the IZ; (D–F): CM for CD20+ cell density in the IZ; (G–I): tumor growth pattern.
Cancers 12 02902 g001
Cancers 12 02902 g002 550

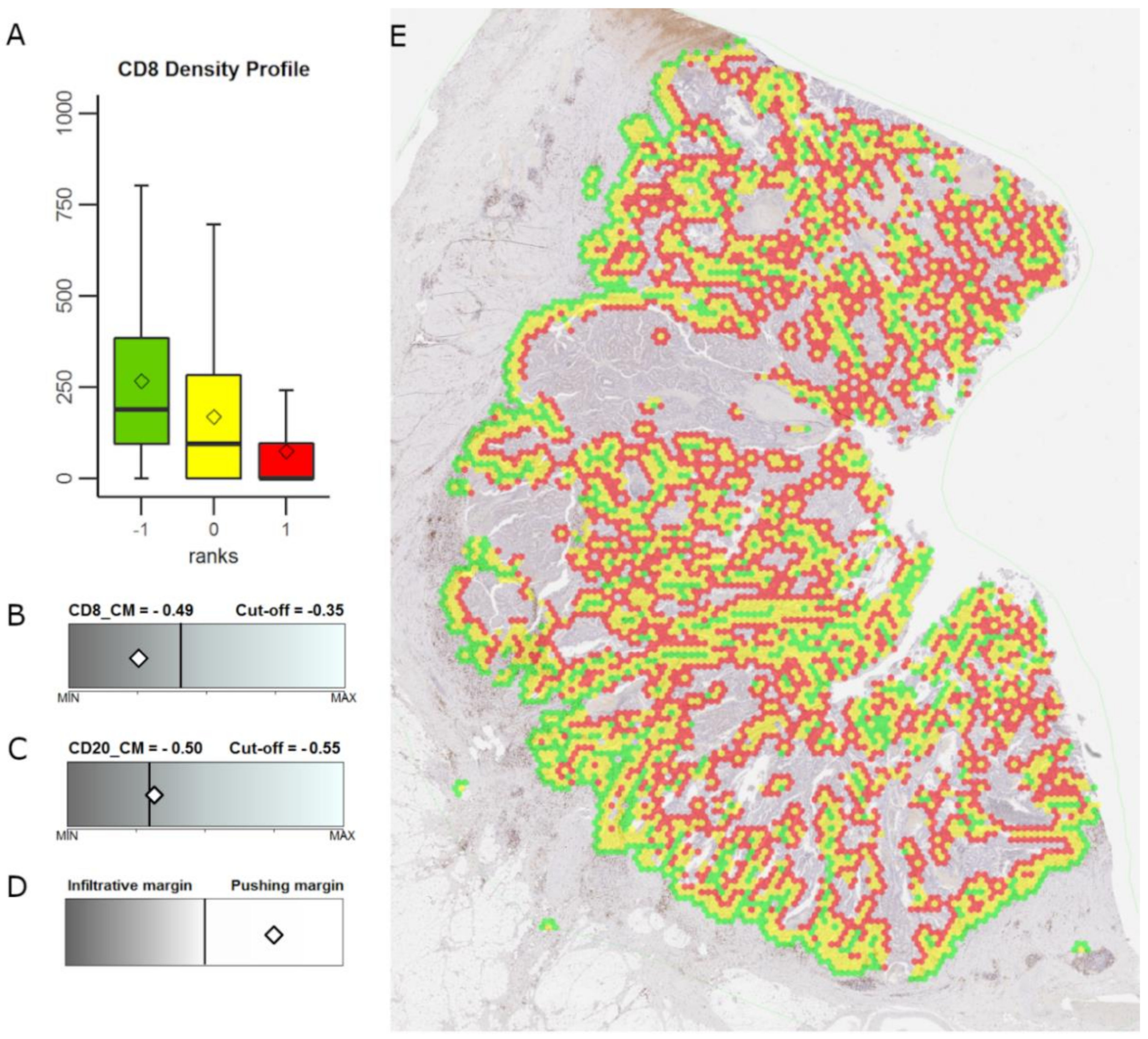

Figure 2. Example of extracted tumor-stroma interface zone, Immunogradient indicator estimates and tumor growth pattern in an individual colorectal cancer case. (A): CD8+ cell density profile within the IZ, the box-plot colors correspond to the colors in (E); (B,C): CM for CD8+ and CD20+ cell density values, respectively, represented by a white diamonds within the range of the indicator values; (D): tumor growth pattern represented by a white diamond within the two-color bar indicating infiltrative versus pushing margins; (E): shows the interface zone overlaid on the whole slide image (see Figure S1 for the original image without the overlay): tumor edge (yellow), tumor aspect (red), stroma aspect (green). Prognostic cut-off values for the CRC patient cohort are represented by the vertical line within the range of the indicator values; the grey shade of the bar represents better prognosis for brighter values and worse prognosis for darker values.
Figure 2. Example of extracted tumor-stroma interface zone, Immunogradient indicator estimates and tumor growth pattern in an individual colorectal cancer case. (A): CD8+ cell density profile within the IZ, the box-plot colors correspond to the colors in (E); (B,C): CM for CD8+ and CD20+ cell density values, respectively, represented by a white diamonds within the range of the indicator values; (D): tumor growth pattern represented by a white diamond within the two-color bar indicating infiltrative versus pushing margins; (E): shows the interface zone overlaid on the whole slide image (see Figure S1 for the original image without the overlay): tumor edge (yellow), tumor aspect (red), stroma aspect (green). Prognostic cut-off values for the CRC patient cohort are represented by the vertical line within the range of the indicator values; the grey shade of the bar represents better prognosis for brighter values and worse prognosis for darker values.
Cancers 12 02902 g002
Cancers 12 02902 g003 550

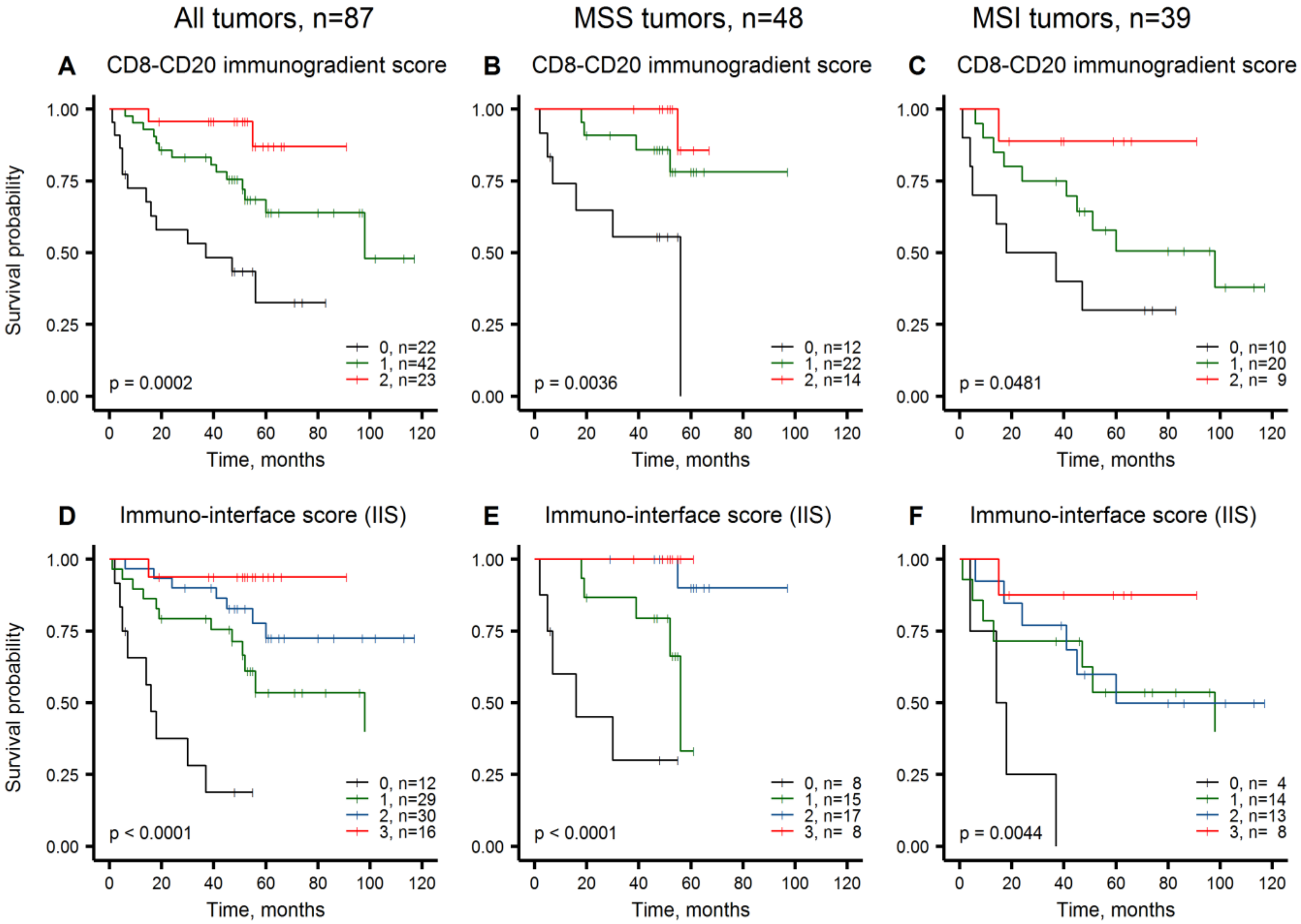

Figure 3. Kaplan-Meier plots representing overall survival probabilities obtained by the combinations of Immunogradient and histology indicators, in all tumors, MSS tumors and MSI tumors, respectively. (A–C): CD8-CD20 Immunogradient score; (D–F): immuno-interface score.
Figure 3. Kaplan-Meier plots representing overall survival probabilities obtained by the combinations of Immunogradient and histology indicators, in all tumors, MSS tumors and MSI tumors, respectively. (A–C): CD8-CD20 Immunogradient score; (D–F): immuno-interface score.
Cancers 12 02902 g003
Table
Table 1. Clinicopathological parameters in patients grouped by tumor microsatellite instability status.
Table 1. Clinicopathological parameters in patients grouped by tumor microsatellite instability status.
Clinicopathological Parameters MSS CRC, n (%)MSI CRC, n (%)p-Value *
Total48 (100)39 (100)-
OS follow-up, monthsMedian5246-
Range2–971–117
Deceased5-year follow-up11 (12.6)17 (19.5)-
10-year follow-up11 (12.6)18 (20.7)
Age groups by median≤71 years32 (66.7)13 (33.3)0.0026 *
>71 years16 (33.3)26 (66.7)
SexFemale23 (47.9)26 (66.7)0.0878
Male25 (52.1)13 (33.3)
TNM stageI01 (2.6)0.9999
II31 (64.5)23 (58.9)
III16 (33.3)13 (33.3)
IV1 (2.1)2 (5.1)
Histological grade (G)G244 (91.7)20 (51.3)<0.0001 *
G34 (8.3)19 (48.72)
Tumor invasion (pT)pT21 (2.1)1 (2.6)0.8115
pT336 (75)27 (69.2)
pT411 (22.9)11 (28.2)
Lymph node metastasis (pN)pN032 (66.7)25 (64.1)0.9027
pN18 (16.7)8 (20.5)
pN28 (16.7)6 (15.4)
Distant metastasis (M)M047 (97.9)37 (94.9)0.5850
M11 (2.1)2 (5.1)
Lymphovascular invasion (LVI)LVI028 (58.3)24 (61.5)0.8279
LVI120 (41.7)15 (38.5)
Perineural invasion (Pne)Pne042 (87.5)32 (82.1)0.5529
Pne16 (12.5)7 (18.9)
Tumor locationLeft 28 (58.3)3 (7.7)<0.0001 *
Transverse01 (2.56)
Right19 (39.6)33 (84.6)
Multiple sites1 (2.1)2 (5.1)
Tumor growth patternPushing margin23 (47.9)26 (66.7)0.0878
Infiltrative margin25 (52.1)13 (33.3)
Tumor buddingLow33 (68.8)25 (64.1)0.6557
High15 (31.2)14 (35.9)
Peritumoral lymphocytesInconspicuous35 (72.9)20 (52.6)0.0707
Conspicuous13 (27.1)18 (47.4)
BRAF mutation statusWild-type44 (91.7)18 (46.2)<0.0001 *
Mutant4 (8.3)21 (53.8)
KRAS mutation statusWild-type25 (52.1)32 (82.2)0.0060 *
Mutant23 (47.9)7 (17.9)
PIK3CA mutation statusWild-type40 (83.3)31 (79.5)0.7822
Mutant8 (16.7)8 (20.5)
* p-value < 0.05 is considered significant.
Table
Table 2. Summary statistics of the Immunogradient and intratumoral immune cell density indicators in patients grouped by tumor microsatellite instability status.
Table 2. Summary statistics of the Immunogradient and intratumoral immune cell density indicators in patients grouped by tumor microsatellite instability status.
Immunogradient and Intratumoral Cell Density (Cells/mm2) IndicatorsMSS CRC, n = 48MSI CRC, n = 39
MeanMediansdMeanMediansdp-Value *
CD8_CM−0.35−0.350.17−0.20−0.180.210.0006 *
CD8_d_S193.78147.06147.73370.76294.91404.690.0024 *
CD8_d_TE141.8290.03128.49339.94208.15400.520.0004 *
CD8_d_T76.4749.2492.49262.40140.22342.640.0001 *
INT_CD865.3737.5981.99238.90133.46311.26<0.0001 *
CD20_CM−0.49−0.540.23−0.59−0.630.140.0141 *
CD20_d_S54.2632.8168.4471.3736.7883.350.3650
CD20_d_TE31.6114.0159.3930.5618.9333.440.7857
CD20_d_T12.204.6630.685.403.876.120.0899
INT_CD2013.754.1931.219.705.8812.900.6003
CD68_CM−0.26−0.280.14−0.11−0.080.14<0.0001 *
CD68_d_S173.95158.15118.19182.45173.88104.310.5616
CD68_d_TE145.14120.2599.73190.06175.17106.060.0281 *
CD68_d_T72.4955.2973.41126.52100.3982.40<0.0001 *
INT_CD6860.0448.9055.89112.1595.3371.48<0.0001 *
CD8_d, CD20_d and CD68_d indicate mean density for each biomarker, respectively; densities are summarized over hexagons in the stroma aspect (S), tumor edge (TE) and tumor aspect (T) of the IZ; INT—mean intratumoral density; CM—Center of Mass implicitly by mean cell density in ranks; sd—standard deviation of indicator. * p-value < 0.05 is considered significant.
Table
Table 3. Statistics of univariate analyses of clinicopathological parameters, Immunogradient and intratumoral immune cell density indicators for patient overall survival.
Table 3. Statistics of univariate analyses of clinicopathological parameters, Immunogradient and intratumoral immune cell density indicators for patient overall survival.
Clinicopathological Parameters, Immunogradient and Intratumoral Cell Density IndicatorsCRC, n = 87
HR95% CIp-Value *
Age group (>median vs. ≤median)1.330.64–2.770.4480
Sex (male vs. female)0.840.40–1.770.6481
TNM stage (III-IV vs. I-II)1.060.49–2.300.8825
pT status (pT4 vs. pT2-3)1.050.45–2.460.9151
pN status (pN1-2 vs. pN0)0.980.45–2.180.9683
M status (M1 vs. M0)3.410.80–14.600.0978
G stage (G3 vs. G2)1.600.74–3.460.2312
LVI status (LVI1 vs. LVI0) 1.770.56–2.430.6737
Pne status (Pne1 vs. Pne0)1.670.68–4.120.2648
Tumor location (right/transverse/multiple vs. left)2.000.85–4.680.1128
Tumor growth pattern (infiltrative vs. pushing margin)2.811.32–5.980.0075 *
Tumor budding (high vs. low)2.050.98–4.290.0556
Peritumoral lymphocytes (inconspicuous vs. conspicuous)1.280.61–2.690.5234
MSI status (MSI vs. MSS)2.070.97–4.430.0614
BRAF status (mutant vs. wild-type)0.980.44–2.180.9501
KRAS status (mutant vs. wild-type)0.780.36–1.720.5369
PIK3CA status (mutant vs. wild-type)0.590.21–1.700.3264
CD8_CM (high vs. low)0.310.15–0.660.0013 *
CD8_d_S (high vs. low)1.460.64–3.310.3600
CD8_d_TE (high vs. low)0.640.31–1.350.2400
CD8_d_T (high vs. low)0.530.25–1.100.0850
INT_CD8 (high vs. low)2.130.93–4.880.0670
CD20_CM (high vs. low)0.390.16–0.910.0230 *
CD20_d_S (high vs. low)0.300.12–0.750.0061 *
CD20_d_TE (high vs. low)0.330.10–1.080.0530
CD20_d_T (high vs. low)0.430.20–0.900.0210 *
INT_CD20 (high vs. low)0.410.18–0.900.0230 *
CD68_CM (high vs. low)1.770.84–3.740.1300
CD68_d_S (high vs. low)0.590.28–1.230.1500
CD68_d_TE (high vs. low)0.650.30–1.430.2800
CD68_d_T (high vs. low)1.820.77–4.260.1600
INT_CD68 (high vs. low)1.730.79–3.810.1700
HR hazard ratio, CI confidence interval. * p-value < 0.05 is considered significant.
Table
Table 4. Multiple Cox regression models for patient overall survival.
Table 4. Multiple Cox regression models for patient overall survival.
Clinicopathological and Immunogradient IndicatorsCRC, n = 87
Model#1, LR: 23.03; p < 0.0001HR95% CIp-Value
CD8_CM (high)0.311.42–0.670.0029
CD20_CM (high)0.330.14–0.780.0113
Tumor growth pattern (infiltrative)2.901.34–6.290.0071
Model#2, LR: 15.50; p = 0.0004HR95% CIp-Value
CD8_CM (high)0.300.14–0.640.0019
CD20_CM (high)0.370.16–0.870.0228
HR hazard ratio, CI confidence interval, LR likelihood ratio.

Share and Cite

MDPI and ACS Style

Nestarenkaite, A.; Fadhil, W.; Rasmusson, A.; Susanti, S.; Hadjimichael, E.; Laurinaviciene, A.; Ilyas, M.; Laurinavicius, A. Immuno-Interface Score to Predict Outcome in Colorectal Cancer Independent of Microsatellite Instability Status. Cancers 2020, 12, 2902. https://doi.org/10.3390/cancers12102902

AMA Style

Nestarenkaite A, Fadhil W, Rasmusson A, Susanti S, Hadjimichael E, Laurinaviciene A, Ilyas M, Laurinavicius A. Immuno-Interface Score to Predict Outcome in Colorectal Cancer Independent of Microsatellite Instability Status. Cancers. 2020; 12(10):2902. https://doi.org/10.3390/cancers12102902

Chicago/Turabian Style

Nestarenkaite, Ausrine, Wakkas Fadhil, Allan Rasmusson, Susanti Susanti, Efthymios Hadjimichael, Aida Laurinaviciene, Mohammad Ilyas, and Arvydas Laurinavicius. 2020. "Immuno-Interface Score to Predict Outcome in Colorectal Cancer Independent of Microsatellite Instability Status" Cancers 12, no. 10: 2902. https://doi.org/10.3390/cancers12102902

APA Style

Nestarenkaite, A., Fadhil, W., Rasmusson, A., Susanti, S., Hadjimichael, E., Laurinaviciene, A., Ilyas, M., & Laurinavicius, A. (2020). Immuno-Interface Score to Predict Outcome in Colorectal Cancer Independent of Microsatellite Instability Status. Cancers, 12(10), 2902. https://doi.org/10.3390/cancers12102902

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
