Article

Integration of Tumor Mutation Burden and PD-L1 Testing in Routine Laboratory Diagnostics in Non-Small Cell Lung Cancer

by
Stefanie Schatz
1,2,†,
Markus Falk
1,2,†,
Balázs Jóri
3,†,
Hayat O. Ramdani
2,4,5,
Stefanie Schmidt
1,2,
Eva-Maria Willing
3,
Roopika Menon
3,
Harry J. M. Groen
6,
Linda Diehl
5,
Matthias Kröger
7,
Claas Wesseler
2,8,
Frank Griesinger
2,4,9,
Petra Hoffknecht
2,10,
Markus Tiemann
1,2 and
Lukas C. Heukamp
1,2,*
1
Institut für Hämatopathologie Hamburg, Fangdieckstraße 75A, 22547 Hamburg, Germany
2
Lung Cancer Network NOWEL, 26129 Oldenburg, Germany
3
NEO New Oncology GmbH, Gottfried-Hagen-Straße 20, 51105 Cologne, Germany
4
Department of Hematology and Oncology, Pius-Hospital Oldenburg, Georgstraße 12, 26121 Oldenburg, Germany
5
Institute of Experimental Immunology and Hepatology, University Medical Center Hamburg Eppendorf, Martinistraße 52, 20246 Hamburg, Germany
6
Department of Pulmonary Diseases, University of Groningen and University Medical Center Groningen, Hanzeplein 1, 9713 GZ Groningen, The Netherlands
7
Onkologische Schwerpunktpraxis, Kröger Ambulante Onkologie, Wiener Straße 1, 27568 Bremerhaven, Germany
8
Department of Internal Medicine and Pulmonology, Asklepios Klinikum Harburg, Eißendorfer Pferdeweg 52, 21075 Hamburg, Germany
9
Department of Internal Medicine-Oncology, University of Oldenburg, Georgstraße 12, 26121 Oldenburg, Germany
10
Germany Department of Thorax Oncology, Niels-Stensen-Kliniken, Franziskus-Hospital Harderberg Alte Rothenfelder Straße 23, 49124 Georgsmarienhütte, Germany
*
Author to whom correspondence should be addressed.
†
Authors contributed equally.
Cancers 2020, 12(6), 1685; https://doi.org/10.3390/cancers12061685
Submission received: 30 April 2020 / Revised: 18 June 2020 / Accepted: 20 June 2020 / Published: 24 June 2020
(This article belongs to the Special Issue PD-L1/PD1 Modulation Mechanisms in Lung Cancer: From Basic to Translational Evidences)
Browse Figures
Versions Notes

Abstract

:
In recent years, Non-small cell lung cancer (NSCLC) has evolved into a prime example for precision oncology with multiple FDA-approved “precision” drugs. For the majority of NSCLC lacking targetable genetic alterations, immune checkpoint inhibition (ICI) has become standard of care in first-line treatment or beyond. PD-L1 tumor expression represents the only approved predictive biomarker for PD-L1/PD-1 checkpoint inhibition by therapeutic antibodies. Since PD-L1-negative or low-expressing tumors may also respond to ICI, additional factors are likely to contribute in addition to PD-L1 expression. Tumor mutation burden (TMB) has emerged as a potential candidate; however, it is the most complex biomarker so far and might represent a challenge for routine diagnostics. We therefore established a hybrid capture (HC) next-generation sequencing (NGS) assay that covers all oncogenic driver alterations as well as TMB and validated TMB values by correlation with the assay (F1CDx) used for the CheckMate 227 study. Results of the first consecutive 417 patients analyzed in a routine clinical setting are presented. Data show that fast reliable comprehensive diagnostics including TMB and targetable alterations are obtained with a short turn-around time. Thus, even complex biomarkers can easily be implemented in routine practice to optimize treatment decisions for advanced NSCLC.

1. Introduction

In advanced non-small cell lung cancer, immune checkpoint inhibitors (ICIs) targeting the PD-1/PD-L1 axis, have sustainably changed the therapeutic approach of driver mutation negative tumors. ICIs have become available for first- and second-line treatment and represents a next step in the effort to reduce the group of patients receiving systemic chemotherapy. Despite these advances, a limited group of about 20% of NSCLC patients still benefit from ICI. Biomarkers are needed to predict the response outcome before initiation of therapy. As of now, PD-L1 expression has been established as the only predictive biomarker for treatment with ICIs; nevertheless, several factors are limiting its predictive value. Firstly, tumor heterogeneity in terms of PD-L1 tumor expression can be significant and can also change in response to therapy. Secondly, PD-L1-negative tumors have been reported to respond to ICI as well, rendering PD-L1 an imperfect biomarker and urging the need for other biomarkers, such as microsatellite instability (MSI) and TMB [1,2,3,4,5,6,7]. Potentially, TMB may be an independent factor from PD-L1 expression in predicting outcome. TMB is referred to as the total number of somatic mutations that occur in an exome of a tumor genome, although the exact calculation and definition of TMB might differ based on the type of variants, region size, or localization [8,9]. Exonic mutations can lead to the translation of novel peptide epitopes on the tumor surface that may increase the immunogenicity and, therefore, trigger an immune response [9,10,11,12,13]. TMB has been demonstrated to be a strong predictive value for the efficacy of ICI in second- and third-line monotherapy, in first-line monotherapy, and in the first-line combination of immuno-oncological (IO) substances, even if the patients’ tumors did not show expression of PD-L1 [14,15,16,17]. Furthermore, TMB is evaluated for the selection of patients who benefit from the combination of nivolumab and ipilimumab over platinum-based chemotherapy [18]. A recent study described TMB as a predictor for survival after immunotherapy across multiple cancer types, including head and neck, bladder, breast, and renal cancer, underlining the general validity of TMB stratification [19]. Two other recent studies revealed that the efficacy of pembrolizumab plus chemotherapy or placebo plus chemotherapy as first-line treatment was not associated with TMB [20,21]. The lack of correlation between PD-L1-expression and TMB status has been observed in several different studies, highlighting the independent and potential complementary role for both biomarkers [14,15,16,22]. However, the measurement and calculation of TMB still misses uniform standards. Several factors can influence TMB, including the DNA repair capacity and mutation rate. Because current neoantigen-predictive algorithms are imperfect, it is likely that the relationship between TMB and antigenicity is complex. Furthermore, additional factors can affect immunogenicity, including the clonality of neoantigens and the tumor microenvironment [9]. In addition, tumor heterogeneity and clonal architecture, the size of the selected genomic region of interest, and setup regarding driver mutational panel bias or even tumor purity can also influence the results from a biological perspective. From the technical point of view, NGS-derived deamination artifacts, the lack of predefined cut-off values; and the mutation types challenge the introduction of TMB as a general biomarker for immunotherapies [23]. The clinical utility of TMB is also affected by pre- and postanalytic parameters, such as storage of the formalin fixed paraffin embedded (FFPE) sample, turn-around time (TAT), or analysis failure rate [24,25]. To evaluate the importance of TMB as a practical biomarker, clinical routine data are needed. Here, we present the first TMB mono-centric dataset from a cohort of 417 lung cancer samples in Germany. We aimed to cover the proposed gaps by discussing clinical usability as driver mutations and TMB in the period from 2018 to 2020 using a commercially available assay (NEOplus v2 RUO‡, NEO New Oncology GmbH). The assay was designed to detect targetable driver mutations and genomic alterations (i.e., translocations, copy number changes) of other clinically relevant genes, such KRAS, KEAP1, STK11, and ARIDA1 (Appendix A), as well as to estimate TMB in an exonic territory of 1.14 Mb. After internal validation, the assay was used in our accredited clinical laboratory for routine mutation analysis in NSCLC patients. Samples were exclusively tested upon request by the attending physician and therefore reflect real world data

2. Results

2.1. TMB Assay Correlation with Clinical Trail Assay of CheckMate 227

To determine whether the assay was able to estimate TMB comparable to the assay used in the CheckMate 227 clinical trial, a series of 17 samples were analyzed both in-house as well as by F1CDx (Foundation Medicine Inc., Cambridge Massachusetts)
A high correlation (R2 = 0.884, 95% CI [0.799, 0.968]) between both assays was observed and the TMB category (high vs. low) showed 80% (12/15) concordance with the F1CDx category with a cut-off of 10 mut/Mb (Figure 1).

2.2. Histology, Driver Mutations, and PD-L1

In this cohort, 42.4% (177/417) of patients were of female gender and 57.6% (240/417) were male, the mean age being 66 years (Table 1). Histological classification revealed 73.9% (308/417) adeno carcinomas, 0.2% (1/417) adeno-squamous, 7.9% (33/417) squamous cell, 1.0% (4/417) small cell lung cancer, 0.5% (2/417) of cases displayed large cell neuroendocrine differentiation, while 16.5% (69/417) were not otherwise specified (NOS). EGFR mutations were detected with a frequency of 14.87% (62/417); however, only 66% (41/62) constituted the classical targetable drivers including exon 19 deletions or L858R. The remaining 34% were mostly located outside exons 18–21. Exon 20 insertions, resistant to first-, second-, and third-generation EGFR tyrosine kinase inhibitors (TKIs), were detectable in six cases (6/417, 1.4%) (Table 1).
Several point mutations were detected within the BRAF gene (36/417, 8.63%); among these, nine were BRAF V600E. Deemed targetable gene fusions were found with a frequency of 9.83% (41/417), including 15 (3.66%) EML4-ALK, 2 CD74-ROS1 (0.48%), and 3 RET translocations (0.73%, 2x KIF5B-RET, RET-CCDC6). Several other fusions were detected, including inter- and intragenic fusions of TP53, RB1, STK11, and CDKN2A/B. Within the group of adenocarcinomas, 79.9% of cases were devoid of a targetable driver alteration and 1.6% showed wildtype in all 39 therapeutically relevant genes. None of the squamous cell carcinomas showed a targetable driver alteration. In parallel to mutational analysis, PD-L1 immunohistochemistry (IHC) was performed and the tumor proportion score (TPS) was determined for each sample. In total, 123/417 (29.5%) of tumors did not express PD-L1 (<1% of PD-L1), while 11.99% showed PD-L1 expression between ≥1% and <5% PD-L1, 18.94% between ≥5% and <50% PD-L1, and 23.74% of cases had strong PD-L1 expression (≥50% PD-L1). In 15.8% of cases, no PD-L1 analysis was performed either because it was not requested by the physician or due to limited tissue availability.

2.3. Turn-Around Time and HC NGS Workflow

According to European guidelines, turn-around times for molecular testing in advanced lung cancer should take no longer than 10 working days [27,28]. We initially wanted to determine whether comprehensive testing including TMB estimation was feasible within this timeframe. To that end, we analyzed the first 115 cases for turn-around time and found that from 81.7% (94/115) of cases a result was sent to the treating physician within 10 working days (Figure 2). To further improve on the turn-around time, we looked at the steps responsible for possible delays more closely. The HC NGS workflow was subdivided into library preparation, sequencing, bioinformatics (data processing), and generation of a pathological report. Underlying causes for extended turn-around times in these 21 cases were delays in reporting (33%) mainly due to complex genomic alterations; library preparation (38%), such as insufficient DNA at intermediate steps of library preparation requiring some step to be repeated; other technical issues (19%), such as operator or handling mistakes; or delays in data handling and bioinformatics due to server drop out (10%) (Figure 2). Pre-analytics, including FFPE embedding, histological evaluation for tumor content and DNA extraction, required between 2 to 5 days in 80% of cases. More than 5 days were needed in 20% of samples due to delays in workflow (Figure 2). As only one HC NGS run was performed initially per week, the sample entry date also influenced overall TAT.

2.4. Evaluation of Tumor Mutation Analysis in Routine Lab Samples

2.4.1. TMB in Relation to Age

Based on these findings, we considered the assay set up sufficiently fast to continue using the assay for further routine diagnostics including targetable mutations. After a total of 417 were analyzed, we correlated patient-specific parameters with the observed TMB values. There appeared no significant age- (p= 0.476) or gender (p = 0.110)-specific association with TMB (Figure 3).

2.4.2. TMB in Relation to Driver Mutations

Recent reports suggest that the presence of typical driver alterations inversely correlates with the number of somatic tumor mutations [29,30]. In our cohort, targetable driver alterations (EGFR, ALK, ROS, BRAF V600E, RET) occurred at a combined frequency of 17.5% (73/417). The majority of this group of patients 62/73 (84.9%) showed a lower TMB, below a cut-off of 10 mut/Mb, while only 11/73 (15.1%) patients were in the TMB-high group (≥10mut/Mb).
The most prevalent somatic mutations found were TP53 (237/417, 56.8%), followed by KRAS (135/417, 32.4%), KEAP1 (54/417, 15.8%), STK11 (64/417, 15.3%), EGFR (62/417, 14.9%), ATM (46/417, 11.03%), and others. Gene amplifications were discovered in 45/417 (10.8%) and gene fusions in 9.83% (41/417) of cases (Figure 4).

2.4.3. TMB and PD-L1

Data from the literature indicate that PD-L1 expression on tumor cells does not correlate with TMB and that TMB should therefore be considered as an independent predictive biomarker [31]. In line with this observation, we found no significant association between the TMB value and PD-L1 TPS (Figure 5). Further, we categorized the tumors on the basis of PD-L1 tumor proportion scores and observed no statistically significant association (as assessed by analysis of variance, ANOVA) of PD-L1 tumor expression and TPS scores (p = 0.798).

2.4.4. Correlation of Somatic Tumor Mutations and TMB

It has been shown that the presence of targetable driving mutations, such as activating EGFR mutations, is associated only with limited responses to immune checkpoint inhibitors [32]. It has been postulated that this is due to low TMB. Particularly, EGFR and ALK mutations are more frequent in light or never smokers, further supporting this hypothesis [33]. Tumors characterized by a targetable driver alteration show significantly lower TMB compared to those lacking any driver alteration (p < 0.001). TMB in EGFR mutated tumors was significantly lower compared to TMB in KEAP1 (p < 0.01), ARID1A (p < 0.05), STK11 (p < 0.05), and POLE (p < 0.05) mutated tumors. Along those lines, TMB in ALK mutated tumors was significantly lower compared to KEAP1, ARID1A, POLE, and STK11 mutated tumors (each p <0.05) (see Figure 6).

2.5. Clinical Use of IO-Related Biomarkers in Clinical Decision-Making

Recent publications suggest that STK11 and KEAP1 mutations might be associated with an inferior response to IO [34,35]. Contrarily, ARID1A mutations seem to confer positive prediction [36]. Based on these findings, we observe that clinicians are interested in additional biomarkers with predictive value for IO.
Inactivating mutations in STK11 were detected with a frequency of 11.3% (47/417) and for KEAP1 with 7.7% (32/417). Functional mutations in ARID1A were found in 5.3% (22/417) of patients. Interestingly, all these variants were associated with higher TMB values, indicating that particularly STK11 and KEAP1 are biomarkers independent from TMB.

3. Discussion

When TMB emerged as a potential predictive biomarker, it was considered to possibly be the most challenging and complex genomic biomarker to date. NGS-based sequencing of a minimum of one Megabase exonic territory in combination with advanced bioinformatics analyses is needed. The NEOplus v2 RUO‡ panel has a total territory of 2.50 Mb, of which 1.14 Mb are dedicated to TMB evaluation. The territory dedicated to TMB evaluation excludes typical cancer genes that are known to have a mutation bias. The need for a TMB territory size of greater than 1 Mb is based on the data of Chalmers et al. and generally considered to be sufficient. This is supported by the comparisons of several TMB assays in the recently published German comparative TMB study [37]. There was considerable doubt whether speedy local TMB testing could be implemented and whether testing large number of patients was feasible. The initiatives of Quality in Pathology and Friends of Cancer Research jointly addressed the need for harmonization of TMB testing. In this study on a cohort of 417 lung cancer patients, we asked whether TMB can be assessed alongside other predictive genomic biomarkers needed for treatment stratification. We implemented an HC NGS assay into routine diagnostics, allowing for simultaneous detection of TMB and relevant aberrations including targetable driver mutations. TMB values correlated well with the F1Dx panel. These data are compatible with previously published data from a German harmonization trial [24,37].
The TAT proved to be in line with guidelines as 81.7% of cases met the required turn-around time of 10 working days. Comparing the NEOplus v2 RUO‡ HC assay to the F1Dx assay (used in CheckMate 227) revealed a high degree of association.
Samples analyzed in this study mainly consisted of adenocarcinomas; however, a significant proportion of biopsies were histologically classified in external pathologies and the histological subtype was not reported to us. Therefore, a relatively large proportion appeared as NOS; unfortunately, in most cases, tissue was not sufficient for reevaluation. TMB was not associated to age in our cohort, although previously, an age effect was published regarding other cancer entities [38]. TMB and PD-L1 expression was not associated, supporting the concept of two independent and therefore potentially additive biomarkers for immune oncological treatment. Male gender appears to be associated with higher TMB compared to females, potentially reflecting different smoking habits; however, this difference was not statistically significant. The frequency of targetable driver alterations (EGFR, ALK, ROS1, MET exon 14 skipping, RET, or BRAF V600E) was in line with the literature and their presence was significantly associated with a lower TMB value. In contrast, tumors that carried mutations in KRAS or genes assumed to cause primary resistance to IO (STK11, KEAP1, and POLE) showed higher TMB. In 2019, the complex CheckMate 227 trial using TMB as a co-primary endpoint in some subgroups could not convincingly show a role for TMB as a useful predictive biomarker. Since then retrospective analyses explored the use of pembrolizumab versus chemotherapy in all therapeutic lines, showing improvement in OS, PFS, and ORR for TMB-high patients [39,40].
Based on the KEYNOTE-158 trial, the FDA recently approved pembrolizumab monotherapy for patients with solid tumors and TMB ≥10 mut/Mb. The study included adults and pediatric patients with unresectable or metastatic disease with progression upon prior treatment or no alternative treatment options. This underlines the concept of TMB as a predictive biomarker [41].

4. Materials and Methods

4.1. Selection of Patients

Patients were retrospectively selected from our internal pathological documentation system based on the request for comprehensive molecular testing from 2018 to 2019. All samples represent tumor biopsies tested in a single institution (Institut für Hämatopathologie Hamburg, Germany). Use of anonymized patient data was reviewed by the local ethics committee (Ref number: WF-055/18 and WF-017/19.)

4.2. PD-L1

PD-L1 was stained immunohistochemically using the antibody clone 22C3 pharm Dx (Dako Omnis, 1:30 dilution) on the automated BenchMark Ultra platform (Roche Diagnostics) with positive controls of the spleen, tonsil, and placenta as part of a multi-tissue control. Scoring was conducted by board-certified and trained pathologists [42].

4.3. Mutation Testing

For molecular analysis, 3–10 5–10µm micrometer formalin-fixed paraffin-embedded (FFPE) sections were prepared and tumor tissue was micro-dissected when the tumor content was below 10%. DNA was extracted semi-automated (Maxwell® 16, Promega), and 400ng of input DNA was sonographically sheared (Covaris®) into approximately 200-bp double-stranded fragments. Hereafter, adapters were ligated, and genomic regions of interest were enriched using complementary bait sequences. During this hybrid capture, the selected baits ensure optimal coverage of all relevant genomic regions, including 340 genes in a 1.14 Mb complete genomic territory size. Following the enrichment, the targeted fragments were clonally amplified and sequenced with next-generation sequencing (NextSeq 500/550, Illumina). Point mutations, small insertions and deletions, copy number alterations, and rearrangement/gene fusions were identified with NEO New Oncology’s proprietary computational biology analysis pipeline and analyzed using the NEO diagnosis software.

4.4. TMB

For TMB, the number of somatic mutations detected within 1.14 Mb of the genome were quantified and that value extrapolated to the whole exome using a validated algorithm (NEO New Oncology). Alterations known to be included in genomic databases, such as Single Nucleotide Polymorphism Database (dbSNP) or Exome Aggregation Consortium (ExAc), were excluded.
TMB was calculated from genomic alterations identified by the bioinformatics pipeline. Single nucleotide changes with predicted missense, nonsense, silent, nonstop consequences, and small insertions/deletions with in-frame or frameshift insertion/deletion consequences were considered for TMB calculation. Variants with an allelic frequency of at least 5% (for LOD 0.05 value) or 10% (for LOD 0.1 value) were included and frequent germ line variants present in ExAc and dbSNP were not considered. The TMB value was provided as mutations per Megabase (mut/Mb).

4.5. Statistical Analysis

Descriptive statistics were used. Differences between groups were tested with parametric or non-parametric methods depending on the distribution. Box plots were generated using GraphPad Prism 7.04 (GraphPad Software, Inc., San Diego, CA) and statistical significance assessed by Student t and ANOVA (Alpha level 0.05). For Figure 1, Pearson correlation was performed using Microsoft Excel.

5. Conclusions

We showed that routine diagnostics of highly complex biomarkers, such as TMB, is feasible today and that a central industrial testing facility is not required. This is a highly important finding given that clinical trial results using TMB as a predictive biomarker are promising and FDA approval is currently pending. However, at this point in time, data are still not fully mature and further validation is required.

Author Contributions

Conceptualization, L.D., F.G., M.T. and L.C.H.; Data curation, M.F., B.J., S.S. (Stefanie Schmidt), R.M., H.J.M.G. and F.G.; Formal analysis, B.J. and R.M.; Investigation, M.T.; Methodology, S.S. (Stefanie Schatz), S.S. (Stefanie Schmidt) and E.-M.W.; Resources, M.K., C.W., F.G., P.H. and M.T.; Software, E.-M.W.; Supervision, F.G., M.T. and L.C.H.; Visualization, S.S. (Stefanie Schatz), M.F. and B.J.; Writing—original draft, S.S. (Stefanie Schatz), M.F. and B.J.; Writing—review & editing, H.O.R., H.J.M.G., L.D., M.K., C.W., F.G., P.H. and L.C.H.. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We thank Birgit Brussé for data documentation and Sabine Bleicher for extraordinary technical support.

Conflicts of Interest

P.H. Honorarium: Boehringer Ingelheim, Pfizer, Takeda, Roche Pharma, Lilly, BMS, MSD, AstraZeneca, Abbvie; F.G. Honorarium: Astra Zeneca, Boehringer Ingelheim, BMS, Celgene, Lilly, MSD, Novartis, Pfizer, Roche, Takeda, Ariad, Abbvie, Siemens; M.T.: Honorarium: AstraZeneca, Boehringer Ingelheim, Novartis, Roche, Pfizer, Takeda, BMS., MSD.; M.F.: Honorarium: Boehringer Ingelheim, AstraZeneca, BMS, Novartis, Roche; L.C.H.: Honorarium: Boehringer Ingelheim, Pfizer, BMS., MSD., AstraZeneca. All other authors do not declare any conflict of interest.

Appendix A

List of genes included in NEOplus v2 RUO‡. NEOplus v2 RUO‡ detects point mutations in 330 genes and small insertions and deletions in 325 genes, as well as copy number changes in 230 genes. In addition, gene fusions are detected in 16 genes.
‡ For Research Use Only. Not for use in diagnostic procedures.
Point Mutations, small Insertions and Deletions
ABL1, ABL2, ACVR1B, AKT1, AKT2, AKT3, ALK, ALMS1, AMER1, APC, APLNR, AR, ARAF, ARHGEF12, ARID1A, ARID1B, ARID2, ASXL1, ATAD5*, ATM, ATR, ATRX, AURKA, AURKB, AXIN2, AXL, B2M, BAP1, BARD1, BCL2, BCL2L1, BCL6, BLM, BMPR1A, BMS1, BRAF, BRCA1, BRCA2, BRD2, BRD3, BRD4, BRIP1, BTK, BUB1B, CARD11, CASP8, CBFB, CBL, CCND1, CCND2, CCNE1, CD274, CD58, CD79A, CD79B, CDC73, CDH1, CDK12, CDK4, CDK6, CDK8, CDKN1A, CDKN1B, CDKN2A, CDKN2B, CDKN2C, CEBPA, CHD4, CHEK1, CHEK2, CIC, CLSPN, CREBBP, CRKL, CSF1R, CTCF, CTNNA1, CTNNB1, CUL3, DAXX, DCUN1D4, DDB2, DDR2, DICER1, DOT1L, EGFR, EMSY, EP300, EPHA3, EPHA5, EPHA7, EPHB1, ERBB2, ERBB3, ERBB4, ERCC3, ERCC4, ERCC5, ERCC6, ERRFI1, ESR1, EZH2, FANCA, FANCB, FANCC, FANCD2, FANCE, FANCF, FANCG, FANCI, FANCL, FANCM, FAS, FAT1, FBXW7, FGFR1, FGFR2, FGFR3, FGFR4, FLCN, FLT1, FLT3, FOXO3, FOXP1, FRS2, GATA1, GEN1, GLI1, GNA11, GNA13, GNAI2, GNAQ, GNAS, GNAT2, GSK3B, H3F3A, H3F3B, HDAC2, HGF, HLTF, HRAS, HSP90AA1, IDH1, IDH2, IFNGR1, IFNGR2, IGF1R, IGF2, IGF2R, IKBKB, IKBKE, IL21R, INHBA, INPP4B, IRF1, IRF2, IRF4, JAK1, JAK2, JAK3, JUN, KAT6A*, KDR, KEAP1, KIT, KMT2A, KMT2B, KMT2C, KMT2D, KRAS, KSR1, LRP1B, LYN, MAD2L1, MAGI2, MAP2K1, MAP2K3, MAP2K4, MAP3K1, MCL1, MDM2, MDM4, MED12, MEN1, MET, MITF, MLANA, MLH1, MLH3, MPL, MRE11, MSH2, MSH3, MSH5, MSH6, MST1R, MTOR, MUTYH, MYC, MYCL, MYCN, NBN, NCOA3, NCOA4, NF1, NF2, NFE2L2, NFKBIA, NOTCH2, NOTCH4, NPM1, NRAS, NSD1, NTRK1, NTRK2, NTRK3, PALB2, PBRM1, PDCD1LG2, PDGFRA, PDGFRB, PDK1, PIK3C2B, PIK3CA, PIK3CB, PIK3CD, PIK3CG, PIK3R1, PIK3R2, PLCG2, PMS2, POLD1, POLE, POLG, POLH, POT1, PPM1D, PPP2R1A, PRDM1, PREX2, PRKCI, PRKDC, PRKN, PSMB5, PTCH1, PTEN, PTPN11, PTPRC, PTPRK, PTPRT, QKI, RAC1, RAD50, RAD51, RAD51B, RAD51C, RAD51D, RAD54L, RAD54L2, RAF1, RANBP2, RARA, RB1, RECQL4, RET, REV3L, RICTOR, RIT1, RNF43, RNPS1, ROS1, RPL10A, RPL23, RPTOR, SDHA*, SDHAF2, SDHB, SDHC, SDHD, SERPINB3, SERPINB4, SETD1A*, SETD1B, SETD2, SF3B1, SLIT2, SLX4, SMAD2, SMAD3, SMAD4, SMARCA4, SMARCB1, SMO, SOX2, SPEN, SPOP, SRP54, STAG2, STAT3, STK11, SUFU, SYK, TAF3, TAP1, TAP2, TAPBP, TCF7L2, TGFBR2, TNFAIP3, TNFRSF14, TOP1, TOP2A, TP53, TP53BP1, TRRAP, TSC1, TSC2, TSHR, U2AF1, U2AF1L5, VEGFA, VHL, WISP3, WRN, WT1, XPA, XPC, XRCC1, ZFHX3*, ZNF217
* Detection of small insertions and deletions in ATAD5, KAT6A, SDHA, SETD1A, ZFHX3 not possible.
Copy Number Changes
ABL1, AKT1, AKT2, AKT3, ALK, ALMS1, AMER1, APC, APLNR, AR, ARAF, ARID1A, ARID1B, ARID2, ASXL1, ATAD5, ATM, ATR, ATRX, AURKA, AXIN2, AXL, BARD1, BCL6, BLM, BMPR1A, BMS1, BRAF, BRCA1, BRCA2, BRD2, BRD3, BRD4, BRIP1, BTK, BUB1B, CARD11, CASP8, CCND1, CCNE1, CD274, CDC73, CDH1, CDK12, CDK4, CDK6, CDK8, CDKN2A, CDKN2B, CHD4, CIC, CLSPN, CREBBP, CSF1R, CTNNA1, CTNNB1, CUL3, DAXX, DDB2, DDR2, DICER1, DOT1L, EGFR, EMSY, EP300, EPHA3, EPHB1, ERBB2, ERBB3, ERBB4, ERCC3, ERCC4, ERCC5, ERCC6, ERRFI1, ESR1, EZH2, FANCA, FANCB, FANCC, FANCD2, FANCE, FANCI, FANCL, FANCM, FAS, FAT1, FGF19$, FGF23#, FGF3$, FGF4$, FGF6#, FGFR1, FGFR2, FGFR3, FGFR4, FLT1, FLT3, FOXO3, FOXP1, FRS2, GATA1, GLI1, GSK3B, HDAC2, IDH1, IDH2, IFNGR1, IKBKB, IKBKE, IL21R, INHBA, INPP4B, IRF1, IRF2, IRF4, JAK1, JAK2, JAK3, KAT6A, KDR, KEAP1, KIT, KRAS, LRP1B, LYN, MAGI2, MAP2K1, MDM2, MDM4, MED12, MEN1, MET, MITF, MLH1, MPL, MRE11, MSH2, MSH3, MSH5, MSH6, MST1R, MUTYH, MYC, MYCL, MYCN, NBN, NCOA3, NCOA4, NF1, NF2, NFE2L2, NPM1, NSD1, NTRK1, NTRK2, NTRK3, PALB2, PBRM1, PDGFRA, PDGFRB, PDK1, PIK3C2B, PIK3CA, PIK3CB, PIK3CD, PIK3CG, PIK3R1, PIK3R2, PMS2, POLD1, POLE, POLG, POLH, PPM1D, PRDM1, PTCH1, PTEN, PTPN11, PTPRK, QKI, RAD50, RAD51, RAD51B, RAD51C, RAD51D, RAD54L, RAD54L2, RAF1, RANBP2, RARA, RB1, REV3L, RICTOR, RIT1, RNF43, ROS1, RPTOR, SETD1A, SETD1B, SETD2, SF3B1, SLIT2, SLX4, SMAD2, SMAD3, SMAD4, SMARCA4, SMO, SPOP, STAG2, STAT3, STK11, SYK, TAP1, TAP2, TAPBP, TGFBR2, TNFAIP3, TOP1, TOP2A, TP53, TP53BP1, TRRAP, TSC1, TSC2, VEGFA, WRN, XPC, XRCC1
$ genes considered as one cluster
# genes considered as one cluster
Gene Fusions
ALK, BRAF, CD74, EML4, ETV6 (NTRK3 Fusion), FGFR1, FGFR2, FGFR3, KIF5B, MET, NRG1, NTRK1, PDGFRA, RET, ROS1

References

  1. Kerr, K.M. The PD-L1 Immunohistochemistry biomarker: Two steps forward, one step back? J. Thorac. Oncol. 2018, 13, 291–294. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Hirsch, F.R.; McElhinny, A.; Stanforth, D.; Ranger-Moore, J.; Jansson, M.; Kulangara, K.; Richardson, W.; Towne, P.; Hanks, D.; Vennapusa, B.; et al. PD-L1 Immunohistochemistry assays for lung cancer: Results from phase 1 of the blueprint PD-L1 IHC assay comparison project. J. Thorac. Oncol. 2017, 12, 208–222. [Google Scholar] [CrossRef] [PubMed]
  3. Rimm, D.; Han, G.; Taube, J.M.; Yi, E.S.; Bridge, J.A.; Flieder, U.B.; Homer, R.; West, W.W.; Wu, H.; Roden, A.C.; et al. A Prospective, Multi-institutional, pathologist-based assessment of 4 immunohistochemistry assays for PD-L1 expression in non-small cell lung cancer. JAMA Oncol. 2017, 3, 1051–1058. [Google Scholar] [CrossRef] [PubMed]
  4. Ratcliffe, M.J.; Sharpe, A.; Midha, A.; Barker, C.; Scott, M.; Scorer, P.; Al-Masri, H.; Rebelatto, M.C.; Walker, J. Agreement between programmed cell death ligand-1 diagnostic assays across multiple protein expression cutoffs in non–small cell lung cancer. Clin. Cancer Res. 2017, 23, 3585–3591. [Google Scholar] [CrossRef] [Green Version]
  5. Tsao, M.-S.; Kerr, K.M.; Kockx, M.; Beasley, M.-B.; Borczuk, A.C.; Botling, J.; Bubendorf, L.; Chirieac, L.; Chen, G.; Chou, T.-Y.; et al. PD-L1 Immunohistochemistry comparability study in real-life clinical samples: Results of blueprint phase 2 project. J. Thorac. Oncol. 2018, 13, 1302–1311. [Google Scholar] [CrossRef] [Green Version]
  6. Hellmann, M.D.; Rizvi, N.A.; Goldman, J.W.; Gettinger, S.N.; Borghaei, H.; Brahmer, J.A.; Ready, N.E.; Gerber, D.E.; Chow, L.Q.; Juergens, R.A.; et al. Nivolumab plus ipilimumab as first-line treatment for advanced non-small-cell lung cancer (CheckMate 012): Results of an open-label, phase 1, multicohort study. Lancet Oncol. 2017, 18, 31–41. [Google Scholar] [CrossRef] [Green Version]
  7. Cristescu, R.; Mogg, R.; Ayers, M.; Albright, A.; Murphy, E.; Yearley, J.; Sher, X.; Liu, X.Q.; Lu, H.; Nebozhyn, M.; et al. Pan-tumor genomic biomarkers for PD-1 checkpoint blockade–based immunotherapy. Science 2018, 362, eaar3593. [Google Scholar] [CrossRef] [Green Version]
  8. Chalmers, Z.R.; Connelly, C.F.; Fabrizio, D.; Gay, L.; Ali, S.M.; Ennis, R.; Schrock, A.; Campbell, B.; Shlien, A.; Chmielecki, J.; et al. Analysis of 100,000 human cancer genomes reveals the landscape of tumor mutational burden. Genome Med. 2017, 9, 34. [Google Scholar] [CrossRef]
  9. Schumacher, T.N.; Schreiber, R.D. Neoantigens in cancer immunotherapy. Science 2015, 348, 69–74. [Google Scholar] [CrossRef] [Green Version]
  10. Gubin, M.M.; Artyomov, M.N.; Mardis, E.R.; Schreiber, R.D. Tumor neoantigens: Building a framework for personalized cancer immunotherapy. J. Clin. Investig. 2015, 125, 3413–3421. [Google Scholar] [CrossRef]
  11. Grizzi, G.; Caccese, M.; Gkountakos, A.; Carbognin, L.; Tortora, G.; Bria, E.; Pilotto, S. Putative predictors of efficacy for immune checkpoint inhibitors in non-small-cell lung cancer: Facing the complexity of the immune system. Expert Rev. Mol. Diagn. 2017, 17, 1055–1069. [Google Scholar] [CrossRef] [PubMed]
  12. Chabanon, R.M.; Pedrero, M.; Lefebvre, C.; Marabelle, A.; Soria, J.-C.; Postel-Vinay, S. Mutational landscape and sensitivity to immune checkpoint blockers. Clin. Cancer Res. 2016, 22, 4309–4321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Luksza, M.; Riaz, N.; Makarov, V.; Balachandran, V.P.; Hellmann, M.D.; Solovyov, A.; Rizvi, N.A.; Merghoub, T.; Levine, A.J.; Chan, T.A.; et al. A neoantigen fitness model predicts tumour response to checkpoint blockade immunotherapy. Nature 2017, 551, 517–520. [Google Scholar] [CrossRef] [PubMed]
  14. Rizvi, H.; Sanchez-Vega, F.; La, K.; Chatila, W.; Jonsson, P.; Halpenny, D.; Plodkowski, A.; Long, N.; Sauter, J.L.; Rekhtman, N.; et al. Molecular determinants of response to anti–programmed cell death (pd)-1 and anti–programmed death-ligand 1 (PD-L1) blockade in patients with non–small-cell lung cancer profiled with targeted next-generation sequencing. J. Clin. Oncol. 2018, 36, 633–641. [Google Scholar] [CrossRef] [PubMed]
  15. Carbone, D.P.; Reck, M.; Paz-Ares, L.; Creelan, B.; Horn, L.; Steins, M.; Felip, E.; Heuvel, M.M.V.D.; Ciuleanu, T.-E.; Badin, F.; et al. First-line nivolumab in stage IV or recurrent non-small-cell lung cancer. N. Engl. J. Med. 2017, 376, 2415–2426. [Google Scholar] [CrossRef] [PubMed]
  16. Hellmann, M.D.; Nathanson, T.; Rizvi, H.; Creelan, B.C.; Sanchez-Vega, F.; Ahuja, A.; Ni, A.; Novik, J.B.; Mangarin, L.M.; Abu-Akeel, M.; et al. Genomic features of response to combination immunotherapy in patients with advanced non-small-cell lung cancer. Cancer Cell 2018, 33, 843–852.e4. [Google Scholar] [CrossRef] [Green Version]
  17. Boumber, Y. Tumor mutational burden (TMB) as a biomarker of response to immunotherapy in small cell lung cancer. J. Thorac. Dis. 2018, 10, 4689–4693. [Google Scholar] [CrossRef]
  18. Hellmann, M.D.; Ciuleanu, T.-E.; Pluzanski, A.; Lee, J.S.; Otterson, G.A.; Audigier-Valette, C.; Minenza, E.; Linardou, H.; Burgers, S.; Salman, P.; et al. Nivolumab plus ipilimumab in lung cancer with a high tumor mutational burden. N. Engl. J. Med. 2018, 378, 2093–2104. [Google Scholar] [CrossRef]
  19. Samstein, R.M.; Lee, C.-H.; Shoushtari, A.N.; Hellmann, M.D.; Shen, R.; Janjigian, Y.Y.; Barron, D.A.; Zehir, A.; Jordan, E.; Omuro, A.; et al. Tumor mutational load predicts survival after immunotherapy across multiple cancer types. Nat. Genet. 2019, 51, 202–206. [Google Scholar] [CrossRef]
  20. Gandhi, L.; Rodríguez-Abreu, D.; Gadgeel, S.; Esteban, E.; Felip, E.; De Angelis, F.; Dómine, M.; Clingan, P.; Hochmair, M.J.; Powell, S.F.; et al. Pembrolizumab plus chemotherapy in metastatic non-small-cell lung cancer. N. Engl. J. Med. 2018, 378, 2078–2092. [Google Scholar] [CrossRef]
  21. Borghaei, H.; Langer, C.J.; Gadgeel, S.; Papadimitrakopoulou, V.A.; Patnaik, A.; Powell, S.F.; Gentzler, R.D.; Martins, R.G.; Stevenson, J.P.; Jalal, S.I.; et al. 24-month overall survival from KEYNOTE-021 cohort g: Pemetrexed and carboplatin with or without pembrolizumab as first-line therapy for advanced nonsquamous non-small cell lung cancer. J. Thorac. Oncol. 2019, 14, 124–129. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Kowanetz, M.; Zou, W.; McCleland, M.; Gandara, D.; Gadgeel, S.; Rittmeyer, A.; Barlési, F.; Park, K.; Shames, D.; Koeppen, H.; et al. MA 05.09 Pre-existing immunity measured by teff gene expression in tumor tissue is associated with atezolizumad efficacy in NSCLC. J. Thorac. Oncol. 2017, 12, S1817–S1818. [Google Scholar] [CrossRef] [Green Version]
  23. Nahar, R.; Zhai, W.; Zhang, T.; Takano, A.; Khng, A.J.; Lee, Y.Y.; Liu, X.; Lim, C.H.; Koh, T.P.T.; Aung, Z.W.; et al. Elucidating the genomic architecture of Asian EGFR-mutant lung adenocarcinoma through multi-region exome sequencing. Nat. Commun. 2018, 9, 216. [Google Scholar] [CrossRef] [PubMed]
  24. Stenzinger, A.; Allen, J.; Maas, J.; Stewart, M.D.; Merino, D.M.; Wempe, M.M.; Dietel, M. Tumor mutational burden standardization initiatives: Recommendations for consistent tumor mutational burden assessment in clinical samples to guide immunotherapy treatment decisions. Genes Chromosom. Cancer 2019, 58, 578–588. [Google Scholar] [CrossRef] [Green Version]
  25. Addeo, A.; Banna, G.L.; Weiss, G.J. Tumor mutation burden-from hopes to doubts. JAMA Oncol. 2019, 5, 934–935. [Google Scholar] [CrossRef]
  26. Yao, Z.; Yaeger, R.; Rodrik-Outmezguine, V.S.; Tao, A.; Torres, N.M.; Chang, M.T.; Drosten, M.; Zhao, H.; Cecchi, F.; Hembrough, T.; et al. Tumours with class 3 BRAF mutants are sensitive to the inhibition of activated RAS. Nature 2017, 548, 234–238. [Google Scholar] [CrossRef]
  27. Metastatic Non-Small-Cell Lung Cancer: ESMO Clinical Practice Guidelines for Diagnosis, Treatment and Follow-up. Clinical Practice Guidelines [Guidelines]. 2018. Available online: https://www.esmo.org/Guidelines/Lung-and-Chest-Tumours/Metastatic-Non-Small-Cell-Lung-Cancer (accessed on 26 January 2019).
  28. Prävention, Diagnostik, Therapie und Nachsorge des Lungenkarzinoms, Langversion 1.0. Leitlinienprogramm Onkologie. 2018. Available online: http://leitlinienprogramm-onkologie.de/Lungenkarzinom.98.0.html (accessed on 1 February 2018).
  29. Offin, M.; Rizvi, H.; Tenet, M.; Ni, A.; Sanchez-Vega, F.; Li, B.T.; Drilon, A.; Kris, M.G.; Rudin, C.M.; Schultz, N.; et al. Tumor mutation burden and efficacy of EGFR-tyrosine kinase inhibitors in patients with EGFR-mutant lung cancers. Clin. Cancer Res. 2019, 25, 1063–1069. [Google Scholar] [CrossRef] [Green Version]
  30. Spigel, D.R.; Schrock, A.B.; Fabrizio, D.; Frampton, G.M.; Sun, J.; He, J.; Gowen, K.; Johnson, M.L.; Bauer, T.M.; Kalemkerian, G.P.; et al. Total mutation burden (TMB) in lung cancer (LC) and relationship with response to PD-1/PD-L1 targeted therapies. J. Clin. Oncol. 2016, 34, 9017. [Google Scholar] [CrossRef]
  31. Yarchoan, M.; Albacker, L.A.; Hopkins, A.C.; Montesion, M.; Murugesan, K.; Vithayathil, T.T.; Zaidi, N.; Azad, N.S.; Laheru, D.A.; Frampton, G.M.; et al. PD-L1 expression and tumor mutational burden are independent biomarkers in most cancers. JCI Insight 2019, 4. [Google Scholar] [CrossRef] [Green Version]
  32. Reck, M.; Schenker, M.; Lee, K.H.; Provencio, M.; Nishio, M.; Lesniewski-Kmak, K.; Sangha, R.; Ahmed, S.; Raimbourg, J.; Feeney, K.; et al. Nivolumab plus ipilimumab versus chemotherapy as first-line treatment in advanced non-small-cell lung cancer with high tumour mutational burden: Patient-reported outcomes results from the randomised, open-label, phase III CheckMate 227 trial. Eur. J. Cancer 2019, 116, 137–147. [Google Scholar] [CrossRef]
  33. Chapman, A.M.; Sun, K.Y.; Ruestow, P.; Cowan, D.M.; Madl, A.K. Lung cancer mutation profile of EGFR, ALK, and KRAS: Meta-analysis and comparison of never and ever smokers. Lung Cancer 2016, 102, 122–134. [Google Scholar] [CrossRef] [PubMed]
  34. Skoulidis, F.; Goldberg, M.E.; Greenawalt, D.M.; Hellmann, M.D.; Awad, M.M.; Gainor, J.F.; Schrock, A.B.; Hartmaier, R.J.; Trabucco, S.E.; Gay, L.; et al. STK11/LKB1 Mutations and PD-1 Inhibitor Resistance in KRAS-Mutant Lung Adenocarcinoma. Cancer Discov. 2018, 8, 822–835. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Lagos, G.G.; Izar, B.; Rizvi, N.A. Beyond Tumor PD-L1: Emerging genomic biomarkers for checkpoint inhibitor immunotherapy. Am. Soc. Clin. Oncol. Educ. Book 2020, 40, e47–e57. [Google Scholar] [CrossRef] [PubMed]
  36. Rizvi, N.; Cho, B.; Reinmuth, N.; Lee, K.; Luft, A.; Ahn, M.; Papadimitrakopoulou, V.; Heymach, J.; Scheuring, U.; Higgs, B.; et al. OA04.07 Mutations associated with sensitivity or resistance to immunotherapy in mNSCLC: Analysis from the MYSTIC trial. J. Thorac. Oncol. 2019, 14, S217. [Google Scholar] [CrossRef]
  37. Stenzinger, A.; Endris, V.; Budczies, J.; Merkelbach-Bruse, S.; Kazdal, D.; Dietmaier, W.; Pfarr, N.; Siebolts, U.; Hummel, M.; Herold, S.; et al. Harmonization and standardization of panel-based tumor mutational burden measurement: Real-world results and recommendations of the quality in pathology study. J. Thorac. Oncol. 2020. [Google Scholar] [CrossRef] [PubMed]
  38. Klebanov, N.; Artomov, M.; Goggins, W.B.; Daly, E.; Daly, M.J.; Tsao, H. Burden of unique and low prevalence somatic mutations correlates with cancer survival. Sci. Rep. 2019, 9, 4848. [Google Scholar] [CrossRef]
  39. Herbst, R.S.; Baas, P.; Kim, N.-W.; Felip, E.; Perez-Gracia, J.L.; Han, J.-Y.; Molina, J.; Kim, J.-H.; Arvis, C.D.; Ahn, M.-J.; et al. Pembrolizumab versus docetaxel for previously treated, PD-L1-positive, advanced non-small-cell lung cancer (KEYNOTE-010): A randomised controlled trial. Lancet 2016, 387, 1540–1550. [Google Scholar] [CrossRef]
  40. Mok, T.S.; Wu, Y.-L.; Kudaba, I.; Kowalski, D.M.; Cho, B.C.; Turna, H.Z.; Castro, G.; Srimuninnimit, V.; Laktionov, K.P.; Bondarenko, I.; et al. Pembrolizumab versus chemotherapy for previously untreated, PD-L1-expressing, locally advanced or metastatic non-small-cell lung cancer (KEYNOTE-042): A randomised, open-label, controlled, phase 3 trial. Lancet 2019, 393, 1819–1830. [Google Scholar] [CrossRef]
  41. Piha-Paul, S.A.; Oh, D.-Y.; Ueno, M.; Malka, D.; Chung, H.C.; Nagrial, A.; Kelley, R.K.; Ros, W.; Italiano, A.; Nakagawa, K.; et al. Efficacy and safety of pembrolizumab for the treatment of advanced biliary cancer: Results from the KEYNOTE-158 and KEYNOTE-028 studies. Int. J. Cancer 2020. [Google Scholar] [CrossRef]
  42. Scheel, A.H.; Dietel, M.; Heukamp, L.C.; Jöhrens, K.; Kirchner, T.; Reu, S.; Rüschoff, J.; Schildhaus, H.U.; Schirmacher, P.; Tiemann, M.; et al. Predictive PD-L1 immunohistochemistry for non-small cell lung cancer: Current state of the art and experiences of the first German harmonization study. Pathologe 2016, 37, 557–567. [Google Scholar] [CrossRef]
Cancers 12 01685 g001 550

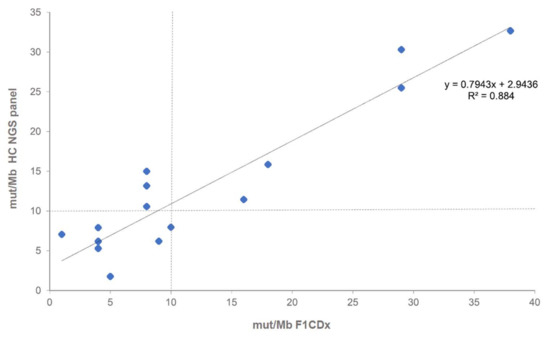

Figure 1. Correlation of TMB estimation of 17 samples measured by NEOplus v2 RUO‡ and F1CDx assays.
Figure 1. Correlation of TMB estimation of 17 samples measured by NEOplus v2 RUO‡ and F1CDx assays.
Cancers 12 01685 g001
Cancers 12 01685 g002 550

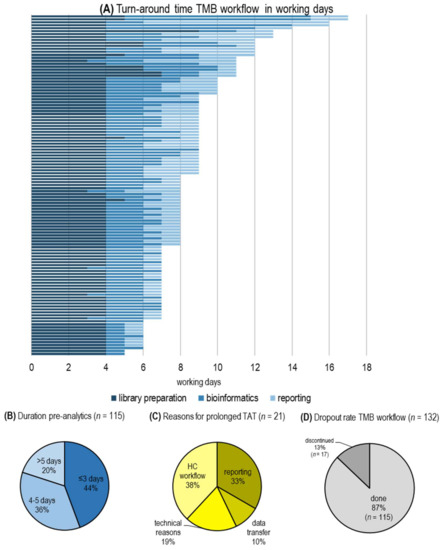

Figure 2. Turn-around time for TMB evaluation. (A) TAT in working days per case from start of HC NGS workflow to reporting; (B) Duration of pre-analytics including tissue embedding and DNA extraction; (C) Reasons for prolonged TAT (>10 working days); (D) Percentage of cases not meeting quality criteria.
Figure 2. Turn-around time for TMB evaluation. (A) TAT in working days per case from start of HC NGS workflow to reporting; (B) Duration of pre-analytics including tissue embedding and DNA extraction; (C) Reasons for prolonged TAT (>10 working days); (D) Percentage of cases not meeting quality criteria.
Cancers 12 01685 g002
Cancers 12 01685 g003 550

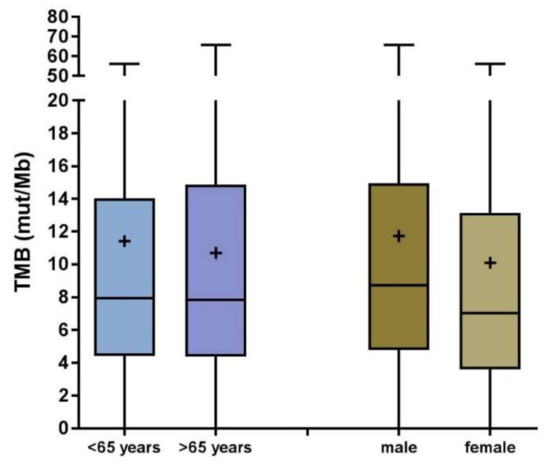

Figure 3. TMB status (mut/Mb) is not significantly correlated to age or gender. Boxplots are shown with the 95% confidence interval indicated by the box. Lines indicate the mean and + the median. Statistical analysis by Student t test did not reveal significant differences in TMB between patients under or over 65 years of age (p = 0.476), nor between male and female patients (p = 0.110).
Figure 3. TMB status (mut/Mb) is not significantly correlated to age or gender. Boxplots are shown with the 95% confidence interval indicated by the box. Lines indicate the mean and + the median. Statistical analysis by Student t test did not reveal significant differences in TMB between patients under or over 65 years of age (p = 0.476), nor between male and female patients (p = 0.110).
Cancers 12 01685 g003
Cancers 12 01685 g004 550

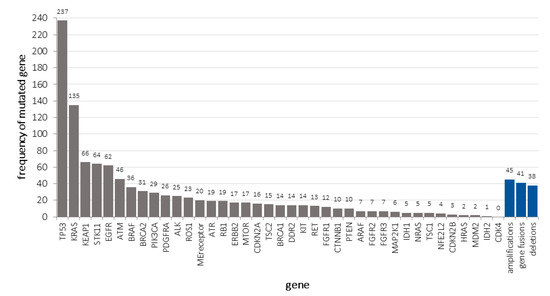

Figure 4. Number of tumors carrying non-synonymous gene mutations in descending order of frequency (grey), including gene amplifications, fusions, and deletions (blue).
Figure 4. Number of tumors carrying non-synonymous gene mutations in descending order of frequency (grey), including gene amplifications, fusions, and deletions (blue).
Cancers 12 01685 g004
Cancers 12 01685 g005 550

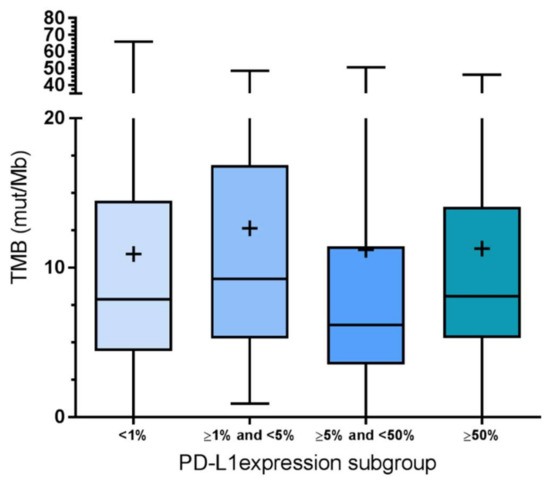

Figure 5. TMB is not different in the four groups of the PD-L1 tumor proportion score. Data are presented as box plots with a 95% confident interval. The line indicates the mean, the + indicates the median. Statistical analysis by ANOVA did not reveal significant (p < 0.05) differences in TMB between TPS groups.
Figure 5. TMB is not different in the four groups of the PD-L1 tumor proportion score. Data are presented as box plots with a 95% confident interval. The line indicates the mean, the + indicates the median. Statistical analysis by ANOVA did not reveal significant (p < 0.05) differences in TMB between TPS groups.
Cancers 12 01685 g005
Cancers 12 01685 g006 550

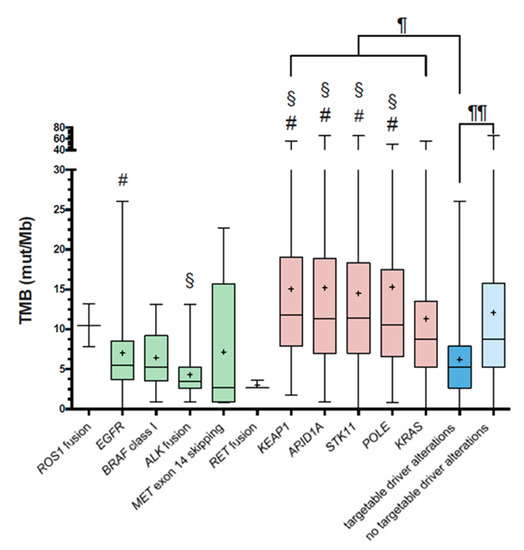

Figure 6. TMB and clinically relevant genetic alterations. For targetable driver alterations (green and blue), TKI-sensitive mutations were counted. Regarding KEAP1, ARID1A, STK11, and POLE, all non-synonymous aberrations (red) were considered. Data are presented as box plots with a 95% confident interval. The line indicates the mean, the + indicates the median. Statistical analysis by ANOVA revealed significant differences in TMB between EGFR and KEAP1, ARID1A, POLE, and STK11 (#) mutated groups; between ALK fusion and KEAP1, ARID1A, POLE, and STK11 mutated groups (§); and between targetable driver mutations and all red groups (¶); and lastly, between targetable and non-targetable driver mutation groups (¶¶).
Figure 6. TMB and clinically relevant genetic alterations. For targetable driver alterations (green and blue), TKI-sensitive mutations were counted. Regarding KEAP1, ARID1A, STK11, and POLE, all non-synonymous aberrations (red) were considered. Data are presented as box plots with a 95% confident interval. The line indicates the mean, the + indicates the median. Statistical analysis by ANOVA revealed significant differences in TMB between EGFR and KEAP1, ARID1A, POLE, and STK11 (#) mutated groups; between ALK fusion and KEAP1, ARID1A, POLE, and STK11 mutated groups (§); and between targetable driver mutations and all red groups (¶); and lastly, between targetable and non-targetable driver mutation groups (¶¶).
Cancers 12 01685 g006
Table
Table 1. Overview of patients’ characteristics according to TMB values.
Table 1. Overview of patients’ characteristics according to TMB values.
VariationTotalTMB < 10TMB > 10
N = 417N = 260(62.35%)N = 157(37.65%)
AgeMedian666666
Mean (±SD)65.0(11.8)64.7(12.5)65.7(10.5)
Range21–9221–9293–90
<65 years199(47.72%)126(48.46%)73(46.50%)
≥65 years218(52.28%)134(51.54%)84(53.50%)
SexFemale177(42.45%)140(53.85%)100(63.69%)
Male240(57.55%)120(46.15%)57(36.31%)
HistologyAdenocarcinoma308(73.86%)201(77.31%)107(68.15%)
Squamous33(7.91%)14(5.38%)19(12.10%)
Adeno-squamous1(0.24%)1(0.38%)
Large-cell neuroendocrine2(0.48%) 2(1.27%)
SCLC4(0.96%)4(1.54%)
NOS69(16.55%)40(15.38%)29(18.47%)
EGFR StatusMutant62(14.87%)47(18.08%)15(9.55%)
Wild type355(85.13%)213(81.92%)142(90.45%)
targetable EGFR mutation41(66.13%)33(12.69%)8(5.10%)
targetable EGFR plus resistance mutation T790M3(4.84%)3(1.15%)
EGFR exon 20 insertion6(9.68%)6(2.31%)
other / variant of unknown significance12(19.35%)5(1.92%)7(4.46%)
BRAF StatusMutant36(8.63%)20(7.69%)16(10.19%)
Wild type381(91.37%)240(92.31%)141(89.81%)
V600E / class I *9(25.00%)8(3.08%)1(0.64%)
non-V600E / class II *11(30.56%)5(1.92%)6(3.82%)
non-V600E / class III *5(13.89%)3(1.15%)2(1.27%)
other mutation / variant of unknown significance11(30.56%)4(1.54%)7(4.46%)
Gene FusionsMutant41(9.83%)32(12.31%)9(5.73%)
Wild type368(88.25%)223(85.77%)145(92.36%)
n.d.8(1.92%)5(1.92%)3(1.91%)
ALK translocation15(36.59%)14(5.38%)1(0.64%)
ROS1 translocation2(4.88%)1(0.38%)1(0.64%)
RET translocation3(7.32%)3(1.15%)
other fusions / translocation of unknown significance21(51.22%)14(5.38%)7(4.46%)
PD-L1 TPS<1%123(29.50%)79(30.38%)44(28.03%)
≥1% and <5%50(11.99%)26(10.00%)24(15.29%)
≥5% and <50%79(18.94%)55(21.15%)24(15.29%)
≥50%99(23.74%)53(20.38%)46(29.30%)
n.d.66(15.83%)47(18.08%)19(12.10%)
* BRAF mutations were classified based on Yao et al. [26].

Share and Cite

MDPI and ACS Style

Schatz, S.; Falk, M.; Jóri, B.; Ramdani, H.O.; Schmidt, S.; Willing, E.-M.; Menon, R.; Groen, H.J.M.; Diehl, L.; Kröger, M.; et al. Integration of Tumor Mutation Burden and PD-L1 Testing in Routine Laboratory Diagnostics in Non-Small Cell Lung Cancer. Cancers 2020, 12, 1685. https://doi.org/10.3390/cancers12061685

AMA Style

Schatz S, Falk M, Jóri B, Ramdani HO, Schmidt S, Willing E-M, Menon R, Groen HJM, Diehl L, Kröger M, et al. Integration of Tumor Mutation Burden and PD-L1 Testing in Routine Laboratory Diagnostics in Non-Small Cell Lung Cancer. Cancers. 2020; 12(6):1685. https://doi.org/10.3390/cancers12061685

Chicago/Turabian Style

Schatz, Stefanie, Markus Falk, Balázs Jóri, Hayat O. Ramdani, Stefanie Schmidt, Eva-Maria Willing, Roopika Menon, Harry J. M. Groen, Linda Diehl, Matthias Kröger, and et al. 2020. "Integration of Tumor Mutation Burden and PD-L1 Testing in Routine Laboratory Diagnostics in Non-Small Cell Lung Cancer" Cancers 12, no. 6: 1685. https://doi.org/10.3390/cancers12061685

APA Style

Schatz, S., Falk, M., Jóri, B., Ramdani, H. O., Schmidt, S., Willing, E.-M., Menon, R., Groen, H. J. M., Diehl, L., Kröger, M., Wesseler, C., Griesinger, F., Hoffknecht, P., Tiemann, M., & Heukamp, L. C. (2020). Integration of Tumor Mutation Burden and PD-L1 Testing in Routine Laboratory Diagnostics in Non-Small Cell Lung Cancer. Cancers, 12(6), 1685. https://doi.org/10.3390/cancers12061685

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
