Challenges for Better Diagnosis and Management of Pancreatic and Biliary Tract Cancers Focusing on Blood Biomarkers: A Systematic Review

by
Hiroto Tominaga
1,
Juntaro Matsuzaki
1,*,
Chihiro Oikawa
1,
Kensho Toyoshima
1,
Haruki Manabe
1,
Eriko Ozawa
1,
Atsushi Shimamura
1,
Riko Yokoyama
1,
Yusuke Serizawa
1,
Takahiro Ochiya
2 and
Yoshimasa Saito
1,*
1
Division of Pharmacotherapeutics, Keio University Faculty of Pharmacy, 1-5-30 Shibakoen, Minato-ku, Tokyo 105-8512, Japan
2
Department of Molecular and Cellular Medicine, Institute of Medical Science, Tokyo Medical University, 6-7-1 Nishishinjuku, Shinjuku-ku, Tokyo 160-0023, Japan
*
Authors to whom correspondence should be addressed.
Cancers 2021, 13(16), 4220; https://doi.org/10.3390/cancers13164220
Submission received: 25 July 2021 / Revised: 18 August 2021 / Accepted: 19 August 2021 / Published: 23 August 2021
(This article belongs to the Special Issue Novel Biomarkers of Gastrointestinal Cancer)
Browse Figure
Review Reports Versions Notes

Abstract

:

Simple Summary

Pancreatic and biliary tract cancers are malignant tumors that have a very poor prognosis and are resistant to chemotherapy. The later a cancer is detected, the worse the prognosis becomes; therefore, early detection is important. Biomarkers are physiological indices that serve as a guide to indicate the presence or absence of a certain disease, or its progression. The purpose of our research is to summarize previously reported biomarkers for the diagnosis and prognosis of pancreatic and biliary tract cancers.

Abstract

Background: pancreatic cancer (PCa) and biliary tract cancer (BTC) are cancers with a poor prognosis and few effective treatments. One of the reasons for this is late detection. Many researchers are tackling to develop non-invasive biomarkers for cancer, but few are specific for PCa or BTC. In addition, genetic abnormalities occur in cancer tissues, which ultimately affect the expression of various molecules. Therefore, it is important to identify molecules that are altered in PCa and BTC. For this systematic review, a systematic review of Medline and Embase to select biomarker studies of PCa and BTC patients was conducted. Results: after reviewing 72 studies, 79 biomarker candidates were identified, including 22 nucleic acids, 43 proteins, and 14 immune cell types. Of the 72 studies, 61 examined PCa, and 11 examined BTC. Conclusion: PCa and BTC are characterized by nucleic acid, protein, and immune cell profiles that are markedly different from those of healthy subjects. These altered molecules and cell subsets may serve as cancer-specific biomarkers, particularly in blood. Further studies are needed to better understand the diagnosis and prognosis of PCa and BTC.

1. Introduction

Pancreatic cancer (PCa) is the fourth most common cause of death in Japan. Indeed, there were an estimated 496,000 (234,000 in Asia) new cases annually worldwide in 2020, and the number of new cases is estimated to be 802,000 (424,000 in Asia) in 2040 [1]. Despite the rapid evolution of cancer treatments in recent years, the 5-year survival rate for PCa is only 5–6% [2]. Biliary tract cancer (BTC), which includes cholangiocarcinoma (both intrahepatic cholangiocarcinoma (ICC) and extrahepatic cholangiocarcinoma (ECC)) and gallbladder cancer, also has a poor prognosis [3]. BTC has a low incidence, accounting for about 3% of all adult cancers [4]. Most cases are unresectable [3], and even if they could be found in the resectable stage, recurrence rates are very high [5,6]. The 5-year survival rate for BTC is about 5–15% [7,8]. Since PCa and BTC are less symptomatic, these cancers are generally hard to detect at an early stage. Furthermore, PCa and BTC have similar pathological characteristics, which makes it difficult to discriminate them just by blood biomarkers. Therefore, identifying good biomarkers for the diagnosis and prognosis of PCa and BTC is important for both early diagnosis and treatment. This review comprehensively summarized the current state of blood biomarker studies for PCa and BTC, which may lead to early detection and improved prognosis.

2. Methods

A systematic electronic search of the Medline (https://pubmed.ncbi.nlm.nih.gov, accessed on 10 February 2021) and Embase (https://www.embase.com, accessed on 10 February 2021) databases was performed to identify studies reporting the characteristics of PCa and BTC patients (Figure 1). The search was performed using the following terms with Boolean operators: (biliary OR bile OR cholangiocarcinoma OR pancreatic OR pancreas) AND biomarker AND (checkpoint OR chemoresistance) AND (blood OR serum OR plasma). The same terms were used on Medline and Embase, and duplicated articles were deleted. Articles that were not written in English, review articles, conference abstracts, and articles about cancer types other than PCa or BTC were excluded. A systematic review of articles that met the selection criteria was performed. Abstract and in-text reviews were performed by a single reviewer (H.T.). The selected research articles were cross-searched to identify additional relevant studies. This review also introduces tissue biomarkers and other biomarkers that can be applied as blood biomarkers.

3. Results

3.1. Characteristics of PCa

3.1.1. Non-Coding RNA

Many circulating microRNAs were reported as biomarkers for PCa patients (Table 1). Meta-analysis revealed that, compared with healthy controls, elevated plasma miR-744 levels in PCa patients were a poor prognostic factor, contributing to reduced progression-free survival [9]. Serum miR-21 levels were also elevated and were even higher in patients with gemcitabine-resistant PCa; these elevated levels correlated with poor survival [10,11]. Serum miR-7 expression was lower in PCa patients than in controls and had an adverse effect on prognosis [12]. In addition, plasma miR-34a and miR-150 levels, and expression of miR-34a and miR-150 in tumor tissue, were lower in PCa patients than in healthy controls [13]. Plasma miR-107, miR-126, miR-451, miR-145, miR-491-5p, and miR-146b-5p levels decreased in PCa patients, with miR-107 being the most decreased miRNA [14]. PCa patients showed high amounts of miR-191, miR-21, and miR-451a in serum exosomes, and high miR-21 was associated with overall survival and resistance to chemotherapy [15]. MiR-200b and miR-200c were overexpressed in serum exosomes from PCa patients, and high expression of miR-200c in total serum exosomes and miR-200b in EpCAM-positive serum exosomes correlated with shorter overall survival (OS). In PCa patients, nucleic acids other than mRNA were also altered; for example, serum LINC01559 expression was markedly increased than in healthy controls and correlated with survival [16]. Expression of let-7 family members (especially let-7d) in the plasma of PCa patients correlated inversely with overall survival [11].

3.1.2. Protein Expression

A very large number of protein biomarker candidates were extracted (Table 2). High expression of colon carcinoma-1 (MACC1) oncogene in serum of PCa patients correlated with lymph node metastasis, distant metastasis, and a later TNM stage [20]. Plasma IL-8 was the circulating factor that correlated most significantly with the overall survival of PCa patients [21]. PIM-1 expression was upregulated significantly in PCa tissues compared with normal tissues. In addition, plasma PIM-1 levels were significantly increased and were associated with TNM stage (II/III/IV) [22]. Although protein levels in the blood are unknown, many proteins that can be tissue biomarkers for PCa were also identified by our search algorithm. 72% of PCa patients expressed activated insulin/IGF receptors on tumor cells [23]. Expression of CD133, Notch1, Notch2, and Notch4 receptors was significantly higher in PCa tissues than in pancreatic tissues from patients with benign lesions [13]. Patients with lower levels of lactate and higher levels of human equilibrium nucleoside transporter (hENT1) in PCa tissue had better survival rates [24]. Disheveled-axin (DIX) domain (DIXDC1), a protein containing a coiled-coil domain and a DIX domain, was also highly expressed in PCa tissues and correlated with worse OS [25]. By contrast, expression of the V-domain Ig suppressor of T cell activation (VISTA) in PCa tissues was significantly associated with prolonged OS [26], and while expression of PD-1 or PD-L1 in pancreatic neuroendocrine tumors was rare, expression of PD-L2 was common in neuroendocrine tumor subtypes. Expression of immune-related proteins was also altered, with well-differentiated pancreatic neuroendocrine tumors expressing low levels of PD-1 and PD-L1 [27]. Cancer-associated pancreatic fibroblasts isolated from the tumors of PCa patients showed higher expression of PD-L1 than primary dermal fibroblasts from healthy subjects [28]. Low HLA class I expression in PCa tissues was the only risk factor for poor survival; PD-L1-negative and HLA class I high-expressing PCa was significantly associated with an increased number of infiltrating CD8+ T cells in the TME, and with improved prognosis [29]. The spindle and kinetochore-associated genes SKA1-3 were highly expressed in PCa tissues; high expression of SKA1 and SKA3 was associated with a poor prognosis [30].

3.1.3. Immune Cell Types

Several biomarker candidates were also extracted for immune cells (Table 3). High CD38/CD101 co-expression by PD-1+ CD8+ T cells in the peripheral blood of PCa patients or tumor-infiltrating lymphocytes (TILs) in PCa tissues correlated significantly with tumor/node/metastasis (T/N/M) classification, and with clinical stage and survival [39]. Immune cell changes were more common in tumor tissue. Cytokines and chemokines associated with immune cells that were altered in tumor tissues may be potential biomarkers in blood. In PCa, the paraneoplastic stroma containing cancer cells harbored fewer CD8+ T cells than stroma without cancer cells [61]. By contrast, the number of tumor-infiltrating CD68+M, CD163+M2, and CD47 cells was higher, and these cells were significantly associated with decreased OS [32]. Expression of tumor antigens MYPT1, PSMC5, and TRFR was also significantly higher in PCa tissues than in healthy controls; patients with antibodies specific for these antigens showed improved disease-free survival after granulocyte macrophage colony-stimulating factor-secreting pancreatic cancer vaccine (GVAX) therapy [62]. Tumor-infiltrating T cells showed higher expression of galectin 9 than normal T cells [63].

3.2. Characteristics of BTC

3.2.1. Non-Coding RNA

No candidate blood biomarkers for BTC were extracted. Cholangiocarcinoma (CCA) tissues showed lower expression of the lncRNA miR-155 host gene (miR-155HG). In addition, miR-155HG was closely associated with improved OS [19].

3.2.2. Protein Expression

MFAP5 levels in the serum of ICC patients and expression of MFAP5 in the ECC tissues was lower than in healthy controls [59]. The co-stimulatory receptor GITR, and co-inhibitory receptors PD-1 and CTLA4, were overexpressed by TILs when compared with T cells in blood and normal tissues [52]. Some candidate biomarkers in blood that had been altered in the tissue were also extracted. In GBC tissues, elevated expression of SPTLC1 and CERS2, and that of their product C24-ceramide, was associated with tumor stage, distal metastasis, and poor prognosis [56]. Expression of BUB1B was increased in CCA tissues, and ECC patients with high expression of BUB1B showed worse OS and recurrence-free survival than those with low expression of BUB1B [58]. Cks2 was significantly elevated in BTC tissues, and its overexpression was associated with poor differentiation, CA19-9, and a poor prognosis [57].

3.2.3. Immune Cell Types

Serum soluble FasL, MCP-1, and interferon-γ also correlated with poor prognosis in BTC patients [55]. Some immune cells that had been altered in the tissue were extracted. The percentage of cytotoxic T cells and natural killer cells was lower in CCA tissues than in normal tissues; however, the percentage of regulatory T cells was higher [52]. In ECC patients, a higher ratio of PD-1(+)/CD8(+) TILs meant lower OS, recurrence-free survival, and distant metastasis-free survival [73]. The number of PD-1+ T cells and expression of PD-L1 in the tumor tissues of ICC patients were elevated, which had a negative impact on prognosis. By contrast, high numbers of PD-1+ T cells or high expression of PD-L1 in normal tissues had no effect on prognosis [60]. Furthermore, expression of HHLA2 in ICC tissues was more common than that of PD-L1 (49.0% vs. 28.1%, respectively); overexpression of HHLA2 was associated with decreased CD3 + TIL and CD8 + TIL numbers and higher CD4+ Foxp3+/CD8 + TIL ratios, which affected OS. By contrast, infiltration of the tumor by PD-L1-expressing T cells and CD163+ tumor-associated macrophages were not associated with OS [53].

3.3. Treatment of PCa and BTC

3.3.1. PCa, BTC, and Immune Checkpoint Inhibition

In recent years, immune checkpoint inhibitors have been used to treat cancer. CD8+ cytotoxic T cells are important effectors of the immune response against cancer. Immune checkpoint inhibitors are effective only when CD8+ T cells infiltrate the tumor; thus, immune checkpoint inhibitors alone are ineffective against PCa because CD8+ T cells do not infiltrate the tumor [74,75]. Many factors regulate the movement of CD8+ T cells, including activation of the tumor endothelium by T cell-derived IL-3, which triggers T cell infiltration [44], and deficiency of tumor ETS homology factor, which causes a decrease in the number of regulatory T cells, myeloid-derived suppressor cells, and tumor-infiltrating CD8+ T cells [37]. Although metastatic PCa tumors are largely resistant to anti-PD-1 therapy, blockade of PD-1 in granulin-depleted tumors restores anti-tumor immunity [36]. PD-1/PD-L1 and CD8 T cells are closely related, as PD-1 blockade can increase CD8 T cell and tumor-specific interferon-γ production in the tumor microenvironment [38] or produce anti-tumor effects by increasing KLRG1 + LAG3 - TNFα+ tumor-specific T cells in tumors [76]. Bone marrow cells inhibit CD8+ T cell anti-tumor activity by inducing expression of PD-L1 by tumor cells in an epidermal growth factor receptor (EGFR)/mitogen-activated protein kinase (MAPK)-dependent manner [67]. In addition, there are many pathways that alter immune cells, such as when gastrin is stimulated concurrently with PD-1 AB administration, tumors have less fibrosis, inhibitory Treg lymphocytes, and tumor-associated macrophages [41]. The combination of an anti-PD-L1 mouse monoclonal (MAb) and a TGF-β type I receptor small molecule kinase inhibitor (LY364947) results in the long-term survival of mice due to the influx of CD8α T cells into the TME [77]. Moreover, the combination of entinostat (ENT), a histone deacetylase inhibitor, and immune checkpoint inhibition significantly alter the infiltration and function of innate immune cells, allowing for a more potent adaptive immune response [65]. Inhibition of MLL1, a PD-L1 transcriptional activator, in combination with an anti-PD-L1 or an anti-PD-1 antibody, effectively suppresses pancreatic tumor growth in a FasL- and CTL-dependent manner [35]. In addition, immune checkpoint inhibitors are important in combination with other drugs, as inhibition of over-activated focal adhesion kinase (FAK) greatly reduces tumor fibrosis and the number of tumor-infiltrating immunosuppressive cells, making them sensitive to T-cell immunotherapy and PD-1 antagonists [33]. The role of CD8+ T cells in immune checkpoint inhibition is very important; for example, treatment with a small glutamine analog (6-diazo-5-oxo-L-norleucine [DON]) reduces the amount of hyaluronan and collagen in the TME, leading to extensive remodeling of the extracellular matrix and increased infiltration by CD8+ T cells [78]. On the other hand, other immune cells have also been implicated in anti-tumor effects, such as CD4+-dependent anti-tumor effects [66] and innate lymphocytes (ILC2), which are anticancer immune cells in PCa immunotherapy and emerge as tissue-specific enhancers of cancer immunity that amplify the efficacy of anti-PD-1 immunotherapy [64]. Partial activation of CD11b leads to repolarization of tumor-associated macrophages, reduced numbers of tumor-infiltrating immunosuppressive myeloid cells, and enhanced dendritic cell responses, all of which improve anti-tumor T cell-mediated immunity and make checkpoint inhibitors effective in previously unresponsive PCa models [34]. Targeting immune cells is important; indeed, the combination of a CD40 agonist and a PD-1 antagonist MAb exerts anti-tumor effects, which are manifested through tumor infiltration by IFNγ-, Granzyme B-, and TNFα-secreting effector T cells [79]. The combination of agonist antibodies (ABS) targeting the immunostimulatory CD40 receptor plus MEK inhibitors suppressing M2 macrophages, bone marrow-derived suppressor cells, and T regulatory cells generates a potent synergistic anti-tumor effect [69]. Mice with EHF-overexpressing tumors responded significantly better to anti-PD-1 therapy than those with control tumors [37]. In addition, anti-PD-L1 therapy sensitized pancreatic cancer cells to antiangiogenic therapy and, conversely, antiangiogenic therapy improved anti-PD-L1 therapy [80].

3.3.2. Resistance of PCa and BTC to Chemotherapy

Although gemcitabine is used as a drug to treat PCa, cancer often becomes resistant; this is one of the reasons PCa is difficult to treat [81]. Cancer stem-like cells (CSLC), which can differentiate into a variety of mature cell types, have a high rate of metastasis and are implicated in resistance to chemotherapy [82]. Chemoresistant cancer cells possess stem-like characteristics, such as the ability to form spheres and high expression of cancer stem cell-like surface markers CD44/CD133 [83]. Therefore, it is important to target CSLCs. The combination of activated T cells and cutamaxomab eliminates CSLCs [46]. Soluble vascular cell adhesion molecule-1 (SVCAM-1) increases tumor resistance to gemcitabine [47]; however, combining gemcitabine with inhibition of the adhesion molecule L1CAM (CD171) reduces VEGF expression and the number of CD31-positive vessels, resulting in a stronger anti-tumor effect [45]. Cell adhesion molecules are also implicated in chemotherapy resistance. Knockdown of Slug, which regulates epithelial-mesenchymal transition (EMT), makes cells sensitive to gemcitabine [50]. Increased activity of LOX family proteins promotes chemoresistance because LOX proteins mediate collagen cross-linking and reinforce the tumor stroma and extracellular matrix (ECM), thereby promoting resistance to chemotherapy [48]. In addition, miRNAs are involved. MiR-205 reduces the expression of chemoresistance markers and re-sensitizes cells to gemcitabine [17]. In addition, the combination of ursolic acid and gemcitabine decreases Ki67 and miR-29A expression, thereby inhibiting tumor cell proliferation [84]. Expression of exosomal ephrin A receptor 2 (EphA2) may induce chemoresistance [31], whereas suppression of the NF-κB pathway may make cells sensitive to gemcitabine [85].

4. Discussion

There were many more studies of PCa (n = 61) than of BTC (n = 11), which may reflect the overwhelmingly larger numbers of PCa patients compared with BTC patients. However, such as PCa, BTC is a cancer that is difficult to diagnose/treat and has a poor prognosis; therefore, it is important to identify biomarkers for this cancer type. In addition, for clinical application, it is important to clarify whether PCa biomarkers can be used as BTC biomarkers in PCa and BTC, which have similar characteristics. We found differential expression of many miRNAs in PCa and BTC patients compared with healthy individuals. MiRNAs are small non-coding RNAs that negatively regulate the expression of most of the mRNAs in cells and have unique and diverse expression patterns in cancers [86]. Because miRNAs expression is altered not only in cancer tissues but also in plasma, blood-borne miRNAs such as miR-21 and miR-107 are promising biomarkers for diagnosis and prognosis of PCa and BTC. Protein expressions and immune cell compositions are also different in cancer tissues and normal tissues. Usually, tissue biomarkers are useful for predicting cancer prognosis and resistance to treatment but cannot be used for diagnosis. However, we found that many biomarkers in tissue also appeared in the blood. Thus, it is important to investigate the expression of tissue biomarkers in blood. In addition, there are many therapeutic targets for PCa and BTC, which can be useful biomarkers in blood. For example, the number of immune cells, such as cytotoxic T cells and natural killer cells, was low in PCa and BTC, whereas expression of immune checkpoint molecules, such as PD-1/PD-L1 and PD2/PDL2, was high. Immune checkpoint inhibitors are promising cancer drugs, but they are only effective when CD8+ T cells can infiltrate the tumor [74]. Hence, disease prognosis and sensitivity to immune checkpoint inhibitors can be predicted by examining immune checkpoint molecules, such as PD-1/PD-L1, and immune cells, such as CD8 + T cells, in the blood. In addition, stem cell markers may be useful biomarkers of chemotherapy resistance. Currently, cell-free DNA sequencing is in progress in the US, and miRNA testing technology is being developed in Japan. Especially, the methylation status of cell-free DNA is one of the most promising circulating biomarkers for various cancer detection [87].

5. Conclusions

A large number of miRNAs were extracted as candidate biomarkers in blood for the diagnosis and prognosis of PCa and BTC. A total of 37 biomarkers for diagnosis, 22 biomarkers for prognosis, and 23 biomarkers for treatment resistance were detected. Thus far, it is hard to predict which markers would be better than the others, thus that we should keep on investigating and verifying many kinds of biomarkers in parallel. Ultimately, some combinations of several different types of biomarkers will be applied to future clinical practice. Further research for biomarkers in the blood is warranted for early detection and proper management of PCa and BTC.

Author Contributions

Study design, H.T., J.M.; data collection, H.T., C.O., K.T., H.M., E.O., A.S., R.Y. and Y.S. (Yusuke Serizawa); writing—original draft preparation, H.T.; writing—review and editing, J.M., T.O. and Y.S. (Yoshimasa Saito). All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by a Grant-in-Aid for Scientific Research C (17K09471, to J.M.) from the Japan Society for the Promotion of Science (JSPS).

Institutional Review Board Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef]
  2. Seufferlein, T.; Mayerle, J. Pancreatic cancer in 2015: Precision medicine in pancreatic cancer—Fact or fiction? Nat. Rev. Gastroen-terol. Hepatol. 2016, 13, 74–75. [Google Scholar] [CrossRef]
  3. Jansen, H.; Pape, U.-F.; Utku, N. A review of systemic therapy in biliary tract carcinoma. J. Gastrointest. Oncol. 2020, 11, 770–789. [Google Scholar] [CrossRef]
  4. Banales, J.M.; Cardinale, V.; Carpino, G.; Marzioni, M.; Andersen, J.B.; Invernizzi, P.; Lind, G.E.; Folseraas, T.; Forbes, S.J.; Fouassier, L.; et al. Expert consensus document: Cholangiocarcinoma: Current knowledge and future perspectives consensus statement from the European Network for the Study of Cholangiocarcinoma (ENS-CCA). Nat. Rev. Gastroenterol. Hepatol. 2016, 13, 261–280. [Google Scholar] [CrossRef]
  5. Wang, Y.; Li, J.; Xia, Y.; Gong, R.; Wang, K.; Yan, Z.; Wan, X.; Liu, G.; Wu, D.; Shi, L.; et al. Prognostic nomogram for intrahepatic cholangiocarcinoma after partial hepatectomy. J. Clin. Oncol. 2013, 31, 1188–1195. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, S.J.; Lemieux, A.; Kalpathy-Cramer, J.; Ord, C.B.; Walker, G.V.; Fuller, C.; Kim, J.-S.; Thomas, C.R., Jr. Nomogram for predicting the benefit of adjuvant chemoradiotherapy for resected gallbladder cancer. J. Clin. Oncol. 2011, 29, 4627–4632. [Google Scholar] [CrossRef] [Green Version]
  7. Anderson, C.; Kim, R. Adjuvant therapy for resected extrahepatic cholangiocarcinoma: A review of the literature and future directions. Cancer Treat. Rev. 2009, 35, 322–327. [Google Scholar] [CrossRef]
  8. De Oliveira, M.L.; Cunningham, S.C.; Cameron, J.L.; Kamangar, F.; Winter, J.M.; Lillemoe, K.D.; Choti, M.A.; Yeo, C.J.; Schulick, R.D. Cholangiocarcinoma: Thirty-one-year experience with 564 patients at a single institution. Ann. Surg. 2007, 245, 755–762. [Google Scholar] [CrossRef]
  9. Miyamae, M.; Komatsu, S.; Ichikawa, D.; Kawaguchi, T.; Hirajima, S.; Okajima, W.; Ohashi, T.; Imamura, T.; Konishi, H.; Shiozaki, A.; et al. Plasma microRNA profiles: Identification of miR-744 as a novel diagnostic and prognostic biomarker in pancreatic cancer. Br. J. Cancer 2015, 113, 1467–1476. [Google Scholar] [CrossRef] [PubMed]
  10. Song, W.-F.; Wang, L.; Huang, W.-Y.; Cai, X.; Cui, J.-J.; Wang, L.-W. MiR-21 upregulation induced by promoter zone histone acetylation is associated with chemoresistance to gemcitabine and enhanced malignancy of pancreatic cancer cells. Asian Pac. J. Cancer Prev. 2013, 14, 7529–7536. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Ali, S.; Almhanna, K.; Chen, W.; Philip, P.A.; Sarkar, F.H. Differentially expressed miRNAs in the plasma may provide a molecular signature for aggressive pancreatic cancer. Am. J. Transl. Res. 2010, 3, 28–47. [Google Scholar]
  12. Ye, Z.-Q.; Zou, C.-L.; Chen, H.-B.; Jiang, M.-J.; Mei, Z.; Gu, D.-N. MicroRNA-7 as a Potential Biomarker for Prognosis in Pancreatic Cancer. Dis. Markers 2020, 2020, 1–13. [Google Scholar] [CrossRef] [PubMed]
  13. Long, L.-M.; Zhan, J.-K.; Wang, H.-Q.; Li, S.; Chen, Y.-Y.; Liu, Y.-S. The Clinical Significance of miR-34a in Pancreatic Ductal Carcinoma and Associated Molecular and Cellular Mechanisms. Pathobiology 2017, 84, 38–48. [Google Scholar] [CrossRef] [PubMed]
  14. Imamura, T.; Komatsu, S.; Ichikawa, D.; Miyamae, M.; Okajima, W.; Ohashi, T.; Kiuchi, J.; Nishibeppu, K.; Konishi, H.; Shiozaki, A.; et al. Depleted tumor suppressor miR-107 in plasma relates to tumor progression and is a novel therapeutic target in pancreatic cancer. Sci. Rep. 2017, 7, 1–14. [Google Scholar] [CrossRef]
  15. Goto, T.; Fujiya, M.; Konishi, H.; Sasajima, J.; Fujibayashi, S.; Hayashi, A.; Utsumi, T.; Sato, H.; Iwama, T.; Ijiri, M.; et al. An elevated expression of serum exosomal microRNA-191, -21, -451a of pancreatic neoplasm is considered to be efficient diagnostic marker. BMC Cancer 2018, 18, 1–11. [Google Scholar] [CrossRef] [Green Version]
  16. Deng, Z.; Li, X.; Shi, Y.; Lu, Y.; Yao, W.; Wang, J. A Novel Autophagy-Related IncRNAs Signature for Prognostic Prediction and Clinical Value in Patients With Pancreatic Cancer. Front. Cell Dev. Biol. 2020, 8, 606817. [Google Scholar] [CrossRef] [PubMed]
  17. Chaudhary, A.K.; Mondal, G.; Kumar, V.; Kattel, K.; Mahato, R.I. Chemosensitization and inhibition of pancreatic cancer stem cell proliferation by overexpression of mi-croRNA-205. Cancer Lett. 2017, 402, 1–8. [Google Scholar] [CrossRef] [PubMed]
  18. Reese, M.; Flammang, I.; Yang, Z.; Dhayat, S.A.; Yang, Z. Potential of Exosomal microRNA-200b as Liquid Biopsy Marker in Pancreatic Ductal Adenocarcinoma. Cancers 2020, 12, 197. [Google Scholar] [CrossRef] [Green Version]
  19. Peng, L.; Chen, Z.; Chen, Y.; Wang, X.; Tang, N. MIR155HG is a prognostic biomarker and associated with immune infiltration and immune checkpoint molecules expression in multiple cancers. Cancer Med. 2019, 8, 7161–7173. [Google Scholar] [CrossRef] [Green Version]
  20. Wang, G.; Kang, M.-X.; Lu, W.-J.; Chen, Y.; Zhang, B.; Wu, Y.-L. MACC1: A potential molecule associated with pancreatic cancer metastasis and chemoresistance. Oncol. Lett. 2012, 4, 783–791. [Google Scholar] [CrossRef] [Green Version]
  21. Merz, V.; Zecchetto, C.; Santoro, R.; Simionato, F.; Sabbadini, F.; Mangiameli, D.; Piro, G.; Cavaliere, A.; Deiana, M.; Valenti, M.T.; et al. Plasma IL8 Is a Biomarker for TAK1 Activation and Predicts Resistance to Nanoliposomal Irinotecan in Patients with Gemcitabine-Refractory Pancreatic Cancer. Clin. Cancer Res. 2020, 26, 4661–4669. [Google Scholar] [CrossRef] [PubMed]
  22. Xu, J.; Xiong, G.; Cao, Z.; Huang, H.; Wang, T.; You, L.; Zhou, L.; Zheng, L.; Hu, Y.; Zhang, T.; et al. PIM-1 contributes to the malignancy of pancreatic cancer and displays diagnostic and prognostic value. J. Exp. Clin. Cancer Res. 2016, 35, 133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Ireland, L.; Santos, A.; Ahmed, M.S.; Rainer, C.; Nielsen, S.R.; Quaranta, V.; Weyer-Czernilofsky, U.; Engle, D.D.; Perez-Mancera, P.A.; Coupland, S.E.; et al. Chemoresistance in Pancreatic Cancer Is Driven by Stroma-Derived Insulin-Like Growth Factors. Cancer Res. 2016, 76, 6851–6863. [Google Scholar] [CrossRef] [Green Version]
  24. Phua, L.C.; Goh, S.; Tai, D.W.M.; Leow, W.Q.; Alkaff, S.M.F.; Chan, C.Y.; Kam, J.H.; Lim, T.K.H.; Chan, E.C.Y. Metabolomic prediction of treatment outcome in pancreatic ductal adenocarcinoma patients receiving gemcitabine. Cancer Chemother. Pharmacol. 2018, 81, 277–289. [Google Scholar] [CrossRef]
  25. Li, X.; Xiao, Y.; Fan, S.; Xiao, M.; Wang, X.; Zhu, X.; Chen, X.; Li, C.; Zong, G.; Zhou, G.; et al. Overexpression of DIXDC1 correlates with enhanced cell growth and poor prognosis in human pancreatic ductal adenocarcinoma. Hum. Pathol. 2016, 57, 182–192. [Google Scholar] [CrossRef] [PubMed]
  26. Hou, Z.; Pan, Y.; Fei, Q.; Lin, Y.; Zhou, Y.; Liu, Y.; Guan, H.; Yu, X.; Lin, X.; Lu, F.; et al. Prognostic significance and therapeutic potential of the immune checkpoint VISTA in pancreatic cancer. J. Cancer Res. Clin. Oncol. 2021, 147, 517–531. [Google Scholar] [CrossRef]
  27. da Silva, A.; Bowden, M.; Zhang, S.; Masugi, Y.; Thorner, A.R.; Herbert, Z.T.; Zhou, C.W.; Brais, L.; Chan, J.A.; Hodi, S.; et al. Characterization of the Neuroendocrine Tumor Immune Microenvironment. Pancreas 2018, 47, 1123–1129. [Google Scholar] [CrossRef]
  28. Gorchs, L.; Moro, C.F.; Bankhead, P.; Kern, K.P.; Sadeak, I.; Meng, Q.; Rangelova, E.; Kaipe, H. Human Pancreatic Carcinoma-Associated Fibroblasts Promote Expression of Co-inhibitory Markers on CD4(+) and CD8(+) T-Cells. Front. Immunol. 2019, 10, 847. [Google Scholar] [CrossRef]
  29. Imai, D.; Yoshizumi, T.; Okano, S.; Uchiyama, H.; Ikegami, T.; Harimoto, N.; Itoh, S.; Soejima, Y.; Aishima, S.; Oda, Y.; et al. The prognostic impact of programmed cell death ligand 1 and human leukocyte antigen class I in pancreatic cancer. Cancer Med. 2017, 6, 1614–1626. [Google Scholar] [CrossRef]
  30. Liu, Y.; Jin, Z.-R.; Huang, X.; Che, Y.-C.; Liu, Q. Identification of Spindle and Kinetochore-Associated Family Genes as Therapeutic Targets and Prognostic Biomarkers in Pancreas Ductal Adenocarcinoma Microenvironment. Front. Oncol. 2020, 10, 553536. [Google Scholar] [CrossRef] [PubMed]
  31. Fan, J.; Wei, Q.; Koay, E.J.; Liu, Y.; Ning, B.; Bernard, P.W.; Zhang, N.; Han, H.; Katz, M.H.; Zhao, Z.; et al. Chemoresistance Transmission via Exosome-Mediated EphA2 Transfer in Pancreatic Cancer. Theranostics 2018, 8, 5986–5994. [Google Scholar] [CrossRef] [PubMed]
  32. Pan, Y.; Lu, F.; Fei, Q.; Yu, X.; Xiong, P.; Yu, X.; Dang, Y.; Hou, Z.; Lin, W.; Lin, X.; et al. Single-cell RNA sequencing reveals compartmental remodeling of tumor-infiltrating immune cells induced by anti-CD47 targeting in pancreatic cancer. J. Hematol. Oncol. 2019, 12, 1–18. [Google Scholar] [CrossRef]
  33. Jiang, H.; Hegde, S.; Knolhoff, B.L.; Zhu, Y.; Herndon, J.M.; Meyer, M.; Nywening, T.M.; Hawkins, T.G.; Shapiro, I.M.; Weaver, D.T.; et al. Targeting focal adhesion kinase renders pancreatic cancers responsive to checkpoint immunotherapy. Nat. Med. 2016, 22, 851–860. [Google Scholar] [CrossRef] [PubMed]
  34. Panni, R.Z.; Herndon, J.M.; Zuo, C.; Hegde, S.; Hogg, G.D.; Knolhoff, B.L.; Breden, M.A.; Li, X.; Krisnawan, V.E.; Khan, S.Q.; et al. Agonism of CD11b reprograms innate immunity to sensitize pancreatic cancer to immunotherapies. Sci. Transl. Med. 2019, 11, eaau9240. [Google Scholar] [CrossRef]
  35. Lu, C.; Paschall, A.V.; Shi, H.; Savage, N.; Waller, J.L.; Sabbatini, M.E.; Oberlies, N.; Pearce, C.; Liu, K. The MLL1-H3K4me3 Axis-Mediated PD-L1 Expression and Pancreatic Cancer Immune Evasion. J. Natl. Cancer Inst. 2017, 109, djw283. [Google Scholar] [CrossRef] [Green Version]
  36. Quaranta, V.; Rainer, C.; Nielsen, S.R.; Raymant, M.L.; Ahmed, M.S.; Engle, D.D.; Taylor, A.; Murray, T.; Campbell, F.; Palmer, D.H.; et al. Macrophage-Derived Granulin Drives Resistance to Immune Checkpoint Inhibition in Metastatic Pancreatic Cancer. Cancer Res. 2018, 78, 4253–4269. [Google Scholar] [CrossRef] [Green Version]
  37. Liu, J.; Jiang, W.; Zhao, K.; Wang, H.; Zhou, T.; Bai, W.; Wang, X.; Zhao, T.; Huang, C.; Gao, S.; et al. Tumoral EHF predicts the efficacy of anti-PD1 therapy in pancreatic ductal adenocarcinoma. J. Exp. Med. 2019, 216, 656–673. [Google Scholar] [CrossRef] [Green Version]
  38. Soares, K.C.; Rucki, A.A.; Wu, A.; Olino, K.; Xiao, Q.; Chai, Y.; Wamwea, A.; Bigelow, E.; Lutz, E.; Liu, L.; et al. PD-1/PD-L1 blockade together with vaccine therapy facilitates effector t-cell infiltration into pancreatic tumors. J. Immunother. 2015, 38, 1–11. [Google Scholar] [CrossRef] [Green Version]
  39. Zhang, M.; Yang, J.; Zhou, J.; Gao, W.; Zhang, Y.; Lin, Y.; Wang, H.; Ruan, Z.; Ni, B. Prognostic Values of CD38(+)CD101(+)PD1(+)CD8(+) T Cells in Pancreatic Cancer. Immunol. Investig. 2019, 48, 466–479. [Google Scholar] [CrossRef]
  40. Kanaya, N.; Kuroda, S.; Kakiuchi, Y.; Kumon, K.; Tsumura, T.; Hashimoto, M.; Morihiro, T.; Kubota, T.; Aoyama, K.; Kikuchi, S.; et al. Immune Modulation by Telomerase-Specific Oncolytic Adenovirus Synergistically Enhances Antitumor Efficacy with Anti-PD1 Antibody. Mol. Ther. 2020, 28, 794–804. [Google Scholar] [CrossRef]
  41. Osborne, N.; Sundseth, R.; Burks, J.; Cao, H.; Liu, X.; Kroemer, A.H.; Sutton, L.; Cato, A.; Smith, J.P. Gastrin vaccine improves response to immune checkpoint antibody in murine pancreatic cancer by altering the tu-mor microenvironment. Cancer Immunol. Immunother. 2019, 68, 1635–1648. [Google Scholar] [CrossRef]
  42. Liu, P.; Weng, Y.; Sui, Z.; Wu, Y.; Meng, X.; Wu, M.; Jin, H.; Tan, X.; Zhang, L.; Zhang, Y. Quantitative secretomic analysis of pancreatic cancer cells in serum-containing conditioned medium. Sci. Rep. 2016, 6, 37606. [Google Scholar] [CrossRef] [Green Version]
  43. Oberg, H.-H.; Kellner, C.; Gonnermann, D.; Sebens, S.; Bauerschlag, D.; Gramatzki, M.; Kabelitz, D.; Peipp, M.; Wesch, D.; Kellner, C.; et al. Tribody [(HER2)(2)×CD16] Is More Effective Than Trastuzumab in Enhancing γδ T Cell and Natural Killer Cell Cytotoxicity Against HER2-Expressing Cancer Cells. Front. Immunol. 2018, 9, 814. [Google Scholar] [CrossRef]
  44. Zaidi, N.; Quezada, S.A.; Kuroiwa, J.M.Y.; Zhang, L.; Jaffee, E.M.; Steinman, R.M.; Wang, B. Anti-CTLA-4 synergizes with dendritic cell-targeted vaccine to promote IL-3-dependent CD4(+) effector T cell infiltration into murine pancreatic tumors. Ann. N. Y. Acad. Sci. 2019, 1445, 62–73. [Google Scholar] [CrossRef]
  45. Schäfer, H.; Dieckmann, C.; Korniienko, O.; Moldenhauer, G.; Kiefel, H.; Salnikov, A.; Krüger, A.; Altevogt, P.; Sebens, S. Combined treatment of L1CAM antibodies and cytostatic drugs improve the therapeutic response of pancreatic and ovarian carcinoma. Cancer Lett. 2012, 319, 6–82. [Google Scholar] [CrossRef]
  46. Umebayashi, M.; Kiyota, A.; Koya, N.; Tanaka, H.; Onishi, H.; Katano, M.; Morisaki, T. An epithelial cell adhesion molecule- and CD3-bispecific antibody plus activated T-cells can eradicate chemo-resistant cancer stem-like pancreatic carcinoma cells in vitro. Anticancer. Res. 2014, 34, 4509–4519. [Google Scholar]
  47. Takahashi, R.; Ijichi, H.; Sano, M.; Miyabayashi, K.; Mohri, D.; Kim, J.; Kimura, G.; Nakatsuka, T.; Fujiwara, H.; Yamamoto, K.; et al. Soluble VCAM-1 promotes gemcitabine resistance via macrophage infiltration and predicts therapeutic response in pancreatic cancer. Sci. Rep. 2020, 10, 1–13. [Google Scholar] [CrossRef]
  48. Le Calvé, B.; Griveau, A.; Vindrieux, D.; Maréchal, R.; Wiel, C.; Svrcek, M.; Gout, J.; Azzi-Martin, L.; Payen, L.; Cros, J.; et al. Lysyl oxidase family activity promotes resistance of pancreatic ductal adenocarcinoma to chemotherapy by limiting the intratumoral anticancer drug distribution. Oncotarget 2016, 7, 32100–32112. [Google Scholar] [CrossRef] [Green Version]
  49. Thakur, P.C.; Miller-Ocuin, J.L.; Nguyen, K.; Matsuda, R.; Singhi, A.D.; Zeh, H.J.; Bahary, N. Inhibition of endoplasmic-reticulum-stress-mediated autophagy enhances the effectiveness of chemotherapeutics on pancreatic cancer. J. Transl. Med. 2018, 16, 190. [Google Scholar] [CrossRef] [PubMed]
  50. Tsukasa, K.; Ding, Q.; Yoshimitsu, M.; Miyazaki, Y.; Matsubara, S.; Takao, S. Slug contributes to gemcitabine resistance through epithelial-mesenchymal transition in CD133(+) pancreatic cancer cells. Hum. Cell 2015, 28, 167–174. [Google Scholar] [CrossRef]
  51. Qi, B.; Liu, H.; Dong, Y.; Shi, X.; Zhou, Q.; Zeng, F.; Bao, N.; Li, Q.; Yuan, Y.; Yao, L.; et al. The nine ADAMs family members serve as potential biomarkers for immune infiltration in pancreatic adenocarcinoma. PeerJ 2020, 8, e9736. [Google Scholar] [CrossRef]
  52. Zhou, G.; Sprengers, D.; Mancham, S.; Erkens, R.; Boor, P.P.C.; van Beek, A.A.; Doukas, M.; Noordam, L.; Carrascosa, L.C.; Ruiter, V.; et al. Reduction of immunosuppressive tumor microenvironment in cholangiocarcinoma by ex vivo targeting immune check-point molecules. J. Hepatol. 2019, 71, 753–762. [Google Scholar] [CrossRef] [PubMed]
  53. Jing, C.-Y.; Fu, Y.-P.; Yi, Y.; Zhang, M.-X.; Zheng, S.-S.; Huang, J.-L.; Gan, W.; Xu, X.; Lin, J.-J.; Zhang, J.; et al. HHLA2 in intrahepatic cholangiocarcinoma: An immune checkpoint with prognostic significance and wider expression compared with PD-L1. J. Immunother. Cancer 2019, 7, 77. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Liu, Y.; Cheng, Y.; Xu, Y.; Wang, Z.; Du, X.; Li, C.; Peng, J.; Gao, L.; Liang, X.; Ma, C. Increased expression of programmed cell death protein 1 on NK cells inhibits NK-cell-mediated anti-tumor function and indicates poor prognosis in digestive cancers. Oncogene 2017, 36, 6143–6153. [Google Scholar] [CrossRef] [Green Version]
  55. Feng, K.; Liu, Y.; Zhao, Y.; Yang, Q.; Dong, L.; Liu, J.; Li, X.; Zhao, Z.; Mei, Q.; Han, W. Efficacy and biomarker analysis of nivolumab plus gemcitabine and cisplatin in patients with unresectable or metastatic biliary tract cancers: Results from a phase II study. J. Immunother. Cancer 2020, 8, e000367. [Google Scholar] [CrossRef] [PubMed]
  56. Zhang, Y.; Wang, H.; Chen, T.; Wang, H.; Liang, X.; Zhang, Y.; Duan, J.; Qian, S.; Qiao, K.; Zhang, L.; et al. C24-Ceramide Drives Gallbladder Cancer Progression Through Directly Targeting Phosphatidylinositol 5-Phosphate 4-Kinase Type-2 Gamma to Facilitate Mammalian Target of Rapamycin Signaling Activation. Hepatology 2021, 73, 692–712. [Google Scholar] [CrossRef]
  57. Shen, D.-Y.; Zhan, Y.-H.; Wang, Q.-M.; Rui, G.; Zhang, Z.-M. Oncogenic potential of Cyclin Kinase Subunit-2 in cholangiocarcinoma. Liver Int. 2013, 33, 137–148. [Google Scholar] [CrossRef] [PubMed]
  58. Jiao, C.Y.; Feng, Q.C.; Li, C.X.; Wang, D.; Han, S.; Zhang, Y.D.; Jiang, W.J.; Chang, J.; Wang, X.; Li, X.C. BUB1B promotes extrahepatic cholangiocarcinoma progression via JNK/c-Jun pathways. Cell Death Dis. 2021, 12, 1–13. [Google Scholar] [CrossRef]
  59. Li, J.-H.; Zhu, X.-X.; Li, F.-X.; Huang, C.-S.; Huang, X.-T.; Wang, J.-Q.; Gao, Z.-X.; Li, S.-J.; Xu, Q.-C.; Zhao, W.; et al. MFAP5 facilitates the aggressiveness of intrahepatic Cholangiocarcinoma by activating the Notch1 signaling pathway. J. Exp. Clin. Cancer Res. 2019, 38, 1–15. [Google Scholar] [CrossRef] [Green Version]
  60. Lu, J.-C.; Zeng, H.-Y.; Sun, Q.-M.; Meng, Q.-N.; Huang, X.-Y.; Zhang, P.-F.; Yang, X.; Peng, R.; Gao, C.; Wei, C.-Y.; et al. Distinct PD-L1/PD1 Profiles and Clinical Implications in Intrahepatic Cholangiocarcinoma Patients with Different Risk Factors. Theranostics 2019, 9, 4678–4687. [Google Scholar] [CrossRef] [PubMed]
  61. Seo, Y.D.; Jiang, X.; Sullivan, K.M.; Jalikis, F.G.; Smythe, K.S.; Abbasi, A.; Vignali, M.; Park, J.O.; Daniel, S.K.; Pollack, S.M.; et al. Mobilization of CD8(+) T Cells via CXCR4 Blockade Facilitates PD-1 Checkpoint Therapy in Human Pancreatic Cancer. Clin. Cancer Res. 2019, 25, 3934–3945. [Google Scholar] [CrossRef] [Green Version]
  62. Yuan, J. Circulating protein and antibody biomarker for personalized cancer immunotherapy. J. Immunother. Cancer 2016, 4, 46. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Seifert, A.M.; Reiche, C.; Heiduk, M.; Tannert, A.; Meinecke, A.-C.; Baier, S.; von Renesse, J.; Kahlert, C.; Distler, M.; Welsch, T.; et al. Detection of pancreatic ductal adenocarcinoma with galectin-9 serum levels. Oncogene 2020, 39, 3102–3113. [Google Scholar] [CrossRef] [Green Version]
  64. Moral, J.A.; Leung, J.; Rojas, L.A.; Ruan, J.; Zhao, J.; Sethna, Z.; Ramnarain, A.; Gasmi, B.; Gururajan, M.; Redmond, D.; et al. ILC2s amplify PD-1 blockade by activating tissue-specific cancer immunity. Nature 2020, 579, 130–135. [Google Scholar] [CrossRef]
  65. Christmas, B.J.; Rafie, C.I.; Hopkins, A.C.; Scott, B.A.; Ma, H.S.; Cruz, K.A.; Woolman, S.; Armstrong, T.D.; Connolly, R.M.; Azad, N.A.; et al. Entinostat Converts Immune-Resistant Breast and Pancreatic Cancers into Checkpoint-Responsive Tumors by Reprogramming Tumor-Infiltrating MDSCs. Cancer Immunol. Res. 2018, 6, 1561–1577. [Google Scholar] [CrossRef] [Green Version]
  66. Patel, J.M.; Cui, Z.; Wen, Z.-F.; Dinh, C.T.; Hu, H.-M. Peritumoral administration of DRibbles-pulsed antigen-presenting cells enhances the antitumor efficacy of anti-GITR and anti-PD-1 antibodies via an antigen presenting independent mechanism. J. Immunother. Cancer 2019, 7, 311. [Google Scholar] [CrossRef] [PubMed]
  67. Zhang, Y.; Velez-Delgado, A.; Mathew, E.; Li, D.; Mendez, F.M.; Flannagan, K.; Rhim, A.D.; Simeone, D.M.; Beatty, G.L.; di Magliano, M.P. Myeloid cells are required for PD-1/PD-L1 checkpoint activation and the establishment of an immunosuppressive environment in pancreatic cancer. Gut 2017, 66, 124–136. [Google Scholar] [CrossRef] [Green Version]
  68. Le, D.T.; Lutz, E.; Uram, J.N.; Sugar, E.A.; Onners, B.; Solt, S.; Zheng, L.; Diaz, L.A., Jr.; Donehower, R.C.; Jaffee, E.M.; et al. Evaluation of ipilimumab in combination with allogeneic pancreatic tumor cells transfected with a GM-CSF gene in previously treated pancreatic cancer. J. Immunother. 2013, 36, 382–389. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Baumann, D.; Hägele, T.; Mochayedi, J.; Drebant, J.; Vent, C.; Blobner, S.; Noll, J.H.; Nickel, I.; Schumacher, C.; Boos, S.L.; et al. Proimmunogenic impact of MEK inhibition synergizes with agonist anti-CD40 immunostimulatory antibodies in tumor therapy. Nat. Commun. 2020, 11, 1–18. [Google Scholar] [CrossRef]
  70. Stromnes, I.M.; Burrack, A.L.; Hulbert, A.; Bonson, P.; Black, C.; Brockenbrough, J.S.; Raynor, J.F.; Spartz, E.; Pierce, R.H.; Greenberg, P.D.; et al. Differential Effects of Depleting versus Programming Tumor-Associated Macrophages on Engineered T Cells in Pancreatic Ductal Adenocarcinoma. Cancer Immunol. Res. 2019, 7, 977–989. [Google Scholar] [CrossRef] [PubMed]
  71. Bengsch, F.; Knoblock, D.M.; Liu, A.; McAllister, F.; Beatty, G.L. CTLA-4/CD80 pathway regulates T cell infiltration into pancreatic cancer. Cancer Immunol. Immunother. 2017, 66, 1609–1617. [Google Scholar] [CrossRef]
  72. Brooks, J.; Fleischmann-Mundt, B.; Woller, N.; Niemann, J.; Ribback, S.; Peters, K.; Demir, I.E.; Armbrecht, N.; Ceyhan, G.O.; Manns, M.P.; et al. Perioperative, Spatiotemporally Coordinated Activation of T and NK Cells Prevents Recurrence of Pancreatic Cancer. Cancer Res. 2017, 78, 475–488. [Google Scholar] [CrossRef] [Green Version]
  73. Lim, Y.-J.; Koh, J.; Kim, K.; Chie, E.-K.; Kim, B.; Lee, K.-B.; Jang, J.-Y.; Kim, S.-W.; Oh, D.-Y.; Bang, Y.-J.; et al. High ratio of programmed cell death protein 1 (PD-1)(+)/CD8(+) tumor-infiltrating lymphocytes identifies a poor prog-nostic subset of extrahepatic bile duct cancer undergoing surgery plus adjuvant chemoradiotherapy. Radiother. Oncol. 2015, 117, 165–170. [Google Scholar] [CrossRef] [PubMed]
  74. Royal, R.E.; Levy, C.; Turner, K.; Mathur, A.; Hughes, M.; Kammula, U.S.; Sherry, R.M.; Topalian, S.L.; Yang, J.C.; Lowy, I.; et al. Phase 2 Trial of Single Agent Ipilimumab (Anti-CTLA-4) for Locally Advanced or Metastatic Pancreatic Adenocarcinoma. J. Immunother. 2010, 33, 828–833. [Google Scholar] [CrossRef] [PubMed]
  75. Brahmer, J.R.; Tykodi, S.S.; Chow, L.Q.M.; Hwu, W.-J.; Topalian, S.L.; Hwu, P.; Drake, C.G.; Camacho, L.H.; Kauh, J.; Odunsi, K.; et al. Safety and Activity of Anti–PD-L1 Antibody in Patients with Advanced Cancer. N. Engl. J. Med. 2012, 366, 2455–2465. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Burrack, A.L.; Spartz, E.J.; Raynor, J.F.; Wang, I.; Olson, M.; Stromnes, I.M. Combination PD-1 and PD-L1 Blockade Promotes Durable Neoantigen-Specific T Cell-Mediated Immunity in Pancreatic Ductal Adenocarcinoma. Cell Rep. 2019, 28, 2140–2155. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Sow, H.S.; Ren, J.; Camps, M.; Ossendorp, F.; ten Dijke, P. Combined Inhibition of TGF-β Signaling and the PD-L1 Immune Checkpoint Is Differentially Effective in Tumor Models. Cells 2019, 8, 320. [Google Scholar] [CrossRef] [Green Version]
  78. Sharma, N.; Gupta, V.K.; Garrido, V.T.; Hadad, R.; Durden, B.C.; Kesh, K.; Giri, B.; Ferrantella, A.; Dudeja, V.; Saluja, A.; et al. Targeting tumor-intrinsic hexosamine biosynthesis sensitizes pancreatic cancer to anti-PD1 therapy. J. Clin. Investig. 2020, 130, 451–465. [Google Scholar] [CrossRef] [Green Version]
  79. Ma, H.S.; Poudel, B.; Torres, E.R.; Sidhom, J.-W.; Robinson, T.M.; Christmas, B.; Scott, B.; Cruz, K.; Woolman, S.; Wall, V.Z.; et al. A CD40 Agonist and PD-1 Antagonist Antibody Reprogram the Microenvironment of Nonimmunogenic Tumors to Allow T-cell–Mediated Anticancer Activity. Cancer Immunol. Res. 2019, 7, 428–442. [Google Scholar] [CrossRef] [PubMed]
  80. Allen, E.; Jabouille, A.; Rivera, L.B.; Lodewijckx, I.; Missiaen, R.; Steri, V.; Feyen, K.; Tawney, J.; Hanahan, D.; Michael, I.P.; et al. Combined antiangiogenic and anti–PD-L1 therapy stimulates tumor immunity through HEV formation. Sci. Transl. Med. 2017, 9, eaak9679. [Google Scholar] [CrossRef] [Green Version]
  81. Sergeant, G.; Vankelecom, H.; Gremeaux, L.; Topal, B. Role of cancer stem cells in pancreatic ductal adenocarcinoma. Nat. Rev. Clin. Oncol. 2009, 6, 580–586. [Google Scholar] [CrossRef]
  82. Singh, A.; Settleman, J. EMT, cancer stem cells and drug resistance: An emerging axis of evil in the war on cancer. Oncogene 2010, 29, 4741–4751. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Dallas, N.A.; Xia, L.; Fan, F.; Gray, M.J.; Gaur, P.; Van Buren, G.; Samuel, S.; Kim, M.P.; Lim, S.J.; Ellis, L.M. Chemoresistant colorectal cancer cells, the cancer stem cell phenotype, and increased sensitivity to insulin-like growth factor-i receptor inhibition. Cancer Res. 2009, 69, 1951–1957. [Google Scholar] [CrossRef] [Green Version]
  84. Prasad, S.; Yadav, V.R.; Sung, B.; Gupta, S.C.; Tyagi, A.K.; Aggarwal, B.B. Ursolic acid inhibits the growth of human pancreatic cancer and enhances the antitumor potential of gemcitabine in an orthotopic mouse model through suppression of the inflammatory microenvironment. Oncotarget 2016, 7, 13182–13196. [Google Scholar] [CrossRef] [PubMed]
  85. Waters, J.A.; Matos, J.; Yip-Schneider, M.; Aguilar-Saavedra, J.R.; Crean, C.D.; Beane, J.D.; Dumas, R.P.; Suvannasankha, A.; Schmidt, C.M. Targeted nuclear factor-kappaB suppression enhances gemcitabine response in human pancreatic tumor cell line murine xenografts. Surgery 2015, 158, 881–889. [Google Scholar] [CrossRef] [PubMed]
  86. Landgraf, P.; Rusu, M.; Sheridan, R.; Sewer, A.; Iovino, N.; Aravin, A.; Pfeffer, S.; Rice, A.; Kamphorst, A.O.; Landthaler, M.; et al. A mammalian microrna expression atlas based on small rna library sequencing. Cell 2007, 129, 1401–1414. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  87. Liu, M.; Oxnard, G.; Klein, E.; Swanton, C.; Seiden, M.; Smith, D.; Richards, D.; Yeatman, T.J.; Cohn, A.L.; Lapham, R.; et al. Sensitive and specific multi-cancer detection and localization using methylation signatures in cell-free DNA. Ann. Oncol. 2020, 31, 745–759. [Google Scholar] [CrossRef]
Cancers 13 04220 g001 550

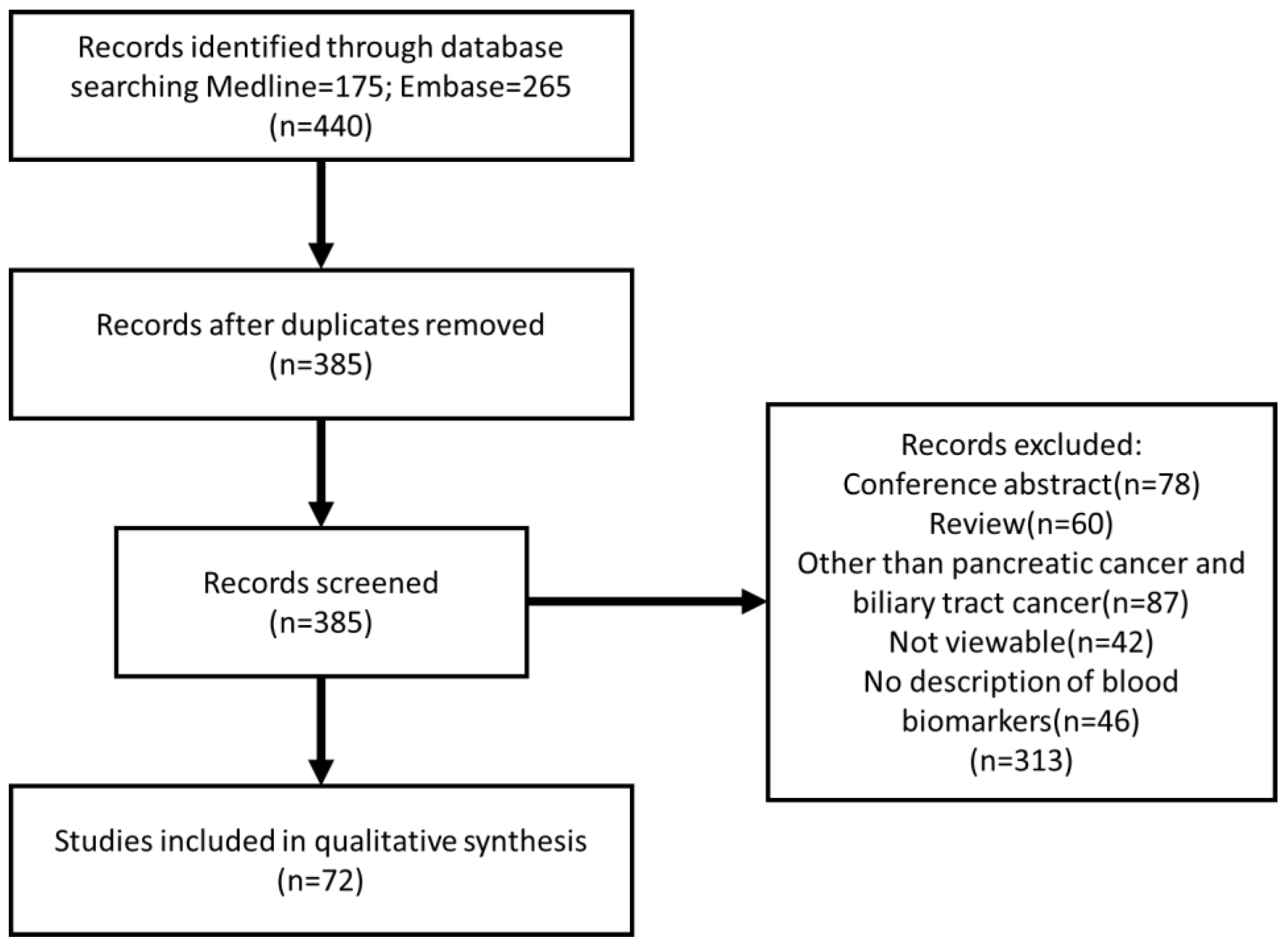

Figure 1. Flow diagram of literature search.
Figure 1. Flow diagram of literature search.
Cancers 13 04220 g001
Table
Table 1. Biomarker candidates for non-coding RNA identified in the present systematic review.
Table 1. Biomarker candidates for non-coding RNA identified in the present systematic review.
Cancer TypeBiomarkerDiagnosisPrognosisChemoresistanceSpeciesPlasmaSerumSerum ExosomeTissueRef.
PCamiR-205X XHuman, Mouse Y[17]
miR-7XX Human Y [12]
miR-200b, miR-200cX Human Y [18]
miR-191, miR-21, miR-451aXX Human Y [15]
miR-744XX HumanY [9]
LINC01559X XHuman Y [16]
miR-34a, miR-150XX HumanY Y[13]
miR-21 XHuman Y [10,11]
let-7XX HumanYY [11]
miR-107XX HumanY [14]
BTCmiR-155HGX XHuman Y[19]
PCa, pancreatic cancer; BTC, biliary tract cancer.
Table
Table 2. Biomarker candidates for proteins identified in the present systematic review.
Table 2. Biomarker candidates for proteins identified in the present systematic review.
Cancer TypeBiomarkerDiagnosisPrognosisChemoresistanceSpeciesPlasmaSerumTissueCellCell
Exosome		Ref.
PCaEphA2 XHuman Y[31]
Galectin-9XX Human Y [32]
FAKX XMouse Y [33]
CD11bX XHuman Y [34]
MLL1 XHuman, Mouse Y [35]
CD47 X Human Y [32]
Granulin XHuman, Mouse YY [36]
EHF XMouse Y [37]
IFNγ XHuman Y [38]
PDL-2X Human Y [27]
CD38/CD101XX HumanY Y [39]
ATP, HMGB1 XMouse Y [40]
Gastrin X Mouse Y [41]
IL8XX HumanY [21]
PD-L1, PD-L2X Human Y [28]
CDH3, PLAU, LFNG X HumanY [42]
CD16X Human Y [43]
PIM-1XX HumanY [22]
IL3 XMouse Y [44]
Lactic acidXX Human Y [24]
CD171 XMouse Y [45]
EpCAM, CD3 XHuman Y [46]
DIXDC1XX Human Y [25]
sVCAM-1 X Human, MouseY Y [47]
VISTAXX Human Y [26]
IGFX Human Y [23]
LOX family XHuman, Mouse Y [48]
MACC1X XHuman Y [20]
ETF XMouse Y [37]
IRE1αX Human, Mouse YY [49]
Slug XHuman Y [50]
ADAM familyX XHuman Y [51]
HLA class I X Human Y [29]
SKA1, SKA3XX Human Y [30]
BTCGITR, CTLA4X XHuman Y [52]
HHLA2XX Human Y [53]
PD-1X XHuman Y [52,
54]
FasL, MCP-1, IFNγ X Human Y [55]
C24-CeramideXX Human Y [56]
Csk2XXXHuman Y [57]
BUB1B X Human Y [58]
MFAP5XX Human YY [59]
PD-1/PD-L1XX Human Y [60]
PCa, pancreatic cancer; BTC, biliary tract cancer.
Table
Table 3. Biomarker candidates for immune cells identified in the present systematic review.
Table 3. Biomarker candidates for immune cells identified in the present systematic review.
Cancer TypeBiomarkerDiagnosisPrognosisChemoresistanceSpeciesSerumTissueCellRef.
PCaILC2 XHuman, Mouse YY[64]
CD8(+) T cellsX XHuman, Mouse Y [61,65,66]
Myeloid cellsX Mouse Y [67]
Mesothelin-specific cells X HumanY [68]
M2-type
macrophages		 XMouse Y [69]
MYPT1, PSMC5, TRFRX Human Y [62]
TAM X Mouse Y [70]
CD4+ T cells XMouse Y [66]
TregX Human Y [71]
T cells,
NK cells		 X Mouse Y [72]
BTCPD-1(+)/CD8(+) TILs X Human Y [73]
PCa, pancreatic cancer.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tominaga, H.; Matsuzaki, J.; Oikawa, C.; Toyoshima, K.; Manabe, H.; Ozawa, E.; Shimamura, A.; Yokoyama, R.; Serizawa, Y.; Ochiya, T.; et al. Challenges for Better Diagnosis and Management of Pancreatic and Biliary Tract Cancers Focusing on Blood Biomarkers: A Systematic Review. Cancers 2021, 13, 4220. https://doi.org/10.3390/cancers13164220

AMA Style

Tominaga H, Matsuzaki J, Oikawa C, Toyoshima K, Manabe H, Ozawa E, Shimamura A, Yokoyama R, Serizawa Y, Ochiya T, et al. Challenges for Better Diagnosis and Management of Pancreatic and Biliary Tract Cancers Focusing on Blood Biomarkers: A Systematic Review. Cancers. 2021; 13(16):4220. https://doi.org/10.3390/cancers13164220

Chicago/Turabian Style

Tominaga, Hiroto, Juntaro Matsuzaki, Chihiro Oikawa, Kensho Toyoshima, Haruki Manabe, Eriko Ozawa, Atsushi Shimamura, Riko Yokoyama, Yusuke Serizawa, Takahiro Ochiya, and et al. 2021. "Challenges for Better Diagnosis and Management of Pancreatic and Biliary Tract Cancers Focusing on Blood Biomarkers: A Systematic Review" Cancers 13, no. 16: 4220. https://doi.org/10.3390/cancers13164220

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
