Article

Acetylated DNMT1 Downregulation and Related Regulatory Factors Influence Metastatic Melanoma Patients Survival

by
Xiaoqing Zhang
,
Matias A. Bustos
,
Yoshiaki Shoji
,
Romela Irene Ramos
,
Yuuki Iida
,
Rebecca Gentry
,
Teh-Ling Takeshima
and
Dave S. B. Hoon
*
Department of Translational Molecular Medicine, Saint John’s Cancer Institute (SJCI), Providence Saint John’s Health Center (SJHC), Santa Monica, CA 90404, USA
*
Author to whom correspondence should be addressed.
Cancers 2021, 13(18), 4691; https://doi.org/10.3390/cancers13184691
Submission received: 21 August 2021 / Revised: 10 September 2021 / Accepted: 14 September 2021 / Published: 18 September 2021
(This article belongs to the Special Issue Metastatic Progression of Human Melanoma)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

DNA methyltransferase-1 (DNMT1) is a key epigenetic regulatory protein of gene expression in cutaneous melanoma. DNMT1 is acetylated by TIP60 promoting its degradation. This study demonstrated that DNMT1 and ac-DNMT1 protein levels were inversely correlated in stage III (n = 17) and stage IV (n = 164) metastatic melanoma tumors, and both influenced melanoma progression. Reduced TIP60 and USP7 protein expression levels were correlated with decreased ac-DNMT1 levels. Of clinical translational relevance, patients with high ac-DNMT1 protein levels, or high-acDNMT1 with concurrent low DNMT1, high TIP60, or high USP7 protein levels showed significantly better prognosis for 4-year melanoma-specific survival. These results suggested that ac-DNMT1 is a significant post-translational modification influencing advanced melanoma patient disease outcomes.

Abstract

The role of post-translational modifications (PTM) of the key epigenetic factor DNMT1 protein has not been well explored in cutaneous metastatic melanoma progression. The acetylated DNMT1 (ac-DNMT1) protein level was assessed using an anti-acetylated lysine antibody in a clinically annotated melanoma patient tumor specimen cohort. In this study, we showed that surgically resected tumors have significantly higher DNMT1 protein expression in metastatic melanoma (stage III metastasis n = 17, p = 0.0009; stage IV metastasis n = 164, p = 0.003) compared to normal organ tissues (n = 19). Additionally, reduced ac-DNMT1 protein levels were associated with melanoma progression. There was a significant inverse correlation between ac-DNMT1 and DNMT1 protein levels in stage IV metastatic melanoma (r = −0.18, p = 0.02, n = 164). Additionally, ac-DNMT1 protein levels were also significantly positively correlated with TIP60 (r = 0.6, p < 0.0001) and USP7 (r = 0.74, p < 0.0001) protein levels in stage IV metastatic melanoma (n = 164). Protein analysis in metastatic melanoma tumor tissues showed that with high ac-DNMT1 (p = 0.006, n = 59), or concurrent high ac-DNMT1 with low DNMT1 (p = 0.05, n = 27), or high TIP60 (p = 0.007, n = 41), or high USP7 (p = 0.01, n = 48) consistently showed better 4-year melanoma-specific survival (MSS). Multivariate Cox proportional hazard analysis showed that ac-DNMT1 level is a significant independent factor associated with MSS (HR, 0.994; 95% confidential interval (CI), 0.990–0.998; p = 0.002). These results demonstrated that low ac-DNMT1 levels may represent an important regulatory factor in controlling metastatic melanoma progression and a promising factor for stratifying aggressive stage IV metastasis.

1. Introduction

Cutaneous malignant melanoma is a deadly skin cancer, accounting for the highest skin cancer deaths worldwide with an increasing rate of incidence [1]. Cutaneous melanoma has a high propensity to metastasize to multiple distant organs if not diagnosed and treated early [1], and predominantly affects the Caucasian population in North America, Australia, and Europe [2,3]. Cutaneous melanoma causes approximately 60,000 deaths worldwide each year [4]. Patients with AJCC stage IV melanoma have a very poor prognosis, whereby the general 5-year overall survival rate of patients is <25% [5]. Currently, the National Comprehensive Cancer Network (NCCN) recommends checkpoint inhibitor immunotherapies (nivolumab, ipilimumab, pembrolizumab, and others) for the treatment of stage IV melanoma patients [6,7]. To date, the overall survival of stage IV metastatic melanoma patients has significantly improved from modern approved checkpoint inhibitor immunotherapies and targeted therapies [8,9,10]. However, durable survival is still poor with variable responses amongst patients. Predictable factors for stage IV metastasis are very limited. Melanoma patients with stage IV are very heterogeneous population in disease outcomes, whereby some patients have longer survival than others. To further improve the outcomes of these patients, there is an urgent need to identify new prognostic biomarkers that will help to better stratify patients and decide the best systemic adjuvant or neoadjuvant immunotherapy for metastatic melanoma.
Abnormal genomic methylation status of genes is strongly correlated with cutaneous melanoma development and progression through regulating the expression of various tumor suppressor genes and oncogenes [11,12,13]. Mammalian DNA methylation patterns are catalyzed by key DNA methyltransferases (DNMT), which include DNMT1, DNMT3a, and DNMT3b in human cells [14]. DNMT3a and DNMT3b establish de novo DNA-methylation levels during embryonic development and adult tissue differentiation [15,16]; whereas, DNMT1 propagates DNA-methylation genomic patterns to daughter cells during replication at the S phase [17,18]. The DNMT3 family plays an important role in melanoma tumor progression [19,20,21]; however, the role of DNMT1 is less understood. To date, limited studies have investigated the expression of DNMT1 in melanoma patients and disease outcomes [22]. Assessment of nevus, primary melanoma, and melanoma metastasis show that DNMT1 expression is enhanced with melanoma progression and positively correlates with the Ki-67 levels [22]. Several studies show that suppressed DNMT1 expression caused cell cycle delay and cancer-germline gene activation [22,23,24,25]. However, it is unclear how DNMT1 protein regulators and post-translational modifications determine DNMT1 expression to influence metastatic melanoma outcomes.
The regulation of DNMT1 is controlled by specific post-translational modifications (PTM), such as acetylation and ubiquitination [26,27,28,29]. Ubiquitination of DNMT1 is important for its degradation to reduce DNMT1 levels once the cell cycle is completed [29]. Investigating the aberrant mechanisms that control DNMT1 activity during melanoma progression may improve our understanding of gene methylation during tumor progression. Acetylation modification on a protein can change its solubility, surface properties, and hydrophobicity, which will influence enzymatic activity, stability, protein–DNA interactions, and protein–protein interactions [30,31]. The lysine-acetyltransferase Tat-interactive protein 60 (TIP60, also known as lysine acetyltransferase 5) is downregulated in multiple cancers [32,33]. TIP60 controls the acetylation on specific lysine residues of DNMT1 regulating its stability and activity [26,34,35]. In addition, Cheng et al. found that DNMT1 acetylation by TIP60 on four lysine residues within the KG linker impairs DNMT1 and ubiquitin-specific protease 7 (USP7) interaction and triggers the proteasomal degradation of DNMT1 [34].
In this study, we assessed DNMT1 and acetylated-DNMT1 (ac-DNMT1) protein levels in AJCC stage III and IV melanoma patients as related to disease progression and in comparison to normal organ control tissues. Tissues from stage III and IV melanoma patients showed reduced protein levels of ac-DNMT1 and consequently enhanced protein expression of DNMT1 compared to primary melanoma tumors and normal organ control tissues. A significant correlation was observed between ac-DNMT1 and DNMT1/TIP60/USP7 protein levels. Additionally, decreased ac-DNMT1 protein levels were associated with melanoma progression. Patients with high ac-DNMT1, or patients with high ac-DNMT1 and concurrent low DNMT1, high TIP60, or high USP7 protein levels consistently had better survival status. Multivariate analysis indicated that ac-DNMT1 protein level was an independent factor for melanoma-specific survival (MSS). This study demonstrated that TIP60 and USP7 downregulation decreases ac-DNMT1 protein levels, which increased the amount of DNMT1 and significantly influenced stage IV melanoma disease outcomes.

2. Materials and Methods

2.1. Melanoma Tissue Microarray (TMA)

The TMA (336 samples from 170 patients) was developed at Saint John’s Cancer Institute (SJCI) using clinicopathological annotated AJCC 8th Ed stage III and IV formalin-fixed paraffin-embedded (FFPE) melanoma tissues [36,37]. The TMA was predominately enriched with stage IV tissues (19 stage III and 287 stage IV). Stage III tissues were autologous paired to the stage IV tissues. These tissue samples were accessioned at Saint John’s Health Center (SJHC) pathology department with annotated clinical outcomes and follow-up data using the SJCI melanoma database. In this study, TMAs were assessed for protein levels of DNMT1, ac-DNMT1, Ki-67, TIP60, and USP7 by IHC and H-score [36]. The cores in the TMA were spread out in duplicates randomly to avoid spatial bias from IHC staining, whereby the H-score average was calculated in duplicates. Due to loss of cores from sectioning, there were a total of 200 evaluable samples from the TMA which included: 19 normal organs (2 adrenal, 2 bowel, 1 brain, 2 gallbladder, 2 kidney, 3 liver, 1 lung, 2 ovary, 2 pancreas, 2 spleen), 17 stage III, and 164 stage IV metastatic tissues for analysis. For patient stratification into low and high groups, the mean H-score was selected as the cut-off value. The clinicopathological characteristics of the stage IV melanoma patients that were divided based on the mean H-score for ac-DNMT1, DNMT1, TIP60, or USP7 are listed in Table S1.

2.2. Immunohistochemistry (IHC)

IHC staining was performed as previously described [38,39], using anti-human DNMT1 rabbit polyclonal antibody (Ab, 1:100 dilution, Cat# NB100-264, Novus Biologicals, Centennial, CO, USA), anti-human ac-DNMT1 rabbit polyclonal Ab (1:100 dilution, Cat# A5595, ABclonal, Woburn, MA, USA), anti-human Ki-67 mouse monoclonal Ab (1:100 dilution, Cat# M7240, DAKO, Santa Clara, CA, USA), anti-human TIP60 rabbit polyclonal Ab (1:100 dilution, Cat# 10827-1-AP, Proteintech, Rosemont, IL, USA), and anti-human USP7 rabbit monoclonal Ab (1:100 dilution, Cat# A700-072, Bethyl, Montgomery, TX, USA) for the TMA slide. Additionally, for initial testing, we performed IHC for ac-DNMT1 on 8 primary, 15 stage III, and 15 stage IV metastatic melanoma FFPE tissue slides of clinically annotated specimens from SJHC pathology. Images were taken with a BX43 upright microscope (Olympus, Tokyo, Japan) at 20× magnification and analyzed using inForm 2.4 software (Perkin Elmer, Waltham, MA, USA). H-scores were calculated following the inForm software instructions available at https://www.perkinelmer.com/Content/LST_SoftwareDownloads/inFormUserManual_2_3_0_rev1.pdf (accessed on 5 May 2021).

2.3. Melanoma Cell Lines

Established metastatic melanoma cell lines (MH-0331 and WP-0614) from SJCI were attained from melanoma patients who received elective surgery at SJHC [40]. The cell lines were cultured in RPMI-1640 and supplemented with 10 mM HEPES, 10% heat-inactivated fetal bovine serum (FBS), and 1% penicillin–streptomycin (complete medium) as previously described. All human cell lines have been authenticated using short tandem repeat (STR) profiling within the last three years. All experiments were performed with mycoplasma-free melanoma cell lines.

2.4. Western Blot Analysis

Two melanoma cell lines (MH-0331 and WP-0614) were treated for 24 h with HDAC inhibitor panobinostat (Cat# HY-10224, MedChemExpress, Monmouth Junction, NJ, USA) at different concentrations (10, 50, and 100 nM). Protein was then extracted and evaluated by Western blot for DNMT1, ac-DNMT1, and β-actin as previously described [38,41], except for the Abs utilized, which were the polyclonal rabbit anti-human DNMT1 Ab (1:100 dilution, Cat# NB100-264, Novus Biologicals), the rabbit anti-human ac-DNMT1 Ab (1:500 dilution, Cat# A5595, ABclonal), and the mouse monoclonal anti-human β-actin Ab (1:10000 dilution, Cat# A5441, Sigma-Aldrich). All Western blot images were analyzed with ImageJ software (http://imagej.nih.gov/ij/ (accessed on 3 August 2021). All the uncropped Western blot images were included in Figure S1.

2.5. Biostatistical Analysis

The statistical analyses were performed using GraphPad Prism 7 software (GraphPad software Inc., La Jolla, CA, USA) with two-tailed tests. The distribution and variation within each group of data was assessed before selecting the correct statistical analysis. Multiple groups were analyzed by one-way or two-way ANOVA followed by post-hoc tests. The correlation was determined by the Spearman’s or Pearson’s correlation test. The 4-year melanoma-specific survival (MSS) was calculated from the time of the patient’s initial diagnosis as stage IV until death or last contact. MSS was analyzed using the Kaplan–Meier method and log-rank test. For 15 melanoma patients who had two different surgery dates for the melanoma metastatic tissues, the clinical information pertaining to the first surgery/distant metastasis was used for survival analysis. Univariate and multivariate analyses were performed using SPSS software (IBM, Armonk, NY, USA). A p < 0.05 is considered significant if not stated otherwise. All the figures were unified using Adobe Illustrator CC (Adobe Inc., Los Angeles, CA, USA).

3. Results

3.1. DNMT1 Expression Is Increased in Metastatic Melanoma

To investigate the DNMT1 mRNA expression in early and advanced stage cutaneous melanoma, we interrogated two FFPE tissue microarray datasets (GSE3189 and GSE8401). The first microarray dataset GSE3189 contained normal skin, benign nevus, and primary melanoma tumor tissues. DNMT1 mRNA levels were significantly increased in primary melanoma tumors compared to nevus (p < 0.0001) or normal skin tissues (p = 0.003; Figure 1A). The second tissue microarray GSE8401 contained primary and metastatic melanoma tissues. Metastatic melanoma showed an increase in DNMT1 mRNA expression compared to primary melanoma (p < 0.0001; Figure 1B). To further validate the observation of the increased DNMT1 expression in melanoma, we performed IHC for DNMT1 on our SJCI-established TMA sections that contained melanoma and normal organ FFPE tissues. Two patients with low or high DNMT1 protein levels are shown in Figure 1C. There were significantly higher DNMT1 protein levels in stage III (p = 0.0009) and stage IV (p = 0.003) melanoma patients compared to normal organ tissues (Figure 1D). These findings indicate that DNMT1 mRNA is enhanced during melanoma progression. Furthermore, significantly higher DNMT1 protein expression was observed in metastatic melanoma.
To determine factors that may be associated with enhanced DNMT1 expression, we investigated the copy number variation (CNV) dataset of metastatic melanoma patients from the TCGA SKCM project. There was a significant correlation between DNMT1 CNV and mRNA expression levels (r = 0.21, p < 0.0001, Figure 1E). However, only 16.6% (n = 61) of metastatic melanoma samples had a gain in CNV for DNMT1 (Figure 1E). These results suggest that CNV partially explains the overall increase of DNMT1 mRNA levels in metastatic melanoma. Thus, there may be other regulatory mechanisms enhancing DNMT1 expression or promoting its protein stability in metastatic melanoma, such as specific PTMs.

3.2. Increased Ac-DNMT1 Leads to a Reduction in DNMT1 Protein Levels

DNMT1 acetylation, which can induce ubiquitin-dependent proteasomal degradation (Figure 2A), is an important PTM that controls DNMT1 protein stability [26,34]. TIP60 regulates DNMT1 acetylation, while histone deacetylase 1 (HDAC1) controls DNMT1 deacetylation. Ac-DNMT1 protein levels were evaluated by the ac-DNMT1 Ab which specifically targets the four lysine residues (K1111/K1113/K1115/K1117) within the KG linker (1107GNKGKGKGKGKGKPK1121, Figure 2B). To further determine the role of acetylation on DNMT1 protein stability, we evaluated the effect of panobinostat treatment in metastatic melanoma cell lines. Panobinostat is a pan-inhibitor for multiple HDAC proteins [42,43,44], which can block HDAC1 and the deacetylation of various proteins including DNMT1 (Figure 2A). Metastatic melanoma cell lines were treated with different concentrations of panobinostat (0, 10, 50, and 100 nM for 24 h; Figure 2C). We determined the optimal concentration and then treated metastatic melanoma cell lines with 100 nM panobinostat at different time points (0, 2, 6, 12, 24 h; Figure 2D). Panobinostat treatment enhanced ac-DNMT1 protein levels with a concomitant reduction in DNMT1 protein levels in both melanoma cell lines (Figure 2C,D). These results suggested that acetylation plays a major role in controlling DNMT1 stability and that there may be an inverse correlation between ac-DNMT1 and total DNMT1 protein levels in melanoma patients.
To determine the protein levels of ac-DNMT1, IHC analysis was performed on FFPE tissues including primary melanoma, stage III, and stage IV metastatic melanoma. The results demonstrated a significant reduction in ac-DNMT1 protein levels in metastatic melanoma (stage III mean H-score = 48, p = 0.006; stage IV mean H-score = 67, p = 0.03) compared to primary melanoma tissues (mean H-score = 144, Figure 3A). We then verified the results by performing IHC for ac-DNMT1 in the melanoma TMA (Figure 3B). Ac-DNMT1 protein levels were significantly reduced in stage III (mean H-score = 41, p = 0.001) and stage IV (mean H-score = 65, p = 0.03) melanoma tissues compared to normal organ tissues (mean H-score = 91, Figure 3C). Most importantly, a significant inverse correlation was observed between ac-DNMT1 and DNMT1 protein levels in both stage III (r = −0.55, p = 0.02; Figure 3D) and stage IV (r = −0.18, p = 0.02; Figure 3E) melanoma patients. Consistently, stage IV patients with low ac-DNMT1 levels showed significantly higher DNMT1 protein levels than patients with high ac-DNMT1 (p = 0.02; Figure 3F). These results indicated that ac-DNMT1 is inversely correlated with DNMT1 protein levels and is associated with melanoma disease progression. Thus, ac-DNMT1 may have major implications in controlling DNMT1 protein expression.

3.3. Downregulation of Ac-DNMT1 Is Associated with TIP60 Reduction in Melanoma

Then, the mRNA expression levels of four genes (TIP60, USP7, HDAC1, and UHRF1) controlling the main PTMs occurring in DNMT1 were assessed in the TCGA SKCM dataset. A significant decrease in TIP60 mRNA levels were observed in stage III (mean Z-score = −0.18, p = 0.0003) and stage IV metastasis (mean Z-score = −0.37, p = 0.007) compared to primary melanomas (mean Z-score = 0.28, Figure 4A). No significant differences were found for USP7, HDAC1, and UHRF1 at the mRNA level using the TCGA SKCM database (Figure S2A–C). TIP60 acetylates DNMT1 and promotes its proteasomal-mediated degradation [28,34,45]. We performed IHC analysis for TIP60 on our SJCI TMA cohort (Figure 4B). There were significant positive correlations between TIP60 and ac-DNMT1 protein levels in tissues from both stage III (r = 0.59, p = 0.01) and stage IV (r = 0.6, p < 0.0001) melanoma patients (Figure 4C,D). Stage IV patients with low ac-DNMT1 protein levels showed significantly lower TIP60 protein levels compared to patients with high ac-DNMT1 (p < 0.0001; Figure 4E). Taken together, these results indicate that TIP60 and ac-DNMT1 protein expression positively correlate. TIP60 mRNA downregulation during melanoma progression explains the reduction in TIP60 protein levels and the consequent reduction in ac-DNMT1 protein levels observed in metastatic melanoma.

3.4. Downregulation of Ac-DNMT1 Is Associated with a USP7 Reduction in Melanoma

In pancreatic cancer cells, USP7 regulation of DNMT1 stability is dependent on DNMT1 acetylation [34]. USP7 belongs to the peptidase C19 family and deubiquitinates proteins such as p53 and DNMT1 [46]. We therefore examined the USP7 protein levels to understand the relationship between DNMT1 and ac-DNMT1 as related to TIP60 and melanoma progression. IHC analysis was assessed for USP7 on the SJCI TMA cohort (Figure 5A). There were significant positive correlations between USP7 and ac-DNMT1 protein levels in both stage III (r = 0.5, p = 0.04) and stage IV (r = 0.74, p < 0.0001) metastatic melanoma samples (Figure 5B,C). Among stage IV melanoma, patients with low ac-DNMT1 protein levels showed significantly lower USP7 protein levels compared to patients with high ac-DNMT1 (p < 0.0001; Figure 5D). Consistent with a reduction in ac-DNMT1 protein level during melanoma disease progression (Figure 3A,C), a significant decrease in USP7 protein levels were observed in stage III (mean H-score = 110, p = 0.0006) and stage IV metastasis (mean H-score = 140, p = 0.02) compared to normal organ tissues (mean H-score = 173, Figure 5E). Additionally, we observed a significant positive correlation between TIP60 and USP7 (r = 0.67, p = 0.003 for stage III; r = 0.8, p < 0.0001 for stage IV) protein levels in metastatic melanoma (Figure 5F,G). These findings demonstrate the relation of TIP60 and USP7 in controlling DNMT1 acetylation and protein stability in cutaneous melanoma tissues, respectively.

3.5. Ac-DNMT1 Protein Levels Negatively Correlated with Ki-67 in Metastatic Melanoma

To validate the role of ac-DNMT1 in relation to melanoma disease progression and tumor growth, the protein expression of the proliferation protein marker Ki-67 was assessed on the SJCI TMA cohort (Figure 6A). As expected, Ki-67 protein expression was significantly increased in stage III (mean H-score = 69, p < 0.0001) and stage IV (mean H-score = 60, p < 0.0001) metastatic melanoma tissues compared to normal organ tissues (mean H-score = 7, Figure 6B). Most importantly, there were significant inverse correlations between ac-DNMT1 and Ki-67 protein levels in both stage III (r = −0.53, p = 0.03, Figure 6C) and stage IV metastatic melanoma tissues (r = −0.18, p = 0.02, Figure 6D). Stage IV patients with low ac-DNMT1 protein levels showed significantly higher Ki-67 protein levels compared to patients with high ac-DNMT1 (p = 0.039; Figure 6E). These findings were consistent with the significant positive correlations between DNMT1 and Ki-67 protein levels in both stage III (r = 0.58, p = 0.015, Figure 6F) and stage IV (r = 0.29, p = 0.0002, Figure 6G) melanoma patients. The results indicate that metastatic melanoma tumors with low ac-DNMT1 and high DNMT1 levels showed higher doubling rate.

3.6. Reduced Ac-DNMT1 Protein Levels Are Associated with Poor Melanoma-Specific Survival

To examine the clinical associations between survival outcomes and ac-DNMT1 protein levels, stage IV melanoma patients were stratified based on the mean H-scores into patients with low versus high ac-DNMT1 protein expression. A total of 141 patients were analyzed for ac-DNMT1 (Table S1). The same methodology was utilized to determine associations between DNMT1, TIP60, and USP7 protein expression with survival outcomes (Table S1). A significant correlation was found between ac-DNMT1 protein levels with disease outcomes status in stage IV melanoma patients. Up to 63% (74 of 117) of the melanoma patients who expired had low ac-DNMT1 protein levels, while 33% (8 of 24) of the alive patients had low ac-DNMT1 protein levels (p = 0.007, χ2 test; Table S2). The Kaplan–Meier analysis showed that low ac-DNMT1 protein levels are associated with shorter 4-year MSS (p = 0.006, log-rank test; Figure 7A) in stage IV melanoma patients. Patients with concurrent high ac-DNMT1 and low DNMT1 protein levels had a better prognosis compared to patients with low ac-DNMT1 and high DNMT1 (log-rank test p = 0.05; Figure 7B). Consistently, stage IV patients with high ac-DNMT1 combined with high TIP60, high USP7, or low Ki-67 protein levels had a better prognosis compared to patients with low ac-DNMT1 combined with low TIP60, low USP7, or high Ki-67 protein levels (log-rank test p = 0.007, p = 0.01, and p = 0.0004 respectively; Figure 7C–E). Our results indicated that low ac-DNMT1 protein levels are significantly associated with a poor MSS in patients with stage IV melanoma.

3.7. Ac-DNMT1 Protein Level Is an Independent Prognostic Factor for Melanoma Metastasis

To evaluate the prognostic significance of our findings, we performed multivariate Cox regression analyses with known prognostic factors to investigate whether ac-DNMT1 protein level is an independent prognostic biomarker for 4-year MSS in stage IV patients. We assessed 141 stage IV metastatic melanoma patients with age, gender, organ site, and ac-DNMT1/DNMT1/TIP60/USP7 H-scores in a regression model (Table 1, Table 2, Table 3 and Table 4). The results revealed that ac-DNMT1 protein level is a significant and independent factor associated with MSS (HR, 0.994; 95% confidential interval (CI), 0.990–0.998; p = 0.002; Table 1). Additionally, ac-DNMT1 protein level is a significant independent prognostic factor when Ki-67 protein level was included in the multivariate analysis (HR, 0.995; 95% CI, 0.991–0.999; p = 0.009; Table 5). These findings indicate that ac-DNMT1 protein levels may represent a promising biomarker to predict MSS in stage IV melanoma patients.

4. Discussion

DNMT1 is an important epigenetic regulator that plays a key role in the maintenance of DNA methylation during the S phase of the cell cycle [47]. The aberrant DNA methylation of genes is an epigenetic hallmark of many cancers including cutaneous melanoma [11,17,47,48,49]. Our study identified the association between DNMT1 and ac-DNMT1 protein levels in tumor progression using a clinically annotated TMA. DNMT1 stability is mediated by acetylation and ubiquitination through coordinated actions of regulatory proteins. As previously demonstrated, TIP60 and HDAC1 balance the acetylation levels of DNMT1 [26]. Meanwhile, ubiquitin-like with PHD and ring finger domains 1 (UHRF1) and USP7 have been reported to play a role in DNMT1 ubiquitination or deubiquitination processes, respectively [26,28,35]. The role of ubiquitination in DNMT1 degradation is an important regulatory event as it reflects the changes in DNMT1 level during the cell cycle status [50].
Previous studies demonstrate that acetylation of DNMT1 by TIP60 impairs DNMT1–USP7 interaction and stimulates the proteasomal degradation of DNMT1 [34]. Additionally, acetylation of Lys1349 and Lys1415 in the catalytic domain of DNMT1 affects the methyltransferase activity of DNMT1 [51]. The histone deacetylase HDAC1 plays an important role in DNMT1 stability by deacetylating the lysine residues [52,53]. Panobinostat is an approved anti-cancer chemotherapy drug classified as a non-selective HDAC inhibitor [52,54]. After panobinostat treatment, we observed an accumulation of ac-DNMT1 and reduced DNMT1 protein expression in melanoma cell lines. These results further supported the inverse correlation observed between DNMT1 and ac-DNMT1 protein levels using the TMA IHC analysis of metastatic melanoma patients.
Additionally, we identified the positive correlations between TIP60/USP7 and ac-DNMT1 protein levels in stage IV melanoma metastasis. This is consistent with their functional roles in controlling DNMT1 stability, and further supporting the inverse correlation between ac-DNMT1 and DNMT1 protein levels observed in the TMA IHC analysis. The decreased expression levels of TIP60 or USP7 were associated with melanoma progression, which suggested these two proteins play an important role in modulating the levels of ac-DNMT1 in melanoma metastasis. Our observations from melanoma patient tumors are consistent with previous reports on cell lines from other tumor types. Du et al. found that the overexpression of TIP60 reduced the abundance of endogenous DNMT1 in embryonic kidney immortalized HEK293 cell lines, while knockdown of TIP60 increased DNMT1 in the colorectal carcinoma HCT116 cell lines [26]. Similarly, Ashraf et al. reported that reduced DNA methylation and downregulated DNMT1 were observed in TIP60-eGFP transfected HeLa cell lines [55].
There are two studies in different cancer types showing diverging results for DNMT1. In breast cancer [56], high DNMT1 expression is significantly associated with poor survival (p < 0.05) using multivariate analysis. However, head and neck squamous cell carcinoma (HNSCC) with advanced-grade tumors have high DNMT1 expression that is associated with better overall survival [57]. In our study, 4-year MSS in stage IV patients revealed that high ac-DNMT1 protein level, not DNMT1 protein expression, is a significant independent prognostic marker in a multivariate analysis. Our study showed a significant downregulation of ac-DNMT1 protein levels that were inversely correlated with Ki-67 protein levels. Whether the ac-DNMT1 protein levels and disease outcomes are context dependent on the cancer type requires further investigation. Future pan-cancer studies may lead to better understanding and could help determine whether these findings represent conserved molecular mechanisms controlling DNMT1 protein expression.
Taken together, our studies demonstrated ac-DNMT1 is a promising melanoma prognostic factor for predicting MSS. The findings of the relation between ac-DNMT1 and other biomarkers may help to optimize treatment strategies of stage IV metastasis. Further studies in a large multicenter study will be needed to validate the findings.

5. Conclusions

In this study, we systematically investigated the translational utility of DNMT1/ac-DNMT1 protein levels in cutaneous metastatic melanoma. Using a TMA, we observed a significant decrease in ac-DNMT1 protein levels, and an inverse correlation between ac-DNMT1 and DNMT1 protein levels in metastatic melanoma patients. These events were shown to be due to the downregulation of TIP60/USP7 protein expression in advanced stage melanoma metastasis. Kaplan–Meier and multivariate Cox proportional hazard analysis revealed that ac-DNMT1 protein level is a significant independent prognostic factor for 4-year MSS in stage IV melanoma patients.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/cancers13184691/s1, Figure S1: Uncropped Western blot images for Figure 2C,D, Figure S2: Comparison of USP7 (A) HDAC1 (B) UHRF1 (C) mRNA expression in primary, stage III, and stage IV metastatic melanoma from TCGA SKCM dataset, Table S1: Clinicopathological characteristics and H-score values detected by IHC for stage IV melanoma patients, Table S2: Associations between clinicopathological characteristics and H-score values detected by IHC for stage IV melanoma patients.

Author Contributions

Conceptualization, X.Z., M.A.B. and D.S.B.H.; methodology, X.Z., Y.I. and T.-L.T.; software, X.Z.; validation, X.Z. and M.A.B.; formal analysis, X.Z. and Y.S.; investigation, X.Z. and M.A.B.; resources, M.A.B., R.I.R., and R.G.; data curation, X.Z.; writing—original draft preparation, X.Z. and M.A.B.; writing, review, and editing, X.Z., M.A.B., Y.S., R.I.R., R.G. and D.S.B.H.; visualization, X.Z.; supervision, D.S.B.H.; project administration, D.S.B.H.; funding acquisition, D.S.B.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Miriam and Sheldon G. Adelson Medical Research Foundation to D.S.B.H.

Institutional Review Board Statement

This study was conducted according to the guidelines of the Declaration of Helsinki and approved by Providence SJHC under the SJHC/SJCI Joint Institutional Review Board (IRB), Western IRB protocols: MORD-RTPCR-0995, and HOOD-PEMEL-0203.

Informed Consent Statement

Informed consent was obtained (MORD-RTPCR-0995) from all subjects in the study.

Data Availability Statement

Data is available in a publicly accessible repository. TCGA SKCM datasets (Firehose Legacy source) for copy number variation, mRNA expression, and the corresponding clinical information were obtained in February 2019 from https://www.cbioportal.org/ (accessed on 20 June 2021). The Talantov’s melanoma microarray data [58] and Xu’s melanoma microarray data [59] presented in this study are openly available in the GEO database at GSE3189 and GSE8401, respectively. IHC data is contained within the article or Supplementary Materials.

Acknowledgments

We thank the Department of Translational Molecular Medicine staff (SJCI) and SJHC pathology department for their kind advisory and technical assistance.

Conflicts of Interest

All authors declare no conflict of interest.

References

  1. Testori, A.A.E.; Chiellino, S.; van Akkooi, A.C.J. Adjuvant Therapy for Melanoma: Past, Current, and Future Developments. Cancers 2020, 12, 994. [Google Scholar] [CrossRef]
  2. Siegel, R.L.; Miller, K.D.; Fuchs, H.E.; Jemal, A. Cancer Statistics, 2021. CA Cancer J.Clin. 2021, 71, 7–33. [Google Scholar] [CrossRef]
  3. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef]
  4. Schadendorf, D.; van Akkooi, A.C.J.; Berking, C.; Griewank, K.G.; Gutzmer, R.; Hauschild, A.; Stang, A.; Roesch, A.; Ugurel, S. Melanoma. Lancet 2018, 392, 971–984. [Google Scholar] [CrossRef]
  5. Rebecca, V.W.; Somasundaram, R.; Herlyn, M. Pre-clinical modeling of cutaneous melanoma. Nat. Commun. 2020, 11, 2858. [Google Scholar] [CrossRef] [PubMed]
  6. Zimmer, L.; Livingstone, E.; Hassel, J.C.; Fluck, M.; Eigentler, T.; Loquai, C.; Haferkamp, S.; Gutzmer, R.; Meier, F.; Mohr, P.; et al. Adjuvant nivolumab plus ipilimumab or nivolumab monotherapy versus placebo in patients with resected stage IV melanoma with no evidence of disease (IMMUNED): A randomised, double-blind, placebo-controlled, phase 2 trial. Lancet 2020, 395, 1558–1568. [Google Scholar] [CrossRef]
  7. Ascierto, P.A.; Del Vecchio, M.; Mandala, M.; Gogas, H.; Arance, A.M.; Dalle, S.; Cowey, C.L.; Schenker, M.; Grob, J.J.; Chiarion-Sileni, V.; et al. Adjuvant nivolumab versus ipilimumab in resected stage IIIB-C and stage IV melanoma (CheckMate 238): 4-year results from a multicentre, double-blind, randomised, controlled, phase 3 trial. The Lancet. Oncol. 2020, 21, 1465–1477. [Google Scholar] [CrossRef]
  8. Robert, C.; Grob, J.J.; Stroyakovskiy, D.; Karaszewska, B.; Hauschild, A.; Levchenko, E.; Chiarion Sileni, V.; Schachter, J.; Garbe, C.; Bondarenko, I.; et al. Five-Year Outcomes with Dabrafenib plus Trametinib in Metastatic Melanoma. N. Engl. J. Med. 2019, 381, 626–636. [Google Scholar] [CrossRef] [PubMed]
  9. Dimitriou, F.; Long, G.V.; Menzies, A.M. Novel adjuvant options for cutaneous melanoma. Ann. Oncol. 2021, 32, 854–865. [Google Scholar] [CrossRef] [PubMed]
  10. Larkin, J.; Chiarion-Sileni, V.; Gonzalez, R.; Grob, J.J.; Rutkowski, P.; Lao, C.D.; Cowey, C.L.; Schadendorf, D.; Wagstaff, J.; Dummer, R.; et al. Five-Year Survival with Combined Nivolumab and Ipilimumab in Advanced Melanoma. N. Engl. J. Med. 2019, 381, 1535–1546. [Google Scholar] [CrossRef] [Green Version]
  11. Micevic, G.; Theodosakis, N.; Bosenberg, M. Aberrant DNA methylation in melanoma: Biomarker and therapeutic opportunities. Clin. Epigenetics 2017, 9, 34. [Google Scholar] [CrossRef] [Green Version]
  12. Greenberg, E.S.; Chong, K.K.; Huynh, K.T.; Tanaka, R.; Hoon, D.S. Epigenetic biomarkers in skin cancer. Cancer Lett. 2014, 342, 170–177. [Google Scholar] [CrossRef] [Green Version]
  13. Iida, Y.; Ciechanover, A.; Marzese, D.M.; Hata, K.; Bustos, M.; Ono, S.; Wang, J.; Salomon, M.P.; Tran, K.; Lam, S. Epigenetic regulation of KPC1 ubiquitin ligase affects the NF-κB pathway in melanoma. Clin. Cancer Res. 2017, 23, 4831–4842. [Google Scholar] [CrossRef] [Green Version]
  14. Lyko, F. The DNA methyltransferase family: A versatile toolkit for epigenetic regulation. Nat. Rev. Genet. 2018, 19, 81–92. [Google Scholar] [CrossRef] [PubMed]
  15. Okano, M.; Bell, D.W.; Haber, D.A.; Li, E. DNA methyltransferases Dnmt3a and Dnmt3b are essential for de novo methylation and mammalian development. Cell 1999, 99, 247–257. [Google Scholar] [CrossRef] [Green Version]
  16. Chen, Z.; Zhang, Y. Role of Mammalian DNA Methyltransferases in Development. Ann. Rev. biochem. 2020, 89, 135–158. [Google Scholar] [CrossRef] [PubMed]
  17. Pathania, R.; Ramachandran, S.; Elangovan, S.; Padia, R.; Yang, P.; Cinghu, S.; Veeranan-Karmegam, R.; Arjunan, P.; Gnana-Prakasam, J.P.; Sadanand, F.; et al. DNMT1 is essential for mammary and cancer stem cell maintenance and tumorigenesis. Nat. Commun. 2015, 6, 6910. [Google Scholar] [CrossRef]
  18. Du, Q.; Wang, Z.; Schramm, V.L. Human DNMT1 transition state structure. Proc. Natl Acad. Sci. USA 2016, 113, 2916–2921. [Google Scholar] [CrossRef] [Green Version]
  19. Deng, T.; Kuang, Y.; Wang, L.; Li, J.; Wang, Z.; Fei, J. An essential role for DNA methyltransferase 3a in melanoma tumorigenesis. Biochem. Biophys. Res. Commun. 2009, 387, 611–616. [Google Scholar] [CrossRef]
  20. Micevic, G.; Muthusamy, V.; Damsky, W.; Theodosakis, N.; Liu, X.; Meeth, K.; Wingrove, E.; Santhanakrishnan, M.; Bosenberg, M. DNMT3b Modulates Melanoma Growth by Controlling Levels of mTORC2 Component RICTOR. Cell Rep. 2016, 14, 2180–2192. [Google Scholar] [CrossRef] [Green Version]
  21. Saravanaraman, P.; Selvam, M.; Ashok, C.; Srijyothi, L.; Baluchamy, S. De novo methyltransferases: Potential players in diseases and new directions for targeted therapy. Biochimie 2020, 176, 85–102. [Google Scholar] [CrossRef] [PubMed]
  22. Gassenmaier, M.; Rentschler, M.; Fehrenbacher, B.; Eigentler, T.K.; Ikenberg, K.; Kosnopfel, C.; Sinnberg, T.; Niessner, H.; Bösmüller, H.; Wagner, N.B. Expression of DNA Methyltransferase 1 Is a Hallmark of Melanoma, Correlating with Proliferation and Response to B-Raf and Mitogen-Activated Protein Kinase Inhibition in Melanocytic Tumors. Am. J. Pathol. 2020, 190, 2155–2164. [Google Scholar] [CrossRef] [PubMed]
  23. Hirata, E.; Ishibashi, K.; Kohsaka, S.; Shinjo, K.; Kojima, S.; Kondo, Y.; Mano, H.; Yano, S.; Kiyokawa, E.; Sahai, E. The Brain Microenvironment Induces DNMT1 Suppression and Indolence of Metastatic Cancer Cells. Iscience 2020, 23, 101480. [Google Scholar] [CrossRef] [PubMed]
  24. Loriot, A.; De Plaen, E.; Boon, T.; De Smet, C. Transient down-regulation of DNMT1 methyltransferase leads to activation and stable hypomethylation of MAGE-A1 in melanoma cells. J. Biol. Chem. 2006, 281, 10118–10126. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Cannuyer, J.; Van Tongelen, A.; Loriot, A.; De Smet, C. A gene expression signature identifying transient DNMT1 depletion as a causal factor of cancer-germline gene activation in melanoma. Clin. Epigenetics 2015, 7, 114. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Du, Z.; Song, J.; Wang, Y.; Zhao, Y.; Guda, K.; Yang, S.; Kao, H.Y.; Xu, Y.; Willis, J.; Markowitz, S.D.; et al. DNMT1 stability is regulated by proteins coordinating deubiquitination and acetylation-driven ubiquitination. Sci. Signal. 2010, 3, ra80. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Zhou, Q.; Agoston, A.T.; Atadja, P.; Nelson, W.G.; Davidson, N.E. Inhibition of histone deacetylases promotes ubiquitin-dependent proteasomal degradation of DNA methyltransferase 1 in human breast cancer cells. Mol. Cancer Res. 2008, 6, 873–883. [Google Scholar] [CrossRef] [Green Version]
  28. Bronner, C. Control of DNMT1 abundance in epigenetic inheritance by acetylation, ubiquitylation, and the histone code. Sci. Signal. 2011, 4, pe3. [Google Scholar] [CrossRef] [PubMed]
  29. Li, J.; Wang, R.; Jin, J.; Han, M.; Chen, Z.; Gao, Y.; Hu, X.; Zhu, H.; Gao, H.; Lu, K.; et al. USP7 negatively controls global DNA methylation by attenuating ubiquitinated histone-dependent DNMT1 recruitment. Cell Discov. 2020, 6, 58. [Google Scholar] [CrossRef]
  30. Xu, W.; Li, Y.; Liu, C.; Zhao, S. Protein lysine acetylation guards metabolic homeostasis to fight against cancer. Oncogene 2014, 33, 2279–2285. [Google Scholar] [CrossRef] [Green Version]
  31. Verdin, E.; Ott, M. 50 years of protein acetylation: From gene regulation to epigenetics, metabolism and beyond. Nat. Rev. Mol. Cell Biol. 2015, 16, 258–264. [Google Scholar] [CrossRef] [PubMed]
  32. Gorrini, C.; Squatrito, M.; Luise, C.; Syed, N.; Perna, D.; Wark, L.; Martinato, F.; Sardella, D.; Verrecchia, A.; Bennett, S.; et al. Tip60 is a haplo-insufficient tumour suppressor required for an oncogene-induced DNA damage response. Nature 2007, 448, 1063–1067. [Google Scholar] [CrossRef] [PubMed]
  33. Bassi, C.; Li, Y.; Khu, K.; Mateo, F.; Baniasadi, P.; Elia, A.; Mason, J.; Stambolic, V.; Pujana, M.; Mak, T. The acetyltransferase Tip60 contributes to mammary tumorigenesis by modulating DNA repair. Cell Death & Differ. 2016, 23, 1198–1208. [Google Scholar]
  34. Cheng, J.; Yang, H.; Fang, J.; Ma, L.; Gong, R.; Wang, P.; Li, Z.; Xu, Y. Molecular mechanism for USP7-mediated DNMT1 stabilization by acetylation. Nat. Commun. 2015, 6, 7023. [Google Scholar] [CrossRef]
  35. Lin, R.K.; Wang, Y.C. Dysregulated transcriptional and post-translational control of DNA methyltransferases in cancer. Cell Biosci. 2014, 4, 46. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Wang, J.; Chong, K.K.; Nakamura, Y.; Nguyen, L.; Huang, S.K.; Kuo, C.; Zhang, W.; Yu, H.; Morton, D.L.; Hoon, D.S. B7-H3 associated with tumor progression and epigenetic regulatory activity in cutaneous melanoma. J. Invest. Dermatol. 2013, 133, 2050–2058. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Ekmekcioglu, S.; Davies, M.A.; Tanese, K.; Roszik, J.; Shin-Sim, M.; Bassett, R.L., Jr.; Milton, D.R.; Woodman, S.E.; Prieto, V.G.; Gershenwald, J.E.; et al. Inflammatory Marker Testing Identifies CD74 Expression in Melanoma Tumor Cells, and Its Expression Associates with Favorable Survival for Stage III Melanoma. Clin. Cancer Res. 2016, 22, 3016–3024. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Wang, X.; Bustos, M.A.; Zhang, X.; Ramos, R.I.; Tan, C.; Iida, Y.; Chang, S.C.; Salomon, M.P.; Tran, K.; Gentry, R.; et al. Downregulation of the Ubiquitin-E3 Ligase RNF123 Promotes Upregulation of the NF-κB1 Target SerpinE1 in Aggressive Glioblastoma Tumors. Cancers 2020, 12, 81. [Google Scholar] [CrossRef]
  39. Jachimowicz, R.D.; Beleggia, F.; Isensee, J.; Velpula, B.B.; Goergens, J.; Bustos, M.A.; Doll, M.A.; Shenoy, A.; Checa-Rodriguez, C.; Wiederstein, J.L.; et al. UBQLN4 Represses Homologous Recombination and Is Overexpressed in Aggressive Tumors. Cell 2019, 176, 505–519. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Ramos, R.I.; Bustos, M.A.; Wu, J.; Jones, P.; Chang, S.C.; Kiyohara, E.; Tran, K.; Zhang, X.; Stern, S.L.; Izraely, S.; et al. Upregulation of cell surface GD3 ganglioside phenotype is associated with human melanoma brain metastasis. Mol. Oncol. 2020, 14, 1760–1778. [Google Scholar] [CrossRef] [PubMed]
  41. Bustos, M.A.; Ono, S.; Marzese, D.M.; Oyama, T.; Iida, Y.; Cheung, G.; Nelson, N.; Hsu, S.C.; Yu, Q.; Hoon, D.S.B. MiR-200a Regulates CDK4/6 Inhibitor Effect by Targeting CDK6 in Metastatic Melanoma. J. Invest. Dermatol. 2017, 137, 1955–1964. [Google Scholar] [CrossRef] [Green Version]
  42. Lachenmayer, A.; Toffanin, S.; Cabellos, L.; Alsinet, C.; Hoshida, Y.; Villanueva, A.; Minguez, B.; Tsai, H.-W.; Ward, S.C.; Thung, S. Combination therapy for hepatocellular carcinoma: Additive preclinical efficacy of the HDAC inhibitor panobinostat with sorafenib. J. Hepatol. 2012, 56, 1343–1350. [Google Scholar] [CrossRef] [Green Version]
  43. Atadja, P. Development of the pan-DAC inhibitor panobinostat (LBH589): Successes and challenges. Cancer Lett. 2009, 280, 233–241. [Google Scholar] [CrossRef] [PubMed]
  44. Maiso, P.; Colado, E.; Ocio, E.M.; Garayoa, M.; Martin, J.; Atadja, P.; Pandiella, A.; San-Miguel, J. The synergy of panobinostat plus doxorubicin in acute myeloid leukemia suggests a role for HDAC inhibitors in the control of DNA repair. Leukemia 2009, 23, 2265–2274. [Google Scholar] [CrossRef] [PubMed]
  45. Huang, J.; Stewart, A.; Maity, B.; Hagen, J.; Fagan, R.L.; Yang, J.; Quelle, D.E.; Brenner, C.; Fisher, R.A. RGS6 suppresses Ras-induced cellular transformation by facilitating Tip60-mediated Dnmt1 degradation and promoting apoptosis. Oncogene 2014, 33, 3604–3611. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Nicholson, B.; Suresh Kumar, K.G. The multifaceted roles of USP7: New therapeutic opportunities. Cell Biochem. Biophys. 2011, 60, 61–68. [Google Scholar] [CrossRef] [PubMed]
  47. Greenberg, M.V.C.; Bourc’his, D. The diverse roles of DNA methylation in mammalian development and disease. Nat. Rev. Mol. Cell Biol. 2019, 20, 590–607. [Google Scholar] [CrossRef]
  48. Lian, C.G.; Xu, Y.; Ceol, C.; Wu, F.; Larson, A.; Dresser, K.; Xu, W.; Tan, L.; Hu, Y.; Zhan, Q.; et al. Loss of 5-hydroxymethylcytosine is an epigenetic hallmark of melanoma. Cell 2012, 150, 1135–1146. [Google Scholar] [CrossRef] [Green Version]
  49. Tanemura, A.; Terando, A.M.; Sim, M.S.; van Hoesel, A.Q.; de Maat, M.F.; Morton, D.L.; Hoon, D.S. CpG island methylator phenotype predicts progression of malignant melanoma. Clin. Cancer Res. 2009, 15, 1801–1807. [Google Scholar] [CrossRef] [Green Version]
  50. Nishiyama, A.; Mulholland, C.B.; Bultmann, S.; Kori, S.; Endo, A.; Saeki, Y.; Qin, W.; Trummer, C.; Chiba, Y.; Yokoyama, H.; et al. Two distinct modes of DNMT1 recruitment ensure stable maintenance DNA methylation. Nat. Commun. 2020, 11, 1222. [Google Scholar] [CrossRef] [Green Version]
  51. Peng, L.; Yuan, Z.; Ling, H.; Fukasawa, K.; Robertson, K.; Olashaw, N.; Koomen, J.; Chen, J.; Lane, W.S.; Seto, E. SIRT1 deacetylates the DNA methyltransferase 1 (DNMT1) protein and alters its activities. Mol. Cell. Biol. 2011, 31, 4720–4734. [Google Scholar] [CrossRef] [Green Version]
  52. Juárez-Mercado, K.E.; Prieto-Martínez, F.D.; Sánchez-Cruz, N.; Peña-Castillo, A.; Prada-Gracia, D.; Medina-Franco, J.L. Expanding the Structural Diversity of DNA Methyltransferase Inhibitors. Pharmaceuticals (Basel) 2020, 14, 17. [Google Scholar] [CrossRef] [PubMed]
  53. Berndsen, R.H.; Abdul, U.K.; Weiss, A.; Zoetemelk, M.; Te Winkel, M.T.; Dyson, P.J.; Griffioen, A.W.; Nowak-Sliwinska, P. Epigenetic approach for angiostatic therapy: Promising combinations for cancer treatment. Angiogenesis 2017, 20, 245–267. [Google Scholar] [CrossRef] [PubMed]
  54. Fiskus, W.; Johnston, P.; Joshi, R.; Rao, R.; Ustun, C.; Jillella, A.; Atadja, P.; Hwang, S.; Redkar, S.; Bhalla, K. Anti-AML activity of combined epigenetic therapy with novel DNMT1 inhibitors SGI-110 and SGI-1036 and histone deacetylase inhibitor panobinostat. Blood 2008, 30, 40–45. [Google Scholar] [CrossRef]
  55. Ashraf, W.; Bronner, C.; Zaayter, L.; Ahmad, T.; Richert, L.; Alhosin, M.; Ibrahim, A.; Hamiche, A.; Mely, Y.; Mousli, M. Interaction of the epigenetic integrator UHRF1 with the MYST domain of TIP60 inside the cell. J. Exp. Clin. Cancer Res. 2017, 36, 188. [Google Scholar] [CrossRef] [Green Version]
  56. Wong, K.K. DNMT1: A key drug target in triple-negative breast cancer. Semin. Cancer Biol. 2020, 72, 198–213. [Google Scholar] [CrossRef]
  57. Cui, J.; Zheng, L.; Zhang, Y.; Xue, M. Bioinformatics analysis of DNMT1 expression and its role in head and neck squamous cell carcinoma prognosis. Sci. Rep. 2021, 11, 2267. [Google Scholar] [CrossRef]
  58. Talantov, D.; Mazumder, A.; Yu, J.X.; Briggs, T.; Jiang, Y.; Backus, J.; Atkins, D.; Wang, Y. Novel genes associated with malignant melanoma but not benign melanocytic lesions. Clin. Cancer Res. 2005, 11, 7234–7242. [Google Scholar] [CrossRef] [Green Version]
  59. Xu, L.; Shen, S.S.; Hoshida, Y.; Subramanian, A.; Ross, K.; Brunet, J.P.; Wagner, S.N.; Ramaswamy, S.; Mesirov, J.P.; Hynes, R.O. Gene expression changes in an animal melanoma model correlate with aggressiveness of human melanoma metastases. Mol. Cancer Res. 2008, 6, 760–769. [Google Scholar] [CrossRef] [Green Version]
Cancers 13 04691 g001 550

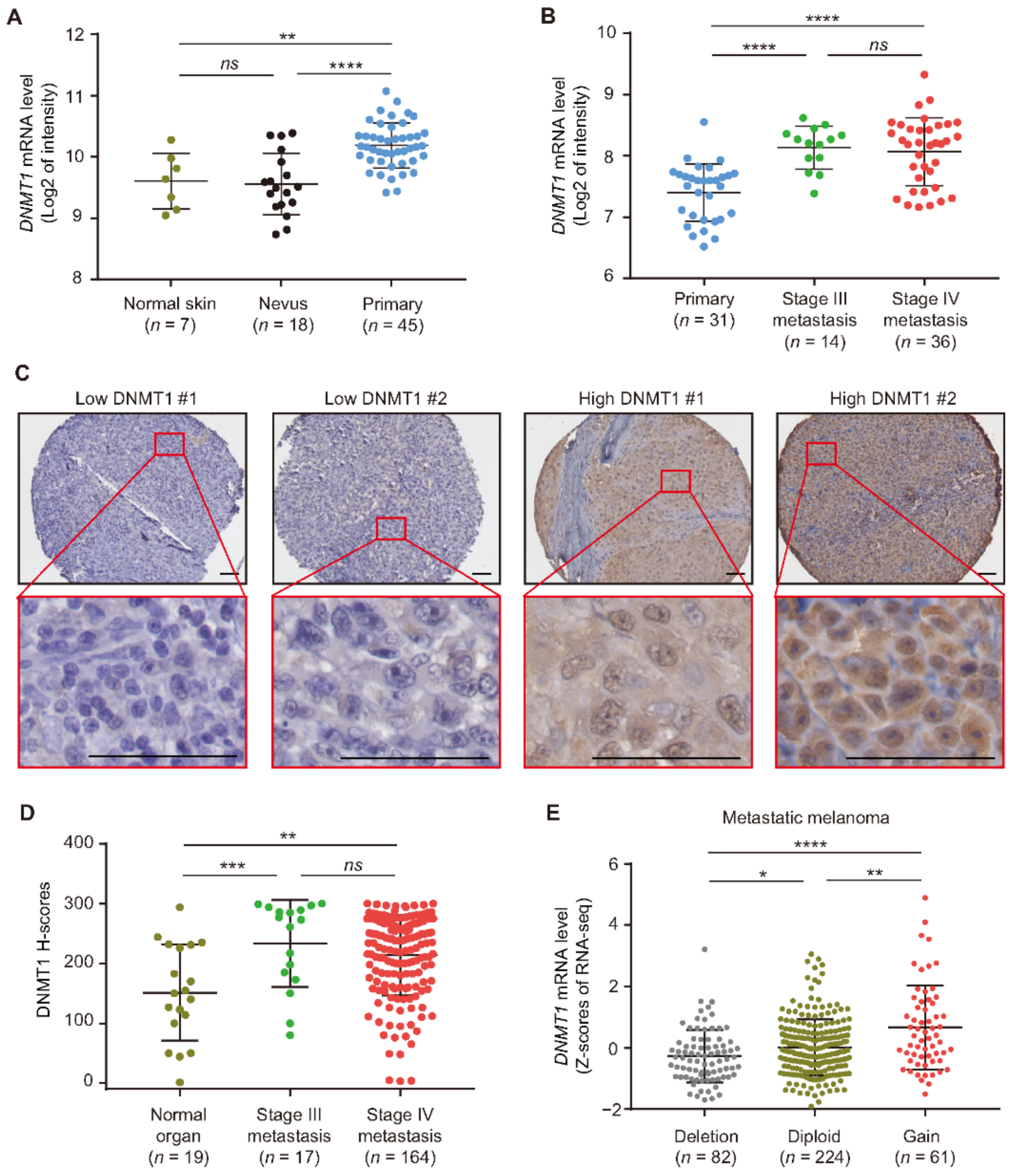

Figure 1. DNMT1 expression is enhanced in metastatic melanoma. (A) Comparison of DNMT1 mRNA expression in normal skin, nevus, and primary melanoma samples using GSE3189 microarray dataset. (B) Comparison of DNMT1 mRNA expression in primary melanoma, stage III, and stage IV metastatic melanoma tissues using the GSE8401 microarray dataset. (C,D) Representative IHC images and H-score quantification of DNMT1 in normal organ tissues, stage III, and stage IV metastatic melanoma tissues from the TMA cohort. Scale bars = 20 μm. (E) Distribution of DNMT1 mRNA levels in metastatic melanoma patients with hemizygous deletion, diploid, and gain using the TCGA metastatic melanoma dataset (n = 367). Data represent the mean ± SD. ns: not significant, * p < 0.05, ** p < 0.01, *** p < 0.001, and **** p < 0.0001.
Figure 1. DNMT1 expression is enhanced in metastatic melanoma. (A) Comparison of DNMT1 mRNA expression in normal skin, nevus, and primary melanoma samples using GSE3189 microarray dataset. (B) Comparison of DNMT1 mRNA expression in primary melanoma, stage III, and stage IV metastatic melanoma tissues using the GSE8401 microarray dataset. (C,D) Representative IHC images and H-score quantification of DNMT1 in normal organ tissues, stage III, and stage IV metastatic melanoma tissues from the TMA cohort. Scale bars = 20 μm. (E) Distribution of DNMT1 mRNA levels in metastatic melanoma patients with hemizygous deletion, diploid, and gain using the TCGA metastatic melanoma dataset (n = 367). Data represent the mean ± SD. ns: not significant, * p < 0.05, ** p < 0.01, *** p < 0.001, and **** p < 0.0001.
Cancers 13 04691 g001
Cancers 13 04691 g002a 550Cancers 13 04691 g002b 550

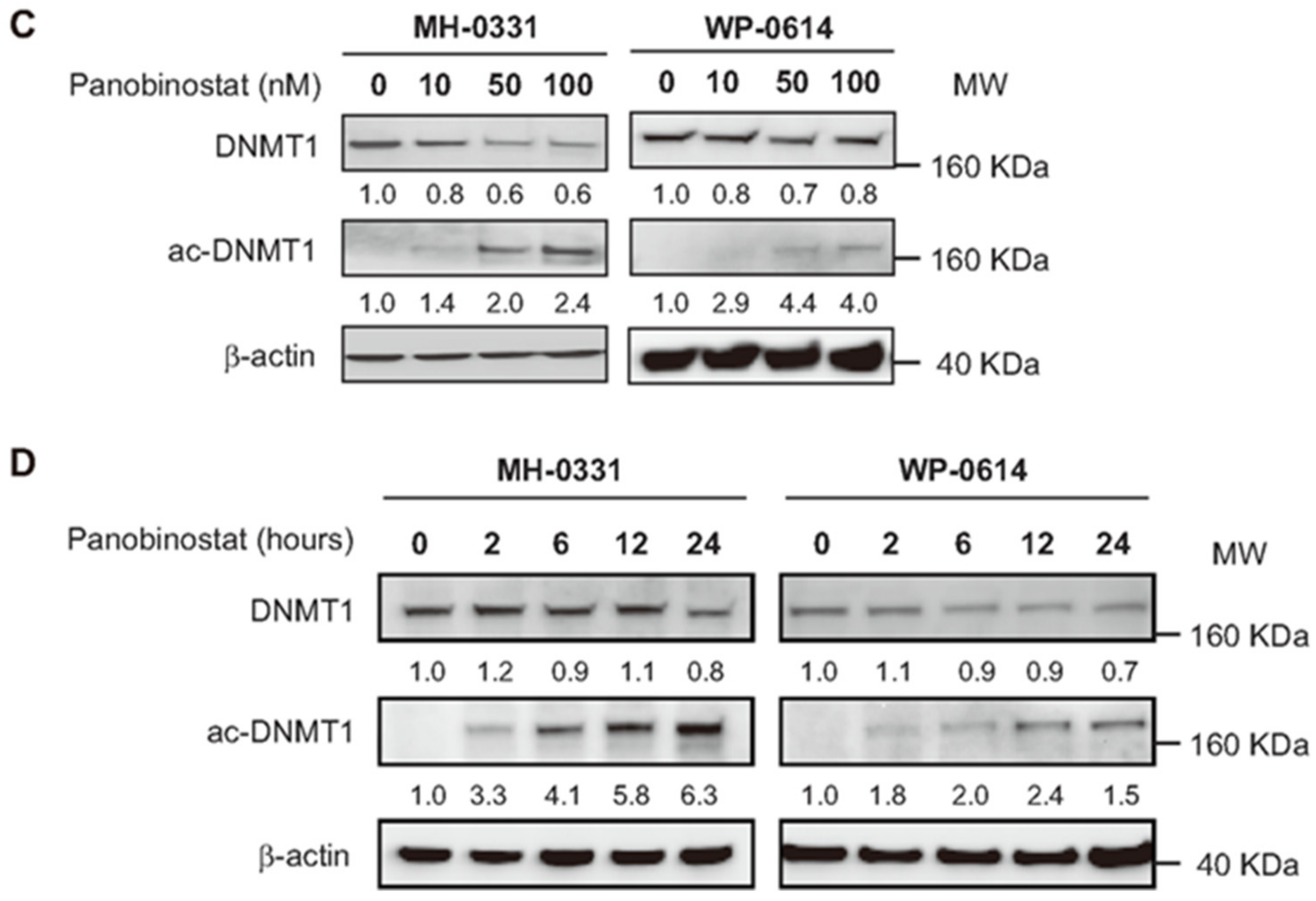

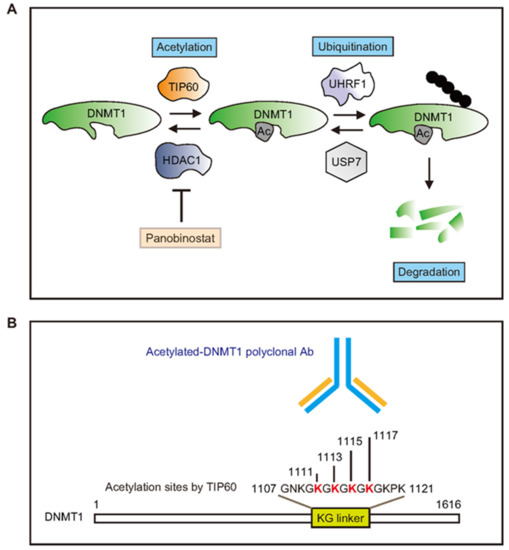

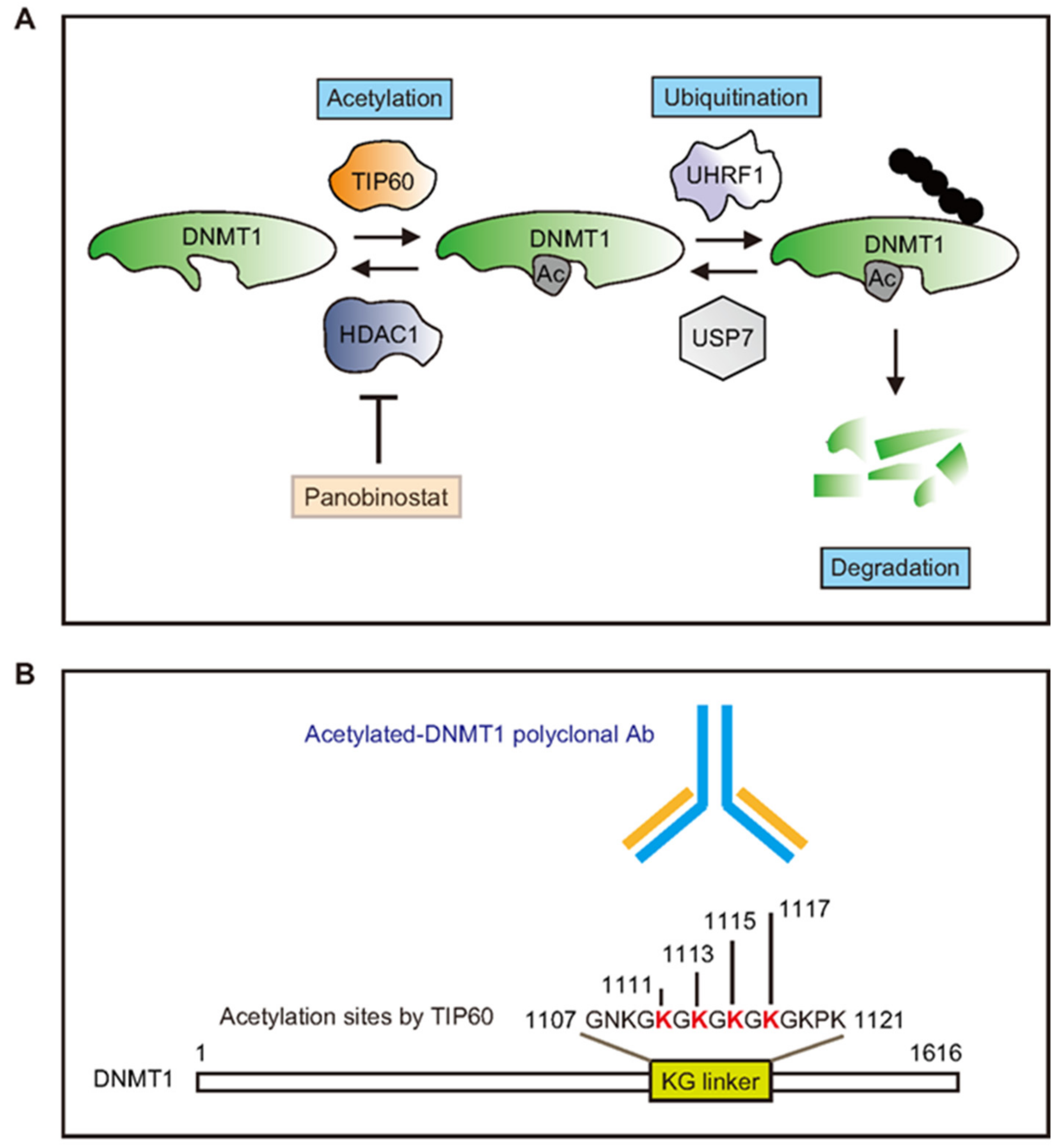

Figure 2. Molecular mechanisms controlling DNMT1 PTMs and protein stability. (A) Schematic diagram showing the acetylation process that modulates the stability of DNMT1 protein. (B) The ac-DNMT1 Ab recognizes the four acetylated lysine residues located in the KG linker of the DNMT1 protein domain. (C,D) Western blot of DNMT1 and ac-DNMT1 in metastatic melanoma cells treated with different concentrations (10, 50, and 100 nM) of panobinostat for 24 h (C) or treated with 100 nM panobinostat (D) for the indicated times (2, 6, 12, and 24 h). β-actin was used as the loading control.
Figure 2. Molecular mechanisms controlling DNMT1 PTMs and protein stability. (A) Schematic diagram showing the acetylation process that modulates the stability of DNMT1 protein. (B) The ac-DNMT1 Ab recognizes the four acetylated lysine residues located in the KG linker of the DNMT1 protein domain. (C,D) Western blot of DNMT1 and ac-DNMT1 in metastatic melanoma cells treated with different concentrations (10, 50, and 100 nM) of panobinostat for 24 h (C) or treated with 100 nM panobinostat (D) for the indicated times (2, 6, 12, and 24 h). β-actin was used as the loading control.
Cancers 13 04691 g002aCancers 13 04691 g002b
Cancers 13 04691 g003 550

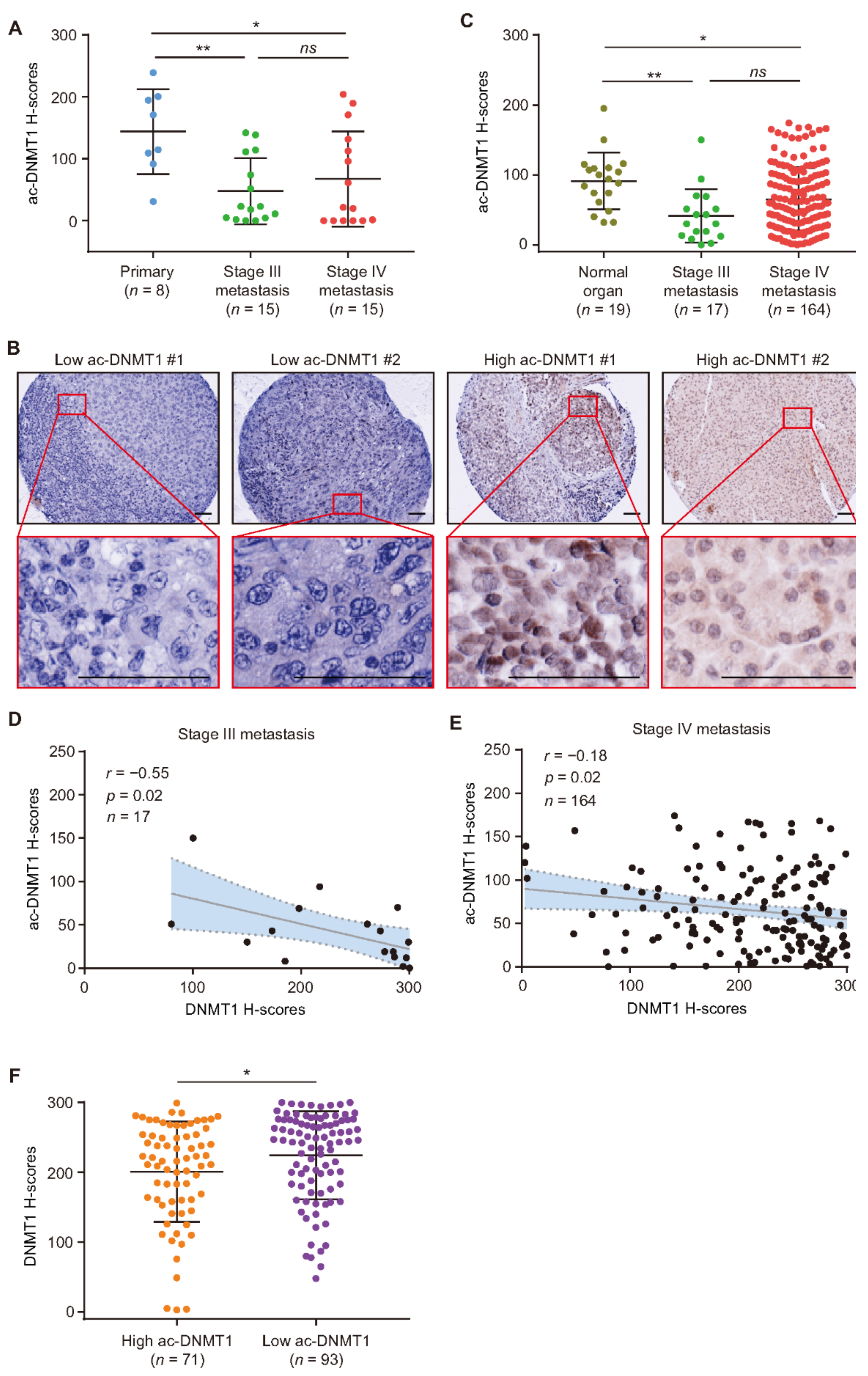

Figure 3. Decreased ac-DNMT1 protein levels are associated with melanoma progression. (A) Comparison of ac-DNMT1 H-scores in FFPE tissues from primary melanoma, stage III, and stage IV metastatic FFPE tissues. (B,C) Representative IHC images and H-score quantification of ac-DNMT1 in normal organ tissues, stage III, and stage IV metastasis from TMA cohort. Scale bars = 20 μm. (D,E) Correlation between ac-DNMT1 and DNMT1 IHC H-scores in stage III (D) and stage IV(E) metastatic FFPE tissues. The best-fit line (straight line) and the 95% CI (dotted line) are shown in grey. (F) Comparison of DNMT1 H-scores in stage IV patients with high or low ac-DNMT1 levels. Data represent the mean ± SD. ns: not significant, * p < 0.05, and ** p < 0.01.
Figure 3. Decreased ac-DNMT1 protein levels are associated with melanoma progression. (A) Comparison of ac-DNMT1 H-scores in FFPE tissues from primary melanoma, stage III, and stage IV metastatic FFPE tissues. (B,C) Representative IHC images and H-score quantification of ac-DNMT1 in normal organ tissues, stage III, and stage IV metastasis from TMA cohort. Scale bars = 20 μm. (D,E) Correlation between ac-DNMT1 and DNMT1 IHC H-scores in stage III (D) and stage IV(E) metastatic FFPE tissues. The best-fit line (straight line) and the 95% CI (dotted line) are shown in grey. (F) Comparison of DNMT1 H-scores in stage IV patients with high or low ac-DNMT1 levels. Data represent the mean ± SD. ns: not significant, * p < 0.05, and ** p < 0.01.
Cancers 13 04691 g003
Cancers 13 04691 g004a 550Cancers 13 04691 g004b 550

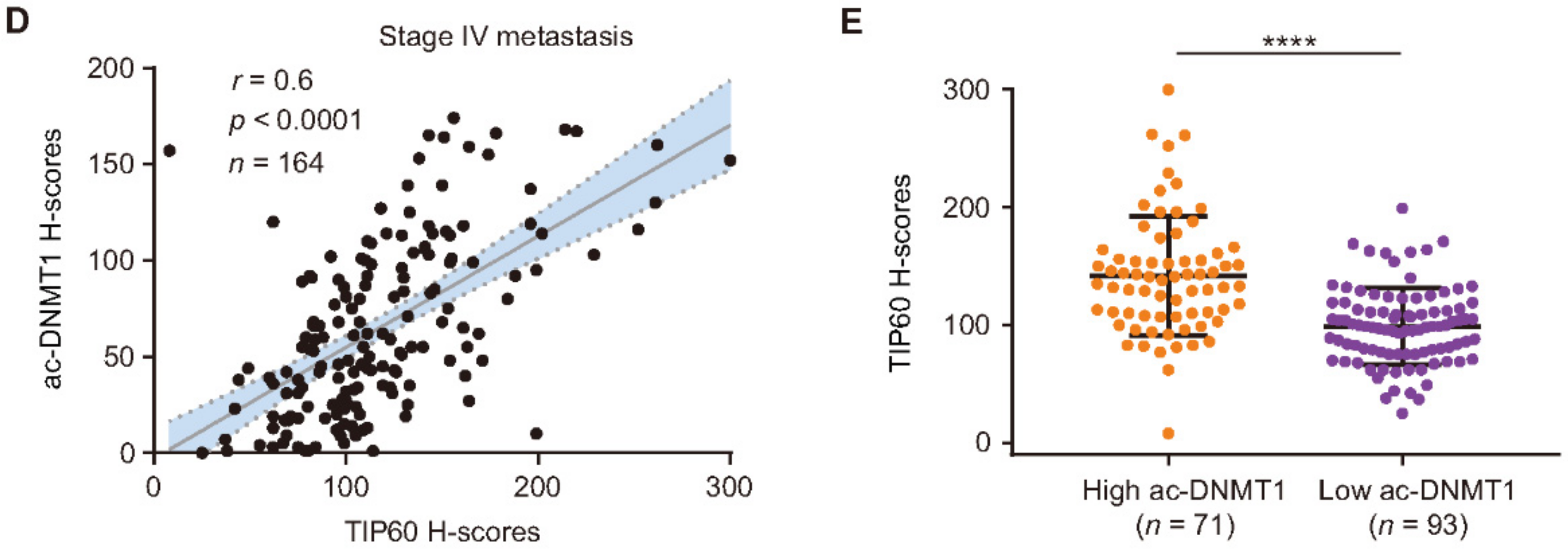

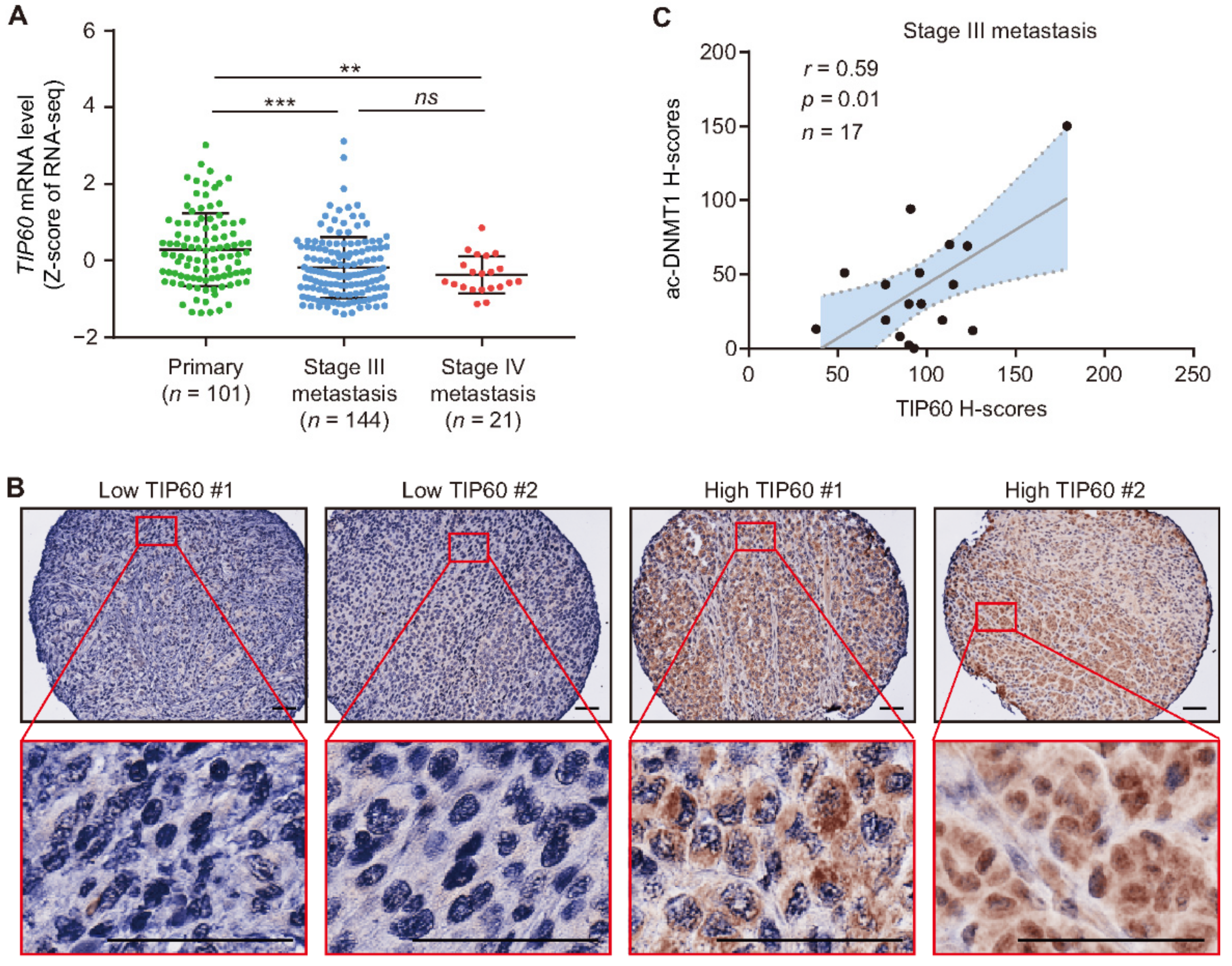

Figure 4. Ac-DNMT1 and TIP60 protein levels positive correlate in metastatic melanoma. (A) Comparison of TIP60 mRNA expression using TCGA SKCM dataset. (B) Representative IHC images of TIP60 in the TMA melanoma cohort. Scale bars = 20 μm. (C,D) Correlation between TIP60 and ac-DNMT1 protein levels in stage III (C) and stage IV (D) metastatic FFPE tissues. (E) Comparison of TIP60 H-scores in stage IV patients with high and low ac-DNMT1 protein levels. The best-fit line (straight line) and the 95% CI (dotted line) are shown in grey. Data represent the mean ± SD. ns: not significant, ** p < 0.01, *** p < 0.001, and **** p < 0.0001.
Figure 4. Ac-DNMT1 and TIP60 protein levels positive correlate in metastatic melanoma. (A) Comparison of TIP60 mRNA expression using TCGA SKCM dataset. (B) Representative IHC images of TIP60 in the TMA melanoma cohort. Scale bars = 20 μm. (C,D) Correlation between TIP60 and ac-DNMT1 protein levels in stage III (C) and stage IV (D) metastatic FFPE tissues. (E) Comparison of TIP60 H-scores in stage IV patients with high and low ac-DNMT1 protein levels. The best-fit line (straight line) and the 95% CI (dotted line) are shown in grey. Data represent the mean ± SD. ns: not significant, ** p < 0.01, *** p < 0.001, and **** p < 0.0001.
Cancers 13 04691 g004aCancers 13 04691 g004b
Cancers 13 04691 g005a 550Cancers 13 04691 g005b 550

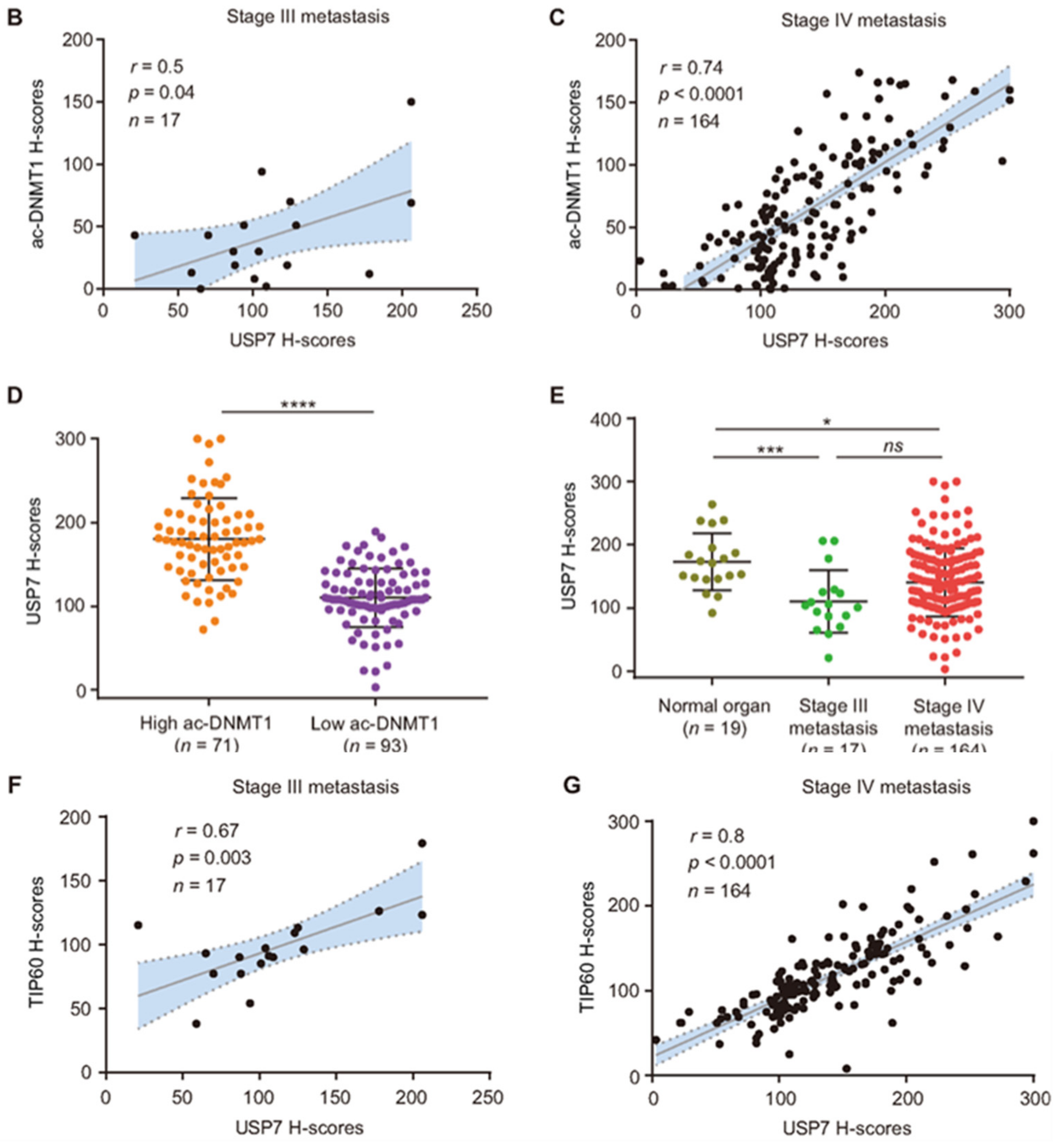

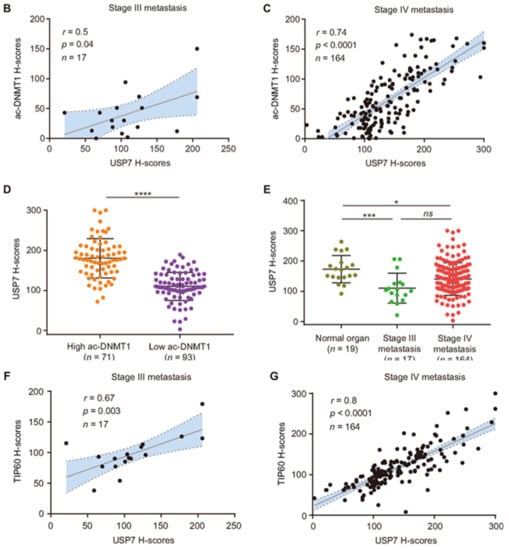

Figure 5. Ac-DNMT1 and USP7 protein levels positive correlate in metastatic melanoma. (A) Representative IHC images of USP7 in the TMA melanoma cohort. Scale bars = 20 μm. (B,C) Correlation between USP7 and ac-DNMT1 protein levels in stage III (B) or stage IV (C) metastatic FFPE tissues. (D) Comparison of USP7 H-scores in stage IV patients with high or low ac-DNMT1 protein levels. (E) Comparison of USP7 H-scores in normal organ tissues, stage III, and stage IV metastasis from the TMA melanoma cohort. (F,G) Correlation between USP7 and TIP60 protein levels in stage III (F) or stage IV (G) metastatic FFPE tissues. The best-fit line (straight line) and the 95% CI (dotted line) are shown in grey. Data represent the mean ± SD. ns: not significant, * p < 0.05, *** p < 0.001, and **** p < 0.0001.
Figure 5. Ac-DNMT1 and USP7 protein levels positive correlate in metastatic melanoma. (A) Representative IHC images of USP7 in the TMA melanoma cohort. Scale bars = 20 μm. (B,C) Correlation between USP7 and ac-DNMT1 protein levels in stage III (B) or stage IV (C) metastatic FFPE tissues. (D) Comparison of USP7 H-scores in stage IV patients with high or low ac-DNMT1 protein levels. (E) Comparison of USP7 H-scores in normal organ tissues, stage III, and stage IV metastasis from the TMA melanoma cohort. (F,G) Correlation between USP7 and TIP60 protein levels in stage III (F) or stage IV (G) metastatic FFPE tissues. The best-fit line (straight line) and the 95% CI (dotted line) are shown in grey. Data represent the mean ± SD. ns: not significant, * p < 0.05, *** p < 0.001, and **** p < 0.0001.
Cancers 13 04691 g005aCancers 13 04691 g005b
Cancers 13 04691 g006 550

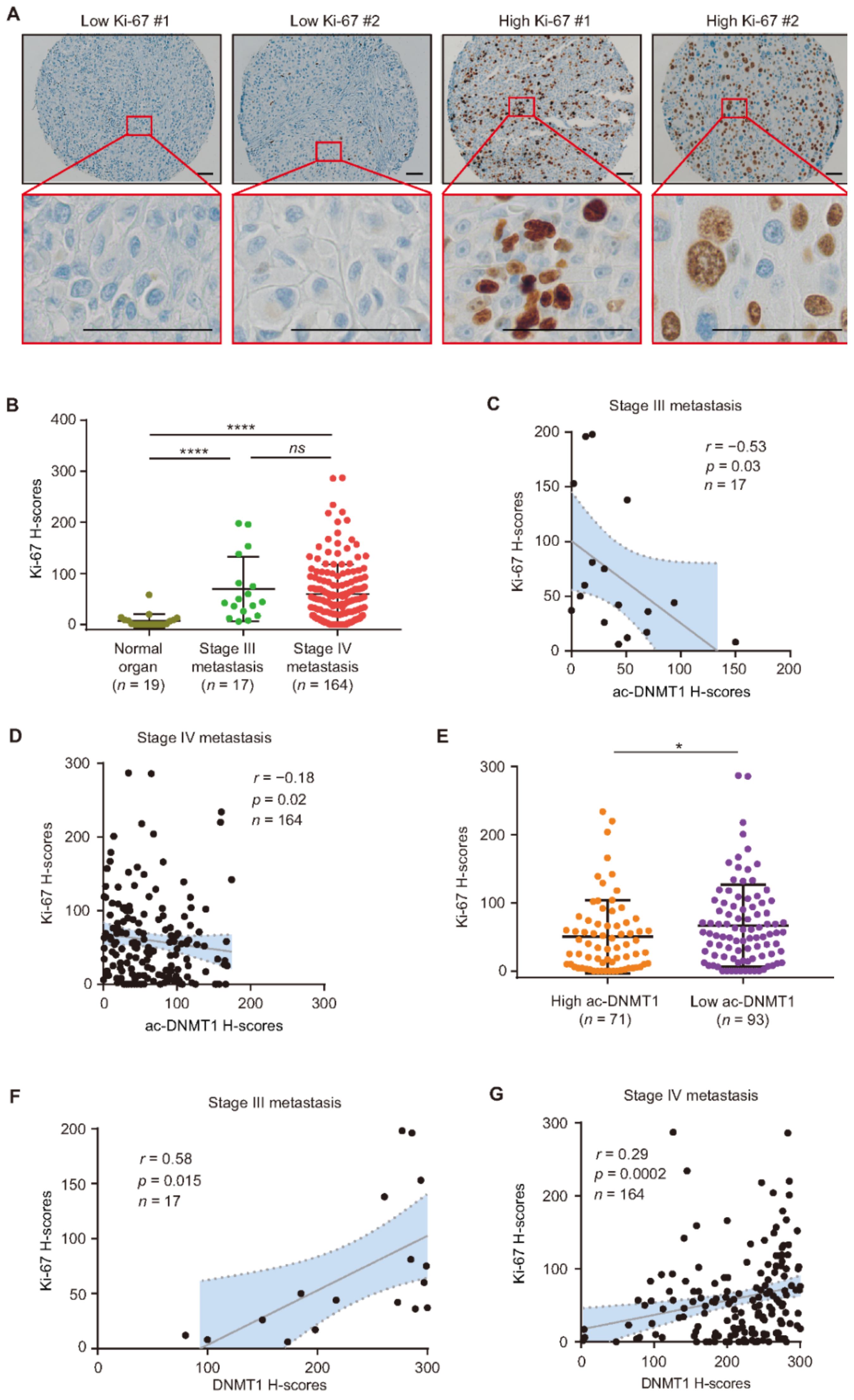

Figure 6. Ac-DNMT1 and Ki-67 protein levels correlate in metastatic melanoma. (A,B) Representative IHC images and H-score quantification of Ki-67 in normal organ tissues, stage III, and stage IV metastatic melanomas from the TMA cohort. Scale bars = 20 μm. (C,D) Correlation between Ki-67 and ac-DNMT1 H-scores in stage III (C) or stage IV (D) metastatic FFPE tissues. (E) Comparison of Ki-67 H-scores in stage IV patients with high or low ac-DNMT1 levels. (F,G) Correlation between Ki-67 and DNMT1 IHC H-scores in stage III (F) or stage IV (G) metastatic FFPE tissues. The best-fit line (straight line) and the 95% CI (dotted line) are shown in grey. Data represent the mean ± SD. ns: not significant, * p < 0.05, and **** p < 0.0001.
Figure 6. Ac-DNMT1 and Ki-67 protein levels correlate in metastatic melanoma. (A,B) Representative IHC images and H-score quantification of Ki-67 in normal organ tissues, stage III, and stage IV metastatic melanomas from the TMA cohort. Scale bars = 20 μm. (C,D) Correlation between Ki-67 and ac-DNMT1 H-scores in stage III (C) or stage IV (D) metastatic FFPE tissues. (E) Comparison of Ki-67 H-scores in stage IV patients with high or low ac-DNMT1 levels. (F,G) Correlation between Ki-67 and DNMT1 IHC H-scores in stage III (F) or stage IV (G) metastatic FFPE tissues. The best-fit line (straight line) and the 95% CI (dotted line) are shown in grey. Data represent the mean ± SD. ns: not significant, * p < 0.05, and **** p < 0.0001.
Cancers 13 04691 g006
Cancers 13 04691 g007 550

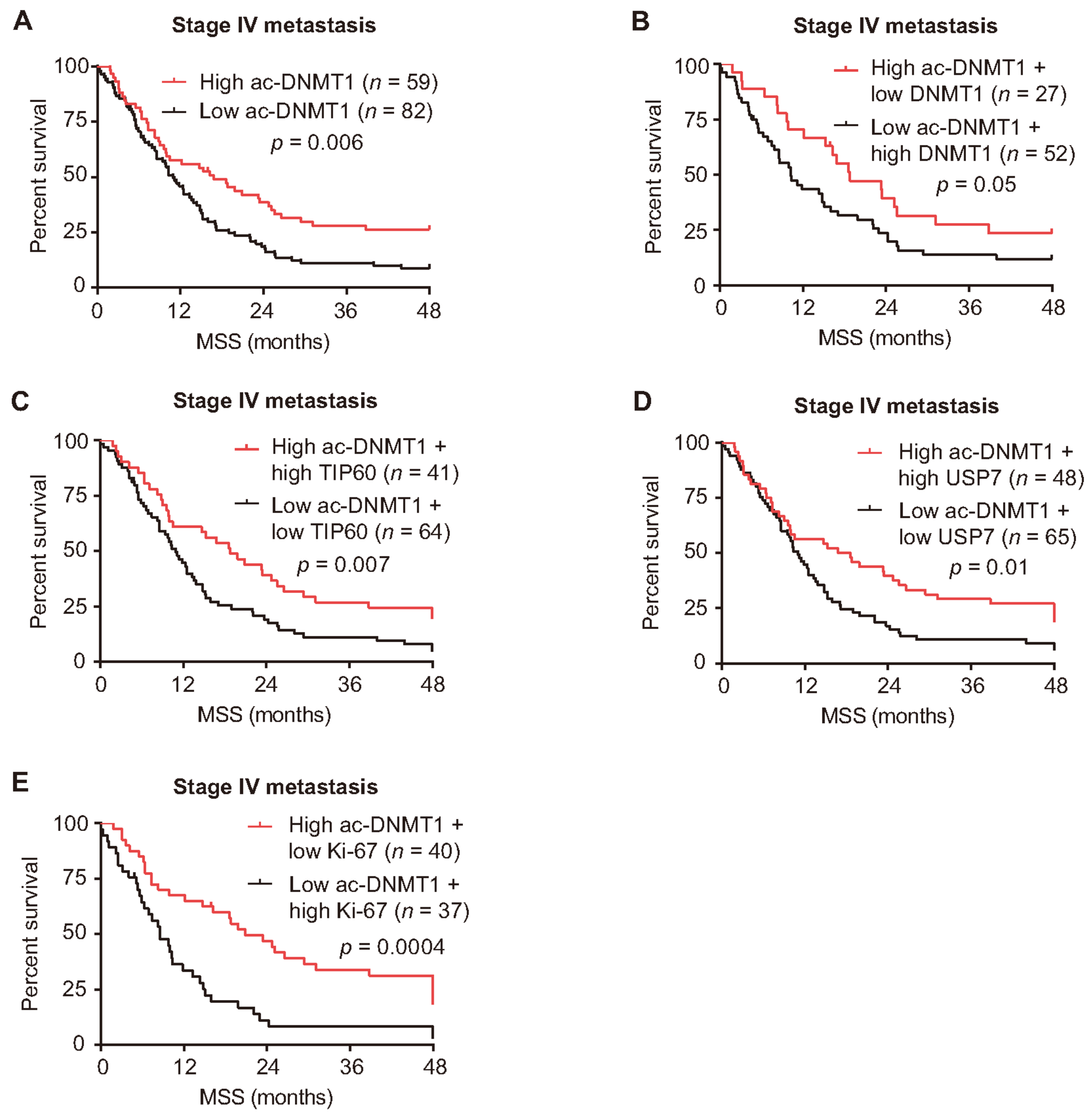

Figure 7. Low ac-DNMT1 protein level is a predictive factor for poor MSS. (A) MSS curves for stage IV metastasis from the TMA cohort. Patients were divided according to the mean IHC H-scores of ac-DNMT1. (B) MSS curves for stage IV metastasis from the TMA cohort. Patients were divided according to the mean IHC H-scores of ac-DNMT1 together with DNMT1 (B), TIP60 (C), USP7 (D), and Ki-67 (E) into high and low groups, respectively.
Figure 7. Low ac-DNMT1 protein level is a predictive factor for poor MSS. (A) MSS curves for stage IV metastasis from the TMA cohort. Patients were divided according to the mean IHC H-scores of ac-DNMT1. (B) MSS curves for stage IV metastasis from the TMA cohort. Patients were divided according to the mean IHC H-scores of ac-DNMT1 together with DNMT1 (B), TIP60 (C), USP7 (D), and Ki-67 (E) into high and low groups, respectively.
Cancers 13 04691 g007
Table
Table 1. Multivariate analyses including ac-DNMT1 protein levels for 4-year MSS 1 in stage IV melanoma patients.
Table 1. Multivariate analyses including ac-DNMT1 protein levels for 4-year MSS 1 in stage IV melanoma patients.
VariableMultivariate Analysis
p-ValueHR 295% CI 3
Ac-DNMT1 H-score0.0020.9940.990–0.998
Age0.0090.9830.971–0.996
Gender0.7051.0820.719–1.629
Organ site0.0250.8410.722–0.978
1 MSS, melanoma-specific survival; 2 HR, hazard ratio; 3 CI, confidence interval.
Table
Table 2. Multivariate analyses including DNMT1 protein level for 4-year MSS 1 in stage IV melanoma patients.
Table 2. Multivariate analyses including DNMT1 protein level for 4-year MSS 1 in stage IV melanoma patients.
VariableMultivariate Analysis
p-ValueHR 295% CI 3
DNMT1 H-score0.5661.0010.998–1.004
Age0.0120.9840.971–0.996
Gender0.3241.2290.816–1.850
Organ site0.0150.8290.712–0.965
1 MSS, melanoma-specific survival; 2 HR, hazard ratio; 3 CI, confidence interval.
Table
Table 3. Multivariate analyses including TIP60 protein levels for 4-year MSS 1 in stage IV melanoma patients.
Table 3. Multivariate analyses including TIP60 protein levels for 4-year MSS 1 in stage IV melanoma patients.
VariableMultivariate Analysis
p-ValueHR 295% CI 3
TIP60 H-score0.1700.7630.519–1.123
Age0.0100.9830.971–0.996
Gender0.5981.1180.738–1.695
Organ site0.0270.8410.721–0.980
1 MSS, melanoma-specific survival; 2 HR, hazard ratio; 3 CI, confidence interval.
Table
Table 4. Multivariate analyses including USP7 protein levels for 4-year MSS 1 in stage IV melanoma patients.
Table 4. Multivariate analyses including USP7 protein levels for 4-year MSS 1 in stage IV melanoma patients.
VariableMultivariate Analysis
p-ValueHR 295% CI 3
USP7 H-score0.1110.9970.994–1.001
Age0.0160.9850.972–0.997
Gender0.5551.1310.751–1.705
Organ site0.0310.8440.723–0.984
1 MSS, melanoma-specific survival; 2 HR, hazard ratio; 3 CI, confidence interval.
Table
Table 5. Multivariate analyses including ac-DNMT1 and Ki-67 protein levels for 4-year MSS 1 in stage IV melanoma patients.
Table 5. Multivariate analyses including ac-DNMT1 and Ki-67 protein levels for 4-year MSS 1 in stage IV melanoma patients.
VariableMultivariate Analysis
p-ValueHR 295% CI 3
Ac-DNMT1 H-score0.0090.9950.991–0.999
Ki-67 H-score0.0261.5491.055–2.276
Age0.0080.9820.970–0.995
Gender0.4291.1860.777–1.811
Organ site0.0200.8350.717–0.972
1 MSS, melanoma-specific survival; 2 HR, hazard ratio; 3 CI, confidence interval.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, X.; Bustos, M.A.; Shoji, Y.; Ramos, R.I.; Iida, Y.; Gentry, R.; Takeshima, T.-L.; Hoon, D.S.B. Acetylated DNMT1 Downregulation and Related Regulatory Factors Influence Metastatic Melanoma Patients Survival. Cancers 2021, 13, 4691. https://doi.org/10.3390/cancers13184691

AMA Style

Zhang X, Bustos MA, Shoji Y, Ramos RI, Iida Y, Gentry R, Takeshima T-L, Hoon DSB. Acetylated DNMT1 Downregulation and Related Regulatory Factors Influence Metastatic Melanoma Patients Survival. Cancers. 2021; 13(18):4691. https://doi.org/10.3390/cancers13184691

Chicago/Turabian Style

Zhang, Xiaoqing, Matias A. Bustos, Yoshiaki Shoji, Romela Irene Ramos, Yuuki Iida, Rebecca Gentry, Teh-Ling Takeshima, and Dave S. B. Hoon. 2021. "Acetylated DNMT1 Downregulation and Related Regulatory Factors Influence Metastatic Melanoma Patients Survival" Cancers 13, no. 18: 4691. https://doi.org/10.3390/cancers13184691

APA Style

Zhang, X., Bustos, M. A., Shoji, Y., Ramos, R. I., Iida, Y., Gentry, R., Takeshima, T. -L., & Hoon, D. S. B. (2021). Acetylated DNMT1 Downregulation and Related Regulatory Factors Influence Metastatic Melanoma Patients Survival. Cancers, 13(18), 4691. https://doi.org/10.3390/cancers13184691

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
