Genomic Characterization of Concurrent Alterations in Non-Small Cell Lung Cancer (NSCLC) Harboring Actionable Mutations

by
Antonio Passaro
1,*,
Ilaria Attili
1,
Alessandra Rappa
2,
Davide Vacirca
2,
Alberto Ranghiero
2,
Caterina Fumagalli
2,
Juliana Guarize
3,
Lorenzo Spaggiari
3,4,
Filippo de Marinis
1,
Massimo Barberis
2 and
Elena Guerini-Rocco
2,4
1
Division of Thoracic Oncology, IEO, European Institute of Oncology, IRCCS, 20141 Milan, Italy
2
Division of Pathology and Laboratory Medicine, IEO, European Institute of Oncology, IRCCS, 20141 Milan, Italy
3
Department of Thoracic Surgery, IEO, European Institute of Oncology, IRCCS, 20141 Milan, Italy
4
Department of Oncology and Hemato-Oncology, University of Milan, 20122 Milan, Italy
*
Author to whom correspondence should be addressed.
Cancers 2021, 13(9), 2172; https://doi.org/10.3390/cancers13092172
Submission received: 16 April 2021 / Revised: 27 April 2021 / Accepted: 27 April 2021 / Published: 30 April 2021
(This article belongs to the Special Issue Diagnostic and Predictive Biomarkers in Lung Cancer)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Genomic driver alterations with potential impact on prognosis and treatment response are increasing in non-small cell lung cancer (NSCLC). However, few comprehensive data are available on tumor heterogeneity in all these specific subgroups. We conducted this research with the aim to describe specific molecular co-mutation patterns occurring across the main actionable gene subgroups of NSCLC. The findings from the current research are proposed as a backbone in the knowledge of molecular heterogeneity as analyzed by comprehensive genomic profiling in NSCLCs with driver gene alterations, at the basis of subsequent evaluations related to clinical outcomes.

Abstract

An increasing number of driver genomic alterations with potential targeted treatments have been identified in non-small cell lung cancer (NSCLC). Much less is known about the incidence and different distribution of concurrent alterations, as identified by comprehensive genomic profiling in oncogene-addicted NSCLCs. Genomic data from advanced NSCLC consecutively analyzed using a broad next-generation sequencing panel were retrospectively collected. Tumors harboring at least one main actionable gene alteration were categorized according to the presence/absence of concurrent genomic aberrations, to evaluate different patterns among the main oncogene-addicted NSCLCs. Three-hundred-nine actionable gene alterations were identified in 284 advanced NSCLC patients during the study period. Twenty-five tumor samples (8%) displayed concurrent alterations in actionable genes. Co-occurrences involving any pathogenic variant or copy number variation (CNV) were identified in 82.8% of cases. Overall, statistically significant differences in the number of concurrent alterations, and the distribution of TP53, STK11, cyclines and receptor tyrosin kinase (RTK) aberrations were observed across the eight actionable gene groups. NGS analyses of oncogene-addicted NSCLCs showed a different distribution and pattern of co-alteration profiles. Further investigations are needed to evaluate the prognostic and treatment-related impact of these concurrent alterations, hooked to the main gene aberrations.

1. Introduction

The presence of oncogene drivers in non-small cell lung cancer (NSCLC) identifies a subgroup of patients with potential survival benefit from targeted therapies in the advanced and metastatic setting. Patients harboring actionable gene mutations and treated with a targeted agent showed a significant improvement in efficacy endpoints (e.g., overall response rate, progression-free survival and overall survival) and decreased risk of death, compared to those not receiving targeted treatment and to those without oncogene addiction [1]. Since the identification of activating oncogenic mutations in the tyrosine kinase domain of epidermal growth factor receptor (EGFR) in 2004 [2], an increasing number of activating oncogene alterations have been identified in NSCLC, with a related growing knowledge of their impact on treatment selection and survival [3,4]. In the latest years, several tyrosine kinase inhibitors have been developed to target different novel driver gene alterations other than EGFR, ALK, ROS-1 and BRAF, including RET, MET and ERBB2, and some of them have already received approval by the Food and Drug Administration (FDA) and European Medicines Agency (EMA) for the treatment of advanced NSCLC. Despite the high efficacy of these target agents, all patients develop disease progression due to primary or acquired resistance mechanisms [5,6]. To date, a deeper understanding of individual tumor heterogeneity and evolutionary pressures related to the different therapies is highly useful to address and define future potential treatment strategies for patients with oncogene-addicted NSCLCs [7,8,9].
Relevant improvements in treatment strategies have been reached in parallel with significant advancements in molecular diagnostics. Next-generation sequencing (NGS) assays allow us to simultaneously detect multiple alterations in different genes, including but not limited to the known genetic drivers. Therefore, they allow insights into tumor molecular heterogeneity by evaluating the presence of co-occurring genomic alterations, which might be at the basis of clinical heterogeneity and the variable response to anticancer treatments within oncogenic-driven subgroups. Interest is growing towards the possibility to define diverse NSCLC phenotypes through the identification of different co-mutational patterns [10,11], and a negative prognostic role has been described for TP53 and LKB1 (or STK11) in EGFR and KRAS mutant lung cancer, respectively [12,13,14,15,16,17]. Additional gene alterations, including cycline-related genes and PIK3CA, have also been initially described as singular determinants of molecular diversity potentially impacting clinical results in NSCLCs with driver mutations [14,18,19]. However, few data are available regarding comprehensive co-mutation patterns, in particular in the less frequently detected oncogene-addicted NSCLCs (i.e., ALK, ROS1 or RET rearrangements, BRAF or ERBB2 mutations).
In a previous report, we described the feasibility and potential impact of genomic profiling in lung cancer using a 22-gene-based NGS assay [20], showing that 82.4% of non-squamous NSCLC harbored at least one molecular alteration, while 63.6% carried clinically relevant molecular aberrations.
This work aims to deeply investigate the comprehensive molecular results obtained by wider genomic profiling of lung cancers, covering fusion genes and copy number variants (CNVs), in addition to gene mutations, to evaluate the patterns of concurrent alterations across the main actionable gene subgroups and to improve the molecular and clinical understanding of oncogene-addicted non-small cell lung cancer.

2. Materials and Methods

We retrospectively collected tumor genomic data from patients with advanced NSCLC consecutively referred to the European Institute of Oncology from January 2018 to September 2020. The study population included treatment-naïve patients diagnosed at our facility and patients who were referred to our center after being diagnosed with NSCLC in other institutions in the absence of a molecular profile. For the purpose of this study, only tumors with complete molecular reports obtained from broad next-generation sequencing panel analysis were considered. Additional results from fluorescence in situ hybridization (FISH) testing were reviewed, whenever available. All information regarding human material was managed using anonymous numerical codes, and all samples were handled in compliance with the Helsinki Declaration.
Molecular analysis was performed with a 161-gene NGS assay (Oncomine Comprehensive Assay v.3; ThermoFisher Scientific, Waltham, MA, USA), according to the manufacturer’s instructions. Briefly, 10 ng of DNA and RNA extracted from available representative tumor samples (formalin-fixed paraffin-embedded (FFPE) tissue blocks, cytoblocks or smears) were used for the library and template preparation on the Ion Chef System (ThermoFisher Scientific, Waltham, MA, USA). The sequencing run was performed on the Ion S5 System (ThermoFisher Scientific, Waltham, MA, USA) and data were analyzed with the Ion Reporter Analysis Software (ThermoFisher Scientific, Waltham, MA, USA). Only mutations with a variant allele frequency (VAF) equal/superior to 5%, adequate quality metrics and annotated as pathogenic/likely pathogenic in cancer gene mutation databases (Catalogue of Somatic Mutations in Cancer (COSMIC), cBioPortal for Cancer Genomics, ClinVar–NCBI–NIH) were recorded. Copy number gains (CNG) were evaluated only for samples with a median of the absolute values of all pairwise difference (MAPD) <0.5 [21]. Variants of unknown significance (VUS) and variants classified as polymorphism, benign, likely benign or neutral were not considered for the purpose of our study.
FISH analyses were performed to confirm the presence of gene rearrangements and copy number gain detected by NGS analysis using a dual-color probe (IQFISH Break Apart Probe and MET IQFISH Probe with CEP7, respectively; Agilent Technologies, Santa Clara, California, USA). The gene copy number (GCN) cutoff of 6 was used to define MET-amplified cases for this study, either by FISH or by NGS.
All patients with any of the acknowledged actionable gene alterations in NSCLC were included in the study analysis. Specifically, the eight evaluated actionable gene alterations were EGFR, KRAS and BRAF mutations, ALK, ROS1 and RET rearrangements, MET deregulation and ERBB2 insertions. Due to the different clinical behavior and response to specific treatments, EGFR mutations were further subclassified into common, sensitive—exon 19 deletions or exon 21 L858R point mutation—and uncommon mutations. Similarly, BRAF mutations were subclassified into V600 and non-V600 point mutations, KRAS into G12C and non-G12C mutations and MET into exon 14 skipping mutations and amplifications.
The identified concurrent alterations were grouped into 9 categories according to gene functions (Table S1): TP53, STK11, DNA repair pathway, beta-catenin, MYC pathway, PI3K pathway, cycline pathways, receptor tyrosine kinases (RTKs) and others.
Variables were presented by using the median value for continuous variables and percentages (numbers) for categorical variables.
Pairwise comparisons using t-tests with pooled standard deviation (SD) were used to evaluate the differences in the co-occurrence patterns according to the eight main driver gene groups.
Odds ratio (OR), calculated using exact methods (mid-p and Fisher) and normal approximation (Wald), was used to evaluate the association between genes and concurrent alterations. Relative risk (RR) was used instead of OR for cases with a 0 value as the reference level.
Statistical significance level was set at p < 0.05 for all tests. All statistical analyses were performed with RStudio (RStudio: Integrated Development for R. RStudio, Inc., Boston, MA). Co-occurrence of selected gene alterations was also evaluated using the mutual exclusivity analysis of the cBioPortal bioinformatics tool [22,23,24].

3. Results

3.1. Distribution of Actionable Gene Mutations in the Study Population

Overall, among 392 patients, we identified 284 cases (72%) with advanced NSCLC harboring at least one actionable gene alteration and complete molecular data as tested with the NGS panel. A total of 309 actionable alterations were identified: 135 (43.7%) KRAS mutations (n = 49 G12C and n = 86 non-G12C point mutations), 62 (20%) EGFR mutations (n = 50 common and n = 12 uncommon mutations), 29 (9.4%) MET alterations (n = 6 exon 14 skipping and n = 23 gene amplification), 41 (13.3%) ALK rearrangements, 10 (3.2%) BRAF mutations (n = 3 V600 and n = 7 non-V600 point mutations), 12 (3.9%) ROS1 rearrangements, 16 (5.2%) RET rearrangements and 4 (1.3%) ERBB2 exon 20 mutations (Table 1; Table S2).

3.2. Frequency and Distribution of Concurrent Genomic Aberrations across the Actionable Gene Subgroups

Overall, the presence of concurrent pathogenic or likely pathogenic alterations was identified in 256 out of the 309 (82.8%) actionable gene aberrations, including cases with concurrent actionable alterations. Concurrent actionable gene alterations occurred in 25 (8%) of the 284 patients, including MET gene amplification (17.68%), KRAS (10.40%) and EGFR (9.36%) mutations (Figure 1; Figure S1).
The median number of overall observed genomic co-alterations (pathogenic/likely pathogenic mutations or CNGs) was two (range 0–8). One-way ANOVA test for variance analysis highlighted a statistically significant difference in the distribution of the median number of total concurrent alterations across the eight actionable gene groups (p < 0.001). Cases with ALK, ROS1 and RET rearrangements showed the lowest median number of concurrent alterations; MET deregulated tumors displayed the highest median number of co-occurrences (Figure 2). Multiple pairwise comparisons revealed differences between specific pairs of groups (Figure 2; Figure S2 and File S1).
ALK-rearranged tumors were significantly less likely to harbor co-mutations as compared to cases with KRAS (OR: 0.24, 95% CI 0.11–0.49, p = 0.00019), EGFR (OR: 0.15, 95% CI 0.06–0.38, p < 0.0001), MET (OR: 0.13, 95% CI 0.03–0.42, p = 0.0004) and BRAF (OR: 0.10, 95% CI 0.004–0.62, p = 0.014) alterations (Figure S3A). Similarly, a lower frequency of concurrent CNVs was detected in ALK-positive cases compared to KRAS, EGFR and MET-altered tumors (OR: 0.24, 95% CI 0.076–0.595; OR: 0.10, 95% CI 0.03–0.28; OR: 0.14, 95% CI 0.04–0.43, respectively). Tumors with EGFR mutations harbored more frequently concurrent CNVs than those with KRAS mutations (OR: 2.27, 95% CI 1.23–4.23) and RET and ROS1-rearranged tumors (OR: 5.67, 95% CI 1.61–28; OR: 13.19, 95% CI 2.31–339, respectively). ROS1-positive cases were less likely to present with CNVs compared to MET-deregulated patients (OR: 0.099, 95% CI 0.004–0.63) (Figure S3B). No significant differences in the occurrence of co-mutations or CNGs were observed within actionable gene subclasses, except for MET-deregulated tumors, where a higher frequency of co-mutations was found in MET-amplified as compared to MET exon 14 skipping cases (100 vs. 33.3%, p < 0.001) (Table 1).

3.3. Distinctive Patterns of Concurrent Alterations in the Actionable Gene Subgroups

Distinctive genes and/or pathways were affected by the concurrent alterations identified in the different actionable gene subgroups, including TP53, STK11, genes associated with cycline pathways and RTKs (Figure 1 and Figure 3). Of note, TP53 mutations occurred more frequently in cases with EGFR and ERBB2 mutations compared to KRAS mutant tumors (62.9 vs. 23%, OR: 3.72, 95% CI 1.99–7.10, p = 0.00047 and 100 vs. 23%, RR: 3.21, 95% CI 2.50–4.13, p = 0.031, respectively) and to ALK-rearranged cases (62.9 vs. 26%, OR: 4.52, 95% CI 1.94–11.15 and 100 vs. 26.8%, RR 3.73, 95% CI 2.25–6.18, p = 0.003, respectively) (Figure S4A).
STK11 co-mutations, as expected, were highly represented in KRAS mutant tumors (15.6%), but were also detected in cases with BRAF (40%), ROS1 (8.3%), ALK (2.4%) and EGFR (1.6%) alterations (Figure 3). However, the likelihood to detect STK11 mutations was significantly less in EGFR, MET, ALK and RET positive tumors compared to tumors harboring KRAS and BRAF mutations, and in ROS1-positive compared to BRAF-positive cases (Figure S4B).
Co-alterations affecting cycline pathways, including CDK2/4, occurred more frequently in MET (34.5%)-positive tumors compared to KRAS mutants (8.9%), ALK (2.4%) and RET (0%) fusion-positive cases (p = 0.0157; p = 0.0031; p = 0.0157, respectively) and in tumors with ERBB2 mutations (50%) compared to ALK and RET-rearranged cases (p = 0.0473; p = 0.0473, respectively) (Figure S4C).
RTKs alterations were observed across all driver gene groups except for ERBB2 (Figure 3). MET-deregulated tumors had the highest rate (65.5%) of RTKs alterations, which was significantly higher compared to KRAS (22.2%), ALK (12.2%), ERBB2 (0%), RET (6.25%) and ROS1 (25%) (Figure S4D).
No statistically significant differences were observed in the incidence of co-mutations involving other pathways, including beta-catenin, MYC pathway, PI3K pathway and DNA repair pathways.

4. Discussion

An increasing amount of data are emerging on genomic profiling of NSCLC through NGS platforms [20,25,26]. Previous reports selectively described potentially relevant co-altered genes in specific oncogene-addicted NSCLC subsets. The most explored are the KRAS and EGFR mutant NSCLCs, with major findings on TP53, STK11 and cycline-related genes such as CDKN2A/B and CDK4/6 [12,13,14,15,18,19]. The present study evaluated the incidence and patterns of concurrent genomic aberrations, across the eight main actionable genes identified in NSCLC. We found statistically significant differences in concurrent alteration profiles within the eight subgroups both quantitively and qualitatively. Indeed, we observed differences in the frequencies of co-occurrences, which were lower in ALK-rearranged tumors, in median co-alteration number, lower in ALK, RET and ROS1-rearranged tumors and higher in MET-deregulated cases, and in the occurrence of specific co-alteration categories (TP53, STK11, cycline-related genes and RTKs).
Previous findings in EGFR-mutant lung cancers show recurrent aberrations in TP53 (54.6–64.6%), PIK3CA (9−12.4%), CTNNB1 (5.3−9.6%), CDKN2A/B (20.2–24.6%) and CDK4 (7−10%) [18,27,28]. Taking into account our categorization according to gene functions, the rates of these co-occurrent alterations are quite comparable with those observed in our cohort of EGFR-mutant tumors (TP53 62.9%, PIK3CA pathway 16.1%, cycline-related genes 17.7% and β-catenin 3.2%). The observed rate of TP53 mutations in ALK, RET and ROS1-rearranged tumors (26.8, 56.2 and 41.7%, respectively) was also similar to that reported in other studies (23.8−26.5% for ALK, 34.6−45.5% for RET and 45.6% for ROS1) [25,29,30]. Conversely, we found a lower rate of mutations involving cycline-related genes in the three rearranged subgroups (2.4, 0 and 8.3%, in ALK, RET and ROS1, respectively) compared to the previous reports [25,29]. However, given that the analysis of gene copy number loss (e.g., CDKN2A/B loss) was not included in our study, these differences may be related to the types of gene alterations covered by different NGS panels. In tumors with MET exon 14 skipping mutations we identified a similar rate of TP53 co-mutations and cycline-related gene alterations as compared to previous findings (33.3 and 50% in our study; 33.5 and 17.5–41.6% in historical data, respectively) [25]. Previous reports on concurrent alterations in BRAF-mutant lung cancer, including V600 and non-V600 alterations, showed a higher rate of TP53 (53.3%), lower rate of STK11 (16.2%) and a similar rate of PIK3CA (6.6%), MYC (10.8%) and CDKN2A/B (11.2–16.6%) alterations [25], compared to our study (TP53 30%, STK11 16.2%, PIK3CA pathway 10%, MYC pathway 10% and cyclines pathway 10%). Finally, TP53 co-mutations were reported in 51.7%, CDKN2A/B in 17.2–27.2%, PIK3CA in 5% and CTNNB1 in 4.4% of ERBB2-mutant NSCLC [25], but these data are not comparable to our results due to the very small number of tumors with ERBB2 mutations included in our cohort.
Taken together, our data reveal a lower frequency of concurrent alterations in tumors driven by fusion genes, and higher rates of co-occurrences in those driven by other actionable gene alterations, especially MET amplification/mutation. These observations potentially suggest differential tumor clonal evolution among the actionable gene groups [31]. Indeed, a more linear evolutionary model might be distinctive of gene fusion-driven tumors, with gene rearrangements occurring as very early events in clonal evolution, in the absence of relevant co-occurring mutations. Conversely, the higher rate of co-occurrent alterations, either “passengers” or even “drivers”, in MET, KRAS, BRAF and EGFR-driven tumors, suggests a branched clonal evolutionary process existing from the early steps of tumor progression. The presence of multiple subclones that may compete during tumor progression and, more importantly, during anti-cancer treatments, can drive the establishment of drug-tolerant persister clones and subsequent off-target drug resistance [7,8,32]. Hence, the specific patterns and relative abundance of co-occurring alterations might be responsible for differential tumor behavior in terms of response to anti-cancer treatments, duration of response and treatment resistance mechanisms. In the evolving experience of the failure of mono-immunotherapy in the main oncogene-addicted NSCLCs, the deeper investigation of co-alteration profiles could shed light on potential subgroups that might still benefit from such an approach or require combinatorial strategies [33,34,35].
The significance and relative impact of co-occurring gene alterations are strongly dependent on several factors, including the size of the evaluated cohort and the number and type of evaluated gene alterations according to the specific sequencing platform. However, to our knowledge, this is the first in-class study to comprehensively describe and categorize co-mutation patterns according to primary actionable gene alterations in advanced NSCLC, providing an additional exploratory comparison among subgroups. The relatively high rate of actionable gene alterations—including those of rarer genes—observed in our study is most likely due to the referral nature of many patients, which results in a positive selection of cases with a higher probability to be found with driver alterations (e.g., never-smokers with previously diagnosed negative EGFR mutational status accessing our institution for wider tumor genomic profiling). However, the absence of previous oncogene-driven treatments for the advanced setting in the evaluated samples cohort is a major strength in our study, since it allows more accurate interpretation of co-mutation patterns, that might be influenced by selective pressure induced by prior therapies. The main limitation of this study is the unavailability of clinical data, due to the relatively short follow-up time of the included population, the non-homogeneous nature of treatment administered in relation to the heterogeneous populations and the referral nature of many patients’ samples who were treated in other institutions.

5. Conclusions

The treatment scenario for patients with NSCLC has dramatically changed in the last two decades thanks to the advent of different targeted agents and immune checkpoint inhibitors. The use of these agents significantly improved the median survival benefit in the advanced setting. However, different open questions remain to further improve the survival of patients with NSCLC and improve our understanding of non-response or resistance in patients with oncogene-addicted NSCLC, in which the role of concurrent alterations could be crucial. Indeed, the analysis of co-occurring gene alterations might help in clinical practice, by guiding personalized treatment selection and resistance evaluation. However, despite being strongly recommended, NGS is still not currently standard in many institutions; therefore, the clinical applicability in the real-world setting of investigating co-occurring mutations remains for now in the field of translational research. Based on the exploratory results of the current study, further investigation is planned to selectively collect clinical data in each actionable gene subgroup, defining homogeneously treated patient populations, and to identify differential co-occurrence patterns to be correlated with treatment outcomes, resistance patterns and survival.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/cancers13092172/s1, Figure S1: Distribution of concurrent actionable gene alterations, Figure S2: Differences in the median number of concurrent alterations of the eight actionable gene groups, Figure S3: Differences in frequency of co-mutation (A) and copy number gain variants (B) of the eight actionable gene groups, Figure S4: Differences in the frequency of TP53 (A) and STK11 (B) co-mutations, cycline pathways (C) and RTKs (D) co-alterations of the eight actionable gene groups, Table S1: Genes included in the nine concurrent alteration categories, Table S2: Main characteristics of included population, File S1. Co-occurrence tendency of the eight actionable gene according to the mutual exclusivity analysis from the cBioPortal Oncoprinter (https://www.cbioportal.org/oncoprinter, accessed on 10 March 2021).

Author Contributions

Conceptualization: A.P., I.A. and E.G.-R. Methodology: A.P. and I.A. Data collection: A.P., I.A., E.G.-R., A.R. (Alessandra Rappa), A.R. (Alberto Ranghiero), D.V., J.G., M.B., F.d.M., L.S., C.F. Statistical analyses: I.A. Visualization: A.P. and I.A., E.G.-R. Writing—original draft: A.P., I.A. and E.G.-R. Writing—review and editing: all authors. All authors have read and agreed to the published version of the manuscript.

Funding

Funding: This work was partially supported by the Italian Ministry of Health with “Ricerca Corrente”, “5 × 1000”.

Institutional Review Board Statement

All the experimental procedures were carried out in accordance with the general authorization to process personal data for scientific research purposes from “The Italian Data Protection Authority” (http://www.garanteprivacy.it/web/guest/home/docweb/-/docwebdisplay/export/2485392, accessed on 10 March 2021). All information regarding human material was managed using anonymous numerical codes, and all samples were handled in compliance with the Helsinki Declaration (https://www.wma.net/fr/news-post/en-matierede-transfert-des-taches-la-securite-des-patients-et-la-qualitedes-soins-devraient-etre-primordiales/, accessed on 10 March 2021). According to the aforementioned national guidelines, the study did not require an Ethical Committee approval since it did not affect the clinical management of the involved patients’ samples.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available in insert article and supplementary materials.

Acknowledgments

We acknowledge the laboratory technicians of the Division of Pathology (European Institute of Oncology IRCCS, Milan, Italy) for sample collection and processing.

Conflicts of Interest

Passaro has received personal fees from AstraZeneca, Boehringer Ingelheim, Bristol Myers Squibb, Eli Lilly, Merck Sharp & Dohme, Jansenn, Novartis, Pfizer and Roche, outside the submitted work. De Marinis has received honoraria or consulting fees from AstraZeneca, Boehringer Ingelheim, Bristol Myers Squibb, Merck Sharp & Dohme, Pfizer, Novartis, Takeda, Xcovery and Roche, outside the submitted work. Guerini Rocco has received personal fees from ThermoFisher Scientific, Novartis, AstraZeneca and Roche outside the submitted work; non-financial support from ThermoFisher Scientific, AstraZeneca, Roche, Novartis, Biocartis and Illumina outside the submitted work. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Kris, M.G.; Johnson, B.E.; Berry, L.D.; Kwiatkowski, D.J.; Iafrate, A.J.; Wistuba, I.I.; Varella-Garcia, M.; Franklin, W.A.; Aronson, S.L.; Su, P.-F.; et al. Using Multiplexed Assays of Oncogenic Drivers in Lung Cancers to Select Targeted Drugs. JAMA 2014, 311, 1998–2006. [Google Scholar] [CrossRef] [PubMed]
  2. Lynch, T.J.; Bell, D.W.; Sordella, R.; Gurubhagavatula, S.; Okimoto, R.A.; Brannigan, B.W.; Harris, P.L.; Haserlat, S.M.; Supko, J.G.; Haluska, F.G.; et al. Activating Mutations in the Epidermal Growth Factor Receptor Underlying Responsiveness of Non–Small-Cell Lung Cancer to Gefitinib. N. Engl. J. Med. 2004, 350, 2129–2139. [Google Scholar] [CrossRef]
  3. Yuan, M.; Huang, L.-L.; Chen, J.-H.; Wu, J.; Xu, Q. The emerging treatment landscape of targeted therapy in non-small-cell lung cancer. Signal Transduct. Target. Ther. 2019, 4, 1–14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Peters, S.; Mok, T.; Passaro, A.; Jänne, P.A. The Promising Evolution of Targeted Therapeutic Strategies in Cancer. Cancer Discov. 2021, 11, 810–814. [Google Scholar] [CrossRef] [PubMed]
  5. Del Re, M.; Arrigoni, E.; Restante, G.; Passaro, A.; Rofi, E.; Crucitta, S.; De Marinis, F.; Di Paolo, A.; Danesi, R. Concise Review: Resistance to Tyrosine Kinase Inhibitors in Non-Small Cell Lung Cancer: The Role of Cancer Stem Cells. Stem Cells 2018, 36, 633–640. [Google Scholar] [CrossRef] [Green Version]
  6. Passaro, A.; Jänne, P.A.; Mok, T.; Peters, S. Overcoming therapy resistance in EGFR-mutant lung cancer. Nat. Rev. Cancer 2021, 2, 377–391. [Google Scholar] [CrossRef]
  7. McGranahan, N.; Swanton, C. Clonal Heterogeneity and Tumor Evolution: Past, Present, and the Future. Cell 2017, 168, 613–628. [Google Scholar] [CrossRef] [Green Version]
  8. Passaro, A.; Malapelle, U.; Del Re, M.; Attili, I.; Russo, A.; Guerini-Rocco, E.; Fumagalli, C.; Pisapia, P.; Pepe, F.; De Luca, C.; et al. Understanding EGFR heterogeneity in lung cancer. ESMO Open 2020, 5, e000919. [Google Scholar] [CrossRef]
  9. Passaro, A.; Mok, T.; Peters, S.; Popat, S.; Ahn, M.-J.; de Marinis, F. Recent Advances on the Role of EGFR Tyrosine Kinase Inhibitors in the Management of NSCLC With Uncommon, Non Exon 20 Insertions, EGFR Mutations. J. Thorac. Oncol. 2020, 16, 764–773. [Google Scholar] [CrossRef]
  10. Zehir, A.; Benayed, R.; Shah, R.H.; Syed, A.; Middha, S.; Kim, H.R.; Srinivasan, P.; Gao, J.; Chakravarty, D.; Devlin, S.M.; et al. Mutational landscape of metastatic cancer revealed from prospective clinical sequencing of 10,000 patients. Nat. Med. 2017, 23, 703–713. [Google Scholar] [CrossRef]
  11. Imielinski, M.; Berger, A.H.; Hammerman, P.S.; Hernandez, B.; Pugh, T.J.; Hodis, E.; Cho, J.; Suh, J.; Capelletti, M.; Sivachenko, A.; et al. Mapping the Hallmarks of Lung Adenocarcinoma with Massively Parallel Sequencing. Cell 2012, 150, 1107–1120. [Google Scholar] [CrossRef] [Green Version]
  12. Lee, J.K.; Lee, J.; Kim, S.; Kim, S.; Youk, J.; Park, S.; An, Y.; Keam, B.; Kim, D.W.; Heo, D.S.; et al. Clonal History and Genetic Predictors of Transformation Into Small-Cell Carcinomas From Lung Adenocarcinomas. J. Clin. Oncol. 2017, 35, 3065–3074. [Google Scholar] [CrossRef] [PubMed]
  13. VanderLaan, P.A.; Rangachari, D.; Mockus, S.M.; Spotlow, V.; Reddi, H.V.; Malcolm, J.; Huberman, M.S.; Joseph, L.J.; Kobayashi, S.S.; Costa, D.B. Mutations in TP53, PIK3CA, PTEN and other genes in EGFR mutated lung cancers: Correlation with clinical outcomes. Lung Cancer 2017, 106, 17–21. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Kim, Y.; Lee, B.; Shim, J.H.; Lee, S.-H.; Park, W.-Y.; Choi, Y.-L.; Sun, J.-M.; Ahn, J.S.; Ahn, M.-J.; Park, K. Concurrent Genetic Alterations Predict the Progression to Target Therapy in EGFR-Mutated Advanced NSCLC. J. Thorac. Oncol. 2019, 14, 193–202. [Google Scholar] [CrossRef] [Green Version]
  15. Skoulidis, F.; Goldberg, M.E.; Greenawalt, D.M.; Hellmann, M.D.; Awad, M.M.; Gainor, J.F.; Schrock, A.B.; Hartmaier, R.J.; Trabucco, S.E.; Gay, L.; et al. STK11/LKB1 Mutations and PD-1 Inhibitor Resistance in KRAS-Mutant Lung Adenocarcinoma. Cancer Discov. 2018, 8, 822–835. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Addeo, A.; Passaro, A.; Malapelle, U.; Banna, G.L.; Subbiah, V.; Friedlaender, A. Immunotherapy in Non-small cell lung cancer harbouring driver mutations. Cancer Treat. Rev. 2021, 96, 102179. [Google Scholar] [CrossRef]
  17. Pavan, A.; Bragadin, A.B.; Calvetti, L.; Ferro, A.; Zulato, E.; Attili, I.; Nardo, G.; Maso, A.D.; Frega, S.; Menin, A.G.; et al. Role of next generation sequencing-based liquid biopsy in advanced non-small cell lung cancer patients treated with immune checkpoint inhibitors: Impact of STK11, KRAS and TP53 mutations and co-mutations on outcome. Transl. Lung Cancer Res. 2021, 10, 202–220. [Google Scholar] [CrossRef]
  18. Blakely, C.M.; Watkins, T.B.K.; Wu, W.; Gini, B.; Chabon, J.J.; McCoach, C.E.; McGranahan, N.; Wilson, G.A.; Birkbak, N.J.; Olivas, V.R.; et al. Evolution and clinical impact of co-occurring genetic alterations in advanced-stage EGFR-mutant lung cancers. Nat. Genet. 2017, 49, 1693–1704. [Google Scholar] [CrossRef]
  19. Skoulidis, F.; Byers, L.A.; Diao, L.; Papadimitrakopoulou, V.A.; Tong, P.; Izzo, J.; Behrens, C.; Kadara, H.; Parra, E.R.; Canales, J.R.; et al. Co-occurring Genomic Alterations Define Major Subsets of KRAS—Mutant Lung Adenocarcinoma with Distinct Biology, Immune Profiles, and Therapeutic Vulnerabilities. Cancer Discov. 2015, 5, 860–877. [Google Scholar] [CrossRef] [Green Version]
  20. Fumagalli, C.; Vacirca, D.; Rappa, A.; Passaro, A.; Guarize, J.; Raviele, P.R.; De Marinis, F.; Spaggiari, L.; Casadio, C.; Viale, G.; et al. The long tail of molecular alterations in non-small cell lung cancer: A single-institution experience of next-generation sequencing in clinical molecular diagnostics. J. Clin. Pathol. 2018, 71, 767–773. [Google Scholar] [CrossRef]
  21. Fumagalli, C.; Ranghiero, A.; Gandini, S.; Corso, F.; Taormina, S.; De Camilli, E.; Rappa, A.; Vacirca, D.; Viale, G.; Guerini-Rocco, E.; et al. Inter-tumor genomic heterogeneity of breast cancers: Comprehensive genomic profile of primary early breast cancers and relapses. Breast Cancer Res. 2020, 22, 107. [Google Scholar] [CrossRef] [PubMed]
  22. cBioPortal for Cancer Genomics. Available online: https://www.cbioportal.org/oncoprinter (accessed on 10 March 2021).
  23. Gao, J.; Aksoy, B.A.; Dogrusoz, U.; Dresdner, G.; Gross, B.; Sumer, S.O.; Sun, Y.; Jacobsen, A.; Sinha, R.; Larsson, E.; et al. Integrative Analysis of Complex Cancer Genomics and Clinical Profiles Using the cBioPortal. Sci. Signal. 2013, 6, pl1. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Cerami, E.; Gao, J.; Dogrusoz, U.; Gross, B.E.; Sumer, S.O.; Aksoy, B.A.; Jacobsen, A.; Byrne, C.J.; Heuer, M.L.; Larsson, E.; et al. The cBio Cancer Genomics Portal: An Open Platform for Exploring Multidimensional Cancer Genomics Data. Cancer Discov. 2012, 2, 401–404. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Frampton, G.M.; Ali, S.M.; Rosenzweig, M.; Chmielecki, J.; Lu, X.; Bauer, T.M.; Akimov, M.; Bufill, J.A.; Lee, C.; Jentz, D.; et al. Activation of MET via Diverse Exon 14 Splicing Alterations Occurs in Multiple Tumor Types and Confers Clinical Sensitivity to MET Inhibitors. Cancer Discov. 2015, 5, 850–859. [Google Scholar] [CrossRef] [Green Version]
  26. Jamal-Hanjani, M.; Wilson, G.; McGranahan, N.; Birkbak, N.J.; Watkins, T.B.K.; Veeriah, S.; Shafi, S.; Johnson, D.H.; Mitter, R.; Rosenthal, R.; et al. Tracking the Evolution of Non–Small-Cell Lung Cancer. N. Engl. J. Med. 2017, 376, 2109–2121. [Google Scholar] [CrossRef] [Green Version]
  27. Helena, A.Y.; Suzawa, K.; Jordan, E.J.; Zehir, A.; Ni, A.; Kim, H.R.; Kris, M.G.; Hellmann, M.D.; Li, B.T.; Somwar, R.; et al. Concurrent Alterations in EGFR-Mutant Lung Cancers Associated with Resistance to EGFR Kinase Inhibitors and Characterization of MTOR as a Mediator of Resistance. Clin. Cancer Res. 2018, 24, 3108–3118. [Google Scholar]
  28. Labbé, C.; Cabanero, M.; Korpanty, G.J.; Tomasini, P.; Doherty, M.K.; Mascaux, C.; Jao, K.; Pitcher, B.; Wang, R.; Pintilie, M.; et al. Prognostic and predictive effects of TP53 co-mutation in patients with EGFR -mutated non-small cell lung cancer (NSCLC). Lung Cancer 2017, 111, 23–29. [Google Scholar] [CrossRef]
  29. Aisner, D.L.; Sholl, L.M.; Berry, L.D.; Rossi, M.R.; Chen, H.; Fujimoto, J.; Moreira, A.L.; Ramalingam, S.S.; Villaruz, L.C.; Otterson, G.A.; et al. The Impact of Smoking and TP53 Mutations in Lung Adenocarcinoma Patients with Targetable Mutations—The Lung Cancer Mutation Consortium (LCMC2). Clin. Cancer Res. 2018, 24, 1038–1047. [Google Scholar] [CrossRef] [Green Version]
  30. Lee, J.J.K.; Park, S.; Park, H.; Kim, S.; Lee, J.; Lee, J.; Youk, J.; Yi, K.; An, Y.; Park, I.K.; et al. Tracing Oncogene Rearrangements in the Mutational History of Lung Adenocarcinoma. Cell 2019, 177, 1842–1857. [Google Scholar] [CrossRef]
  31. Zhao, B.; Hemann, M.T.; Lauffenburger, D.A. Modeling Tumor Clonal Evolution for Drug Combinations Design. Trends Cancer 2016, 2, 144–158. [Google Scholar] [CrossRef] [Green Version]
  32. Zulato, E.; Attili, I.; Pavan, A.; Nardo, G.; Del Bianco, P.; Bragadin, A.B.; Verza, M.; Pasqualini, L.; Pasello, G.; Fassan, M.; et al. Early assessment of KRAS mutation in cfDNA correlates with risk of progression and death in advanced non-small-cell lung cancer. Br. J. Cancer 2020, 123, 81–91. [Google Scholar] [CrossRef] [PubMed]
  33. Attili, I.; Tarantino, P.; Passaro, A.; Stati, V.; Curigliano, G.; de Marinis, F. Strategies to overcome resistance to immune checkpoint blockade in lung cancer. Lung Cancer 2021, 154, 151–160. [Google Scholar] [CrossRef] [PubMed]
  34. Passaro, A.; Attili, I.; Morganti, S.; Del Signore, E.; Gianoncelli, L.; Spitaleri, G.; Stati, V.; Catania, C.; Curigliano, G.; de Marinis, F. Clinical features affecting survival in metastatic NSCLC treated with immunotherapy: A critical review of published data. Cancer Treat. Rev. 2020, 89, 102085. [Google Scholar] [CrossRef] [PubMed]
  35. Attili, I.; Bonanno, L.; Karachaliou, N.; Bracht, J.W.P.; Berenguer, J.; Codony-Servat, C.; Codony-Servat, J.; Aldeguer, E.; Gimenez-Capitan, A.; Maso, A.D.; et al. SRC and PIM1 as potential co-targets to overcome resistance in MET deregulated non-small cell lung cancer. Transl. Lung Cancer Res. 2020, 9, 1810–1821. [Google Scholar] [CrossRef]
Cancers 13 02172 g001 550

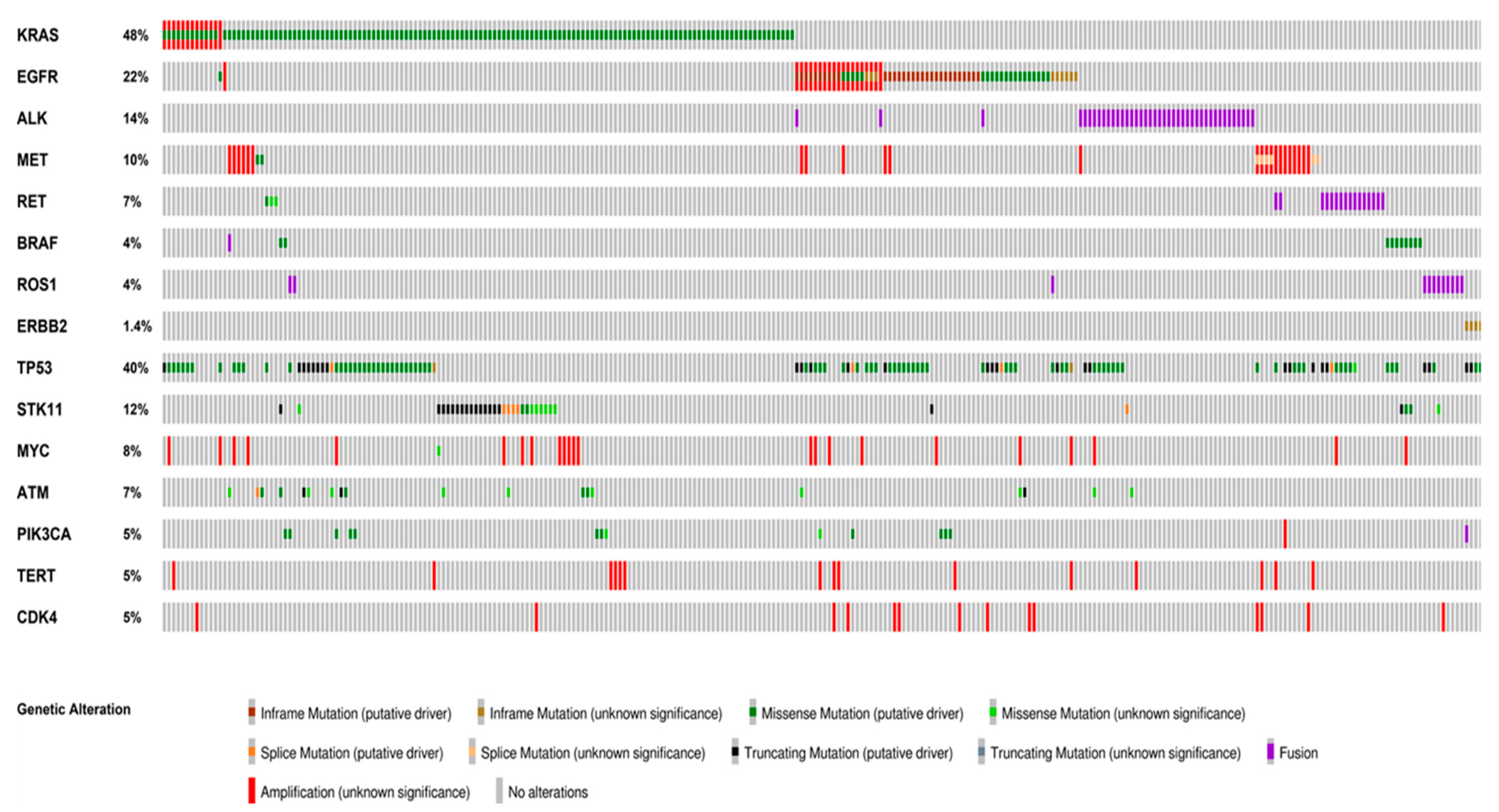

Figure 1. Distribution and co-occurrence of actionable and concurrent gene alterations. Oncoprint plots showing the distribution of actionable gene alterations, concurrent actionable alterations and other co-occuring gene alterations identified in more than 5% of the cases. The type of alteration is color-coded according to the legend below. Co-occurrences of actionable gene alterations included MET amplification, KRAS and EGFR mutations. The most frequent concurrent alterations were TP53 and STK11 mutations. Oncoprinter tool—cBioportal (https://www.cbioportal.org/oncoprinter, accessed on 10 March 2021).
Figure 1. Distribution and co-occurrence of actionable and concurrent gene alterations. Oncoprint plots showing the distribution of actionable gene alterations, concurrent actionable alterations and other co-occuring gene alterations identified in more than 5% of the cases. The type of alteration is color-coded according to the legend below. Co-occurrences of actionable gene alterations included MET amplification, KRAS and EGFR mutations. The most frequent concurrent alterations were TP53 and STK11 mutations. Oncoprinter tool—cBioportal (https://www.cbioportal.org/oncoprinter, accessed on 10 March 2021).
Cancers 13 02172 g001
Cancers 13 02172 g002 550

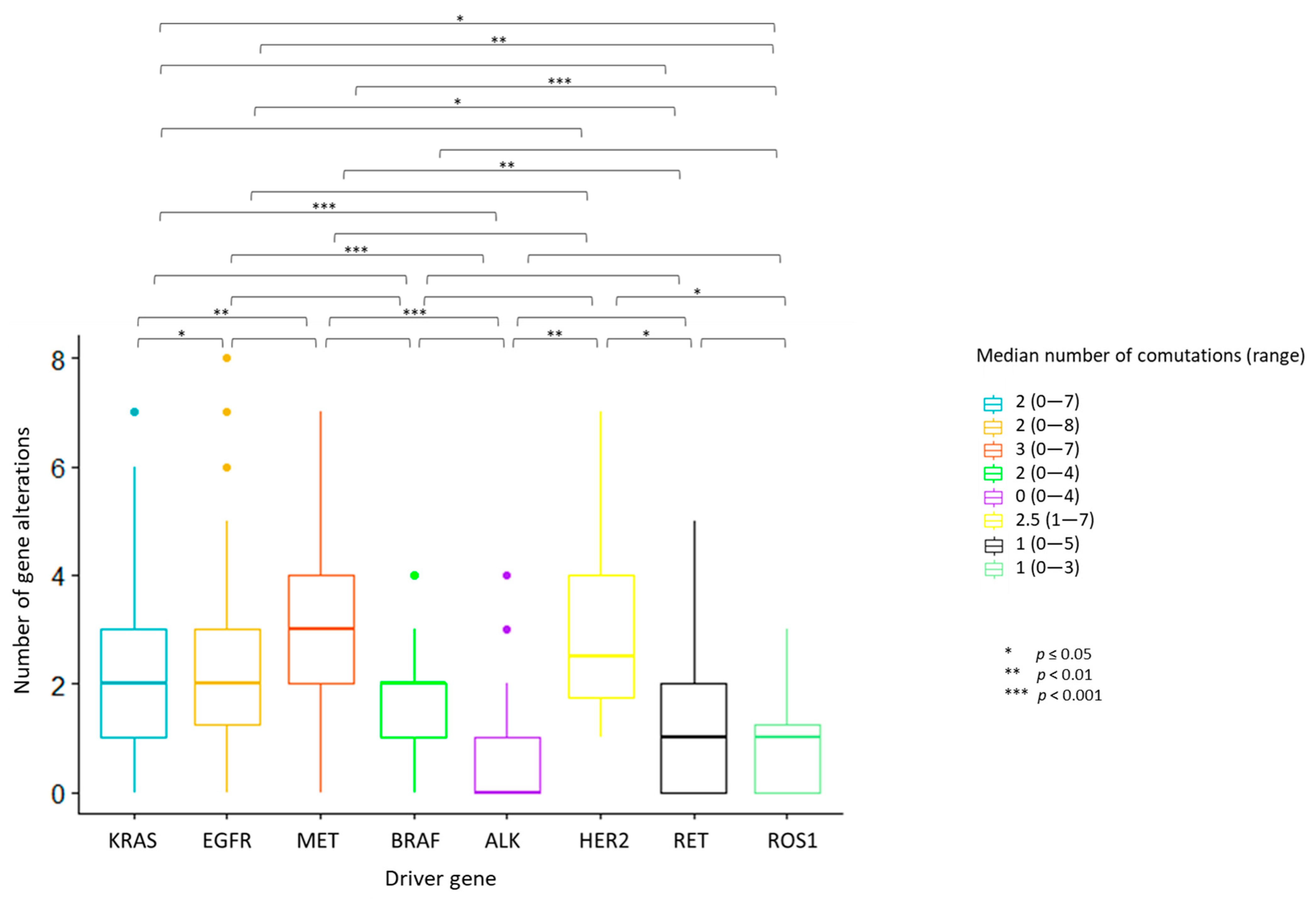

Figure 2. Number of concurrent gene alterations across the eight actionable gene groups. Each bar represents the number of concurrent gene alterations across the eight actionable gene groups. The median number and the range of concurrent gene alterations identified in each actionable gene group are reported in the legend on the right. Statistically significant differences in the distribution of the median number of total concurrent alterations were seen across the actionable gene groups, with the highest median number of concurrent alterations identified in MET deregulated tumors. ALK, ROS1 and RET-positive tumors displayed the lowest median number of co-occurrences. One-way ANOVA test for variance analysis. * p ≤ 0.05; ** p < 0.01; *** p < 0.001
Figure 2. Number of concurrent gene alterations across the eight actionable gene groups. Each bar represents the number of concurrent gene alterations across the eight actionable gene groups. The median number and the range of concurrent gene alterations identified in each actionable gene group are reported in the legend on the right. Statistically significant differences in the distribution of the median number of total concurrent alterations were seen across the actionable gene groups, with the highest median number of concurrent alterations identified in MET deregulated tumors. ALK, ROS1 and RET-positive tumors displayed the lowest median number of co-occurrences. One-way ANOVA test for variance analysis. * p ≤ 0.05; ** p < 0.01; *** p < 0.001
Cancers 13 02172 g002
Cancers 13 02172 g003 550

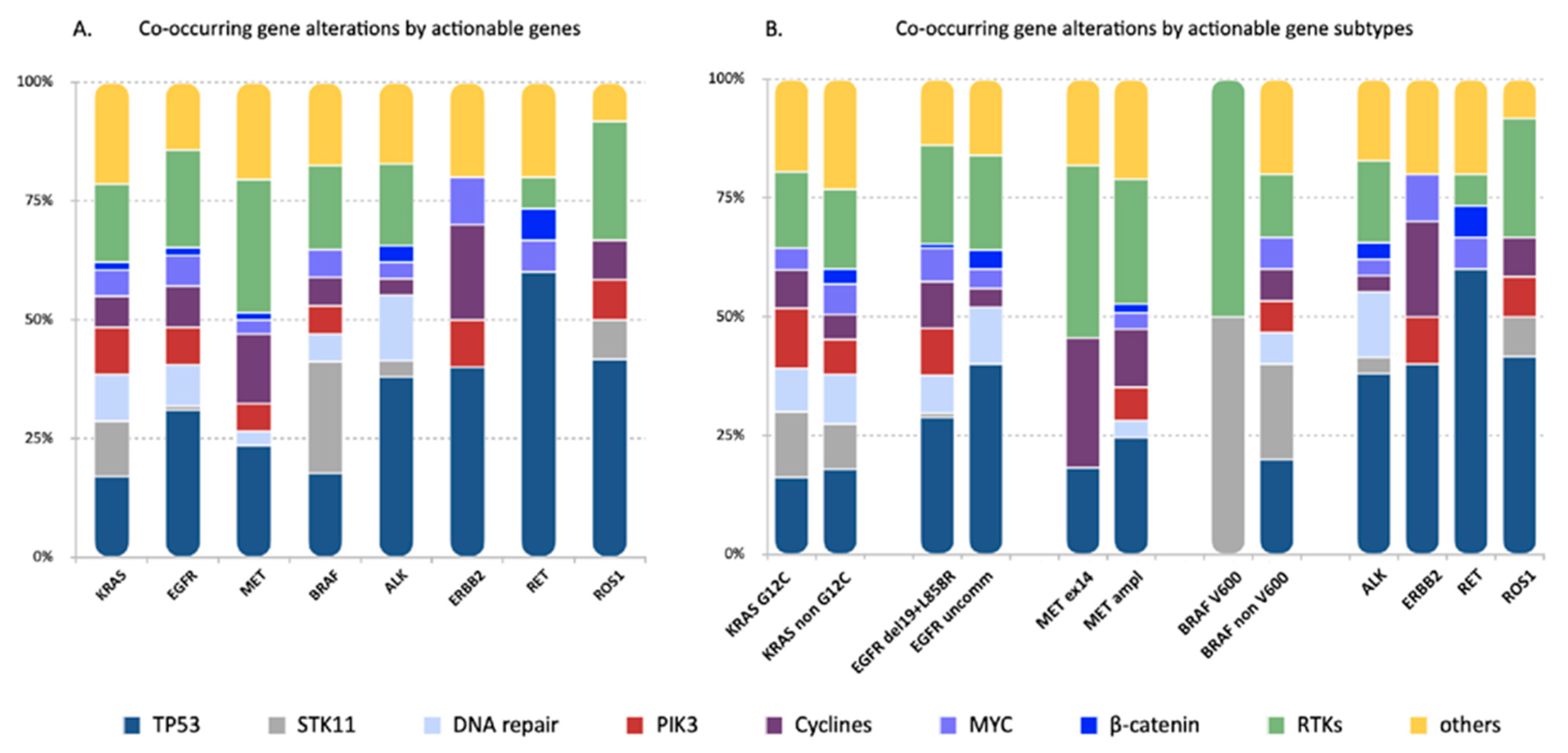

Figure 3. Genes and/or pathways affected by the concurrent alterations identified in the eight actionable gene groups. Each bar represents one actionable gene group. The frequency of genes and/or pathways affected by the concurrent alterations were reported for each actionable gene group (A) and actionable gene subclass (B) and color-coded according to the legend below. Distinctive concurrent gene and/or pathway alterations were identified in the different actionable gene groups. In particular, TP53 mutations were more frequently detected in EGFR, ERBB2 and RET-positive tumors. Mutations in the STK11 gene were more frequent in cases harboring KRAS and BRAF mutations. No significant differences were seen within actionable gene subclasses.
Figure 3. Genes and/or pathways affected by the concurrent alterations identified in the eight actionable gene groups. Each bar represents one actionable gene group. The frequency of genes and/or pathways affected by the concurrent alterations were reported for each actionable gene group (A) and actionable gene subclass (B) and color-coded according to the legend below. Distinctive concurrent gene and/or pathway alterations were identified in the different actionable gene groups. In particular, TP53 mutations were more frequently detected in EGFR, ERBB2 and RET-positive tumors. Mutations in the STK11 gene were more frequent in cases harboring KRAS and BRAF mutations. No significant differences were seen within actionable gene subclasses.
Cancers 13 02172 g003
Table
Table 1. Frequencies of co-mutation and concurrent copy number gain variants in the eight actionable gene groups.
Table 1. Frequencies of co-mutation and concurrent copy number gain variants in the eight actionable gene groups.
Driver Gene Mutationn (%)Presence of Co-Mutations (%)Presence of CNVs (%)
KRAS
G12C
non-G12C		135 (43.7%)
49 (36.3%)
86 (63.7%)		104 (77%)
37 (75.5%)
67 (77.9%)		p value =
0.75		51 (37.8%)
20 (40.8%)
31 (36%)		p value =
0.58
EGFR
del19 + L858R
other		62 (20%)
50 (80.6%)
12 (19.4%)		52 (83.9%)
41 (82%)
11 (91.7%)		p value =
0.41		36 (58.1%)
31 (62%)
5 (41.7%)		p value =
0.19
MET
exon14 skipping
amplification (CNV ≥ 6)		29 (9.4%)
6 (20.7%)
23 (79.3%)		25 (86.2%)
2 (33.3%)
23 (100%)		p value
< 0.001		14 (48.3%)
4 (66.7%)
10 (43.5%)		p value =
0.08
BRAF
V600
non-V600		10 (3.2%)
3 (30%)
7 (70%)		9 (90%)
2 (66.7%)
7 (100%)		p value =
0.65		14 (48.3%)
4 (66.7%)
10 (43.5%)		p value =
0.08
ALK41 (13.3%)18 (43.9%)5 (12.2%)
HER24 (1.3%)4 (100%)2 (50%)
RET16 (5.2%)11 (68.8%)3 (18.8%)
ROS112 (3.9%)7 (58.3%)1 (8.3%)
Total309 (100%)229 (74.1%)114 (36.9%)
