Preoperative Nodal US Features for Predicting Recurrence in N1b Papillary Thyroid Carcinoma
Abstract
:Simple Summary
Abstract
1. Introduction
2. Methods

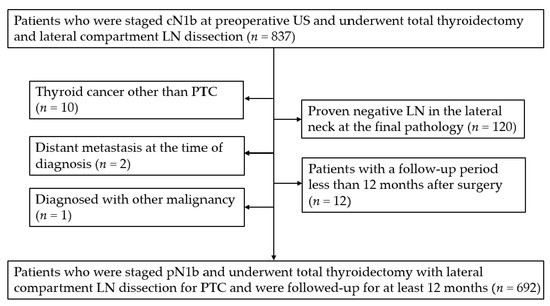

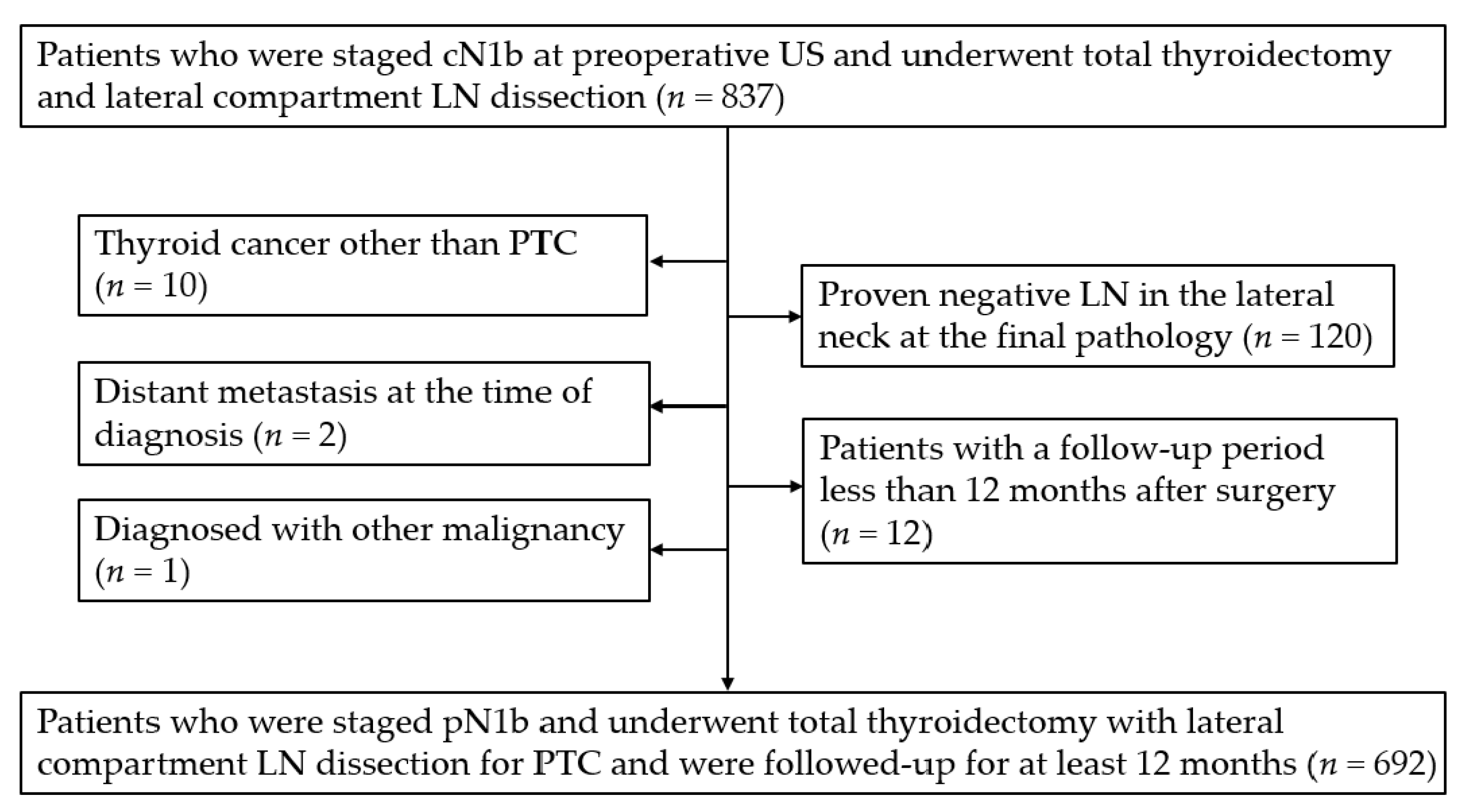

2.1. Study Population

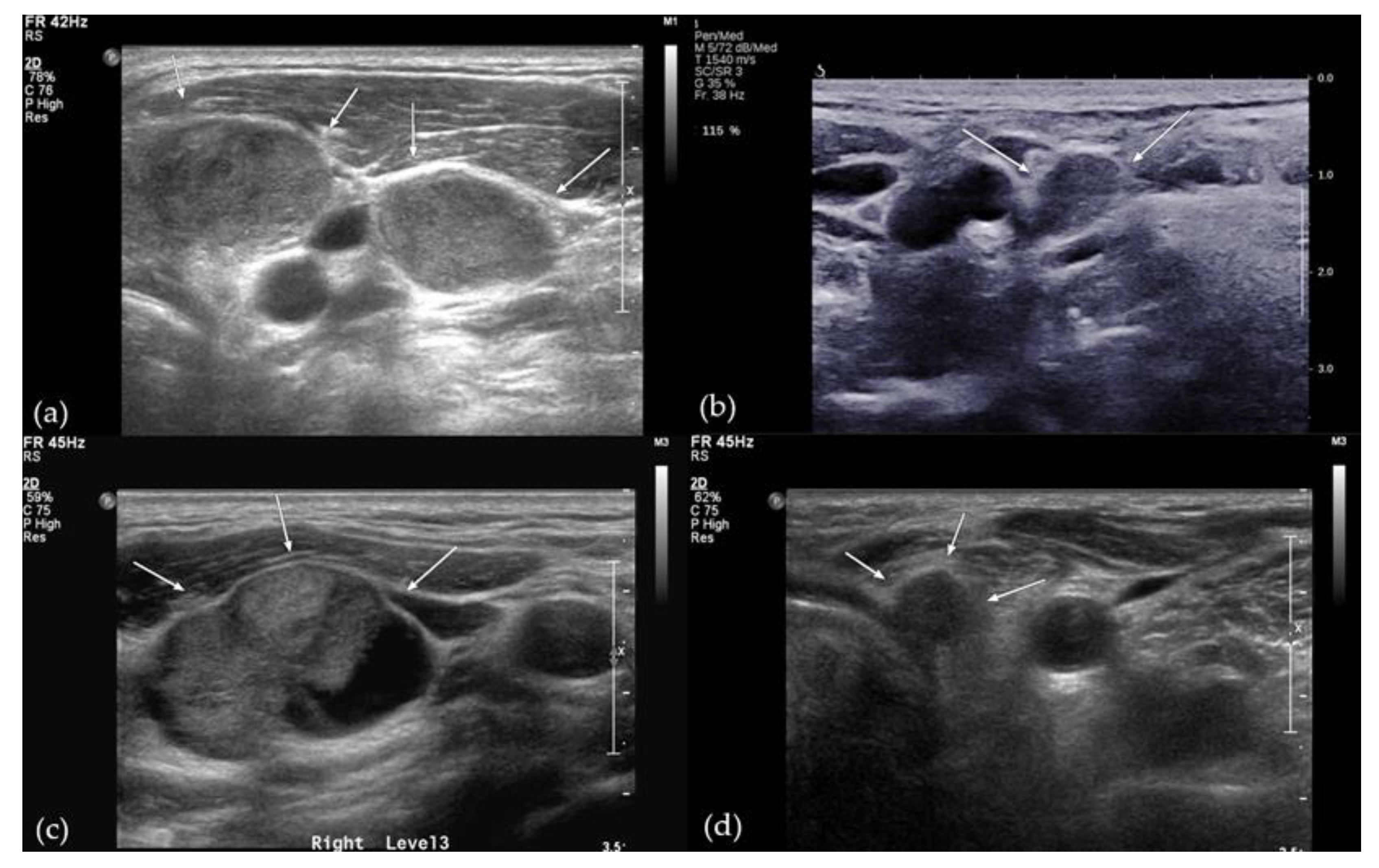

2.2. Image Analysis
2.3. Surgery and Pathologic Analysis
2.4. Postoperative Follow-Up and Recurrence
2.5. Statistics
3. Results
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Siegel, R.L.; Miller, K.D.; Jemal, A. Cancer statistics, 2020. CA Cancer J. Clin. 2020, 70, 7–30. [Google Scholar] [CrossRef]
- Cabanillas, M.E.; McFadden, D.G.; Durante, C. Thyroid cancer. Lancet 2016, 388, 2783–2795. [Google Scholar] [CrossRef]
- Noguchi, S.; Noguchi, A.; Murakami, N. Papillary carcinoma of the thyroid. I. Developing pattern of metastasis. Cancer 1970, 26, 1053–1060. [Google Scholar] [CrossRef]
- Roh, J.L.; Park, J.Y.; Park, C.I. Total thyroidectomy plus neck dissection in differentiated papillary thyroid carcinoma patients: Pattern of nodal metastasis, morbidity, recurrence, and postoperative levels of serum parathyroid hormone. Ann. Surg. 2007, 245, 604–610. [Google Scholar] [CrossRef]
- Haugen, B.R.; Alexander, E.K.; Bible, K.C.; Doherty, G.M.; Mandel, S.J.; Nikiforov, Y.E.; Pacini, F.; Randolph, G.W.; Sawka, A.M.; Schlumberger, M.; et al. 2015 American Thyroid Association Management Guidelines for Adult Patients with Thyroid Nodules and Differentiated Thyroid Cancer: The American Thyroid Association Guidelines Task Force on Thyroid Nodules and Differentiated Thyroid Cancer. Thyroid 2016, 26, 1–133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ito, Y.; Kudo, T.; Takamura, Y.; Kobayashi, K.; Miya, A.; Miyauchi, A. Lymph node recurrence in patients with N1b papillary thyroid carcinoma who underwent unilateral therapeutic modified radical neck dissection. World J. Surg. 2012, 36, 593–597. [Google Scholar] [CrossRef] [PubMed]
- de Meer, S.G.; Dauwan, M.; de Keizer, B.; Valk, G.D.; Borel Rinkes, I.H.; Vriens, M.R. Not the number but the location of lymph nodes matters for recurrence rate and disease-free survival in patients with differentiated thyroid cancer. World J. Surg. 2012, 36, 1262–1267. [Google Scholar] [CrossRef] [Green Version]
- Kim, H.; Kim, T.H.; Choe, J.H.; Kim, J.H.; Kim, J.S.; Oh, Y.L.; Hahn, S.Y.; Shin, J.H.; Chi, S.A.; Jung, S.H.; et al. Patterns of Initial Recurrence in Completely Resected Papillary Thyroid Carcinoma. Thyroid 2017, 27, 908–914. [Google Scholar] [CrossRef]
- Cappiello, J.; Piazza, C.; Nicolai, P. The spinal accessory nerve in head and neck surgery. Curr. Opin. Otolaryngol. Head Neck Surg. 2007, 15, 107–111. [Google Scholar] [CrossRef] [PubMed]
- Baek, S.K.; Jung, K.Y.; Kang, S.M.; Kwon, S.Y.; Woo, J.S.; Cho, S.H.; Chung, E.J. Clinical risk factors associated with cervical lymph node recurrence in papillary thyroid carcinoma. Thyroid 2010, 20, 147–152. [Google Scholar] [CrossRef] [PubMed]
- Kim, S.J.; Park, S.Y.; Lee, Y.J.; Lee, E.K.; Kim, S.K.; Kim, T.H.; Jung, Y.S.; Ryu, J.; Myong, J.P.; Chung, K.W. Risk factors for recurrence after therapeutic lateral neck dissection for primary papillary thyroid cancer. Ann. Surg. Oncol. 2014, 21, 1884–1890. [Google Scholar] [CrossRef] [PubMed]
- Lee, C.W.; Roh, J.L.; Gong, G.; Cho, K.J.; Choi, S.H.; Nam, S.Y.; Kim, S.Y. Risk factors for recurrence of papillary thyroid carcinoma with clinically node-positive lateral neck. Ann. Surg. Oncol. 2015, 22, 117–124. [Google Scholar] [CrossRef] [PubMed]
- Wang, L.Y.; Palmer, F.L.; Nixon, I.J.; Tuttle, R.M.; Shah, J.P.; Patel, S.G.; Shaha, A.R.; Ganly, I. Lateral Neck Lymph Node Characteristics Prognostic of Outcome in Patients with Clinically Evident N1b Papillary Thyroid Cancer. Ann. Surg. Oncol. 2015, 22, 3530–3536. [Google Scholar] [CrossRef] [PubMed]
- Chéreau, N.; Buffet, C.; Trésallet, C.; Tissier, F.; Leenhardt, L.; Menegaux, F. Recurrence of papillary thyroid carcinoma with lateral cervical node metastases: Predictive factors and operative management. Surgery 2016, 159, 755–762. [Google Scholar] [CrossRef]
- Lee, Y.M.; Sung, T.Y.; Kim, W.B.; Chung, K.W.; Yoon, J.H.; Hong, S.J. Risk factors for recurrence in patients with papillary thyroid carcinoma undergoing modified radical neck dissection. Br. J. Surg. 2016, 103, 1020–1025. [Google Scholar] [CrossRef]
- Kim, H.I.; Kim, T.H.; Choe, J.H.; Kim, J.H.; Kim, J.S.; Oh, Y.L.; Hahn, S.Y.; Shin, J.H.; Jang, H.W.; Kim, Y.N.; et al. Restratification of survival prognosis of N1b papillary thyroid cancer by lateral lymph node ratio and largest lymph node size. Cancer Med. 2017, 6, 2244–2251. [Google Scholar] [CrossRef] [Green Version]
- Nam, S.H.; Roh, J.L.; Gong, G.; Cho, K.J.; Choi, S.H.; Nam, S.Y.; Kim, S.Y. Nodal Factors Predictive of Recurrence After Thyroidectomy and Neck Dissection for Papillary Thyroid Carcinoma. Thyroid 2018, 28, 88–95. [Google Scholar] [CrossRef]
- Lee, S.H.; Roh, J.L.; Gong, G.; Cho, K.J.; Choi, S.H.; Nam, S.Y.; Kim, S.Y. Risk Factors for Recurrence after Treatment of N1b Papillary Thyroid Carcinoma. Ann. Surg. 2019, 269, 966–971. [Google Scholar] [CrossRef]
- Raffaelli, M.; De Crea, C.; Sessa, L.; Tempera, S.E.; Belluzzi, A.; Lombardi, C.P.; Bellantone, R. Risk factors for local recurrence following lateral neck dissection for papillary thyroid carcinoma. Endocrine 2019, 63, 310–315. [Google Scholar] [CrossRef]
- Randolph, G.W.; Duh, Q.Y.; Heller, K.S.; LiVolsi, V.A.; Mandel, S.J.; Steward, D.L.; Tufano, R.P.; Tuttle, R.M. The prognostic significance of nodal metastases from papillary thyroid carcinoma can be stratified based on the size and number of metastatic lymph nodes, as well as the presence of extranodal extension. Thyroid 2012, 22, 1144–1152. [Google Scholar] [CrossRef] [Green Version]
- Jeon, M.J.; Kim, W.G.; Jang, E.K.; Choi, Y.M.; Song, D.E.; Sung, T.Y.; Yoon, J.H.; Chung, K.W.; Hong, S.J.; Ryu, J.S.; et al. Sub-Classification of Lateral Cervical Lymph Node Metastasis in Papillary Thyroid Carcinoma by Pathologic Criteria. PLoS ONE 2015, 10, e0133625. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ahuja, A.; Ying, M.; King, A.; Yuen, H.Y. Lymph node hilus: Gray scale and power doppler sonography of cervical nodes. J. Ultrasound Med. 2001, 20, 987–992, quiz 994. [Google Scholar] [CrossRef]
- Na, D.G.; Lim, H.K.; Byun, H.S.; Kim, H.D.; Ko, Y.H.; Baek, J.H. Differential diagnosis of cervical lymphadenopathy: Usefulness of color Doppler sonography. AJR Am. J. Roentgenol. 1997, 168, 1311–1316. [Google Scholar] [CrossRef] [PubMed]
- Ying, M.; Ahuja, A.; Metreweli, C. Diagnostic accuracy of sonographic criteria for evaluation of cervical lymphadenopathy. J. Ultrasound Med. 1998, 17, 437–445. [Google Scholar] [CrossRef] [PubMed]
- Rosário, P.W.; de Faria, S.; Bicalho, L.; Alves, M.F.; Borges, M.A.; Purisch, S.; Padrão, E.L.; Rezende, L.L.; Barroso, A.L. Ultrasonographic differentiation between metastatic and benign lymph nodes in patients with papillary thyroid carcinoma. J. Ultrasound Med. 2005, 24, 1385–1389. [Google Scholar] [CrossRef] [PubMed]
- Qualliotine, J.R.; Coquia, S.F.; Hamper, U.M.; Fakhry, C. Association of Ultrasound Characteristics With Extranodal Extension in Metastatic Papillary Thyroid Carcinoma. JAMA Otolaryngol. Head Neck Surg. 2016, 142, 263–269. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Eun, N.L.; Son, E.J.; Kim, J.A.; Gweon, H.M.; Kang, J.H.; Youk, J.H. Comparison of the diagnostic performances of ultrasonography, CT and fine needle aspiration cytology for the prediction of lymph node metastasis in patients with lymph node dissection of papillary thyroid carcinoma: A retrospective cohort study. Int. J. Surg. 2018, 51, 145–150. [Google Scholar] [CrossRef] [PubMed]
- Ahuja, A.T.; Chow, L.; Chick, W.; King, W.; Metreweli, C. Metastatic cervical nodes in papillary carcinoma of the thyroid: Ultrasound and histological correlation. Clin. Radiol. 1995, 50, 229–231. [Google Scholar] [CrossRef]
- Nam, S.Y.; Shin, J.H.; Han, B.K.; Ko, E.Y.; Ko, E.S.; Hahn, S.Y.; Chung, J.H. Preoperative ultrasonographic features of papillary thyroid carcinoma predict biological behavior. J. Clin. Endocrinol. Metab. 2013, 98, 1476–1482. [Google Scholar] [CrossRef] [Green Version]
- Kim, S.Y.; Kwak, J.Y.; Kim, E.K.; Yoon, J.H.; Moon, H.J. Association of Preoperative US Features and Recurrence in Patients with Classic Papillary Thyroid Carcinoma. Radiology 2015, 277, 574–583. [Google Scholar] [CrossRef]
- Ito, Y.; Miyauchi, A.; Kudo, T.; Kihara, M.; Fukushima, M.; Miya, A. The Effectiveness of Prophylactic Modified Neck Dissection for Reducing the Development of Lymph Node Recurrence of Papillary Thyroid Carcinoma. World J. Surg. 2017, 41, 2283–2289. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Characteristics | Non-Recurrence (n = 655) | Recurrence (n = 37) | p Value |
---|---|---|---|
Sex | 0.002 | ||
Female | 448 (68.4) | 16 (43.2) | |
Male | 207 (31.6) | 21 (56.8) | |
Age (years) | 41.70 ± 12.81 | 45.65 ± 17.58 | 0.186 |
Pathology | 0.835 | ||
Conventional | 545 (83.2) | 30 (81.1) | |
Diffuse sclerosing variant | 86 (13.1) | 6 (16.2) | |
Others | 24 (3.7) | 1 (2.7) | |
Pathologic tumor size (mm) | 15.67 ± 9.76 | 20.38 ± 10.79 | 0.005 |
TNM stage | 0.019 | ||
I | 543 (82.9) | 24 (64.9) | |
II | 111 (16.9) | 13 (35.1) | |
III | 1 (0.2) | 0 (0.0) | |
Multifocality | 0.030 | ||
No | 417 (63.7) | 17 (45.9) | |
Yes | 238 (36.3) | 20 (54.1) | |
Bilaterality | 0.004 | ||
No | 434 (66.3) | 16 (43.2) | |
Yes | 221 (33.7) | 20 (56.8) | |
Extrathyroidal extension | 0.034 | ||
No | 127 (19.4) | 2 (5.4) | |
Yes | 528 (80.6) | 35 (94.6) | |
BRAF status | 0.740 | ||
No | 75 (11.5) | 4 (10.8) | |
Yes | 242 (36.9) | 16 (43.2) | |
None | 338 (51.6) | 17 (45.9) | |
Pathologic LN size (mm) | 11.96 ± 7.40 | 18.55 ± 11.24 | <0.0001 |
Total number of harvested LNs | 47.66 ± 21.15 | 53.91 ± 25.57 | 0.152 |
Total number of metastatic LNs | 10.82 ± 8.79 | 16.49 ± 12.19 | <0.0001 |
LN Ratio | 0.23 ± 0.17 | 0.30 ± 0.14 | 0.011 |
Extranodal extension | 0.006 | ||
No | 38.6 (38.6) | 5 (13.5) | |
Yes | 344 (52.5) | 29 (78.4) | |
None | 58 (8.9) | 3 (8.1) |
Characteristics | Non-Recurrence (n = 655) | Recurrence (n = 37) | p Value |
---|---|---|---|
Tumor size | 17.29 ± 10.37 | 20.84 ± 10.79 | 0.044 |
Tumor shape | 0.628 | ||
Parallel | 310 (47.3) | 16 (43.2) | |
Nonparallel | 345 (52.7) | 21 (56.8) | |
Tumor composition | 0.651 | ||
Solid | 626 (95.6) | 35 (94.6) | |
<50% cystic | 22 (3.4) | 1 (2.7) | |
>50% cystic | 7 (1.1 | 1 (2.7) | |
Tumor echogenicity | 0.458 | ||
Hyperechogenicity | 2 (0.3) | 0 (0.0) | |
Isoechogenicity | 12 (1.8) | 1 (2.7) | |
Hypoechogenicity | 351 (53.6) | 15 (40.5) | |
Markedly hypoechogenicity | 290 (44.3) | 21 (56.8) | |
Tumor margin | 0.587 | ||
Smooth | 0 (0) | 0 (0) | |
Lobulated | 102 (15.6) | 7 (18.9) | |
Irregular | 553 (94.7) | 30 (81.1) | |
Tumor calcification | 0.651 | ||
No | 169 (25.8) | 8 (21.6) | |
Macrocalcification | 74 (11.3) | 3 (8.1) | |
Microcalcification | 412 (62.9) | 26 (70.3) | |
LN size | 13.82 ± 10.37 | 20.84 ± 10.79 | <0.0001 |
LN cystic change | 0.345 | ||
No | 472 (72.1) | 24 (64.9) | |
Yes | 183 (27.9) | 13 (35.1) | |
LN calcification | 0.696 | ||
No | 368 (56.2) | 22 (59.5) | |
Yes | 287 (43.8) | 15 (40.5) | |
LN shape | 0.933 | ||
Oval | 394 (60.2) | 22 (59.5) | |
Round/irregular | 261 (39.8) | 15 (40.5) | |
LN echogenicity | <0.0001 | ||
Hypo-/isoechogenicity | 250 (38.2) | 2 (5.4) | |
Hyperechogenicity | 405 (61.8) | 35 (94.6) |
Variables | HR (95% CI) | p Value |
---|---|---|
Sex | ||
Female | reference | |
Male | 3.007 (1.550–5.835) | 0.001 |
Age (years) | ||
<55 | reference | |
≥55 | 2.542 (1.287–5.019) | 0.007 |
US tumor size | 1.028 (1.004–1.053) | 0.024 |
Tumor shape | ||
Parallel | reference | |
Nonparallel | 1.332 (0.686–2.586) | 0.398 |
Tumor composition | ||
Not solid | reference | |
Solid | 0.828 (0.199–3.449) | 0.796 |
Tumor echogenicity | ||
Hyper-, iso-, hypoechogenicity | reference | |
Markedly hypoechogenicity | 1.566 (0.811–3.021) | 0.181 |
Tumor margin | ||
Smooth | reference | |
Lobulated/irregular | 0.000 | >0.999 |
Tumor calcification | ||
No/macrocalcification | reference | |
Microcalcification | 1.408 (0.692–2.864) | 0.345 |
LN size | 1.070 (1.045–1.095) | <0.0001 |
LN cystic change | ||
No | reference | |
Yes | 1.258 (0.629–2.516) | 0.516 |
LN calcification | ||
No | reference | |
Yes | 0.920 (0.474–1.785) | 0.805 |
LN shape | ||
Oval | reference | |
Round/irregular | 1.093 (0.563–2.122) | 0.792 |
LN echogenicity | ||
Hypo-isoechogenicity | reference | |
Hyperechogenicity | 10.855 (2.607–45.203) | 0.001 |
LN hilum | ||
No | reference | |
Yes | 4.148 (0.568–30.313) | 0.161 |
Pathologic tumor size | 1.042 (1.017–1.068) | 0.001 |
Multifocality | ||
No | reference | |
Yes | 1.979 (1.027–3.811) | 0.041 |
Bilaterality | ||
No | reference | |
Yes | 2.364 (1.225–4.564) | 0.01 |
Extrathyroidal extension | ||
No | reference | |
Yes | 4.144 (0.995–17.251) | 0.051 |
BRAF status | ||
No | reference | |
Yes | 1.288 (0.430–3.855) | 0.651 |
Pathologic LN size | 1.078 (1.044–1.113) | <0.0001 |
Total number of harvested LNs | 1.012 (1.000–1.025) | 0.060 |
Total number of metastatic LNs | 1.048 (1.023–1.074) | <0.0001 |
LN Ratio | 2.533 (1.187–5.406) | 0.016 |
Extranodal extension | ||
No | reference | |
Yes | 3.638 (1.402–9.438) | 0.008 |
Variables | Preop Model | Postop Model | Combined Model | |||
---|---|---|---|---|---|---|
HR (95% CI) | p Value | HR (95% CI) | p Value | HR (95% CI) | p Value | |
Male sex | 2.231 (1.142–4.360) | 0.019 | 2.897 (1.332–6.301) | 0.007 | 2.277 (1.131–4.586) | 0.021 |
Age ≥ 55 years | 3.066 (1.537–6.118) | 0.001 | 1.935 (0.822–4.557) | 0.131 | 3.216 (1.529–6.766) | 0.002 |
US features | ||||||
Tumor size | 1.017 (0.993–1.042) | 0.164 | 0.983 (0.937–1.032) | 0.494 | ||
LN size | 1.055 (1.027–1.027) | <0.0001 | – | 1.054 (1.024–1.085) | <0.0001 | |
LN hyperechogenicity | 8.066 (1.916–33.960) | 0.004 | 8.223 (1.689–40.046) | 0.009 | ||
Pathologic features | ||||||
Tumor size | 1.012 (0.981–1.044) | 0.460 | ||||
Multifocality | 1.238 (0.525–2.919) | 0.625 | 1.011 (0.467–2.191) | 0.977 | ||
Bilaterality | 1.560 (0.676–3.600) | 0.298 | 1.838 (0.869–3.887) | 0.111 | ||
LN size | 1.065 (1.020–1.111) | 0.004 | ||||
Total number of metastatic LNs | 1.008 (0.964–1.055) | 0.722 | 1.028 (0.988–1.069) | 0.170 | ||
LN ratio | 27.679 (1.144–669.597) | 0.041 | 2.604 (0.543–12.480) | 0.231 | ||
Extranodal extension | 1.813 (0.668–4.923) | 0.243 | 1.764 (0.665–4.685) | 0.254 |
Variables | Sensitivity (%) | Specificity (%) | PPV (%) | NPV (%) | Accuracy (%) | AUC |
---|---|---|---|---|---|---|
Male sex | 56.76 (40.80–72.72) | 68.40 (64.84–71.96) | 9.21 (5.46–12.96) | 96.55 (94.89–98.21) | 67.77 (64.29–71.25) | 0.626 (0.543–0.709) |
Age ≥ 55 years | 35.14 (19.76–50.52) | 82.90 (80.02–85.78) | 10.40 (5.05–15.75) | 95.77 (94.11–97.43) | 80.35 (77.39–83.31) | 0.590 (0.511–0.669) |
LN size | 43.24 (27.28–59.20) | 85.65 (82.97–88.33) | 14.55 (7.96–21.14) | 96.39 (94.87–97.91) | 83.38 (80.61–86.15) | 0.644 (0.562–0.726) |
LN hyperechogenicity | 94.59 (87.30–100) | 38.17 (34.45–41.89) | 7.95 (5.42–10.48) | 99.21 (98.12–100) | 41.18 (37.51–44.85) | 0.664 (0.622–0.705) |
