Stereotactic Body Radiotherapy (SBRT) to Localised Prostate Cancer in the Era of MRI-Guided Adaptive Radiotherapy: Doses Delivered in the HERMES Trial Comparing Two- and Five-Fraction Treatments

by
Rosalyne Westley
1,2,*,
Francis Casey
3,
Adam Mitchell
3,
Sophie Alexander
1,2,
Simeon Nill
3,
Julia Murray
1,2,
Ragu Ratnakumaran
1,2,
Angela Pathmanathan
1,2,
Uwe Oelfke
3,
Alex Dunlop
3 and
Alison C. Tree
1,2,*
1
The Royal Marsden NHS Foundation Trust, London SM2 5PT, UK
2
Radiotherapy and Imaging Division, Institute of Cancer Research, London SM2 5NG, UK
3
Joint Department of Physics, The Institute of Cancer Research and The Royal Marsden NHS Foundation Trust, London SM2 5PT, UK
*
Authors to whom correspondence should be addressed.
Cancers 2024, 16(11), 2073; https://doi.org/10.3390/cancers16112073
Submission received: 28 April 2024 / Revised: 19 May 2024 / Accepted: 20 May 2024 / Published: 30 May 2024
(This article belongs to the Special Issue MRI-Guided Real-Time Adaptive Radiotherapy)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Radiotherapy to the prostate with curative intent was previously a procedure that was delivered over seven and a half weeks. The standard of care is now 20 treatments over 4 weeks; however, 5 treatments have recently been shown to be as good as 20 treatments in patients with intermediate risk disease. Fewer treatments mean that patients spend less time in the hospital and travelling to appointments and helps to reduce the burden on radiotherapy departments. When reducing the number of treatments, the dose per treatment is increased. This requires greater precision and certainty of dose delivery. The magnetic resonance linear accelerator (MRL) delivers radiotherapy under MRI guidance with the ability to modify the plan to adapt to any changes in the patient’s anatomy, thus potentially enabling the safe delivery of higher doses per treatment. This study addresses the true dose delivered in two and five treatments of the MRL and whether target objects are being met.

Abstract

HERMES is a phase II trial of MRI-guided daily-adaptive radiotherapy (MRIgART) randomising men with localised prostate cancer to either 2-fractions of SBRT with a boost to the tumour or 5-fraction SBRT. In the context of this highly innovative regime the dose delivered must be carefully considered. The first ten patients recruited to HERMES were analysed in order to establish the dose received by the targets and organs at risk (OARS) in the context of intrafraction motion. A regression analysis was performed to measure how the volume of air within the rectum might further impact rectal dose secondary to the electron return effect (ERE). One hundred percent of CTV target objectives were achieved on the MRI taken prior to beam-on-time. The post-delivery MRI showed that high-dose CTV coverage was achieved in 90% of sub-fractions (each fraction is delivered in two sub-fractions) in the 2-fraction cohort and in 88% of fractions the 5-fraction cohort. Rectal D1 cm3 was the most exceeded constraint; three patients exceeded the D1 cm3 < 20.8 Gy in the 2-fraction cohort and one patient exceeded the D1 cm3 < 36 Gy in the 5-fraction cohort. The volume of rectal gas within 1 cm of the prostate was directly proportional to the increase in rectal D1 cm3, with a strong (R = 0.69) and very strong (R = 0.90) correlation in the 2-fraction and 5-fraction cohort respectively. Dose delivery specified in HERMES is feasible, although for some patients delivered doses to both target and OARs may vary from those planned.

1. Introduction

The low α/β ratio of prostate cancer combined with technical advances in radiotherapy delivery has motivated the adoption of hypofractionated regimes, with the aim of achieving a higher effective dose to the prostate without increasing acute and late toxicities [1,2,3].
Although 60 Gray (Gy) in 20 fractions is considered standard of care [4,5,6] level 1 evidence now supports stereotactic body radiation therapy (SBRT) in five fractions with biochemical non-inferiority for early-stage disease and favourable toxicity outcomes [7,8,9,10]. The next logical step is to examine whether radical treatment can be delivered in less than five fractions, making accurate dose delivery ever more critical. The delivery of a simultaneous integrated boost (SIL) to the dominant intra-prostatic lesion (DIL) has also been shown to improve local control whilst minimising toxicity [11,12,13,14]
The Elekta Unity magnetic resonance linear accelerator (MRL) integrates the Philips 1.5 T magnetic resonance imaging (MRI) system (Best, The Netherlands) with the Elekta 7 MV linear accelerator (Stockholm, Sweden), enabling the delivery of MRI-guided adaptive radiotherapy (MRIgART) and the ability to account for interfraction motion of the prostate, seminal vesicles and associated organs at risk (OARs) throughout a course of prostate radiotherapy [15,16].
HERMES (NCT04595019) was the first completed study of two-fraction MRIgART with a gross tumour volume (GTV) boost in the treatment of men with intermediate to high-risk prostate cancer [17]. This groundbreaking trial combines the daily online MRIgART with clinical target volume (CTV) to planning target volume (PTV) margin reduction to safely deliver SBRT in two fractions with a simultaneous integrated boost (SIB) to the DIL.
The consequential effect of air in the rectum on rectal volume and prostate position is well documented [18], however the impact that air may have on dose distribution when treating a 1.5 T MRL has been less well explored. Electrons liberated through photon interactions with tissue will deflect in a magnetic field due to the Lorentz force [19]. At tissue–air interfaces this deflection causes electrons entering the air region to re-enter the tissue (electron return effect (ERE)) which causes dose to be deposited upstream of tissue air interfaces, potentially increasing the dose to the rectal wall in prostate cancer radiotherapy.
The ERE is therefore another factor which may impact the delivered dose during the online workflow. Despite daily enemas, MRIs taken during MRIgART to the prostate often demonstrates the presence of gas in the rectum, indicating that such an interface may exist, appear or even disappear during the online workflow, potentially altering rectal dose during prostate SBRT [20].
Here we investigate whether the estimated delivered dose matches the planned dose in the HERMES protocol, and whether the ERE has a clinically relevant impact on dose to the rectal wall.

2. Materials and Methods

2.1. Patient Population

In HERMES (NCT04595019), 46 men with intermediate or favourable high-risk prostate adenocarcinoma (MRI stage T2–T3a, Gleason 4+3 or less, maximum PSA 25 ng/mL) and a dominant lesion visible on multiparametric magnetic resonance imaging (mpMRI) were treated with SBRT on the MRL. Patients were randomised to either two fractions of SBRT with a boost to the visible tumour as defined on MRI or to five-fraction SBRT with no boost to the GTV. No rectal spacers were permitted in this trial. Participants were co-enrolled into the MOMENTUM observational registry [21]. The first five patients from each dose cohort were analysed in this study.

2.2. Pre-Treatment Workflow

Patients underwent a pre-treatment computed tomography (CT) and MRI to aid the generation of an offline reference plan, which is required for the online adaptive workflow. Patients were prescribed microlet enemas 2 days before and on the day of scanning and instructed to drink 350 mL of water just prior to scanning, all with the aim of achieving an empty rectum and comfortably full bladder. They were placed in a head-first and supine position with indexed knee, foot immobilisation and head support.
The contours and resultant reference plan were generated on a simulation MRI (MRIsim) acquired on the Unity MR-Linac (T2 3D Tra, 1 mm slice thickness), acquired with the same preparation and position as above. The prostate plus the proximal 1 cm of seminal vesicles (SV) was defined as CTVpsv. Men classified as having upper intermediate (Gleason 4+3) and high-risk disease, were treated with a further CTV, defined as the prostate plus proximal 2 cm of SVs (CTVsv) [17]. A 3 mm margin was applied to the CTV(s) to create the PTV(s).
Participants in the 2-fraction group were prescribed 27 Gy to the GTV, the visible tumour on pre-biopsy mpMRI, with no margin applied. In the 2-fraction cohort, the PTVpsv and PTVsv were prescribed 24 Gy and 20 Gy, respectively. In the 5-fraction cohort the PTVpsv and PTVsv were prescribed 36.25 Gy and 30 Gy, respectively. There was no GTV boost in the 5-fraction group; however, the CTVpsv with no margin was treated to 40 Gy as per the PACE trial [22]. The target volumes are shown in Figure 1 and the prescribed doses displayed in Materials S1a and S1b along with all of the dose constraints.

2.3. Treatment Workflow

All participants received 11-field intensity-modulated radiotherapy on the MR-Linac utilising the adapt-to-shape workflow, which has been described in detail previously [16]. All targets and organs at risk (OARs) were propagated from the reference plan to a daily session of MRI (T2 3D Tra) (MRIsession) via deformable image registration, except GTV and urethra which were rigidly propagated as the GTV is less distinct on online imaging after the use of androgen-deprivation and the urethra is not likely to deform relative to the prostate on a day-to-day basis. The target and OARs were edited on the MRIsession, and a new plan created. Online MR-based dose calculation was facilitated using a bulk density override method whereby patient-specific overrides were applied to the combined CTVs, bones, and the patient external contour as per a previously detailed methodology [23]. A second MRI (MRIverif) was acquired immediately prior to beam-on, and were there any visible displacements in the target anatomy these were corrected using an adapt-to-position workflow. A final MRI (MRIpost) was taken once the treatment had been delivered, before acquiring this image patients were informed that the treatment had finished, and their comfort checked to ensure that they were happy to stay on the couch for the MRIpost.
Each fraction in the 2-fraction regimen was delivered in two sequential sub-fractions to reduce the impact of intrafraction motion which might occur during a lengthy beam-on time [24]. Patients emptied their bladder after they had moved off of the couch before re-hydrating, if deemed appropriate when assessing the bladder filling rate on the MRIsim, and waiting 20 min to move back on to the couch for the second sub-fraction.

2.4. Dosimetric Analysis

The prostate, seminal vesicles, bladder and rectum were recontoured and the GTV and urethra structures repositioned offline on the MRIverif and MRIpost for each fraction/sub-fraction in Monaco TPS (Elekta AB, Stockholm, Sweden, V5.40.01. Visible rectal gas was also contoured.

2.5. Dose Delivered

Dose calculations were performed retrospectively on the MRIverif and MRIpost to calculate the estimated delivered dose in the 2-fraction and 5-fraction regimes and to establish the ERE-induced effect when considering the presence of air in and around the prostate/rectum interface, once using the standard bulk density override strategy, and then again with air included as an additional override structure.
Table 1 shows the target and OAR dose constraints which were analysed in each cohort.
The percentages of sub-fractions/fractions meeting the mandatory dose constraint for each specified target objective on the MRIsession, MRIverif and MRIpost were calculated.
The doses delivered to the targets and specified OARs on the MRIsession, MRIverif and MRIpost for each subfraction/fraction of every patient were measured [25]. In sub-fractions/fractions where the mandatory target dose constraint was not met the % volume of the target receiving the intended dose is reported.
The dose received by the OAR volumes for each patient was estimated by taking the mean of the daily dose achieved across the subfractions/fractions, in this way the dose is conservative in that it assumes the same part of the OAR is always receiving the maximum dose.

2.6. Electron Return Effect

The impact of air around the prostate/rectum interface on the rectal dose was evaluated by calculating the correlation coefficient between the volume of air present in the rectum and the difference in the resulting rectal D1 cm3, assuming the same volume of air was present though out all sub-fractions/fractions. The impact of the volume of air within 2 cm, 1 cm and 0.5 cm was measured and the associated correlation was measured on the MRIverif and MRIpost of each sub-fraction/fraction.
The results were analysed using GraphPad Prism 10.1.2. The Shapiro–Wilk and Kolmogorov–Smirnov tests were carried out to test for normality. Normally distributed data are presented as a mean with 95% confidence intervals (CI). Skewed data are presented using the median with the range or interquartile range (IQR).

3. Results

Imaging was available for recontouring and plan adaption on the MRIverif and MRIpost of every sub-fraction/fraction except for one 5-fraction treatment in which the MRIpost was not completed on one occasion due to the patient requesting to move off the couch after treatment deliver in order to pass urine.

3.1. Percentage of Target Volumes Meeting the Mandatory Dose Constraints

2-fraction and 5-fraction cohort
The percentage of sub-fractions/fractions which met the mandatory dose constraints for the specified GTV and CTV coverage in the 2-fraction and 5-fractions patients are shown in Table 2. Target coverage decreased from the MRIsession to MRIverif and from the MRIverif to the MRIpost.

3.2. Target Coverage

2-fraction cohort
The D95% delivered to the targets for each sub-fraction of the 2-fraction cohort are shown for each patient in Figure 2. The doses received in each sub-fraction are shown in Material S2.
In the sub-fractions where the mandatory target objective was not met, the median coverage was as follows: 86% (2 sub-fractions, range: 86–87%) for the GTV V27 Gy on the MRIverif, 87% (2 sub-fractions) for the GTV V27 on the MRIpost, 81% (2 sub-fractions, range: 76–87%) for the CTV V24 Gy on the MRIpost and 81% (1 sub-fraction) for the CTV V20 Gy on the MRIpost.
5-fraction cohort
The D95% of the targets for each fraction of the 5-fraction cohort are shown for each patient in Figure 3. The dose received by each sub-fraction is shown in Material S3.
The median target coverage, calculated from only those fractions where the mandatory constraint was not met, was as follows: 83% (3 fractions, range: 58–87%) for the CTVpsv V36.25 Gy on the MRIpost, and 82% (2 fractions, range: 72–93%) for the CTVsv V30 Gy on the MRIpost.

3.3. OAR Received Dose

2-fraction cohort
The mean urethral dose met the mandatory urethral D10% constraint for each patient on the MRIverif and MRIpost. The mean bladder D5 cm3 and D15cm3 constraints were met in all cases except on the MRIpost for patients 3 and 4.
The accumulated rectal D1 cm3 < 20.8 Gy was exceeded on the MRIverif and MRIpost in three of the patients. Figure 4 shows the mean rectal doses for each patient across all subfractions in the 2-fraction cohort. The data for each sub-fraction and mean dose to the OARs from all four fractions is shown Material S4.
5-fraction cohort
In the 5-fraction cohort the rectal optimal constraint of D1 cm3 < 36 Gy was exceeded by patient 3 on the MRIverif and MRIpost (Figure 5). The rectal mandatory constraint of D20% < 29 Gy was met for all patients at all time points. The results for each fraction and the mean dose to the OARs from all five fractions are shown in Material S5.

3.4. Electron Return Effect

The difference in the rectal D1 cm3 (Gy) when calculated with and without the presence of air correlates with the volume of air in the rectum. The volume within 1 cm of the prostate volume showed the strongest correlation. The correlation coefficient (R) was strong (R = 0.69) and very strong (R = 0.90) in the 2-fraction (Figure 6) and 5-fraction cohorts, respectively (Figure 7).
The largest increase seen in a patient’s rectal D1 cm3 when calculated across all fractions/sub-fractions was 0.8 Gy in the 2-fraction cohort and 1.2 Gy in the 5-fraction cohort (Materials S6a,b and S7a,b).

4. Discussion

In the first 10 patients treated within HERMES, all sub-fractions/fractions achieved the mandatory CTV target objectives on the MRIverif and ≥88% of the sub-fractions/fractions achieved the mandatory target objective on the MRIpost when delivering 2- and 5-fraction SBRT with a 3 mm PTV margin and ATS workflow on the MRL. Reassuringly, coverage of the 2-fraction boost GTV, with no margin, was well achieved (89% of sub-fractions on the MRIpost) when planned isotoxically to dose constraints, demonstrating that 27 Gy was delivered to the DIL in the majority of patients. The CTV likely acts as a margin by limiting dose fall off, which helps to improve GTV coverage in the absence of a PTV margin.
When delivering 2-fraction prostate SBRT with a boost, the bladder constraints were met in all but two patients on the MRIpost. The rectal D1 cm3 proved the most exceeded constraint with the results being worse in the 2-fraction cohort than the 5-fraction cohort, however the constraints for the rectal D4 cm2 (2-fraction cohort) and D20% (5-fraction cohort) were more readily met.
There may be multiple mitigations for the findings. Firstly, patients were alerted when treatment delivery was finished and the MRIpost would be taken, therefore at this point there may have been large changes in the patient’s anatomy if the patient then relaxes or changes position on the treatment couch. These positional changes will not actually have occurred during treatment but may give the impression that less of a dose was delivered to the target and more of a dose was delivered to an OAR, than truly occurred.
Secondly, when considering the OAR dose to the rectum, the point dose measured is a worst-case scenario, assuming that the same 1 cm3 of rectum receives the high dose during each fraction. In truth, it is known that rectal motion means this may not be the case. Furthermore, in the 5-fraction cohort the optimal rather than mandatory constraint of 1 cm3 was calculated, in the 2-fraction cohort there was only a mandatory constraint to work to.
Despite accumulated OAR dose being exceeded in some patients, the HERMES interim analysis outcomes were promising; with only 10% of patients in the 2-fraction arm and 20% of patients in the 5-fraction arm experiencing acute ≥ 2 CTCAE GU toxicity [20]. There were no acute grade ≥ 3 GU toxicities or ≥2 GI toxicities. The interim analysis showed that the HERMES protocol can deliver 2- and 5-fraction prostate SBRT with levels of acute toxicity no worse than those seen in PACE B (CTCAE grade ≥ 2 GU toxicity of 15.3% and grade ≥ 2 GI toxicity of 29.2%) [22]. We await the results of the full acute toxicity analysis from HERMES.
The OAR constraints for 2-fraction group were created from previously published studies of 2-fraction HDR and, at the time of writing the protocol, the sole trial of 2-fraction external beam radiotherapy [26,27,28]. Whilst these studies suggest the HERMES dose constraints are safe, it is possible that they are in fact overly conservative. For example, if the linear–quadratic model holds down to two fractions, then the rectal constraint of V20.8 Gy < 1 cm3 equates to the equivalent dose in 2 Gy fractions (EQD2) of 55.74 Gy, with an α/β of 3 Gy, which is tighter than the constraints that are used for either 20 or 5 fractions.
It has been hypothesised that CTV-PTV margin reduction in the context of MRIgART further decreases the dose to the OARs and therefore may reduce the level of acute and late toxicity seen in CT-based radiotherapy. Margins needed for non-MRIgART have been suggested to be larger for patients with increased abdominal girth and image-guidance method is relevant to the risk of side effects [29,30,31]. MIRAGE (NCT04384770) investigated the benefits of margin reduction on toxicity for five fraction prostate SBRT [32]. Men received either CT-guided radiotherapy with a 4 mm CTV to PTV margin or MRIgART with a 2 mm CTV to PTV margin and gating software (ViewRay, Inc., Oakwood Village, OH, USA). There was a significant reduction in acute grade ≥ 2 genitourinary (GU) toxicity (24.4% vs. 43.4%, p = 0.01) and acute grade ≥2 GI toxicity (0% vs. 10.5%, p = 0.003) within the MRIgART arm. In the absence of gating, a 3 mm margin was adopted for this study with the addition of a manual hold being implemented if the prostate moved outside of the 3 mm PTV margin.
The introduction of comprehensive motion management (CMM) for the 1.5 T MRL will enable gating and baseline shift correction during beam-on time. Gating, as deployed in MIRAGE, initiates an automatic beam hold when the target moves outside of a pre-defined threshold. Baseline–shift–correction re-directs the beam to a target’s new position when motion occurs, allowing dose delivery to the target to continue. When implemented, CMM will allow the treating team to be more confident in achieving the target dose constraints from the MRIsession the time of the MRIpost and may facilitate additional margin reduction.
These results were calculated as they would be in the online setting; however, the impact of air on dose distribution was also explored, a factor not previously considered in the online workflow [25]. Our findings suggest that air within the rectum can increase the dose to the rectum when the worse-case effects of air are assumed. The dose increase may be clinically meaningful if dose is delivered in just 2 fractions, or the air is constantly present throughout a 5-fraction course. To help mitigate this potential uncertainty in dose delivery, our department has moved to a new beam arrangement designed to reduce the impact of the ERE.
There is ongoing debate regarding the cost of MRIgART and the length of time spent on the treatment couch [33]. This work adds to the expanding evidence supporting the move to increasingly hypofractionated regimes due to the socio-economic benefits to hospitals and patients, with a reduction in travel costs, re-location costs, time off work and improved toxicity outcomes for patients [34]. Furthermore, treatment on the MRL negates the need for fiducial markers and radiation exposure secondary to cone beam CT or X-rays, meaning that, although treatment requiring fiducials and/or CT guidance may provide a safe approach to implementing CTV-PTV margin reduction, it remains invasive and with the associated risks [35]. The MRL requires a multidisciplinary team for treatment and therefore treatment that is administer over just two days reduces the pressure of coordination of team members compared with 5 or 20 fraction treatments.
The limitations to this study are recognised by the authors. The size of the study is a potential limitation, with a total of 10 patients being contoured and analysed. However, 45 fractions were analysed, with analysis carried out on both the MRIverif and MRIpost of each fraction (89 images in total) in order to give a good representation of the dosimetric implications of intrafraction motion.
The lack of control group is a limitation when trying to establish whether the MRL and the integration of adaptive radiotherapy is truly beneficial in delivering 2-fraction SBRT to the prostate. This could be addressed in the future using CT-based imaging, with or without CT-guided adaptation. The dose strategies for the two arms are different, with the 2-fraction cohort having a GTV-only boost, and the 5-fraction cohort receiving a boost of 40 Gy to the whole prostate (with no margin). The latter artificially elevates the dose, meaning the dose to the CTV is artificially elevated at baseline and can therefore fall further without violating the CTV dose objective. These factors limit the potential to compare the dose delivery between the two cohorts and compare it to a delivered dose on another platform.
This study examines intrafraction motion as measured on the MRIverif and MRIpost; however, prostate motion could be of a larger amplitude during treatment. Reassuringly, studies examining the motion of the prostate over time suggests that it follows a random walk model with the variance growing over time [36]. If this is indeed the case, then the MRIpost likely represents the worse possible scenario with the amplitude of motion being smaller during treatment. As previously discussed, it is possible that patient motion or relaxation after the beam is switched off may exaggerate the dosimetric effect of motion observed on the MRIpost. As a safety solution, manual beam hold based on real-time cine MR images mitigates the possibility of the prostate moving outside of the 3 mm CTV-PTV margin during treatment.
The clinical outcomes supporting the safe reduction in CTV-PTV margins are not yet available. With margin reduction on the MRL being only recently introduced, there has not yet been an analysis of biochemical control. Indeed, with the biochemical control after SBRT in the PACE-B trial now exceeding 95%, a very large trial would be needed to demonstrate the non-inferiority of biochemical control for margin changes and is likely not feasible. With 68% of men in MIRAGE and all men in HERMES receiving hormonal treatment the data on PSA kinetics from these small trials are still maturing. A secondary end point of HERMES includes 5-year biochemical recurrence-free survival, which will help to confirm the safety of CTV-PTV margin reduction in the context of 2-fraction prostate MRIgART, along with other two fraction trials such as FORT (NCT04984343), iSMART (NCT05600400) and SABR-Dual (NCT0602789) [37,38]. Cost-effectiveness of 2-fraction vs. 5-fraction MRIgART, or longer schedules, is yet to be determined. The toxicity and oncological outcomes of these trials, and the HERMES trial, are currently immature but will be important in order to determine the future direction of prostate SBRT.

5. Conclusions

In HERMES the innovative delivery of 2-fraction MRIgART with a boost to the tumour is achievable and, for most patients, dose delivered closely matches dose planned despite intrafraction motion. The ERE was shown to have a potential impact on rectal dose suggesting that further studies are required to find out how to best mitigate these effects.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers16112073/s1, Material S1a: Dose constraints used in the planning of the 2-fraction regime; Material S1b: Dose constraints used in the planning of the 5-fraction regimen (based on PACE B protocol); Material S2: The dose to the targets in the 2-fraction cohort; Material S3: The dose to the targets in the 5-fraction cohort; Material S4: The dose to the OARs in the 2-fraction cohort; Material S5: The dose to the OARs in the 5-fraction cohort; Material S6a: Linear correlation coefficient between the difference in the rectal D1cm3 (cGy) when calculated with and without the presence of air and the volume of air in the rectum within 1 cm of the prostate volume in the 2-fraction cohort; Material S6b: Linear correlation coefficient between the difference in the rectal D1cm3 (cGy) when calculated with and without the presence of air and the volume of air in the rectum within 1 cm of the prostate volume in the 5-fraction cohort. Material S7a. Change is rectal D1 cm3 when calculated with and without the presence of air in the in the 2-fraction cohort. Material S7b. Change is rectal D1 cm3 when calculated with and without the presence of air in the in the 2-fraction cohort.

Author Contributions

Conceptualization, R.W., A.D. and A.C.T.; methodology, R.W., F.C., A.D. and A.C.T.; formal analysis, R.W., F.C. and A.D.; data curation, R.W., F.C., A.M., S.A., S.N., J.M., R.R., A.P., A.D. and A.C.T.; writing—original draft preparation, R.W.; writing—review and editing, R.W., F.C., R.R., S.A., A.D., A.C.T., A.P., A.M. and S.N.; supervision, A.D. and A.C.T.; funding acquisition, A.C.T. and U.O. All authors have read and agreed to the published version of the manuscript.

Funding

RW is funded by The Royal Marsden NHS Foundation Trust, with the research fellow programme receiving financial support from Elekta. This research has been supported by the JP Moulton Foundation. We are very grateful for their support.

Institutional Review Board Statement

Data for this study comes from the HERMES trial. Patients were recruited patients at The Royal Marsden NHS Foundation Trust and are sponsored by the ICR. The trial was approved by the local institutional review board and regional ethics committee (20/LO/1162), opening 27 July 2021. HERMES is conducted in accordance with the principles of good clinical practice. All participants provided voluntary written informed consent. The trial is registered on ClinicalTrials.gov (NCT04595019) and participants continue to be followed up with.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the HERMES study.

Data Availability Statement

Formal requests for data sharing are considered in line with ICR-CTSU procedures, with due regard given to funder and sponsor guidelines. Requests are undertaken via a standard proforma describing the nature of the proposed research and extent of data requirements. Data recipients are required to enter a formal data sharing agreement that describes the conditions for release and requirements for data transfer, storage, archiving, publication, and intellectual property. Requests are reviewed by the Trial Management Group (TMG) in terms of scientific merit and ethical considerations including patient consent. Data sharing is undertaken if proposed projects have a sound scientific or patient benefit rationale, as agreed by the TMG and approved by the Independent Data Monitoring and Steering Committee as required. Restrictions relating to patient confidentiality and consent will be limited by aggregating and anonymising identifiable patient data. Additionally, all indirect identifiers that could lead to deductive disclosures will be removed in line with Cancer Research UK Data Sharing Guidelines.

Acknowledgments

The Royal Marsden and the Institute of Cancer Research are members of the Elekta MR Linac consortium and receive research funding from Elekta. AT receives research funding and has received honoraria and travel grants from Elekta. This project represents independent research supported by the National Institute for Health research (NIHR) Biomedical Research Centre at The Royal Marsden NHS Foundation Trust and the Institute of Cancer Research, London. The views expressed are those of the authors and not necessarily those of the NIHR or the Department of Health and Social Care.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Brenner, D.J.; Hall, E.J. Fractionation and protraction for radiotherapy of prostate carcinoma. Int. J. Radiat. Oncol. Biol. Phys. 1999, 43, 1095–1101. [Google Scholar] [CrossRef] [PubMed]
  2. Bentzen, S.M.; Ritter, M.A. The α/β ratio for prostate cancer: What is it, really? Radiother. Oncol. 2005, 76, 1–3. [Google Scholar] [CrossRef] [PubMed]
  3. Vogelius, I.R.; Bentzen, S.M. Dose Response and Fractionation Sensitivity of Prostate Cancer After External Beam Radiation Therapy: A Meta-analysis of Randomized Trials. Radiat. Oncol. Biol. 2018, 100, 858–865. [Google Scholar] [CrossRef] [PubMed]
  4. Dearnaley, D.; Syndikus, I.; Mossop, H.; Khoo, V.; Birtle, A.; Bloomfi, D.; Graham, J.; Kirkbride, P.; Logue, J.; Malik, Z.; et al. Conventional versus hypofractionated high-dose intensity-modulated radiotherapy for prostate cancer: 5-year outcomes of the randomised, non-inferiority, phase 3 CHHiP trial. Lancet Oncol. 2016, 17, 1047–1060. [Google Scholar] [CrossRef] [PubMed]
  5. McPartlin, A.J.; Glicksman, R.; Pintilie, M.; Tsuji, D.; Mok, G.; Bayley, A.; Chung, P.; Bristow, R.G.; Gospodarowicz, M.K.; Catton, C.N.; et al. PMH 9907: Long-term outcomes of a randomized phase 3 study of short-term bicalutamide hormone therapy and dose-escalated external-beam radiation therapy for localized prostate cancer. Cancer 2016, 122, 2595–2603. [Google Scholar] [CrossRef]
  6. Lee, W.R.; Dignam, J.J.; Amin, M.B.; Bruner, D.W.; Low, D.; Swanson, G.P.; Shah, A.B.; D’Souza, D.P.; Michalski, J.M.; Dayes, I.S.; et al. Randomized phase III noninferiority study comparing two radiotherapy fractionation schedules in patients with low-risk prostate cancer. J. Clin. Oncol. 2016, 34, 2325–2332. [Google Scholar] [CrossRef] [PubMed]
  7. Widmark, A.; Gunnlaugsson, A.; Beckman, L.; Thellenberg-Karlsson, C.; Hoyer, M.; Lagerlund, M.; Kindblom, J.; Ginman, C.; Johansson, B.; Björnlinger, K.; et al. Ultra-hypofractionated versus conventionally fractionated radiotherapy for prostate cancer: 5-year outcomes of the HYPO-RT-PC randomised, non-inferiority, phase 3 trial. Lancet 2019, 394, 385–395. [Google Scholar] [CrossRef] [PubMed]
  8. Jackson, W.C.; Silva, J.; Hartman, H.E.; Dess, R.T.; Kishan, A.U.; Beeler, W.H.; Gharzai, L.A.; Jaworski, E.M.; Mehra, R.; Hearn, J.W.D.; et al. Stereotactic Body Radiation Therapy for Localized Prostate Cancer: A Systematic Review and Meta-Analysis of Over 6,000 Patients Treated On Prospective Studies. Int. J. Radiat. Oncol. Biol. Phys. 2019, 104, 778–789. [Google Scholar] [CrossRef] [PubMed]
  9. Meier, R.M.; Bloch, D.A.; Cotrutz, C.; Beckman, A.C.; Henning, G.T.; Woodhouse, S.A.; Williamson, S.K.; Mohideen, N.; Dombrowski, J.J.; Hong, R.L.; et al. Multicenter Trial of Stereotactic Body Radiation Therapy for Low- and Intermediate-Risk Prostate Cancer: Survival and Toxicity Endpoints. Int. J. Radiat. Oncol. Biol. Phys. 2018, 102, 296–303. [Google Scholar] [CrossRef]
  10. Yuan, Y.; Aghdam, N.; King, C.R.; Fuller, D.B.; Weng, J.; Chu, F.I.; Mardirossian, G.; Patel, A.; Nickols, N.G.; Kupelian, P.A.; et al. Testosterone Levels and Sexual Quality of Life after Stereotactic Body Radiation Therapy for Prostate Cancer: A Multi-Institutional Analysis of Prospective Trials. Int. J. Radiat. Oncol. Biol. Phys. 2019, 105, 149–154. [Google Scholar] [CrossRef]
  11. Kerkmeijer, L.G.W.; Groen, V.H.; Pos, F.J.; Haustermans, K.; Monninkhof, E.M.; Smeenk, R.J.; Kunze-Busch, M.; de Boer, J.C.J.; van der Voort van Zijp, J.; van Vulpen, M.; et al. Focal Boost to the Intraprostatic Tumor in External Beam Radiotherapy for Patients with Localized Prostate Cancer: Results From the FLAME Randomized Phase III Trial. J. Clin. Oncol. 2021, 39, 787–796. [Google Scholar] [CrossRef] [PubMed]
  12. Draulans, C.; van der Heide, U.A.; Haustermans, K.; Pos, F.J.; van der Voort van Zyp, J.; De Boer, H.; Groen, V.H.; Monninkhof, E.M.; Smeenk, R.J.; Kunze-Busch, M.; et al. Primary endpoint analysis of the multicentre phase II hypo-FLAME trial for intermediate and high risk prostate cancer. Radiother. Oncol. 2020, 147, 92–98. [Google Scholar] [CrossRef] [PubMed]
  13. Ong, W.L.; Cheung, P.; Chung, H.; Chu, W.; Detsky, J.; Liu, S.; hoskin, G.; Szumacher, E.; Tseng, C.L.; Vesprini, D.; et al. Two-fraction stereotactic ablative radiotherapy with simultaneous boost to MRI-defined dominant intra-prostatic lesion—Results from the 2SMART phase 2 trial. Radiother. Oncol. 2023, 181, 109503. [Google Scholar] [CrossRef]
  14. Brennan, V.S.; Burleson, S.; Kostrzewa, C.; Godoy Scripes, P.; Subashi, E.; Zhang, Z.; Tyagi, N.; Zelefsky, M.J. SBRT focal dose intensification using an MR-Linac adaptive planning for intermediate-risk prostate cancer: An analysis of the dosimetric impact of intra-fractional organ changes. Radiother. Oncol. 2023, 179, 109441. [Google Scholar] [CrossRef] [PubMed]
  15. Raaymakers, B.W.; Lagendijk, J.J.W.; Overweg, J.; Kok, J.G.M.; Raaijmakers, A.J.E.; Kerkhof, E.M.; Van Der Put, R.W.; Meijsing, I.; Crijns, S.P.M.; Benedosso, F.; et al. Integrating a 1.5 T MRI scanner with a 6 MV accelerator: Proof of concept. Phys. Med. Biol. 2009, 54, N229-37. [Google Scholar] [CrossRef] [PubMed]
  16. Tocco, B.R.; Kishan, A.U.; Ma, T.M.; Kerkmeijer, L.G.W.; Tree, A.C. MR-Guided Radiotherapy for Prostate Cancer. Front. Oncol. 2020, 10, 616291. [Google Scholar] [CrossRef] [PubMed]
  17. Westley, D.R.L.; Biscombe, K.; Dunlop, A.; Mitchell, A.; Oelfke, U.; Nil, S.; Murray, J.; Pathmanathan, A.; Hafeez, S.; Parker, C.; et al. Interim toxicity analysis from the randomised HERMES trial of 2- and 5-fraction MRI-guided adaptive prostate radiation therapy. Int. J. Radiat. Oncol. Biol. Phys. 2023, 118, 682–687. [Google Scholar] [CrossRef] [PubMed]
  18. Alexander, S.E.; Oelfke, U.; McNair, H.A.; Tree, A.C. GI factors, potential to predict prostate motion during radiotherapy; a scoping review. Clin. Transl. Radiat. Oncol. 2023, 40, 100604. [Google Scholar] [CrossRef] [PubMed]
  19. Raaijmakers, A.J.E.; Raaymakers, B.W.; Lagendijk, J.J.W. Integrating a MRI scanner with a 6 MV radiotherapy accelerator: Dose increase at tissue-air interfaces in a lateral magnetic field due to returning electrons. Phys. Med. Biol. 2005, 50, 1363–1376. [Google Scholar] [CrossRef]
  20. Godoy Scripes, P.; Subashi, E.; Burleson, S.; Liang, J.; Romesser, P.; Crane, C.; Mechalakos, J.; Hunt, M.; Tyagi, N. Impact of varying air cavity on planning dosimetry for rectum patients treated on a 1.5 T hybrid MR-linac system. J. Appl. Clin. Med. Phys. 2020, 21, 144–152. [Google Scholar] [CrossRef]
  21. de Mol van Otterloo, S.R.; Christodouleas, J.P.; Blezer, E.L.A.; Akhiat, H.; Brown, K.; Choudhury, A.; Eggert, D.; Erickson, B.A.; Faivre-Finn, C.; Fuller, C.D.; et al. The MOMENTUM Study: An International Registry for the Evidence-Based Introduction of MR-Guided Adaptive Therapy. Front Oncol. 2020, 10, 1328. [Google Scholar] [CrossRef] [PubMed]
  22. Tree, A.C.; Ostler, P.; van der Voet, H.; Chu, W.; Loblaw, A.; Ford, D.; Tolan, S.; Jain, S.; Martin, A.; Staffurth, J.; et al. Intensity-modulated radiotherapy versus stereotactic body radiotherapy for prostate cancer (PACE-B): 2-year toxicity results from an open-label, randomised, phase 3, non-inferiority trial. Lancet Oncol. 2022, 23, 1308–1320. [Google Scholar] [CrossRef] [PubMed]
  23. Dunlop, A.; Mitchell, A.; Tree, A.; Barnes, H.; Bower, L.; Chick, J.; Goodwin, E.; Herbert, T.; Lawes, R.; McNair, H.; et al. Daily adaptive radiotherapy for patients with prostate cancer using a high field MR-linac: Initial clinical experiences and assessment of delivered doses compared to a C-arm linac. Clin. Transl. Radiat. Oncol. 2020, 23, 35–42. [Google Scholar] [CrossRef] [PubMed]
  24. Willigenburg, T.; Zachiu, C.; Bol, G.H.; de Groot-van Beugel, E.N.; Lagendijk, J.J.W.; van der Voort van Zyp, J.R.N.; Raaymakers, B.W.; de Boer, J.C.J. Clinical application of a sub-fractionation workflow for intrafraction re-planning during prostate radiotherapy treatment on a 1.5 Tesla MR-Linac: A practical method to mitigate intrafraction motion. Radiother. Oncol. 2022, 176, 25–30. [Google Scholar] [CrossRef] [PubMed]
  25. Soh, R. Advantages of MR-guided radiotherapy with comprehensive motion management using Elekta Unity. J. Med. Imaging Radiat. Sci. 2023, 54, S1. [Google Scholar] [CrossRef]
  26. Hoskin, P.; Rojas, A.; Ostler, P.; Hughes, R.; Alonzi, R.; Lowe, G.; Bryant, L. High-dose-rate brachytherapy alone given as two or one fraction to patients for locally advanced prostate cancer: Acute toxicity. Radiother. Oncol. 2014, 110, 268–271. [Google Scholar] [CrossRef] [PubMed]
  27. Jawad, M.S.; Dilworth, J.T.; Gustafson, G.S.; Ye, H.; Wallace, M.; Martinez, A.; Chen, P.Y.; Krauss, D.J. Outcomes Associated with 3 Treatment Schedules of High-Dose-Rate Brachytherapy Monotherapy for Favorable-Risk Prostate Cancer. Int. J. Radiat. Oncol. Biol. Phys. 2016, 94, 657–666. [Google Scholar] [CrossRef] [PubMed]
  28. Morton, G.; McGuffin, M.; Chung, H.T.; Tseng, C.L.; Helou, J.; Ravi, A.; Cheung, P.; Szumacher, E.; Liu, S.; Chu, W.; et al. Prostate high dose-rate brachytherapy as monotherapy for low and intermediate risk prostate cancer: Early toxicity and quality-of life results from a randomized phase II clinical trial of one fraction of 19Gy or two fractions of 13.5Gy. Radiother. Oncol. 2017, 122, 87–92. [Google Scholar] [CrossRef] [PubMed]
  29. Ferini, G.; Zagardo, V.; Valenti, V.; Aiello, D.; Federico, M.; Fazio, I.; Harikar, M.M.; Marchese, V.A.; Illari, S.I.; Viola, A.; et al. Towards Personalization of Planning Target Volume Margins Fitted to the Abdominal Adiposity in Localized Prostate Cancer Patients Receiving Definitive or Adjuvant/Salvage Radiotherapy: Suggestive Data from an ExacTrac vs. CBCT Comparison. Anticancer Res. 2023, 43, 4077–4088. [Google Scholar] [CrossRef]
  30. Ferini, G.; Pergolizzi, S. A ten-year-long update on radiation proctitis among prostate cancer patients treated with curative external beam radiotherapy. In Vivo Int. Inst. Anticancer. Res. 2021, 35, 1379–1391. [Google Scholar] [CrossRef]
  31. Ferini, G.; Tripoli, A.; Molino, L.; Cacciola, A.; Lillo, S.; Parisi, S.; Umina, V.; Illari, S.I.; Marchese, V.A.; Cravagno, I.R.; et al. How much daily image-guided volumetric modulated arc therapy is useful for proctitis prevention with respect to static intensity modulated radiotherapy supported by topical medications among localized prostate cancer patients? Anticancer Res. 2021, 41, 2101–2110. [Google Scholar] [CrossRef] [PubMed]
  32. Kishan, A.U.; Ma, T.M.; Lamb, J.M.; Casado, M.; Wilhalme, H.; Low, D.A.; Sheng, K.; Sharma, S.; Nickols, N.G.; Pham, J.; et al. Magnetic Resonance Imaging-Guided vs Computed Tomography-Guided Stereotactic Body Radiotherapy for Prostate Cancer: The MIRAGE Randomized Clinical Trial. JAMA Oncol. 2023, 9, 365–373. [Google Scholar] [CrossRef] [PubMed]
  33. Parikh, N.R.; Clark, M.A.; Patel, P.; Kafka-Peterson, K.; Zaide, L.; Ma, T.M.; Steinberg, M.L.; Cao, M.; Raldow, A.C.; Lamb, J.; et al. Time-Driven Activity-Based Costing of CT-Guided vs MR-Guided Prostate SBRT. Appl. Radiat. 2021, 10, 33. [Google Scholar] [CrossRef]
  34. Kraus, R.D.; Weil, C.R.; Abdel-Wahab, M. Benefits of Adopting Hypofractionated Radiotherapy as a Standard of Care in Low-and Middle-Income Countries. JCO Glob. Oncol. 2022, 8, e2200215. [Google Scholar] [CrossRef] [PubMed]
  35. Mendenhall, W.M.; Glassman, G.; Morris, C.G.; Costa, J.A.; Williams, C.R.; Harris, S.E.; Mandia, S.E.; Hoppe, B.S.; Henderson, R.H.; Bryant, C.M.; et al. Bacterial Urinary Tract Infection after Transrectal Placement of Fiducial Markers prior to Proton Radiotherapy for Prostate Cancer. Int. J. Part. Ther. 2016, 3, 21–26. [Google Scholar] [CrossRef] [PubMed]
  36. Pommer, T.; Oh, J.H.; Munck af Rosenschöld, P.; Deasy, J.O. Simulating intrafraction prostate motion with a random walk model. Adv. Radiat Oncol. 2017, 2, 429–436. [Google Scholar] [CrossRef] [PubMed]
  37. Fredman, E.; Icht, O.; Moore, A.; Bragilovski, D.; Kindler, J.; Golan, S.; Limon, D. SABR-Dual: A phase II/III trial of two-fraction versus five-fraction stereotactic radiotherapy for localized low- and favorable intermediate-risk prostate cancer. BMC Cancer 2024, 24, 431. [Google Scholar] [CrossRef]
  38. Wolfe, S.; Diven, M.A.; Marciscano, A.E.; Zhou, X.K.; Kishan, A.U.; Steinberg, M.L.; Miccio, J.A.; Camilleri, P.; Nagar, H. A randomized phase II trial of MR-guided prostate stereotactic body radiotherapy administered in 5 or 2 fractions for localized prostate cancer (FORT). BMC Cancer 2023, 23, 923. [Google Scholar] [CrossRef]
Cancers 16 02073 g001

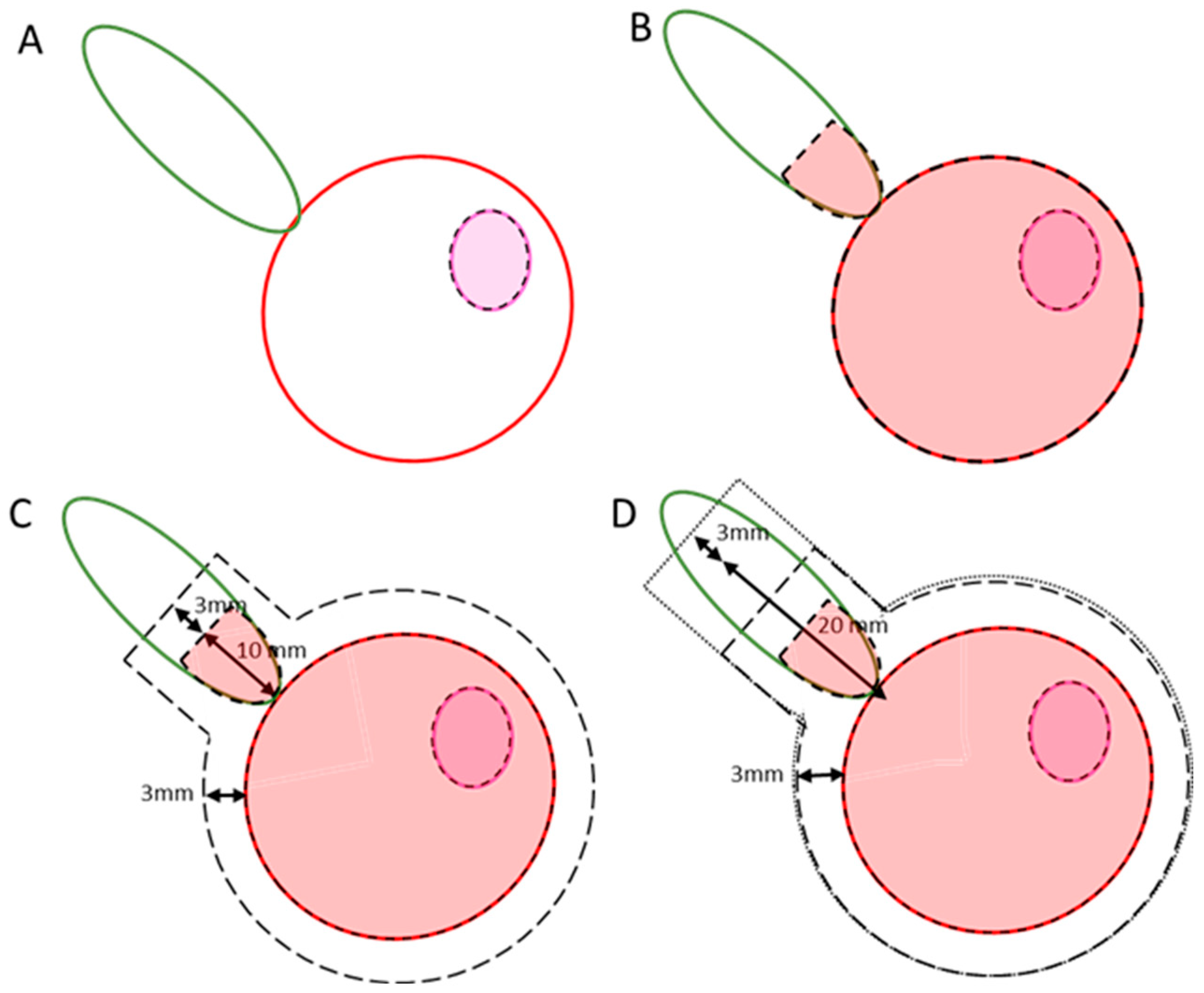

Figure 1. Targets with their associated margins. The prostate is shown with the red outline, and the seminal vesicles in green. The GTV is represented by the fuchsia outline. (A) shows how the GTV is treated without a PTV margin, receiving 27 Gy in the 2-fraction group, shown with the pink shadowing. In (B), the black dashed line represents the CTVpsv with the red shadowing representing the boosting to 40 Gy in the 5-fraction group. (C) shows PTVpsv, with the outer black dashed line and no fill; this receives 24 Gy in the 2-fraction arm and 36.25 Gy in the 5-fraction arm. In (D) the dotted line, with no fill, represents the PTVsv; this receives 20 Gy in the 2-fraction group and 30 Gy in the 5-fraction group.
Figure 1. Targets with their associated margins. The prostate is shown with the red outline, and the seminal vesicles in green. The GTV is represented by the fuchsia outline. (A) shows how the GTV is treated without a PTV margin, receiving 27 Gy in the 2-fraction group, shown with the pink shadowing. In (B), the black dashed line represents the CTVpsv with the red shadowing representing the boosting to 40 Gy in the 5-fraction group. (C) shows PTVpsv, with the outer black dashed line and no fill; this receives 24 Gy in the 2-fraction arm and 36.25 Gy in the 5-fraction arm. In (D) the dotted line, with no fill, represents the PTVsv; this receives 20 Gy in the 2-fraction group and 30 Gy in the 5-fraction group.
Cancers 16 02073 g001
Cancers 16 02073 g002

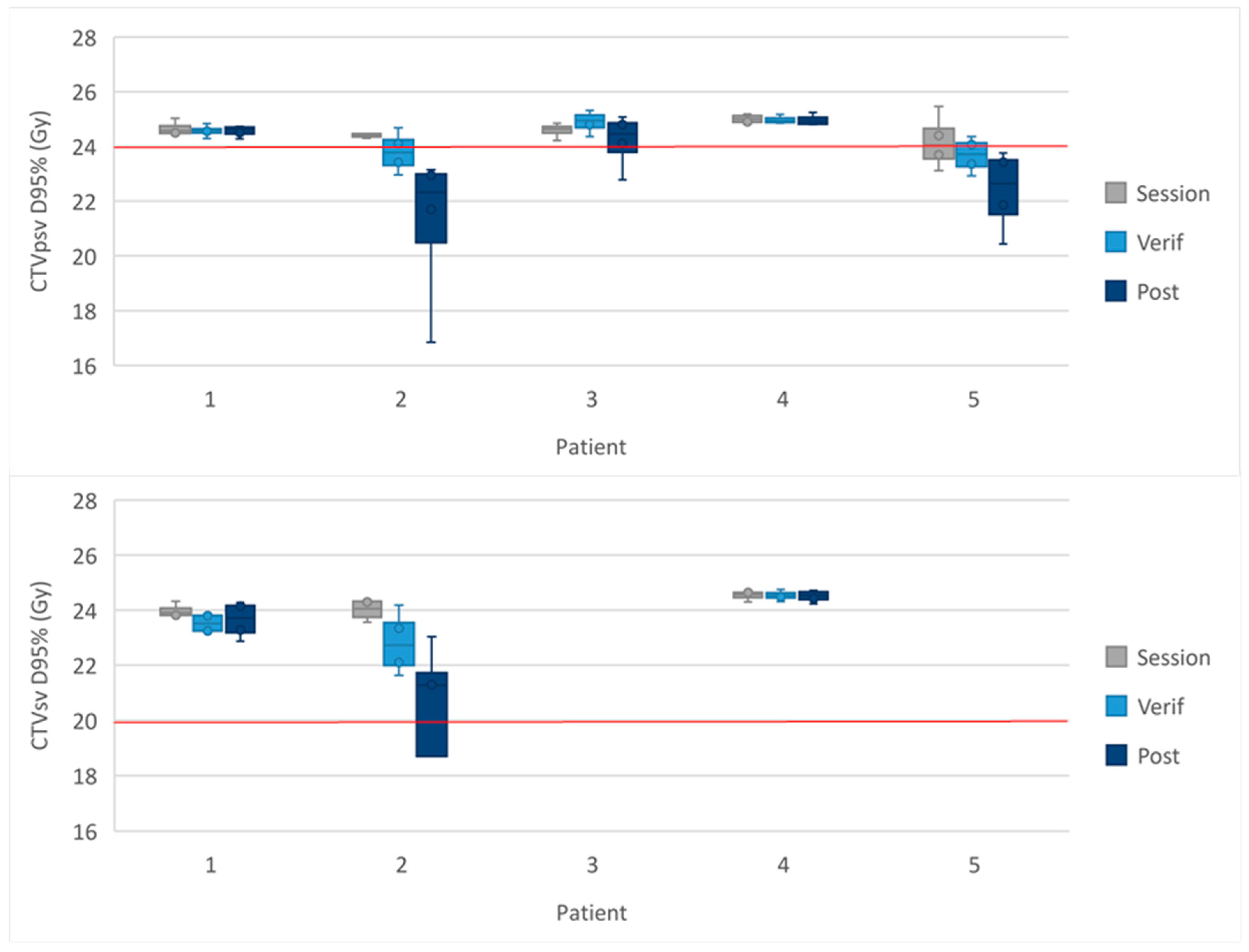

Figure 2. Dose to the CTVpsv D95% and CTVsv D95% in the 2-fraction cohort. The spread of the D95% received by the targets for each sub-fraction for every patient in the 2-fraction cohort. The whiskers show the range, the box the IQR and the midline the median. The red line represents the protocol-defined constraint.
Figure 2. Dose to the CTVpsv D95% and CTVsv D95% in the 2-fraction cohort. The spread of the D95% received by the targets for each sub-fraction for every patient in the 2-fraction cohort. The whiskers show the range, the box the IQR and the midline the median. The red line represents the protocol-defined constraint.
Cancers 16 02073 g002
Cancers 16 02073 g003

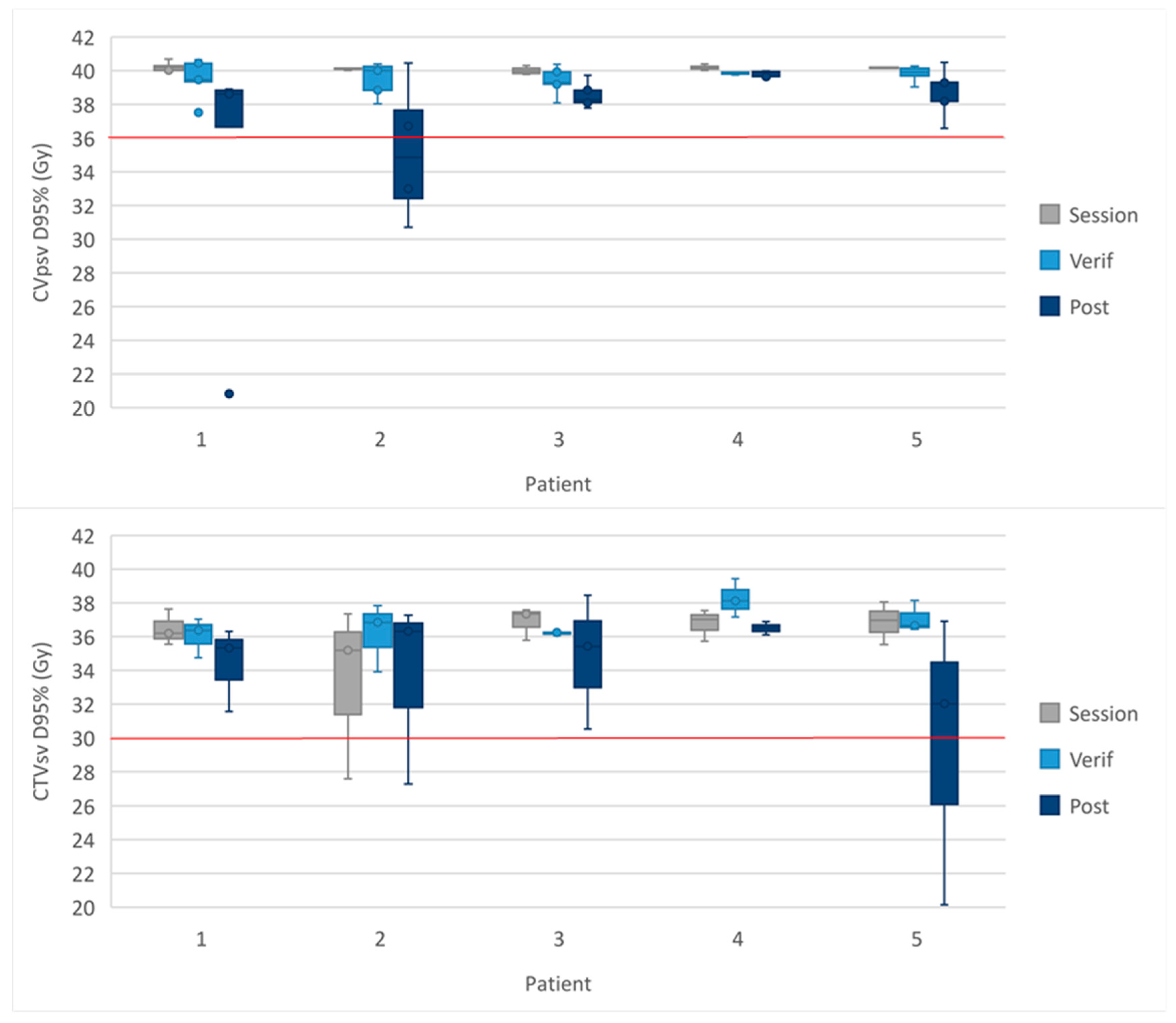

Figure 3. Dose to the CTVpsv D95% and CTVsv D95% in the 5-fraction cohort. The spread of the D95% received by the targets for each patient in the 5-fraction cohort. The whiskers show the range, the box the IQR and the midline the median. The red line represents the protocol-defined constraint. The CTVpsv in the MRIsession often starts at 40 Gy due to the additional CTVpsv V40 Gy > 95%.
Figure 3. Dose to the CTVpsv D95% and CTVsv D95% in the 5-fraction cohort. The spread of the D95% received by the targets for each patient in the 5-fraction cohort. The whiskers show the range, the box the IQR and the midline the median. The red line represents the protocol-defined constraint. The CTVpsv in the MRIsession often starts at 40 Gy due to the additional CTVpsv V40 Gy > 95%.
Cancers 16 02073 g003
Cancers 16 02073 g004

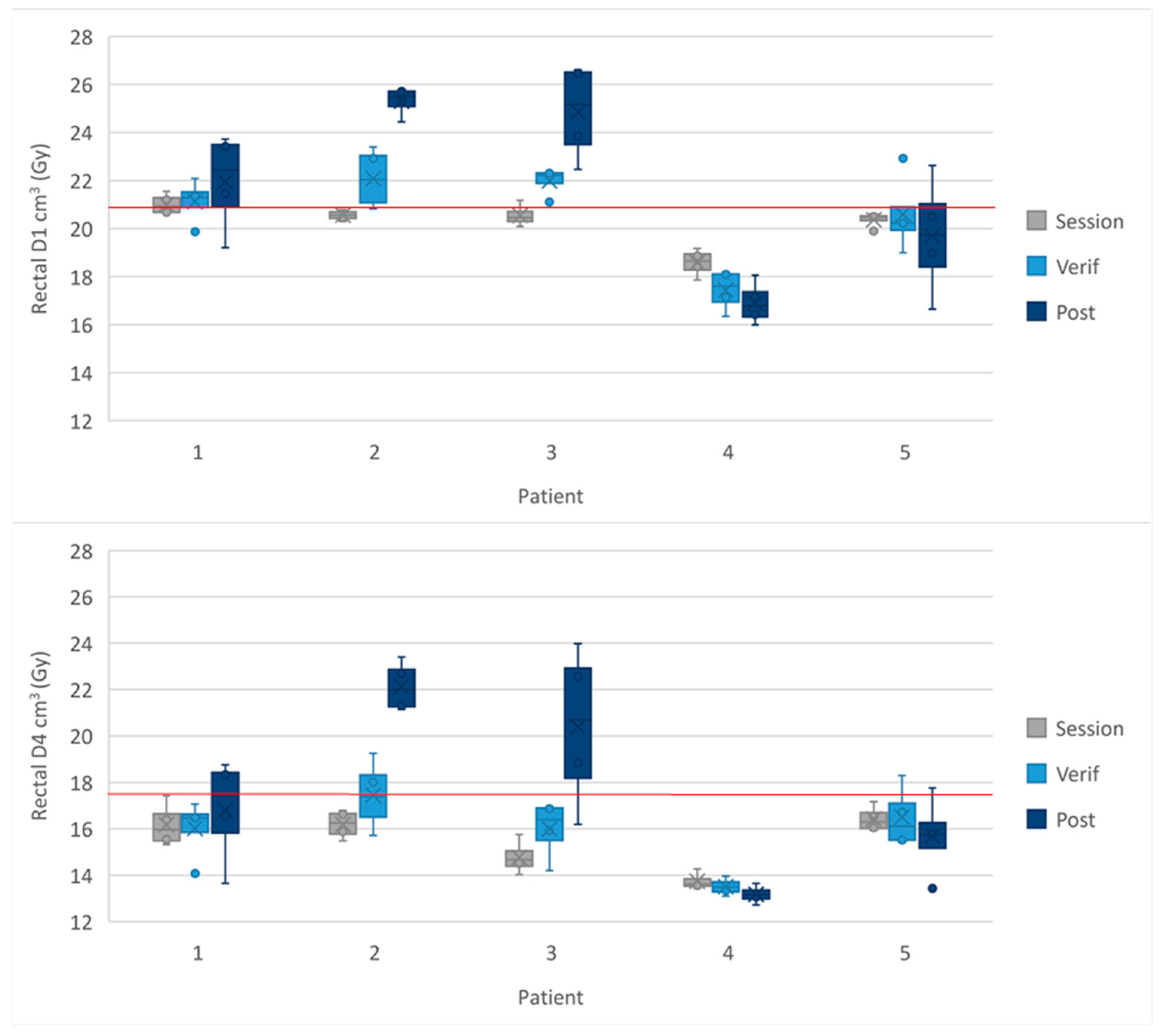

Figure 4. Dose to the rectal D1 cm3 and D4 cm3 in the 2-fraction cohort. The cross in the box plot represents the accumulated mean dose calculated from all 4 sub-fractions for each patient. The whiskers show the range and the box shows the IQR. The red line represents the protocol-defined constraint.
Figure 4. Dose to the rectal D1 cm3 and D4 cm3 in the 2-fraction cohort. The cross in the box plot represents the accumulated mean dose calculated from all 4 sub-fractions for each patient. The whiskers show the range and the box shows the IQR. The red line represents the protocol-defined constraint.
Cancers 16 02073 g004
Cancers 16 02073 g005

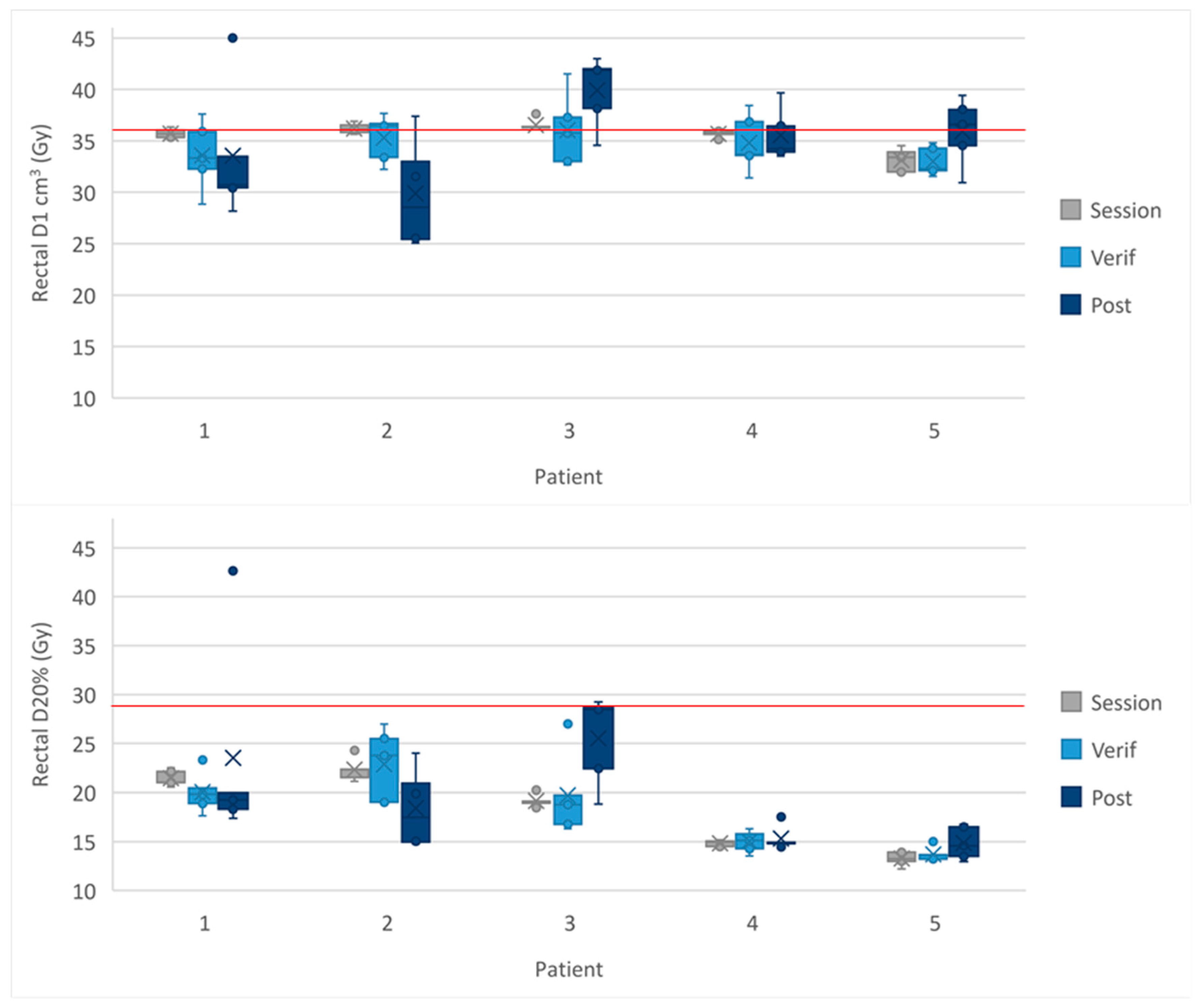

Figure 5. Dose to the rectal D1 cm3 and D20% in the 5-fraction cohort. The cross in the box plot represents the accumulated mean dose calculated from all 5 fractions for each patient. The whiskers show the range and the box shows the IQR. The red line represents the protocol-defined constraint.
Figure 5. Dose to the rectal D1 cm3 and D20% in the 5-fraction cohort. The cross in the box plot represents the accumulated mean dose calculated from all 5 fractions for each patient. The whiskers show the range and the box shows the IQR. The red line represents the protocol-defined constraint.
Cancers 16 02073 g005
Cancers 16 02073 g006

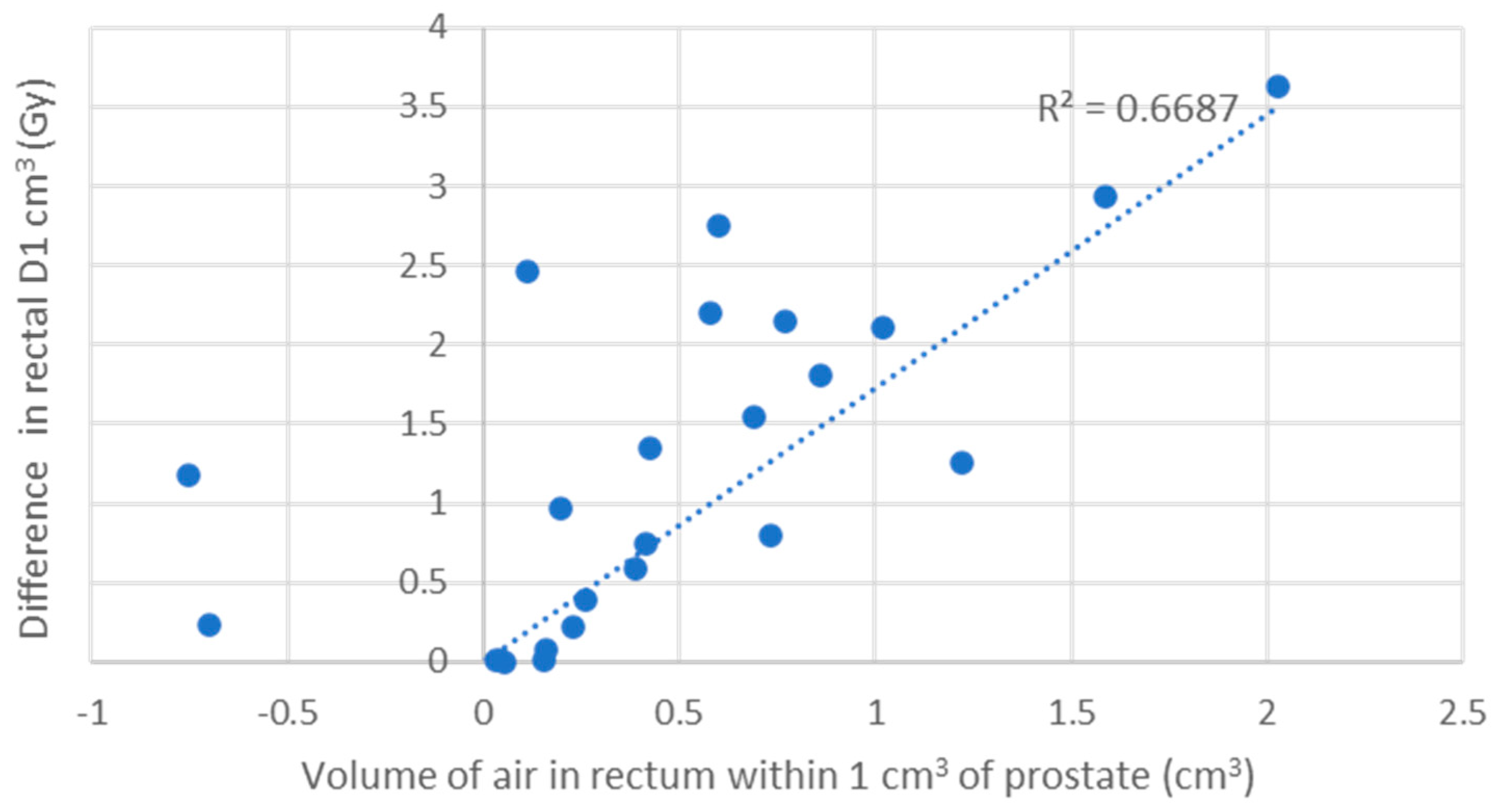

Figure 6. Correlation between volume of air in the rectum and change in dose to rectal D1 cm3 in the 2-fraction cohort.
Figure 6. Correlation between volume of air in the rectum and change in dose to rectal D1 cm3 in the 2-fraction cohort.
Cancers 16 02073 g006
Cancers 16 02073 g007

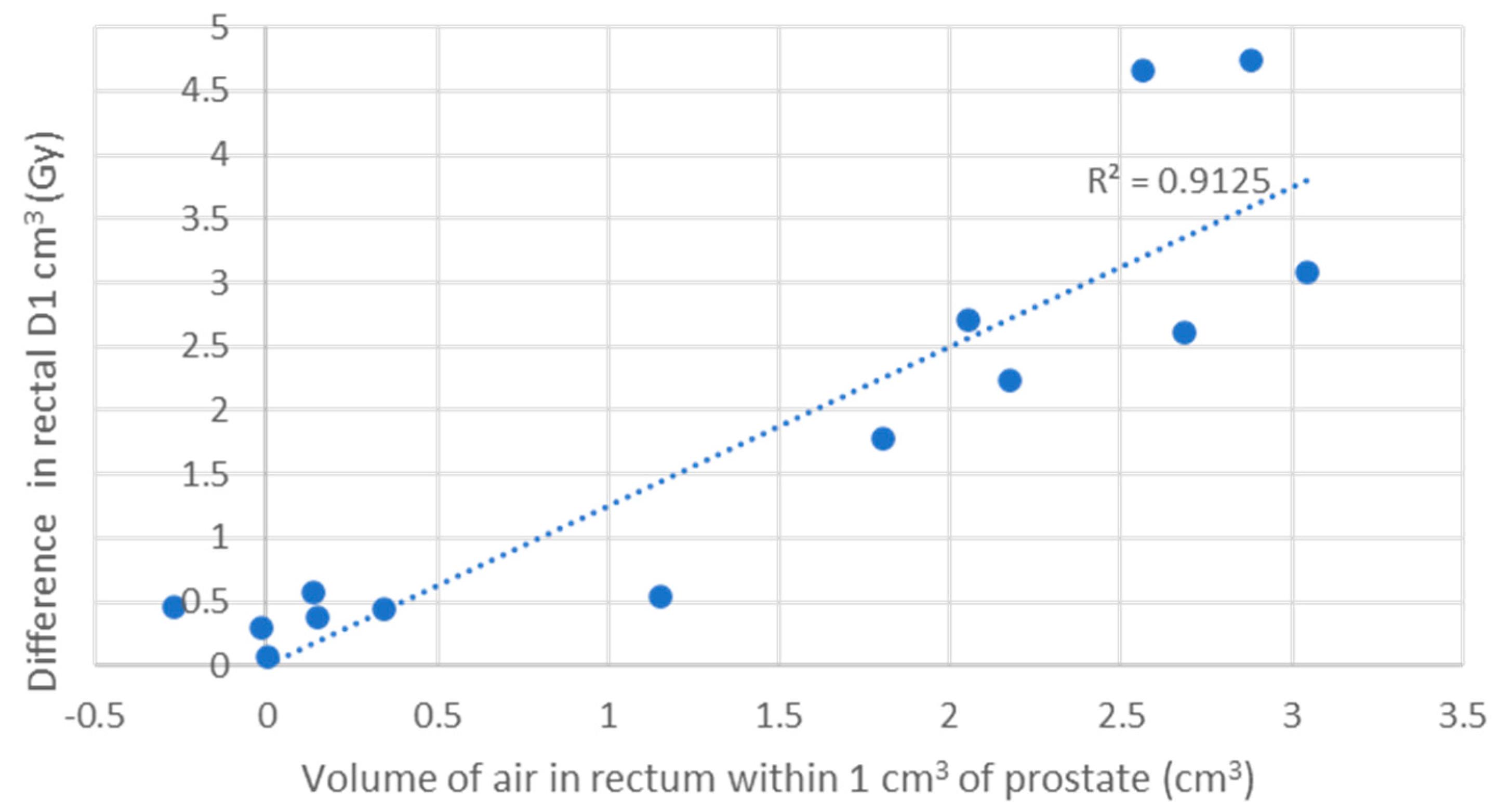

Figure 7. Correlation between the volume of air in the rectum and the change in dose to rectal D1 cm3 in the 5-fraction cohort. The linear correlation coefficient between the difference in the rectal D1 cm3 (Gy) calculated with and without the presence of air and the volume of air in the rectum within 1 cm of the prostate volume in the 2-fraction cohort. If the volume of air in the rectum remained present throughout each sub-fraction it is estimated that for each 1 cm2 of air the dose to the rectal wall would be expected to increase by 1.25 Gy over the full course of treatment. R = 0.90. Only fractions with air within 1 cm of the PTV were included.
Figure 7. Correlation between the volume of air in the rectum and the change in dose to rectal D1 cm3 in the 5-fraction cohort. The linear correlation coefficient between the difference in the rectal D1 cm3 (Gy) calculated with and without the presence of air and the volume of air in the rectum within 1 cm of the prostate volume in the 2-fraction cohort. If the volume of air in the rectum remained present throughout each sub-fraction it is estimated that for each 1 cm2 of air the dose to the rectal wall would be expected to increase by 1.25 Gy over the full course of treatment. R = 0.90. Only fractions with air within 1 cm of the PTV were included.
Cancers 16 02073 g007
Table 1. Target dosimetric criterion for each of the doses analysed for the targets (A) and OARs (B) in the 5-fraction and 2-fraction cohorts.
Table 1. Target dosimetric criterion for each of the doses analysed for the targets (A) and OARs (B) in the 5-fraction and 2-fraction cohorts.
A.Target Dosimetric Criterion
Structure2-fraction5-fraction
GTV_27V27 Gy > 95% (−5%)NA
CTVpsvV24 Gy > 95% (−5%)V36.25 Gy > 95%
CTVsv
(lower high-risk patients)		V20 Gy > 95% (−5%)V30 Gy > 95%
B.OAR Dosimetric Criterion
Structure2-fraction5-fraction
UrethraD10% < 26 Gy (+1 Gy)D50% < 42 Gy
BladderD5 cm3 < V20.8 GyD5 cm3 (+5 cm3) < V37 Gy
D15 cm3 < V14.6 GyD40% < 18.1 Gy
RectumD1 cm3 < 20.8 GyD1 cm3 (+1 cm3) < 36 Gy
D4 cm3 < 17.6 GyD20% < 29 Gy
The dose received by the CTV was measured rather than that delivered to the PTV. Figures in parentheses represent acceptable deviations (mandatory constraints).
Table 2. The percentage of target volumes meeting the mandatory dose constraint across all sub-fractions/fractions.
Table 2. The percentage of target volumes meeting the mandatory dose constraint across all sub-fractions/fractions.
Mandatory Constraints Met (%)
CohortTargetDosimetric CriterionSessionVerifPost
2-fractionGTVV27 Gy > 95% (−5%)100%89%89%
CTVpsvV24 Gy > 95% (−5%)100%100%90%
CTVsvV20 Gy > 95% (−5%)100%100%92%
5-fractionCTVpsvV36.25 Gy > 95%100%100%88%
CTVsvV30 Gy > 95%100%100%92%
The dosimetric criteria shown in parentheses represent the mandatory constraint as opposed to the optimal constraint of 95%.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Westley, R.; Casey, F.; Mitchell, A.; Alexander, S.; Nill, S.; Murray, J.; Ratnakumaran, R.; Pathmanathan, A.; Oelfke, U.; Dunlop, A.; et al. Stereotactic Body Radiotherapy (SBRT) to Localised Prostate Cancer in the Era of MRI-Guided Adaptive Radiotherapy: Doses Delivered in the HERMES Trial Comparing Two- and Five-Fraction Treatments. Cancers 2024, 16, 2073. https://doi.org/10.3390/cancers16112073

AMA Style

Westley R, Casey F, Mitchell A, Alexander S, Nill S, Murray J, Ratnakumaran R, Pathmanathan A, Oelfke U, Dunlop A, et al. Stereotactic Body Radiotherapy (SBRT) to Localised Prostate Cancer in the Era of MRI-Guided Adaptive Radiotherapy: Doses Delivered in the HERMES Trial Comparing Two- and Five-Fraction Treatments. Cancers. 2024; 16(11):2073. https://doi.org/10.3390/cancers16112073

Chicago/Turabian Style

Westley, Rosalyne, Francis Casey, Adam Mitchell, Sophie Alexander, Simeon Nill, Julia Murray, Ragu Ratnakumaran, Angela Pathmanathan, Uwe Oelfke, Alex Dunlop, and et al. 2024. "Stereotactic Body Radiotherapy (SBRT) to Localised Prostate Cancer in the Era of MRI-Guided Adaptive Radiotherapy: Doses Delivered in the HERMES Trial Comparing Two- and Five-Fraction Treatments" Cancers 16, no. 11: 2073. https://doi.org/10.3390/cancers16112073

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
